WO2009149253A2 - Mrna cap analogs - Google Patents

Abstract

Dinucleotide cap analogs are disclosed, modified at different phosphate positions with a boranophosphate group or a phosphoroselenoate group. The analogs are useful as reagents in the preparation of capped mRNAs and have increased stability both in vitro and in vivo. They may be used as inhibitors of cap-dependent translation. Optionally, the boranophosphate or phosphoroselenoate group has a 2'-O or 3'-O-alkyl group, preferably a methyl group, producing analogs called BH₃-ARCAs or Se-ARCAs. ARCAs may be modified with α-, β-, or γ-boranophosphate or phosphoroselenoate groups.

Description

mRNA CAP ANALOGS

Joanna Kowalska, Jacek Jemielity, Edward Darzynkiewicz, Robert E. Rhoads, Maciej Lukaszewicz, Joanna Zuberek

FiIe No. Rhoads 09S15W

The development of this invention was partially funded by the United States government under grant number R01 GM20818 awarded by the National Institute of General Medical Sciences of the National Institutes of Health. The United States government has certain rights in this invention.

The development of this invention was partially funded by the Government of Poland under grant number PBZ-MNiSW-07/l/2007 awarded by the National Science Support Project 2008-2010.

TECHNICAL FIELD

[0001] This invention pertains to new dinucleotide cap analogs and their uses, RNA molecules containing these analogs, the use of these analogs in RNA synthesis, the use of these analogs in peptide and protein synthesis, the use of these analogs to inhibit translation, and other uses.

BACKGROUND ART

[0002] Ribonucleic acid (RNA) is a single-stranded, linear polymer of nucleotides. Each nucleotide unit contains a nitrogenous base, a ribose sugar, and a phosphate group. There are several types of RNA molecules. Messenger RNA (mRNA) molecules are those whose nucleotide sequence determines the amino acid composition of proteins. In eukaryotes, the 5'-ends of most mRNAs are blocked, or "capped" with a modified guanine nucleotide. The cap contains a 5'-5' triphosphate linkage between two nucleosides and a 7-methyl group on a guanine ring distal to the RNA polymer chain. Some other forms of RNA are also capped, e.g., small nuclear RNAs (snRNAs). RNA capping regulates intracellular molecular activities, including RNA stability and translational efficiency.

[0003] The ability to synthesize capped RNA molecules in vitro is useful because it allows one to prepare RNA molecules that will function properly in a variety of biological applications. Such applications include both research applications and commercial production of polypeptides, e.g., producing in a cell-free translation system polypeptides containing an "unnatural" amino acid at a specific site, or producing in cultured cells polypeptides that require post-translational modification for activity or stability. Because capped RNA molecules are more stable and bind more readily to the cell's translational machinery, translation of capped RNAs proceeds for a considerably longer time than is the case for non-capped RNAs, resulting in greater production of protein.

[0004] The method most frequently used to make capped RNAs in vitro is to transcribe a DNA template with either a bacterial or bacteriophage RNA polymerase in the presence of all four ribonucleoside triphosphates and a cap dinucleotide such as m⁷G(5')ppp(5')G (also called m⁷GpppG). The RNA polymerase initiates transcription with a nucleophilic attack by the 3'-OH of the Guo moiety of m⁷GpppG on the α-phosphate of the next templated nucleoside triphosphate, resulting in the intermediate m⁷GpppGpN. The formation of the competing GTP-initiated product pppGpN is suppressed by setting the molar ratio of m⁷GpppG to GTP between 5 and 10 in the transcription reaction mixture. The 5'- capped mRNAs produced with m⁷GpppG can take either of two forms, one containing the cap analog incorporated in the correct, forward orientation [m⁷G(5')ppp(5')GpNp...], and one containing the analog in the reverse orientation [G(5')ppp(5')m⁷GpNp...]. The latter are not recognized as capped mRNAs by the cell's translational machinery and decrease the translational efficiency of synthetic mRNA preparations. This problem can be averted by the use of cap analogs that have O-methyl or deoxy modifications at either the C2' or C3' positions of m7Guo. See J. Stepinski et ai, "Synthesis and properties of mRNAs containing the novel "anti-reverse" cap analogues 7-methyl(3'-O-methyl)GpppG and 7-methyl(3'- deoxy)GpppG," RNA, vol. 7, pp. 1486-1495 (2001 ); and J. Jemielity et ai., "Novel 'anti- reverse' cap analogues with superior translational properties," RNA, vol. 9, pp. 1108-1122 (2003). These cap analogs are incorporated into RNA transcripts exclusively in the forward orientation and are therefore called "anti-reverse cap analogs" (ARCAs). In a rabbit reticulocyte lysate (RRL) translation system, ARCA-capped mRNAs had translational efficiencies that were two-fold higher than transcripts capped with m⁷GpppG (Stepinski et ai., 2001 ). In cultured mammalian cells, mRNAs capped with ARCAs are translated 2- to 2.5-fold more efficiently than those capped with m⁷GpppG. See E. Grudzien et ai., "Differential inhibition of mRNA degradation pathways by novel cap analogs," J. Biol. Chem., vol. 281 , pp. 1857-1867 (2006).

[0005] The amount of protein produced from synthetic mRNAs introduced into cultured mammalian cells is limited by the natural degradation of mRNA. One in vivo pathway for mRNA degradation begins with the removal of the mRNA cap. This removal is catalyzed by a heterodimeric pyrophosphatase, which contains a regulatory subunit (Dcp1 ) and a catalytic subunit (Dcp2). The catalytic subunit cleaves between the α and β phosphate groups of the triphosphate bridge.

[0006] E. Grudzien et al. (2006) described a cap analog, m₂ ^{7i3 O}Gpp_CH2pG, in which a methylene group replaced the O atom between the α and β phosphate groups. mRNAs capped with this analog were resistant to hydrolysis by recombinant human Dcp2 in vitro. When introduced into cultured cells, mRNAs capped with the analog m₂ ^{7i3 O}Gpp_CH2pG were more stable than those capped with m₂ ⁷'^{3 "}°GpppG. However, the mRNA capped with m₂ ⁷'^{3 O}Gppc_H2pG had lower overall translational efficiency, presumably because m₂ ⁷'^3'" °Gppc_H2pG has a lower binding affinity for elF4E than that of m₂ ⁷'^{3 O}GpppG. The eukaryotic translation initiation factor elF4E is involved in bringing the capped mRNA to the ribosome for translation.

[0007] J. Kowalska et al., "Synthesis and characterization of mRNA cap analogs containing phosphorothioate substitutions that bind tightly to elF4E and are resistant to the decapping pyrophosphatase DcpS," RNA, vol. 14, pp. 1119-1131 (2008) described syntheses of three ARCAs in which one of the three non-bridging O atoms in the triphosphate chain was replaced with an S atom. Each of these phosphorothioate analogs (also called S-ARCAs) was synthesized as a mixture of diastereomers that could be separated chromatographically to make pure diastereomers. The binding affinity of the phosphorothioate cap analogs to elF4E was equal to or, in some cases, greater than that of m⁷GpppG

[0008] E. Grudzien et al., "Phosphorothioate cap analogs stabilize mRNA and increase translational efficiency in mammalian cells," RNA, vol. 13, pp. 1745-1755 (2007) showed that mRNAs capped with S-ARCAs modified at the β phosphate were resistant to hydrolysis by recombinant human Dcp2 in vitro. Furthermore, mRNA capped with one β S- ARCA diastereomer had a longer half-life when introduced into mammalian cells than that of the corresponding ARCA-capped mRNA; and it also had a greater translational efficiency in cells. The first of these properties presumably resulted from the resistance of the β S-ARCA to hydrolysis by Dcp2, and the second property presumably resulted from the higher affinity of the β-S-ARCA for elF4E.

[0009] Another use for synthetic mRNA cap analogs is to inhibit cap- dependent translation by competition with capped mRNA for binding to elF4E. See A. Cai et al., "Quantitative assessment of mRNA cap analogues as inhibitors of in vitro translation," Biochemistry, vol. 38, pp. 8538-8547 (1999); and E. Grudzien et al., "Novel cap analogs for in vitro synthesis of mRNAs with high translational efficiency," RNA, vol. 10, pp. 1479-1487 (2004).

[0010] The ability of cap analogs to inhibit translation has potential therapeutic significance. Many types of cancer cells overexpress elF4E, which can lead to increased expression of proteins that promote oncogenesis and metastasis. See A. De Benedetti et al., "elF-4E expression and its role in malignancies and metastases," Oncogene, vol. 23, pp. 3189-3199 (2004). Reducing elF4E expression with siRNA, antisense oligonucleotides, or a specific elF4E repressor can inhibit tumor growth and oncogenesis. See J. R. Graff et al., "Therapeutic suppression of translation initiation factor elF4E expression reduces tumor growth without toxicity," J. CHn. Investigation, vol. 117, pp. 2638-2648 (2007); and T. Herbert, "Rapid induction of apoptosis by peptides that bind initiation factor elF4E," Curr. Biol., vol. 10, pp. 793-796 (2000). In addition, the translational activity of elF4E can be suppressed by saturating the cells with competing, translationally deficient cap analogs.

[0011] Some synthetic cap analogs are specific inhibitors of elF4E activity and are therefore potentially useful as agents for treating oncogenesis and metastasis, immunosuppression in organ transplantation, and other medical conditions. However, these potential uses for cap analogs have never previously been demonstrated in vivo, in part due to the instability of cap analogs in intracellular conditions.

[0012] J. Kowalska et al. (2008) demonstrated that γ-S-ARCAs are strong inhibitors of translation in a cell-free system, presumably due to their high binding affinity for elF4E. The γ-modified analogs are resistant to hydrolysis by the human DcpS enzyme, which is a scavenger pyrophosphatase responsible for degradation of this type of compound.

[0013] Other modifications can help protect capped mRNA against enzymatic degradation. One example is a boranophosphate modification, in which one of the non- bridging O atoms is replaced with a borane group (BH₃ ) (sometimes called the BH₃- analogs). Another example is a phosphoroselenoate modification, in which one of the non- bridging O atoms is replaced with a selenium atom (sometimes called the Se-analogs). The phosphorothioate, boranophosphate, and phosphoroselenoate groups all replace non- bridging oxygen atoms and share some chemical and biochemical properties. However, there are also differences among these groups. For example, the P-X bond lengths differ (where X denotes S, Se, or BH₃), the van der Waals radii of the X groups differ, and the affinity of the X groups for various divalent and other metal cations differ. These differing chemical properties alter the biological activities of cap analogs with these groups, including their interactions with cap-binding proteins and their susceptibility to enzymatic degradation.

[0014] Boranophosphate mononucleotides and boranophosphate polyphosphate dinucleotides were reviewed by P. Li et al., "Nucleoside and oligonucleoside boranophosphates: chemistry and properties," Chem. Rev, vol. 107, pp. 4746-4796 (2007).

[0015] Boranophosphate polyphosphate dinucleoside analogs are described in published patent application US2006/0287271 , as are their use against diseases modulated by P2Y receptors, e.g., type 2 diabetes and cancer.

[0016] Boranophosphate nucleotide analogs have similarities with phosphorothioate analogs due to similar bond angles, pK_a values, and P- diastereoisomerism. However, in some cases they are as much as 10-fold more resistant to enzymatic hydrolysis than their phosphorothioate counterparts. They are also more lipophilic than phosphorothioates, which may help them to penetrate cell membranes and reach intracellular translational machinery. Boranophosphate analogs can also be used in boron neutron capture therapy (BNCT). See B. R. Shaw et al., "Reading, Writing and Modulating Genetic Information with Boranophosphate Mimics of Nucleotides, DNA and RNA," Ann. N.Y. Acad. Sci., vol. 1201 , pp23-29 (2003); and J. Summers et al., "Boranophosphates as Mimics of Natural Phosphodiesters in DNA", Current Medicinal Chemistry, vol. 8, pp 1147-1155 (2001 ).

[0017] Phosphoroselenoate analogs of nucleoside di- and triphosphates modified in the α position were described in K. Misiura et al., "Synthesis of nucleoside α- thiotriphosphates via an oxathiaphospholane approach," Org. Lett, vol. 7, pp 2217-2220 (2005); P. Li et al., "Synthesis of α-P-modified nucleoside diphosphates with ethylenediamine," J. Am. Chem. Soc, vol. 127, pp. 16782-16783 (2005); N. Carrasco et al., "Enzymatic synthesis of phosphoroselenoate DNA using thymidine 5'-(α-P- seleno)triphosphate and DNA polymerase for x-ray crystallography via MAD," J. Am. Chem. Soc, vol. 126, pp. 448-449 (2004); and N. Carrasco et al., "Efficient enzymatic synthesis of phosphoroselenoate RNA by using adenosine 5'-(α-P-seleno)triphosphate, Angew. Chem. Int. Ed., vol. 45, pp. 94-97 (2006). However, to the knowledge of the inventors, there have been no prior reports of nucleoside polyphosphate analogs modified in any position other than the α position, nor of dinucleoside polyphosphates modified at any position.

[0018] Phosphoroselenoate nucleotide analogs are similar to phosphorothioates and boranophosphates due to their similar bond angles, pK_a values, P- diastereoisomerism, and resistance to enzymatic degradation. Phosphoroselenoates can be very useful in nucleic acid crystallography because Se can be used in the multi-wavelength anomalous dispersion (MAD) technique. See J. Wilds et al., "Selenium-assisted nucleic acid crystallography: use of phosphoroselenoates for MAD phasing of a DNA structure," J. Am. Chem. Soc, vol. 124, pp 14910-14916 (2002); N. Carrasco et al. (2004); N. Carrasco et al. (2006); and PS. Pallan et al., "Selenium modification of nucleic acids: preparation of phosphoroselenoate derivatives for crystallographic phasing of nucleic acid structures," Nat. Protoc, vol. 2, pp. 640-646 (2007).

[0019] See also our work on anti-reverse cap mRNA analogs described in

U.S. Patent No. 7,074,596; and published international patent application WO 2008/157688. SUMMARY OF THE INVENTION

[0020] We have discovered a new class of dinucleotide cap analogs. The novel dinucleotide cap analogs are modified at various phosphate positions with a boranophosphate group or a phosphoroselenoate group. The novel analogs have broad utility as reagents in the preparation of capped mRNAs. They have increased stability both in vitro and in vivo. They may be used as inhibitors of cap-dependent translation. Optionally, the boranophosphate or phosphoroselenoate group has a 2'-0 or 3'-O-alkyl group, preferably a methyl group, producing analogs called BH₃-ARCAs or Se-ARCAs. ARCAs may be modified with α-, β-, or γ-boranophosphate or phosphoroselenoate groups. Selection of the type and location of modification modulates the activity of proteins that recognize the cap during synthesis, processing, nucleo-cytoplasmic export, translation, and degradation of mRNA.

[0021] Table 1 lists several BH₃-analogs and Se-analogs that have been or will be synthesized and characterized by chemical, biophysical, biochemical, and molecular biological methods. Compounds that are particularly favorable in mRNA caps include the β- BH₃-ARCAs and β-Se-ARCAs. Compounds that are particularly favorable as translation inhibitors include the β- and y- BH₃-analogs and γ-Se-analogs.

Table 1. BH₃- and Se-analogs

Compound name³ X Y Z R N^b m⁷Gppp_BH3G (D1) BH₃ O O H Gua m⁷Gppp_BH3G (D2) BH₃ O O H Gua m⁷Gpp_BH3pG (D1) O BH₃ O H Gua m⁷Gpp_BH3pG (D2) O BH₃ O H Gua m⁷Gpp_BH3pm⁷G O BH₃ O H m⁷Gua m⁷Gp_BH3PpG (D1)t O O BH₃ H Gua m⁷Gp_BH3PpG (D2)^t O O BH₃ H Gua m₂ ^7ZOGppp_BH3G (D1) BH₃ O O CH₃ Gua m₂ ^7ZOGppp_BH3G (D2) BH₃ O O CH₃ Gua m₂ ^7ZOGpp_BH3pG (D1) O BH₃ O CH₃ Gua m₂ ^7ZOGppBH3pG (D2) O BH₃ O CH₃ Gua m₂ ^72'°Gp_BH3PpG (D1)^t O O BH₃ CH₃ Gua m₂ ⁷²-°Gp_BH3PpG (D2)^t O O BH₃ CH₃ Gua m⁷Gppps_eG (D1)t Se O O H Gua m⁷Gppps_eG (D2)^t Se O O H Gua m⁷Gpps_ePG (D1)^t O Se O H Gua m⁷Gpps_ePG (D2)^t O Se O H Gua

In⁷GpP_SePm⁷G^t O Se O H m⁷Gua m⁷Gps_ePpG (D1) O O Se H Gua m⁷Gps_ePpG (D2) O O Se H Gua m₂ ^72'0Gppps_eG (D1)t Se O O CH₃ Gua m₂ ⁷²-°Gppps_eG (D2)^t Se O O CH₃ Gua m₂ ⁷²-°Gpps_ePG (D1) O Se O CH₃ Gua m₂ ⁷²-°Gpps_ePG (D2) O Se O CH₃ Gua m₂ ^72'°Gps_ePpG (D1)t O O Se CH₃ Gua m₂ ⁷²-°Gps_ePpG (D2)^t O O Se CH₃ Gua ^aD1 and D2 refer to diastereomers. bGua is guanine (Formula 2a) and m⁷Gua is 7-methylguanine (Formula 2b, in which X is CH₃).

Compounds that are expected to have favorable properties, but that had not yet been synthesized as of the international filing date of the present PCT application.

BRIEF DESCRIPTION OF THE DRAWINGS

[0022] Fig. 1 depicts a synthesis of cap analogs with a boranophosphate group at the α-position of the 5',5'-triphosphate bridge.

[0023] Fig. 2 depicts a synthesis of cap analogs with a boranophosphate group at the β-position of the 5',5'-triphosphate bridge. [0024] Fig. 3 depicts a synthesis of m⁷Gpp_BH3pm⁷G (method II).

[0025] Fig. 4 depicts a synthesis of m₂ ^{7i2' 0}Gpp_BH3pG.

[0026] Fig. 5 depicts a synthesis of m₂ ^7i2' °Gpp_SePG.

[0027] Fig. 6 depicts a synthesis of m⁷Gp_SeppG.

[0028] Fig. 7 depicts relative in vitro translational efficiencies of firefly luciferase mRNAs capped with ApppG (non-functional cap analog), m⁷GpppG, m₂ ⁷'^3'" °GpppG, the boranophosphate cap analogs m⁷Gpp_BH3pG (diastereomeric 1 :1 mixture), and m⁷Gpp_BH3pm⁷G.

[0029] Fig. 8 depicts the inhibition of in vitro luciferase mRNA translation by boranophosphate cap analogs.

[0030] Fig. 9 depicts inhibition of in vitro luciferase mRNA translation by boranophosphate cap analogs incubated in rabbit reticulocyte lysate for 60 min before the start of translation.

[0031] Fig. 10 depicts in vitro translational efficiencies of firefly luciferase mRNAs capped with ApppG, m⁷GpppG, m₂ ⁷'^3' °GpppG, and the phosphoroselenoate cap analogs m₂ ^{7 2'} °Gpp_SePG (D1 ) and (D2).

[0032] Fig. 11 depicts inhibition of in vitro luciferase mRNA translation by phosphoroselenoate cap analogs.

[0033] Fig. 12 depicts inhibition of in vitro luciferase mRNA translation by phosphoroselenoate cap analogs incubated in rabbit reticulocyte lysate for 60 min before the start of translation.

[0034] Fig. 13 depicts relative in vitro translational efficiencies of firefly luciferase mRNAs bearing A₃₁ poly-A tail, 5'-capped with various analogs.

[0035] Fig. 14 depicts measurements of the stability of luciferase mRNAs capped with various analogs and having a 60-base poly(A) tail in cultured HeLa cells following nucleoporation.

[0036] Fig. 15 depicts the translational efficiency of luciferase mRNAs capped with various analogs and bearing a 60-nt poly(A) tail in cultured HeLa cells following nucleoporation.

MODES FOR PRACTICING THE INVENTION

Synthesis and isolation of cap analogs

[0037] The chemical synthesis of the boranophosphate and phosphoroselenoate cap analogs was a modification of reported synthetic schemes for other analogs. See M. Kadokura et ai, "Efficient synthesis of γ-methyl-capped guanosine 5'- triphosphate as a 5'-terminal unique structure of U6 RNA via a new triphosphate bond formation involving activation of methyl phosphorimidazolidate using ZnCI₂ as a catalyst in DMF under anhydrous conditions," Tetrahedron Lett., vol. 38, pp. 8359-8362 (1997); J. Stepinski et al. (2001 ); M. Kalek et al., "Enzymatically stable 5' mRNA cap analogs," Bioorg. Med. Chem., vol. 14, pp. 3223-3230 (2006); and J. Kowalska et al. (2008).

[0038] A mononucleotide is converted to a reactive imidazolide derivative, which is then coupled to another mononucleotide in DMF in the presence of excess ZnCI₂. The ZnCI₂ significantly enhances the solubility of the reactants in organic solvents, inhibits hydrolysis of imidazolide derivatives, and accelerates the reaction rate. Other metal chlorides such as MnCI₂, CdCI₂ or MgCI₂ may also be used to mediate pyrophosphate bond formation, but are generally less efficient than ZnCI₂. See M. Kadokura et al., "Efficient synthesis of γ-methyl-capped guanosine 5'-triphosphate as a 5'-terminal unique structure of U6 RNA via a new triphosphate bond formation involving activation of methyl phosphorimidazolidate using ZnCI₂ as a catalyst in DMF under anhydrous conditions," Tetrahedron Lett, vol. 38, pp. 8359-8362 (1997).

[0039] A generally similar synthetic scheme was used to synthesize cap analogs containing phosphate-boranophosphate and phosphate-phosphoroselenoate bonds. However, for boranophosphate analogs, best results were obtained using MgCI₂ rather than ZnCI₂ as the coupling mediator. In the presence of ZnCI₂, coupling reactions also occurred, but were accompanied by significant side-reactions related to P-BH₃ bond cleavage under the acidic conditions produced by ZnCI₂.

[0040] Fig. 1 depicts the synthesis of analogs modified at the α-position. We first developed a method for the synthesis of the intermediate guanosine 5'- boranophosphate. Guanosine 5'-(H-phosphonate) was silated with N, O- bis(trimethylsilyl)acetamide (BSA). The resulting intermediate, bis(trimethylsilyl)phosphite, was boronated by treatment with a BH₃ ^«SMe₂ complex, without isolation. Subsequent desilylation and purification by ion-exchange chromatography afforded the desired guanosine 5'-boranophosphate at -30% yield. To obtain the cap analog m⁷Gppp_BH3G, or its ARCA counterpart, m₂ ^7i2' °Gppp_BH3G, guanosine 5'-boranophosphate was coupled with the imidazolide derivative of m⁷GDP or of m₂ ⁷'^{2 O}GDP, respectively, in a 9:1 DMF/water mixture in the presence of excess MgCI₂. In both cases, the result was a mixture of two P- diastereomers that were then separated by reverse phase (RP) HPLC. The diastereomers were termed D1 and D2, accordingly to their elution order from the RP HPLC column.

[0041] Fig. 2 depicts the synthesis of analogs modified at the β-position. The boranophosphate triethylammonium salt was obtained by a modification of the procedure of V. Nahum et al., "Boranophosphate salts as an excellent mimic of phosphate salts: preparation, characterization, and properties," Eur. J. Inorg. Chem., vol. 20, pp. 4124-4131 (2004). In the original procedure, tris(trimethylsilyl) phosphite was boronated with the BH₃ ^«SMe₂ complex. Subsequent desililation in methanol in the presence of an appropriate base (e.g., ammonia, tributylamine, etc.), followed by evaporation to dryness, afforded the boranophosphate as the corresponding salt (ammonium, tributylammonium, etc.). However, the product was contaminated with the phosphonic acid salt (up to 20%). This contamination was probably the result of partial hydrolysis of tris(trimethylsilyl)phosphite to bis(trimethylsilyl)phosphite under reaction conditions that were not perfectly anhydrous (the bis compound did not undergo the subsequent boranation). We overcame this problem by adding excess silating reagent (BSA) to the reaction mixture, which inhibited formation of bis(trimethylsilyl)phosphite. The boranophosphate triethylammonium salt obtained in this way was coupled with excess guanosine monophosphate imidazolide derivative to produce a symmetrical diguanosine 5',5"-(2-boranotriphosphate) (Gpp_BH3pG, Fig. 2).

[0042] This compound was subsequently treated with methyl iodide in DMSO to introduce a methyl group at the guanosine N7 position. The reaction produced a mixture of monomethylated and dimethylated cap analogs (m⁷Gpp_BH3pG and m⁷Gpp_BH3pm⁷G). The ratio of these products can be controlled by adjusting the reaction conditions. In the presence of a ~4X excess of methyl iodide, m⁷Gpp_BH3pG was formed as a major product (-70% yield). With an ~8X - 10X excess of methyl iodide, m⁷Gpp_BH3pm⁷G was the predominant product (-50%). However, a preferred route to the latter product was to couple boranophosphate with a 7-methylguanosine imidazolide derivative, which allowed us to isolate the product with 34% yield, but in a one-step synthesis. See Fig. 3.

[0043] Initial attempts to obtain the intermediate 7,2'-O-dimethylguanosine 5'-

(2-boranodiphosphate) (m₂ ^{7 2'~}°GDPβBH₃), useful for synthesis of β-BH₃-ARCAs (m₂ ^{7 2 "} °Gpp_BH3pG), showed poor success. We coupled m₂ ⁷'^{2 0}GMP-Im and excess boranophosphate triethylammonium salt in the presence of MgCI₂. Although an MS ESI(-) analysis of the coupling products showed that the desired product had been formed, it was not possible to isolate it in sufficient amounts. The compound may undergo relatively fast hydrolysis in aqueous solutions, making separation by ion-exchange chromatography practically impossible. So we developed an alternative synthesis of m₂ ^{7i2 O}Gpp_BH3pG, by reacting m₂ ⁷'^{2 O}GMP-lm with excess boranophosphate in the presence of MgCI₂ to produce m₂ ⁷ⁱ²"°GDPβBH₃, which then, without isolation, was coupled with excess GMP-Im. See Fig. 4.

[0044] Fig. 5 depicts the synthesis of m₂ ⁷'^{2 O}Gpp_SePG The selenophosphate

(PSeO₃ ^'3) was prepared by a modification of the method described in R. Glass et ai, "Selenophosphate," Meth. Enzymol., vol. 252, pp. 309-315 (1995). Trimethylsilyl phosphite was treated with selenium in pyridine to give trimethylsilyl selenophosphate, which was then desilylated by methanol in the presence of triethylamine to give the selenophosphate triethylammonium salt. This compound was coupled with the imidazolide derivative of 7,2'-O- dimethylguanosine 5'-monophosphate (m₂ ⁷'^{2 O}GMP-lm) to give 7,2'-O-dimethylguanosine 5'- O-(2-selenodiphoshpate) (m₂ ⁷'^{2 O}GDPβSe). Anhydrous ZnCI₂ was used to mediate the coupling reaction; the ZnCI₂ dramatically increased the solubility of the reagents in DMF, and also accelerated the reaction rate. The reaction was very rapid; essentially 100% conversion of m₂ ⁷'^2'"°GMP-lm into m₂ ^{7 2'~}°GDPβSe was observed by RP HPLC after 15 min. The m₂ ⁷'^2'" °GDPβSe was unstable in acidic aqueous solutions (being hydrolyzed to m₂ ⁷'^{2 0}GMP), and only moderately stable in neutral or basic solutions. Thus, care was taken to maintain the pH at 7 or above during purification of m₂ ⁷'^{2 O}GDPβSe, which allowed the product to be isolated with 80% yield after ion-exchange chromatography. The m₂ ^{7i2 O}GDPβSe was then coupled with the imidazolide derivative of GMP in the presence of excess ZnCI₂. Two peaks were observed by RP HPLC, corresponding to two m₂ ⁷'^{2 O}Gpp_SePG diastereomers, which were designated D1 and D2 according to their elution order. However, the coupling proceeded slowly, and complete disappearance of m₂ ⁷'^{2 O}GDPβSe took about two days. The extended reaction time allowed partial hydrolysis of m₂ ^{7i2 O}GDPβSe to m₂ ^{7i2 O}GMP, and only a moderate reaction yield (40% conversion by HPLC, 25% isolated). The diastereomeric mixture of m₂ ⁷'^{2 O}Gpp_SePG after isolation by ion-exchange chromatography was successfully resolved into pure diastereomers by RP HPLC. The products were characterized by mass spectrometry, ¹H NMR, and ³¹P NMR to confirm structures and homogeneity. The D1 and D2 isomers of m₂ ^{7i2 O}Gpp_SePG were stable in aqueous solution, did not undergo appreciable hydrolysis or oxidation, and could be stored as solids, protected from moisture at -20° C, for at least three months.

[0045] Other BH₃- and Se- analogs have also been and will also be produced by reactions generally analogous to those depicted in Figs. 1-6.

[0046] Example 1. General procedures for isolation and characterization of cap analogs. Intermediate nucleotides were separated by ion-exchange chromatography on a DEAE-Sephadex A-25 column (HCO₃ ^' form) with a linear gradient of triethylammonium bicarbonate (TEAB) in deionized water. After evaporation under reduced pressure with addition of ethanol, the intermediates were isolated as triethylammonium salts. Final products (the cap analogs) were further separated by semi-preparative RP HPLC and, after repeated freeze-drying, were isolated as ammonium salts. Analytical HPLC was performed on an Agilent Technologies 1200 Series apparatus, using a Supelcosil LC-18-T RP column (4.6 x 250 mm, flow rate 1.3 ml/min) with a linear gradient of 0%-25% methanol in 0.05 M ammonium acetate buffer (pH 5.9). Eluting compounds were detected with a UV-Vis detector (at 260 nm), and a fluorescence detector (excitation at 280 nm and emission at 337 nm). Semipreparative HPLC was performed on a Waters 600E Multisolvent Delivery System apparatus and a Waters Discovery RP Amide C16 reverse phase column (21.2 mm x 250 mm, flow rate 5.0 ml/min) with a linear gradient of methanol in 0.05 M ammonium acetate buffer (pH 5.9), and UV detection at 260 nm. ¹H NMR and ³¹P NMR spectra were recorded at 25° C on a Varian UNITY-plus spectrometer at 399.94 MHz and 161.90 MHz, respectively. ¹H NMR chemical shifts were determined relative to sodium 3-trimethylsilyl-[2,2,3,3-D4]- propionate (TSP) in D₂O as an internal standard. ³¹P NMR chemical shifts were determined relative to 20% phosphorus acid in D₂O as an external standard. Mass spectra in electrospray negative ion mode [(ESI MS (-)) were recorded on a Micromass QToF 1 MS spectrometer. Solvents and other reagents were purchased from Sigma-Aldrich, and were used without further treatment unless otherwise stated. Acetonitrile and acetone were distilled over P₂O₅ and stored over 4 A molecular sieves before use. GMP and GDP were converted into triethylammonium salts with a Dowex 50 WX8 ion-exchange resin. m₂ ⁷'^{2'" 0}GMP and m₂ ^7i2' °GDP were prepared as previously reported by J. Jemielity et al. (2003).

[0047] Example 2. General procedure for synthesis of nucleotide imidazolide derivatives. GMP-Im, m₂ ^{7 2'"}°GMP-lm, GDP-Im, and m₂ ^{7 2'"}°GDP-lm were prepared as described by T. Mukaiyama et al., "Phosphorylation by oxidation-reduction condensation. Preparation of active phosphorylating reagents," M. Bull. Chem. Soc. Jpn., vol. 44, p. 2284 (1971 ). The nucleotide (1 equiv., TEA salt), imidazole (8 equiv.), and 2,2'- dithiodipyridine (3 equiv.) were mixed in DMF (-2.5 ml/100 mg of nucleotide). Triethylamine (2 equiv.) and triphenylphosphine (3 equiv.) were added, and the mixture was stirred for 6-8 h. The product was precipitated from the reaction mixture with a solution of anhydrous NaCIO₄ (1 equiv. per negative charge) in dry acetone (~8 ml per ml of DMF). After cooling at 4° C, the precipitate was filtered, washed repeatedly with cold, dry acetone, and dried in vacuum over P₄Oi₀. Yields were 80%-100%.

[0048] Example 3. Guanosine 5'-(H-phosphonate). This preparation followed that of M. Yoshikawa et al., "Studies of phosphorylation. IV. The phosphorylation of nucleosides with phosphorus trihalide," Bull. Chem. Soc. Jpn., vol. 43, pp. 456-461 (1970). 2',3'-O,O-isopropylidene guanosine (1.3 g, 4.0 mmol) was suspended in 19.5 ml of trimethylphosphate and cooled to 0⁰C on ice. PCI₃ (1.06 ml, 12.1 mmol) was added, and the mixture was stirred at 0⁰C for 1 h. The reaction mixture was diluted with water (80 ml), adjusted to pH -1.5 with solid NaHCO₃ and heated to 70⁰C for 1 h. The solution was allowed to cool to room temperature, adjusted to pH ~6 with NaHCO₃, diluted with 80 ml of water, and subjected to chromatography on DEAE Sephadex with a 0-0.9 M gradient of TEAB. Fractions eluting at 0.6-0.65 M TEAB and containing -3.0 mmol of product were collected, evaporated, and dried in a vacuum dessicator over P₂O₅. This produced 1.34 g of guanosine 5'-(H-phosphonate) triethylammonium salt (yield 75%). ESI MS (-) m/z: 346.08 (calc. for C₁₀H₁₃N₅O₇P: 346.06). ¹H NMR δ (ppm): 8.08 (1 H, s, H8); 6.73 (1 H, d, J = 640 Hz, H-P); 5.93 (1 H, d, J = -5.4 Hz, HT); 4.77 (1 H, t, J = -5,4 Hz); 4.48 (1 H, t, J = 3,2 Hz); 4.32 (1 H, m, H4'); 4.11 (2H, m, H5' and H5"). ³¹P NMR δ (ppm): 7.07 (1 P, dt, J = 640 Hz, J = 6.0 Hz).

[0049] Example 4. Guanosine 5'-O-boranophosphate, triethylammonium salt. Guanosine 5'-(H-phosphonate) (1.03 g, 2.3 mmol) was placed in a round-bottom flask and suspended in 30 ml of dry acetonitrile. The flask was sealed with a rubber septum and flushed with argon for 30 min. N,O-bistrimethylsilylacetamide (11.3 ml, 46 mmol) was injected through a syringe, and the mixture was vigorously stirred until a clear solution was obtained, and was then stirred for an additional 30 min. The solution was then cooled in an ice bath, and a 2 M solution of BH₃ ^«SMe₂ complex in THF (5.7 ml, 11.5 mmol) was added. After 5 min, the flask was removed from the ice bath, and stirring continued for 30 min. The solution was evaporated under reduced pressure to an oily residue, placed again in an ice bath, treated with 60 ml of methanol and 3 ml of 2 M ammonia in ethanol, and then stirred for 2 h at RT. The solution was evaporated under reduced pressure to dryness, dissolved in 100 ml of water, and extracted once with 20 ml diethyl ether. The ether was removed from the aqueous layer under reduced pressure. The products were separated on DEAE Sephadex with a 0-0.9 M gradient of TEAB. Fractions containing 13,200 optical density units of product were evaporated to dryness, dissolved in water, and freeze-dried to yield 410 mg of guanosine 5'-O-boranophosphate triethylammonium salt (32%). ESI MS (-) m/z: 360.13 (calc for C₁₀H₁₆N₅O₇P¹¹B: 360.09). ¹H NMR δ (ppm): 8.17 (1 H, s, H8); 5.82 (1 H, d, J=6.0 Hz, HV); 4.74 (1 H, t, H2'); 4.47 (1 H, t, H3'); 4.32 (1 H, m, H4'), 4.03 (2H, m, H5' and H5"). ³¹P NMR δ (ppm): 79.05 (1 P, ~qq, J= 158 Hz, J= 22.5 Hz).

[0050] Example 5. Synthesis of m⁷Gppp_BH3G. To a mixture of GMPBH₃ (50 mg, 0.089 mmol, TEA salt) and m⁷GDP-lm (100 mg, 0.18 mmol, sodium salt) in 2.5 ml of DMF/H₂O (9:1 ) was added anhydrous MgCI₂ (110 mg, 1.16 mmol) portionwise, and the mixture was vigorously shaken until all reagents were dissolved. The solution was stirred at RT for 3 days, and then the reaction was quenched by addition of EDTA (430 mg, 1.16 mmol) in 25 ml of water with pH adjusted to ~6 by addition of solid NaHCO₃. Products were separated on DEAE Sephadex with a 0-1.2 M gradient of TEAB. A diastereomeric mixture of m⁷Gppp_BH3G was obtained (685 optical density units). Diastereomers were resolved by semi- preparative HPLC and freeze-dried three times. The yield after HPLC separation was 13.4 mg of m⁷Gppp_BH3G (D1 ) and 7.3 mg of m⁷Gppp_BH3G (D2) (18% and 9.8 %, respectively). ESI MS (-) m/z:799.22 (calc. for C₂₁H₃₁N₁₀O₁₇P₃B: 799.12). D1 :¹H NMR δ (ppm): 8.93 (1 H, s. H8 m⁷G); 7.99 (1 H, s, H8 G); 5.79 (1 H, d, J = 3.2 Hz, HV m⁷G); 5.73 (1 H, d, J = 6.0 Hz, HV G); 4.59 (1 H, ~t, H2' G); 4.48 (1 H, dd, J= 4.4 Hz, J= 3.2 Hz, H2' m⁷G); 4.40 (1 H, m, H3; G); 4.37 (1 H, m, H3' m⁷G); 4.27 (3H, overlapped m, H4', H5', H5"); 4.13 (3H, overlapped m, H4', H5', H5"); 3.95 (3H, s, CH₃); 0.34 (3H, broad m, BH₃). ³¹P NMR δ (ppm): 84.07 (1 P, m, Pa (P_BH3)); -11.29 (1 P, d, J = 19.4 Hz, PY); -22.95 (1 P, dd, J = 19.4 Hz, J= 30.0 Hz, P_β). D2: ¹H NMR δ (ppm): 8.87 (1 H, s. H8 m⁷G); 7.95 (1 H, s, H8 G); 5.79 (1 H, d, J = ~ 2 Hz, HV m⁷G); 5.68 (1 H, d, J = 5.4 Hz, H1 ' G); 4.62 (1 H, ~t, H2' G); 4.50 (1 H, ~t, H2' m⁷G); 4.41 (1 H, m, H3' G); 4.37 (1 H, m, H3' m⁷G); 4.25 (3H, overlapped m, H4', H5', H5"); 4.15 (3H, overlapped m, H4', H5', H5"); 3.93 (3H, s, CH₃); 0.34 (3H, broad m, BH₃). ³¹P NMR δ (ppm): 84.0 (1 P, m, Pa (P_BH3)); - 11.38 (1 P, s, PY); -22.88 (1 P, s, P_β).

[0051] Example 6. m₂ ⁷'^2'"0Gppp_BH3G. To a mixture of GMPBH₃ (30 mg, 0.053 mmol, TEA salt) and m₂ ⁷'^{2 "}°GDP-lm (60 mg, 0.11 mmol, sodium salt) in 1.5 ml of DMF/H₂O (9:1 ) was added anhydrous MgCI₂ (80 mg, 0.85 mmol) portionwise, and the mixture was vigorously shaken until all reagents were dissolved. The solution was stirred at room temperature for 4 days, and then the reaction was quenched by addition of EDTA (320 mg, 0.85 mmol) in 25 ml water with pH adjusted to ~6 by addition of solid NaHCO₃. Products were separated on DEAE Sephadex with a 0-1.2 M gradient of TEAB. A diastereomeric mixture of m₂ ⁷'^{2 O}Gppp_BH3G was obtained (520 optical density units). The diastereomers were resolved by semi-preparative HPLC and freeze-dried three times. The yield after HPLC separation was 6.1 mg of m₂ ^{7 Z O}Gppp_BH3G (D1 ) and 3.7 mg of m₂ ^{7 2'"0}Gppp_BH3G (D2) (13.4% and 8.0 %, respectively). ESI MS (-) m/z: 813.15 (calc. for C₂₂H₃₃N₁₀O₁₇P₃ ¹¹B: 813.13). D1 :¹H NMR δ (ppm): 9.03 (1 H, s, H8 m⁷G); 8,09 (1 H, s, H8G); 5.95 (1 H, d, J = 2.7 Hz, HV m⁷G); 5.84 (1 H, d, J = 6.0 Hz, HV G); 4.70 (1 H, dd, J= 6.0 Hz, J= 5.1 Hz, H2' G); 4.56 (1 H, ~t, H3' m⁷G); 4.50 (1 H, dd, J = 3.5 Hz, 5.1 Hz, H3' G); 4.41 (1 H, m, H5' G); 4.34 (2H, m, overlapped H4' m⁷G, H4'G); 4.27 (2H, m overlapped, H2' m⁷G, H5"G); 4.24 (2H, m, H5', H5" m⁷G); 4.08 (3H, s, N-CH₃); 3.60 (3H, s, 0-CH₃), 0.40 (3H, m, BH₃). ³¹P NMR δ (ppm): 83.7 (1 P, m, Pa (P_BH3)), -11.30 (1 P, d, J = 19,5 Hz, P_Y); -22.91 (1 P,dd, J = 19.5 Hz, J = 30.0 Hz, P_β). D2: ¹H NMR δ (ppm): 8.98 (1 H, s, H8 m⁷G); 8.06 (1 H, s, H8G); 5.96 (1 H, d, J = 2.7 Hz, H1 ' m⁷G); 5.79 (1 H, d, J = 5.9 Hz, HV G); 4.61 (1 H, ~t, H2' G); 4.50 (1 H, ~t, H3' m⁷G); 4.45 (1 H, dd, J = 3.5 Hz, 5.1 Hz, H3' G); 4.34 (2H, m (overlapped), H4' m⁷G, H5' G); 4.26 (3H, m (overlapped), H2' m⁷G, H4' G, H5"G); 4.20 (2H, m, H5', H5" m⁷G); 4.06 (3H, s, N-CH₃); 3.61 (3H, s, 0-CH₃), 0.40 (3H, m, BH₃). ³¹P NMR δ (ppm): 83.7 (1 P, m, Pa (P_BH3)), -11.41 (1 P, d, J = 19.0 Hz ,Pγ); -22.87 (1 P,dd, J = 19.0 Hz, J = 32.0 Hz P_β).

[0052] Example 7. Boranophosphate triethylammonium salt. This salt was prepared by a modification of the procedure of V. Nahum et ai, "Boranophosphate Salts as an Excellent Mimic of Phosphate Salts: Preparation, Characterization, and Properties," J. Inorg. Chem. vol. 20, pp. 4124-4131 (2004). Tris(trimethylsilyl)phosphite (600 μl, 1.8 mmol) was added to a round-bottom flask containing 5 ml dry acetonitrile. The flask was sealed with a rubber septum and flushed with argon for 30 min. N,O-bistrimethylsilylacetamide (1.5 ml, 5.4 mmol) was injected through a syringe. After 30 min., the solution was cooled in an ice-bath, and a 2 M solution of BH₃ ^«SMe₂ complex in THF (1.35 ml) was added. After 5 min, the flask was removed from the ice bath, and stirring continued for 30 min. The solution was then evaporated under reduced pressure to an oily residue, placed again in the ice bath, treated with 20 ml of methanol and 0.5 ml of triethylamine, and was then stirred for 2 h at room temperature. The solution was evaporated to dryness, and the residue was dried over P₂O₅. The yield of [HN(CH₂CH₃)S]₂HPO₃BH₃ WaS 530 mg (17.8 mmol) (97%, contaminated with acetamide). This boranophosphate triethylammonium salt was stored at 4°C, and was used for further reactions in this form. ¹H NMR δ (ppm): 0.33 (~dq, J_B-H = 87.8 Hz, J_P._H = 22.3 Hz). ³¹P NMR δ (ppm): 84.3 ( ~qq, J_P-_B = 147 Hz, J_P__H = 22.3 Hz).

[0053] Example 8. Gpp_BH3pG. The imidazolide derivative of GMP (GMP-Im)

(200 mg, 0.46 mmol, sodium salt) and the previously obtained boranophosphate triethylammonium salt (70 mg, 0.23 mmol) were suspended in 4 ml of DMF, and anhydrous MgCI₂ (380 mg, 4 mmol) was added portionwise. After 1 h the reaction was quenched by addition of EDTA (1.48 mg, 4 mmol) in 40 ml of water, and the pH was adjusted to ~6 by addition of solid NaHCO₃. The product was separated on DEAE Sephadex with a 0-1.2 M gradient of TEAB. After evaporation 165 mg (4,000 optical density units at 260 nm) of Gppe_H3pG triethylammonium salt were obtained (65% yield). ESI MS (-) m/z:785.12 (calc for. C₂₀H₂₉N₁₀O₁₇P₃B: 785.10). ¹H NMR δ (ppm): 8.11 (1 H, s, H8 G^A*); 8.09 (1 H, s, H8 G^B); 5.84 (2H, d, J = 5.2 Hz, H1 ' G^AB); 4.69 (2H, ~t, J=5.1 Hz, H2' G^AB); 4.50 (1 H, ~t, H3' G^AorB); 4.49 (1 H, ~t, H3' G^AorB); 4.31 (2H, m, H4' G^AB); 4.24 (4H, m, H5' G^AB, H5" G^AB). ³¹P NMR δ (ppm): 75.10 (1 P, m, P_β (P_BH3)), -11.20 (1 P^A*, ~dt, J = 30.2 Hz, J = ~5Hz), -11.28 (1 P^B*, ~dt, J = 30.2 Hz, J = ~5Hz). ^*A and B denote signals from diastereotopic nuclei.

[0054] Example 9. m⁷Gpp_BH3pG. Gpp_BH3pG (35 mg, TEA salt) was dissolved in 1.5 ml of DMSO, and 20 μl of methyl iodide were added. After 4 h, the reaction was quenched by addition of 15 ml water, and the pH was adjusted to ~7 with solid NaHCO₃. Products were separated on DEAE Sephadex with a 0-1.2 M gradient of TEAB. A diastereomeric mixture of m⁷Gpp_BH3pG (550 optical density units) was collected and the solvent was evaporated. The product was then dissolved in a small amount of water and converted to the sodium salt on Dowex resin. Diastereomers were subsequently resolved by semi-preparative HPLC, and freeze-dried three times. Yields after HPLC separation were 10.2 mg of m⁷Gpp_BH3pG (D1 ) and 9.8 mg of m⁷Gpp_BH3pG (D2) as NH₄ ⁺ salts (37.2 % and 35.6 %, respectively). ESI MS (-) m/z:799.13 (calc. for C₂₁H₃₁N₁₀O₁₇P₃B: 799.12). D1 : ¹H NMR δ (ppm): 8.02 (1 H, s, H8G); 5.89 (1 H, d, J = 3.0 Hz, H8 m⁷G); 5.80 (1 H, d, J = 6.2 Hz, H8G); 4.68 (1 H, ~t, H2' G); 4.51 (1 H, ~t, H2' m⁷G); 4.50 (1 H, ~t, H3' G); 4.42 (1 H, ~t, H3' G); 4.35 (3H, m (overlapped), H4', H5', H5" G); 4.22 (3H, m (overlapped), H4', H5', H5" m⁷G), 4.06 (3H, s, CH₃), 0.53 (3H, m, BH₃). ³¹P NMR δ (ppm): 75.1 ("I P, m, P_β (P_BH3)), -11.3 (2P, ~d, Jp_α__Pβ = 30.7 Hz, P_α and PY). D2: ¹H NMR δ (ppm): 8.04 (1 H, s, H8G); 5.92 (1 H, d, J = 3,0 Hz, H8 m⁷G); 5.82 (1 H, d, J = 6,2 Hz, H8G); 4.68 (1 H, ~t, H2' G); 4.51 (1 H, ~t, H2' m⁷G); 4.50 (1 H, ~t, H3' G); 4.42 (1 H, ~t, H3' G); 4.35 (3H, m (overlapped), H4', H5', H5" G); 4.22 (3H, m (overlapped), H4', H5', H5" m⁷G), 4.06 (3H, s, CH₃); 0.53 (3H, m, BH₃). ³¹P NMR δ (ppm): 75.13 (1 P, m, P_β (P_BH₃)), -11.31 (2P, ~d, J_Pα__Pβ = 30.7 Hz, P_Y and P_α).

[0055] Example 10. m⁷Gpp_BH3pm⁷G (Method I). Gpp_BH3pG (50 mg, 800 optical density units, TEA salt) was dissolved in 1.0 ml of DMSO, and 30 μl of methyl iodide were added. After 2 h, an additional 30 μl of methyl iodide were added. After 2 h, the reaction was quenched by adding 15 ml water and adjusted to pH ~7 with solid NaHCO₃. Products were separated on DEAE Sephadex with a 0-1.2 M gradient of TEAB. m⁷GppeH3pm⁷G (200 optical units density) was collected, evaporated, and converted into the sodium salt on Dowex resin. Finally, the product was precipitated with ethanol and dried over P₂O₅. The yield was 22 mg of m⁷Gpp_BH3pm⁷G (sodium salt) (54%). ESI MS (-) m/z: 813.10 (calc for. C₂₂H₃₃N₁₀O₁₇P₃ ¹¹B: 813.13). ¹H NMR δ (ppm): 9.02 (2H, s, H8 m⁷G); 6.04 (2H, d, J = 3.7 Hz, H2' G); 4.67 (2H, ~t, H2' m⁷G); 4.53 (2H, ~t, H3' m⁷G); 4.40 (2H, m, H4' m⁷G); 4.36 (2H, m, H5' m⁷G); 4.23 (2H, m, H5" m⁷G); 4.13 (6H, s, CH₃); 0.44 (3H, m, BH₃). ³¹P NMR δ (ppm): 74.90 (1 P, m, P_β (P_BH3)), -11.33 (1 P^A*, ~d, J_Pα-Pβ = 31.0 Hz), -11.36 (1 P^B*, ~d, J_Pα-Pβ = 31.0 Hz). ^*A and B denote diastereotopic nuclei.

[0056] Example 11. m⁷Gpp_BH3pm⁷G (Method II). The imidazolide derivative of ITi⁷GMP (ITi⁷GMP-Im) (225 mg, 0.5 mmol, sodium salt) and boranophosphate triethylammonium salt (75 mg, 0.25 mmol, sodium salt) were suspended in 4 ml of DMF, and anhydrous MgCI₂ (380 mg, 4 mmol) was added portionwise. After 1 h the reaction was quenched by adding EDTA (1.48 mg, 4 mmol) in 40 ml of water, and the pH was adjusted to ~6 by addition of solid NaHCO₃. The product was separated on DEAE Sephadex with a 0- 1.1 M gradient of TEAB. After evaporation of solvent, the product was dissolved in a small amount of water and converted into the sodium salt on Dowex resin. After precipitation with ethanol and drying over P₂O_5, 150 mg of m⁷Gpp_BH3pm⁷G sodium salt were obtained (34% yield). (Spectral data are given under the description of Method I above.)

[0057] Example 12. m₂ ⁷'² °Gpp_BH3pG. To a suspension of m₂ ^{7i2 O}GMP-lm (15 mg, 0.03 mmol, sodium salt) and boranophosphate triethylammonium salt (30 mg, 0.1 mmol) in 0.5 ml of DMF, anhydrous MgCI₂ (40 mg, 0.4 mmol) was added portionwise, and the mixture was shaken until reagents dissolved (1-2 min). Then GMP-Im (40 mg, 0.09 mmol) and MgCI₂ (40 mg) were added to the reaction mixture. The reaction was quenched after 5 h by addition of EDTA (0.8 mmol) in 10 ml of water, and the pH was adjusted to ~6 with solid NaHCO₃. Products were separated by semi-preparative HPLC and freeze-dried three times. Yields were 5.1 mg of m₂ ^{7 Z O}Gpp_BH3pG (D1 ) and 4.8 mg of m₂ ^{7 Z O}Gpp_BH3pG (D2) as NH₄ ⁺ salts (18% and 17%, respectively). ESI MS (-) m/z: 813.14 (calc. for C₂₂H₃₃N₁₀O₁₇P₃ ¹¹B: 813.13). D1 :¹H NMR δ (ppm): 9.04 (1 H, s, H8 m⁷G); 8.10 (1 H, s, H8G); 5.97 (1 H, d, J = 2.9 Hz, H1 ' m⁷G); 5.80 (1 H, d, J = 5.9 Hz, HV G); 4.70 (1 H, ~t, H2' G); 4.56 (1 H, ~t, H3' m⁷G); 4.50 (1 H, ~t Hz, H3' G); 4.41 (1 H, m, H5' G); 4.34 (2H, m, overlapped H4' m⁷G, H4'G); 4.27 (2H, m overlapped, H2' m⁷G, H5"G); 4.24 (2H, m, H5', H5" m⁷G); 4.08 (3H, s, N-CH₃); 3.59 (3H, s, 0-CH₃), 0.45 (3H, m, BH₃). ³¹P NMR δ (ppm): 75.12 (1 P, m, P_P (P_BH3)), -11.09 (2P, ~d, Jp_α__Pβ = 30.7 Hz, P_α and P_γ). D2: ¹H NMR δ (ppm): 9.00 (1 H, s, H8 m⁷G); 8.08 (1 H, s, H8G); 5.96 (1 H, d, J = 2.9 Hz, H1' m⁷G); 5.81 (1 H, d, J = 5.9 Hz, HV G); 4.70 (1 H, ~t, H2' G); 4.55 (1 H, ~t, H3' m⁷G); 4.48 (1 H, ~t, H3' G); 4.40 (2H, m (overlapped), H4' m⁷G, H5' G); 4.30 (3H, m (overlapped), H2' m⁷G, H4' G, H5"G); 4.25 (2H, m, H5', H5" m⁷G); 4.07 (3H, s, N-CH₃); 3,62 (3H, s, 0-CH₃), 0.45 (3H, m, BH₃). ³¹P NMR δ (ppm): 75.12 (1 P, m, P_P (P_BH3)), -11 ,11 (2P, ~d, Jp_α-_Pβ = 30,7 Hz, P_α and P_γ).

[0058] Example 13. Selenophosphate triethylammonium salt. A suspension of selenium (160 mg, 2 mmol) in pyridine (1 ml) was added dropwise through a syringe into a septum-sealed and argon-bubbled solution of tris(trimethylsilyl) phosphite (600 μl, 1.8 mmol) in dry CH₃CN (20 ml). The resulting solution was held at room temperature for 30 min, and was then evaporated to dryness. Then a solution of triethylamine (500 μl, 3.6 mmol) in MeOH (20 ml) was added, and the mixture was stirred at room temperature for 2 h. The solvent was removed under reduced pressure and the residue re-evaporated twice with methanol. The product, which was obtained as an oily, yellowish residue, was used without further treatment in the following reaction:

[0059] Example 14. 7,2'-O-dimethylguanosine 5'-O-(2- selenodiphosphate) (m₂ ⁷'² °GDPβSe). To a suspension of 7,2'-O-dimethylguanosine 5'-O- phosphate imidazolide (250 mg, 0.43 mmol) and selenophosphate triethylammonium salt (prepared from 600 μl of (Me₃SiO)₃P) in 5 ml of DMF, was added anhydrous ZnCI₂ (590 mg, 4.30 mmol) and the mixture was vigorously shaken until all reagents dissolved (3 min). The resulting solution was stirred for 20 min at room temperature, and the reaction was then quenched by adding a solution of disodium EDTA (1.6 g, 4.30 mmol) and 800 mg of NaHCO₃ in 300 ml of water. The pH was adjusted to ~7 with solid NaHCO₃ as necessary. The product was isolated on DEAE Sephadex with a 0-1.0 M gradient of TEAB. The yield was 254 mg (0.35 mmol) of m₂ ^{7 Z O}GDPβSe as the TEA salt (81 %). ESI MS (-) m/z: 553.85 (calc. for C₁₂H₁₈N₅O₁₀P₂ ⁸⁰Se: 533.97).

[0060] Example 15. m₂ ⁷'^{2 "0}Gpps_ΘpG. m₂ ^72' °GDPβSe (250 mg, 0.35 mmol) and GMP-Im (250 mg, 0.50 mmol) were suspended in 5 ml of DMF, and anhydrous ZnCI₂ (480 mg, 3.5 mmol) was added. The resulting solution was kept at room temperature for 2 days. The reaction was quenched by adding disodium EDTA (1.3 g, 3.5 mmol) in 100 ml of water, and neutralized with solid NaHCO₃. Products were isolated on DEAE Sephadex with a 0-1.2 M gradient of TEAB. Finally, the diastereomers were separated by semi-preparative HPLC and freeze-dried three times. Yields were 40 mg (0.045 mmol) of m₂ ^{7i2 O}Gpp_SePG (D1 ) and 35 mg (0.040 mmol) of m₂ ^72'~0Gpp_SePG (D2) as NH₄ ⁺ salts (13% and 11 %, respectively). ESI MS (-) m/z: 878.99 (calc. for C₂₂H₃₀N₁₀O₁₇P₃ ⁸⁰Se: 879.02). D1 :¹H NMR δ (ppm): 9.02 (1 H, s, H8 m⁷G); 8.04 (1 H, s, H8G); 5.97 (1 H, d, J = 2.4 Hz, HV m⁷G); 5.81 (1 H, d, J = 6.3 Hz, H1 ' G); 4.69 (1 H, ~t, H2' G); 4.55 (1 H, ~t, H3' m⁷G); 4.54 (1 H, ~t, H3' G); 4.43 (1 H, m, H5' G); 4.32 (2H, overlapped m, H4'G, H5"G); 4.26 (4H, m overlapped, H2' m⁷G, H4' m⁷G, H5' m⁷G, H5" m⁷G); 4.06 (3H, s, N-CH₃); 3.59 (3H, s, 0-CH₃). ³¹P NMR δ (ppm): 17.4 (1 P, ~t, J = 29.6 Hz, P_β (P_BH3)), -12.4 (2P, ~d, J = 29.6 Hz, P_α and P_γ. D2: ¹H NMR δ (ppm): 9.01 (1 H, s, H8 m⁷G); 8.03 (1 H, s, H8G); 5.94 (1 H, d, J = 2.7 Hz, HV m⁷G); 5.79 (1 H, d, J = 6.1 Hz, H1 ' G); 4.68 (1 H, ~t, H2' G); 4.56 (1 H, ~t, H3' m⁷G); 4.50 (1 H, ~t, H3' G); 4.41 (1 H, m, H5' G), 4.32 (3H, overlapped m, H4'G, H5"G, ); 4.26 (3H, overlapped m, H4' m⁷G, H5' m⁷G, H5" m⁷G); 4.07 (3H, s, N-CH₃); 3.58 (3H, s, 0-CH₃), 0.45 (3H, m, BH₃). ³¹P NMR δ (ppm): 17.4 (1 P, ~t, J = 29.6 Hz, Pp (PeH₃)), -12.4 (2P, ~d, J = 29.6 Hz, P_α and P_γ).

[0061] Example 16. 7-methylguanosine 5'-O-(H-phosphonate). To guanosine 5'-O-(H-phosphonate) (260 mg, 0.65 mmol) dissolved in DMSO (10 ml) was added methyl iodide (322 μl, 5.2 mmol), and the solution was stirred in a stoppered flask for 3 h. The reaction was quenched by diluting with 200 ml of water, and the reaction mixture was extracted three times with ether. The remaining ether was removed from the aqueous layer under reduced pressure, and the product was isolated on DEAE Sephadex with a 0- 0.7 M gradient of TEAB. After evaporation and drying over P₂O_5, 200 mg (0.43 mmol) of product were obtained as a triethylammonium salt (66%). ESI MS (-) m/z: 360.06 (calc for C₁₁H₁₅N₅O₇P₁ 360.07).

[0062] Example 17. 7-methylguanosine 5'-O-phosphoroselenoate

(m⁷GMPSe, triethylammonium salt). 7-methylguanosine 5'-(H-phosphonate) (200 mg, 0.43 mmol) was placed in a round-bottom flask and suspended in 20 ml of dry acetonitrile. The flask was sealed with a rubber septum and flushed with argon for 30 min. Then N, O- bistrimethylsilylacetamide (11.3 ml, 46 mmol) was injected through a syringe. The mixture was vigorously stirred until a clear solution was obtained, and was then stirred for an additional 30 min. Selenium (40 mg, 0.5 mmol) in pyridine (0.5 ml) was then added, and stirring continued for another 30 min. The solution was evaporated under reduced pressure to an oily residue, a solution of triethylamine (60 μl, 0.43 mmol) in methanol (40 ml) was added, and the resulting mixture was stirred for 2 h. The solution was evaporated and the product was dissolved in 100 ml of water and filtered through a paper filter. The product was isolated on DEAE Sephadex with a 0-0.9 M gradient of TEAB. The fractions after evaporation and freeze-drying yielded 93 mg of 7-methylguanosine 5'-O- phosphoroselenoate triethylammonium salt (45%). ESI MS (-) m/z: 439.97 (calc for C₁₁ H₁₅N₅O₇P⁸⁰Se 439.98).

[0063] Example 18. m⁷Gp_SeppG. To a suspension of m⁷GMPSe (10 mg,

0.021 mmol) and GDP-Im (15 mg, 0.027 mmol) in DMF (0.8 ml) was added anhydrous ZnCI₂ (30 mg, 0.22 mmol). The reaction was maintained at room temperature for 2 days, and was then quenched by adding 90 mg of disodium EDTA in 10 ml of water, and neutralized with solid NaHCO₃. The diastereomers were separated by RP HPLC. Yields were 2 mg of m⁷Gps_ePpG (D1 ) and 2.5 mg of m⁷Gp_SeppG (D2) as NH₄ ⁺ salts (10% and 13%, respectively). ESI MS (-) m/z: 865.02 (CaIC fOr C₂₁H₂₈N₁₀O₁₇P₃ ⁸⁰Se 865.00).

[0064] Example 19. Measuring binding affinities to elF4E. Fluorescence titration measurements were carried out on an LS-50B or LS-55 spectrofluorometer (Perkin Elmer Co.) at 20.0 ± 0.2⁰C in 50 mM HEPES/KOH (pH 7.2), 0.5 mM EDTA, and 1 mM DTT, with ionic strength adjusted to 150 mM by addition of KCI. Various cap analogue solutions, of increasing concentration, were added in 1 μl aliquots to 1.4 ml of 0.1 or 0.2 μM protein solutions. Fluorescence intensities were measured with excitation at 280 nm or 295 nm with 2.2 nm bandwidth, and detection at 337 nm with 4 nm bandwidth and a 290-nm cut-off filter. The data were corrected for sample dilution and inner filter effects. Equilibrium association constants (K_as) were determined by fitting the theoretical dependence of fluorescence intensity on cap analog concentration to the experimental data, as otherwise described in A. Niedzwiecka et ai, "Biophysical studies of elF4E cap-binding protein: recognition of mRNA 5' cap structure and synthetic fragments of elF4G and 4E-BP1 proteins," J. MoI. Biol., vol. 312, pp. 615-635 (2002). The concentration of protein was allowed to be a free parameter in the equilibrium equation, to determine the amount of "active" protein. The final K_as was calculated as a weighted average of three to ten independent titrations, with the weights taken as the reciprocals of the squares of the numerical standard deviations. Numerical nonlinear least-square regression analysis was performed using ORGIN 6.0 (Microcal Software Inc., USA).

[0065] Example 20. Assay of susceptibility to DcpS. Human DcpS was expressed in Escherichia coli as described in L. Cohen et ai, "Nematode m⁷GpppG and m₃ ²ⁱ²ⁱ⁷GpppG decapping: activities in Ascaris embryos and characterization of C. elegans scavenger DcpS," RNA, vol. 10, pp. 1609-1624 (2004). A 15 μM solution of the protein in 20 mM Tris buffer, pH 7.5, containing 50 mM KCI, 0.2 mM EDTA, 1 mM DTT, 0.5 mM PMSF, and 20% glycerol was stored at -8O⁰C until used. Enzymatic reactions were carried out at 3O⁰C in 500 μl of 50 mM Tris-HCI, pH 7.9, containing 20 mM MgCI₂ and 60 mM (NH₄)₂SO₄. A 40 μM solution of the selected cap analog was treated with 5.0 μl of DcpS for 120 min. At times of 10, 30, 60, and 120 min, a 100-μl sample was collected from the reaction mixture and deactivated by incubation at 9O⁰C for 2 min. Samples were analyzed without further treatment by analytical RP HPLC with a linear gradient of methanol in 0.1 M KH₂PO₄, pH 6.0, from 0 - 50 % over 15 min.

[0066] Example 21. Synthesis of mRNAs capped with BH₃ and Se- analogs. Method I (for analogs m⁷Gpp_BH3pG (D1/D2 mix) and m⁷Gpp_BH3pm⁷G). A DNA template for in vitro transcription was synthesized by PCR from the plasmid SP6p-5'UTR β- globin-LUCiferase. The template contained the SP6 promoter followed by the 5'-UTR sequence of rabbit β-globin mRNA and the entire firefly luciferase mRNA coding region. A typical in vitro transcription reaction mixture (50 μl) contained SP6 transcription buffer (Fermentas, cat. no. EP0131 ), 2 μg of DNA template, 2 U/μl RiboLock Ribonuclease Inhibitor (Fermentas), 2 mM each of ATP, CTP, and UTP, 0.1 mM GTP, and 1 mM dinucleotide cap analog. The reaction mixture was incubated at 37⁰C for 5 min before the addition of SP6 RNA polymerase (Fermentas) to a final concentration of 2 U/μl. After 30 min of incubation at 37⁰C, GTP was added to a final concentration of 1 mM, and the reaction continued for an additional 90 min. The reaction mixtures were then treated with 1 U of DNase RQ1 (RNAse- free, Promega) per μg of template DNA in transcription buffer at 37°C for 20 min. RNA transcripts were purified on DEPC-treated Sephadex G-50 spin columns (Pharmacia). The integrity of transcripts was confirmed by electrophoresis on a non-denaturating, 1 % agarose gel. Concentrations were determined spectrophotometrically. The transcripts were stored at - 80 ⁰C until used.

[0067] Example 21. Synthesis of mRNAs capped with BH₃ and Se- analogs. Method Il (for analogs m₂ ⁷'^{2' 0}Gpp_BH3pG (D1 ), m₂ ⁷'^{2' 0}Gpp_BH3pG (D2), m₂ ^{7 2'" 0}GpPP_BH3G (D1), m₂ ⁷'^{2 ' 0}GPPP_BH3G (D2), m₂ ^{7 2'} °Gpp_SePG (D1),and m₂ ^{7 2'} °Gpp_SePG (D2), m⁷Gpp_BH3pG (D1), m⁷Gpp_BH3pm⁷G, m₂ ^72'"0Gpp_spG (D1) and m₂ ^{7 2'"0}Gpp_spG (D2)). Capped, polyadenylated luciferase mRNAs were synthesized in vitro by PCR from a dsDNA template that contained the SP6 promoter, the 5'-UTR sequence of rabbit β-globin mRNA, the entire firefly luciferase coding region, and 31 adenosine residues. A typical transcription reaction mixture (40 μl) contained SP6 transcription buffer (Fermentas), 0.7 ug of DNA template, 1 U/μl RiboLock Ribonuclease Inhibitor (Fermentas), 0.5 mM each of ATP, CTP, and UTP, 0.1 mM GTP, and 0.5 mM dinucleotide cap analog. The reaction mixture was incubated at 37⁰C for 5 min before addition of SP6 RNA polymerase (Fermentas) to a final concentration of 1 U/μl, and incubation then continued for 45 min at 37⁰C. The reaction mixture was treated with DNase as in Method I. RNA transcripts were purified with NucAway Spin Columns (Ambion). The integrity of transcripts and quantitation was performed as in Method I.

[0068] Example 22. Translation efficiency of capped mRNAs in an in vitro system. A micrococcal nuclease-treated rabbit reticulocyte lysate system (Flexi Rabbit Reticulocyte Lysate System, Promega) was used for in vitro translation. Translation reactions were performed in 10 μl for 60 min at 30⁰C. A typical reaction mixture contained 40% reticulocyte lysate, the 20 "standard" amino acids (0.01 mM each), MgCI₂ (1.2 mM)_, potassium acetate (170 mM), and mRNA (five different concentrations of each transcript, ranging from 0.25 to 4 μg/ml). Luciferase activity was measured in a luminometer (Glomax, Promega). Linear regression was used to fit the data points (luciferase activity versus concentration of mRNA transcript), and translational efficiency was defined as the slope of this line. The relative translational efficiencies of the test mRNAs were compared to that of m⁷GpppG-capped luciferase mRNA, the latter being defined as 1.0.

[0069] Example 23. Inhibition of cap-dependent translation in vitro by

BH₃-analogs. In vitro translation reactions were performed in 12.5 μl for 60 min at 30⁰C under conditions favorable for cap-dependent translation. In some cases, the reaction mixture was incubated for 60 min at 30°C prior to adding the dinucleotide cap analog (inhibitor) and m₂ ⁷'^{3 O}GpppG-capped luciferase mRNA to start translation. In other cases, to analyze biological stability, the cap analog was incubated in the translation mixture for 60 min at 30⁰C prior to adding the luciferase mRNA to start translation. A typical reaction mixture contained 56% reticulocyte lysate, the 20 "standard" amino acids (0.01 mM each), MgCI₂ (1.2 mM)_, potassium acetate (170 mM), RiboLock Ribonuclease Inhibitor (0.32 U/μl), cap analog solution (1/10 of total reaction volume), and m₂ ^{7 3 O}GpppG-capped luciferase RNA. The transcript was not polyadenylated, but instead had a 59-base 3'-UTR. Reactions were performed with cap analog concentrations ranging from 0.12 to 100 μM. Luciferase activity was measured in a luminometer. From the measurements we calculated IC₅₀ values, defined as the concentration of cap analog that resulted in 50% inhibition. The program OriginProδ (OriginLab) was used for curve fitting with the equation q_Luc = Z / (1 + I / IC₅₀) + N, where qι_uc is the activity of luciferase synthesized in the presence of cap analog, Z is the activity of luciferase synthesized in the absence of cap analog, N is the activity of luciferase synthesized in a cap-independent manner, and I is the cap analog concentration. The data are presented in Table 2.

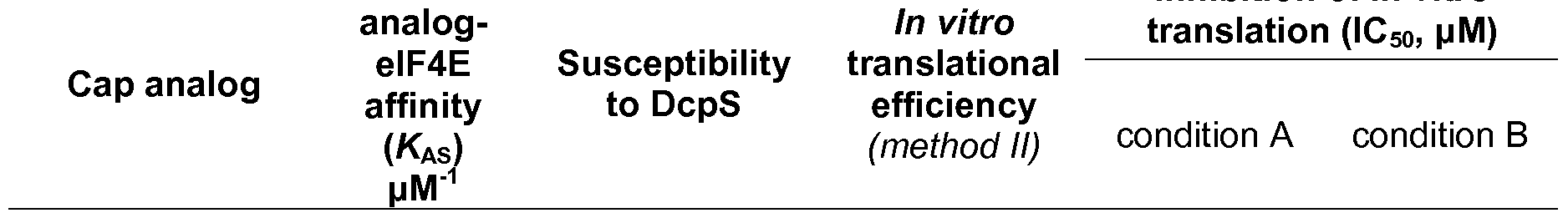

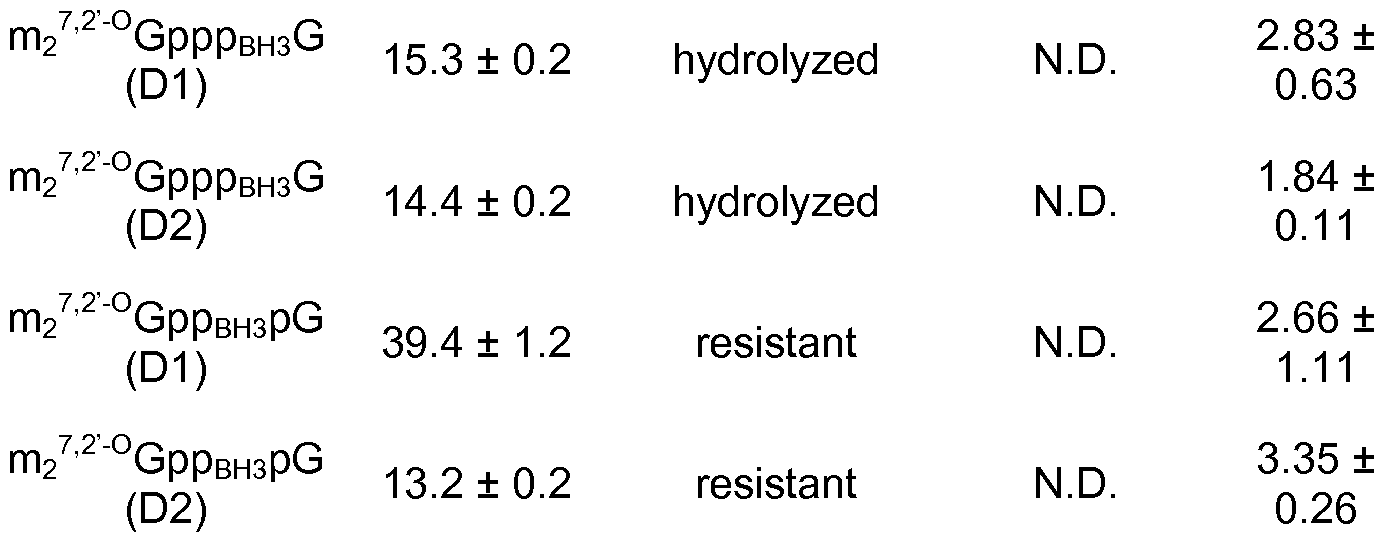

Table 2

Biophysical and biochemical characterization of BH₃-analogs

Cap Inhibition of in

In vitro translational analog / vitro translation Susceptibility efficiency

Cap analog elF4E (IC₅₀, μM) to DcpS affinity condition condition method I method Il (K_AS) μM^~1 A B

8.3 ±0.2 35.1 ± m⁷GpppG 9.4 ± 0.4 hydrolyzed 1.00 1.00 (n=21) 10.8 m⁷Gpppm⁷G 5.0 ± 0.2 hydrolyzed N. D. N. D. N. D. N. D.

m⁷GpppB_H3G _{145 +} 02 3.2 ±0.3 9.2 ± 1.9

(D1) I4.b + U.^ hydrolyzed N. D. N. D. (n = 2) (n = 2)

16.4 ± m⁷GpppB_H3G _{144 +} 06 3.1 ±0.2

(D2) I4.4_U.D hydrolyzed N. D. N. D. 0.8 (n = 2) (n = 2) m⁷Gpp_BH3pG 1.41 ± 1.91 ± 1.6 ±0.3 1.3 ± 0.1

44 ±2 resistant (D1) 0.26 0.37 (n = 4) (n = 5 )

(det. for m⁷GppBH3pG -I30 + 02 resistant D1/D21:1 4.5 ±0.5 3.5 ±0.9 (D2) u.u±u.^.. N. D. mixture) (n = 3) (n = 3)

2.81 ± 3.56 ± 3.0 ±0.1 3.0 ±0.2 m⁷Gpp_BH3pm⁷G 11.1 ±0.2 resistant 0.16 0.04 (n = 3) (n = 4) m₂^ ^υGpppG 10.8 ±0.3 hydrolyzed N. D. N. D. N. D. N. D.

2.73 ± 1.82 ± rrV^GpppG 10.2 ±0.3 hydrolyzed N. D. N. D

0.25 0.20

N. D. N. D

N. D. N. D

N. D. N. D

N. D. N. D

[0070] Example 24. Results of biophysical and biochemical characterization of BH₃- and Se- analogs. The binding affinities of eukaryotic elF4E for various cap analogs were determined by fluorescence quenching. This biophysical test allows one to predict the potential efficacy of cap analogs in translation. Those having higher affinities for elF4E than the unmodified cap analog (m⁷GpppG) are expected to be better recognized by the translational machinery, leading to higher translational efficiencies. They also are expected to compete more effectively with unmodified mRNA when free cap dinucleotides are used to inhibit translation. See generally E. Grudzien-Nogalska et ai, "Synthesis of anti-reverse cap analogs (ARCAs) and their applications in mRNA translation and stability," Methods Enzymol., vol. 431 , pp. 203-227 (2007). The results showed that the association constants for all BH₃- and Se-analogs tested were similar to or higher than those of their unmodified counterparts. See Tables 2 and 3.

Table 3 Biophysical and biochemical characterization of Se-analogs

Cap Inhibition of in vitro

8.3 ± 0.2 m⁷GpppG 9.4 ± 0.4 hydrolyzed 1.00 35.1 ± 10.8 (n = 21 ) m₂ ^7l2'"°GpppG 10.8 ± 0.3 hydrolyzed N. D. N. D. N. D.

rτV ^{J υ}GpppG 10.2 ± 0.3 hydrolyzed 1.82 ± 0.20 N. D. N. D. m₂ -₍GpPs_ePG _{38 5 ± 0 7} ± 0.28 8.4 ± 1.4 14.7 ± 1 .6 hydrolyzed 2.24 (n = 3) (n = 1 )

3.9 ± 0.5 11 .4 ± 7.2 hydrolyzed 2.31 ± 0.22 m²⁷² (D2^P)^{PSePG 19 0 ± 0}-⁵ (n = 3) (n = 1 ) m⁷Gps_ePpG (D1 ) N. D. resistant N. D. N. D. N. D.

m⁷Gps_ePpG (D2) N. D. resistant N. D. N. D. N. D. [0071] Example 25. Translational efficiencies of mRNAs capped with

BH₃- and Se-analogs. Translational efficiencies were determined by in vitro translation. mRNAs capped with the new analogs were generally found to have higher translational efficiencies than mRNAs capped with the unmodified parent compounds (Tables 4 and 5). Particularly high translational efficiencies were observed for analogs that were incorporated into mRNA exclusively in the correct orientation (BH₃-ARCAs, Se-ARCAs, and m⁷Gpp_BH3pm⁷G).

Table 4

Translational efficiency in vitro of luciferase mRNA capped with modified dinucleotide boranophosphate cap analogs

Cap analog Translation efficiency in comparison with m⁷GpppG-LUC mRNA

Experiment No. Mean

(SD)

1 2 3 4

0.48

ApppG 0.34 0.55 0.53 0.48 (0.09) m⁷GpppG 1.00 1.00 1.00 1.00 1.00

2.73 m₂ ⁷'^{3 "}°GpppG 2.53 2.92 2.96 2.50 (0.25)

1.41 m⁷Gpp_BH3pG^a 1.66 1.42 1.14 - (0.26)

2.81 m GppeH3pm G - 2.63 2.91 2.89 (0.16) ^a1 :1 mixture of D1 and D2

Table 5

In vitro translational efficiency of luciferase mRNA bearing a 31 -base poly(A) tail and capped with boranophosphate or phosphoroselenoate cap analogs

Translation efficiency in comparison to m⁷GpppG-LUC-

Cap analog (A)₃₁ mRNA

Experiment No. Mean

(SD)

1 2 3 4 5

0.19

ApppG 0.27 0.16 0.14 0.19 0.18 (0.05) m⁷GpppG 1.00 1.00 1.00 1.00 1.00 1.00

1.82 m₂ ^{7 3'} °GpppG 1.98 1.66 1.61 1.77 2.08 (0.20)

2.24 m₂ ^{7 2}-°Gpps_ePG (D1 ) 2.05 2.09 2.16 2.65 - (0.28)

2.31 m₂ ^{7 2}-°Gpps_ePG (D2) 2.53 2.31 2.09 - - (0.22)

2.66 m₂ ^{7 Z O}Gpp_BH3pG (D1 ) - - - 1.87 3.44 (1 .1 1 )

3.35 m₂ ^{7 Z O}Gpp_BH3pG (D2) - - - 3.16 3.53 (0.26)

1.91 m⁷Gpp_BH3pG (D1 ) - - - 1.65 2.17 (0.37)

2.83 m₂ ^{7 Z O}Gppp_BH3G (D1 ) - - - 2.38 3.28 (0.63)

1.84 m₂ ^{7 Z O}Gppp_BH3G (D2) - - - 1.76 1.92 (0.1 1 )

2.88 m₂ ^{7 2}-°GppspG (D1 ) - - - 2.92 2.83 (0.06)

3.11 m₂ ^{7 Z O}GppspG (D2) - - - 3.20 3.02 (0.13)

3.56 m⁷Gpp_BH3pm⁷G - - - - 3.56 (0.04)

[0072] Example 26. Susceptibility of the new analogs to degradation by

DcpS was also determined. Unexpectedly, it was found that all β-BH₃-analogs were resistant to hydrolysis by DcpS (Table 2). Since J. Kowalska et al. (2008) showed that the corresponding β-phosphorothioate cap analogs were all susceptible to DcpS, this result indicates that different phosphate modifications at the same position of the triphosphate bridge can have different biochemical consequences. For Se-analogs, by contrast, only those modified in the Y position were resistant to DcpS (Table 3).

[0073] Example 27. The BH₃-analogs as inhibitors of in vitro cap- dependent translation. Two type of experiments were carried out. In one set of experiments (condition A), a cap analog was added to the translation system together with luciferase mRNA. In the other set of experiments (condition B), the cap analog was incubated in the translation system for 60 min before addition of mRNA. In both types of experiment, BH₃- and Se-analogs were found to be strong inhibitors of translation (Tables 2 and 3). Moreover, in contrast to m⁷GpppG, incubation of some of these analogs did not impair their inhibitory properties, which is presumably a reflection of their resistance to pyrophosphatase attack. There was a correlation between the resistance to hydrolysis by DcpS and the stability of analogs in the translation system.

[0074] Example 28. Measurement of translational efficiency and mRNA decay in cultured HeLa cells. Nucleoporation was used to deliver RNA into HeLa cells with a Nucleofector Il (Amaxa Biosystems), following the manufacture's recommended protocols. One microgram of RNA was introduced into 10⁶ cells in Nucleofector Solution V, using program T-024.

[0075] For measurement of luciferase synthesis, cells were divided into several Eppendorf tubes, placed in a water bath at 37°C, and shaken. For protein extraction, 2 x 10⁵ cells were lysed in 200 μl of Luciferase Cell Culture Lysis Reagent (Promega). Luciferase activity of cell extracts was measured according to the manufacturer's recommended protocol.

[0076] To measure mRNA stability, cells were distributed into 35-mm cell culture dishes and placed at 37 ⁰C in a 5% CO₂, humidified atmosphere. Cells were harvested at various times and washed twice with PBS. For cytoplasmic RNA extraction, 2 x 10⁵ cells were lysed in 175 μl of 50 mM Tris-HCI, pH 8.0, 140 mM NaCI, 1.5 mM MgCI₂, 0.5% (v/v) lgepal (Sigma), and 1 mM dithiothreitol. RNAs were further purified using the RNeasy^® mini kit and analyzed by real-time PCR. Reverse transcription was performed on 400 ng of RNA in 20-μl reaction mixtures containing 5.5 mM MgCI₂, 500 μM of each dNTP, 2.5 μM random hexamers, 0.2 units of RNase inhibitor, and 0.8 units of MultiScribe reverse transcriptase (Applied Biosystems). Reaction mixtures were incubated at 25°C for 10 min, 48°C for 30 min, and 95°C for 5 min. Quantitative real-time PCR was performed with specific primers designed for each mRNA with the Beacon Designer tool (Bio-Rad). Luciferase mRNA levels were determined by PCR using primers designed to amplify bases 226-398 from the 5' end. Mouse GAPDH mRNA levels were determined (as control) by the same method and in the same RNA samples using primers specific for mouse GAPDH. Amplification and detection were performed with the iCycler IQ real time PCR detection system in 25-μl reaction mixtures containing 5 μl of the transcription reaction mixture (50 ng of cDNA), 12.5 μl of IQ SYBRgreen Supermix, and 0.3 mM primers (Bio-Rad). The incubation conditions were 3 min at 95 ⁰C for polymerase activation, followed by 40 cycles, each of 15 s at 95 ⁰C and 1 min at 60 ⁰C. Luciferase mRNA levels were calculated using the absolute standard curve method as described in User Bulletin No. 2 for the ABI Prism 7700 Sequence Detection System. Luciferase mRNA was then normalized by comparison to the measured level of mouse GAPDH mRNA in each sample, which was an indicator of total cellular RNA purified from a cell extract. Luciferase mRNA remaining at each time point was converted to a percent of the RNA present at zero time, and the results were plotted as logio([RNA]) versus time to determine ty₂. Results are presented in Figure 14.

[0077] The translational efficiencies of various luciferase mRNAs were determined by normalizing the rate of luciferase synthesis to the concentration of luciferase mRNA present in cells at zero time. Results are presented in Figure 15.

[0078] Further Examples. Examples of compositions and methods within the scope of the present invention include, but are not limited to, the following:

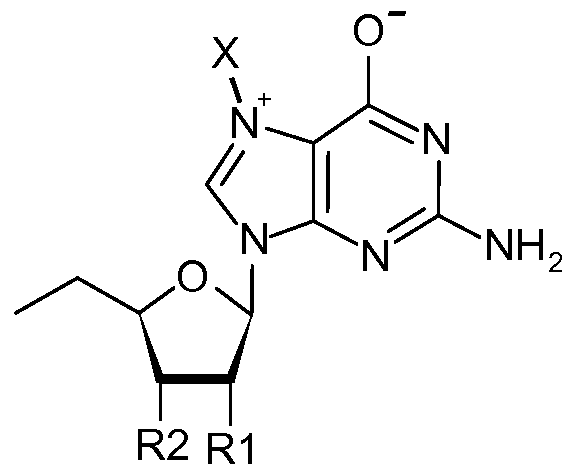

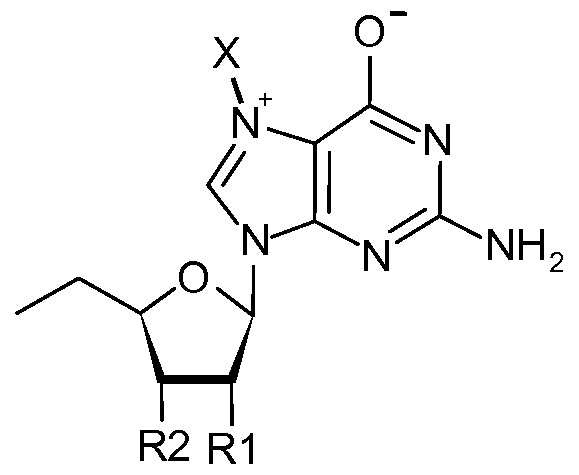

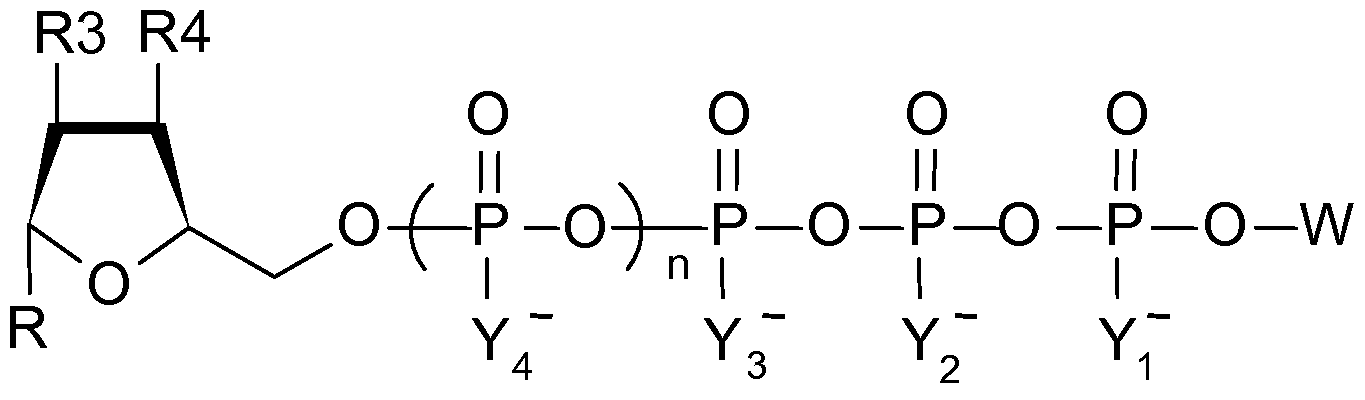

[0079] A composition comprising one or more of the following compounds, or a stereoisomer of one or more of the following compounds, or mixtures of stereoisomers of one or more of the following compounds, or a salt or salts of any of them:

wherein Y₁ , Y₂, Y₃, and Y₄ are selected from the group consisting of O, BH₃, and Se; the various Y, groups may be the same or different, wherein / is 1 , 2, 3, or 4; and at least one Y, is BH₃ or Se;

n is 0 or 1 ;

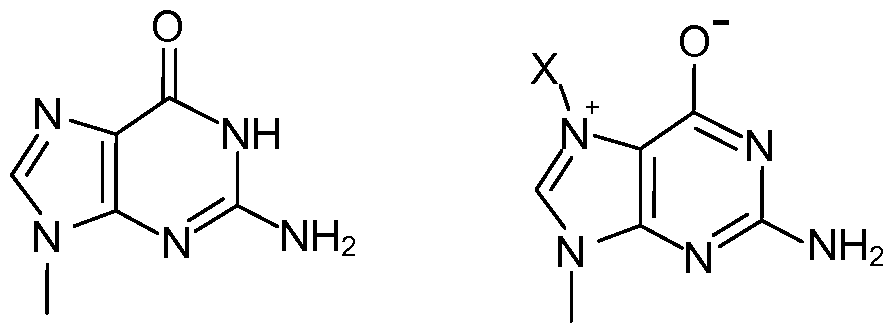

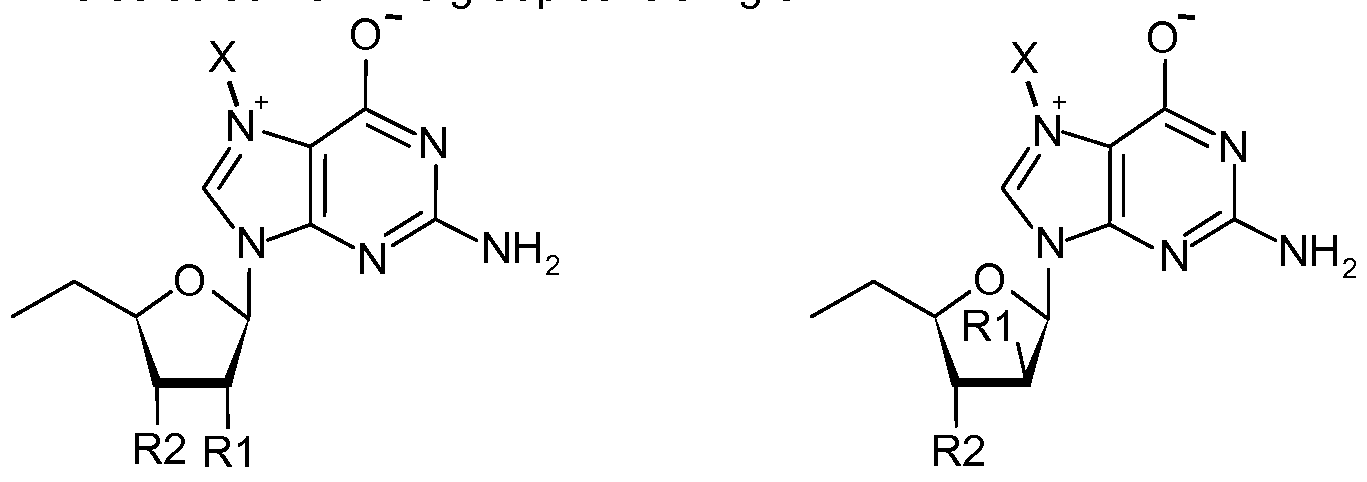

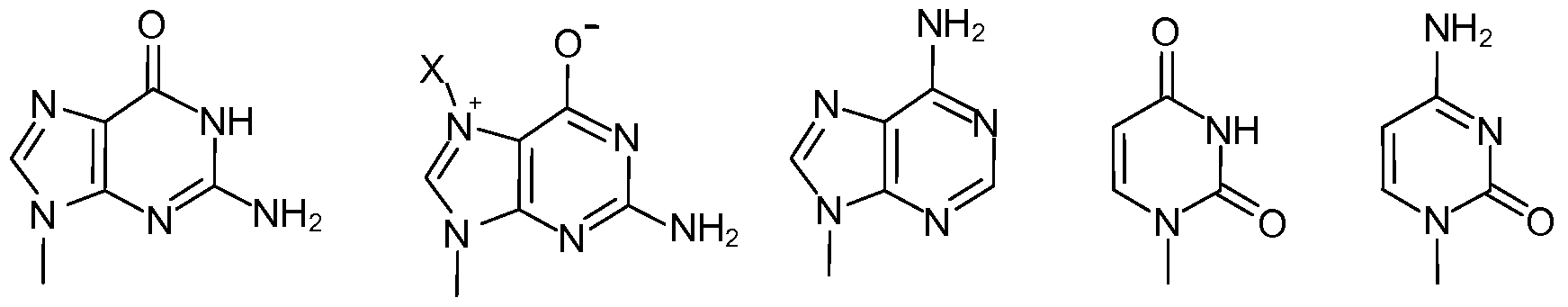

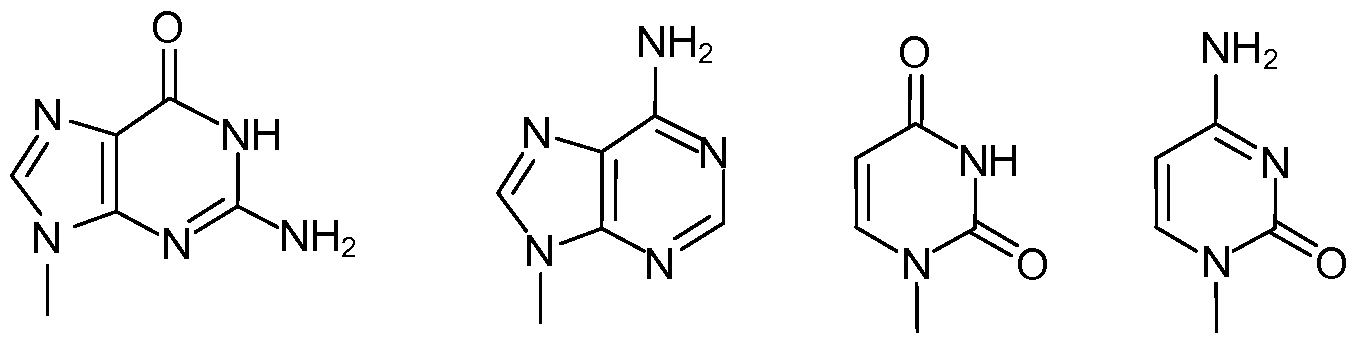

R is selected from the group consisting of:

R3 and R4 are selected from the group consisting of H, OH, OCH₃ and OCH₂CH₃; and R3 and R4 may be the same or different; is selected from the group consisting of

R1 and R2 are selected from the group consisting of H, OH, OCH₃, or OCH₂CH₃; and R1 and R2 may be the same or different; and

X is selected from the group consisting of methyl, ethyl, propyl, butyl, benzyl, substituted benzyl, methylenenaphthyl, and substituted methylenenaphthyl.

[0080] A composition as described; wherein Y₁, Y₂, Y₃, and Y₄ are selected from the group consisting of O and BH₃; the various Y, groups may be the same or different, wherein / is 1 , 2, 3, or 4; and at least one Y, is BH₃.

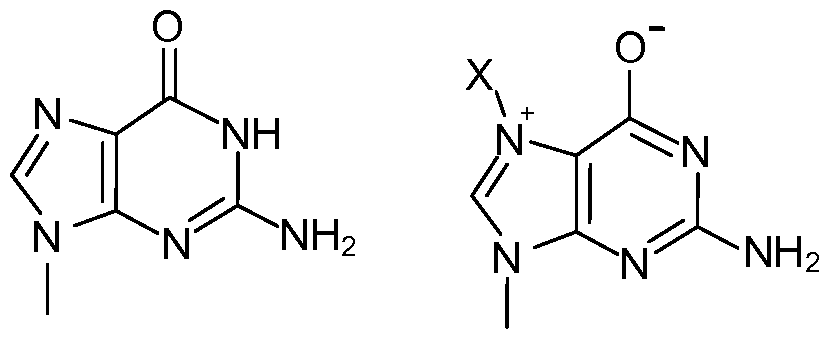

[0081] A composition as described, wherein R is selected from the group consisting of

[0082] A composition as described, wherein R3 is OH, R4 is OH; and if R is selected from the group consisting of

then R1 and R2 are not both OH. [0083] A composition as described, wherein W is

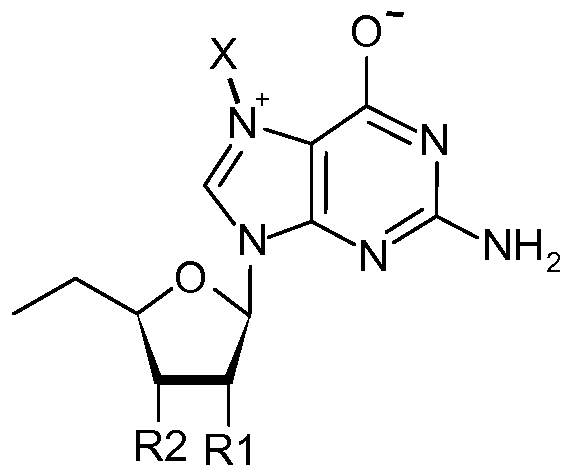

R2 is OH; R1 is H or OCH₃; X is methyl; and n = O; and one and only one of Y-i, Y₂, and Y₃ is BH₃.

[0084] A composition as described; wherein, if n = 0, then Y₂ or Y₃ is BH₃; and wherein, if n = 1 then Y₂, Y₃, or Y₄ is BH₃.

[0085] An RNA molecule whose 5' end incorporates a composition as described.

[0086] An RNA molecule as described, wherein R is selected from the group consisting of

[0087] A method of synthesizing, in vitro or in vivo, an RNA molecule as described, said method comprising reacting ATP, CTP, UTP, and GTP, a composition as described, and polynucleotide template in the presence of RNA polymerase, under conditions conductive to transcription by the RNA polymerase of the polynucleotide template into an RNA copy; whereby some of the RNA copies will incorporate the composition to make an RNA molecule as described.

[0088] A method for synthesizing a protein or peptide in vitro, said method comprising translating an RNA molecule as described in a cell-free protein synthesis system, wherein the RNA molecule comprises an open reading frame, under conditions conductive to translating the open reading frame of the RNA molecule into the protein or peptide encoded by the open reading frame.

[0089] A method for synthesizing a protein or peptide in vivo or in cultured cells, said method comprising translating an RNA molecule as described in vivo or in cultured cells, wherein the RNA molecule comprises an open reading frame, under conditions conductive to translating the open reading frame of the RNA molecule into the protein or peptide encoded by the open reading frame.

[0090] A method comprising administering to a system that translates RNA into protein or peptide a composition as described, wherein the amount of the composition administered is effective to wholly or partially inhibit the translation of RNA into protein or peptide.

[0091] A method as described, wherein the system is a native RNA translation system of a living organism, and wherein said method comprises the in vivo administration of the composition to the organism.

[0092] A composition as described; wherein Y₁, Y₂, Y₃, and Y₄ are selected from the group consisting of O and Se; the various Y, groups may be the same or different, wherein / is 1 , 2, 3, or 4; and at least one Y, is Se.

[0093] A composition as described, wherein R is selected from the group consisting of

[0094] A composition as described, wherein R3 is OH, R4 is OH; and if R is selected from the group consisting of

then R1 and R2 are not both OH.

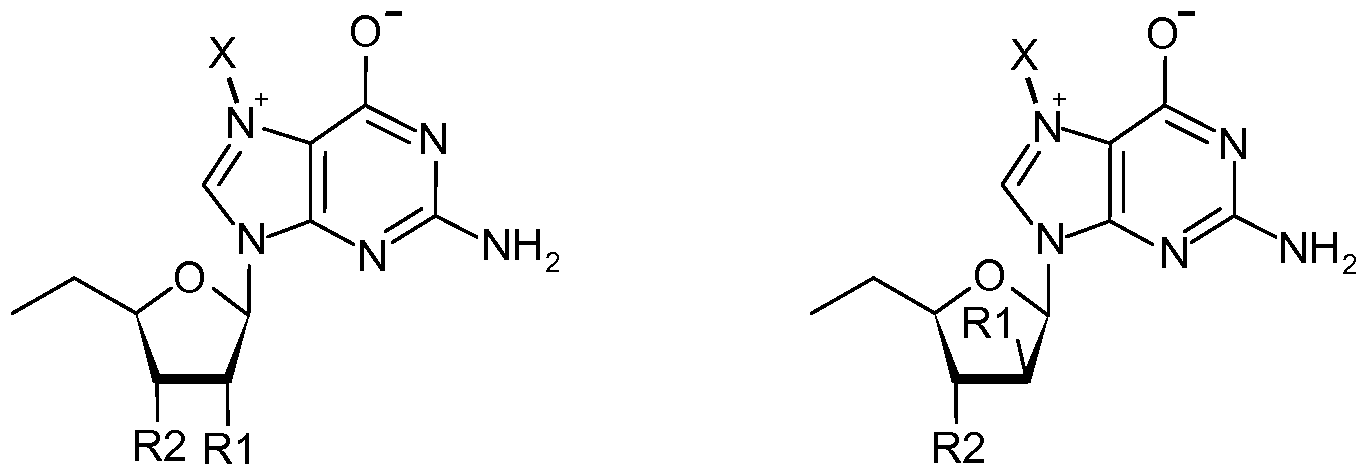

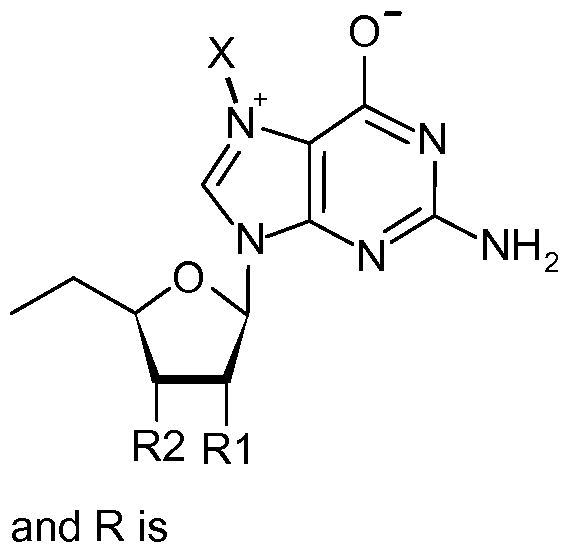

[0095] A composition as described, wherein W is

R2 is OH; R1 is H Or OCH₃; X is methyl; and n = O; and only one of Yi, Y₂, and Y₃ is Se.

[0096] A composition as described; wherein, if n = 0, then Y₂ or Y₃ is Se; and wherein, if n = 1 then Y₂, Y₃, or Y₄ is Se.

[0097] A composition as described; wherein R1 is OCH₃; R2 is OH; R3 is OH;

R4 is OH; n is 0; Yi is O; Y₂ is Se; Y₃ is O; W is

[0098] An RNA molecule whose 5' end incorporates a composition as described.

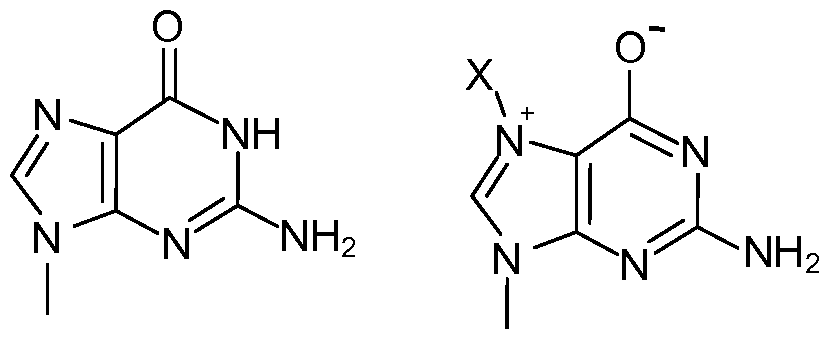

[0099] An RNA molecule as described, wherein R is selected from the group consisting of

[0100] A method of synthesizing, in vitro or in vivo, an RNA molecule as described, said method comprising reacting ATP, CTP, UTP, and GTP, a composition as recited, and polynucleotide template in the presence of RNA polymerase, under conditions conductive to transcription by the RNA polymerase of the polynucleotide template into an RNA copy; whereby some of the RNA copies will incorporate the composition to make an RNA molecule as described.

[0101] A method for synthesizing a protein or peptide in vitro, said method comprising translating an RNA molecule as described in a cell-free protein synthesis system, wherein the RNA molecule comprises an open reading frame, under conditions conductive to translating the open reading frame of the RNA molecule into the protein or peptide encoded by the open reading frame.

[0102] A method for synthesizing a protein or peptide in vivo or in cultured cells, said method comprising translating an RNA molecule as described in vivo or in cultured cells, wherein the RNA molecule comprises an open reading frame, under conditions conductive to translating the open reading frame of the RNA molecule into the protein or peptide encoded by the open reading frame. [0103] A method comprising administering to a system that translates RNA into protein or peptide a composition as described, wherein the amount of the composition administered is effective to wholly or partially inhibit the translation of RNA into protein or peptide.

[0104] A method as described, wherein the system is a native RNA translation system of a living organism, and wherein said method comprises the in vivo administration of the composition to the organism.

[0105] The complete disclosures of all references cited in this specification are hereby incorporated by reference. In the event of an otherwise irreconcilable conflict, however, the present specification shall control.

Claims

What is claimed:

1. A composition comprising one or more of the following compounds, or a stereoisomer of one or more of the following compounds, or mixtures of stereoisomers of one or more of the following compounds, or a salt or salts of any of them:

wherein Y₁ , Y₂, Y₃, and Y₄ are selected from the group consisting of O, BH₃, and Se; the various Y, groups may be the same or different, wherein / is 1 , 2, 3, or 4; and at least one Y, is BH₃ Or Se;

n is O or 1 ;

R is selected from the group consisting of:

R3 and R4 are selected from the group consisting of H, OH, OCH₃ and OCH₂CH₃; and R3 and R4 may be the same or different; W is selected from the group consisting of

R1 and R2 are selected from the group consisting of H, OH, OCH₃, or OCH₂CH₃; and R1 and R2 may be the same or different; and

X is selected from the group consisting of methyl, ethyl, propyl, butyl, benzyl, substituted benzyl, methylenenaphthyl, and substituted methylenenaphthyl.

2. A composition as recited in Claim 1 ; wherein Y₁ , Y₂, Y₃, and Y₄ are selected from the group consisting of O and BH₃; the various Y, groups may be the same or different, wherein / is 1 , 2, 3, or 4; and at least one Y, is BH₃.

3. A composition as recited in Claim 2, wherein R is selected from the group consisting of

4. A composition as recited in Claim 2, wherein W is

R2 is OH; R1 is H or OCH₃; X is methyl; and n = O; and only one of Yi, Y₂, and Y₃ is BH₃.

5. A composition as recited in Claim 2; wherein, if n = 0, then Y₂ or Y₃ is BH₃; and wherein, if n = 1 then Y₂, Y₃, or Y₄ is BH₃.

6. An RNA molecule whose 5' end incorporates a composition as recited in Claim 2.

7. An RNA molecule whose 5' end incorporates a composition as recited in Claim 5.

8. An RNA molecule as recited in Claim 7, wherein R is selected from the group consisting of

9. A method of synthesizing, in vitro or in vivo, an RNA molecule as recited in Claim 6, said method comprising reacting ATP, CTP, UTP, and GTP, a composition as recited, and polynucleotide template in the presence of RNA polymerase, under conditions conductive to transcription by the RNA polymerase of the polynucleotide template into an RNA copy; whereby some of the RNA copies will incorporate the composition to make an RNA molecule as recited in Claim 6.

10. A method for synthesizing a protein or peptide in vitro, said method comprising translating an RNA molecule as recited in Claim 6 in a cell-free protein synthesis system, wherein the RNA molecule comprises an open reading frame, under conditions conductive to translating the open reading frame of the RNA molecule into the protein or peptide encoded by the open reading frame.

11. A method for synthesizing a protein or peptide in vivo or in cultured cells, said method comprising translating an RNA molecule as recited in Claim 6 in vivo or in cultured cells, wherein the RNA molecule comprises an open reading frame, under conditions conductive to translating the open reading frame of the RNA molecule into the protein or peptide encoded by the open reading frame.

12. A method comprising administering to a system that translates RNA into protein or peptide a composition as recited in Claim 2, wherein the amount of the composition administered is effective to wholly or partially inhibit the translation of RNA into protein or peptide.

13. A method as recited in Claim 12, wherein the system is a native RNA translation system of a living organism, and wherein said method comprises the in vivo administration of the composition to the organism.

14. A composition as recited in Claim 1 ; wherein Y₁, Y₂, Y₃, and Y₄ are selected from the group consisting of O and Se; the various Y, groups may be the same or different, wherein / is 1 , 2, 3, or 4; and at least one Y, is Se.

15. A composition as recited in Claim 14, wherein R is selected from the group consisting of

16. A composition as recited in Claim 15, wherein W is

R2 is OH; R1 is H Or OCH₃; X is methyl; and n = O; and only one of Yi, Y₂, and Y₃ is Se.

17. A composition as recited in Claim 14; wherein, if n = O, then Y₂ or Y₃ is Se; and wherein, if n = 1 then Y₂, Y₃, or Y₄ is Se.

18. A composition as recited in Claim 14; wherein R1 is OCH₃; R2 is OH; R3 is OH; R4 is OH; n is O; Y₁ is O; Y₂ is Se; Y₃ is O; W is

and R is

19. An RNA molecule whose 5' end incorporates a composition as recited in Claim 14.

20. An RNA molecule whose 5' end incorporates a composition as recited in Claim 15.

21. An RNA molecule as recited in Claim 20, wherein R is selected from the group consisting of

22. A method of synthesizing, in vitro or in vivo, an RNA molecule as recited in Claim 19, said method comprising reacting ATP, CTP, UTP, and GTP, a composition as recited, and polynucleotide template in the presence of RNA polymerase, under conditions conductive to transcription by the RNA polymerase of the polynucleotide template into an RNA copy; whereby some of the RNA copies will incorporate the composition to make an RNA molecule as recited in Claim 19.

23. A method for synthesizing a protein or peptide in vitro, said method comprising translating an RNA molecule as recited in Claim 19 in a cell-free protein synthesis system, wherein the RNA molecule comprises an open reading frame, under conditions conductive to translating the open reading frame of the RNA molecule into the protein or peptide encoded by the open reading frame.

24. A method for synthesizing a protein or peptide in vivo or in cultured cells, said method comprising translating an RNA molecule as recited in Claim 19 in vivo or in cultured cells, wherein the RNA molecule comprises an open reading frame, under conditions conductive to translating the open reading frame of the RNA molecule into the protein or peptide encoded by the open reading frame.

25. A method comprising administering to a system that translates RNA into protein or peptide a composition as recited in Claim 14, wherein the amount of the composition administered is effective to wholly or partially inhibit the translation of RNA into protein or peptide.

26. A method as recited in Claim 25, wherein the system is a native RNA translation system of a living organism, and wherein said method comprises the in vivo administration of the composition to the organism.
