Abstract

Labyrinth drainage for the discharge and suction of wound exudate and body fluids from human or animal bodies, characterized in that a labyrinth (2) in a perforated, flexible sheath (1) formed with flap (3) and opening (4) is embedded and by means of a placement element as a rod (17) or spatula (21) can be placed by positioning in a quiver (14) in a tissue channel (22) to the wound site (25) by means of feed (24).

Description

The invention describes a labyrinth drainage, which is advanced by means of placement elements, such as a rod or spatula in a quiver, by advancing in a tissue channel to the wound site, so that wound exudate can be sucked.
The peculiarity of the invention is that the labyrinth material is tailored according to the indication and embedded in a perforated, flexible shell, which avoids a perforation of organs with the respective embedded labyrinth by their flexibility.

It is a common task in medicine to suck out wound fluids. In particular, in the case of deep, large and, in particular, infected surface wounds, the hitherto customary practice is to place a wound dressing which does not adhere to the tissue into the wound. On this wound dressing the physician brings a first layer of gauze, in which then by hand a drainage tube, partially wound several times, is applied and this covered again with a second layer of gauze and then the entire wound site is covered with a plaster. The end of the drainage tube is then subjected to a negative pressure, whereby the wound fluid can be sucked off.
In addition to the long time required to lay the above described means time, this approach also requires a considerable skill of the wound care physician, because during wound care all separately inserted device components are to be fixed, which often can not be accomplished by one person alone.

Another type of wound dressings, which were developed in particular for the vacuum wound treatment, is, for example, in DE 601 18 546 described.
The wound dressing described there requires, on the one hand, a relatively high manufacturing outlay and, on the other hand, is not readily adaptable to different wound sizes. In order to carry out a vacuum treatment, this solution requires, on the other hand, additional relatively complicated additional supports and, as a rule, bell-shaped seals on the wound, to which an external vacuum connection is attached.
Such, the skin surface far superior designs significantly restrict the freedom of movement of the patient and also generate unpleasant additional pressure loads.

The above-outlined treatment of such wounds under negative pressure is a method practiced for many years, which positively influences the healing of deep and large wounds by permanent wound stimulation. This type of vacuum wound treatment is, for example, in DE 694 25 881 T3 . DE 692 29 940 T2 and DE 692 24 847 T3 described in detail, which is why reference should be made here only.

In addition, there are a variety of other solutions, which should be listed here only as an example, because they concern more distant technical solutions.

That's how it is US 6,695,824 B2 a wound dressing cover for outer flat wounds consisting of two layers, the first layer being applied directly to the wound and the second layer having an outward-acting moisture barrier.
Between the layers mentioned several hose-like supply lines are provided which ensure a moisture supply to the wound.

For use in the context of wound treatment of deep, poorly healing wounds with the aid of the technique of vacuum wound treatment, however, the abovementioned wound dressing cover is not designed and also unsuitable, because a vacuum-tight lead-out of the sometimes multiple hoses from the wound area is practically impossible.
The same applies to a variety of devices for the extraction of wound secretions from body cavities, such as in EP 1 764 127 A1 described.

Furthermore, in the EP 2008/003251 a surface drainage with a derivative tail described.

The present invention is based on the object of providing a gentle, flexible, soft wound dressing which can suck secretions through a labyrinth by means of a vacuum from a wound, wetting the wound with weakly exuding wounds by injecting liquid, as well as faster and effective wound healing.
The object of the invention is solved by the characterizing features of claim 1.
Advantageous embodiments are the subject of the dependent claims.

The essence of the invention is that a labyrinth drainage can be placed in a perforated shell by means of rod or spatula, by contrast strips in the shell, optimally in deep, difficult to reach wound areas and after removal of rod or spatula, the shell in the wound area alone remains lying.
Thus, wound exudate can be aspirated through the perforation of the sheath and the labyrinth.
All subclaims are also part of the main claim.
The invention is further documented in the attached schematic drawings.

• 1: eine Hülle mit Labyrinth und Köcher
• 2: die Einbettung des Labyrinths in der Hülle mit Köcher
• 3: den Labyrinth-Zuschnitt
• 4: eine doppelte Hülle mit Labyrinth und Köcher
• 5: eine Hülle mit Labyrinth und Saugschlauch
• 6: eine Hülle mit Labyrinth, Köcher und Stab
• 7: eine Hülle mit Labyrinth, Köcher und Spatel
• 8: die Anwendung von Hülle, Labyrinth, Köcher und Stab
• 9: die Anwendung der Hülle mit Labyrinth und Köcher, platziert im Stab.

Show it:

• 1 : a shell with labyrinth and quiver
• 2 : the embedding of the labyrinth in the case with quiver
• 3 : the maze cut
• 4 : a double shell with labyrinth and quiver
• 5 : a shell with labyrinth and suction hose
• 6 : a shell with labyrinth, quiver and staff
• 7 : a shell with labyrinth, quiver and spatula
• 8th : the application of sheath, labyrinth, quiver and staff
• 9 : the application of the shell with labyrinth and quiver, placed in the staff.

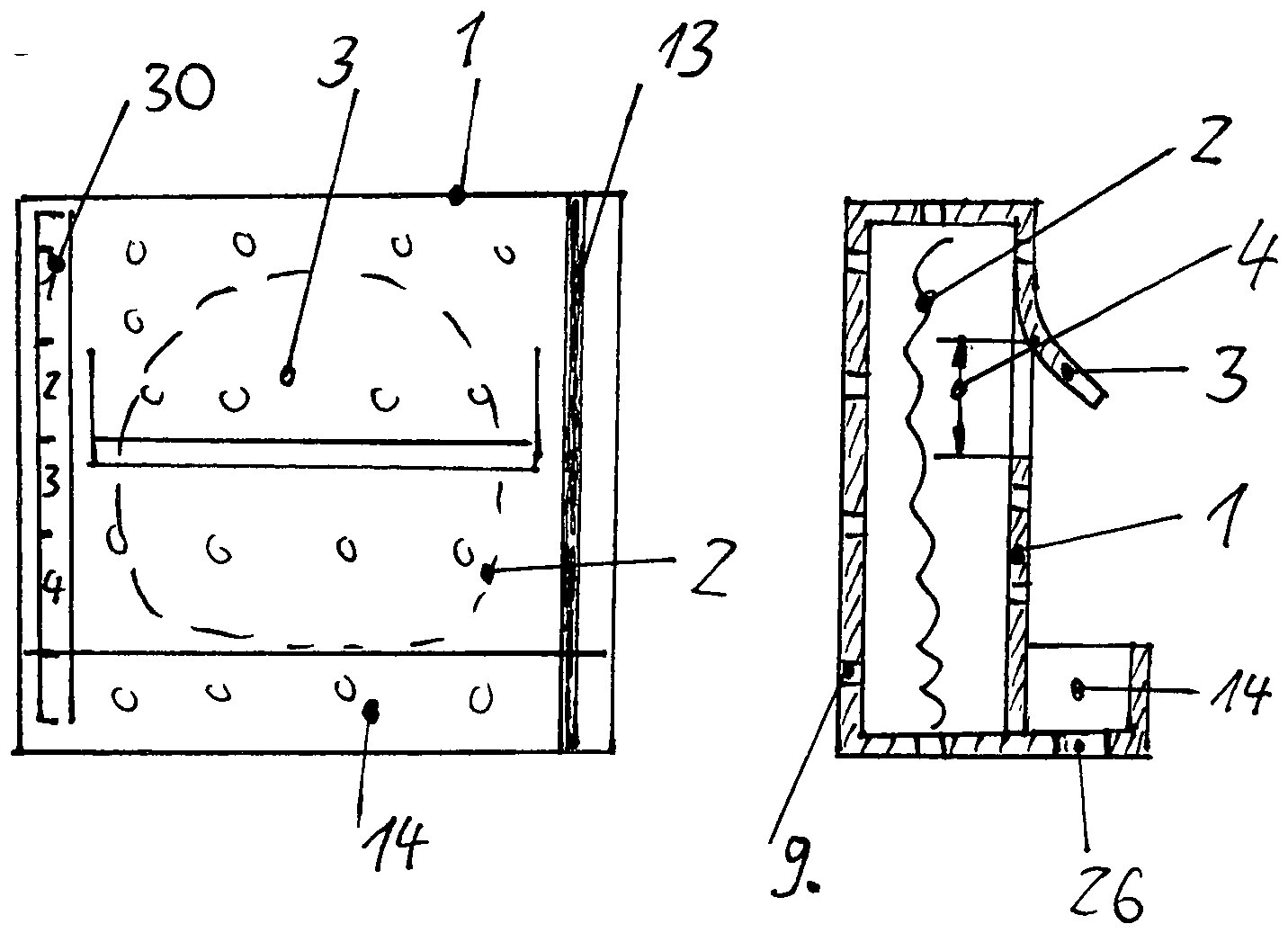

The 1 shows a flexible shell ( 1 ) with perforations ( 9 ) into which a tailored labyrinth ( 2 ) through the opening ( 4 ) with open flap ( 3 ) in the shell ( 1 ) is positioned perforation-proof against organs.
The quiver ( 14 ) for insertion into a tissue channel ( 22 ) by means of rods ( 17 ) or spatula ( 21 ) is on the shell ( 1 ) assembled.
A contrast ruler ( 30 ) as well as a contrast stripe ( 13 ) in and on the shell ( 1 ) allow position control under the X-ray screen.

In the 2 becomes the blank of the labyrinth blank ( 7 ) by means of cutting ( 6 ).

The 3 shows the positioning of the cropped labyrinth ( 2 ) and closure of the envelope ( 1 ) by threading ( 5 ) the flap ( 3 ).

A safeguard against possibly sharp edges of the labyrinth ( 2 ) by embedding the labyrinth ( 2 ) in a double envelope ( 8th ) made of microperforated film is used in the 4 shown. The use of a thicker, perforated shell ( 1 ) is also possible.

The 5 shows the application of a labyrinth ( 2 ) embedded, with perforations ( 9 ) provided with suction hose ( 10 ) for positioning through a tissue channel ( 22 ) by means of feed ( 24 ).

In the 6 is the shell ( 1 ) with labyrinth ( 2 ) with a quiver ( 14 ), in which the ball ( 16 ) of the rod ( 17 ) with handle ( 15 ) and by means of feed ( 24 ) through a tissue channel ( 22 ) to the wound site ( 25 ) is advanced. This achieves a wound-friendly placement according to the existing indication.

The 7 shows the rectangular, area-like design of the shell ( 1 ) with a wide quiver ( 14 ), one with a strand length ( 19 ) trained strand ( 20 ), a labyrinth ( 2 ) and a suction hose ( 10 ).
With the help of a flat spatula ( 21 ) by inserting the spatula ( 21 ) in the quiver ( 14 ) by feed ( 24 ) the placement at the wound site ( 25 ). The spatula ( 21 ) is reached after reaching the desired wound position from the shell ( 1 ) away.

The application of the invention is in the 8th shown.
The case ( 1 ) with embedded labyrinth ( 2 ) is through the rod ( 17 ), whose ball ( 16 ) in the quiver ( 14 ) is inserted, with feed ( 24 ) through the tissue channel ( 22 ) at the wound site ( 25 ).
After placement, the staff ( 17 ) from the quiver ( 14 ) and from the tissue ( 23 ) pulled out.
Wound exudate ( 28 ) can through the perforation ( 9 ), the maze ( 2 ) and the suction hose ( 10 ) are sucked off.
The in quiver ( 14 ) incorporated procedure ( 26 ) allows the drainage of liquid ( 27 ).

The 9 shows the insert of the shell ( 1 ) with labyrinth ( 2 ) in the hollow rod ( 17 ), wherein the rod end in the circumferential Quiver ( 14 ) is placed.
After insertion of the rod ( 17 ) with inner shell ( 1 ) and labyrinth ( 2 ) is reached when reaching the wound site ( 25 ), controllable by the contrast strip ( 13 ) in the bar ( 17 ), the rod ( 17 ) from the tissue ( 23 ), whereby the edge ( 29 ) of the quiver ( 14 ) acts as a resistance and the shell ( 1 ) in the tissue ( 23 ) after removal of the rod ( 17 ) remains placed.

LIST OF REFERENCE NUMBERS

1 =

shell

2 =

labyrinth

3 =

flap

4 =

opening

5 =

threading

6 =

cut

7 =

Maze blank

8 =

double hull

9 =

perforation

10 =

suction hose

11 =

hose clamp

12 =

connection

13 =

contrasting stripes

14 =

quiver

15 =

Handle

16 =

Bullet

17 =

Rod

18 =

wound area

19 =

strand length

20 =

Labyrinth strand

21 =

spatula

22 =

tissue channel

23 =

tissue

24 =

feed

25 =

wound site

26 =

procedure

27 =

liquid

28 =

wound exudate

29 =

edge

30 =

Contrast Ruler

QUOTES INCLUDE IN THE DESCRIPTION

This list of the documents listed by the applicant has been generated automatically and is included solely for the better information of the reader. The list is not part of the German patent or utility model application. The DPMA assumes no liability for any errors or omissions.

Cited patent literature

• DE 60118546 [0003]
• DE 69425881 T3 [0004]
• DE 69229940 T2 [0004]
• DE 69224847 T3 [0004]
• US 6695824 B2 [0006]
• EP 1764127 A1 [0007]
• EP 2008/003251 [0008]

Claims (23)

Labyrinth drainage for the discharge and suction of wound exudate and body fluids from human or animal bodies, characterized in that a labyrinth (2) in a perforated, flexible sheath (1) formed with flap (3) and opening (4) is embedded and by means of a placement element as a rod (17) or spatula (21) can be placed by positioning in a quiver (14) in a tissue channel (22) to the wound site (25) by means of feed (24). Labyrinth drainage after Claim 1 , characterized in that the labyrinth (2) is preferably a flow mat. Labyrinth drainage after Claim 1 , characterized in that the labyrinth (2) is a knobbed foil. Labyrinth drainage after Claim 1 , characterized in that the envelope (1) is a double envelope (8). Labyrinth drainage after Claim 1 , characterized in that the labyrinth (2), cut by means of blank (6), placed through the opening (4) in the shell (1) and the flap (3) is closed. Labyrinth drainage after Claim 1 , characterized in that a suction hose (10) with perforation (9) in the labyrinth (2) and in the shell (1) is embedded. Labyrinth drainage after Claim 1 , characterized in that the quiver (14) with a drain (26) for liquid (27) is formed. Labyrinth drainage after Claim 1 , characterized in that the rod (17) has a ball (16) and a handle (15). Labyrinth drainage after Claim 1 , characterized in that the sheath (1) in strand length (19) is formed with a labyrinth strand (20). Labyrinth drainage after Claim 1 , characterized in that in the labyrinth strand (20) a suction hose (10) is mounted. Labyrinth drainage after Claim 1 , characterized in that a spatula (21) is inserted as a placement element in the tissue channel (22) in the quiver (14). Labyrinth drainage after Claim 1 , characterized in that the sheath (1) is a microperforated PE film. Labyrinth drainage after Claim 1 , characterized in that the envelope (1) is a PVC film with perforations (9). Labyrinth drainage after Claim 1 , characterized in that the rod (17) is a flexible, stable tube. Labyrinth drainage after Claim 1 , characterized in that the spatula (21) consists of solid, flexible plastic. Labyrinth drainage after Claim 1 , characterized in that the quiver (14) is part of the shell (1). Labyrinth drainage after Claim 1 , characterized in that the quiver (14) as an additional part, consisting of a solid, elastic film, on the shell (1) and on the labyrinth drainage is mounted cohesively. Labyrinth drainage after Claim 1 , characterized in that the labyrinth (2) is an open-cell foam. Labyrinth drainage after Claim 1 , characterized in that the quiver (14) circumferentially forms an edge (29). Labyrinth drainage after Claim 1 , characterized in that the sheath (1) has a contrasting strip (13). Labyrinth drainage after Claim 1 , characterized in that the rod (17) and spatula (21) have a contrasting strip (13). Labyrinth drainage after Claim 1 , characterized in that the quiver (14) is contrasting. Labyrinth drainage after Claim 1 , characterized in that a contrast ruler (30) in the shell (1) is embedded.
