Abstract

The utility model relates to a packaging box, which is composed of foamed polyethylene sheets connected together, and includes a first side plate, a second side plate, a third side plate, a fourth side plate, a bottom plate and a cover plate; The first side plate is set opposite to the third side plate, the second side plate is set opposite to the fourth side plate, and the first side plate, the second side plate, the third side plate and the cover plate respectively have an inner end and a plurality of outer ends, the fourth side plate has two opposite inner ends and two opposite outer ends, the inner ends of the first side plate, the second side plate and the third side plate and the fourth side plate One of the inner ends of the fourth side plate is respectively connected to the periphery of the bottom plate, the other inner end of the fourth side plate is also connected to the inner end of the cover plate, the first side plate, the second side plate, the third side plate, the fourth side plate The outer ends of the four side plates and the cover plate are provided with locking structures that cooperate with each other. The above packing box has the advantages of environmental protection and convenience.

Description

packing box

technical field

The utility model relates to a packing box. the

Background technique

The expanded polystyrene (EPS) foam box currently used in large quantities is a vertical packaging box with a completely fixed structure. Shock absorption, but after the box is subjected to a large enough shock and vibration, it is very likely to be damaged and cracked, affecting its original structure and strength; and EPS material is very difficult to reuse and degrade, which is not conducive to environmental protection. the

Utility model content

In view of the above situation, it is necessary to provide a packaging box that is both environmentally friendly and convenient to disassemble. the

A packaging box, the packaging box is composed of continuous expanded polyethylene (EPE) sheets, and includes a first side panel, a second side panel, a third side panel, a fourth side panel, a bottom panel and a cover panel The first side plate is set opposite to the third side plate, the second side plate is set opposite to the fourth side plate, and the first side plate, the second side plate, the third side plate and the cover plate respectively have a The inner end and a plurality of outer ends, the fourth side plate has two opposite inner ends and two opposite outer ends, the inner ends of the first side plate, the second side plate and the third side plate and the fourth side One of the inner ends of the plates is respectively connected to the periphery of the bottom plate, the other inner end of the fourth side plate is also connected to the inner end of the cover plate, the first side plate, the second side plate, the third side plate, The outer ends of the fourth side plate and the cover plate are provided with locking structures that cooperate with each other. the

Between the inner ends of the first side plate, the second side plate and the third side plate, one of the inner ends of the fourth side plate and the periphery of the bottom plate, and the other inner end of the fourth side plate and the cover plate The inner ends are respectively connected by half-cut boards. the

The thickness of the half-cut board is less than half of the thickness of the first side board, the second side board, the third side board, the fourth side board, the bottom board or the cover board. the

The locking structure includes a convex buckle structure and a concave buckle structure corresponding to the convex buckle structure. the

Each convex buckle structure has two opposite inclined sides and a top surface connecting the two inclined sides. the

The inclination angle of each inclined side protruding outward near the top surface is 15-30 degrees. the

Each female button structure has two opposite sloped side walls. the

Each inclined side wall includes an inner surface and a top surface connected to the side surface, and the inclination angle of the inner surface protruding outward near the top surface is 15-30 degrees. the

The locking structure on the outer end side of the first side plate and the third side plate corresponds to the locking structure on the outer end side of the second side plate and the fourth side plate respectively; the locking structure on the outer end of the cover plate Corresponding to the locking structures on the top surface of the outer end of the first side plate, the second side plate and the third side plate respectively. the

The above-mentioned packaging box is made of environmentally friendly expanded polyethylene (EPE) material, and packaging waste can be recycled; the structure adopts a one-piece molding design, and the container is an integrated structure before use, which saves space and is convenient for transportation; when holding fruits or food, There is no need to use glue bonding or accessories to assist, only relying on the locking structure of the box itself, it can be easily three-dimensionally formed, and the operation is simple, fast and efficient; after the EPE material is subjected to external shock and vibration, it can cushion and absorb shock without cracking. It is not only insulated and heat-insulated, but also waterproof and heat-resistant, which can well protect the fruit inside; in actual use, EPE materials of different thicknesses can be selected according to actual needs to make processing containers to meet the transportation and packaging requirements of fruits; waste after packaging It can be disassembled into flakes, which is convenient for recycling and transportation, and saves costs. the

Description of drawings

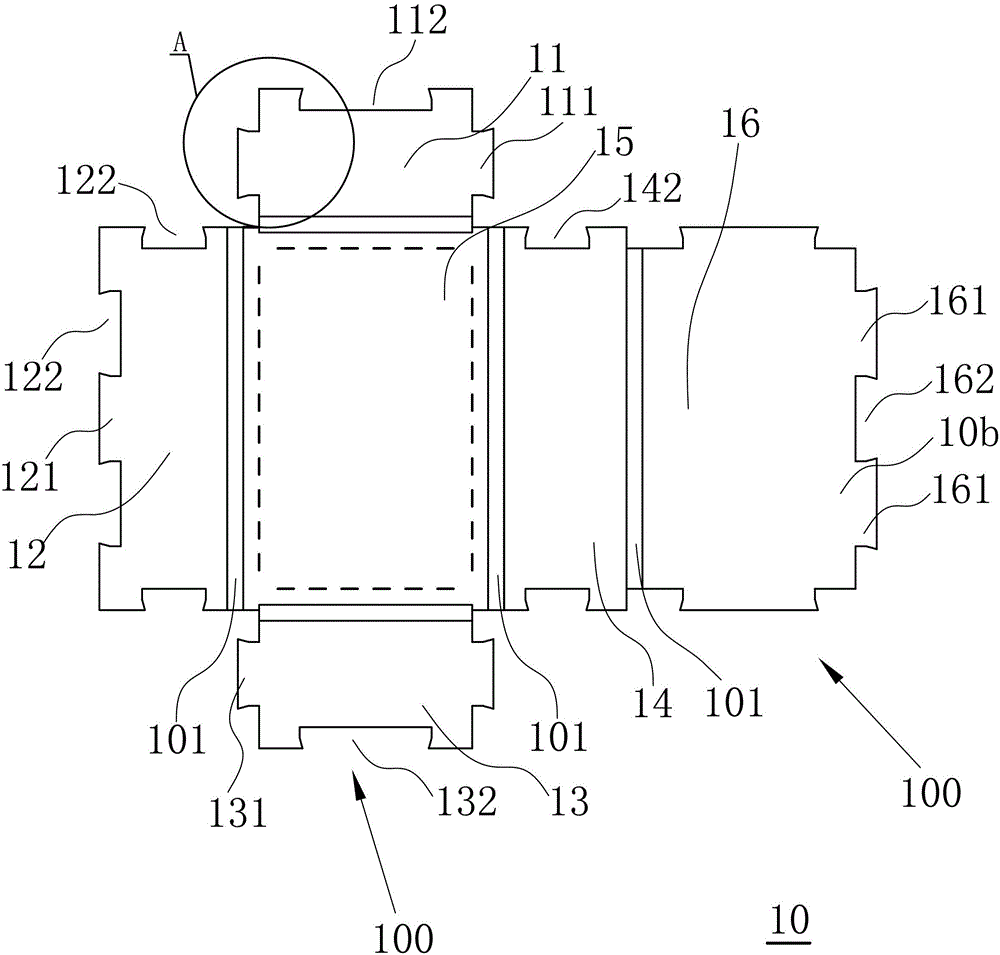

Fig. 1 is the schematic diagram after the packaging box of the utility model embodiment is unfolded;

Figure 2 is a partially enlarged view at Figure 1A;

Fig. 3 is a three-dimensional schematic diagram of the packaging box shown in Fig. 1 after being unfolded;

Fig. 4 is a schematic diagram of the packing box shown in Fig. 1 when packed.

Among them: 10. Foamed polyethylene sheet;

11. The first side board; 12. The second side board; 13. The third side board; 14. The fourth side board; 15. The bottom board; 16. The cover board;

100. Lock structure; 101. Half-cut board;

111, 121, 131, 161, convex buckle structure; 112, 122, 132, 142, 162, concave buckle structure;

1001, groove hook structure; 1002, convex groove hook structure; θ, angle.

Detailed ways

The packaging box of the present utility model will be further described in detail below in conjunction with the accompanying drawings and embodiments. the

As shown in Figures 1 to 4, the packaging box of the present utility model is composed of an integrated foamed polyethylene (EPE) sheet 10, and the foamed polyethylene sheet 10 includes a first side plate 11 , the second side plate 12, the third side plate 13, the fourth side plate 14, the bottom plate 15 and the cover plate 16; 14 is oppositely arranged, the first side plate 11, the second side plate 12, the third side plate 13 and the cover plate 16 respectively have an inner end and a plurality of outer ends, and the fourth side plate 14 has two opposite inner ends With the two opposite outer ends, the inner ends of the first side plate 11, the second side plate 12 and the third side plate 13 and one of the inner ends of the fourth side plate 14 are respectively connected around the bottom plate 15. Another inner end of the four side plates 14 is also connected with the inner end of the cover plate 16, the first side plate 11, the second side plate 12, the third side plate 13, the fourth side plate 14 and the outer surface of the cover plate 16. The end is provided with a locking structure 100 which cooperates with each other. the

Between the inner ends of the first side plate 11 , the second side plate 12 and the third side plate 13 and one of the inner ends of the fourth side plate 14 and the surroundings of the bottom plate 15 and the other side of the fourth side plate 14 The inner end and the inner end of the cover plate 16 are respectively connected by a half-cut board 101, and the half-cut board 101 is cut by a half tangent (the depth of the tangent slit is 2/3 of the thickness of the sheet, and 1/3 is reserved) After the EPE sheet, it is easier to peel off the cut EPE layer and keep the uncut part. The width and thickness of the half-cut board 101 are 1/3 of the thickness of the foamed polyethylene sheet 10, and the whole sheet is foamed. After the polyethylene sheet 10 is folded and used, the area inside the dotted line box is the use area of the packaging box (as shown in FIG. 1 ). the

The thickness of the half-cut board 101 can be one-third of the thickness of the first side board 11, the second side board 12, the third side board 13, the fourth side board 14, the bottom board 15 or the cover board 16, and the locking structure 100 Including convex button structures 111, 121, 131, 161 and concave button structures 112, 122, 132, 142, 162, the convex button structures 111, 121, 131, 161 and corresponding concave button structures 112, 122, 132, 142 , 162 can engage with each other. the

Each convex buckle structure 111, 121, 131, 161 has two opposite inclined sides and a top surface connecting the two inclined sides, and each inclined side protrudes outward near the top surface at an angle of 15~ 30 degrees (as shown in Figure 2); each concave buckle structure 112, 122, 132, 142, 162 has two opposite inclined side walls, each inclined side wall includes an inner surface and a top surface connected to the side, The inclination angle of the inner surface protruding outward near the top surface is 15-30 degrees (as shown in Figure 2). This structure makes the mortise joints between the plates increase the locking force of the plates. the

The locking structure 100 on the outer end side of the first side plate 11 and the third side plate 13 corresponds to the locking structure 100 on the outer end side of the second side plate 12 and the fourth side plate 14 respectively; The locking structure 100 on the outer end of the board 16 corresponds to the locking structure 100 on the top surface of the outer end of the first side plate 11 , the second side plate 12 , and the third side plate 13 respectively. The packaging box using this technology can be easily three-dimensionally formed only by the locking structure of the box piece itself during packaging, and the operation is simple, fast and efficient. The waste after packaging and use can be disassembled into sheets for easy recycling , transportation, saving costs. The whole sheet is formed into three dimensions, and the operation is simple, fast and efficient. the

The packaging box is made of expanded polyethylene (EPE) material bonded by multi-layer sheets. After the EPE material is subjected to external impact and vibration, it can cushion and absorb shock without cracking. It protects the fruit inside well; in actual use, EPE materials of different thicknesses can be selected to make processing containers according to actual needs to meet the transportation and packaging requirements of fruits; the waste after packaging can be disassembled into flakes, which is convenient for recycling. Shipping saves costs. the

The above are only preferred embodiments of the present utility model, and do not limit the utility model in any form. Although the utility model has been disclosed as above with preferred embodiments, it is not intended to limit the utility model. Any Those who are familiar with this profession, without departing from the scope of the technical solutions of the present utility model, can use the technical content disclosed above to make some changes or modify equivalent embodiments with equivalent changes, but all without departing from the technical solutions of the present utility model Solution content, any simple modifications, equivalent changes and modifications made to the above embodiments according to the technical essence of the utility model still belong to the scope of the utility model technical solution. the

Claims (9)

1. a packing box is characterized in that, this packing box is made of the polyethylene foamed sheet material that is connected as a single entity, and comprises first side plate, second side plate, the 3rd side plate, the 4th side plate, base plate and cover plate; This first side plate and the 3rd side plate are oppositely arranged, this second side plate and the 4th side plate are oppositely arranged, this first side plate, second side plate, the 3rd side plate and cover plate have a inner and a plurality of outer end respectively, the 4th side plate has two relative the inners and two relative outer ends, this first side plate, one of them the inner of inner and the 4th side plate of second side plate and the 3rd side plate be connected to this base plate around, another the inner of the 4th side plate also is connected with the inner of this cover plate, this first side plate, second side plate, the 3rd side plate, the outer end of the 4th side plate and cover plate is provided with the buckle structure that cooperatively interacts.

2. packing box as claimed in claim 1 is characterized in that: one of them of inner and the 4th side plate of this first side plate, second side plate and the 3rd side plate inner with this base plate around between and be to be connected by the hemisection plate respectively between the inner of another the inner of the 4th side plate and this cover plate.

3. packing box as claimed in claim 2 is characterized in that: the thickness of this hemisection plate is 1/3rd of this first side plate, second side plate, the 3rd side plate, the 4th side plate, base plate or cover sheet thickness.

4. packing box as claimed in claim 1 is characterized in that: this buckle structure comprises protruding buckle structure and and the corresponding recessed buckle structure of this protruding buckle structure.

5. packing box as claimed in claim 4 is characterized in that: the end face that each protruding buckle structure has two opposing inclined sides and connects these two inclined sides.

6. packing box as claimed in claim 5 is characterized in that: each inclined side is 15 ~ 30 degree at the angle of inclination of outwards protruding near this top surface side.

7. packing box as claimed in claim 4 is characterized in that: each recessed buckle structure has two opposing inclined sidewalls.

8. packing box as claimed in claim 7 is characterized in that: each sloped sidewall comprises medial surface and the end face that links to each other with this side, and this medial surface is 15 ~ 30 degree at the angle of inclination of outwards protruding near this top surface side.

9. packing box as claimed in claim 1 is characterized in that: the buckle structure on the outer end side surface of this first side plate and the 3rd side plate is corresponding with the buckle structure of this second side plate and the outer end side surface of the 4th side plate respectively; The buckle structure of this cover plate outer end is corresponding with the buckle structure of this first side plate, this second side plate, the 3rd side plate outer end end face respectively.
