CN1917853A - Conditioning compositions comprising hydrophobically modified crosslinked cationic thickening polymers - Google Patents

Abstract

Disclosed are conditioning compositions comprising by weight: from about 0.01% to about 6.0% of a hydrophobically modified crosslinked cationic thickening polymer; (b) from about 0.1% to about 8.0% of a surfactant system; (c) from about 0.1% to about 10% of a silicone compound; and (d) an aqueous carrier. The conditioning compositions of the present invention have a suitable rheology for conditioning compositions and provide conditioning benefits. The compositions are particularly suitable for hair care products, for example hair conditioning products for rinse-off use.

Description

Conditioning composition comprising hydrophobically modified crosslinked cationic thickening polymer

field of invention

The present invention relates to conditioning compositions comprising a hydrophobically modified crosslinked cationic thickening polymer, a surfactant system and a silicone compound. The conditioning compositions of the present invention have rheological properties suitable for conditioning compositions and provide conditioning benefits. The composition is especially suitable for hair care products, such as hair conditioning products for rinse-off use.

Background of the invention

A variety of conditioning compositions, such as hair conditioning compositions, skin conditioning compositions and fabric softeners, have been used on a variety of substrates, such as hair, skin and fabrics. One common method of providing conditioning benefits is through the use of conditioning agents such as cationic surfactants and polymers, high melting point fatty compounds, low melting point oils, silicone compounds, and mixtures thereof. Most of these conditioning agents are known to provide various conditioning benefits. For example, certain cationic surfactants, when used with certain high melting point fatty compounds, are believed to form a gel matrix with rheological properties suitable for conditioning compositions and suitable for providing a variety of conditioning benefits , especially when used in hair care products, which provide benefits such as smooth feel, softness and reduced tangling of wet hair, and softness and moist feel of dry hair.

Instead of forming the gel matrix described above, there is a need to use other methods to achieve rheological properties suitable for conditioning compositions while maintaining the conditioning benefits of the gel matrix.

Additionally, most of the aforementioned conditioning agents are also known to render the composition opaque. Accordingly, there is a need for conditioning compositions having a clear product appearance, ie, a transparent or translucent product appearance.

It is also known that most of the aforementioned conditioning agents weigh down the hair when included in hair care compositions. For those consumers who wish to maintain or increase hair volume, such as those with finer hair, weighing down the hair is undesirable. Accordingly, there is a need for hair conditioning compositions that provide conditioning benefits without weighing down the hair.

There is also a need for a conditioning composition that, when used in the form of a rinse-off product, especially a rinse-off hair conditioner product, provides a conditioning benefit that is perceived by the consumer as easy to rinse off. Conditioner compositions comprising the above-described gel base also provide a long-lasting smooth feel upon rinsing, which is undesirable for some consumers who prefer a clean feel. Accordingly, there is a need for a conditioning composition which, when rinsed from the hair, leaves the hair easily, giving a clean feel, while still depositing a sufficient amount of conditioning agent on the hair.

Based on the foregoing, there is a need for a conditioning composition that, when used in hair care products such as hair conditioning products, can be cured by using methods other than gelling of cationic surfactants and high melting point fatty compounds. The gel base has the right rheological properties while providing conditioning benefits, especially wet softness and tangling reduction. There is also a need for conditioning compositions that are adapted to provide additional benefits such as a sheer product appearance, no hair weighing down, and an easy-rinse feel while providing the aforementioned rheological benefits and conditioning benefits.

None of the prior art offers all of the advantages and benefits of the present invention.

Summary of the invention

The present invention relates to compositions comprising by weight:

(a) from about 0.01% to about 6.0% of a hydrophobically modified crosslinked cationic thickening polymer;

(b) from about 0.1% to about 8.0% of a surfactant system;

(c) from about 0.1% to about 10% of a silicone compound; and

(d) Aqueous carrier.

These and other features, aspects and advantages of the present invention will be better understood by reading the following detailed description and appended claims.

Detailed description of the invention

While the specification concludes with claims particularly pointing out and distinctly claiming the invention, it is believed that the invention will be better understood from the following description.

Herein, "comprising" means that other steps and other ingredients which do not affect the end result can be added. This term includes the terms "consisting of" and "consisting essentially of".

All percentages, parts and ratios are based on the total weight of the compositions of the present invention, unless otherwise specified. All such weights as they pertain to listed ingredients are based on the active level thereof and, therefore, do not include carriers or by-products that may be included in commercially available materials.

Herein "mixture" is meant to include a simple combination of substances and any compound that may result from their combination.

combination

Composition A of the present invention comprises by weight:

(a) from about 0.01% to about 6.0% of a hydrophobically modified crosslinked cationic thickening polymer;

(b) from about 0.1% to about 8.0% of a surfactant system comprising a cationic surfactant and a nonionic surfactant;

(c) from about 0.1% to about 10% of a silicone compound; and

(d) Aqueous carrier.

Composition B of the present invention comprises by weight:

(a) from about 0.01% to about 6.0% of a hydrophobically modified crosslinked cationic thickening polymer;

(b) from about 0.1% to about 8.0% of a surfactant system comprising a nonionic surfactant having an HLB value of from about 11 to about 20;

(c) from about 0.1% to about 10% of a silicone compound; and

(d) Aqueous carrier.

Composition C of the invention comprises by weight:

(a) from about 0.01% to about 6.0% of a hydrophobically modified crosslinked cationic thickening polymer;

(b) from about 0.1% to about 8.0% of a surfactant system selected from cationic surfactants, nonionic surfactants, and mixtures thereof;

(c) from about 0.1% to about 10% of a silicone compound, wherein the silicone compound is selected from those having an average particle size of 300 nm or less in the composition, substantially soluble in the composition Those, and mixtures thereof, and wherein said substantially soluble silicone compound is selected from the group consisting of aminosilicones, aminosilicone copolyols, hydrophobically modified aminosilicones copolyols, hydrophobically modified Amidosilicone copolyols, and mixtures thereof; and

(d) Aqueous carrier.

Conditioning compositions A to C of the present invention, when used in hair care products, such as hair conditioning products, have rheological properties suitable for conditioning compositions and provide conditioning benefits, especially wet hair softness and reduced tangling. In addition, the conditioning compositions A to C of the present invention are adapted to provide further benefits such as clear product appearance, no hair weighing down and easy rinse feel, while providing the rheological benefits and conditioning benefits mentioned above. When used in hair care products, Compositions A to C of the present invention provide the aforementioned rheological properties and conditioning benefits without weighing down the hair. Additionally, when used as a rinse-off product, Compositions A to C of the present invention can provide an easy-rinse feel while providing the rheological and conditioning benefits described above.

It is believed that when used in hair care products, such as hair conditioning products, the present Inventive compositions A to C can provide rheological properties suitable for conditioning compositions without the presence of a gel matrix consisting of cationic surfactants and high melting point fatty compounds while providing conditioning benefits, especially softness to wet hair Sex and reduce tangling. It is also believed that the preferred features of the present invention, such as the use of preferred thickening polymers, preferred surfactants and/or preferred silicone compounds, may contribute to the further benefits of the compositions of the present invention, Such as a clear product appearance, no hair weighing down, and an easy-rinse feel, while providing the aforementioned rheological and conditioning benefits.

Preferably, the compositions of the present invention are substantially free of water-insoluble oily compounds selected from hydrocarbons, aliphatic compounds, and mixtures thereof. In the present invention, a composition "substantially free of water-insoluble oily compounds" means that the composition contains 1.0% or less, preferably 0.5% or less, more preferably 0.1% or less, still more preferably 0 % of water-insoluble oily compounds. Water-insoluble oily compounds herein are those having a solubility in water of less than about 1 g/100 g water, preferably less than about 0.5 g/100 g water, more preferably less than about 0.1 g/100 g water at 25°C. These water-insoluble oily compounds are selected from hydrocarbons, aliphatic compounds and mixtures thereof. These hydrocarbons include, for example, alpha-polyolefin oils, paraffins, waxes, and mixtures thereof. These fatty compounds include, for example, fatty alcohols such as cetyl alcohol and stearyl alcohol, fatty acids such as stearic acid, fatty alcohol derivatives and fatty acid derivatives such as their esters and ethers, and mixtures thereof.

The compositions of the invention are preferably transparent or translucent, more preferably transparent. In the present invention, a "transparent" composition means that the composition has a transmittance of about 50% or higher, preferably about 65% or higher, more preferably about 80% or higher. In the present invention, a "translucent" composition means that the composition has a transmittance of about 25% to about 50%, preferably about 35% to about 50%. The transmittance is measured at 600 nm using an ultraviolet-visible spectrophotometer UV-1601 available from Shimadzu.

Preferably the compositions of the present invention are substantially free of anionic compounds. Anionic compounds herein include anionic surfactants and anionic polymers. In the present invention, a composition "substantially free of anionic compounds" means that the composition contains 1% or less, preferably 0.5% or less, more preferably 0% of anionic compounds.

Hydrophobically modified cross-linked cationic thickening polymer

The conditioning compositions of the present invention comprise a hydrophobically modified crosslinked cationic thickening polymer, preferably a hydrophobically modified crosslinked cationic acrylate thickening polymer. The cationic thickening polymer is included in the compositions of the present invention at a level by weight of from about 0.01% to about 6.0%, preferably from about 0.1% to about 5.0%, more preferably from about 0.3% to about 4.0%, still more preferably about 0.4% to about 3.0%.

Hydrophobically modified crosslinked cationic thickening polymers useful in the present invention are those that can provide the composition with suitable viscosity and rheological properties such that the composition of the present invention has the following properties: (i) suitable Viscosity, preferably about 0.1Pa·s (100cps) to about 100Pa·s (100,000cps), more preferably about 1Pa·s (1,000cps) to about 50Pa·s (50,000cps), still more preferably about 2Pa·s ( 2,000cps) to about 50Pa·s (50,000cps), even more preferably about 5Pa·s (5,000cps) to about 20Pa·s (20,000cps); and (ii) suitable rheological properties such that the composition The shear thinning index (STI) is preferably about 30 or higher, more preferably about 50 or higher, still more preferably about 70 or higher, even more preferably about 90 or higher. Viscosity herein is suitably measured with a Brookfield RVT at a shear rate of 2 s ⁻¹ at 26.7°C. The shear thinning index (STI) is calculated according to the following equation:

Shear thinning index (STI) = first viscosity/second viscosity;

Where the first viscosity was measured at a shear rate of 2 s ^-1 , while the second viscosity was measured at a shear rate of 950 s ^-1 , both at 26.7 °C at 26.7 °C with increasing shear rate flow measurements using the AR purchased from TAInstruments carried out in 2000.

Hydrophobically modified crosslinked cationic thickening polymers useful herein may include the polymers disclosed in the section below entitled "Cationic Conditioning Polymers".

Hydrophobically modified crosslinked cationic thickening polymers useful herein are those that are predominantly cationic at the pH of the compositions herein. These polymers are those containing amine groups selected from primary, secondary, tertiary, quaternary ammonium, and mixtures thereof. When the polymer contains primary, secondary and/or tertiary amines, the polymer is used in a composition at a pH such that these amines are partially or fully protonated. Thus, when using these primary, secondary and/or tertiary amine-containing polymers, the pH of the composition is preferably from about 2 to about 8, more preferably from about 3 to about 7, and still more preferably from about 4 to about 6.

Hydrophobically modified crosslinked cationic thickening polymers useful in the present invention are those containing hydrophobic groups. The hydrophobic groups may be incorporated into the polymer in the form of hydrophobic substituents attached to the polymer backbone. The hydrophobic groups that can be used in the present invention are selected from linear or branched, saturated or unsaturated chain alkyl groups, preferably from about 5 to about 40 carbon atoms, more preferably from about 8 to about 35 carbon atoms, even more preferably From about 10 to about 30 carbon atoms.

Preferably, the hydrophobically modified crosslinked cationic thickening polymers useful in the present invention contain hydrophilic groups. The hydrophilic group may be incorporated into the polymer in the form of a hydrophilic substituent attached to the polymer backbone. This hydrophilic group and the aforementioned hydrophobic group may exist in the same monomer unit or in different monomer units. Hydrophilic groups useful in the present invention include, for example, polyoxyalkylene groups containing from about 1 to about 50 alkylene oxides. The alkylene oxide is preferably selected from ethylene oxide, propylene oxide, and mixtures thereof.

Preferably, the hydrophobically modified cross-linked cationic thickening polymers useful in the present invention are hydrophilic and have a solubility in water at 25°C of at least 0.25 g/100 g water, more preferably at least 2 g/100 g water, still more Preferably at least 5 g/100 g water, even more preferably at least 15 g/100 g water.

Polymer backbones useful in the present invention are those comprising synthetic monomers. Preferred synthetic monomers useful in the present invention include, for example, vinyl monomers, acrylate monomers, methacrylate monomers, and mixtures thereof.

In the present invention, highly preferred are hydrophobically modified crosslinked cationic acrylate thickening polymers comprising said monomer units and having the formula (A) _m (B) _n (C) _p (D) _q , wherein (A) is an acrylate monomer; (B) is an amine-containing monomer; (C) is a hydrophilic monomer; (D) is a monomer comprising a hydrophobic substituent; m, n and q are independently one or greater, and p is zero or greater, preferably one or greater; and wherein the polymer further comprises a crosslinking group.

Monomers (A) useful in the present invention include, for example, those selected from the group consisting of alkyl acrylates, alkyl methacrylates, acrylamides, methacrylamides, and mixtures thereof. Preferred are those selected from alkyl acrylates, alkyl methacrylates or mixtures thereof. The alkyl part of the monomer (A) is preferably a short chain alkyl, such as C ₁ -C ₈ , more preferably C ₁ -C ₅ , still more preferably C ₁ -C ₃ , even more preferably C ₁ -C ₂ .

Monomers (B) that can be used in the present invention include, for example, those selected from mono or di(C ₁ -C ₄ )alkylamino(C ₁ -C ₄ )alkyl (meth)acrylates, mono or di(C ₁ -C ) ₄ ) Alkylamino(C ₁ -C ₄ )alkyl(meth)acrylamides, quaternized di(C ₁ -C ₄ )alkylamino(C ₁ -C ₄ )alkyl(meth)acrylates, and those of their mixtures. Preference is given to mono- or di-(C ₁ -C ₄ )alkylamino(C ₁ -C ₄ )alkyl(meth)acrylates. Exemplary monomers (b) include N,N-dimethylaminoethylmethacrylate (DMAEMA), N,N-diethylaminoethylacrylate, N,N-diethylaminoethylmethacrylate, N -Ethyl tert-butylaminoacrylate, N-tert-butylaminoethyl methacrylate, N,N-dimethylaminopropylacrylamide, N,N-dimethylaminopropylmethacrylamide, N,N-di Ethylaminopropylacrylamide and N,N-Diethylaminopropylmethacrylamide.

Monomers (C) usable in the present invention include, for example, those containing polyoxyalkylene groups comprising about 1 to about 50, preferably about 5 to about 45, more preferably about 10 to about 40 Alkylene oxide. The alkylene oxide is preferably selected from ethylene oxide, propylene oxide, and mixtures thereof. Preferred are those selected from vinyl alkoxylates, PEG 10-40 (meth)acrylates and mixtures thereof.

Monomer (D) can be selected from any monomer containing the above-mentioned hydrophobic groups, that is, preferably about 5 to about 40 carbon atoms, more preferably about 8 to about 35 carbon atoms, still more preferably about 10 to about 30 carbon atoms Straight chain or branched chain, saturated or unsaturated chain alkyl. Preferred monomers (D) contain hydrophilic groups in addition to hydrophobic substituents. A preferred hydrophilic group is 10-40 ethylene glycol. Highly preferred monomers (D) contain the above-mentioned hydrophobic and hydrophilic groups within one substituent attached to an ethylenically unsaturated copolymerizable backbone group such as acrylate and methacrylate. Even more preferred monomers (D) have backbone groups substituted by hydrophobic groups through hydrophilic groups.

In addition to the desired preferred monomers described above, relatively small amounts of monomers that provide crosslinking to the polymer may be used, on a weight/weight basis, preferably from about 10 ppm to about 10,000 ppm based on the total weight of the polymer , more preferably from about 10 ppm to about 1,000 ppm, still more preferably from about 10 ppm to about 250 ppm. Crosslinking monomers include polyvinyl substituted aromatic monomers, polyvinyl substituted alicyclic monomers, difunctional phthalic acid esters, difunctional methacrylic acid esters, multifunctional acrylic acid esters, N - Methylenebisacrylamide and polyvinyl substituted aliphatic monomers such as dienes, trienes and tetraenes. Exemplary crosslinking monomers include divinylbenzene, trivinylbenzene, 1,2,4-trivinylcyclohexylamine, 1,5-hexadiene, 1,5,9-decatriene, 1 , 9-decadiene, 1,5-heptadiene, diallyl phthalate, ethylene glycol bis (methacrylate), polyethylene glycol bis (methacrylate), five - and tetra-acrylates, triallyl pentaerythritol, octaallyl sucrose, cycloalkanes, cycloalkenes and N-methylenebisacrylamide.

Highly preferred hydrophobically modified cross-linked cationic acrylate thickening polymers useful in the present invention include: INCI designation Acrylates/Aminoacrylate/Vinylalkyoxylate/C _10-30 Alkyl PEG -25 methacrylate copolymers, available from Noveon.

Surfactant system

The compositions of the present invention comprise a surfactant system. The surfactant system is included in the composition at a level by weight of from about 0.1% to about 8.0%, preferably from about 0.2% to about 5.0%, more preferably from about 0.4% to about 4.0%.

Preferably, the surfactant system is substantially soluble in the composition at the level used since a transparent or translucent appearance is desired. "Essentially soluble" surfactant system means that the composition has 50% or more, preferably about 65% or more, more preferably about 80% of the surfactant system at 25°C at the level used. % or more transmittance.

Surfactant systems useful in the present invention are selected from cationic surfactants, nonionic surfactants, and mixtures thereof. When included, cationic surfactants are preferably used in combination with nonionic surfactants.

cationic surfactant

A wide variety of cationic surfactants including mono- and di-long alkyl chain cationic surfactants can be used in the compositions of the present invention as described below. Among them, preferred is a long alkyl chain cationic surfactant, such as a long alkyl chain quaternary ammonium salt. The long alkyl chain quaternary ammonium salts useful herein are those in which the long alkyl chain contains 12 to 28 carbon atoms, preferably 16 to 22 carbon atoms. Highly preferred one long alkyl chain quaternary ammonium salts are eg cetyl trimethyl ammonium chloride, stearyl trimethyl ammonium chloride. Although these one-long alkyl chain cationic surfactants are preferred, other cationic surfactants such as di-long alkyl chain cationic surfactants can also be used alone or in combination with a long alkyl chain cationic surfactant and/or Combined use of nonionic surfactants.

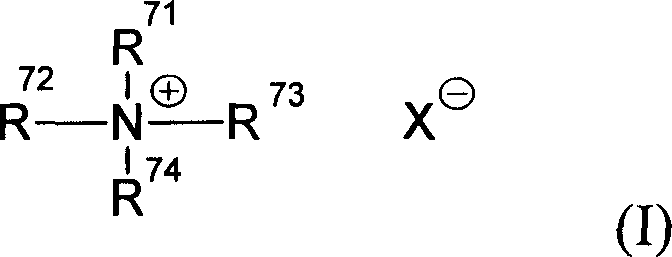

Cationic surfactants useful in the present invention include, for example, those conforming to the general formula (I):

wherein at least one of R ⁷¹ , R ⁷² , R ⁷³ and R ⁷⁴ is selected from aliphatic groups having 8 to 30 carbon atoms or aromatic, alkoxy, polyoxyalkylene groups having up to about 22 carbon atoms , alkylamido, hydroxyalkyl, aryl or alkylaryl group, the remaining R ⁷¹ , R ⁷² , R ⁷³ and R ⁷⁴ are independently selected from aliphatic groups having 1 to about 22 carbon atoms or an aromatic, alkoxy, polyoxyalkylene, alkylamido, hydroxyalkyl, aryl, or alkylaryl group having up to about 22 carbon atoms; X is a salt-forming anion such as selected from halogen ( Such as chloride, bromide), acetate, citrate, lactate, glycolate, phosphate, nitrate, sulfonate, sulfate, alkylsulfate and alkylsulfonate. In addition to carbon atoms and hydrogen atoms, aliphatic groups may also contain ether linkages and other groups such as amino groups. Longer chain aliphatic groups, such as those having about 12 carbon atoms or more, can be saturated or unsaturated. It is preferred when R ⁷¹ , R ⁷² , R ⁷³ and R ⁷⁴ are independently selected from C ₁ to about C ₂₂ alkyl groups.

Among the cationic surfactants of general formula (I) preferred are those comprising at least one alkyl chain in the molecule having at least 16 carbon atoms. Non-limiting examples of the aforementioned preferred cationic surfactants include: behenyltrimethylammonium chloride, such as that available under the tradename Genamine KDMP from Clariant, from Croda under the tradename INCROQUATTMC-80, and ECONOL TM22 is available from Sanyo Kasei; cetyltrimethylammonium chloride, such as CTAC 30KC from KCI and CA-2350 from Nikko Chemicals; stearyltrimethylammonium chloride, such as Available under the trade name Genamine STACP from Clariant; oleyldimethylbenzyl ammonium chloride, such as from Croda under the trade name Incroquat O-50; hydrogenated tallow alkyl trimethyl ammonium chloride, dialkyl (14- 18) Dimethyl ammonium chloride, ditallow alkyl dimethyl ammonium chloride, dihydrogenated tallow alkyl dimethyl ammonium chloride, distearyl dimethyl ammonium chloride and dihexadecyl Dimethyl ammonium chloride.

Preference is also given to hydrophilically substituted cationic surfactants in which at least one substituent comprises one or more aromatic, ether, ester, amide or amino moieties present in the radical chain as substituents or linking moieties, wherein R At least one of the ⁷¹ to R ⁷⁴ groups contains one or more hydrophilic moieties selected from alkoxy groups (preferably C ₁ to C ₃ alkoxy groups), polyoxyalkylene groups (preferably C ₁ to C ₃ polyoxyalkylene), alkylamido, hydroxyalkyl, alkyl ester, and combinations thereof. Preferably, the hydrophilically substituted cationic conditioning surfactants contain from 2 to about 10 nonionic hydrophilic moieties within the above range. Highly preferred hydrophilic substituted cationic surfactants include dialkylamidoethyl hydroxyethyl ammonium salts, dialkylamidoethyl diammonium salts, dialkylamidoethyl hydroxyethyl ammonium salts, Diammonium salts, and mixtures thereof; commercially available, for example, under the following trade names: VARISOFT 110, VARISOFT 222, VARIQUAT K1215 and VARIQUAT 638 (from Witco Chemical), MACKPRO KLP, MACKPRO WLW, MACKPROMLP, MACKPRO NSP, MACKPRO NLW, MACKPRO WWP, MACKPRONLP, MACKPRO SLP (from McIntyre), ETHOQUAD 18/25, ETHOQUADO/12PG, ETHOQUAD C/25, ETHOQUAD S/25 and ETHODUOQUAD (from Akzo), DEHYQUAT SP (from Henkel), and ATLAS G265 (from from ICIA Americas). Carnaubamidopropyldimethylbenzyl ammonium chloride available from Croda under the tradename Incroquat BA-85 is also preferred for use in the composition.

Amines are suitable as cationic surfactants. Primary, secondary and tertiary fatty amines are useful. Especially useful are tertiary amidoamines having an alkyl group of about 12 to about 22 carbon atoms. Exemplary tertiary amidoamines include: stearamidopropyl dimethylamine, stearamidopropyl diethylamine, stearamidoethyl diethylamine, stearamidoethyl dimethylamine Amine, Palmitoamidopropyl Dimethylamine, Palmitoamidopropyl Diethylamine, Palmitoamidoethyl Diethylamine, Palmitoamidoethyl Dimethylamine, Behenamidopropyl Dimethylamine, behenyl amidopropyl diethylamine, behenyl amidoethyl diethylamine, behenyl amidoethyl dimethylamine, eicosanamidopropyl Dimethylamine, Eicosanoamidopropyl Diethylamine, Eicosanoamidoethyl Diethylamine, Eicosanoamidoethyl Dimethylamine, Diethylaminoethyl Stearyl amides. Amines useful in the present invention are disclosed in US Patent 4,275,055 to Nachtigal et al. These amines can also be used in combination with acids such as l-glutamic acid, lactic acid, hydrochloric acid, malic acid, succinic acid, acetic acid, fumaric acid, tartaric acid, citric acid, l-glutamic acid hydrochloride, maleic acid, And mixtures thereof; more preferably l-glutamic acid, lactic acid, citric acid. The amines herein are preferably partially neutralized with any of these acids in a molar ratio of amine to acid of from about 1:0.3 to about 1:2, more preferably from about 1:0.4 to about 1:1.

The cationic surfactant may be included in the composition at a level by weight of from about 0.1% to about 2.0%, preferably from about 0.2% to about 1.2%, more preferably from about 0.4% to about 1.0%.

nonionic surfactant

A wide variety of nonionic surfactants can be used in the compositions of the present invention. Non-limiting examples of nonionic surfactants include, for example, the following:

(1) Polyethylene oxide condensates of alkylphenols, such as linear or branched configurations of alkylphenols (containing about 6 to about 20 carbon atoms in the alkyl group) and ethylene oxide condensates, said The amount of ethylene oxide is equal to about 10 to about 60 moles of ethylene oxide per mole of alkylphenol.

(2) Those obtained by condensation of ethylene oxide with the product obtained by reacting propylene oxide and ethylenediamine products.

(3) Condensation products of fatty alcohols containing about 8 to about 18 carbon atoms and ethylene oxide in a linear or branched chain configuration, such as coconut alcohol ethylene oxide condensate, wherein the content of ethylene oxide is From about 10 to about 30 moles of ethylene oxide per mole of coconut alcohol, the coconut alcohol moiety having from about 10 to about 14 carbon atoms.

(4) Long-chain tertiary amine oxides of the formula R ¹ R ² R ³ N→O, wherein R ¹ comprises an alkyl, alkenyl or monohydroxyalkyl group having from about 8 to about 18 carbon atoms, about 0 to about 10 oxirane moieties and 0 to about 1 glyceryl group; ^R2 and ^R3 contain about 1 to about 3 carbon atoms and 0 to about 1 hydroxyl group, such as methyl, ethyl, propyl, Hydroxyethyl or Hydroxypropyl.

(5) Long-chain tertiary phosphine oxides of the formula [RR'R"P→O], wherein R comprises an alkyl, alkenyl or monohydroxyalkyl group having a chain length of about 8 to about 18 carbon atoms, 0 Up to about 10 oxirane moieties, and 0 to 1 glyceryl moiety, R' and R" are each an alkyl or monohydroxyalkyl group containing about 1 to about 3 carbon atoms.

(6) Long chain dialkyl sulfoxides containing a short chain alkyl or hydroxyalkyl group (usually methyl) having 1 to about 3 carbon atoms and a long chain hydrophobic chain comprising about Alkyl, alkenyl, hydroxyalkyl or ketoalkyl groups of 8 to about 20 carbon atoms, about 0 to about 10 oxirane groups and 0 to 1 glyceryl groups.

(7) Alkyl polysaccharide (APS) surfactants (such as alkyl polyglycosides), examples of which are described in U.S. Pat. Hydrophobic groups of carbon atoms and APS surfactants with polysaccharides (such as polyglucoside) as hydrophilic groups; Optionally, there may be a polyoxyalkylene group connecting the hydrophobic and hydrophilic parts; and the alkyl ( That is, the hydrophobic moiety) can be saturated or unsaturated, branched or unbranched, and unsubstituted or substituted (e.g., by hydroxyl or cyclic ring); preferred species are alkyl poly Glucosides, which are commercially available from Henkel, ICI Americas, and Seppic; and

(8) Polyoxyethylene alkyl ethers, such as those of the formula RO( _CH2CH2O ) _nH , and polyethylene glycol (PEG) glyceryl aliphatic esters, _such as the formula R(O) _OCH2CH Those of (OH) _CH2 ( _OCH2CH2 ) _nOH , wherein n is from 1 to about 200, preferably from about 20 to about 100, and R is _an alkyl group having from about 8 to about 22 carbon atoms.

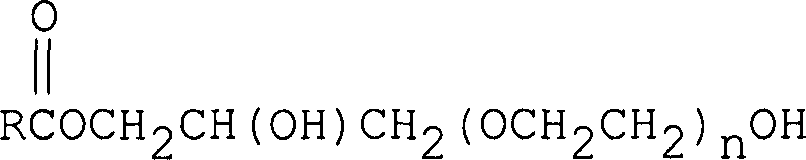

The glycerol ether polyethylene glycol derivatives as described in (8) above that can be used in the present invention include derivatives of mono-, di-, and triglycerides and mixtures thereof. One class of glycerol ether polyethylene glycol derivatives suitable herein are those conforming to the general formula (I):

wherein the degree of ethoxylation n is from about 4 to about 200, preferably from about 5 to about 150, more preferably from about 20 to about 120, and wherein R comprises from about 5 to about 25 carbon atoms, preferably from about 7 to about 20 An aliphatic group of carbon atoms. Suitable polyethylene glycol derivatives of glycerides may be polyethylene glycol derivatives of hydrogenated castor oil. Such polyethylene glycol derivatives of hydrogenated castor oil include, for example, PEG-20 hydrogenated castor oil, PEG-30 hydrogenated castor oil, PEG-40 hydrogenated castor oil, PEG-45 hydrogenated castor oil, PEG-50 hydrogenated castor oil, PEG -54 Hydrogenated Castor Oil, PEG-55 Hydrogenated Castor Oil, PEG-60 Hydrogenated Castor Oil, PEG-80 Hydrogenated Castor Oil, and PEG-100 Hydrogenated Castor Oil.

Other suitable polyethylene glycol derivatives of glycerides may be polyethylene glycol derivatives of stearic acid. Such polyethylene glycol derivatives of stearic acid include, for example, PEG-30 stearate, PEG-40 stearate, PEG-50 stearate, PEG-75 stearate, PEG-90 stearate stearate, PEG-100 stearate, PEG-120 stearate, and PEG-150 stearate.

The glycol ethers of fatty alcohols as described in (3) or (8) above which can be used in the present invention include any glycol ethers of fatty alcohols which are suitable for use in hair conditioning compositions. Non-limiting examples of fatty alcohol glycol ethers include: cetyl polyoxyethylene ether series compounds, such as ceteth-1 to ceteth-45, preferably ceteth-45, Hexaalkyl polyoxyethylene ether-7 to cetyl polyoxyethylene ether-20; isohexadecyl polyoxyethylene ether series compounds, such as isohexadecyl polyoxyethylene ether-20; stearyl polyoxyethylene ether Oxyethylene ether series compounds, such as stearyl polyoxyethylene ether-1 to 100; cetearyl polyoxyethylene ether 1 to cetearyl polyoxyethylene ether-50; lauryl polyoxyethylene ether series compounds , preferably lauryl polyoxyethylene ether-7 to lauryl polyoxyethylene ether-12; alkanes series compounds, preferably alkanes-9 to alkanes-15; the above cetyl polyoxyethylene Propylene glycol ethers of ether, stearyl polyoxyethylene ether, cetearyl polyoxyethylene ether and lauryl polyoxyethylene ether series compounds, the propylene glycol ethers of these cetyl polyoxyethylene ether series compounds include, for example, PPG- 5-Cetetheth-20; polyoxyethylene ethers or polyoxyethylene-polyoxypropylene ethers of branched alcohols such as octyldodecanol, decyltetradecyl alcohol, Dialkylpentadecanol and isostearyl alcohol, polyoxyethylene-polyoxypropylene ethers of these branched alcohols include, for example, POE(20)POP(6)decyltetradecyl ether; and mixtures thereof.

Other nonionic surfactants that can be used in the present invention include, for example, polysorbates with an HLB value of 16.7 such as polysorbate-20 (POE (20) sorbitan monolaurate), polysorbates with an HLB value of 13.3, Sorbate-21 (POE (4) sorbitan monolaurate), polysorbate-40 (POE (20) sorbitan monopalmitate) with HLB value of 15.6, HLB value of Polysorbate-60 (POE(20)-sorbitan stearate) with 14.9, polysorbate-61 with HLB value of 9.6 (POE(4)-sorbitan stearate), HLB Polysorbate-80 (POE(20) sorbitan monooleate) with a value of 15.0 and polysorbate-81 (POE(4) sorbitan monooleate) with an HLB value of 10.0 .

Preferred nonionic surfactants useful herein have an HLB value of from about 8 to about 22, more preferably from about 11 to about 20, still more preferably from about 13 to about 15.

Among the above-mentioned various nonionic surfactants, highly preferred are selected from isocetyl polyoxyethylene ether-20, PPG-5-cetyl polyoxyethylene ether-20, PEG-40 hydrogenated castor oil , polysorbate-20, laureth-20, ceteth-10, ceteth-20, and mixtures thereof.

Nonionic surfactants may be included in the composition at a level of from about 0.1% to 6.0%, preferably from about 0.4% to about 5.0%, more preferably from about 1.0% to about 4.0%, by weight.

Silicone compound

The compositions of the present invention comprise a silicone compound. The silicone compound is present in the composition in an amount by weight of about 0.1% to about 10%, more preferably about 0.5% to about 8%, still more preferably about 1% to about 6%, even more preferably about 2% % to about 5%.

Due to the desired transparent or translucent appearance, among various silicone compounds, it is preferred to be selected from (i) silicone nanoemulsions, when included in the composition, the average particle size is 300nm or less, Those of 200 nm or less, more preferably 100 nm or less, (ii) silicone compounds substantially soluble in the composition, and (iii) mixtures thereof are preferred. "Essentially soluble" silicone compound means having a silicone compound of 50% or greater, preferably about 65% or greater, more preferably about 80% or greater when the silicone compound is included at the level used at 25°C Composition of transmittance.

Commercially available silicone nanoemulsions useful herein include, for example, silicone nanoemulsions available from Dow Corning under the tradename SiliconeDC-8177; quaternized silicone nanoemulsions available from Dow Corning under the tradename DC5-7133 and an amodimethicone nanoemulsion available from General Electric under the trade designation XS65-B6413.

For substantially soluble silicone compounds, for example, the following may be substantially soluble depending on the amount of hydrophilic groups in their structure: Silicone copolyols such as Silicone DC-5330 Dimethicone copolyols available from Dow Corning; aminosilicones such as those having a sufficiently high level of amines to render the aminosilicones substantially soluble; aminosilicones copolyols as INCI nomenclature are di(C13-15 alkoxy)PG amodimethicones available commercially from Dow Corning under the trade designation DC2-8500; hydrophobically modified aminosilicone copolyols; hydrophobically modified of amidosilicone copolyols; and quaternized silicones. Among these substantially soluble silicone compounds, more preferred are those selected from the group consisting of aminosilicone, aminosilicone copolyol, hydrophobically modified aminosilicone copolyol, hydrophobically modified amidosilicone Oxane copolyols, and those of mixtures thereof, still more preferably hydrophobically modified amidosilicone copolyols, provide improved conditioning performance by providing improved silicone deposition while meeting the requirements for clarity or the need for a translucent appearance. These hydrophobically modified aminomethylsiloxane copolyols have the general formula:

Wherein R ₁ , R ₂ , R ₄ are respectively C1-C3 alkyl, preferably ethyl; R ₃ has 8 to 22 carbon atoms, preferably 10 to 20 carbon atoms, more preferably 12 to 16 carbon atoms, even More preferably an alkyl group of 12 carbon atoms; R ₅ is H or C1-C3 alkyl, preferably methyl; R ₆ is OH or CH ₃ , preferably methyl; n is an integer from 1 to 10, highly preferably 5; m is an integer of 2 to 20, highly preferably 12; n+m=3 to 30, preferably 5 to 25, more preferably 8 to 20, even more preferably 17; x is an integer of 200 to 500, preferably 300 to 400; y is 5 to 40, preferably an integer of 10 to 30; and z is 0 or 1 to 30, preferably an integer of 5 to 20. Commercially available hydrophobically modified amido siloxane copolyols are, for example, those with the INCI designation PEG-12 methyl ether/lauryloxy PEG-5 amidopropyl dimethicone available under the trade name Silicone BY16- 906 are those available from Dow Corning.

Due to the improved conditioning benefit it is preferred that the compositions of the present invention provide improved silicone deposition even after the composition is rinsed from the hair. For example, it is preferred that the composition provide about 50 ppm or more, more preferably about 100 ppm or more, still more preferably 200 ppm or more, even more preferably 400 ppm or more of silicone deposition after rinsing from the hair. The amount of silicone deposition can be measured by a method comprising the steps of: (i) preparation of hair switches; and (ii) silicone deposition measurement.

(i) Preparation of hair switches

For the measurement of silicone deposition, 2 grams of hair switches were used. Prepare the hair switches by following these steps:

(a) five rounds of shampoo/conditioning treatments are provided to the hair switch, each round of shampoo/conditioning treatments comprising the following steps:

(a-1) Apply shampoo in an amount of 0.2 cc and lather the hair switches; then rinse the hair switches;

(a-2) Reapply the shampoo in an amount of 0.2 cc and lather the hair switches; then rinse the hair switches; and

(a-3) then subjecting the hair switch to a conditioning treatment comprising applying a conditioner in an amount of 0.2 cc and treating the hair switch; then rinsing the hair switch; and

(b) The hair switch is then dried.

The switches were prepared for measuring their silicone deposition.

(ii) Siloxane deposition measurement

The silicone deposited on the switch is extracted with a suitable solvent. This extract is then introduced into an atomic absorption/emission detector device and measured at the appropriate wavelength. The absorption/emission values reported by the instrument can then be converted to the actual concentration (ppm) of deposited silicone on the hair by means of an external calibration curve obtained from known weights of the silicone compound under study (already well standardized) obtained.

aqueous carrier

The compositions of the present invention include an aqueous carrier. The content and type of the carrier are selected according to the compatibility with other components and other properties required by the product.

Carriers useful in the present invention include water and aqueous solutions of lower alkyl alcohols. The lower alkyl alcohols used in the present invention are monohydric alcohols having 1 to 6 carbon atoms, more preferably ethanol and isopropanol.

Preferably the aqueous carrier is substantially water. Deionized water is preferably used. Naturally sourced water including mineral cations may also be used, depending on the desired properties of the product. Typically, the compositions of the present invention comprise from about 20% to about 99%, preferably from about 40% to about 98%, more preferably from about 50% to about 98%, water.

The pH of the compositions of the present invention is preferably from about 2 to about 8, more preferably from about 3 to about 7, still more preferably from 4 to 6. Buffers and other pH adjusting agents can be added to achieve the desired pH.

Additional components

The compounds of the present invention may contain additional components which may be selected by the skilled artisan according to the desired properties of the final product and which are suitable to make the composition more cosmetically or aesthetically acceptable or to impart Additional usage benefits.

cationic conditioning polymer

The conditioning compositions of the present invention may also comprise cationic conditioning polymers. The cationic polymers herein generally have a weight average molecular weight of at least about 5,000, typically at least about 10,000, and less than about 10 million, preferably from about 100,000 to about 2 million.

The cationic conditioning polymer is preferably included in the composition at a level by weight of from about 0.01% to about 10%, more preferably from about 0.05% to about 5%.

Suitable cationic conditioning polymers include, for example: copolymers of 1-vinyl-2-pyrrolidone and 1-vinyl-3-methylimidazolium salts (e.g., chloride salts) (industrially known as Cosmetic, Toiletry, and Fragrance Association, "CTFA" known as polyquaternium-16), such as those commercially available from BASF Wyandotte Corp. (Parsippany, NJ, USA) under the tradename LUVIQUAT (e.g., LUVIQUAT FC 370); 1-vinyl-2 - Copolymers of pyrrolidone and ethyl dimethylaminomethacrylate (referred to industrially by CTFA as Polyquaternium-11), such as those commercially available from Gaf Corporation (Wayne, NJ, USA) under the tradename GAFQUAT (eg, GAFQUAT 755N) ) of those; cationic diallyl quaternary ammonium ion-containing polymers include, for example, dimethyldiallylammonium chloride homopolymers and copolymers of acrylamide and dimethyldiallylammonium chloride, in Known in the industry (CTFA) as Polyquaternium 6 and Polyquaternium 7, Polyquaternium-7 includes those available from Ondeo Nalco under the tradename Merquat 550; Polymethacryloylamidopropyltrimethylammonium Chloride , such as those available from Rhone-Poulenc under the tradename Polycare 133; and Polyquaternium-37 available from 3V Sigma under the tradenames Synthalen CR, Synthalen CU, and Synthalen CN.

Suitable cationic conditioning polymers herein also include cationic cellulose derivatives. Cationic cellulose derivatives useful in the present invention include, for example, the salts of hydroxyethylcellulose reacted with trimethylammonium substituted epoxides, known in the art (CTFA) as polyquaternium 10, and Their Polymer JR ^(R) and LR(R ⁾ series are available from Amerchol Corp. (Edison, NJ, USA), also from National Starch & Chemical under the tradename Celquat SC-230M; and Celquat H-100 from National Starch & Chemical Polyquaternium-4.

Other suitable cationic conditioning polymers include cationic guar derivatives such as guar hydroxypropyltrimonium chloride available from Rhodia in their Jaguar series.

Wetting agents and/or co-solvents

Compositions of the present invention may contain wetting agents and/or co-solvents to aid in the substantial solubility of the surfactant system and/or silicone compound in the composition. The wetting agents and/or co-solvents herein are selected from polyols, water-soluble alkoxylated nonionic polymers, and mixtures thereof. Wetting agents and/or co-solvents herein are preferably used at levels of from about 0.1% to about 20%, more preferably from about 0.5% to about 5%, by weight of the composition.

Polyhydric alcohols useful in the present invention include glycerin, sorbitol, propylene glycol, butylene glycol, hexanediol, ethoxylated glucose, 1,2-hexanediol, hexanetriol, dipropylene glycol, erythritol, Trehalose, diglycerin, xylitol, maltitol, maltose, glucose, fructose, sodium chondroitin sulfate, sodium hyaluronate, sodium adenosine phosphate, sodium lactate, pyrrolidone carbonate, glucosamine, cyclodextrin, and their mixture. Among these polyols, preferred co-solvents are 1,2-hexanediol, hexanediol, butanediol, glycerol, and mixtures thereof.

Water soluble alkoxylated nonionic polymers useful herein include polyethylene glycols and polypropylene glycols with molecular weights up to about 10,000, such as the CTFA designations PEG-4, PEG-8, PEG-12, PEG-20, PEG-150 of those, and their mixtures.

other additional components

The compositions of the present invention may also include other additional components. Other additional components are typically used individually at levels of from about 0.001% to about 10%, preferably up to about 5%, by weight of the composition.

A wide variety of other additional components can be formulated into the compositions of the present invention. These components include: other conditioning agents such as hydrolyzed collagen (available from Hormel under the trade name Peptein 2000), vitamin E (available from Eisai under the trade name Emix-d), panthenol (available from Roche), panthenyl ethyl ether (available from Roche); nonionic surfactants such as glyceryl stearate (available from Stepan Chemicals), hydrolyzed keratin, proteins, plant extracts, and nutrients; emollients such as PPG-3 myristyl ether (available from Goldschmidt under the trade name Varonic APM), trimethylpentanol hydroxyethyl ether, PPG-11 stearyl ether (available under the trade name Varonic APS from Goldschmidt), stearyl heptanoate (available under the trade name Tegosoft SH is available from Goldschmidt), Lactil (a mixture of sodium lactate, sodium PCA, glycine, fructose, urea, niacinamide, inositol, sodium benzoate and lactic acid) (available from Goldschmidt), ethylhexyl palmitate (available under the trade name Saracos available from Nishin Seiyu and under the tradename Tegosoft OP from Goldschmidt); hair fixative polymers such as amphoteric fixative polymers, cationic fixative polymers, anionic fixative polymers, nonionic fixative polymers and silicone graft copolymers; preservatives , such as benzyl alcohol, methylparaben, propylparaben, and imidazolidinyl urea; pH adjusters, such as citric acid, sodium citrate, succinic acid, phosphoric acid, sodium hydroxide, sodium carbonate; salts, Common such as potassium acetate and sodium chloride; coloring agents such as any FD&C or D&C dyes; hair oxidizing (bleaching) agents such as hydrogen peroxide, perborates and persulfates; hair reducing agents such as thioglycolates; fragrances; and sequestering agents, such as disodium edetate; UV and IR shielding agents and absorbers, such as octyl salicylate; anti-dandruff agents, such as zinc pyrithione and salicylic acid; visible particles (in the form of Unisphere and Unicerin are available from Induchem AG (Switzerland)); and defoamers such as those available from GE-Toshiba Silicone under the trade name XS63-B8929.

product form

The conditioning compositions of the present invention may be in the form of rinse-off or leave-on products, may be clear, translucent or opaque, and may be formulated in a variety of product forms including, but not limited to, creams, Gels, lotions, mousses and sprays.

The conditioning compositions of the present invention can condition a variety of substrates such as hair, skin and fabrics by applying the compositions to the substrates such as hair, skin and fabrics. The conditioning compositions of the present invention are especially useful in hair care products (eg hair conditioners), skin care products (eg skin conditioners) and fabric care products (eg fabric softeners).

The conditioning compositions of the present invention are especially suitable as hair conditioners for rinse-off applications. The above composition is preferably used in the following steps:

(i) after shampooing, applying to the hair an effective amount of a conditioning composition to condition the hair; and

(ii) The hair is then washed.

Example

The following examples further describe and illustrate embodiments within the scope of the present invention. These examples are given for illustrative purposes only and should not be construed as limitations of the invention, since many changes can be made without departing from the spirit and scope of the invention. Unless otherwise defined below, ingredients are identified by chemical or CTFA designation.

Composition (wt%) 1 2 3 4 5 6 7 8 9 10 11 Hydrophobically Modified Cross-Linked Cationic Thickening Polymer-1 ^* 1 2.0 4.0 2.0 2.0 1.8 2.5 2.0 2.2 2.0 2.5 1.0 Cetyl polyoxyethylene ether-10 ^* 3 - - - 3.0 - - - - - - - PPG-5-hexadecyl polyoxyethylene ether-20 ^* 5 - - - - 2.0 2.0 - - - - - Laureth-25 ^* 6 - - - - - - 3.0 - - - - Polysorbate-20 ^* 7 - - - - - - - 4.0 1.0 1.0 - Cetyltrimethylammonium chloride ^* 8 0.8 0.5 - - 0.4 - - - 0.5 - 1.0 Stearyltrimethylammonium chloride ^* 9 - - 1.0 - - - - - - - - Amodimethicone Copolyol ^* 10 - - 2.0 - - - - 1.0 - - - Quaternized Silicone Nanoemulsion ^* 11 - 1.0 - - - - - - - 1.0 0.6 Hydrophobically Modified Aminomethylsiloxane Copolyol ^* 12 4.0 1.0 2.0 4.0 4.0 2.0 3.0 2.0 - - - Dimethicone Copolyol ^* 13 - - - - - - - - 2.0 - - 1,2-Hexanediol - - - - - - 1.0 - - - - PEG-12 ^* 14 - - - - - - - 1.0 1.0 - - PEG-200 ^* 15 - - - - - 1.0 - - - 1.0 - Kathon CG ^* 16 0.033 0.033 0.033 0.033 0.033 0.033 0.033 0.033 0.033 0.033 0.033 lactic acid 0.43 0.86 0.43 0.43 - 0.54 - - - 0.54 - glycolic acid - - - - 0.35 - 0.36 0.38 0.36 - 0.18 Disodium edetate 0.127 0.127 0.127 0.127 0.127 0.127 0.127 0.127 0.127 0.127 0.127 m-paraben 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 spices 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 Deionized water -----Quite to 100%-----

Composition (wt%) 12 13 14 15 16 17 18 19 20 twenty one Hydrophobically Modified Cross-Linked Cationic Thickening Polymer-1 ^* 1 - - 2.0 2.0 2.0 - 3.5 3.0 1.5 2.5 Hydrophobically Modified Cross-Linked Cationic Thickening Polymer-2 ^* 2 2.5 3.0 - - - 2.0 - - - - Cetyl polyoxyethylene ether-10 ^* 3 - - - - - 3.0 - - - - Cetyl polyoxyethylene ether-20 ^* 4 - - - 0.5 - - 2.0 - 3.0 - PPG-5-hexadecyl polyoxyethylene ether-20 ^* 5 - - 1.0 - - - - 4.0 - - Laureth-25 ^* 6 - 1.0 - - - - - - - - Polysorbate-20 ^* 7 0.8 0.8 - - 0.5 2.0 - - - - Cetyltrimethylammonium chloride ^* 8 - - 0.8 0.5 1.0 - - - - 0.65 Stearyltrimethylammonium chloride ^* 9 - 2.0 - - 1.0 - - 0.5 - - Amodimethicone - - - - - - - 2.0 - - Oxyalkylene copolyol ^* 10 - - - - - - - - - - Quaternized Silicone Nanoemulsion ^* 11 3.0 4.0 - - - - - - - - Hydrophobically Modified Aminomethylsiloxane Copolyol ^* 12 - - 5.0 3.0 1.0 4.0 1.5 - 2.0 - Dimethicone Copolyol ^* 13 1.0 - - - - - - - - 3.0 1,2-Hexanediol - 2.0 - - - - 1.0 - - 1.0 Butanediol - - - - - - - - 2.0 - PEG-12 ^* 14 - - - 1.0 - - - - - 1.0 PEG-200 ^* 15 0.5 1.0 - - 1.5 - - 1.0 - - Kathon CG ^* 16 0.033 0.033 0.033 0.033 0.033 0.033 0.033 0.033 0.033 0.033 lactic acid 0.54 0.65 0.43 - - 0.43 0.75 0.65 0.33 0.54 glycolic acid - - - 0.36 0.36 - - - - - Disodium edetate 0.127 0.127 0.127 0.127 0.127 0.127 0.127 0.127 0.127 0.127 m-paraben 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 spices 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 Deionized water -----Quite to 100%-----

Component Definition

^* 1 Hydrophobically Modified Crosslinked Cationic Thickening Polymer-1: Acrylate/Aminoacrylate/Vinyl Alkoxylate/C10-30 Alkyl PEG-25 Methacrylate: EX-832 available from Noveon

^* 2 Hydrophobically Modified Crosslinked Cationic Thickening Polymer-2: Acrylate/Aminoacrylate/Vinyl Alkoxylate/C10-30 Alkyl Methacrylate/PEG-15 Methacrylate

^* 3 Ceteth-10: BC-10TX, purchased from Nikko Chemicals

^* 4 Ceteth-20: BC-20TX, purchased from Nikko Chemicals

^* 5PPG-5-Ceteth-20: Procetvl AWS, available from Croda

^* 6 Laureth-25: BL-21, available from Nikko Chemicals

^* 7 Polysorbate-20: Glycosperse L-20K, available from Lonza

^* 8 Cetyltrimethylammonium Chloride: CTAC 30KC, purchased from KCI

^* 9 Stearyltrimethylammonium chloride: Genamine STACP, purchased from Clariant

^* 10 Amodimethicone copolyol: DC2-8500 available from Dow Corning

^* 11 Quaternary ammonium silicone nanoemulsion: DC5-7133, purchased from Dow Corning

^* 12 Hydrophobically modified aminomethylsiloxane copolyol: BY16-906 available from Dow Corning

^* 13 Dimethicone copolyol: DC-5330 available from Dow Corning

^* 14PEG-12: purchased from Dow Chemical

^* 15PEG-200: Emkapol, purchased from ICI

^* 16 Methylchloroisothiazolinone/Methylisothiazolinone: Kathon CG, available from Rohm & Haas

Preparation

As noted above, the conditioning compositions of "Example 1" through "Example 21" can be prepared by any conventional method well known in the art. They can be suitably prepared as follows:

The polymeric material is dispersed in water at room temperature and mixed with vigorous stirring. Alternatively, the silicone compound, surfactant system and other oily components (if included) such as perfume are mixed at room temperature. The mixture comprising the silicone compound and the surfactant system is added to the polymer dispersion with stirring. Then, the remaining components such as preservatives, antifoaming agents and pH adjusters are added to the mixture with stirring.

Examples 1 to 21 are conditioning compositions of the present invention which are especially suitable for hair conditioners for rinse-off use. These embodiments have many advantages. For example, when used in hair care products such as hair conditioning products, the compositions of "Example 1" to "Example 21" have rheological properties suitable for conditioning compositions and provide conditioning benefits, especially wet hair softness and reduce tangling. The compositions of "Example 1" to "Example 4" have a transparent or translucent appearance. When used in hair care products, the compositions of "Example 1" to "Example 21" can provide the rheological properties and conditioning benefits described above without weighing down the hair. When used as a rinse-off product, the compositions of "Example 1" through "Example 21" provide an easy-rinse feel while providing the rheological and conditioning benefits described above.

All documents cited in the Detailed Description of the Invention are, in relevant part, incorporated herein by reference; the citation of any document is not to be construed as an admission that it is prior art to the present invention. While particular embodiments of the present invention have been illustrated and described, it would be obvious to those skilled in the art that various other changes and modifications can be made without departing from the spirit and scope of the invention. It is therefore intended to cover in the appended claims all such changes and modifications that are within the scope of this invention.

Claims (36)

1. care composition, described care composition comprises by weight:

(a) crosslinked cationic thickening polymers of about 0.01% to about 6.0% hydrophobically modified;

(b) about 0.1% to about 8.0% the surfactant system that comprises cationic surfactant and non-ionic surface active agent;

(c) about 0.1% to about 10% silicone compounds; With

(d) aqueous carrier.

2. care composition, described care composition comprises by weight:

(a) crosslinked cationic thickening polymers of about 0.01% to about 6.0% hydrophobically modified;

(b) about 0.1% to about 8.0% surfactant system, described system comprise the HLB value and are about 11 to about 20 non-ionic surface active agent;

(c) about 0.1% to about 10% silicone compounds; With

(d) aqueous carrier.

3. care composition, described care composition comprises by weight:

(a) crosslinked cationic thickening polymers of about 0.01% to about 6.0% hydrophobically modified;

(b) about 0.1% to about 8.0% surfactant system, described surfactant system is selected from cationic surfactant, non-ionic surface active agent, and their mixture;

(c) about 0.1% to about 10% silicone compounds, wherein said silicone compounds is selected from mean diameter in the described compositions and is 300nm or littler those, is dissolvable in water those of described compositions substantially, and their mixture, and wherein said soluble substantially silicone compounds is selected from the amino silicone polyol of amino silicone, amino silicone polyol, hydrophobically modified, the amido silicone copolyol of hydrophobically modified, and their mixture; With

(d) aqueous carrier.

4. as each described care composition in the claim 1 to 3, wherein said compositions is substantially free of water-insoluble oiliness compound, and described oiliness compound is selected from hydrocarbon, aliphatic compound, and their mixture.

5. as each described care composition in the claim 1 to 3, wherein said compositions is transparent or translucent.

6. care composition as claimed in claim 5, wherein said compositions is transparent.

7. care composition as claimed in claim 6, wherein said compositions have 50% or higher transmittance.

8. care composition as claimed in claim 7, wherein said compositions have 65% or higher transmittance.

9. care composition as claimed in claim 8, wherein said compositions have 80% or higher transmittance.

10. as each described care composition in the claim 1 to 3, wherein said compositions has about 100cps to about 100, the viscosity of 000cps and 30 or higher shear thinning index.

11. it is about 1 that care composition as claimed in claim 10, wherein said compositions have, 000cps is to about 50, the viscosity of 000cps and 50 or higher shear thinning index.

12. it is about 2 that care composition as claimed in claim 11, wherein said compositions have, 000cps is to about 50, the viscosity of 000cps and 70 or higher shear thinning index.

13. it is about 5 that care composition as claimed in claim 12, wherein said compositions have, 000cps is to about 20, the viscosity of 000cps and 90 or higher shear thinning index.

14. as each described care composition in the claim 1 to 3, the crosslinked cationic thickening polymers of wherein said hydrophobically modified is the cross-linked cationic acrylate thickening polymer of hydrophobically modified.

15. as each described care composition in the claim 1 to 3, the crosslinked cationic thickening polymers of wherein said hydrophobically modified contains hydrophilic group.

16. care composition as claimed in claim 15, wherein said hydrophilic group are polyoxyalkylenes.

17. care composition as claimed in claim 16, wherein said alkylene oxide is selected from oxirane, expoxy propane, and their mixture.

18. as each described care composition in the claim 1 to 3, wherein said surfactant system is dissolvable in water described compositions substantially.

19. as claim 1 or 3 described care compositions, wherein said non-ionic surface active agent has about 8 to about 22 HLB value.

20. as claim 1 or 3 described care compositions, wherein said non-ionic surface active agent is selected from Arlasolve 200, PPG-5-ceteth-20, PEG-40 castor oil hydrogenated, polysorbate-20, laureth-20, ceteth-10, ceteth-20, and their mixture.

21. as claim 1 or 3 described care compositions, wherein said cationic surfactant is selected from two long alkyl quaternary ammonium salt, a long alkyl chain amine, the dialkyl group streptamine of a long alkyl quaternary ammonium salts, two long alkyl quaternary ammonium salt, a long alkyl quaternary ammonium salts of hydrophilic replacement, hydrophilic replacement, and their mixture.

22. care composition as claimed in claim 21, wherein said cationic surfactant are selected from cetyl trimethyl ammonium chloride, stearyl trimethyl ammonium chloride, Varisoft 432PPG, and their mixture.

Be 300nm or littler those, be dissolvable in water those of described compositions and their mixture substantially 23. care composition as claimed in claim 1 or 2, wherein said silicone compounds are selected from described compositions mean diameter.

24. care composition as claimed in claim 23, wherein said soluble substantially silicone compounds is selected from the amino silicone polyol of amino silicone, amino silicone polyol, hydrophobically modified, the amido silicone copolyol of hydrophobically modified, and their mixture.

25. care composition as claimed in claim 24, wherein said silicone compounds are the amido silicone copolyols of hydrophobically modified.

26. as each described care composition in the claim 1 to 3, described care composition also comprises cosolvent.

27. care composition as claimed in claim 26, wherein said cosolvent is selected from 1,2-hexanediol, hexanediol, butanediol, glycerol, and their mixture.

28. as each described care composition in the claim 1 to 3, described care composition comprises by weight:

(a) crosslinked cationic thickening polymers of about 0.1% to about 5.0% hydrophobically modified;

(b) about 0.2% to about 5.0% surfactant system;

(c) about 0.5% to about 8.0% silicone compounds; With

(d) aqueous carrier.

29. care composition as claimed in claim 26, described care composition comprises by weight:

(a) crosslinked cationic thickening polymers of about 0.3% to about 4.0% hydrophobically modified;

(b) about 0.4% to about 4.0% surfactant system;

(c) about 1.0% to about 6.0% silicone compounds; With

(d) aqueous carrier.

30. as each described care composition in the claim 1 to 3, described care composition is a hair care composition.

31. as each described care composition in the claim 1 to 3, described care composition is used for the washing-off type purposes.

32. as each described care composition in the claim 1 to 3, described care composition provides about 50ppm or more silicone deposition behind flush away from described hair.

33. care composition as claimed in claim 32, described care composition provide about 100ppm or more silicone deposition behind flush away from described hair.

34. care composition as claimed in claim 33, described care composition provide about 200ppm or more silicone deposition behind flush away from described hair.

35. care composition as claimed in claim 34, described care composition provide about 400ppm or more silicone deposition behind flush away from described hair.

36. the method for a conditioning hair said method comprising the steps of:

(i) after shampoo is sent out, with being administered on the hair with hair as described in nursing one's health of effective dose as each described care composition in the claim 1 to 3; With

The (ii) described hair of rinsing then.
