Abstract

Disclosed is hair conditioning compositions comprising particles. One of the compositions comprises by weight: (a) from about 0.1% to about 15% of a high melting point fatty compounds; (b) from about 0.1% to about 10% of an amidoamine having the following general formula: R1CONH(CH2)Mn(R2)2 wherein R1 is a residue of C11 to C24 fatty acids, R2 is a C1 to C4 alkyl, and m is an integer from 1 to 4; (c) an acid selected from the group consisting of 1-glutamic acid, lactic acid, hydrochloric acid, mallic acid, succinic acid, acetic acid, fumaric acid, 1-glutamic acid hydrochloride, tartaric acid, and mixtures thereof, at a level such that the mole ratio of amidoamine to acid is from about 1:0.3 to about 1.1; (d) from about 0.01% to about 10% of a particle; and (e) an aqueous carrier.

Description

Hair conditioning composition comprising particles

technical field

The present invention relates to hair conditioning compositions comprising particles.

Background of the invention

Human hair can become soiled due to contact with the surrounding environment and due to the sebum production of the scalp. Dirty hair gives it a dirty look and is not aesthetically pleasing. Dirty hair needs frequent shampooing.

Shampoo cleanses the hair by removing excess dirt and sebum. However, shampooing leaves hair in a damp, tangled and generally unmanageable condition. Once the hair dries, it is often left dry, frizzy, dull or frizzy due to the removal of its natural oils and other natural conditioning and moisturizing ingredients. In addition, dry hair also results in high levels of static electricity in the hair, which interferes with combing and leads to a condition commonly referred to as "flyaway" or unwelcome "split ends", especially with long hair .

Various methods have been developed to condition hair. These range from applying hair conditioners after shampooing, such as leave-in and rinse-off products, to hair conditioning shampoos that attempt to cleanse and condition the hair with the same product.

While some consumers prefer the ease and convenience of shampoos containing conditioning agents, a significant percentage prefer more conventional conditioning formulations. These formulations are applied to the hair independently of shampooing, usually after shampooing. Conditioning products can be rinse-off or leave-on products, and can be lotions, creams, gels, sprays and mousses. Such consumers, who prefer conventional conditioner products, value higher conditioning benefits, or the convenience of varying the amount of conditioning depending on the condition of the hair or the size of the hair.

There is a need for a hair conditioning composition which, when spread on hands and/or hair, provides improved texture. However, conventional hair conditioning products are not fully satisfied to produce improved structure and provide improved conditioning benefits to hair, such as moisturized feel, softness and static control, while having suitable viscosity.

Based on the foregoing, there remains a need to provide a hair conditioning composition which when spread on the hands and/or the hair produces improved texture, is easier to apply to the hair and provides improved conditioning Effects such as hair moisturization, softness and static control.

None of the prior art offers all of the advantages and benefits of the present invention.

Summary of the invention

The present invention relates to a hair conditioning composition (hereinafter referred to as "hair care composition A") comprising, by weight:

(a) from about 0.1% to about 15% high melting point fatty compounds;

(b) from about 0.1% to about 10% amidoamine having the general formula:

R ¹ CONH(CH ₂ ) _m N(R ² ) ₂

In the formula, R ¹ is a C ₁₁ -C ₂₄ fatty acid residue, R ² is a C ₁ -C ₄ alkyl group, and m is an integer from 1 to 4;

(c) an acid selected from l-glutamic acid, lactic acid, hydrochloric acid, malic acid, succinic acid, acetic acid, fumaric acid, l-glutamic acid hydrochloride, tartaric acid, and mixtures thereof in an amount such that amido The molar ratio of amine to acid is from about 1:0.3 to about 1:1;

(d) from about 0.01% to about 10% particles; and

(d) Aqueous carrier.

The present invention also relates to a hair conditioning composition (hereinafter referred to as "hair care composition B") comprising, by weight:

(a) from about 0.1% to about 15% of a high melting point fatty compound having a melting point of 25°C or higher;

(b) from about 0.1% to about 10% cationic conditioning agent;

(c) from about 0.1% to about 10% of a low melting oil having a melting point below 25°C;

(d) from about 0.01% to about 10% particles; and

(d) Aqueous carrier.

These and other features, aspects and advantages of the present invention will become apparent to those skilled in the art from a reading of the present disclosure.

Detailed description of the invention

While the claims at the end of the specification particularly point out and distinctly claim the scope of protection, it is believed that the following description will provide a better understanding of the present invention.

All percentages herein are by weight of the total composition, unless otherwise indicated. All ratios are by weight unless otherwise indicated. Unless otherwise specified, all percentages, ratios and contents of ingredients herein are based on the actual contents of the ingredients, excluding solvents, fillers or other substances that may be used with these ingredients in commercially available products.

Herein, "comprising or comprising" means that other steps and other ingredients that do not affect the end result may be added. The term includes "consisting of" and "consisting essentially of".

All cited references are hereby incorporated by reference in their entirety. Citation of any document is not an admission as to its availability as prior art to the present invention.

high melting point fatty compounds

Hair conditioning compositions A and B of the present invention include a high melting point fatty compound. The high melting point fatty compound, together with cationic surfactants such as amidoamines and an aqueous carrier, provides a gel network suitable for providing various conditioning benefits such as smooth feel on wet hair and softness, moist feel and flyaway on dry hair control.

High melting point fatty compounds suitable for use in the present invention have a melting point of 25°C or higher and are selected from the group consisting of fatty alcohols, fatty acids, fatty alcohol derivatives, fatty acid derivatives, and mixtures thereof. Those skilled in the art should understand that the compounds disclosed in this section of the specification may in some cases belong to more than one category, for example, certain fatty alcohol derivatives can also be classified as fatty acid derivatives. However, the assigned classes are not intended to be limiting to specific compounds, but rather for ease of classification and nomenclature. Furthermore, those skilled in the art will appreciate that some compounds with a certain desired number of carbon atoms may have a melting point below 25°C, depending on the number and location of double bonds, and the length and location of branches. The low melting point compounds are not included in this section. Non-limiting examples of high melting point compounds can be found in the International Cosmetic Ingredient Dictionary, Fifth Edition, 1993 and the CTFA Cosmetic Ingredient Handbook, Second Edition, 1992.

The high melting point fatty compound is present in compositions A and B at a level of from about 0.1% to about 15%, preferably from about 0.25% to about 13%, by weight. More preferably, the high melting point fatty compound is present in composition A at a level of from about 1% to about 10% by weight and in composition B at an amount of from about 0.25% to about 5% by weight.

Fatty alcohols suitable for use herein are those having from about 14 to about 30 carbon atoms, preferably from about 16 to about 22 carbon atoms. These fatty alcohols are saturated and may be straight or branched chain alcohols. Non-limiting examples of fatty alcohols include cetyl alcohol, stearyl alcohol, behenyl alcohol, and mixtures thereof.

Fatty acids suitable for use in the present invention are fatty acids having from about 10 to about 30 carbon atoms, preferably from about 12 to about 22 carbon atoms, more preferably from about 16 to about 22 carbon atoms. These fatty acids are saturated and can be straight chain or branched chain acids. Also included are dibasic acids, tribasic acids and other polybasic acids that meet the requirements of the present invention. The present invention also includes salts of these fatty acids. Non-limiting examples of fatty acids include lauric acid, palmitic acid, behenic acid, sebacic acid, and mixtures thereof.

Fatty alcohol derivatives and fatty acid derivatives suitable for use in the present invention include alkyl ethers of fatty alcohols, alkoxylated fatty alcohols, alkyl ethers of alkoxylated fatty alcohols, fatty alcohol esters, fatty acid derivatives with esterifiable hydroxyl compounds Fatty acid esters, hydroxy-substituted fatty acids and mixtures thereof. Non-limiting examples of fatty alcohol derivatives and fatty acid derivatives include the following substances, such as methyl stearyl ether; ceteth series compounds such as ceteth-1 to hexadecyl Alkyl polyoxyethylene ethers-45, which are glycol ethers of cetyl alcohol, where the numerical designation indicates the number of glycol moieties present; stearyl ether (steareth) series compounds, such as stearyl ether-1 to 10, which is the glycol ether of stearyl ether alcohol, where the numerical designation indicates the number of glycol moieties present; ceteareth-1 to ceteareth-10, which are ceteareth Glycol ethers of waxy stearyl alcohols (i.e. mixtures of fatty alcohols containing predominantly cetyl and stearyl alcohols), in which the numerical designation indicates the amount of glycol moieties present; cetethethers above, C ₁ -C ₃₀ alkyl ethers of stearyl ether and cetearyl ether compounds; polyoxyethylene ethers of behenyl alcohol; ethyl stearate, cetyl stearate, cetyl (acid) cetyl Waxyl esters, stearyl stearate, myristyl myristate, polyoxyethylene cetyl ether stearate, polyoxyethylene stearyl ether stearate, polyoxyethylene lauryl ether hard fatty acid ester, ethylene glycol monostearate, polyoxyethylene monostearate, polyoxyethylene distearate, propylene glycol monostearate, propylene glycol distearate, tristearate Methylolpropane, sorbitan stearate, polyglyceryl stearate, glyceryl monostearate, glyceryl distearate, glyceryl tristearate, and mixtures thereof.

High-purity single-compound high-melting fatty compounds are preferred. A single compound of pure fatty alcohols selected from pure cetyl alcohol, stearyl alcohol and behenyl alcohol is highly preferred. "Pure" herein means that the compound is at least about 90% pure, preferably at least about 95% pure. These single compounds of high purity provide good rinsability from the hair when the consumer washes off the compositions of the present invention.

Commercially available high melting point fatty compounds suitable for use in the present invention include: KONOL series available from Shin-Nihon Pika (Osaka, Japan) and NAA series available from NOF (Tokyo, Japan) Cetyl alcohol, stearyl alcohol, and docosanol; pure docosanol obtained from WAKO (Osaka, Japan) under the trade name 1-DOCOSANOL, available from Akzo (Chicago, Illinois, USA) under the trade name NEO-FAT ), various fatty acids obtained from Witco Corp. (Dublin, Ohio, USA) under the trade name HYSTRENE, and DERMA (Genova, Italy) obtained from Vevy.

Amidoamine

Hair conditioning compositions A of the present invention include amidoamines having the general formula:

R ¹ CONH(CH ₂ ) _m N(R ² ) ₂

In the formula, R ¹ is a C ₁₁ -C ₂₄ fatty acid residue, R ² is a C ₁ -C ₄ alkyl group, and m is an integer from 1 to 4.

The amidoamine may be included in Composition A at a level of from about 0.1% to about 10%, more preferably from about 0.25% to about 8%, most preferably from about 0.5% to about 3%, by weight.

The amidoamine is also included in Composition B as a cationic conditioning agent at a level by weight of from about 0.1% to about 10%, more preferably from about 0.25% to about 8%, most preferably from about 0.5% to about 3% .

Preferred amidoamines suitable for use in the present invention include stearamidoamine propyl dimethylamine, stearamidoamine diethylamine, stearamidoamine ethylene dimethylamine, palmito amido propyl dimethylamine , palmitoamidoaminopropyl diethylamine, palmitoamidoaminopropyl diethylamine, palmitoamidoaminopropyl dimethylamine, palmitoamidoaminopropyl dimethylamine, docosamidoaminopropyl dimethylamine Diethylamine, eicosamidoaminoethyl diethylamine, eicosamidoaminopropyl dimethylamine, eicosamidoaminopropyl dimethylamine, eicosamidoaminopropyl diethylamine , eicosamidoaminoethyl diethylamine, eicosamidoaminoethyl dimethylamine and mixtures thereof; more preferably stearamidoaminopropyl dimethylamine, stearamidoaminopropyl diethylamine and mixtures thereof.

Commercially available amidoamines suitable for use in the present invention include those available from Inolex under the tradename SAPDMA, and those available from Nikko under the tradename Amidoamine MPS stearamidopropylenedimethylamine.

acid

The hair conditioning composition A of the present invention comprises an acid selected from the group consisting of l-glutamic acid, lactic acid, hydrochloric acid, maleic acid, succinic acid, acetic acid, fumaric acid, l-glutamic acid hydrochloride, tartaric acid and Mixtures; preferred are l-glutamic acid, lactic acid, hydrochloric acid and mixtures thereof. The acid is present in an amount such that the molar ratio of amidoamine to acid is from about 1:0.3 to about 1:1, preferably from about 1:0.5 to about 1:0.9.

The acid is also included in composition B in an amount such that the molar ratio of amidoamine to acid is from about 1:0.3 to about 1:1, preferably from about 1:0.5 to about 1:0.9.

Commercially available acids suitable for use in the present invention include: 1-Glutamic acid: 1-Glutamic acid (cosmetic grade), available from Ajinomoto.

particles

Compositions A and B of the present invention comprise granules. The particles are present in Compositions A and B from about 0.01% to about 10%, preferably from about 0.1% to about 5%, more preferably from about 0.1% to about 2%. Particles suitable for use in the present invention preferably have an average particle size of from about 25 μm to about 1500 μm, more preferably from about 50 μm to about 1000 μm, even more preferably from about 50 μm to about 500 μm. Organic and inorganic particles can be used. Preferred particles suitable for use in the present invention include organic particles, such as cellulose particles, and inorganic particles such as mica, silica, mud, clay, zeolites and mixtures thereof, and more preferably silica. Preferred particles suitable for use in the present invention are those which are breakable so that they break apart when spread on the hands and/or hair when included in the composition.

Commercially available particles suitable for use in the present invention include: silicas of the Neosil series, such as Neosil CBT 60 available from Crosfield.

aqueous carrier

Compositions A and B of the present invention include an aqueous carrier. The content and type of carrier are selected according to the compatibility with other components and other properties required for the product.

Carriers suitable for use in the present invention include water and aqueous solutions of lower alkanols and polyols. Lower alkanols suitable for use in the present invention are monohydric alcohols having 1 to 6 carbon atoms, more preferably ethanol and isopropanol. Polyols suitable for use in the present invention include propylene glycol, hexylene glycol, glycerin and propylene glycol.

Preferably, the aqueous carrier is substantially water. Deionized water is preferably used. Naturally sourced water containing inorganic cations may also be used, depending on the desired properties of the product. The compositions of the present invention generally comprise from about 20% to about 95%, preferably from about 30% to about 92%, more preferably from about 50% to about 90%, water.

cationic conditioner

Hair Conditioning Composition B of the present invention includes a cationic conditioning agent. The cationic conditioning agent, together with the high melting point fatty compound, provides a gel network suitable for providing various conditioning benefits such as smooth feel on wet hair and softness, moist feel and flyaway control on dry hair.

The cationic conditioning agent is present at a level by weight of the composition of from 0.1% to about 10%, preferably from about 0.25% to about 8%, more preferably from about 0.5% to about 3%.

The cationic conditioning agent is also included in Composition A at a level by weight of from 0.1% to about 10%, more preferably from about 0.25% to about 8%, most preferably from about 0.5% to about 3%.

The cationic conditioning agent is selected from cationic surfactants, cationic polymers and mixtures thereof.

cationic surfactant

Cationic surfactants suitable for use herein are known to those skilled in the art and are preferably present in the composition at levels of from 0.1% to about 10%, more preferably from about 0.25% to about 8%, and most preferably Preferably from about 0.5% to about 3%.

Among the cationic surfactants suitable for use in the present invention are those corresponding to the following general formula (I):

wherein at least one of R ¹ , R ² , R ³ and R ⁴ is selected from aliphatic groups having 8 to 30 carbon atoms or aromatic, alkoxy, polyoxyethylene groups having up to about 22 carbon atoms Alkyl, alkylamido, hydroxyalkyl, aryl or alkaryl, the remaining R ¹ , R ² , R ³ and R ⁴ are independently selected from aliphatic groups having 1 to about 22 carbon atoms or Aromatic, alkoxy, polyoxyalkylene, alkylamidoamine, hydroxyalkyl, aryl or alkaryl groups having up to 22 carbon atoms; and X is a salt-forming anion, such as selected from halogen (eg Chlorine, Bromine), Acetate, Citrate, Lactate, Glycolate, Phosphate, Nitrate, Sulfonate, Sulfate, Alkyl Sulfate and Alkyl Sulfonate. In addition to carbon and hydrogen atoms, aliphatic groups may also contain ether linkages and other groups such as amino groups. Long chain aliphatic groups such as those of about 12 carbon atoms or higher can be saturated or unsaturated. It is preferred when R ¹ , R ² , R ³ and R ⁴ are independently selected from C ₁ to about C ₂₂ alkyl groups. Non-limiting examples of cationic surfactants that can be used in the present invention include the following CTFA designations: Quaternium-8, Quaternium-14, Quaternium-18, Quaternium-18 Dimethyl Sulfate, Quaternium-24, and their mixtures.

Among the cationic surfactants of the general formula (I), those containing at least one alkyl group having at least 16 carbon atoms in the molecule are preferred. Non-limiting examples of such preferred cationic surfactants include: behenyltrimethylammonium chloride, for example available under the tradename INCROQUAT TMC-80 from Croda, and under the tradename ECONOL TM22 from Sanyo Kasei, ex. Hexaalkyltrimethylammonium chloride, such as available from Nikko Chemicals under the tradename CA-2350, hydrogenated tallow alkyltrimethylammonium chloride, dialkyl(14-18)dimethylammonium chloride, dioxane Oleyl Dimethyl Ammonium Chloride, Dihydrogenated Tallow Dimethyl Ammonium Chloride, Distearoyl Dimethyl Ammonium Chloride, Dicetyl Dimethyl Ammonium Chloride, Di(20 Dialkyl/Arachidonicoyl) Dimethyl Ammonium Chloride, Dibehenyl Dimethyl Ammonium Chloride, Stearyl Dimethyl Benzyl Ammonium Chloride, Stearyl Propylene Glycol Phosphate Dimethyl Ammonium Chloride Ammonium chloride, stearyl amidopropyl dimethyl benzyl ammonium chloride, stearyl amido propyl dimethyl (tetradecyl acetate) ammonium chloride, and N-(stearyl ammonium Ethyl (colamino) formylmethyl) pyridinium chloride.

Also preferred are hydrophilically substituted cationic surfactants in which at least one of the substituents contains one or more aromatic, ether, ester, amide or amino moieties as substituents or as linking groups in the group chain, wherein R At least one of the ¹ -R ⁴ groups contains one or more hydrophilic moieties selected from alkoxy (preferably C ₁ -C ₃ alkoxy), polyoxyalkylene (preferably C ₁ -C ₃ polyoxyalkylene), alkylamido, hydroxyalkyl, alkyl ester, and combinations thereof. Preferably, the hydrophilically substituted cationic conditioning surfactants contain from 2 to about 10 nonionic hydrophilic moieties within the above range. The hydrophilic substituted cationic surfactants preferably include those surfactants having the following general formulas (II)-(VIII):

In the formula, n is 8 to about 28, x+y is 2 to about 40, Z ¹ is a short-chain alkyl group, preferably a C ₁ -C ₃ alkyl group, more preferably a methyl group, or (CH ₂ CH ₂ O) _z H, wherein x+y+z is up to 60, and X is a salt-forming anion as described above;

In the formula, m is 1 to 5, one or more of R ⁵ , R ⁶ and R ⁷ are independently C ₁ -C ₃₀ alkyl, the rest are CH ₂ CH ₂ OH, R ⁸ , R ⁹ and R ¹⁰ One or two of are independently C ₁ -C ₃₀ alkyl, and the rest are CH ₂ CH ₂ OH, and X is a salt-forming anion as described above;

Wherein, for the general formulas (IV) and (V), Z ² is independently an alkyl group, preferably a C ₁ -C ₃ alkyl group, more preferably a methyl group, and Z ³ is a short-chain hydroxyalkyl group, preferably Hydroxymethyl or hydroxyethyl, p and q are independently an integer of 2 to 4 (including 2 and 4), preferably 2 to 3, more preferably 2, R ¹¹ and R ¹² are independently substituted or unsubstituted Hydrocarbyl, preferably C ₁₂ -C ₂₀ alkyl or alkenyl, and X is a salt-forming anion as described above;

In the formula, R ¹³ is a hydrocarbon group, preferably a C ₁ -C ₃ alkyl group, more preferably a methyl group, Z ⁴ and Z ⁵ are independently short-chain hydrocarbon groups, more preferably a C ₂ -C ₄ alkyl or alkenyl group, More preferably ethyl, a is from 2 to about 40, preferably from about 7 to about 30, and X is a salt-forming anion as described above;

In the formula, R ⁸⁴ and R ⁸⁵ are independently C ₁ -C ₃ alkyl, preferably methyl; Z ⁶ is C ₁₂ -C ₂₂ hydrocarbon, alkyl carboxyl or alkylamido, and A is protein, preferably collagen , keratin, milk protein, silk protein, soy protein, wheat protein, or a hydrolyzed form thereof; and X is a salt-forming anion as described above;

In the formula, b is 2 or 3, R ¹⁶ and R ¹⁷ are independently a C ₁ -C ₃ hydrocarbon group, preferably a methyl group, and X is a salt-forming anion as described above. Non-limiting examples of hydrophilic substituted cationic surfactants useful in the present invention include materials having the following CTFA designations: Quaternium-16, Quaternium-26, Quaternium-27, Quaternium-30, Quaternium- 33. Quaternary ammonium-43, quaternary ammonium-52, quaternary ammonium-53, quaternary ammonium-56, quaternary ammonium-60, quaternary ammonium-61, quaternary ammonium-62, quaternary ammonium-70, quaternary ammonium-71, quaternary ammonium- 72, quaternium-75, quaternium-76 hydrolyzed collagen, quaternium-77, quaternium-78, quaternium-79 hydrolyzed collagen, quaternium-79 hydrolyzed keratin, quaternary ammonium-79 hydrolyzed milk protein , quaternary ammonium-79 hydrolyzed silk protein, quaternary ammonium-79 hydrolyzed soybean protein and quaternary ammonium-79 hydrolyzed wheat protein, quaternary ammonium-80, quaternary ammonium-81, quaternary ammonium-82, quaternary ammonium-83, quaternary ammonium -84, and mixtures thereof.

Highly preferred hydrophilic substituted cationic surfactants include dialkylamidoethylhydroxyethylammonium salts, dialkylamidoethyldiammonium salts, dialkylethylhydroxyethylammonium salts, dialkylamidoethylhydroxyethylammonium salts, Ethylenediammonium salts and mixtures thereof; for example: commercially available under the following tradenames: VARISOFT 110, VARIQUAT K1215 and 638 (supplied by Witco Chemical), MACKPRO KLP, MACKPRO WLW, MACKPRO MLP, MACKPRO NSP, MACKPRO NLW, MACKPRO WWP, MACKPRO NLP, MACKPRO SLP (by McIntyre), ETHOQUAD 18/25, ETHOQUAD O/12PG, ETHOQUAD C/25, ETHOQUADS/25 and ETHODUOQUAD (by Akzo), DEHYQUAT SP (by Henkel), and ATLAS G265 ( Provided by ICI Americas).

Salts of primary, secondary and tertiary fatty amines are also suitable cationic surfactants. The alkyl groups of such amines preferably have from about 12 to about 22 carbon atoms and can be substituted or unsubstituted. Particularly useful amidoamine salts are selected from the materials disclosed above under the headings "amidoamines" and "acids". Preferably, amidoamine salts are used in Composition B as cationic conditioning agents.

cationic polymer

Cationic polymers suitable for use in the present invention are described below. The term "polymer" as used herein shall include both those produced by the polymerization of one monomer, those produced by the polymerization of two monomers (ie, copolymers) or those produced by the polymerization of multiple monomers.

The cationic polymer is preferably a water-soluble cationic polymer. The term "water-soluble cationic polymer" means a polymer having sufficient solubility in water to form a substantially clear solution to the naked eye at 0.1% aqueous solution (distilled water or equivalent) at 25°C. Preferably the polymer is sufficiently soluble to form a substantially clear solution at a concentration of 0.5%, more preferably 1.0%.

The cationic polymers of the present invention generally have a weight average molecular weight of at least about 5,000, typically at least about 10,000, and less than about 10 million. Preferably, the molecular weight is from about 100,000 to about 2 million. The cationic polymers typically have nitrogen-containing cationic moieties such as quaternary ammonium or cationic amino moieties and combinations thereof.

The cationic charge density is preferably at least about 0.1 meq/gram, more preferably at least about 1.5 meq/gram, still more preferably at least about 1.1 meq/gram, most preferably at least about 1.2 meq/gram. The cationic charge density of the cationic polymer can be determined according to the Kjeldahl method. It will be understood by those skilled in the art that the charge density of polymers containing amino groups will be a function of pH and the isoelectric point of the amino groups. The charge density should be within the pH limits mentioned above for the intended use.

Any anionic counterion can be used in the cationic polymer so long as it meets the water solubility criteria. Suitable counterions include halides (eg CI, Br, I or F, preferably Cl, Br or I), sulfate and methylsulfate. This example is not exclusive, so other counterions may also be used.

The cationic nitrogen-containing moiety is typically present as a substituent on a portion of the monomer units of the cationic hair conditioning polymer. Thus, the cationic polymer may comprise copolymers, terpolymers, etc. of quaternary ammonium or cationic amine substituted monomer units and other non-cationic units (referred to herein as spacer monomer units). These polymers are known in the art and can be found in the CTFA Cosmetic Ingredient Dictionary, Third Edition, Ed. Estrin, Crosley and Haynes, (The Cosmetic, Toiletry, and Fragrance Association, Inc., Washington, D.C., 1982) Its many variants.

Suitable cationic polymers include, for example, copolymers of vinyl monomers with cationic amine or quaternary ammonium functionality and water-soluble spacer monomers. The water-soluble spacer monomers are for example acrylamides, methacrylamides, alkyl and dialkyl acrylamides, alkyl and dialkyl methacrylamides, alkyl acrylates, alkyl methacrylates, vinyl caprolactone and vinylpyrrolidone. The alkyl and dialkyl substituted monomers preferably have C ₁ -C ₇ alkyl groups, more preferably C ₁ -C ₃ alkyl groups. Other suitable spacer monomers include vinyl esters, vinyl alcohol (produced by hydrolysis of polyvinyl acetate), maleic anhydride, propylene glycol and ethylene glycol.

Depending on the particular species and pH of the composition, the cationic amines can be primary, secondary or tertiary. In general, secondary and tertiary amines are preferred, with tertiary amines being especially preferred.

Amine substituted vinyl monomers can be polymerized in the amine form and then optionally can be converted to ammonium by quaternization. Amines can also be similarly quaternized before forming polymers. For example, tertiary amine functionality can be quaternized by reaction with a salt of the general formula R'X, where R' is a short chain alkyl group, preferably _C1 - _C7 alkyl, more preferably _C1 -C ₃ alkyl, and X is an anion which forms a water-soluble salt with quaternized ammonium.

Suitable cationic amino and quaternary ammonium monomers include, for example, dialkylaminoalkyl acrylates, dialkylaminoalkyl methacrylates, monoalkylaminoalkyl acrylates, monoalkylaminoalkyl methacrylates, Trialkylmethacryloyloxyalkylammonium salts, trialkylacryloyloxyalkylammonium salts, diallyl quaternary ammonium salts substituted vinyl compounds, and cyclic cationic nitrogen-containing rings such as pyridinium, imidazolium Onium and quaternized vinyl quaternary ammonium monomers of pyrrolidones, such as alkyl vinyl imidazolium, alkyl vinyl pyridinium, alkyl vinyl pyrrolidone salts. The alkyl moieties of these monomers are preferably lower alkyls, such as C ₁ -C ₃ alkyls, more preferably C ₁ and C ₂ alkyls. Amine substituted vinyl monomers suitable for use in the present invention include dialkylaminoalkyl acrylates, dialkylaminoalkyl methacrylates, dialkylaminoalkylacrylamides and dialkylaminoalkylmethacrylamides, wherein The alkyl group is preferably a C ₁ -C ₇ hydrocarbon group, more preferably a C ₁ -C ₃ alkyl group.

The cationic polymer herein may comprise a mixture of monomer units derived from amine and/or quaternary ammonium substituted monomers and/or compatible spacer monomers.

Suitable cationic hair conditioning polymers include, for example: copolymers of 1-vinyl-2-pyrrolidone and 1-vinyl-3-methylimidazolium salt (e.g. hydrochloride) (according to Cosmetic, Toiletry, and Fragrance Association, " CTFA", known in the industry as Polyquaternium (Polyquatemium)-16), is commercially available, for example, from BASF Wyandotte Corp. (Parsippany, NJ, USA) under the tradename LUVIQUAT (e.g. LUVIQUAT FC 370); 1-vinyl-2-pyrrolidone Copolymers of dimethylaminoethyl methacrylate (referred to in the art by CTFA as Polyquatemium-11), such as those available from Gaf Corporation (Wayne, NJ, USA) under the tradename GAFQUAT (eg, GAFQUAT 755N) Raw materials; polymers containing cationic diallyl quaternary ammonium, including for example dimethyl diallyl ammonium chloride homopolymers and copolymers of acrylamide and dimethyl diallyl ammonium chloride (in the art (CTFA) known as Polyquaternium 6 and Polyquatemium 7); and aminoalkyl esters of homopolymers and copolymers of unsaturated carboxylic acids having 3 to about 5 carbon atoms as stated in U.S. Patent No. 4,009,256 Inorganic acid salts, which are incorporated herein by reference.

Other suitable cationic polymers include polysaccharide polymers such as cationic cellulose derivatives and cationic starch derivatives.

Cationic polysaccharide polymers suitable for use in the present invention include polymers of the formula:

In the formula: A is anhydroglucose residue, such as starch or cellulose anhydroglucose residue, R is alkylene oxide alkylene, polyoxyalkylene or hydroxyalkylene or a combination thereof, R ¹ , R ² and ^R3 are independently alkyl, aryl, alkaryl, aralkyl, alkoxyalkyl, or alkoxyaryl, each containing up to 18 carbon atoms, and each cationic moiety The total number of carbon atoms in (ie, the total number of carbon atoms in R ¹ , R ² and R ³ ) is preferably about 20 or less, and X is an anionic counterion as described above.

Cationic cellulose is commercially available from Amerchol Corp. (Edison, NJ, USA) for their Polymer ^JR® and ^LR® series of polymers, which are hydroxyethylcellulose obtained by reaction with trimethylammonium substituted epoxides The salt of polyquaternium 10 is called polyquaternium 10 in the industry (CTFA). Another class of cationic celluloses includes polymeric quaternary ammonium salts formed by reacting hydroxyethyl cellulose with lauryldimethylammonium substituted epoxides (known in the industry (CTFA) as polyquaternium 24). These materials are available from Amerchol Corp. (Edison, NJ, USA) under the tradename PolymerLM- ²⁰⁰ (R).

Other cationic polymers that may be used include cationic guar derivatives such as guar hydroxypropyltrimonium chloride (commercially available from Celanese Corp. under the Jaguar R series designation). Other materials include quaternary nitrogen-containing cellulose ethers (as described in U.S. Patent No. 3,962,418, which is incorporated herein by reference) and copolymers of etherified cellulose and starch (as described in U.S. Patent No. 3,958,581, This document is incorporated herein by reference).

low melting point oil

Hair Conditioning Composition B of the present invention comprises a low melting point oil. The oil has a melting point below 25°C and the low melting point oil is included in the composition from about 0.1% to about 10%, preferably from about 0.25% to about 6%, by weight.

Composition A also includes a low melting point oil. The melting point of the oil is below 25°C, and the low melting point oil is preferably included in the composition in an amount by weight of about 0.1% to about 10%, more preferably about 0.25% to about 6%, most preferably about 0.3% to about 3%.

Low melting point oils suitable for use in the present invention are selected from hydrocarbons having from about 10 to about 40 carbon atoms, unsaturated fatty alcohols having from about 10 to about 30 carbon atoms, unsaturated fatty acids having from about 10 to about 30 carbon atoms , fatty acid derivatives, fatty alcohol derivatives, ester oils, polyalphaolefin oils and mixtures thereof.

Fatty alcohols suitable for use herein are those having from about 10 to about 30 carbon atoms, preferably from about 12 to about 22 carbon atoms, more preferably from about 16 to about 22 carbon atoms. These fatty alcohols are unsaturated and can be straight or branched chain alcohols. Suitable fatty alcohols include, for example, oleyl alcohol, isostearyl alcohol, tridecyl alcohol, decyltetradecyl alcohol and octyldodecanol. These alcohols are available, for example, from Shinnihon Rika.

Low melting point oils suitable for use in the present invention include pentaerythritol ester oils, trimethylol ester oils, polyalphaolefin oils, citric acid ester oils, glyceride oils, and mixtures thereof, and ester oils suitable for use in the present invention are insoluble in water. The term "water-insoluble" as used herein means that the compound is substantially insoluble in water at 25°C; when the compound is mixed with water at a concentration higher than 1.0% by weight, preferably higher than 0.5% by weight, The compound is temporarily dispersed in water to form an unstable colloid, which then rapidly separates into two phases with water.

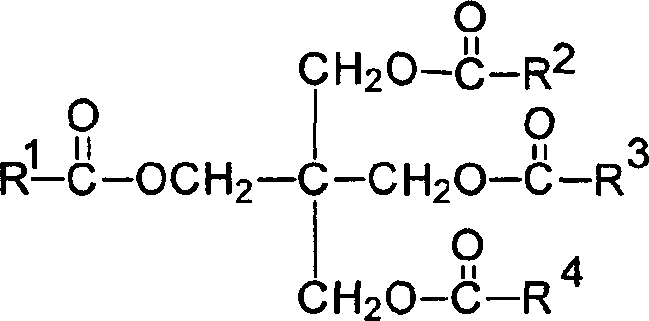

Pentaerythritol ester oils useful in the present invention are those compounds of the formula:

In the formula, R ¹ , R ² , R ³ and R ⁴ are independently branched, straight chain, saturated or unsaturated alkyl, aryl and alkaryl groups having 1 to about 30 carbon atoms. Preferably, each of R ¹ , R ² , R ³ and R ⁴ is independently a branched, straight chain, saturated or unsaturated alkyl group having 8 to about 22 carbon atoms. More preferably, ^R1 , ^R2 , ^R3 and ^R4 are defined such that the molecular weight of the compound is from about 800 to about 1200.

Trimethylol ester oils useful in the present invention are those compounds of the formula:

In the formula, R ¹¹ is an alkyl group having 1 to about 30 carbon atoms, and R ¹² , R ¹³ and R ¹⁴ are independently branched, linear, saturated or unsaturated alkyl groups having 1 to about 30 carbon atoms , aryl and alkaryl. Preferably, each of R ¹¹ , R ¹² , R ¹³ and R ¹⁴ is independently a branched, linear, saturated or unsaturated alkyl group having 8 to about 22 carbon atoms. More preferably, R ¹¹ , R ¹² , R ¹³ and R ¹⁴ are defined such that the molecular weight of the compound is from about 800 to about 1200.

Particularly useful pentaerythritol ester oils and trimethylol ester oils of the present invention include pentaerythritol tetraisostearate, pentaerythritol tetraoleate, trimethylolpropane triisostearate, trimethylolpropane trioil esters and their mixtures. Such compounds are commercially available from Kokyo Alcohol under the trade names KAKPTI and KAKTTI and from Shin-nihon Rika under the trade names PTO and ENUJERUBU TP3SO.

The polyalphaolefin oils useful in the present invention are polyalphaolefin oils derived from 1-olefin monomers having from about 6 to about 16 carbon atoms, preferably from about 6 to about 12 carbon atoms. Non-limiting examples of 1-olefin monomers that can be used to prepare polyalphaolefin oils include 1-hexene, 1-octene, 1-decene, 1-dodecene, 1-tetradecene, 1 - Hexadecene, branched isomers such as 4-methyl-1-pentene and mixtures thereof. Preferred 1-olefin monomers useful in the preparation of polyalphaolefin oils are 1-octene, 1-decene, 1-dodecene, 1-tetradecene, 1-hexadecene and mixtures thereof . Polyalphaolefin oils suitable for use in the present invention have a viscosity of from about 1 to about 35,000 centistokes, a molecular weight of from about 200 to about 60,000, and a polydispersity of not more than about 3.

Polyalphaolefin oils having a molecular weight of at least about 800 are suitable for use in the present invention. This high molecular weight polyalphaolefin oil is believed to provide longer-lasting moisturization to the hair. Polyalphaolefin oils having molecular weights below about 800 are suitable for use in the present invention. This low molecular weight polyalphaolefin oil is believed to impart smoothness, shine and a clean feel to hair.

Polyalphaolefin oils particularly suitable for use in the present invention include polydecene, available under the trade name PURESYN 6, with a number average molecular weight of about 500; with the trade name PURESYN 100, with a number average molecular weight of about 3000; The average molecular weight is about 6000, obtained from Mobil Chemical Co.

Citrate oils useful herein are compounds having a molecular weight of at least about 500 of the formula:

In the formula, R ²¹ is OH or CH ₃ COO, and R ²² , R ²³ and R ²⁴ are independently branched, straight chain, saturated or unsaturated alkyl, aryl and alkaryl having 1 to about 30 carbon atoms base. Preferably, R ²¹ is OH and R ²² , R ²³ and R ²⁴ are independently branched, straight chain, saturated or unsaturated alkyl, aryl and alkaryl groups having 8 to about 22 carbon atoms. More preferably, ^R21 , ^R22 , ^R23 and ^R24 are defined such that the molecular weight of the compound is at least about 800.

Citrate oils particularly useful herein include: triisocetyl citrate available from Bernel under the trade name CITMOL 316, triisostearyl citrate available from Phoenix under the trade name PELEMOL TISC, and Trioctyldodecyl citrate available under the tradename CITMOL 320 from Bernel.

Glyceride oils useful herein are compounds having a molecular weight of at least about 500 of the formula:

In the formula, R ⁴¹ , R ⁴² and R ⁴³ are independently branched chain, straight chain, saturated or unsaturated alkyl, aryl and alkaryl groups having 1 to about 30 carbon atoms. Preferably, R ⁴¹ , R ⁴² and R ⁴³ are each independently a branched, straight chain, saturated or unsaturated alkyl, aryl, alkaryl group having 8 to about 22 carbon atoms. More preferably, ^R41 , ^R42 and ^R43 are defined such that the molecular weight of the compound is at least about 800.

Glyceride oils that are particularly useful in the present invention include: tristearin available from Taiyo Kagaku under the tradename SUNESPOL G-318; triolein available from Croda Surfactants Ltd. under the tradename CITHROL GTO; Glyceryl trilinoleate available under the trade name EFADERMA-F from Vevy, or EFA-GLYCERIDES from Brooks.

polysiloxane compound

Compositions A according to the invention preferably contain silicone compounds. The silicone compound may be included in the composition A, preferably in an amount by weight of from about 0.1% to about 10%, more preferably from about 0.25% to about 8%, most preferably from about 0.5% to about 3%. .

A silicone compound may also be included in Composition B, preferably at a level by weight of from about 0.1% to about 10%, more preferably from about 0.25% to about 8%, most preferably from about 0.5% to about 3% .

The silicone compounds of the present invention may include volatile soluble or insoluble, or nonvolatile soluble or insoluble silicone conditioning agents. Soluble means that the silicone compound is miscible with the carrier of the composition to form part of the same phase. Insoluble means that the polysiloxane forms a separate, discontinuous phase from the carrier, for example in the form of an emulsion or suspension of polysiloxane droplets. The polysiloxane compound in the present invention can be prepared by conventional polymerization or emulsion polymerization.

Silicone compounds suitable for use herein preferably have a viscosity at 25°C of from about 1,000 to about 2,000,000 centistokes, more preferably from about 10,000 to about 1,800,000, even more preferably from about 25,000 to about 1,500,000. The viscosity can be measured by the glass capillary viscometer method described in Dow Corning Corporate Test Method CTM0004, July 20, 1970, which is incorporated herein by reference in its entirety. High molecular weight polysiloxane compounds can be prepared by emulsion polymerization.

Silicone compounds suitable for use herein include polyalkylpolyarylsiloxanes, polyalkylene oxide-modified silicones, silicone resins, amino-substituted silicones, and mixtures thereof. The polysiloxane compound is preferably selected from polyalkyl polyaryl siloxanes, polyalkylene oxide-modified siloxanes, polysiloxane resins and mixtures thereof, more preferably from one or more Polyalkylpolyarylsiloxane.

Polyalkylpolyarylsiloxanes suitable for use in the present invention include those materials having the following structure (I)

wherein R is an alkyl or aryl group, and x is an integer from about 7 to about 8,000. "A" represents a group blocking the end of the polysiloxane chain. The alkyl or aryl group (R) substituted on the siloxane chain or the alkyl or aryl group (A) substituted on the end of the siloxane chain may have any structure as long as the polysiloxane obtained is at room temperature Remains fluid, is dispersible, is non-irritating, non-toxic, non-hazardous when applied to hair, is compatible with other ingredients in the composition, and is chemically stable under normal conditions of use and storage , and can be deposited on the hair and condition the hair. Suitable A groups include hydroxy, methyl, methoxy, ethoxy, propoxy and aryloxy. The two R groups on the silicon atom may represent the same or different groups. Preferably, the two R groups represent the same group. Suitable R groups include methyl, ethyl, propyl, phenyl, methylphenyl and phenylmethyl. Preferred silicone compounds are polydimethylsiloxane, polydiethylsiloxane and polymethylphenylsiloxane. Polydimethylsiloxanes, also known as simethicones, are especially preferred. Polyalkylsiloxanes that may be used include, for example, polydimethylsiloxanes. These silicone compounds are commercially available, for example, from the General Electric Company in their Viscasil® and SF 96 series and from Dow Corning in their Dow Corning 200 series. For example, polymethylphenylsiloxanes from the General Electric Company as SF 1075 methylphenyl fluid or from Dow Corning as 556 Cosmetic Grade Fluid are suitable for use in the present invention.

Preferred for enhancing the shine properties of hair are highly arylated polysiloxane compounds having a refractive index of about 1.46 or higher, especially about 1.52 or higher, such as highly benzolated polyethylpolysiloxane alkyl. When these high-refractive-index silicone compounds are used, they should be mixed with a coating agent such as a surfactant or a silicone resin as described below in order to lower the surface tension and improve its film-forming ability.

Another polyalkylpolyarylsiloxane which is particularly suitable is silicone gum. The term "silicone gum" refers to a polyorganosiloxane having a viscosity at 25°C of greater than or equal to 1,000,000 centistokes. It should be recognized that the silicone gums described herein may also have some overlap with the silicone compounds described above. This overlap is not a limitation to any of these substances. Silicone gums are described by Petrarch and others, including U.S. Patent No. 4,152,416 to Spitzer et al., published May 1, 1979, and Noll, Walter, Chemistry and Technology of Silicones, New York: Academic Press 1968. Others describing silicone gums are General Electric Silicone Rubber Product Data Sheets SE 30, SE 33, SE 54 and SE 76. All such described documents are hereby incorporated by reference in their entirety. The mass molecular weight of "polysiloxane gum" is generally above about 200,000, usually between 200,000 and about 1,000,000. Specific examples include polydimethylsiloxane, poly(dimethylsiloxane methylvinylsiloxane) copolymer, poly(dimethylsiloxane-diphenylsiloxane-methylvinylsiloxane) base siloxane) copolymers and mixtures thereof.

Polyalkylene oxide-modified siloxanes suitable for use in the present invention include, for example, polyoxypropylene-modified and polyoxyethylene-modified polydimethylsiloxanes. The ethylene oxide and propylene oxide levels should be low enough not to affect the dispersibility of the polysiloxane. These materials are also known as dimethicone copolyols.

Polysiloxane resins of highly crosslinked polymeric siloxane systems are also suitable for use in the present invention. The crosslinking is introduced by incorporation of trifunctional and tetrafunctional silanes together with monofunctional or difunctional silanes or both during the production of the polysiloxane resin. As is known in the art, the degree of crosslinking required to obtain a silicone resin will vary depending on the particular silane moieties incorporated into the silicone resin. In general, polysiloxane materials having a sufficient content of trifunctional and tetrafunctional silane monomer units, and thus a sufficient level of crosslinking, such that they form rigid or strong films when dry, can be considered Polysiloxane resin. The ratio of oxygen atoms to silicon atoms is indicative of the level of crosslinking of a particular silicone material. Silicone materials having at least about 1.1 oxygen atoms per silicon atom are typically silicone resins of the present invention. Preferably, the ratio of oxygen to silicon atoms is at least about 1.2:1.0. Silanes used in the manufacture of polysiloxane resins include monomethyl-, dimethyl-, trimethyl-, phenyl-, biphenyl-, methylphenyl-, vinyl- and methylvinyl chloride Methyl silanes and tetrachlorosilanes, of which methyl substituted silanes are the most commonly used. Preferred resins are GESS4230 and SS4267 supplied by General Electric. Commercially available silicone resins are generally supplied in dissolved form in low viscosity volatile or nonvolatile silicone liquids. It will be apparent to those skilled in the art that the silicone resins useful herein should be provided in such dissolved form and incorporated into the compositions of the present invention. Without being bound by theory, it is believed that the silicone resins enhance the deposition of other silicone compounds on the hair and enhance the shine of hair with high refractive index volume.

Other silicone resins that can be used are silicone resin powders such as the material with the CTFA designation polymethylsilsequoxane, which is commercially available as Tospearl ^(R) from Toshiba Silicones.

Silicone resins are more conveniently identified according to an abbreviated nomenclature ("MDTQ" nomenclature) known to those skilled in the art. Under this nomenclature, silicones are described in terms of the presence of the various siloxane monomers that make up the silicones. Briefly, the symbol M represents a monofunctional unit (CH ₃ ) ₃ SiO) _.5 ; D represents a difunctional unit (CH ₃ ) ₂ SiO; T represents a trifunctional unit (CH ₃ ) SiO _1.5 ; Q represents a tetrafunctional unit SiO ₂ . Major parts in the unit symbols, such as M', D', T' and Q' represent substituents other than methyl and are defined specifically for each case. Typical other substituents include groups such as vinyl, phenyl, amino, hydroxyl, and the like. Under the MDTQ system, polysiloxanes are completed in terms of symbolic subscripts denoting the total number of the various units in the polysiloxane, or in terms of their average value, or as molar ratios of the different units in specific indicated proportions expressed together with the molecular weight. A description of the alkane material. A higher molar amount of T, Q, T' and/or Q' relative to D, D', M and/or M' in a polysiloxane resin means a higher level of crosslinking. However, as noted above, the overall level of crosslinking can also be expressed by the ratio of oxygen to silicon.

Preferred polysiloxane resins useful herein are MQ, MT, MTQ, MQ and MDTQ resins. Accordingly, the preferred polysiloxane substituent is methyl. Especially preferred are MQ resins wherein the M:Q ratio is from about 0.5:1.0 to about 1.5:1.0 and the resin has an average molecular weight of from about 1000 to about 10,000.

Amino-substituted siloxanes suitable for use in the present invention include those compounds represented by the following structure (II):

In the formula, R is _CH3 or OH, x and y are integers depending on the molecular weight, and the average molecular weight is about 5,000 to 10,000. This polymer is also known under the name "aminodimethylpolysiloxane".

Suitable amino-substituted silicone fluids include those compounds represented by the general formula (III):

(R ₁ ) _a G _3-a -Si-(-OSiG ₂ ) _n -(-OSiG _b (R ₁ ) _2-b ) _m -O-SiG _3-a (R ₁ ) _a (III)

In the formula, G is selected from hydrogen, benzene, OH, C ₁ -C ₈ alkyl, and preferably methyl; a represents 0 or an integer from 1 to 3, and is preferably 0; b represents 0 or 1, and is preferably 1; n+m is 1 to 2,000 and is preferably 50 to 150, n can represent 0 to 1,999 and is preferably an integer of 49 to 149, and m can be 1 to 2,000, and is preferably an integer of 1 to 10; R ₁ is a monovalent group with the general formula CqH _2q L, where q is an integer from 2 to 8, and L is selected from the following groups

-N(R ₂ )CH ₂ -CH ₂ -N(R ₂ ) ₂

-N(R ₂ ) ₂

-N(R ₂ ) ₃ A ^-

-N(R ₂ )CH ₂ -CH ₂ -NR ₂ H ₂ A ^-

In the formula, R ₂ is selected from hydrogen, phenyl, benzyl, saturated hydrocarbon group, preferably an alkyl group containing 1 to 20 carbon atoms, and A ^- represents a halogen atom.

Particularly preferred amino-substituted polysiloxanes corresponding to the general formula (III) are the polymeric polysiloxanes of the general formula (IV) known as "trimethylsilylaminodimethylpolysiloxane" thing:

In this general formula, n and m are selected according to the desired molecular weight of the compound.

Other amino-substituted siloxanes that can be used are represented by the general formula (V):

In the formula, R ³ represents a monovalent hydrocarbon group with 1 to 18 carbon atoms, preferably an alkyl or alkenyl group, such as methyl; R ⁴ represents a hydrocarbon group, preferably a C ₁ -C ₁₈ alkylene group or a C ₁ -C _18. More preferably C ₁ -C ₈ alkyleneoxy; Q ^- is a halogen atom, preferably chlorine; r represents the average statistical value, and is 2 to 20, preferably 2 to 8; s represents the average statistical value, which is 20 to 200, preferably 20 to 50. A preferred polymer of this type is available from Union Carbide under the trade designation "UCAR SILICONE ALE 56."

polypropylene glycol

Composition A according to the invention preferably also contains polypropylene glycol. Polypropylene glycol may be included in Composition A at a level of from about 0.1% to about 10%, more preferably from about 0.25% to about 6%, by weight.

Polypropylene glycol may also be included in Composition B at a level of from about 0.1% to about 10%, more preferably from about 0.25% to about 6%, by weight.

Polypropylene glycols suitable for use herein generally have a weight average molecular weight of from about 200 to about 100,000 grams/mole, preferably from about 1,000 to about 60,000 grams/mole. Without being bound by theory, it is believed that the polypropylene glycols of the present invention deposit on or adsorb to the hair to act as moisturizers, and/or to provide one or more other desirable hair conditioning benefits. The term "polypropylene glycol" as used herein includes both mono-polypropylene glycol-segmented polymers and multi-polypropylene glycol-segmented polymers. For example, in "Principles of Polymerization" pp. 17-19, GOdian, (John Wiley & Sons, Inc., 3 ^rd ed., 1991) describes the development of branched polymers, such as polypropylene glycol-segmented polymers. general structure.

The polypropylene glycols useful in the present invention are generally polydisperse polymers. The polypropylene glycols useful herein have a polydispersity of from about 1 to about 2.5, preferably from about 1 to about 2, more preferably from about 1 to about 1.5. As used herein, the term "polydispersity" refers to the degree of molecular weight distribution of a polymer sample. In particular, polydispersity is a ratio greater than 1 equal to weight average molecular weight divided by number average molecular weight. For further discussion of polydispersity see "Principles of Polymerization", pp. 20-24, G. Odian, (John Wiley & Sons, Inc., 3 ^rd ed., 1991).

Depending on the degree of polymerization and whether other groups are attached, the polypropylene glycols useful in the present invention can be water soluble, water insoluble, or have limited solubility in water. The desired solubility of polypropylene glycol in water depends largely on the type of hair care composition (eg, leave-on or rinse-off). The solubility of the polypropylene glycol used in the present invention in water can be selected by those skilled in the art based on various factors. Thus, for leave-on hair care compositions, the polypropylene glycol is preferably a water-soluble polypropylene glycol. Solubility information is readily available from suppliers of polypropylene glycols such as Sanyo Kasei (Osaka, Japan). However, the invention may also be in the form of a rinse-off hair care composition. Without being bound by theory, it is believed that in such compositions the water soluble polypropylene glycol may be very easily washed off before it is effectively deposited on the hair and provides the desired benefit. For such compositions therefore poorly water soluble or even water insoluble polypropylene glycols are preferred. So for rinse-off hair care compositions, the solubility of polypropylene glycol in water at 25° C. is less than about 1 g/100 g water, more preferably less than about 0.5 g/100 g water, even more preferably less than about 0.1 g/100 g water. 100 grams of water.

Polypropylene glycol is preferably selected from single-polypropylene glycol-segment polymers, multi-polypropylene glycol-segment polymers and mixtures thereof, more preferably selected from the following formula I single-polypropylene glycol-segment polymers, the following formula II Multi-polypropylene glycol-segmented polymers and mixtures thereof.

Mono-polypropylene glycol-segmented polymer

Thus, a highly preferred mono-polypropylene glycol-segmented polymer has the formula:

HO-(C ₃ H ₆ O) _a H (III),

In the formula, a is a value from about 4 to about 400, preferably from about 20 to about 100, more preferably from about 20 to about 40.

The mono-polypropylene glycol-segmented polymers used in the present invention are generally less expensive and are readily available from, for example, Sanyo Kasei (Osaka, Japan), Dow Chemicals (Midland, Michigan, USA), Calgon Chemical, Inc. (Skokie, Illinois, USA), Arco Chemical Co. (Newton Square Pennsylvania, USA), Witco Chemicals Corp. (Greenwich, Connecticut, USA), and PPG Specialty Chemicals (Gurnee, Illinois, USA).

Poly-polypropylene glycol-segmented polymer

Highly preferred multi-polypropylene glycol-segmented polymers have the structure:

where n is a number from 0 to about 10, preferably from 0 to about 7, more preferably from about 1 to about 4. In the general formula IV, each R" is independently selected from H and C ₁ -C ₃₀ alkyl, preferably each R" is independently selected from H and C ₁ -C ₄ alkyl. In Formula IV, each b is independently a value from about 0 to about 2, preferably a value from 0 to about 1, more preferably b=0. Similarly, c and d independently have a value from 0 to about 2, preferably a value from 0 to about 1. However the sum of b+c+d is at least about 2, preferably the sum of b+c+d is from about 2 to about 3. Each e is independently a value of 0 or 1, preferably 1 if n is from about 1 to about 4. Also in Formula IV, x, y and z independently have values from about 1 to about 120, preferably from about 7 to about 100, more preferably from about 7 to about 100, wherein x+y+z is greater than about 20.

Examples of multi-polypropylene glycol chain block copolymers of formula IV which are particularly preferred for use in the present invention include polyoxypropylene glyceryl ethers (n=1, R'=H, b=0, c and d=1, e=1 , and x, y and z independently represent the degree of polymerization of their respective polypropylene glycol-chain blocks; available from Sanyo Kasei (Osaka, Japan) under the trade name New Pol GP-4000, polypropylene trimethylolpropane (n =1, R'=C ₂ H ₅ , b=1, c and d=1, e=1, and x, y and z each independently represent the degree of polymerization of their respective polypropylene glycol-chain blocks), polyoxy Propylene sorbitol (n=4, each R=H, b=0, c and d=1, each e=1, and y, z and each x each independently represent the degree of polymerization of their respective polypropylene glycol-chain blocks ); available under the trade name New Pol SP-4000 from Sanyo Kasei, Osaka, Japan), and PPG-10 butanediol (n=0, c and d=2, and y+z=10; available as Probutyl DB-10 tradename available from Croda, Inc., Parsippany, New Jersey, USA).

In a preferred embodiment, the one or more propylene repeat groups in the polypropylene glycol are isopropyl oxide repeat groups. More preferably, the one or more oxypropylene repeat groups of the polypropylene glycol of formula III and/or the polypropylene glycol of formula IV are isopropyl oxide repeat groups. Even more preferably, substantially all of the repeating propylene oxide groups of the polypropylene glycol of formula III and/or polypropylene glycol of formula IV are isopropyl oxide groups. Thus, a highly preferred mono-polypropylene glycol-segmented polymer has the formula:

The definition of a in the formula is as described in the above formula III. Similarly, a multi-polypropylene glycol-chain block polymer has the formula:

In the formula n, R", b, c, d, e, x, y and z are as defined above in formula IV. It is considered that the isopropyloxy repeating group can also represent alone or together with the above-mentioned groups:

Polypropylene glycols suitable for use in the present invention are commercially available, for example, from Sanyo Kasei (Osaka, Japan) as New pol PP-2000, New pol PP-4000, New pol GP-4000 and New pol SP-4000, from Dow Chemicals (Midland , Michigan, USA), from Calgon Chemical, Inc. (Skokie, Illinois, USA), from Arco Chemical Co. (Newton Square Pennsylvania, USA), from Witco Chemicals Corp. (Newton Square Pennsylvania, USA), from Witco Chemicals Corp. (Greenwich, Connecticut, USA), and purchased from PPG Specialty Chemicals (Gurnee, Illinois, USA).

polyethylene glycol

Preferably, composition B of the present invention may also include polyethylene glycol having the following general formula:

H(OCH ₂ CH ₂ ) _n -OH

The average value of n in the formula is about 2,000 to 14,000, preferably about 5,000 to about 9,000, more preferably about 6,000 to about 8,000.

The polyethylene glycol may be present in composition B at a level of from about 0.1% to about 10%, more preferably from about 0.25% to about 6% by weight.

The polyethylene glycol may be present in composition A in an amount of from about 0.1% to about 10%, more preferably from about 0.25% to about 6% by weight.

The polyethylene glycols mentioned above are also known by the names polyethylene oxide and polyoxyethylene. A particularly preferred polyethylene glycol suitable for use herein is PEG-2M, where n has an average value of about 2,000 (PEG-2M is also known as Polyox ^WSR® N-10 from Union Carbide and as PEG-2,000 known); PEG-5M, where n has an average value of about 5,000 (PEG-5M is also known as Polyox ^WSR® N-35 and Polyox ^WSR® N-80, both products from Union Carbide, and Known as PEG-5,000 and Polyethylene Glycol 300,000); PEG-7M, where n has an average value of about 7,000 (PEG-7M is also known as Polyox ^WSR® N-750 from Union Carbide) PEG-9M, where n has an average value of about 9,000 (PEG-9M is also known as Polyox ^WSR® N-3333 from Union Carbide); and PEG-14M, where n has an average value of about 14,000 (PEG-14M is also known as Polyox WSR ^(R) N-3000 from Union Carbide).

combination

The compositions of the present invention may be rinse-off or leave-on products and may be in the form of lotions, creams, gels, sprays or mousses.

The compositions of the present invention have a suitable viscosity, preferably from about 1,000 mm ² s ⁻¹ to about 100,000 mm 2 s ⁻¹ , more preferably from about 2,000 ^{mm 2 s −1} to about 50,000 mm ² s ⁻¹ . The viscosity mentioned herein can be measured at a shear rate of 2.0 s ⁻¹ after one minute of rotation.

In a preferred version of the present invention, the composition basically comprises by weight:

(a) from about 0.1% to about 15%, preferably from about 1% to about 10%, of a high melting point fatty compound, preferably selected from the group consisting of cetyl alcohol, stearyl alcohol, behenyl alcohol, and mixture;

(b) from about 0.1% to about 10%, preferably from about 0.5% to about 3%, of amidoamines having the general formula:

R ¹ CONH(CH ₂ ) _m N(R ² ) ₂

In the formula, R ¹ is a C ₁₁ -C ₂₄ fatty acid residue, R ² is a C ₁ -C ₄ alkyl group, m is an integer from 1 to 4, preferably the amidoamine is selected from stearamidopropyl dimethylamine , stearamidoethyldiethylamine and mixtures thereof;

(c) an acid selected from l-glutamic acid, lactic acid, hydrochloric acid, malic acid, succinic acid, acetic acid, fumaric acid, l-glutamic acid hydrochloride, tartaric acid, and mixtures thereof in an amount such that amidoamine and The molar ratio of acid is from about 1:0.3 to about 1:1, preferably l-glutamic acid, in an amount such that the molar ratio of amidoamine to acid is from about 1:0.5 to about 1:0.9;

(d) from about 0.01% to about 10% particles; and

(e) Aqueous carrier.

The composition also includes a silicone compound in an amount from about 0.1% to about 10% by weight.

In a preferred version of the present invention, the composition comprises by weight:

(a) from about 0.1% to about 15%, preferably from about 1% to about 10%, of high melting fatty compounds having a melting point of 25°C or higher;

(b) from about 0.1% to about 10%, preferably from about 0.25% to about 5%, of cationic conditioning agents;

(c) from about 0.01% to about 10% particles;

(d) an aqueous carrier; and

(e) from about 0.1% to about 10%, preferably from about 0.25% to about 6%, polypropylene glycol.

The composition may also include a low melting point oil, the melting point of which is lower than 25°C, and the content of the low melting point oil in the composition is preferably from about 0.1% to about 10%, more preferably from about 0.25% to about 10%, by weight. About 6%, more preferably about 0.3% to about 3%.

In a preferred version of the present invention, the composition comprises by weight:

(a) from about 0.1% to about 15%, preferably from about 0.25% to about 5%, of high melting point fatty compounds having a melting point of 25°C or higher;

(b) from about 0.1% to about 10%, preferably from about 0.25% to about 5%, of cationic conditioning agents;

(c) from about 0.1% to about 10%, preferably from about 0.25% to about 6%, of a low melting oil having a melting point below 25°C, preferably the low melting oil is an unsaturated oil;

(d) 0.01% to about 10% particles;

(e) an aqueous carrier; and

(f) about 0.1% to about 10%, preferably about 0.25% to about 6% polyethylene glycol.

additional ingredients

The compositions of the present invention may comprise other additional ingredients which may be selected by those skilled in the art according to the desired properties of the final product and which are suitable to make the compositions more cosmetically or aesthetically acceptable or to render them of additional use Effect. These additional components are typically used individually in amounts of from about 0.001% to about 10%, preferably up to about 5%, by weight of the composition.

A variety of other additional components can be formulated into the compositions of the present invention. These ingredients include: other conditioning agents such as hydrolyzed collagen, available from Hormel under the trade name Peptein 2000, vitamin E, available from Eisai under the trade name Emix-d, panthenol, available from Roche, panethyl ether, available from Roche, Tween 60 and cetearyl alcohol, available under the tradename Polawax NF from Croda Chemicals, glyceryl monostearate, available from Stepan Chemicals, hydroxyethylcellulose, available from Aqualon, 3-pyridinecarboxylic acid amide (nicotinamide ), hydrolyzed keratin, proteins, plant extracts and nutrients; hair styling polymers such as amphoteric styling polymers, cationic styling polymers, anionic styling polymers, nonionic styling polymers and silicone graft copolymers; Preservatives, such as benzyl alcohol, methylparaben, propylparaben, and imidazolidinyl urea; pH adjusters, such as citric acid, sodium citrate, succinic acid, phosphoric acid, sodium hydroxide, sodium carbonate; Salts, usually such as potassium acetate and sodium chloride; coloring agents, such as any of the FD&C or D&C dyes; hair oxidizing (bleaching) agents, such as hydrogen peroxide, perborates, and persulfates; hair reducing agents, such as Thioglycollates; fragrances; and chelating agents, such as disodium edetate; UV and IR shielding and absorbing agents, such as octyl salicylate, antidandruff agents, such as zinc pyrithione and salicylic acid; and fluorescent Brighteners such as polystyrene stilbenes, triazine stilbenes, hydroxycoumarins, aminocoumarins, triazoles, pyrazolines, oxazoles, pyrenes, porphyrins, imidazoles and mixtures thereof.

Example

The following examples further describe and demonstrate specific embodiments within the scope of the present invention. These examples are illustrative only and do not limit the scope of the invention, since various changes may be made without departing from the spirit and scope of the invention. Components are given by chemical or CTFA name unless otherwise indicated.

The compositions of the present invention may be both rinse-off and leave-on products, and may be products in the form of lotions, creams, gels, sprays or mousses.

combination components Example 1 Example 2 Example 3 Cetyl Alcohol ^* 1 2.0 2.5 2.0 Stearyl Alcohol ^* 2 3.6 4.5 3.6 Stearamidopropyldimethylamine ^* 3 1.6 2.0 1.6 l-glutamic acid ^* 4 0.412 0.64 0.412 Mica ^* 5 0.7 0.5 - Silica ^* 6 - 1.0 1.0 Silicone Blend ^* 7 3.36 4.37 3.36 spices 0.4 0.4 0.4 benzyl alcohol 0.4 0.4 0.4 EDTA 0.1 0.1 0.1 Kathon CG ^* 8 0.0005 0.0005 0.0005 Sodium chloride 0.01 0.01 0.01 3-Pyridinecarboxylic acid amidoamine 0.05 0.05 0.05 dl-alpha tocopheryl acetate 0.05 0.05 0.05 Hydrolyzed Collagen ^* 9 0.01 0.01 0.01 Panthenol ^* 10 0.05 0.05 0.05 Panethyl ether ^* 11 0.05 0.05 0.05 Octyl Methoxycinnamate 0.09 0.09 0.09 Benzophenone-3 0.09 0.09 0.09 citric acid Amount needed to adjust pH 3-7 Deionized water add up to 100%

combination components Example 4 Example 5 Example 6 Cetyl Alcohol ^* 1 2.6 2.0 2.6 Stearyl Alcohol ^* 2 4.6 3.6 4.6 Stearamidopropyldimethylamine ^* 3 1.8 1.6 1.8 l-glutamic acid ^* 4 0.6 0.5 0.6 Pentaerythritol tetraisostearate ^* 13 1.0 0.5 1.0 Polypropylene Glycol ^* 20 4.5 4.0 4.5 Mica ^* 5 1.0 1.2 - Silica ^* 6 - 0.8 1.2 Silicone Blend ^* 7 2.5 4.2 3.0 spices 0.4 0.4 0.4 benzyl alcohol 0.4 0.4 0.4 EDTA 0.1 0.1 0.1 Kathon CG ^* 8 0.0005 0.0005 0.0005 Sodium chloride 0.01 0.01 0.01 3-Pyridinecarboxylic acid amidoamine 0.05 0.05 0.05 dl-alpha tocopheryl acetate 0.05 0.05 0.05 Hydrolyzed Collagen ^* 9 0.01 0.01 0.01 Panthenol ^* 10 0.05 0.05 0.05 Panethyl ether ^* 11 0.05 0.05 0.05 Octyl Methoxycinnamate 0.09 0.09 0.09 Benzophenone-3 0.09 0.09 0.09 citric acid Amount needed to adjust pH 3-7 Deionized water add up to 100%

combination components Example 7 Example 8 Example 9 Cetyl Alcohol ^* 1 0.96 1.2 0.96 Stearyl Alcohol ^* 2 0.64 0.8 0.64 Stearamidopropyldimethylamine ^* 3 1.0 1.0 Ditallow Methyl Ammonium Chloride ^* 12 0.75 0.64 0.75 Pentaerythritol tetraisostearate ^* 13 0.5 0.5 Pentaerythritol tetraoleate ^* 14 0.2 Oleyl Alcohol ^* 15 0.25 Trimethylolpropyl Triisostearate ^* 16 0.25 PEG 2M ^* 17 0.5 0.5 0.5 Tween 60 ^* 18 0.25 0.25 0.25 Cetearyl Alcohol ^* 18 0.25 0.25 0.25 Glyceryl monostearate ^* 19 0.25 0.25 0.25 Mica ^* 5 2.0 0.1 - Silica ^* 6 - 1.0 1.0 Silicone Blend ^* 7 4.2 4.2 4.2 spices 0.4 0.4 0.4 benzyl alcohol 0.4 0.4 0.4 EDTA 0.1 0.1 0.1 Kathon CG ^* 8 0.0005 0.0005 0.0005 Sodium chloride 0.01 0.01 0.01 3-Pyridinecarboxylic acid amidoamine 0.05 0.05 0.05 dl-alpha tocopheryl acetate 0.05 0.05 0.05 Hydrolyzed Collagen ^* 9 0.01 0.01 0.01 Panthenol ^* 10 0.05 0.05 0.05 Panethyl ether ^* 11 0.05 0.05 0.05 Octyl Methoxycinnamate 0.09 0.09 0.09 Benzophenone-3 0.09 0.09 0.09 citric acid Amount needed to adjust pH 3-7 Deionized water Add up to 100%

Component Definition

^* 1 Cetyl alcohol: Konol series, from Shin Nihon Rika.

^* 2 Stearyl alcohol: Konol series, from Shin Nihon Rika.

^* 3 Stearamidopropyldimethylamine: SAPDMA from Inolex.

^* 4 l-glutamic acid: l-glutamic acid (cosmetic grade), available from Ajinomoto.

^* 5 Mica: Mearlmica CF from Mearl.

^* 6 Silica: Neosil CBT 60, average particle size 250-400 μm, available from Crosfield.

^* 7 Silicone blend: SE 76 from General Electric Company.

^* 8 Kathon CG: Methylchloroisothiazolinone and Methylisothiazolinone from Rohm & Haas.

^* 9 Hydrolyzed Collagen: Peptein 2000 from Hormel.

^* 10 Panthenol: from Roche.

^* 11 Panthenyl ethyl ether: from Roche.

^* 12 Ditallow methyl ammonium chloride: from Witco Chemicals.

^* 13 Pentaerythritol tetraisostearate: KAK PTI obtained from Kokyu alcohol.

^* 14 Pentaerythritol Tetraoleate: From Shin NihonRika.

^* 15 Oleyl Alcohol: from New Japan Chemical.

^* 16 Trimethylolpropyl triisostearate: KAK TTI obtained from Kokyu alcohol.

^* 17 PEG-2M: Polyox, obtained from Union Carbide.

^* 18 Tween 60, Cetearyl Alcohol: Blend sold as Polawax NF, obtained from Croda Chemicals.

^* 19 Glyceryl monostearate: from Stepan Chemicals.

^* 20 Polypropylene Glycol: PP2000 from Sanyo Kasei.

Preparation

The hair conditioning compositions as described in Examples 1 and 9 are prepared by any conventional method known in the art. They are suitably prepared in the following manner: If a polymeric material is included in the composition, the polymeric material, such as polypropylene glycol, is dispersed in water at room temperature to form a polymer solution and this is heated up to 70°C. To this solution is added the amidoamine and the acid or other cationic surfactant (if present) and the ester oil of the low melting point oil with stirring. The high melting point fatty compound is then added to this solution with stirring, along with other low melting point oils and benzyl alcohol (if present). The mixture thus obtained is cooled to below 60°C, and the remaining ingredients, such as silicone compounds, are added thereto with stirring and further cooled to about 30°C. Then, particles such as silica and mica are added and mixed.

Three-roll mills and/or ball mills can be used at each step to disperse the raw materials, if desired.

It is also possible to add up to 50% acid after cooling to below 60°C.

Embodiments disclosed herein have many advantages. For example, they provide improved texture when spread on the hands and/or hair and provide improved conditioning benefits to the hair, such as moisturized feel, softness, and static control, and are easy to apply to the hair.

It should be understood that the examples and specific implementations described in the present invention are only illustrative, and those skilled in the art may make various changes or changes thereto without departing from the spirit and scope of the present invention.

Claims (11)

1. Wo 2008069000 by weight, comprising:

(a) about 0.1% to about 15% hard fat chemical compound;

(b) about 0.1% to about 10% amidoamines with following general formula:

R ¹CONH(CH ₂) _mN(R ²) ₂

R in the formula ¹Be C ₁₁-C ₂₄Fatty acid residue, R ²Be C ₁-C ₄Alkyl, m are 1 to 4 integer;

(c) a kind of acid is selected from l-glutamic acid, lactic acid, hydrochloric acid, malic acid, succinic acid, acetic acid, fumaric acid, l-glutamic acid hydrochloride, tartaric acid and composition thereof, and its content makes that the amidoamines and the mol ratio of acid are about 1: 0.3 to about 1: 1;

(d) about 0.01% to about 10% granule; And

(e) aqueous carrier.

2. according to the Wo 2008069000 of claim 1, it also comprises about 0.1% polysiloxane compound to about 10% weight.

3. according to the Wo 2008069000 of claim 1, it also comprises about 0.1% polypropylene glycol to about 10% weight.

4. according to the Wo 2008069000 of claim 1, by weight, comprising:

(a) about 1% to about 10% hard fat chemical compound is selected from spermol, stearyl alcohol, docosyl alcohol and composition thereof;

(b) about 0.5% to about 3% amidoamines is selected from the amino propyl group dimethylamine of stearoyl, the amino ethyl diethylamine of stearoyl and composition thereof;

(c) l-glutamic acid, its content make that the amidoamines and the mol ratio of acid are about 1: 0.5 to about 1: 0.9; And

(d) about 0.1% to about 5% granule; And

(e) aqueous carrier.

5. Wo 2008069000 comprises by weight:

(a) about 0.1% to about 15% hard fat chemical compound, its fusing point is 25 ℃ or higher;

(b) about 0.1% to about 10% cation opsonizing agent;

(c) about 0.1% to about 10% low melting point oil, its fusing point is lower than 25 ℃;

(d) about 0.01% to about 10% granule; And

(e) aqueous carrier.

6. according to the Wo 2008069000 of claim 5, wherein low melting point oil is undersaturated aliphatic alcohol.

7. according to the Wo 2008069000 of claim 5, wherein low melting point grease separation is certainly:

(a) molecular weight is at least about 800 pentaerythritol ester oil, and it has following general formula:

R in the formula ¹, R ², R ³And R ⁴Independently for having 1 side chain, straight chain, saturated or unsaturated alkyl, aryl and alkaryl to about 30 carbon atoms;

(b) molecular weight is at least about 800 trihydroxy methyl ester oil, and it has following general formula:

R in the formula ¹¹Be to have 1 alkyl to about 30 carbon atoms, and R ¹², R ¹³And R ¹⁴Independently for having 1 side chain, straight chain, saturated or unsaturated alkyl, aryl and alkaryl to about 30 carbon atoms;

(c) poly ﹠ Alpha ,-olefin oil, derived from having the about 6 1-olefinic monomers to about 16 carbon atoms, this poly alpha olefin oil viscosity is about 1 to about 35,000 centistokes, molecular weight is about 200 to about 60,000, and poly-dispersion is no more than about 3;

(d) molecular weight is at least about 500 citric acid ester oil, and it has following general formula:

R in the formula ²¹Be OH or CH ₃COO, and R ²², R ²³And R ²⁴Independently for having 1 side chain, straight chain, saturated or unsaturated alkyl, aryl and alkaryl to about 30 carbon atoms;

(e) molecular weight is at least about 500 glyceride oil, and it has following general formula:

R in the formula ⁴¹, R ⁴³And R ⁴³Independently for having 1 side chain, straight chain, saturated or unsaturated alkyl, aryl and alkaryl to about 30 carbon atoms; And composition thereof;

8. according to the Wo 2008069000 of claim 5, comprise also that wherein weight is about 0.1% to about 10% the Polyethylene Glycol with following general formula:

H(OCH ₂CH ₂) _n-OH

The meansigma methods of n is 2,000 to 14,000 in the formula.

9. according to the Wo 2008069000 of claim 1 and 5, wherein this granule is selected from Muscovitum, silicon dioxide, earth, clay and composition thereof.

10. according to the Wo 2008069000 of claim 1 and 5, wherein this particulate mean diameter is that about 25 μ m are to about 1500 μ m.

11. according to the Wo 2008069000 of claim 1 and 5, its viscosity is about 1,000mm ²s ^-1To about 100,000mm ²s ^-1
