CN114594858A - AR (augmented reality) head-mounted equipment, AR interaction system and interaction method of AR scene - Google Patents

Abstract

The invention belongs to the field of communication technology, in particular to an AR head-mounted device, an AR interaction system and an interaction method for an AR scene, comprising the following steps: a person puts on the AR head-mounted device, then starts the power supply to activate the AR interaction system, and the AR interaction system After activation, the camera on the AR headset recognizes the real scene, and the AR interactive system identifies the main road after recognizing the real scene, and then uses big data to virtualize the AR scene according to the real scene, and put it on the display lens by way of delivery. The placement position will avoid the position of the main road in the display lens; the present invention can identify the main runway according to the real-time scene through the AR interactive system, and build an AR scene around the runway. By setting gestures, the user can interact with the AR system. Interaction, and then change the AR scene, so that people's interest in sports can be increased, so that people are willing to go out to explore sports more, and improve the user's physical health.

Description

AR headset, AR interaction system and AR scene interaction method

technical field

The invention belongs to the technical field of communication, and in particular relates to an AR head-mounted device, an AR interaction system and an interaction method of an AR scene.

Background technique

With the development of science and technology, concepts such as AR, VR, MR, and metaverse have been proposed and implemented one by one. AR technology is mainly a technology of augmented reality. The real world, and allows people to interact with virtual scenes through devices.

In the current technology, the application of AR is often dominated by entertainment projects such as games and movies. However, today's people are often in a sub-healthy state due to the lack of interest in sports. Therefore, how to use AR technology to improve people's awareness of sports Interest is a problem to be solved; for this reason, the present invention provides an AR headset, an AR interaction system, and an interaction method for an AR scene.

SUMMARY OF THE INVENTION

In order to make up for the deficiencies of the prior art, at least one technical problem proposed in the background art is solved.

The technical solution adopted by the present invention to solve the technical problem is: the AR head-mounted device, the AR interaction system and the AR scene interaction method according to the present invention include the following steps:

S1. The personnel put on the AR headset, and then turn on the power to activate the AR interactive system. After the AR interactive system is activated, the camera on the AR headset will recognize the real scene;

The S2.AR interactive system identifies the main road after recognizing the real scene, and then virtualizes the AR scene according to the real scene through big data, and puts it on the display lens by means of delivery, and the delivery position will avoid the main road in the display lens. The location in the , at the same time, the content delivered is different according to the different scenes;

S3. Personnel can control the AR interaction system by setting gestures in the AR interaction system in advance, and then change the AR scene, so as to conduct real-time interaction;

S4. The person starts to exercise. At this time, the AR system will change the virtual scene according to the real-time change of the external scene, and at the same time, the physical information of the person will be sent to the display lens, which is convenient for the person to observe their own motion state; work When the scene is captured by the AR headset in real time and the data is transmitted to the AR interactive system, the AR interactive system can identify the main runway according to the real-time scene, and build AR scenes around the runway, so that people can move Experience different scenery and improve people's interest in sports. At the same time, by setting gestures, users can interact with the AR system, and then change the AR scene, which further improves the interest of sports. At the same time, the AR system will also make the user's The real-time body features are projected into the AR scene, which is convenient for users to observe their own state, thus achieving the effect of interaction between the AR headset, the AR interaction system and the AR scene.

Preferably, a support frame is fixed outside the display lens, a sliding plug is slidably connected inside the support frame, a vibrating spring is fixed at the upper and lower ends of the sliding plug, and a support rod is fixed between the vibrating spring and the supporting frame , the side of the support frame close to the center of the display lens is fixed with a mounting frame, an expansion air bag is fixed inside the mounting frame, and a sliding plate is fixed on the side of the expansion air bag away from the support frame, and the sliding plate is far away from the support frame. A sponge pad is fixed on one side, and a bonding plate is fixed on the side of the sponge pad away from the sliding plate; when working, the user drives the support frame to reciprocate up and down, and the support frame will simultaneously drive the sliding plug to reciprocate during the movement. Stretch and compress the flutter spring to move. At this time, during the movement of the sliding plug, the external air will be sucked into the inflation airbag, so that the pressure inside the inflation airbag will increase, and then the inflation airbag will expand. Push the sliding plate to move, and the movement of the sliding plate will drive the fitting plate to fit the user's head more closely, so that with the user's movement, the support frame will gradually increase the clamping force on the user. This makes the AR wearable device fit the user more closely, so that it will not fall off easily during the movement process, preventing the main interactive device from falling off during the AR interaction process, and improving the stability of AR interaction. , and the setting of the sponge pad can prevent the sliding plate from exerting too much pressure on the user after the movement, which improves the user's experience during AR interaction.

Preferably, a one-way valve is connected through the upper and lower ends of the support frame, the expansion air bag and the support frame; during operation, the setting of the one-way valve can enable the sliding plug to effectively remove the external air during the movement process. It is sucked into the support frame and then injected into the inflatable air bag to prevent the air from escaping during the exercise. The user dissipates heat during exercise.

Preferably, a diffuser hole is provided on the side of the inflation airbag away from the sliding plug, and the diameter of the air diffuser hole is smaller than the diameter of the one-way valve; during operation, the air diffuser hole opened in the inflation airbag is mainly used to export the gas inside the inflation airbag , but its aperture is smaller than the diameter of the one-way valve, so the rate of air diffusion is less than the rate of inflation, so that the inflation airbag can be inflated smoothly, and after the user stops moving at one end of the time, the air diffusion hole can make the inflation airbag free. reset.

Preferably, a recovery casing is fixed inside the sponge pad, a guide pipe is fixed on the side of the recovery casing away from the sliding plate, and a through hole matching the guide pipe is opened inside the laminating plate; , the sweat will flow with the lamination plate, and then flow into the guide tube through the through hole, and finally flow into the recycling shell through the guide tube, so that the sweat can be collected centrally and prevent it from affecting the use of the AR headset. stability over time.

Preferably, an elastic sheet is fixed inside the recovery casing, a transmission rod is fixed on the side of the elastic sheet away from the guide tube, a follower magnet is fixed on the side of the transmission rod away from the elastic sheet, and the vibrating spring There are follower rods on both sides, and a plurality of sets of driving magnets are fixed inside the follower rod close to the side of the recovery shell; during operation, during the movement of the sliding plug, it will drive the follower rod to move at the same time. The movement of the moving rod drives the driving magnet to move together. After the driving magnet moves, it will exert a reciprocating attractive force on the follower magnet, thereby driving the follower magnet to move. After stretching, a negative pressure will be formed inside the recycling shell. This negative pressure acts on the sweat through the guide tube, thereby accelerating the centralized collection effect of the recycling shell on sweat, and further improving the cleaning of sweat. This makes the use of the AR headset more stable during the user's AR interaction.

Preferably, a collection tube is fixed at the lower end of the recovery shell, and a liquid collection box is fixed at one end of the collection tube away from the recovery shell, and the liquid collection box is fixedly connected to the mounting frame; Sweat will slide down the collection tube under the action of gravity, and will eventually flow into the liquid collection box through the collection tube for centralized collection, which can effectively prevent the sweat in the recycling shell from being full and unable to continue to collect and cause sweat to flow out. If the situation occurs, it should be noted that the user should check the storage status of the liquid collection box before and after the exercise.

Preferably, a pair of closing plates are rotatably connected to the inside of the guide pipe and the collecting pipe through a torsion spring, and the ends of the pair of closing plates are attached to each other; during operation, the closing plates arranged inside the guide pipe can effectively elastically When the sheet rebounds, it is closed to prevent sweat from overflowing, and the closing plate arranged inside the collection tube can effectively close during the suction process of the elastic sheet to prevent the backflow of sweat, which improves the stability of sweat collection.

Preferably, a push-pull elastic rod is rotatably connected to the top end of the follower rod on the side away from the mounting frame, and an extrusion block is rotatably connected to one end of the push-pull elastic rod away from the follower rod, and the extrusion block is slidably connected to the support rod. , the side of the extrusion block away from the one-way valve is slidably connected with a liquid storage bag, and the side of the liquid storage bag away from the extrusion block is connected with an atomizing nozzle through a pipeline, and the atomizing nozzle is fixedly connected with the support frame ; When working, the sliding plug drives the follower rod to move, the follower rod will push the push-pull rod to move at the same time, and the push-pull rod will drive the extrusion block to slide in the support rod, and the extrusion block will move during the movement. It will reciprocately hit the liquid storage bag, thereby changing the pressure inside the liquid storage bag so that the eye drops stored in the liquid storage bag will be sprayed through the pipeline, and the sprayed eye drops will be sprayed on the user's eyes after being atomized by the atomizing nozzle. Four weeks, relieve the user's eye fatigue when using the AR headset for a long time, and improve the user's experience.

Preferably, a knock block is fixed on the side of the follower rod away from the support rod, a collision ball is arranged on the side of the knock block away from the follower rod, and a transmission bomb is fixed between the collision ball and the support frame The sticking plate is fixed with massage particles on the side away from the support frame; during operation, the movement of the follower rod drives the movement of the knocking block, and when the knocking block moves, it will strike the collision ball, thereby causing the vibration of the collision ball. After the collision ball vibrates, the vibration will be transmitted to the transmission rod, which will then drive the vibration of the support frame. After the support frame vibrates, it will drive the lamination plate to vibrate, and the lamination plate vibrates to drive the massage particles to vibrate. Massage around the user's eyes further relieves the user's eye fatigue and improves the user's experience in the AR interaction process.

The beneficial effects of the present invention are as follows:

1. The AR head-mounted device, the AR interaction system and the AR scene interaction method of the present invention can identify the main runway according to the real-time scene through the AR interaction system, and build an AR scene around the runway. By setting gestures, the user can Interact with the AR system to change the AR scene, which can increase people's interest in sports, make people willing to go out to explore sports more, and improve the user's physical health.

2. The AR head-mounted device, the AR interaction system and the AR scene interaction method according to the present invention will drive the sliding plug to reciprocate during the movement of the user using the AR interaction, and the sliding plug will move to suck air It is injected into the inflation airbag to expand the inflation airbag and increase the clamping force of the support frame to the user, so that the AR headset can be automatically tightened to prevent falling off during the use of AR interaction.

Description of drawings

The present invention will be further described below in conjunction with the accompanying drawings.

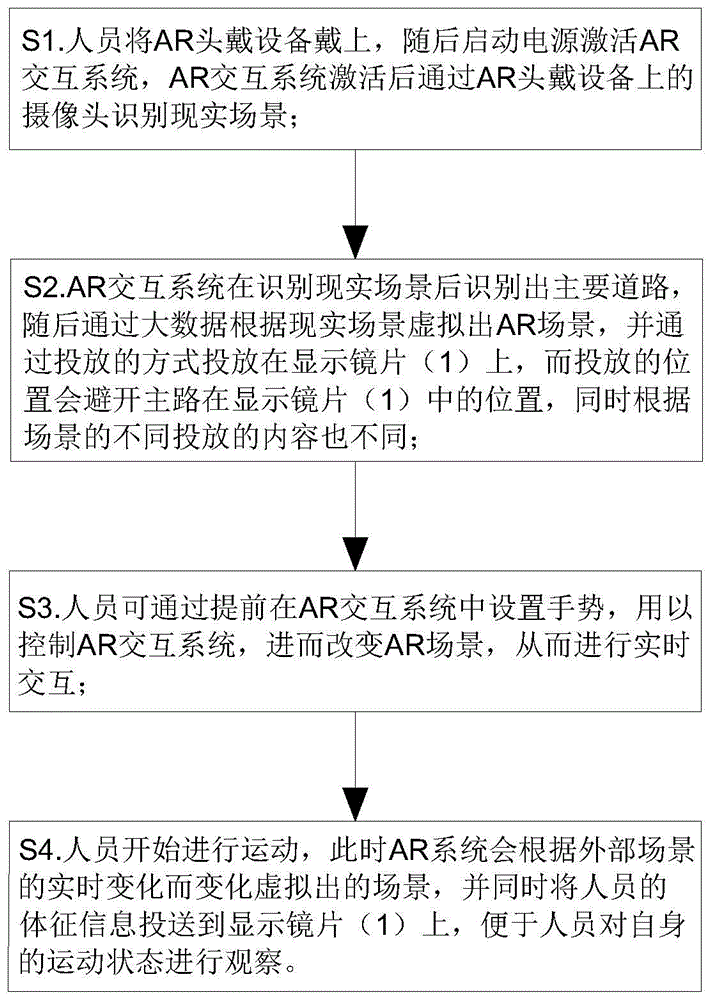

Fig. 1 is the method flow chart of the present invention;

Figure 2 is a perspective view of a support frame structure in the present invention;

3 is a cross-sectional view of a support frame structure in the present invention;

Fig. 4 is the enlarged schematic diagram of place A in Fig. 3 of the present invention;

Fig. 5 is the enlarged schematic diagram at B in Fig. 3 of the present invention;

FIG. 6 is a schematic structural diagram of the second embodiment of the support frame structure in the present invention.

In the figure: 1. Display lens; 2. Supporting frame; 3. Sliding plug; 4. Flutter spring; 5. Supporting rod; 6. One-way valve; 7. Mounting frame; , sponge pad; 11, laminated board; 12, recovery shell; 13, guide tube; 14, elastic sheet; 15, transmission rod; 16, follow-up magnet; 17, follow-up rod; 18, drive magnet; 19, Collection tube; 20, closed plate; 21, liquid collection box; 22, push-pull rod; 23, squeeze block; 24, liquid storage bag; 25, atomizing nozzle; 26, percussion block; 27, collision ball; 28 , Transmission elastic rod; 29, massage particles.

Detailed ways

In order to make it easy to understand the technical means, creation features, achieved goals and effects of the present invention, the present invention will be further described below with reference to the specific embodiments.

Example 1

As shown in FIG. 1 , the AR headset, the AR interaction system, and the AR scene interaction method according to the embodiment of the present invention include the following steps:

S1. The personnel put on the AR headset, and then turn on the power to activate the AR interactive system. After the AR interactive system is activated, the camera on the AR headset will recognize the real scene;

The S2.AR interactive system identifies the main road after recognizing the real scene, and then virtualizes the AR scene according to the real scene through big data, and puts it on the display lens 1 by means of delivery, and the delivery position will avoid the main road. The position in the lens 1, and the content of the delivery is also different according to the scene;

S3. Personnel can control the AR interaction system by setting gestures in the AR interaction system in advance, and then change the AR scene, so as to conduct real-time interaction;

S4. The person starts to exercise. At this time, the AR system will change the virtual scene according to the real-time changes of the external scene, and at the same time, the physical information of the person will be sent to the display lens 1, which is convenient for the person to observe their own motion state; During work, the AR head-mounted device captures the scene in real time and transmits the data to the AR interactive system. The AR interactive system can identify the main runway according to the real-time scene, and build AR scenes around the runway, so that people can move in the process of exercising. You can experience different scenery and improve people's interest in sports. At the same time, by setting gestures, users can interact with the AR system, thereby changing the AR scene, and further improving the interest in sports. The real-time body features are projected into the AR scene, which is convenient for users to observe their own state, thus achieving the effect of interaction between the AR headset, the AR interaction system and the AR scene.

As shown in FIG. 2 to FIG. 3 , a support frame 2 is fixed outside the display lens 1 , and a sliding plug 3 is slidably connected to the inside of the support frame 2 . A support rod 5 is fixed between the flutter spring 4 and the support frame 2 , a mounting frame 7 is fixed on the side of the support frame 2 close to the center of the display lens 1 , and an inflation airbag 8 is fixed inside the mounting frame 7 . A sliding plate 9 is fixed on the side of the airbag 8 away from the support frame 2 , a sponge pad 10 is fixed on the side of the sliding plate 9 away from the support frame 2 , and a bonding plate 11 is fixed on the side of the sponge pad 10 away from the sliding plate 9 When working, the user drives the support frame 2 to reciprocate up and down, and the support frame 2 will simultaneously drive the sliding plug 3 to reciprocate, stretch and compress the vibration spring 4 during the movement. At this time, the sliding plug 3 is in the process of movement. The external air will be sucked into the inflation airbag 8, so that the pressure inside the inflation airbag 8 will increase, and then inflated. After the inflation airbag 8 is inflated, the sliding plate 9 will be pushed to move, and the sliding plate 9 will move The fitting plate 11 is more closely fitted to the user's head, so that with the movement of the user, the support frame 2 will gradually increase the clamping force on the user, so that the AR wearable device can be attached to the user. It is more tightly closed, so that it will not fall off easily during the movement process, preventing the main interactive device from falling off during the AR interaction process, and improving the stability of the AR interaction, and the setting of the sponge pad 10 can make The pressing force of the sliding plate 9 on the user will not be too large after the movement, which improves the user's experience during AR interaction.

As shown in FIG. 3 , the upper and lower ends of the support frame 2, the expansion air bag 8 and the support frame 2 are all connected with a one-way valve 6; during operation, the setting of the one-way valve 6 can make the sliding plug 3 move. During the process, the external air can be effectively sucked into the support frame 2, and then injected into the inflation air bag 8 to prevent the air from escaping during the movement. A fine airflow is formed on the upper part, and this airflow can help the user to dissipate heat during exercise.

As shown in FIG. 3 , a diffuser hole is provided on the side of the inflation airbag 8 away from the sliding plug 3 , and the diameter of the air diffuser hole is smaller than the diameter of the one-way valve 6 ; during operation, the air diffuser hole opened by the inflation airbag 8 is mainly used for In order to export the gas inside the inflation air bag 8, but its aperture is smaller than the diameter of the one-way valve 6, so the rate of air diffusion is smaller than the inflation rate, so that the inflation air bag 8 can be inflated smoothly, and the end time when the user stops moving Afterwards, the inflation airbag 8 can be reset through the air diffusing hole.

As shown in FIG. 4 , a recovery casing 12 is fixed inside the sponge pad 10 , a guide tube 13 is fixed on the side of the recovery casing 12 away from the sliding plate 9 , and a guide tube 13 is fixed inside the laminating plate 11 . The through hole that matches the tube 13; when working, the sweat will flow with the fitting plate 11, and then flow into the guide tube 13 through the through hole, and finally flow into the recovery shell 12 through the guide tube 13, so as to achieve In order to collect sweat in a concentrated manner to prevent it from affecting the stability of the AR headset during use.

As shown in FIG. 4 , an elastic sheet 14 is fixed inside the recovery housing 12 , a transmission rod 15 is fixed on the side of the elastic sheet 14 away from the guide tube 13 , and the transmission rod 15 is away from the elastic sheet 14 A follower magnet 16 is fixed, and follower rods 17 are provided on both sides of the flutter spring 4. The follower rod 17 on the side close to the recovery housing 12 is fixed with a plurality of sets of driving magnets 18; During the movement of the plug 3, it will drive the follower rod 17 to move at the same time, and the follower rod 17 will move so as to drive the driving magnet 18 to move together. Drive the follower magnet 16 to move, and the movement of the follower magnet 16 will drive the transmission rod 15 to stretch the elastic sheet 14. After the elastic sheet 14 is stretched, a negative pressure will be formed inside the recovery housing 12, and this negative pressure will be diverted. The tube 13 acts on the sweat, thereby accelerating the centralized collection effect of the sweat by the recycling shell 12, further improving the cleaning of the sweat, and making the AR headset more stable during the user's AR interaction.

As shown in FIG. 4 , a collection tube 19 is fixed at the lower end of the recovery housing 12 , and a liquid collection box 21 is fixed at the end of the collection tube 19 away from the recovery housing 12 , and the liquid collection box 21 is fixedly connected to the mounting frame 7 . When working, the sweat collected in the recovery shell 12 will slide down the collection tube 19 under the action of gravity, and will eventually flow into the liquid collection box 21 through the collection tube 19 for centralized collection, so that it can be effectively It should be noted that the user should check the storage condition of the liquid collection box 21 before and after exercise.

As shown in FIG. 4 , a pair of closing plates 20 are rotatably connected to the inside of the guide pipe 13 and the collecting pipe 19 through a torsion spring, and the ends of the pair of closing plates 20 are attached to each other; during operation, the inside of the guide pipe 13 is arranged The closing plate 20 can be effectively closed when the elastic sheet 14 rebounds to prevent sweat from overflowing, and the closing plate 20 arranged inside the collection tube 19 can be effectively closed during the suction process of the elastic sheet 14 to prevent the backflow of sweat, which improves the resistance to sweat. Collection stability.

As shown in FIG. 5 , the top end of the follower rod 17 on the side away from the mounting frame 7 is rotatably connected with a push-pull elastic rod 22 , and an end of the push-pull elastic rod 22 away from the follower rod 17 is rotatably connected with a squeeze block 23 . The extrusion block 23 is slidably connected with the support rod 5, and the side of the extrusion block 23 away from the one-way valve 6 is slidably connected with a liquid storage bag 24, and the side of the liquid storage bag 24 away from the extrusion block 23 passes through the pipeline The atomizing nozzle 25 is connected, and the atomizing nozzle 25 is fixedly connected with the support frame 2; during operation, when the sliding plug 3 drives the follower rod 17 to move, the follower rod 17 will simultaneously push the push-pull elastic rod 22 to move, and push-pull The movement of the elastic rod 22 will drive the extrusion block 23 to slide in the support rod 5, and the extrusion block 23 will reciprocately hit the liquid storage bag 24 during the movement, thereby changing the pressure inside the liquid storage bag 24 so that the internal storage capacity of the liquid storage bag 24 is changed. The eye drops are sprayed out through the pipe, and the sprayed eye drops will be sprayed around the user's eyes after being atomized by the atomizing nozzle 25, so as to relieve the user's eye fatigue when using the AR headset for a long time, and improve the use of the AR headset. user experience.

Embodiment 2

As shown in FIG. 6 , in contrast to Example 1, another embodiment of the present invention is: a knocking block 26 is fixed on the side of the follower rod 17 away from the support rod 5 , and the knocking block 26 is far away from the follower rod 5 . One side of the moving rod 17 is provided with a collision ball 27, a transmission elastic rod 28 is fixed between the collision ball 27 and the support frame 2, and massage particles 29 are fixed on the side of the fitting plate 11 away from the support frame 2; , the movement of the follower rod 17 drives the percussion block 26 to move. When the percussion block 26 moves, it will impact the collision ball 27, thereby causing vibration of the collision ball 27. After the collision ball 27 vibrates, the vibration will be transmitted to the transmission bomb. The rod 28 further drives the vibration of the support frame 2. After the support frame 2 vibrates, it will drive the fitting plate 11 to vibrate, and the fitting plate 11 vibrates to drive the massage particles 29 to vibrate. Massage further relieves the user's eye fatigue and improves the user's experience in the AR interaction process.

Working principle: Real-time shooting of the scene through the AR head-mounted device and transmission of the data to the AR interactive system, the AR interactive system can identify the main runway according to the real-time scene, and build AR scenes around the runway, so that people can exercise during the movement. You can experience different scenery and improve people's interest in sports. At the same time, by setting gestures, users can interact with the AR system, thereby changing the AR scene, and further improving the interest in sports. The real-time body features are projected into the AR scene, which is convenient for users to observe their own state, so as to achieve the effect of interaction between the AR headset, the AR interaction system and the AR scene;

When the person wears the AR headset for exercise, the support frame 2 will be placed on the ear. At this time, as the movement progresses, the person will definitely drive the support frame 2 to reciprocate up and down, and the support frame 2 is moving. In the process of moving the sliding plug 3, it will simultaneously drive the sliding plug 3 to reciprocally stretch and compress the flutter spring 4 to move. At this time, the sliding plug 3 will suck the external air into the expansion air bag 8 during the movement process, so that the expansion air bag 8 The internal pressure increases, and then expands. After the inflation airbag 8 is inflated, the sliding plate 9 will be pushed to move. With the movement of the user, the support frame 2 will gradually increase the clamping force on the user, so that the AR wearable device fits the user more closely, so that it will not fall off easily during the movement, preventing the AR wearable device from falling off easily. During the interaction process, the main interactive device falls off, which improves the stability of AR interaction, and the setting of the sponge pad 10 can prevent the sliding plate 9 from exerting too much pressure on the user after the movement, improving the user Use experience during AR interaction;

The setting of the one-way valve 6 can make the sliding plug 3 can effectively suck the external air into the support frame 2 during the movement process, and then inject it into the inflation air bag 8 to prevent the air from escaping during the movement process. At the same time, in the process of pumping, a fine air flow will be formed on the user's ear, which can help the user to dissipate heat during exercise; and the air vents opened by the inflation airbag 8 are mainly used for exporting The gas inside the inflation airbag 8, but its aperture is smaller than the diameter of the one-way valve 6, so the rate of air diffusion is lower than the inflation rate, so that the inflation airbag 8 can be inflated smoothly, and after the end of the time when the user stops moving, The inflation airbag 8 can be reset through the air diffuser;

When the user is exercising, it is inevitable that sweat will be produced. If the sweat is not processed in time, it will affect the stability between the user and the AR headset. In the process of sweating, the sweat will follow The lamination plate 11 flows, and then flows into the guide tube 13 through the through hole, and finally flows into the recovery housing 12 through the guide tube 13, so that the sweat can be collected in a concentrated manner to prevent it from affecting the AR headset in use. During the movement of the sliding plug 3, it will drive the follower rod 17 to move at the same time, and the follower rod 17 will move so as to drive the driving magnet 18 to move together. A reciprocating attractive force is applied to drive the follower magnet 16 to move. The movement of the follower magnet 16 will drive the transmission rod 15 to stretch the elastic sheet 14. After the elastic sheet 14 is stretched, a negative force will be formed inside the recovery casing 12 This negative pressure acts on the sweat through the guide tube 13, thereby accelerating the centralized collection effect of the recovery shell 12 on the sweat, and further improving the cleaning of the sweat, so that the user wears the AR headset during the AR interaction. The use of the device is more stable; the sweat collected in the recovery housing 12 will slide down the collection tube 19 under the action of gravity, and will eventually flow into the liquid collection box 21 through the collection tube 19 for centralized collection, so It can effectively prevent the situation that the sweat in the recovery shell 12 is full and cannot continue to be collected, causing the sweat to flow out. It should be noted that the user should check the storage situation of the liquid collection box 21 before and after exercising; The provided closing plate 20 can be effectively closed when the elastic sheet 14 rebounds to prevent sweat from overflowing, and the closing plate 20 disposed inside the collection tube 19 can be effectively closed during the suction process of the elastic sheet 14 to prevent the backflow of sweat, which improves the resistance to sweat. Stability of sweat collection;

While the sliding plug 3 drives the follower rod 17 to move, the follower rod 17 will simultaneously push the push-pull elastic rod 22 to move, and the push-pull elastic rod 22 will move the extrusion block 23 to slide in the support rod 5, and the extrusion block 23 During the movement, the liquid storage bag 24 will be reciprocally hit, thereby changing the pressure inside the liquid storage bag 24 so that the eye drops stored in the liquid storage bag 24 are sprayed out through the pipeline, and the sprayed eye drops will be atomized in the atomizing nozzle 25 After spraying around the user's eyes, it can relieve the user's eye fatigue when using the AR headset for a long time, and improve the user's experience;

During the movement of the follower rod 17, it will simultaneously drive the knocking block 26 to move, and when the knocking block 26 moves, it will strike the collision ball 27, thereby causing the collision ball 27 to vibrate, and the collision ball 27 will vibrate after the collision. The vibration will be transmitted to the transmission rod 28, which will then drive the vibration of the support frame 2. After the support frame 2 vibrates, it will drive the fitting plate 11 to vibrate, and the fitting plate 11 will vibrate to drive the massage particles 29 to vibrate. It will massage around the user's eyes, further relieve the user's eye fatigue, and improve the user's experience in the AR interaction process.

The above-mentioned front, back, left, right, top and bottom are all based on Figure 1 in the accompanying drawings of the description, and according to the observation angle of the person as a standard, the side of the device facing the observer is defined as the front, and the left side of the observer is defined as the left, And so on.

In the description of the present invention, it should be understood that the terms "center", "portrait", "horizontal", "front", "rear", "left", "right", "vertical", "horizontal", The orientation or positional relationship indicated by "top", "bottom", "inner", "outer", etc. is based on the orientation or positional relationship shown in the drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that The device or element referred to must have a specific orientation, be constructed and operate in a specific orientation, and therefore should not be construed as limiting the scope of protection of the present invention.

The foregoing has shown and described the basic principles, main features and advantages of the present invention. Those skilled in the art should understand that the present invention is not limited by the above-mentioned embodiments, and the descriptions in the above-mentioned embodiments and the description are only to illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention will have Various changes and modifications fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (10)

1. The AR head-mounted equipment, the AR interaction system and the interaction method of the AR scene are characterized by comprising the following steps of:

   s1, a person wears an AR head-mounted device, then a power supply is started to activate an AR interaction system, and the AR interaction system is activated and then recognizes a real scene through a camera on the AR head-mounted device;

   s2, recognizing a main road by the AR interaction system after a real scene is recognized, virtualizing an AR scene according to the real scene through big data, and putting the AR scene on the display lens (1) in a putting mode, wherein the putting position can avoid the position of a main road in the display lens (1), and the putting content is different according to different scenes;

   s3, a person can set a gesture in the AR interaction system in advance to control the AR interaction system, so that an AR scene is changed, and real-time interaction is carried out;

   s4, the personnel start to move, at the moment, the AR system can change the virtual scene according to the real-time change of the external scene, and meanwhile, the physical sign information of the personnel is sent to the display lens (1), so that the personnel can observe the movement state of the personnel conveniently.
2. 2. The AR headset, the AR interaction system, and the interaction method for the AR scene of claim 1, wherein: display lens (1) external fixation has support frame (2), support frame (2) inside sliding connection has slip plug (3), both ends all are fixed with about slip plug (3) vibrate spring (4), vibrate and be fixed with bracing piece (5) between spring (4) and the support frame (2), one side that support frame (2) are close to display lens (1) center is fixed with mounting bracket (7), mounting bracket (7) internal fixation has inflation gasbag (8), one side that support frame (2) were kept away from in inflation gasbag (8) is fixed with sliding plate (9), one side that support frame (2) were kept away from in sliding plate (9) is fixed with foam-rubber cushion (10), one side that sliding plate (9) were kept away from in foam-rubber cushion (10) is fixed with attaching plate (11).
3. 3. The AR headset, the AR interaction system, and the interaction method for the AR scene of claim 2, wherein: the upper end and the lower end of the support frame (2) and the space between the expansion air bag (8) and the support frame (2) are all connected with one-way valves (6) in a through way.
4. 4. The AR headset, the AR interaction system and the interaction method for the AR scene of claim 3, wherein: one side of the expansion air bag (8) far away from the sliding plug (3) is provided with an air diffusing hole, and the aperture of the air diffusing hole is smaller than the diameter of the one-way valve (6).
5. 5. The AR headset, the AR interaction system and the interaction method for the AR scene of claim 2, wherein: the sponge cushion (10) is internally fixed with a recovery shell (12), one side of the recovery shell (12) far away from the sliding plate (9) is fixed with a flow guide pipe (13), and a through hole matched with the flow guide pipe (13) is formed in the attaching plate (11).
6. 6. The AR headset, AR interaction system, and interaction method for AR scenes of claim 5, wherein: an elastic sheet (14) is fixed inside the recycling shell (12), a transmission rod (15) is fixed on one side, away from the flow guide pipe (13), of the elastic sheet (14), a follow-up magnet (16) is fixed on one side, away from the elastic sheet (14), of the transmission rod (15), follow-up rods (17) are arranged on two sides of the vibrating spring (4), and multiple groups of follow-up magnets (18) are fixed inside the follow-up rods (17) close to one side of the recycling shell (12).
7. 7. The AR headset, the AR interaction system and the interaction method for the AR scene of claim 5, wherein: retrieve casing (12) lower extreme and be fixed with collecting pipe (19), the one end that retrieving casing (12) was kept away from in collecting pipe (19) is fixed with album liquid box (21), album liquid box (21) and mounting bracket (7) fixed connection.
8. 8. The AR headset, the AR interaction system and the interaction method for the AR scene of claim 5, wherein: the guide pipe (13) and the collecting pipe (19) are both connected with a pair of closing plates (20) through torsion springs in a rotating mode, and the ends of the pair of closing plates (20) are attached to each other.
9. 9. The AR headset, the AR interaction system and the interaction method for the AR scene of claim 6, wherein: keep away from mounting bracket (7) one side follow-up rod (17) top is rotated and is connected with push-and-pull bullet pole (22), the one end that follow-up rod (17) were kept away from in push-and-pull bullet pole (22) is rotated and is connected with extrusion block (23), extrusion block (23) and bracing piece (5) sliding connection, one side sliding connection that check valve (6) were kept away from in extrusion block (23) has reservoir (24), there is atomizer (25) one side that extrusion block (23) were kept away from in reservoir (24) through pipe connection, atomizer (25) and support frame (2) fixed connection.
10. 10. The AR headset, the AR interaction system and the interaction method for the AR scene of claim 6, wherein: one side that bracing piece (5) were kept away from in follow-up rod (17) is fixed with strikes piece (26), it is provided with collision ball (27) to strike one side that follow-up rod (17) were kept away from in piece (26), be fixed with transmission elastic rod (28) between collision ball (27) and support frame (2), one side that support frame (2) were kept away from in rigging board (11) is fixed with massage granule (29).
