CN112742011A - Movable fighting actual combat trainer - Google Patents

Abstract

The invention discloses a mobile combat combat training device, comprising a base plate and an installation block, the base plate is provided with a displacement component for driving the movement of the installation block, and one end face of the installation block is provided with a pair of installation cavities, the installation cavities A connecting rod is slidably installed inside. The present invention is activated by the displacement component, so that the trainer needs to follow the installation block to move and hit the strike plate, thereby increasing the feeling of actual combat, which is beneficial to training one's own physical fitness, and when the trainer hits the strike plate, the air is stored. The air pressure in the cavity increases. When the internal air pressure reaches the opening threshold of the pressure valve, the internal air rushes into the telescopic cavity to push the piston and the telescopic rod out, imitating the action of the opponent punching, and the telescopic rod extends for a certain length. Then, under the cooperation of the suction part and the reset part, reset is performed and wait for the next extension, so that the trainer needs to pay attention to avoid the extension of the telescopic rod during training, thereby exercising the trainer's reaction ability.

Description

A mobile combat training device

technical field

The invention relates to the technical field of boxing training devices, in particular to a mobile combat training device.

Background technique

Modern fighting technology is a comprehensive fighting martial art that integrates traditional martial arts, Sanda, boxing, judo, wrestling, Muay Thai, Jeet Kune Do, and karate, and is specially used to subdue the enemy. It focuses on practicality, pursues practical results, and emphasizes subduing the enemy in the shortest time and with the fewest movements. For a long time, this technology has been a compulsory subject for military police, military police, special forces, etc. performing special tasks in various countries, and it is also used by more and more people as a choice for physical fitness.

During combat training, it is usually necessary to use some training equipment, such as hitting targets. The existing training hitting targets are usually fixed in position. Moreover, during training, the trainer can only stand in one area and repeatedly hit, thereby During training, there is no feeling of simulating actual combat, and it is not conducive to exercising the trainer's physical fitness. Moreover, most of the existing training targets are only capable of being hit, and cannot imitate the opponent's punches in actual combat, so it is difficult to exercise the trainer's ability. Response capability.

SUMMARY OF THE INVENTION

The purpose of the present invention is to solve the following shortcomings in the prior art. The position of the existing training hitting target is fixed, so that the trainer can only stand in one area and repeatedly hit, so that there is no feeling of simulated actual combat during training, and it is not conducive to Most of the training targets for training trainers and existing training targets are only capable of being hit, and cannot imitate the opponent's punches in actual combat, so it is difficult to train the trainer's reaction ability, and a mobile combat combat training device is proposed.

In order to achieve the above object, the present invention adopts the following technical solutions:

A mobile combat combat training device includes a base plate and an installation block, the base plate is provided with a displacement component for driving the movement of the installation block, and one end face of the installation block is provided with a pair of installation cavities, and the installation cavity is slidably installed. A connecting rod, one end of the connecting rod away from the gas collecting shell is fixedly connected with a striking plate, an end face of the mounting block away from the striking plate is fixedly connected with a gas collecting shell, and one end of the installation cavity away from the striking plate is provided with a set for increasing the collecting an air collecting part for the air pressure in the air shell, and both sides of the installation block are provided with training parts for training the trainer's reaction ability;

The training component includes an arc-shaped rod, the arc-shaped rod is fixedly connected to the installation block through a fixing block, a telescopic cavity is opened in the arc-shaped rod, and the end of the telescopic cavity away from the striking plate is connected to the gas storage through a communication pipe. The inside of the shell is communicated, a pressure valve is fixedly connected in the communication pipe, a piston is sealed and slidably connected in the telescopic cavity, and a reset part for resetting the piston is provided at one end close to the pressure valve, and the end of the piston away from the pressure valve is fixed An arc-shaped telescopic rod is connected, and the gas storage shell is provided with a suction part for extracting the gas inside the telescopic cavity.

Preferably, the displacement component includes a fixing bar, a chute is provided on the fixing bar, a reciprocating screw is rotatably connected between the walls of both ends of the chute, and one end of the fixing bar is provided with a drive for driving the reciprocating screw to rotate. A sliding block is threadedly sleeved on the reciprocating screw rod, the side wall of the sliding block is slidably connected with the side wall of the chute, and the top wall of the sliding block is fixedly connected with the mounting block through the support legs.

Preferably, the gas collecting component includes a moving plate, the moving plate is fixedly connected to an end face of the connecting rod away from the striking plate, and the side wall is sealed and slidingly connected to the inner wall of the installation cavity, and the moving plate is connected to the bottom wall of the installation cavity. There are springs in contact with each other, the bottom wall of the installation cavity is provided with an air outlet that communicates with the inside of the gas storage shell, and an air inlet communicated with the outside is provided. Current limiting parts.

Preferably, the reset component includes a fixed rod and an elastic cord fixedly connected in the telescopic cavity, one end of the elastic cord is fixedly connected with the fixed rod, and the other end is fixedly connected with the end of the piston.

Preferably, the air suction component includes an air suction pump fixedly connected to the air collecting shell, the air suction pump is communicated with the end of the expansion chamber close to the pressure valve through the air suction pipe, and the arc rod is provided with an air suction pump for starting the air suction pump to open. start switch.

Preferably, the start switch includes a command end and a contact, the command end is fixedly connected to the side wall of the telescopic cavity and is close to the fixing block, the contact is fixedly connected to the telescopic rod and is close to the piston, the when When the contact moves to the position of the command end, the air pump starts to work.

Preferably, the flow restricting component includes a one-way intake valve and a one-way exhaust valve, the one-way intake valve is fixedly connected to the air inlet, and the one-way exhaust valve is fixedly connected to the air outlet.

Preferably, a partition plate is fixedly connected in the gas collecting shell, the partition plate equally divides the space in the gas storage cavity, and the two air outlets are located on both sides of the partition plate.

Preferably, a buffer pad is fixedly connected to the end of the strike plate away from the connecting rod, and a fist glove is fixedly connected to the end of the telescopic rod away from the piston, and the buffer pad and the glove are both made of sponge material.

Preferably, the driving component includes a motor, the motor is fixedly connected to the base plate, and the output shaft is fixedly connected to one end of the reciprocating screw.

Compared with the prior art, the beneficial effects of the present invention are:

1. When using the training device, the trainer starts the motor to make the motor drive the reciprocating screw to rotate, because the slider is threaded on the reciprocating screw, and because the side wall of the slider is slidably connected to the side wall of the chute, As a result, the reciprocating screw rotates, the slider can only move in the horizontal direction, and cannot be turned over, and because the upper end of the slider is fixedly connected with the mounting block through the support legs, and because the mounting block is provided with a pair of mounting cavities, the connecting rod is slidably installed in the mounting cavity. , the end of the connecting rod away from the gas collecting shell is fixedly connected with the strike plate, so that when the slider moves, the installation block moves with the slider at the same time, and then the trainer wants to hit the strike plate, and needs to follow the installation block at the same time. Moving, and then when the trainer is training, on the one hand, the installation block is moving, which increases the feeling of actual combat, on the other hand, it increases the loss of physical energy, which is beneficial to training their own physical fitness;

2. When the trainer hits the pad, the connecting rod is slidably connected in the installation cavity, and the end of the connecting rod away from the pad is provided with an air collecting part, so that when the hitting pad is used, the air collecting part is When the connecting rod moves, the gas will be collected, and the gas will be squeezed into the gas storage cavity, and the gas storage cavity will be communicated with the telescopic cavity through the communication tube, so that when the air pressure in the air storage cavity reaches the pressure valve in the communication tube When the threshold is opened, the gas in the gas storage chamber will rush into the expansion chamber, and then because the expansion chamber is sealed and slidably connected with a piston, the end of the piston away from the pressure valve is fixedly connected with an arc-shaped expansion rod, and then when the gas enters the The piston and the telescopic rod are pushed to imitate the opponent's punch in actual combat. When the telescopic rod is extended for a certain distance, the suction part works to suck out the gas in the telescopic cavity, so that the internal air pressure is reduced, and the telescopic rod is in the reset part. Under the action of reset, wait for the next pressure valve to open and extend, so the trainer needs to pay attention to the extension of the telescopic rod during training, and avoid the extension of the telescopic rod, thereby exercising the trainer's ability to respond.

Description of drawings

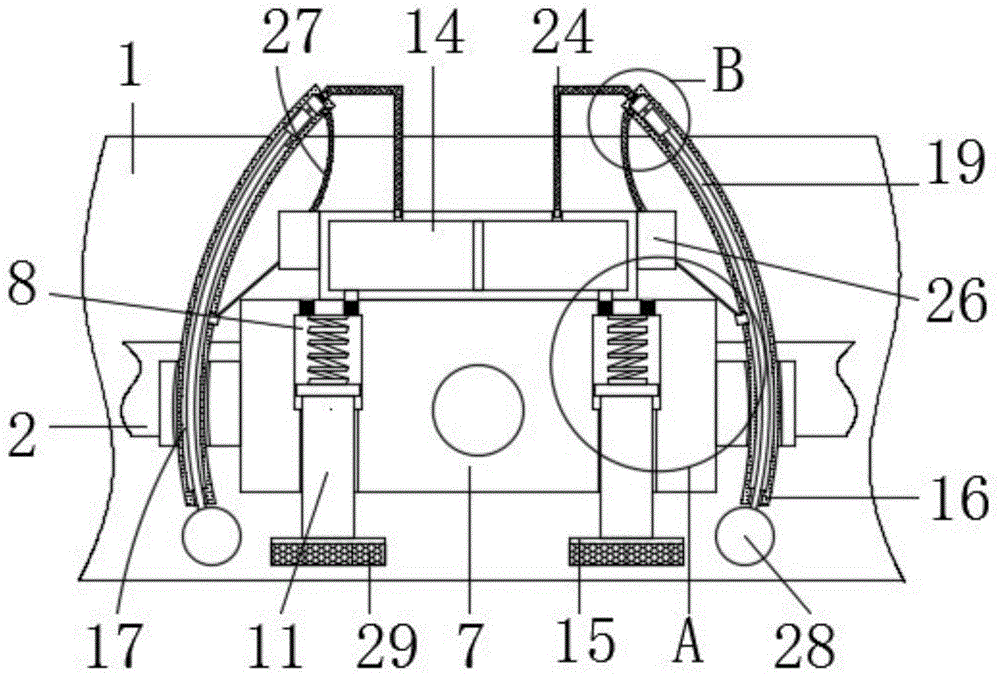

Fig. 1 is the top sectional structure schematic diagram of a kind of mobile combat combat training device proposed by the present invention;

Fig. 2 is a left-view structural schematic diagram of a mobile combat training device proposed by the present invention;

Fig. 3 is the partial top view sectional structure schematic diagram of a kind of mobile combat combat training device proposed by the present invention;

Fig. 4 is the partial enlarged structural schematic diagram of A in Fig. 1;

FIG. 5 is a partial enlarged structural schematic diagram of B in FIG. 1 .

In the picture: 1 bottom plate, 2 fixed strip, 3 chute, 4 reciprocating screw rod, 5 slider, 6 support legs, 7 mounting block, 8 mounting cavity, 9 moving plate, 10 spring, 11 connecting rod, 12 air outlet, 13 air inlet, 14 air storage cavity, 15 strike plate, 16 arc rod, 17 telescopic cavity, 18 piston, 19 telescopic rod, 20 command end, 21 pressure valve, 22 fixed rod, 23 elastic rope, 24 connecting pipe, 25 contacts, 26 air pumps, 27 air tubes, 28 gloves, 29 cushions, 30 motors.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments.

In the description of the present invention, it should be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", " Rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inside", "outside", "clockwise", "counterclockwise", etc. The relationship is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore It should not be construed as a limitation of the present invention.

In addition, the terms "first" and "second" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance or implying the number of indicated technical features. Thus, a feature defined as "first" or "second" may expressly or implicitly include one or more of that feature. In the description of the present invention, "plurality" means two or more, unless otherwise expressly and specifically defined.

In the present invention, unless otherwise expressly specified and limited, the terms "installed", "connected", "connected", "fixed" and other terms should be understood in a broad sense, for example, it may be a fixed connection or a detachable connection , or integrally connected; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood according to specific situations.

1-5, a mobile combat training device includes a base plate 1 and an installation block 7, the base plate 1 is provided with a displacement component for driving the movement of the installation block 7, and one end face of the installation block 7 is provided with a pair of installation cavities 8, A connecting rod 11 is slidably installed in the installation cavity 8, and the striking plate 15 is fixedly connected to the end of the connecting rod 11 away from the gas collecting shell. One end of 15 is provided with a gas collection component for increasing the air pressure in the gas collection shell, and both sides of the installation block 7 are provided with training components for training the trainer's reaction ability;

The training component includes an arc-shaped rod 16. The arc-shaped rod 16 is fixedly connected to the mounting block 7 through a fixing block. A telescopic cavity 17 is opened in the arc-shaped rod 16. The inside of the shell is connected, the pressure valve 21 is fixedly connected in the communication pipe 24, the piston 18 is sealed and slidably connected in the telescopic cavity 17, and the end close to the pressure valve 21 is provided with a reset part for the reset of the piston 18, and the piston 18 is far away from the pressure valve 21. An arc-shaped telescopic rod 19 is fixedly connected to one end of the air-storage shell, and a suction part for extracting the gas inside the telescopic cavity 17 is provided on the gas storage shell.

In the present invention, when using the training device, the trainer activates the motor 30, so that the motor 30 drives the reciprocating screw 4 to rotate, because the slider 5 is threadedly sleeved on the reciprocating screw 4, and because the side wall of the slider 5 It is slidably connected with the side wall of the chute 3, so that the reciprocating screw 4 rotates, the slider 5 can only move in the horizontal direction and cannot be turned over, and because the upper end of the slider 5 is fixedly connected with the mounting block 7 through the supporting leg 6, and because the mounting block 7 A pair of installation cavities 8 are opened on the upper part, and a connecting rod 11 is slidably installed in the installation cavity 8. The end of the connecting rod 11 away from the gas collecting shell is fixedly connected with the striking plate 15, so that when the slider 5 moves, the installation block 7 follows the sliding. The block 5 moves at the same time, and then the trainer wants to hit the strike plate 15, and needs to move at the same time with the installation block 7, and then the trainer can increase the feeling of actual combat due to the movement of the installation block 7 during training, on the one hand, On the one hand, it increases the loss of physical energy, which is beneficial to training one's own physical fitness;

When the trainer hits the beating plate 15, the connecting rod 11 is slidably connected in the installation cavity 8, and the end of the connecting rod 11 away from the beating plate 15 is provided with a gas collecting part, so that when the beating plate 15 is used , when the gas collecting component moves with the connecting rod 11, it will collect gas, and squeeze the gas into the gas storage chamber 14, and the gas storage chamber 14 is connected with the telescopic chamber 17 through the communication pipe 24, so that when the gas storage chamber When the air pressure in 14 reaches the opening threshold of the pressure valve 21 in the communication pipe 24, the gas in the air storage chamber 14 will rush into the expansion chamber 17, and because the expansion chamber 17 is sealed and slidably connected with the piston 18, the piston 18 is far away from One end of the pressure valve 21 is fixedly connected with an arc-shaped telescopic rod 19, and then when the gas enters, the piston 18 and the telescopic rod 19 are pushed, thereby imitating the opponent's punch in actual combat. When the telescopic rod 19 extends a certain distance, inhale The operation of the component sucks out the gas in the telescopic cavity 17, so that the internal air pressure is reduced, and the telescopic rod 19 is reset under the action of the reset component, waiting for the next pressure valve 21 to open and extend, so the trainer needs to pay attention to the telescopic rod during training. 19 is extended, and the extension of the telescopic rod 19 is avoided, thereby exercising the trainer's reaction ability.

In the preferred technical solution in this embodiment, the displacement component includes a fixing bar 2, a chute 3 is formed on the fixing bar 2, and a reciprocating screw 4 is rotatably connected between the walls of both ends of the chute 3, and one end of the fixing bar 2 is provided with a drive for driving The driving part for the rotation of the reciprocating screw rod 4, the sliding block 5 is threadedly sleeved on the reciprocating screw rod 4, the side wall of the slider 5 is slidably connected with the side wall of the chute 3, and the top wall of the slider 5 is fixed with the mounting block 7 through the support legs 6 Connected, so that the slider 5 can move horizontally in the chute 3, so that the mounting block 7 is also constantly moving.

In the preferred technical solution in this embodiment, the gas collecting component includes a moving plate 9, the moving plate 9 is fixedly connected to the end face of the connecting rod 11 away from the striking plate 15, and the side wall is sealed and slidingly connected with the inner wall of the installation cavity 8, and the moving plate 9 is connected with There is a spring 10 against the bottom wall of the installation cavity 8. The bottom wall of the installation cavity 8 is provided with an air outlet 12 that communicates with the interior of the gas storage shell, and an air inlet 13 communicated with the outside world is opened. The air inlet 13 and the air outlet 12 are provided with restricting parts for restricting the flow of the gas. When the trainer hits the striking plate 15, the connecting rod 11 moves inward, so that the moving plate 9 squeezes the gas in the installation cavity 8 from the air outlet 12. Entering into the air storage cavity 14, and when the trainer closes his fist, the moving plate 9 is reset under the action of the spring 10, so that the outside air is sucked into the installation cavity 8 from the air inlet 13, thereby achieving the effect of collecting air.

In the preferred technical solution in this embodiment, the reset component includes a fixed rod 22 and an elastic rope 23 that are fixedly connected in the telescopic cavity 17, one end of the elastic rope 23 is fixedly connected to the fixed rod 22, and the other end is fixedly connected to the end of the piston 18, The elastic cord 23 can pull the piston 18 back to its original position when there is no gas in the telescopic cavity 17 .

In the preferred technical solution in this embodiment, the air suction component includes an air suction pump 26 fixedly connected to the gas collecting shell. There is a start switch for starting the air pump 26. When the start switch is in a closed state, the air pump 26 works, so that the gas in the telescopic cavity 17 can be extracted, so that the reset component can reset the piston 18.

In the preferred technical solution in this embodiment, the start switch includes a command end 20 and a contact 25, the command end 20 is fixedly connected to the side wall of the telescopic cavity 17, and is close to the fixing block, the contact 25 is fixedly connected to the telescopic rod 19, and Close to the piston 18, when the contact point 25 moves the command end 20 to the position, the air pump 26 starts to work, so that the telescopic rod 19 can be extended for a certain distance, which greatly imitates the situation of the opponent throwing punches in actual combat, and then Exercise the trainer's reaction ability.

In the preferred technical solution in this embodiment, the flow restricting component includes a one-way intake valve and a one-way exhaust valve, the one-way intake valve is fixedly connected to the air inlet 13 , and the one-way exhaust valve is fixedly connected to the air outlet 12 In this way, the flow direction of the gas can be restricted, so that the installation cavity 8 can only suck gas from the outside, and the sucked gas can be discharged into the gas storage cavity 14 .

In the preferred technical solution in this embodiment, a partition plate is fixedly connected in the gas collecting shell, the partition plate divides the space in the air storage cavity 14 equally, and the two air outlets 12 are located on both sides of the partition plate, so that the The frequency of the trainer hitting the two striking plates 15 is different, so that the air pressure on both sides of the partition plate is different, so that the two telescopic rods 19 will not be extended at the same time, thereby increasing the difficulty of training and more beneficial to the trainer. responsiveness.

In the preferred technical solution in this embodiment, a buffer pad 29 is fixedly connected to one end of the striking plate 15 away from the connecting rod 11 , and a fist glove 28 is fixedly connected to the end of the telescopic rod 19 away from the piston 18 , and both the buffer pad 29 and the fist glove 28 are made of sponge. Made of material, the cushion pad 29 and the glove 28 are made of sponge material, which can protect the trainer's fist to a certain extent when the trainer hits the strike plate 15. The glove 28 can prevent the telescopic rod 19 from hurting the trainer. .

In the preferred technical solution in this embodiment, the driving component includes a motor 30 , the motor 30 is fixedly connected to the base plate 1 , and the output shaft is fixedly connected to one end of the reciprocating screw 4 , and the motor 30 provides power to drive the reciprocating screw 4 to rotate. .

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. The equivalent replacement or change of the inventive concept thereof shall be included within the protection scope of the present invention.

Claims (10)

1. a mobile combat training device, comprising a base plate (1) and a mounting block (7), wherein the base plate (1) is provided with a displacement component for driving the mounting block (7) to move, and the One end of the mounting block (7) is provided with a pair of mounting cavities (8), a connecting rod (11) is slidably installed in the mounting cavity (8), and one end of the connecting rod (11) away from the gas collecting shell is fixedly connected with a blower plate (15), the end face of the mounting block (7) away from the striking plate (15) is fixedly connected with a gas collecting shell, and one end of the mounting cavity (8) away from the striking plate (15) is provided with a gas collecting shell for increasing the The air collecting part of the internal air pressure, both sides of the mounting block (7) are provided with training parts for training the trainer's reaction ability; The training component includes an arc-shaped rod (16), the arc-shaped rod (16) is fixedly connected to the mounting block (7) through a fixing block, and a telescopic cavity (17) is opened in the arc-shaped rod (16), One end of the telescopic cavity (17) away from the striking plate (15) is communicated with the interior of the gas storage shell through a communication pipe (24), and a pressure valve (21) is fixedly connected in the communication pipe (24). (17) A piston (18) is sealed and slidably connected inside, and the end close to the pressure valve (21) is provided with a reset component for resetting the piston (18), and the end of the piston (18) away from the pressure valve (21) is fixedly connected An arc-shaped telescopic rod (19) is provided, and a suction part for extracting the gas inside the telescopic cavity (17) is provided on the gas storage shell. 2. A kind of mobile fighting actual combat training device according to claim 1, is characterized in that, described displacement part comprises fixing bar (2), described fixing bar (2) is provided with chute (3), so A reciprocating screw rod (4) is rotatably connected between the two end walls of the chute (3), and one end of the fixing bar (2) is provided with a driving component for driving the reciprocating screw rod (4) to rotate. 4) The upper thread is sleeved with a slider (5), the side wall of the slider (5) is slidably connected with the side wall of the chute (3), and the top wall of the slider (5) is installed with the support leg (6). Block (7) is fixedly connected. 3. a kind of mobile fighting actual combat training device according to claim 1, is characterized in that, described gas collecting part comprises moving plate (9), and described moving plate (9) is fixedly connected to connecting rod (11) away from One end face of the striking plate (15), and the side wall is sealed and slidingly connected with the inner wall of the installation cavity (8), and a spring (10) is abutted between the moving plate (9) and the bottom wall of the installation cavity (8). The bottom wall of the cavity (8) is provided with an air outlet (12) that communicates with the inside of the gas storage shell, and an air inlet (13) that communicates with the outside world is opened, and the air inlet (13) is connected to the air outlet (12) Inside are equipped with restrictor parts for restricting the flow of gas. 4. A mobile combat combat training device according to claim 1, wherein the reset component comprises a fixed rod (22) and an elastic rope (23) that are fixedly connected in the telescopic cavity (17), so that the One end of the elastic rope (23) is fixedly connected with the fixing rod (22), and the other end is fixedly connected with the end of the piston (18). 5. a kind of mobile fighting actual combat training device according to claim 1, is characterized in that, described suction part comprises the suction pump (26) that is fixedly connected on the gas collecting shell, and described suction pump (26) passes through The air suction pipe (27) communicates with one end of the telescopic cavity (17) close to the pressure valve (21), and the arc rod (16) is provided with a start switch for starting the air suction pump (26). 6. A mobile combat training device according to claim 5, wherein the start switch comprises a command end (20) and a contact (25), and the command end (20) is fixedly connected to the telescopic On the side wall of the cavity (17) and close to the fixed block, the contact (25) is fixedly connected to the telescopic rod (19), and is close to the piston (18), the contact (25) moves the command end (20) ), the suction pump (26) starts to work. 7. A kind of mobile combat combat training device according to claim 3, is characterized in that, described restricting component comprises one-way intake valve and one-way exhaust valve, and described one-way intake valve is fixedly connected to In the air inlet (13), the one-way exhaust valve is fixedly connected in the air outlet (12). 8. A kind of mobile combat combat training device according to claim 1, characterized in that, a partition plate is fixedly connected in the gas collecting shell, and the partition plate separates the inner space of the gas storage chamber (14), etc. The two air outlets (12) are located on both sides of the dividing plate. 9. A mobile combat combat training device according to claim 1, wherein a buffer pad (29) is fixedly connected to one end of the strike plate (15) away from the connecting rod (11), and the telescopic rod is (19) A glove (28) is fixedly connected to one end away from the piston (18), and the buffer pad (29) and the glove (28) are both made of sponge material. 10. A mobile combat combat training device according to claim 2, characterized in that the drive component comprises a motor (30), the motor (30) is fixedly connected on the base plate (1), and the output shaft It is fixedly connected with one end of the reciprocating screw (4).
