CN112788091B - Document content providing system, document content collecting method, device and equipment - Google Patents

Abstract

Embodiments of the present invention provide a document content providing system, a document content collection method, device and equipment. The document collection client generates an identification information generation request and sends it to the cloud server according to the instruction triggered by the document collection user; obtains the target content from the cloud server; the cloud server generates a request based on the identification information, and generates a request containing the target content identification information and/or the document collection user identification The identification information of the information; receive and save the target content sent by the document providing client; the document providing client obtains identification information; obtain the target content identification information and/or document collection user identification information based on the identification information, so that the document provides the user based on the target content Identification information and/or document collection User identification information selects target content, and sends the target content to a cloud server. The embodiment of the present invention reduces the risk of leaking other secret-related content in the document while the document collection user obtains part of the content he or she wants.

Description

Document content providing system, document content collection method, device and equipment

technical field

The present invention relates to the technical field of document data collection, in particular to a document content providing system, a document content collection method, device and equipment.

Background technique

In the prior art, when a document collecting user needs to find a document providing user to provide part of content in a specified document, for example, a specified page in a specified document, the document providing user is required to provide the entire specified document to the document collecting user.

When the specified document contains other confidential content, there is a situation that the document providing user is unwilling to provide the entire document to the document collecting user. At this time, the document collection user cannot obtain part of the content in the above specified document that he needs; on the contrary, if the providing user provides the document collection user with other confidential content materials, then the document collection user can obtain the content he wants. At the same time, it will lead to the disclosure of other confidential content of the document provider user.

Therefore, the existing technology cannot reduce the risk of leakage of other secret-related content in the document while the document collection user obtains part of the content in the document.

Contents of the invention

The purpose of the embodiments of the present invention is to provide a document content providing system, document content collection method, device, and equipment, so as to achieve document collection users to obtain part of the document content they need while reducing other documents in the document providing user's documents. Risk of disclosure of confidential content. The specific technical scheme is as follows:

In a first aspect, an embodiment of the present invention provides a system for providing document content, including: a document collection client, a document providing client, and a cloud server;

The document collection client is configured to generate an identification information generation request and send it to the cloud server according to an instruction triggered by the document collection user; and obtain the target content from the cloud server; the identification information generation request includes : the identification information of the target content and/or the identification information of the document collection user; the target content is: a part of the document content that is predetermined by the document collection user and the document provider user and is to be acquired by the document collection user;

The cloud server is configured to generate a request based on the identification information, generate identification information including the identification information of the target content and/or identification information of the document collection user; and receive and save the target content sent by the document providing client ;

The document providing client is configured to obtain the identification information; based on the identification information, obtain the identification information of the target content and/or the identification information of the document collection user, so that the document providing user is based on the target The identification information of the content and/or the identification information of the document collection user select the target content, and send the target content to the cloud server.

Further, the document collection client is further configured to add the obtained target content to the target document after receiving a content adding instruction from the document collection user.

Further, the document collection client is further configured to determine the target content addition location in the target document before generating an identification information generation request according to the instruction triggered by the document collection user and sending it to the cloud server;

The document collection client, when performing the step of adding the obtained target content to the target document after receiving the content adding instruction from the document collection user, is specifically used to: receive the document collection The content adding instruction of the user is to add the obtained target content to the target document according to the adding location of the target content.

Further, when the cloud server executes the step of generating the request based on the identification information and generating the identification information including the identification information of the target content and/or the identification information of the document collection user, it is specifically used to:

Based on the identification information generation request, generate a two-dimensional code containing the identification information of the target content and/or the identification information of the document collection user; or generate the identification information of the target content and/or the identification information of the document collection user Corresponding URL link; or generate an access code corresponding to the identification information of the target content and/or the identification information of the document collection user;

The document providing client is executing the obtaining of the identification information; based on the identification information, obtaining the identification information of the target content and/or the identification information of the document collection user, so that the document providing user can The identification information of the target content and/or the identification information of the document collection user when selecting the target content, specifically for:

receiving the QR code or the URL link or the access code sent by the cloud server;

Identify the two-dimensional code, obtain the identification information of the target content and/or the identification information of the document collection user; or, obtain the identification information of the target content and/or according to the website link or the access code The document collects the user's identifying information;

Displaying a target content selection interface to enable the document providing user to locally select the target content based on the identification information of the target content and/or the identification information of the document collection user.

Further, the document collection client is further configured to: send the target document to the cloud server before executing the instruction triggered by the document collection user to generate an identification information generation request and send it to the cloud server; The identification information generation request also includes: the location where the target content is added in the target document;

The cloud server is further configured to add the target content to the target document according to the location where the target content is added after performing the step of receiving the document and providing the target content sent by the client and storing it;

The document collection client, when performing the step of obtaining the target content from the cloud server, is specifically used for:

The target document added with the target content is acquired from the cloud server.

In a second aspect, an embodiment of the present invention provides a method for collecting document content, which is applied to a document content providing system, and the method includes:

The document collection client, according to the instruction triggered by the document collection user, generates an identification information generation request and sends it to the cloud server; the identification information generation request includes: the identification information of the target content and/or the identification of the document collection user information; the target content is: the document collection user and the document provider user pre-determined, and to be obtained by the document collection user;

The cloud server, based on the identification information generation request, generates identification information including the identification information of the target content and/or the identification information of the document collection user;

The document providing client obtains the identification information; based on the identification information, obtains the identification information of the target content and/or the identification information of the document collection user, so that the document providing user can Identification information and/or identification information of the document collection user selects the target content, and sends the target content to the cloud server;

The cloud server receives and saves the document and provides the target content sent by the client;

The document collection client acquires the target content from the cloud server.

Further, the method also includes:

The document collection client, after receiving the content adding instruction from the document collection user, adds the obtained target content to the target document.

Further, before the document collection client generates an identification information generation request and sends it to the cloud server according to the instruction triggered by the document collection user, the method further includes:

The document collection client determines the target content addition location in the target document;

After the document collection client receives the content addition instruction from the document collection user, it adds the obtained target content to the target document, including:

The document collection client receives the content addition instruction from the document collection user, and adds the acquired target content to the target document according to the location where the target content is added.

Further, the cloud server, based on the identification information generation request, generates the identification information including the identification information of the target content and/or the identification information of the document collection user, specifically including:

Based on the identification information generation request, generate a two-dimensional code containing the identification information of the target content and/or the identification information of the document collection user; or generate the identification information of the target content and/or the identification information of the document collection user Corresponding URL link; or generate an access code corresponding to the identification information of the target content and/or the identification information of the document collection user;

The document providing client obtains the identification information; based on the identification information, obtains the identification information of the target content and/or the identification information of the document collection user, so that the document providing user can Identifying information and/or documents Collecting user’s identifying information to select the target content, including:

The document providing client receives the two-dimensional code or the website link or the access code sent by the cloud server; identifies the two-dimensional code, obtains the identification information of the target content and/or collects documents The identification information of the user; or, according to the website link or the access code, obtain the identification information of the target content and/or the identification information of the document collection user; display the target content selection interface so that the document provides the user with The target content is selected locally based on the identification information of the target content and/or the identification information of the document collection user.

Further, before the document collection client generates an identification information generation request and sends it to the cloud server according to the instruction triggered by the document collection user, the method further includes:

The document collection client sends the target document to the cloud server; the identification information generation request further includes: the location where the target content is added in the target document;

After the cloud server receives the document and provides the target content sent by the client and saves it, the method further includes:

The cloud server adds the target content to the target document according to the location where the target content is added;

The document collection client obtains the target content from the cloud server, specifically including:

The document collection client acquires the target document added with the target content from the cloud server.

In a third aspect, an embodiment of the present invention provides a method for collecting document content, using a document collection client in a document content providing system, wherein the document content providing system further includes: a document providing client and a cloud server, the method include:

According to the instruction triggered by the document collection user, an identification information generation request is generated and sent to the cloud server; the identification information generation request includes: identification information of the target content and/or identification information of the document collection user; the target content is: The document collecting user and the document providing user predetermine part of document content to be obtained by the document collecting user; so that the cloud server, based on the identification information generation request, generates identification information including the target content and/or or the identification information of the identification information of the document collection user; make the document provide the client to obtain the identification information; based on the identification information, obtain the identification information of the target content and/or the identification information of the document collection user, to Make the document providing user select the target content based on the identification information of the target content and/or the identification information of the document collection user, and send the target content to the cloud server; make the cloud server receive the target content The above document provides the target content sent by the client and saves it;

Obtain the target content from the cloud server.

Further, the method also includes:

After receiving the content adding instruction from the document collecting user, adding the acquired target content into the target document.

Further, before the instruction triggered by the document collection user is generated to generate the identification information generation request and sent to the cloud server, it further includes:

Determining where to add the target content in the target document;

The step of adding the obtained target content to the target document after receiving the content adding instruction from the document collection user specifically includes:

Receiving a content adding instruction from the document collection user, and adding the acquired target content to the target document according to the target content adding location.

In a fourth aspect, the embodiment of the present invention provides a method for collecting document content, which is applied to a cloud server in a document content providing system. The document content providing system further includes: a document collecting client and a document providing client. The method include:

Based on the identification information generation request, generate identification information including the identification information of the target content and/or the identification information of the document collection user; make the document provide the client to obtain the identification information; based on the identification information, obtain the identification information of the target content and/or the identification information of the document collection user, so that the document providing user selects the target content based on the identification information of the target content and/or the identification information of the document collection user, and sends the The target content is sent to the cloud server; the identification information generation request is generated by the document collection client according to the instruction triggered by the document collection user to generate an identification information generation request and sent to the cloud server; the identification The information generation request includes: the identification information of the target content and/or the identification information of the document collection user; the target content is: the part predetermined by the document collection user and the document provider user and to be obtained by the document collection user document content;

receiving and storing the target content sent by the document providing client, so that the document collecting client can obtain the target content from the cloud server.

Further, before generating the request based on the identification information, generating the identification information including the identification information of the target content and/or the identification information of the document collection user, the method further includes:

Receive the target document sent by the document collection client; the identification mark generation request also includes: the target content addition location in the target document;

After receiving the document and providing the target content sent by the client and saving it, it also includes:

Adding the target content to the target document according to the adding position of the target content.

In the fifth aspect, the embodiment of the present invention provides a device for collecting document content, which is applied to a document collection client in a document content providing system, and the document content providing system further includes: a document providing client and a cloud server; Devices include:

The request generation module is configured to generate an identification information generation request and send it to the cloud server according to an instruction triggered by the document collection user; the identification information generation request includes: identification information of the target content and/or identification information of the document collection user; The target content is: the document collection user and the document provider user pre-determined, and to be acquired by the document collection user; so that the cloud server generates a request based on the identification information, and generates a document containing the target The identification information of the content and/or the identification information of the identification information of the document collection user; making the document provide the client to obtain the identification information; based on the identification information, obtaining the identification information of the target content and/or the document collection identification information of the user, so that the document providing user selects the target content based on the identification information of the target content and/or the identification information of the document collection user, and sends the target content to the cloud server; The cloud server receives the document and provides the target content sent by the client and saves it;

A target content acquiring module, configured to acquire the target content from the cloud server.

In a sixth aspect, an embodiment of the present invention provides a device for collecting document content, which is applied to a cloud server in a document content providing system, and the document content providing system further includes: a document collecting client and a document providing client, the device include:

An identification information generating module, configured to generate identification information including the identification information of the target content and/or identification information of the document collection user based on the identification information generation request; so that the document is provided to the client to obtain the identification information; Based on the identification information, the identification information of the target content and/or the identification information of the document collection user are obtained, so that the document providing user selects the document provider based on the identification information of the target content and/or the identification information of the document collection user. the target content, and send the target content to the cloud server; the identification information generation request is generated by the document collection client, according to the instruction triggered by the document collection user, and sends the identification information generation request to the cloud server; the identification information generation request includes: the identification information of the target content and/or the identification information of the document collection user; the target content is: the document collection user and the document provider user are predetermined, and will The above document collects part of the content of the document obtained by the user;

The target content saving module receives and saves the target content sent by the document providing client, so that the document collecting client acquires the target content from the cloud server.

In the seventh aspect, the embodiment of the present invention provides a document collection client device, including a processor, a communication interface, a memory, and a communication bus, wherein the processor, the communication interface, and the memory complete communication with each other through the communication bus;

memory for storing computer programs;

The processor is configured to implement the steps of the method for collecting document content described in any one of the above items when executing the program stored in the memory.

In an eighth aspect, an embodiment of the present invention provides a cloud server, including a processor, a communication interface, a memory, and a communication bus, wherein the processor, the communication interface, and the memory complete communication with each other through the communication bus;

memory for storing computer programs;

The processor is configured to implement the steps of the method for collecting document content described in any one of the above items when executing the program stored in the memory.

In the ninth aspect, the embodiment of the present invention also provides a computer-readable storage medium, the computer-readable storage medium stores instructions, and when it is run on a computer, the computer executes any one of the document contents described above collection method.

In a tenth aspect, the embodiment of the present invention further provides a computer program product containing instructions, which when run on a computer, causes the computer to execute any one of the methods for collecting document content described above.

The document content providing system, document content collecting method, device and equipment provided by the embodiments of the present invention, and the document collecting client in the document content providing system are used to generate an identification information generation request and send it to the document according to an instruction triggered by a document collecting user. A cloud server; and, obtaining the target content from the cloud server; the identification information generation request includes: identification information of the target content and/or identification information of the document collection user; the target content is: the document collection The user and the document provide a part of the document content that is predetermined by the user and acquired by the user for the document collection; the cloud server is configured to generate a request based on the identification information, and generate identification information and/or a document containing the target content Collecting the identification information of the user's identification information; and receiving and saving the target content sent by the document providing client; the document providing client is used to obtain the identification information; based on the identification information, obtaining the target content target identification information and/or identification information of the document collection user, so that the document providing user selects the target content based on the identification information of the target content and/or the identification information of the document collection user, and sends the target content to The cloud server.

In the embodiment of the present invention, when a document collection user needs to find a document provider user to provide part of the content in a specified document, he only needs to send the above part of content and/or his own identification information to the cloud server, and the cloud server will send the above identification information to the cloud server. The information is sent to the document providing user in the form of identification information, and the document providing user forwards only part of the content of the specified document required by the document collecting user to the document collecting user through the cloud server according to the above identification information. Due to the above process, the document providing user only sent part of the content in the specified document to the document collecting user, while other confidential content contained in the above specified document was not sent. Therefore, while the document collection user obtains part of the content he wants, the risk of leakage of other confidential content in the document is reduced.

Of course, implementing any product or method of the present invention does not necessarily need to achieve all the above-mentioned advantages at the same time.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the following will briefly introduce the drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description are only These are some embodiments of the present invention. Those skilled in the art can also obtain other drawings based on these drawings without creative work.

FIG. 1 is a schematic structural diagram of a document content providing system provided by an embodiment of the present invention;

FIG. 2a is a flowchart of interaction between devices in the document content providing system shown in FIG. 1;

Fig. 2b is a schematic diagram of a content selection interface displayed in the document providing client;

FIG. 3 is an interactive flowchart of a method for collecting document content provided by an embodiment of the present invention;

Fig. 4 is another interactive flowchart of the document content collection method provided by the embodiment of the present invention;

FIG. 5 is a schematic structural diagram of a device for collecting document content provided by an embodiment of the present invention;

FIG. 6 is a schematic structural diagram of another device for collecting document content provided by an embodiment of the present invention;

FIG. 7 is a schematic structural diagram of a document collection client device provided by an embodiment of the present invention;

FIG. 8 is a schematic structural diagram of a cloud server provided by an embodiment of the present invention.

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some, not all, embodiments of the present invention. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

In order to reduce the risk of leakage of other confidential content in the documents of the document providing users while the document collecting users obtain part of the document content they need, the embodiment of the present invention provides a document content providing system, document content collection method, and device and equipment are described in detail below.

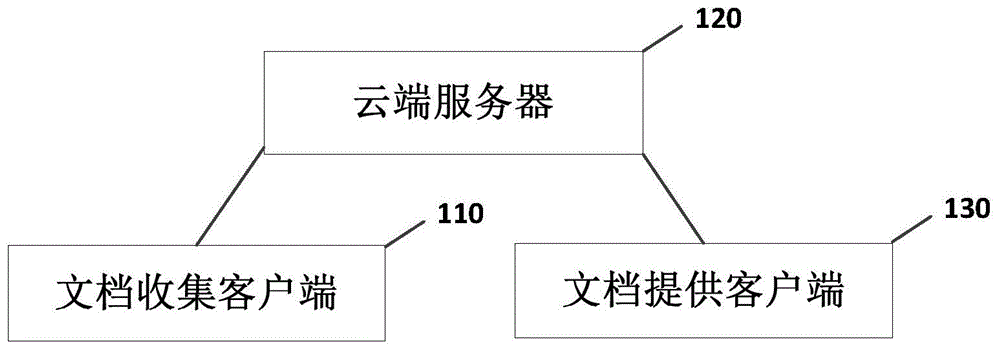

Referring to FIG. 1 , FIG. 1 is a schematic structural diagram of a document content providing system provided by an embodiment of the present invention. The document content providing system includes: a document collection client 110 , a cloud server 120 , and a document providing client 130 .

Specifically, the document collection client 110 is configured to generate an identification information generation request and send it to the cloud server according to an instruction triggered by the document collection user; and obtain the target content from the cloud server; the identification information generation request includes: identification information of the target content and/or the identification information of the document collection user; the target content is: part of the document content that is predetermined by the document collection user and the document provider user and is to be obtained by the document collection user.

For example, the target content may be a certain page or certain pages in a specified document.

In the embodiment of the present invention, the document type of the document to which the target content belongs is not limited, for example, it may be Word, PPT, or Excel.

The cloud server 120 is configured to generate the identification information including the identification information of the target content and/or the identification information of the document collection user based on the identification information generation request; and receive and save the target content sent by the document providing client.

Specifically, the identification information may be a two-dimensional code, a website link, or an access code.

The document providing client 130 is used to obtain the identification information; based on the identification information, obtain the identification information of the target content and/or the identification information of the document collection user, so that the document provides the user based on the identification information of the target content and/or the identification information of the document collection user The identification information selects the target content, and sends the target content to the cloud server.

In the above-mentioned embodiments of the present invention, when the document collection user needs to find the document provider user to provide part of the content in a specified document, he only needs to send the above part of the content and/or his own identification information to the cloud server, and the cloud server will send The above identification information is sent to the document providing user in the form of identification information, and the document providing user forwards only part of the content of the specified document required by the document collection user to the document collection user through the cloud server according to the above identification information. Due to the above process, the document providing user only sent part of the content in the specified document to the document collecting user, while other confidential content contained in the above specified document was not sent. Therefore, while the document collection user obtains part of the content he wants, the risk of leakage of other confidential content in the document is reduced.

Referring to FIG. 2a, FIG. 2a is a flow chart of interaction between devices in the document content providing system shown in FIG. 1, which specifically includes the following steps:

In step 201, the document collection client generates an identification information generation request according to an instruction triggered by the document collection user.

In step 202, the document collection client sends an identification information generation request to the cloud server.

Specifically, the identification information generation request includes: the identification information of the target content and/or the identification information of the document collection user; the target content is: a part of the document content predetermined by the document collection user and the document provider user and to be obtained by the document collection user .

In step 203, the cloud server generates identification information including the identification information of the target content and/or the identification information of the document collection user based on the identification information generation request.

Step 204, the document providing client obtains the identification information; based on the identification information, the identification information of the target content and/or the identification information of the document collection user are obtained, so that the document providing user can be based on the identification information of the target content and/or the identification of the document collection user Information selection target content.

The document provides that the client can receive the identification information sent by the cloud server. Specifically, the identification information may be a two-dimensional code, a website link, or an access code.

For example, when the identification information is a two-dimensional code, the document providing client can obtain the identification information of the target content and/or the identification information of the document collection user by identifying the two-dimensional code, and display the target content selection interface, so that the document The providing user selects the target content locally based on the identification information of the target content and/or the identification information of the document collection user.

When the identification information is a URL link, if the document providing client detects that the document providing user clicks on the aforementioned URL link, it will open the URL link, obtain the identification information of the target content and/or the identification information of the document collection user, and at the same time, display The target content selection interface enables the document providing user to locally select the target content based on the identification information of the target content and/or the identification information of the document collection user.

Referring to FIG. 2b, FIG. 2b is a schematic diagram of a content selection interface displayed on the document providing client. The document providing user can click the "Select" icon in the interface to select the target content locally. The target content is a part of the document content that is predetermined by the document providing user and the document collecting user and is to be acquired by the document collecting user. After the document provides the user to select the target content, the display box on the left side of the "Select" icon can display the relevant information of the target content, for example: the document name of the document to which the target content belongs, and the position of the target content in the above document The information, specifically, may be the page number information of the target content in the above-mentioned document. When the document providing user clicks the "OK" icon in the interface, the document providing client will send the target content selected by the document providing user to the cloud server; By clicking the "Cancel" icon in the interface, cancel this target content selection operation, so as to re-select the correct target content locally and send it to the cloud server.

Step 205, the document providing client sends the target content to the cloud server.

Step 206, the cloud server receives and saves the target content sent by the document providing client.

Step 207, the document collection client obtains the target content from the cloud server.

In the embodiment shown in Figure 2, when the document collection user needs to find the document provider user to provide part of the content in a specified document, he only needs to send the above part of the content and/or his own identification information to the cloud server, and the cloud server The above identification information is sent to the document providing user in the form of identification information, and the document providing user forwards only part of the content of the specified document required by the document collection user to the document collection user through the cloud server according to the above identification information. Due to the above process, the document providing user only sent part of the content in the specified document to the document collecting user, while other confidential content contained in the above specified document was not sent. Therefore, while the document collection user obtains part of the content he wants, the risk of leakage of other confidential content in the document is reduced.

In practical applications, after the document collection client obtains the target content from the cloud server, it can further add the obtained target content to the target document after receiving the content addition instruction from the document collection user, wherein the target document can be a document Collects a document that the user is editing.

Specifically, the user may manually add the target content to the target document, or the document collection client may automatically add the target content to the target document.

The manual method may be: the user opens the target document, and manually adds the target content to the target document by means of copying or pasting.

The manner in which the document collection client automatically adds the target content to the target document can be referred to in Figure 3, which is an interactive flow chart of the document content collection method provided by the embodiment of the present invention, which specifically includes the following steps:

In step 301, the document collection client determines the location where the target content is added in the target document.

For example, the target content addition location may be input by the document collection user to the document collection client.

In step 302, the document collection client generates an identification information generation request according to an instruction triggered by the document collection user.

In step 303, the document collection client sends an identification information generation request to the cloud server.

Specifically, the identification information generation request includes: the identification information of the target content and/or the identification information of the document collection user; the target content is: a part of the document content predetermined by the document collection user and the document provider user and to be obtained by the document collection user .

In step 304, the cloud server generates identification information including the identification information of the target content and/or the identification information of the document collection user based on the identification information generation request.

Step 305, the document providing client obtains the identification information; based on the identification information, the identification information of the target content and/or the identification information of the document collection user is obtained, so that the document providing user can be based on the identification information of the target content and/or the identification of the document collection user Information selection target content.

Step 306, the document providing client sends the target content to the cloud server.

Step 307, the cloud server receives and saves the target content sent by the document providing client.

Step 308, the document collection client obtains the target content from the cloud server.

Step 309 , the document collection client receives the content addition instruction from the document collection user, and adds the acquired target content to the target document according to the location where the target content is added.

In the embodiment shown in Figure 3, when the document collection user needs to find the document provider user to provide part of the content in a specified document, he only needs to send the above part of the content and/or his own identification information to the cloud server, and the cloud server The above identification information is sent to the document providing user in the form of identification information, and the document providing user forwards only part of the content of the specified document required by the document collection user to the document collection user through the cloud server according to the above identification information. Due to the above process, the document providing user only sent part of the content in the specified document to the document collecting user, while other confidential content contained in the above specified document was not sent. Therefore, while the document collection user obtains part of the content he wants, the risk of leakage of other confidential content in the document is reduced.

In addition, the document collection client can automatically add the target content to the target document after receiving the content adding instruction from the document collection user. Compared with requiring the document collection user to manually add the target content to the target document by copying/pasting, The embodiment of the present invention improves the efficiency of adding the target content to the target document, and improves the user experience of the document collection user.

In other embodiments, the server may directly add the target content to the target document. In this way, when the collecting user client acquires the target content, the target document including the target content is directly obtained. Specifically, refer to FIG. 4 .

Fig. 4 is another interactive flowchart of the document content collection method provided by the embodiment of the present invention, which specifically includes the following steps:

Step 401 , the document collection client generates an identification information generation request according to an instruction triggered by the document collection user, wherein the identification information generation request also includes: the location where the target content is added in the target document.

Specifically, the target content is: a part of document content predetermined by the document collecting user and the document providing user and to be obtained by the document collecting user; the target document may be a certain document being edited by the document collecting user.

In step 402, the document collection client sends an identification information generation request to the cloud server.

Step 403, the cloud server receives the target document sent by the document collection client.

Step 404, based on the identification information generation request, the cloud server generates identification information including identification information of the target content and/or identification information of the document collection user.

Step 405, the document providing client obtains the identification information; based on the identification information, the identification information of the target content and/or the identification information of the document collection user are obtained, so that the document providing user can be based on the identification information of the target content and/or the identification of the document collection user Information selection target content.

Step 406, the document providing client sends the target content to the cloud server.

Step 407, the cloud server receives and saves the target content sent by the document providing client.

Step 408, the cloud server adds the target content to the target document according to the location where the target content is added.

Step 409, the document collection client acquires the target document with the target content added from the cloud server.

In the embodiment shown in Figure 4, when the document collection user needs to find the document provider user to provide part of the content in a specified document, he only needs to send the above part of the content and/or his own identification information to the cloud server, and the cloud server The above identification information is sent to the document providing user in the form of identification information, and the document providing user forwards only part of the content of the specified document required by the document collection user to the document collection user through the cloud server according to the above identification information. Due to the above process, the document providing user only sent part of the content in the specified document to the document collecting user, while other confidential content contained in the above specified document was not sent. Therefore, while the document collection user obtains part of the content he wants, the risk of leakage of other confidential content in the document is reduced.

In addition, after the cloud server acquires the target content, it can automatically add the target content to the target document, and then send it to the collection user client, so that the document collection user can directly obtain the target document containing the target content. Compared with requiring the document collection user to manually add the target content to the target document by copying/pasting, the embodiment of the present invention improves the efficiency of adding the target content to the target document, and improves the user experience of the document collection user.

Referring to FIG. 5, FIG. 5 is a schematic structural diagram of a document content collection device provided by an embodiment of the present invention. The document content collection device can be applied to a document collection client in a document content providing system, and specifically includes:

The request generation module 501 is configured to generate an identification information generation request and send it to the cloud server according to an instruction triggered by the document collection user; the identification information generation request includes: the identification information of the target content and/or the identification information of the document collection user; the target content is : The document collection user and the document provider user pre-determined, and part of the document content to be obtained by the document collection user; so that the cloud server generates a request based on the identification information, and generates the identification information containing the target content and/or the identification information of the document collection user identification information; make the document provide the client and obtain the identification information; based on the identification information, obtain the identification information of the target content and/or the identification information of the document collection user, so that the document provides the identification information of the user based on the target content and/or the document collection The user's identification information selects the target content, and sends the target content to the cloud server; makes the cloud server receive the document and provide the target content sent by the client and save it;

The target content obtaining module 502 is configured to obtain the target content from the cloud server.

In the embodiment shown in Figure 5, when the document collection user needs to find the document provider user to provide part of the content in a specified document, he only needs to send the above part of the content and/or his own identification information to the cloud server, and the cloud server The above identification information is sent to the document providing user in the form of identification information, and the document providing user forwards only part of the content of the specified document required by the document collection user to the document collection user through the cloud server according to the above identification information. Due to the above process, the document providing user only sent part of the content in the specified document to the document collecting user, while other confidential content contained in the above specified document was not sent. Therefore, while the document collection user obtains part of the content he wants, the risk of leakage of other confidential content in the document is reduced.

Referring to FIG. 6, FIG. 6 is a schematic structural diagram of a document content collection device provided by an embodiment of the present invention. The document content collection device can be applied to a cloud server in a document content providing system, and specifically includes:

The identification information generating module 601 is configured to generate identification information including the identification information of the target content and/or the identification information of the document collection user based on the identification information generation request; to enable the document to be provided to the client to obtain the identification information; based on the identification information, to obtain The identification information of the target content and/or the identification information of the document collection user, so that the document provider user selects the target content based on the identification information of the target content and/or the identification information of the document collection user, and sends the target content to the cloud server; identification information The generation request is generated by the document collection client according to the instruction triggered by the document collection user to generate an identification information generation request and send it to the cloud server; the identification information generation request includes: the identification information of the target content and/or the identification information of the document collection user ;The target content is: part of the content of the document that is predetermined by the document collection user and the document provider user and is to be obtained by the document collection user;

The target content saving module 602 receives and saves the target content sent by the document providing client, so that the document collecting client can obtain the target content from the cloud server.

In the embodiment shown in Figure 6, when the document collecting user needs to find the document providing user to provide part of the content in a specified document, he only needs to send the above part of the content and/or his own identification information to the cloud server, and the cloud server The above identification information is sent to the document providing user in the form of identification information, and the document providing user forwards only part of the content of the specified document required by the document collection user to the document collection user through the cloud server according to the above identification information. Due to the above process, the document providing user only sent part of the content in the specified document to the document collecting user, while other confidential content contained in the above specified document was not sent. Therefore, while the document collection user obtains part of the content he wants, the risk of leakage of other confidential content in the document is reduced.

The embodiment of the present invention also provides a document collection client device, as shown in FIG. The communication bus 704 completes mutual communication,

Memory 703, used to store computer programs;

When the processor 701 is used to execute the program stored on the memory 703, the following steps are implemented:

According to the instruction triggered by the document collection user, an identification information generation request is generated and sent to the cloud server; the identification information generation request includes: the identification information of the target content and/or the identification information of the document collection user; the target content is: the document collection user and the document provider Predetermined by the user and part of the content of the document to be collected by the user; to enable the cloud server to generate a request based on the identification information to generate identification information including the identification information of the target content and/or the identification information of the document collection user; to enable the document to provide The client obtains the identification information; based on the identification information, obtains the identification information of the target content and/or the identification information of the document collection user, so that the document providing user selects the target content based on the identification information of the target content and/or the identification information of the document collection user , and send the target content to the cloud server; make the cloud server receive the document and provide the target content sent by the client and save it;

Obtain the target content from the cloud server.

The embodiment of the present invention also provides a cloud server, as shown in FIG. complete the mutual communication,

memory 803, for storing computer programs;

When the processor 801 is used to execute the program stored on the memory 803, the following steps are implemented:

Based on the identification information generation request, generate the identification information including the identification information of the target content and/or the identification information of the document collection user; make the document provided to the client to obtain the identification information; based on the identification information, obtain the identification information of the target content and/or The identification information of the document collection user enables the document providing user to select the target content based on the identification information of the target content and/or the identification information of the document collection user, and sends the target content to the cloud server; the request for identification information is generated by the document collection client According to the instruction triggered by the document collection user, an identification information generation request is generated and sent to the cloud server; the identification information generation request includes: the identification information of the target content and/or the identification information of the document collection user; the target content is: the document collection user Provide the part of the content of the document that is predetermined by the user and obtained by the user to be collected by the document;

The receiving document provides and saves the target content sent by the client, so that the document collection client can obtain the target content from the cloud server.

The communication bus mentioned above in the document collection client device and the cloud server may be a Peripheral Component Interconnect (PCI) bus or an Extended Industry Standard Architecture (Extended Industry Standard Architecture, EISA) bus or the like. The communication bus can be divided into an address bus, a data bus, a control bus, and the like. For ease of representation, only one thick line is used in the figure, but it does not mean that there is only one bus or one type of bus.

The communication interface is used for communication between the above document collection client device or cloud server and other devices.

The memory may include a random access memory (Random Access Memory, RAM), and may also include a non-volatile memory (Non-Volatile Memory, NVM), such as at least one disk memory. Optionally, the memory may also be at least one storage device located far away from the aforementioned processor.

Above-mentioned processor can be general-purpose processor, comprises central processing unit (Central Processing Unit, CPU), network processor (Network Processor, NP) etc.; Can also be Digital Signal Processor (Digital Signal Processing, DSP), ASIC (Application Specific Integrated Circuit, ASIC), Field-Programmable Gate Array (Field-Programmable Gate Array, FPGA) or other programmable logic devices, discrete gate or transistor logic devices, discrete hardware components.

In yet another embodiment provided by the present invention, a computer-readable storage medium is also provided, and a computer program is stored in the computer-readable storage medium, and when the computer program is executed by a processor, any of the above-mentioned method for collecting document content is realized. step.

In yet another embodiment provided by the present invention, a computer program product containing instructions is also provided, and when it is run on a computer, it causes the computer to execute the steps of any method for collecting document content in the above embodiments.

In the above embodiments, all or part of them may be implemented by software, hardware, firmware or any combination thereof. When implemented using software, it may be implemented in whole or in part in the form of a computer program product. The computer program product includes one or more computer instructions. When the computer program instructions are loaded and executed on the computer, all or part of the processes or functions according to the embodiments of the present invention will be generated. The computer can be a general purpose computer, a special purpose computer, a computer network, or other programmable devices. The computer instructions may be stored in or transmitted from one computer-readable storage medium to another computer-readable storage medium, for example, the computer instructions may be transmitted from a website, computer, server or data center Transmission to another website site, computer, server, or data center by wired (eg, coaxial cable, optical fiber, digital subscriber line (DSL)) or wireless (eg, infrared, wireless, microwave, etc.). The computer-readable storage medium may be any available medium that can be accessed by a computer, or a data storage device such as a server or a data center integrated with one or more available media. The available medium may be a magnetic medium (for example, a floppy disk, a hard disk, or a magnetic tape), an optical medium (for example, DVD), or a semiconductor medium (for example, a Solid State Disk (SSD)).

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device. Without further limitations, an element defined by the phrase "comprising a ..." does not exclude the presence of additional identical elements in the process, method, article or apparatus comprising said element.

Each embodiment in this specification is described in a related manner, the same and similar parts of each embodiment can be referred to each other, and each embodiment focuses on the differences from other embodiments. In particular, for the device and device embodiments, since they are basically similar to the method and system embodiments, the description is relatively simple, and for relevant parts, refer to the part of the description of the method embodiments.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the protection scope of the present invention. Any modification, equivalent replacement, improvement, etc. made within the spirit and principles of the present invention are included in the protection scope of the present invention.

Claims (20)

1. A document content providing system, comprising: the system comprises a document collection client, a document providing client and a cloud server;

the document collection client is used for generating an identification information generation request according to a command triggered by a document collection user and sending the identification information generation request to the cloud server; obtaining target content from the cloud server; the identification information generation request includes: the identification information of the target content and/or the identification information of the document collection user; the target content is as follows: the document collection user and the document providing user are predetermined, and part of document contents acquired by the document collection user are to be obtained;

the cloud server is used for generating a request based on the identification information, and generating identification information containing the identification information of the target content and/or the identification information of the document collection user; receiving and storing target content sent by a document providing client;

The document providing client is used for obtaining the identification information; and based on the identification information, acquiring the identification information of the target content and/or the identification information of a document collection user, so that the document providing user selects the target content based on the identification information of the target content and/or the identification information of the document collection user, and transmitting the target content to the cloud server.

2. The document content providing system according to claim 1, wherein,

the document collection client is further used for adding the obtained target content to a target document after receiving a content adding instruction of the document collection user.

3. The document content providing system according to claim 2, wherein,

the document collection client is further configured to determine a target content addition location in the target document before the instruction triggered by the document collection user generates an identification information generation request and sends the identification information generation request to the cloud server;

the document collection client is specifically configured to, when executing the step of adding the obtained target content to a target document after receiving a content addition instruction of the document collection user: and receiving a content adding instruction of the document collection user, and adding the acquired target content into a target document according to the target content adding position.

4. The document content providing system according to claim 1, wherein,

the cloud server is specifically configured to, when executing the step of generating the identification information including the identification information of the target content and/or the identification information of the document collection user based on the identification information generation request:

generating a two-dimensional code containing identification information of the target content and/or identification information of a document collection user based on the identification information generation request; or generating a website link corresponding to the identification information of the target content and/or the identification information of the document collection user; or generating an access code corresponding to the identification information of the target content and/or the identification information of the document collection user;

the document providing client performs the obtaining of the identification information; based on the identification information, obtaining the identification information of the target content and/or the identification information of a document collection user, so that the document providing user selects the target content based on the identification information of the target content and/or the identification information of the document collection user, wherein the method is specifically used for:

receiving the two-dimensional code or the website link or the access code sent by the cloud server;

Identifying the two-dimensional code, and obtaining identification information of the target content and/or identification information of a document collection user; or, according to the website link or the access code, obtaining the identification information of the target content and/or the identification information of a document collection user;

and displaying a target content selection interface so that the document providing user can select the target content from the local place based on the identification information of the target content and/or the identification information of the document collecting user.

5. The document content providing system according to claim 1, wherein,

the document collection client is further configured to, before executing the instruction triggered by the document collection user to generate an identification information generation request, send the identification information generation request to the cloud server: sending the target document to the cloud server; the identification information generation request further includes: a target content addition location in the target document;

the cloud server is further configured to add the target content to the target document according to the target content adding position after executing the step of receiving and storing the target content sent by the document providing client;

The document collection client is specifically configured to, when executing the step of obtaining the target content from the cloud server:

and acquiring the target document added with the target content from the cloud server.

6. A document content collection method applied to a document content providing system, the method comprising:

the document collection client generates an identification information generation request according to an instruction triggered by a document collection user and sends the identification information generation request to the cloud server; the identification information generation request includes: the identification information of the target content and/or the identification information of the document collection user; the target content is as follows: the document collection user and the document providing user are predetermined, and part of document contents acquired by the document collection user are to be obtained;

the cloud server generates a request based on the identification information, and generates identification information containing identification information of the target content and/or identification information of a document collection user;

the document providing client obtains the identification information; based on the identification information, obtaining identification information of the target content and/or identification information of a document collection user, so that the document providing user selects the target content based on the identification information of the target content and/or the identification information of the document collection user, and sending the target content to the cloud server;

The cloud server receives and stores target content sent by the document providing client;

and the document collection client acquires the target content from the cloud server.

7. The method as recited in claim 6, further comprising:

and the document collection client adds the acquired target content to a target document after receiving a content adding instruction of the document collection user.

8. The method of claim 7, wherein before the document collection client generates an identification information generation request according to an instruction triggered by a document collection user and sends the identification information generation request to the cloud server, the method further comprises:

the document collection client determines a target content addition position in the target document;

the document collection client adds the obtained target content to a target document after receiving a content adding instruction of the document collection user, and the method comprises the following steps:

and the document collection client receives a content adding instruction of the document collection user and adds the acquired target content into a target document according to the target content adding position.

9. The method according to claim 6, wherein the cloud server generates identification information including identification information of the target content and/or identification information of a document collection user based on the identification information generation request, specifically comprising:

generating a two-dimensional code containing identification information of the target content and/or identification information of a document collection user based on the identification information generation request; or generating a website link corresponding to the identification information of the target content and/or the identification information of the document collection user; or generating an access code corresponding to the identification information of the target content and/or the identification information of the document collection user;

the document providing client obtains the identification information; based on the identification information, obtaining the identification information of the target content and/or the identification information of a document collection user so that the document providing user selects the target content based on the identification information of the target content and/or the identification information of the document collection user, and specifically comprising the following steps:

the document providing client receives the two-dimensional code or the website link or the access code sent by the cloud server; identifying the two-dimensional code, and obtaining identification information of the target content and/or identification information of a document collection user; or, according to the website link or the access code, obtaining the identification information of the target content and/or the identification information of a document collection user; and displaying a target content selection interface so that the document providing user can select the target content from the local place based on the identification information of the target content and/or the identification information of the document collecting user.

10. The method of claim 6, wherein before the document collection client generates an identification information generation request according to a command triggered by a document collection user and sends the identification information generation request to the cloud server, the method further comprises:

the document collection client sends the target document to the cloud server; the identification information generation request further includes: a target content addition location in the target document;

after the cloud server receives and stores the target content sent by the document providing client, the method further comprises:

the cloud server adds the target content to the target document according to the target content adding position;

the document collection client obtains the target content from the cloud server, and specifically includes:

and the document collection client acquires the target document added with the target content from the cloud server.

11. A document content collection method, wherein a document collection client in a document content providing system is applied, the document content providing system further comprising: the method comprises the steps of:

Generating an identification information generation request according to an instruction triggered by a document collection user and sending the identification information generation request to the cloud server; the identification information generation request includes: the identification information of the target content and/or the identification information of the document collection user; the target content is as follows: the document collection user and the document providing user are predetermined, and part of document contents acquired by the document collection user are to be obtained; the cloud server generates a request based on the identification information, and generates identification information containing identification information of the target content and/or identification information of a document collection user; enabling the document providing client to obtain the identification information; based on the identification information, obtaining identification information of the target content and/or identification information of a document collection user, so that the document providing user selects the target content based on the identification information of the target content and/or the identification information of the document collection user, and sending the target content to the cloud server; the cloud server receives and stores target content sent by the document providing client;

and acquiring the target content from the cloud server.

12. The method of claim 11, wherein the method further comprises:

and after receiving a content adding instruction of the document collection user, adding the acquired target content into a target document.

13. The method of claim 12, further comprising, prior to the generating an identification information generation request to the cloud server in accordance with the document collection user triggered instruction:

determining a target content adding position in the target document;

the step of adding the obtained target content to the target document after receiving the content adding instruction of the document collection user specifically comprises the following steps:

and receiving a content adding instruction of the document collection user, and adding the acquired target content into a target document according to the target content adding position.

14. A document content collection method, applied to a cloud server in a document content providing system, the document content providing system further comprising: a document collection client and a document provision client, the method comprising:

generating identification information containing identification information of the target content and/or identification information of the document collection user based on the identification information generation request; so that the document providing client obtains the identification information; based on the identification information, obtaining identification information of the target content and/or identification information of a document collection user, so that a document providing user selects the target content based on the identification information of the target content and/or the identification information of the document collection user, and sending the target content to the cloud server; the identification information generation request is generated by the document collection client according to an instruction triggered by a document collection user and is sent to the cloud server; the identification information generation request includes: the identification information of the target content and/or the identification information of the document collection user; the target content is as follows: the document collection user and the document providing user are predetermined, and part of document contents acquired by the document collection user are to be obtained;

And receiving and storing target content sent by the document providing client so that the document collecting client can acquire the target content from the cloud server.

15. The method according to claim 14, further comprising, before the generating identification information including identification information of the target content and/or identification information of a document collection user based on the identification information generation request:

receiving a target document sent by the document collection client; the identification information generation request further includes: a target content addition location in the target document;

after receiving and storing the target content sent by the document providing client, the method further comprises the following steps:

and adding the target content into the target document according to the target content adding position.

16. A document content collection apparatus, characterized by being applied to a document collection client in a document content providing system, the document content providing system further comprising: a document providing client and a cloud server; the device comprises:

the request generation module is used for generating an identification information generation request according to a command triggered by a document collection user and sending the identification information generation request to the cloud server; the identification information generation request includes: the identification information of the target content and/or the identification information of the document collection user; the target content is as follows: the document collection user and the document providing user are predetermined, and part of document contents acquired by the document collection user are to be obtained; the cloud server generates a request based on the identification information, and generates identification information containing identification information of the target content and/or identification information of a document collection user; enabling the document providing client to obtain the identification information; based on the identification information, obtaining identification information of the target content and/or identification information of a document collection user, so that the document providing user selects the target content based on the identification information of the target content and/or the identification information of the document collection user, and sending the target content to the cloud server; the cloud server receives and stores target content sent by the document providing client;

And the target content acquisition module is used for acquiring the target content from the cloud server.

17. A document content collection apparatus, characterized by being applied to a cloud server in a document content providing system, the document content providing system further comprising: a document collection client and a document provision client, the apparatus comprising:

an identification information generation module for generating identification information containing identification information of the target content and/or identification information of the document collection user based on the identification information generation request; so that the document providing client obtains the identification information; based on the identification information, obtaining identification information of the target content and/or identification information of a document collection user, so that a document providing user selects the target content based on the identification information of the target content and/or the identification information of the document collection user, and sending the target content to the cloud server; the identification information generation request is generated by the document collection client according to an instruction triggered by a document collection user and is sent to the cloud server; the identification information generation request includes: the identification information of the target content and/or the identification information of the document collection user; the target content is as follows: the document collection user and the document providing user are predetermined, and part of document contents acquired by the document collection user are to be obtained;

And the target content storage module is used for receiving and storing target content sent by the document providing client so that the document collecting client can acquire the target content from the cloud server.

18. The document collection client device is characterized by comprising a processor, a communication interface, a memory and a communication bus, wherein the processor, the communication interface and the memory are communicated with each other through the communication bus;

a memory for storing a computer program;

a processor for implementing the method steps of any of claims 11-13 when executing a program stored on a memory.

19. The cloud server is characterized by comprising a processor, a communication interface, a memory and a communication bus, wherein the processor and the communication interface are communicated with each other through the communication bus;

a memory for storing a computer program;

a processor for implementing the method steps of any of claims 14-15 when executing a program stored on a memory.

20. A computer-readable storage medium, characterized in that the computer-readable storage medium has stored therein a computer program which, when executed by a processor, implements the method steps of any of claims 11-13 or 14-15.

Images
