CN112019680A - Screen brightness adjustment method and device - Google Patents

Abstract

The present disclosure relates to a method and device for adjusting screen brightness. The method includes: when the screen brightness needs to be adjusted from a current brightness level to a target brightness level, obtaining a transition brightness level according to the current brightness level and the target brightness level, where the screen brightness corresponding to the transition brightness level is located in the current brightness level between the screen brightness corresponding to the brightness level and the screen brightness corresponding to the target brightness level; according to the transition brightness level, gradually adjust the screen brightness from the current brightness level until the screen brightness is adjusted to the target brightness class. The technical solution inserts a transition brightness level between the current brightness level and the target brightness level, so that the brightness of the screen changes smoothly during the process of adjusting the brightness of the screen from the current brightness level to the target brightness level, achieving the effect of uniform brightness transition, and improving the user experience. experience.

Description

Screen brightness adjustment method and device

technical field

The present disclosure relates to the technical field of terminal control, and in particular, to a method and device for adjusting screen brightness.

Background technique

With the continuous improvement of material living standards, mobile phones have become a must-have in life, and the frequency of use is getting higher and higher, so the requirements for the battery life of mobile phones are also getting higher and higher.

Due to the large power consumption of the touch screen, in the related art, a light sensor can be set near the handset of the mobile phone, and the mobile phone can adjust the screen brightness according to the ambient light brightness detected by the light sensor. For example, when the ambient brightness is bright, the mobile phone can Adjust the screen brightness to be brighter to avoid the situation where the user cannot see the contents of the screen because the screen of the mobile phone is too dark. Too high brightness will irritate the user's eyes, and on the other hand, it will reduce the power consumption of the touch screen, thereby improving the battery life of the mobile phone.

SUMMARY OF THE INVENTION

To overcome the problems in the related art, embodiments of the present disclosure provide a method and device for adjusting screen brightness.

According to a first aspect of the embodiments of the present disclosure, a method for adjusting screen brightness is provided, including:

When the screen brightness needs to be adjusted from the current brightness level to the target brightness level, a transition brightness level is obtained according to the current brightness level and the target brightness level, and the screen brightness corresponding to the transition brightness level is located in the screen brightness corresponding to the current brightness level. between the screen brightness and the screen brightness corresponding to the target brightness level;

According to the transition brightness level, the screen brightness is gradually adjusted from the current brightness level until the screen brightness is adjusted to the target brightness level.

The technical solutions provided by the embodiments of the present disclosure may include the following beneficial effects: by inserting a transition brightness level between the current brightness level and the target brightness level, the brightness of the screen changes during the process of adjusting the brightness of the screen from the current brightness level to the target brightness level It is relatively gentle, achieving the effect of uniform transition of brightness and improving the user experience.

In one embodiment, when the screen brightness needs to be adjusted from the current brightness level to the target brightness level, acquiring the transition brightness level according to the current brightness level and the target brightness level includes:

When the screen brightness needs to be adjusted from the current brightness level to the target brightness level, determining whether the type of the screen is a preset type;

If the type of the screen is a preset type, the transition brightness level is acquired according to the current brightness level and the target brightness level.

In one embodiment, when the screen brightness needs to be adjusted from the current brightness level to the target brightness level, determining whether the type of the screen is a preset type includes:

After detecting that the ambient light of the environment where the screen is located changes, it is determined whether the type of the screen is the preset type.

In one embodiment, the obtaining a transition brightness level according to the current brightness level and the target brightness level includes:

The corresponding transition brightness level is generated according to the generation rule of the transition brightness level, where the generation rule includes the first number of frames of the first brightness level and the second number of frames of the second brightness level that need to be displayed cyclically when the corresponding transition brightness level is displayed , and the arrangement order of the first brightness level of the first frame number and the second brightness level of the second frame number, wherein the first brightness level and the current brightness level and/or the target brightness The second brightness level is related to the current brightness level and/or the target brightness level.

In one embodiment, the first brightness level is the current brightness level, and the second brightness level is the target brightness level.

In one embodiment, the transition brightness level includes at least one transition brightness level, the screen brightness corresponding to different transition brightness levels is different, and the screen brightness is gradually adjusted from the current brightness level until the screen brightness is different according to the transition brightness level. Adjusting the screen brightness to the target brightness level includes:

setting the duration of each transition brightness level in the at least one transition brightness level;

After the display of the current brightness level is completed, the at least one transition brightness level is sequentially displayed according to the duration of each transition brightness level, until the target brightness level is displayed after the display of the last transition brightness level is completed.

According to a second aspect of the embodiments of the present disclosure, a device for adjusting screen brightness is provided, including:

The obtaining module is configured to obtain a transition brightness level according to the current brightness level and the target brightness level when the screen brightness needs to be adjusted from the current brightness level to the target brightness level, and the screen brightness corresponding to the transition brightness level is located in the between the screen brightness corresponding to the current brightness level and the screen brightness corresponding to the target brightness level;

An adjustment module, configured to gradually adjust the screen brightness from the current brightness level according to the transition brightness level until the screen brightness is adjusted to the target brightness level.

In one embodiment, the obtaining module includes:

A determination submodule for determining whether the type of the screen is a preset type when the screen brightness needs to be adjusted from the current brightness level to the target brightness level;

The first obtaining sub-module is configured to obtain the transition brightness level according to the current brightness level and the target brightness level if the type of the screen is a preset type.

In one embodiment, the determining submodule includes:

The determining unit is configured to determine whether the type of the screen is the preset type after detecting that the ambient light of the environment where the screen is located changes.

In one embodiment, the obtaining module includes:

The second acquisition sub-module is configured to generate the corresponding transition brightness level according to the generation rule of the transition brightness level, where the generation rule includes the first frame number and the first frame number of the first brightness level to be displayed cyclically when the corresponding transition brightness level is displayed. The second frame number of two brightness levels, and the arrangement order of the first brightness level of the first frame number and the second brightness level of the second frame number, wherein the first brightness level and the current brightness The second brightness level is related to the current brightness level and/or the target brightness level.

In one embodiment, the first brightness level is the current brightness level, and the second brightness level is the target brightness level.

In one embodiment, the transition brightness level includes at least one transition brightness level, and the screen brightness corresponding to different transition brightness levels is different, and the adjustment module includes:

a setting submodule for setting the duration of each transition brightness level in the at least one transition brightness level;

A display sub-module, configured to sequentially display the at least one transition brightness level according to the duration of each transition brightness level after the display of the current brightness level is completed, until the target brightness level is displayed after the display of the last transition brightness level is completed .

According to a third aspect of the embodiments of the present disclosure, a device for adjusting screen brightness is provided, including:

processor;

memory for storing processor-executable instructions;

wherein the processor is configured to:

When the screen brightness needs to be adjusted from the current brightness level to the target brightness level, a transition brightness level is obtained according to the current brightness level and the target brightness level, and the screen brightness corresponding to the transition brightness level is located in the screen brightness corresponding to the current brightness level. between the screen brightness and the screen brightness corresponding to the target brightness level;

According to the transition brightness level, the screen brightness is gradually adjusted from the current brightness level until the screen brightness is adjusted to the target brightness level.

According to a fourth aspect of the embodiments of the present disclosure, there is provided a computer-readable storage medium on which computer instructions are stored, and when the instructions are executed by a processor, implement the steps of the method described in any one of the embodiments of the first aspect.

It is to be understood that the foregoing general description and the following detailed description are exemplary and explanatory only and are not restrictive of the present disclosure.

Description of drawings

The accompanying drawings, which are incorporated in and constitute a part of this specification, illustrate embodiments consistent with the disclosure and together with the description serve to explain the principles of the disclosure.

Fig. 1a is a flowchart of a method for adjusting screen brightness according to an exemplary embodiment.

Fig. 1b is a flowchart of a method for adjusting screen brightness according to an exemplary embodiment.

Fig. 1c is a flow chart of a method for adjusting screen brightness according to an exemplary embodiment.

Fig. 2a is a schematic structural diagram of a device for adjusting screen brightness according to an exemplary embodiment.

FIG. 2b is a schematic structural diagram of an apparatus for adjusting screen brightness according to an exemplary embodiment.

FIG. 2c is a schematic structural diagram of an apparatus for adjusting screen brightness according to an exemplary embodiment.

FIG. 2d is a schematic structural diagram of an apparatus for adjusting screen brightness according to an exemplary embodiment.

FIG. 2e is a schematic structural diagram of an apparatus for adjusting screen brightness according to an exemplary embodiment.

FIG. 3 is a structural block diagram of an apparatus for adjusting screen brightness according to an exemplary embodiment.

Detailed ways

Exemplary embodiments will be described in detail herein, examples of which are illustrated in the accompanying drawings. Where the following description refers to the drawings, the same numerals in different drawings refer to the same or similar elements unless otherwise indicated. The implementations described in the illustrative examples below are not intended to represent all implementations consistent with this disclosure. Rather, they are merely examples of apparatus and methods consistent with some aspects of the present disclosure as recited in the appended claims.

The technical solutions provided by the embodiments of the present disclosure relate to terminals, and the terminals may be mobile phones, tablet computers, and other devices having the function of adjusting screen brightness according to environmental brightness, which are not limited in the embodiments of the present disclosure. In the related art, the adjustment of screen brightness is based on the backlight driver chip set by the terminal. If the backlight driver chip provides more brightness levels, for example, the backlight driver chip provides 4096 brightness levels, the screen brightness can be evenly divided into from the darkest to the brightest. 4096 levels, the screen brightness changes little between two adjacent brightness levels, so the screen brightness can be uniformly changed. However, if the backlight driver chip provides less brightness levels, for example, the backlight driver chip provides 256 brightness levels, then the screen brightness can only be evenly divided into 256 levels from the darkest to the brightest, and the screen between two adjacent brightness levels The brightness changes greatly, so that when adjusting the screen brightness, the human eye can clearly feel the brightness jitter caused by the screen changes, which affects the user experience. In the technical solutions provided by the embodiments of the present disclosure, by inserting a transition brightness level between the current brightness level and the target brightness level, the brightness changes during the process of adjusting the brightness of the screen from the current brightness level to the target brightness level are relatively gentle, so that the The effect of uniform brightness transition improves the user experience.

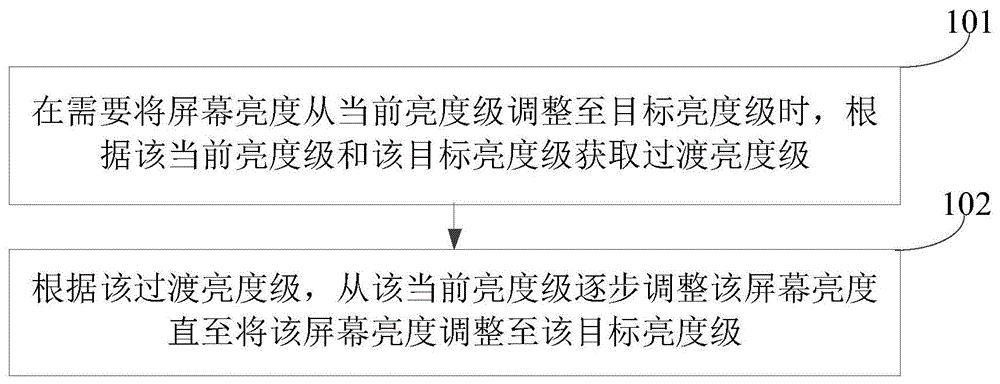

Fig. 1a is a flow chart of a method for adjusting screen brightness according to an exemplary embodiment. The method is applied to a terminal. As shown in Fig. 1a, the method includes the following steps 101 to 102:

In step 101, when the screen brightness needs to be adjusted from the current brightness level to the target brightness level, the transition brightness level is obtained according to the current brightness level and the target brightness level.

The screen brightness corresponding to the transition brightness level is located between the screen brightness corresponding to the current brightness level and the screen brightness corresponding to the target brightness level.

For example, a light sensor is installed on the front panel of the terminal, and the light sensor can monitor the ambient brightness value around the terminal in real time. If the light sensor detects that the ambient brightness value changes, the terminal may determine whether the current brightness level of the screen matches the changed ambient brightness value. Optionally, the terminal is preset with the corresponding relationship between the environmental brightness value and the brightness level, and different environmental brightness values correspond to different brightness levels, that is, the terminal can query the corresponding relationship between the environmental brightness value and the brightness level, and determine the current brightness level. Whether the changed ambient brightness value corresponds. If the current brightness level does not correspond to the changed environmental brightness value, it means that the current brightness level does not match the changed environmental brightness value. At this time, the terminal can obtain the corresponding relationship between the environmental brightness value and the brightness level. The target brightness level corresponding to the subsequent ambient brightness value is determined, and then it is determined that the screen brightness of the terminal needs to be adjusted from the current brightness level to the target brightness level.

Optionally, the terminal may pre-set a transition brightness level between the current brightness level and the target brightness level, and set a generation rule for the transition brightness level, where the generation rule includes a cycle that needs to be displayed cyclically when displaying the corresponding transition brightness level. The first frame number of the first brightness level and the second frame number of the second brightness level, and the arrangement order of the first brightness level of the first frame number and the second brightness level of the second frame number. Wherein, the first brightness level is related to the current brightness level and/or the target brightness level, and the second brightness level is related to the current brightness level and/or the target brightness level. Optionally, the first brightness level may be any brightness level between the current brightness level and the target brightness level and close to the current brightness level, or the first brightness level may be the current brightness level; the second brightness level It can be any brightness level between the current brightness level and the target brightness level and close to the target brightness level, or the second brightness level can be the target brightness level. When the terminal determines that the screen brightness of the terminal needs to be adjusted from the current brightness level to the target brightness level, the terminal can generate the corresponding transition brightness level according to the generation rule of the transition brightness level, that is, according to the preset first brightness level, the second brightness level The brightness level, and the generation rule generates the corresponding transition brightness level.

This embodiment of the present disclosure is described by taking the first brightness level as the current brightness level A and the second brightness level as the target brightness level B as an example. It is assumed that the terminal sets two brightness levels between the current brightness level A and the target brightness level B. The transition brightness levels are respectively the transition brightness level C1 and the transition brightness level C2, and the generation rule for setting the transition brightness level C1 includes that two frames of the current brightness level A and one frame of the target brightness level need to be displayed cyclically when the transition brightness level C1 is displayed. B; The generation rule of the transition brightness level C2 includes that one frame of the current brightness level A and two frames of the target brightness level B need to be displayed cyclically when the transition brightness level C2 is displayed. When the terminal determines that the screen brightness of the terminal needs to be adjusted from the current brightness level to the target brightness level, it can determine that the transition brightness level C1 passes two frames of the current brightness level A and one frame of target brightness according to the generation rules of the two transition brightness levels. Level B is displayed cyclically, that is, the three frames of brightness levels AAB are displayed cyclically. The transition brightness level C2 is displayed cyclically through one frame of current brightness level A and two frames of target brightness level B, that is, three frames of ABB brightness levels are displayed cyclically. At this time, according to the visual residual principle, the screen brightness can be increased or decreased from the current brightness level, the transition brightness level C1, and the transition brightness level C2 to the target brightness level.

Assuming that the terminal sets three transition brightness levels between the current brightness level A and the target brightness level B, which are the transition brightness level C1, the transition brightness level C2, and the transition brightness level C3, and the generation rules for setting the transition brightness level C1 include: When displaying the transition brightness level C1, three frames of the current brightness level A and one frame of the target brightness level B need to be displayed cyclically; the generation rule of the transition brightness level C2 includes that two frames of the current brightness level A need to be displayed cyclically when the transition brightness level C2 is displayed. and two frames of target brightness level B; the generation rule of transition brightness level C3 includes that one frame of current brightness level A and three frames of target brightness level B need to be displayed cyclically when the transition brightness level C3 is displayed. When the terminal determines that the screen brightness of the terminal needs to be adjusted from the current brightness level to the target brightness level, the transition brightness level C1 can be determined according to the generation rule of the three transition brightness levels through three frames of the current brightness level A and one frame of the target brightness level. Level B is displayed cyclically, that is, the four frames of brightness levels of AAAB are displayed cyclically. The transition brightness level C2 is displayed cyclically through two frames of current brightness level A and two frames of target brightness level B, that is, the four frames of brightness levels of AABB are displayed cyclically. Level C3 is displayed cyclically through one frame of current brightness level A and three frames of target brightness level B, that is, four frames of brightness levels of ABBB are displayed cyclically. At this time, the screen brightness can be increased or decreased from the current brightness level, the transition brightness level C1, the transition brightness level C2, and the transition brightness level C3 to the target brightness level B according to the visual residual principle.

In step 102, according to the transition brightness level, the screen brightness is gradually adjusted from the current brightness level until the screen brightness is adjusted to the target brightness level.

For example, after acquiring the display mode of the transition brightness level, the terminal can adjust the screen brightness according to the transition brightness level, that is, after the screen displays the current brightness level, display the transition brightness level according to the screen brightness corresponding to the transition brightness level, After the transition brightness level is displayed, the target brightness level is displayed, and the process of slowly transitioning the screen brightness from the current brightness level to the target brightness level can be completed.

Optionally, taking the setting of two transition brightness levels as an example, it is assumed that the transition brightness level C1 of the two transition brightness levels is displayed cyclically through two frames of the current brightness level A and one frame of the target brightness level B, and the transition brightness level C2 is displayed through a frame of the target brightness level B. The current brightness level A of the frame and the target brightness level B of two frames are displayed cyclically. After displaying the current brightness level A, the terminal can display two frames of the current brightness level A and one frame of the target brightness level B cyclically, that is, the three frames of brightness AAB can be displayed cyclically. level, then display one frame of current brightness level A and two frames of target brightness level B cyclically, that is, the three frames of brightness level ABB are displayed cyclically, and finally the target brightness level B is displayed, which realizes the transition from the current brightness level A to the target brightness level B. of slow excess.

Taking the setting of three transition brightness levels as an example, it is assumed that the transition brightness level C1 of the three transition brightness levels is cyclically displayed through three frames of the current brightness level A and one frame of the target brightness level B, and the transition brightness level C2 is displayed through two frames of the current brightness level. A and two frames of target brightness level B are displayed cyclically. The transition brightness level C3 is displayed cyclically through one frame of current brightness level A and three frames of target brightness level B. After displaying the current brightness level A, the terminal can display three frames of current brightness cyclically. Level A and one frame of target brightness level B, that is, the four frames of AAAB are displayed in a cycle, and then two frames of current brightness A and two frames of target brightness B are displayed in a cycle, that is, the four frames of AABB are displayed in a cycle, and then the cycle is displayed. One frame of current brightness level A and three frames of target brightness level B, that is, four frames of brightness levels of ABBB are displayed cyclically, and finally the target brightness level B is displayed, realizing a slow transition from the current brightness level A to the target brightness level B.

Optionally, when the terminal determines that the screen brightness of the terminal needs to be adjusted from the current brightness level to the target brightness level, it may first determine whether the difference between the screen brightness corresponding to the target brightness level and the screen brightness corresponding to the current brightness level is not. Greater than or equal to the preset brightness threshold, that is, to determine whether brightness jitter occurs when the screen brightness is adjusted from the current brightness level to the target brightness level. If the difference between the screen brightness corresponding to the target brightness level and the screen brightness corresponding to the current brightness level is greater than or equal to the preset brightness threshold, the terminal can obtain the transition brightness level according to the current brightness level and the target brightness level, and according to For the transition brightness level, the screen brightness is gradually adjusted from the current brightness level to the target brightness level; if the difference between the screen brightness corresponding to the target brightness level and the screen brightness corresponding to the current brightness level is less than the preset threshold, that is, the screen brightness Brightness jitter will not occur when adjusting from the current brightness level to the target brightness level. At this time, the terminal can directly adjust the screen brightness from the current brightness level to the target brightness level without displaying a transition brightness level in the middle.

Alternatively, when the terminal determines that the screen brightness of the terminal needs to be adjusted from the current brightness level to the target brightness level, it may first determine whether the target brightness level and the current brightness level are adjacent two brightness levels corresponding to the backlight driving chip. If the target brightness level and the current brightness level are two adjacent brightness levels corresponding to the backlight driving chip, the terminal can obtain a transition brightness level according to the current brightness level and the target brightness level, and according to the transition brightness level, the screen The brightness is adjusted from the current brightness level to the target brightness level; if the target brightness level and the current brightness level are not two adjacent brightness levels corresponding to the backlight driver chip, the terminal can first obtain the target brightness level and the brightness level corresponding to the backlight driver chip. The intermediate brightness level between the current brightness levels, and then the transition brightness level is obtained according to the current brightness level and the intermediate brightness level, and the screen brightness is gradually adjusted from the current brightness level to the intermediate brightness level according to the transition brightness level. The intermediate brightness level and the target brightness level obtain a transition brightness level, and according to the transition brightness level, the screen brightness is gradually adjusted from the intermediate brightness level to the target brightness level.

In the technical solutions provided by the embodiments of the present disclosure, by inserting a transition brightness level between the current brightness level and the target brightness level, the brightness changes during the process of adjusting the brightness of the screen from the current brightness level to the target brightness level are relatively gentle, so that the The effect of uniform brightness transition improves the user experience.

In one embodiment, as shown in FIG. 1b, in step 101, when the screen brightness needs to be adjusted from the current brightness level to the target brightness level, the transition brightness level is obtained according to the current brightness level and the target brightness level, and the transition brightness level can be obtained by Steps 1011 and 1012 implement:

In step 1011, when the screen brightness needs to be adjusted from the current brightness level to the target brightness level, it is determined whether the type of the screen is a preset type.

In step 1012, if the type of the screen is a preset type, the transition brightness level is acquired according to the current brightness level and the target brightness level.

For example, since the brightness jitter that occurs when the screen brightness is adjusted is closely related to the backlight driver chip of the screen, that is, brightness jitter may occur only when the brightness level provided by the backlight driver chip set on the screen is small. When the screen brightness of the terminal is adjusted from the current brightness level to the target brightness level, it is also possible to first determine whether the type of the screen is a preset type. Screens less than or equal to the preset number of levels threshold. If the type of the screen is the preset type, it means that the brightness level provided by the backlight driver chip set on the screen is less than or equal to the preset number of levels threshold, that is to say, only adjusting the screen brightness through the brightness level provided by the backlight driver chip may cause the brightness jitter, then the terminal can obtain the transition brightness level according to the current brightness level and the target brightness level, and gradually adjust the screen brightness from the current brightness level to the target brightness level according to the transition brightness level; if the type of the screen is not The preset type means that the brightness level provided by the backlight driver chip set on the screen is greater than the preset number threshold, which means that adjusting the screen brightness through the brightness level provided by the backlight driver chip is unlikely to cause brightness jitter, and the terminal can The screen brightness is gradually adjusted from the current brightness level to the target brightness level directly through the brightness level provided by the backlight driver chip.

Optionally, if the ambient light does not change, the current brightness level displayed by the terminal matches the current ambient light, and the brightness of the screen does not need to be adjusted. Only when the ambient light changes, so that the current brightness level displayed by the terminal does not match the current ambient light, the terminal needs to adjust the brightness of the screen, that is, the terminal needs to adjust the screen from the current brightness level to the one after the change. The ambient light matches the target brightness level. Specifically, after detecting that the ambient light in the environment where the screen is located, the terminal can determine whether the type of the screen is a preset type, and if the screen is a preset type, obtain a target brightness level that matches the changed ambient light , and then obtain the transition brightness level according to the current brightness level and the target brightness level, and gradually adjust the screen brightness from the current brightness level to the target brightness level according to the transition brightness level. If the screen is of a non-preset type, a target brightness level matching the changed ambient light is obtained, and then the screen brightness can be directly adjusted from the current brightness level to the target brightness level.

In one embodiment, the above transition brightness level may include at least one transition brightness level, and the screen brightness corresponding to different transition brightness levels is different. As shown in FIG. 1c, in step 102, according to the at least one transition brightness level, from the current The brightness level gradually adjusts the screen brightness until the screen brightness is adjusted to the target brightness level, which can be achieved through steps 1021 to 1022:

In step 1021, the duration of each transition brightness level in the at least one transition brightness level is set.

In step 1022, after the display of the current brightness level is completed, the at least one transition brightness level is sequentially displayed according to the duration of each transition brightness level, until the target brightness level is displayed after the display of the last transition brightness level is completed.

For example, if each transition brightness level is displayed for a short time, it may lead to the situation that the screen brightness is adjusted to the target brightness level when the user does not feel the transition brightness level, and the brightness caused by the brightness change cannot be effectively avoided at this time. Therefore, the terminal may also set a duration for each transition brightness level, and the durations of different transition brightness levels may be the same or different, which is not limited in this embodiment of the present disclosure.

Taking the setting of two transition brightness levels as an example, the terminal may set a first duration for the transition brightness level C1 of the two transition brightness levels, and a second duration for the transition brightness level C2. Assuming that the transition brightness level C1 is displayed cyclically through two frames of current brightness level A and one frame of target brightness level B, and the transition brightness level C2 is displayed cyclically through one frame of current brightness level A and two frames of target brightness level B, the terminal is displaying the current brightness level After the brightness level A, two frames of the current brightness level A and one frame of the target brightness level B can be displayed cyclically within the first duration, that is, the three frames of brightness levels AAB can be displayed cyclically within the first duration, and then in the first duration. One frame of the current brightness level A and two frames of the target brightness level B are displayed cyclically within the second duration, that is, the three frames of ABB brightness levels are displayed cyclically within the second duration, and finally the target brightness level B is displayed.

Taking setting three transition brightness levels as an example, the terminal may set a first duration for transition brightness level C1, a second duration for transition brightness level C2, and a third duration for transition brightness level C3 among the three transition brightness levels. Assume that the transition brightness level C1 among the three transition brightness levels is displayed cyclically through three frames of current brightness level A and one frame of target brightness level B, and the transition brightness level C2 is displayed cyclically through two frames of current brightness level A and two frames of target brightness level B , the transition brightness level C3 is displayed cyclically through one frame of current brightness level A and three frames of target brightness level B, then after displaying the current brightness level A, the terminal can display three frames of the current brightness level A and one frame cyclically within the first duration. The frame target brightness level B, that is, the four frames of AAAB brightness levels are displayed cyclically during the first duration, and then two frames of the current brightness level A and the two frames of target brightness level B are displayed cyclically during the second duration, that is, during the second duration. The four frames of brightness levels of AABB are displayed cyclically within a period of time, and then one frame of current brightness level A and three frames of target brightness level B are displayed cyclically within the third duration, that is, the four frames of ABBB are displayed cyclically within the third duration. Finally, when the target brightness level B is displayed, a slow transition from the current brightness level A to the target brightness level B is realized.

It should be noted that the duration of the transition brightness level may be an integer multiple of the number of frames that need to be cycled corresponding to the transition brightness level, that is, the duration of the transition brightness level may be limited by the number of frames.

In the technical solutions provided by the embodiments of the present disclosure, by setting a duration for each transition brightness level, a smooth transition of brightness can be further ensured.

The following are the apparatus embodiments of the present disclosure, which can be used to execute the method embodiments of the present disclosure.

FIG. 2a is a schematic structural diagram of a screen brightness adjustment apparatus 20 according to an exemplary embodiment. The apparatus 20 can be implemented as part or all of an electronic device through software, hardware, or a combination of the two. As shown in FIG. 2 a , the screen brightness adjustment device 20 includes an acquisition module 201 and an adjustment module 202 .

The obtaining module 201 is configured to obtain a transition brightness level according to the current brightness level and the target brightness level when the screen brightness needs to be adjusted from the current brightness level to the target brightness level, and the screen brightness corresponding to the transition brightness level It is located between the screen brightness corresponding to the current brightness level and the screen brightness corresponding to the target brightness level.

The adjustment module 202 is configured to gradually adjust the screen brightness from the current brightness level according to the transition brightness level until the screen brightness is adjusted to the target brightness level.

In one embodiment, as shown in FIG. 2b , the obtaining module 201 includes a determination sub-module 2011 and a first obtaining sub-module 2012 .

The determining sub-module 2011 is configured to determine whether the type of the screen is a preset type when the screen brightness needs to be adjusted from the current brightness level to the target brightness level.

The first obtaining sub-module 2012 is configured to obtain the transition brightness level according to the current brightness level and the target brightness level if the type of the screen is a preset type.

In one embodiment, as shown in FIG. 2c, the determination sub-module 2011 includes a determination unit 2011a, and the determination unit 2011a is configured to determine, after detecting that the ambient light of the environment where the screen is located, changes Whether the type is the preset type.

In one embodiment, as shown in FIG. 2d, the obtaining module 201 includes a second obtaining sub-module 2013, and the second obtaining sub-module 2013 is configured to generate the corresponding transition brightness level according to the generation rule of the transition brightness level, The generation rule includes the first frame number of the first brightness level and the second frame number of the second brightness level that need to be displayed cyclically when the corresponding transition brightness level is displayed, and the first brightness level and the first brightness level of the first frame number. Arrangement order of second brightness levels of the second frame number, wherein the first brightness level is related to the current brightness level and/or the target brightness level, and the second brightness level is related to the current brightness level level and/or the target brightness level.

In one embodiment, the first brightness level is the current brightness level, and the second brightness level is the target brightness level.

In one embodiment, the transition brightness level includes at least one transition brightness level, and different transition brightness levels correspond to different screen brightnesses. As shown in FIG. 2e , the adjustment module 202 includes a setting submodule 2021 and a display submodule 2022 .

The setting sub-module 2021 is configured to set the duration of each transition brightness level in the at least one transition brightness level.

A display sub-module 2022, configured to sequentially display the at least one transition brightness level according to the duration of each transition brightness level after the display of the current brightness level is completed, until the target brightness level is displayed after the display of the last transition brightness level is completed class.

Embodiments of the present disclosure provide a device for adjusting screen brightness, which can insert a transition brightness level between the current brightness level and the target brightness level, so that the brightness of the screen is adjusted from the current brightness level to the target brightness level during the process of adjusting the brightness of the screen. The change is relatively gentle, achieving the effect of uniform brightness transition and improving the user experience.

An embodiment of the present disclosure provides a screen brightness adjustment device, and the screen brightness adjustment device includes:

processor;

memory for storing processor-executable instructions;

where the processor is configured as:

When the screen brightness needs to be adjusted from the current brightness level to the target brightness level, a transition brightness level is obtained according to the current brightness level and the target brightness level, and the screen brightness corresponding to the transition brightness level is located in the screen brightness corresponding to the current brightness level. between the screen brightness and the screen brightness corresponding to the target brightness level;

According to the transition brightness level, the screen brightness is gradually adjusted from the current brightness level until the screen brightness is adjusted to the target brightness level.

In one embodiment, the processor may be further configured to: when the screen brightness needs to be adjusted from the current brightness level to the target brightness level, acquiring the transition brightness level according to the current brightness level and the target brightness level includes: : when the screen brightness needs to be adjusted from the current brightness level to the target brightness level, determine whether the screen type is a preset type; if the screen type is a preset type, according to the current brightness level and the target brightness level The brightness level obtains the transition brightness level.

In one embodiment, the processor may be further configured to: when the screen brightness needs to be adjusted from the current brightness level to the target brightness level, determining whether the type of the screen is a preset type includes: when the screen is detected After the ambient light of the environment changes, it is determined whether the type of the screen is the preset type.

In one embodiment, the processor may be further configured to: the obtaining the transition brightness level according to the current brightness level and the target brightness level includes: generating a corresponding transition brightness level according to a generation rule of the transition brightness level, where the The generation rule includes the first frame number of the first brightness level and the second frame number of the second brightness level that need to be displayed cyclically when the corresponding transition brightness level is displayed, and the first brightness level of the first frame number and all the frame numbers. the arrangement order of the second brightness levels of the second frame number, wherein the first brightness level is related to the current brightness level and/or the target brightness level, and the second brightness level is related to the current brightness level and/or the target brightness level.

In one embodiment, the above-mentioned processor may be further configured such that: the first brightness level is the current brightness level, and the second brightness level is the target brightness level.

In one embodiment, the above-mentioned processor may be further configured to: the transition brightness level includes at least one transition brightness level, the screen brightness corresponding to different transition brightness levels is different, and according to the transition brightness level, from the current brightness level The brightness level gradually adjusting the screen brightness until the screen brightness is adjusted to the target brightness level includes: setting the duration of each transition brightness level in the at least one transition brightness level; after the current brightness level display is completed , displaying the at least one transition brightness level sequentially according to the duration of each transition brightness level, until the target brightness level is displayed after the display of the last transition brightness level is completed.

Embodiments of the present disclosure provide a device for adjusting screen brightness, which can insert a transition brightness level between the current brightness level and the target brightness level, so that the brightness of the screen is adjusted from the current brightness level to the target brightness level during the process of adjusting the brightness of the screen. The change is relatively gentle, achieving the effect of uniform brightness transition and improving the user experience.

Regarding the apparatus in the above-mentioned embodiment, the specific manner in which each module performs operations has been described in detail in the embodiment of the method, and will not be described in detail here.

FIG. 3 is a structural block diagram of an apparatus 30 for adjusting screen brightness according to an exemplary embodiment, and the apparatus 30 is suitable for a terminal device. For example, apparatus 30 may be a mobile phone, computer, digital broadcast terminal, messaging device, game console, tablet device, medical device, fitness device, personal digital assistant, and the like.

Device 30 may include one or more of the following components: processing component 302 , memory 304 , power supply component 306 , multimedia component 308 , audio component 310 , input/output (I/O) interface 312 , sensor component 314 , and communication component 316 .

The processing component 302 generally controls the overall operation of the device 30, such as operations associated with display, telephone calls, data communications, camera operations, and recording operations. The processing component 302 may include one or more processors 320 to execute instructions to perform all or some of the steps of the methods described above. Additionally, processing component 302 may include one or more modules that facilitate interaction between processing component 302 and other components. For example, processing component 302 may include a multimedia module to facilitate interaction between multimedia component 308 and processing component 302 .

Memory 304 is configured to store various types of data to support operation at device 30 . Examples of such data include instructions for any application or method operating on the device 30, contact data, phonebook data, messages, pictures, videos, and the like. Memory 304 may be implemented by any type of volatile or non-volatile storage device or combination thereof, such as static random access memory (SRAM), electrically erasable programmable read only memory (EEPROM), erasable Programmable Read Only Memory (EPROM), Programmable Read Only Memory (PROM), Read Only Memory (ROM), Magnetic Memory, Flash Memory, Magnetic or Optical Disk.

Power supply assembly 306 provides power to various components of device 30 . Power supply components 306 may include a power management system, one or more power supplies, and other components associated with generating, managing, and distributing power to device 30 .

Multimedia component 308 includes screens that provide an output interface between the device 30 and the user. In some embodiments, the screen may include a liquid crystal display (LCD) and a touch panel (TP). If the screen includes a touch panel, the screen may be implemented as a touch screen to receive input signals from a user. The touch panel includes one or more touch sensors to sense touch, swipe, and gestures on the touch panel. The touch sensor may not only sense the boundaries of a touch or swipe action, but also detect the duration and pressure associated with the touch or swipe action. In some embodiments, the multimedia component 308 includes a front-facing camera and/or a rear-facing camera. When the apparatus 30 is in an operation mode, such as a shooting mode or a video mode, the front camera and/or the rear camera may receive external multimedia data. Each of the front and rear cameras can be a fixed optical lens system or have focal length and optical zoom capability.

Audio component 310 is configured to output and/or input audio signals. For example, audio component 310 includes a microphone (MIC) that is configured to receive external audio signals when device 30 is in operating modes, such as calling mode, recording mode, and voice recognition mode. The received audio signal may be further stored in memory 304 or transmitted via communication component 316 . In some embodiments, audio component 310 also includes a speaker for outputting audio signals.

The input/output interface 312 provides an interface between the processing component 302 and a peripheral interface module, which may be a keyboard, a click wheel, a button, or the like. These buttons may include, but are not limited to: home button, volume buttons, start button, and lock button.

Sensor assembly 314 includes one or more sensors for providing status assessments of various aspects of device 30 . For example, the sensor assembly 314 can detect the open/closed state of the device 30, the relative positioning of components, such as the display and keypad of the device 30, and the sensor assembly 314 can also detect a change in the position of the device 30 or a component of the device 30 , the presence or absence of user contact with the device 30 , the orientation or acceleration/deceleration of the device 30 and the temperature change of the device 30 . Sensor assembly 314 may include a proximity sensor configured to detect the presence of nearby objects in the absence of any physical contact. Sensor assembly 314 may also include a light sensor, such as a CMOS or CCD image sensor, for use in imaging applications. In some embodiments, the sensor assembly 314 may also include an acceleration sensor, a gyroscope sensor, a magnetic sensor, a pressure sensor, or a temperature sensor.

Communication component 316 is configured to facilitate wired or wireless communication between apparatus 30 and other devices. Device 30 may access wireless networks based on communication standards, such as WiFi, 2G or 3G, or a combination thereof. In one exemplary embodiment, the communication component 316 receives broadcast signals or broadcast related information from an external broadcast management system via a broadcast channel. In an exemplary embodiment, the communication component 316 also includes a near field communication (NFC) module to facilitate short-range communication. For example, the NFC module may be implemented based on radio frequency identification (RFID) technology, infrared data association (IrDA) technology, ultra-wideband (UWB) technology, Bluetooth (BT) technology and other technologies.

In an exemplary embodiment, apparatus 30 may be implemented by one or more application specific integrated circuits (ASICs), digital signal processors (DSPs), digital signal processing devices (DSPDs), programmable logic devices (PLDs), field programmable A gate array (FPGA), controller, microcontroller, microprocessor or other electronic component implementation for performing the above method.

In an exemplary embodiment, there is also provided a non-transitory computer-readable storage medium including instructions, such as a memory 304 including instructions, executable by the processor 320 of the apparatus 30 to perform the method described above. For example, the non-transitory computer-readable storage medium may be ROM, random access memory (RAM), CD-ROM, magnetic tape, floppy disk, optical data storage device, and the like.

An embodiment of the present disclosure provides a non-transitory computer-readable storage medium, when the instructions in the storage medium are executed by the processor of the apparatus 30, the apparatus 30 can execute the above screen brightness adjustment method, and the method includes:

When the screen brightness needs to be adjusted from the current brightness level to the target brightness level, a transition brightness level is obtained according to the current brightness level and the target brightness level, and the screen brightness corresponding to the transition brightness level is located in the screen brightness corresponding to the current brightness level. between the screen brightness and the screen brightness corresponding to the target brightness level;

According to the transition brightness level, the screen brightness is gradually adjusted from the current brightness level until the screen brightness is adjusted to the target brightness level.

In one embodiment, when the screen brightness needs to be adjusted from the current brightness level to the target brightness level, acquiring the transition brightness level according to the current brightness level and the target brightness level includes: when the screen brightness needs to be adjusted from the current brightness level to the target brightness level When the level is adjusted to the target brightness level, it is determined whether the type of the screen is a preset type; if the type of the screen is a preset type, the transition brightness level is obtained according to the current brightness level and the target brightness level.

In one embodiment, the determining whether the type of the screen is a preset type when the screen brightness needs to be adjusted from the current brightness level to the target brightness level includes: after detecting that the ambient light of the environment where the screen is located changes , and determine whether the type of the screen is the preset type.

In one embodiment, the obtaining the transition brightness level according to the current brightness level and the target brightness level includes: generating a corresponding transition brightness level according to a generation rule of the transition brightness level, where the generation rule includes displaying the corresponding transition brightness level. The first number of frames of the first brightness level and the second number of frames of the second brightness level that need to be displayed cyclically during the brightness level, as well as the first brightness level of the first number of frames and the second brightness of the second number of frames the arrangement order of the levels, wherein the first brightness level is related to the current brightness level and/or the target brightness level, and the second brightness level is related to the current brightness level and/or the target brightness level .

In one embodiment, the first brightness level is the current brightness level, and the second brightness level is the target brightness level.

In one embodiment, the transition brightness level includes at least one transition brightness level, the screen brightness corresponding to different transition brightness levels is different, and the screen brightness is gradually adjusted from the current brightness level until the screen brightness is different according to the transition brightness level. Adjusting the screen brightness to the target brightness level includes: setting the duration of each transition brightness level in the at least one transition brightness level; after the current brightness level is displayed, according to the duration of each transition brightness level The at least one transition brightness level is displayed sequentially in time until the target brightness level is displayed after the display of the last transition brightness level is completed.

Other embodiments of the present disclosure will readily occur to those skilled in the art upon consideration of the specification and practice of the disclosure disclosed herein. This application is intended to cover any variations, uses, or adaptations of the present disclosure that follow the general principles of the present disclosure and include common knowledge or techniques in the technical field not disclosed by the present disclosure . The specification and examples are to be regarded as exemplary only, with the true scope and spirit of the disclosure being indicated by the following claims.

It is to be understood that the present disclosure is not limited to the precise structures described above and illustrated in the accompanying drawings, and that various modifications and changes may be made without departing from the scope thereof. The scope of the present disclosure is limited only by the appended claims.

Claims (14)

1. A screen brightness adjusting method is characterized by comprising the following steps:

when the screen brightness needs to be adjusted from the current brightness level to a target brightness level, obtaining a transition brightness level according to the current brightness level and the target brightness level, wherein the screen brightness corresponding to the transition brightness level is located between the screen brightness corresponding to the current brightness level and the screen brightness corresponding to the target brightness level;

and gradually adjusting the screen brightness from the current brightness level until the screen brightness is adjusted to the target brightness level according to the transition brightness level.

2. The method of claim 1, wherein obtaining the transition brightness level according to the current brightness level and the target brightness level when the screen brightness needs to be adjusted from the current brightness level to the target brightness level comprises:

when the screen brightness needs to be adjusted from the current brightness level to the target brightness level, determining whether the type of the screen is a preset type;

and if the type of the screen is a preset type, acquiring the transition brightness level according to the current brightness level and the target brightness level.

3. The method of claim 2, wherein the determining whether the type of the screen is a preset type when the screen brightness needs to be adjusted from the current brightness level to the target brightness level comprises:

and after detecting that the ambient light of the environment where the screen is located changes, determining whether the type of the screen is the preset type.

4. The method according to any of claims 1 to 3, wherein said obtaining a transition brightness level based on said current brightness level and said target brightness level comprises:

and generating a corresponding transition brightness level according to a generation rule of the transition brightness level, wherein the generation rule comprises a first frame number of a first brightness level and a second frame number of a second brightness level which need to be displayed circularly when the corresponding transition brightness level is displayed, and an arrangement sequence of the first brightness level of the first frame number and the second brightness level of the second frame number, wherein the first brightness level is related to the current brightness level and/or the target brightness level, and the second brightness level is related to the current brightness level and/or the target brightness level.

5. The method of claim 4, wherein the first brightness level is the current brightness level and the second brightness level is the target brightness level.

6. The method of claim 1, wherein the transition brightness level comprises at least one transition brightness level, and the screen brightness corresponding to different transition brightness levels is different, and the gradually adjusting the screen brightness from the current brightness level to the target brightness level according to the transition brightness level comprises:

setting a duration of each of the at least one transition brightness level;

and after the display of the current brightness level is finished, sequentially displaying the at least one transition brightness level according to the duration of each transition brightness level until the target brightness level is displayed after the display of the last transition brightness level is finished.

7. A screen brightness adjustment apparatus, comprising:

the device comprises an acquisition module, a display module and a control module, wherein the acquisition module is used for acquiring a transition brightness level according to a current brightness level and a target brightness level when the screen brightness needs to be adjusted from the current brightness level to the target brightness level, and the screen brightness corresponding to the transition brightness level is positioned between the screen brightness corresponding to the current brightness level and the screen brightness corresponding to the target brightness level;

and the adjusting module is used for gradually adjusting the screen brightness from the current brightness level until the screen brightness is adjusted to the target brightness level according to the transition brightness level.

8. The apparatus of claim 7, wherein the obtaining module comprises:

the determining submodule is used for determining whether the type of the screen is a preset type when the screen brightness needs to be adjusted from the current brightness level to the target brightness level;

and the first obtaining submodule is used for obtaining the transition brightness level according to the current brightness level and the target brightness level if the type of the screen is a preset type.

9. The apparatus of claim 8, wherein the determination submodule comprises:

the determining unit is used for determining whether the type of the screen is the preset type or not after detecting that the ambient light of the environment where the screen is located changes.

10. The apparatus according to any one of claims 7 to 9, wherein the obtaining module comprises:

the second obtaining sub-module is configured to generate a corresponding transition brightness level according to a generation rule of the transition brightness level, where the generation rule includes a first frame number of a first brightness level and a second frame number of a second brightness level that need to be cyclically displayed when the corresponding transition brightness level is displayed, and an arrangement sequence of the first brightness level of the first frame number and the second brightness level of the second frame number, where the first brightness level is related to the current brightness level and/or the target brightness level, and the second brightness level is related to the current brightness level and/or the target brightness level.

11. The apparatus of claim 10, wherein the first brightness level is the current brightness level and the second brightness level is the target brightness level.

12. The apparatus of claim 7, wherein the transition brightness level comprises at least one transition brightness level, and wherein different transition brightness levels correspond to different screen brightness levels, and wherein the adjusting module comprises:

a setting sub-module for setting a duration of each of the at least one transition brightness level;

and the display sub-module is used for sequentially displaying the at least one transition brightness level according to the duration of each transition brightness level after the current brightness level is displayed, and displaying the target brightness level until the last transition brightness level is displayed.

13. A screen brightness adjustment apparatus, comprising:

a processor;

a memory for storing processor-executable instructions;

wherein the processor is configured to:

when the screen brightness needs to be adjusted from the current brightness level to a target brightness level, obtaining a transition brightness level according to the current brightness level and the target brightness level, wherein the screen brightness corresponding to the transition brightness level is located between the screen brightness corresponding to the current brightness level and the screen brightness corresponding to the target brightness level;

and gradually adjusting the screen brightness from the current brightness level until the screen brightness is adjusted to the target brightness level according to the transition brightness level.

14. A computer-readable storage medium having stored thereon computer instructions, which when executed by a processor, perform the steps of the method of any one of claims 1 to 6.

Images
