CN101053527B - Medical operation suction cutter - Google Patents
Medical operation suction cutter Download PDFInfo
- Publication number
- CN101053527B CN101053527B CN2006100503595A CN200610050359A CN101053527B CN 101053527 B CN101053527 B CN 101053527B CN 2006100503595 A CN2006100503595 A CN 2006100503595A CN 200610050359 A CN200610050359 A CN 200610050359A CN 101053527 B CN101053527 B CN 101053527B
- Authority
- CN
- China
- Prior art keywords
- cutter
- feed liquor
- main body
- spring
- motor
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- FAPWRFPIFSIZLT-UHFFFAOYSA-M Sodium chloride Chemical compound [Na+].[Cl-] FAPWRFPIFSIZLT-UHFFFAOYSA-M 0.000 claims abstract description 7
- 239000010865 sewage Substances 0.000 claims abstract description 5
- 230000005540 biological transmission Effects 0.000 claims description 12
- 230000008878 coupling Effects 0.000 claims description 12
- 238000010168 coupling process Methods 0.000 claims description 12
- 238000005859 coupling reaction Methods 0.000 claims description 12
- 210000004907 gland Anatomy 0.000 claims description 9
- 230000009467 reduction Effects 0.000 claims description 8
- 229910001220 stainless steel Inorganic materials 0.000 claims description 6
- 239000010935 stainless steel Substances 0.000 claims description 6
- 238000007789 sealing Methods 0.000 claims description 5
- 238000004140 cleaning Methods 0.000 claims description 3
- 206010011409 Cross infection Diseases 0.000 abstract description 3
- 208000000592 Nasal Polyps Diseases 0.000 abstract description 3
- 206010029803 Nosocomial infection Diseases 0.000 abstract description 3
- 244000052616 bacterial pathogen Species 0.000 abstract description 3
- 238000007599 discharging Methods 0.000 abstract description 2
- 239000003638 chemical reducing agent Substances 0.000 abstract 4
- 230000007797 corrosion Effects 0.000 abstract 1
- 238000005260 corrosion Methods 0.000 abstract 1
- JEIPFZHSYJVQDO-UHFFFAOYSA-N iron(III) oxide Inorganic materials O=[Fe]O[Fe]=O JEIPFZHSYJVQDO-UHFFFAOYSA-N 0.000 abstract 1
- 239000002504 physiological saline solution Substances 0.000 abstract 1
- 230000002062 proliferating effect Effects 0.000 abstract 1
- 238000004659 sterilization and disinfection Methods 0.000 description 6
- 230000001954 sterilising effect Effects 0.000 description 4
- 239000008280 blood Substances 0.000 description 3
- 210000004369 blood Anatomy 0.000 description 3
- 230000004048 modification Effects 0.000 description 2
- 238000012986 modification Methods 0.000 description 2
- 208000016366 nasal cavity polyp Diseases 0.000 description 2
- 230000002411 adverse Effects 0.000 description 1
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000008901 benefit Effects 0.000 description 1
- 230000000740 bleeding effect Effects 0.000 description 1
- 230000000903 blocking effect Effects 0.000 description 1
- 230000007812 deficiency Effects 0.000 description 1
- 230000002950 deficient Effects 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 230000036541 health Effects 0.000 description 1
- 208000015181 infectious disease Diseases 0.000 description 1
- 238000003780 insertion Methods 0.000 description 1
- 230000037431 insertion Effects 0.000 description 1
- 238000009434 installation Methods 0.000 description 1
- 239000007788 liquid Substances 0.000 description 1
- 238000000034 method Methods 0.000 description 1
- 210000003695 paranasal sinus Anatomy 0.000 description 1
- 230000001105 regulatory effect Effects 0.000 description 1
- 230000008439 repair process Effects 0.000 description 1
- 238000002271 resection Methods 0.000 description 1
- 238000002791 soaking Methods 0.000 description 1
- 239000000758 substrate Substances 0.000 description 1
- 238000001356 surgical procedure Methods 0.000 description 1
- 230000007306 turnover Effects 0.000 description 1
Images
Landscapes
- Surgical Instruments (AREA)
Abstract
本发明涉及一种耳鼻喉科用于切除鼻息肉和增殖体的医用手术吸引切割器。现有的医用手术吸引切割器：一，电机和与之连接的减速器直接固定在主体内，为一体式结构，消毒后的电机和减速器易生锈、被腐蚀；二，吸进生理盐水管道和排出污水管道为同一管道，容易引起病菌的交叉感染。本发明包括主体、可插入主体的电机组件和可装配在主体上的刀具组件，其特征是所述电机和减速器装配于电机组件内，减速器与一可伸缩的啮合器套相啮合。本发明电机组件与主体为分体式结构，可拆卸，避免电机和减速器被腐蚀，延长电机和减速器寿命；吸进生理盐水管道和排出污水管道分离，避免病菌交叉感染，保障病人安全。
The invention relates to a medical surgical suction cutter used for removing nasal polyps and proliferative bodies in the department of otolaryngology. Existing suction cutters for medical operations: 1. The motor and the reducer connected to it are directly fixed in the main body, which is an integrated structure. The sterilized motor and reducer are easy to rust and corrode; 2. Inhale normal saline The pipeline and the discharge sewage pipeline are the same pipeline, which is easy to cause cross-infection of germs. The invention includes a main body, a motor assembly that can be inserted into the main body, and a cutter assembly that can be assembled on the main body. The motor assembly and the main body of the present invention have a split structure, which can be disassembled, avoiding corrosion of the motor and reducer, and prolonging the life of the motor and reducer; the pipeline for sucking physiological saline is separated from the pipeline for discharging sewage, so as to avoid cross-infection of germs and ensure patient safety.
Description
Technical field
The present invention relates to a kind of medical apparatus and instruments, be used to excise the medical operation suction cutter of nasal polyp and paraphyte in a kind of specifically nasal sinuses videoendoscopic surgery.
Background technology
The medical apparatus and instruments of special use is a medical operation suction cutter when carrying out the nasal polyp resection operation at present under nasal endoscope.At present the employed medical operation suction cutter of hospital since exist can not autoclave sterilization, apparatus gets rusty easily, normal saline and defectives such as the turnover from same conduit of excision thing, trivial operations, not only cause the cross infection of pathogenic bacteria easily, motor is short service life, doctor's labor intensity increases, operating time prolongs, and wound surface is wayward, main is that patient's bleeding is many, pain is strong, increases the fear to operation, causes affecting adversely the early treatment.
Summary of the invention
At above-mentioned deficiency of the prior art, the invention provides a kind of medical operation suction cutter, both but autoclave sterilization, apparatus were difficult for getting rusty, motor long service life, normal saline pass in and out from different conduits with the excision thing, make again cut coverage be easy to control, simple to operate, get a clear view, go out advantage such as insufficiency of blood.
Above-mentioned technical problem of the present invention is mainly solved by following technical proposals: a kind of medical operation suction cutter comprises main body, is assemblied in toolbox, electric machine assembly that is connected with main body and the connection controller that links to each other with motor on the main body.
Described main body comprises engagement coupling assembly, transmission component, holds knife assembly and feed liquor Control Component.In the engagement coupling assembly engaging-piece cover, engaging-piece spring and engaging-piece bearing (taper) are arranged, partly insert motor in the main body, opening power, motor rotates and drives planetary reduction gear, by planetary reduction gear moment is passed to the engagement coupling and partly drive travelling gear in the transmission component, travelling gear is connected in to connect on the hollow splined shaft and has driven the transmission component part, cutter rotated and starts working in transmission component made, and the engaging-piece telescopic spring is realized the engagement between motor part and the engaging-piece bearing.Be characterized in the installation of described motor and planetary reduction gear in the enclosure, the output of decelerator connects engagement component.Motor and main body are split-type structural, when sickle uses, motor are inserted in the main body; During sterilization, motor is taken out in main body, need not carry out disinfection, avoid motor and decelerator to get rusty, be corroded, ensure patient safety, health, prolong the service life of motor and decelerator, reduced the repair rate of sickle motor and decelerator.
Described medical operation suction cutter, motor housing be provided with a hasp and with the step of snap fit, when motor inserted main body, the engaging-piece spring was compressed, hasp is stuck on the step automatically.When motor takes out in main body, push hasp, hasp breaks away from step, and the elastic force of engaging-piece spring outwards moves motor, can take out, and loads and unloads very convenient, fast.
Described medical operation suction cutter, feed liquor is spigot joint to be provided with on controller towards liquid pump, press feed liquor control handgrip, promote the feed liquor control spring, open the passage of feed liquor on spigot joint, normal saline just from feed liquor spigot joint by interior cutter outer wall and outside space between the cutter inwall enter in the body cavity and clean.After cleaning finished, sewage pipe in the interior cutter excreted through discharge opeing is spigot joint.Be characterized in that input duct separates with Drainage pipe, prevent the courses of infection normal saline in the drain, the Drainage pipe space is bigger than input duct space simultaneously, blocking pipe when preventing that cut substrate from discharging.
Described medical operation suction cutter, when travelling gear was worked in the transmission component, the flexible promotion of automatic adjuster spring sealing ring can be regulated the gap between the cone bearing automatically, plays sealing function, prevents discharge liquor access instruments inside, causes that apparatus gets rusty, corrodes.
Described medical operation suction cutter, hold knife assembly and be made up of lock cutter spring, lock cutter gland and lock cutlery-type stainless steel pearl etc., pin lock cutter gland toward pusher, lock cutter spring is compressed, lock cutlery-type stainless steel pearl glides, and selects suitable cutter to insert and holds in the knife assembly.After treating that cutter inserts, unclamp lock cutter gland, lock cutter spring is replied, and cutter can use.
Adopt technique scheme, the beneficial effect that brings to the present invention is: but autoclave sterilization, soaking disinfection, rotating speed height, be difficult for getting rusty, simple to operate, get a clear view, cut coverage is easy to control, go out characteristics such as insufficiency of blood, for medical industry provides a novel operation sickle.
Description of drawings

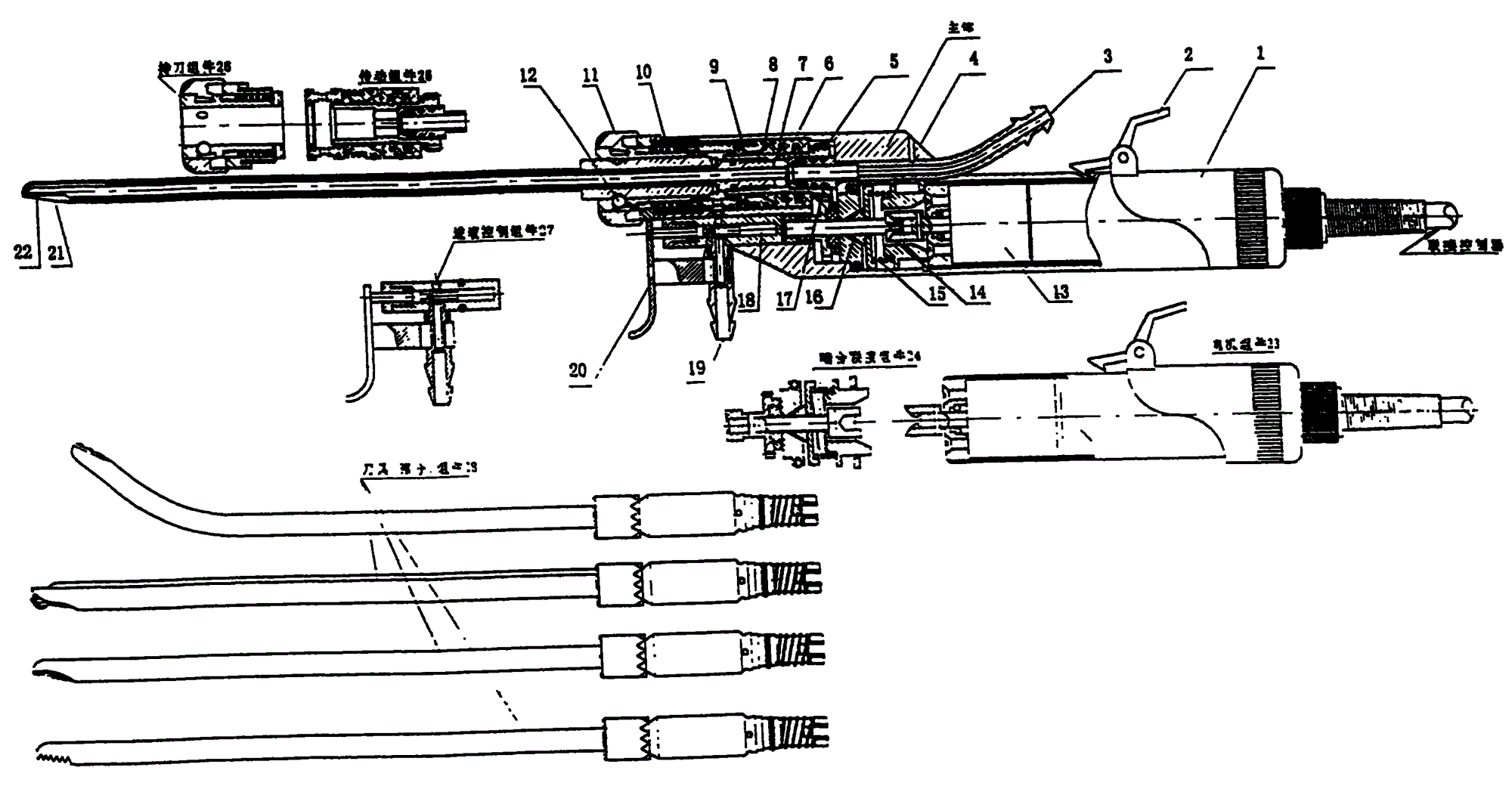

Figure of description is a kind of structural representation of the present invention.
The specific embodiment
Below by embodiment, and, technical scheme of the present invention is described in further detail in conjunction with Figure of description.
Medical operation suction cutter, comprise main body (4), can insert main body electric machine assembly (23), be assemblied in the toolbox (28) on the main body.Electric machine assembly (23) is built-in with motor (1) and the planetary reduction gear (13) that is connected with motor (1).Main body comprise engagement coupling assembly (24), with mesh transmission component (25) that coupling assembly (24) matches, be connected with transmission component (25) hold knife assembly (26) and feed liquor Control Component (27).Pressing hasp (2) will mesh with engagement coupling assembly (24) in electric machine assembly (23) the insertion main body (4).Engagement coupling assembly (24) comprises the engaging-piece cover (14) that is engaged on planetary reduction gear (13) output shaft, the engaging-piece bearing (16) that is connected with engaging-piece cover (14).Travelling gear (5) loose joint in engaging-piece bearing (16) and the transmission component (25), travelling gear (5) leading portion are fixed in and connect on the hollow splined shaft (7), and travelling gear (5) rotates to drive and connects hollow splined shaft, and interior cutter (21) left-right rotation is started working.Automatic adjuster spring (9) freely stretches and makes cone bearing (8) regulate the gap automatically, makes sealing ring (17) sealing simultaneously, prevents to excise the thing pollution and stops up apparatus and pipeline.Hold knife assembly (26) and comprise lock cutter spring (10), lock cutter gland (11) and lock cutlery-type stainless steel pearl (12), press lock cutter gland (11), lock cutter spring (10) is compressed, lock cutlery-type stainless steel pearl (12) glides, selecting suitable toolbox (28) to insert holds in the knife assembly (26), unclamp lock cutter gland (11), the cutter spring (10) that contracts is replied, and cutter can use.Feed liquor Control Component (27) comprises feed liquor control spring (18), feed liquor spigot joint (19) and feed liquor control handgrip (20), press feed liquor control handgrip (20), feed liquor control spring (18) compresses backward, feed liquor spigot joint (19) is open-minded, and normal saline enters space between interior cutter (21) outer wall and outer cutter (22) inwall and enters in the body cavity and wash.After cleaning finished, sewage excreted through discharge opeing interface (3) from the interior pipe of interior cutter (21).End of operation unclamps feed liquor control handgrip (20), and feed liquor control spring (18) is replied, and feed liquor spigot joint (19) is closed.
Medical operation suction cutter of the present invention is difficult for getting rusty, simple to operate, get a clear view, cut coverage is easy to control, goes out insufficiency of blood, has wide use promotion prospect.
At last, should be pointed out that above embodiment only is the more representational example of the present invention.Obviously, the invention is not restricted to the foregoing description, many distortion can also be arranged.Every foundation technical spirit of the present invention all should be thought to belong to protection scope of the present invention to any simple modification, equivalent variations and modification that above embodiment did.
Claims (5)
1. medical operation suction cutter, comprise main body (4), can insert the electric machine assembly (23) of main body (4), be assemblied in the toolbox (28) on the main body (4), electric machine assembly (23) is built-in with motor (1) and the planetary reduction gear (13) that is connected with motor (1), described main body (4) comprises engagement coupling assembly (24), the transmission component (25) that matches with engagement coupling assembly (24), what be connected with transmission component (25) holds knife assembly (26) and feed liquor Control Component (27), electric machine assembly (23) is a split-type structural with main body (4), the step that the shell of electric machine assembly (23) is provided with a hasp (2) and cooperates with hasp (2), when electric machine assembly (23) inserts main body (4), engaging-piece spring (15) in the engagement coupling assembly (24) is compressed, so that hasp (2) is stuck on the step planetary reduction gear (13) and engagement coupling assembly (24) engagement.
2. according to the described medical operation suction cutter of claim 1, it is characterized in that described engagement coupling assembly (24) comprises the engaging-piece cover (14) that is meshed with the output shaft of planetary reduction gear (13), the engaging-piece bearing (16) that is connected with engaging-piece cover (14) and engaging-piece spring (15).
3. according to the described medical operation suction cutter of claim 2, it is characterized in that described transmission component (25) comprises travelling gear (5), the hollow splined shaft of connection (7) that is connected with travelling gear (5), the hollow splined shaft of described connection (7) is provided with sealing ring (17), bearing (6) and cone bearing (8), described transmission component (25) is by travelling gear (5) and engaging-piece bearing (16) loose joint, travelling gear (5) leading portion is fixed in and connects hollow splined shaft (7), travelling gear (5) rotates to drive and connects hollow splined shaft (7), and cutter is rotated.
4. according to the described medical operation suction cutter of claim 1, it is characterized in that described feed liquor Control Component (27) comprises feed liquor control handgrip (20), the feed liquor control spring (18) that is connected with feed liquor control handgrip (20) and with feed liquor control spring (18) feed liquor connected vertically spigot joint (19), press feed liquor control handgrip (20), feed liquor control spring (18) compresses backward, feed liquor spigot joint (19) is open-minded, normal saline from feed liquor spigot joint (19) through interior cutter (21) outer wall and outside space between cutter (22) inwall enter in the body cavity and wash, after cleaning finishes, sewage excretes through discharge opeing spigot joint (3) from the interior pipe of interior cutter (21), unclamp feed liquor control handgrip (20), feed liquor control spring (18) is replied, and feed liquor spigot joint (19) is closed.
5. according to the described medical operation suction cutter of claim 1, it is characterized in that the described knife assembly (26) of holding comprises lock cutter spring (10), lock cutter gland (11) and lock cutlery-type stainless steel pearl (12), press lock cutter gland (11), lock cutter spring (10) is compressed, lock cutlery-type stainless steel pearl (12) glides, and selects suitable toolbox (28) to insert and holds in the knife assembly (26), unclamps lock cutter gland (11), lock cutter spring (10) is replied, and cutter can use.
