USD877496S1 - Shoulder strap for bag and/or carrier - Google Patents

Description

1.1) Front view;

1.2) Back view;

1.3) Top view;

1.4) Bottom view;

1.5) Right side view;

1.6) Left side view;

2.1) Front view;

2.2) Back view;

2.3) Top view;

2.4) Bottom view;

2.5) Right side view;

2.6) Left side view;

2.7) End elevation view cut vertically at the projection portion of the pad;

2.8) End elevation view cut vertically at the recessed portion of the pad of the product;

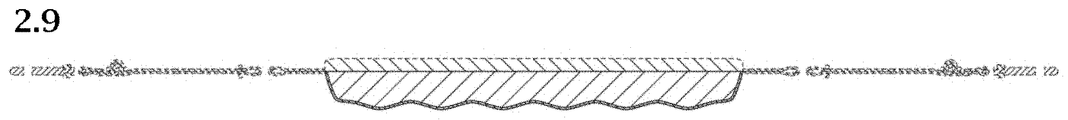

2.9) End elevation view cut vertically at the center in a longitudinal direction of the product;

2.10) End elevation view cut vertically at the right side in a longitudinal direction of the pad of the product;

3.1) Front view;

3.2) Back view;

3.3) Top view;

3.4) Bottom view;

3.5) Right side view;

3.6) Left side view;

3.7) End elevation view cut vertically at the projection portion of the pad of the product;

3.8) End elevation view cut vertically at the recessed portion of the pad of the product;

3.9) End elevation view cut vertically at the center in a longitudinal direction of the product;

3.10) End elevation view cut vertically at the right side in a longitudinal direction of the pad of the product;

4.1) Front view;

4.2) Back view;

4.3) Top view;

4.4) Bottom view;

4.5) Right side view;

4.6) Left side view;

4.7) Perspective view;

4.8) End elevation view cut vertically at the projection portion of the pad of the product;

4.9) End elevation view cut vertically at the recessed portion of the pad of the product;

4.10) End elevation view cut vertically at the center in a longitudinal direction of the product;

4.11) End elevation view cut vertically at the right side in a longitudinal direction of the pad of the product;

4.12) Development view;

4.13) Development view.

The broken lines do not form part of the claimed design.

Claims (1)

CLAIM
1. The ornamental design for a shoulder strap for bag and/or carrier, as shown and described.
