US7786146B2 - Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators - Google Patents

Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators Download PDF

Info

Publication number
US7786146B2
US7786146B2 US12/189,709 US18970908A US7786146B2 US 7786146 B2 US7786146 B2 US 7786146B2 US 18970908 A US18970908 A US 18970908A US 7786146 B2 US7786146 B2 US 7786146B2
Authority
US
United States
Prior art keywords
dimethyl
compound
formula
contemplates
amino
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Expired - Fee Related
Application number
US12/189,709
Other versions
US20090137635A1 (en
Inventor
Jean-Michel Vernier
Huanming Chen
Jianlan Song
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
VALEANT PHARMACEUTICALS INTERNATIONAL
Bausch Health Americas Inc
Original Assignee
Valeant Pharmaceuticals International Inc USA
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Priority to US12/189,709 priority Critical patent/US7786146B2/en
Application filed by Valeant Pharmaceuticals International Inc USA filed Critical Valeant Pharmaceuticals International Inc USA
Priority to RU2010109388/04A priority patent/RU2483060C2/en
Priority to BRPI0815210 priority patent/BRPI0815210A2/en
Priority to ES08827266T priority patent/ES2531335T3/en
Priority to HUE08827266A priority patent/HUE025928T2/en
Priority to CA2696012A priority patent/CA2696012C/en
Priority to JP2010521125A priority patent/JP2010536771A/en
Priority to CN200880103296A priority patent/CN101795727A/en
Priority to PCT/US2008/072926 priority patent/WO2009023677A1/en
Priority to MX2010001712A priority patent/MX2010001712A/en
Priority to EP08827266.1A priority patent/EP2190534B1/en
Priority to KR1020107005508A priority patent/KR20100075436A/en
Priority to PL08827266T priority patent/PL2190534T3/en
Priority to SG2012059937A priority patent/SG183725A1/en
Priority to AU2008286919A priority patent/AU2008286919B2/en
Priority to TW097130826A priority patent/TW200927096A/en
Assigned to VALEANT PHARMACEUTICALS INTERNATIONAL reassignment VALEANT PHARMACEUTICALS INTERNATIONAL ASSIGNMENT OF ASSIGNORS INTEREST (SEE DOCUMENT FOR DETAILS). Assignors: CHEN, HUANMING, SONG, JIANLIN, VERNIER, JEAN-MICHEL
Publication of US20090137635A1 publication Critical patent/US20090137635A1/en
Priority to US12/856,514 priority patent/US8211918B2/en
Publication of US7786146B2 publication Critical patent/US7786146B2/en
Application granted granted Critical
Assigned to GOLDMAN SACHS LENDING PARTNERS LLC, AS COLLATERAL AGENT reassignment GOLDMAN SACHS LENDING PARTNERS LLC, AS COLLATERAL AGENT SECURITY AGREEMENT Assignors: ATON PHARMA, INC., CORIA LABORATORIES, LTD., DOW PHARMACEUTICAL SCIENCES, INC., VALEANT PHARMACEUTICALS INTERNATIONAL, VALEANT PHARMACEUTICALS NORTH AMERICA
Assigned to VALEANT PHARMACEUTICALS INTERNATIONAL, VALEANT PHARMACEUTICALS NORTH AMERICA, ATON PHARMA, INC., DOW PHARMACEUTICAL SCIENCES, INC., CORIA LABORATORIES, LTD. reassignment VALEANT PHARMACEUTICALS INTERNATIONAL PATENT SECURITY RELEASE AGREEMENT Assignors: GOLDMAN SACHS LENDING PARTNERS LLC
Assigned to GOLDMAN SACHS LENDING PARTNERS LLC, AS COLLATERAL AGENT reassignment GOLDMAN SACHS LENDING PARTNERS LLC, AS COLLATERAL AGENT SECURITY AGREEMENT Assignors: ATON PHARMA, INC., A DELAWARE CORPORATION, CORIA LABORATORIES, LTD., A DELAWARE CORPORATION, DOW PHARMACEUTICAL SCIENCES, INC., A DELAWARE CORPORATION, PRESTWICK PHARMACEUTICALS, INC., A DELAWARE CORPORATION, VALEANT BIOMEDICALS, INC., A DELAWARE CORPORATION, VALEANT PHARMACEUTICALS INTERNATIONAL, A DELAWARE CORPORATION, VALEANT PHARMACEUTICALS NORTH AMERICA LLC, A DELAWARE LLC
Assigned to BARCLAYS BANK PLC, AS SUCCESSOR AGENT reassignment BARCLAYS BANK PLC, AS SUCCESSOR AGENT NOTICE OF SUCCESSION OF AGENCY Assignors: GOLDMAN SACHS LENDING PARTNERS, LLC
Assigned to THE BANK OF NEW YORK MELLON reassignment THE BANK OF NEW YORK MELLON SECURITY INTEREST (SEE DOCUMENT FOR DETAILS). Assignors: VALEANT PHARMACEUTICALS INTERNATIONAL
Assigned to BARCLAYS BANK PLC, AS COLLATERAL AGENT reassignment BARCLAYS BANK PLC, AS COLLATERAL AGENT SECURITY INTEREST Assignors: ATON PHARMA, INC., BAUSCH & LOMB INCORPORATED, BAUSCH & LOMB PHARMA HOLDINGS CORP., COMMONWEALTH LABORATORIES, LLC, DOW PHARMACEUTICAL SCIENCES, INC., ECR PHARMACEUTICALS CO., INC., LABORATOIRE CHAUVIN S.A.S., MEDICIS PHARMACEUTICAL CORPORATION, ONPHARMA INC., ORAPHARMA, INC., PRECISION DERMATOLOGY, INC., SALIX PHARMACEUTICALS, INC., SALIX PHARMACEUTICALS, LTD., SANTARUS, INC., SOLTA MEDICAL, INC., SYNERGETICS USA, INC., TECHNOLAS PERFECT VISION GMBH, VALEANT CANADA LP, VALEANT PHARMA POLAND SP. Z O.O., VALEANT PHARMACEUTICALS INTERNATIONAL, VALEANT PHARMACEUTICALS INTERNATIONAL, INC., VALEANT PHARMACEUTICALS IRELAND LIMITED, VALEANT PHARMACEUTICALS LUXEMBOURG S.A R.L., VALEANT PHARMACEUTICALS NORTH AMERICA LLC, WIRRA IP PTY LIMITED
Assigned to THE BANK OF NEW YORK MELLON, AS COLLATERAL AGENT reassignment THE BANK OF NEW YORK MELLON, AS COLLATERAL AGENT SECURITY INTEREST Assignors: ATON PHARMA, INC., BAUSCH & LOMB INCORPORATED, BAUSCH & LOMB PHARMA HOLDINGS CORP., COMMONWEALTH LABORATORIES, LLC, DOW PHARMACEUTICAL SCIENCES, INC., ECR PHARMACEUTICALS CO., INC., LABORATOIRE CHAUVIN S.A.S., MEDICIS PHARMACEUTICAL CORPORATION, ONPHARMA INC., ORAPHARMA, INC., PRECISION DERMATOLOGY, INC., SALIX PHARMACEUTICALS, INC., SALIX PHARMACEUTICALS, LTD., SANTARUS, INC., SOLTA MEDICAL, INC., SYNERGETICS USA, INC., TECHNOLAS PERFECT VISION GMBH, VALEANT CANADA LP, VALEANT PHARMA POLAND SP. Z O.O., VALEANT PHARMACEUTICALS INTERNATIONAL, VALEANT PHARMACEUTICALS INTERNATIONAL, INC., VALEANT PHARMACEUTICALS IRELAND LIMITED, VALEANT PHARMACEUTICALS LUXEMBOURG S.A R.L., VALEANT PHARMACEUTICALS NORTH AMERICA LLC, WIRRA IP PTY LIMITED
Assigned to THE BANK OF NEW YORK MELLON, AS NOTES COLLATERAL AGENT reassignment THE BANK OF NEW YORK MELLON, AS NOTES COLLATERAL AGENT SECURITY INTEREST Assignors: BAUSCH & LOMB INCORPORATED, BAUSCH HEALTH AMERICAS, INC., BAUSCH HEALTH US, LLC, MEDICIS PHARMACEUTICAL CORPORATION, ORAPHARMA, INC., PRECISION DERMATOLOGY, INC., SALIX PHARMACEUTICALS, INC., SALIX PHARMACEUTICALS, LTD., SANTARUS, INC., SOLTA MEDICAL, INC.
Assigned to Salix Pharmaceuticals, Ltd, BAUSCH HEALTH COMPANIES INC., MEDICIS PHARMACEUTICAL CORPORATION, SOLTA MEDICAL DUTCH HOLDINGS B.V., 1530065 B.C. LTD., HUMAX PHARMACEUTICAL S.A., SANTARUS, INC., ICN POLFA RZESZOW SPOLKA AKCYJNA (A/K/A ICN POLFA RZESZOW S.A.), SOLTA MEDICAL, INC., BAUSCH HEALTH HOLDCO LIMITED, BAUSCH HEALTH AMERICAS, INC., BAUSCH HEALTH MAGYARORSZAG KFT (A/K/A BAUSCH HEALTH HUNGARY LLC), SALIX PHARMACEUTICALS, INC., SOLTA MEDICAL IRELAND LIMITED, V-BAC HOLDING CORP., 1261229 B.C. LTD., BAUSCH HEALTH US, LLC, VRX HOLDCO LLC, ORAPHARMA, INC., BAUSCH HEALTH, CANADA INC. / SANTE BAUSCH, CANADA INC., BAUSCH HEALTH IRELAND LIMITED (F/K/A/ VALEANT PHARMACEUTICALS IRELAND LIMITED), PRZEDSIEBIORSTWO FARMACEUTYCZNE JELFA SPOLKA AKCYJNA (A/K/A PRZEDSIEBIORSTWO FARMACEUTYCZNE JELFA S.A.), PRECISION DERMATOLOGY, INC., BAUSCH & LOMB MEXICO, S.A. DE C.V., BAUSCH+LOMB OPS B.V., BAUSCH HEALTH POLAND SPOLKA Z OGRANICZONA ODPOWIEDZIALNOSCIA (F/K/A VALEANT PHARMA POLAND SPOLKA Z OGRANICZONA ODPOWIEDZIALNOSCIA) reassignment Salix Pharmaceuticals, Ltd RELEASE OF SECURITY INTEREST Assignors: BARCLAYS BANK PLC, AS COLLATERAL AGENT
Assigned to VALEANT PHARMACEUTICALS NORTH AMERICA LLC, VALEANT PHARMACEUTICALS INTERNATIONAL, ORAPHARMA, INC., SANTARUS, INC., PRECISION DERMATOLOGY, INC., SYNERGETICS USA, INC., SALIX PHARMACEUTICALS, INC., VALEANT PHARMACEUTICALS IRELAND LIMITED, VALEANT PHARMACEUTICALS INTERNATIONAL, INC., WIRRA IP PTY LIMITED, VALEANT PHARMA POLAND SP. Z O.O., LABORATOIRE CHAUVIN S.A.S., TECHNOLAS PERFECT VISION GMBH, VALEANT PHARMACEUTICALS LUXEMBOURG S.A R.L., MEDICIS PHARMACEUTICAL CORPORATION, DOW PHARMACEUTICAL SCIENCES, INC., BAUSCH & LOMB INCORPORATED, ECR PHARMACEUTICALS CO., INC., VALEANT CANADA LP, ATON PHARMA, INC., SALIX PHARMACEUTICALS, LTD., BAUSCH & LOMB PHARMA HOLDINGS CORP., COMMONWEALTH LABORATORIES, LLC, ONPHARMA INC., SOLTA MEDICAL, INC. reassignment VALEANT PHARMACEUTICALS NORTH AMERICA LLC RELEASE OF SECURITY INTEREST Assignors: THE BANK OF NEW YORK MELLON, AS NOTES COLLATERAL AGENT
Assigned to ORAPHARMA, INC., BAUSCH HEALTH AMERICAS, INC., SANTARUS, INC., SALIX PHARMACEUTICALS, LTD., SOLTA MEDICAL, INC., BAUSCH & LOMB INCORPORATED, BAUSCH HEALTH US, LLC, PRECISION DERMATOLOGY, INC., SALIX PHARMACEUTICALS, INC., MEDICIS PHARMACEUTICAL CORPORATION reassignment ORAPHARMA, INC. RELEASE OF SECURITY INTEREST Assignors: THE BANK OF NEW YORK MELLON, AS NOTES COLLATERAL AGENT
Expired - Fee Related legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Classifications

    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D209/00—Heterocyclic compounds containing five-membered rings, condensed with other rings, with one nitrogen atom as the only ring hetero atom
    • C07D209/02—Heterocyclic compounds containing five-membered rings, condensed with other rings, with one nitrogen atom as the only ring hetero atom condensed with one carbocyclic ring
    • C07D209/04—Indoles; Hydrogenated indoles
    • C07D209/08—Indoles; Hydrogenated indoles with only hydrogen atoms or radicals containing only hydrogen and carbon atoms, directly attached to carbon atoms of the hetero ring
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61P—SPECIFIC THERAPEUTIC ACTIVITY OF CHEMICAL COMPOUNDS OR MEDICINAL PREPARATIONS
    • A61P25/00—Drugs for disorders of the nervous system
    • A61P25/08—Antiepileptics; Anticonvulsants
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61P—SPECIFIC THERAPEUTIC ACTIVITY OF CHEMICAL COMPOUNDS OR MEDICINAL PREPARATIONS
    • A61P43/00—Drugs for specific purposes, not provided for in groups A61P1/00-A61P41/00
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D401/00—Heterocyclic compounds containing two or more hetero rings, having nitrogen atoms as the only ring hetero atoms, at least one ring being a six-membered ring with only one nitrogen atom
    • C07D401/02—Heterocyclic compounds containing two or more hetero rings, having nitrogen atoms as the only ring hetero atoms, at least one ring being a six-membered ring with only one nitrogen atom containing two hetero rings
    • C07D401/06—Heterocyclic compounds containing two or more hetero rings, having nitrogen atoms as the only ring hetero atoms, at least one ring being a six-membered ring with only one nitrogen atom containing two hetero rings linked by a carbon chain containing only aliphatic carbon atoms

Definitions

  • This invention concerns novel compounds that modulate potassium channels.
  • the compounds are useful for the treatment and prevention of diseases and disorders which are affected by activities of potassium ion channels.
  • One such condition is seizure disorders.
  • Epilepsy is a well-known neurological disease, found in about 3% of the population. Approximately 30% of patients with epilepsy do not respond to currently available therapies. Retigabine (N-[2-amino-4-(4-fluorobenzylamino) phenyl]carbamic acid, ethyl ester] (U.S. Pat. No. 5,384,330) has been found to be an effective treatment of a broad range of models of seizure disorders, and it appears to have an unusual mechanism of action. Bialer, M. et al., Epilepsy Research 1999, 34, 1-41; Wuttke, T. V., et al., Mol. Pharmacol. 2005, 67, 1009-1017.
  • Retigabine has also been found to be useful in treating pain, including neuropathic pain. Blackburn-Munro and Jensen, Eur. J. Pharmacol. 2003, 460, 109-116; Wickenden, A. D. et al., Expert Opin. Ther. Patents, 2004, 14(4).
  • Retigabine has been shown to increase the conductance of the channels at the resting membrane potential, with a possible mechanism involving binding of the activation gate of the KCNQ 2/3 channel. Wuttke, T. V., et al., Mol. Pharmacol. 2005, op. cit. With increased sophistication of research in this area, retigabine has also been shown to increase neuronal M currents and to increase the channel open probability of KCNQ 2/3 channels. Delmas, P. and Brown, D. A. Nat. Revs Neurosci., vol. 6, 2005, 850-62; Tatulian, L. and Brown, D. A., J. Physiol., (2003) 549, 57-63.
  • the most therapy-resistant type of seizure is the so-called “complex partial seizure.”
  • Retigabine has been found to be particularly potent in models for drug-refractory epilepsy.
  • Retigabine is also active in several other seizure models. Because of retigabine's broad spectrum of activity and unusual molecular mechanism, there is hope that retigabine will be effective in management of several seizure types, including the complex partial seizure, and in treatment of hitherto untreatable forms of epilepsy.
  • this invention provides a compound of formula I
  • R 1 is phenyl, naphthyl, pyridyl, pyrimidyl, pyrrolyl, imidazolyl, pyrazyl, furyl, thienyl, oxazolyl, isoxazolyl, thiazolyl, or isothiazolyl, optionally substituted with one or two substituents selected independently from halogen, C 1 -C 6 alkyl, mono-halo C 1 -C 6 alkyl, di-halo C 1 -C 6 alkyl, CF 3 , CN, S—C 1 -C 6 alkyl, or O—C 1 -C 6 alkyl;
  • R 2 is H, methyl, or halogen;
  • R 3 and R 4 are, independently, CF 3 , OCF 3 , OC 1 -C 3 alkyl, halo or C 1 -C 3 alkyl, where the C 1 -C 3 alkyl groups are
  • this invention provides a composition
  • a pharmaceutically acceptable carrier and one or more of the following: a pharmaceutically effective amount of a compound of formula I; a pharmaceutically effective amount of a pharmaceutically acceptable salt thereof; a pharmaceutically effective amount of a pharmaceutically acceptable ester thereof.
  • this invention provides a method of preventing or treating a disease or disorder which is affected by modulation of voltage-gated potassium channels, comprising administering to a patient in need thereof a therapeutically effective amount of a compound of formula I or a salt or ester thereof.
  • this invention provides or contemplates a composition
  • a composition comprising a pharmaceutically acceptable carrier and at least one of the following: i) a pharmaceutically effective amount of a compound of formula I; ii) a pharmaceutically acceptable salt thereof; iii) a pharmaceutically acceptable ester thereof; iv) a pharmaceutically acceptable solvate thereof.
  • this invention provides or contemplates a method of treating or preventing a disease or disorder which is affected by enhancement of neural M currents comprising administering to a patient in need thereof one or more of the following: i) a pharmaceutically effective amount of a compound of formula I; ii) a pharmaceutically acceptable salt thereof; iii) a pharmaceutically acceptable ester thereof; iv) and a pharmaceutically acceptable solvate thereof.
  • this invention provides a method of preventing or treating a disease or disorder which is affected by activation of voltage-gated potassium channels, comprising administering to a patient in need thereof one or more of the following: a pharmaceutically effective amount of a compound of formula I; ii) a pharmaceutically acceptable salt thereof; iii) a pharmaceutically acceptable ester thereof; and iv) a pharmaceutically acceptable solvate thereof.
  • this invention provides or contemplates a method of treating or preventing a seizure disorder in a human comprising administering to a patient afflicted or potentially afflicted with such disorder one or more of the following: a pharmaceutically effective amount of a compound of formula I; ii) a pharmaceutically acceptable salt thereof; iii) a pharmaceutically acceptable ester thereof; iv) and a pharmaceutically acceptable solvate thereof.
  • this invention provides or contemplates a pharmaceutical formulation for oral administration comprising a therapeutically effective amount of a compound of formula I and either an appropriate tabletting agent or an appropriate syrup for pediatric use.
  • this invention provides or contemplates a tablet for oral administration comprising a therapeutically effective amount of a compound of formula I and an appropriate tabletting agent.
  • this invention provides or contemplates a syrup for pediatric use comprising a solution or dispersion or suspension of a compound of formula I and an appropriate syrup.
  • this invention contemplates a pharmaceutical formulation for administration to animals, including companion animals (dogs and cats), and livestock comprising a therapeutically effective amount of a compound of formula I and a veterinary acceptable carrier.
  • this invention contemplates a method of preventing or treating a disease or disorder which is affected by activation of voltage-gated potassium channels comprising administering to an animal in need thereof one or more of the following: i) a pharmaceutically effective amount of a compound of formula I; ii) a pharmaceutically acceptable salt thereof; iii) a pharmaceutically acceptable ester thereof; iv) and a pharmaceutically acceptable solvate thereof.
  • this invention contemplates a method of treating a seizure disorder in an animal comprising administering to an animal afflicted or potentially afflicted with such a disorder one or more of the following: i) a pharmaceutically effective amount of a compound of formula I; ii) a pharmaceutically acceptable salt thereof; iii) a pharmaceutically acceptable ester thereof; iv) and a pharmaceutically acceptable solvate thereof.
  • This invention includes all tautomers, salts, and stereoisomeric forms of compounds of formula I. This invention also includes all compounds of this invention where one or more atoms are replaced by a radioactive isotope thereof.
  • This invention provides or contemplates compounds of formula I above where NH—C( ⁇ X)—(Y) q —R 5 is each of the following: NHC( ⁇ O)R 5 , NHC( ⁇ O)OR 5 , NHC( ⁇ S)R 5 , NHC( ⁇ S)SR 5 , NHC( ⁇ S)OR 5 , and NHC( ⁇ O)SR 5 .
  • this invention provides or contemplates a compound of formula I, where NH—C( ⁇ X)—(Y) q —R 5 is NHC( ⁇ O)R 5 .
  • this invention provides or contemplates a compound of formula I, where NH—C( ⁇ X)—(Y) q —R 5 is NHC( ⁇ S)R 5 .
  • this invention provides or contemplates a compound of formula I, where NH—C( ⁇ X)—(Y) q —R 5 is NHC( ⁇ S)SR 5 .
  • this invention provides or contemplates a compound of formula I, where NH—C( ⁇ X)—(Y) q —R 5 is each NHC( ⁇ O)OR 5 .
  • this invention provides or contemplates a compound of formula I, where NH—C( ⁇ X)—(Y) q —R 5 is NHC( ⁇ S)OR 5 .
  • this invention provides or contemplates a compound of formula I, where NH—C( ⁇ X)—(Y) q —R 5 is NHC( ⁇ O)SR 5 .
  • this invention provides or contemplates a compound of formula I, where R 5 is C 1 -C 6 alkyl, (CHR 6 ) w C 3 -C 6 cycloalkyl, (CHR 6 ) w CH 2 C 3 -C 6 cycloalkyl, or CH 2 (CHR 6 ) w C 3 -C 6 cycloalkyl.
  • this invention provides or contemplates a compound of formula I, where R 5 is C 5 -C 6 alkyl, (CH 2 ) w C 5 -C 6 cycloalkyl, or (CHR 6 ) w CH 2 C 5 -C 6 cycloalkyl.
  • this invention provides or contemplates a compound of formula I, where R 5 is C 5 -C 6 alkyl, optionally substituted with one or two OH groups.
  • this invention provides or contemplates a compound of formula IA below.
  • this invention provides or contemplates a compound of formula IB below.
  • this invention provides or contemplates a compound of formula IC below.
  • this invention provides or contemplates a compound of formula ID below.
  • this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R 3 and R 4 are, independently, methyl, chloro, or methoxy.
  • this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R 3 and R 4 are both methyl.
  • this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R 1 is phenyl, substituted with halogen, cyano, CF 3 , or methoxy, R 2 is H or methyl, and R 5 is C 5 -C 6 alkyl or CH 2 —C 3 -C 6 cycloalkyl.
  • this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R 1 is substituted phenyl or unsubstituted phenyl.
  • this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R 1 is phenyl, substituted with halogen.
  • this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R 1 is fluorophenyl, or difluorophenyl.
  • this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R 1 is phenyl, substituted with trifluoromethyl.
  • this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R 1 is halophenyl, and R 5 is C 5 -C 6 alkyl or CH 2 —C 5 -C 6 cycloalkyl.
  • this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R 1 is halophenyl and R 5 is CH 2 —C 4 -alkyl or CH 2 —C 5 — alkyl.
  • this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R 1 is halo pyridyl.
  • this invention provides or contemplates a compound of formula IA or IC, where R 1 is dihalophenyl or dihalopyridyl; R 2 is H; and R 3 and R 4 are C 1 , CF 3 , or CH 3 .
  • this invention provides or contemplates a compound of formula IB or ID, where R 1 is dihalophenyl or dihalopyridyl; R 2 is H; and R 3 and R 4 are C 1 , CF 3 , or CH 3 .
  • this invention provides or contemplates a compound of formula IB or ID, where R 1 is halophenyl or halopyridyl; R 2 is H; and R 3 and R 4 are C 1 , CF 3 , or CH 3 .
  • this invention provides or contemplates a compound of formula IA or IC, where R 1 is 3,5-dichlorophenyl or 3,5-difluorophenyl.
  • this invention provides or contemplates a compound of formula IB or ID, where R 1 is 3,5-dichlorophenyl or 3,5-difluorophenyl.
  • this invention provides or contemplates a compound of formula I, in which R 5 is C 1 -C 6 alkyl, where the C 1 -C 6 alkyl group is substituted with one or two groups selected, independently, from OH, OMe, OEt, F, CF 3 , Cl, or CN.
  • this invention provides or contemplates a compound of formula I, in which X is S, q is zero, R 1 is substituted phenyl, R 2 is H, and R 5 is C 1 -C 6 alkyl.
  • this invention provides or contemplates a compound of formula I, in which X is S, q is zero, R 1 is substituted phenyl, R 2 is H, and R 5 is C 1 -C 6 alkyl.
  • this invention provides or contemplates a compound of formula I, in which X is S, q is 1, Y is O, R 1 is substituted phenyl, R 2 is H, and R 5 is C 1 -C 6 alkyl.
  • this invention provides or contemplates a compound of formula I, in which X is S, q is 1, Y is S, R 1 is substituted phenyl, R 2 is H, and R 5 is C 1 -C 6 alkyl.
  • alkyl substitution at both the 2- and 6-positions of the central benzene ring confers desirable properties, including both increased potency and increased stability in vivo.
  • 2,6-dimethyl substitution is a critical feature of one embodiment of this invention.
  • substitution with alkoxide groups at both the 2- and 6-positions of the central benzene ring also confers a number of desirable properties, including both increased potency and increased stability in vivo.
  • substitution is a critical feature of another embodiment of this invention.
  • substitution at the 2- and 6-positions of the central benzene ring with substituents chosen from halogen, trifluoromethyl, and methoxy also confers a number of desirable properties, including both increased potency and increased stability in vivo.
  • substitution is a critical feature of yet another embodiment of this invention.
  • the most active compounds display a 40- to 400-fold improvement over retigabine, with the most promising compounds displaying EC 50 s in the single-digit nanomolar range. Activities of several compounds of this invention are shown in Table 1 below. The activity of retigabine is shown for comparative purposes.
  • potassium channel modulator refers to a compound capable of causing an increase in potassium channel currents. It also refers to a compound capable of increasing the KCNQ2/3 channel open probability.
  • the inventors have employed the rubidium ion efflux test described below.
  • compounds of formula I are designed for oral or intravenous dosing of up to approximately 2000 mg per day.
  • this invention contemplates solutions and suspensions of compounds of formula I formulated for intravenous administration.
  • solutions and suspensions comprising a syrup such as sorbitol or propylene glycol, among many other examples, in addition to compounds of formula I, suitable for oral pediatric administration, are also contemplated.
  • both chewable and non-chewable tablets comprising compounds of formula I, along with pharmaceutically acceptable tabletting agents and other pharmaceutically acceptable carriers and excipients, are also contemplated.
  • the term “pharmaceutically acceptable carrier” comprises such excipients, binders, lubricants, tabletting agents and disintegrants as are typically used in the art of formulation of pharmaceuticals.
  • examples of such agents include—but are not limited to—microcrystalline cellulose, lactose, starch, and dicalcium phosphate, and Providone.
  • this invention does not contemplate compositions in which active ingredients with primary amine groups are combined with lactose.
  • disintegrants such as sodium starch glycolate, lubricants such as stearic acid and SiO 2 , and solubility enhancers such as cyclodextrins, among many other examples for each group, are contemplated.
  • disintegrants such as sodium starch glycolate, lubricants such as stearic acid and SiO 2 , and solubility enhancers such as cyclodextrins, among many other examples for each group.
  • solubility enhancers such as cyclodextrins
  • the invention also contemplates pharmaceutical formulations for administration to animals, comprising a therapeutically effective amount of a compound of formula I and a veterinary acceptable carrier. Any animal that is susceptible to seizure disorders is included within the scope of this invention.
  • Method A A mixture of 4,6-dimethyl-1H-indole-2-carboxylic acid (3.61 g, 19.09 mmol, 1 equiv), copper powder (850 mg, 13.36 mmol, 0.7 equiv), and freshly distilled quinoline (50 mL) were brought at reflux for 2 h. The mixture was then cooled and filtered on Celite. The filtrate was poured on ice, and the solution was brought to pH 4 with concentrated HCl and extracted with ethyl acetate (3 ⁇ 100 ml). The combined extracts were washed with 2 N HCl (3 ⁇ 100 mL), saturated NaHCO 3 , and brine. The organic solution was dried over MgSO 4 and concentrated.
  • 4,6-Dimethylindole (1.08 g) was dissolved in acetic acid (20 ml), and sodium cyanoborohydride (2.3 g) was added portionwise at 15° C. The mixture was stirred at said temperature for one hour and poured into ice water. Saturated aqueous sodium bicarbonate was added to neutralize the mixture and the mixture was extracted with ethyl acetate. The extract was washed with saturated brine and dried over sodium sulfate. The solvent was evaporated under reduced pressure. The residue was dissolved in benzene, and acetic anhydride (840 mg) was added, which was followed by stirring at room temperature for one hour.
  • PC-12 cells were grown at 37° C. and 5% CO 2 in DMEM/F12 Medium supplemented with 10% horse serum, 5% fetal bovine serum, 2 mM glutamine, 100 U/ml penicillin, 100 U/ml streptomycin. They were plated in poly-D-lysine-coated 96-well cell culture microplates at a density of 40,000 cells/well and differentiated with 100 ng/ml NGF-7s for 2-5 days.
  • the medium was aspirated and the cells were washed once with 0.2 ml in wash buffer (25 mM HEPES, pH 7.4, 150 mM NaCl, 1 mM MgCl 2 , 0.8 mM NaH 2 PO 4 , 2 mM CaCl 2 ).
  • the cells were then loaded with 0.2 ml Rb + loading buffer (wash buffer plus 5.4 mM RbCl 2 , 5 mM glucose) and incubated at 37° C. for 2 h. Attached cells were quickly washed three times with buffer (same as Rb + loading buffer, but containing 5.4 mM KCl instead of RbCl) to remove extracellular Rb + .
  • 0.2 ml of depolarization buffer (wash buffer plus 15 mM KCl) with or without compounds was added to the cells to activate efflux of potassium ion channels. After incubation for 10 min at room temperature, the supernatant was carefully removed and collected. Cells were lysed by the addition of 0.2 ml of lysis buffer (depolarization buffer plus 0.1% Triton X-100) and the cell lysates were also collected. If collected samples were not immediately analyzed for Rb + contents by atomic absorption spectroscopy (see below), they were stored at 4° C. without any negative effects on subsequent Rb + analysis.
  • the concentration of Rb + in the supernatants (Rb + Sup ) and cell lysates (Rb + Lys ) was quantified using an ICR8000 flame atomic absorption spectrometer (Aurora Biomed Inc., Vancouver, B.C.) under conditions defined by the manufacturer.
  • ICR8000 flame atomic absorption spectrometer Aurora Biomed Inc., Vancouver, B.C.
  • One 0.05 ml samples were processed automatically from microtiter plates by dilution with an equal volume of Rb + sample analysis buffer and injection into an air-acetylene flame.
  • the amount of Rb + in the sample was measured by absorption at 780 nm using a hollow cathode lamp as light source and a PMT detector.
  • a calibration curve covering the range 0-5 mg/L Rb + in sample analysis buffer was generated with each set of plates.
  • the effect (E) and compound concentration relationship was plotted to calculate an EC 50 value, a compound's concentration for 50% of maximal Rb + efflux. The results are shown below.

Landscapes

  • Chemical & Material Sciences (AREA)
  • Organic Chemistry (AREA)
  • Health & Medical Sciences (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • General Health & Medical Sciences (AREA)
  • General Chemical & Material Sciences (AREA)
  • Medicinal Chemistry (AREA)
  • Nuclear Medicine, Radiotherapy & Molecular Imaging (AREA)
  • Bioinformatics & Cheminformatics (AREA)
  • Pharmacology & Pharmacy (AREA)
  • Engineering & Computer Science (AREA)
  • Animal Behavior & Ethology (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Public Health (AREA)
  • Veterinary Medicine (AREA)
  • Pain & Pain Management (AREA)
  • Biomedical Technology (AREA)
  • Neurology (AREA)
  • Neurosurgery (AREA)
  • Pharmaceuticals Containing Other Organic And Inorganic Compounds (AREA)
  • Plural Heterocyclic Compounds (AREA)
  • Indole Compounds (AREA)

Abstract

This invention provides compounds of formula I
Figure US07786146-20100831-C00001
where the dashed line represents an optional double bond;
where R1 is phenyl, naphthyl, pyridyl, pyrimidyl, pyrrolyl, imidazolyl, pyrazyl, furyl, thienyl, oxazolyl, isoxazolyl, thiazolyl, or isothiazolyl, optionally substituted, and other substituents are defined herein. Such compounds are potassium channel modulators.

Description

CROSS-REFERENCE TO RELATED APPLICATION
This application claims priority under 35 U.S.C. §119(e) to U.S. Provisional Application No. 60/964,526, filed Aug. 13, 2007, which is incorporated by reference herein in its entirety.
FIELD OF THE INVENTION
This invention concerns novel compounds that modulate potassium channels. The compounds are useful for the treatment and prevention of diseases and disorders which are affected by activities of potassium ion channels. One such condition is seizure disorders.
BACKGROUND OF THE INVENTION
Epilepsy is a well-known neurological disease, found in about 3% of the population. Approximately 30% of patients with epilepsy do not respond to currently available therapies. Retigabine (N-[2-amino-4-(4-fluorobenzylamino) phenyl]carbamic acid, ethyl ester] (U.S. Pat. No. 5,384,330) has been found to be an effective treatment of a broad range of models of seizure disorders, and it appears to have an unusual mechanism of action. Bialer, M. et al., Epilepsy Research 1999, 34, 1-41; Wuttke, T. V., et al., Mol. Pharmacol. 2005, 67, 1009-1017. Retigabine has also been found to be useful in treating pain, including neuropathic pain. Blackburn-Munro and Jensen, Eur. J. Pharmacol. 2003, 460, 109-116; Wickenden, A. D. et al., Expert Opin. Ther. Patents, 2004, 14(4).
“Benign familial neonatal convulsions,” an inherited form of epilepsy, has been associated with mutations in the KCNQ2/3 channels. Biervert, C. et al., Science 1998, 27, 403-06; Singh, N. A., et al., Nat. Genet. 1998, 18, 25-29; Charlier, C. et al., Nat. Genet. 1998, 18, 53-55; Rogawski, Trends in Neurosciences 2000, 23, 393-398. Subsequent investigations have established that one important site of action of retigabine is the KCNQ2/3 channel. Wickenden, A. D. et al., Mol. Pharmacol. 2000, 58, 591-600; Main, M. J. et al., Mol. Pharmacol. 2000, 58, 253-62. Retigabine has been shown to increase the conductance of the channels at the resting membrane potential, with a possible mechanism involving binding of the activation gate of the KCNQ 2/3 channel. Wuttke, T. V., et al., Mol. Pharmacol. 2005, op. cit. With increased sophistication of research in this area, retigabine has also been shown to increase neuronal M currents and to increase the channel open probability of KCNQ 2/3 channels. Delmas, P. and Brown, D. A. Nat. Revs Neurosci., vol. 6, 2005, 850-62; Tatulian, L. and Brown, D. A., J. Physiol., (2003) 549, 57-63.
The most therapy-resistant type of seizure is the so-called “complex partial seizure.” Retigabine has been found to be particularly potent in models for drug-refractory epilepsy. Retigabine is also active in several other seizure models. Because of retigabine's broad spectrum of activity and unusual molecular mechanism, there is hope that retigabine will be effective in management of several seizure types, including the complex partial seizure, and in treatment of hitherto untreatable forms of epilepsy. Porter, Roger J., Nohria, Virinder, and Rundfeldt, Chris, Neurotherapeutics, 2007, vol. 4, 149-154.
The recognition of retigabine as a potassium channel modulator has inspired a search for other—and, hopefully, better—potassium channel modulators among compounds with structural features similar to those of retigabine.
BRIEF DESCRIPTION OF THE INVENTION
In one embodiment, this invention provides a compound of formula I
Figure US07786146-20100831-C00002
where the dashed line represents an optional double bond; where R1 is phenyl, naphthyl, pyridyl, pyrimidyl, pyrrolyl, imidazolyl, pyrazyl, furyl, thienyl, oxazolyl, isoxazolyl, thiazolyl, or isothiazolyl, optionally substituted with one or two substituents selected independently from halogen, C1-C6 alkyl, mono-halo C1-C6 alkyl, di-halo C1-C6 alkyl, CF3, CN, S—C1-C6 alkyl, or O—C1-C6 alkyl; R2 is H, methyl, or halogen; R3 and R4 are, independently, CF3, OCF3, OC1-C3 alkyl, halo or C1-C3 alkyl, where the C1-C3 alkyl groups are optionally substituted with one or more halogen atoms; X═O or S; Y is O or S; q=1 or 0; R5 is C1-C6 alkyl where the C1-C6 alkyl alkyl group is optionally substituted with one or two groups selected, independently, from OH, OMe, OEt, F, CF3, Cl, or CN; (CHR6)wC3-C6 cycloalkyl, (CHR6)wCH2C3-C6 cycloalkyl, CH2(CHR6)wC3-C6 cycloalkyl, CR6═CH—C3-C6 cycloalkyl, CH═CR6—C3-C6 cycloalkyl, (CHR6)wC5-C6 cycloalkenyl, CH2(CHR6)wC5-C6 cycloalkenyl, C2-C6 alkenyl, C2-C6 alkynyl, Ar1, (CHR6)wAr1, CH2(CHR6)wAr1, or (CHR6)wCH2Ar1, where w=0-3, Ar1 is phenyl, pyridyl, pyrrolyl, thienyl, or furyl, and R6 is hydrogen, methyl, halogen, or methoxy; where all cyclic groups are optionally substituted with one or two substituents selected independently from C1-C3 alkyl, halogen, OH, OMe, SMe, CN, CH2F, and trifluoromethyl; or a pharmaceutically acceptable salt thereof. Such compounds are potassium channel modulators.
In another embodiment, this invention provides a composition comprising a pharmaceutically acceptable carrier and one or more of the following: a pharmaceutically effective amount of a compound of formula I; a pharmaceutically effective amount of a pharmaceutically acceptable salt thereof; a pharmaceutically effective amount of a pharmaceutically acceptable ester thereof.
In yet another embodiment, this invention provides a method of preventing or treating a disease or disorder which is affected by modulation of voltage-gated potassium channels, comprising administering to a patient in need thereof a therapeutically effective amount of a compound of formula I or a salt or ester thereof.
In another embodiment, this invention provides or contemplates a composition comprising a pharmaceutically acceptable carrier and at least one of the following: i) a pharmaceutically effective amount of a compound of formula I; ii) a pharmaceutically acceptable salt thereof; iii) a pharmaceutically acceptable ester thereof; iv) a pharmaceutically acceptable solvate thereof.
In another embodiment, this invention provides or contemplates a method of treating or preventing a disease or disorder which is affected by enhancement of neural M currents comprising administering to a patient in need thereof one or more of the following: i) a pharmaceutically effective amount of a compound of formula I; ii) a pharmaceutically acceptable salt thereof; iii) a pharmaceutically acceptable ester thereof; iv) and a pharmaceutically acceptable solvate thereof.
In yet another embodiment, this invention provides a method of preventing or treating a disease or disorder which is affected by activation of voltage-gated potassium channels, comprising administering to a patient in need thereof one or more of the following: a pharmaceutically effective amount of a compound of formula I; ii) a pharmaceutically acceptable salt thereof; iii) a pharmaceutically acceptable ester thereof; and iv) a pharmaceutically acceptable solvate thereof.
In yet another embodiment, this invention provides or contemplates a method of treating or preventing a seizure disorder in a human comprising administering to a patient afflicted or potentially afflicted with such disorder one or more of the following: a pharmaceutically effective amount of a compound of formula I; ii) a pharmaceutically acceptable salt thereof; iii) a pharmaceutically acceptable ester thereof; iv) and a pharmaceutically acceptable solvate thereof.
In another embodiment, this invention provides or contemplates a pharmaceutical formulation for oral administration comprising a therapeutically effective amount of a compound of formula I and either an appropriate tabletting agent or an appropriate syrup for pediatric use.
In another embodiment, this invention provides or contemplates a tablet for oral administration comprising a therapeutically effective amount of a compound of formula I and an appropriate tabletting agent.
In another appropriate embodiment, this invention provides or contemplates a syrup for pediatric use comprising a solution or dispersion or suspension of a compound of formula I and an appropriate syrup.
In another embodiment, this invention contemplates a pharmaceutical formulation for administration to animals, including companion animals (dogs and cats), and livestock comprising a therapeutically effective amount of a compound of formula I and a veterinary acceptable carrier.
In another embodiment, this invention contemplates a method of preventing or treating a disease or disorder which is affected by activation of voltage-gated potassium channels comprising administering to an animal in need thereof one or more of the following: i) a pharmaceutically effective amount of a compound of formula I; ii) a pharmaceutically acceptable salt thereof; iii) a pharmaceutically acceptable ester thereof; iv) and a pharmaceutically acceptable solvate thereof.
In another embodiment, this invention contemplates a method of treating a seizure disorder in an animal comprising administering to an animal afflicted or potentially afflicted with such a disorder one or more of the following: i) a pharmaceutically effective amount of a compound of formula I; ii) a pharmaceutically acceptable salt thereof; iii) a pharmaceutically acceptable ester thereof; iv) and a pharmaceutically acceptable solvate thereof.
This invention includes all tautomers, salts, and stereoisomeric forms of compounds of formula I. This invention also includes all compounds of this invention where one or more atoms are replaced by a radioactive isotope thereof.
This invention provides or contemplates compounds of formula I above where NH—C(═X)—(Y)q—R5 is each of the following: NHC(═O)R5, NHC(═O)OR5, NHC(═S)R5, NHC(═S)SR5, NHC(═S)OR5, and NHC(═O)SR5.
Thus, in one embodiment, this invention provides or contemplates a compound of formula I, where NH—C(═X)—(Y)q—R5 is NHC(═O)R5.
In another embodiment, this invention provides or contemplates a compound of formula I, where NH—C(═X)—(Y)q—R5 is NHC(═S)R5.
In another embodiment, this invention provides or contemplates a compound of formula I, where NH—C(═X)—(Y)q—R5 is NHC(═S)SR5.
In another embodiment, this invention provides or contemplates a compound of formula I, where NH—C(═X)—(Y)q—R5 is each NHC(═O)OR5.
In another embodiment, this invention provides or contemplates a compound of formula I, where NH—C(═X)—(Y)q—R5 is NHC(═S)OR5.
In another embodiment, this invention provides or contemplates a compound of formula I, where NH—C(═X)—(Y)q—R5 is NHC(═O)SR5.
In a more specific embodiment, this invention provides or contemplates a compound of formula I, where R5 is C1-C6 alkyl, (CHR6)wC3-C6 cycloalkyl, (CHR6)wCH2C3-C6 cycloalkyl, or CH2(CHR6)wC3-C6 cycloalkyl.
In a still more specific embodiment, this invention provides or contemplates a compound of formula I, where R5 is C5-C6 alkyl, (CH2)wC5-C6 cycloalkyl, or (CHR6)wCH2C5-C6 cycloalkyl.
In another more specific embodiment, this invention provides or contemplates a compound of formula I, where R5 is C5-C6 alkyl, optionally substituted with one or two OH groups.
In another subgeneric embodiment, this invention provides or contemplates a compound of formula IA below.
Figure US07786146-20100831-C00003
In another subgeneric embodiment, this invention provides or contemplates a compound of formula IB below.
Figure US07786146-20100831-C00004
In another subgeneric embodiment, this invention provides or contemplates a compound of formula IC below.
Figure US07786146-20100831-C00005
In another subgeneric embodiment, this invention provides or contemplates a compound of formula ID below.
Figure US07786146-20100831-C00006
In another subgeneric embodiment, this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R3 and R4 are, independently, methyl, chloro, or methoxy.
In another, more specific subgeneric embodiment, this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R3 and R4 are both methyl.
In another more specific subgeneric embodiment, this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R1 is phenyl, substituted with halogen, cyano, CF3, or methoxy, R2 is H or methyl, and R5 is C5-C6 alkyl or CH2—C3-C6 cycloalkyl.
In another more specific subgeneric embodiment, this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R1 is substituted phenyl or unsubstituted phenyl.
In another more specific subgeneric embodiment, this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R1 is phenyl, substituted with halogen.
In a still more specific subgeneric embodiment, this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R1 is fluorophenyl, or difluorophenyl.
In another more specific subgeneric embodiment, this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R1 is phenyl, substituted with trifluoromethyl.
In another more specific subgeneric embodiment, this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R1 is halophenyl, and R5 is C5-C6 alkyl or CH2—C5-C6 cycloalkyl.
In another more specific subgeneric embodiment, this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R1 is halophenyl and R5 is CH2—C4-alkyl or CH2—C5— alkyl.
In another more specific embodiment, this invention provides or contemplates a compound of formula IA, IB, IC, or ID, where R1 is halo pyridyl.
In another more specific embodiment, this invention provides or contemplates a compound of formula IA or IC, where R1 is dihalophenyl or dihalopyridyl; R2 is H; and R3 and R4 are C1, CF3, or CH3.
In another more specific embodiment, this invention provides or contemplates a compound of formula IB or ID, where R1 is dihalophenyl or dihalopyridyl; R2 is H; and R3 and R4 are C1, CF3, or CH3.
In another more specific embodiment, this invention provides or contemplates a compound of formula IB or ID, where R1 is halophenyl or halopyridyl; R2 is H; and R3 and R4 are C1, CF3, or CH3.
In another more specific embodiment, this invention provides or contemplates a compound of formula IA or IC, where R1 is 3,5-dichlorophenyl or 3,5-difluorophenyl.
In another more specific embodiment, this invention provides or contemplates a compound of formula IB or ID, where R1 is 3,5-dichlorophenyl or 3,5-difluorophenyl.
In another embodiment, this invention provides or contemplates a compound of formula I, in which R5 is C1-C6 alkyl, where the C1-C6 alkyl group is substituted with one or two groups selected, independently, from OH, OMe, OEt, F, CF3, Cl, or CN.
In another embodiment, this invention provides or contemplates a compound of formula I, in which X is S, q is zero, R1 is substituted phenyl, R2 is H, and R5 is C1-C6 alkyl.
In another embodiment, this invention provides or contemplates a compound of formula I, in which X is S, q is zero, R1 is substituted phenyl, R2 is H, and R5 is C1-C6 alkyl.
In yet another embodiment, this invention provides or contemplates a compound of formula I, in which X is S, q is 1, Y is O, R1 is substituted phenyl, R2 is H, and R5 is C1-C6 alkyl.
In yet another embodiment, this invention provides or contemplates a compound of formula I, in which X is S, q is 1, Y is S, R1 is substituted phenyl, R2 is H, and R5 is C1-C6 alkyl.
DETAILED DESCRIPTION OF THE INVENTION
In designing compounds with therapeutic properties superior to those of retigabine, shown below,
Figure US07786146-20100831-C00007
and in optimizing the desirable therapeutic properties of this compound, the present inventors have discovered that compounds of formula I have surprising and exceptional activity toward potassium channels, as evidenced by potent activity, as measured in the rubidium (Rb+) efflux assay described below.
The inventors have further discovered that substitution at both the 2- and 6-positions of the central benzene ring confers a number of desirable properties, including both increased potency and increased stability in vivo. Thus, 2,6-di-substitution is a critical feature of some embodiments of this invention.
The inventors have further discovered that, in particular, alkyl substitution at both the 2- and 6-positions of the central benzene ring confers desirable properties, including both increased potency and increased stability in vivo. Thus, 2,6-dimethyl substitution is a critical feature of one embodiment of this invention.
Moreover, the inventors have also discovered that substitution with alkoxide groups at both the 2- and 6-positions of the central benzene ring also confers a number of desirable properties, including both increased potency and increased stability in vivo. Thus, such substitution is a critical feature of another embodiment of this invention.
Moreover, the inventors have also discovered that substitution at the 2- and 6-positions of the central benzene ring with substituents chosen from halogen, trifluoromethyl, and methoxy also confers a number of desirable properties, including both increased potency and increased stability in vivo. Thus, such substitution is a critical feature of yet another embodiment of this invention.
Among the embodiments of this invention, the most active compounds display a 40- to 400-fold improvement over retigabine, with the most promising compounds displaying EC50s in the single-digit nanomolar range. Activities of several compounds of this invention are shown in Table 1 below. The activity of retigabine is shown for comparative purposes.
As used herein the term “potassium channel modulator” refers to a compound capable of causing an increase in potassium channel currents. It also refers to a compound capable of increasing the KCNQ2/3 channel open probability. For preliminary testing of compounds for potassium channel modulating ability, the inventors have employed the rubidium ion efflux test described below.
As contemplated by this invention, compounds of formula I are designed for oral or intravenous dosing of up to approximately 2000 mg per day. Thus, this invention contemplates solutions and suspensions of compounds of formula I formulated for intravenous administration. Similarly, solutions and suspensions comprising a syrup such as sorbitol or propylene glycol, among many other examples, in addition to compounds of formula I, suitable for oral pediatric administration, are also contemplated. Additionally, both chewable and non-chewable tablets comprising compounds of formula I, along with pharmaceutically acceptable tabletting agents and other pharmaceutically acceptable carriers and excipients, are also contemplated.
As used herein, the term “pharmaceutically acceptable carrier” comprises such excipients, binders, lubricants, tabletting agents and disintegrants as are typically used in the art of formulation of pharmaceuticals. Examples of such agents include—but are not limited to—microcrystalline cellulose, lactose, starch, and dicalcium phosphate, and Providone. However, in view of the incompatibility of primary amines with lactose, this invention does not contemplate compositions in which active ingredients with primary amine groups are combined with lactose. Additionally, disintegrants such as sodium starch glycolate, lubricants such as stearic acid and SiO2, and solubility enhancers such as cyclodextrins, among many other examples for each group, are contemplated. Such materials and the methods of using them are well known in the pharmaceutical art. Additional examples are provided in Kibbe, Handbook of Pharmaceutical Excipients, London, Pharmaceutical Press, 2000.
The invention also contemplates pharmaceutical formulations for administration to animals, comprising a therapeutically effective amount of a compound of formula I and a veterinary acceptable carrier. Any animal that is susceptible to seizure disorders is included within the scope of this invention.
Synthetic Procedures
Section I. Preparation of compounds of formula XIV is outlined in Scheme 1.
Figure US07786146-20100831-C00008
Figure US07786146-20100831-C00009
Section II. Preparation of compounds of formula IX is outlined in Scheme 2.
Figure US07786146-20100831-C00010
Section III. Preparation of compounds of formula XIX is outlined in Scheme 3.
Figure US07786146-20100831-C00011
Section IV. Preparation of compounds of formula XX is outlined in Scheme 4.
Figure US07786146-20100831-C00012
Section V. Preparation of compounds of formula XXI is outlined in Scheme 5.
Figure US07786146-20100831-C00013
Section VI. Preparation of compounds of formula XXII is outlined in Scheme 6.
Figure US07786146-20100831-C00014
Section VII. Preparation of compounds of formula XXIII is outlined in Scheme 7.
Figure US07786146-20100831-C00015

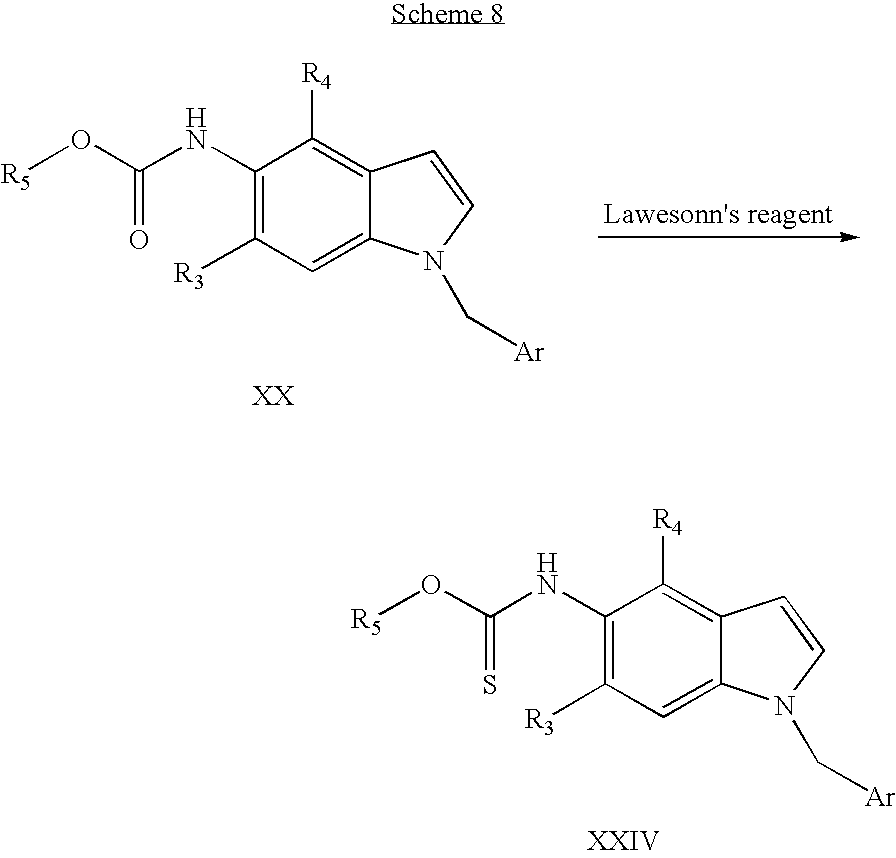

Section VIII. Preparation of compounds of formula XXIV is outlined in Scheme 8.
Figure US07786146-20100831-C00016
Section IX. Preparation of compounds of formula XXVI is outlined in Scheme 9.
Figure US07786146-20100831-C00017
Section X. Preparation of compounds of formula XXVII is outlined in Scheme 10.
Figure US07786146-20100831-C00018
4,6-Dimethyl-1H-indole-2-carboxylic acid ethyl ester (2)
In a flask fitted with a Dean-Stark trap, p-toluenesulfonic acid monohydrate (132 g, 0.69 mol) in 500 ml of benzene was heated at reflux for 2 hours. A solution of 3,5-dimethylphenylhydrazine hydrochloride (34.5 g, 0.2 mol), ethyl pyruvate (23.2 g, 0.2 mol), and p-toluenesulfonic acid monohydrate (0.85 g, 0.005 mol) in 500 ml of benzene, which had been refluxed for 2 hours with water removed through a Dean-Stark apparatus was then added. The resulting mixture was heated at reflux and stirred overnight. After cooling, the solution was treated with saturated sodium bicarbonate solution and diluted with methylene chloride. The organic portion was washed twice with saturated sodium bicarbonate solution, dried over anhydrous sodium sulfate, and concentrated under reduced pressure. The residue was purified by ISCO (hexane/EtOAc, 0-30%, 40 min) to give yellow solids, which was recrystallized from hexane/ethyl acetate (10%) to give colorless needles (35.6 g, 82%). 1H NMR (DMSO-d6, 400 MHz): δ 11.68 (brs, 1H, exchangeable with D2O, NH), 7.12 (s, 1H), 7.05 (s, 1H), 6.71 (s, 1H), 4.33 (q, J=6.8 Hz, 2H), 2.44 (s, 3H), 2.35 (s, 3H), 1.34 (t, J=6.8 Hz, 3H).
4,6-Dimethyl-1H-indole-2-carboxylic acid (3)
A mixture of 4,6-dimethyl-1H-indole-2-carboxylic acid ethyl ester (22 g, 0.1 mol) and lithium hydroxide (4.8 g, 0.2 mol) in 400 ml of ethanol was heated at reflux overnight. The solvent was removed under reduced pressure and the residue was dissolved in water and neutralized with 10% HCl to pH<3. The resulting precipitates were filtered and washed with water and dried in vacuo at 40° C. to give white solids (18 g, 95%). 1H NMR (DMSO-d6, 400 MHz): δ 12.73 (brs, 1H, exchangeable with D2O, NH), 11.55 (brs, 1H, exchangeable with D2O, NH), 7.06 (s, 1H), 7.03 (s, 1H), 6.69 (s, 1H), 2.44 (s, 3H), 2.35 (s, 3H).
4,6-Dimethyl-1H-indole (4)
Method A: A mixture of 4,6-dimethyl-1H-indole-2-carboxylic acid (3.61 g, 19.09 mmol, 1 equiv), copper powder (850 mg, 13.36 mmol, 0.7 equiv), and freshly distilled quinoline (50 mL) were brought at reflux for 2 h. The mixture was then cooled and filtered on Celite. The filtrate was poured on ice, and the solution was brought to pH 4 with concentrated HCl and extracted with ethyl acetate (3×100 ml). The combined extracts were washed with 2 N HCl (3×100 mL), saturated NaHCO3, and brine. The organic solution was dried over MgSO4 and concentrated. The residue was flash chromatographed on silica gel using hexane-AcOEt (85-15) to give a white solid (2.6 g, 94%). 1H NMR (DMSO-d6, 400 MHz): δ 10.8 (brs, 1H, exchangeable with D2O, NH), 7.19 (t, J=2 Hz, 1H), 6.99 (s, 1H), 6.62 (s, 1H), 6.36 (t, J=2 Hz, 1H), 2.41 (s, 3H), 2.34 (s, 3H).
Method 2: This indole also was prepared heating 26 g (0.14 mol) of 4,6-dimethyl-1H-indole-2-carboxylic acid to 230° C. for 3 hours. After cooling, the reactant was distilled under reduced pressure (2.9-4.4 mmHg) at 130-135° C. to give a pure product as colorless oil (15.6 g, 77%).
4,6-Dimethylindoline (5) and 1-Acetyl-4,6-dimethylindoline (6) are prepared by the following procedure.
4,6-Dimethylindole (1.08 g) was dissolved in acetic acid (20 ml), and sodium cyanoborohydride (2.3 g) was added portionwise at 15° C. The mixture was stirred at said temperature for one hour and poured into ice water. Saturated aqueous sodium bicarbonate was added to neutralize the mixture and the mixture was extracted with ethyl acetate. The extract was washed with saturated brine and dried over sodium sulfate. The solvent was evaporated under reduced pressure. The residue was dissolved in benzene, and acetic anhydride (840 mg) was added, which was followed by stirring at room temperature for one hour. The reaction mixture was washed with saturated aqueous sodium bicarbonate and saturated brine, and dried over sodium sulfate. The solvent was evaporated under reduced pressure. The residue was chromatographed (ISCO, hexane/EtOAc, 0-40%, 40 min) to give 1.3 g of 1-acetyl-4,6-dimethylindoline.
1H-NMR (CDCl3) δ: 2.18 (6H, s), 2.30 (3H, s), 3.00 (2H, t, J=8.3 Hz), 4.03 (2H, t, J=8.3 Hz), 6.66 (1H, s), 7.89 (1H, s).
1-Acetyl-4,6-dimethyl-5-nitroindoline (7) was prepared as follows.
1-Acetyl-4,6-dimethylindoline (2.6 g) was dissolved in acetic anhydride (35 ml), and nitric acid (d=1.5, 0.92 ml) dissolved in acetic anhydride (15 ml) was added dropwise at 0° C. The mixture was stirred at room temperature for one hour and poured into ice water. Saturated aqueous sodium bicarbonate was added to neutralize the mixture, and the mixture was extracted with chloroform. The extract was washed with saturated brine and dried over sodium sulfate. The solvent was evaporated under reduced pressure. The residue was chromatographed (ISCO, hexane/EtOAc, 0-40%, 40 min) to give 2.4 g of white solids. 1H NMR (DMSO-d6, 400 MHz): δ 6.95 (s, 1H), 4.19 (t, J=8.0 Hz, 2H), 3.04 (t, J=8.0 Hz, 2H), 2.26 (s, 3H), 2.23 (s, 3H), 2.18 (s, 3H).
4,6-Dimethyl-5-nitroindoline (8) was prepared by the following procedure.
1-Acetyl-4,6-dimethyl-5-nitroindoline (2.4 g) was dissolved in methanol (25 ml). Hydrochloric acid 6N (20 ml) was added, followed by reflux for 15 hours. After the completion of the reaction, the solvent was evaporated under reduced pressure. The residue was dissolved in chloroform, and the mixture was washed with saturated aqueous sodium bicarbonate and saturated brine, and dried over sodium sulfate. The solvent was evaporated under reduced pressure. The residue was chromatographed (ISCO, hexane/EtOAc, 0-40%, 40 min) to give 1.8 g of 4,6-dimethyl-5-nitroindoline as yellow solids. 1H NMR (DMSO-d6, 400 MHz): δ 6.36 (brs, 1H, exchangeable with D2O, NH), 6.20 (s, 1H), 3.54 (t, J=8.0 Hz, 2H), 2.91 (t, J=8.0 Hz, 2H), 2.17 (s, 3H), 2.10 (s, 3H).
4,6-Dimethyl-5-nitro-1-(4-trifluoromethyl-benzyl)-indoline (9): R═CF3
4,6-dimethyl-5-nitroindoline (0.33 g, 1.7 mmol) was dissolved in dimethylformamide (10 ml), and sodium hydride (ca. 60% in oil suspension, 136 mg) was added at 0° C. The mixture was stirred at 0° C. for 0.5 hour and 4-trifluoromethylbenzyl bromide (0.48 g, 2 mmol)) was added to the reaction mixture, which was followed by stirring at room temperature overnight. Water was added to the reaction mixture, and the mixture was extracted with ethyl acetate. The extract was washed with saturated brine and dried over sodium sulfate. The solvent was evaporated under reduced pressure. The residue was chromatographed (ISCO, hexane/EtOAc, 0-40%, 40 min) to give yellow solids (0.55 g, 92%). 1H NMR (DMSO-d6, 400 MHz): δ 7.73 (d, J=8.0 Hz, 2H), 7.52 (d, J=8.0 Hz, 2H), 6.41 (s, 1H), 4.52 (s, 2H), 3.50 (t, J=8.0 Hz, 2H), 2.95 (t, J=8.0 Hz, 2H), 2.20 (s, 3H), 2.11 (s, 3H).
The following compounds were prepared by the above procedure:
  • 4,6-Dimethyl-5-nitro-1-(4-fluorobenzyl)-indoline
  • 4,6-Dimethyl-5-nitro-1-(3-chlorobenzyl)-indoline
  • 4,6-Dimethyl-5-nitro-1-(4-bromobenzyl)-indoline
  • 4,6-Dimethyl-5-nitro-1-(3,4-difluorobenzyl)-indoline
  • 4,6-Dimethyl-5-nitro-1-(naphthalen-2-ylmethyl)-indoline
  • 4,6-Dimethyl-5-nitro-1-(pyridin-4-ylmethyl)-indoline
  • 4,6-Dimethyl-5-nitro-1-(pyridin-3-ylmethyl)-indoline
4,6-Dimethyl-5-nitro-1-(4-(trifluoromethyl)benzyl)-1H-indole (12): R═CF3
A solution of 4,6-dimethyl-5-nitro-1-(4-trifluoromethyl-benzyl)-indoline (350 mg, 1 mmol) and DDQ (454 mg, 2 mmol) in 30 ml of anhydrous dioxane was stirred a 50° C. for 2 days. After cooling, the solvent was removed under reduced pressure and the residue was purified by silica gel column chromatography (ISCO, hexane/EtOAc, 0-40%, 40 min) to give yellow crystals (300 mg, 86%).
The following compounds were prepared by the above procedure.
  • 4,6-Dimethyl-5-nitro-1-(4-fluorobenzyl)-1H-indole
  • 4,6-Dimethyl-5-nitro-1-(4-chlorobenzyl)-1H-indole
  • 4,6-Dimethyl-5-nitro-1-(4-bromobenzyl)-1H-indole
  • 4,6-Dimethyl-5-nitro-1-(3,4-difluorobenzyl)-1H-indole
  • 4,6-Dimethyl-5-nitro-1-(3,5-difluorobenzyl)-1H-indole
1-(4-Trifluoromethyl-benzyl)-4,6-dimethyl-5-aminoindoline (10): R═CF3
1-(4-Trifluoromethyl-benzyl)-4,6-dimethyl-5-nitroindoline (1.0 g) was dissolved in methanol (40 ml) and catalytic amount of Raney Ni was added to allow hydrogenation at room temperature under regular pressure. After the completion of the reaction, catalyst was filtered off, and the filtrate was evaporated under reduced pressure to give the white solid product, which is pure enough for next step without further purification.
The following compounds were prepared by the above procedure:
  • 1-(4-Fluorobenzyl)-4,6-dimethyl-5-amino indo line
  • 1-(3-Chlorobenzyl)-4,6-dimethyl-5-amino indo line
  • 1-(4-Bromobenzyl)-4,6-dimethyl-5-amino indo line
  • 1-(3,4-Difluorobenzyl)-4,6-dimethyl-5-aminoindoline
  • 1-(Naphthalen-2-ylmethyl)-4,6-dimethyl-5-amino indo line
  • 1-(Pyridin-4-ylmethyl)-4,6-dimethyl-5-amino indo line
  • 1-(Pyridin-3-ylmethyl)-4,6-dimethyl-5-amino indo line
  • 4,6-Dimethyl-5-amino-1-(4-(trifluoromethyl)benzyl)-1H-indole
  • 4,6-Dimethyl-5-amino-1-(4-fluorobenzyl)-1H-indole
  • 4,6-Dimethyl-5-amino-1-(4-chlorobenzyl)-1H-indole
  • 4,6-Dimethyl-5-amino-1-(4-bromobenzyl)-1H-indole
  • 4,6-Dimethyl-5-amino-1-(3,4-difluorobenzyl)-1H-indole
  • 4,6-Dimethyl-5-amino-1-(3,5-difluorobenzyl)-1H-indole
N-[1-(4-Trifluoromethyl-benzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide (11): R═CF3
Figure US07786146-20100831-C00019
To a solution of 5-amino-4,6-dimethyl-1-(4-trifluoromethylbenzyl)indoline (0.26 g, 0.82 mmol) from above and triethylamine (125 mg, 1.24 mmol) in anhydrous methylene chloride (20 ml) was added dropwise tert-butyl acetyl chloride (135 mg, 1 mmol) at 0° C. The reaction mixture was stirred at room temperature for 18 hours. Water was added to the reaction mixture, and the mixture was washed with saturated brine and dried over sodium sulfate. The solvent was evaporated under reduced pressure. The residue was purified by silica gel column chromatography (ISCO, hexane/EtOAc, 0-40%, 40 min) and recrystallized from hexane/EtOAc (5:1) to give 290 mg (85%) of the white solids. 1H NMR (DMSO-d6, 400 MHz): δ 8.80 (brs, 1H, exchangeable with D2O, NH), 7.72 (d, J=8.0 Hz, 2H), 7.56 (d, J=8.0 Hz, 2H), 6.29 (s, 1H), 4.34 (s, 2H), 3.28 (t, J=8.0 Hz, 2H), 2.82 (t, J=8.0 Hz, 2H), 2.17 (s, 2H), 2.03 (s, 3H), 1.96 (s, 3H), 1.07 (s, 9H). MS: 419 (M+1).
The following compounds were prepared by the above procedure.
N-[1-(4-Fluorobenzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide
Figure US07786146-20100831-C00020
1H NMR (DMSO-d6, 400 MHz): δ 8.78 (brs, 1H, exchangeable with D2O, NH), 7.37 (dd, J=8.8 and 5.7 Hz, 2H), 7.16 (t, J=8.8 Hz, 2H), 6.32 (s, 1H), 4.22 (s, 2H), 3.22 (t, J=8.0 Hz, 2H), 2.79 (t, J=8.0 Hz, 2H), 2.17 (s, 2H), 2.03 (s, 3H), 1.95 (s, 3H), 1.05 (s, 9H). MS: 369 (M+1).
N-[1-(3-Chlorobenzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide
Figure US07786146-20100831-C00021
1H NMR (DMSO-d6, 400 MHz): δ 8.79 (brs, 1H, exchangeable with D2O, NH), 7.34 (m, 4H), 6.29 (s, 1H), 4.25 (s, 2H), 3.26 (t, J=8.0 Hz, 2H), 2.81 (t, J=8.0 Hz, 2H), 2.17 (s, 2H), 2.03 (s, 3H), 1.96 (s, 3H), 1.05 (s, 9H). MS: 385 (M+1).
N-[1-(4-Bromobenzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide
Figure US07786146-20100831-C00022
1H NMR (DMSO-d6, 400 MHz): δ 8.78 (brs, 1H, exchangeable with D2O, NH), 7.54 (d, J=8.0 Hz, 2H), 7.30 (d, J=8.0 Hz, 2H), 6.29 (s, 1H), 4.21 (s, 2H), 3.24 (t, J=8.0 Hz, 2H), 2.80 (t, J=8.0 Hz, 2H), 2.17 (s, 2H), 2.02 (s, 3H), 1.95 (s, 3H), 1.05 (s, 9H). MS: 429 (M+1).
N-[1-(3,4-Difluorobenzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide
Figure US07786146-20100831-C00023
1H NMR (DMSO-d6, 400 MHz): δ 8.79 (brs, 1H, exchangeable with D2O, NH), 7.41 (m, 2H), 7.19 (m, 1H), 6.30 (s, 1H), 4.22 (s, 2H), 3.25 (t, J=8.0 Hz, 2H), 2.80 (t, J=8.0 Hz, 2H), 2.17 (s, 2H), 2.03 (s, 3H), 1.96 (s, 3H), 1.05 (s, 9H). MS: 387 (M+1).
N-(4,6-Dimethyl-1-(naphthalen-2-ylmethyl)indolin-5-yl)-3,3-dimethylbutanamide
Figure US07786146-20100831-C00024
1H NMR (DMSO-d6, 400 MHz): δ 8.79 (brs, 1H, exchangeable with D2O, NH), 7.89 (m, 4H), 7.50 (m, 3H), 6.35 (s, 1H), 4.39 (s, 2H), 3.29 (t, J=8.0 Hz, 2H), 2.84 (t, J=8.0 Hz, 2H), 2.17 (s, 2H), 2.03 (s, 3H), 1.97 (s, 3H), 1.05 (s, 9H). MS: 401 (M+1).
N-(4,6-Dimethyl-1-(pyridin-4-ylmethyl)indolin-5-yl)-3,3-dimethylbutanamide
Figure US07786146-20100831-C00025
1H NMR (DMSO-d6, 400 MHz): δ 8.80 (brs, 1H, exchangeable with D2O, NH), 8.52 (d, J=8.0 Hz, 2H), 7.34 (d, J=8.0 Hz, 2H), 6.25 (s, 1H), 4.28 (s, 2H), 3.30 (t, J=8.0 Hz, 2H), 2.84 (t, J=8.0 Hz, 2H), 2.17 (s, 2H), 2.02 (s, 3H), 1.97 (s, 3H), 1.05 (s, 9H). MS: 352 (M+1).
N-(4,6-Dimethyl-1-(pyridin-3-ylmethyl)indolin-5-yl)-3,3-dimethylbutanamide
Figure US07786146-20100831-C00026
1H NMR (DMSO-d6, 400 MHz): δ 8.79 (brs, 1H, exchangeable with D2O, NH), 8.57 (d, J=2.0 Hz, 1H), 8.49 (dd, J=2.0 and 4.4 Hz, 1H), 7.74 (d, J=8.0 Hz, 1H), 7.38 (dd, J=8.0 and 4.4 Hz, 1H), 6.36 (s, 1H), 4.27 (s, 2H), 3.24 (t, J=8.0 Hz, 2H), 2.79 (t, J=8.0 Hz, 2H), 2.17 (s, 2H), 2.04 (s, 3H), 1.95 (s, 3H), 1.05 (s, 9H). MS: 352 (M+1).
N-(4,6-Dimethyl-1-(4-(trifluoromethyl)benzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide
Figure US07786146-20100831-C00027
1H NMR (DMSO-d6, 400 MHz): δ 9.00 (brs, 1H, exchangeable with D2O, NH), 7.67 (d, J=8.0 Hz, 2H), 7.41 (d, J=3.2 Hz, 1H), 7.29 (d, J=8.0 Hz, 2H), 7.09 (s, 1H), 6.50 (d, J=3.2 Hz, 1H), 5.50 (s, 2H), 2.29 (s, 2H), 2.22 (s, 3H), 2.19 (s, 3H), 1.07 (s, 9H). MS: 417 (M+1).
N-(4,6-Dimethyl-1-(4-(fluorobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide
Figure US07786146-20100831-C00028
1H NMR (DMSO-d6, 400 MHz): δ 8.99 (brs, 1H, exchangeable with D2O, NH), 7.39 (d, J=3.2 Hz, 1H), 7.21 (dd, J=8.8 and 5.7 Hz, 2H), 7.15 (t, J=8.8 Hz, 2H), 7.12 (s, 1H), 6.46 (d, J=3.2 Hz, 1H), 5.36 (s, 2H), 2.28 (s, 2H), 2.22 (s, 3H), 2.20 (s, 3H), 1.07 (s, 9H). MS: 367 (M+1).

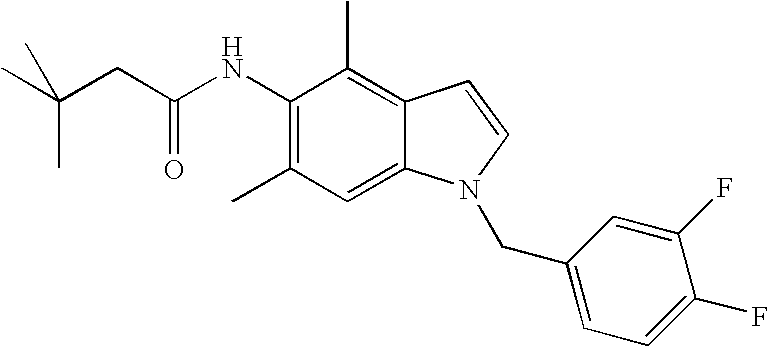

N-(4,6-Dimethyl-1-(3,4-difluorobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide
Figure US07786146-20100831-C00029
1H NMR (DMSO-d6, 400 MHz): δ 9.00 (brs, 1H, exchangeable with D2O, NH), 7.41 (d, J=3.2 Hz, 1H), 7.35 (m, 1H), 7.23 (m, 1H), 7.14 (s, 1H), 6.95 (m, 1H), 6.48 (d, J=3.2 Hz, 1H), 5.36 (s, 2H), 2.28 (s, 2H), 2.22 (s, 3H), 2.20 (s, 3H), 1.07 (s, 9H). MS: 385 (M+1).
N-(4,6-Dimethyl-1-(3,5-difluorobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide
Figure US07786146-20100831-C00030
1H NMR (DMSO-d6, 400 MHz): δ 9.01 (brs, 1H, exchangeable with D2O, NH), 7.43 (d, J=3.2 Hz, 1H), 7.13 (s, 1H), 7.10 (m, 1H), 6.81 (m, 2H), 6.49 (d, J=3.2 Hz, 1H), 5.40 (s, 2H), 2.29 (s, 2H), 2.22 (s, 3H), 2.21 (s, 3H), 1.08 (s, 9H). MS: 385 (M+1).
N-(4,6-Dimethyl-1-(3-chlorobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide
Figure US07786146-20100831-C00031
1H NMR (DMSO-d6, 400 MHz): δ 9.00 (brs, 1H, exchangeable with D2O, NH), 7.41 (d, J=3.2 Hz, 1H), 7.31 (m, 2H), 7.19 (s, 1H), 7.12 (s, 1H), 7.03 (m, 1H), 6.95 (m, 1H), 6.49 (d, J=3.2 Hz, 1H), 5.39 (s, 2H), 2.29 (s, 2H), 2.22 (s, 3H), 2.20 (s, 3H), 1.08 (s, 9H). MS: 383 (M+1).
N-(4,6-Dimethyl-1-(4-bromobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide
Figure US07786146-20100831-C00032
1H NMR (DMSO-d6, 400 MHz): δ 8.99 (brs, 1H, exchangeable with D2O, NH), 7.49 (d, J=8.4 Hz, 2H), 7.38 (d, J=3.2 Hz, 1H), 7.08 (s, 1H), 7.07 (d, J=8.4 Hz, 1H), 6.47 (d, J=3.2 Hz, 1H), 5.36 (s, 2H), 2.28 (s, 2H), 2.19 (s, 3H), 2.17 (s, 3H), 1.07 (s, 9H). MS: 427 (M+1).
Biological Results
Compounds of this invention formula were evaluated as potassium channel modulators by measuring rhubidium ion release in the following assay.
Methods: PC-12 cells were grown at 37° C. and 5% CO2 in DMEM/F12 Medium supplemented with 10% horse serum, 5% fetal bovine serum, 2 mM glutamine, 100 U/ml penicillin, 100 U/ml streptomycin. They were plated in poly-D-lysine-coated 96-well cell culture microplates at a density of 40,000 cells/well and differentiated with 100 ng/ml NGF-7s for 2-5 days. For the assay, the medium was aspirated and the cells were washed once with 0.2 ml in wash buffer (25 mM HEPES, pH 7.4, 150 mM NaCl, 1 mM MgCl2, 0.8 mM NaH2PO4, 2 mM CaCl2). The cells were then loaded with 0.2 ml Rb+ loading buffer (wash buffer plus 5.4 mM RbCl2, 5 mM glucose) and incubated at 37° C. for 2 h. Attached cells were quickly washed three times with buffer (same as Rb+ loading buffer, but containing 5.4 mM KCl instead of RbCl) to remove extracellular Rb+. Immediately following the wash, 0.2 ml of depolarization buffer (wash buffer plus 15 mM KCl) with or without compounds was added to the cells to activate efflux of potassium ion channels. After incubation for 10 min at room temperature, the supernatant was carefully removed and collected. Cells were lysed by the addition of 0.2 ml of lysis buffer (depolarization buffer plus 0.1% Triton X-100) and the cell lysates were also collected. If collected samples were not immediately analyzed for Rb+ contents by atomic absorption spectroscopy (see below), they were stored at 4° C. without any negative effects on subsequent Rb+ analysis.
The concentration of Rb+ in the supernatants (Rb+ Sup) and cell lysates (Rb+ Lys) was quantified using an ICR8000 flame atomic absorption spectrometer (Aurora Biomed Inc., Vancouver, B.C.) under conditions defined by the manufacturer. One 0.05 ml samples were processed automatically from microtiter plates by dilution with an equal volume of Rb+ sample analysis buffer and injection into an air-acetylene flame. The amount of Rb+ in the sample was measured by absorption at 780 nm using a hollow cathode lamp as light source and a PMT detector. A calibration curve covering the range 0-5 mg/L Rb+ in sample analysis buffer was generated with each set of plates. The percent Rb+ efflux (F) was defined by
F=[Rb+ Sup/(Rb+ Sup+Rb+ Lys)]×100%.
The effect (E) of a compound was defined by:
E=[(F c −F b)/(F s −F b)]×100%
where the Fc is the efflux in the presence of compound in depolarization buffer, Fb is the efflux in basal buffer, and FS is the efflux in depolarization buffer, and Fc is the efflux in the presence of compound in depolarization buffer. The effect (E) and compound concentration relationship was plotted to calculate an EC50 value, a compound's concentration for 50% of maximal Rb+ efflux. The results are shown below. Legend: A: EC50=1 nM-50 nM; B: EC50=50 nM-100 nM; C: EC50=100 nM-200 nM; D: EC50=200 nM-500 nM.
TABLE 1
ACTIVITIES OF EXEMPLARY COMPOUNDS
ACTIV-
COMPOUND ITY
Figure US07786146-20100831-C00033
 		A
Figure US07786146-20100831-C00034
 		A
Figure US07786146-20100831-C00035
 		A
Figure US07786146-20100831-C00036
 		A

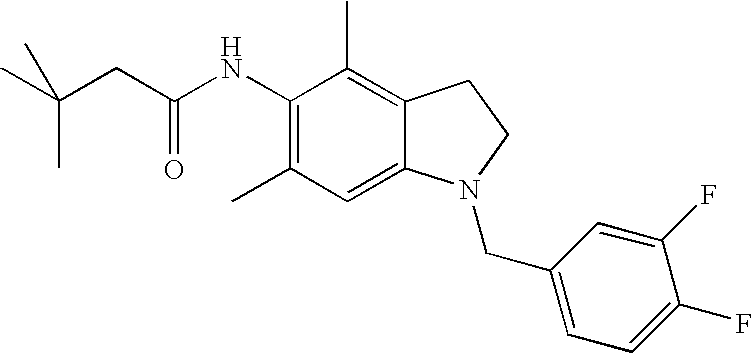

Figure US07786146-20100831-C00037
 		A
Figure US07786146-20100831-C00038
 		A
Figure US07786146-20100831-C00039
 		D

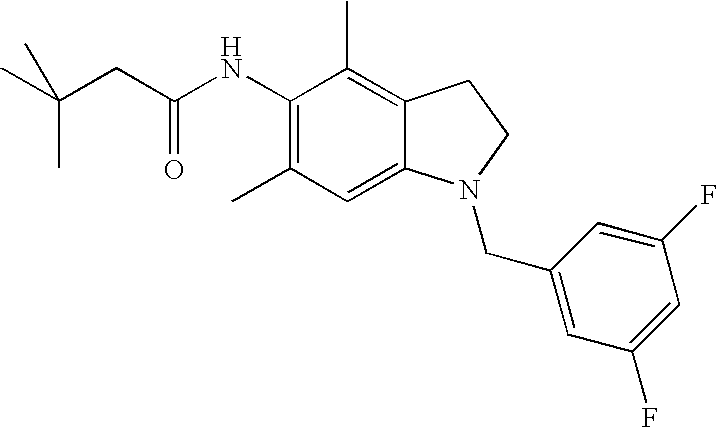

Figure US07786146-20100831-C00040
 		A
Figure US07786146-20100831-C00041
 		A
Figure US07786146-20100831-C00042
 		A
Figure US07786146-20100831-C00043
 		A
Figure US07786146-20100831-C00044
 		A
Figure US07786146-20100831-C00045
 		A
Figure US07786146-20100831-C00046
 		A
Figure US07786146-20100831-C00047
 		C

Claims (15)

1. A compound which is one of the following:
N-[1-(4-Trifluoromethylbenzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide
N-[1-(4-Fluorobenzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide
N-[1-(3-Chlorobenzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide
N-[1-(4-Bromobenzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide
N-[1-(3,4-Difluorobenzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide
N-(4,6-Dimethyl-1-(naphthalen-2-ylmethyl)indolin-5-yl)-3,3-dimethylbutanamide
N-(4,6-Dimethyl-1-(pyridin-4-ylmethyl)indolin-5-yl)-3,3-dimethylbutanamide
N-(4,6-Dimethyl-1-(pyridin-3-ylmethyl)indolin-5-yl)-3,3-dimethylbutanamide
N-(4,6-Dimethyl-1-(4-(trifluoromethyl)benzyl)-1H-indol-5-yl)-3,3-dimethyl butanamide
N-(4,6-Dimethyl-1-(4-(fluorobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide
N-(4,6-Dimethyl-1-(3,4-difluorobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide
N-(4,6-Dimethyl-1-(3,5-difluorobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide
N-(4,6-Dimethyl-1-(3-chlorobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide and
N-(4,6-Dimethyl-1-(4-bromobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide.
2. The compound of claim 1 that is N-[1-(4-Trifluoromethylbenzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide.
3. The compound of claim 1 that is N-[1-(4-Fluorobenzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide.
4. The compound of claim 1 that is N-[1-(3-Chlorobenzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide.
5. The compound of claim 1 that is N-[1-(4-Bromobenzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide.
6. The compound of claim 1 that is N-[1-(3,4-Difluorobenzyl)-4,6-dimethylindoline-5-yl]-3,3-dimethyl-butyramide.
7. The compound of claim 1 that is N-(4,6-Dimethyl-1-(naphthalen-2-ylmethyl)indolin-5-yl)-3,3-dimethylbutanamide.
8. The compound of claim 1 that is N-(4,6-Dimethyl-1-(pyridin-4-ylmethyl)indolin-5-yl)-3,3-dimethylbutanamide.
9. The compound of claim 1 that is N-(4,6-Dimethyl-1-(pyridin-3-ylmethyl)indolin-5-yl)-3,3-dimethylbutanamide.
10. The compound of claim 1 that is N-(4,6-Dimethyl-1-(4-(trifluoromethyl)benzyl)-1H-indol-5-yl)-3,3-dimethyl butanamide.
11. The compound of claim 1 that is N-(4,6-Dimethyl-1-(4-(fluorobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide.
12. The compound of claim 1 that is N-(4,6-Dimethyl-1-(3,4-difluorobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide.
13. The compound of claim 1 that is N-(4,6-Dimethyl-1-(3,5-difluorobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide.
14. The compound of claim 1 that is N-(4,6-Dimethyl-1-(3-chlorobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide.
15. The compound of claim 1 that is N-(4,6-Dimethyl-1-(4-bromobenzyl)-1H-indol-5-yl)-3,3-dimethylbutanamide.
US12/189,709 2007-08-13 2008-08-11 Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators Expired - Fee Related US7786146B2 (en)

Priority Applications (17)

Application Number Priority Date Filing Date Title
US12/189,709 US7786146B2 (en) 2007-08-13 2008-08-11 Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators
PCT/US2008/072926 WO2009023677A1 (en) 2007-08-13 2008-08-12 Derivatives of 5-amino-4, 6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators
ES08827266T ES2531335T3 (en) 2007-08-13 2008-08-12 5,6-disubstituted 5-aminoindole and 4,6-disubstituted 5-aminoindoline derivatives as potassium channel modulators
HUE08827266A HUE025928T2 (en) 2007-08-13 2008-08-12 Derivatives of 5-amino-4, 6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators
CA2696012A CA2696012C (en) 2007-08-13 2008-08-12 Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators
JP2010521125A JP2010536771A (en) 2007-08-13 2008-08-12 5-Amino-4,6-disubstituted indoles and derivatives of 5-amino-4,6-disubstituted indolines as potassium channel modulators
CN200880103296A CN101795727A (en) 2007-08-13 2008-08-12 Derivatives of 5-amino-4,6-disubstituted indoles and 5-amino-4,6-disubstituted indolines as potassium channel modulators
BRPI0815210 BRPI0815210A2 (en) 2007-08-13 2008-08-12 5-Amino-4,6-disubstituted indole derivatives and 5-amino-4,6-disubstituted indoline derivatives as potassium channel modulators
MX2010001712A MX2010001712A (en) 2007-08-13 2008-08-12 Derivatives of 5-amino-4, 6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators.
EP08827266.1A EP2190534B1 (en) 2007-08-13 2008-08-12 Derivatives of 5-amino-4, 6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators
KR1020107005508A KR20100075436A (en) 2007-08-13 2008-08-12 Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators
PL08827266T PL2190534T3 (en) 2007-08-13 2008-08-12 Derivatives of 5-amino-4, 6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators
SG2012059937A SG183725A1 (en) 2007-08-13 2008-08-12 Derivatives of 5-amino-4, 6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators
AU2008286919A AU2008286919B2 (en) 2007-08-13 2008-08-12 Derivatives of 5-amino-4, 6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators
RU2010109388/04A RU2483060C2 (en) 2007-08-13 2008-08-12 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline derivatives as potassium channel modulators
TW097130826A TW200927096A (en) 2007-08-13 2008-08-13 Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators
US12/856,514 US8211918B2 (en) 2007-08-13 2010-08-13 Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
US96452607P 2007-08-13 2007-08-13
US12/189,709 US7786146B2 (en) 2007-08-13 2008-08-11 Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators

Related Child Applications (1)

Application Number Title Priority Date Filing Date
US12/856,514 Continuation US8211918B2 (en) 2007-08-13 2010-08-13 Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators

Publications (2)

Publication Number Publication Date
US20090137635A1 US20090137635A1 (en) 2009-05-28
US7786146B2 true US7786146B2 (en) 2010-08-31

Family

ID=40029251

Family Applications (2)

Application Number Title Priority Date Filing Date
US12/189,709 Expired - Fee Related US7786146B2 (en) 2007-08-13 2008-08-11 Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators
US12/856,514 Expired - Fee Related US8211918B2 (en) 2007-08-13 2010-08-13 Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators

Family Applications After (1)

Application Number Title Priority Date Filing Date
US12/856,514 Expired - Fee Related US8211918B2 (en) 2007-08-13 2010-08-13 Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators

Country Status (16)

Country Link
US (2) US7786146B2 (en)
EP (1) EP2190534B1 (en)
JP (1) JP2010536771A (en)
KR (1) KR20100075436A (en)
CN (1) CN101795727A (en)
AU (1) AU2008286919B2 (en)
BR (1) BRPI0815210A2 (en)
CA (1) CA2696012C (en)
ES (1) ES2531335T3 (en)
HU (1) HUE025928T2 (en)
MX (1) MX2010001712A (en)
PL (1) PL2190534T3 (en)
RU (1) RU2483060C2 (en)
SG (1) SG183725A1 (en)
TW (1) TW200927096A (en)
WO (1) WO2009023677A1 (en)

Cited By (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US20080188561A1 (en) * 2006-10-10 2008-08-07 Jean-Michel Vernier N-[2-amino-4-(phenylmethoxy)phenyl] amides and related compounds as potassium channel modulators
US20090170885A1 (en) * 2007-08-01 2009-07-02 Valeant Pharmaceuticals International, Inc. Naphthyridine derivatives as potassium channel modulators
US20100323987A1 (en) * 2003-10-03 2010-12-23 Valeant Pharmaceuticals North America Combinations of retigabine and sodium channel inhibitors or sodium channel-influencing active compounds for treating pains
US20110118318A1 (en) * 2007-08-13 2011-05-19 Valeant Pharmaceuticals International Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators

Families Citing this family (8)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN102241608A (en) * 2011-05-12 2011-11-16 天津市汉康医药生物技术有限公司 Retigabine compound and composition thereof
EP2844247A4 (en) * 2012-04-20 2015-11-25 Anderson Gaweco Ror modulators and their uses
CN103508960B (en) * 2012-06-29 2017-12-12 江苏先声药业有限公司 Benzheterocyclic derivatives
CN107098844B (en) * 2017-05-17 2019-07-30 许昌学院 A kind of synthetic method for the acyl indol quinoline class compound that C-5 nitro replaces
CN112010808B (en) * 2019-05-31 2021-11-30 上海挚盟医药科技有限公司 tetrahydro-1H-benzazepine compounds as potassium channel modulators, and preparation and application thereof
CN114539120A (en) * 2022-03-09 2022-05-27 台州学院 A kind of preparation method of indole potassium ion channel agonist
WO2025231323A1 (en) * 2024-05-03 2025-11-06 Xenon Pharmaceuticals Inc. Bicyclic heteroaryl compounds and uses thereof
WO2025231340A1 (en) * 2024-05-03 2025-11-06 Xenon Pharmaceuticals Inc. Azaindole and azaindoline compounds and uses thereof

Citations (53)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE3337593A1 (en) 1982-10-27 1984-05-03 Degussa Ag, 6000 Frankfurt 2-Amino-3-acylamino-6-benzylaminopyridine derivatives having antiepileptic action
US4554281A (en) 1982-10-27 1985-11-19 Degussa Aktiengesellschaft 2-Amino-3-acylamino-6-benzylamino-pyridine-derivative having antiepileptic action
EP0343429A1 (en) 1988-05-16 1989-11-29 ASTA Pharma Aktiengesellschaft Substituted 3-(N-heterocyclyl)-2,6-diaminopyridines and -N-oxides, their preparation and their use as medicines
US5032591A (en) 1988-01-06 1991-07-16 Beecham Group P.L.C. Pharmaceutical preparations
US5234947A (en) 1991-11-07 1993-08-10 New York University Potassium channel activating compounds and methods of use thereof
US5262419A (en) 1992-06-11 1993-11-16 E. R. Squibb & Sons, Inc. Method for the prophylaxis and/or treatment of ulcerative gastrointestinal conditions using a potassium channel activator
US5384330A (en) 1992-01-08 1995-01-24 Asta Medica Aktiengesellschaft Pharmaceutically active 1,2,4-triamino-benzene derivatives, processes for their preparation and pharmaceutical compositions containing them
US5428039A (en) 1994-02-20 1995-06-27 The Center For Innovative Technology Method for electively achieving reversible hyperpolarized cardiac arrest
US5643921A (en) 1990-09-26 1997-07-01 E.R. Squibb & Sons, Inc. Cardiopulmonary bypass and organ transplant using a potassium channel activator
US5679706A (en) 1994-09-30 1997-10-21 Bristol-Myers Squibb Company Combination of a potassium channel activator and an antiarrhythmic agent
US5800385A (en) 1994-12-12 1998-09-01 Omeros Medical Systems, Inc. Vascular irrigation solution and method for inhibition of pain, inflammation, spasm and restenosis
US5849789A (en) 1995-10-26 1998-12-15 Asta Medica Aktiengesellschaft Use of 4-amino-4-(4-fluorobenzylamino)-1-ethoxy-carbonylaminobenzene for the prophylaxis and treatment of reduced cerebral blood supply
US5914425A (en) 1997-01-20 1999-06-22 Asta Medica Aktiengesellschaft Modifications of 2-amino-4-(4-5fluorobenzylamino)-1-ethoxycarbonylaminobenzene, and processes for their preparation
US6117900A (en) 1999-09-27 2000-09-12 Asta Medica Aktiengesellschaft Use of retigabine for the treatment of neuropathic pain
WO2000055137A1 (en) 1999-03-17 2000-09-21 Signal Pharmaceuticals, Inc. Compounds and methods for modulation of estrogen receptors
WO2001001970A2 (en) 1999-07-01 2001-01-11 Glaxo Group Limited New uses potassium channel openers, such as the treatment of epilepsy
WO2001009612A1 (en) 1999-08-03 2001-02-08 Arzneimittelwerk Dresden Gmbh Modulating binding site on potassium channels used for screening
US6218411B1 (en) 1997-08-08 2001-04-17 Chugai Seiyaku Kabushiki Kaisha Therapeutics for diabetic complications
US6265417B1 (en) 1997-12-18 2001-07-24 Abbott Laboratories Potassium channel openers
US6326385B1 (en) 1999-08-04 2001-12-04 Icagen, Inc. Methods for treating or preventing pain
US20020015730A1 (en) 2000-03-09 2002-02-07 Torsten Hoffmann Pharmaceutical formulations and method for making
US6348486B1 (en) 2000-10-17 2002-02-19 American Home Products Corporation Methods for modulating bladder function
US6395736B1 (en) 1998-12-14 2002-05-28 Cellegy Pharmaceuticals, Inc. Compositions and methods for the treatment of anorectal disorders
WO2002080898A2 (en) 2001-04-04 2002-10-17 Wyeth Methods for treating hyperactive gastric motility
US6469042B1 (en) 2001-02-20 2002-10-22 Bristol-Myers Squibb Company Fluoro oxindole derivatives as modulators if KCNQ potassium channels
US6495550B2 (en) 1999-08-04 2002-12-17 Icagen, Inc. Pyridine-substituted benzanilides as potassium ion channel openers
WO2003020706A1 (en) 2001-08-31 2003-03-13 Btg International Limited PROCESS FOR THE PREPARATION OF CYCLOPENTA[g]QUINAZOLINE DERIVATIVES
US6538004B2 (en) 2000-03-03 2003-03-25 Abbott Laboratories Tricyclic dihydropyrazolone and tricyclic dihydroisoxazolone potassium channel openers
US6589986B2 (en) 2000-12-20 2003-07-08 Wyeth Methods of treating anxiety disorders
US6593335B1 (en) 1997-12-18 2003-07-15 Abbott Laboratories Potassium channel openers
EP1334972A1 (en) 2002-02-12 2003-08-13 Pfizer Inc. Non-peptide compounds affecting the action of gonadotropin-releasing hormone (GnRH)
WO2003097586A1 (en) 2002-05-17 2003-11-27 Janssen Pharmaceutica N.V. Aminotetralin-derived urea modulators of vanilloid vr1 receptor
US6737422B2 (en) 1999-08-04 2004-05-18 Icagen, Inc. Benzanilides as potassium channel openers
WO2004058739A1 (en) 2002-12-27 2004-07-15 H. Lundbeck A/S 1,2,4-triaminobenzene derivatives useful for treating disorders of the central nervous system
WO2004080950A1 (en) 2003-03-14 2004-09-23 H. Lundbeck A/S Substituted aniline derivatives
WO2004082677A1 (en) 2003-03-21 2004-09-30 H. Lundbeck A/S Substituted p-diaminobenzene derivatives
US20040198724A1 (en) 2002-12-23 2004-10-07 Icagen, Inc. Quinazolinones as potassium channel modulators
WO2004096767A1 (en) 2003-04-25 2004-11-11 H. Lundbeck A/S Sustituted indoline and indole derivatives
WO2004105795A1 (en) 2003-05-27 2004-12-09 Altana Pharma Ag Pharmaceutical combinations of a proton pump inhibitor and a compound which modifies gastrointestinal motility
US20050089559A1 (en) 2003-10-23 2005-04-28 Istvan Szelenyi Combinations of potassium channel openers and sodium channel inhibitors or sodium channel-influencing active compounds for treating pains
US20050089473A1 (en) 2003-09-10 2005-04-28 Cedars-Sinai Medical Center Potassium channel mediated delivery of agents through the blood-brain barrier
WO2005048975A1 (en) 2003-11-10 2005-06-02 Almirall Prodesfarma S.A. Non-tabletted, chewable, individually dosed administration forms
US20050202394A1 (en) 2002-06-21 2005-09-15 Global Cardiac Solutions Pty. Ltd. Organ arrest, protection, preservation and recovery
WO2005087754A1 (en) 2004-03-12 2005-09-22 H. Lundbeck A/S Substituted morpholine and thiomorpholine derivatives
WO2005100349A2 (en) 2004-04-13 2005-10-27 Icagen, Inc. Polycyclic pyridines as potassium ion channel modulators
US20050277579A1 (en) 2004-05-03 2005-12-15 Ranga Krishnan Compositions for affecting weight loss
WO2006029623A1 (en) 2004-09-13 2006-03-23 H. Lundbeck A/S Substituted aniline derivatives
US7045551B2 (en) 2002-11-22 2006-05-16 Bristol-Myers Squibb Company 1-aryl-2-hydroxyethyl amides as potassium channel openers
WO2006092143A1 (en) 2005-03-03 2006-09-08 H. Lundbeck A/S Substituted pyridine derivatives
US20070066612A1 (en) 2005-09-09 2007-03-22 Nikolay Khanzhin Substituted pyrimidine derivatives
US7309713B2 (en) 2005-01-31 2007-12-18 Elbion Ag Use of the non-opiate analgesic drug flupirtine for the treatment of overactive bladder and associated diseases including urge incontinence, urinary flow problems as a result of prostate hyperplasia and irritable bowel syndrome
WO2008024398A2 (en) 2006-08-23 2008-02-28 Valeant Pharmaceuticals International Derivatives of 4-(n-azacycloalkyl) anilides as potassium channel modulators
WO2008066900A1 (en) 2006-11-28 2008-06-05 Valeant Pharmaceuticals International 1,4 diamino bicyclic retigabine analogues as potassium channel modulators

Family Cites Families (39)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US4181803A (en) 1973-12-14 1980-01-01 Eisai Co., Ltd. Propiophenone derivatives and preparation thereof
EP0189788B1 (en) 1985-01-23 1989-09-13 ASTA Pharma Aktiengesellschaft Synergistic combination of flupirtin and non-steroidal anti-phlogistics
ATE43789T1 (en) 1985-02-23 1989-06-15 Asta Pharma Ag COMBINATION OF FLUPIRTIN AND ANTICHOLINERGIC SPASMOLYTICS.
DE3604575A1 (en) 1985-02-23 1986-08-28 Degussa Ag, 6000 Frankfurt Combination of flupirtine and spasmolytics with anticholinergic activity
JP2583067B2 (en) 1987-08-04 1997-02-19 住友化学工業株式会社 Monoazo compound and method for dyeing or printing hydrophobic fiber material using the same
US5629307A (en) 1989-10-20 1997-05-13 Olney; John W. Use of ibogaine in reducing excitotoxic brain damage
US6004945A (en) 1990-05-10 1999-12-21 Fukunaga; Atsuo F. Use of adenosine compounds to relieve pain
IN172468B (en) 1990-07-14 1993-08-14 Asta Medica Ag
CA2115792C (en) 1993-03-05 2005-11-01 David J. Mayer Method for the treatment of pain
WO1996004266A2 (en) 1994-08-03 1996-02-15 Asta Medica Aktiengesellschaft Indol, indazol, pyridopyrrol and pyridopyrazol derivatives with anti-asthmatic, anti-allergic, anti-inflammatory and immunomodulating effects
EP1634597A1 (en) 1994-09-22 2006-03-15 Richard Alan Smith Compositions comprising dextromethorphan and quinidine or quinine for the treatment of emotional lability
US5800285A (en) * 1997-03-19 1998-09-01 Sturm, Ruger & Company, Inc. Method of fabricating golf club parts carrying artwork etched after fabrication and parts with such artwork
EP0977743A1 (en) 1997-04-25 2000-02-09 Smithkline Beecham Protease inhibitors
US5760007A (en) 1997-07-16 1998-06-02 Ortho Pharmaceutical Corporation Anticonvulsant derivatives useful in treating neuropathic pain
US6211171B1 (en) 1998-05-19 2001-04-03 Dalhousie University Use of antidepressants for local analgesia
JP3441970B2 (en) 1998-06-30 2003-09-02 株式会社サミー Method and apparatus for producing tofu
US6281211B1 (en) 1999-02-04 2001-08-28 Euro-Celtique S.A. Substituted semicarbazides and the use thereof
GB9903476D0 (en) 1999-02-17 1999-04-07 Zeneca Ltd Therapeutic agents
EP1161263A1 (en) 1999-03-10 2001-12-12 Warner-Lambert Company Llc Analgesic compositions comprising anti-epileptic compounds and methods of using same
AT409083B (en) 1999-04-01 2002-05-27 Sanochemia Pharmazeutika Ag PHARMACEUTICAL PREPARATION CONTAINING TOLPERISON FOR ORAL ADMINISTRATION
EA004290B1 (en) 1999-07-06 2004-02-26 Эли Лилли Энд Компани SELECTIVE iGLuR5 RECEPTOR ANTAGONISTS FOR THE TREATMENT OF MIGRAINE
US6383511B1 (en) 1999-10-25 2002-05-07 Epicept Corporation Local prevention or amelioration of pain from surgically closed wounds
US6831087B2 (en) 2001-11-09 2004-12-14 Hoffmann-La Roche Inc. Pyridine substituted isoquinoline derivatives
PE20030762A1 (en) * 2001-12-18 2003-09-05 Schering Corp HETEROCYCLIC COMPOUNDS AS NK1 ANTAGONISTS
ATE430726T1 (en) 2002-05-29 2009-05-15 Hoffmann La Roche N-ACYLAMINO-BENZYL ETHER DERIVATIVES AS SELECTIVE INHIBITORS OF MONOAMIN OXIDASE B
WO2003106454A1 (en) 2002-06-12 2003-12-24 Orchid Chemicals & Pharmaceuticals Ltd 1h-isoquinoline-oxazolidinone derivaties and their use as antibacterial agents
US7419981B2 (en) 2002-08-15 2008-09-02 Pfizer Inc. Synergistic combinations of an alpha-2-delta ligand and a cGMP phosphodieterse 5 inhibitor
AR043507A1 (en) 2003-03-14 2005-08-03 Lundbeck & Co As H SUBSTITUTED ANILINE DERIVATIVES AND PHARMACEUTICAL COMPOSITIONS
JP4786147B2 (en) * 2003-06-26 2011-10-05 武田薬品工業株式会社 Cannabinoid receptor modulator
EP1644335A4 (en) 2003-07-11 2008-06-04 Bristol Myers Squibb Co Tetrahydroquinoline derivatives as cannabinoid receptor modulators
DE10359335A1 (en) 2003-10-23 2005-05-25 Viatris Gmbh & Co. Kg Combinations of potassium channel openers and sodium channel inhibitors or sodium channel influencing agents for the treatment of pain
WO2006054513A1 (en) 2004-11-19 2006-05-26 Kissei Pharmaceutical Co., Ltd. Preventive or therapeutic agent for neuropathic pain
JP2009507052A (en) * 2005-09-09 2009-02-19 ハー・ルンドベック・アクチエゼルスカベット Pyrimidine derivatives and their use as KCNQ potassium channel openers
JP2009256208A (en) 2006-08-17 2009-11-05 Dainippon Sumitomo Pharma Co Ltd Phthalide derivative or pharmaceutically acceptable salt of the same
AU2008218928B2 (en) * 2007-02-23 2012-02-16 Optical Air Data Systems, Llc Optical system for detecting and displaying aircraft position and environment during landing and takeoff
US8367684B2 (en) * 2007-06-13 2013-02-05 Valeant Pharmaceuticals International Derivatives of 4-(N-azacycloalkyl) anilides as potassium channel modulators
US8563566B2 (en) 2007-08-01 2013-10-22 Valeant Pharmaceuticals International Naphthyridine derivatives as potassium channel modulators
US7786146B2 (en) * 2007-08-13 2010-08-31 Valeant Pharmaceuticals International Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators
US9096518B2 (en) 2009-06-22 2015-08-04 Millennium Pharmaceuticals, Inc. Substituted hydroxamic acids and uses thereof

Patent Citations (63)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE3337593A1 (en) 1982-10-27 1984-05-03 Degussa Ag, 6000 Frankfurt 2-Amino-3-acylamino-6-benzylaminopyridine derivatives having antiepileptic action
US4554281A (en) 1982-10-27 1985-11-19 Degussa Aktiengesellschaft 2-Amino-3-acylamino-6-benzylamino-pyridine-derivative having antiepileptic action
US5032591A (en) 1988-01-06 1991-07-16 Beecham Group P.L.C. Pharmaceutical preparations
EP0343429A1 (en) 1988-05-16 1989-11-29 ASTA Pharma Aktiengesellschaft Substituted 3-(N-heterocyclyl)-2,6-diaminopyridines and -N-oxides, their preparation and their use as medicines
US4923858A (en) 1988-05-16 1990-05-08 Asta Pharma Aktiengesellschaft Substituted 3-(n-heterocyclic)-2,6-diaminopyridines and -n-oxides
US5643921A (en) 1990-09-26 1997-07-01 E.R. Squibb & Sons, Inc. Cardiopulmonary bypass and organ transplant using a potassium channel activator
US5234947A (en) 1991-11-07 1993-08-10 New York University Potassium channel activating compounds and methods of use thereof
US5384330A (en) 1992-01-08 1995-01-24 Asta Medica Aktiengesellschaft Pharmaceutically active 1,2,4-triamino-benzene derivatives, processes for their preparation and pharmaceutical compositions containing them
US5262419A (en) 1992-06-11 1993-11-16 E. R. Squibb & Sons, Inc. Method for the prophylaxis and/or treatment of ulcerative gastrointestinal conditions using a potassium channel activator
US5428039A (en) 1994-02-20 1995-06-27 The Center For Innovative Technology Method for electively achieving reversible hyperpolarized cardiac arrest
US5679706A (en) 1994-09-30 1997-10-21 Bristol-Myers Squibb Company Combination of a potassium channel activator and an antiarrhythmic agent
US5800385A (en) 1994-12-12 1998-09-01 Omeros Medical Systems, Inc. Vascular irrigation solution and method for inhibition of pain, inflammation, spasm and restenosis
US5858017A (en) 1994-12-12 1999-01-12 Omeros Medical Systems, Inc. Urologic irrigation solution and method for inhibition of pain, inflammation and spasm
US5860950A (en) 1994-12-12 1999-01-19 Omeros Medical Systems, Inc. Arthroscopic irrigation solution and method for inhibition of pain and inflammation
US5849789A (en) 1995-10-26 1998-12-15 Asta Medica Aktiengesellschaft Use of 4-amino-4-(4-fluorobenzylamino)-1-ethoxy-carbonylaminobenzene for the prophylaxis and treatment of reduced cerebral blood supply
US5852053A (en) 1995-10-26 1998-12-22 Asta Medica Aktiengesellschaft Use of 2-4-amino-4-(4-fluorobenzylamino) (-1-ethoxy-carbonylaminobenzene for the prophylaxis and treatment of the neurodegenerative disorders
US5914425A (en) 1997-01-20 1999-06-22 Asta Medica Aktiengesellschaft Modifications of 2-amino-4-(4-5fluorobenzylamino)-1-ethoxycarbonylaminobenzene, and processes for their preparation
US6538151B1 (en) 1997-01-20 2003-03-25 Asta Medica Aktiengesellschaft Modifications of 2-amino-4-(4-fluorobenzylamino)-1-ethoxycarbonylaminobenzene, and processes for their preparation
US6218411B1 (en) 1997-08-08 2001-04-17 Chugai Seiyaku Kabushiki Kaisha Therapeutics for diabetic complications
US6593335B1 (en) 1997-12-18 2003-07-15 Abbott Laboratories Potassium channel openers
US6265417B1 (en) 1997-12-18 2001-07-24 Abbott Laboratories Potassium channel openers
US6395736B1 (en) 1998-12-14 2002-05-28 Cellegy Pharmaceuticals, Inc. Compositions and methods for the treatment of anorectal disorders
WO2000055137A1 (en) 1999-03-17 2000-09-21 Signal Pharmaceuticals, Inc. Compounds and methods for modulation of estrogen receptors
WO2001001970A2 (en) 1999-07-01 2001-01-11 Glaxo Group Limited New uses potassium channel openers, such as the treatment of epilepsy
WO2001009612A1 (en) 1999-08-03 2001-02-08 Arzneimittelwerk Dresden Gmbh Modulating binding site on potassium channels used for screening
US6472165B1 (en) 1999-08-03 2002-10-29 Arzneimittelwerk Dresden Gmbh Modulatory binding site in potassium channels for screening and finding new active ingredients
US6495550B2 (en) 1999-08-04 2002-12-17 Icagen, Inc. Pyridine-substituted benzanilides as potassium ion channel openers
US6326385B1 (en) 1999-08-04 2001-12-04 Icagen, Inc. Methods for treating or preventing pain
US20020013349A1 (en) 1999-08-04 2002-01-31 Wickenden Alan David Methods for treating or preventing pain and anxiety
US6737422B2 (en) 1999-08-04 2004-05-18 Icagen, Inc. Benzanilides as potassium channel openers
US6117900A (en) 1999-09-27 2000-09-12 Asta Medica Aktiengesellschaft Use of retigabine for the treatment of neuropathic pain
US6538004B2 (en) 2000-03-03 2003-03-25 Abbott Laboratories Tricyclic dihydropyrazolone and tricyclic dihydroisoxazolone potassium channel openers
US20020015730A1 (en) 2000-03-09 2002-02-07 Torsten Hoffmann Pharmaceutical formulations and method for making
US7160684B2 (en) 2000-10-17 2007-01-09 Wyeth Methods of selecting compounds for modulation of bladder function
US6348486B1 (en) 2000-10-17 2002-02-19 American Home Products Corporation Methods for modulating bladder function
US6589986B2 (en) 2000-12-20 2003-07-08 Wyeth Methods of treating anxiety disorders
US6469042B1 (en) 2001-02-20 2002-10-22 Bristol-Myers Squibb Company Fluoro oxindole derivatives as modulators if KCNQ potassium channels
WO2002080898A2 (en) 2001-04-04 2002-10-17 Wyeth Methods for treating hyperactive gastric motility
US20020183395A1 (en) 2001-04-04 2002-12-05 Wyeth Methods for treating hyperactive gastric motility
WO2003020706A1 (en) 2001-08-31 2003-03-13 Btg International Limited PROCESS FOR THE PREPARATION OF CYCLOPENTA[g]QUINAZOLINE DERIVATIVES
EP1334972A1 (en) 2002-02-12 2003-08-13 Pfizer Inc. Non-peptide compounds affecting the action of gonadotropin-releasing hormone (GnRH)
WO2003097586A1 (en) 2002-05-17 2003-11-27 Janssen Pharmaceutica N.V. Aminotetralin-derived urea modulators of vanilloid vr1 receptor
US20050202394A1 (en) 2002-06-21 2005-09-15 Global Cardiac Solutions Pty. Ltd. Organ arrest, protection, preservation and recovery
US7045551B2 (en) 2002-11-22 2006-05-16 Bristol-Myers Squibb Company 1-aryl-2-hydroxyethyl amides as potassium channel openers
US20040198724A1 (en) 2002-12-23 2004-10-07 Icagen, Inc. Quinazolinones as potassium channel modulators
WO2004058739A1 (en) 2002-12-27 2004-07-15 H. Lundbeck A/S 1,2,4-triaminobenzene derivatives useful for treating disorders of the central nervous system
WO2004080950A1 (en) 2003-03-14 2004-09-23 H. Lundbeck A/S Substituted aniline derivatives
WO2004082677A1 (en) 2003-03-21 2004-09-30 H. Lundbeck A/S Substituted p-diaminobenzene derivatives
WO2004096767A1 (en) 2003-04-25 2004-11-11 H. Lundbeck A/S Sustituted indoline and indole derivatives
WO2004105795A1 (en) 2003-05-27 2004-12-09 Altana Pharma Ag Pharmaceutical combinations of a proton pump inhibitor and a compound which modifies gastrointestinal motility
US20050089473A1 (en) 2003-09-10 2005-04-28 Cedars-Sinai Medical Center Potassium channel mediated delivery of agents through the blood-brain barrier
US20050090547A1 (en) 2003-10-23 2005-04-28 Istvan Szelenyi Combinations of retigabine and sodium channel inhibitors or sodium channel-influencing active compounds for treating pains
US20050089559A1 (en) 2003-10-23 2005-04-28 Istvan Szelenyi Combinations of potassium channel openers and sodium channel inhibitors or sodium channel-influencing active compounds for treating pains
WO2005048975A1 (en) 2003-11-10 2005-06-02 Almirall Prodesfarma S.A. Non-tabletted, chewable, individually dosed administration forms
WO2005087754A1 (en) 2004-03-12 2005-09-22 H. Lundbeck A/S Substituted morpholine and thiomorpholine derivatives
WO2005100349A2 (en) 2004-04-13 2005-10-27 Icagen, Inc. Polycyclic pyridines as potassium ion channel modulators
US20050277579A1 (en) 2004-05-03 2005-12-15 Ranga Krishnan Compositions for affecting weight loss
WO2006029623A1 (en) 2004-09-13 2006-03-23 H. Lundbeck A/S Substituted aniline derivatives
US7309713B2 (en) 2005-01-31 2007-12-18 Elbion Ag Use of the non-opiate analgesic drug flupirtine for the treatment of overactive bladder and associated diseases including urge incontinence, urinary flow problems as a result of prostate hyperplasia and irritable bowel syndrome
WO2006092143A1 (en) 2005-03-03 2006-09-08 H. Lundbeck A/S Substituted pyridine derivatives
US20070066612A1 (en) 2005-09-09 2007-03-22 Nikolay Khanzhin Substituted pyrimidine derivatives
WO2008024398A2 (en) 2006-08-23 2008-02-28 Valeant Pharmaceuticals International Derivatives of 4-(n-azacycloalkyl) anilides as potassium channel modulators
WO2008066900A1 (en) 2006-11-28 2008-06-05 Valeant Pharmaceuticals International 1,4 diamino bicyclic retigabine analogues as potassium channel modulators

Non-Patent Citations (54)

* Cited by examiner, † Cited by third party
Title
Armand et al., "Effects of retigabine (D-23129) on different patterns of epileptiform activity induced by 4-aminopyridine in rat entorhinal cortex hippocampal slices," Naunyn-Schmiedeberg's Arch Pharmacol 359:33-39 (1999).
Armijo et al., "Ion channels and epilepsy," Curr Pharm Des. 11:1975-2003 (2005).
Barhanin, M:, et al., "KvLQT1 and ISK (minK) proteins associate to form the IKs cardiac potassium current," Nature 384(6604):78-80 (1996).
Beeby et al. "The synthesis and properties of 2:7-Disubstituted 1:2:3:4-tetrahydroisoquinolines," J. Chem. Soc. ¶ 385, 1799-1803 (1949).
Bialer et al., "Progress report on new antiepileptic drugs: a summary of the fourth Eilat conference (Eilat IV)," Epilepsy Res. 34:1-41 (1999).
Bialer, "Progress report on new antiepileptic drugs: a summary of the Seventh Eilat Conference (Eilat VII)," Epilepsy Res. 61:1-48 (2004).
Bialer, "Progress report on new antiepileptic drugs: a summary of the Sixth Eilat Conference (Eilat VI)," Epilepsy Res. 51:31-71 (2002).
Biervert et al., "A potassium channel mutation in neonatal human epilepsy," Science 279:403-406 (1998).
Blackburn-Munro and Jensen, "The anticonvulsant retigabine attenuates nociceptive behaviours in rat models of persistent and neuropathic pain," Eur J Pharmacol. 460: 109-116 (2003).
Brown and Adams, "Muscarinic suppression of a novel voltage-sensitive K+ current in a vertebrate neurone," Nature 283:673-676 (1980).
Brown, D.A., Ion Channels, T. Narahashi, Ed. (Plenum Press, New York) pp. 55-94 (1988).
Charlier et al., "A pore mutation in a novel KQT-like potassium channel gene in an idiopathic epilepsy family," Nat Genet. 18:53-55 (1998).
Cooper et al., "Colocalization and coassembly of two human brain M-type potassium channel subunits that are mutated in epilepsy." Proc Natl Acad Sci USA 97:4914-4919 (2000).
Delmas and Brown, "Pathways modulating neural KCNQ/M (Kv7) potassium channels," Nat Rev Neurosci. 6:850-862 (2005).
Dickenson al., "Neurobiology of neuropathic pain: mode of action of anticonvulsants," Eur. J. Pain 6:51-60 (2002).
Dost et al., "The anticonvulsant retigabine potently suppresses epileptiform discharges in the low Ca ++ and low Mg++ model in the hippocampal slice preparation," Epilepsy Res. 38:53-56 (2000).
Friedel and Fitton, "Flupirtine: a review of its analgesic properties, and therapeutic efficacy in pain states," Drugs 45:548-569 (1993).
Hiller et al., "Retigabine N-glucuronidation and its potential role in enterohepatic circulation," Drug Metab Dispos. 27(5):605-612 (1999).
Hunt and Mantyh, "The molecular dynamics of pain control," Nat Rev Neurosci. 2:83-91 (2001).
Jentsch, "Neuronal KCNQ potassium channels; physiology and role in disease," Nat. Rev Neurosci., 1:21-30 (2000).
Jiang et al., "X-ray structure of a voltage-dependent K+ channel," Nature 423:33-41.
Kharkovets et al., "Mice with altered KCNQ4 K+ channels implicate sensory outer hair cells in human progressive deafness," EMBO J 25:642-652 (2006).
Kibbe Handbook of Pharmaceutical Excipients (Pharmaceutical Press, London) (2000).
Kubisch et al., "KCNQ4, a novel potassium channel expressed in sensory outer hair cells, is mutated in dominant deafness," Cell 96:437-446 (1999).
Lamas et al., "Effects of a cognition-enhancer, linopirdine (DuP 996), on M-type potassium currents (IK(M)) and some other voltage- and ligand-gated membrane currents in rat sympathetic neurons," Eur. J Neurosci., 9:605-616 (1997).
Lee et al., "Structure of the KvAP voltage-dependent K+ channel and its dependence on the lipid membrane," Proc Natl Acad Sci USA 102:15441-15446 (2005).
Long et al., "Crystal Structure of a Mammalian voltage-dependent Shaker family K+ channel," Science 309:897-903 (2005).
Main et al., "Modulation of KCNQ2/3 potassium channels by the novel anticonvulsant retigabine," Mol. Pharmacol. 58:253-262 (2000).
Marrion, "Control of M-currents," Annu Rev Phvsiol. 59:483-504 (1997).
Parcej and Eckhardt-Strelau, Structural characterization of neuronal voltage-sensitive K+ channels heterologously expressed in Pichia pastoris, J Mol Biol 333:103-116 (2003).
Passmore et al., "KCNQ/M currents in sensory neurons: significance for pain therapy," J. Neurosci. 23:7227-7236 (2003).
Patani et al., Bioisosterism: A Rational Approach in Drug Design, 1996, Chem. Rev., 96, 3147-3176. *
Porter et al., "Retigabine," Neurotherapeutics 4:149-154 (2007).
Reich et al., "Design and synthesis of novel 6,7-imidazotetrahydroquinoline inhibitors of thymidylate synthase using iterative protein crystal structure analysis," J. Med. Chem. 35:847-858 (1992).
Rogawski, MA, "KCNQ2/KCNQ3 K+ channels and the molecular pathogenesis of epilepsy: implications for therapy," Trends Neurosci. 23:393-398 (2000).
Rostock et al., "A new anticonvulsant with broad spectrum activity in animal models of epileptic seizures," Epilepsy Res.23:211-223 (1996).
Rundfeldt et al., "Multiple actions of the new anticonvulsant D-23129 on voltage-gated inward currents and GABA-induced currents in cultured neuronal cells (abstract)," Naunyn-Schmiedeberq's Arch Pharmacol 351 (Suppl):R160 (1995).
Rundfeldt, "Characterization of the K+ channel opening effect of the anti-convulsant retigabine in PC12 cells," Epilepsy Res.35:99-107 (1999).
Rundfeldt, "The new anticonvulsant retigabine (D23129) acts as an opener of K+ channels in neuronal cells," Eur J Pharmacol. 336:243-249 (1997).
Schroeder et al., "KCNQ5, a novel potassium channel broadly expressed in brain, mediates M-type currents," J. Biol. Chem. 275:24089-24095 (2000).
Schroeder, "Moderate loss of function of cyclic-Amp-modulated KNCQ2/KCNQ3 K+ channels causes epilepsy," Nature 396:687-690 (1998).
Singh et al., "A novel potassium channel gene, KCNQ2, is mutated in an inherited epilepsy of newborns," Nat Genet. 18:25-29 (1998).
Suzuki and Dickenson, "Neuropathic pain: nerves bursting with excitement," NeuroReport 11:R17-R21 (2000).
Tatulian and Brown, "Effect of the KCNQ potassium channel opener retigabine on single KCNQ2/3 channels express in CHO cells," J Physiol. 549:57-63 (2003).
Tatulian et al., "Activation of expressed KCNQ potassium currents and native neuronal M-type potassium currents by the anti-convulsant drug retigabine," J. Neurosci. 21:5535-5545 (2001).
Tober et al., "D-23129: a potent anticonvulsant in the amygdala kindling model of complex partial seizures," Eur J Pharmacol, 303:163-169 (1996).
Vippagunta et al., Crystalline solids, 2001, Advanced Drug Delivery Reviews, 48, 3-26. *
Von Bebenburg et al., "Substituierte Polyaminopyridine" Chemiker-Zeitunq 103:387-399 (1979). (German language article attached.).
Wang et al., "Positional cloning of a novel potassium channel gene: KVLQT1 mutations cause cardiac arrhythmias," Nat Genet 12:17-23 (1996).
Wang et al., KCNQ2 and KCNQ3 potassium channel subunits: molecular correlates of the M-channel, Science 282:1890-1893 (1998).
Watanbe et al., "Disruption of the epilepsy KCNQ2 gene results in neural hyperexcitability," J. Neurochem 75:28-33 (2000).
Wickenden et al., "KCNQ potassium channels: drug targets for the treatment of epilepsy and pain," Exp. Opin Thera Patents 14(4): 457-469 (2004).
Wickenden et al., "Retigabine, a novel anti-convulsant, enhances activation of KCNQ2/Q3 potassium channels," Mol. Pharmacol. 58:591-600 (2000).
Wuttke, "The new anticonvulsant retigabine favors voltage-dependent opening of the Kv7.2 (KCNQ2) channel by binding to its activation gate," Mol. Pharmacol. 67:1009-1017 (2005).

Cited By (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US20100323987A1 (en) * 2003-10-03 2010-12-23 Valeant Pharmaceuticals North America Combinations of retigabine and sodium channel inhibitors or sodium channel-influencing active compounds for treating pains
US20080188561A1 (en) * 2006-10-10 2008-08-07 Jean-Michel Vernier N-[2-amino-4-(phenylmethoxy)phenyl] amides and related compounds as potassium channel modulators
US8722929B2 (en) 2006-10-10 2014-05-13 Valeant Pharmaceuticals International N-[2-amino-4-(phenylmethoxy)phenyl] amides and related compounds as potassium channel modulators
US20090170885A1 (en) * 2007-08-01 2009-07-02 Valeant Pharmaceuticals International, Inc. Naphthyridine derivatives as potassium channel modulators
US8563566B2 (en) 2007-08-01 2013-10-22 Valeant Pharmaceuticals International Naphthyridine derivatives as potassium channel modulators
US20110118318A1 (en) * 2007-08-13 2011-05-19 Valeant Pharmaceuticals International Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators
US8211918B2 (en) * 2007-08-13 2012-07-03 Valeant Pharmaceuticals International Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators

Also Published As

Publication number Publication date
RU2010109388A (en) 2011-09-20
MX2010001712A (en) 2010-07-28
SG183725A1 (en) 2012-09-27
KR20100075436A (en) 2010-07-02
PL2190534T3 (en) 2015-11-30
WO2009023677A1 (en) 2009-02-19
US8211918B2 (en) 2012-07-03
TW200927096A (en) 2009-07-01
RU2483060C2 (en) 2013-05-27
US20110118318A1 (en) 2011-05-19
BRPI0815210A2 (en) 2015-03-31
EP2190534A1 (en) 2010-06-02
HUE025928T2 (en) 2016-05-30
JP2010536771A (en) 2010-12-02
ES2531335T3 (en) 2015-03-13
EP2190534B1 (en) 2015-02-18
AU2008286919B2 (en) 2014-05-29
CA2696012C (en) 2017-10-31
AU2008286919A1 (en) 2009-02-19
CN101795727A (en) 2010-08-04
US20090137635A1 (en) 2009-05-28
CA2696012A1 (en) 2009-02-19

Similar Documents

Publication Publication Date Title
US7786146B2 (en) Derivatives of 5-amino-4,6-disubstituted indole and 5-amino-4,6-disubstituted indoline as potassium channel modulators
JP2010536771A5 (en)
US8563566B2 (en) Naphthyridine derivatives as potassium channel modulators
US7196085B2 (en) Phthalazinone derivatives
US11702389B2 (en) Piperidine derivatives as HDAC1/2 inhibitors
TWI394569B (en) Fused compounds that inhibit vanilloid receptor subtype 1 (vr1) receptor
JP4555071B2 (en) 1-Substituted imidazole derivatives as NOS inhibitors
US8299092B2 (en) Derivatives of 2-phenyl-3-hydroxyquinoline-4(1H)-one and methods of their preparation and utilization
US20080045534A1 (en) Derivatives of 1,3-diamino benzene as potassium channel modulators
US7135473B2 (en) Cyclic diamine compound with condensed-ring groups
US20120142729A1 (en) KAT ll INHIBITORS
US8722929B2 (en) N-[2-amino-4-(phenylmethoxy)phenyl] amides and related compounds as potassium channel modulators
US7449459B2 (en) Inhibitors of soluble adenylate cyclase
US20070232619A1 (en) Piperazine Derivatives of Dialkyl Oxindoles
US20110207812A1 (en) Substituted arylamino-1,2,3,4-tetrahydro naphthalenes and -2,3-dihydro-1h-indenes as potassium channel modulators
US20210070784A1 (en) Nicotinamide phosphoribosyltransferase inhibitors and methods for use of the same
US20070259872A1 (en) Inhibitors of soluble adenylate cyclase

Legal Events

Date Code Title Description
AS Assignment

Owner name: VALEANT PHARMACEUTICALS INTERNATIONAL, CALIFORNIA

Free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:VERNIER, JEAN-MICHEL;CHEN, HUANMING;SONG, JIANLIN;REEL/FRAME:022199/0794

Effective date: 20081020

STCF Information on status: patent grant

Free format text: PATENTED CASE

AS Assignment

Owner name: GOLDMAN SACHS LENDING PARTNERS LLC, AS COLLATERAL

Free format text: SECURITY AGREEMENT;ASSIGNORS:ATON PHARMA, INC.;VALEANT PHARMACEUTICALS NORTH AMERICA;VALEANT PHARMACEUTICALS INTERNATIONAL;AND OTHERS;REEL/FRAME:025084/0169

Effective date: 20100927

AS Assignment

Owner name: CORIA LABORATORIES, LTD., TEXAS

Free format text: PATENT SECURITY RELEASE AGREEMENT;ASSIGNOR:GOLDMAN SACHS LENDING PARTNERS LLC;REEL/FRAME:025950/0048

Effective date: 20110308

Owner name: VALEANT PHARMACEUTICALS INTERNATIONAL, CALIFORNIA

Free format text: PATENT SECURITY RELEASE AGREEMENT;ASSIGNOR:GOLDMAN SACHS LENDING PARTNERS LLC;REEL/FRAME:025950/0048

Effective date: 20110308

Owner name: DOW PHARMACEUTICAL SCIENCES, INC., CALIFORNIA

Free format text: PATENT SECURITY RELEASE AGREEMENT;ASSIGNOR:GOLDMAN SACHS LENDING PARTNERS LLC;REEL/FRAME:025950/0048

Effective date: 20110308

Owner name: VALEANT PHARMACEUTICALS NORTH AMERICA, CALIFORNIA

Free format text: PATENT SECURITY RELEASE AGREEMENT;ASSIGNOR:GOLDMAN SACHS LENDING PARTNERS LLC;REEL/FRAME:025950/0048

Effective date: 20110308

Owner name: ATON PHARMA, INC., NEW JERSEY

Free format text: PATENT SECURITY RELEASE AGREEMENT;ASSIGNOR:GOLDMAN SACHS LENDING PARTNERS LLC;REEL/FRAME:025950/0048

Effective date: 20110308

AS Assignment

Owner name: GOLDMAN SACHS LENDING PARTNERS LLC, AS COLLATERAL

Free format text: SECURITY AGREEMENT;ASSIGNORS:VALEANT PHARMACEUTICALS INTERNATIONAL, A DELAWARE CORPORATION;ATON PHARMA, INC., A DELAWARE CORPORATION;CORIA LABORATORIES, LTD., A DELAWARE CORPORATION;AND OTHERS;REEL/FRAME:026606/0061

Effective date: 20110629

FPAY Fee payment

Year of fee payment: 4

AS Assignment

Owner name: BARCLAYS BANK PLC, AS SUCCESSOR AGENT, NEW YORK

Free format text: NOTICE OF SUCCESSION OF AGENCY;ASSIGNOR:GOLDMAN SACHS LENDING PARTNERS, LLC;REEL/FRAME:034749/0689

Effective date: 20150108

AS Assignment

Owner name: THE BANK OF NEW YORK MELLON, NEW YORK

Free format text: SECURITY INTEREST;ASSIGNOR:VALEANT PHARMACEUTICALS INTERNATIONAL;REEL/FRAME:043045/0913

Effective date: 20170717

MAFP Maintenance fee payment

Free format text: PAYMENT OF MAINTENANCE FEE, 8TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1552)

Year of fee payment: 8

AS Assignment

Owner name: THE BANK OF NEW YORK MELLON, AS COLLATERAL AGENT, NEW YORK

Free format text: SECURITY INTEREST;ASSIGNORS:ATON PHARMA, INC.;BAUSCH & LOMB INCORPORATED;BAUSCH & LOMB PHARMA HOLDINGS CORP.;AND OTHERS;REEL/FRAME:045444/0634

Effective date: 20180213

Owner name: BARCLAYS BANK PLC, AS COLLATERAL AGENT, NEW YORK

Free format text: SECURITY INTEREST;ASSIGNORS:ATON PHARMA, INC.;BAUSCH & LOMB INCORPORATED;BAUSCH & LOMB PHARMA HOLDINGS CORP.;AND OTHERS;REEL/FRAME:045444/0299

Effective date: 20180213

Owner name: THE BANK OF NEW YORK MELLON, AS COLLATERAL AGENT,

Free format text: SECURITY INTEREST;ASSIGNORS:ATON PHARMA, INC.;BAUSCH & LOMB INCORPORATED;BAUSCH & LOMB PHARMA HOLDINGS CORP.;AND OTHERS;REEL/FRAME:045444/0634

Effective date: 20180213

AS Assignment

Owner name: THE BANK OF NEW YORK MELLON, AS NOTES COLLATERAL A

Free format text: SECURITY INTEREST;ASSIGNORS:BAUSCH HEALTH AMERICAS, INC.;BAUSCH & LOMB INCORPORATED;BAUSCH HEALTH US, LLC;AND OTHERS;REEL/FRAME:048556/0758

Effective date: 20190308

Owner name: THE BANK OF NEW YORK MELLON, AS NOTES COLLATERAL AGENT, NEW YORK

Free format text: SECURITY INTEREST;ASSIGNORS:BAUSCH HEALTH AMERICAS, INC.;BAUSCH & LOMB INCORPORATED;BAUSCH HEALTH US, LLC;AND OTHERS;REEL/FRAME:048556/0758

Effective date: 20190308

FEPP Fee payment procedure

Free format text: MAINTENANCE FEE REMINDER MAILED (ORIGINAL EVENT CODE: REM.); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY

LAPS Lapse for failure to pay maintenance fees

Free format text: PATENT EXPIRED FOR FAILURE TO PAY MAINTENANCE FEES (ORIGINAL EVENT CODE: EXP.); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY

STCH Information on status: patent discontinuation

Free format text: PATENT EXPIRED DUE TO NONPAYMENT OF MAINTENANCE FEES UNDER 37 CFR 1.362

FP Lapsed due to failure to pay maintenance fee

Effective date: 20220831

AS Assignment

Owner name: 1530065 B.C. LTD., CANADA

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: 1261229 B.C. LTD., CANADA

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: VRX HOLDCO LLC, NEW JERSEY

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: V-BAC HOLDING CORP., CANADA

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: SOLTA MEDICAL DUTCH HOLDINGS B.V., NETHERLANDS

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: PRZEDSIEBIORSTWO FARMACEUTYCZNE JELFA SPOLKA AKCYJNA (A/K/A PRZEDSIEBIORSTWO FARMACEUTYCZNE JELFA S.A.), POLAND

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: ORAPHARMA, INC., NEW JERSEY

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: ICN POLFA RZESZOW SPOLKA AKCYJNA (A/K/A ICN POLFA RZESZOW S.A.), POLAND

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH, CANADA INC. / SANTE BAUSCH, CANADA INC., CANADA

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH US, LLC, NEW JERSEY

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH POLAND SPOLKA Z OGRANICZONA ODPOWIEDZIALNOSCIA (F/K/A VALEANT PHARMA POLAND SPOLKA Z OGRANICZONA ODPOWIEDZIALNOSCIA), POLAND

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH MAGYARORSZAG KFT (A/K/A BAUSCH HEALTH HUNGARY LLC), HUNGARY

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH HOLDCO LIMITED, IRELAND

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH COMPANIES INC., CANADA

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH AMERICAS, INC., NEW JERSEY

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH+LOMB OPS B.V., NETHERLANDS

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH & LOMB MEXICO, S.A. DE C.V., MEXICO

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: SOLTA MEDICAL IRELAND LIMITED, IRELAND

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: HUMAX PHARMACEUTICAL S.A., COLOMBIA

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: MEDICIS PHARMACEUTICAL CORPORATION, NEW JERSEY

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: SANTARUS, INC., NEW JERSEY

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: SALIX PHARMACEUTICALS, LTD, NEW JERSEY

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: SALIX PHARMACEUTICALS, INC., NEW JERSEY

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH IRELAND LIMITED (F/K/A/ VALEANT PHARMACEUTICALS IRELAND LIMITED), IRELAND

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: PRECISION DERMATOLOGY, INC., NEW JERSEY

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: SOLTA MEDICAL, INC., NEW JERSEY

Free format text: RELEASE BY SECURED PARTY;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: SOLTA MEDICAL, INC., NEW JERSEY

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: PRECISION DERMATOLOGY, INC., NEW JERSEY

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH IRELAND LIMITED (F/K/A/ VALEANT PHARMACEUTICALS IRELAND LIMITED), IRELAND

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: SALIX PHARMACEUTICALS, INC., NEW JERSEY

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: SALIX PHARMACEUTICALS, LTD, NEW JERSEY

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: SANTARUS, INC., NEW JERSEY

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: MEDICIS PHARMACEUTICAL CORPORATION, NEW JERSEY

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: HUMAX PHARMACEUTICAL S.A., COLOMBIA

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: SOLTA MEDICAL IRELAND LIMITED, IRELAND

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH & LOMB MEXICO, S.A. DE C.V., MEXICO

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH+LOMB OPS B.V., NETHERLANDS

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH AMERICAS, INC., NEW JERSEY

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH COMPANIES INC., CANADA

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH HOLDCO LIMITED, IRELAND

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH MAGYARORSZAG KFT (A/K/A BAUSCH HEALTH HUNGARY LLC), HUNGARY

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH POLAND SPOLKA Z OGRANICZONA ODPOWIEDZIALNOSCIA (F/K/A VALEANT PHARMA POLAND SPOLKA Z OGRANICZONA ODPOWIEDZIALNOSCIA), POLAND

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH US, LLC, NEW JERSEY

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: BAUSCH HEALTH, CANADA INC. / SANTE BAUSCH, CANADA INC., CANADA

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: ICN POLFA RZESZOW SPOLKA AKCYJNA (A/K/A ICN POLFA RZESZOW S.A.), POLAND

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: ORAPHARMA, INC., NEW JERSEY

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: PRZEDSIEBIORSTWO FARMACEUTYCZNE JELFA SPOLKA AKCYJNA (A/K/A PRZEDSIEBIORSTWO FARMACEUTYCZNE JELFA S.A.), POLAND

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: SOLTA MEDICAL DUTCH HOLDINGS B.V., NETHERLANDS

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: V-BAC HOLDING CORP., CANADA

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: VRX HOLDCO LLC, NEW JERSEY

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: 1261229 B.C. LTD., CANADA

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408

Owner name: 1530065 B.C. LTD., CANADA

Free format text: RELEASE OF SECURITY INTEREST;ASSIGNOR:BARCLAYS BANK PLC, AS COLLATERAL AGENT;REEL/FRAME:070778/0199

Effective date: 20250408
