Abstract

A system and method for counterfeit securities are disclosed. The counterfeit securities identification system comprises: a scanner for scanning securities; A server for storing a scanned image of the issued securities and providing a scanned image according to an external request; And at least one terminal for transmitting the image of the issued securities scanned by the scanner to the server and comparing the image of the issued security image scanned from the scanner and the image of the issued security stored in the server to determine the counterfeit securities . In the embodiment of the present invention, it is possible to provide a counterfeit securities discrimination system and method for discriminating counterfeit securities at low cost.

Description

FIELD OF THE INVENTION [0001] The present invention relates to a securities distinction system and method,

The present invention relates to a system and method for detecting counterfeit securities, and more particularly, to a counterfeit securities discrimination system and method for discriminating whether a check is received at a financial institution such as a bank.

In general, the technology of color copiers and scanners has been greatly developed, and the penetration rate has been greatly increased, so that counterfeit bills or checks can be easily produced. In fact, a small number of criminals with impure ideologies can generate counterfeit bills or checks Frequency and volume of distribution have increased dramatically, and this has become a serious problem that undermines the foundation of social stability.

However, in the past, there has not been proposed a forgery check discriminator capable of easily and conveniently discriminating such a forgery check or banknote, and a forgery check or bill discriminating apparatus used in a financial institution such as a bank is not only expensive but also expensive There has been a problem that it is difficult to easily identify with a naked eye in a place where the illuminance of the surrounding environment is high.

In order to solve the difficulty of identifying such fake checks or banknotes, it has been proposed that the banknotes are put in an opaque box so as to block the light, Not only the high price but also the bills need to be inserted into the box one by one so that it is not practicable and is not universalized.

In particular, in the case of checks, the amount of money is so large that it is more important to identify the counterfeit.

SUMMARY OF THE INVENTION The present invention has been made in view of the above problems, and it is an object of the present invention to provide a counterfeit securities discrimination system and method for discriminating a counterfeit check at low cost.

It is another object of the present invention to provide a counterfeit securities discrimination system and method for discriminating a counterfeit check by a simple method.

According to an aspect of the present invention, there is provided a system for identifying a counterfeit securities,

A scanner for scanning securities;

A server for storing a scanned image of the issued securities and providing a scanned image according to an external request;

And at least one terminal for transmitting the issued security image scanned by the scanner to the server and comparing the image of the payment check scanned from the scanner and the image of the issued security stored in the server to determine the counterfeit security.

Wherein the terminal comprises: an input unit for receiving a selection of an operator;

A display unit for displaying information for comparing a payable security image scanned from the scanner and an issued security image stored in the server;

A communication unit for performing a communication function with the server;

The image of the issuer securities scanned by the user's scanner is transmitted to the server through the communication unit and the image of the issuer securities stored in the server is compared with the image of the issuer securities scanned from the scanner according to the selection of the input unit, And a control unit for judging securities.

Wherein,

A scan processing unit for scanning securities according to the selection of the input unit;

A metabolic processing unit for displaying on the display unit the payment security image scanned from the scanner according to the selection of the input unit and the issued securities image stored in the server at a predetermined time interval;

 An overlay processing unit for overlaying a payable security image scanned from the scanner and an issued security image stored in the server according to the selection of the input unit and displaying the overlapped image on the display unit;

A magnifying glass processing unit for enlarging a selected portion of the issued securities image or the issued securities image stored in the server and displaying the selected portion on the display unit, the selected portion being scanned from the scanner according to the selection of the input unit;

And a suspicious area processor for storing a portion selected by the input unit as a suspicious region on the screen processed by the metabolic processing unit, the overlay processing unit, and the magnifying glass processing unit, and providing the portion in response to a request to view the suspicious region of the input unit.

The metabolic processing unit alternately displays all or a predetermined portion of the issued security image scanned from the scanner and the issued security image stored in the server on the display unit at a predetermined time interval according to the selection of the input unit.

According to another aspect of the present invention, there is provided a system for identifying a counterfeit securities,

A scanner for scanning securities;

A storage unit for storing a scanned image of the issued security;

An input for receiving an operator's selection;

A display unit for displaying information for comparing a payable security image scanned from the scanner and an issued security image stored in the server;

A communication unit for performing a communication function with the server;

The image of the issuer securities scanned by the user's scanner is transmitted to the server through the communication unit and the image of the issuer securities stored in the server is compared with the image of the issuer securities scanned from the scanner according to the selection of the input unit, And a control unit for judging securities.

According to another aspect of the present invention, there is provided a method for identifying counterfeit securities,

scanner; A server for storing a scanned image of the issued securities and providing a scanned image according to an external request; A method for discriminating a counterfeit security in a counterfeit securities discrimination system having a terminal connected to the server through a network,

When a scan is selected as an input unit of the terminal, the control unit of the terminal controls the scanner to scan the payment security;

Determining, by the operator, a menu selected by the input unit when the menu is selected as an input unit;

When the metabolic process is selected, the control unit alternately displays the payable security image scanned from the scanner and the issued securities image stored in the server at a predetermined time interval on the display unit;

If the overlay is selected, the controller overlays and displays the payment security image scanned from the scanner and the issued security image stored in the server on the display unit;

Enlarging a selected portion of a payable security image scanned from the scanner or an issued security image stored in the server and displaying the magnified selected image on the display unit when the magnifying glass function is selected;

When the suspicious region view function is selected, the control unit includes a step of providing a portion selected by the input unit as a suspected region on the screen processed by the metabolic processing unit, the overlay processing unit, and the magnifying glass processing unit.

The step of displaying the issued security image images stored in the server on the display unit alternately at predetermined time intervals,

The controller displays the payment security image scanned from the scanner and all or a predetermined portion of the issued security image stored in the server on the display unit alternately at predetermined time intervals according to the selection of the input unit.

In the embodiment of the present invention, it is possible to provide a counterfeit securities discrimination system and method for discriminating counterfeit securities at low cost.

In addition, it is possible to provide a system and method for forgery securities discrimination for discriminating counterfeit securities by a simple method.

BRIEF DESCRIPTION OF THE DRAWINGS FIG. 1 is a diagram illustrating a configuration of a fake security identification system according to an embodiment of the present invention; FIG.
Fig. 2 is a configuration diagram of the terminal of Fig. 1. Fig.

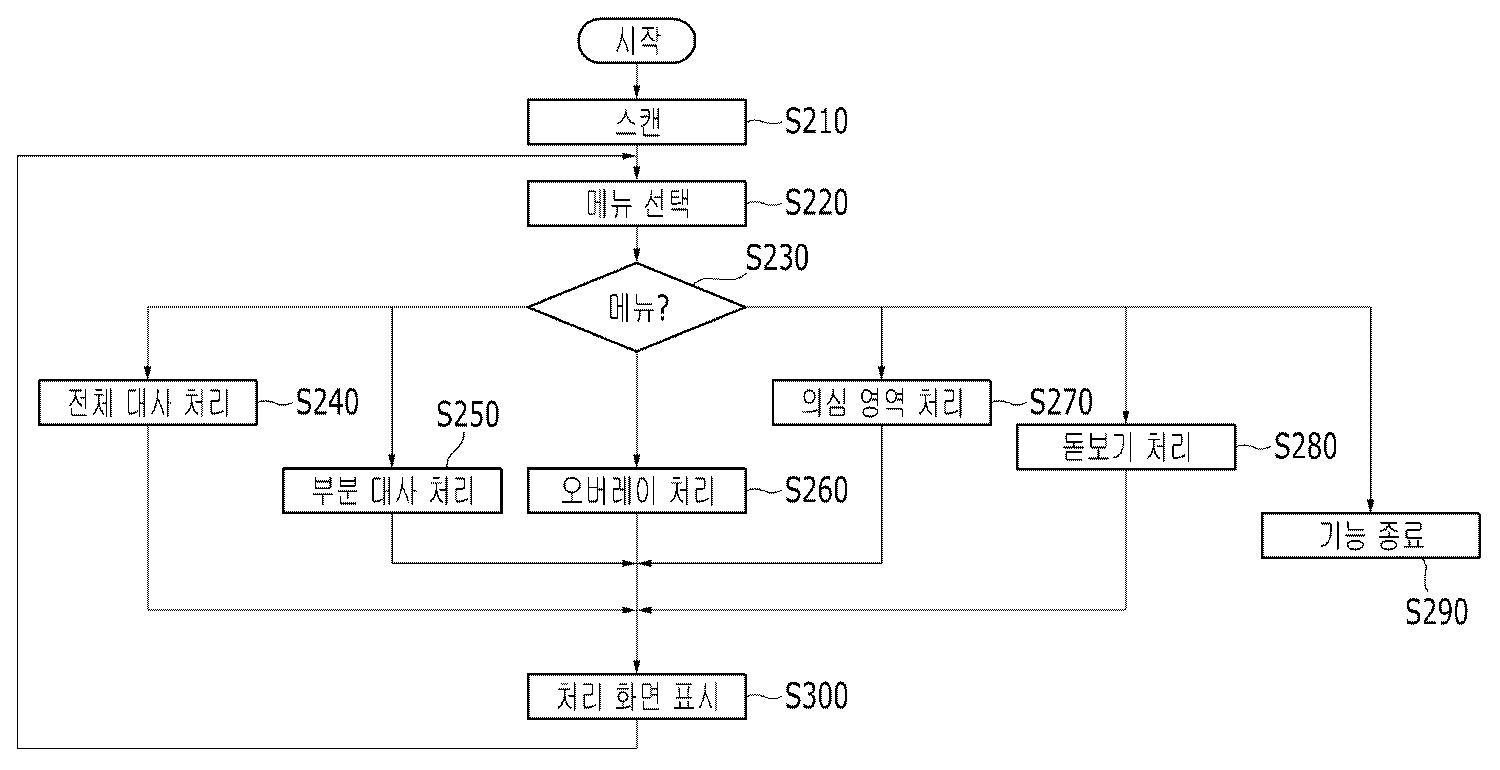

FIG. 3 is a flowchart illustrating an operation of a method for identifying counterfeit securities according to an embodiment of the present invention.
4 to 20 are views showing examples of screens provided in the falsification security identification system according to the embodiment of the present invention.

Hereinafter, embodiments of the present invention will be described in detail with reference to the accompanying drawings so that those skilled in the art can easily carry out the present invention. The present invention may, however, be embodied in many different forms and should not be construed as limited to the embodiments set forth herein. In order to clearly illustrate the present invention, parts not related to the description are omitted, and similar parts are denoted by like reference characters throughout the specification.

Throughout the specification, when an element is referred to as "comprising ", it means that it can include other elements as well, without excluding other elements unless specifically stated otherwise.

In the following, examples of securities are described using checks, but include CD, RP, or other securities as needed.

BRIEF DESCRIPTION OF THE DRAWINGS FIG. 1 is a diagram illustrating a configuration of a fake security identification system according to an embodiment of the present invention; FIG.

Referring to FIG. 1, a falsified security identification system according to an embodiment of the present invention includes:

A scanner 300 for scanning securities;

A server 100 for storing a scanned image of the issued security and providing a scanned image according to an external request;

The image of the issuer securities scanned by the scanner 300 is transmitted to the server 100 through the network 400 and the image of the issuer securities scanned from the scanner 300 and the image of the issuer securities And judges the counterfeit securities by comparing them with each other.

The server 100 incorporates a database therein as needed and stores scanned issued security images.

The terminal 200 may be a terminal of an employee of an ATM device or financial institution sales counter.

Fig. 2 is a configuration diagram of the terminal of Fig. 1. Fig.

Referring to FIG. 2, the terminal 200 includes:

An input unit 210 for receiving an operator's selection;

A display unit (220) for displaying information for comparing a payment security image scanned from the scanner and an issued security image stored in the server;

A communication unit 240 for performing a communication function with the server;

The image of the issuer securities scanned by the user's scanner is transmitted to the server through the communication unit and the image of the issuer securities stored in the server is compared with the image of the issuer securities scanned from the scanner according to the selection of the input unit, A control unit 130 for determining securities;

And a storage unit 250 for storing information.

The input unit 210 may be a mouse, a keyboard, a keypad, or the like.

The storage unit 150 may store the issued security image if necessary. It may also store the suspected fraud area of the securities in issue.

The control unit 230,

A scan processing unit (235) for scanning securities according to the selection of the input unit;

A metabolic processing unit (231) for displaying on the display unit a payment security image scanned from the scanner according to the selection of the input unit, and an image of an issued security stored in the server at predetermined intervals;

 An overlay processing unit (232) for overlaying a payable security image scanned from the scanner according to the selection of the input unit and an issued security image stored in the server and displaying the overlapped image on the display unit;

A magnifying glass processing unit (233) for enlarging a selected portion of the issued securities image or the issued securities image stored in the server and displaying the enlarged selected image on the display unit according to the selection of the input unit;

The input unit 210 stores a portion selected as a suspicious region on the screen processed by the metabolic processing unit 231, the overlay processing unit 232 and the magnifying-image processing unit 233, And a suspicious area processing unit 234 for providing a view request.

The metabolic processing unit 231 alternately selects all or a predetermined portion of the issued security image scanned from the scanner 300 and the issued security image stored in the server according to the selection of the input unit 210, And displays it on the display unit 220.

The operation of the falsification security identification system according to the embodiment of the present invention having such a configuration will be described in detail as follows.

FIG. 3 is a flowchart illustrating an operation of a method for identifying counterfeit securities according to an exemplary embodiment of the present invention, and FIGS. 4 to 20 illustrate examples of screens provided in the counterfeit securities identification system according to an embodiment of the present invention.

In the embodiment of the present invention, the issuance security is scanned and stored at the time of issuance of the securities, and the authenticity is judged when the issuable securities are returned to the bank window at the later time.

First, when the operator supplies power to his terminal, a screen as shown in FIG. 4 is displayed on the display unit 220.

In this state, when the operator selects the issue scan or the payment scan, a blank screen as shown in FIG. 5 is displayed. In this state, the scan is selected and the corresponding securities are placed at the scan position of the scanner. do.

Then, the scan processing unit 235 of the control unit 230 displays the scanned image on the display unit 220 as shown in FIG. The scanned image is stored in the server 100. And may be stored in the storage unit 250 of the terminal 200 as needed.

If necessary, the operator can select the issued scan inquiry to inquire the scanned securities as shown in FIG.

At this time, a checklist is displayed on the screen to induce issuance of correct securities.

In the case where the securities are issued in this manner, if the customer fetches the securities to be paid later, the person in charge of the financial institution selects the payment scan on the screen as shown in FIG. 4, and the scan processing unit 235, Is displayed on the display unit (220).

Then, when the operator selects scan to the input unit 210, the scanner 300 is operated by the control of the scan processing unit 235 to perform scanning, and a screen as shown in FIG. 9 is displayed on the display unit 220.

Thereafter, when a menu is selected by an operator as an input unit, the control unit 230 determines a menu selected by the input unit 210. [ If necessary, it can be confirmed by securities inspectors, and more accurate identification of securities can be achieved.

When image metabolism is selected, the metabolism processing unit 231 of the control unit 230 displays a menu screen as shown in FIG. 10, and an information collection operation is started.

When the information collection is completed, a screen as shown in FIG. 11 is displayed. When the operator presses OK in the ideal state, the dialogue processing unit displays the entire dialogue screen as shown in FIG.

At this time, the metabolic processing unit 231 alternately displays the payable security image scanned from the scanner 300 and the issued security image stored in the server 100 on the display unit 210 at a predetermined time interval. At this time, the time interval is 0.3 seconds, 0.5 seconds. It can be adjusted in 1 second, every 5 seconds.

If the paid security image scanned by the afterimage principle differs from the issued securities image stored in the server 100, the other part is blurred when the image is observed with the naked eye. For example, in a cartoon movie, as in the case of using an afterimage principle to move a plurality of pictures, different images are blinked or blurred and images are not seen as still images.

Then, the operator checks the status column of the lower right portion of the screen for normal, suspicious, or pending, and the metabolic processing unit 231 stores the status information in the storage unit 250.

When the magnifying glass function is selected, the magnifying glass processing unit 233 magnifies a selected portion of the issued security image scanned from the scanner 300 or the issued security image stored in the server 100 as shown in FIG. 13, And displays it on the display unit 220. In this screen, the operator can enlarge the selected part by selecting the necessary part as the input part 210. When the operator looks at this enlarged screen, the operator judges whether the user falsely or not, and checks the status column of the lower right portion of the screen for normal, suspicious, or pending, and the metabolic processing unit 231 transmits the status information to the storage unit 250 .

On the other hand, if the overlay is selected, the overlay processor 232 overlays the paid security image scanned from the scanner and the issued security image stored in the server, and displays the overlapped image on the display unit 220 as shown in FIG.

When the operator views the screen, the operator judges whether or not the user falsely judges the falsification, and checks the status column of the lower right portion of the screen for normal, suspicious, or pending, and the metabolic processing unit 231 stores the status information in the storage unit 250 do.

In addition, the intensity can be selected for each of the stages 1, 2, 3, 4 and 5, and when the 1 is selected, the color image is displayed by the overlay processor 232, It is easy to identify.

Then, the operator can view the existing opinion on the screen as shown in FIG. 15 by selecting the view of the ambassador's opinion on the lower right of the screen, or store the opinion of the asset on the screen.

On the other hand, when the partial metabolism is selected, the metabolism processing unit 231 of the control unit 230 displays the partial metabolism screen as shown in FIG. 16, and the selected part is partially metabolized as shown in FIG.

The operator determines whether the selected portion of the payable security image scanned by the afterimage principle differs from the corresponding portion of the issued security image stored in the server 100.

Then, the operator checks the status column of the lower right portion of the screen for normal, suspicious, or pending, and the metabolic processing unit 231 stores the status information in the storage unit 250.

If necessary, the operator can select the input unit 210 to view the original image as shown in FIG. 18, or can view the forged securities sample as shown in FIG. 19 by selecting the view of the counterfeit securities sample.

The original image or the sample image can be moved up, down, left, and right by controlling the input unit 210. When one of the original image or the sample image is moved, the remaining images are moved together. At this time, regardless of the image size of the original image or the sample image, it is possible to move up and down and left and right similarly.

In the case of a counterfeit sample, it can be seen that the image is blinking, and the operator can make a more accurate judgment on counterfeit securities by looking at counterfeit samples.

On the other hand, when the suspicious region viewing function is selected, the suspicious region processing unit 234 extracts, on the screen processed by the metabolic processing unit 231, the overlay processing unit 232, and the magnifying processing unit 233, As shown in Fig. 20.

Referring to FIG. 20, the suspicious information is classified into the strongest, strongest, medium, and weakest, and is represented differently according to the color, so that the most suspicious parts can be more carefully examined.

In the above process, the issued security image is stored in the server 100, but may be stored in the storage unit 250, if necessary, so that the terminal 200 itself can determine whether the security is counterfeit securities.

According to the embodiment of the present invention as described above, it is possible to discriminate the forged securities at a low cost, and it is also very convenient because the counterfeit securities can be discriminated by a simple method.

The embodiments of the present invention described above are not only implemented by the apparatus and method but may be implemented through a program for realizing the function corresponding to the configuration of the embodiment of the present invention or a recording medium on which the program is recorded, The embodiments can be easily implemented by those skilled in the art from the description of the embodiments described above.

While the present invention has been particularly shown and described with reference to exemplary embodiments thereof, it is to be understood that the invention is not limited to the disclosed exemplary embodiments, It belongs to the scope of right.

Claims (9)

A scanner for scanning securities;
A server for storing a scanned image of the issued securities and providing a scanned image according to an external request;
And at least one terminal for transmitting the image of the issued securities scanned by the scanner to the server and comparing the image of the issued security stock scanned from the scanner and the image of the issued securities stored in the server, Counterfeit securities identification system. The method according to claim 1,
Wherein the terminal comprises: an input unit for receiving a selection of an operator;
A display unit for displaying information for comparing a payable security image scanned from the scanner and an issued security image stored in the server;
A communication unit for performing a communication function with the server;
The image of the issuer securities scanned by the user's scanner is transmitted to the server through the communication unit and the image of the issuer securities stored in the server is compared with the image of the issuer securities scanned from the scanner according to the selection of the input unit, And a controller for judging the securities. 3. The method of claim 2,
Wherein,
A scan processing unit for scanning securities according to the selection of the input unit;
A metabolic processing unit for displaying on the display unit the payment security image scanned from the scanner according to the selection of the input unit and the issued securities image stored in the server at a predetermined time interval;
An overlay processing unit for overlaying a payable security image scanned from the scanner and an issued security image stored in the server according to the selection of the input unit and displaying the overlapped image on the display unit;
A magnifying glass processing unit for enlarging a selected portion of the issued securities image or the issued securities image stored in the server and displaying the selected portion on the display unit, the selected portion being scanned from the scanner according to the selection of the input unit;
And a suspicious region processor for storing a portion selected as a suspicious region by the input unit on the screen processed by the metabolic processing unit, the overlay processing unit, and the magnifying glass processing unit, Discrimination system. The method of claim 3,
Wherein the metabolic processing unit alternately displays all or a predetermined portion of the issued securities image and the issued securities image stored in the server on the display unit at a predetermined time interval according to the selection of the input unit, Securities identification system. A scanner for scanning securities;
A storage unit for storing a scanned image of the issued security;
An input for receiving an operator's selection;
A display unit for displaying information for comparing a payable security image scanned from the scanner and an issued security image stored in the server;
A communication unit for performing a communication function with the server;
The image of the issuer securities scanned by the user's scanner is transmitted to the server through the communication unit and the image of the issuer securities stored in the server is compared with the image of the issuer securities scanned from the scanner according to the selection of the input unit, And a controller for judging the securities. scanner; A server for storing a scanned image of the issued securities and providing a scanned image according to an external request; A method for discriminating a counterfeit security in a counterfeit securities discrimination system having a terminal connected to the server through a network,
When a scan is selected as an input unit of the terminal, the control unit of the terminal controls the scanner to scan the payment security;
Determining, by the operator, a menu selected by the input unit when the menu is selected as an input unit;
When the metabolic process is selected, the control unit alternately displays the payable security image scanned from the scanner and the issued securities image stored in the server at a predetermined time interval on the display unit;
And when the overlay is selected, the controller overlays the paid security image scanned from the scanner and the issued security image stored in the server, and displays the overlapped security image on the display unit. The method according to claim 6,
Further comprising enlarging a selected portion of a payable security image scanned from the scanner or an issued security image stored in the server and displaying the magnified image on the display unit when the magnifying glass function is selected. 8. The method of claim 7,
If the Suspect Area view function is selected, Wherein the control unit further includes a step of providing a portion selected by the input unit as a suspicious region on the screen processed by the metabolic processing unit, the overlay processing unit, and the magnifying glass processing unit. 9. The method of claim 8,
The step of displaying the issued security image images stored in the server on the display unit alternately at predetermined time intervals,
Wherein the controller displays the payment security image scanned from the scanner and all or a predetermined portion of the issued security image stored in the server on the display unit alternately at predetermined time intervals according to the selection of the input unit, How to identify securities.
