CN219067583U - Intelligent station of grain depot pest trapping equipment - Google Patents

Abstract

The utility model discloses a grain depot pest trapping device intelligent station, which comprises power distribution equipment, wherein the power distribution equipment comprises an explosion-proof electric box and a cable storage module; the explosion-proof electric box is internally provided with a power switch and a power adaptation module, wherein the power switch is used for connecting an external power supply and is electrically connected with a power circuit of pest trapping equipment through a cable; a power adaptation module is provided between the power switch and the pest trapping device for adjusting the current and voltage input to the pest trapping device. According to the technical scheme, the power supply adaptation module can reduce the standard voltage commonly used by municipal circuits to be low voltage for adapting pest trapping equipment, and the explosion-proof electric box is made of flame retardant materials or nonflammable materials, so that when an electric component in the explosion-proof electric box has faults such as arcing and the like, residual waves generated by the faults are only limited in a sealed space of the accommodating cavity, the explosion-proof electric box cannot be ignited, and safety accidents cannot be caused.

Description

Intelligent station of grain depot pest trapping equipment

Technical Field

The utility model relates to the technical field of deinsectization equipment, in particular to an intelligent station of grain depot pest trapping equipment.

Background

In the grain storage process, besides the moisture protection, fire protection and lightning protection, insect damage prevention is also required. Pest control methods for stored grain are varied, one of which is to physically remove insects by providing pest trapping devices in the grain bin. However, the provision of pest trapping devices in grain bins for physical pest control has the following problems:

(1) The pest trapping device is usually directly plugged with an external 220V power supply independently, and a socket of an external power supply of the pest trapping device is directly exposed in the air, so that a large potential safety hazard exists in the electric potential of the pest trapping device;

(2) The grain depot has relatively large occupied area, a plurality of pest trapping devices are usually required to be arranged in one grain depot in order to ensure the deinsectization effect, and after the grain is placed in the grain depot, the pest trapping devices are usually directly placed in corners without any protective measures, so that the service life of the pest trapping devices is easily shortened due to damp or other unexpected situations.

Disclosure of Invention

The utility model solves the problems that: the potential safety hazard of electricity utilization of the electricity connection position of the pest trapping device is reduced.

In order to solve the technical problems, the utility model provides a grain depot pest trapping device intelligent station, which comprises:

comprising the following steps:

the power distribution equipment comprises an explosion-proof electric box and a cable storage module;

the explosion-proof electric box is internally provided with a power switch and a power adapter module, wherein the power switch is used for connecting an external power supply and is electrically connected with a power circuit of pest trapping equipment through a cable; the power supply adaptation module is arranged between the power supply switch and the pest trapping device;

the cable storage module comprises a storage device for storing and releasing the power line.

In one embodiment, the intelligent station of the grain depot pest trapping device comprises a wireless communication module; the power switch is electrically connected with a power circuit of the wireless communication module, and the wireless communication module is used for being in communication connection with pest trapping equipment so as to feed back pest trapping information in the pest trapping equipment to a cloud system.

In one embodiment, the intelligent station for grain depot pest trapping apparatus includes a housing having a first storage compartment; the explosion-proof electric box and the cable storage module are both arranged in the first storage bin, and the explosion-proof electric box is located above the cable storage module.

In an embodiment, the first storage bin comprises a first bin body and a first bin door, wherein the first bin body is provided with a first bin opening, and the first bin door is used for opening or closing the first bin opening;

the intelligent station of the grain depot pest trapping device comprises an isolation assembly, wherein the isolation assembly comprises a first partition plate and a second partition plate; the first partition plate divides the cavity inside the first storage bin into an upper cavity and a lower cavity which are distributed from top to bottom, the second partition plate divides the upper cavity into a first cavity and a second cavity which are arranged front to back, and the second cavity is communicated with the first bin opening;

the explosion-proof electric box is arranged in the first cavity, the storage device is arranged in the lower cavity, and the control switch and the display lamp of the explosion-proof electric box are highlighted in the second cavity.

In one embodiment, the second partition plate is provided with a containing groove for containing accessories, and the containing groove is communicated with the second cavity;

and/or one side of the second partition board, which is close to the second cavity, is provided with a hook for mounting accessories.

In an embodiment, the intelligent station of the grain depot pest trapping device comprises a mounting bracket for mounting the storage device, wherein the mounting bracket is arranged in the second cavity and is connected with the inner wall of the first storage bin.

In an embodiment, the mounting bracket comprises a base and a plurality of support plates mounted on the base, and the base is fixedly connected with the first storage bin; a first installation position for installing the storage device is formed between any two adjacent support plates.

In an embodiment, the first storage bin is provided with a cable taking opening for a user to take out cables and cable wires; the cable taking opening is formed in the bottom of the first storage bin and located on one side of the base, and the cable taking opening extends along the arrangement direction of the supporting plates.

In one embodiment, the intelligent station of the grain depot pest trapping device further comprises a limit baffle arranged at the cable taking opening; an accommodating space is formed between the limit baffle and the bin body of the first storage bin; the limit baffle is provided with a bayonet, a cable used for being electrically connected with the pest trapping device is clamped into the bayonet, and a connector of the cable port can be accommodated in the accommodating space.

In one embodiment, the limit baffle comprises a connecting part and a bending part which are connected with each other; the connecting part of the bending part is connected with the bin body at the bottom surface of the first storage bin; the bending part is obliquely arranged towards the side surface close to the first storage bin so as to block the cable taking opening and the channel of the first storage bin;

a limiting piece is arranged in the accommodating space and is suitable for being positioned at the bayonet so as to limit the connector of the cable port to be positioned in the accommodating space;

the bayonet is arranged on the bending part, or the bayonet extends from the bending part towards the connecting part.

In one embodiment, the grain depot pest trapping apparatus smart station further comprises a first support for supporting a cable electrically connected to the pest trapping apparatus such that a creepage distance exists between the cable and a grain surface; the first storage bin is internally provided with a storage grid for storing the first supporting frame.

In an embodiment, the first support frame is arranged in a strip shape, one end of the first support frame can be inserted into the grain pile, and a third installation position for mounting the cable is formed on the other end of the first support frame.

In one embodiment, the first support is configured to be foldable; and/or the first support frame is arranged in a telescopic way.

In one embodiment, the housing further has a second storage compartment for storing the pest trapping device; the second storage bin is arranged on one side of the first storage bin;

wherein, be equipped with in the second storage bin and accomodate the support, accomodate the support and be provided with the confession pest trapping equipment places's second installation position.

In one embodiment, the second mounting location includes a first mounting slot and a second mounting slot;

the groove depth of first mounting groove with the groove depth of second mounting groove extends along vertical direction and sets up, the top surface of second mounting groove is higher than the top surface of first mounting groove, first mounting groove with the second mounting groove is followed accomodate the length direction of support and alternate interval arrangement.

In an embodiment, the storage bracket comprises a connecting plate and a plurality of mounting frames arranged on the connecting plate, wherein the mounting frames are arranged at intervals along the length direction of the connecting plate, and the mounting frames form the second mounting groove; the connecting plate is provided with the first mounting groove.

In one embodiment, the intelligent station of grain depot pest trapping apparatus includes a second support;

the first storage bin is mounted on a wall through the second support frame;

and/or the second storage bin is mounted on a wall through the second support frame.

The intelligent station of the grain depot pest trapping device provided by the technical scheme of the utility model is provided with power distribution equipment and a cable storage module, wherein the power distribution equipment comprises an explosion-proof electric box, and a power switch and a power adaptation module which are arranged in the explosion-proof electric box. The power switch can be used for switching on, switching off and carrying rated working current, short circuit, overload and other fault currents in the circuit; the power supply adaptation module can reduce the standard voltage commonly used by municipal circuits to be low voltage suitable for pest trapping equipment, and the explosion-proof electric box and the protection tube are made of flame retardant materials or nonflammable materials, so that when an electric appliance component in the explosion-proof electric box has faults such as arcing and the like, residual waves generated by the faults are only limited in a sealed space of the accommodating cavity, the explosion-proof electric box cannot be ignited, and safety accidents cannot be caused; the cable storage module can store cables regularly. Therefore, the socket of the external municipal power supply of the pest trapping device is prevented from being directly exposed in the air, and the potential safety hazard of electricity utilization of the electricity connection position of the pest trapping device is further reduced.

Drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following description will briefly explain the drawings used in the embodiments or the description of the prior art, and it is obvious that the drawings in the following description are only some embodiments of the present utility model, and other drawings can be obtained according to the structures shown in these drawings without inventive effort for a person skilled in the art.

FIG. 1 is a schematic diagram of one embodiment of a smart station of a grain depot pest trapping apparatus of the present utility model;

FIG. 2 is a side view of FIG. 1;

FIG. 3 is a schematic view of the first storage compartment in FIG. 1;

FIG. 4 is a side view of FIG. 3;

FIG. 5 is a cross-sectional view of A-A of FIG. 4;

FIG. 6 is an enlarged view at A in FIG. 5;

FIG. 7 is a schematic view of the first door hidden in FIG. 3;

FIG. 8 is a schematic view of the mounting structure of a take-up reel and its mounting bracket;

FIG. 9 is a partial exploded view of FIG. 8;

FIG. 10 is a schematic view of the isolation assembly of FIG. 5;

fig. 11 is a schematic view of a mounting structure of the pest trapping apparatus and the storage bracket;

FIG. 12 is a schematic view of a structure of a receiving rack;

FIG. 13 is a schematic structural view of a second storage compartment concealing a second door and pest trapping apparatus;

fig. 14 is an enlarged view at B in fig. 13;

fig. 15 is a schematic structural view of the first bracket;

fig. 16 is an enlarged view at C in fig. 15.

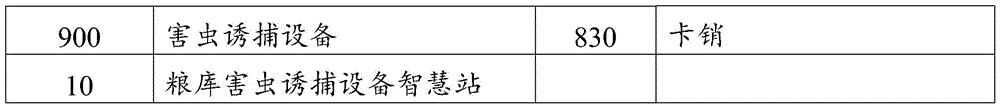

Reference numerals illustrate:

the achievement of the objects, functional features and advantages of the present utility model will be further described with reference to the accompanying drawings, in conjunction with the embodiments.

Detailed Description

The following description of the embodiments of the present utility model will be made clearly and fully with reference to the accompanying drawings, in which it is evident that the embodiments described are only some, but not all embodiments of the utility model. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.

It should be noted that, if directional indications (such as up, down, left, right, front, and rear … …) are included in the embodiments of the present utility model, the directional indications are merely used to explain the relative positional relationship, movement conditions, etc. between the components in a specific posture (as shown in the drawings), and if the specific posture is changed, the directional indications are correspondingly changed.

In addition, if there is a description of "first", "second", etc. in the embodiments of the present utility model, the description of "first", "second", etc. is for descriptive purposes only and is not to be construed as indicating or implying a relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defining "a first" or "a second" may explicitly or implicitly include at least one such feature. In addition, if the meaning of "and/or" is presented throughout this document, it is intended to include three schemes in parallel, taking "a and/or B" as an example, including a scheme, or B scheme, or a scheme where a and B meet simultaneously. In addition, the technical solutions of the embodiments may be combined with each other, but it is necessary to base that the technical solutions can be realized by those skilled in the art, and when the technical solutions are contradictory or cannot be realized, the combination of the technical solutions should be considered to be absent and not within the scope of protection claimed in the present utility model.

The utility model provides a grain depot pest trapping equipment intelligent station.

In an embodiment of the present utility model, as shown in fig. 1 to 16, the grain depot pest trapping apparatus intelligent station 10 includes a housing power distribution apparatus 300, the power distribution apparatus 300 including an explosion proof electric box 310 and a cable housing module; a power switch 320 and a power adapting module are arranged in the explosion-proof electric box 310, the power switch 320 is used for connecting an external power supply and is electrically connected with a power circuit of pest trapping equipment 900 through a cable; the power adaptation module is provided between the power switch 320 and the pest trapping apparatus 900, and the cable housing module includes a housing device 330 for housing the power line and a mounting bracket 500 for mounting the housing device.

The intelligent station 10 for grain depot pest trapping equipment provided by the technical scheme of the utility model is provided with a power distribution device 300 and a cable storage module, wherein the power distribution device 300 comprises an explosion-proof electric box 310, and a power switch 320 and a power adaptation module which are arranged in the explosion-proof electric box 310. Wherein, the power switch 320 can be used for switching on, switching off and carrying rated working current, short circuit, overload and other fault currents in the circuit; the power supply adapting module can reduce the standard voltage commonly used by municipal circuits to be low voltage for adapting pest trapping device 900, and explosion-proof electric box 310 and the protection tube are made of flame retardant materials or nonflammable materials, so that when electric components in explosion-proof electric box 310 have faults such as arcing, residual waves generated by the faults are only limited in the sealed space of the accommodating cavity, and thus, explosion-proof electric box 310 is not ignited, and safety accidents are not caused; the cable storage module can store cables regularly, and potential safety hazards caused by messy cable release are avoided. Thus, the socket of the external municipal power supply of pest trapping device 90 is prevented from being directly exposed in the air, and the potential safety hazard of electricity utilization of the electricity connection position of pest trapping device 900 is further reduced.

Generally, the power switch 3200 may be a normal switch or an air switch, preferably, the power switch is an air switch, so that rated working current, short circuit, overload and other fault currents can be conducted, disconnected and carried in the circuit, and the circuit can be quickly disconnected under the conditions of overload, short circuit, undervoltage and the like of the circuit and the load, so that reliable protection is performed; the power adapting module is provided between the power switch and the pest trapping apparatus for adjusting current and voltage inputted into the pest trapping apparatus 900 so that standard voltage commonly used in municipal roads is reduced to a low voltage adapted to the pest trapping apparatus 900, thereby improving the safety of electricity consumption of the grain depot pest trapping apparatus intelligent station 10. The housing 100 has a first storage compartment 110, and the explosion-proof electric box and the cable storage module are both disposed in the first storage compartment, and the explosion-proof electric box is disposed above the cable storage module. By providing first storage compartment 110, the safety of grain depot pest trapping apparatus intelligent station 10 is further improved.

In another embodiment, the housing 100 further has a second storage compartment 120, and the first storage compartment 110 and the second storage compartment 120 may be integrally formed or separately formed. Second housing 120 is configured to house pest trapping device 900 and first housing 110 is configured to house wireless communication module 200, power distribution device 300, and other accessories. Where pest trapping device 900 is housed, it is typically insertable within a grain pile, although other devices may be placed directly on the grain surface or suspended within a grain bin. Pest trapping apparatus 900, which may be inserted into a grain pile, is described below as an example.

In a preferred embodiment, the intelligent grain depot pest trapping device station 10 comprises a wireless communication module 200 arranged on the first storage compartment 110, wherein the wireless communication module 200 is electrically connected with the power distribution device 300, and the wireless communication module 200 is used for being in communication connection with the pest trapping device 900 so as to feed back pest trapping information in the pest trapping device 900 to a cloud system.

In this embodiment, the pest trapping intelligent station has a use state and a stop state, wherein the use state is usually executed after the grain is piled up in the granary, and the stop state is usually executed between the period before the grain is ready to be put in the granary and the period after the grain is piled up in the next granary. The process of switching from the shutdown state to the use state is approximately as follows: the user takes out the trapper from the second storage bin 120 and inserts the trapper into the grain pile, pull out the cable from the first storage bin 110 and connect the pest trapper 900, control the power distribution equipment 300 to supply power to the pest trapper 900 and the wireless communication module 200, corresponding control units and pest information collecting devices are arranged in the pest trapper 900, the information collected by the pest information collecting devices can be returned to the cloud system through the wireless communication module 200, the user can directly check the returned information through the terminal equipment, the user can input instructions to remotely control relevant works such as starting and stopping of the trapper at the terminal equipment, finally, the pest collecting conditions can be monitored by using a camera in the trapper, and then the pest information is fed back to the terminal equipment through a network for summarizing analysis, and the working time and the like of the equipment can be adjusted according to actual conditions.

It should be noted that, all the functions of the above embodiments only have permission to view and operate by the authorized user, and the manner in which the mobile terminal views and inputs the instruction to remotely control relevant operations such as starting and stopping of the trapping device includes, but is not limited to, APP, client, web page and applet. In addition, the power circuit of the wireless communication module 200 may be electrically connected to the power switch 320 through a power adapter module.

In one exemplary embodiment, the power distribution apparatus 300 includes an explosion-proof electrical box 310 and a power switch 320 disposed within the explosion-proof electrical box 310; generally, the power switch 320 is externally connected with a power supply, the power switch 320 can lead out a cable to be electrically connected with the power circuits of the pest trapping device 900 and the wireless communication module 200, and the power adapting module is arranged between the power switch 320 and the pest trapping device 900; a storage device 330 is disposed in the first storage bin 110, and a cable electrically connected to the pest trapping apparatus 900 through the power switch 320 may be stored in the storage device 330. The power supply adapting module is located in the explosion-proof electric box 310, plays roles of transformation and rectification, and supplies power to the trapping device through a cable.

In order to improve the electricity safety of the intelligent station 10 of the grain depot pest trapping device, the outer part of the cable connected with the external power supply by the power switch 320 is sleeved with a protection tube, the explosion-proof electric box 310 and the protection tube are made of flame retardant materials or nonflammable materials, so that when the electric components inside the explosion-proof electric box 310 have faults such as arcing, the residual waves generated by the faults are only limited in the sealed space of the accommodating cavity, the explosion-proof electric box 310 cannot be ignited, and safety accidents cannot be caused.

On the basis of the above embodiment, the first storage bin 110 includes a first bin body 111 and a first bin door 112, where the first bin body 111 has a first bin opening 113, and the first bin door 112 is used to open or close the first bin opening 113; the grain depot pest trapping apparatus intelligent station 10 includes an isolation assembly 400, the isolation assembly 400 including a first partition 410 and a second partition 420; the first partition 410 divides the cavity inside the first storage bin 110 into an upper cavity 114 and a lower cavity 115 which are distributed from top to bottom, the second partition 420 divides the upper cavity 114 into a first cavity 114a and a second cavity 114b which are arranged front to back, and the second cavity 114b is communicated with the first bin opening 113; the explosion-proof electric box 310 is disposed in the first cavity 114a, the receiving device 330 is disposed in the lower cavity 115, and the control switch 311 and the display lamp 312 of the explosion-proof electric box 310 are protruded from the second cavity 114b. In this way, by arranging the explosion-proof electric box 310 on the side far away from the first bin opening 113, the control switch 311 and the display lamp 312 are highlighted on the second cavity 114b near the first bin opening 113, so that the opening and closing operation of the circuit by a worker can be facilitated; has higher safety protection level and plays a role in protecting the safety of the granary. In addition, the second division board can be detached in the whole, and the technical staff is convenient for manage simultaneously, and when the trouble occurs, the maintenance of staff is facilitated.

In one embodiment, referring to fig. 7 and 10, the second partition 420 has a receiving slot 421 formed thereon for receiving a fitting, and the receiving slot 421 communicates with the second cavity 114 b; and/or, a hook for mounting accessories is arranged on one side of the second partition 420 close to the second cavity 114b.

Wherein the accessory means not the parts necessary for using the intelligent station 10 of the grain depot pest trapping device, but the parts required in some specific scenes, such as a standby pest collecting box, a collecting bag, an extension cable, goggles, a use instruction and the like, wherein the standby pest collecting box can be quickly replaced when the pest collecting box in the pest trapping device 900 is prevented from being broken; the collecting bag is used for collecting and treating the pests in the storage bags after the pests caught in the pest trapping devices 900 are firstly collected in the storage bags when the pest trapping devices 900 are cleaned; the number of extension cables is usually 2, which considers that the area of the barn is relatively large, and the positions of the first storage bin 110 and the second storage bin 120 are fixed on the wall surfaces on the edges, so that the positions far away from the first storage bin 110 and the second storage bin 120 may not be covered because the length of the cable rolled on the storage device 330 may not be enough, and at this time, the extension cables may be adopted to extend the same, thereby improving the versatility of the intelligent station 10 of the grain depot pest trapping device.

In a preferred embodiment, referring to fig. 5 to 9, the intelligent station 10 for grain depot pest trapping apparatus includes a mounting bracket 500 provided for mounting the receiving device 330, the mounting bracket 500 being provided in the second cavity 114b and connected to the inner wall of the first receiving bin 110. By arranging the mounting bracket 500 at the bottom of the first storage compartment 110, wiring is more convenient.

In an exemplary embodiment, the mounting bracket 500 includes a base 510 and a plurality of support plates 520 mounted on the base 510, and the base 510 is fixedly connected with the first storage compartment 110; a first mounting position 501 for mounting the storage device 330 is formed between any two adjacent support plates 520.

Preferably, in order to reduce the weight of the mounting bracket 500, the base 510 and the supporting plate 520 are hollowed out. Of course, the hollowed-out arrangement here needs to ensure that the base 510 and the support plate 520 have sufficient strength.

In one embodiment, in order to facilitate the routing of the cable and to facilitate the taking of the cable when the cable is reused, the first storage compartment 110 is provided with a cable taking opening 116 for a user to take out the cable and route the cable; the cable taking opening 116 is disposed at the bottom of the first storage compartment 110 and is located at one side of the base 510, and the cable taking opening 116 extends along the arrangement direction of the plurality of support plates 520. In this manner, the cable can be routed directly from the cable-taking opening 116, and when the grain depot pest trapping apparatus intelligent station 10 is in the use state, the first door 112 can maintain the state of closing the first door opening 113, so that the safety of the grain depot pest trapping apparatus intelligent station 10 can be improved. In addition, by providing the cable access opening 116, the user can pull the cable out without opening the first door 112.

On the basis of the above embodiment, in order to avoid excessive winding of the storage device 330 during winding, thereby causing damage to the connector disposed at the free end port of the cable, the intelligent station 10 for grain depot pest trapping apparatus further comprises a limit baffle 530 disposed at the cable-taking opening 116; an accommodating space is formed between the limit baffle 530 and the bin body of the first storage bin 110; limiting baffle 530 is provided with bayonet 531 for the cable card that is used for with pest trapping device 900 electricity is connected goes into bayonet 531, the joint of cable port can accept in the accommodation space. In this way, the connector of the free end port of the cable is controlled outside the limit baffle 530 by the limit baffle 530, so that the storage device 330 can be prevented from being damaged due to the fact that the connector of the free end port of the cable is wound into the storage device 330. Preferably, a limit stop 540 is further provided on the side of the bayonet 531 away from the receiving device 330, so as to further prevent the receiving device 330 from winding the connector of the free end port of the cable into the receiving device 330.

In another embodiment, the limit stop 530 includes a connecting portion 532 and a bending portion 533 connected to each other; the connecting part 532 of the bending part 533 is connected to the bin body on the bottom surface of the first storage bin 110; the bending part 533 is obliquely arranged towards the side surface close to the first storage bin 110 so as to block the cable taking opening 116 from the channel of the first storage bin 110; a limiting piece is arranged in the accommodating space and is suitable for being positioned at the bayonet 531 so as to limit the connector of the cable port to be positioned in the accommodating space; the bayonet 531 is provided at the bent portion 533, or the bayonet 531 extends from the bent portion 533 toward the connection portion 532.

Referring to fig. 5, 15 and 16, in one embodiment, in order to ensure the electrical safety of the grain depot and prevent the cable connected to the pest trapping device 900 from directly contacting the grain, the intelligent station 10 further includes a first support 600, where the first support 600 is used to support the cable electrically connected to the pest trapping device 900, so that a creepage distance exists between the cable and the grain surface; the first storage compartment 110 is provided therein with a storage compartment 117 for storing the first holder 600. Any support for supporting the cable is possible.

Illustratively, the first support 600 is provided in a strip shape, one end of the first support 600 may be inserted into the grain pile, and another third mounting position 601 for mounting the cable is formed. Wherein the end inserted into the pile may be pointed.

In another preferred embodiment, the first support frame 600 is configured to be foldable in order to ensure that the first support frame 600 has a sufficient depth and to facilitate the storage of the first support frame 600 into the storage compartment 117; and/or, the first support 600 may be telescopically arranged.

Referring to fig. 11 to 13, in one embodiment, the grain depot pest trapping apparatus intelligent station 10 includes a storage rack 800 provided with a second mounting location for placement of the pest trapping apparatus 900; the second storage compartment 120 has a second compartment body 121 and a second compartment door 122, where the second compartment body 121 is disposed at a second compartment opening 123, and the second compartment door 122 is used for opening or closing the second compartment opening 123.

The second storage compartment 120 is set in a direction, for example, the second door 122 may be front, may be set on the top, or may be set on both left and right sides, and only needs to be able to place and take out the trapping device. In addition, after the grain bin is placed, pest trapping device 900 can be retracted into second storage bin 120, so that pest trapping device 900 is also shielded, thereby extending the life of pest trapping device 900.

Considering that the lateral space occupied by the partition plate in pest trapping device 900 that can be inserted in the grain stack is large, in one embodiment, the second installation site includes a first installation groove 801a and a second installation groove 801b in order to reduce the lateral space occupied by pest trapping device 900; the groove depths of the first mounting groove 801a and the second mounting groove 801b extend in the vertical direction, the top surface of the second mounting groove 801b is higher than the top surface of the first mounting groove 801a, and the first mounting groove 801a and the second mounting groove 801b are alternately arranged at intervals along the length direction of the storage rack 800. In this manner, the installation grooves in which pest trapping apparatus 900 is placed are set to be staggered in height, so that the partition plates occupying a larger lateral area are placed in a staggered manner, thereby reducing the lateral space occupied by pest trapping apparatus 900.

For example, referring to fig. 11 and 12, the storage rack 800 includes a connection board 810 and a plurality of mounting frames 820 disposed on the connection board 810, the plurality of mounting frames 820 are arranged at intervals along the length direction of the connection board 810, and the mounting frames 820 form the second mounting groove 801b; the connection plate 810 is formed with the first mounting groove 801a. Wherein, the bottom circumference of connecting plate 810 is provided with interface 801, the inner wall of second storage compartment 120 be provided with interface 801 looks adaptation bayonet lock 830, so, storage support 800 can directly install in second storage compartment 120.

The intelligent station 10 of the grain depot pest trapping device can be directly placed on a plane with certain hardness or can be mounted on the wall of a grain depot, and in consideration of the actual use environment, the intelligent station 10 of the grain depot pest trapping device is preferably mounted on the wall of the grain depot.

Illustratively, referring to FIGS. 2 and 5, the grain depot pest trapping apparatus intelligent station 10 includes a second support 700; the first storage bin 110 is mounted on a wall through the second support frame 700; and/or, the second storage compartment 120 is mounted on a wall by the second support frame 700. The second support 700 includes a first portion and a second portion, the first portion is fixed to the wall through a screw, the second portion is mounted on the housing 100, the first portion and the second portion are provided with mutually matched components for connection, and the components for connection can be directly and fixedly connected.

The foregoing description is only of the optional embodiments of the present utility model, and is not intended to limit the scope of the utility model, and all the equivalent structural changes made by the description of the present utility model and the accompanying drawings or the direct/indirect application in other related technical fields are included in the scope of the utility model.

Claims (17)

1. A grain depot pest trapping apparatus intelligent station, comprising:

the power distribution equipment comprises an explosion-proof electric box and a cable storage module;

the explosion-proof electric box is internally provided with a power switch and a power adapter module, wherein the power switch is used for connecting an external power supply and is electrically connected with a power circuit of pest trapping equipment through a cable; the power supply adaptation module is arranged between the power supply switch and the pest trapping device;

the cable storage module comprises a storage device for storing and releasing the power line.

2. The intelligent station for grain depot pest trapping apparatus of claim 1, wherein the intelligent station for grain depot pest trapping apparatus comprises a wireless communication module; the power switch is electrically connected with a power circuit of the wireless communication module, and the wireless communication module is used for being in communication connection with pest trapping equipment so as to feed back pest trapping information in the pest trapping equipment to a cloud system.

3. The intelligent grain depot pest trapping apparatus station of claim 2, wherein the intelligent grain depot pest trapping apparatus station includes a housing having a first receptacle; the explosion-proof electric box and the cable storage module are both arranged in the first storage bin, and the explosion-proof electric box is located above the cable storage module.

4. The intelligent grain depot pest trapping apparatus station of claim 3 wherein the first storage bin includes a first bin body and a first bin gate, the first bin body having a first bin opening, the first bin gate for opening or closing the first bin opening;

the intelligent station of the grain depot pest trapping device comprises an isolation assembly, wherein the isolation assembly comprises a first partition plate and a second partition plate; the first partition plate divides the cavity inside the first storage bin into an upper cavity and a lower cavity which are distributed from top to bottom, the second partition plate divides the upper cavity into a first cavity and a second cavity which are arranged front to back, and the second cavity is communicated with the first bin opening;

the explosion-proof electric box is arranged in the first cavity, the storage device is arranged in the lower cavity, and the control switch and the display lamp of the explosion-proof electric box are highlighted in the second cavity.

5. The intelligent station for grain depot pest trapping apparatus of claim 4, wherein the second partition has a receiving slot formed therein for receiving a fitting, the receiving slot being in communication with the second cavity;

and/or one side of the second partition board, which is close to the second cavity, is provided with a hook for mounting accessories.

6. The intelligent station for grain depot pest trapping apparatus of claim 4, wherein the intelligent station for grain depot pest trapping apparatus comprises a mounting bracket for mounting the receiving device, the mounting bracket being provided in the second cavity and being connected to an inner wall of the first receiving bin.

7. The intelligent station for grain depot pest trapping apparatus of claim 6, wherein the mounting bracket includes a base and a plurality of support plates mounted to the base, the base being fixedly connected to the first storage bin; a first installation position for installing the storage device is formed between any two adjacent support plates.

8. The grain depot pest trapping apparatus wisdom station of claim 6, wherein the first storage bin is provided with a cable access opening for a user to access cables and cable runs; the cable taking opening is formed in the bottom of the first storage bin and located on one side of the base, and the cable taking opening extends along the arrangement direction of the supporting plates.

9. The intelligent station for grain depot pest trapping apparatus of claim 8, further comprising a limit stop provided at the cable take-off opening; an accommodating space is formed between the limit baffle and the bin body of the first storage bin; the limit baffle is provided with a bayonet, a cable used for being electrically connected with the pest trapping device is clamped into the bayonet, and a connector of the cable port can be accommodated in the accommodating space.

10. The intelligent station for grain depot pest trapping apparatus of claim 9, wherein the limit baffle includes a connecting portion and a bending portion connected to each other; the connecting part of the bending part is connected with the bin body at the bottom surface of the first storage bin; the bending part is obliquely arranged towards the side surface close to the first storage bin so as to block the cable taking opening and the channel of the first storage bin;

a limiting piece is arranged in the accommodating space and is suitable for being positioned at the bayonet so as to limit the connector of the cable port to be positioned in the accommodating space;

the bayonet is arranged on the bending part, or the bayonet extends from the bending part towards the connecting part.

11. The intelligent station for grain depot pest trapping apparatus of claim 4, further comprising a first support for supporting a cable electrically connected to the pest trapping apparatus such that a creepage distance exists between the cable and a grain surface; the first storage bin is internally provided with a storage grid for storing the first supporting frame.

12. The intelligent station for grain depot pest trapping apparatus of claim 11, wherein the first support frame is provided in a strip shape, one end of the support frame is inserted into the grain pile, and another third installation position for mounting the power cable is formed.

13. The intelligent station for grain depot pest trapping apparatus of claim 12, wherein the first support is foldably provided;

and/or the first support frame is arranged in a telescopic way.

14. The grain depot pest trapping apparatus intelligent station of any one of claims 4 to 13, wherein the housing further has a second storage compartment for storing the pest trapping apparatus; the second storage bin is arranged on one side of the first storage bin;

wherein, be equipped with in the second storage bin and accomodate the support, accomodate the support and be provided with the confession pest trapping equipment places's second installation position.

15. The intelligent grain depot pest trapping apparatus station of claim 14, wherein the second mounting location includes a first mounting slot and a second mounting slot;

the groove depth of first mounting groove with the groove depth of second mounting groove extends along vertical direction and sets up, the top surface of second mounting groove is higher than the top surface of first mounting groove, first mounting groove with the second mounting groove is followed accomodate the length direction of support and alternate interval arrangement.

16. The intelligent station for grain depot pest trapping apparatus of claim 15, wherein the housing bracket includes a connecting plate and a plurality of mounting frames provided on the connecting plate, the plurality of mounting frames being arranged at intervals along a length direction of the connecting plate, the mounting frames forming the second mounting groove; the connecting plate is provided with the first mounting groove.

17. The intelligent station for grain depot pest trapping apparatus of claim 14, wherein the intelligent station for grain depot pest trapping apparatus comprises a second support;

the first storage bin is mounted on a wall through the second support frame;

and/or the second storage bin is mounted on a wall through the second support frame.
