Abstract

The utility model discloses a tear-resistant spunlace pearl pattern non-woven fabric, which comprises an inner layer and a plurality of pearl protrusions, an outer layer is symmetrically arranged on both sides of the inner layer, and the edges of the outer layer and the inner layer are fixed by edge sutures Connected, there are several pearl protrusions evenly on the outside of the outer layer, the cross reinforcement strip can be fixed with the outer layer on the same side through the setting of the outer stitching point, and the overall tear resistance can be increased by the setting of the cross reinforcement strip, so that the The fabric is firmer, and the horizontal or vertical reinforcement lines can be fixed with the outer layer on the same side through the setting of the inner stitching point, which further increases the overall tear resistance and can also fix the inner layer and the outer layer. The utility model forms a plurality of pearl protrusions on the outer non-woven fabric, thereby increasing the friction force of the cloth surface, and the adsorption grooves formed between the pearl protrusions can absorb stains during the wiping process and increase the stain adsorption on the cloth surface. ability, while setting reinforcing lines to increase the overall tear resistance.

Description

A tear-resistant spunlace pearl pattern non-woven fabric

technical field

The utility model relates to the technical field of non-woven fabrics, in particular to a tear-resistant spunlace pearl pattern non-woven fabric.

Background technique

Non-woven fabrics, also known as non-woven fabrics, are composed of oriented or random fibers. It is called cloth because of its appearance and certain properties. The non-woven fabric has no warp and weft threads, so it is very convenient to cut and sew, and it is light and easy to shape. Because it is a fabric that does not require spinning or weaving, it just orients or randomly arranges textile staple fibers or filaments to form a web structure, and then uses mechanical, thermal bonding or chemical methods to reinforce it.

In the prior art, when a general non-woven fabric is used as a wiping cloth product, due to its flat surface, the friction between the contact surface and the object during wiping is small, and its ability to absorb stains is poor, which is not conducive to cleaning and wiping, and also has tear resistance. Poor cracking, not long service life and other problems.

Utility model content

The purpose of this utility model is to provide a tear-resistant spunlace pearl pattern non-woven fabric to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the present invention provides the following technical solutions: a tear-resistant spunlace pearl pattern non-woven fabric, comprising an inner layer and several pearl protrusions, the inner layer is symmetrically provided with an outer layer on both sides, and the The edges of the outer layer and the inner layer are fixedly connected by edge stitching lines, the outer layer of the outer layer is evenly provided with a number of pearl protrusions, and the outer layer of the outer layer is located between the pearl protrusions. The edge stitching line passes through the two ends of the cross reinforcement strip, and the intersection of the cross reinforcement strip on the same side is fixedly connected with the outer layer through the outer sewing point.

Preferably, the cross reinforcing bar includes an inner core, an adhesive layer and a wear-resistant layer, the outer side of the inner core is provided with an adhesive layer, and the outer side of the adhesive layer is provided with a wear-resistant layer.

Preferably, the inner core is nylon cloth, and the wear-resistant layer is woven cloth.

Preferably, a transverse reinforcement line and a longitudinal reinforcement line are interspersed inside the inner layer, the transverse reinforcement line is close to the outer layer on one side, the longitudinal reinforcement line is close to the outer layer on the other side, and the edge suture line Pass through both ends of the transverse reinforcement line and the longitudinal reinforcement line.

Preferably, the transverse reinforcement lines and the longitudinal reinforcement lines are fixedly connected to the outer layer on the same side through internal suture points.

Preferably, the transverse reinforcement lines and the longitudinal reinforcement lines are both plant fiber lines.

Preferably, the inner layer and the outer layer are both polyester and viscose blended fabrics.

Compared with the prior art, the beneficial effect of the present utility model is that the edges of the inner layer, the outer layer and the cross reinforcement bar can be fixed through the setting of the edge seam line, and the cross reinforcement bar and the same cross reinforcement bar can be fixed through the setting of the outer seam point. The outer layer of the side is fixed, and the overall tear resistance can be increased by the setting of the cross reinforcement strips, making the fabric more firm. , while further increasing the overall tear resistance, the inner layer and the outer layer can also be fixed, the utility model forms a plurality of pearl protrusions on the outer non-woven fabric, thereby increasing the friction force of the cloth surface, and the pearl protrusions The adsorption grooves formed between them can absorb stains during the wiping process, which increases the stain adsorption capacity of the cloth surface. At the same time, reinforced lines are set to increase the overall tear resistance.

Description of drawings

Fig. 1 is the top view structure schematic diagram of the utility model;

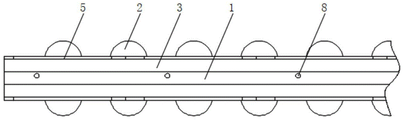

Fig. 2 is the front view structure schematic diagram of the utility model;

Fig. 3 is the side view structure schematic diagram of the utility model;

FIG. 4 is a schematic cross-sectional structure diagram of a cross reinforcement bar in the utility model.

In the picture: 1-inner layer, 2-pearl protrusion, 3-outer layer, 4-edge stitching, 5-cross reinforcement strip, 51-inner core, 52-adhesive layer, 53-wear-resistant layer, 6- External suture point, 7-horizontal reinforcement line, 8-vertical reinforcement line, 9-inner suture point.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-4, the present utility model provides a technical solution: a tear-resistant spunlace pearl pattern non-woven fabric, comprising an inner layer 1 and a plurality of pearl protrusions 2, the two sides of the inner layer 1 are symmetrically arranged There is an outer layer 3, the edge of the outer layer 3 and the inner layer 1 are fixedly connected by edge stitching lines 4, the outer layer of the outer layer 3 is evenly provided with a number of pearl protrusions 2, and the outer layer of the outer layer 3 is located in the pearl. A cross reinforcement strip 5 is interspersed between the protrusions 2, the edge stitching line 4 passes through both ends of the cross reinforcement strip 5, and the intersection of the cross reinforcement strip 5 on the same side is fixed with the outer layer 3 through the outer suture point 6 Connected to each other, a plurality of pearl protrusions 2 are formed on the outer layer 3, thereby increasing the friction force of the cloth surface. The adsorption groove formed between the pearl protrusions 2 can absorb stains during the wiping process and increase the stain adsorption capacity of the cloth surface. , the outer stitching point 6 can fix the cross reinforcement strip 5 with the outer layer 3 on the same side, and the cross reinforcement strip 5 increases the overall tear resistance and makes the fabric more firm.

Specifically, the cross reinforcing bar 5 includes an inner core 51 , an adhesive layer 52 and a wear-resistant layer 53 , the inner core 51 is provided with an adhesive layer 52 on the outer side, and the The abrasive layer 53 and the adhesive layer 52 bond the inner core 51 and the wear-resistant layer 53 to form reinforcing bars, and several reinforcing bars cross each other to form the cross-reinforcing bars 5. The wear-resistant layer 53 can increase the wear resistance of the cross-reinforcing bars 5. Increase service life.

Specifically, the inner core 51 is a nylon cloth, which has superior stretch resistance and strong willfulness, and the wear-resistant layer 53 is a woven cloth, and the woven cloth has excellent abrasion resistance.

Specifically, a transverse reinforcement line 7 and a longitudinal reinforcement line 8 are interspersed inside the inner layer 1 , the transverse reinforcement line 7 is close to the outer layer 3 on one side, and the longitudinal reinforcement line 8 is close to the outer layer 3 of the other side. Layer 3, the edge stitching line 4 passes through the two ends of the transverse reinforcement line 7 and the longitudinal reinforcement line 8. The transverse reinforcement line 7 increases the tear resistance of the fabric in the transverse direction, and the longitudinal reinforcement line 8 increases the tear resistance of the fabric in the longitudinal direction. The arrangement of the reinforcement line 7 and the longitudinal reinforcement line 8 further increases the overall tensile resistance of the fabric.

Specifically, the transverse reinforcement line 7 and the longitudinal reinforcement line 8 are fixedly connected to the outer layer 3 on the same side through the inner stitching point 9, and the inner stitching point 9 makes the transverse reinforcement line 7 and the longitudinal reinforcement line 8 connect with the outer layer 3 on the same side. A connection relationship is formed between the outer layer 3 and the inner layer 1 to increase the integrity of the fabric.

Specifically, the transverse reinforcement lines 7 and the longitudinal reinforcement lines 8 are both plant fiber lines, and the plant fiber lines have superior tensile strength.

Specifically, the inner layer 1 and the outer layer 3 are both polyester and viscose blended fabrics.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. A tear-resistant spunlace pearl pattern non-woven fabric, comprising an inner layer (1) and several pearl protrusions (2), characterized in that: the two sides of the inner layer (1) are symmetrically provided with an outer layer (1). 3), the edges of the outer layer (3) and the inner layer (1) are fixedly connected by edge sutures (4), the outer layer (3) is evenly provided with a number of pearl protrusions (2), the Cross reinforcement strips (5) are interspersed on the outside of the outer layer (3) and between the pearl protrusions (2). The intersection of the cross reinforcement strips (5) is fixedly connected with the outer layer (3) through the outer suture point (6). 2. The tear-resistant spunlace pearl pattern non-woven fabric according to claim 1, wherein the cross reinforcement strip (5) comprises an inner core (51), an adhesive layer (52) and a wear-resistant layer (53), the outer side of the inner core (51) is provided with an adhesive layer (52), and the outer side of the adhesive layer (52) is provided with a wear-resistant layer (53). 3. The tear-resistant spunlace pearl pattern non-woven fabric according to claim 2, wherein the inner core (51) is a nylon cloth, and the wear-resistant layer (53) is a woven cloth. 4. The tear-resistant spunlace pearl pattern non-woven fabric according to claim 1, wherein the inner layer (1) is interspersed with transverse reinforcement lines (7) and longitudinal reinforcement lines (8). ), the transverse reinforcement line (7) is close to the outer layer (3) on one side, the longitudinal reinforcement line (8) is close to the outer layer (3) on the other side, and the edge seam line (4) is transversely reinforced Both ends of the wire (7) and the longitudinal reinforcement wire (8). 5. A tear-resistant spunlace nacre nonwoven fabric according to claim 4, characterized in that: the transverse reinforcement line (7) and the longitudinal reinforcement line (8) are connected to the outer layer (3) on the same side They are fixedly connected by internal suture points (9). 6 . The tear-resistant spunlace nacre nonwoven fabric according to claim 4 , wherein the transverse reinforcement lines ( 7 ) and the longitudinal reinforcement lines ( 8 ) are both plant fiber lines. 7 . 7 . The tear-resistant spunlace pearl pattern non-woven fabric according to claim 1 , wherein the inner layer ( 1 ) and the outer layer ( 3 ) are both polyester viscose blended fabrics. 8 .
