Abstract

The utility model discloses a foldable and tear-resistant travel bag, which comprises a bag body and a lifting belt. The top of one side of the bag body is respectively sewn with a fixing ring, and the top of the other side of the bag body is sewn respectively corresponding to the fixing ring The tightening belt, the two ends of one side of the package body are sewn with expansion tapes, and the other side of the package body is sewn with a soft cotton pad, the top of the package body is sewn with a package body zipper, and both ends of the package body are sewn with a package body zipper. Rectangular reflective stickers are pasted on the top, and elastic mesh belts are sewn at the bottom of both ends of the package body. The inner surface of the package body is bonded with a tensile layer and an antibacterial layer, and the tensile layer is located between the antibacterial layer and the package body. During the time, the outer surface of the package body is bonded with an anti-wrinkle layer, and the package body is specifically made of encrypted nylon material. The foldable and tear-resistant travel bag of the utility model has the advantages of convenient folding, high tear-resistant strength, convenient sealing of the bag body, and is suitable for being widely popularized and used.

Description

A foldable tear-resistant travel bag

technical field

The utility model relates to the technical field of travel bags, in particular to a foldable and tear-resistant travel bag.

Background technique

A travel bag is also called a travel bag. As the name suggests, it refers to a type of bag prepared for travel or tourism. Travel bags can be divided into backpacks, handbags and drag bags. When you leave your hometown for a long trip, or do things or tours, or devote yourself to nature and enjoy the sun and rain, you can pack daily necessities or anything you want to take with you. A bag that is easy to carry and easy to carry. When people take out the commonly used items, personal clothing, etc. placed in it, the travel bag will be in an idle state, and because of its large size, the storage will occupy a certain space, which will bring inconvenience to people; There is a travel bag, which does not have bacteriostatic properties, and the bag body has insufficient tear resistance, which is easily damaged after being pulled and torn many times, resulting in a short service life of the travel bag. To this end, we propose a foldable tear-resistant travel bag to solve the above problems.

Utility model content

The main purpose of the present invention is to provide a foldable and tear-resistant travel bag, which can effectively solve the problems in the background technology.

To achieve the above purpose, the technical scheme adopted by the present utility model is:

A foldable and tear-resistant travel bag, comprising a bag body and a lifting strap, a top of one side of the bag body is respectively sewn with a fixing ring, and the top of the other side of the bag body is sewn with a tightening strap corresponding to the fixing ring, respectively, Both ends of one side of the bag body are sewn with expansion tapes, and the other side of the bag body is sewn with soft cotton pads, the top of the bag body is sewn with a bag body zipper, and the tops of both ends of the bag body are pasted with rectangles. Reflective stickers, and elastic mesh belts are sewn at the bottoms of both ends of the package body, a tensile layer and an antibacterial layer are bonded to the inner surface of the package body, and the tensile strength layer is located between the antibacterial layer and the package body. An anti-wrinkle layer is bonded on the outer surface of the body, and the package body is made of encrypted nylon material.

Further, the top of the rectangular reflective sticker is fixed with a shoulder strap through a connecting buckle, and the tops of both sides of the bag body are sewn with pull straps.

Further, the tensile layer is made of glass fiber material, the antibacterial layer is specifically a polylactic acid non-woven layer, and the anti-wrinkle layer is specifically made of a polyurethane material.

Further, a Velcro surface is sewn on the top of the front end of the tightening belt, and a Velcro female surface is sewn on the top of the rear end of the tightening belt.

Further, the connection between the top end of the capacity expansion belt and the bag body is sewn with a capacity expansion belt zipper respectively.

Compared with the prior art, the utility model has the following beneficial effects:

1. In this utility model, by setting the bag to be made of encrypted nylon material, it is convenient for personnel to fold the bag multiple times to fold the bag into a smaller area, so that it does not take up too much space; loop and tightening strap, so that when personnel pass the tightening strap through the fixing ring, the tightening strap can be pulled to make the bag body seals move together and close together, so that the personnel can pull the bag body zipper for sealing.

2. In the present utility model, a tensile layer made of glass fiber material is arranged on the inner side of the bag body, so that the tear resistance of the bag body can be effectively enhanced; The antibacterial layer can endow the inside of the bag with good antibacterial properties to inhibit the growth of bacteria in the bag; by setting the anti-wrinkle layer made of polyurethane material on the outside of the bag, it can effectively prevent the surface of the bag from wrinkling. Avoid wrinkles that affect the overall aesthetics of the bag.

3. In the present utility model, rectangular reflective stickers are arranged on both ends of the bag body, so as to reflect light at night, so that passers-by in the front and back are convenient to know that there are pedestrians nearby, so as to avoid accidental collisions, thereby improving the safety of travelers when they walk at night; By setting the elastic mesh belt and the expansion belt, some sundries (such as small parts, etc.) can be placed, thereby improving the usable volume of the travel bag.

Description of drawings

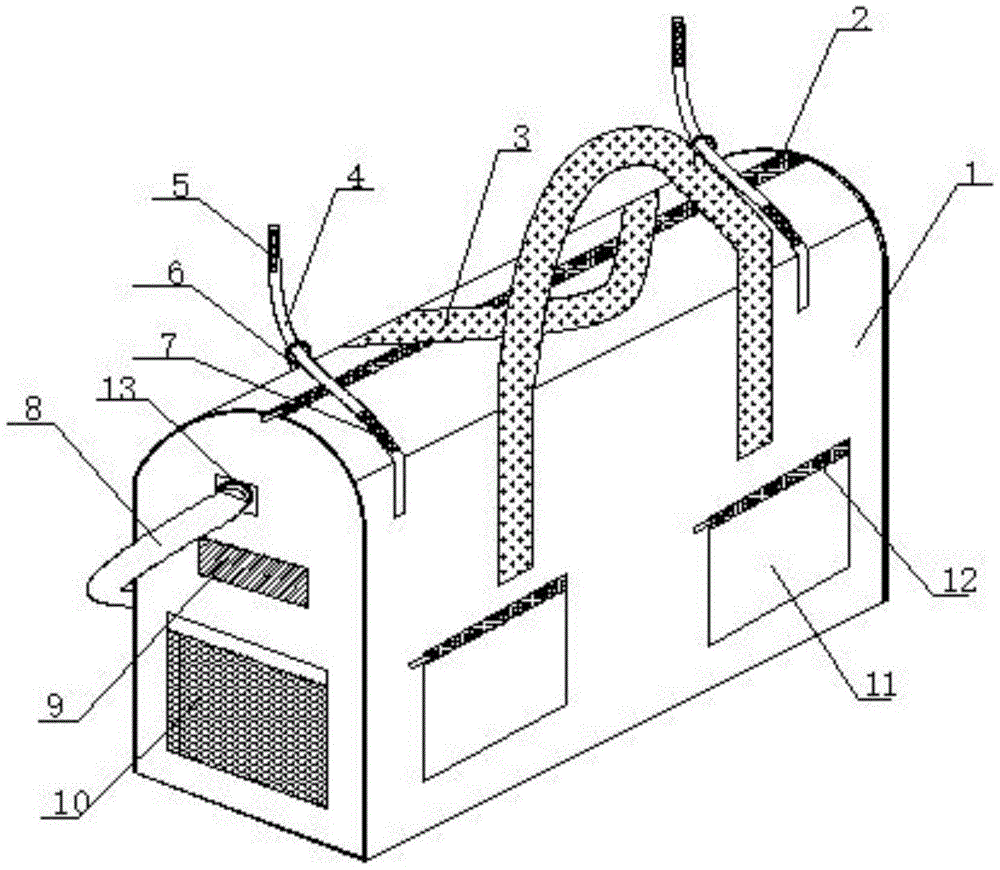

FIG. 1 is a schematic diagram of the overall structure of a foldable and tear-resistant travel bag of the present invention.

Figure 2 is a schematic structural diagram of a soft cotton pad on one side of the bag body of a foldable and tear-resistant travel bag of the present invention.

FIG. 3 is a schematic cross-sectional structure diagram of the inner and outer surface material layers of a foldable and tear-resistant travel bag of the present invention.

In the picture: 1. Bag body; 2. Bag body zipper; 3. Pulling belt; 4. Tightening belt; 5. Velcro surface; 6. Fixing ring; 7. Velcro mother surface; 8. Shoulder strap; 9. Rectangular reflective tape; 10. Elastic mesh belt; 11. Expansion belt; 12. Expansion belt zipper; 13. Connection buckle; 14. Soft cotton pad; 15. Tensile layer; 16. Antibacterial layer; 17. Anti-wrinkle layer .

Detailed ways

In order to make the technical means, creation features, achievement goals and effects of the present invention easy to understand and understand, the present invention will be further described below with reference to the specific embodiments.

As shown in Figures 1-3, a foldable and tear-resistant travel bag includes a bag body 1 and a pull strap 3. The top of one side of the bag body 1 is sewn with a fixing ring 6, and the other side of the bag body 1 is sewn together. The top is sewn with the tightening straps 4 corresponding to the fixing ring 6, the two ends of the package body 1 are sewn with expansion tapes 11, and the other side of the package body 1 is sewn with a soft cotton pad 14. 1. A bag body zipper 2 is sewn on the top end, a rectangular reflective sticker 9 is pasted on the top of both ends of the bag body 1, and an elastic mesh belt 10 is sewn on the bottom of both ends of the bag body 1, and the inner surface of the bag body 1 is glued There is a tensile layer 15 and an antibacterial layer 16, and the tensile layer 15 is located between the antibacterial layer 16 and the package body 1, the outer surface of the package body 1 is bonded with an anti-wrinkle layer 17, and the package body 1 is specifically encrypted nylon. material.

Wherein, the top of the rectangular reflective sticker 9 is fixed with a shoulder strap 8 through a connecting buckle 13 , and the tops of both sides of the bag body 1 are sewn with a lifting strap 3 .

In this embodiment, as shown in FIG. 1 , the shoulder straps 8 can facilitate the personnel to carry the bag body 1 on their shoulders to move; the pull straps 3 can facilitate the personnel to lift the bag body 1 to move.

Wherein, the tensile layer 15 is made of glass fiber material, the antibacterial layer 16 is specifically a polylactic acid non-woven layer, and the anti-wrinkle layer 17 is specifically made of a polyurethane material.

In this embodiment, as shown in FIG. 3 , the tensile layer 15 made of glass fiber material can effectively enhance the tear resistance of the package body 1; the antibacterial layer 16 is specifically a polylactic acid non-woven layer, which can give The inside of the body 1 has good bacteriostatic properties to inhibit the growth of bacteria in the body 1; the anti-wrinkle layer 17 made of polyurethane material can effectively prevent the surface of the body 1 from wrinkling, thereby affecting the overall appearance of the body 1.

Wherein, the top of the front end of the tightening belt 4 is sewn with a Velcro surface 5 , and the top of the rear end of the tightening belt 4 is sewn with a Velcro mother surface 7 .

In this embodiment, as shown in FIG. 1 , the Velcro surface 5 and the Velcro mother surface 7 are used to fix the tightened tightening belt 4 .

Wherein, expansion belt zippers 12 are sewn together at the connection between the top end of the expansion belt 11 and the bag body 1 .

In this embodiment, as shown in FIG. 1 , the expansion belt zipper 12 can facilitate the sealing operation of the expansion belt 11 .

It should be noted that the present utility model is a foldable and tear-resistant travel bag. When working, the personnel unzip the bag body zipper 2 at the top of the bag body 1 and place the luggage to be used in the bag body 1; then, the personnel When the tightening belt 4 is passed through the fixing ring 6, the tightening belt 4 can be pulled to make the sealing parts of the bag body 1 move together and close together, which is convenient for the personnel to pull the bag body zipper 2 for sealing; Inside the elastic mesh belt 10 and the expansion belt 11 to improve the usable volume of the travel bag; when traveling with the travel bag, personnel can use the shoulder strap 8 to carry the travel bag on the shoulder, or use the pull belt 3 to carry the bag body. 1. Carry it in your hand to move; at night, the rectangular reflective stickers 9 at both ends of the bag body 1 can reflect light when illuminated at night, so that passers-by in the front and back are convenient to know that there are pedestrians nearby, so as to avoid accidental collisions, thereby improving the travel time when walking at night. security.

The basic principles and main features of the present invention and the advantages of the present invention are shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention The new model will also have various changes and improvements, which all fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. A foldable tear-resistant traveling bag comprises a bag body (1) and a lifting belt (3), and is characterized in that: solid fixed ring (6) have been sewed up respectively at inclusion (1) one side top, and inclusion (1) opposite side top has sewed up respectively and has tightened up area (4) with solid fixed ring (6) corresponding, dilatation area (11) have all been sewed up at inclusion (1) one side both ends, and inclusion (1) opposite side has sewed up soft cotton pad (14), inclusion zip fastener (2) have been sewed up on inclusion (1) top, inclusion (1) both ends top has all been pasted rectangle reflection of light subsides (9), and inclusion (1) both ends bottom has sewed up elasticity guipure (10), inclusion (1) inboard surface bonds has tensile layer (15) and antibacterial layer (16), and tensile layer (15) are located between antibacterial layer (16) and inclusion (1), inclusion (1) outside surface bonds has anti-wrinkle layer (17), and inclusion (1) specifically makes for the encryption nylon materials.

2. The foldable, tear resistant travel bag of claim 1, wherein: the top of the rectangular reflecting sticker (9) is fixed with a shoulder strap (8) through a connecting buckle (13), and lifting belts (3) are sewn at the top ends of the two sides of the bag body (1).

3. The foldable, tear resistant travel bag of claim 1, wherein: tensile layer (15) are made by the glass fiber material, and restrain bacterial layer (16) and specifically be polylactic acid non-woven fabrics layer, anti-wrinkle layer (17) specifically are made for the polyurethane material.

4. The foldable, tear resistant travel bag of claim 1, wherein: the top of the front end of the tightening belt (4) is sewn with a magic tape surface (5), and the top of the tail end of the tightening belt (4) is sewn with a magic tape mother surface (7).

5. The foldable, tear resistant travel bag of claim 1, wherein: the connection parts of the top ends of the dilatation belts (11) and the bag body (1) are respectively sewed with dilatation belt zippers (12).
