Abstract

The utility model discloses an air purification humidifier for household handicrafts, which is provided with an outer frame of the humidifier, a battery box and a sound box are installed at the bottom of the inner cavity of the outer frame of the humidifier, and a circuit board is installed in the battery box, which humidifies the humidifier. The middle of the inner cavity of the outer frame of the humidifier is installed with a water-filled inner tank and a water-filled inner tank, and a light source is installed at the top of the inner cavity of the outer frame of the humidifier; A water-filling cap is installed on the top of the water tank, and a humidifying atomizing core is installed on the water-filling cap; A water-pulling impeller is installed on the bottom of the installation bracket, and a power motor for driving the action of the water-pulling impeller is installed on the bottom of the water-sealing sheet. The home crafts air purifying humidifier has rich shapes and complete functions.

Description

A kind of home handicraft air purifying humidifier

technical field

The utility model relates to the technical field of humidifiers, in particular to an air purification humidifier for household handicrafts.

Background technique

With the development of the economy and the improvement of people's living standards, people's requirements for quality of life and health are getting higher and higher. In this way, humidifiers have gradually entered many households around the world and become an indispensable small household appliance in dry areas. Strengthening the research and development of humidifiers will be beneficial to the development of the domestic humidifier industry, to the improvement of the quality of life of the people and the improvement of the national health level.

However, the existing humidifier products currently on the market are relatively single-board in shape and relatively single in function, and cannot meet people's needs for using functions and aesthetic functions.

Utility model content

The technical problem to be solved by the utility model is: in order to solve the problems existing in the above-mentioned background technology, an air purifying humidifier for household handicrafts is provided, which has rich shapes and complete functions.

The technical scheme adopted by the utility model to solve the technical problem is as follows: an air purification humidifier for household handicrafts, which has an outer frame of the humidifier, and a battery box and a sound box are installed at the bottom of the inner cavity of the outer frame of the humidifier. A circuit board is installed in the battery box, a water-filled liner and a water-pulling liner are installed in the middle of the inner cavity of the outer frame of the humidifier, and a light source is installed on the top of the inner cavity of the outer frame of the humidifier; A water-feeding cotton core is installed, a water-filling cap is installed on the top of the water-filling liner, and a humidifying atomizing movement is installed on the water-filling cap; a water-sealing sheet is installed on the bottom of the water-filling liner, and the water-filling liner is installed An installation pallet is installed in the inner part of the hood, a water pumping impeller is installed on the bottom of the installation pallet, and a power motor for driving the action of the water pumping impeller is installed at the bottom of the water sealing sheet.

More specifically, in the above technical solution, the water-filling cap is provided with an upper cover of the water-filling port corresponding to the position of the water-supplying cotton core.

More specifically, in the above technical solution, a silica gel water sealing ring is installed in the assembly area of the water sealing sheet and the water pumping liner.

More specifically, in the above technical solution, the top of the outer frame of the humidifier is provided with a top seal of the outer frame of the humidifier corresponding to the position of the upper cover of the water filling port, and the top of the outer frame of the humidifier is provided. The sealing plug is provided with a water-filling port sealing plug.

More specifically, in the above technical solution, a silicone ring is installed on the sealing plug of the water filling port.

The beneficial effects of the utility model are as follows: the air purifying humidifier for household handicrafts provided by the utility model not only has the function of air purifying and humidifying, but also has the function of fetching water, the function of lighting up and the function of music, so that people can feel the air purification while enjoying visual enjoyment. Brings physical and mental happiness, warmth, health and home.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are only some embodiments described in this application, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

Fig. 1 is the structural representation of the present utility model;

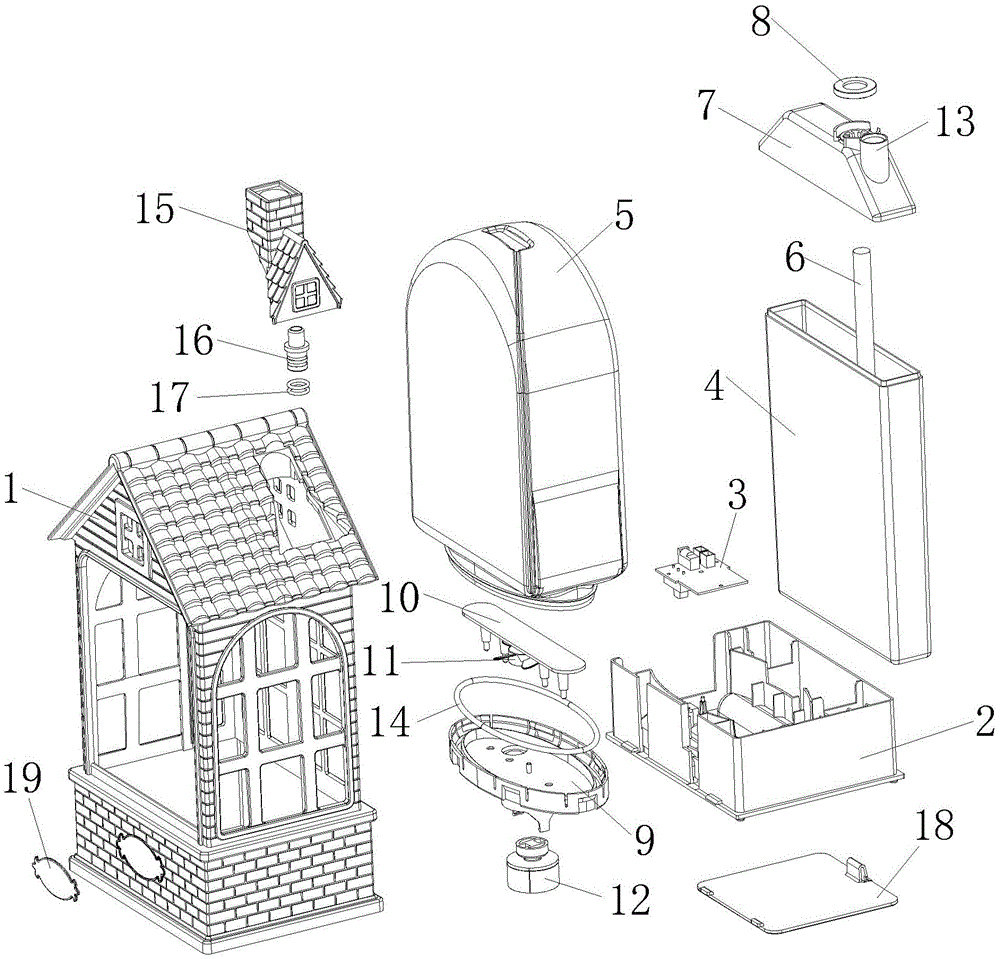

FIG. 2 is a schematic diagram of the exploded structure of FIG. 1 .

The symbols in the accompanying drawings are: 1, the outer frame of the humidifier; 2, the battery box; 3, the circuit board; 4, the water tank; 5, the water tank; , humidification and atomization movement; 9, water sealing sheet; 10, installation pallet; 11, water impeller; 12, power motor; 13, upper cover of water inlet; 14, silicone sealing ring; 15, outside the humidifier Top sealing of the frame; 16. Water inlet sealing plug; 17. Silicone ring; 18. Battery bottom cover; 19. Copper sheet.

Detailed ways

In order to make the technical problems, technical solutions and beneficial effects solved by the present utility model clearer, the present utility model will be further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are only used to explain the present invention, and are not intended to limit the present invention.

In the description of the present invention, it should be understood that the terms "one side", "the other side", "both sides", "between", "middle", "upper end", "lower end", etc. Or the positional relationship is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed and operation, so it cannot be construed as a limitation to the present invention.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "arrangement" and "connection" should be understood in a broad sense, for example, it may be a fixed connection or a detachable connection, or Connected integrally; either directly or indirectly through an intermediary. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

1 and 2, the utility model provides an air purification humidifier for household handicrafts, which has a humidifier outer frame 1, and a battery box 2 and a speaker are installed at the bottom of the inner cavity of the humidifier outer frame 1, and the speaker comes with a Bluetooth function , the bluetooth function is the same as the bluetooth function in the prior art, the power of the speaker is provided by the battery box 2, the setting of the speaker can make the humidifier present the music function, the circuit board 3 is installed in the battery box 2, and the circuit board 3 is directly obtained from the market After purchase, it is matched and installed. The middle of the inner cavity of the outer frame of the humidifier 1 is equipped with a water-filled inner tank 4 and a water-filled inner tank 5. The top of the inner cavity of the humidifier outer frame 1 is installed with a light source, and the circuit board 3 is matched with the light source. In use, the electric energy of the light-emitting source is also provided by the battery box 2, and the light-emitting source can make the humidifier present a light-emitting function, and different interior scenes produce different visual effects.

A water supply cotton core 6 is installed inside the water filling inner tank 4, a water filling cap 7 is installed on the top of the water filling inner tank 4, a humidification atomization core 8 is installed on the water filling cap 7, and a water supplying cotton core is arranged on the water filling cap 7. The upper cover 13 of the water filling port corresponding to the 6 position. When in use, water is injected into the water-filled inner tank 4 from the upper cover 13 of the water filling port, and the water in the water-filled inner tank 4 humidifies the atomizing air under the action of the humidifying and atomizing core 8 . The combination of the water-filled inner tank 4, the water-supplying cotton core 6, the water-filling cap 7, the upper cover 13 of the water-filling port, and the humidifying and atomizing core 8 can make the humidifier present the function of air purification and humidification.

A water-sealing sheet 9 is installed at the bottom of the water-pulling liner 5 , and a silicone water-sealing ring 14 is installed in the assembly area of the water-sealing piece 9 and the water-pulling liner 5 . The inside of the water-pulling tank 5 is installed with a mounting bracket 10, the bottom of the installation bracket 10 is installed with a water-pulling impeller 11, the water-pulling impeller 11 can be selected as a propeller, and the bottom of the water-sealing sheet 9 is installed with a water-pulling impeller 11. The power motor 12 of the power motor 12 is also provided by the battery box 2 . Water is injected into the water-pulling liner 5, and the power motor 12 drives the water-pulling impeller 11 in the water to make a water-pulling action. It can make the humidifier show the water pumping function.

The top of the humidifier outer frame 1 is provided with a humidifier outer frame top seal 15 corresponding to the position of the upper cover 13 of the water inlet, and a water inlet sealing plug 16 is arranged in the humidifier outer frame top seal 15 . A silicone ring 17 is installed on the sealing plug 16 of the water filling port. A battery bottom cover 18 is installed at the bottom of the battery box 2 , and the setting of the battery bottom cover 18 can prevent the batteries in the battery box 2 from leaking out, and ensure the normal operation of the humidifier. The outer frame 1 of the humidifier has a house-like structure, the upper part of the outer frame 1 of the humidifier is triangular, the middle part is rectangular, and the bottom is rectangular; Both are provided with grids, and the front part of the middle part of the humidifier outer frame 1 is an open structure. The bottom of the front end of the humidifier outer frame 1 is provided with a copper sheet 19 for engraving a trademark. The top seal 15 of the outer frame of the humidifier has a chimney-like structure.

This home craft air purifying humidifier not only has the function of air purifying and humidifying, but also has the function of fetching water, lighting and music. While enjoying visual enjoyment, you can feel the physical and mental happiness, warmth, health and home life brought by air purification.

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. The technical solution of the utility model and its utility model concept are equivalently replaced or changed, and should be covered within the protection scope of the present utility model.

Claims (5)

1. The utility model provides a household handicraft air purification humidifier which characterized in that: the humidifier is provided with a humidifier outer frame (1), a battery box (2) and a sound box are installed at the bottom of an inner cavity of the humidifier outer frame (1), a circuit board (3) is installed in the battery box (2), a water containing inner container (4) and a water fetching inner container (5) are installed in the middle of the inner cavity of the humidifier outer frame (1), and a light emitting source is installed at the top of the inner cavity of the humidifier outer frame (1); a water feeding cotton core (6) is arranged inside the water containing liner (4), a water adding cover cap (7) is arranged at the top of the water containing liner (4), and a humidifying and atomizing machine core (8) is arranged on the water adding cover cap (7); the bottom of the inner container (5) of fetching water install and seal water piece (9), the internally mounted of the inner container (5) of fetching water has installation saddle (10), the bottom of installation saddle (10) install and beat water impeller (11), the bottom of water seal piece (9) install and be used for driving power motor (12) of beating water impeller (11) action.

2. The household handicraft air purification humidifier of claim 1, characterized by: the water filling cap (7) is provided with a water filling port upper sealing cover (13) corresponding to the position of the water feeding cotton core (6).

3. The household handicraft air purification humidifier of claim 1, characterized by: and a silica gel water sealing ring (14) is arranged in the assembly area of the water sealing sheet (9) and the water pumping inner container (5).

4. The household handicraft air purification humidifier according to claim 2, characterized in that: the humidifier is characterized in that a humidifier outer frame top seal (15) corresponding to the position of the water filling port upper portion seal cover (13) is arranged on the top of the humidifier outer frame (1), and a water filling port sealing plug (16) is arranged in the humidifier outer frame top seal (15).

5. The household handicraft air purification humidifier of claim 4, characterized by that: and a silica gel ring (17) is arranged on the water filling port sealing plug (16).
