Abstract

The utility model relates to a movable floor type container structure with a fixed bottom frame and side beams, comprising a front baffle, a side baffle, a side baffle door, a rear baffle, a bottom frame, a side beam, a movable floor and a flip pin A shaft, a middle partition plate, and a lifting cylinder; wherein, the side baffle small door is arranged on the side baffle; the partition plate is arranged in the middle part of the container; the lifting cylinder is fixed on the bottom frame; The side beams are fixedly connected to the bottom frame, and the two constitute the bottom of the container; the front baffle, the rear baffle and the middle partition are all connected with the bottom frame and the side beams to form a complete large The overall structure of the frame. The utility model solves the problems that the sub-structures are easy to loosen and the joints need frequent maintenance. The utility model effectively solves the defects and problems existing in the transportation of the existing coal and other powder and granular goods, and expands the function of the container.

Description

A movable floor container structure with fixed chassis and side beams

technical field

The utility model relates to the field of container transport such as semi-trailer transport vehicles and railway transport, in particular to a movable floor type container structure with a fixed bottom frame and side beams.

Background technique

As an international cargo loading tool, container has been widely used in railways, highways, shipping and other fields. It is an international modular transportation method. The existing container lengths are 20 feet, 30 feet, 40 feet, 45 feet; there are high container, low container; there are special containers such as open top and rear opening. The transportation volume and mileage of coal and granular cargoes in China are very large. Most of the coal in the existing market adopts ordinary warehouse grid semi-trailers, 8.6-meter dump trucks, and 9.6-meter ordinary transport vehicles. Only a small part uses railways. transportation. However, it can be seen that the above-mentioned road vehicles all have problems such as serious spillage, unsafety, and difficulty in unloading. More importantly, the existing container also has the problem that the various sub-structures are prone to loosening during unloading, so that the joints need frequent maintenance.

Utility model content

Based on this, after market research and technical demonstration, a movable floor type container structure with a fixed underframe and side beams is proposed. Solve the problem that the materials in the container are easy to spill; install the hydraulic system on the container transport tractor, use the hydraulic station, the top lifting type and other methods to realize the self-unloading of the goods when the container body is not moving, and solve the difficulty and insecurity of unloading, etc. Problem; using the structure of the bottom frame (sub-frame) and the fixed side beam (with angular diversion function), the front baffle, rear baffle and middle partition plate of the box are all connected with the bottom frame and the side beam to form a whole. A complete large frame structure solves the problems of easy loosening between sub-structures and frequent maintenance of connections. The utility model effectively solves the defects and problems existing in the transportation of powder and granular goods such as coal, and expands the function of the container.

A movable floor type container structure with a fixed base frame and side beams, comprising a front baffle, a side baffle, a side baffle door, a rear baffle, a base frame, a side beam, a movable floor, a flip pin, an intermediate space plate and lifting cylinder; wherein, the side baffle door is arranged on the side baffle; the partition plate is arranged in the middle part of the container; the lifting cylinder is fixed on the bottom frame; the side beam It is fixedly connected to the underframe, and the two constitute the bottom of the container; the front baffle, the rear baffle, and the middle partition are all connected with the underframe and the side beams to form a complete overall structure of the large frame; A movable bottom plate is installed on the upper part of the bottom frame, and the movable bottom plate is movably connected to the side beam through the flip pin; the container bottom plate is turned into a movable bottom plate, and the movable bottom plate falls flat when loading; the side baffle is opened when unloading After the small door, the goods can naturally flow out a large part, and then the movable bottom plate is raised by means of hydraulic pressure, air pressure or top lifting force, etc. After the lifting, the angle between the movable bottom plate and the bottom frame is greater than the rest of the goods. horn.

Further, there are multiple side baffle small doors.

Further, the top shape of the side beam is an inclined plane.

Further, the container structure also includes a tarpaulin system, and the driving mode is manual or automatic, which can effectively prevent rain or prevent goods from falling, and achieve the effect of environmental protection.

Further, the inner length of the container is divided into several separate movable floor units.

Further, the movable bottom plate is a structure of a left movable bottom plate and a right movable bottom plate, and the left movable bottom plate and the right movable bottom plate are respectively movably connected to the underframe through a flip pin, and the number of lifting cylinders is two at this time. , which are respectively connected to the left movable bottom plate and the right movable bottom plate structure.

Description of drawings

Fig. 1 is the overall structure schematic diagram of the present utility model;

Fig. 2 is the overall front view of the utility model;

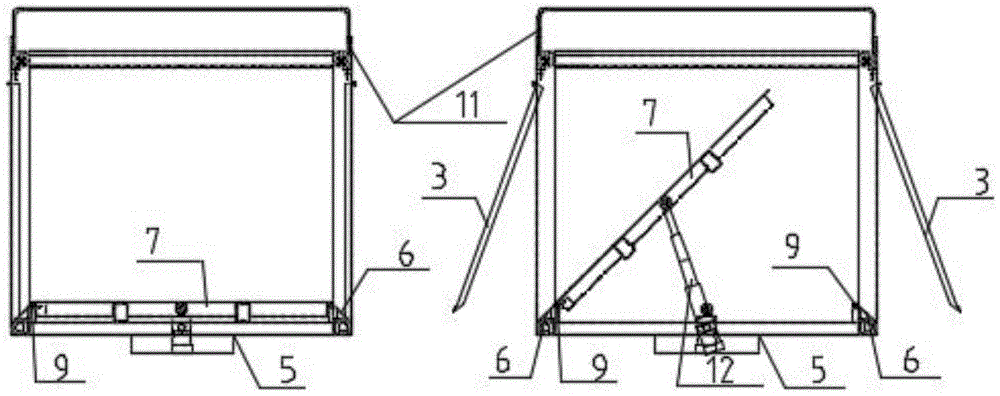

Fig. 3 is the specific structure schematic diagram of Embodiment 1 of the present utility model;

4 is a schematic diagram of the specific structure of Embodiment 2 of the present invention.

Detailed ways

In order to facilitate the understanding of the present utility model, the present utility model will be more fully described below with reference to the related drawings. The preferred embodiments of the present invention are shown in the accompanying drawings. However, the present invention may be implemented in many different forms and is not limited to the embodiments described herein. Rather, these embodiments are provided so that a thorough and complete understanding of the present disclosure is provided.

Example 1

A movable floor type container structure with a fixed underframe and side beams, comprising a front baffle 1, a side baffle 2, a side baffle door 3, a rear baffle 4, a base frame 5, a side beam 6, and a movable floor 7 , Turning pin 9, middle partition plate 10, tarpaulin system 11, lifting cylinder 12; wherein, the side beam 6 and the bottom frame 5 constitute the bottom of the container, the front baffle 1 of the box body, the rear baffle The plate 4 and the middle partition plate 10 are all connected with the base frame 5 and the side beam 6 to form a complete overall structure of a large frame; the upper part of the base frame 5 is installed with a movable bottom plate 7, and the movable bottom plate 7 is passed through the flip pin. The shaft 9 is movably connected to the side beam 6; the container bottom plate becomes a movable bottom plate, and the movable bottom plate falls flat during loading; after opening the side baffle door 3 during unloading, the cargo can naturally flow out a large part, and then the movable bottom plate 7. Lift the movable bottom plate 7 by means of hydraulic pressure, air pressure or top lifting force, etc. After the lifting, the movable bottom plate 7 and the built-in lap plate form a triangle, and the angle of the triangle is greater than the angle of repose of the goods.

The movable bottom plate 7 can also be lifted halfway without a tie plate to form a slope larger than the repose angle of the goods, so that all the goods can be unloaded automatically, so that the whole container can be unloaded without moving, which is very safe; The utility model can be containers of various lengths and heights (20 feet, 30 feet, 40 feet, 45 feet, 48 feet, etc.). In order to increase the strength of the box body, make the unloading convenient and reasonable, the inner length direction of the utility model can be divided into several independent movable floor units (one-stage, two-stage, three-stage, four-stage, etc.); The tailgate can be loaded and unloaded at the 4 small doors, and can also be loaded and unloaded from the top; the top can also be equipped with an automatic or manual tarpaulin system 11, which can effectively prevent rain or prevent goods from falling, and achieve environmental protection. The purpose of the present invention is to provide a movable floor type container structure with a fixed bottom frame and side beams, which is simple in structure, high in safety and convenient in processing.

Embodiment 1 of the present utility model will be described in further detail below in conjunction with the accompanying drawings.

When the carriage needs to be unloaded, first open the side baffle door 3, and a large part of the cargo will flow out naturally under the action of its own weight. The movable bottom plate 7 is lifted up by means of lifting the cylinder or the top lifting, and the movable bottom plate 7 rotates along the overturning pin 9 fixed on the side beam 6 of the box body (with angular diversion function), and finally reaches the figure as shown in FIG. 3 . Like a triangle or a slope, all the goods are unloaded.

In order to increase the strength of the box body, and the unloading is convenient and reasonable, the utility model adopts the structure of the bottom frame 5 (subframe) and the fixed side beam 6. The front baffle 1, the rear baffle 4 and the middle partition plate 10 of the box are all connected The bottom frame 5 and the side beam 6 (with angled diversion function) are connected together to form a complete large frame structure, which ensures that the connection is not easy to loosen; the internal length direction can be divided into several separate movable floor units (one-stage, Two-stage, three-stage, four-stage, etc.), general cargo can also be loaded and unloaded from the tailgate 4 doors or the side baffle doors 3, and can also be loaded and unloaded from the top. The middle side baffle door 3 of the utility model is equipped with a locking device that can be opened remotely, so that the unloading becomes safer. Therefore, the container of the structure is easy to operate, safe, practical and reliable.

Example 2

The utility model is a movable floor type container structure with a fixed bottom frame and side beams. The first plan of the utility model is composed of a front baffle 1, a side baffle 2, a side baffle door 3, a rear baffle 4, a bottom baffle The frame 5, the side beam 6, the left movable bottom plate 7-1, the right movable bottom plate 7-2, the turning pin 9, the middle partition plate 10, the tarpaulin system 11, and the lifting cylinder 12 are composed. In this scheme 1, the bottom of the container is made into a fixed side beam 6 (with an angle guide function) and a bottom frame 5 (subframe), and two left movable bottom plates 7-1 and a right movable bottom plate are installed on the upper part of the bottom frame 5 7-2, make the container floor become a movable floor, and the movable floor will fall flat when loading; after opening the side baffle door 3 during unloading, a large part of the cargo can flow freely, and then the movable floor is lifted by hydraulic pressure, air pressure or top. The movable bottom plate is raised by means of force and other methods. After the lifting, the two movable bottom plates and the built-in lap plate form a triangle. The angle of the triangle can reach 40-50 degrees, so that all the goods can be self-unloaded, so that the entire container can be It is very safe to unload under moving conditions; the utility model can be containers of various lengths and heights (20 feet, 30 feet, 40 feet, 45 feet, 48 feet, etc.). In order to increase the strength of the box body, make the unloading convenient and reasonable, the inner length direction of the utility model can be divided into several separate movable floor units (one-stage, two-stage, three-stage, four-stage, etc.); The tailgate can be loaded and unloaded at the 4 small doors, and can also be loaded and unloaded from the top; the top can also be equipped with an automatic or manual tarpaulin system 11, which can effectively prevent rain or prevent goods from falling, and achieve environmental protection. The purpose of the present invention is to provide a movable floor type container structure with a fixed bottom frame and side beams, which is simple in structure, high in overall safety and convenient in processing.

Embodiment 2 of the present utility model will be described in further detail below with reference to the accompanying drawings.

When the carriage needs to be unloaded, first open the side baffle door 3, and the cargo will flow a large part under the action of its own weight. The left movable bottom plate 7-1 and the right movable bottom plate 7-2 are lifted up by means of cylinder or top lifting, etc., and the left movable bottom plate 7-1 and the right movable bottom plate 7-2 are fixed on the side beam 6 of the box body (with angled diversion). The flip pin 9 on the function) rotates, and finally the triangle-like shape as shown in the figure is reached, and the goods are all unloaded.

The utility model adopts the structure of a bottom frame 5 (sub-frame) and a fixed side beam 6 (with an angle guide function). The side beams 6 are connected as a whole to form a complete large frame structure;

The upper part of the fixed side beams 6 on both sides of the chassis 5 is installed with two left movable bottom plates and right movable bottom plates that are raised upwards, or a movable bottom plate that is lifted to one side, so that the bottom of the container becomes a movable floor structure to realize unloading;

The utility model can be applied to containers of various lengths and heights (20 feet, 30 feet, 40 feet, 45 feet, 48 feet, etc.); in order to increase the strength of the box body, the utility model is convenient and reasonable for unloading, and the internal length direction can be adjusted. Divided into several separate movable floor units (one-segment, two-segment, three-segment, four-segment, etc.).

The utility model can be applied to the container field of container semi-trailer, railway transportation, etc., as well as other special vehicles, devices and equipment that need to use containers to load goods.

The above-mentioned embodiments only represent several embodiments of the present utility model, and the descriptions thereof are specific and detailed, but should not be construed as a limitation on the scope of the utility model patent. It should be pointed out that for those of ordinary skill in the art, some modifications and improvements can be made without departing from the concept of the present invention, which all belong to the protection scope of the present invention. Therefore, the protection scope of the patent for this utility model shall be subject to the appended claims.

Claims (8)

1. The utility model provides a movable bottom plate formula container structure of fixed chassis in area and boundary beam which characterized in that includes: the device comprises a front baffle, side baffles, side baffle small doors, a rear baffle, an underframe, a boundary beam, a movable bottom plate, a turnover pin shaft, a middle baffle and a lifting cylinder; the side baffle small door is arranged on the side baffle; the middle partition plate is arranged in the middle of the container; the lifting cylinder is fixed on the underframe; the edge beam is fixedly connected to the bottom frame, and the edge beam and the bottom frame form the bottom of the container; the front baffle, the rear baffle and the middle partition plate are all connected with the underframe and the boundary beam into a whole to form a complete large frame integral structure; a movable bottom plate is arranged at the upper part of the underframe and is movably connected to the boundary beam through the turnover pin shaft; the container bottom plate is changed into a movable bottom plate, and the movable bottom plate is leveled when the container is loaded; when the side baffle small door is opened during unloading, the goods can naturally flow out of a large part, then the movable bottom plate is lifted in an external force mode, and the angle between the lifted movable bottom plate and the underframe is larger than the repose angle of the goods.

2. A portable floor container structure with fixed underframe and edge beam as claimed in claim 1 wherein there are a plurality of side dam wicket.

3. A portable floor container structure with fixed base and edge beams as claimed in claim 1 wherein the top of said edge beam is shaped as a ramp.

4. The container structure of claim 1, further comprising a tarpaulin system, wherein the driving method is manual or automatic, which can effectively prevent rain or goods from spilling, thereby achieving environmental protection.

5. A movable floor type container structure with fixed underframe and edge beam as claimed in claim 4, characterized in that the interior of the container is divided into several individual movable floor units in length direction.

6. The movable bottom plate type container structure with the fixed bottom frame and the side beams as claimed in claim 5, wherein the movable bottom plate is a left movable bottom plate and a right movable bottom plate, the left movable bottom plate and the right movable bottom plate are movably connected with the bottom frame through turnover pins respectively, and at the moment, the number of the lifting cylinders is two, and the two lifting cylinders are respectively connected to the left movable bottom plate and the right movable bottom plate.

7. A moving floor container structure with fixed underframe and edge beams as claimed in claim 6 wherein the external force is hydraulic, pneumatic or top lift.

8. A moving floor container structure with fixed underframe and edge beams as claimed in claim 7 wherein the side closure wicket is fitted with remotely opening locking means to make unloading safer.
