Abstract
一种智能台灯，包括有电源、发光体及主控计时模块、灯光亮度调节模块，主控计时模块、发光体、灯光亮度调节模块均与电源电气连接，主控计时模块通过灯光亮度调节模块与发光体电气连接。本实用新型功能更强，作为闹钟使用时，更符合人体的生理特点。
An intelligent desk lamp, including a power supply, a luminous body, a main control timing module, and a light brightness adjustment module. The main control timing module, the luminous body, and the light brightness adjustment module are all electrically connected to the power supply. Luminaire electrical connection. The utility model has stronger functions and is more in line with the physiological characteristics of the human body when used as an alarm clock.
Description
Technical field
The utility model relates to a kind of household electrical appliance, is specifically related to a kind of intelligent desk lamp.
Background technology
Alarm clock only has been familiar with concerning us again, and every morning, alarm clock was frightened from dream with us, and a lot of people are owing to waken up with a start and the mood agitation suddenly.
Simultaneously, studies show that a kind of pineal endocrine organ that is called is arranged in the human brain, when nighttime sleep, can secrete a large amount of melatonins, melatonin night 11 up to the next day 2 o'clock the secretion the most vigorous, to morning stop the secretion; The secretion of melatonin can suppress the orthosympathetic excitability of human body, make blood pressure drops, HR Heart Rate slow down, heart is panted, effect with booster immunization function, poisoning cancer cell, in case eyeball is seen light, melatonin will be suppressed, and the very long commentaries on classics of people's sleepiness is light and wake up to change naturally.
So with respect to traditional before alarm clock, we are necessary to improve, so that it meets the human physilogical characteristic.
Summary of the invention
The purpose of this utility model is to provide a kind of intelligent desk lamp, and this desk lamp can use as alarm clock, and function is more, and makes the physilogical characteristics that the time spent more meets human body as alarm clock.
The utility model is achieved through the following technical solutions:
A kind of intelligent desk lamp, include power supply, illuminator, this desk lamp also includes master control timing module, lamplight brightness adjustment module, master control timing module, illuminator, lamplight brightness adjustment module all are connected with power sourced electric, and the master control timing module is electrically connected by lamplight brightness adjustment module and illuminator.
Intelligent desk lamp described in the utility model not only can be used as common desk lamp and uses, and can setting-up time, and when reaching setting-up time, the light of desk lamp is opened; Turning on the light the light time, under the control of lamplight brightness adjustment module, can make illuminator send the light of low-light level, along with prolonging after the time, the brightness of illuminator strengthens gradually; For traditional alarm clock, avoid owing to waken up with a start and the mood agitation by alarm clock suddenly, and when desk lamp light strengthened gradually, the melatonin of human secretory will be suppressed gradually, the very long commentaries on classics of people's sleepiness is light and wake up to change naturally, and the utility model more meets the physilogical characteristics of human body.
Further structure of the present utility model is:
At least two of described illuminators when opening desk lamp, can be opened an illuminator earlier, along with prolonging after the time, increase the number of illuminator more gradually.
Described illuminator is at least two group LED lamp groups of being made up of a plurality of LED lamps; Adopt the mode of LED lamp group, can control separately each lamp group easily.
This desk lamp also includes display apparatus module (as eight hop count sign indicating number display tubes) and the pattern display lamp that is electrically connected with described master control timing module.Can outwards show the situation such as time setting, mode of operation of this desk lamp by display apparatus module and pattern display lamp, observe to make things convenient for the user.
This desk lamp also includes the quarter-bell that is connected with described master control timing module and power sourced electric, and under alarm clock mode, if open behind the desk lamp after a while, the user does not still wake up, and for avoiding wasting time, also follow-up alarm mode can be set according to user's needs.
Described master control timing module is the AT89S52 chip, and described lamplight brightness adjustment module is the CD4015 chip.
It should be noted that this desk lamp also need be provided with structures such as power switch, lampshade, lamp socket, more than is prior art, does not do too much description herein; Aforementioned power source can be power line (can be connected with supply socket by this power supply), also can be battery.
Description of drawings

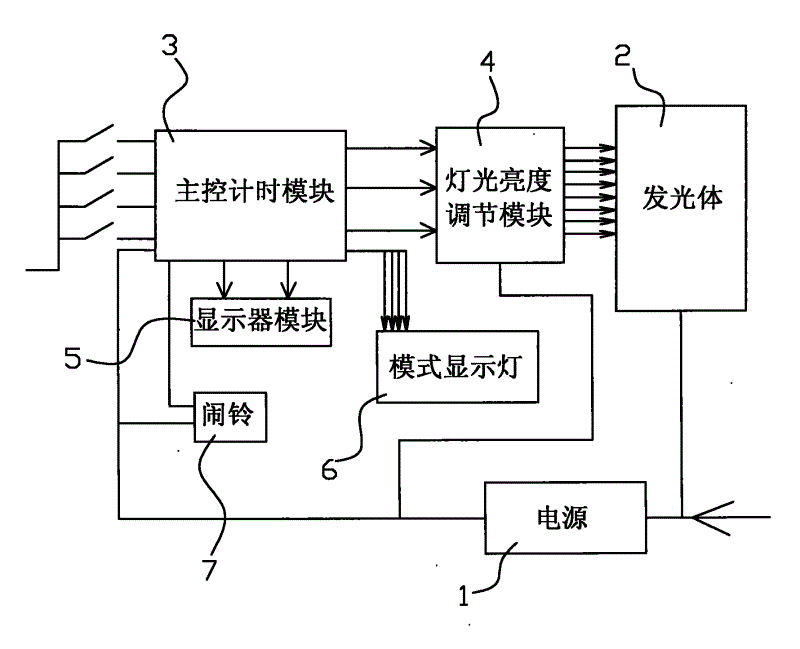

Fig. 1 is circuit theory diagrams of the present utility model;
Fig. 2 is the circuit structure diagram of illuminator (LED lamp group);
Description of reference numerals:
1, power supply, 2, illuminator, 3, the master control timing module, 4, the lamplight brightness adjustment module, 5, display apparatus module, 6, the pattern display lamp, 7, quarter-bell, 8, the LED lamp.
The specific embodiment
As shown in Figure 1 and Figure 2, a kind of intelligent desk lamp includes power supply 1, illuminator 2, master control timing module 3, lamplight brightness adjustment module 4; Master control timing module 3, illuminator 2, lamplight brightness adjustment module 4 all are electrically connected with power supply 1, and master control timing module 3 is electrically connected by lamplight brightness adjustment module 4 and illuminator 2.
Wherein, this desk lamp also includes display apparatus module 5 (i.e. eight hop count sign indicating number display tubes), the pattern display lamp 6 that is electrically connected with master control timing module 3, and with and power supply 1, master control timing module 3 be electrically connected quarter-bell 7; Illuminator 2 is the LED lamp group of being made up of a plurality of LED lamps 8 (as shown in Figure 2), and master control timing module 3 is the AT89S52 chip, and lamplight brightness adjustment module 4 is the CD4015 chip.
The described intelligent desk lamp of present embodiment not only can be used as common desk lamp and uses, and can setting-up time, and when reaching setting-up time, the light of desk lamp is turned on and (as turning on one group of LED lamp group earlier, through behind the setting-up time, turned on two groups of LED lamp groups again ...); For traditional alarm clock, avoid people owing to waken up with a start and the mood agitation by alarm clock suddenly, and when desk lamp light strengthened gradually, the melatonin of human secretory will be suppressed gradually, the very long commentaries on classics of people's sleepiness is light and wake up to change naturally, and this design more meets the physilogical characteristics of human body.
Under alarm clock mode, if open behind the desk lamp after a while, the user does not still wake up, and for avoiding wasting time, according to user's needs follow-up alarm mode can be set also quarter-bell 7 is opened.
Claims (9)
1, a kind of intelligent desk lamp, include power supply, illuminator, it is characterized in that, this desk lamp also includes master control timing module, lamplight brightness adjustment module, master control timing module, illuminator, lamplight brightness adjustment module all are connected with power sourced electric, and the master control timing module is electrically connected by lamplight brightness adjustment module and illuminator.
2, intelligent desk lamp according to claim 1 is characterized in that at least two of described illuminators.
3, as intelligent desk lamp as described in the claim 2, it is characterized in that described illuminator is the LED lamp group of being made up of a plurality of LED lamps.
4, as intelligent desk lamp as described in the claim 3, it is characterized in that described LED lamp group is at least two groups.
5, intelligent desk lamp according to claim 1 is characterized in that described master control timing module is the AT89S52 chip, and described lamplight brightness adjustment module is the CD4015 chip.
6, as intelligent desk lamp as described in each in the claim 1 to 5, it is characterized in that this desk lamp also includes the display apparatus module that is electrically connected with described master control timing module.
7, as intelligent desk lamp as described in the claim 6, it is characterized in that described display apparatus module is digital display tube.
8, as intelligent desk lamp as described in each in the claim 1 to 5, it is characterized in that this desk lamp also includes the pattern display lamp that is electrically connected with described master control timing module.
9, as intelligent desk lamp as described in each in the claim 1 to 5, it is characterized in that this desk lamp also includes the quarter-bell that is connected with described master control timing module and power sourced electric.
