Abstract

A method and system for publishing blog articles related to telecommunication technology, adopting the following steps: A. The user's blog article data is sent to the blog article publishing server by the Email processing terminal using the SMTP protocol, and B. the blog post publishing server will After the blog article data is naturalized, generate naturalized article data, which is sent to the blog site, and C. the blog site publishes corresponding blog articles; the described naturalization process is at least as follows: The format of article data is transformed into the data format that is suitable for described blog site database structure; In described step A, described Email processing terminal sends verification information to blog post publishing server simultaneously, in described step B, blog post The publishing server checks the verification information before receiving the corresponding data. The invention has high efficiency, convenient management, simple operation and strong practicability.

Description

A method and system for publishing blog posts

technical field

The invention relates to electric communication technology, in particular to a method and system for publishing blog articles.

Background technique

At present, visiting and building blog sites, reading or writing blog articles has become a trend of Internet applications, and more and more users regard blogs as an integral part of their Internet life.

During the development of blogs, many excellent software for collecting blog articles have emerged. They can uniformly collect blog articles from different blog sites to the user's computer, so that users can use, for example, RSS (Really Simple Syndication: Really Simple Syndication) Integration) Fetcher This unified way to get blog information.

For the release of blog articles, the common method is that browser users send blog articles through the WEB: the user needs to log in to the blog site through the WEB browser first, and then, by inputting blog articles to the webpage, after the input is completed, send the corresponding The server submits the input text in this way to send blog customer articles.

This approach has the following drawbacks:

1. When a user publishes a blog article, he can only log in to the corresponding blog site at first, and the efficiency of user publishing is low.

2. It is inconvenient for users to manage published blog articles. Sometimes, once a blog article is deleted by the blog site, this article will not be retrieved.

3. Access to the WEB server is slow and inconvenient to operate.

In short, the existing technology is inefficient and inconvenient to manage when publishing blog articles.

Contents of the invention

The purpose of the present invention is to provide a method and system for publishing blog articles with high efficiency and convenient management, so as to overcome the defects in the prior art.

The method for issuing blog articles adopted by the present invention adopts the following steps:

A. The user's blog post data is sent to the blog post publishing server by the Email processing terminal using the SMTP protocol;

B. After the blog article publishing server performs naturalization processing on the blog article data, it generates naturalized article data and transmits it to the blog site;

C. The blog site publishes corresponding blog articles.

The said normalization processing is at least converting the format of the blog post data into a data format relatively suitable for the database structure of the blog site.

In the step A, the email processing terminal simultaneously sends verification information to the blog post publishing server, and in the step B, the blog post publishing server verifies the verification information before receiving corresponding data.

Described step B comprises the following steps:

B1. The blog post publishing server decodes the picture attachment in the blog post data to a specified directory, corrects the name of the picture and makes it point to the appropriate location;

B2. The blog article publishing server performs naturalization processing on the blog article data to generate naturalized article data;

B3. The blog article publishing server sends the naturalized article data to the blog site.

In the step B, the blog article publishing server transmits the naturalized article data to multiple blog sites.

The blog article publishing server transmits the naturalized article data to multiple blog sites at the same time or according to rules and time-sharing.

In the step C, the blog articles are saved in the database of the blog site.

This system for publishing blog articles, including a blog site, is characterized in that: it also includes an Email processing terminal and a blog post publishing server, wherein the Email processing terminal completes the Email formatting process of the blog post data, and adopts the SMTP protocol Send it to the blog article publishing server; the blog post publishing server receives the blog article data from the Email processing end, and completes data naturalization and related processing and forwarding, and transmits the naturalized article data to the blog site.

The blog article publishing server at least includes a data receiving module, a data naturalization center module, a data sending module and a storage module, wherein the data receiving module completes the receiving of the blog article data sent by the Email processing end, and other related The data is received, sent to the data naturalization center module or the storage module for processing or preservation; the data naturalization center module completes the naturalization processing of the blog article data, generates naturalized article data, and sends it to the storage module or the data sending module Corresponding forwarding, and completion of information verification, data statistics, data storage\forwarding designation\direction processing; the data sending module completes sending naturalized article data to the blog site, and other related data sending; the storage Modules are used for data storage.

The Email processing end is an Email client.

The email processing terminal is a terminal equipped with an Email processing module.

The beneficial effect of the present invention is: in the present invention, user's blog post data is sent to blog post publishing server by SMTP protocol by Email processing end, after blog post post server performs naturalization processing to blog post data, produces naturalized post data , and send it to the blog site, and the blog site publishes corresponding blog articles. The beneficial effects of this method are as follows:

1. The preparation process for the user to input blog post data is actually carried out locally on the user, without first logging in to the corresponding blog site. In this way, the user fully prepares the blog post data and sends the blog post data to the blog post publishing server Finally, customers don't need to care about the instant status of the blog site, and for users, the efficiency of publishing blog articles is improved.

2. The user’s sent blog articles can be managed by the Email processing terminal in the same way as the sent emails. After the user sends the blog post data to the blog post server, the Email processing terminal can save the blog post data backup. What’s more, After the blog post publishing server receives the blog post data, it can also save the relevant data of the blog post, and the data security of the blog post is fully guaranteed.

3. Users at the email processing end can send blog articles conveniently and quickly, without having to suffer from slow network access speed, time limit waiting on the web end, and so on.

4. The present invention adopts the blog article publishing server to receive the blog article data sent by the Email processing terminal, which is equivalent to providing a relatively unified and standardized data publishing interface and entrance for users who publish data, which is the humanization and friendliness of network services Concrete embodiment, in line with, conform to the trend of modern network development.

In summary, the present invention has high efficiency, convenient management and simple operation.

In the present invention, the present invention adopts the standard SMTP protocol, so it is easy to sign the present invention into other applications, for example, it can be embedded in the RSS receiver, and any device that can send email or has an Email processing module can be used \The terminal publishes blog articles, and even uses mobile phones to publish blog articles, which can provide multiple channels for publishing blog articles to the greatest extent, and the present invention has considerable practicability.

In the present invention, the blog article publishing server transmits the naturalized article data to multiple blog sites, which can further improve the publishing efficiency of users.

Description of drawings

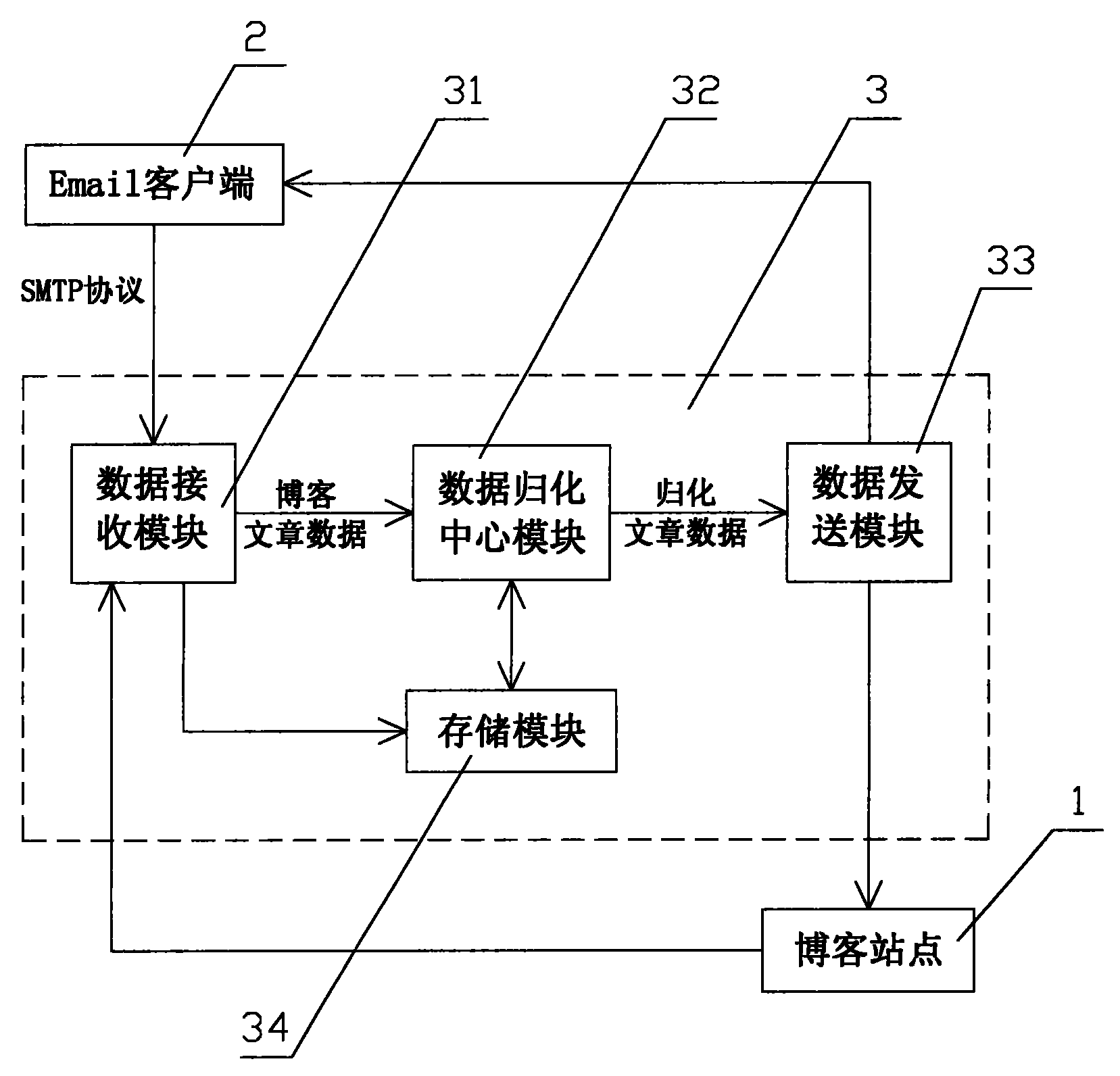

Fig. 1 is a schematic structural diagram of the system of Embodiment 1 of the present invention;

Fig. 2 is a schematic diagram of the basic control flow of the present invention;

FIG. 3 is a schematic diagram of a specific control flow in Embodiment 1 of the present invention;

Fig. 4 is a schematic structural diagram of the system of Embodiment 2 of the present invention;

FIG. 5 is a schematic diagram of the system structure of Embodiment 3 of the present invention.

Detailed ways

Below according to accompanying drawing and embodiment the present invention will be described in further detail:

Example 1:

According to FIG. 1 and FIG. 2 , the present invention includes a blog site 1 , an Email processing terminal and a blog post publishing server 3 , and in this embodiment, the Email processing terminal is an Email client 2 .

As shown in Figure 1, Email client 2 completes the Email formatting process to blog article data, and adopts SMTP protocol to send it to blog article publishing server 3; Blog article publishing server 3 receives blog article data from Email client 2 , and complete data naturalization and related processing and forwarding, and transmit naturalized article data to blog site 1.

As shown in FIG. 1 , the blog post publishing server 3 includes a data receiving module 31 , a data normalization center module 32 , a data sending module 33 and a storage module 34 .

As shown in FIG. 1 , the data receiving module 31 completes the receiving of the blog post data sent by the Email client 2 and other related data, and sends to the data naturalization center module 32 or the storage module 34 for processing or storage.

As shown in Figure 1, the data naturalization center module 32 completes the naturalization processing of blog article data, generates naturalized article data, forwards correspondingly to the storage module 34 or the data sending module 33, and completes relevant information verification and data statistics , Designation of data storage\forwarding\direction processing.

As shown in FIG. 1 , the data sending module 33 completes sending naturalized article data and other related data to the blog site 1 .

As shown in FIG. 1 , the storage module 34 is used for data storage.

As shown in Figure 2, the basic control flow of the present invention is as follows:

1. The Email client 2 sends blog post data to the blog post publishing server 3 by using the SMTP protocol.

2. The blog post publishing server 3 generates naturalized post data after naturalizing the blog post data.

3. The blog article publishing server 3 transmits the naturalized article data to the blog site 1 .

4. The blog site 1 publishes corresponding blog articles.

As shown in Figure 1 and Figure 3, the specific control process of this embodiment is described in detail as follows:

1) Set the verification information on the blog site 1 through the Email client 2. The verification information can use the commonly used "username + password" method. For those skilled in the art, other ways of verification information can be implemented without creative labor , which will not be repeated here.

2) If the process is labeled S11, the Email client 2 sends the blog post data and related verification information to the data receiving module 31 in the blog post publishing server 3 using the STMP protocol.

3) If the process is marked with S12, the blog article publishing server 3 calls the user information from the database of the blog site 1, and performs a matching check on the verification information through the data naturalization center module 32, and the operation is as follows:

31) If the verification is passed, proceed to the following step 4);

32) If the verification is not passed, the data sending module in the blog post publishing server 3 is passed

33 An error message is returned to the Email client 2, and the process ends.

4) As the process is marked S13, the data naturalization center module 32 in the blog post publishing server 3 decodes the picture attachments in the blog post data to the specified directory, corrects the name of the picture and makes it point to the appropriate position, and then the blog post During the encoding/decoding process of the data, the name of the picture and the corresponding position may change, and the blog article publishing server 3 makes adaptive adjustments according to the actual situation.

5) As the flow mark S14, the data naturalization center module 32 generates naturalized article data after the blog article data is processed by the data naturalization center module 32. In this naturalization process, the data naturalization center module 32 converts the format of the blog article data into The data format suitable for the database structure of the blog site 1 can also convert the type, format, and size of the document into a form suitable for the blog site 1, and other parameter adjustments, and the naturalized article data can be stored in the storage module 34 .

6) As indicated in the flow chart S15, the blog post publishing server 3 transmits the naturalized post data to the blog site 1 through the data sending module 33 .

7) As indicated in the process marked S16, the blog site 1 publishes a corresponding blog post, and at the same time, the blog post is stored in the database of the blog site 1 .

For the present invention, in actual application, the blog article publishing server 3 and the blog site 1 can be in the same server, but whether they are in the same server or not, its working principle, and the control, conversion, and flow of data and information are the same as those described above is consistent.

Example 2:

As shown in Figure 4, the difference between this embodiment and Embodiment 1 is: in this embodiment, the blog article publishing server 3 is connected with a plurality of blog sites, namely blog sites 11, 12, ... as shown in Figure 4 , 1N, in this way, the blog post server 3 can transmit the naturalized article data to multiple blog sites.

In this embodiment, the blog post server 3 can transmit the naturalized article data to a plurality of blog sites 1 at the same time or by time-sharing according to rules. There is a preset publishing program stored in the computer, and the user sends a selection request through the Email client 2; it can also be set by the user to the blog article publishing server 3 through the Email client 2. As for the specific realization of this time-sharing method, according to the above The description and embodiment 1 can be implemented by those skilled in the art without any creative work, and will not be repeated here.

The specific control process of this embodiment is the same as or similar to that described in Embodiment 1, and will not be repeated here.

Example 3:

As shown in Figure 5, the difference between this embodiment and Embodiment 2 is: in this embodiment, the Email processing end is an instant messaging terminal 5 embedded with an Email processing module 50, and adopts the specific control of instant messaging terminal 5 to publish blog articles The process is the same or similar to that described in Embodiment 1 and Embodiment 2, and will not be repeated here.

In this embodiment, there is also an instant communication main server 4, and in the extended application of this embodiment, the instant communication main server 4 can receive additional information about blog articles from the blog post publishing server 3, for example, hot topics, hot spots Statistical data such as articles and click-through rates, the instant messaging main server 4 can recommend blog articles and provide hot information to all or specific instant messaging terminal users, which helps to improve the timeliness and freshness of network information services.

In the present invention, by adopting the standard SMTP protocol, it is easy to sign the present invention into other applications, for example, it can be embedded in an RSS receiver, or any device/terminal that can send emails or has an Email processing module can be used Publishing blog articles, or even using mobile phones to publish blog articles, can be implemented by those skilled in the art based on the above description without creative efforts.

Claims (11)

1. A method for publishing a blog post, characterized in that: it adopts the following steps: A. The user's blog post data is sent to the blog post publishing server by the Email processing terminal using the SMTP protocol; B. After the blog article publishing server performs naturalization processing on the blog article data, it generates naturalized article data and transmits it to the blog site; C. The blog site publishes corresponding blog articles. 2. The method for publishing blog articles according to claim 1, characterized in that: said naturalization process at least includes converting the format of said blog article data into a data format suitable for said blog site database structure. 3. The method for posting blog articles according to claim 1, characterized in that: in the step A, the email processing end sends verification information to the blog article publishing server simultaneously, and in the described step B, the blog post The article publishing server verifies the verification information before receiving the corresponding data. 4. according to the method for publishing blog article described in claim 1 or 2 or 3, it is characterized in that: described step B comprises the steps: B1. The blog post publishing server decodes the picture attachment in the blog post data to a specified directory, corrects the name of the picture and makes it point to the appropriate location; B2. The blog article publishing server performs naturalization processing on the blog article data to generate naturalized article data; B3. Sending the naturalized article data to the blog site. 5. according to the method for publishing blog article described in claim 1 or 2 or 3, it is characterized in that: in described step B, described blog article publishing server transmits described naturalized article data to a plurality of blog sites . 6. The method for publishing blog articles according to claim 5, characterized in that: said blog article publishing server transmits the naturalized article data to a plurality of blog sites at the same time or according to rules and time-sharing. 7. The method for publishing blog articles according to claim 1, characterized in that: in said step C, said blog articles are stored in a database of a blog site. 8. A system for publishing blog articles, including a blog site, is characterized in that: it also includes an Email processing terminal and a blog post publishing server, wherein, Described Email processing end finishes the Email format processing to blog post data, and adopts SMTP protocol to send it to blog post publishing server; The blog article publishing server receives the blog article data from the Email processing terminal, completes data naturalization and related processing and forwarding, and transmits the naturalized article data to the blog site. 9. The system for publishing blog articles according to claim 8, characterized in that: said blog article publishing server at least includes a data receiving module, a data naturalization center module, a data sending module and a storage module, wherein, The data receiving module completes the receiving of the blog article data sent by the Email processing end, and the receiving of other relevant data, and sends processing or preservation to the data naturalization center module or storage module; The data naturalization center module completes the naturalization processing of blog article data, generates naturalized article data, forwards correspondingly to the storage module or data sending module, and completes relevant information verification, data statistics, data storage\forwarding specify\point to handle; Described data transmission module finishes sending naturalized article data to blog site, and other relevant data are sent; The storage module is used for data storage. 10. The system for publishing blog articles according to claim 8 or 9, characterized in that: the Email processing end is an Email client. 11. The system for publishing blog articles according to claim 8 or 9, characterized in that: said Email processing terminal is a terminal equipped with an Email processing module.
