Abstract

One embodiment of the present disclosure is an apparatus comprising a mirror frame configured to support a mirror substrate providing an image of one or more users in the vicinity of a mirrored cabinet; a sensor cavity coupled to the mirror frame; and A controller configured to analyze data received from a temperature sensor.

Description

health mirror

Cross references to related patent applications

This application claims priority and benefit to U.S. Provisional Patent Application No. 63/037,900 (Docket No. 010222-20009A-US), filed June 11, 2020, which is hereby incorporated by reference in its entirety .

technical field

The present application generally relates to cabinets and similar cabinets for use in bathrooms (eg, medicine cabinets or mirrored cabinets), although the concepts disclosed herein are also applicable to cabinets used in other locations and for other purposes.

Background technique

Medicine cabinets are useful fixtures in homes that allow users to store bathroom supplies to reduce clutter around, say, the sink area. Medicine cabinets often include mirrors on the front surface of the cabinet in order to maximize the utility of this fixture. Most medicine cabinets are configured with internal shelving.

The medicine cabinet also acts as a gateway into the user's life and habits. It's one of the few places where people stand in pretty much the same spot almost every day. Because of this, data collected at the medicine cabinet can reflect changes in the user's appearance, physical condition, age, or any characteristic that changes over time.

Contents of the invention

One embodiment of the present disclosure is an apparatus comprising: a mirror frame configured to support a mirror substrate that provides an image of one or more users in the vicinity of a mirrored cabinet; a sensor coupled to the mirror frame a cavity configured to support a temperature sensor for detecting the temperature of one or more users in the vicinity of the mirrored cabinet; and a controller which may be referred to herein as a control unit or control system , the controller is configured to analyze the data received from the temperature sensor.

One embodiment of the present disclosure is an apparatus comprising: a mirror frame configured to support a mirror substrate that provides an image of one or more users in the vicinity of a mirrored cabinet; a biological material container configured to receive biological material collected from one or more users proximate to the mirrored cabinet; and a controller configured to analyze data related to the biological material.

One embodiment of the present disclosure is an apparatus comprising: a biological material container coupled to the mirror frame, the biological material container configured to receive biological material collected from one or more users in the vicinity of the mirrored cabinet; and a control A controller configured to analyze data related to the biological material.

One embodiment of the present disclosure is an apparatus comprising: a mirror frame configured to support a mirror substrate that provides an image of one or more users in the vicinity of a mirrored cabinet; a camera that is captured by configured to collect images of one or more users in the vicinity of the mirrored cabinet; and a controller configured to collect images of one or more users in time series and analyze the time series of images to obtain Health characteristics of one or more users.

One embodiment of the present disclosure is an apparatus comprising: a memory configured to store a health profile for each of one or more users associated with the mirror; a camera configured to collecting a time series of images of one or more users associated with the mirror; and a controller configured to analyze the time series of images to obtain a health signature of the one or more users and store the health signature in In the health files of one or more users in this storage.

One embodiment of the present disclosure is an apparatus comprising a mirror frame configured to support a mirror substrate that provides an image of one or more users in the vicinity of a mirrored cabinet, and a mirror frame coupled to the mirror frame. A disinfection device (eg, a disinfection assembly) configured to disinfect a space associated with the mirror frame.

One embodiment of the present disclosure is an apparatus comprising a disinfection device coupled to a mirrored cabinet, the disinfection device configured to disinfect a space associated with the mirrored cabinet; and a controller configured to Generate commands for sanitizing devices.

One embodiment of the present disclosure is an apparatus comprising: a mirror frame configured to support a mirror substrate that provides an image of one or more users in the vicinity of a mirrored cabinet; a sensor coupled to the mirror frame a cavity configured to support a temperature sensor for detecting a temperature of one or more users in the vicinity of the mirrored cabinet; and a controller configured to analyze data received from the sensor.

One embodiment of the present disclosure is an apparatus comprising: a sensor configured to detect a feature of a user of the mirror; a controller configured to analyze data received from the sensor; and a mirror integrated A display configured to provide results of the analyzed data to a user of the mirror.

One embodiment of the present disclosure is an apparatus comprising: a mirror frame configured to support a mirror substrate providing an image of one or more users in the vicinity of a mirrored cabinet; an interface, the interface being configured to receive data for tracking a user in the bathroom; a controller configured to analyze the data for tracking the user and calculate instructions for the user; and a display coupled to the mirror frame, the display configured to The user provides instructions (eg, in video form).

Description of drawings

According to exemplary embodiments, exemplary embodiments are described herein with reference to the following drawings.

Figure 1 shows an exemplary hygienic mirror and computer network.

2A and 2B show a frame and a controller chassis (chassis) for a healthcare mirror.

Fig. 3 shows an exemplary control interface for a health mirror.

Figure 4 shows an exemplary connection panel for a health mirror.

Figure 5 shows an exemplary controller for a health mirror.

FIG. 6 shows an exemplary flow chart of a temperature tracking algorithm for a health mirror.

Figure 7 shows an exemplary internal sensor for a health mirror.

Figure 8 shows an exemplary retractable cover for an internal sensor.

Figure 9 illustrates an example switch for a retractable cover.

Figure 10 shows a top view of a switch for a retractable cover.

Fig. 11 shows an exemplary flowchart for processing images collected by a hygienic mirror.

Figure 12 shows an exemplary external sensor for a health mirror.

Figure 13 shows an exemplary adjustable sensor for a health mirror.

Figure 14 shows an exemplary door-mounted sensor for a health mirror.

Figure 15 shows an exemplary holster for a sensor of a health mirror.

16A-16D illustrate an exemplary external sensor device for a health mirror.

17A-17D illustrate an exemplary external sensor device for a health mirror.

18A-18D illustrate an exemplary external sensor device for a health mirror.

FIG. 19 illustrates an exemplary network of wireless devices compatible with a health mirror.

Figure 20 shows an exemplary touchpad for a health mirror.

Figure 21A shows an exemplary communication module for a healthcare mirror.

Figure 21B shows an exemplary internal sterilizer for a healthcare mirror.

Figure 21C shows an exemplary UV lamp for a health mirror.

Figure 22 shows an exemplary outer holster.

Figure 23 shows an exemplary holder for a test swab.

Figure 24 shows an exemplary reservoir for biological material.

Figure 25 shows an exemplary magnetically mountable sensor for a health mirror.

Figure 26 illustrates an exemplary face shield coupled with a hygiene mirror.

Figure 27 illustrates an exemplary blood pressure cuff coupled with a health mirror.

Figure 28 shows a flow chart for measuring biological material using a hygienoscope.

Figure 29 shows an exemplary positioning silhouette for a health mirror.

Figure 30 illustrates an exemplary floor guide for positioning relative to the hygiene mirror.

FIG. 31 shows an example flow diagram for positioning a user relative to a health mirror.

FIG. 32 shows an exemplary flow chart for diagnosis using a hygienoscope.

Figure 33A shows exemplary data collection for hair styling using a hygienic mirror.

Figure 33B shows exemplary data collection for injury detection using a hygienic mirror.

Figure 33C shows exemplary data collection for body analysis using a hygienic mirror.

Figure 33D illustrates exemplary data collection for dental and/or vision analysis using a hygienic mirror.

34A and 34B illustrate exemplary data collection for body size or growth analysis.

34C and 34D illustrate exemplary data collection for garment distribution using a health mirror.

Figure 35 shows exemplary data collection for body type analysis using a hygienic mirror.

FIG. 36 illustrates another exemplary data collection for body type analysis using a hygienic mirror.

37A-37C illustrate exemplary instructions from a user of the health mirror.

38A and 38B illustrate an exemplary sterilization case coupled with a hygiene mirror.

Fig. 39 shows an exemplary sterilization case inside a hygiene mirror.

Figure 40 shows an exemplary flow chart for operating a sterilization tank.

Figure 41 shows an exemplary disinfectant mist emanating from a hygiene mirror.

Figure 42 illustrates an exemplary disinfecting light emanating from a hygiene mirror.

FIG. 43 illustrates an exemplary control algorithm for discharging sterilizing material.

Figure 44 illustrates an exemplary wireless power distribution system.

Figure 45 illustrates another exemplary wireless power distribution system.

Figure 46 illustrates exemplary hand washing guidelines.

Figure 47 illustrates an exemplary home health status display for a health mirror.

Figure 48 shows an exemplary geographic area status display for a health mirror.

Figure 49 illustrates an exemplary memory aid display for use in a health mirror.

Fig. 50 shows a flowchart for displaying user instructions using a hygienic mirror.

Detailed ways

For many people, their routine includes at least a brief stop in front of the bathroom mirror. The mirror can be utilized as a portal into the user's life. Users can access the mirror to view their reflection or perform other personal hygiene functions. These visits provide the opportunity to collect data from users on a regular basis. These data can describe the user's health status. Tracking a user's health over time provides rich opportunities for technological improvements in various technical areas, as described in the following examples.

FIG. 1 shows an exemplary hygiene mirror 101 , including a sensor 10 and a controller 100 , in communication with a communication network 22 . Additional, different, or fewer components may be included. The data is collected by the health mirror 101 through the sensor 10 . This data may describe the user's physical characteristics or health characteristics. In some cases, users request that specific types of data be collected. In another case, data is automatically collected when the user is in front of, within sight of, or close to the healthcare mirror 101 . The term "near" may refer to any location within range of the sensor 10 . The term "in sight" may refer to the vicinity of the health mirror 101 without any physical obstacles (eg, walls) in between. The term "in front" may refer to a location within a predetermined range or area.

The sensor 10 may be any type of sensor that directly or indirectly detects a health characteristic of a user approaching the hygiene mirror 101 . While various other sensors are described, in one embodiment, sensor 10 is a temperature sensor (eg, a thermometer). Sensor 10 may be another temperature mapping device, such as an infrared camera for detecting a user's thermal signature.

The sensor 10 may be an audio sensor, such as a microphone that detects sounds generated by a user. Sounds such as coughs, sneezes, or certain sound characteristics may indicate the user's health. Sensor 102 can detect odors. The sensor 10 can detect volatile organic compounds (VOCs) or other carbon-based (organic) chemicals (compounds), which are odors indicative of health conditions.

The sensor 10 may be an image capture device with a lens, such as a digital aperture capture device (such as a camera) or an image capture device with a charge-coupled device (CCD), such as an integrated circuit formed on a silicon surface on which the photosensitive elements are formed. The image collection device may collect images for user's facial recognition. The image collection device may collect images for identifying image characteristics of the user, such as, for example, the user's color or shape (eg, bone density, outline, height and/or weight). Other physical attributes can be determined from the user's images, including skin quality or condition at the cellular level, signs of hormonal imbalances, aging, sun damage, hyperpigmentation, color, inflammation, environmental influences, or other abnormalities. In another example, images of the user's muscles are analyzed to determine a muscle condition (eg, sprain, strain, or tear). Sensor 10 may be a retinal scanner configured to scan the user's eyes. Retinal scans can reveal eye features that can be used to identify users. Retinal scans can detect health characteristics, such as a user's blood sugar levels.

The controller 100 may analyze sensor data. Controller 100 may compare values in the sensor data to one or more thresholds or ranges in order to identify health characteristics of the user. For example, when the sensor data includes a temperature value, the controller 100 may compare the temperature value with a normal person's temperature value or range to identify a situation where the user may have an elevated temperature. The normal temperature value may be predetermined (eg, 98.6 degrees Fahrenheit (F)), or the normal temperature range (eg, 97.5F to 99.5F) may span values around the normal temperature value.

Controller 100 may send the results of the analysis to a display or user interface, as discussed in detail below. When the temperature exceeds a threshold, the controller 100 may generate a message as an alert to the user. As discussed in more detail in other embodiments, a display may be integrated with the healthcare mirror 101 to provide results of the analyzed data to a user of the healthcare mirror 101 .

The controller 100 may generate a log or diary for the sensor data. That is, when sensor data is collected, the sensor data can be stored in memory with an associated timestamp that records when the data was collected. Likewise, sensor data may be stored with the user's identity, which may be determined using any of the various techniques described herein.

Controller 100 can access logs to determine if an alarm should be generated. This alert can be displayed on the health mirror 101 . The alert can signal to the user that they may be experiencing a medical condition. This alert can signal to subsequent users of the hygiene mirror 101 that other users are experiencing a medical condition. For example, in a family, when a family member has a health condition, other members will be alerted through the health mirror 101 . Similarly, in hotels, dormitories, and public restrooms, the controller 100 can determine when a user has a health condition, and display an alarm to other users to let other users notice the risk.

A user's log may include when the user arrives or leaves the bathroom, the user's sequence of activities, the user's hand washing time and/or order, the user's shower time, hair washing frequency, hand washing frequency, body washing frequency, toilet usage time, toilet usage frequency , electricity usage, time spent in front of, or proximity to, a mirror.

In another embodiment, the analysis of the sensor data can be linked to the bathroom entrance or the lock on the bathroom door. The sensor 10 may be mounted on the exterior door of the bathroom. Before allowing access to the bathroom, the controller 100 determines whether the user is experiencing a healthcare condition. For example, the controller 100 may compare sensor data to a temperature threshold and only unlock or allow access to the bathroom if the temperature does not exceed the threshold. In addition to temperature, other user characteristics may also be used. For example, sensor 10 may detect the presence of a certain viral infection or antibodies thereto.

In addition to access control, other services in the bathroom, such as light, water, and flushing functions, are only activated when the controller 100 determines that the user is not currently in a health condition. Accordingly, the controller 100 may compare the user's temperature to a threshold and generate a command to turn off the lights, turn off the water, or turn off one or more appliances when the user's temperature is indicative of a health condition. In this case, restricting access to the bathroom can protect the bathroom or virus contamination.

The controllers 100 may send the analysis results to the communication network 22 directly or via a communication bus to transfer data between the controllers 100 . Communications network 22 may be coupled to or include servers, network devices (another computer connected to communications network 22), and communications buses. Through the communication network 22, the controller 100 may send information including analysis results or sensor data to a central controller, which may be implemented by a network device or a server. A central controller can perform the analysis of the sensor data. A central controller can compile sensor data from multiple hygiene mirrors 101 . The central controller may be a cloud device configured to communicate with multiple network devices located at multiple locations (eg, different homes or businesses) for multiple healthcare mirrors 101 . The central controller can implement a cloud service that coordinates and analyzes data from multiple health mirrors 101 . Any one of the hygienic mirrors 101 or a plurality of hygienic mirrors may receive a report from the central controller indicating that a health condition exists at any other hygienic mirror 101 . The controller 100 may generate and display an alert on the health mirror 101 in response to the health status broadcast by the central controller. The controller 100 may be configured to analyze the data used to track the user and responsively calculate instructions to the user.

In another embodiment, health mirrors can be managed according to geographic regions. The controller 100 can identify the location of the hygienic mirror and include that location with report analysis to the central controller. The controller 100 may receive the location from a positioning device (eg, a global positioning system (GPS)), the communication network 22 (eg, an IP address), or from user input. A central controller can organize health data based on location. The central controller can identify geographic areas (eg, neighborhoods, neighborhoods, towns, etc.) that are experiencing statistically significant health conditions. The central controller can use the health event density, which can be measured in events per unit area. A central controller can send alerts to health mirrors or other mobile devices within a defined geographic area. The central controller may receive area data describing areas representing mirrors.

Multiple health mirrors can be a set for hospitals, dormitories or hotels. Each room in a building or a campus of buildings can be indexed so that sensor data received at the server is organized by room. The controller 100 or server can identify health conditions in one room and report the health conditions to other rooms. When one of the rooms (that is, the user in the room) has a health condition, the health mirrors in other rooms can display an alarm. In this way, occupants are alerted when health conditions develop within the same building or complex.

In one example, data analysis occurs primarily on network devices, which may be referred to as a local analysis embodiment. In another example, data analysis occurs primarily on a server or another remote device, which may be referred to as a remote analysis embodiment. Hybrid embodiments may include a combination of data analysis on network devices and servers.

Sensor data can be aggregated from multiple health mirrors in order to set predetermined thresholds for comparison. For example, when sensor 10 is a thermometer, the temperature values may be averaged to determine a temperature threshold. Different temperature thresholds may be used for different geographic regions. Different temperature thresholds may be used for different demographic groups. That is, different temperature thresholds may be calculated for female users and male users. Different threshold temperatures may be calculated for users of different age groups.

The server may receive information about the user's health characteristics from the health mirror 101 and other data sources, such as receiving other users' health characteristics from other health mirrors. As described in more detail below, aggregated data from multiple users may be combined to provide a health assessment of a larger geographic area, such as a neighborhood, town, or region.

The controller 100 may pack or preprocess data in a predetermined format and transmit the data to a server. Network devices can filter data based on type. Example types include audio data, image data, location data, biometric data, environmental data, or other types. For image data, the controller 100 may analyze an image of at least a part of the user. For location data, network devices can determine a user's location based on proximity through analysis of images (for example, pattern matching or line detection) or through distance-based sensors. For biometric data, network devices may collect temperature data (e.g., thermal signatures) from temperature sensors or infrared sensors, fingerprint data from fingerprint sensors, or eye data from retinal scanners. For environmental data, network devices may collect temperature, humidity, or other environmental information.

In one example, the health status is selectable by the user. For example, users can ask to keep temperature logs to track ovulation cycles. The controller 100 can monitor temperature readings to determine when the temperature has reached a predetermined ovulation range. When a predetermined ovulation range occurs, the controller 100 generates information from the health mirror 101 to notify the user.

FIG. 1 illustrates an exemplary healthcare mirror 101 including a mirror substrate configured to provide an image of an object, including a user. The mirror substrate reflects substantially all light that encounters the mirror substrate at the same angle at which the light encounters the mirror substrate, and/or substantially no light is absorbed or scattered. Substantially all light may refer to 90% light, 95% light, 99% light or other proportions of light. Substantially no light may refer to 10% light, 1% light, or other proportions of light. Mirror substrates can be made of a polished material or clear glass coated with a thin layer of reflective metal such as silver or aluminum. Mirror interface 120 may include a graphical user interface (GUI), a user input interface, or a data collection interface (eg, sensor 10 ) integrated with and/or adjacent to the mirror substrate.

As discussed in the following embodiments, sensor 10 may include one or more sensors of various types. As mentioned above, sensor 10 may be a camera. Sensor 10 may comprise a thermometer. The sensor 10 may be a relative distance collecting device, such as a proximity sensor or a laser scanner. A laser scanner emits one or more laser pulses that bounce off an object and are received by the laser scanner. The time-of-flight of the laser pulses indicates the distance to the object. Proximity sensors may detect the presence of objects within a predetermined distance or range of predetermined distances. Proximity sensors may include microwave or radar sensors. Examples of preset distances may be 28 inches, 1 meter, or other distances. The range of the proximity sensor may be conical.

2A and 2B illustrate the mirror frame or support housing 115 and the sensor module 121 of the hygiene mirror 101 . The cabinet inside the mirror frame can support the healthcare mirror 101 . Support housing 115 may include a sensor module that supports sensor 10 and a control module housing 122 that supports a control module 123 that includes controller 100 and one or more other components, such as communication interfaces and input interface circuitry. The control module 123 may be shaped to match the control module housing 122 and/or fit within the control module housing 122 . The control module 123 may include a control interface 130 on the bottom surface. FIG. 2A shows a wide support shell 115 and FIG. 2B shows a narrow support shell 115 . FIG. 2B also shows support feet 124 for holding the control module 123 on the support housing 115 . Additional, different or fewer components may be included.

The support housing 115 is configured to support a mirror substrate that provides images of one or more users proximate to the mirrored cabinet. The sensor module 121 is a sensor cavity coupled to the mirror frame and configured to support a temperature sensor for detecting the temperature of one or more users proximate to the mirrored cabinet. The sensor module 121 may be a case inside the mirror frame, and the temperature sensor is placed in the case.

The sensor module 121 may include one or more types of sensors that collect sensor data in the embodiments described herein. At the healthcare mirror 101 , or specifically, the control module 123 , the user's sensor data is received from the sensor module 121 or an external sensor.

Analysis of the sensor data may determine commands received at mirror interface 120 . The control module 123 may include a speaker configured to provide audio of status data, setting data, user's configuration data, or type data of sensor data. Speakers may be removable. The control module 123 may interface with a positioning machine (eg, a stepper motor or solenoid) to move the speaker towards the user. The degree of movement may depend on the tasks performed by the user, the identity of the user, the height of the user, and the preferences of the user. The volume of the speaker may be settable. The control module 123 can set the volume of the speaker according to the tasks performed by the user, the identity of the user, the age of the user, the height of the user, and the preference of the user. For example, volume can be set proportional to age.

The control module 123 may include a microphone configured to collect audio (eg, voice commands) for user's setting data or configuration data. The microphone may be removable. The control module 123 may interface with a positioning mechanism (eg, a stepper motor or solenoid) to move the microphone toward the user. The degree of movement may depend on the tasks performed by the user, the identity of the user, the height of the user, and the preferences of the user. The volume of the microphone can be configurable.

Control of the lights (eg, light strip 103 ) may include the color of the lights, the brightness of the lights, the intensity of the lights, or the schedule of the lights. The control of the light guide plate may include determining the angle or position of the light according to the user's selection. For example, a voice command may instruct the light guide to illuminate a handwashing station in response to the voice command. Selection of collected data can enable or disable one or more sensors. Selection of displayed data may enable or disable the display of external data (eg, weather) or data received from an auxiliary device.

In one example, the control module 123 may include an inductive charging component including one or more inductive chargers. An inductive charger may include a coil of wire configured to generate a magnetic field that charges a battery of a mobile device. The mobile device can be placed on the control module 123 to charge the battery of the mobile device. Other wireless charging systems can be incorporated into the health mirror 101 .

FIG. 3 illustrates an exemplary control interface 130 for the health mirror communication module of FIGS. 2A and 2B according to an exemplary embodiment. Control interface 130 may include one or more tactile switches, such as volume control 137 , capacitive light control 133 , and wireless network toggle button 135 . Capacitive light control 133, or any input to control interface 130, may include a capacitive sensor that responds to touch. Adjacent the control interface 130 may be one or more speakers 132 , and an array of light emitting diodes (LEDs) including a night light LED 134 and a home center communication indicator light 136 .

FIG. 4 illustrates a cabinet including a panel 140 for the control module 123 of FIGS. 2A and 2B , according to an exemplary embodiment. The cabinet includes one or more storage spaces or compartments that can be coupled with the mirror interface 120 . Additionally, the mirror interface 120 may be omitted. Panel 140 may include a USB or similar communication port 141 , a microphone activation or mute LED 143 , an inquiry LED 145 (inquiry LED), and a proximity sensor 147 .

The communication port 141 can be connected to a laptop or smart phone for setting up or configuring the control module 123 . In one example, the configuration requires a hardwired connection. Communication port 141 may serve as a charging port for a phone, razor, hair dryer, or other rechargeable home appliance. Communication port 141 may communicate with supplemental or alternative lights, speakers or microphones. The microphone active or muted LED 143 is an indicator when the microphone is in use.

FIG. 5 shows an exemplary control system 301 for the hygiene mirror 101 . Control system 301 may include processor 300 , memory 352 and communication interface 353 for interfacing with devices or with the Internet and/or other networks 346 . In addition to the communication interface 353 , the sensor interface may be configured to receive data from the sensor 10 or from any source for tracking users in the bathroom near the hygiene mirror 101 .

Components of control system 301 may communicate using bus 348 . Control system 301 may be connected to a workstation or another external device (eg, a control panel) and/or a database for receiving user input, system characteristics, and any values described herein. Optionally, the control system 301 may include an input device 355 and/or sensing circuitry in communication with any sensors. The sensing circuit receives measurements from the sensors as described above. The input device 355 may include a touch screen coupled or integrated with the mirror, a keyboard, a microphone for voice input, a camera for gesture input, and/or a holographic interface coupled or integrated with the mirror.

Optionally, the control system 301 may include a drive unit 340 for receiving and reading a non-transitory computer medium 341 with instructions 342 . Additional, different, or fewer components may be included. Processor 300 is configured to execute instructions 342 stored in memory 352 for performing the algorithms described herein. The display 350 may be supported by a mirror frame. Display 350 may be combined with user input device 355 .

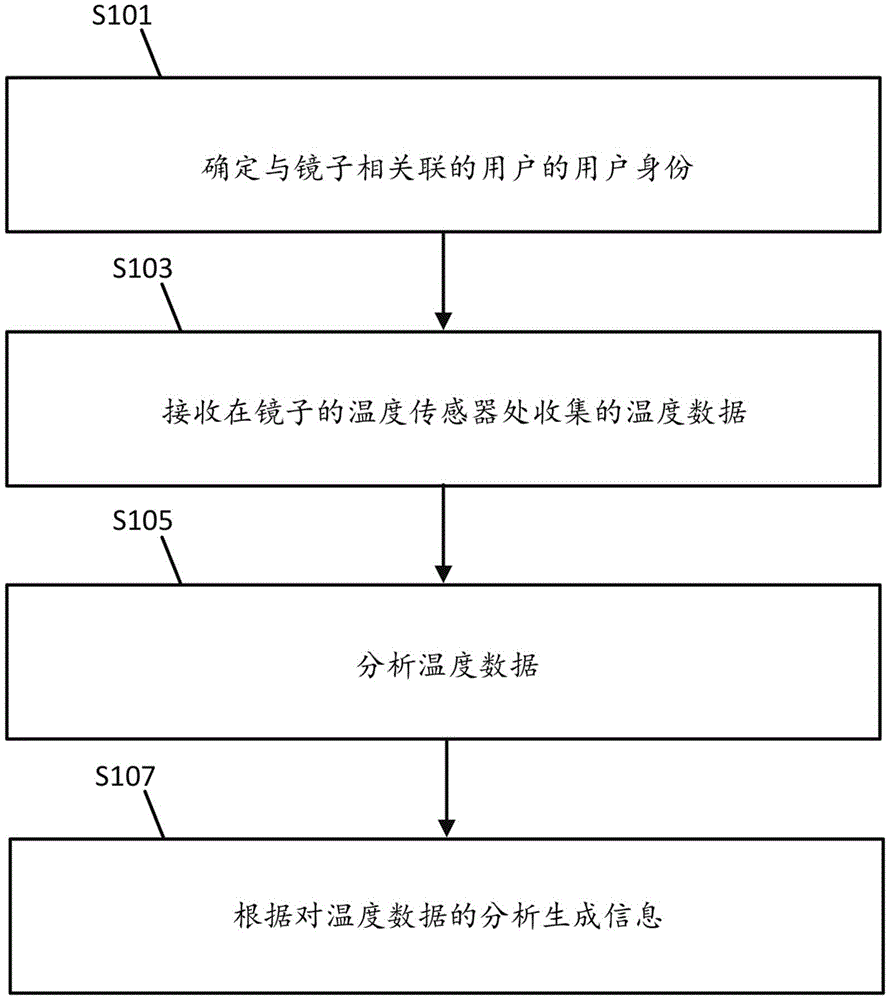

FIG. 6 shows an example flowchart of the temperature tracking algorithm of the hygienic mirror 101 . The actions of the flowchart may be performed by any combination of the controller 100, network devices or servers. Portions of one or more actions may be performed by a device. Additional, different, fewer actions may be included.

In action S101, the controller 100 (eg, through the processor 300) determines the user identity of the user associated with the mirror. User identity may be determined through user input. For example, the hygiene mirror 101 can be configured by a user. The user may enter a registration or login name indicating the user's identity. The controller 100 may assume that the registered user is related to the collected sensor data. Alternatively, the user may enter the user identity into the hygienic mirror 101 for a predetermined period of time. User identities can be entered daily or at other time periods. The health mirror 101 can prompt the user to enter the user identity.

User identity can be determined by analyzing sensor data. For example, the controller 100 may perform facial recognition, thermal signature, fingerprint analysis, or another technique on the sensor data. The processor 300 may include circuits, modules, or application-specific controllers as a means of identifying a user.

In action S103 , the controller 100 receives (eg, through the communication interface 353 ) temperature data collected at the temperature sensor of the healthcare mirror 101 . The temperature data can be collected at predetermined time intervals. Temperature data may be collected in response to receiving a user identity. The communication interface 353 is means for receiving temperature data.

In act S105, the controller 100 (eg, via the processor 300) analyzes the sensor data. In one example, the temperature data is compared to a threshold. In other examples, temperature data is analyzed over time to determine trends. The trend may be an absolute change per unit of time or a predetermined period of time. Processor 300 may include circuits, modules, or application-specific controllers as a means of analyzing sensor data from temperature sensors.

In act S107, the controller 100 (eg, via the processor 300) generates information based on the analysis of the temperature data. This information may be an alert displayed on the hygiene mirror 101 . A portion of the mirror substrate may be covered by a liquid crystal display, or the display may be otherwise integrated with the mirror, which is configured to provide the results of the analysis data to a user of the healthcare mirror 101 . Alternatively, a separate display can be mounted on or near the healthcare mirror 101 .

Alerts can be sent to mobile devices for display. This alert can be sent to a central location. Processor 300 may include circuits, modules, or application-specific controllers as a means of generating information based on temperature data.

FIG. 7 shows exemplary internal sensors of the hygiene mirror 101 . A sensor cavity 150 (eg, a camera module) is mounted on the mirror frame. The sensor cavity 150 is a housing inside the mirror frame, in which the sensor and/or camera 151 is housed. The camera 151 is configured to collect images of one or more users in the vicinity of the healthcare mirror 101 . The sensor cavity 150 may be formed of plastic or metal. The sensor cavity 150 may be coupled with one of the mirror's interior shelves 149 . The sensor cavity 150 may include other types of sensors in addition to or instead of cameras. In addition, the sensor cavity 150 may include the controller 100, which may also be considered as another example of a control module.

In one example, the viewing angle of the camera can be selectively closed or opened by the door 152 of the mirror frame. When the door 152 is opened, the camera has an unobstructed path to collect images of the user. Alternatively, when the sensor cavity 150 includes a temperature sensor, the space between the temperature sensor and the user is selectively closed or opened by the door 152 .

FIG. 8 illustrates an example retractable cover 153 configured to cover an aperture to selectively block a sensor or camera in sensor cavity 150 . FIG. 9 illustrates an exemplary cover switch 154 for a retractable cover 153 . FIG. 10 shows a top view of a cover switch 154 for a retractable cover 153 .

The retractable cover 153 is connected to the cover switch 154 in the sensor cavity 150 through a driving structure, and the driving structure converts the movement of the cover switch 154 in the first direction to the movement of the retractable cover 153 in the second direction. The first direction may be perpendicular to the second direction. When the switch 154 is pressed, the retractable cover 153 slides to open the field of view of the camera or the sensing path of another sensor.

When the switch 154 is released (ie, not depressed), the retractable cover 153 slides to close the field of view of the camera or the sensing path of another sensor. Cover switch 154 is actuated in response to operation of door 152 . Within sensor cavity 150 , cover switch 154 may be coupled to a spring that provides a force on switch 154 that biases switch 154 away from camera cavity 150 and/or toward door 152 . That is, when the door 152 is opened, the spring biases the switch 154 outward, and when the door 152 is closed, the door 152 is pressed against the switch 154 to close the switch and the retractable cover 153 .

In another embodiment, a flap spring is coupled to the retractable flap 153 to bias the retractable flap 153 in a biased orientation (ie, open or closed). In one example, a flap spring biases the retractable flap 153 open and against a piston connected to the switch 154 . That is to say, the retractable cover 153 is pushed away by the spring, but when the piston blocks the path of the retractable cover 153, the retractable cover 153 cannot be opened. When the switch 154 is depressed, the piston opens the channel of the retractable cover 153 and allows the retractable cover 153 to open.

In one example, the door 152 may include a cam surface 155 coupled to the mirror frame. The cam surface 155 is configured to actuate the piston when the mirrored cabinet door 152 is opened or closed.

FIG. 11 shows an example flowchart for processing images collected by the hygienic mirror 101 . The actions of the flowchart may be performed by any combination of the controller 100, network devices or servers. One or more action portions may be performed by a device. Additional, different, fewer actions may be included.

In action S201, the camera 151 captures time-series images of one or more users near the mirrored cabinet. The time-series images are images collected by the camera 151 at different times. Each image can be associated with a timestamp. The controller 100 analyzes the images to identify health characteristics. The health feature indicates the user's health status. Health Characteristics may relate to the user's appearance, such as the appearance or condition of the user's skin, eyes, nose, or other body parts. A health characteristic may relate to the shape or size of a user's body part. Various health characteristics detected by camera 151 are described in other examples herein. The camera 151 is a means for capturing time-series images of a user or users in the vicinity of the cabinet.

In action S203, the controller 100 determines user identities of one or more users in the vicinity of the mirrored cabinet. User identification may be determined from analysis of one or more time-series images described in the algorithms of FIGS. 28-30 .

Processor 300 may include circuits, modules, or application-specific controllers as a means of analyzing sensor data from the first device to determine a user's identity.

In act S205, the controller 100 (eg, via the processor 300) analyzes the sensor data by performing one or more image processing techniques on the time-series images. The image processing techniques may include pattern matching, feature transformation comparison, invariant feature detection, edge detection or blob detection. Image processing techniques identify health characteristics of one or more users of the hygiene mirror 101 .

Processor 300 may include circuits, modules, or application-specific controllers as a means of analyzing time-series images to obtain health characteristics for one or more users.

Health features may include different features from different times or from different images in a time series of images. The controller 100 (eg, via the processor 300 ) is configured to perform a comparison between the first health characteristic and the second health characteristic. This comparison can be part of an image processing technique. That is, image components can be compared to determine if colors have changed, body parts have changed size, or other graphical differences. The comparison may compare the determined health characteristics.

Processor 300 may include circuitry, modules, or application-specific controllers as a means of performing the comparison between the first health signature and the second health signature.

At act S207, the controller 100 (eg, via the processor 300) generates information in response to the analysis. This information can be displayed on the healthcare mirror 101 or on a mobile device associated with the healthcare mirror 101 .

As discussed in other embodiments herein, various information may be presented to the user. This information can describe health conditions. This information may provide instructions to seek medical attention and/or provide a description of the medical condition to be relayed to a medical professional. This information can provide instructions for treating the medical condition.

As discussed in other embodiments herein, various information may be sent to devices external to the healthcare mirror 101 . For example, certain health conditions may be reported to nearby hospitals or medical professionals. Health status can be reported to a central server. The server can aggregate health status messages from multiple health mirrors 101 in order to draw conclusions associated with geographic areas. For example, the server may identify an epidemic or a pandemic based on health status messages received from multiple health mirrors 101 .

This information can be sent to memory (eg, memory 352 ) to store the health characteristics with the user's health profile. The health signature may be stored in association with the determined user identity.

FIG. 12 shows exemplary external sensors of the hygiene mirror 101 . A user interface 161 coupled to the controller 100 provides one or more inputs, one or more indicators, one or more speakers, and at least one external sensor to the healthcare mirror 101 . The external sensors may include a combination of sensors, including a camera 160 and a sensor array including a first sensor 162A and a second sensor 162B. The first sensor 162A and the second sensor 162B may be different types of sensors. The first sensor 162A and the second sensor 162B may be selected from any of the sensors described herein.

The hygiene mirror 101 may include at least one light 163 . The light 163 may be installed behind or on the mirror surface. The light 163 may be driven (eg, turned on and off, brightness adjusted, color adjusted, or otherwise set) by the controller 100 of the healthcare mirror 101 .

FIG. 13 illustrates an exemplary adjustable sensor assembly for use with the healthcare mirror 101 . The adjustable sensor assembly may include a sensor 165 attached to the hygiene mirror 101 by at least one pivot member 166 and at least one extension member. The extension member may be a fixed length arm 168 or an adjustable arm 167 .

As shown in FIG. 13 , the arm 168 supports the sensor 165 and is rotatable about the pivot member 166 . A user may rotate the arm 168 and sensor 165 to position the sensor 165 in a desired rotational position. Furthermore, an adjustable arm 167 extends between the two pivot members. The user can extend the adjustable arm 167 to position the sensor at a desired height or distance from the healthcare mirror 101 .

As shown in FIG. 13 , the adjustable sensor assembly can be folded into a space or cavity 169 . For example, the adjustable arm 167 can be adjusted downward, and the arm 167 can be rotated to be parallel with the adjustable arm 167 . In this manner, the adjustable sensor assembly is made compact (eg, folded) to fit cavity 169 .

FIG. 14 shows an exemplary door-mounted sensor of the hygiene mirror 101 . The door mounted sensor may include a pivotable support 171 mounted on the door 152 of the mirror frame. The pivotable support is coupled with the housing of sensor cavity 170, which housing includes a sensor (eg, sensor 10). A pivotable support 171 allows the user to rotate the sensor cavity 170 to a desired position. In another example, the pivotable support 171 may contact a spring that pivots the pivotable support 171 when the door 152 of the healthcare mirror 101 is opened.

FIG. 15 shows an exemplary holster 180 for the sensor 10 of the hygiene mirror 101 . Holster 180 is another example of a sensor cavity or sensor mount on the outside of the mirror frame (eg, an outer mount). In some examples, peripheral devices including sensor 10 are placed in holster 180 when not in use. In some examples, peripheral devices including sensor 10 are placed in holster 180 to communicate with health mirror 101 . In some examples, samples are provided to holster 180 for testing. As discussed in more detail below, the holster 180 may also serve as a biological material container configured to receive biological material collected from one or more users in the vicinity of the mirrored cabinet.

16A-16D illustrate an exemplary external sensor device for a health mirror. Sensor Detection Sensor 181 may be mounted to the sensor cavity and configured to detect the presence of an external sensor device placed in holster 180 . Sensor Detection The sensor 181 may be a pressure sensor (eg, a mechanical button or switch) that detects when one of the external sensor devices is placed in the holster 180 based on the weight of the external sensor device. Sensor Detection The sensor 181 may be a radio transceiver device configured to detect signals from external sensor devices. The signal may be a Bluetooth signal, a radio frequency identification (RFID) signal, a near field communication (NFC) signal, or other signal.

A sensor reader 182 may be mounted into the sensor cavity to detect readings from an external sensor device placed within the holster 180 . The sensor reader 182 may be a camera that reads the display of the external sensor device, the color of a test strip of the external sensor device, or other test indicators. The sensor reader 182 may be a Bluetooth device, near field communication (NFC), or another wireless card reader that communicates directly with an external sensor device.

FIG. 16A shows an infrared or non-contact thermometer 201 . Sensor reader 182 may scan the reading of thermometer 201 or communicate wirelessly with thermometer 201 . The non-contact thermometer 201 measures the user's temperature at a distance (eg, 5 centimeters or 2 inches). The non-contact thermometer 201 may be aimed at the user's forehead or other surface. FIG. 16B shows the internal thermometer 202 . An internal thermometer can be placed in the mouth, under the arm, or rectally to measure body temperature. Sensor reader 182 may scan the reading of thermometer 202 or communicate wirelessly with thermometer 202 . The sensor reader 182 may determine the read temperature by optical character recognition. Thermometers can emit an audible, radio or infrared signal that conveys the temperature.

Figure 16C shows a blood tester 203 that detects evidence of a viral infection or recovery from a viral infection. The blood tester 203 may be an antigen tester or an antibody tester. Antigen testers test for specific viruses present in the bloodstream. The antigen tester may be a polymer chain reaction (PCR) tester that tests for the presence of COVID-19. Antibody testers can test for the presence of antibodies against a particular virus. Antibody testers can detect the presence of COVID-19 antibodies. Blood tester 203 may receive a blood sample from a user. A user may provide blood to the blood tester 203 .

In some examples, blood tester 203 analyzes the blood and presents a reading. The readout could be a pattern or color change on the display or substrate or paper. Sensor reader 182 may scan the reading of blood tester 203 or communicate wirelessly with thermometer 201 .

An exemplary pH tester 204 is shown in FIG. 16D . The pH tester 204 may detect the presence of acid reflux, conditions related to diabetes, or conditions related to ovulation or fertility. The pH tester 204 can test the user's saliva, urine or other bodily fluids.

In some examples, pH tester 204 analyzes bodily fluids and presents a reading. The readout could be a pattern or color change on the display or substrate or paper. Sensor reader 182 may scan the reading of pH tester 204 or communicate wirelessly with thermometer 201 .

In other examples described with respect to Figures 23 and 24, the sample is provided directly to the holster 180, which acts as a biomaterial container coupled to the mirror frame.

Figures 17A-17D illustrate an exemplary external sensor device for the hygiene mirror 101 that performs internal readings and transmits these readings to the controller 100 via wireless communication. External sensor devices may include radios configured to communicate with controller 100 using any of the wireless technologies described herein.

Figure 17A includes a body fluid tester 205 wherein a vial or test tube 215 is inserted into an external sensor device. Figure 17B includes a body fluid tester 206 in which a cartridge 216 containing a biological sample is inserted into an external sensor device.

For example, bodily fluid tester 205 / 206 may be a urine sensor configured to analyze urine placed in tube 215 or cassette 216 . The body fluid tester 205/206 is configured to detect pregnancy, ovulation, urinary tract infection, vitamin levels, nutrient levels, body deficiencies, hydration levels, or combinations thereof. The body fluid tester 205/206 is configured to detect foreign objects in urine. In another example, the body fluid tester 205/206 may be a breast milk sensor configured to detect the caloric content of breast milk, the nutritional content of breast milk, and foreign objects in breast milk. In another example, the bodily fluid tester 205/206 may be configured to detect characteristics of vaginal discharge or semen. In another example, bodily fluid tester 205/206 may be configured to detect the contents of saliva or mucus. The body fluid tester 205/206 may be used to detect viruses or bacteria in saliva or mucus.

Figure 17C includes a body fluid tester 207 that detects evidence of viral infection or recovery from viral infection (eg, antigen test or antibody test). Biological samples may be inserted into bodily fluid 207 using sample tray 217 .

FIG. 17D includes blood tester system 208 (blood analysis sensor) including sample collector 219 and blood tester 218 . Sample collector 219 may be used to pierce the patient's skin to collect blood, which is placed on strip 218a and inserted into blood tester 218 . Sample collector 219 may be configured to receive a finger lancet of one or more users, the lancet being associated with the biological material container. Blood tester system 208 may be configured to detect cholesterol, blood alcohol level, blood sugar, iron, triglycerides, or allergic antibodies.

Figures 18A-18D illustrate an exemplary external sensor device for the health mirror 101 that takes a user's body reading through contact. FIG. 18A shows pulse reader 220 including a recessed portion configured to receive a user's finger. Additionally, pulse reader 220 may include a clip to be placed on a finger, earlobe or other body part. Pulse reader 220 measures the oxygen level in the blood. Pulse reader 220 may generate one or more beams of light passing through the body part and detect the amount of light passing through the body part. Because oxygenated and deoxygenated blood absorb different amounts of light, the oxygen level is calculated from the light received.

FIG. 18B shows a wearable device 222 (eg, a wearable monitor), such as an activity tracker, smart watch, or another device, configured to take body readings of the user and communicate with the health mirror 101 . Wearable device 222 may measure the user's heart rate, the user's pulse, the user's respiration rate, the user's temperature, the number of steps the user takes, the user's location and orientation (e.g., sitting versus standing), and/or whether the user is sleeping.

FIG. 18C shows the touchpad 223 . The touchpad 223 can take physical readings from the user by touching. That is, the user can put a finger, hand, or forehead on the touchpad 223 . The touchpad 223 may measure the user's heart rate, the user's pulse, the user's respiration rate, and/or the user's temperature.

Figure 18D shows an embedded sensor 224 that can be integrated with another device. Embedded sensors 224 may measure the user's heart rate, the user's pulse, the user's respiration rate, and/or the user's temperature.

FIG. 19 shows an example device that may include embedded sensors 224 . These devices may include a razor 185 , a hairbrush 186 , a hair trimmer 187 and a toothbrush 188 . These devices may be personal grooming appliances. These devices are configured to communicate wirelessly with the healthcare mirror 101 .

Through embedded sensors 224 , each device is configured to provide body readings to the health mirror 101 . In addition, each device can collect biological material that can be analyzed at the device or at the hygiene mirror 101 (eg, via sensor 182). Shaver 185, brush 186 and/or hair trimmer 17 may collect hair as biological material. Toothbrush 188 can collect saliva. These devices are associated with a biomaterial container that can be integrated with a personal grooming appliance. Additionally, the personal groomer may provide organic material to the holster 180, which acts as a biological material container.

FIG. 20 shows an exemplary touch screen 190 for the healthcare mirror 101 . The touch screen 190 may be a combination of user input devices and sensors. The touch screen 190 may have a capacitive layer or a resistive layer to detect a touch as a user input. The touch screen 190 may include sensors to obtain body readings from the user through touch. The touch screen 190 may measure a user's heart rate, a user's pulse, a user's respiration rate, and/or a user's temperature by touching. The touch screen 190 , which may be an example of a sensor cavity, is located on the mirror substrate and is configured to be in contact with one or more users of the healthcare mirror 101 .

21A-21C illustrate an exemplary sterilization device for holster 180 . FIG. 21A shows an exemplary communication device 281 for a hygienic mirror 101 to communicate with a device 282 having a sensor 10 . FIG. 21B shows an exemplary sterilizer 283 for the hygiene mirror 101 . The sterilizer 283 may emit a sterilizing liquid or gas to sterilize the device 282 while it is placed in the holster 180 . FIG. 21C shows an exemplary UV lamp 284 for use with the hygiene mirror 101 . The UV lamp 284 is configured to sterilize the device 282 while it is placed in the holster 180 .

FIG. 22 shows an exemplary holster 180 inside the healthcare mirror 101 . The inner holster 180 may be a sensor cavity or a sensor holder inside the mirror frame. In some examples, external devices including sensor 10 are placed in holster 180 when not in use. In some examples, an external device including sensor 10 is placed in holster 180 to communicate with health mirror 101 .

In some examples, samples are provided to holster 180 for testing. For example, the inner holster may include a sample port inside the mirror frame coupled to the biological material container and configured to receive a strip or swab comprising biological material. When the mirrored cabinet is open, the biomaterial container is located inside the mirror frame and is accessible to one or more users.

FIG. 23 shows an embodiment in which the holster 180 is the holder for the test swab 191 . Additionally or alternatively, the holster 180 may include a storage compartment for collecting biological material or test strips. In some examples, holster 180 includes a reader for test swab 191 . Holster 180 may include a cassette port coupled to holster 108 configured to receive a cassette comprising biological material.

In other examples, a test swab 191 is read by a device such as FIGS. 17A-17D and placed in a holster 180 that serves as a container for biological material outside the mirror frame and can be accessed by a person when the mirrored cabinet is closed. or multiple users.

FIG. 24 shows an embodiment in which the holster 180 is a reservoir for biological material 193 . Holster 108 may include a sample chamber that receives biological material as a fluid from one or more users. Holster 180 may include a fluid analyzer coupled to the biological material container, the fluid analyzer configured to receive fluid as biological material.

FIG. 25 shows an exemplary magnetically mountable sensor 194 for the hygiene mirror 101 . The sensor cavity of the health mirror 101 may include a magnet 196 to generate a magnetic field to hold the sensor 194 on the health mirror 101 . Additionally, alternatively, the healthcare mirror 101 may include a retractable wire 195 affixed to the healthcare mirror 101 and a magnetically mountable sensor 194 . The health mirror 101 is adjacent to or integrated with the magnet 196 , and the health mirror 101 may include a detection switch or sensor to detect when the mountable sensor 194 is installed on the health mirror 101 . In one example, mounting the mountable sensor 194 to the magnet 196 completes an electrical circuit that alerts the hygiene mirror when the mountable sensor 194 is mounted (or, alternatively, not mounted).

FIG. 26 shows an exemplary face shield 197 coupled to the hygiene mirror 101 by a hose or tube 198 . The user may breathe through the mask 197 so that air and airborne particles such as aerosols enter the sensor cavity of the healthcare mirror 101 through the hose 198 where one or more characteristics of the airborne particles are measured by the sensor 10 .

Likewise, the hygienic mirror 101 can be connected to a breast extractor via a hose or tube 198 . Milk extractors are configured to express breast milk from one or more users. The breast extractor can be coupled with the biological material container in the health mirror 101 .

FIG. 27 shows an exemplary blood pressure cuff 173 coupled to the hygienic mirror 101 by a hose 172 . The blood pressure cuff 173 is a sensor that measures the user's blood pressure. The controller 100 controls the pump inside the hygienic mirror 101 to apply and release pressure in the blood pressure cuff 173 to measure blood pressure.

FIG. 28 shows a flow chart of measuring biomaterials using the hygienic mirror 101 . The actions of the flowchart may be performed by any combination of the controller 100, network devices or servers. One or more action portions may be performed by a device. Additional, different, fewer actions may be included.

In action S301 , the controller 100 (eg, through the processor 300 ) determines a user identity of a user associated with the healthcare mirror 101 . The health mirror 101 may collect sensor data associated with a user identity. Sensor data associated with a user identity may include identity data, biometric data, or sensor data. The identity data may include a username or other identification for the identity of the user of the hygiene mirror 101 . Identity data can be derived from image data or proximity data describing the user. Biometric data may include body contours, fingerprints, facial recognition, or other data. Sensor data can include temperature, pressure, blood pressure, wakefulness, or other transient characteristics. The controller 100 may analyze the sensor data to determine the identity of the user.

Processor 300 may include circuits, modules, or application-specific controllers as a means of determining a user's identity.

In action S303, the biological material container receives the biological material collected from the user near the mirror. The biological material can be collected by any of the devices or sensors described herein. The biological material may include saliva, blood, hair, skin, breast milk, urine, vaginal fluid, semen, or combinations thereof. In addition, the healthcare mirror 101 may not receive biological material, but receive wireless communication from a biological material container or analyzer through a wireless communication module.

In action S305 , the controller 100 (eg, through the processor 300 ) tests the biological material with the analyzer inside the health mirror 101 . Biomaterials can be tested by any of the devices described herein. Controller 100 (eg, via processor 300) generates data of the biological material. Processor 300 may include circuits, modules, or application-specific controllers as a means of testing biological materials.

At act S307, the controller 100 (eg, via the processor 300) generates a report in response to the testing of the biological material. The report may be an alert message for a local user of the hygienic mirror 101 . The report may aggregate news from a geographic area of multiple deployed healthcare mirrors 101 . The report can be sent to one or more of the user's healthcare contacts. Processor 300 may include circuits, modules, or application-specific controllers as a means of generating biomaterial test reports.

FIG. 29 shows an exemplary positioning silhouette 174 of the hygiene mirror 101 . In some examples, the positioning profile 174 is etched, printed, or otherwise permanently or semi-permanently applied to the healthcare mirror 101 . Positioning silhouette 174 shows where the user should appear in the image of the mirror in order to be accurately detected by one or more sensors 10 . In one example, the positioning silhouette 174 is displayed on a liquid crystal display (LCD) overlaid on the mirror base. Therefore, the positioning silhouette 174 may be variable, and the controller 100 may control the position of the positioning silhouette 174 .

In some examples, the positioning silhouette 174 is not visible, but is determined dynamically by the controller based on user identity (eg, user's age or size) or based on sensor data. The controller 100 is configured to identify a selected user of the one or more users from at least one of the time-series images, and access files according to the selected user. The controller 100 may detect a position or orientation of one or more users from at least one of the time-series images, and generate an alignment instruction based on the detected position or orientation. The alignment instructions may include a direction of movement toward the center position.

FIG. 30 illustrates exemplary floor guides for positioning relative to the hygiene mirror 101 . In addition to or instead of positioning silhouette 174 , healthcare mirror 101 may be positioned relative to floor position guide 175 . When the user stands in the floor position guide, the sensor 10 of the healthcare mirror 101 can accurately measure the user.

FIG. 31 shows an exemplary flowchart for positioning a user relative to the hygiene mirror 101 . The actions of the flowchart may be performed by any combination of the controller 100, network devices or servers. One or more action portions may be performed by a device. Additional, different, fewer actions may be included.

In action S401, the controller 100 (eg, through the processor 300) receives sensor data indicative of the location of the user. This sensor data can be an image from a camera. This sensor data could be a thermal footprint from an infrared camera or a thermometer.

In action S403, the controller 100 (eg, through the processor 300) generates an instruction to the user to change the user's location. The controller 100 may compare the positioning silhouette 174 with the user's detected position. The instruction may be to locate the difference between the silhouette 174 and the detected position of the user. The difference can be a vector. The instruction can be displayed on the health mirror 101 and include words such as "move to the left" or "move to the right".

In action S405 , the controller 100 (eg, through the processor 300 ) receives body reading data after the user changes position (the user changes position and is located in the positioning silhouette 174 representing the detection range of the sensor 10 ). In act S407, the controller 100 (eg, through the processor 300) analyzes the body reading data. The body reading data may be compared to one or more thresholds provided by the user or received from an external source. The body reading data may be compared to a trend of historical values of the body reading data.

FIG. 32 shows an exemplary flow chart of diagnosis using the hygienic mirror 101 . The actions of the flowchart may be performed by any combination of the controller 100, network devices or servers. One or more action portions may be performed by a device. Additional, different, fewer actions may be included.

In action S501 , the controller 100 (eg, through the processor 300 ) receives image data collected at the health mirror 101 . This image data can be collected by any of the cameras described herein. Image data may be collected by charge-coupled devices, infrared cameras, light detection and ranging (LiDAR) devices, radar devices, or other devices.

In action S503, the controller 100 (eg, through the processor 300) analyzes the image data to obtain one or more features of the user in the image data. At act S505, the controller 100 (eg, via the processor 300) compares the feature with one or more templates. In action S507, the controller 100 (eg, through the processor 300) provides a diagnosis (eg, information) to the user based on at least one matched template. The comparison may be a diagnosis of a health condition of one or more users based on a comparison between the first health characteristic and the second health characteristic. The controller 100 is configured to track the growth or height of one or more users based on a comparison between the first health characteristic and the second health characteristic.

According to the following embodiments, actions S503 to S507 are described in alternative examples. From action S503 to action S507, the healthcare mirror 101 is a health center for collecting and storing all health data. The Health Mirror 101 combines other precise health information with tracking through the Health Mirror 101 and produces a diagnostic analysis of the disease (increased resting heart rate combined with elevated body temperature), as well as achievable fitness programs, virtual doctor appointments, A combination of beauty and styling advice. The hygiene mirror 101 may provide instructions to the user, including any of these messages and/or diagnostic messages.

FIG. 33A shows exemplary data collection for hair styling using the hygienic mirror 101 . The controller 100 analyzes the image of the hairstyle and compares the analyzed image with one or more templates. When a haircut or shave is overdue, the controller 100 can compare the image to a matching template. The controller provides information reminders to the user, reminding the user to shave, cut hair, brush eyebrows, bleach upper lip, or other types of hair growth. When coloring is overdue, the controller 100 can compare the image to a matching template. This information can connect the user to a hair salon or similar service. The controller 100 may compare the image with a template for hair styling, and notify the user when the user's hairstyle does not conform to the style.

In another example, the controller 100 may match the user's image with makeup base, makeup style, or makeup color and provide suggestions in the diagnosis information.

In another example, the controller 100 may generate one or more messages in response to a template match to obtain more information for diagnosis. Example questions could include "You look pale - are you okay?", "Your eye color doesn't look right, would you please move closer?", "I noticed a rash - you should get it checked Just a moment. Do you want me to set you up for an appointment?" or "Your skin looks dry -- I recommend the following creams."

FIG. 33B shows exemplary data collection for injury detection using the hygiene mirror 101 . The controller 100 analyzes the user's image to recognize the user's features. The controller 100 compares these features to one or more templates corresponding to swelling, bruising, toothache, acne, allergic reaction, bleeding, or other conditions visible on the user's face. The controller determines whether one of these templates matches the image, and if so, reports the corresponding situation to the hygienic mirror 101 or the central server.

FIG. 33C shows exemplary data collection for body analysis using the hygiene mirror 101 . The controller 100 analyzes the user's image to recognize the user's features. The controller 100 may compare images of the same area of the body taken over time to track appearance over time. Example conditions that change over time may include skin that changes over time, which may be related to health conditions (e.g., moles that change color, skin movement in respiration/respiration rate, blood vessel movement behind the skin, using machine learning algorithms to take into account the entire body or High-precision respiration rate for images of the upper body, and/or acne and bloating related to menstruation or hormonal changes). The controller 100 compares these features to one or more templates corresponding to identified skin tones, skin textures, bruises, swellings, cuts, scrapes, other injuries, and sunburns. When any of these conditions match an image, the controller 100 may generate an information alert to the user, or issue an alert to a central server or provided healthcare service. One example information is that potential physical abuse can be reported to local law enforcement facilities. One example message to the user is that "how the sun sees you" can be displayed, pointing out areas of the body that are not protected by sunscreen.

FIG. 33D illustrates exemplary data collection for dental and/or vision analysis using the hygienic mirror 101 . The controller 100 analyzes the user's image to recognize the user's features. The controller 100 compares these features to one or more templates corresponding to dental conditions such as caries, sunken gums, plaque, vision conditions related to eye movement such as concussion, dementia, autism , or for vision testing, macular testing, magnification, or eyeglass fitting for eyeglass prescriptions. The health mirror 101 can be configured to display glasses images on the user's image for virtual glasses try-on.

34A and 34B illustrate exemplary data collection for body size or growth analysis. The controller 100 analyzes the user's image to recognize the user's features. The controller 100 compares these features to one or more templates corresponding to body size scans/detections to assist in body size targeting and growth tracking. The controller 100 is configured to track the body shape and size of the one or more users based on a comparison of the first health characteristic and the second health characteristic.

As shown in 34A, as a result of body scanning using the sensor 10 of the healthcare mirror 101, an estimated image 405 of the user may be displayed. In one example, changes in shape or other physical characteristics are determined by comparing the first body image 405 with the second body image 406 . The controller 100 can measure differences in body structure, height and weight. Additionally, one of the external sensors connected to the healthcare mirror 101 may also include an external scale for the user to stand on and provide weight/mass data to the healthcare mirror 101 .

A similar concept could also be applied to pregnancy. The controller 100 compares the image of the body to one or more templates to calculate a measurement of palace height, which is recorded with a time stamp. The controller 100 calculates the number of weeks of pregnancy. For example, the number of weeks of gestation may be equal to (current date - (expected date - 40 weeks)). If the gestational week is >= equal to or greater than 20 weeks, then the target palace height is equal to the number of weeks in centimeters (the palace height at 20 weeks should be 20 cm). If the palace height is +/- 2.1 centimeters compared to the predicted palace height, the controller 100 may generate an alarm or warning. This information may indicate that the baby may not be growing normally. This information can automatically contact a registered physician. If the measurements indicate average growth, the controller 100 may issue a message including encouragement.

Figure 34C shows a contour comparison of the body shape 407. The controller 100 may generate the difference of the body shape 407 through the comparison of the first body image 405 and the second body image 406 . Can be tracked for weight loss programs, fitness training programs, growth of babies or children. The controller 100 may provide goal setting for anatomy. The controller 100 may provide predictive analysis of trends by comparing the first body image 405 with the second body image 406 to create a future profile of a person based on current trends.

FIG. 34D shows exemplary data collection for garment assignment 408 using the healthcare mirror 101 . Controller 100 may analyze images collected by cameras or other sensors 10 . Controller 100 may access a database of garments rated by one or more attributes. These garments may be garments in the local user's wardrobe. The garment may be a garment provided for transportation or a garment available in a store. The controller 100 determines one or more characteristics of the user, and selects a garment in response.

FIG. 35 illustrates exemplary data collection for body type (female 409 ) analysis using the hygienic mirror 101 . FIG. 36 shows another exemplary data collection for body type (male 413 ) analysis using the hygienic mirror 101 . Controller 100 may analyze the images to identify physical attributes 408 . Body attributes 408 include shoulder width, chest width, waist width, and hip width. The controller uses the body attributes to access the body type database 411 to determine the user's body type. Select at least one body type and choose the best clothing for the selected body type from the clothing database.

Controller 100 may display one or more outputs during body analysis and garment assignment. FIG. 37A shows a depiction of the user's calculated body style 421 . Figure 37B shows suggestions 422 on what to wear. The suggestion may include an image of the garment, a link to the garment, or an identification number for the garment. Figure 37C shows a suggestion 423 on what not to wear. The suggestion may include an image of the garment, a link to the garment, or an identification number for the garment.

FIG. 38A shows an exemplary sterilization case 420 coupled to the hygiene mirror 101 . FIG. 39 shows an exemplary sterilization case 420 inside the hygiene mirror 101 . Sterilization box 420 may perform sterilization and/or disinfection. The term sterilizing refers to the process of eliminating or killing living organisms or near-living organisms, which may include microorganisms such as fungi, bacteria, viruses, spores or unicellular eukaryotes. The term disinfection may include sterilizing and/or other processes to remove or kill living or near-living organisms, remove contaminants or sterilize objects or surfaces. The term disinfection can include the process of deploying chemical agents or radiation with the aim of eliminating bacteria and/or viruses or other microorganisms. Alternatively, sterilization tank 420 may include a heater to heat the contents to a temperature high enough to eliminate or kill living organisms. An example is an autoclave. Additionally, the sanitizing box 420 may include air filters (eg, high-efficiency particulate air (HEPA) and ultraviolet (UV) air filtration systems) to clean and sanitize air that may harbor viruses, mold, or other microorganisms.

The sterilization box 420 includes a sterilization device 425 coupled to the mirror frame. The disinfection device 425 may be in communication with a controller that issues instructions to the disinfection device 425 . The sterilizing device 425 is configured to sterilize the space associated with the mirror frame, which may be within the sterilizing box 420 or within the cavity of the hygiene mirror 101 .

Disinfecting device 425 may include a dispenser or sprayer that emits a cloud or mist of disinfectant or chemical agent into the chamber of disinfection case 420 or hygiene mirror 101 in response to an activation command from a controller of disinfection device 425 . The sterilizing device 425 may emit sterilizing radiation (eg, ultraviolet rays) in the chamber of the sterilizing box 420 or the hygiene mirror 101 in response to an activation command issued by a controller of the sterilizing device 425 .

In some examples, items are placed within sterilization bin 420, where sterilization equipment 420 performs sterilization on the items. Example items that are sanitized in the sanitizing bin 420 may include personal items used in the bathroom, such as toothbrushes, hairbrushes, dental floss, hair dryers, curling irons, or others. Example items that are sterilized in sterilization bin 420 may include personal electronic devices, such as phones, other mobile devices, or wearable devices. Example items that are sterilized in sterilization bin 420 may include jewelry, eyeglasses, or watches. Example items to be sterilized in sterilization box 420 may include personal protective equipment (PPE), such as face masks, visors, or gloves. Exemplary items sterilized in sterilization chamber 420 may include devices including sensors 10 such as thermometers, blood pressure cuffs, or sample containers. The sterilization case 420 may include sensors to detect whether an item is placed within the sterilization case 420 . This way, the sanitization process will only run if there are items that need to be sanitized. The sensor may include a mechanical sensor activated by the weight of the item, a light sensor or other sensor that produces a beam of light that is interrupted by the item. In one example, established wireless communication with the healthcare mirror 101 indicates the presence of the item. In other examples, the sanitization process may be run regardless of the presence or absence of items.

Referring to Figure 38B, the body 751 of the nebulizer includes a housing. The housing includes a front housing 756 and a rear housing 757, each formed and coupled together to capture other components of the dispenser within the cavity defined by the housing. Alternatively, the front housing 756 and rear housing 757 may be integrally formed as a single piece. Rear housing 757 includes a generally circular end and a generally cylindrical wall extending therefrom. The end includes an inlet opening 758 configured to receive a supply of fluid (eg, water, cleaning compound, etc.) entering the dispenser 750 . As shown, inlet opening 758 is generally concentric with the longitudinal axis and is configured to receive liquid supply channel 759 . Front housing 756 includes a generally circular end including an outlet opening 760 and a generally cylindrical wall extending therefrom. Each wall may include a distal end configured to be adjacent to the distal end of the other wall when the housings are coupled together. A first O-ring seal 761 may be disposed between the walls of the front housing 756 and the rear housing 757 to help seal the cavity (eg, from liquid ingress). For example, each wall of the front and rear housings may include a groove configured to receive a portion of the first O-ring seal 761 .

A neck 752 of the dispenser extends from an outlet opening 760 at the end of the front housing 756 . Neck 752 may have a frusto-conical shape as shown in FIG. 38B, a cylindrical shape, or any other suitable shape. The neck 752 is configured to have a relatively large aspect ratio, where the aspect ratio is the ratio of its length (along the longitudinal axis) to its width (eg, diameter). For a frustoconical neck, its diameter can be considered to be its average diameter, since it will vary along the length. Hole 762 extends through neck 752 , delivering fluid to head 753 . Neck 752 may extend into the cavity of the housing and out from inlet opening 758 of rear housing 757 such that the inlet of the bore acts as a liquid supply channel 759 to receive fluid from a fluid source. The neck may further include a shoulder 763 configured to seat in the outlet opening 760 of the front housing 757 . A second O-ring seal 764 may be disposed between neck 752 (eg, shoulder 763 ) and front housing 756 (eg, an inner surface defining the end of outlet opening 760 ).

The head 753 of the dispenser 750 includes an atomizing surface 765 configured to dispense atomized particles of the fluid into the air as a mist. As shown in FIG. 38B , head 753 has a generally pyramidal shape that tapers in size from a base disposed on the distal end of neck 752 to a tip that is the outermost end of dispenser 750 . Head 753 may have a hemispherical shape. Head 753 includes holes that are extensions of holes 762 in neck 752 for dispensing fluid from nozzles in head 753 .

As also shown in FIG. 38B, the dispenser includes an active electrode 767, a ground electrode 768, and at least one piezoelectric crystal 769 (eg, two piezoelectric crystals 769 sandwiching the active electrode 767). Each piezoelectric crystal 769 may have a generally annular shape with a portion of the liquid supply channel 759 passing through an opening (eg, a central opening) in the piezoelectric crystal 769 . The active electrode 767 may have a substantially annular shape with a portion of the liquid supply channel 759 passing through an opening (eg, a central opening) in the active electrode 767 . The piezoelectric crystal 769 and electrodes may be disposed between a horn 770, which may be a generally annular piece of titanium, and the shoulder 763 of the neck 752. Ground electrode 768 extends between the inner surface of the housing (eg, at least a portion of front housing 756 , rear housing, or both) and active electrode 767 and the outer surface of each piezoelectric crystal 769 .

Also shown in FIG. 38B , the dispenser includes a connector 771 . For example, connector 771 may be an electrical connector for providing an electrical connection to a broadband ultrasound generator. Connector 771 is electrically connected to active electrode 767 and/or each piezoelectric crystal 769 such that electrical signals received from the broadband ultrasound generator are passed to active electrode 767 and/or each piezoelectric crystal 769 .

During operation, as the fluid passes through the liquid supply channel 759 , the dispenser 750 atomizes the fluid by electrical signals received via the connector 771 . An atomized fluid, eg, a mist having a generally parabolic cross-sectional shape, is dispensed from the head 753 away from the body 751 .

Referring to FIG. 39 , the disinfection box 420 located inside the hygiene mirror 101 may be connected to a switch 426 for operating a disinfection device 425 . Switch 426 may be actuated by a user (eg, pressing a button) to turn on disinfection device 425 . Switch 426 is actuatable by door 152 . That is, when the door 152 is closed, the door 152 presses the switch 426 to open the disinfection device 425 . Alternatively, the disinfection device 425 can be activated and controlled using a mobile device or the control interface of the healthcare mirror 101 .

In another option, the disinfection box 420 is omitted, and the disinfection device 425 is installed inside the hygiene mirror 101 . Therefore, the radiation or the disinfectant released by the disinfecting device 425 fills the cavity of the hygiene mirror 101 itself.

In another embodiment, the sanitizing device 425 may include a water heater included in the sanitizing device 425 . The water heater is configured to heat water in response to an activation command of the sanitizing device 425 . Water can be heated to a temperature high enough to kill bacteria and/or viruses. The temperature of the water can be limited to protect rubber seals and other components. The sanitizing device 425 may heat the water provided to the faucet. Thus, the user may choose to prepare the sanitizing bath in the sink 431 . A user may place any of the items described herein in the sanitizing bath in sink 431 .

The controller can generate an alarm message indicating operation of the water heater. This information can warn the user that the water from the tap is too hot for normal use. This information can inform the user not to wash their hands, brush their teeth, etc. This information can show the temperature of the water. This information may instruct the user to keep a certain distance from the hygiene mirror 101 or the sink 431 .

Figure 40 shows an exemplary flowchart for operating the sterilizer box 420, and may be applicable to either an inner sterilizer box embodiment or an outer sterilizer box embodiment. Additional, different or fewer actions may be included. Disinfecting device 425 may include a controller (eg, including one or more components of FIG. 5 ) configured to generate commands for disinfecting device 425 based on one or more signals or instructions. Sterilization box 420 may include a display configured to provide operational information of sterilization device 425 and status information indicative of one or more of the following actions.

In action S601, the disinfection device 425 receives a disinfection preparation signal of the disinfection device. The sterilization readiness signal may be based on sensor data detecting the presence of items in the sterilization bin 420 . Thus, when the sensor detects an item in the sterilization bin 420, a sterilization readiness signal is generated. Alternatively, the sterilization ready signal may be generated in response to a lock or closure mechanism when the sterilization case 420 is closed. For example, the latch may include three positions, such as "open," "closed," and "ready," where the ready position causes the sanitizing device 425 to generate a sanitizing ready signal.

In action S603, the disinfection device 425 receives an activation signal at the disinfection device. The activation signal can be generated according to user settings. For example, sanitizing device 425 may be set to operate at certain times of day. The user may set the sanitizing device 425 to sanitize at night (eg, at 3 am) or at other specific times of the day, day of the week, or day of the month. Additionally, sanitization can be triggered by external events. An external event may be information received from an external device describing whether a virus outbreak is occurring in a geographical area including the healthcare mirror 101 . An external event could be information describing a government rule or regulation related to disinfection. Activation signals can be generated on used inputs (eg sanitize button now). The activation signal may be triggered by switch 426 when door 152 is closed.

In action S605, the disinfection device 425 is activated in response to the activation signal and the disinfection ready signal. That is, only when the sterilizing device 425 is deemed ready for operation by the sterilizing ready signal and receives an operation command from a user through the activation signal, the sterilizing device 425 is turned on to discharge the sterilizing agent or radiation. Activating the sterilization device 425 includes releasing a sterilization gas and/or emitting radiation in the sterilization chamber 420 .

In action S607, after a predetermined period of time, the disinfection device 425 automatically stops the process of action S505 or deactivates the disinfection device 425. The predetermined time period can be set by the user or selected according to the type of disinfection. For example, the release of gas may be for a first period of time (eg, 1 minute) and the emission of ultraviolet radiation may be for a second period of time (eg, 10 minutes).

FIG. 41 illustrates an exemplary disinfectant mist or mist 430 emanating from the hygiene mirror 101 . In this example, the disinfection device 425 includes a nebulizer 432 . The atomizer 432 can be located inside the health mirror 101 or outside the health mirror 101 . The hygiene mirror 101 may include one or more vents to allow mist to escape from the hygiene mirror 101 . The nebulizer 432 is configured to generate a disinfecting mist that is expelled into a cavity inside the healthcare mirror 101 , or into the environment of the healthcare mirror 101 .

Disinfectant mist is delivered by air curtains. One or more nozzles coupled to the hygiene mirror 101 may define the direction and size of the air curtain. These nozzles can be rotated by the controller of the disinfection device 425, moving from left to right, front to back, and vice versa. The sanitizing mist may include alcohol, hydrogen peroxide or other sanitizing solutions in at least a predetermined proportion. In addition, the nebulizer 432 can discharge essential oil, steam or medicine inside the healthcare mirror 101 or outside the healthcare mirror 101 .

FIG. 42 shows an exemplary disinfecting light emitted from the hygiene mirror 101 . In this example, disinfection device 425 includes light 440 . The light 440 may be located inside the health mirror 101 or outside the health mirror 101 . The light 440 is configured to generate disinfecting light that is exhausted into a cavity inside the healthcare mirror 101 , or exhausted into the environment of the healthcare mirror 101 . Disinfecting light may be defined as light having a predetermined wavelength, such as 400 nm to 405 nm. Disinfecting light can be defined as light capable of killing or eliminating single-celled organisms such as bacteria or viruses.

FIG. 43 illustrates an exemplary control algorithm for discharging sterilizing material. Additional, different or fewer actions may be included. Disinfecting device 425 may include a controller (eg, including one or more components of FIG. 5 ) configured to generate commands for disinfecting device 425 based on one or more signals or instructions. Sterilization box 420 may include a display configured to provide operational information for sterilization device 425 and status information indicative of one or more of the following actions.

In act S701, the controller (eg, via the processor 300) identifies a sanitization event. The sanitization event may be a sensed state. A disinfection event can be a detection of a virus or bacteria. Sanitization events can occur based on the user's time or date.

In action S703, the controller (eg, through the processor 300) activates the disinfection device associated with the mirrored cabinet. In act S705, the controller (eg, via the processor 300) generates a control signal to release the sterilant from the sterilizing device. This control signal enables the nebulizer or dispenser to discharge a disinfectant mist from the mirrored cabinet. This control signal causes light emitting diodes (LEDs) or other lights to generate and shine ultraviolet light from the mirrored cabinet.

FIG. 44 shows an exemplary wireless power distribution system for the healthcare mirror 101. The health mirror 101 may include a wireless power splitter configured to transmit a signal from the health mirror 101 to a device having a battery in order to charge the battery. The device may be a bathroom peripheral 451 such as a shaver or an electric toothbrush.

The signal may be a radio frequency signal generated and transmitted by the radio 450 . The radio signal may have a predetermined power level and a predetermined frequency compatible with a particular device. The signal may be a charging light generated and transmitted by lamp 440 . The charging light may be directed to selected bathroom peripherals 451 that have photovoltaic cells electrically connected to the batteries.

Fig. 45 shows another example wireless power distribution system. In this case, the charging transmitter 800 sends a charging signal 810 to one or more bathroom appliances and/or a mobile device 811 (eg, a tablet, cell phone, or similar device). The charging signal, which may be a radio frequency (RF) signal or an optical signal, is configured to charge the battery wirelessly. The bathroom appliances can include a health mirror 101, a shower head 2, a shower jet 3, a balneotherapy device with light or sound 4, a shower faucet 5, a toilet 6, a toilet seat or toilet 7, a sink faucet 8, or other equipment.

FIG. 46 illustrates exemplary hand washing guidelines 550 . The controller 100 may access a sequence of the hand washing guide 550 (eg, a hand washing sequence) in response to a user's request or in response to turning on water. As shown in FIG. 46, hand washing guidelines 550 may be displayed all at once. Alternatively, individual steps or subsets of steps may be displayed by controller 100 in response to a user's gesture or action. That is, the camera may capture images of the user performing the hand washing guide 550 . For each step, the controller 100 determines from the analysis of the captured image whether the user has completed the step. In response to detecting the completion of this step, the controller 100 and display advance to the next step.

The display of the hygiene mirror 101 can also prompt the user when to wash their hands. For example, if the user has flushed the toilet, if the user has been outside, or if a predetermined time has passed. The health mirror 101 can also provide a timer or hand washing music to inform the user how long to wash hands. The hygiene mirror 101 may provide other reminders, such as providing informational instructions to clean the mirror or counter surface based on the amount of time since last cleaning or other intervals.

47 and 48 show examples in which data from multiple users and/or from multiple hygienic mirrors 101 is aggregated. Referring back to FIG. 1 , data may be collected at the hygienic mirror 101 and received at one of the other hygienic mirrors 101 or at a server connected to the network 22 . Summary analysis can be performed locally by the controller 100, or remotely by the server.

FIG. 47 shows an exemplary health status 900 display of the health mirror 101 . The health status 900 can be displayed at a specific time or at all times, either for a single health mirror 101 or for all health mirrors in a home (family health status) or another organization such as a hotel, hospital, dormitory, office building or other (organizational health status) 101 display. Although other graphics may be used, health status 900 includes a graphical representation of each member of the family, along with indicators (eg, colors, shades, numbers) that reflect the user's health characteristics. For example, if a member of the family (or a resident of a dormitory, hotel, hospital, etc.) is detected by the health mirror 101 to have certain health characteristics, it will be displayed on the family health status 900 . In this example, the health characteristic is temperature, a high temperature above a threshold may be represented by a first index, and a temperature normal or below a threshold may be represented by a second index. Different thresholds may be used for different individuals or for different ages or genders. Other health characteristics can be applied to the family health status 900 . For larger institutions, the health status 900 can represent statistics such as the number of organization members with a high body temperature, the number of organization members diagnosed with a specific disease (eg, COVID-19).

FIG. 48 illustrates an exemplary geographic area status display 500 for the healthcare mirror 101 . The data of the geographic area status display 500 may represent the health status of various users within the geographic area. Different colors, patterns or shades may be used to reflect the various areas detected by the user's hygiene mirror 101 with different health conditions. Geographic area status shows 500 can reflect high fever in the area. A geographic area status display of 500 can reflect a specific disease, such as cancer. The controller 100 may analyze what the geographic area status display 500 may reflect to determine future trends in which health conditions may expand or shift. The controller 100 may time-stamp and store versions of the geographic area status display 500 as it changes over time.

In response to the data of the geographic area status display 500, the controller 100 or server may generate an alert to one or more users, a warning to at least one other user, a geographic analysis of the geographic area including the mirrored cabinet, or a Reports from persons providing health care.

FIG. 49 shows an exemplary memory aid display 910 of the healthcare mirror 101 . The health mirror 101 can execute memory point sequences for the user to help the user remember various aspects of the user's life. Memory point sequences can be performed for users suffering from memory loss or dementia. The memory point sequence may select one or more pictures from the user's personal picture database or other predetermined pictures accessed for the user to stimulate the user's memory.

These pictures can include the user's home, family, pets, spouse, parents, children. The memory aid display 910 may include a first memory point scene 911 and a second memory point scene 912 . In one example, the memory comparison of the first memory point scene 911 and the second memory point scene 912 may display users or family members of users at different ages or time periods. A user may remember older pictures, but not newer pictures, and the memory aid display 910 helps the user associate the present time (which may be unfamiliar) with a familiar time. Memory aid display 910 may include and display photos of the user from before (eg, from the previous day). The mnemonic display 910 may be presented at shorter (eg, 30 seconds or 1 minute) intervals at the beginning of the day or when a user is first detected in a given day.

The health mirror 101 may perform a memory diagnostic test and activate the memory aid display 910 in response to the memory diagnostic test. Memory diagnostic tests may include prompting the user to identify certain people or certain places. Pictures for memory diagnostic tests can be obtained from the user's personal picture database. In one example, the memory diagnostic test presents at least one picture from the user's personal picture database and at least one picture from a stock picture database. The user is prompted to select a familiar picture. If after one or more trials, the user cannot correctly identify a familiar picture, the health mirror 101 activates the memory aid display 910 to help improve the user's memory.

FIG. 50 shows a flow chart of displaying user instructions through the healthcare mirror 101 . The instructions may include information, images or other messages. Instructions may be provided in video by a display (eg, a video display). The actions of the flowchart may be performed by any combination of the controller 100, network devices or servers. One or more action portions may be performed by a device. Additional, different, fewer actions may be included.

In action S801, the controller 100 (eg, through the processor 300) receives data from one or more sensors 10 for tracking a user in the bathroom. In action S803, the controller 100 (eg, through the processor 300) analyzes data for tracking the user. In one example, the controller 100 determines whether the user is near the sink.

In one example, the controller 100 determines the user's health condition. In one example, the controller 100 determines or recognizes that the data used to track the user indicates the user's location, the user's gesture, the user's gait, or the user's facial expression. In one example, the controller 100 determines whether the user exhibits behavior indicative of the user's sensory response. In one example, the controller 100 may instruct the dispenser to emit a fragrance, while the instruction to the user prompts the user to identify the fragrance. In one example, the controller 100 determines whether the user exhibits behavior indicative of memory loss. In one example, the controller 100 determines whether the user exhibits behavior indicative of a fall or injury. In one example, the controller 100 analyzes sensor data to determine when and how long the user was asleep.

In act S805, the controller 100 (eg, via the processor 300) generates and/or provides instructions to the user. In one example, the instructions include one or more images, audio, or a timer for hand washing. In one example, the instructions include treatment for the medical condition, an instruction to contact a healthcare professional or facility for the medical condition, or one or more medical condition questions for the user. These issues can include mental health issues. In one example, the instructions include instructions to adjust the user's position, the user's posture, or the user's facial expression. In one example, the instructions include sensory diagnostic testing. In one example, the instructions include a memory diagnostic test. In one example, the instructions include the user's disease prevention habits. In one example, the instructions provide suggested sleep habits or tips.

In action S807, the controller 100 (eg, through the processor 300) displays instructions for the user or sends information to other devices. The controller 100 is configured to generate information for the external device in response to the analysis of the data used to track the user. The information may report the health status or other data determined in action S803 to the server.

Processor 300 may be a general-purpose or special-purpose processor, an application-specific integrated circuit (ASIC), one or more programmable logic controllers (PLCs), one or more field-programmable gate arrays (FPGAs), a set of processing components, or other Suitable handling components. Processor 300 is configured to execute computer code stored in memory 352 or received from other computer-readable media (e.g., embedded flash memory, local hard disk storage, local read-only memory (ROM), network storage, remote server, etc.) instruction. Processor 300 may be a single device or a combination of devices, such as a device associated with a network, distributed processing, or cloud computing.

Memory 352 may include one or more means (eg, memory units, memory devices, storage devices, etc.) for storing data and/or computer code to perform and/or facilitate the various processes described in this disclosure. Memory 352 may include random access memory (RAM), read only memory (ROM), hard drive memory, temporary memory, nonvolatile memory, flash memory, optical memory, or any other memory device for storing software objects and/or computer instructions. other suitable memory. Memory 352 may include database components, object code components, script components, or any other type of message structure for supporting the various activities and message structures described in this disclosure. Memory 352 may be communicatively coupled to processor 300 through processing circuitry, and may include computer code for performing (eg, by processor 300 ) one or more processes described herein. For example, memory 298 may include graphics, web pages, HTML files, XML files, script code, shower configuration files, or other resources for generating a graphical user interface for display and/or for interpreting user interface input to make commands, controls or communication decisions.

In addition to ingress and egress ports, communication interface 353 may include any operative connection. An operable connection may be one in which signals, physical communications, and/or logical communications may be sent and/or received. Operable connections may include physical interfaces, electrical interfaces, and/or data interfaces. The communication interface 353 can be connected to a network. The network may include a wired network (eg, Ethernet), a wireless network, or a combination thereof. The wireless network can be a cellular telephone network, an 802.11, 802.16, 802.20 or Worldwide Interoperability for Microwave Access (WiMax) network, a Bluetooth pairing of devices, or a Bluetooth mesh network. Furthermore, the network can be a public network, such as the Internet, a private network, such as an intranet, or a combination thereof, and can utilize various now available or later developed network protocols, including but not limited to TCP/IP over the Internet Protocol.

Although the computer-readable medium (e.g., memory 352) is shown as a single medium, the term "computer-readable medium" includes a single medium or multiple media, such as a centralized or distributed database, and/or storing one or more sets of The associated cache and server for the directive. The term "computer-readable medium" shall also include any medium capable of storing, encoding or carrying a set of instructions for execution by a processor, or causing a computer system to perform any one or more of the methods or operations disclosed herein.

In a specific non-limiting exemplary embodiment, a computer-readable medium may include solid-state memory, such as a memory card or other package containing one or more non-volatile read-only memories. Additionally, the computer readable medium may be random access memory or other volatile and rewritable memory. In addition, computer readable media may include magneto-optical or optical media, such as magnetic disks or tapes or other storage devices, to capture carrier signals, such as those communicated over transmission media. Digital file attachments to e-mail or other self-contained message archives or archives may be considered distribution media, which are tangible storage media. Accordingly, the present disclosure is considered to include any one or more of computer-readable media or distribution media and other equivalent and successor media, in which data or instructions may be stored. Computer readable media may be non-transitory, and this includes all tangible computer readable media.

In another embodiment, dedicated hardware implementations, such as application specific integrated circuits, programmable logic arrays, and other hardware devices, can be constructed to implement one or more of the methods described herein. Applications that may include the apparatus and systems of various embodiments may broadly include a variety of electronic and computer systems. One or more of the embodiments described herein may function using two or more specific interconnected hardware modules or devices with associated control and data signals that can be routed between and through the modules for communication, or as part of an ASIC. Thus, the present system covers the integration of software, firmware and hardware.

The following embodiments may be included individually or in any combination.

A mirrored cabinet comprising: a mirror frame configured to support a mirror substrate providing an image of one or more users in the vicinity of the mirrored cabinet; a sensor cavity coupled to the mirror frame, the sensor The cavity is configured to support a temperature sensor for detecting a temperature of one or more users near the mirrored cabinet; and a controller configured to analyze data received from the temperature sensor.

The mirrored cabinet can include a communication bus for transferring data between the controller and the computer network. The sensor cavity may be a housing inside the mirror frame, in which the temperature sensor is housed.

The mirrored cabinet may include a retractable cover configured to cover the aperture to selectively block the temperature sensor.

The mirrored cabinet may include a spring operable to open or close the retractable cover, and a piston operable to provide a path for the spring to open or close the retractable cover.

The mirrored cabinet may include a camming surface of the mirror frame to actuate the piston when the door of the mirrored cabinet is opened or closed.

The mirrored cabinet may include a pivotable support mounted on the door of the mirror frame, the pivotable support being coupled with the chassis of the sensor cavity. The sensor cavity may be a mount on the outside of the mirror frame. The mirrored cabinet may include a wireless communication module mounted to the sensor cavity for communicating with the temperature sensor.

The mirrored cabinet may include a sterilizer mounted to the sensor cavity for sterilizing the temperature sensor. The mirrored cabinet may include a detection sensor mounted to the sensor cavity, the detection sensor being configured to detect the presence of the temperature sensor in the external bracket.

The sensor cavity may be adjacent to the mirror substrate and a pad on the mirror substrate configured to contact one or more users of the mirrored cabinet. The sensor cavity includes magnets to hold and support the temperature sensor or retractable wires attached to the mirror.

A method of temperature tracking one or more individuals using at least one mirror may include determining a user identity of a user associated with the mirror, receiving temperature data collected at a temperature sensor of the mirror, analyzing the temperature data, and based on Analysis of the temperature data generates information. A temperature sensor associated with the mirror is housed within the sensor cavity, wherein the sensor cavity includes. (1) a chassis inside the mirror frame that supports the mirror; (2) a bracket outside the mirror frame; or (3) a magnet for holding and supporting the temperature sensor or a retractable wire secured to the temperature sensor.

A method of temperature tracking may include sending information to a central controller configured to compile data from multiple mirrors.

A method of temperature tracking may include receiving area data representative of a plurality of mirrors. A mirror may be associated with an entity or geographic area that includes multiple mirrors associated with different rooms.

A method of temperature tracking may include displaying information on a mirror.

A mirror control unit may include: a temperature sensor configured to detect a temperature of a user using the mirror; a controller configured to analyze data received from the temperature sensor; and a display integrated with the mirror, The display is configured to provide results of the analyzed data to a user of the mirror.

An apparatus for analyzing biological material through a mirrored cabinet may include: a mirror frame configured to support a mirror substrate that provides an image of one or more users in the vicinity of the mirrored cabinet; a biological material container configured to receive biological material collected from one or more users proximate to the mirrored cabinet; and a controller configured to analyze data related to the biological material.

When the mirrored cabinet is closed, the biological material container is outside the mirror frame and accessible to one or more users. When the mirrored cabinet is open, the biomaterial container is inside the mirror frame and accessible to one or more users.

The device may include a mask coupled to the biological material container by tubing. The apparatus may include a fluid analyzer coupled to the biological material container, the fluid analyzer configured to receive fluid as biological material. The device may include a cassette port coupled to the biological material container, the cassette port configured to receive a cassette comprising biological material.

The device may include a sample port inside the mirror frame coupled to the biological material container and configured to receive a strip or swab comprising biological material. The device may include a lancet configured to receive a finger of one or more users, the lancet being coupled to the biomaterial container.

The apparatus may include a personal grooming appliance associated with the biomaterial container, the personal groomer providing organic material to the biomaterial container. The device may include a sample chamber to receive biological material as a fluid from one or more users, the sample chamber being coupled to the biological material container. The device may include a milk extractor configured to pump breast milk from one or more users, the milk extractor coupled to the biomaterial container.

The controller can be configured to generate information in response to the analysis of the biological material. The information may be alert information. This information may be a report for a geographic area that includes multiple mirrors. This information may be a report sent to one or more of the user's healthcare contacts.

A method of analyzing a body reading through a mirror may include: determining a user identity of a user associated with a mirror, the mirror including a mirror substrate providing an image of the user; receiving, at a biological material container, biological material collected from the user proximate to the mirror ; and testing the biological material with an analyzer. The biological material may include saliva, blood, hair, skin, breast milk, urine, vaginal fluid, semen, or combinations thereof.

The method of analyzing a body reading through a mirror may further include receiving, at the controller, a wireless communication from the biological material container or analyzer. The method of analyzing body readings through a mirror may further include generating, at the controller, a report in response to the testing of the biological material.

A mirrored cabinet may include: a mirror frame; a biological material container coupled to the mirror frame, the biological material container configured to receive biological material collected from one or more users near the mirrored cabinet; and configured to is a controller that analyzes data related to the biological material.

An apparatus for a mirrored cabinet may include: a mirror frame configured to support a mirror substrate providing an image of one or more users in the vicinity of the mirrored cabinet; a camera configured to collecting images of one or more users in the vicinity of the mirrored cabinet; and a controller configured to collect images of the one or more users in time series and analyze the time series of images to obtain a or the health profile of multiple users.

The controller may be configured to identify a selected user of the one or more users from at least one of the time series of images, and access the profile according to the selected user. The profile may include the user's identity, the user's age, or the user's gender.

The controller may be configured to detect a position or orientation of one or more users from at least one of the time series of images, and generate alignment instructions based on the detected position or orientation. The alignment command includes a direction of movement towards the center position.

The controller may be configured to determine a first health characteristic from a first image in the time series of images, and determine a second health characteristic from a second image in the time series of images. The controller may be configured to perform a comparison between the first health characteristic and the second health characteristic. The controller may be configured to track the body shape and size of the one or more users based on a comparison between the first health characteristic and the second health characteristic. The controller may be configured to diagnose a health condition of the one or more users based on a comparison between the first health characteristic and the second health characteristic.

The controller may be configured to track the growth or height of the one or more users based on a comparison between the first health characteristic and the second health characteristic. The controller may be configured to determine a change in skin condition of the one or more users based on a comparison between the first health characteristic and the second health characteristic. The controller may be configured to diagnose vision of the one or more users based on a comparison between the first health characteristic and the second health characteristic.

The controller may be configured to determine hair growth for one or more users based on a comparison between the first health characteristic and the second health characteristic. The controller may be configured to diagnose a dental condition of the one or more users based on a comparison between the first health characteristic and the second health characteristic.

A method of operating a mirrored cabinet may include capturing at a camera a time series of images of one or more users near the mirrored cabinet to determine the user identity of the one or more users near the mirrored cabinet, and analyzing The time-series images of the one or more users to obtain the health characteristics of the one or more users.

A method of operating a mirrored cabinet may include detecting a position or orientation of one or more users from at least one of the time series of images, and generating alignment instructions based on the detected position or orientation.

A method of operating a cabinet with mirrors may include determining a first health characteristic from a first image in the time series of images, and determining a second health characteristic from a second image in the time series of images.

A method of operating a mirrored cabinet may include performing a comparison between a first health characteristic and a second health characteristic.

An apparatus that may include: memory configured to store a health profile for each of one or more users associated with a mirror; a camera configured to collect each time-series images of one or more users; and a controller configured to analyze the time-series images to obtain health characteristics of one or more users and store the health characteristics in one of the memory or in the health files of multiple users.

The controller may be configured to detect a position or orientation of one or more users from at least one of the time series of images, and generate alignment instructions based on the detected position or orientation.

A mirrored cabinet may include: a mirror frame configured to support a mirror substrate that provides an image of one or more users in the vicinity of the mirrored cabinet; and a sanitizing device coupled to the mirror frame, the sanitizer The device is configured to sterilize the space associated with the mirror frame.

The mirrored cabinet may include a sterilizer included in the sterilizer, the sterilizer configured to sterilize items placed within the sterilizer. The items inside the sanitizer could be toothbrushes, hairbrushes, phones, jewelry, watches or wearable monitors. The contents of the disinfection box can be face masks, face shields or gloves.

The mirrored cabinet may include a nebulizer included in the sanitizing device, the nebulizer being configured to generate a sanitizing mist. Disinfectant mist can be exhausted into the environment with mirrored cabinets. The sanitizing mist is expelled into the cavity inside the mirrored cabinet. The mirrored cabinet may include a controller configured to generate commands for the disinfection device. The mirrored cabinet may include a water heater included in the disinfection device, the water heater may be configured to heat water in response to commands from the disinfection device.

The controller may generate an alert message indicating operation of the water heater. The mirrored cabinet may include a display configured to provide information for operating the disinfection device. The sterilization device may include a storage chamber for collecting biological material or test strips. The mirrored cabinet may include user input to receive commands to activate the sanitizing device.

A method of sanitizing using a mirrored cabinet may include activating a sanitizing device associated with the mirrored cabinet and releasing a sanitizing agent from the sanitizing device. The method may include expelling a disinfectant mist from the mirrored cabinet. The method may include shining ultraviolet light from a mirrored cabinet.

A disinfection assembly for a mirrored cabinet may include: a disinfection device coupled to the mirrored cabinet, the disinfection device configured to disinfect a space associated with the mirrored cabinet; and a controller configured to generate commands for the disinfection device . The sterilizing assembly may include a sterilizing case included in the sterilizing device configured to sterilize items placed within the sterilizing case. The sanitizing assembly may include a nebulizer included in the sanitizing device configured to generate a sanitizing mist that is expelled into a cavity within the mirrored cabinet or into an environment of the mirrored cabinet. The sanitizing assembly may include a water heater included in the sanitizing device, the water heater being configured to heat water in response to commands from the sanitizing device.

A mirrored cabinet may include: a mirror frame configured to support a mirror substrate that provides an image of one or more users in the vicinity of the mirrored cabinet; a sensor cavity coupled to the mirror frame, the sensor The cavity is configured to support a temperature sensor for detecting a temperature of one or more users in the vicinity of the mirrored cabinet; and a controller configured to analyze data received from the sensor.

The sensor may be a urine sensor configured to detect pregnancy, ovulation, urinary tract infection, vitamin levels, nutrient levels, body deficiencies, hydration levels, or combinations thereof. The urine sensor can be configured to detect foreign objects in urine.

The sensor may be a blood analysis sensor. The blood analysis sensor is configured to detect cholesterol, blood alcohol level, blood sugar, iron, triglycerides or allergic antibodies.

The sensor may be a breast milk sensor. The breast milk sensor is configured to detect the caloric content of the breast milk, the nutritional content of the breast milk, and foreign objects in the breast milk. The sensor is configured to detect characteristics of vaginal fluid or semen. The sensor can be configured to detect the contents of saliva or mucus. The contents of saliva or mucus include viruses or bacteria.

The mirrored cabinet can include a communication bus to transfer data between the controller and the computer network. The sensor cavity may be a housing inside the mirror frame in which the sensor is housed. The sensor cavity can be a bracket on the outside of the mirror frame.

The mirrored cabinet may include a wireless communication module installed in the sensor cavity for communicating with the sensor. The controller can be configured to generate information including an alert to one or more users, a warning to at least one other user, a geographic analysis of a geographic area including the mirrored cabinet, or a report to personnel providing health care .

A method of tracking one or more individuals using at least one mirror, comprising determining a user identity of a user associated with the mirror, receiving sensor data collected at a sensor of the mirror, analyzing the sensor data, and Analyze generated information.

The method may include sending information to a central controller configured to compile data from the plurality of mirrors. The method may include receiving area data representative of the plurality of mirrors.

A mirror control unit comprising a sensor configured to detect a feature of a user of the mirror; a controller configured to analyze data received from the sensor; and a display integrated with the mirror configured to send of users provided the results of the analyzed data.

A mirror assembly for a video display comprising: a mirror frame configured to support a mirror substrate providing an image of one or more users near a mirrored cabinet; an interface configured to receive data for tracking the user in the bathroom; a controller configured to analyze the data for tracking the user and calculate instructions to the user; and a display coupled to the mirror frame, the display configured to provide instructions to the user. The data used to track the user indicated that the user was in the vicinity of the hand washing station. The instructions to the user may include one or more images of washing hands. Images of handwashing can include multiple stages of a handwashing sequence. Images of washing hands can include reminders to wash hands.

The data used to track the user indicates the user's health. The data used to track a user indicates the user's location, the user's gesture, or the user's facial expression. Instructions to the user may include diagnostic messages. The instructions to the user may include one or more health questions about the user. Instructions to the user include sensory diagnostic testing. Instructions to the user include a memory diagnostic test.

The controller may be further configured to access one or more images of the user to stimulate memory of the user. The controller may be configured to generate information to the external device in response to analysis of the data used to track the user. Data used to track a user may indicate that the user has fallen. The information for the external device may indicate the user's health condition. The information for the external device may indicate the user's disease prevention habits.

Controllers can be configured to generate logs for users. The log can include time the user came to or left the bathroom, sequence of user activity, user hand washing time, user shower time, hair washing frequency, hand washing frequency, body washing frequency, toilet usage time, toilet usage frequency, electricity usage time , time spent in front of or proximity to mirrors.

The mirror assembly may include a dispenser configured to emit an aroma, wherein the instruction to the user prompts the user to identify the aroma.

The method may include receiving data for tracking the user in the bathroom, analyzing the data for tracking the user, providing instructions to the user, and displaying the instructions to the user.

Claims (120)

1. A cabinet with a mirror, comprising: a mirror frame configured to support a mirror substrate that provides an image of one or more users in the vicinity of the mirrored cabinet; a sensor cavity coupled to the mirror frame, the sensor cavity configured to support a temperature sensor for detecting the temperature of the one or more users in the vicinity of the mirrored cabinet; and a controller configured to analyze data received from the temperature sensor. 2. The mirrored cabinet according to claim 1, further comprising: A communication bus for transferring data between the controller and a computer network. 3. The mirrored cabinet of claim 1, wherein the sensor cavity is a cabinet inside the mirror frame, the temperature sensor being disposed within the cabinet. 4. The mirrored cabinet of claim 3, further comprising: A retractable cover configured to cover the aperture to selectively block the temperature sensor. 5. The mirrored cabinet of claim 4, further comprising: a spring operable to open or close the retractable cover; and A piston operable to provide a path for the spring to open or close the retractable flap. 6. The mirrored cabinet according to claim 5, further comprising: A camming surface of the mirror frame to actuate the piston when the door of the mirrored cabinet is opened or closed. 7. The mirrored cabinet of claim 3, further comprising: A pivotable support mounted on the door of the mirror frame, the pivotable support coupled with the chassis of the sensor cavity. 8. The mirrored cabinet of claim 1, wherein the sensor cavity is a bracket external to the mirror frame. 9. The mirrored cabinet of claim 8, further comprising: A wireless communication module mounted to the sensor cavity for communicating with the temperature sensor. 10. The mirrored cabinet of claim 8, further comprising: A sterilizer mounted to the sensor cavity for sterilizing the temperature sensor. 11. The mirrored cabinet of claim 8, further comprising: A detection sensor mounted to the sensor cavity, the detection sensor configured to detect the presence of the temperature sensor in the outer bracket. 12. The mirrored cabinet of claim 1 , wherein the sensor cavity is adjacent to the mirror substrate and a pad on the mirror substrate configured to contact a member of the mirrored cabinet. or multiple users. 13. The mirrored cabinet of claim 1, wherein the sensor cavity includes a magnet for holding and supporting the temperature sensor, or a retractable wire secured to the mirror. 14. A method of temperature tracking one or more individuals using at least one mirror, the method comprising: determine the user identity of the user associated with the mirror; receiving temperature data collected at a temperature sensor of the mirror; analyzing the temperature data; and Information is generated based on the analysis of the temperature data. 15. The method of claim 14, wherein the temperature sensor associated with the mirror is housed in a sensor cavity, wherein the sensor cavity comprises: (1) a cabinet inside the mirror frame supporting said mirror; (2) brackets on the exterior of the mirror frame; or (3) A magnet for holding and supporting the temperature sensor or a stretchable wire fixed to the temperature sensor. 16. The method of claim 14, further comprising: The information is sent to a central controller configured to compile data from the plurality of mirrors. 17. The method of claim 16, further comprising: Region data representative of the plurality of mirrors is received. 18. The method of claim 14, wherein the mirrors are associated with an entity or geographic area, the entity or geographic area including a plurality of mirrors associated with different rooms. 19. The method of claim 14, further comprising: The information is displayed on the mirror. 20. A mirror control unit comprising: a temperature sensor configured to detect the temperature of a user of the mirror; a controller configured to analyze data received from the temperature sensor; and a display integrated with the mirror, the display being configured to provide results of the analyzed data to the user of the mirror. 21. An apparatus for analyzing biological material through a mirrored cabinet, said apparatus comprising: a mirror frame configured to support a mirror substrate that provides an image of one or more users in the vicinity of the mirrored cabinet; a biological material container coupled to the mirror frame, the biological material container configured to receive the biological material collected from the one or more users in the vicinity of the mirrored cabinet; and a controller configured to analyze data related to the biological material. 22. The apparatus of claim 21, wherein the biological material container is external to the mirror frame, the biological material container being accessible to the one or more users when the mirrored cabinet is closed. 23. The apparatus of claim 21, wherein said biological material container is inside said mirror frame, said one or more users being able to access said biological material container when said mirrored cabinet is open. 24. The apparatus of claim 21, further comprising: A mask coupled to the biomaterial container by tubing. 25. The apparatus of claim 21, further comprising: A fluid analyzer coupled to the biological material container, the fluid analyzer configured to receive fluid as the biological material. 26. The apparatus of claim 21, further comprising: A cassette port coupled to the biological material container, the cassette port configured to receive a cassette including the biological material. 27. The apparatus of claim 21, further comprising: A sample port inside the mirror frame, the sample port coupled to the biological material container, the sample port configured to receive a strip or swab comprising the biological material. 28. The apparatus of claim 21, further comprising: A lancet configured to receive a finger of the one or more users, the lancet coupled with the biomaterial container. 29. The apparatus of claim 21, further comprising: A personal grooming appliance associated with the biomaterial container that provides organic material to the biomaterial container. 30. The apparatus of claim 21, further comprising: A sample chamber for receiving said biological material as a fluid from said one or more users, said sample chamber being coupled to said biological material container. 31. The apparatus of claim 21, further comprising: A milk extractor configured to pump breast milk from the one or more users, the milk extractor coupled to the biological material container. 32. The apparatus of claim 21, wherein the controller is configured to generate information in response to the analysis of the biological material. 33. The apparatus of claim 32, wherein the information is alert information. 34. The apparatus of claim 32, wherein the information is a report of a geographic area comprising a plurality of mirrors. 35. The apparatus of claim 32, wherein the information is a report sent to a healthcare contact of the one or more users. 36. A method of analyzing a body reading through a mirror, the method comprising: determining a user identity of a user associated with the mirror, the mirror including a mirror substrate providing an image of the user; receiving biological material collected from the user proximate to the mirror at a biological material container; and The biomaterial is tested with an analyzer. 37. The method of claim 36, wherein the biological material comprises saliva, blood, hair, skin, breast milk, urine, vaginal fluid, semen, or combinations thereof. 38. The method of claim 36, further comprising: Wireless communications from the biological material container or the analyzer are received at a controller. 39. The method of claim 36, further comprising: A report is generated at the controller in response to the testing of the biological material. 40. A cabinet with a mirror, comprising: mirror frame; a biological material container coupled to the mirror frame, the biological material container configured to receive the biological material collected from one or more users in the vicinity of the mirrored cabinet; and a controller configured to analyze data related to the biological material. 41. An apparatus for use in a cabinet with a mirror, comprising: a mirror frame configured to support a mirror substrate that provides an image of one or more users in the vicinity of the mirrored cabinet; a camera configured to collect images of the one or more users in the vicinity of the mirrored cabinet; and A controller configured to collect time-series images of the one or more users and analyze the time-series images to obtain health characteristics of the one or more users. 42. The apparatus of claim 41 , wherein the controller is configured to identify a selected user of the one or more users from at least one of the time-series images, and to Define user access to files. 43. The device of claim 42, wherein the profile includes an identity of the user, an age of the user, or a gender of the user. 44. The apparatus of claim 41 , wherein the controller is configured to detect the position or orientation of the one or more users from at least one of the time-series images, and to Alignment instructions are generated for said position or said orientation. 45. The apparatus of claim 44, wherein the alignment instruction includes a direction of movement toward a central position. 46. The apparatus of claim 41 , wherein the controller is configured to determine a first health characteristic from a first image in the time series of images, and determine a second health characteristic from a second image in the time series of images. 2. Health characteristics. 47. The apparatus of claim 46, wherein the controller is configured to perform a comparison between the first health signature and the second health signature. 48. The apparatus of claim 47, wherein the controller is configured to track the health of the one or more users based on the comparison between the first health characteristic and the second health characteristic. Body shape and size. 49. The apparatus of claim 47, wherein the controller is configured to diagnose the one or more users based on the comparison between the first health characteristic and the second health characteristic. Health status. 50. The apparatus of claim 47, wherein the controller is configured to track the health of the one or more users based on the comparison between the first health characteristic and the second health characteristic. growth or height. 51. The apparatus of claim 47, wherein the controller is configured to determine a health status of the one or more users based on the comparison between the first health characteristic and the second health characteristic. Changes in skin condition. 52. The apparatus of claim 47, wherein the controller is configured to diagnose the one or more users based on the comparison between the first health characteristic and the second health characteristic vision. 53. The apparatus of claim 47, wherein the controller is configured to determine a health status of the one or more users based on the comparison between the first health characteristic and the second health characteristic. hair growth. 54. The apparatus of claim 47, wherein the controller is configured to diagnose the one or more users based on the comparison between the first health characteristic and the second health characteristic. dental condition. 55. A method of operating a mirrored cabinet comprising: capturing at the camera a time series of images of one or more users in the vicinity of said mirrored cabinet; determining the user identity of the one or more users in the vicinity of the mirrored cabinet; and The time-series images of the one or more users are analyzed to obtain health characteristics of the one or more users. 56. The method of claim 55, further comprising: Detecting the position or orientation of the one or more users from at least one of the time series images, and generating an alignment instruction based on the detected position or orientation. 57. The method of claim 55, further comprising: determining a first health characteristic from a first image in the time series of images; and A second health characteristic is determined from a second image in the time series of images. 58. The method of claim 57, further comprising: A comparison is made between the first health characteristic and the second health characteristic. 59. A device comprising: a memory configured to store a health profile for each of the one or more users associated with the mirror; a camera configured to collect time-series images of the one or more users associated with the mirror; and a controller configured to analyze the time-series images to obtain health characteristics of the one or more users and store the health characteristics in memory for the one or more users in the said health record. 60. The apparatus of claim 59, wherein the controller is configured to detect the position or orientation of the one or more users from at least one of the time-sequenced images, and based on the detected The position or orientation generates alignment instructions. 61. A cabinet with a mirror, comprising: a mirror frame configured to support a mirror substrate that provides an image of one or more users in the vicinity of the mirrored cabinet; and A sanitizing device coupled to the mirror frame, the sanitizing device configured to sanitize a space associated with the mirror frame. 62. The mirrored cabinet of claim 61, further comprising: Included in the sterilization apparatus is a sterilization case configured to sterilize items placed within the sterilization case. 63. The mirrored cabinet of claim 62, wherein the item within the sanitizing bin is a toothbrush, a hairbrush, a phone, jewelry, a watch, or a wearable monitor. 64. The mirrored cabinet of claim 62, wherein said item within said sterilization case is a face mask, visor, or gloves. 65. The mirrored cabinet of claim 61 , a nebulizer included in the sanitizing device configured to generate a sanitizing mist. 66. The mirrored cabinet of claim 65, wherein the disinfecting mist is exhausted into the environment of the mirrored cabinet. 67. The mirrored cabinet of claim 65, wherein the disinfecting mist is discharged into a cavity inside the mirrored cabinet. 68. The mirrored cabinet of claim 67, further comprising: a controller configured to generate commands for the disinfection device. 69. The mirrored cabinet of claim 68, further comprising: A water heater included in the disinfection device configured to heat water in response to the command for the disinfection device. 70. The mirrored cabinet of claim 69, wherein the controller generates an alarm message indicative of operation of the water heater. 71. The mirrored cabinet of claim 61, further comprising: a display configured to provide information for operating the disinfection device. 72. The mirrored cabinet of claim 61, wherein the sterilization device includes a storage chamber for collecting biological material or test strips. 73. The mirrored cabinet of claim 61, further comprising: User input for receiving a command to activate said disinfection device. 74. A method of sanitizing using a mirrored cabinet, the method comprising activating a disinfection device associated with said mirrored cabinet; and Disinfectant is released from the disinfection device. 75. The method of claim 74, wherein releasing the disinfectant comprises: Disinfectant mist is expelled from the mirrored cabinet. 76. The method of claim 74, wherein releasing the disinfectant comprises Ultraviolet rays are irradiated from the mirrored cabinet. 77. A sanitizing assembly for a mirrored cabinet, said sanitizing assembly comprising: a disinfection device coupled to the mirrored cabinet, the disinfection device configured to disinfect a space associated with the mirrored cabinet; and a controller configured to generate commands for the disinfection device. 78. The sterilization assembly of claim 77, further comprising: Included in the sterilization apparatus is a sterilization case configured to sterilize items placed within the sterilization case. 79. The sterilization assembly of claim 77, further comprising: Included in the disinfection device is a nebulizer configured to generate a disinfecting mist that is expelled into a cavity within the mirrored cabinet or into an environment of the mirrored cabinet. 80. The sterilization assembly of claim 77, further comprising: A water heater included in the disinfection device configured to heat water in response to the command for the disinfection device. 81. A cabinet with a mirror, comprising: a mirror frame configured to support a mirror substrate that provides an image of one or more users in the vicinity of the mirrored cabinet; a sensor cavity coupled to the mirror frame, the sensor cavity configured to support a sensor for detecting the temperature of the one or more users in the vicinity of the mirrored cabinet; and a controller configured to analyze data received from the sensor. 82. The mirrored cabinet of claim 81, wherein the sensor is a urine sensor. 83. The mirrored cabinet of claim 82, wherein the urine sensor is configured to detect pregnancy, ovulation, urinary tract infection, vitamin levels, nutrient levels, body defects, hydration levels, or combinations thereof. 84. The mirrored cabinet of claim 82, wherein the urine sensor is configured to detect foreign objects in urine. 85. The mirrored cabinet of claim 81, wherein the sensor is a blood analysis sensor. 86. The mirrored cabinet of claim 85, wherein the blood analysis sensor is configured to detect cholesterol, blood alcohol level, blood sugar, iron, triglycerides, or allergic antibodies. 87. The mirrored cabinet of claim 81, wherein the sensor is a breast milk sensor. 88. The mirrored cabinet of claim 87, wherein the breast milk sensor is configured to detect caloric content of breast milk, nutritional content of breast milk, foreign matter in breast milk. 89. The mirrored cabinet of claim 81, wherein the sensor is configured to detect characteristics of vaginal discharge or semen. 90. The mirrored cabinet of claim 81, wherein the sensor is configured to detect the contents of saliva or mucus. 91. The mirrored cabinet of claim 90, wherein said contents of said saliva or said mucus comprise viruses or bacteria. 92. The mirrored cabinet of claim 81, further comprising: a communication bus for transferring data between the controller and a computer network. 93. The mirrored cabinet of claim 81, wherein said sensor cavity is a cabinet inside said mirror frame, said sensor being disposed in said cabinet. 94. The mirrored cabinet of claim 81, wherein the sensor cavity is a bracket on the outside of the mirror frame. 95. The mirrored cabinet of claim 81, further comprising: A wireless communication module mounted to the sensor cavity for communicating with the sensor. 96. The mirrored cabinet of claim 81 , wherein said controller is configured to generate information comprising an alert to said one or more users, a warning to at least one other user, a warning to Include geographic analysis of the geographic area in which the cabinet is described, or a report on those providing health care. 97. A method of tracking one or more individuals using at least one mirror, the method comprising: determine the user identity of the user associated with the mirror; receiving sensor data collected at a sensor of the mirror; analyzing said sensor data; and Information is generated based on the analysis of the sensor data. 98. The method of claim 97, further comprising: The information is sent to a central controller configured to compile data from the plurality of mirrors. 99. The method of claim 98, further comprising: Region data representative of the plurality of mirrors is received. 100. A mirror control unit comprising: a sensor configured to detect a characteristic of a user of the mirror; a controller configured to analyze data received from the sensor; and a display integrated with the mirror, the display configured to provide results of the analyzed data to the user of the mirror. 101. A mirror assembly for a video display, said mirror assembly comprising: a mirror frame configured to support a mirror substrate that provides an image of one or more users in the vicinity of the mirrored cabinet; an interface configured to receive data for tracking a user in the bathroom; a controller configured to analyze the data for tracking the user and calculate instructions to the user; and A display coupled to the mirror frame, the display configured to provide the user with the instructions. 102. The mirror assembly of claim 101, wherein the data used to track the user indicates that the user is in the vicinity of a hand washing station. 103. The mirror assembly of claim 102, wherein the instructions to the user include one or more images for washing hands. 104. The mirror assembly of claim 103, wherein the image for hand washing includes a plurality of stages of a hand washing sequence. 105. The mirror assembly of claim 103, wherein the image for washing hands includes a reminder to wash hands. 106. The mirror assembly of claim 101, wherein the data used to track the user is indicative of a health condition of the user. 107. The mirror assembly of claim 106, wherein the data used to track the user is indicative of the user's location, the user's gesture, or the user's facial expression. 108. The mirror assembly of claim 106, wherein the instructions to the user include diagnostic messages. 109. The mirror assembly of claim 106, wherein the instructions to the user include one or more health issues of the user. 110. The mirror assembly of claim 106, wherein the instructions to the user include a sensory diagnostic test. 111. The mirror assembly of claim 106, wherein the instructions to the user include a memory diagnostic test. 112. The mirror assembly of claim 111, wherein the controller is further configured to access one or more images of the user to stimulate memory of the user. 113. The mirror assembly of claim 101, wherein the controller is configured to generate information for an external device in response to the analysis of the data used to track the user. 114. The mirror assembly of claim 113, wherein the data used to track the user indicates that the user has fallen. 115. The mirror assembly of claim 113, wherein said information for said external device is indicative of a user's health condition. 116. The mirror assembly of claim 113, wherein said information for said external device is indicative of disease prevention habits of said user. 117. The mirror assembly of claim 101, wherein the controller is configured to generate a log for the user. 118. The mirror assembly of claim 117, wherein said log includes times when said user arrives or leaves said bathroom, sequence of activities of said user, time of said user washing hands, time of showering of said user, Frequency of hair washing, frequency of hand washing, frequency of body washing, time of toilet use, frequency of toilet use, time of electricity use, time spent in front of said mirror, or proximity to said mirror. 119. The mirror assembly of claim 101, further comprising: a dispenser configured to dispense an aroma, wherein the instruction to the user prompts the user to identify the aroma. 120. A method comprising: receive data used to track users in the bathroom; analyzing said data used to track said user; provide instructions to said user; and The instructions are displayed for the user.

Images
