Abstract

Embodiments of the present application provide a device control method and related devices, which relate to the field of devices. In the method, the computer device receives the operation message broadcast by the control device. The operation message includes an operation message header, a target physical address of the target computer device, and target verification information of the target computer device. When the operation message meets the preset conditions, the target physical address is the same as the local physical address of the computer device, and the target verification information is consistent with the local verification information of the computer device, the computer device executes the target operation, and after the target operation is completed, the computer device It is determined that the operation result of the operation message is the operation success. The computer device sends the operation result of the operation message to the control device. In this solution, the control device can remotely control the computer device to perform the target operation through the operation message, and the implementation cost is low.

Description

Equipment control method and related equipment

technical field

Embodiments of the present invention relate to the field of equipment, and in particular, to a method for controlling equipment and related equipment.

Background technique

In the prior art, the device is managed mainly through remote login to a basic control system (Basic Control System, BMC), so as to realize remote power-off of the device. Referring to FIG. 1 , the control terminal 101 can manage K servers (K is a positive integer), such as server 1, server 2, . . . , server K. Taking server 1 as an example, an additional set of basic control system is built on server 1, and the basic control system can be accessed through Internet Protocol (IP), so as to achieve the purpose of controlling server 1. Specifically, the user accesses the basic control system through a browser on the control terminal 101 . In this technical solution, the controlled device (such as the server 1) needs to be equipped with a basic control system, and the basic control system needs to be online at all times, so the implementation of the solution is complicated and costly.

Contents of the invention

The present application provides a device control method and related devices, which can remotely control computer devices to perform target operations, and the implementation cost is low.

In a first aspect, a device control method is provided, which is applied to a computer device.

The above-mentioned device control method includes the following steps:

The computer device receives the operation message broadcast by the control device. The operation message includes an operation message header, a target physical address of the target computer device, and target verification information of the target computer device. When the operation message meets the preset conditions, the target physical address is the same as the local physical address of the computer device, and the target verification information is consistent with the local verification information of the computer device, the computer device executes the target operation, and after the target operation is completed, The computer device determines that the operation result of the operation message is a successful operation. Wherein, the preset condition includes that the number of repetitions of the target physical address in the operation message is greater than or equal to the preset number, and/or, the length of the header of the operation message is greater than or equal to the preset length. The computer device sends the operation result of the operation message to the control device.

In this solution, the control device can remotely control the computer device to perform the target operation by broadcasting the operation message, and the implementation cost is low. Specifically, when the operation message satisfies the preset condition, the computer device can determine that the operation message is used to control the target computer device to perform the target operation. In addition, the target physical address is the same as the local physical address of the computer device, and the target verification information If it is consistent with the local verification information of the computer device, the computer device will execute the target operation, and after the target operation is executed, the computer device determines that the operation result of the operation message is the operation success. Finally, the computer device sends the operation result of the operation message to the control device.

With reference to the first aspect, in an implementation manner, the above operation message further includes operation instruction information, and the operation instruction information is used to instruct the target computer device to perform the target operation; at this time, the preset condition is that the operation message includes the operation instruction information.

In this solution, when the operation message includes the above operation instruction information, it can be determined that the operation message is used to control the target computer device to perform the target operation.

With reference to the first aspect, in one embodiment, the device control method further includes: when the target physical address in the operation message is different from the local physical address of the computer device, it can be determined that the operation message is not used to control the computer device , the computer device discards the operation packet.

With reference to the first aspect, in an implementation manner, the device control method further includes:

When the target physical address in the operation message is the same as the local physical address of the computer device, and the target verification information is inconsistent with the local verification information, the computer device sends a feedback message to the control device, and the feedback message is used to indicate the target verification information and the local verification information. The information is inconsistent, so that the control device knows that the target verification information is incorrect, and the control device can modify the target verification information and re-broadcast the operation message.

With reference to the first aspect, in an implementation manner, before the computer device receives the operation message broadcast by the control device, the device control method further includes:

The computer device receives the physical address request broadcast by the control device. The computer device sends the local physical address to the control device in response to the physical address request.

In this solution, before the control device remotely operates the computer device, it needs to obtain the local physical address of the computer device through a physical address request. When the computer device needs to be operated, the local physical address of the computer device is used as the target physical address.

With reference to the first aspect, in an implementation manner, the foregoing target operation includes powering off, restarting, or powering on after waiting for a first time after powering off.

In a second aspect, the present application also provides a device control method, which is applied to control devices.

The device control method includes the following steps:

The control device broadcasts an operation message. The operation message includes an operation message header, a target physical address of the target computer device, and target verification information of the target computer device. The control device receives the operation result of the operation message from the computer device, wherein the computer device meets the preset conditions in the operation message, the target physical address is the same as the local physical address of the computer device, and the target verification information is the same as the local verification information of the computer device When they are consistent, the target operation is executed, and after the target operation is executed, it is determined that the operation result of the operation message is the operation success. The preset condition includes that the number of repetitions of the target physical address in the operation message is greater than or equal to the preset number, and/or, the length of the header of the operation message is greater than or equal to the preset length.

In this solution, the control device can remotely control the computer device to perform the target operation through the control instruction, and the implementation cost is low.

With reference to the second aspect, in an implementation manner, the above-mentioned operation message further includes operation instruction information, and the operation instruction information is used to instruct the target computer device to perform the target operation; at this time, the preset condition is that the operation message includes the operation instruction information.

With reference to the second aspect, in an implementation manner, the device control method further includes:

The control device receives a feedback message sent by the computer device when it is determined that the target physical address is the same as the local physical address, and the target verification information is inconsistent with the local verification information, and the feedback message is used to indicate that the target verification information is inconsistent with the local verification information.

With reference to the second aspect, in an implementation manner, the device control method further includes:

The control device broadcasts a physical address request. The control device receives the local physical address sent by the computer device in response to the physical address request.

With reference to the second aspect, in an implementation manner, the foregoing target operation includes powering off, restarting, or powering on after waiting for a first time after powering off.

In a third aspect, the present application also provides a computer device, including a module for executing the method described in the first aspect.

In a fourth aspect, the present application further provides a control device, including a module for executing the method as described in the second aspect.

In a fifth aspect, the present application also provides an electronic device, including one or more processors; wherein, the one or more processors are configured to execute one or more computer programs stored in memories, so that the computer device realizes The method as described in the first aspect or the second aspect.

In a sixth aspect, the present application also provides a computer-readable storage medium, the computer-readable storage medium stores instructions, and when the instructions are executed by a processor, the method described in the first aspect or the second aspect is realized. method.

In a seventh aspect, the present application further provides a computer program product containing instructions, which, when the computer program product is run on a computer, cause the computer to execute the method described in the first aspect or the second aspect.

In the eighth aspect, the present application also provides a chip, the chip includes a processor and a data interface, and the processor reads the instructions stored in the memory through the data interface, and executes the instructions described in the first aspect or the second aspect. method.

Optionally, as an implementation manner, the chip may further include a memory, the memory stores instructions, the processor is configured to execute the instructions stored in the memory, and when the instructions are executed, the The processor is configured to execute the method described in the first aspect or the second aspect.

Description of drawings

The accompanying drawings used in the embodiments of the present application are introduced below.

Fig. 1 is the structural representation of a kind of BMC system management technology provided by the embodiment of the present application;

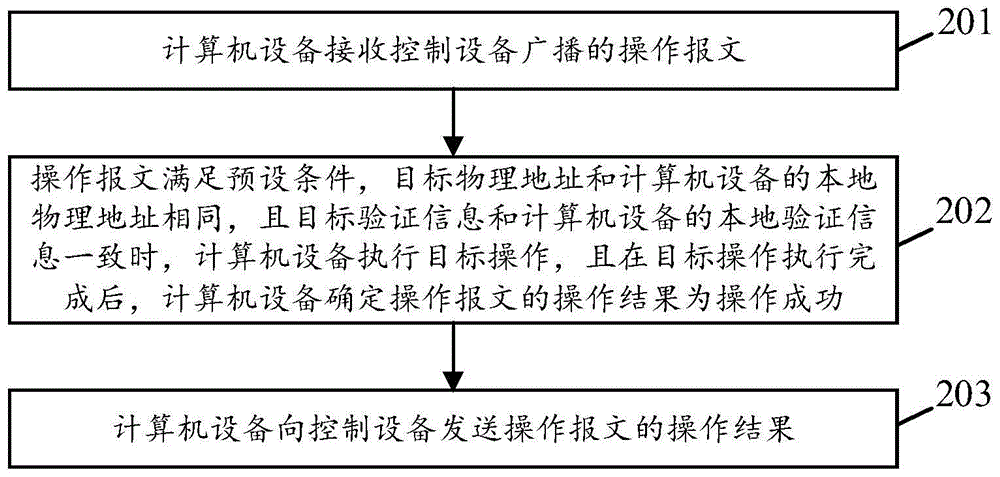

FIG. 2 is a schematic flowchart of a device control method provided in an embodiment of the present application;

FIG. 3 is a schematic structural diagram of an operation message provided by an embodiment of the present application;

FIG. 4 is a schematic structural diagram of a result message provided by an embodiment of the present application;

FIG. 5 is a schematic structural diagram of a computer device provided by an embodiment of the present application;

FIG. 6 is a schematic structural diagram of a control device provided by an embodiment of the present application;

FIG. 7 is a schematic structural diagram of a control system provided by an embodiment of the present application;

Fig. 8 is a schematic structural diagram of another control system provided by an embodiment of the present application;

FIG. 9 is a schematic structural diagram of an electronic device provided by an embodiment of the present application.

Detailed ways

The technical solution in this application will be described below with reference to the accompanying drawings.

Due to the applications involved in the embodiments of the present application, for ease of understanding, the following first introduces related terms and other related concepts involved in the embodiments of the present application.

In the embodiments of the present application, words such as "exemplary" or "for example" are used as examples, illustrations or descriptions. Any embodiment or design described herein as "exemplary" or "for example" is not to be construed as preferred or advantageous over other embodiments or designs. Rather, the use of words such as "exemplary" or "such as" is intended to present related concepts in a concrete manner.

The "at least one" mentioned in the embodiments of the present application refers to one or more, and the "multiple" refers to two or more. "At least one of the following" or similar expressions refer to any combination of these items, including any combination of single or plural items. For example, at least one item (piece) of a, b, or c may represent: a, b, c, (a and b), (a and c), (b and c), or (a and b and c), where a, b, c can be single or multiple. "And/or" describes the association relationship of associated objects, indicating that there may be three types of relationships, for example, A and/or B, which may indicate: A exists alone, A and B exist simultaneously, and B exists alone, among which A and B may be singular or plural. The character "/" generally indicates that the contextual objects are an "or" relationship. However, the sequence numbers of the steps in the embodiments of the present application (such as step S1, step S21, etc.) are only for distinguishing different steps, and do not limit the execution order of the steps.

And, unless otherwise stated, the embodiments of the present application use ordinal numerals such as "first" and "second" to distinguish multiple objects, and are not used to limit the order, timing, priority or importance of multiple objects degree. For example, the first device and the second device are only for the convenience of description, and do not represent the differences in the structure and importance of the first device and the second device. In some embodiments, the first device and the second device It can also be the same device.

As used in the above embodiments, depending on the context, the term "when" may be interpreted to mean "if..." or "after" or "in response to determining..." or "in response to detecting... ". The above are only optional embodiments of the application, and are not intended to limit the application. Any modifications, equivalent replacements, improvements, etc. made within the concept and principles of the application shall be included in the protection of the application. within range.

For ease of understanding, the following first introduces relevant terms and concepts involved in the embodiments of the present application.

(1), physical address

A Media Access Control (Media Access Control, MAC) address is an identifier for identifying a local area network (Local Area Network, LAN) node. MAC address is also known as physical address. For example, the size of the physical address is 48 bits, the first 24 bits are the serial number of the manufacturer, and the last 24 bits are the serial number of the network card.

(2), network card

A network card is a piece of computer hardware designed to allow a computer to communicate over a computer network. Because it has a MAC address, it belongs between the first and second layers of the Open System Interconnection Reference Model (English: Open System Interconnection Reference Model, abbreviated as OSI). It allows users to connect to each other via cable or wirelessly.

(3), main board

Motherboard, also known as Mainboard, System Board, or Motherboard, is one of the most basic and important components of a computer. The motherboard plays a pivotal role in the entire computer system. The quality of motherboard manufacturing determines the stability of the hardware system. The motherboard is the core of the computer hardware system, and it is also the largest printed circuit board in the main box. The main function of the motherboard is to transmit various electronic signals, and some chips are also responsible for preliminary processing of some peripheral data. All components in the host computer are connected through the motherboard, and the control of system memory, storage devices and other input/output (I/O) devices must be completed through the motherboard during normal operation of the computer. Whether the performance of the computer can be fully utilized, whether the hardware functions are sufficient, and how compatible the hardware is, all depend on the design of the motherboard.

(4), computer equipment

Computer equipment in this article refers to equipment including network cards and motherboards, such as servers, computers (desktop computers, notebook computers, etc.), single-chip microcomputers, and other equipment with network access. Wherein, the MAC address of the computer device is the MAC address of the network card.

The above description of technical terms can be applied in the following.

The embodiment of the present application provides a device control method, which can remotely control a computer device to execute a target operation, and the implementation cost is low.

The equipment control method provided by this application is described in detail below:

The device control method in the embodiment of the present application is applied to a control system. The above control system includes a control device and at least one computer device. Hereinafter, the device control method will be described in detail by taking one of the at least one computer device as an example.

Referring to FIG. 2 , FIG. 2 is a schematic flowchart of a device control method provided in an embodiment of the present application. The above-mentioned device control method includes the following steps:

201. The computer device receives the operation message broadcast by the control device. The operation message includes an operation message header, a target physical address of the target computer device, and target verification information of the target computer device.

For example, the control device is connected to multiple computer devices, and the control device broadcasts operation messages to the multiple computer devices.

Specifically, the operation message is a LAN message, that is, a Layer 2 network protocol message, and the length of the LAN message is not limited. Wherein, the target verification information is the use license authorization information of the target computer device, for example, the target verification information includes the target password.

202. When the operation message meets the preset conditions, the target physical address is the same as the local physical address of the computer device, and the target verification information is consistent with the local verification information of the computer device, the computer device executes the target operation, and the target operation is performed After completion, the computer device determines that the operation result of the operation message is a successful operation. Wherein, the preset condition includes that the number of repetitions of the target physical address in the operation message is greater than or equal to the preset number, and/or, the length of the header of the operation message is greater than or equal to the preset length.

Among them, whether the operation message satisfies the preset conditions, whether the target physical address is the same as the local physical address of the computer device, and whether the target verification information is consistent with the local verification information of the computer device, and there is no special limitation on the judgment order of the above three .

Specifically, by setting the number of repetitions of the target physical address and/or the length of the operation message header to distinguish it from other messages, when the computer device parses the number of repetitions of the physical address contained in the received operation message is greater than or equal to When the preset number of times and/or the length of the operation message header is greater than or equal to the preset length, it is confirmed that the operation message is a message for controlling the target computer device to perform the target operation.

Wherein, the specific value of the preset number of times can be set according to the actual situation, so that the operation message can be distinguished from other messages. For example, the preset times are 5, 10 or 16 and so on. As a further example, the number of repetitions of the target physical address in the operation message is smaller than the number of repetitions of the physical address in the service message.

Similarly, the specific value of the preset length can be set according to the actual situation, so that the operation message can be distinguished from other messages. For example, the preset length is 5 bytes, 6 bytes or 10 bytes, etc. In a further example, the length of the header of the operation message is smaller than the length of the header of the service message.

Exemplarily, the local verification information of the computer device includes a local password, and the local password may be a password set by the user of the computer device (when the password verification is passed, the user can use the computer device), or the local password is an omnipotent password, That is, the use password applicable to at least one computer device in the control system.

203. The computer device sends the operation result of the operation message to the control device.

Correspondingly, the control device receives the operation result of the operation message from the computer device.

Specifically, the manner in which the computer device sends the operation result of the operation message to the control device may be to send a result message to the control device, and the specific structure and message length of the result message are not particularly limited. Exemplarily, the information contained in the result message includes the operation result of the operation message, for example, "1" indicates that the operation is successful, and "0" indicates that the operation fails. Exemplarily, the information included in the result message further includes at least one of the following: local physical address information of the computer device, or result message indication information, and the like. For example, the indication information of the result message is "AAAA" of 2 bytes or "BBBBBBBB" of 4 bytes. Among them, A and B are hexadecimal numbers.

In the embodiment of the present application, the control device can remotely control the computer device to perform the target operation through the operation message (understood as a local area network data packet), and does not depend on whether the computer device is installed with a remote access control system (such as a BMC system), and the realization cost Low.

As a possible implementation manner, the above operation message further includes operation instruction information, and the operation instruction information is used to instruct the target computer device to perform the target operation; at this time, the preset condition is that the operation message includes the operation instruction information.

Exemplarily, when the target operation is a power-off operation, the operation indication information is "DDDD" of 2 bytes. In another example, when the target operation is a restart operation, the operation indication information is "CCCC" of 2 bytes. Among them, C and D are hexadecimal numbers.

In the embodiment of the present application, when the operation message includes the above operation indication information, it can be determined that the operation message is used to control the target computer device to perform the target operation. Of course, when the operation message includes the operation message header, target physical address, target verification information and operation instruction information, the preset condition can still be that the number of repetitions of the target physical address in the operation message is greater than or equal to the preset number of times, and/or Or, the length of the operation header is greater than or equal to the preset length.

As a possible implementation manner, the foregoing target operation includes powering off, restarting, or powering on after waiting for a first time after powering off.

Wherein, power off refers to safe power off, and safe power off can be understood as computer equipment controlling the internal parts of the equipment to stop working according to a certain power off order to realize shutdown, or computer equipment performs data synchronization before power off to avoid computer equipment failure. The system data is corrupted, resulting in a failure when the power is turned on again. The above-mentioned power-off sequence can be determined according to the actual situation of the computer equipment.

Reboot means power on immediately after power off. The target operation can also be to wait for a period of time after power off and then power on, such as waiting for the first time before powering on, the specific value of the first time can be set according to the actual situation.

As a possible implementation manner, the target verification information further includes at least one of the following: a target user name of the target computer device, and a physical address of the control device. Correspondingly, the local verification information further includes at least one of the following: a local user name of the computer device, and a physical address of the control device.

Specifically, verifying the user name can assist in verifying the authenticity of the controlling device. When the target user name is the same as the local user name of the computer device, it indicates that the control device broadcasting the operation message is a trusted device. Likewise, verifying the physical address of the control device can confirm whether the operation message is broadcast by the control device. The computer device can obtain the physical address of the control device in advance, for example, the control device broadcasts its physical address to the computer device in advance or the user deposits it in advance. When the computer device determines that the physical address of the control device carried in the operation message is consistent with the physical address of the control device stored locally, it may determine that the operation message is broadcast by the control device.

As a possible implementation manner, the above device control method further includes:

When the target physical address in the operation message is different from the local physical address of the computer device, it can be determined that the operation message is not used to control the computer device, and the computer device can discard the operation message and not process the message.

Exemplarily, in order to save the data processing capacity of the computer equipment, it may first determine whether the target physical address is the same as the local physical address, then determine whether the target verification information is the same as the local verification information, and finally, determine whether the operation message satisfies the preset condition . In this way, when the physical address of the target or the verification information of the target fails to pass the verification, the subsequent judgment process can be stopped, saving the amount of data processing.

As a possible implementation manner, the above device control method further includes:

When the target physical address in the operation message is the same as the local physical address of the computer device, and the target verification information is inconsistent with the local verification information, the computer device sends a feedback message to the control device, and the feedback message is used to indicate the target verification information and the local verification information. The information is inconsistent, so that the control device knows that the target verification information is incorrect, and the control device can modify the target verification information and re-broadcast the operation message.

The specific structure of the feedback message is not particularly limited, as long as the control device can know that the target verification information is incorrect. Exemplarily, the feedback message may be "EEEEEEEEEEEEEEEE" of 8 bytes.

As a possible implementation manner, before the computer device receives the operation message broadcast by the control device, the device control method further includes:

The computer device receives the physical address request broadcast by the control device.

Accordingly, the control device broadcasts a physical address request.

Specifically, the foregoing physical address request may be a request based on various network protocols, such as Address Resolution Protocol (Address Resolution Protocol, ARP), Simple Network Management Protocol (Simple Network Management Protocol, SNMP), and the like.

ARP is a transmission control protocol (Transmission Control Protocol/Internet Protocol, TCP/IP) that obtains a physical address based on an IP address. Wherein, when the host sends information, it broadcasts the ARP request containing the target IP address to all hosts on the local area network, and receives the return message, so as to determine the physical address corresponding to the target IP address.

SNMP is a set of network management protocols defined by the Internet Engineering Task Force (IETF). Using SNMP, a management workstation (ie, the control device in this embodiment of the application) can remotely manage all network devices that support this protocol (ie, the computer equipment in this embodiment of the application).

The computer device sends the local physical address to the control device in response to the physical address request.

Correspondingly, the control device receives the local physical address sent by the computer device in response to the physical address request.

In the embodiment of the present application, before the control device remotely operates the computer device, it needs to obtain the local physical address of the computer device through a physical address request. When the computer device needs to be operated, the local physical address of the computer device is used as the target physical address.

As a possible implementation, for local verification information (such as local password and local user name), it can be collected and entered into the control device in advance, so that the control device according to the collected local verification information and the local physical address of the computer device, The computer device can be remotely operated as required, specifically, when the computer device needs to be operated, the local verification information of the computer device is used as the target verification information.

As a possible implementation manner, refer to FIG. 3 , which is a schematic structural diagram of an operation message provided in an embodiment of the present application. In this embodiment, the length of the operation message is 108 bytes as an example, and the target operation is power-off operation, the target verification information is the password set by the user, the preset number of times is 16, and the preset length is 6 bytes. Specifically, the structure of the operation message starts with a 6-byte operation message header (such as FF FF FF FF FF FF FE), followed by the 48-bit (6-byte) MAC address of the target computer device repeated 16 times, The last is a 6-byte password, a total of 108 bytes.

As a possible implementation manner, refer to FIG. 4 , which is a schematic structural diagram of a result message provided in an embodiment of the present application. In this embodiment, the length of the result message is 108 bytes as an example, and the target operation is a power-off operation. The message structure starts with a 6-byte result message header (such as FF FF FF FF FF FF FD); followed by a 48-bit MAC address repeated 16 times; followed by a 1-byte operation result, for example, You can use 1 to indicate power-off success, and 0 to indicate power-off failure; the last 5 bytes are reserved bytes for subsequent use for other purposes. Among them, the structure of the result message is consistent with that of the operation message, which is for the convenience of software development and operation and maintenance. As a result, the MAC address in the message does not need to be repeated 16 times, and only one MAC address is used as the identification of the computer device.

The method embodiments of the embodiments of the present application are described above, and the apparatuses in the embodiments of the present application are described below.

An embodiment of the present application provides a computer device, and the computer device includes a module for executing the above device control method.

Referring to FIG. 5 , FIG. 5 is a schematic structural diagram of a computer device provided by an embodiment of the present application. The computer equipment includes a receiving module 501, a processing module 502 and a sending module 503, wherein:

The receiving module 501 is configured to receive an operation message broadcast by the control device. The operation message includes an operation message header, a target physical address of the target computer device, and target verification information of the target computer device.

The processing module 502 is configured to execute the target operation when the operation message meets the preset conditions, the target physical address is the same as the local physical address of the computer device, and the target verification information is consistent with the local verification information of the computer device, and the target After the operation is completed, it is determined that the operation result of the operation message is the operation success. Wherein, the preset condition includes that the number of repetitions of the target physical address in the operation message is a preset number of times, and/or, the length of the header of the operation message is a preset length.

The sending module 503 is configured to send the operation result of the operation message to the control device.

An embodiment of the present application further provides a control device, and the control device includes a module configured to execute the above-mentioned device control method.

Referring to FIG. 6 , FIG. 6 is a schematic structural diagram of a control device provided by an embodiment of the present application. The control device includes a broadcasting module 601 and a receiving module 602, wherein:

The broadcast module 601 is configured to broadcast an operation message. The operation message includes an operation message header, a target physical address of the target computer device, and target verification information of the target computer device.

The receiving module 602 is configured to receive an operation result of an operation message from a computer device, wherein the computer device satisfies a preset condition in the operation message, the target physical address is the same as the local physical address of the computer device, and the target verification information is the same as that of the computer device When the local verification information of the user is consistent, the target operation is executed, and after the execution of the target operation is completed, it is determined that the operation result of the operation message is the operation success. The preset condition includes that the number of repetitions of the target physical address in the operation message is a preset number of times, and/or, the length of the header of the operation message is a preset length.

Using the control device shown in Figure 6, remote operation of computer equipment can be realized at the hardware level, and batch management can be easily realized within the scope of the local area network.

In a possible embodiment, refer to FIG. 7 , which is a schematic structural diagram of a control system provided in an embodiment of the present application. Wherein, the computer equipment includes a network card 702 and a mainboard 703, and the network card 702 is connected to the mainboard 703.

The network card 702 is used to receive an operation message broadcast by the control device, the operation message includes an operation message header, a target physical address of the target computer device, and target verification information of the target computer device;

When the operation message satisfies the preset condition, the target physical address is the same as the local physical address of the computer device, and the target verification information is consistent with the local verification information of the computer device, the motherboard 703 is used to execute the target operation, and after the execution of the target operation is completed, determine that the operation result of the operation message is a successful operation; the preset condition includes the number of repetitions of the target physical address in the operation message is a preset number of times, and/or, the length of the operation header is a preset length;

The network card 702 is configured to send the operation result of the operation packet to the control device.

Further, the network card 702 includes a transceiver unit 704 and a first processing unit 705 , and the motherboard 703 includes a second processing unit 706 . The transceiver unit 704 is connected to the first processing unit 705 , and the first processing unit 705 is connected to the second processing unit 706 .

The transceiving unit 704 is configured to receive operation messages broadcast by the control device.

The first processing unit 705 is configured to send the operation message to the second processing unit 706 when it is confirmed that the operation message satisfies the preset condition, and the target verification information carried in the operation message is consistent with the local verification information. instruction information, where the instruction information is used to instruct the second processing unit to execute a target operation.

The second processing unit 706 is configured to execute the target operation, and after the target operation is executed, determine that the operation result of the operation message is that the operation is successful.

The transceiving unit 704 is configured to send the operation result of the operation message to the control device.

The transceiver unit 704 has the function of controlling the sending and receiving of network data packets, which is also the basic function of the network card. The control device 701 broadcasts the operation message, and the transceiver unit 704 of the computer device can receive the operation message. When it is recognized that the operation packet contains the MAC address of its own network card, the operation packet is handed over to the first processing unit 705 for processing.

The first processing unit 705 may process information carried in operation packets such as target MAC address and target verification information.

The second processing unit 706 and the network card 702 can communicate with each other, that is, when the first processing unit 705 confirms that the operation message satisfies the preset condition, and the target verification information carried in the operation message is consistent with the local verification information, it sends a message to the second processing unit 706. Send instruction information to instruct the second processing unit 706 to execute the target operation, the second processing unit 706 obtains the execution status of the target operation, and feeds back the execution status to the first processing unit 705 after the execution is completed, so that the first processing unit 705 passes The transceiver unit 704 sends the result message to the control device 701 .

However, when the transceiver unit 704 determines that the target MAC address in the operation packet is inconsistent with the local MAC address, the operation packet is discarded. When the first processing unit 705 determines that the target verification information carried in the operation message is inconsistent with the local verification information, it sends a feedback message to the control device 701 through the transceiver unit 704, so that the control device 701 knows that the target verification information in the operation message is inconsistent. correct.

In a possible embodiment, refer to FIG. 8 , which is a schematic structural diagram of another control system provided in an embodiment of the present application. In the server lab scenario, the control system includes control devices, switches, and servers, and the switch acts as a communication intermediary between control devices and servers. In this embodiment, the number of servers is 9 as an example. Taking the server 3 as an example, the server 3 includes a network card 801 .

Furthermore, the target operation takes the power-down operation as an example. First, the control device obtains the MAC addresses of all servers in the LAN by broadcasting ARP packets, and stores the passwords of each server in the control device in advance. Then, when it is necessary to remotely power off the server, the operation message is broadcast again, and the operation message carries the MAC address of the server that you want to control the power off. You can also broadcast the operation message multiple times to realize batch Power off all servers in the control lab.

Taking the power off of the control server 3 as an example, the control device assembles a message containing the MAC address and password information of the server 3 and sends it over the LAN. When the server 3 receives the operation packet containing the local MAC address, the operation packet satisfies the preset conditions, and the password verification passes, the power-off process is performed. The server 3 is waiting for the completion of the power-off process, and sends the power-off operation result including the local MAC address to the control device. The control device receives and records the result of the power-off operation, and the control process ends.

Referring to FIG. 9 , FIG. 9 is a schematic structural diagram of an electronic device provided by an embodiment of the present application.

The embodiment of the present application also provides an electronic device. The electronic device 900 shown in FIG. Wherein, the memory 905 , the processor 901 , the user interface 903 , and the network interface 904 realize communication connection with each other through the bus 902 .

In addition, the user interface 903 may include a display screen (Display) and a keyboard (Keyboard), and the optional user interface 903 may also include a standard wired interface and a wireless interface. Optionally, the network interface 904 may include a standard wired interface and a wireless interface (such as a WI-FI interface).

The memory 905 may be a read only memory (Read Only Memory, ROM), a static storage device, a dynamic storage device or a random access memory (Random Access Memory, RAM). The memory 905 may store a program. When the program stored in the memory 905 is executed by the processor 901, the processor 901 and the network interface 904 are used to execute each step of the device control method of the embodiment of the present application.

The processor 901 may be a general-purpose central processing unit (Central Processing Unit, CPU), a microprocessor, an application specific integrated circuit (Application Specific Integrated Circuit, ASIC), a graphics processing unit (graphics processing unit, GPU) or one or more The integrated circuit is used to execute related programs to realize the functions required by the units in the electronic device described in the above embodiments, or to execute the device control method described in the embodiments of the present application.

The processor 901 may also be an integrated circuit chip, which has a signal processing capability. During implementation, each step of the device control method in the embodiment of the present application may be completed by an integrated logic circuit of hardware in the processor 901 or instructions in the form of software. The above-mentioned processor 901 may also be a general-purpose processor, a digital signal processor (Digital Signal Processing, DSP), an application-specific integrated circuit (ASIC), a ready-made programmable gate array (Field Programmable Gate Array, FPGA) or other programmable logic devices, discrete Gate or transistor logic devices, discrete hardware components. Various methods, steps, and logic block diagrams disclosed in the embodiments of the present application may be implemented or executed. A general-purpose processor may be a microprocessor, or the processor may be any conventional processor, or the like. The steps of the device control method disclosed in the embodiments of the present application may be directly implemented by a hardware decoding processor, or implemented by a combination of hardware and software modules in the decoding processor. The software module can be located in a mature storage medium in the field such as random access memory, flash memory, read-only memory, programmable read-only memory or electrically erasable programmable memory, register. The storage medium is located in the memory 905, and the processor 901 reads the information in the memory 905, and combines its hardware to complete the functions required to be performed by the units included in the electronic device described in the above embodiments, or execute the device control in the method embodiment of the present application method.

The network interface 904 implements communication between the electronic device 900 and other devices or communication networks by using a transceiver device such as but not limited to a transceiver. For example, when the electronic device 900 is a control device, the physical address information of the computer device may be obtained through the network interface 904 .

Bus 902 may include pathways for transferring information between various components of electronic device 900 (eg, memory 905 , processor 901 , user interface 903 , network interface 904 ).

It should be noted that although the electronic device 900 shown in FIG. 9 only shows a memory, a processor, a user interface, and a communication interface, in the specific implementation process, those skilled in the art should understand that the electronic device 900 also includes other necessary devices. Meanwhile, according to specific requirements, those skilled in the art should understand that the electronic device 900 may also include hardware devices for implementing other additional functions. In addition, those skilled in the art should understand that the electronic device 900 may only include components necessary to implement the embodiment of the present application, and does not necessarily include all the components shown in FIG. 9 .

If the functions described above are realized in the form of software function units and sold or used as independent products, they can be stored in a computer-readable storage medium. Based on this understanding, the essence of the technical solution of the present application or the part that contributes to the prior art or the part of the technical solution can be embodied in the form of a computer program product, and the computer program product is stored in a storage medium. Several instructions are included to make a computer device (which may be a personal computer, a server, or a network device, etc.) execute all or part of the steps of the methods described in the various embodiments of the present application. The aforementioned storage medium includes: U disk, mobile hard disk, read-only memory (Read-Only Memory, ROM), random access memory (Random Access Memory, RAM), magnetic disk or optical disk and other various media that can store program codes. .

The embodiment of the present invention also provides a chip, the chip includes a processor and a data interface, and the processor reads instructions stored in the memory through the data interface, and executes the device control method described in the embodiment of the present application.

Optionally, as an implementation manner, the chip may further include a memory, the memory stores instructions, the processor is configured to execute the instructions stored in the memory, and when the instructions are executed, the The processor is configured to execute the device control method described in the embodiment of the present application.

Those skilled in the art can appreciate that the units and algorithm steps of the examples described in conjunction with the embodiments disclosed herein can be implemented by electronic hardware, or a combination of computer software and electronic hardware. Whether these functions are executed by hardware or software depends on the specific application and design constraints of the technical solution. Those skilled in the art may use different methods to implement the described functions for each specific application, but such implementation should not be regarded as exceeding the scope of the present application.

In the several embodiments provided in this application, it should be understood that the disclosed devices and methods may be implemented in other ways. For example, the device embodiments described above are only illustrative. For example, the division of units is only a logical function division. In actual implementation, there may be other division methods. For example, multiple units or components can be combined or integrated. to another system, or some features may be ignored, or not implemented. In another point, the mutual coupling or direct coupling or communication connection shown or discussed may be through some interfaces, and the indirect coupling or communication connection of devices or units may be in electrical, mechanical or other forms.

A unit described as a separate component may or may not be physically separated, and a component displayed as a unit may or may not be a physical unit, that is, it may be located in one place, or may be distributed to multiple network units. Part or all of the units can be selected according to actual needs to achieve the purpose of the solution of this embodiment.

In addition, each functional unit in each embodiment of the present patent application may be integrated into one processing unit, each unit may exist separately physically, or two or more units may be integrated into one unit.

The above is only a specific implementation of the application, but the scope of protection of the application is not limited thereto. Anyone familiar with the technical field can easily think of changes or substitutions within the technical scope disclosed in the application. Should be covered within the protection scope of this application. Therefore, the protection scope of the present application should be determined by the protection scope of the claims.

Claims (14)

1. An apparatus control method applied to a computer apparatus, the method comprising the steps of:

receiving an operation message broadcasted by a control device, wherein the operation message comprises an operation message header, a target physical address of a target computer device and target verification information of the target computer device;

executing target operation under the condition that the operation message meets a preset condition, the target physical address is the same as the local physical address of the computer equipment, and the target verification information is consistent with the local verification information of the computer equipment, and determining that the operation result of the operation message is successful after the target operation is executed; the preset condition comprises that the repetition times of the target physical address in the operation message are more than or equal to a preset time, and/or the length of the operation message header is more than or equal to a preset length;

and sending the operation result of the operation message to the control equipment.

2. The method according to claim 1, wherein the operation packet further includes operation indication information, and the operation indication information is used to instruct the target computer device to perform the target operation;

the preset condition is that the operation message comprises the operation indication information.

3. The method according to claim 1 or 2, characterized in that the method further comprises:

and when the target physical address is different from the local physical address, discarding the operation message.

4. The method of any of claims 1 to 3, further comprising:

and when the target physical address is the same as the local physical address and the target verification information is inconsistent with the local verification information, sending a feedback message to the control equipment, wherein the feedback message is used for indicating that the target verification information is inconsistent with the local verification information.

5. The method according to any one of claims 1 to 4, wherein before receiving the operation message broadcast by the control device, the method further comprises:

receiving a physical address request broadcast by the control equipment;

and responding to the physical address request, and sending the local physical address to the control equipment.

6. The method of any of claims 1 to 5, wherein the target operation comprises powering down, restarting, or waiting for a first time to power up after powering down.

7. An apparatus control method, applied to a control apparatus, comprising the steps of:

broadcasting an operation message, wherein the operation message comprises an operation message header, a target physical address of target computer equipment and target verification information of the target computer equipment, the repetition times of the target physical address in the operation message is greater than or equal to preset times, and/or the length of the operation message header is greater than or equal to preset length;

and receiving an operation result of the operation message from the computer equipment, wherein the operation result is used for indicating that the computer equipment successfully executes the target operation.

8. The method according to claim 7, wherein the operation packet further includes operation indication information, and the operation indication information is used to instruct the target computer device to perform the target operation;

the preset condition is that the operation message comprises the operation indication information.

9. The method according to claim 7 or 8, characterized in that the method further comprises:

and receiving a feedback message sent by the computer equipment when the target physical address is determined to be the same as the local physical address and the target verification information is inconsistent with the local verification information, wherein the feedback message is used for indicating that the target verification information is inconsistent with the local verification information.

10. The method according to any one of claims 7 to 9, further comprising:

broadcasting a physical address request;

and receiving the local physical address sent by the computer equipment in response to the physical address request.

11. The method of any of claims 7 to 10, wherein the target operation comprises powering down, restarting, or waiting for a first time to power up after powering down.

12. A computer device, comprising a network card and a motherboard, wherein the network card is connected with the motherboard, wherein,

the network card is used for receiving an operation message broadcasted by the control equipment, wherein the operation message comprises an operation message header, a target physical address of the target computer equipment and target verification information of the target computer equipment;

when the operation message meets a preset condition, the target physical address is the same as the local physical address of the computer equipment, and the target verification information is consistent with the local verification information of the computer equipment, the mainboard is used for executing target operation, and after the target operation is executed, the operation result of the operation message is determined to be successful; the preset condition comprises that the repetition times of the target physical address in the operation message are more than or equal to preset times, and/or the length of the operation message header is more than or equal to preset length;

the network card is used for sending the operation result of the operation message to the control equipment.

13. The computer device of claim 12, wherein the network card comprises a transceiver unit and a first processing unit, wherein the motherboard comprises a second processing unit, wherein the transceiver unit is connected to the first processing unit, wherein the first processing unit is connected to the second processing unit,

the receiving and sending unit is used for receiving an operation message broadcasted by the control equipment;

the first processing unit is configured to send indication information to the second processing unit when it is determined that the operation packet satisfies a preset condition and target verification information carried in the operation packet is consistent with the local verification information, where the indication information is used to indicate the second processing unit to execute a target operation;

the second processing unit is used for executing the target operation, and after the target operation is executed, determining that the operation result of the operation message is successful;

the receiving and sending unit is used for sending the operation result of the operation message to the control equipment.

14. A control device comprising means for performing the method of any one of claims 7 to 11.

Images
