Abstract

The invention provides a knitting method, which is applied to a double-needle bed machine to weave knitted fabrics. The knitting method includes a configuration step and a knitting step. The step of configuring the first ground comb unit, the first jacquard unit, the second jacquard unit, the second ground comb unit and at least one third ground comb unit from the front needle bed to the rear needle bed of the double needle bed machine It is configured on a double needle bed machine. The knitting step includes knitting the first jacquard unit between the front needle bed and the rear needle bed, connecting the first jacquard unit to the surface layer, and knitting the second jacquard unit between the front needle bed and the rear needle bed braiding, and attaching a second jacquard unit to at least one of the top layer and the bottom layer. In this way, the diversity of the internal structure and appearance of the braided fabric is improved.

Description

Weaving method and braided fabric

technical field

The invention provides a knitting method and a knitting fabric, especially a knitting method and knitting fabric with two needle bed machines and two jacquard units.

Background technique

The knitting process is becoming more and more mature, especially the knitting technology related to the double needle bed has been diversified. At the same time, relevant industry players have also begun to develop the knitting technology of double-needle beds and double jacquard, and have developed related machines for double-needle beds and double jacquard. However, how to highlight the advantages of the woven product and solve the structural defects of the woven product through the weaving method has become the goal of the related industry.

Contents of the invention

An object of the present invention is to pass through the first ground comb unit, the first jacquard unit, the second jacquard unit, the second ground comb unit and at least one third ground comb unit from the front needle bed to the rear of the double needle bed machine The needle beds are sequentially arranged on the double needle bed machine to enhance the diversity of the internal structure and appearance of the knitted fabric.

One embodiment of the present invention provides a knitting method, which is applied to a double-needle bed machine for knitting knitted fabrics. The knitting method includes a configuration step and a knitting step. The step of configuring the first ground comb unit, the first jacquard unit, the second jacquard unit, the second ground comb unit and at least one third ground comb unit from the front needle bed to the rear needle bed of the double needle bed machine It is configured on a double needle bed machine. The knitting step includes knitting the first ground comb unit on the front needle bed to weave the surface layer of the knitted fabric, knitting at least one third ground comb unit on the rear needle bed to knit the bottom layer of the knitted fabric, and knitting the first ground comb unit on the rear needle bed. A jacquard unit knits between the front needle bed and the rear needle bed, connects the first jacquard unit to the surface layer, knits the second jacquard unit between the front needle bed and the rear needle bed, and connects the second jacquard unit The two jacquard units are connected to at least one of the surface layer and the bottom layer, and the second ground comb unit is used for knitting between the front needle bed and the rear needle bed, and the second ground comb unit is connected to the surface layer and the bottom layer.

According to the knitting method of the aforementioned embodiment, the number of at least one third ground comb unit may be two, and the numbers of the lapped yarns of the lapped yarns of the two third ground comb units are different.

According to the knitting method of the aforementioned embodiment, wherein in the knitting step, the inclination angle between the first jacquard unit and the front sinker of the front needle bed may be between 0 degrees and 70 degrees, and the second jacquard unit and the front sinker The inclination angle can be between 75 degrees and 90 degrees.

According to the weaving method of the aforementioned embodiment, wherein in the weaving step, the distance between the second jacquard unit and the second ground comb unit can be between 3mm and 5mm, and the distance between the second ground comb unit and at least one third ground comb unit The pitch can be between 3mm and 5mm.

According to the knitting method of the aforementioned embodiment, in the knitting step, the first jacquard unit can be used to knit open loops and not knit closed loops.

According to the weaving method of the aforementioned embodiment, wherein in the weaving step, when the second jacquard unit is connected to the surface layer, the first jacquard unit and the second jacquard unit can be used to weave a jacquard layer, and the jacquard layer includes Herringbone pattern on the top layer.

According to the knitting method of the aforementioned embodiment, wherein in the knitting step, the second jacquard unit can also be used to weave the loops woven by the second jacquard unit into the loops woven by the first ground comb unit and the first jacquard unit. The loops woven by the unit are covered, and another part of the loops woven by the second jacquard unit is exposed on the surface layer.

According to the weaving method of the aforementioned embodiment, in the weaving step, the first ground comb unit, the first jacquard unit and the second jacquard unit can be used to weave into a braided chain structure.

According to the knitting method of the aforementioned embodiment, in the knitting step, the second jacquard unit can also be used to knit loops on the front needle bed and knit into a V-point pattern exposed on the surface layer.

According to the weaving method of the aforementioned embodiment, wherein in the weaving step, when the second jacquard unit connects the surface layer and the bottom layer, the first ground comb unit, the first jacquard unit, the second jacquard unit and at least one third ground comb unit Comb units can be used to weave into mid-layer structures.

According to the knitting method of the aforementioned embodiment, the yarns of the first jacquard unit have a first color, the yarns of the second jacquard unit have a second color, and the first color and the second color can be different colors.

According to the weaving method of the aforementioned embodiment, wherein the material of the yarn of the first ground comb unit, the material of the yarn of the first Jacquard unit, the material of the yarn of the second Jacquard unit, the yarn of the second ground comb unit At least one of the material and the yarn material of at least one third ground comb unit is polyester, nylon, cationic yarn, spandex, thermoplastic polyester, thermoplastic polyurethane, doubling yarn, core-spun yarn, covered yarn or functional yarn Wire.

Another embodiment of the present invention provides a braided fabric made by the knitting method of the above embodiment, comprising a surface layer, a bottom layer, a jacquard layer and an inner layer. The surface layer is woven by the first ground comb unit. The bottom layer is woven by at least one third ground comb unit. The jacquard layer is woven by the first jacquard unit and the second jacquard unit, and the jacquard layer is connected with the surface layer. The inner layer is woven by the second ground comb unit, and the inner layer is connected with the surface layer and the bottom layer.

Description of drawings

In order to make the above and other objects, features, advantages and embodiments of the present invention more comprehensible, the accompanying drawings are described as follows:

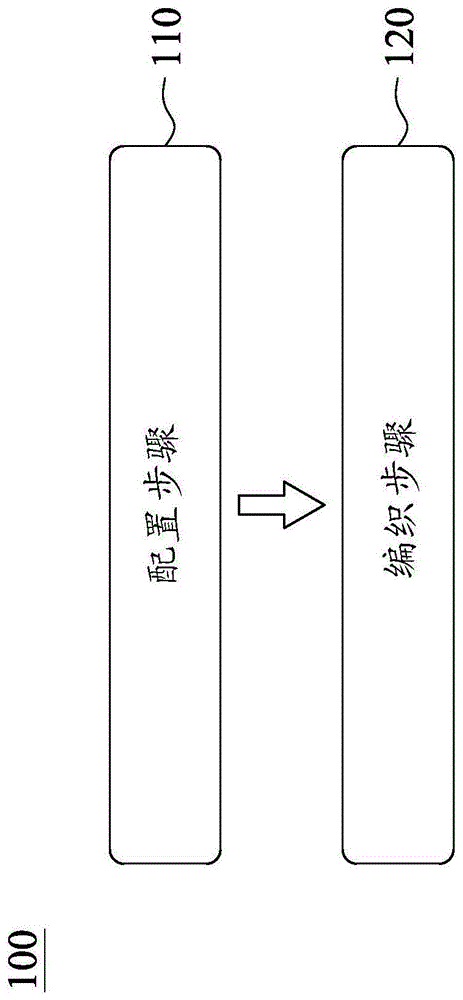

FIG. 1 shows a schematic flow diagram of a weaving method in an example of an embodiment of the present invention;

Fig. 2 depicts the bar structure configuration diagram according to the weaving method of Fig. 1 embodiment;

FIG. 3A shows a schematic cross-sectional view of a braided fabric according to an example of another embodiment of the present invention;

FIG. 3B shows a partial schematic view of the front needle bed surface of the knitted fabric according to the embodiment of FIG. 3A;

FIG. 4 shows another partial schematic view of the front needle bed surface of the knitted fabric according to the embodiment of FIG. 3A;

FIG. 5 shows a schematic diagram of a herringbone pattern according to the middle structure of FIG. 4;

FIG. 6 shows a partial schematic view of the rear needle bed surface of the knitted fabric according to the embodiment of FIG. 3A;

FIG. 7 shows another part of the rear needle bed surface of the knitted fabric according to the embodiment of FIG. 3A;

Fig. 8 shows a schematic diagram of the lapping structure of the first ground comb unit in the braided fabric according to the embodiment of Fig. 3A;

9A and FIG. 9B are respectively schematic diagrams of laying yarns of the first jacquard unit corresponding to different offset signals in the braided fabric according to the embodiment of FIG. 3A;

Fig. 10A, Fig. 10B, Fig. 10C, Fig. 10D, Fig. 10E and Fig. 10F are respectively schematic diagrams showing the lapping structure of the second jacquard unit corresponding to different offset signals in the braided fabric according to the embodiment of Fig. 3A;

Fig. 11 shows a schematic diagram of the lapping structure of the second ground comb unit in the braided fabric according to the embodiment of Fig. 3A;

Fig. 12 shows a schematic diagram of the lapping structure of the third ground comb unit in the braided fabric according to the embodiment of Fig. 3A; and

Fig. 13 is a schematic diagram of another third ground comb unit's laying structure in the braided fabric according to the embodiment of Fig. 3A.

detailed description

Several embodiments of the present invention will be described below with reference to the accompanying drawings. For the sake of clarity, many practical details are included in the following narrative. It should be understood, however, that these practical details should not be used to limit the invention. That is, in some embodiments of the present invention, these practical details are unnecessary. In addition, for the sake of simplifying the drawings, some existing conventional structures and elements will be shown in a simple and schematic way in the drawings; and repeated elements may be denoted by the same numbers.

FIG. 1 shows a schematic flow chart of a weaving method 100 according to an example of an embodiment of the present invention. FIG. 2 shows a diagram of a bar organization configuration according to the weaving method 100 of the example of FIG. 1 . FIG. 3A shows another implementation of the present invention. A schematic cross-sectional view of a braided fabric 300 according to an embodiment of the method, wherein FIG. 3A is only used to facilitate understanding of the braided fabric 300 , and for the detailed structure and organization of the braided fabric 300 , please refer to the relevant content of the present invention. Please refer to FIG. 1 , FIG. 2 and FIG. 3A , and use a knitted fabric 300 of an example of another embodiment of the present invention to assist in explaining a knitting method 100 of an example of an embodiment of the present invention. The knitting method 100 is applied to double needles The bed machine is woven into a knitted fabric 300 , and the weaving method 100 includes a configuration step 110 and a weaving step 120 . In configuration step 110, the first ground comb unit 210, the first Jacquard unit 220, the second Jacquard unit 230, the second ground comb unit 240, and at least one third ground comb unit (that is, the third ground comb unit 250,260) At least one) from the front needle bed 201 to the rear needle bed 202 of the double needle bed machine are sequentially arranged on the double needle bed machine. In this embodiment, the first jacquard unit 220 includes first sub-jacquard units 221 , 222 , and the second jacquard unit 230 includes second sub-jacquard units 231 , 232 . Furthermore, when describing the first Jacquard unit 220, it refers to each of the first sub-Jacquard units 221, 222, and when describing the yarn 223 of the first sub-Jacquard unit 221 of the first Jacquard unit 220, also Refers to the yarn 224 of the first sub-jacquard unit 222 . When describing the second Jacquard unit 230, it refers to each of the second sub-Jacquard units 231, 232, and when describing the yarn 233 of the second sub-Jacquard unit 231 of the second Jacquard unit 230, it also refers to the second The yarn 234 of the sub-jacquard unit 232.

3B shows a partial schematic diagram of the front needle bed surface 301 of the knitted fabric 300 according to the embodiment of FIG. 4 shows a schematic diagram of the herringbone pattern 333 of the middle layer structure 370e according to FIG. 4, FIG. 6 shows a partial schematic diagram of the rear needle bed surface 302 of the knitted fabric 300 according to the embodiment of FIG. 3A, and FIG. 7 shows the knitting according to the embodiment of FIG. 3A Another schematic diagram of another part of the rear needle bed surface 302 of the object 300, wherein FIG. 3B, FIG. 4, FIG. 6 and FIG. 1 to 7, the knitting step 120 includes knitting the first ground comb unit 210 on the front needle bed 201 to knit the surface layer 310 of the knitted fabric 300, and at least one of the third ground comb units 250, 260 The latter knits on the rear needle bed 202 to knit the bottom layer 350 of the knitted fabric 300, knits the first jacquard unit 220 between the front needle bed 201 and the rear needle bed 202, and connects the first jacquard unit 220 surface layer 310, knitting the second jacquard unit 230 between the front needle bed 201 and the rear needle bed 202, and connecting the second jacquard unit 230 to at least one of the surface layer 310 and the bottom layer 350, and the second jacquard unit 230 The ground comb unit 240 knits between the front needle bed 201 and the rear needle bed 202 , and connects the second ground comb unit 240 to the surface layer 310 and the bottom layer 350 .

Thereby, the double jacquard braid of the prior art has no intermediate monofilament spacers as a support, and a hollow layer will be formed in the middle. When cutting, the place where there is no jacquard link on the cloth surface will be divided into two layers. The braided fabric 300 made by the braiding method 100 can effectively avoid the problem with the second ground comb unit 240 as the middle monofilament spacer, and can overcome the braided fabric 300 from the source and further make products of complex shapes or structures (such as shoes products) will encounter the problems of dimensional deviation and increasing the difficulty of the process. Furthermore, the knitted fabric 300 according to the present invention not only improves its internal structure, but also develops a double jacquard warp-knitted mesh with a different style in appearance, which not only meets the product requirements of complex shapes or structures, but also conforms to market trends. Further continue to expand the advantages of warp knitted mesh. In addition, unlike the knitting method of the prior art, the first jacquard unit 220 of the knitting method 100 according to the present invention is located at the position of the second bar, so that the first jacquard unit 220 makes a web on the front needle bed 201 Holes and thick plain cloth allow the front needle bed surface 301 of the braided fabric 300 to be a little looser than the cloth surface of the prior art. Furthermore, just adjusting the amount of yarn feeding is not enough to improve the internal structure and appearance of the braided fabric in the prior art, for example, the herringbone pattern 333 structure cannot be essentially realized on the appearance.

In detail, please refer to FIG. 2, in the knitting step 120, the inclination angle a2 between the first jacquard unit 220 and the front sinker 205 of the front needle bed 201 can be between 0 degrees and 70 degrees (including 0 degrees and 70 degrees), the inclination angle a3 between the second jacquard unit 230 and the front sinker 205 can be between 75 degrees and 90 degrees (including 75 degrees and 90 degrees). Thereby, the first jacquard unit 220 is at the position of the second bar, and correspondingly has an appropriate bar angle and laying track.

In the weaving step 120, the distance between the second jacquard unit 230 and the second ground comb unit 240 can be between 3mm and 5mm (including 3mm and 5mm), and the distance between the second ground comb unit 240 and the third ground comb unit 250 The spacing s3 may be between 3mm and 5mm (including 3mm and 5mm), and the spacing s5 of the third floor comb units 250 and 260 may be between 3mm and 5mm (including 3mm and 5mm). In this way, the yarn 243 of the second ground comb unit 240 as a spacer yarn can be more hidden on the front needle bed surface 301 and the rear needle bed surface 302, so as not to be exposed on the front needle bed surface 301 and the rear needle bed surface 301. The bed surface 302 affects the feel of the cloth surface.

The yarns 223, 224 of the first jacquard unit 220 have a first color, the yarns 233, 234 of the second jacquard unit 230 have a second color, and the first color and the second color may be different colors. In this way, the jacquard layer 330 of the knitted fabric 300 obtains patterns of different colors on the front needle bed surface 301 .

The material of the yarn 213 of the first ground comb unit 210, the material of the yarn 223,224 of the first Jacquard unit 220, the material of the yarn 233,234 of the second Jacquard unit 230, the material of the second ground comb unit 240 At least one of the material of the yarn 243 and the yarn 253, 263 of the third ground comb unit 250, 260 is polyester, nylon, cationic yarn, spandex, thermoplastic polyester (Thermoplastic Polyester Elastomer, TPEE), thermoplastic polyurethane ( Thermoplastic Polyurethane, TPU), doubling, core yarn, covering yarn or functional yarn. In this way, it is beneficial to improve the flexibility of product application. Specifically, the yarn 213 of the first ground comb unit 210 can be a polyester parallel knitting chain organization, the yarns 223, 224 of the first jacquard unit 220 can be polyester, and the yarns 233, 224 of the second jacquard unit 230, 234 can be a cationic yarn and use passive yarn feeding. The yarn 243 of the second ground comb unit 240 can be a polyester monofilament spacer to increase the elastic feel of the front needle bed surface 301 and the rear needle bed surface 302 .

In the weaving step 120, when the second jacquard unit 230 is connected to the surface layer 310, the first jacquard unit 220 and the second jacquard unit 230 can be used to weave into a jacquard layer 330, and the jacquard layer 330 includes elements exposed on the surface layer. A herringbone pattern 333 at 310 (eg, as shown in FIG. 5 ). Thereby, based on the deficiency of the double jacquard warp knitted fabric in the prior art, the knitted fabric 300 produced according to the knitting method 100 of the present invention has a jacquard mesh effect of a herringbone pattern 333, and has a sandwich weaving All the characteristics of Wu 300, such as hand feel, elasticity and physical property requirements, meet the double jacquard warp knitted fabric products that combine practicality and appearance.

Specifically, the first ground comb unit 210 , the second ground comb unit 240 and the third ground comb unit 250 , 260 respectively have a lapping structure. Each of the first jacquard unit 220 and the second jacquard unit 230 has an original lapped weave and a jacquard lapped weave, and the first jacquard unit 220 and the second jacquard unit 230 are respectively based on the corresponding jacquard control information Make an offset. The original lapped yarn structure is the yarn structure before the first jacquard unit 220 and the second jacquard unit 230 are offset, and the jacquard laid yarn structure is the first jacquard unit 220 and the second jacquard unit 230 offset. After moving, the next step of the yarn and the changing yarn structure. The first jacquard unit 220 and the second jacquard unit 230 are controlled by controlling the jacquard control information, so as to achieve the effect of changing the pattern of the tissue.

To be more specific, the laid yarn weave, the original laid yarn weave and the jacquard laid yarn weave respectively have laid yarn numbers, and the said laid yarn numbers can represent the first ground comb unit 210, the first jacquard unit 220, the second jacquard unit The weaving path of the unit 230 , the second ground comb unit 240 and the third ground comb unit 250 , 260 . In addition, the jacquard control information has an offset signal, and the offset signal is represented by a letter H and a letter T, wherein the letter H represents a non-shift signal, and the letter T represents an offset signal. The weaving method 100 of the braided fabric 300 with different visual effects will be described in detail below.

Fig. 8 shows a schematic diagram of the laying yarn structure of the first ground comb unit 210 in the braided fabric 300 according to the embodiment of Fig. 3A, and Fig. 9A and Fig. 9B respectively illustrate the patterns corresponding to different offset signals in the braided fabric 300 according to the embodiment of Fig. 3A 10A, 10B, 10C, 10D, 10E, and 10F respectively illustrate the second yarn pattern corresponding to different offset signals in the braid 300 according to the embodiment of FIG. 3A. The schematic diagram of the laying weave of the jacquard unit 230 , wherein the left side of each of FIGS. 9A to 10F is a schematic diagram of the original laying weave, and the right side is a schematic diagram of the jacquard laying weave. Fig. 11 shows a schematic view of the laying structure of the second ground comb unit 240 in the braided fabric 300 according to the embodiment of Fig. 3A, and Fig. 12 shows a schematic diagram of the laying yarn structure of the third ground comb unit 250 in the braided fabric 300 according to the embodiment of Fig. 3A Schematic diagram, FIG. 13 shows a schematic diagram of the lapping structure of the third ground comb unit 260 in the braided fabric 300 according to the embodiment of FIG. 3A . Furthermore, the yarns 213, 223, 233, 243, 253, and 263 shown in FIGS. 8 to 13 also represent the first ground comb unit 210, the first jacquard unit 220, the second jacquard unit 230, the second Laying weaves and weaving paths of the ground comb unit 240 and the third ground comb units 250 and 260 .

Please refer to Fig. 8 to Fig. 13, the first ground comb unit 210, the second ground comb unit 240 and the third ground comb unit 250, 260 respectively have a lapping structure, wherein the lapping yarn of the lapping structure of the first ground comb unit 210 The number is 1-0-0-0/0-1-1-1//(yarn 213 as shown in Figure 8), the number of the lap yarn of the lap yarn organization of the second ground comb unit 240 is 1-0- 2-1/2-3-1-2//(yarn 243 as shown in Figure 11), the number of laying yarns of the laying yarn organization of the third ground comb unit 250 is 1-1-0-1/1- 1-2-1//(yarn 253 as shown in Figure 12), the number of laying yarns of the laying yarn organization of the third ground comb unit 260 is 1-1-0-1/2-2-3-2/ / (yarn 263 as shown in Figure 13). In this embodiment, the number of the third ground comb units is two, that is, the third ground comb units 250 and 260 , and the numbers of the laid yarns of the laid yarns of the third ground comb units 250 and 260 are different. In this way, the third ground comb units 250 and 260 can form a comfortable interior on the rear needle bed surface 302 .

Please refer to FIG. 9A and FIG. 9B , in the weaving step 120, the first jacquard unit 220 can be used to weave an open loop, and not knit into a closed loop, that is, the yarn of the first jacquard unit 220 in FIG. 9A and FIG. 9B 223 contains coil 225, which is an open coil, not a closed coil. Thereby, it is beneficial for the first jacquard unit 220 to cooperate with the second jacquard unit 230 to hide half of the tissue. The following will illustrate the detailed operations of the first jacquard unit 220 and the second jacquard unit 230 to shift according to different jacquard control information to form different visual effects.

Please refer to Fig. 3B and Fig. 9A, the lapping number of the original lapping yarn structure of the first jacquard unit 220 (and its yarn 223) on the left side of Fig. 9A is 0-1-1-1/2-1-1- 1//, the first jacquard unit 220 shifts according to the offset signal of the jacquard control information, and its offset signal is TTHHHHHH, so as to obtain the jacquard lapped yarn structure of the first jacquard unit 220 on the right side of Figure 9A, which The lapping number is 1-2-1-1/2-1-1-1//, and it is matched with the lapping structure of the first ground comb unit 210 to form the mesh structure 370a of the front needle bed surface 301, as shown in the figure 3B.

Please refer to Fig. 3B and Fig. 9B, the lapping number of the original lapping yarn structure of the first jacquard unit 220 (and its yarn 223) on the left side of Fig. 9B is 0-1-1-1/2-1-1- 1//, the first jacquard unit 220 is offset according to the offset signal of the jacquard control information, and its offset signal is HHHHTTHH, so as to obtain the jacquard lapped yarn structure of the first jacquard unit 220 on the right side of Figure 9B, which Laying numbers are 0-1-1-1/3-2-1-1//, and are matched with the laying weave of the first ground comb unit 210 to form the thick plain cloth weave 370b of the front needle bed surface 301, which is also The opening is densely textured and is shown in Figure 3B.

Please refer to Fig. 6 and Fig. 10A, the lapping number of the original laying yarn organization of the second jacquard unit 230 (and its yarn 233) on the left side of Fig. 10A is 1-1-1-0/1-1-1- 2//, the second jacquard unit 230 is offset according to the offset signal of the jacquard control information, and its offset signal is HHHHHHTT, so as to obtain the jacquard lapped yarn structure of the second jacquard unit 230 on the right side of FIG. 10A, which Laying numbers are 1-1-1-0/1-1-0-1//, and the mesh structure 380a of the rear needle bed surface 302 is formed by matching the lapping structures of the third floor comb units 250 and 260, also Weave chains for the mesh and as shown in Figure 6.

Please refer to Fig. 6 and Fig. 10B, the lapping number of the original lapping yarn structure of the second jacquard unit 230 (and its yarn 233) on the left side of Fig. 10B is 1-1-1-0/1-1-1- 2//, the second jacquard unit 230 shifts according to the offset signal of the jacquard control information, and its offset signal is HHTTHHHH, so as to obtain the jacquard lapped yarn structure of the second jacquard unit 230 on the right side of Figure 10B, which The laying number is 1-1-0-(-1)/1-1-1-2//, and the laying fabric of the third ground comb unit 250, 260 is used to form the thick flat cloth of the rear needle bed surface 302 The texture 380b is also a thick dense texture, as shown in FIG. 6 .

Please refer to FIG. 10C, in the knitting step 120, the second jacquard unit 230 (and its yarn 233) can also be used to knit the loop 235 on the front needle bed 201, and knit into a V-point flower exposed on the surface layer 310. type. In this way, the performance of traditional double jacquard products is mostly mesh with dark and light-colored jacquards, and the double-V or single-V-dot patterned jacquard layer on the surface is prone to fluffing, while the weaving according to the present invention The knitted fabric 300 produced by the method 100 can effectively avoid the above problems. The lapping number of the original lapping structure of the second jacquard unit 230 (and its yarn 233) on the left side of Fig. 10C is 1-1-1-0/1-1-1-2//, the second jacquard The unit 230 is offset according to the offset signal of the jacquard control information, and its offset signal is THTHHHTT, so as to obtain the jacquard lapped yarn structure of the second jacquard unit 230 on the right side of Figure 10C, and its lapped yarn number is 0-1- 0-0/1-1-0-1//, and form the V-point pattern of the front needle bed surface 301 in combination with the laying weave of the first ground comb unit 210 and the first jacquard unit 220 .

Referring to FIG. 3B , in the weaving step 120 , the first ground comb unit 210 , the first jacquard unit 220 and the second jacquard unit 230 can be used to weave into a braided chain structure 370d. Thereby, the diversity of the internal structure and appearance of the braided fabric 300 is improved.

3B and FIG. 10D, in the weaving step 120, the second jacquard unit 230 can also be used to weave the coil 235 of the second jacquard unit 230 into the coil 215 woven by the first ground comb unit 210 And the coil 225 woven by the first jacquard unit 220 is covered, and another part of the coil 235 woven by the second jacquard unit 230 is exposed on the surface layer 310 . In this way, the comb position of the second jacquard unit 230 is set at the third comb position, and there is an angle and stroke difference with the first jacquard unit 220, so that the second jacquard unit 230 is positioned at the front needle bed 201 The knitting chain organization is not like the cationic yarn of the prior art that can completely cover the top layer of the front needle bed surface 301, and further utilizes the yarn 233 of the second jacquard unit 230 in the first ground comb unit 210, the first jacquard unit The hidden half jacquard on the surface of the yarns 213 and 223 of the unit 220 makes the cloth surface of the knitted fabric 300 present a herringbone pattern 333, so that the knitted fabric 300 becomes a herringbone pattern 333 jacquard warp knitted mesh. In addition, the braided fabric 300 made according to the knitting method 100 of the present invention can effectively solve the problem of easy fluffing and yarn breakage. The coil 225 of the unit 220 is not easy to fluff and snag, which is more suitable for products with complex shapes or structures (such as footwear products). The lapping number of the original lapping structure of the second jacquard unit 230 (and its yarn 233) on the left side of Fig. 10D is 1-1-1-0/1-1-1-2//, the second jacquard The unit 230 is offset according to the offset signal of the jacquard control information, and its offset signal is THTHHTHT, so as to obtain the jacquard lapped yarn structure of the second jacquard unit 230 on the right side of Figure 10D, and its lapped yarn number is 0-1- 0-0/1-0-1-1//, and cooperate with the laying structure of the first ground comb unit 210 and the first jacquard unit 220 to form the knitting chain structure 370d of the front needle bed surface 301, which includes herringbone The pattern 333 can also be a light-colored double V herringbone pattern 333 jacquard, as shown in Figure 3B.

Please refer to Fig. 4, Fig. 5, Fig. 7 and Fig. 10E, in weaving step 120, when the second jacquard unit 230 connects the surface layer 310 and the bottom layer 350, the first ground comb unit 210, the first jacquard unit 220, The second jacquard unit 230 and the third ground comb unit 250, 260 can be used to weave into the middle layer structure 370e, 380e, which is a thick middle layer structure. Thereby, the diversity of the internal structure and appearance of the braided fabric 300 is improved. The lapping number of the original lapping structure of the second jacquard unit 230 (and its yarn 233) on the left side of Fig. 10E is 1-1-1-0/1-1-1-2//, the second jacquard The unit 230 is offset according to the offset signal of the jacquard control information, and its offset signal is THHHHTTT, so as to obtain the jacquard lapped yarn structure of the second jacquard unit 230 on the right side of Figure 10E, and its lapped yarn number is 0-1- 1-0/1-0-0-1//, that is, the second jacquard unit 230 knits alternately between the front needle bed 201 and the rear needle bed 202, and is matched with the first ground comb unit 210 and the first jacquard unit 220 lapping structure to form the middle layer structure 370e of the front needle bed surface 301, which is a thick middle layer structure and includes herringbone pattern 333, and can also be a dark herringbone pattern 333 jacquard chain structure (as shown in Figures 4 and 5 shown), and cooperate with the lapping structure of the third ground comb unit 250, 260 to form the middle layer structure 380e of the rear needle bed surface 302 (as shown in FIG. 7 ), which is a thick middle layer structure.

Please refer to Fig. 10F, the lapping numbers of the original lapping structure of the second jacquard unit 230 (and its yarn 233) on the left side of Fig. 10F are 1-1-1-0/1-1-1-2// , the second jacquard unit 230 shifts according to the offset signal of the jacquard control information, and its offset signal is HHTHHHHT, so as to obtain the jacquard lapped yarn structure of the second jacquard unit 230 on the right side of Fig. 10F, and its lapped yarn number It is 1-1-0-0/1-1-1-1//, since there is no mesh area used, it can reduce the weight.

Please refer to Fig. 7, Fig. 12 and Fig. 13, the lapping number of the lapping yarn organization of the 3rd ground comb unit 250 (and its yarn 253) of Fig. 12 is 1-1-0-1/1-1-2- 1//, the number of laying yarns of the laying yarn of the third ground comb unit 260 (and its yarn 263) is 1-1-0-1/2-2-3-2//, and forms the back needle bed surface The thick plain weave 381b of 302 can also be a plain weave to form a comfortable inner, as shown in FIG. 7 .

Please refer to FIG. 3A to FIG. 7 , a braided fabric 300 of an embodiment of another embodiment of the present invention is a knitted fabric 300 made by the knitting method 100 of the aforementioned embodiment, which includes a surface layer 310, a bottom layer 350, a jacquard layer 330 and inner layer 340 . The surface layer 310 is woven by the first floor comb unit 210 . The bottom layer 350 is woven by at least one of the third ground comb units 250 , 260 . The jacquard layer 330 is woven by the first jacquard unit 220 and the second jacquard unit 230 , and the jacquard layer 330 is connected to the surface layer 310 . The inner layer 340 is woven by the second floor comb unit 240 , and the inner layer 340 connects the surface layer 310 and the bottom layer 350 . In this way, by changing the jacquard lap yarn structure of the first jacquard unit 220 and the second jacquard unit 230, the braided fabric 300 with different visual effects can be obtained, and the first ground comb unit 210 and the second ground comb unit can be matched. 240 and the third ground comb unit 250, 260 have two-color, multi-color, mixed-color or color-changing effects, and can be adjusted and combined according to product requirements. The present invention is not limited by this disclosure.

Although the present invention has been disclosed above in terms of implementation, it is not intended to limit the present invention. Any person skilled in the art may make various changes and modifications without departing from the spirit and scope of the present invention. Therefore, the present invention The scope of protection shall prevail as defined in the claims.

【Symbol Description】

-1,0,1,2,3: Pad yarn digital

100: Weaving method

110: Configuration steps

120: Weaving steps

201: Front needle bed

202: rear needle bed

205: front sinker

210: The first ground comb unit

213,223,224,233,234,243,253,263: yarn

215,225,235: Coil

220: The first jacquard unit

221,222: The first sub-Jaka unit

230: The second jacquard unit

231,232: The second sub-Jaka unit

240: The second ground comb unit

250,260: The third floor comb unit

300: Knit

301: front needle bed surface

302: rear needle bed surface

310: surface layer

330: jacquard layer

333: Herringbone pattern

340: inner layer

350: bottom layer

370a, 380a: mesh organization

370b, 380b, 381b: thick plain cloth

370d: Chain organization

370e, 380e: Middle-level structure

a2: Inclination angle between the first jacquard unit and the front sinker

a3: The inclination angle between the second jacquard unit and the front sinker

s3: the distance between the second ground comb unit and the third ground comb unit

s5: the spacing between the second and third ground comb units.

Claims (13)

1. A weaving method, characterized in that, being applied to a double-needle bed machine platform to weave into braided fabric, the weaving method comprises: The configuration step is to transfer the first ground comb unit, the first jacquard unit, the second jacquard unit, the second ground comb unit and at least one third ground comb unit from the front needle bed to the rear needle bed of the double needle bed machine sequentially configured on the double needle bed machine; and Weaving steps, including: knitting the first ground comb unit on the front needle bed to knit the surface layer of the braided fabric; knitting the at least one third ground comb unit on the rear needle bed to knit the bottom layer of the braided fabric; knitting the first jacquard unit between the front needle bed and the rear needle bed, and connecting the first jacquard unit to the surface layer; knitting the second jacquard unit between the front needle bed and the rear needle bed, and connecting the second jacquard unit to at least one of the top layer and the bottom layer; and The second ground comb unit is knit between the front needle bed and the rear needle bed, and the second ground comb unit is connected to the surface layer and the bottom layer. 2 . The weaving method according to claim 1 , wherein the at least one third ground comb unit is two in number, and the laying numbers of the laying yarns of the two third ground combing units are different. 3 . 3. The knitting method according to claim 1, wherein in the knitting step, the inclination angle between the first jacquard unit and the front sinker of the front needle bed is between 0 degrees and 70 degrees, and the second The inclination angle of the jacquard unit to the front sinker is between 75 degrees and 90 degrees. 4. The weaving method according to claim 1, wherein in the weaving step, the distance between the second jacquard unit and the second ground comb unit is between 3mm and 5mm, and the second ground comb unit and the second ground comb unit The distance between at least one third ground comb unit is between 3mm and 5mm. 5. The knitting method according to claim 1, wherein in the knitting step, the first jacquard unit is used to knit open loops and not knit closed loops. 6. The weaving method according to claim 5, wherein in the weaving step, when the second jacquard unit is connected to the surface layer, the first jacquard unit and the second jacquard unit are used to weave into twigs A flower layer, the jacquard layer includes herringbone patterns exposed on the surface layer. 7. The weaving method according to claim 6, wherein in the weaving step, the second jacquard unit is also used to weave a part of the loop that the second jacquard unit is woven into by the first ground comb unit The coil and the coil woven by the first jacquard unit are covered, and another part of the coil woven by the second jacquard unit is exposed on the surface layer. 8 . The weaving method according to claim 6 , wherein in the weaving step, the first ground comb unit, the first jacquard unit and the second jacquard unit are used to weave into a chain weave. 9. The knitting method according to claim 6, wherein in the knitting step, the second jacquard unit is also used to knit loops on the front needle bed and knit into a V-point pattern exposed on the surface layer . 10. The weaving method according to claim 6, wherein in the weaving step, when the second jacquard unit connects the surface layer and the bottom layer, the first ground comb unit, the first jacquard unit, the The second jacquard unit and the at least one third ground comb unit are used to weave the middle layer structure. 11. The weaving method according to claim 1, wherein the yarns of the first jacquard unit have a first color, the yarns of the second jacquard unit have a second color, and the first color and the second Colors are different colors. 12. The weaving method according to claim 1, wherein the material of the yarn of the first ground comb unit, the material of the yarn of the first Jacquard unit, the material of the yarn of the second Jacquard unit, the At least one of the yarn material of the second ground comb unit and the yarn material of the at least one third ground comb unit is polyester, nylon, cationic yarn, spandex, thermoplastic polyester, thermoplastic polyurethane, doubling, core-spun yarn, covered yarn or functional yarn. 13. A braid made by the braiding method according to claim 1, characterized in that it comprises: The surface layer is woven by the first floor comb unit; The bottom layer is woven by the at least one third ground comb unit; a jacquard layer, woven from the first jacquard unit and the second jacquard unit, the jacquard layer connected to the surface layer; and The inner layer is woven by the second ground comb unit, and the inner layer is connected with the surface layer and the bottom layer.
