CN115423939A - Method, device and equipment for intelligently matching home decoration and storage medium - Google Patents

Abstract

The present application discloses a method, device, equipment and storage medium for intelligently matching home decoration. The method includes: obtaining room layout information of a building type, and room information that needs to be decorated; according to the room layout information of the building type, and room information that needs to be decorated, obtaining a model room model corresponding to the room that needs to be decorated; According to the model room model corresponding to the room to be decorated, the decoration matching result of the room to be decorated is obtained, and a house decoration effect is automatically generated. This application can automatically select a suitable model room, and automatically match the model room model according to the input unit type to obtain the corresponding decoration effect, which solves the problem that users of existing home decoration design tools cannot control the design results.

Description

Method, device, equipment and storage medium for intelligently matching home decoration

technical field

The present disclosure generally relates to the technical field of house decoration design, and specifically relates to a method, device, equipment and storage medium for intelligently matching home decoration.

Background technique

In the existing architectural decoration industry, decoration design software is more and more widely used, but most of the existing decoration design software uses the logic of model matching between models, that is, the algorithm calculates the position of the model according to the apartment type, and then selects the model from the model room. However, in the prior art, the intelligent matching is inaccurate, and the user cannot influence the design result, resulting in a result that does not meet the user's expectations. When the user enters the apartment type and model room, the algorithm automatically divides the area of the apartment type, and places the models in the model room according to the area. This process is a black box for the user. The user cannot change the design rules of the system, nor can it affect the design results. question.

Therefore, it is hoped that there will be a more scientific method of intelligently matching home decoration to solve the problems existing in the prior art.

Contents of the invention

In view of the above-mentioned defects or deficiencies in the prior art, it is desired to provide a method, device, equipment and storage medium for smart matching home decoration, which can meet the specific needs of current smart matching home decoration.

Based on an aspect of the embodiments of the present invention, the embodiments of the present application provide a method for intelligently matching home decoration, the method comprising:

Obtain the room layout information of the building type and the room information that needs to be decorated;

According to the room layout information of the building type and the room information to be decorated, obtain the model room model corresponding to the room to be decorated;

According to the model room model corresponding to the room to be decorated, the decoration matching result of the room to be decorated is obtained, and a house decoration effect is automatically generated.

In another embodiment of the present application, the acquisition of the room layout information of the building type and the room information that needs to be decorated includes:

Obtain the house picture information uploaded by the user;

According to the house picture information uploaded by the user, filter out the house layout picture in the picture information uploaded by the user;

According to the house layout picture, analyze and construct the room layout information of the building type;

According to the room layout information of the building type, the rooms to be decorated are determined, and the information on the rooms to be decorated is obtained.

In another embodiment of the present application, according to the room layout information of the building type and the room information that needs to be decorated, the model room model corresponding to the room that needs to be decorated is obtained, including:

Obtain the keywords of the model room model entered by the user;

Acquiring the model room model corresponding to the room to be decorated according to the keyword of the model room model input by the user;

or,

Obtain information about the room that the user needs to decorate;

According to the room information that the user needs to decorate, obtain the room structure information that the user needs to decorate;

According to the room structure information that the user needs to decorate, obtain the model room model keyword corresponding to the room structure that the user needs to decorate;

According to the model room model keyword corresponding to the room structure that the user needs to decorate, the model room model corresponding to the room to be decorated searched by the model room model keyword of the room structure that the user needs to decorate is obtained.

In another embodiment of the present application, the acquisition of the model room model keywords corresponding to the room structure that the user needs to decorate includes:

Obtaining the space type information corresponding to the room structure that the user needs to decorate, and/or the style information corresponding to the room structure that the user needs to decorate, and/or the color tone information corresponding to the room structure that the user needs to decorate, and /or, the suspended ceiling information corresponding to the room structure that the user needs to decorate, and/or, the room structure that the user needs to decorate corresponds to commodity information, and obtain the model room model filtering conditions of the room structure that the user needs to decorate;

According to the screening condition of the model room model of the room structure that the user needs to decorate, key information of the model room model corresponding to the room structure that the user needs to decorate is obtained.

In another embodiment of the present application, obtaining the color tone information corresponding to the room structure that the user needs to decorate includes:

Obtain the tone information in all the model room models;

According to the tone information in all the model room models, according to the clustering algorithm, generate a set number of tone labels;

According to the tone label, mark the model room in all the model room models, and obtain a plurality of tone labels corresponding to each of the model room models;

According to the plurality of hue tags corresponding to each of the inter-model models, the hue corresponding to the inter-model model searched in a hue tag matching manner is obtained.

In another embodiment of the present application, according to the model room model corresponding to the room that needs decoration, the decoration matching result of the room that needs decoration is obtained, and the house decoration effect is automatically generated, including:

According to the sample room model corresponding to the room that needs to be decorated, search for a suitable furniture model, and adjust the suitable furniture model to be suitable for the room that needs to be decorated, and obtain the furniture matching result corresponding to the room that needs to be decorated,

And/or, based on the room type that needs to be decorated, search for a suitable hardware decoration model, and obtain the hardware decoration matching result corresponding to the room that needs to be decorated. The hard decoration matching includes: room area division matching, ceiling matching, wall surface matching , ground matching;

And/or, based on the product configuration required by the room that needs to be decorated, as well as product parameters and display conditions, obtain the product matching result corresponding to the room that needs to be decorated;

According to the furniture matching result corresponding to the room that needs to be decorated, and/or the hardware matching result corresponding to the room that needs to be decorated, and/or the product matching result corresponding to the room that needs to be decorated, the required The decoration matching result of the room to be decorated, and pick up the unapplied materials in the model room model corresponding to the room to be decorated;

According to the decoration matching result of the room that needs to be decorated, the room that needs to be decorated is acquired to automatically generate a house decoration effect.

In another embodiment of the present application, the obtaining the hard decoration matching result corresponding to the room that needs decoration includes:

Based on the model room model corresponding to the room that needs to be decorated, and the room type information of the room that needs to be decorated, the decoration area of the room that needs to be decorated is obtained;

According to the decoration area of the room that needs decoration, identify the functional division of the decoration area of the room that needs decoration, the functional division includes a dining room area, a living room area, and a bedroom area, and the living room area includes a living room, a porch, and a corridor, The bedroom area includes a bed area, an aisle area, and a wardrobe area;

Obtain the ceiling distribution result of each decoration area according to the decoration area of the room to be decorated;

According to the decoration area of the room to be decorated, and the functional division of the decoration area of the room to be decorated, the wall decoration matching result and the floor decoration matching result of the room to be decorated are obtained.

Based on another aspect of the embodiments of the present invention, a device for intelligently matching home decoration is disclosed, the device includes:

The room acquisition module is used to obtain the room layout information of the building type and the room information that needs to be decorated;

The model search module is used to obtain the model room model corresponding to the room that needs to be decorated according to the room layout information of the building type and the room information that needs to be decorated;

The decoration matching module is used to obtain the decoration matching result of the room to be decorated according to the model room model corresponding to the room to be decorated, and automatically generate a house decoration effect.

Based on yet another aspect of the embodiments of the present invention, an electronic device is disclosed, and the electronic device includes one or more processors and memory, and the memory is used to store one or more programs; when the one or more programs are When the processor is executed, the processor is made to implement the method for intelligently matching home decoration provided by various embodiments of the present invention.

Based on yet another aspect of the embodiments of the present invention, a computer-readable storage medium storing a computer program is disclosed. When the computer program is executed, the method for intelligently matching home decoration provided by each embodiment of the present invention is implemented.

In the embodiment of the present application, by obtaining the room layout information of the building type and the room information that needs to be decorated; according to the room layout information of the building type and the room information that needs to be decorated, the model corresponding to the room that needs to be decorated is obtained room model; according to the model room model corresponding to the room to be decorated, the decoration matching result of the room to be decorated is obtained, and the house decoration effect is automatically generated. This application can automatically select a suitable model room, and automatically match the model room model according to the input unit type to obtain the corresponding decoration effect, which solves the problem that users of existing home decoration design tools cannot control the design results.

Description of drawings

Other characteristics, objects and advantages of the present application will become more apparent by reading the detailed description of non-limiting embodiments made with reference to the following drawings:

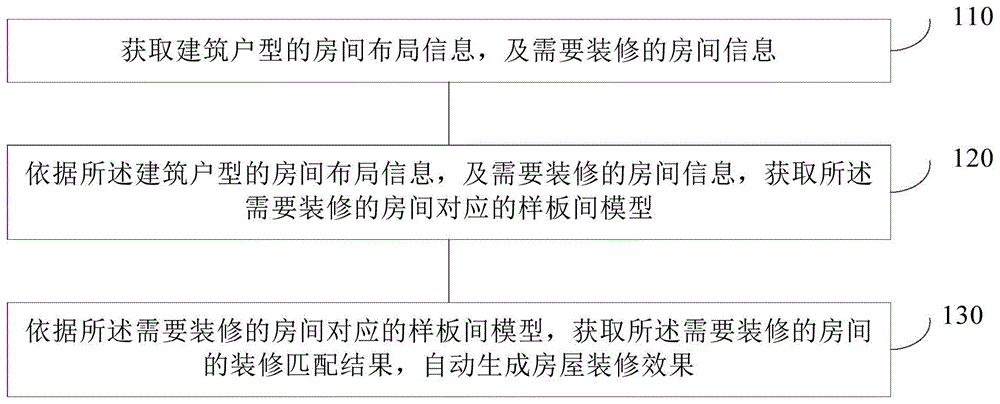

Fig. 1 is a flowchart of a method for intelligently matching home decoration provided by an embodiment of the present application;

Fig. 2 is a schematic structural diagram of a device for intelligently matching home decoration provided by an embodiment of the present application;

Fig. 3 is an internal structural diagram of an electronic device provided by an embodiment of the present application.

detailed description

The application will be further described in detail below in conjunction with the accompanying drawings and embodiments. It should be understood that the specific embodiments described here are only used to explain related inventions, rather than to limit the invention. It should also be noted that, for ease of description, only parts related to the invention are shown in the drawings.

It should be noted that, in the case of no conflict, the embodiments in the present application and the features in the embodiments can be combined with each other. The present application will be described in detail below with reference to the accompanying drawings and embodiments.

Please refer to FIG. 1 , which shows an exemplary flow of the method for intelligently matching home decoration that can be applied in the embodiment of the present application.

As shown in FIG. 1 , in step 110 , the room layout information of the building type and the room information to be decorated are acquired.

Specifically, the room layout information of the building type is the basic basis for house decoration design, and the room layout information of the building type can be a building layout diagram designed by an architectural design company, for example, including a clear room layout structure, room The size, the location information of each building structure, etc., can also be the room structure images or photos taken by the user himself, and then through the corresponding analysis algorithm, the room layout information of the building type can be obtained, and the room layout information of the building type can be obtained. Obtain the structure of the building type, such as the position of doors and windows, the height and thickness of the wall, the size of the room, the water circuit, etc. After obtaining the room layout of the building type, you can choose all or part of the rooms for decoration design. When selecting some rooms for decoration design , you only need to search for the model room model corresponding to the selected room type information. If you choose all rooms for decoration design, you need to search for the model room model for all room functional areas, for example, each horizontal, living room, kitchen, bathroom , Balconies, corridors, doors and windows, etc.

Specifically, in one embodiment of the present application, the acquisition of the room layout information of the building type and the room information that needs to be decorated includes:

Obtain the house picture information uploaded by the user;

According to the house picture information uploaded by the user, filter out the house layout picture in the picture information uploaded by the user;

According to the house layout picture, analyze and construct the room layout information of the building type;

According to the room layout information of the building type, the rooms to be decorated are determined, and the information on the rooms to be decorated is obtained.

In step 120, according to the room layout information of the building type and the room information to be decorated, the model room model corresponding to the room to be decorated is obtained.

Specifically, the model room model is a multiple room design effect designed according to the specific room structure and data of the room. The decoration elements in the model room model are combined. For example, in a set room structure, you can freely set Corresponding decoration elements, such as furniture, home appliances, floors, ceilings, lamps, curtains, etc., have different design effects according to different room structure data. Different design effects displayed.

Specifically, after obtaining the room layout information of the building type and the room information that needs to be decorated, the corresponding model room model can be searched according to the room layout of the building type and the room information parameters that need to be decorated, so as to obtain the room that needs to be decorated Design effects under different decoration elements.

Specifically, in one embodiment of the present application, according to the room layout information of the building type and the room information that needs to be decorated, the model room model corresponding to the room that needs to be decorated is obtained, including:

Obtain the keywords of the model room model entered by the user;

Acquiring the model room model corresponding to the room to be decorated according to the keyword of the model room model input by the user;

or,

Obtain information about the room that the user needs to decorate;

According to the room information that the user needs to decorate, obtain the room structure information that the user needs to decorate;

According to the room structure information that the user needs to decorate, obtain the model room model keyword corresponding to the room structure that the user needs to decorate;

According to the model room model keyword corresponding to the room structure that the user needs to decorate, the model room model corresponding to the room to be decorated searched by the model room model keyword of the room structure that the user needs to decorate is obtained.

Specifically, the search for models between templates includes keyword search and graph search. Keyword search means that users directly search for keywords, such as house decoration style, color tone, configuration, etc., or directly input the corresponding parameters of the room to be decorated, and automatically obtain the corresponding model room model. Image search is to obtain the search keywords in the room photos or other decoration effect photos uploaded by users after analyzing them, and then search for the model room model according to the corresponding search keywords.

Specifically, in one embodiment of the present application, the acquisition of the model room model keywords corresponding to the room structure that the user needs to decorate includes:

Obtaining the space type information corresponding to the room structure that the user needs to decorate, and/or the style information corresponding to the room structure that the user needs to decorate, and/or the color tone information corresponding to the room structure that the user needs to decorate, and /or, the suspended ceiling information corresponding to the room structure that the user needs to decorate, and/or, the room structure that the user needs to decorate corresponds to commodity information, and obtain the model room model filtering conditions of the room structure that the user needs to decorate;

According to the screening condition of the model room model of the room structure that the user needs to decorate, key information of the model room model corresponding to the room structure that the user needs to decorate is obtained.

Specifically, when searching for the model room model, the search keywords include five search conditions, including: space type, style, color tone, ceiling, and goods included. There can be one or more of the five search conditions. For space type The search is based on the matching search of the model room model of the specified space or room. For example, if you only search for a certain bedroom, then the space type is a bedroom. At this time, you do not need to consider the living room, entrance, kitchen, bathroom, and water circuit. Layout, the model room model search result at this time is only a model that matches the bedroom, and the model room model at this time corresponds to all room types that meet the search criteria for the model room model; when performing a style search, the general input key Words include a style type that needs to be selected or input, such as the pursuit of texture style, warm and warm style, calm and comfortable style, minimalist and diverse style, relaxed and pleasant style, pure and quiet style, etc., different style types correspond to one or more Soft decoration, hard decoration and furniture are matched to achieve different visual experience; when searching for color, the user selects the preset color when filtering, and the system returns the model room model that matches the corresponding color; when searching for products, the user inputs the required The key words of the goods laid out, such as beds, wardrobes, desks, etc., after entering the key words of the goods, the corresponding product pictures are obtained, and after the user selects the corresponding product specifications, the model room model containing the corresponding products is obtained.

Specifically, in an embodiment of the present application, obtaining the color tone information corresponding to the room structure that the user needs to decorate includes:

Obtain the tone information in all the model room models;

According to the tone information in all the model room models, according to the clustering algorithm, generate a set number of tone labels;

According to the tone label, mark the model room in all the model room models, and obtain a plurality of tone labels corresponding to each of the model room models;

According to the plurality of hue tags corresponding to each of the inter-model models, obtain the hue corresponding to the inter-model models searched by the hue tag hit method

Specifically, after obtaining the tone information in the inter-model model, the tone of the historical inter-model model in all the tone information is extracted through an algorithm, and the tone is automatically divided into a set number of labels through a clustering algorithm. In the embodiment of this application , the number of color labels can be 20-50, and then according to the label classification, label all the model room models, so that one model room model supports multiple color labels, so that each model room model can meet multiple color tones Keyword search, in the actual search, search for the corresponding model room model by inputting the tone keyword. Specifically, when the number of model room models increases, the color label of the model room model can be updated in real time.

In step 130, according to the model room model corresponding to the room to be decorated, the decoration matching result of the room to be decorated is obtained, and a house decoration effect is automatically generated.

Specifically, after obtaining the model room model corresponding to the room that needs to be decorated, the model room model is analyzed, and then according to the parameters of the room that needs to be decorated and the corresponding configuration selected by the user, automatically generate soft decoration, hard Decoration and accessories configuration, and show the corresponding decoration effect.

Specifically, in one embodiment of the present application, according to the model room model corresponding to the room that needs to be decorated, the decoration matching result of the room that needs to be decorated is obtained, and the house decoration effect is automatically generated, including:

According to the sample room model corresponding to the room that needs to be decorated, search for a suitable furniture model, and adjust the suitable furniture model to be suitable for the room that needs to be decorated, and obtain the furniture matching result corresponding to the room that needs to be decorated,

And/or, based on the room type that needs to be decorated, search for a suitable hardware decoration model, and obtain the hardware decoration matching result corresponding to the room that needs to be decorated. The hard decoration matching includes: room area division matching, ceiling matching, wall surface matching , ground matching;

And/or, based on the product configuration required by the room that needs to be decorated, as well as product parameters and display conditions, obtain the product matching result corresponding to the room that needs to be decorated;

According to the furniture matching result corresponding to the room that needs to be decorated, and/or the hardware matching result corresponding to the room that needs to be decorated, and/or the product matching result corresponding to the room that needs to be decorated, the required The decoration matching result of the room to be decorated, and pick up the unapplied materials in the model room model corresponding to the room to be decorated;

According to the decoration matching result of the room that needs to be decorated, the room that needs to be decorated is acquired to automatically generate a house decoration effect.

Specifically, the furniture matching results corresponding to the room to be decorated include matching with a legend and matching without a legend, and the matching with a legend is based on the room parameters in the model room model and the actual room parameters that need to be decorated Ratio, automatically adjusts the ratio parameters, mainly used for core furniture, such as wardrobes, beds, sofas, tables and chairs, etc.; the matching without legend does not need to adjust the furniture ratio, and it will be automatically put into furniture matching with the core furniture, such as Switches, lamps, etc., these matching furniture without legends are packaged with matching furniture with legends through algorithms, and are automatically put into the furniture matching results.

Specifically, for wall matching, pick up the corresponding walls of the sofa area and bed area through the hard-fitting background wall, match the corresponding background wall, and directly pick up the wall paving of the model room model on other walls. For ground matching, the ground paving effect in the model room model is directly lost.

Specifically, the product matching result corresponding to the room that needs to be decorated is based on the parameters of the room that needs to be decorated and the selected model room model, and the product with corresponding parameters is automatically configured. For example, the bed in the bedroom can be configured at the same time. 1.35 meters, 1.5 meters , 1.8 meters in various sizes, when applying the model room model, according to the actual placement conditions of the target apartment, automatically select the most suitable size of furniture; at the same time, the product configuration results can automatically configure more comprehensive and suitable furniture selection for the room that needs to be decorated, Improve the matching effect and reduce the workload of repeated production of models between samples.

Specifically, in one embodiment of the present application, the acquiring the hard decoration matching result corresponding to the room that needs decoration includes:

Based on the model room model corresponding to the room that needs to be decorated, and the room type information of the room that needs to be decorated, the decoration area of the room that needs to be decorated is obtained;

According to the decoration area of the room that needs decoration, identify the functional division of the decoration area of the room that needs decoration, the functional division includes a dining room area, a living room area, and a bedroom area, and the living room area includes a living room, a porch, and a corridor, The bedroom area includes a bed area, an aisle area, and a wardrobe area;

According to the decoration area of the room that needs to be decorated, the ceiling distribution result of each decoration area is obtained; specifically, when the ceiling distribution result of each decoration area is determined, by dividing the decoration area of the room that needs to be decorated, each The area matches the ceiling, because the functions of each area are different, so the distribution of the ceiling is also different. For example, the wardrobe area does not need a ceiling. Based on the center of mass of the core furniture in the decoration area, first find the ceiling plan for the area where the core furniture is located, and then Do ceiling matching for other areas.

According to the decoration area of the room to be decorated, and the functional division of the decoration area of the room to be decorated, the wall decoration matching result and the floor decoration matching result of the room to be decorated are obtained.

The method for intelligently matching home decoration of the present application obtains the room layout information of the building type and the room information that needs to be decorated; according to the room layout information of the building type and the room information that needs to be decorated, obtains the corresponding The model room model; according to the model room model corresponding to the room that needs to be decorated, the decoration matching result of the room that needs to be decorated is obtained, and the house decoration effect is automatically generated. This application can automatically select a suitable model room, and automatically match the model room model according to the input unit type to obtain the corresponding decoration effect, which solves the problem that users of existing home decoration design tools cannot control the design results.

It should be understood that although the various steps in the flow chart of FIG. 1 are displayed sequentially as indicated by the arrows, these steps are not necessarily executed sequentially in the order indicated by the arrows. Unless otherwise specified herein, there is no strict order restriction on the execution of these steps, and these steps can be executed in other orders. Moreover, at least some of the steps in Fig. 1 may include multiple sub-steps or multiple stages, these sub-steps or stages are not necessarily executed at the same time, but may be executed at different times, the execution of these sub-steps or stages The order is not necessarily performed sequentially, but may be performed alternately or alternately with at least a part of other steps or sub-steps or stages of other steps.

Fig. 2 is a schematic structural diagram of a device for intelligently matching home decoration provided by an embodiment of the present application. As shown in Fig. 2, the device for intelligently matching home decoration includes:

Room acquisition module, model search module, decoration matching module;

The room acquisition module is used to obtain the room layout information of the building type and the room information that needs to be decorated;

The model search module is used to obtain the model room model corresponding to the room that needs to be decorated according to the room layout information of the building type and the room information that needs to be decorated;

The decoration matching module is used to obtain the decoration matching result of the room to be decorated according to the model room model corresponding to the room to be decorated, and automatically generate a house decoration effect.

Specifically, in one embodiment of the present application, the room acquisition module is used to obtain the picture information of the house uploaded by the user; according to the picture information of the house uploaded by the user, the house layout in the picture information uploaded by the user is screened out picture; according to the house layout picture, analyze and construct the room layout information of the building type; according to the room layout information of the building type, determine the room that needs to be decorated, and obtain the room information that needs to be decorated.

Specifically, in one embodiment of the present application, the model search module is used to obtain the keyword of the model room model input by the user; according to the keyword of the model room model input by the user, obtain the corresponding model room model; or, obtain the room information that the user needs to decorate; obtain the room structure information that the user needs to decorate according to the room information that the user needs to decorate; obtain the room structure information that the user needs to decorate according to the room structure information that the user needs to decorate According to the keyword of the model room model corresponding to the room structure that the user needs to decorate; according to the keyword of the model room model corresponding to the room structure that the user needs to decorate, obtain the keyword searched for the model room model keyword of the room structure that the user needs to decorate The model room model corresponding to the room that needs to be renovated.

Specifically, in one embodiment of the present application, the model search module is used to obtain the space type information corresponding to the room structure that the user needs to decorate, and/or the style information corresponding to the room structure that the user needs to decorate, and /or, the color tone information corresponding to the room structure that the user needs to decorate, and/or, the ceiling information corresponding to the room structure that the user needs to decorate, and/or, the product information corresponding to the room structure that the user needs to decorate , to obtain the screening conditions of the sample room model of the room structure that the user needs to decorate; according to the screening conditions of the sample room model of the room structure that the user needs to decorate, obtain the keyword information of the sample room model corresponding to the room structure that the user needs to decorate .

Specifically, in one embodiment of the present application, the model search module is used to obtain the hue information in all models between models; according to the hue information in all models between models, a set number of hues are generated according to a clustering algorithm label; according to the tone label, mark the model rooms in all the model room models, and obtain a plurality of tone labels corresponding to each of the model room models; according to the multiple color labels corresponding to each of the model room models Hue tag, to obtain the hue corresponding to the inter-model model searched by the hit mode of the hue tag.

Specifically, in one embodiment of the present application, the decoration matching module is used to search for a suitable furniture model according to the model room model corresponding to the room to be decorated, and adjust the suitable furniture model to match the required Adapt to the room to be decorated, obtain the furniture matching result corresponding to the room that needs to be decorated, and/or, based on the room type that needs to be decorated, search for a suitable hardware decoration model, and obtain the hardware matching result corresponding to the room that needs to be decorated , the hard decoration matching includes: room area division matching, ceiling matching, wall matching, and ground matching; The product matching result corresponding to the room; according to the furniture matching result corresponding to the room that needs decoration, and/or, the hardware matching result corresponding to the room that needs decoration, and/or, the commodity corresponding to the room that needs decoration According to the matching result, the decoration matching result of the room that needs to be decorated is obtained, and the unapplied materials in the model room model corresponding to the room that needs to be decorated are retrieved; according to the decoration matching result of the room that needs to be decorated, the The room that needs to be decorated automatically generates a house decoration effect.

Specifically, in one embodiment of the present application, the decoration matching module is used to acquire the model room model corresponding to the room to be decorated and the room type information of the room to be decorated to obtain the information of the room to be decorated. Decoration area: According to the decoration area of the room that needs to be decorated, identify the functional division of the decoration area of the room that needs to be decorated. The functional division includes a dining room area, a living room area, and a bedroom area. , corridor, the bedroom area includes a bed area, aisle area, and wardrobe area; according to the decoration area of the room that needs to be decorated, obtain the ceiling distribution result of each decoration area; according to the decoration area of the room that needs to be decorated, and For the functional division of the decoration area of the room that needs decoration, the wall decoration matching result and the floor decoration matching result of the room that needs decoration are obtained.

In this embodiment of the application, the room acquisition module obtains the room layout information of the building type and the room information that needs to be decorated; the model search module obtains the required The model room model corresponding to the room to be decorated; the decoration matching module obtains the decoration matching result of the room to be decorated according to the model room model corresponding to the room to be decorated, and automatically generates a house decoration effect. This application can automatically select a suitable model room, and automatically match the model room model according to the input unit type to obtain the corresponding decoration effect, which solves the problem that users of existing home decoration design tools cannot control the design results.

For the specific limitations of the device for intelligently matching home decoration, please refer to the above-mentioned definition for the method for intelligently matching home decoration, which will not be repeated here. Each module in the above-mentioned device for intelligently matching home decoration can be fully or partially realized by software, hardware and combinations thereof. The above-mentioned modules can be embedded in or independent of the processor in the computer device in the form of hardware, and can also be stored in the memory of the computer device in the form of software, so that the processor can invoke and execute the corresponding operations of the above-mentioned modules.

In particular, according to an embodiment of the present disclosure, as shown in FIG. 3 , the present invention discloses an electronic device, the device includes one or more processors and a memory, and the memory is used to store one or more programs; when the When one or more programs are executed by the processor, the processor is made to implement the method for smart matching home decoration in the embodiment of the present invention.

In particular, according to the embodiments of the present disclosure, the method for intelligently matching home decoration described in any of the above embodiments may be implemented as a computer software program. For example, embodiments of the present disclosure include a computer program product comprising a computer program tangibly embodied on a machine-readable medium, the computer program comprising program code for performing a method of intelligently matching home decoration. In such an embodiment, the computer program can be downloaded and installed from a network via the communication part, and/or installed from a removable medium.

The one or more programs are stored in the read only memory ROM or the random access memory RAM to execute various appropriate actions and processes. In the random access memory RAM, it includes the software program for the server to complete the corresponding business, and also includes various programs and data required for the driving operation of the vehicle. The server and its controlled hardware devices, read-only memory ROM, and random access memory RAM are connected to each other through a bus, and various input/output interfaces are also connected to the bus.

The following parts are connected to the input/output interface: an input section including a keyboard, a mouse, etc.; an output section including a cathode ray tube CRT, a liquid crystal display LCD, etc., and a speaker; and a communication including a network interface card such as a LAN card, a modem, etc. part. The communication section performs communication processing via a network such as the Internet. Drivers are also connected to the input/output interface as required. Removable media, such as magnetic disks, optical disks, magneto-optical disks, semiconductor memories, etc., are mounted on drives as necessary so that computer programs read therefrom are installed into memory as necessary.

In particular, according to the embodiments of the present disclosure, the method for intelligently matching home decoration described in any of the above embodiments may be implemented as a computer software program. For example, embodiments of the present disclosure include a computer program product comprising a computer program tangibly embodied on a machine-readable medium, the computer program comprising program code for performing a method of intelligently matching home decoration. In such an embodiment, the computer program can be downloaded and installed from a network via the communication part, and/or installed from a removable medium.

The units or modules involved in the embodiments described in the present application may be implemented by means of software or by means of hardware. The described units or modules may also be provided in a processor. The names of these units or modules do not constitute limitations on the units or modules themselves in some cases.

The above description is only a preferred embodiment of the present application and an illustration of the applied technical principle. Those skilled in the art should understand that the scope of the invention involved in this application is not limited to the technical solution formed by the specific combination of the above-mentioned technical features, but should also cover the technical solution formed by the above-mentioned technical features without departing from the inventive concept. Other technical solutions formed by any combination of or equivalent features thereof. For example, a technical solution formed by replacing the above-mentioned features with technical features with similar functions disclosed in (but not limited to) this application.

Claims (10)

1. A method for intelligently matching home decoration, characterized in that the method comprises: Obtain the room layout information of the building type and the room information that needs to be decorated; According to the room layout information of the building type and the room information to be decorated, obtain the model room model corresponding to the room to be decorated; According to the model room model corresponding to the room to be decorated, the decoration matching result of the room to be decorated is obtained, and a house decoration effect is automatically generated. 2. The method according to claim 1, wherein said acquisition of room layout information of building units and room information requiring decoration includes: Obtain the house picture information uploaded by the user; According to the house picture information uploaded by the user, filter out the house layout picture in the picture information uploaded by the user; According to the house layout picture, analyze and construct the room layout information of the building type; According to the room layout information of the building type, the rooms to be decorated are determined, and the information on the rooms to be decorated is obtained. 3. The method according to claim 1, characterized in that, according to the room layout information of the building type and the room information that needs to be decorated, obtaining the model room model corresponding to the room that needs to be decorated includes: Obtain the key words of the sample room model entered by the user; Acquiring the model room model corresponding to the room to be decorated according to the keyword of the model room model input by the user; or, Obtain information about the room that the user needs to decorate; According to the room information that the user needs to decorate, obtain the room structure information that the user needs to decorate; According to the room structure information that the user needs to decorate, obtain the model room model keyword corresponding to the room structure that the user needs to decorate; According to the model room model keyword corresponding to the room structure that the user needs to decorate, the model room model corresponding to the room to be decorated searched by the model room model keyword of the room structure that the user needs to decorate is obtained. 4. The method according to claim 3, wherein said acquiring the model room model keywords corresponding to the room structure that the user needs to decorate comprises: Obtaining the space type information corresponding to the room structure that the user needs to decorate, and/or the style information corresponding to the room structure that the user needs to decorate, and/or the color tone information corresponding to the room structure that the user needs to decorate, and /or, the suspended ceiling information corresponding to the room structure that the user needs to decorate, and/or, the room structure that the user needs to decorate corresponds to commodity information, and obtain the model room model filtering conditions of the room structure that the user needs to decorate; According to the screening condition of the model room model of the room structure that the user needs to decorate, key information of the model room model corresponding to the room structure that the user needs to decorate is obtained. 5. The method according to claim 4, wherein obtaining the color tone information corresponding to the structure of the room that the user needs to decorate comprises: Obtain the tone information in all the model room models; According to the tone information in all the model room models, according to the clustering algorithm, generate a set number of tone labels; According to the tone label, mark the model room in all the model room models, and obtain a plurality of tone labels corresponding to each of the model room models; According to the plurality of hue tags corresponding to each of the inter-model models, the hue corresponding to the inter-model model searched in a hue tag matching manner is obtained. 6. The method according to claim 1, characterized in that, according to the model room model corresponding to the room to be decorated, the decoration matching result of the room to be decorated is obtained, and a house decoration effect is automatically generated, including: According to the model room model corresponding to the room that needs to be decorated, search for a suitable furniture model, and adjust the suitable furniture model to be suitable for the room that needs to be decorated, and obtain the furniture matching result corresponding to the room that needs to be decorated, And/or, based on the room type that needs to be decorated, search for a suitable hardware decoration model, and obtain the hardware decoration matching result corresponding to the room that needs to be decorated. The hard decoration matching includes: room area division matching, ceiling matching, wall surface matching , ground matching; And/or, based on the product configuration required by the room that needs to be decorated, as well as product parameters and display conditions, obtain the product matching result corresponding to the room that needs to be decorated; According to the furniture matching result corresponding to the room that needs to be decorated, and/or the hardware matching result corresponding to the room that needs to be decorated, and/or the product matching result corresponding to the room that needs to be decorated, the required The decoration matching result of the room to be decorated, and pick up the unapplied materials in the model room model corresponding to the room to be decorated; According to the decoration matching result of the room that needs to be decorated, the room that needs to be decorated is acquired to automatically generate a house decoration effect. 7. The method according to claim 6, wherein said obtaining the hardware matching result corresponding to the room to be decorated comprises: Based on the model room model corresponding to the room that needs to be decorated, and the room type information of the room that needs to be decorated, the decoration area of the room that needs to be decorated is obtained; According to the decoration area of the room that needs decoration, identify the functional division of the decoration area of the room that needs decoration, the function division includes a dining room area, a living room area, and a bedroom area, and the living room area includes a living room, an entrance, and a corridor, The bedroom area includes a bed area, an aisle area, and a wardrobe area; Obtain the ceiling distribution result of each decoration area according to the decoration area of the room to be decorated; According to the decoration area of the room to be decorated, and the functional division of the decoration area of the room to be decorated, the wall decoration matching result and the floor decoration matching result of the room to be decorated are obtained. 8. A device for intelligently matching home decoration, characterized in that the device includes: The room acquisition module is used to obtain the room layout information of the building type and the room information that needs to be decorated; The model search module is used to obtain the model room model corresponding to the room that needs to be decorated according to the room layout information of the building type and the room information that needs to be decorated; The decoration matching module is used to obtain the decoration matching result of the room to be decorated according to the model room model corresponding to the room to be decorated, and automatically generate a house decoration effect. 9. An electronic device, characterized in that the device comprises one or more processors and a memory, and the memory is used to store one or more programs; When the one or more programs are executed by the processor, the processor is made to implement the method according to any one of claims 1-7. 10. A computer-readable storage medium storing a computer program, wherein the method according to any one of claims 1 to 7 is implemented when the computer program is executed.
