CN114706610A - Business flow chart generation method, device, equipment and storage medium - Google Patents

Abstract

The invention discloses a method, device, equipment and storage medium for generating a business flow chart. The method includes: acquiring at least two tool nodes, configuration information corresponding to each tool node, and position information of each tool node; The association relationship; according to the at least two tool nodes, the corresponding configuration information of each tool node and the association relationship between the two tool nodes whose spacing is less than the distance threshold, generate a business flow chart, through the technical scheme of the present invention, to solve Writing code has high requirements for users, needs to learn programming languages, and the learning cost is high. Different people write code in different ways, which is not conducive to the reading and maintenance of business logic. Back-end business services can be arranged in the form of visual graphics flow, Reduce the difficulty of implementing back-end business logic, improve business service efficiency, and facilitate maintenance.

Description

A method, apparatus, device and storage medium for generating a business flowchart

technical field

Embodiments of the present invention relate to the field of computer technologies, and in particular, to a method, apparatus, device, and storage medium for generating a business flowchart.

Background technique

The low-code platform needs the business support of the background service to realize the access of business data and the realization of business logic. Products on the target market implement business services by writing code.

Writing code has high requirements for users, needs to learn programming languages, and the learning cost is high. Different people write code in different ways, which is not conducive to the reading and maintenance of business logic.

SUMMARY OF THE INVENTION

Embodiments of the present invention provide a method, device, device, and storage medium for generating a business flow chart, so as to solve the problem that writing codes has high requirements on users, needs to learn programming languages, and the learning cost is high. Different people write codes in different ways, which is not conducive to The problem of reading and maintaining business logic can arrange back-end business services in the form of visual graphic flow, reduce the difficulty of implementing back-end business logic, improve business service efficiency, and facilitate maintenance.

According to an aspect of the present invention, a method for generating a business flowchart is provided, comprising:

Obtain at least two tool nodes, configuration information corresponding to each tool node, and location information of each tool node;

Determine the association relationship between two tool nodes whose distance is less than the distance threshold according to the position information of each tool node;

A business flowchart is generated according to the at least two tool nodes, configuration information corresponding to each tool node, and an association relationship between two tool nodes whose distance is smaller than a distance threshold.

According to another aspect of the present invention, an apparatus for generating a business flow diagram is provided, and the apparatus for generating a business flow diagram includes:

an acquisition module for acquiring at least two tool nodes, configuration information corresponding to each tool node, and location information of each tool node;

A determination module, used for determining the association relationship between two tool nodes whose spacing is less than the distance threshold according to the position information of each tool node;

A generating module is configured to generate a business flow chart according to the at least two tool nodes, configuration information corresponding to each tool node, and an association relationship between two tool nodes whose distance is smaller than a distance threshold.

According to another aspect of the present invention, an electronic device is provided, the electronic device comprising:

at least one processor; and

a memory communicatively coupled to the at least one processor; wherein,

The memory stores a computer program executable by the at least one processor, the computer program being executed by the at least one processor to enable the at least one processor to perform any of the embodiments of the present invention. How to generate business flow chart.

According to another aspect of the present invention, a computer-readable storage medium is provided, where computer instructions are stored in the computer-readable storage medium, and the computer instructions are used to cause a processor to implement any of the embodiments of the present invention when executed. The method of generating business flow diagrams.

In the embodiment of the present invention, at least two tool nodes, configuration information corresponding to each tool node, and position information of each tool node are obtained; according to the position information of each tool node, it is determined whether the distance between two tool nodes whose distance is smaller than the distance threshold is determined. The associated relationship between the two tool nodes; according to the at least two tool nodes, the configuration information corresponding to each tool node, and the relationship between the two tool nodes whose spacing is less than the distance threshold, generate a business flow chart, so as to solve the problem that writing code is more demanding on users. High, need to learn programming language, high learning cost, different people write code in different ways, which is not conducive to the reading and maintenance of business logic, can arrange back-end business services in the form of visual graphic flow, reduce the realization of back-end business logic difficult, improve business service efficiency, and facilitate maintenance.

It should be understood that the content described in this section is not intended to identify key or critical features of the embodiments of the invention, nor is it intended to limit the scope of the invention. Other features of the present invention will become readily understood from the following description.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings used in the embodiments. It should be understood that the following drawings only show some embodiments of the present invention, and therefore do not It should be regarded as a limitation of the scope, and for those of ordinary skill in the art, other related drawings can also be obtained according to these drawings without any creative effort.

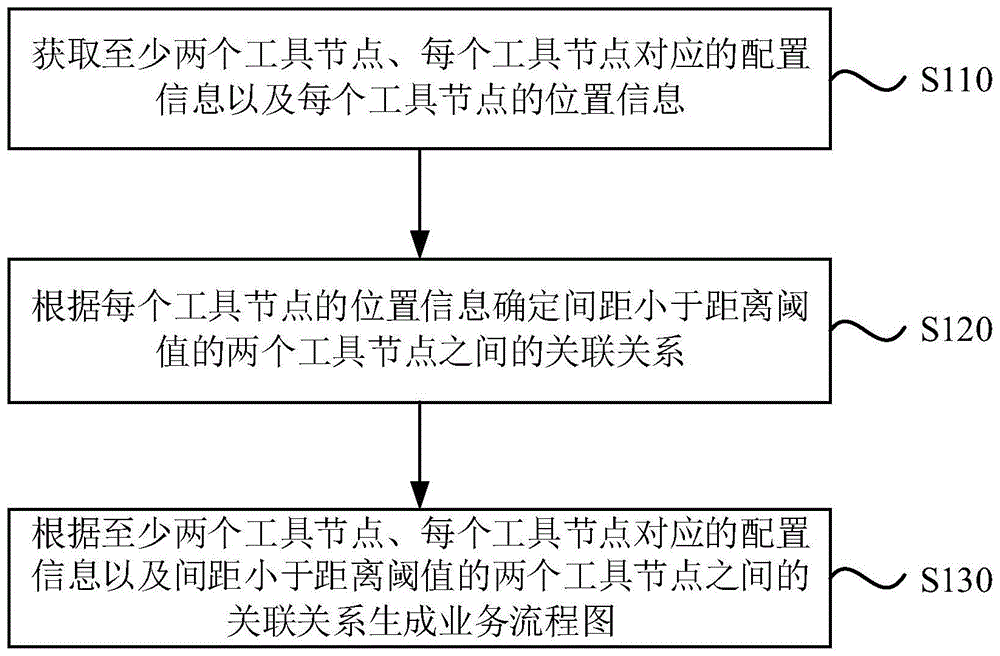

1 is a flowchart of a method for generating a business flowchart in an embodiment of the present invention;

2 is a schematic diagram of a service flow diagram in an embodiment of the present invention;

3 is a schematic structural diagram of an apparatus for generating a business flow diagram in an embodiment of the present invention;

FIG. 4 is a schematic structural diagram of an electronic device in an embodiment of the present invention.

Detailed ways

In order to make those skilled in the art better understand the solutions of the present invention, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only Embodiments are part of the present invention, but not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

It should be noted that the terms "first", "second" and the like in the description and claims of the present invention and the above drawings are used to distinguish similar objects, and are not necessarily used to describe a specific sequence or sequence. It is to be understood that the data so used may be interchanged under appropriate circumstances such that the embodiments of the invention described herein can be practiced in sequences other than those illustrated or described herein. Furthermore, the terms "comprising" and "having" and any variations thereof, are intended to cover non-exclusive inclusion, for example, a process, method, system, product or device comprising a series of steps or units is not necessarily limited to those expressly listed Rather, those steps or units may include other steps or units not expressly listed or inherent to these processes, methods, products or devices.

Example 1

FIG. 1 is a flowchart of a method for generating a business flowchart provided by an embodiment of the present invention. This embodiment is applicable to the case of generating a business flowchart, and the method can be executed by the apparatus for generating a business flowchart in the embodiment of the present invention. The device for generating a business flowchart can be implemented in software and/or hardware. As shown in FIG. 1 , the method specifically includes the following steps:

S110: Acquire at least two tool nodes, configuration information corresponding to each tool node, and location information of each tool node.

The tool node may be a tool node corresponding to a basic tool; the tool node may also be a tool node corresponding to an internal tool; the tool node may also be a tool node corresponding to an external tool. The basic tools include at least one of an input tool, a judgment tool, a successful return tool, a failure return tool, and a data flow modification tool; the internal tools include: a query model data tool, a model method execution tool, a service call tool, and a call At least one of connector interface tools; the external tools include: at least one of HTTP tools, JS script tools, Python script tools, Email notification tools, SMS notification tools, and workflow tools.

Wherein, the at least two tool nodes may be: a tool node corresponding to a basic tool and a tool node corresponding to at least one internal tool; the at least two tool nodes may also be: a tool node corresponding to a basic tool and at least one tool node A tool node corresponding to an external tool; the at least two tool nodes may also be: a tool node corresponding to a basic tool, a tool node corresponding to at least one internal tool, and a tool node corresponding to at least one external tool.

Wherein, the configuration information corresponding to each tool node is different, for example, if the tool node is a query model data tool, the configuration information includes: basic information and attribute information, and the basic information includes: title, description information, timeout Time and exception handling methods, etc. The attribute information includes: keywords, number of pages, number of pages displayed, and query condition information.

The configuration information corresponding to each tool node may be obtained in the following manner: in response to detecting a user's touch operation on the tool node corresponding to the target tool in the canvas area, displaying the configuration information in the tool area. The configuration interface corresponding to the target tool is obtained; in response to detecting the user's editing operation on the configuration interface, the configuration information of the tool node corresponding to the target tool is acquired. For example, if the user clicks the tool node corresponding to the query model data tool in the canvas area, the configuration interface corresponding to the query model data tool is displayed in the tool display area. The configuration interface includes: the basic configuration area and the attribute configuration area. Fill in the title, description and timeout in the area, and you can also select the exception handling method (continue execution or stop) in the basic configuration area. In the property configuration area, users can select keywords, fill in the number of pages, display quantity per page, and query condition information.

Wherein, the acquisition method of the location information of each tool node may be: in response to detecting that the user drags the target tool in the tool area to the canvas area, determining the location of the tool node according to the drag operation. location information. For example, if the user drags the target tool A in the tool area to the position B in the canvas area, the position information of the target tool A is determined to be the position B.

Specifically, acquiring at least two tool nodes, configuration information corresponding to each tool node, and location information of each tool node may be, for example, in response to detecting that the user drags the target tool A in the tool area to the For the operation in the canvas area, the position information X of the tool node is determined according to the drag operation; in response to detecting that the user drags the target tool B in the tool area to the canvas area, the position information X is determined according to the drag operation The position information Y of the tool node; in response to detecting that the user drags the target tool C of the tool area to the canvas area, the position information Z of the tool node is determined according to the dragging operation; For the touch operation of the tool node corresponding to the target tool A in the canvas area, the configuration interface corresponding to the target tool A is displayed in the tool area; in response to detecting the user's editing operation on the configuration interface , then obtain the configuration information of the tool node corresponding to the target tool A; in response to detecting the user's touch operation on the tool node corresponding to the target tool B in the canvas area, display the tool node in the tool area The configuration interface corresponding to the target tool; in response to detecting the user's editing operation on the configuration interface, obtain the configuration information of the tool node corresponding to the target tool B; in response to detecting the user's target on the canvas area The touch operation of the tool node corresponding to tool C, the configuration interface corresponding to the target tool is displayed in the tool area; in response to detecting the user's editing operation on the configuration interface, the corresponding configuration interface of the target tool C is obtained. Tool node configuration information.

S120: Determine, according to the position information of each tool node, an association relationship between two tool nodes whose distance is smaller than a distance threshold.

Specifically, the method of determining the association relationship between two tool nodes with a distance smaller than a distance threshold according to the position information of each tool node may be: obtaining the distance between any two adjacent tool nodes, establishing a distance less than The relationship between the two tool nodes for the distance threshold. For example, if the distance between the tool node corresponding to target tool A and the tool node corresponding to target tool B is determined according to the position information of the tool node corresponding to target tool A and the position information of the tool node corresponding to target tool B is less than the distance threshold , then draw a line between the tool node corresponding to target tool A and the tool node corresponding to target tool B to connect the tool node corresponding to target tool A and the tool node corresponding to target tool B.

Specifically, the method of determining the association relationship between two tool nodes whose distance is smaller than the distance threshold according to the position information of each tool node may also be: obtaining the distance between any two adjacent tool nodes, and establishing the distance between the two tool nodes. The association relationship between two tool nodes that are less than the distance threshold, and the arrow direction is determined according to the generation time of each tool node. For example, if the distance between the tool node corresponding to target tool A and the tool node corresponding to target tool B is determined according to the position information of the tool node corresponding to target tool A and the position information of the tool node corresponding to target tool B is less than the distance threshold , then draw a line Q between the tool node corresponding to the target tool A and the tool node corresponding to the target tool B, and connect the tool node corresponding to the target tool A and the tool node corresponding to the target tool B. If the corresponding tool node of the target tool B If the generation time of the tool node is later than the generation time of the tool node corresponding to the target tool A, the direction of the arrow of the line Q is determined to be from the tool node corresponding to the target tool A to the tool node corresponding to the target tool B.

S130: Generate a business flowchart according to the at least two tool nodes, configuration information corresponding to each tool node, and an association relationship between two tool nodes with a distance smaller than a distance threshold.

Specifically, the method of generating the business flow chart according to the at least two tool nodes, the configuration information corresponding to each tool node, and the relationship between the two tool nodes whose distance is smaller than the distance threshold may be: according to the at least two tool nodes The tool node and the configuration information corresponding to each tool node are drawn at least two tool nodes, and a business flow chart is drawn according to the drawn at least two tool nodes and the association relationship between the two tool nodes whose distance is smaller than the distance threshold. The manner of generating the business flowchart according to the at least two tool nodes, the configuration information corresponding to each tool node, and the relationship between the two tool nodes whose distance is smaller than the distance threshold may also be: The touch operation of the determination control of the process configuration interface is based on the tool nodes corresponding to at least two target tools in the editing area, the configuration information of the tool nodes corresponding to the at least two target tools, and the two tools whose distance is smaller than the distance threshold The association relationship between the nodes generates a business flow chart, and the business flow chart is displayed in the canvas area.

Optionally, obtain at least two tool nodes, including:

In response to detecting a user's touch operation on the target control, a process configuration interface is displayed, wherein the process configuration interface includes: a tool area and a canvas area, and the tool area includes: basic tools, internal tools, and external tools;

In response to detecting that the user drags the target tool in the tool area to the canvas area, a tool node corresponding to the target tool is displayed in the canvas area.

Wherein, the canvas area may be a blank area, and the tool area is used to display basic tools, internal tools and external tools.

Wherein, in response to detecting that the user drags the target tool in the tool area to the canvas area, before displaying the tool node corresponding to the target tool in the canvas area, the method further includes:

In response to detecting the user's touch operation on the basic tool control, basic tools belonging to the basic tool category are displayed, such as input tools, judgment tools, successful return tools, failure return tools, and modify data flow tools.

In response to detecting the user's touch operation on the internal tool control, basic tools belonging to the internal tool category are displayed, for example, a tool for querying model data, a tool for executing a model method, a tool for calling a service, and a tool for calling a connector interface.

In response to detecting a user's touch operation on an add-in tool control, basic tools belonging to the add-in tool category are displayed, for example, HTTP tools, script tools, notification tools, and workflow tools.

Optionally, obtain configuration information corresponding to each tool node, including:

In response to detecting a user's touch operation on a tool node corresponding to the target tool in the canvas area, displaying a configuration interface corresponding to the target tool in the tool area;

In response to detecting the user's editing operation on the configuration interface, the configuration information of the tool node corresponding to the target tool is acquired.

The manner of displaying the configuration interface corresponding to the target tool in the tool area may be: after the user clicks the control in the tool area, the target tool is displayed in the tool area, and after the user clicks the target tool in the canvas area, the target tool is displayed in the tool area. The tool area displays the configuration interface corresponding to the target tool.

Specifically, in response to detecting the user's editing operation on the configuration interface, the configuration information of the tool node corresponding to the target tool is acquired. For example, the configuration interface may include: a basic configuration area and an attribute configuration area. The user can fill in the title, description and timeout time in the basic configuration area, and can also select an exception handling method (continue execution or stop) in the basic configuration area. In the attribute configuration area, users can select keywords, fill in the number of pages, fill in the display quantity per page, and fill in the query condition information. The way to fill in the query conditions can be: after the user clicks the property configuration area query control, the query conditions interface is displayed, and when the user clicks the add control on the query condition interface, the query editing interface corresponding to the query conditions is displayed. The query editing interface includes: keyword filling area , comparator selection area and target value selection area, the user can fill in the query keyword in the keyword filling area, select the comparator in the comparator selection area, select the target value in the target value selection area, and click Add in the query editing interface. After the control, a query condition is generated, which is not limited in this embodiment of the present invention.

Optionally, generate a business flow diagram according to the at least two tool nodes, the configuration information corresponding to each tool node, and the relationship between the two tool nodes whose spacing is less than the distance threshold, including:

In response to detecting the user's touch operation on the determination control of the process configuration interface, based on the tool nodes corresponding to at least two target tools in the editing area, the configuration information of the tool nodes corresponding to the at least two target tools, and The association relationship between two tool nodes whose distance is smaller than the distance threshold generates a business flow chart, and displays the business flow chart in the canvas area.

In a specific example, the business flow chart displayed in the canvas area is shown in Figure 2. The business flow chart includes: tool node (input), tool node (obtain device list), tool node (process device information), tool node (judgment branch), tool node (generate sales order), tool node (send email notification), tool node (return success value) and tool node (return failure value).

Optionally, in response to detecting the user's touch operation on the determination control of the process configuration interface, based on the tool nodes corresponding to at least two target tools in the editing area, the tools corresponding to the at least two target tools. The configuration information of the node and the association relationship between the two tool nodes whose distance is less than the distance threshold generate a business flow chart, and after the business flow chart is displayed in the canvas area, it also includes:

In response to detecting a user's touch operation on the debugging controls of the process configuration interface, a debugging bar is displayed, and the debugging bar includes: setting an input variable control;

Displaying an input variable input interface in response to detecting a user's touch operation on the setting input variable control of the debug bar;

In response to detecting the target input variable input by the user with respect to the input variable input interface, the target input variable is input into the business flowchart to obtain a debugging result.

Wherein, the debug bar may further include: run controls, pause controls, stop controls, previous step controls, next step controls, and the like.

In a specific example, the debugging result may be: setting the color of the tool nodes that pass the test in the business flow chart to green, and setting the color of the tool nodes that fail the test in the business flow chart to red , set the color of the tool node under test in the business process diagram to yellow.

Optionally, in response to detecting the target input variable input by the user with respect to the input variable input interface, inputting the target input variable into the business flowchart to obtain a debugging result, including:

In response to detecting a target input variable input by the user with respect to the input variable input interface, inputting the target input variable into the business process flow diagram;

If the timeout time in the target node is less than the time threshold, then the color of the target node is switched to the first target color;

If the script in the target node does not meet the first preset condition, then switch the color of the target node to the first target color;

If the timeout time in the target node is greater than or equal to the time threshold, and the script in the target node satisfies the first preset condition, the color of the target node is switched to the second target color.

Wherein, if the script does not meet the first preset condition, it means that the script is not standardized. For example, if the script is edited in a non-English language, it means that the script does not meet the first preset condition.

The first target color and the second target color are different. If the first target color is red, the second target color may be green, which is not limited in this embodiment of the present invention.

Specifically, if the timeout time in the target node is set too small, the result may not be obtained easily. Therefore, if the timeout time in the target node is less than the time threshold, it is determined that the target node has not passed the test.

Optionally, the basic tool includes: at least one of an input tool, a judgment tool, a successful return tool, a failure return tool, and a data flow modification tool; the internal tools include: a query model data tool, an execution model method class tool , at least one of calling service tool and calling connector interface tool; the external tool includes: at least one of HTTP tool, script tool, notification tool and workflow tool.

The business flow chart includes basic tools, internal tools and/or external tools.

Optionally, also include:

Receive pending information sent by the target client;

Input the information to be processed into the business flow chart to obtain target data, and send the target data to the target client.

Specifically, the information to be processed is input into the business flow chart to obtain target data, and the target data is sent to the target client. For example, if the business flow chart includes: tool node A, tool node B, tool node C, and tool node D, the order of execution of tool nodes is: tool node A, tool node B, tool node C, and tool node D. , input the pending information sent by the target client into tool node A, input the output of tool node A into tool node B, input the output of tool node B into tool node C, input the output of tool node C into tool node D, The output of node D is determined as target data, and the target data is sent to the target client.

The technical solution of this embodiment is to obtain at least two tool nodes, configuration information corresponding to each tool node, and position information of each tool node; Association relationship between tool nodes; generate a business flow chart according to the at least two tool nodes, the configuration information corresponding to each tool node, and the association relationship between two tool nodes with a distance smaller than a distance threshold, so as to solve the problem of writing code Users have high requirements, need to learn programming languages, and the learning cost is high. Different people write code in different ways, which is not conducive to the reading and maintenance of business logic. The back-end business services can be arranged in the form of visual graphics flow, reducing the need for post-implementation It reduces the difficulty of end-to-end business logic, improves business service efficiency, and is easy to maintain.

Embodiment 2

FIG. 3 is a schematic structural diagram of an apparatus for generating a business flowchart according to an embodiment of the present invention. This embodiment can be applied to the case of generating a business flow chart, the apparatus can be implemented in software and/or hardware, and the business flow chart generating apparatus can be integrated into any device that provides the function of XX, as shown in FIG. 3 , The apparatus for generating a business flow chart specifically includes: an acquiring module 210 , a determining module 220 and a generating module 230 .

Wherein, the obtaining module is used to obtain at least two tool nodes, configuration information corresponding to each tool node, and location information of each tool node;

A determination module, used for determining the association relationship between two tool nodes whose spacing is less than the distance threshold according to the position information of each tool node;

A generating module is configured to generate a business flow chart according to the at least two tool nodes, configuration information corresponding to each tool node, and an association relationship between two tool nodes whose distance is smaller than a distance threshold.

The above product can execute the method provided by any embodiment of the present invention, and has corresponding functional modules and beneficial effects for executing the method.

The technical solution of this embodiment is to obtain at least two tool nodes, configuration information corresponding to each tool node, and position information of each tool node; Association relationship between tool nodes; generate a business flow chart according to the at least two tool nodes, the configuration information corresponding to each tool node, and the association relationship between two tool nodes with a distance smaller than a distance threshold, so as to solve the problem of writing code Users have high requirements, need to learn programming languages, and the learning cost is high. Different people write code in different ways, which is not conducive to the reading and maintenance of business logic. The back-end business services can be arranged in the form of visual graphics flow, reducing the need for post-implementation It reduces the difficulty of end-to-end business logic, improves business service efficiency, and is easy to maintain.

Embodiment 3

FIG. 4 shows a schematic structural diagram of an electronic device 10 that can be used to implement embodiments of the present invention. Electronic devices are intended to represent various forms of digital computers, such as laptops, desktops, workstations, personal digital assistants, servers, blade servers, mainframe computers, and other suitable computers. Electronic devices may also represent various forms of mobile devices, such as personal digital processors, cellular phones, smart phones, wearable devices (eg, helmets, glasses, watches, etc.), and other similar computing devices. The components shown herein, their connections and relationships, and their functions are by way of example only, and are not intended to limit implementations of the inventions described and/or claimed herein.

As shown in FIG. 4 , the electronic device 10 includes at least one processor 11, and a memory, such as a read only memory (ROM) 12, a random access memory (RAM) 13, etc., connected in communication with the at least one processor 11, wherein the memory stores There is a computer program executable by at least one processor, and the processor 11 can be executed according to a computer program stored in a read only memory (ROM) 12 or loaded from a storage unit 18 into a random access memory (RAM) 13. Various appropriate actions and processes are performed. In the RAM 13, various programs and data necessary for the operation of the electronic device 10 can also be stored. The processor 11 , the ROM 12 and the RAM 13 are connected to each other through a bus 14 . An input/output (I/O) interface 15 is also connected to the bus 14 .

Various components in the electronic device 10 are connected to the I/O interface 15, including: an input unit 16, such as a keyboard, a mouse, etc.; an output unit 17, such as various types of displays, speakers, etc.; a storage unit 18, such as a magnetic disk, an optical disk, etc. etc.; and a communication unit 19, such as a network card, modem, wireless communication transceiver, and the like. The communication unit 19 allows the electronic device 10 to exchange information/data with other devices through a computer network such as the Internet and/or various telecommunication networks.

The processor 11 may be various general and/or special purpose processing components having processing and computing capabilities. Some examples of processors 11 include, but are not limited to, central processing units (CPUs), graphics processing units (GPUs), various specialized artificial intelligence (AI) computing chips, various processors that run machine learning model algorithms, digital signal processing processor (DSP), and any suitable processor, controller, microcontroller, etc. The processor 11 executes the various methods and processes described above, such as the business flowchart generation method:

Obtain at least two tool nodes, configuration information corresponding to each tool node, and location information of each tool node;

Determine the association relationship between two tool nodes whose distance is less than the distance threshold according to the position information of each tool node;

A business flowchart is generated according to the at least two tool nodes, configuration information corresponding to each tool node, and an association relationship between two tool nodes whose distance is smaller than a distance threshold.

In some embodiments, the business flowchart generation method may be implemented as a computer program tangibly embodied in a computer-readable storage medium, such as storage unit 18 . In some embodiments, part or all of the computer program may be loaded and/or installed on the electronic device 10 via the ROM 12 and/or the communication unit 19 . When the computer program is loaded into RAM 13 and executed by processor 11, one or more steps of the business flow diagram generation method described above may be performed. Alternatively, in other embodiments, the processor 11 may be configured by any other suitable means (eg, by means of firmware) to perform the business flow diagram generation method:

Obtain at least two tool nodes, configuration information corresponding to each tool node, and location information of each tool node;

Determine the association relationship between two tool nodes whose distance is less than the distance threshold according to the position information of each tool node;

A business flowchart is generated according to the at least two tool nodes, configuration information corresponding to each tool node, and an association relationship between two tool nodes whose distance is smaller than a distance threshold.

Various implementations of the systems and techniques described herein above may be implemented in digital electronic circuitry, integrated circuit systems, field programmable gate arrays (FPGAs), application specific integrated circuits (ASICs), application specific standard products (ASSPs), systems on chips system (SOC), load programmable logic device (CPLD), computer hardware, firmware, software, and/or combinations thereof. These various embodiments may include being implemented in one or more computer programs executable and/or interpretable on a programmable system including at least one programmable processor that The processor, which may be a special purpose or general-purpose programmable processor, may receive data and instructions from a storage system, at least one input device, and at least one output device, and transmit data and instructions to the storage system, the at least one input device, and the at least one output device an output device.

Computer programs for implementing the methods of the present invention may be written in any combination of one or more programming languages. These computer programs may be provided to a processor of a general purpose computer, special purpose computer or other programmable data processing apparatus, such that the computer programs, when executed by the processor, cause the functions/operations specified in the flowcharts and/or block diagrams to be carried out. The computer program may execute entirely on the machine, partly on the machine, as a stand-alone software package partly on the machine and partly on a remote machine or entirely on the remote machine or server.

In the context of the present invention, a computer-readable storage medium may be a tangible medium that may contain or store a computer program for use by or in connection with the instruction execution system, apparatus or device. Computer-readable storage media may include, but are not limited to, electronic, magnetic, optical, electromagnetic, infrared, or semiconductor systems, devices, or devices, or any suitable combination of the foregoing. Alternatively, the computer-readable storage medium may be a machine-readable signal medium. More specific examples of machine-readable storage media would include one or more wire-based electrical connections, portable computer disks, hard disks, random access memory (RAM), read only memory (ROM), erasable programmable read only memory (EPROM or flash memory), fiber optics, compact disk read only memory (CD-ROM), optical storage, magnetic storage, or any suitable combination of the foregoing.

To provide interaction with a user, the systems and techniques described herein may be implemented on an electronic device having a display device (eg, a CRT (cathode ray tube) or an LCD (liquid crystal display)) for displaying information to the user monitor); and a keyboard and pointing device (eg, a mouse or trackball) through which a user can provide input to the electronic device. Other kinds of devices can also be used to provide interaction with the user; for example, the feedback provided to the user can be any form of sensory feedback (eg, visual feedback, auditory feedback, or tactile feedback); and can be in any form (including acoustic input, voice input, or tactile input) to receive input from the user.

The systems and techniques described herein may be implemented on a computing system that includes back-end components (eg, as a data server), or a computing system that includes middleware components (eg, an application server), or a computing system that includes front-end components (eg, a user's computer having a graphical user interface or web browser through which a user may interact with implementations of the systems and techniques described herein), or including such backend components, middleware components, Or any combination of front-end components in a computing system. The components of the system may be interconnected by any form or medium of digital data communication (eg, a communication network). Examples of communication networks include: Local Area Networks (LANs), Wide Area Networks (WANs), blockchain networks, and the Internet.

A computing system can include clients and servers. Clients and servers are generally remote from each other and usually interact through a communication network. The relationship of client and server arises by computer programs running on the respective computers and having a client-server relationship to each other. The server can be a cloud server, also known as a cloud computing server or a cloud host. It is a host product in the cloud computing service system to solve the traditional physical host and VPS services, which are difficult to manage and weak in business scalability. defect.

It should be understood that steps may be reordered, added or deleted using the various forms of flow shown above. For example, the steps described in the present invention can be performed in parallel, sequentially or in different orders, and as long as the desired results of the technical solutions of the present invention can be achieved, no limitation is imposed herein.

The above-mentioned specific embodiments do not constitute a limitation on the protection scope of the present invention. It should be understood by those skilled in the art that various modifications, combinations, sub-combinations and substitutions may occur depending on design requirements and other factors. Any modifications, equivalent replacements and improvements made within the spirit and principle of the present invention shall be included within the protection scope of the present invention.

Claims (11)

1. A method for generating a business flow chart is characterized by comprising the following steps:

acquiring at least two tool nodes, configuration information corresponding to each tool node and position information of each tool node;

determining an incidence relation between two tool nodes with a distance smaller than a distance threshold according to the position information of each tool node;

and generating a business flow chart according to the at least two tool nodes, the configuration information corresponding to each tool node and the incidence relation between the two tool nodes with the distance smaller than the distance threshold value.

2. The method of claim 1, wherein obtaining at least two tool nodes comprises:

in response to detecting a touch operation of a user on a target control, displaying a process configuration interface, wherein the process configuration interface comprises: a tool area and a canvas area, the tool area comprising: a base tool, an inner tool and an outer tool;

and in response to detecting that the user drags a target tool of the tool area to the canvas area, displaying a tool node corresponding to the target tool in the canvas area.

3. The method of claim 2, wherein obtaining configuration information corresponding to each tool node comprises:

in response to detecting that a user performs touch operation on a tool node corresponding to the target tool in the canvas area, displaying a configuration interface corresponding to the target tool in the tool area;

and in response to the fact that the editing operation of the user on the configuration interface is detected, acquiring configuration information of a tool node corresponding to the target tool.

4. The method of claim 3, wherein generating the business process graph according to the at least two tool nodes, the configuration information corresponding to each tool node, and the association relationship between two tool nodes with a distance smaller than a distance threshold comprises:

and responding to the touch operation of a user for a determination control of the process configuration interface, generating a business process diagram based on the tool nodes corresponding to at least two target tools in the editing area, the configuration information of the tool nodes corresponding to the at least two target tools and the association relation between the two tool nodes with the distance smaller than a distance threshold value, and displaying the business process diagram in the canvas area.

5. The method of claim 4, wherein in response to detecting a touch operation of a user on a determination control of the process configuration interface, generating a business flow graph based on tool nodes corresponding to at least two target tools of the editing area, configuration information of the tool nodes corresponding to the at least two target tools, and an association relationship between two tool nodes having a distance smaller than a distance threshold, and displaying the business flow graph in the canvas area, the method further comprises:

in response to detecting a touch operation of a user on a debugging control of the process configuration interface, displaying a debugging bar, wherein the debugging bar comprises: setting an input variable control;

displaying an input variable input interface in response to detecting a touch operation of a user for setting an input variable control of the debugging bar;

and in response to detecting a target input variable input by a user aiming at the input variable input interface, inputting the target input variable into the business flow chart to obtain a debugging result.

6. The method of claim 5, wherein in response to detecting a target input variable input by a user for the input variable input interface, inputting the target input variable into the business process diagram to obtain a debugging result, the method comprises:

in response to detecting a target input variable input by a user for the input variable input interface, inputting the target input variable into the business flow chart;

if the overtime time in the target node is less than the time threshold, switching the color of the target node into a first target color;

if the script in the target node does not meet the first preset condition, switching the color of the target node into a first target color;

and if the overtime time in the target node is greater than or equal to the time threshold and the script in the target node meets a first preset condition, switching the color of the target node into a second target color.

7. The method of claim 2, wherein the base tool comprises: at least one of an input tool, a judgment tool, a success return tool, a failure return tool, and a modify data flow tool; the inner tool includes: at least one of a query model data tool, an execute model method class tool, a call service tool, and a call connector interface tool; the external tool includes: at least one of an HTTP tool, a scripting tool, a notification tool, and a workflow tool; the business flow chart comprises the following steps: a base tool, with an internal tool and/or an external tool.

8. The method of claim 1, further comprising:

receiving target information sent by a target client;

and inputting the target information into the business flow chart to obtain target data, and sending the target data to the target client.

9. A business process diagram generation apparatus, comprising:

the acquisition module is used for acquiring at least two tool nodes, configuration information corresponding to each tool node and position information of each tool node;

the determining module is used for determining the incidence relation between two tool nodes with the distance smaller than a distance threshold value according to the position information of each tool node;

and the generating module is used for generating a business flow chart according to the at least two tool nodes, the configuration information corresponding to each tool node and the incidence relation between the two tool nodes with the distance smaller than the distance threshold.

10. An electronic device, characterized in that the electronic device comprises:

at least one processor; and

a memory communicatively coupled to the at least one processor; wherein,

the memory stores a computer program executable by the at least one processor to enable the at least one processor to perform the business process diagram generation method of any one of claims 1-8.

11. A computer-readable storage medium storing computer instructions for causing a processor to implement the business flow graph generating method of any one of claims 1-8 when executed.
