CN114366130A - Myoelectric evoked potential meter based on tremor analysis - Google Patents

Abstract

The invention provides an electromyography evoked potential instrument based on tremor analysis, comprising a stimulation module, a collection device, an alarm device, a signal processing device, a power supply module, a controller module, a wireless transmission module and a host computer; The stimulation module is in contact with a detection part of the human body to be detected; the acquisition device is installed on the skin surface of the detected person; the acquisition device, the alarm device, the signal processing device and the controller The modules are connected in sequence; the controller module is also connected to the power supply module and the wireless transmission module; the wireless transmission module is connected to the upper computer. An electromyographic evoked potential instrument based on tremor analysis of the present invention determines the symptoms of a patient by collecting electromyographic signals and acceleration signals on the skin surface, generating electromyograms and performing tremor analysis, and is used to judge whether Parkinson's disease or not has Parkinson's disease or not. Other types of diseases, timely detection and timely treatment.

Description

Myoelectric evoked potential meter based on tremor analysis

technical field

The invention relates to the field of medical devices, in particular to a myoelectric evoked potential instrument based on tremor analysis.

Background technique

Myoelectric evoked potential instrument is an important inspection equipment for clinical application analysis and inspection of brain diseases, which is of great significance to clinical scientific research, medical diagnosis, neuroscience research and rehabilitation medicine. It can inspect and study neurological diseases, deafness, tinnitus, hearing impairment, visual impairment, etc. Currently, the clinical departments include neurology, otology, ophthalmology, orthopedics, occupational diseases and sports medicine.

The function of electromyographic evoked potential instrument is not strong enough, and it cannot be diagnosed for some diseases.

At present, the number of Parkinson's patients in the world has exceeded 10 million, and the number of Parkinson's patients in my country has exceeded 5 million, accounting for one-half of the number of patients. It can make the patient's limbs become stiff, gradually lose motor function, and due to the disorder of movement, it can cause the patient to have psychological disorders and intellectual impairment, and lead to a decline in immunity. Its onset is relatively insidious, and early patients do not have obvious symptoms, and it is difficult to detect abnormalities in all aspects of patients, so it is difficult to detect.

At present, the diagnosis of patients with Parkinson's disease mainly relies on the unified Parkinson's disease rating scale, and the evaluation of the condition is achieved through the evaluation and scoring of both doctors and patients. The higher the score, the more severe the disease. This method is highly subjective, and the results need to be evaluated by a doctor. The final score may be quite different from the actual severity of the disease, which is not conducive to treatment. Therefore, it is necessary to design a device that can detect Parkinson's disease.

SUMMARY OF THE INVENTION

In view of the above-mentioned deficiencies in the prior art, the present invention provides an electromyography evoked potential instrument based on tremor analysis, which determines the symptoms of a patient by collecting electromyography signals and acceleration signals on the skin surface, generating electromyograms and performing tremor analysis, It is used to determine whether you have Parkinson's disease or other types of diseases, and to detect and treat in time.

In order to achieve the above purpose, the present invention provides an electromyography evoked potential instrument based on tremor analysis, including a stimulation module, a collection device, an alarm device, a signal processing device, a power supply module, a controller module, and a wireless transmission module and a host computer; the stimulation module is in contact with a detection part of the human body to be detected; the acquisition device is installed on the skin surface of the detected person; the acquisition device, the alarm device, and the signal processing device connected to the controller module in sequence; the controller module is also connected to the power supply module and the wireless transmission module; the wireless transmission module is connected to the upper computer.

Preferably, the collection device includes:

an acquisition module, which is used to acquire the EMG signal and acceleration signal on the skin surface;

a data storage module for storing the myoelectric signal and the acceleration signal; and

A first data transmission module for transmitting the myoelectric signal and the acceleration signal to the alarm device.

Preferably, the alarm device includes:

a detection module for detecting whether the electromyographic signal and the acceleration signal are received;

an alarm module, configured to issue an alarm when the detection module determines that the myoelectric signal and the acceleration signal are not received; and

A second data transmission module, configured to send the myoelectric signal and the acceleration signal to the signal processing device after the detection module determines that the myoelectric signal and the acceleration signal are received.

Preferably, the signal processing device includes:

a data processing module for performing three-stage amplification and high-pass filtering processing on the EMG signal; and

A third data transmission module, configured to send the processed EMG signal and the acceleration signal to the controller module.

Preferably, the wireless transmission module includes bluetooth, which is used for wireless communication with the upper computer through the bluetooth.

Preferably, the power module is used to supply power to the device.

Preferably, the host computer is configured to perform tremor analysis and processing on the myoelectric signal and the acceleration signal to generate a report.

The present invention has the following beneficial effects due to the adoption of the above technical solutions:

Through the cooperation of the stimulation module and the acquisition device, the collection of the EMG signal and the acceleration signal is realized; the EMG is generated and the tremor analysis and processing are realized through the cooperation of the host computer; it is not necessary to use a special research and production of a separate tremor instrument to determine whether the patient is not. Illness reduces costs. At present, the number of patients with Parkinson's disease is increasing. Most of them occurred in the elderly before, and now they are getting younger and younger. Therefore, the use of tremor analysis and electromyography can be used to diagnose the disease very well. For doctors , Diagnosing the disease through its own experience, and using the combination of medical equipment to make a diagnosis, greatly increases the accuracy of the diagnosis, and also provides help for timely detection of the disease and timely treatment.

Description of drawings

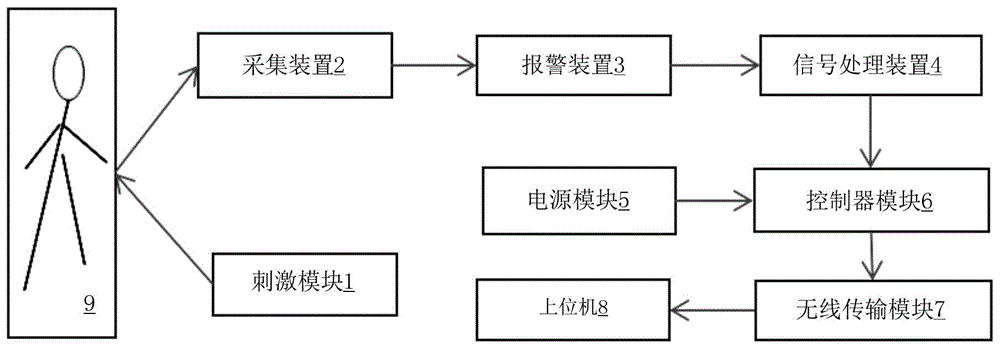

FIG. 1 is a schematic structural diagram of a myoelectric evoked potential instrument based on tremor analysis according to an embodiment of the present invention.

Detailed ways

A preferred embodiment of the present invention is given below according to FIG. 1 and described in detail, so that the functions and characteristics of the present invention can be better understood.

Referring to FIG. 1 , an electromyography evoked potential meter based on tremor analysis according to an embodiment of the present invention includes a stimulation module 1 , a collection device 2 , an alarm device 3 , a signal processing device 4 , a power supply module 5 , and a The controller module 6, a wireless transmission module 7 and the host computer 8; the stimulation module 1 is in contact with the detection part of the human body of a detected person 9; the acquisition device 2 is installed on the skin surface of the detected person 9; the acquisition device 2, the alarm device 3 , the signal processing device 4 and the controller module 6 are connected in sequence; the controller module 6 is also connected to the power supply module 5 and the wireless transmission module 7 ; the wireless transmission module 7 is connected to the upper computer 8 .

The stimulation module 1 is used to generate a stimulation source to stimulate the human body, so that it generates a stimulation signal, which acts on the human body through the stimulation electrodes.

The collection device 2 includes: a collection module, a data storage module and a first data transmission module. The acquisition module is used to collect the EMG signal and acceleration signal on the skin surface; the data storage module is used to store the EMG signal and the acceleration signal; the first data transmission module is used to transmit the EMG signal and the acceleration signal to the alarm device 3.

The alarm device 3 includes: a detection module, an alarm module and a second data transmission module. Among them, the detection module is used to detect whether the myoelectric signal and the acceleration signal are received; the alarm module is used to issue an alarm when the detection module judges that the myoelectric signal and the acceleration signal have not been received; the second data transmission module is used to detect After the module judges that the EMG signal and the acceleration signal are received, the EMG signal and the acceleration signal are sent to the signal processing device 4 .

The signal processing device 4 includes: a data processing module and a third data transmission module. The data processing module is used to perform three-stage amplification and high-pass filtering processing on the EMG signal; the third data transmission module is used to send the processed EMG signal and acceleration signal to the controller module 6 .

The wireless transmission module 7 includes bluetooth, and is used for wireless communication with the upper computer 8 through bluetooth.

The power module 5 is used to supply power to the device.

The upper computer 8 is used to perform tremor analysis and processing on the electromyographic signal and the acceleration signal, and generate a report.

An electromyography evoked potential instrument based on tremor analysis according to an embodiment of the present invention, the specific use method is as follows: (1) Complete the management of patient information, such as name, department, age, etc., in the electromyography evoked software. (2) Determine the detection site of the patient, and select the required number of channels. (3) Collect the acceleration data and EMG data of the patient. (4) Set the acquisition parameters, display the acquired data by waveform, and save the acquired data. (5) Analyze acceleration data and EMG data to obtain peak frequency, half-peak width, amplitude, etc. (6) Analysis is performed by the testing doctor, and the analysis results are displayed in the form of graphs and tables, including spectrograms, analysis result tables, etc. (7) Print the report.

An electromyographic evoked potential instrument based on tremor analysis according to an embodiment of the present invention, the specific working process is as follows: giving stimulation at the skin detection site to make it generate a stimulation signal, and then performing the electromyography signal by sticking the electrode patch on the detection site. and acceleration signal collection, because the signal is very weak, if the alarm device 3 does not collect the signal, it will issue an early warning signal to remind the medical staff to re-extract. The collected EMG signal and acceleration signal will be interfered by noise due to the transmission process, so it is amplified and filtered, and the analog signal is converted into a digital signal, which is sent to the control module for processing. The control module sends the digital signal to the upper computer 8 by controlling the wireless communication module, and finally the upper computer 8 performs analysis and processing, and finally generates a report.

The invention collects the acceleration and surface electromyography of the patient through the existing myoelectric amplifier, and the detected parts can be both upper limbs or double lower limbs. Six acquisition channels are used, and each limb collects one channel of acceleration signal and two mutual EMG signals of muscles in antagonistic relationship. If no signal is collected, an alarm prompt will be issued, so as to re-collect. By using an EMG amplifier and applying an accelerometer to analyze the frequency, amplitude and spectral harmonics of tremor, and collecting surface EMG data related to tremor, different EMG burst patterns are used to distinguish the type of tremor and whether the patient has Parkinson’s disease disease or other types of disease.

The present invention has been described in detail above with reference to the embodiments of the accompanying drawings, and those skilled in the art can make various modifications to the present invention according to the above description. Therefore, some details in the embodiments should not be construed to limit the present invention, and the present invention will take the scope defined by the appended claims as the protection scope of the present invention.

Claims (7)

1. a myoelectric evoked potential instrument based on tremor analysis, is characterized in that, comprises a stimulation module, a collection device, an alarm device, a signal processing device, a power supply module, a controller module, a wireless transmission module and a host computer; the stimulation module is in contact with a detection part of the human body to be detected; the acquisition device is installed on the skin surface of the detected person; the acquisition device, the alarm device, the signal processing device and the The controller modules are connected in sequence; the controller module is also connected to the power supply module and the wireless transmission module; the wireless transmission module is connected to the upper computer. 2. The myoelectric evoked potential meter based on tremor analysis according to claim 1, wherein the acquisition device comprises: an acquisition module, which is used to acquire the EMG signal and acceleration signal on the skin surface; a data storage module for storing the myoelectric signal and the acceleration signal; and A first data transmission module for transmitting the myoelectric signal and the acceleration signal to the alarm device. 3. The myoelectric evoked potential instrument based on tremor analysis according to claim 2, wherein the alarm device comprises: a detection module for detecting whether the electromyographic signal and the acceleration signal are received; an alarm module, configured to issue an alarm when the detection module determines that the myoelectric signal and the acceleration signal are not received; and A second data transmission module, configured to send the myoelectric signal and the acceleration signal to the signal processing device after the detection module determines that the myoelectric signal and the acceleration signal are received. 4. The myoelectric evoked potential instrument based on tremor analysis according to claim 3, wherein the signal processing device comprises: a data processing module for performing three-stage amplification and high-pass filtering processing on the EMG signal; and A third data transmission module, configured to send the processed EMG signal and the acceleration signal to the controller module. 5 . The myoelectric evoked potential instrument based on tremor analysis according to claim 4 , wherein the wireless transmission module comprises Bluetooth, which is used for wireless communication with the host computer through the Bluetooth. 6 . 6 . The myoelectric evoked potential meter based on tremor analysis according to claim 5 , wherein the power module is used to supply power to the device. 7 . 7 . The myoelectric evoked potential instrument based on tremor analysis according to claim 6 , wherein the host computer is configured to perform tremor analysis processing on the myoelectric signal and the acceleration signal to generate a report. 8 .
