CN114071623A - A method, apparatus, device and storage medium for fast switching of 5G beams - Google Patents

Abstract

The present application relates to the field of communication technologies, and in particular, to a method, apparatus, device and storage medium for fast switching of 5G beams. A method for fast switching of 5G beams, comprising: receiving a measurement report; calculating a network quality score of a current beam according to parameters in the measurement report; and a network quality score of a beam in an adjacent target neighborhood; The quality score and the network quality score of the adjacent target neighbor beams determine whether to switch the current beam to the target beam. In the method of the present invention, the network quality score of the current beam is calculated through the measurement report; whether to perform handover is judged according to the network quality score. Effectively reduce the interference problem caused by beam switching between 5G network users, improve beam resource utilization efficiency, and improve 5G network performance.

Description

A method, apparatus, device and storage medium for fast switching of 5G beams

【Technical field】

The present application relates to the field of communication technologies, and in particular, to a method, apparatus, device, and storage medium for fast switching of 5G beams.

【Background technique】

The era of 5G network is coming; and beam switching is a very common problem in the communication field. In the prior art, many beam switching methods have been proposed. Generally, the current beam is switched to the target beam according to the strength of the signal. Since the interference factor between the beams is not considered, often after the beam switching, there will still be relatively large beams. Interference, the experience is still not high.

[Content of the invention]

The embodiments of the present application provide a method, apparatus, device, and storage medium for fast switching of 5G beams, so as to solve the above problems.

In a first aspect, an embodiment of the present application provides a method for fast switching of 5G beams, including:

receive measurement reports;

Calculate the network quality score of the current beam according to the parameters in the measurement report; and the network quality score of the adjacent target neighbor beams;

Judging whether to switch the current beam to the target beam according to the network quality score of the current beam and the network quality score of the adjacent target neighbor beams;

If yes, switch the current beam to the target beam;

The parameters include: signal to interference plus noise ratio.

In a possible implementation manner, determining whether to switch the current beam to the target beam according to the network quality score of the current beam and the network quality score of the beams of the adjacent target neighbors includes:

Judging whether the network quality score of the target beam is greater than the network quality score of the current beam;

If yes; then judge that the network quality score of the target beam is greater than a predetermined threshold;

If yes, it is determined to switch the current beam to the target beam.

In a possible implementation manner, determining whether to switch the current beam to the target beam according to the network quality score of the current beam and the network quality score of the beams of the adjacent target neighbors includes:

Judging whether the network quality score of the target beam is greater than the network quality score of the current beam;

If so, determine whether the network quality score of the target beam is equal to or greater than a predetermined maximum threshold;

If yes, it is determined to switch the current beam to the target beam.

In a possible implementation, calculating the network quality score includes:

The network quality score is calculated according to the weighted measurement information; wherein the measurement information further includes: reference signal received power.

In a possible implementation, the following formula is used to calculate the network quality score:

Fitness=w _rsrp ×SSB_RSRP _f +w _sinr ×SSB_SINR _f ;

Among them, Fitness is the network quality score;

SSB_RSRP _f is the reference signal received power;

w _rsrp is the weight corresponding to the received power of the reference signal;

SSB_SINR _f is the signal to interference plus noise ratio;

w _sinr is the weight corresponding to the signal to interference plus noise ratio.

In a possible implementation manner, the weighted measurement information further includes:

The overlap parameter Overlap _f between the current beam of the SSB and the physical resource block;

Network quality score Fitness=w _rsrp ×SSB_RSRP _f +w _overlap ×Overlap _f +w _sinr ×SSB_SINR _f ;

Among them, w _overlap is the weight corresponding to the parameter Overlap.

In one embodiment, switching the current beam to the target beam includes: tracking the one-to-one quasi-co-location relationship between the TRS and the SSB beam based on a pre-established time-frequency offset, and switching the current beam to the target beam.

In a second aspect, an embodiment of the present application provides a device for fast switching of 5G beams; the device includes:

a receiving module for receiving measurement reports;

a network quality score calculation module, configured to calculate the network quality score of the current beam according to the parameters in the measurement report; and the network quality score of the adjacent target neighbor beams;

Judging module, for judging whether to switch the current beam to the target beam according to the network quality score of the current beam and the network quality score of the adjacent target adjacent area beam;

The switching module is configured to switch the current beam to the target beam if the judgment result of the judgment module is yes.

In a possible implementation manner, the judgment module is further configured to judge whether the network quality score of the target beam is greater than the network quality score of the current beam; if so; then judge that the network quality score of the target beam is greater than a predetermined value. threshold;

If yes, determine to switch the current beam to the target beam; or,

Judging whether the network quality score of the target beam is greater than the network quality score of the current beam;

If so, determine whether the network quality score of the target beam is equal to or greater than a predetermined maximum threshold;

If yes, it is determined to switch the current beam to the target beam.

In a possible implementation, the network quality score calculation module is also used to:

The network quality score is calculated according to the weighted measurement information; wherein the measurement information further includes: reference signal received power.

In a possible implementation, the following formula is used to calculate the network quality score:

Fitness=w _rsrp ×SSB_RSRP _f +w _sinr ×SSB_SINR _f ;

Among them, Fitness is the network quality score;

SSB_RSRP _f is the reference signal received power;

w _rsrp is the weight corresponding to the received power of the reference signal;

SSB_SINR _f is the signal to interference plus noise ratio;

w _sinr is the weight corresponding to the signal to interference plus noise ratio.

In a possible implementation, the network quality score calculation module is further configured to calculate the network quality score by using the following formula:

Network quality score Fitness=w _rsrp ×SSB_RSRP _f +w _overlap ×Overlap _f +w _sinr ×SSB_SINR _f .

In a possible implementation manner, the switching module is used to switch the current beam to the one-to-one quasi-co-location relationship between the TRS and the SSB beam based on the pre-established time-frequency offset tracking if the judgment result of the judgment module is yes. target beam.

In a third aspect, embodiments of the present application provide a device for fast switching of 5G beams, including: at least one processor; and at least one memory communicatively connected to the processor, wherein: the memory stores data that can be processed by the processor The program instructions executed by the processor can be invoked by the processor to execute the above-mentioned method.

In a fourth aspect, an embodiment of the present application provides a non-transitory computer-readable storage medium, where the non-transitory computer-readable storage medium stores computer instructions, and the computer instructions cause the computer to execute the above method.

The technical solution of the present application proposes a fast switching method of 5G beams based on refined time-frequency offset tracking, by weighting the target beam to score the network quality and scientifically predict the switching gain, and determine whether the switching requirements are met through the switching gain, and Using the TRS signal to determine the time-frequency deviation of the beam can effectively reduce the interference problem caused by beam switching between 5G network users, improve beam resource utilization efficiency, and improve 5G network performance.

【Description of drawings】

In order to illustrate the technical solutions of the embodiments of the present application more clearly, the following briefly introduces the accompanying drawings used in the embodiments. Obviously, the drawings in the following description are only some embodiments of the present application. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

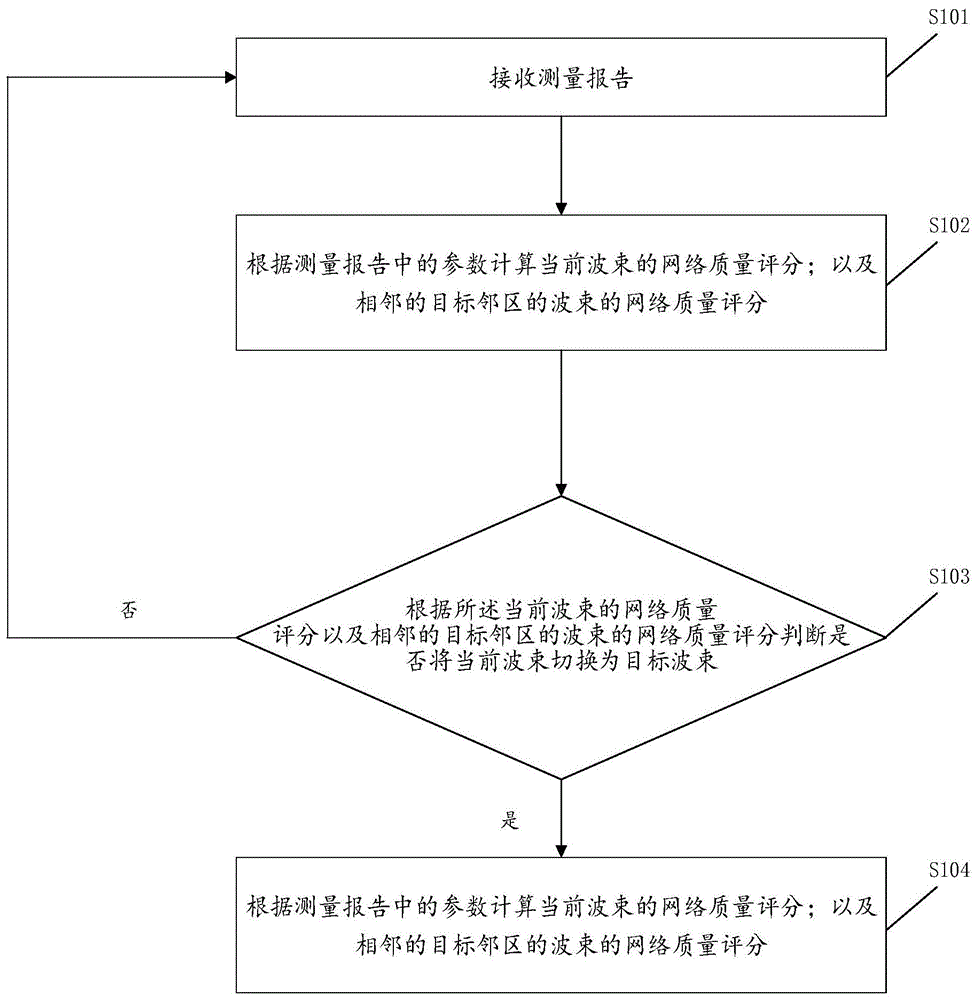

FIG. 1 is a flowchart of a method for fast switching of 5G beams proposed by this application;

FIG. 2 is a schematic structural diagram of a chain of 5G beam fast switching proposed by the application;

FIG. 3 is a flowchart of another method for fast switching of 5G beams proposed by the present application;

FIG. 4 is a schematic structural diagram of a device for fast switching of 5G beams proposed by the application;

FIG. 5 is a schematic structural diagram of a device for fast switching of 5G beams proposed by the present application.

【Detailed ways】

In order to better understand the technical solutions of the present application, the embodiments of the present application are described in detail below with reference to the accompanying drawings.

It should be clear that the described embodiments are only a part of the embodiments of the present application, but not all of the embodiments. Based on the embodiments in the present application, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present application.

The terms used in the embodiments of the present application are only for the purpose of describing specific embodiments, and are not intended to limit the present application. As used in the embodiments of this application and the appended claims, the singular forms "a," "the," and "the" are intended to include the plural forms as well, unless the context clearly dictates otherwise.

The current beam switching method, although there are many methods, does not take into account the interference between the signals, which will cause the mobile phone to switch to the adjacent cell. After using another beam, it will experience relatively strong interference, and the network quality is not high. , which affects the user experience.

Based on this, this application proposes a 5G beam fast switching method, including:

Step S101, receiving a measurement report;

Wherein, the measurement report includes: the SINR measurement report of each SSB beam; the report includes the parameter: signal-to-interference-plus-noise ratio. The measurement report may also be the reference signal received power RSRP of each SSB beam;

Step S102, calculating the network quality score of the current beam according to the parameters in the measurement report; and the network quality score of the beam of the adjacent target neighborhood;

Among them, the current cell has multiple adjacent cells; each adjacent cell occupies a target beam; in order to determine which adjacent cell is more suitable for handover, the mobile terminal UE needs to calculate the beam of each adjacent cell according to the measurement report. network quality.

Step S103, judging whether to switch the current beam to the target beam according to the network quality score of the current beam and the network quality score of the adjacent target neighbor beams;

If yes, go to step S104; if no, go to step S101;

Step S104, switching the current beam to the target beam.

According to the technical scheme of the present invention, the current network quality score is calculated and generated according to the measurement report including the signal to interference plus noise ratio; whether to switch to the target beam is determined according to the network quality score of the current beam and the target beam. In the calculation process of the network quality score, the factor that improves the interference noise is used to avoid the influence of the increase of interference after beam switching.

There are two ways to judge whether the target beam is qualified or not, which are described below:

In one embodiment, when judging whether to switch the current beam to the target beam according to the network quality score of the current beam and the network quality score of the adjacent target neighbor beam:

Judging whether the network quality score of the target beam is greater than the network quality score of the current beam;

If yes; then judge that the network quality score of the target beam is greater than a predetermined threshold;

If yes, it is determined to switch the current beam to the target beam.

In one embodiment, when judging whether the network quality score of the target beam is greater than the network quality score of the current beam:

If so, determine whether the network quality score of the target beam is equal to or greater than a predetermined maximum threshold;

If yes, it is determined to switch the current beam to the target beam.

In one embodiment, when calculating the network quality score, the network quality score may be calculated according to weighted measurement information; wherein the measurement information includes: reference signal received power and signal-to-interference-plus-noise ratio.

To elaborate, in one embodiment, the following formula is used to calculate the network quality score:

Fitness=W _rsrp ×SSB_RSRP _f +W _sinr ×SSB_SINR _f ;

Among them, Fitness is the network quality score;

SSB_RSRP _f is the reference signal received power;

w _rsrp is the weight corresponding to the received power of the reference signal;

SSB_SINR _f is the signal to interference plus noise ratio;

w _sinr is the weight corresponding to the signal to interference plus noise ratio.

In an embodiment, the weighted measurement information further includes: Overlap _f , an overlap parameter between the current beam of the SSB and the physical resource block;

The above-mentioned parameter Overlap _f can be obtained by analytical calculation according to the MR measurement report.

Network quality score Fitness=w _rsrp ×SSB_RSRP _f +w _overlap ×Overlap _f +w _sinr ×SSB_SINR _f ;

Among them, w _overlap is the weight corresponding to the parameter Overlap.

Among them, the weights of the parameters are set according to the needs. If the interference factor of the signal is mainly considered, the weights w _sinr are set to be larger. If the endpoint considers the signal strength, the reference signal received power w _rsrp is set to be larger; if the parameter Overlap does not need to be considered, the corresponding weight w _overlap can be set to zero.

For example, w _sinr can be set to 0.4; w _rsrp can be set to 0.5; w _overlap can be set to 0.1;

Alternatively, w _sinr can be set to 0.5; w _rsrp can be set to 0.4; w _overlap can be set to 0.1.

Due to the use of weights, the proportion of each parameter can be flexibly adjusted; the weight of w _sinr in this application can be set to be the largest; thus, the network quality can be calculated according to the factors of signal interference; therefore, the calculated quality score is more accurate It reflects the interference between signals, which is beneficial to more accurately determine whether to switch or not, and avoids the occurrence of more interference after beam switching, which affects the user experience.

In one embodiment, if the result of the judgment in step S103 is yes, the one-to-one QCL (Quasi Co-Location, quasi co-location) relationship between the TRS and the SSB beam is tracked based on the pre-established time-frequency offset, and the current The beam is switched to the target beam.

The following describes in detail a TCI-state chain for 5G beam switching proposed by the present invention, referring to a schematic diagram of a TCI-state chain relationship for 5G beam switching shown in FIG. 2 ;

In the figure, TRS and SSB are in one-to-one correspondence; if there are 16 SSB beams; configure 16 time-frequency offset tracking TRS; each TRS tracks one SSB beam; if it is determined to switch to one of the beams, only need Activate the ID number of the target SSB to activate the SSB; assuming that the currently occupied beam is SSB0; if switching to SSB1; then only the link of SSB1 needs to be activated, and then switching to the beam of SSB1.

Configure PDCCH/PDSCH DMRS and refined time-frequency offset tracking TRS (Tracking RS, time-frequency offset tracking) and SSB (SS/PBCHBlock) chain mapping QCL (Quasi Co-Location) required by 5G network through TCI (Transmission Configuration Indication) state , quasi-co-location) relationship, and obtain the currently effective QCL relationship.

(1) The 5G network configures the 5G UE to measure the RSRP (Reference Signal Receiving Power) of each SSB (SS/PBCH Block), and configure the 5G UE to report the strongest SSB beam and the corresponding L1-RSRP;

(2) The 5G network configures the chain relationship of the TCI (Transmission Configuration Indication) state, and the QCL (Quasi Co-Location, quasi co-location) source is configured to the SSB;

(3) The 5G network activates the TCI state id corresponding to the optimal SSB through the MAC CE, and the UE quickly switches to the target beam.

Another method for beam switching is introduced below, referring to the flowchart of another beam switching method shown in FIG. 3 ; the method includes:

Step S301, configure the UE to measure the RSRP and SINR information of each SSB;

Step S302, configuring the chain relationship of multiple sets of TCI states;

Step S303, configure refined time-frequency offset tracking measurement;

Step S304, obtaining RSRP and SINR measurement reports for measuring each SSB;

Step S305, obtaining a refined time-frequency offset tracking TRS measurement report;

Step S306, performing network quality scoring based on weighted target switching beam measurement information;

Step S307, determining the target beam switching gain according to the network quality score;

Step S308, determine whether the above-mentioned target beam switching gain is greater than zero; if so, go to step S309, if not, go to step S304;

Step S309, taking the target beam as an alternative; calculating and judging in turn whether the switching gain of each other target switching beam is greater than zero; listing the target beam whose switching gain is greater than zero in the set of alternatives; from the set of alternatives Select the target beam corresponding to the maximum gain value as the optimal SSB switching target beam;

Step S310, activate the TCI state id corresponding to the optimal SSB beam through the MAC CE

Step S311, the UE quickly switches to the optimal SSB beam.

In the second aspect, the embodiments of the present application provide a device for fast switching of 5G beams; refer to the schematic structural diagram of a device for fast switching of 5G beams shown in FIG. 4 ; the device includes:

a receiving module 41, configured to receive a measurement report;

a network quality score calculation module 42, configured to calculate the network quality score of the current beam according to the parameters in the measurement report; and the network quality score of the beams of the adjacent target neighbor cells;

Judging module 43, for judging whether to switch the current beam to the target beam according to the network quality score of the current beam and the network quality score of the beam of the adjacent target neighborhood;

The switching module 44 is configured to switch the current beam to the target beam if the judgment result of the judgment module is yes.

In a possible implementation manner, the judging module 44 is further configured to judge whether the network quality score of the target beam is greater than the network quality score of the current beam; if so; then judge that the network quality score of the target beam is greater than a predetermined value. threshold;

If yes, determine to switch the current beam to the target beam; or,

Judging whether the network quality score of the target beam is greater than the network quality score of the current beam;

If so, determine whether the network quality score of the target beam is equal to or greater than a predetermined maximum threshold;

If yes, it is determined to switch the current beam to the target beam.

In a possible implementation manner, the network quality score calculation module 42 is further configured to:

The network quality score is calculated according to the weighted measurement information, wherein the measurement information includes: reference signal received power and signal-to-interference-plus-noise ratio.

In a possible implementation, the following formula is used to calculate the network quality score:

Fitness=w _rsrp ×SSB_RSRP _f +w _sinr ×SSB_SINR _f ;

Among them, Fitness is the network quality score;

SSB_RSRP _f is the reference signal received power;

w _rsrp is the weight corresponding to the received power of the reference signal;

SSB_SINR _f is the signal to interference plus noise ratio;

w _sinr is the weight corresponding to the signal to interference plus noise ratio.

In a possible implementation, the network quality score calculation module 42 is further configured to calculate the network quality score by using the following formula:

Network quality score Fitness=w _rsrp ×SSB_RSRP _f +w _overlap ×Overlap _f +w _sinr ×SSB_SINR _f .

In a possible implementation manner, the switching module 44 is also used to, if the result of the judgment of the judgment module is yes, track the one-to-one quasi-co-location relationship between the TRS and the SSB beam based on the pre-established time-frequency offset, and convert the current beam. Switch to the target beam.

In a third aspect, an embodiment of the present application provides a device for fast switching of 5G beams. Referring to the schematic structural diagram of a device for fast switching of 5G beams shown in FIG. 5 , the device includes: at least one processor 51 ; and At least one memory 53 connected in communication with the processor 51, wherein: the memory 53 stores program instructions executable by the processor 51, and the processor 51 invokes the program instructions to execute the above method.

Communication bus 54 represents one or more of several types of bus structures, including a memory bus or memory controller, a peripheral bus, a graphics acceleration port, a processor, or a local bus using any of a variety of bus structures. For example, these architectures include but are not limited to Industry Standard Architecture (hereinafter referred to as: ISA) bus, Micro Channel Architecture (hereinafter referred to as: MAC) bus, enhanced ISA bus, video electronic standard Association (Video Electronics Standards Association; hereinafter referred to as: VESA) local bus and Peripheral Component Interconnection (Peripheral Component Interconnection; hereinafter referred to as: PCI) bus.

Electronic devices typically include various computer system readable media. These media can be any available media that can be accessed by the electronic device, including both volatile and nonvolatile media, removable and non-removable media.

The memory 53 may include a computer system readable medium in the form of volatile memory, such as random access memory (Random Access Memory; hereinafter referred to as: RAM) and/or cache memory. The electronic device may further include other removable/non-removable, volatile/non-volatile computer system storage media. Although not shown in FIG. 5, a magnetic disk drive for reading and writing to removable non-volatile magnetic disks (eg, "floppy disks") and removable non-volatile optical disks (eg, compact disk read only memory) may be provided. Disc Read Only Memory; hereinafter referred to as: CD-ROM), Digital Video Disc Read Only Memory (hereinafter referred to as: DVD-ROM) or other optical media) read and write optical disc drives. In these cases, each drive may be connected to communication bus 54 through one or more data media interfaces. The memory 53 may include at least one program product having a set (eg, at least one) of program modules configured to perform the functions of various embodiments of the present application.

A program/utility having a set (at least one) of program modules that may be stored in memory 53, such program modules including, but not limited to, an operating system, one or more application programs, other program modules, and program data , each or some combination of these examples may include an implementation of a network environment. Program modules generally perform the functions and/or methods of the embodiments described herein.

The electronic device may also communicate with one or more external devices (eg, keyboards, pointing devices, displays, etc.), may also communicate with one or more devices that enable a user to interact with the electronic device, and/or communicate with the electronic device Any device (eg, network card, modem, etc.) capable of communicating with one or more other computing devices. Such communication may take place through the communication interface 52 . In addition, the electronic device can also communicate with one or more networks (eg, Local Area Network (hereinafter referred to as: LAN), Wide Area Network (hereinafter referred to as: WAN) and/or through a network adapter (not shown in FIG. 5 ) A public network, such as the Internet, the aforementioned network adapter can communicate with other modules of the electronic device via the communication bus 54 . It should be understood that, although not shown in Figure 5, other hardware and/or software modules may be used in conjunction with the electronic device, including but not limited to: microcode, device drivers, redundant processing units, external disk drive arrays, Redundant Arrays of Independent Drives; hereinafter referred to as: RAID) systems, tape drives and data backup storage systems.

In a fourth aspect, embodiments of the present application further provide a non-transitory computer-readable storage medium, where the non-transitory computer-readable storage medium stores computer instructions, and the computer instructions cause the computer to execute the above method.

The aforementioned non-transitory computer-readable storage media may employ any combination of one or more computer-readable media. The computer-readable medium may be a computer-readable signal medium or a computer-readable storage medium. The computer-readable storage medium can be, for example, but not limited to, an electrical, magnetic, optical, electromagnetic, infrared, or semiconductor system, apparatus or device, or a combination of any of the above. More specific examples (non-exhaustive list) of computer readable storage media include: electrical connections with one or more wires, portable computer disks, hard disks, random access memory (RAM), read only memory (Read Only Memory) ; hereinafter referred to as: ROM), erasable programmable read only memory (Erasable Programmable Read Only Memory; hereinafter referred to as: EPROM) or flash memory, optical fiber, portable compact disk read only memory (CD-ROM), optical storage devices, magnetic storage devices , or any suitable combination of the above. In this document, a computer-readable storage medium can be any tangible medium that contains or stores a program that can be used by or in conjunction with an instruction execution system, apparatus, or device.

A computer-readable signal medium may include a propagated data signal in baseband or as part of a carrier wave, with computer-readable program code embodied thereon. Such propagated data signals may take a variety of forms including, but not limited to, electromagnetic signals, optical signals, or any suitable combination of the foregoing. A computer-readable signal medium can also be any computer-readable medium other than a computer-readable storage medium that can transmit, propagate, or transport the program for use by or in connection with the instruction execution system, apparatus, or device .

Program code embodied on a computer readable medium may be transmitted using any suitable medium including, but not limited to, wireless, wireline, optical fiber cable, RF, etc., or any suitable combination of the foregoing.

Computer program code for performing the operations of the present application may be written in one or more programming languages, including object-oriented programming languages—such as Java, Smalltalk, C++, but also conventional Procedural programming language - such as the "C" language or similar programming language. The program code may execute entirely on the user's computer, partly on the user's computer, as a stand-alone software package, partly on the user's computer and partly on a remote computer, or entirely on the remote computer or server. In the case of a remote computer, the remote computer may be connected to the user's computer through any kind of network, including a Local Area Network (hereinafter referred to as: LAN) or a Wide Area Network (hereinafter referred to as: WAN), or may be connected to an external computer (eg using an internet service provider to connect via the internet)

In the description of this specification, description with reference to the terms "one embodiment," "some embodiments," "example," "specific example," or "some examples", etc., mean specific features described in connection with the embodiment or example , structure, material or feature is included in at least one embodiment or example of the present application. In this specification, schematic representations of the above terms are not necessarily directed to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples. Furthermore, those skilled in the art may combine and combine the different embodiments or examples described in this specification, as well as the features of the different embodiments or examples, without conflicting each other.

Any process or method description in the flowcharts or otherwise described herein may be understood to represent a module, segment or portion of code comprising one or more executable instructions for implementing custom logical functions or steps of the process , and the scope of the preferred embodiments of the present application includes alternative implementations in which the functions may be performed out of the order shown or discussed, including performing the functions substantially concurrently or in the reverse order depending upon the functions involved, which should It is understood by those skilled in the art to which the embodiments of the present application belong.

In the several embodiments provided in this application, it should be understood that the disclosed apparatus and method may be implemented in other manners. For example, the device embodiments described above are only illustrative. For example, the division of the units is only a logical function division. In actual implementation, there may be other division methods. For example, multiple modules may be combined or Integration into another device, or some features may be omitted, or not implemented. On the other hand, the shown or discussed mutual coupling or direct coupling or communication connection may be through some interfaces, indirect coupling or communication connection of modules or units, and may be in electrical, mechanical or other forms.

In addition, each functional unit in each embodiment of the present application may be integrated into one processing unit, or each unit may exist physically alone, or two or more units may be integrated into one unit. The above-mentioned integrated unit may be implemented in the form of hardware, or may be implemented in the form of hardware plus software functional units.

The above-mentioned integrated units implemented in the form of software functional units can be stored in a computer-readable storage medium. The above-mentioned software functional unit is stored in a storage medium, and includes several instructions to make a computer device (which may be a personal computer, a server, or a network device, etc.) or a processor (Processor) to execute the methods described in the various embodiments of the present application. some steps. The aforementioned storage media include: U disk, removable hard disk, Read-Only Memory (Read-Only Memory; hereinafter referred to as: ROM), Random Access Memory (Random Access Memory; hereinafter referred to as: RAM), magnetic disk or optical disk and other various A medium on which program code can be stored.

The above descriptions are only preferred embodiments of the present application, and are not intended to limit the present application. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present application shall be included in the present application. within the scope of protection.

Claims (10)

1. A5G beam fast switching method is characterized by comprising the following steps:

receiving a measurement report;

calculating the network quality score of the current wave beam according to the parameters in the measurement report; and the network quality score of the beam of the adjacent target neighbor cell;

judging whether to switch the current wave beam into a target wave beam according to the network quality score of the current wave beam and the network quality score of the wave beam of the adjacent target adjacent cell;

if yes, switching the current beam into a target beam;

the parameters include: signal to interference plus noise ratio.

2. The method of claim 1, wherein the determining whether to switch the current beam to the target beam according to the network quality score of the current beam and the network quality scores of the beams of the neighboring target neighbors comprises:

judging whether the network quality score of the target wave beam is larger than the network quality score of the current wave beam;

if so; judging that the network quality score of the target wave beam is greater than a preset threshold value;

if so, determining to switch the current beam to the target beam.

3. The method of claim 1, wherein the determining whether to switch the current beam to the target beam according to the network quality score of the current beam and the network quality scores of the beams of the neighboring target neighbors comprises:

judging whether the network quality score of the target wave beam is larger than the network quality score of the current wave beam;

if yes, judging whether the network quality score of the target beam is larger than a preset maximum threshold value or not;

if so, determining to switch the current beam to the target beam.

4. The method of claim 1, wherein computing a network quality score comprises:

calculating a network quality score according to the weighted measurement information; wherein the measurement information further includes: the reference signal received power.

5. The method of claim 4, wherein the network quality score is calculated using the following formula:

Fitness＝w_rsrp×SSB_RSRP_f+w_sinr×SSB_SINR_f；

wherein, Fitness is network quality score;

SSB_RSRP_freceiving power for a reference signal;

w_rsrpthe weight value corresponding to the reference signal receiving power;

SSB_SINR_fis the signal to interference plus noise ratio;

w_sinrthe weights corresponding to the signal to interference plus noise ratio.

6. The 5G beam fast handoff method of claim 4 wherein the weighted measurement information further comprises: overlap parameter Overlap of SSB current wave beam and physical resource block_f；

Network quality scoringFitness＝w_rsrp×SSB_RSRP_f+w_overlap×Overlap_f+w_sinr×SSB_SINR_f；

Wherein, w_overlapThe weight value corresponding to the parameter Overlap.

7. The 5G beam fast switching method of claim 1,

if so, switching the current beam to a target beam based on a pre-established quasi co-location relation of one-to-one correspondence of time frequency offset tracking TRS and SSB beams.

8. A 5G beam fast switching apparatus, comprising:

a receiving module for receiving a measurement report;

the network quality score calculating module is used for calculating the network quality score of the current beam according to the parameters in the measurement report; and the network quality score of the beam of the adjacent target neighbor cell;

the judging module is used for judging whether to switch the current wave beam into the target wave beam according to the network quality score of the current wave beam and the network quality score of the wave beam of the adjacent target adjacent cell;

and the switching module is used for switching the current beam into the target beam if the judgment result of the judgment module is yes.

9. An electronic device, comprising:

at least one processor; and

at least one memory communicatively coupled to the processor, wherein:

the memory stores program instructions executable by the processor, the processor invoking the program instructions to perform the method of any of claims 1 to 7.

10. A non-transitory computer-readable storage medium storing computer instructions that cause a computer to perform the method of any one of claims 1 to 7.

Images
