Abstract
本发明提供了一种并行正则表达式匹配器，包括：软件预编译单元，被配置为将正则表达式规则集中的多个正则表达式规则进行预编译，转换为符合硬件处理行为的格式的正则表达式规则，以供硬件匹配电路进行匹配；硬件匹配电路，被配置为将待匹配报文和符合硬件处理行为的格式的正则表达式规则进行匹配，得出匹配结果。
The present invention provides a parallel regular expression matcher, comprising: a software precompiling unit configured to precompile multiple regular expression rules in a regular expression rule set, and convert them into regular expressions in a format conforming to hardware processing behaviors The expression rule is used for matching by the hardware matching circuit; the hardware matching circuit is configured to match the to-be-matched packet with the regular expression rule in the format conforming to the hardware processing behavior to obtain a matching result.
Description
Technical Field
The invention relates to the technical field of regular expressions, in particular to a parallel regular expression matcher.
Background
Regular expressions are literal patterns consisting of common characters (letters/numbers/symbols) and special characters (also called "meta characters") that describe one or more strings of characters to be matched when searching for text. It is widely used in various fields of data processing. In high speed, large bandwidth network and database applications, extremely high requirements are placed on the processing speed of regular expressions. This requirement mainly includes two aspects: (1) processing bandwidth of data to be matched; (2) the number of regular expressions matched in parallel.
The current products are mainly implemented in software. Known regular expression matching software (libraries) contain: POSIX RE API, PCRE, Google RE2, Onikuma, Hyperscan, etc. At the heart of the implementation is a finite state automaton, which can be classified as Deterministic Finite Automata (DFA), non-deterministic finite automata (NFA) and combinations thereof. For example, fig. 1 shows a finite automaton constructed for regular expression a (b | c). Each circle represents a state and the double-line circle represents the end (match) state. When characters of the text are input into the automaton one by one, if the current character is the same as the character on the arrow, the next state can be advanced by the arrow. If the end state can be reached, this indicates that a match has occurred (Matched). If the end state is not reached when all characters of the text are scanned, no match is indicated.
The regular expression matching of software is characterized by flexible use and has the defects of low speed and limited parallel processing capability. The software (libraries) described above use methods such as state graph merging of multiple regular expressions, multithreading, phased matching, utilization of Single Instruction Multiple Data (SIMD) instructions, etc. to ameliorate the above disadvantages, but still fail to meet the increasing data processing speed requirements. For example, at present, Hyperscan, which is the fastest and widely adopted by mainstream data center manufacturers, can achieve the single-thread matching speed of a Snort regular expression set of 7 Gbit/sec. However, multithreading does not provide a linear speed increase, and differences in the text to be scanned can sometimes significantly affect speed. Other commonly used regular expression matching software (libraries) tend to have matching speeds of only tens or hundreds of mbits/sec. Furthermore, software algorithms are difficult to implement if the regular expression processing is to be embedded in a network processing device or a digital signal processing device (such devices often have no CPU or a low performance microcontroller).
The existing digital circuit implementation of regular expressions, which are generally simple DFA (deterministic finite state automata) or NFA (non-deterministic finite state automata) circuits, can achieve better processing speed (e.g., several Gbit/sec to several tens of Gbit/s) for a single regular expression, but when the number of regular expressions increases, the speed decreases rapidly in inverse proportion. When the number of regular expressions is 100, the speed is not as high as that of software, and the practical application value is low.
The problems with the current products/processes are: software regular expression implementations are flexible to use, but are slow and cannot keep up with the data entry speed of today's high speed networks (25Gbps, 100Gbps) or high speed interfaces (PCIe Gen3x 16). The existing digital circuit implementation cannot efficiently process a plurality of regular expressions simultaneously.
Disclosure of Invention
The invention aims to provide a parallel regular expression matcher so as to solve the problem that the conventional regular expression is slow in speed or cannot be processed in parallel.
In order to solve the above technical problem, the present invention provides a parallel regular expression matcher, including:
the software pre-compiling unit is configured to pre-compile a plurality of regular expression rules in the regular expression rule set, convert the regular expression rules into the regular expression rules in a format conforming to the hardware processing behavior, and enable the hardware matching circuit to match the regular expression rules;
and the hardware matching circuit is configured to match the message to be matched with the regular expression rule in the format conforming to the hardware processing behavior to obtain a matching result.
Optionally, in the parallel regular expression matcher, the software pre-compiling unit includes a splitting module, a state merging module, and a configuration table module, where:
the splitting module is used for splitting a plurality of regular expression rules into pure character strings and regular units;
the state merging module is used for merging the states of the pure character strings and the regular units, extracting the same pure character strings and regular units and distinguishing different pure character strings and regular units;
and the configuration table module encapsulates the pure character strings and the regular units into a regular expression pattern library according to a format conforming to the hardware processing behavior, so as to be used for carrying out parameter configuration and state table initialization on the hardware matching circuit.
Optionally, in the parallel regular expression matcher, the regular expression pattern library includes a pure character string group, a regular unit group, and a metadata group, where:
the pure character string group is used for storing pure character strings and configuring the relation between the pure character strings according to whether the pure character strings are the same or not;
the regular unit group is used for storing the regular units and configuring the relationship among the regular units according to whether the regular units are the same or not;
and the metadata group is used for storing metadata and configuring the relation between the pure character string and the regular unit according to the metadata.
Optionally, in the parallel regular expression matcher, the hardware matching circuit includes a pattern input module, a data input module, a regular matching core module, and a matching result output module, where:
the mode input module performs parameter configuration on the regular matching core module according to the pure character strings in the pure character string group and the regular units in the regular unit group, and performs state table initialization on the regular matching core module according to the metadata in the metadata group;
the data input module is used for providing a message to be matched to the regular matching core module;
the regular matching core module is used for matching the message to be matched with the regular expression rule to generate a matching result;
the matching result output module is used for outputting a matching result;
the mode input module, the data input module and the matching result output module are in bus protocol bridging or format conversion with the regular matching core module.
Optionally, in the parallel regular expression matcher, the regular matching core module includes a character string preprocessing module, an operation scheduling module, and an execution engine module, where:
the character string preprocessing module is used for scanning the message to be matched according to the pure character strings in the pure character string group to generate a character string queue;
the operation scheduling module is used for executing a corresponding program according to the character string queue and generating a request queue;
and the execution engine module scans the messages to be matched according to the request queue and judges whether the messages to be matched are matched.
Optionally, in the parallel regular expression matcher, the character string preprocessing module includes a text scanning module and a text confirmation module, where:
the text scanning module performs pre-matching on the pure character strings in the message to be matched according to the pure character strings in the pure character string group by using a Shift-OR algorithm circuit to obtain a coarse screening result;
and the text confirmation module confirms the pure character strings in the coarse screening result again according to the pure character strings in the pure character string group by using a hardware Hash algorithm to obtain a fine screening result.
Optionally, in the parallel regular expression matcher, the Shift-OR algorithm circuit simultaneously performs pipeline scanning on 16 characters;
after scanning by a Shift-OR algorithm circuit, putting the byte sequence number to be confirmed of the matched data packet into a first-in first-out queue of an index data structure of a text confirmation module for the text confirmation module to use;
the text confirmation module reads in a first-in first-out queue of an index data structure, forms and queries an index table of a fine screening module to obtain a byte sequence number of a matched data packet, then calculates a hash value, and uses the hash value to search a character string information table to obtain a character string length and a character string address;
a string queue is generated from the string length and the string address.
Optionally, in the parallel regular expression matcher, the operation scheduler is responsible for forming a corresponding program according to the character string request information, and selecting a corresponding execution engine module, where each program includes an instruction, an operation code, and an operand, and sends each instruction to the request queue for the subsequent execution engine module to call.
Optionally, in the parallel regular expression matcher, the execution engine module includes a character comparison engine, an NFA engine, a report engine, and a message buffer;
the request queue comprises a string comparison request, a regular NFA request and a result report request;
the character comparison engine accurately compares the fine screening results according to the character string comparison request, and the final comparison comprises the step of comparing the ultra-long pure character strings one by one;
the NFA engine performs corresponding NFA state machine operation on a message to be matched according to a regular NFA request, wherein the NFA state machine operation comprises selecting corresponding NFA in a field corresponding to the message to be matched according to input request information, performing NFA state machine operation, and finally generating a matching result for a subsequent report engine to use;
the report engine outputs a final matching result according to the result report request, and comprises the steps of calculating a matching position according to the output of the character comparison engine and the NFA engine, extracting a matched serial number, obtaining a matching result and outputting the matching result;
the message buffer is used for storing and providing message data to be matched required by various execution engines.
Optionally, in the parallel regular expression matcher, the quantity ratio and the operating frequency of the character comparison engine and the NFA engine are balanced according to software performance evaluation and physical characteristics of a hardware circuit;
selecting a typically applied regular expression rule set and a message to be matched for performance estimation, determining the scale of a character string preprocessing module under a certain matching probability, and determining the number and the proper proportion of a character comparison engine and an NFA engine;
and further determining the parameter configuration of each module according to the physical characteristics of the hardware implementation mode.
In the parallel regular expression matcher provided by the invention, a plurality of regular expression rules in the regular expression rule set are precompiled by a software precompiling unit and are converted into the regular expression rules in accordance with the format of the hardware processing behavior for being matched by a hardware matching circuit, so that the hardware matching circuit can match a message to be matched with the regular expression rules in accordance with the format of the hardware processing behavior to obtain a matching result, a novel digital circuit matched by parallel regular expressions is realized, and the parallel matching of a plurality of regular expressions can be supported.
Drawings
FIG. 1 is a schematic diagram of a finite automaton constructed by a conventional regular expression a (b | c);
FIG. 2 is a schematic diagram of a parallel regular expression matcher in an embodiment of the present invention;
FIG. 3 is a schematic diagram of a regular expression matching core in a hardware circuit of a parallel regular expression matcher in an embodiment of the present invention;
FIG. 4 is a schematic diagram of a text scanning module of a regular expression matching core in an embodiment of the present invention;
FIG. 5 is a block diagram of a text validation module for a regular expression matching kernel in an embodiment of the invention;
FIG. 6 is a schematic diagram of an operation scheduler for a regular expression matching core in one embodiment of the invention;
FIG. 7 is a schematic diagram of a string comparison engine of a regular expression matching core in an embodiment of the invention;
FIG. 8 is a diagram of an NFA engine for regular expression matching core in an embodiment of the invention.
Detailed Description
In the present invention, the embodiments are only intended to illustrate the aspects of the present invention, and should not be construed as limiting.
It is further noted herein that in embodiments of the present invention, only a portion of the components or assemblies may be shown for clarity and simplicity, but those of ordinary skill in the art will appreciate that, given the teachings of the present invention, required components or assemblies may be added as needed in a particular scenario. Furthermore, features from different embodiments of the invention may be combined with each other, unless otherwise indicated. For example, a feature of the second embodiment may be substituted for a corresponding or functionally equivalent or similar feature of the first embodiment, and the resulting embodiments are likewise within the scope of the disclosure or recitation of the present application.
It is also noted herein that, within the scope of the present invention, the terms "same", "equal", and the like do not mean that the two values are absolutely equal, but allow some reasonable error, that is, the terms also encompass "substantially the same", "substantially equal". By analogy, in the present invention, the terms "perpendicular", "parallel" and the like in the directions of the tables also cover the meanings of "substantially perpendicular", "substantially parallel".
The numbering of the steps of the methods of the present invention does not limit the order of execution of the steps of the methods. Unless specifically stated, the method steps may be performed in a different order.
The parallel regular expression matcher provided by the invention is further explained in detail in the following by combining the drawings and specific embodiments. Advantages and features of the present invention will become apparent from the following description and from the claims. It is to be noted that the drawings are in a very simplified form and are not to precise scale, which is merely for the purpose of facilitating and distinctly claiming the embodiments of the present invention.
Furthermore, features from different embodiments of the invention may be combined with each other, unless otherwise indicated. For example, a feature of the second embodiment may be substituted for a corresponding or functionally equivalent or similar feature of the first embodiment, and the resulting embodiments are likewise within the scope of the disclosure or recitation of the present application.
The core idea of the invention is to provide a parallel regular expression matcher to solve the problem that the existing regular expression is slow or cannot be processed in parallel.
To achieve the above idea, the present invention provides a parallel regular expression matcher, including: the software pre-compiling unit is configured to pre-compile a plurality of regular expression rules in the regular expression rule set, convert the regular expression rules into the regular expression rules in a format conforming to the hardware processing behavior, and enable the hardware matching circuit to match the regular expression rules; and the hardware matching circuit is configured to match the message to be matched with the regular expression rule in the format conforming to the hardware processing behavior to obtain a matching result.
The novel parallel regular expression matching digital circuit provided by the invention can support parallel matching of a plurality of regular expressions (for example, 1000 regular expressions), and simultaneously improves the matching throughput bandwidth (more than 50 Gbit/s).
The invention provides a novel regular expression digital circuit implementation method and a novel regular expression digital circuit implementation device, which can efficiently process a large number of parallel regular expressions according to the principle as shown in figure 2:
and splitting the regular expression rule into a pure String (live String) and a regular unit (Regex), and respectively carrying out matching scanning. For example, the regular expression is hello (e | f), which can be separated into a pure string hello and a regular cell (e | f). If the substring hello of a regular expression fails to match, then the entire regular expression must not match. Further, the substring can be further distinguished into a prefix (prefix) and a suffix (suffix).
And in the software compiling process, performing state merging on a plurality of regular expressions. Multiple regular expressions in practical application have certain similarity: containing the same substrings or the same regular finite automata structure. The partial differentiation and extraction, which can be "merged" for this part, is the key to improving the parallel quantity processing capability for regular expressions.
A multi-stage scanning method. In order to achieve a target processing speed with a smaller hardware circuit scale, three-stage scanning is divided: the first stage preprocesses the pure character string, and can judge that the text (message) to be scanned and the sub character string are not matched with each other OR are matched with each other definitely (the messages which are not matched with each other definitely are directly skipped over subsequently), and the hardware Shift-OR algorithm with low use cost and high efficiency is called as a coarse screen; the second stage is to Confirm (Confirm) the text of "possible matching", it adopts the hardware hash (hash) algorithm, can further Confirm the matching situation of the pure string, judge "affirmatively mismatch" and "most likely match" message, call "fine screen"; the third level is an architecture similar to a processor. The working principle is as follows: the 'operation and request co-processor' performs operation scheduling on the preprocessing result, and selects a corresponding Program (Program) to execute. A Program (Program) execution unit includes three types of engines: a string matching engine, a canonical NFA engine, and a results reporting engine. Wherein the number of string matching engines and regular NFA engines can be configured. Depending on the preprocessing results, the operation scheduler is responsible for generating the corresponding request sequences, possibly invoking one, two or three of the execution units.
The embodiment of the invention provides a parallel regular expression matcher, which comprises: the software pre-compiling unit is configured to pre-compile a plurality of regular expression rules in the regular expression rule set, convert the regular expression rules into the regular expression rules in a format conforming to the hardware processing behavior, and enable the hardware matching circuit to match the regular expression rules; and the hardware matching circuit is configured to match the message to be matched with the regular expression rule in the format conforming to the hardware processing behavior to obtain a matching result.
In an embodiment of the present invention, in the parallel regular expression matcher, the software pre-compiling unit includes a splitting module, a state merging module, and a configuration table module, where: the splitting module is used for splitting a plurality of regular expression rules into pure character strings and regular units; the state merging module is used for merging the states of the pure character strings and the regular units, extracting the same pure character strings and regular units and distinguishing different pure character strings and regular units; and the configuration table module encapsulates the pure character strings and the regular units into a regular expression pattern library according to a format conforming to the hardware processing behavior, so as to be used for carrying out parameter configuration and state table initialization on the hardware matching circuit. Specifically, a software method is used for carrying out state merging (precompilation) on a plurality of regular expressions, and in the precompilation process, the regular expressions are divided into a pure character string group and a regular unit group. And then packaging the regular expression matching cores into a regular expression pattern library (pattern database) according to a format conforming to the hardware processing behavior, and performing parameter configuration and state table initialization on the regular expression matching cores in the hardware circuit.
In an embodiment of the present invention, in the parallel regular expression matcher, the regular expression pattern library includes a pure string group, a regular unit group, and a metadata group, where: the pure character string group is used for storing pure character strings and configuring the relation between the pure character strings according to whether the pure character strings are the same or not; the regular unit group is used for storing the regular units and configuring the relationship among the regular units according to whether the regular units are the same or not; and the metadata group is used for storing metadata and configuring the relation between the pure character string and the regular unit according to the metadata.
In an embodiment of the present invention, in the parallel regular expression matcher, as shown in fig. 3, the hardware matching circuit includes a pattern input module, a data input module, a regular matching core module, and a matching result output module, wherein: the mode input module performs parameter configuration on the regular matching core module according to the pure character strings in the pure character string group and the regular units in the regular unit group, and performs state table initialization on the regular matching core module according to the metadata in the metadata group; the data input module is used for providing a message to be matched to the regular matching core module; the regular matching core module is used for matching the message to be matched with the regular expression rule to generate a matching result; the matching result output module is used for outputting a matching result; the mode input module, the data input module and the matching result output module are in bus protocol bridging or format conversion with the regular matching core module. Namely, the hardware circuit consists of a mode input module, a data input module, a matching result output module and a regular matching core. The mode input module, the data module and the matching result output module carry out bus protocol bridging and format conversion.
In an embodiment of the present invention, in the parallel regular expression matcher, as shown in fig. 3, the regular matching core module includes a character string preprocessing module, an operation scheduling module, and an execution engine module, where: the character string preprocessing module is used for scanning the message to be matched according to the pure character strings in the pure character string group to generate a character string queue; the operation scheduling module is used for executing a corresponding program according to the character string queue and generating a request queue; and the execution engine module scans the messages to be matched according to the request queue and judges whether the messages to be matched are matched.
In an embodiment of the present invention, in the parallel regular expression matcher, the character string preprocessing module includes a text scanning module and a text confirmation module, wherein: the text scanning module performs pre-matching on the pure character strings in the message to be matched according to the pure character strings in the pure character string group by using a Shift-OR algorithm circuit to obtain a coarse screening result; and the text confirmation module confirms the pure character strings in the coarse screening result again according to the pure character strings in the pure character string group by using a hardware Hash algorithm to obtain a fine screening result.
In an embodiment of the present invention, in the parallel regular expression matcher, the execution engine module includes a character comparison engine, an NFA engine, a report engine, and a message buffer; the request queue comprises a string comparison request, a regular NFA request and a result report request; the character comparison engine accurately compares the fine screening results according to the character string comparison request; the NFA engine performs corresponding NFA state machine operation on a message to be matched according to the regular NFA request; the report engine outputs a final matching result according to the result report request; the message buffer is used for storing and providing message data to be matched required by various execution engines.
In an embodiment of the invention, in the parallel regular expression matcher, the Shift-OR algorithm circuit simultaneously performs pipeline scanning on 16 characters; after the data packets are scanned by a Shift-OR algorithm circuit, the byte sequence numbers of the matched data packets are put into a first-in first-out queue of an index data structure of a text confirmation module for the text confirmation module to use; the text confirmation module reads in a first-in first-out queue of an index data structure, forms and queries an index table of a fine screening module to obtain a byte sequence number of a matched data packet, then calculates a hash value, and uses the hash value to search a character string information table to obtain a character string length and a character string address; generating a character string queue according to the character string length and the character string address; the operation scheduler is responsible for forming corresponding programs according to the character string request information and selecting corresponding execution engine modules, each program comprises an instruction, an operation code and an operand, and each instruction is sent into a request queue for being called by the subsequent execution engine modules.
Specifically, as shown in fig. 4, in the character string preprocessing step, the text scanning uses a Shift-OR circuit in parallel. In this example, it scans 16 characters simultaneously. This scanning process is pipelined so that 16 characters (bytes) can be processed per clock cycle. After scanning, the matched byte sequence number of the message is put into a byte sequence number FIFO to be confirmed for a subsequent text confirmation module to use. There may still be "false matches" for the match at this point, requiring further confirmation. As shown in fig. 5, the text confirmation module reads in the byte sequence number generated by the previous scanning, queries the confirmation packet index table, calculates the hash value, and finally searches the character string information table by using the hash value to obtain the information such as the length and address of the character string. This information will eventually generate a string request containing the screened matched address, length and grouping for use by subsequent modules. As shown in fig. 6, the operation scheduler is responsible for forming a Program (Program) according to the character string request information and selecting a corresponding execution unit. Each program consists of a series of instructions, each instruction containing an opcode and an operand. Each instruction is placed into a request queue for subsequent execution engine calls.

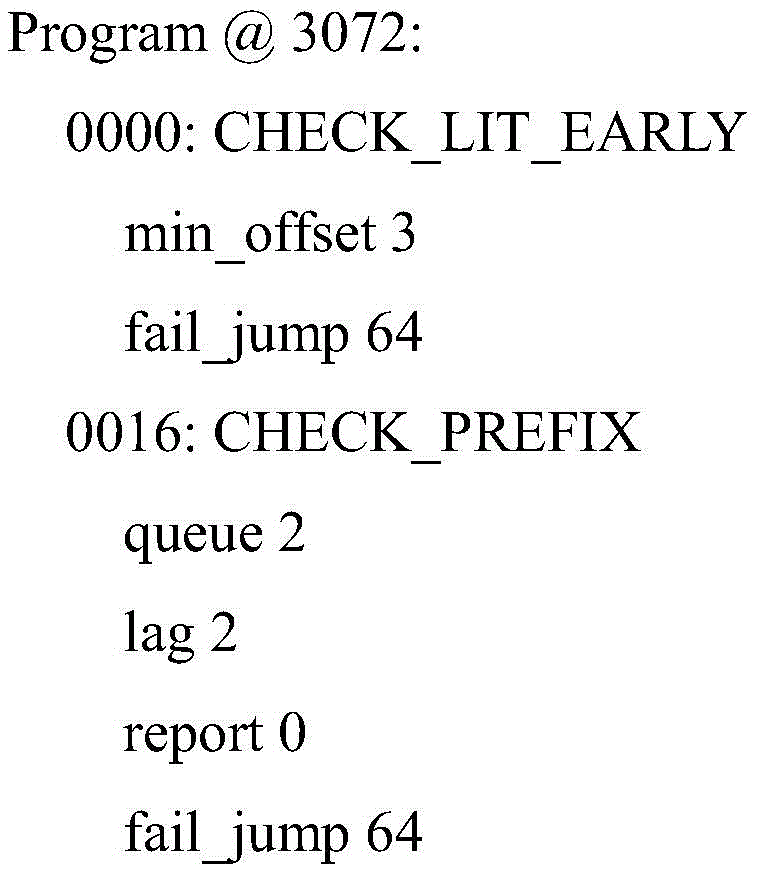

Examples of procedures are:
where min _ offset, fail _ jump, etc. are opcodes followed by operands, and Program State Machine places them in an Instruction Buffer and organizes them into parallel request queues.
In an embodiment of the present invention, in the parallel regular expression matcher, a character string comparison engine performs final one-by-one comparison of ultra-long pure character strings to obtain an accurate conclusion of whether matching is performed (since both coarse screening and fine screening are misjudgments that pursue efficiency and allow a certain probability, each byte needs to be finally confirmed word by word); the NFA engine selects a corresponding NFA in a corresponding field of a message to be matched according to the input request information, performs NFA state machine operation, and finally generates a matching result for a subsequent report engine to use; and the report engine corrects the matching position according to the output of the character string comparison engine and the NFA engine, extracts the serial number of the matched rule, forms a matching result and outputs the matching result.
Specifically, as shown in fig. 7, in the program execution unit, the string comparison engine is responsible for final one-by-one comparison of matching of very long strings (greater than 8 bytes). As shown in fig. 8, the regular NFA engine is responsible for implementing the NFA state machine. The engine selects corresponding NFA in the corresponding field of the message according to the input request information, and performs NFA state machine operation. The state machine will eventually generate a matching result for use by subsequent reporting engines. The result reporting engine calculates a matching position (offset) from the outputs of the first two matching engines, extracts a matched rule number (ID), forms a matching result, and outputs the matching result.
In one embodiment of the invention, in the parallel regular expression matcher, the scale of a character string preprocessing module, the quantity and the proportion of a character string comparison engine and an NFA engine, and the running frequency are balanced according to software performance evaluation and the physical characteristics of a hardware circuit; selecting a typically applied regular expression rule set and a message to be matched for performance pre-estimation, determining the scale of a character string preprocessing module under a certain matching probability, and determining the number and the proper proportion of a character comparison engine and an NFA engine; and further determining the parameter configuration of each module according to the physical characteristics of the hardware implementation mode.
Specifically, the scale of the character string preprocessing module, the number ratio of the character string comparison engine and the regular NFA engine, and the operating frequency need to be balanced according to the software performance evaluation and the physical characteristics of the hardware circuit. Selecting a regular expression set and a text (message) to be scanned, which are typically applied, to perform performance estimation, determining the scale of a character string preprocessing module under a certain matching probability, and determining the number and the proper proportion of a character comparison engine and an NFA engine. Then, according to the physical characteristics of the hardware implementation, for example, the limitation and the synthesizable frequency of the circuit logic resources are considered for the FPGA, and the characteristics of the tape-out process library and the integration of the input and output interfaces are considered for the ASIC chip, the parameter configuration (bus bit width, operating frequency, memory cell size, etc.) of each module can be further determined. For different purposes, the technical scheme of the invention can be presented as different parameter configurations.
In the regular expression matcher and the matching method provided by the invention, a plurality of regular expression rules in a regular expression rule set are precompiled by a software precompiling unit and are converted into the regular expression rules in accordance with the format of the hardware processing behavior, so that a hardware matching circuit can match a message to be matched with the regular expression rules in accordance with the format of the hardware processing behavior to obtain a matching result, a novel digital circuit matched with the parallel regular expressions is realized, and the parallel matching of a plurality of regular expressions can be supported.
The canonical matching kernel consists of three parts: a) a character string preprocessing module; b) an operation scheduling module; c) and executing the engine module. The three parts carry out stream processing on the input message and output a matching result according to a preset rule.
In the processing process, an input message firstly passes through a character string preprocessing module to judge whether the input message is matched with a character string in a rule. If not, the message is not matched with the rule, so that the message does not need to be sent to a subsequent module for processing; if so, subsequent processing is required. The module consists of two sub-modules, wherein a text Scan (Literal Scan) is responsible for the first step of coarse screening and determines the possible matching positions of the character strings; the text confirmation (Literal Confirm) module is responsible for further screening using computed hash values and comparisons for possible matching locations.
After character string preprocessing confirmation, a series of position information which can be matched and coding information of associated rules are obtained. They are put into a string queue. Then, the program scheduler will select the corresponding program to execute according to the information in the character string queue. During program execution, corresponding requests are generated according to rules, and the requests comprise character string comparison, regular NFA, result report and the like. All requests are put into the request queue and the execution flow is entered once the subsequent execution units are ready.
The execution engine generally performs three steps of string precise word-by-word comparison, regular NFA and result reporting, where the string word-by-word comparison is responsible for confirming a matching result of an ultra-long string (more than 8 bytes), the NFA is responsible for performing corresponding NFA state machine operation, and the reporting engine outputs a final matching result. During operation, a dedicated message cache may be responsible for providing the message data stream required by the engine.
The key points of the invention are as follows:
a regular expression matcher implemented in a hardware circuit, wherein:
a multi-stage hardware scanning circuit for parallel matching regular expressions: in the first stage, text quick scanning of a Shift-OR algorithm is performed; secondly, obtaining a possible matching result and then using a text matching confirmation process of a Hash algorithm; third, operating the scheduler and the associated execution engine: including a string comparison engine, a canonical NFA engine, and a result reporting engine.
The software pre-compiling method applicable to the multistage hardware scanning circuit comprises the following steps: firstly, extracting pure character string substrings and regular units when a regular expression pattern library is precompiled. And secondly, performing common part extraction and merging on a plurality of rules when the regular expression pattern library is precompiled, and encoding the rules into a format suitable for a hardware memory.
In summary, the above embodiments have described different configurations of the rule expression matcher and the matching method in detail, and it is understood that the present invention includes, but is not limited to, the configurations listed in the above embodiments, and any modifications based on the configurations provided in the above embodiments are within the scope of the present invention. One skilled in the art can take the contents of the above embodiments to take a counter-measure.
The embodiments in the present description are described in a progressive manner, each embodiment focuses on differences from other embodiments, and the same and similar parts among the embodiments are referred to each other. For the system disclosed by the embodiment, the description is relatively simple because the system corresponds to the method disclosed by the embodiment, and the relevant points can be referred to the method part for description.
The above description is only for the purpose of describing the preferred embodiments of the present invention, and is not intended to limit the scope of the present invention, and any variations and modifications made by those skilled in the art based on the above disclosure are within the scope of the appended claims.
