Abstract

This application relates to the field of computer technology, and discloses a method for printing logs, including: the first server sends a monitoring command to the monitoring end; determines the target server that needs to adjust the log level according to the information returned by the monitoring end; The information includes at least identification information of the target server and log level adjustment information of the target server; the log level of the target server is adjusted according to the log level adjustment information; and the log printing service is started in response to the log printing service request submitted by the client. In this way, the server load pressure can be reduced when adjusting the log level, and the time-consuming request can be reduced; at the same time, the scope of log printing can be expanded to facilitate online problem tracing. The application also discloses a system and device for log printing.

Description

Method, system and device for log printing

technical field

The present application relates to the field of computer technology, in particular to a method, system and device for printing logs.

Background technique

At present, in order to reduce request time-consuming and server pressure, after the project goes online, the log level of the project is usually changed to ERROR (error) through log4j (log forjava, java log), so after the change, only ERROR-level logs can be started or printed. When a problem occurs online, it may not be possible to accurately trace the source of the problem only through logs of this level, and it is also necessary to expand the range of logs that can be started or printed by adjusting the log level.

However, adjusting the log level will increase the pressure on the server and increase the time-consuming of the request, and after some log level adjustments, the service needs to be restarted to take effect, which is a high risk. In addition, if you adjust the log level in a distributed system, you also need to call the interface for each server node, which is inconvenient to operate.

Contents of the invention

Embodiments of the present disclosure provide a method, system, and device for log printing, so as to reduce the load pressure on the server, reduce the time-consuming request, and better solve the problem of difficulty in tracing the source of the problem.

In some embodiments, the method for log printing includes: the first server sends a monitoring instruction to the monitoring terminal; and determines the target server that needs to adjust the log level according to the information returned by the monitoring terminal, and the information returned by the monitoring terminal includes at least The identification information of the target server and the log level adjustment information of the target server; the log level of the target server is adjusted according to the log level adjustment information; and the log printing service is started in response to the log printing service request submitted by the client.

In some embodiments, the starting of the log printing service in response to the log printing service request submitted by the client includes: determining the print permission and print identification information according to the adjusted log level of the target server; if the print permission indicates that verification is required If the identification information is printed, the log printing service is started when the verification of the printed identification information is successful.

In some embodiments, verifying the print identification information specifically includes: obtaining the print identification information submitted by the client; and obtaining a verification result of the print identification information according to the print identification information submitted by the client and the pre-stored print identification information.

In some embodiments, after starting the log printing service, it further includes: clearing the pre-stored printing identification information, and closing the log printing service.

In some embodiments, the method for log printing includes: the monitoring terminal obtains the log level adjustment instruction sent by the second server end, the log level adjustment instruction is submitted by the user associated with the client to the second server end, and the log level The adjustment instruction includes the identification information of the target server to be adjusted and the log level adjustment information of the target server; in response to the monitoring instruction sent by the first server, submit the log level adjustment instruction to the first server, so that The first server adjusts the log level of the target server according to the log level adjustment information, and provides log printing service according to the adjusted log level.

In some embodiments, the method for log printing includes: the second server obtains a log level adjustment instruction input by a user associated with the client, and the log level adjustment instruction includes the identification information of the target server to be adjusted and the target The log level adjustment information of the server; the log level adjustment instruction is sent to the monitoring terminal, so that when the monitoring terminal obtains the monitoring instruction sent by the first server end, the log level adjustment instruction is sent to the first server end, and the first server end according to The log level adjustment information adjusts the log level of the target server, and provides log printing service according to the adjusted log level.

In some embodiments, the system for log printing includes: a first server, a monitoring terminal, a second server, and a client; the first server is used to send monitoring instructions to the monitoring terminal; and returns according to the monitoring terminal The information determines the target server that needs to be adjusted to the log level and the log level adjustment information of the target server; adjusts the log level of the target server according to the log level adjustment information, and starts the log printing service when the log printing service request submitted by the client is obtained; The monitoring terminal is used to obtain the log level adjustment instruction sent by the second server, the log level adjustment instruction is submitted to the second server by the user associated with the client, and the log level adjustment instruction includes the identification information of the target server and the log level of the target server Adjustment information.

In some embodiments, the apparatus for journal printing includes a processor and a memory storing program instructions. The processor is configured to execute the above method for log printing when executing the program instructions.

The method, system and device for log printing provided by the embodiments of the present disclosure can achieve the following technical effects:

The first server sends a monitoring instruction to the monitoring terminal, so that the first server determines the target server that needs to adjust the log level according to the information returned by the monitoring terminal, and dynamically adjusts the log level of the target server according to the log level adjustment information of the target server returned by the monitoring terminal. The log level, such a solution, can reduce the server load pressure and reduce the request time when adjusting the log level. After the log level adjustment is completed, the first server can also respond to the log printing service request submitted by the client and start the log printing service, which can reduce the load pressure on the server and reduce the time-consuming request while expanding the scope of log printing. Solve the problem that when a problem occurs online, only some logs corresponding to the log level can be printed, and it is difficult to trace the source of the problem online.

The foregoing general description and the following description are exemplary and explanatory only and are not intended to limit the application.

Description of drawings

One or more embodiments are exemplified by the corresponding drawings, and these exemplifications and drawings do not constitute a limitation to the embodiments, and elements with the same reference numerals in the drawings are shown as similar elements, The drawings are not limited to scale and in which:

Fig. 1 is a schematic diagram of a method for log printing provided by an embodiment of the present disclosure;

Fig. 2 is a schematic diagram of another method for log printing provided by an embodiment of the present disclosure;

Fig. 3 is a schematic diagram of another method for log printing provided by an embodiment of the present disclosure;

Fig. 4 is a schematic diagram of another method for log printing provided by an embodiment of the present disclosure;

Fig. 5 is a schematic diagram of a log printing device provided by an embodiment of the present disclosure.

reference sign

100: processor; 101: memory; 102: communication interface; bus: 103

Detailed ways

In order to understand the characteristics and technical content of the embodiments of the present disclosure in more detail, the implementation of the embodiments of the present disclosure will be described in detail below in conjunction with the accompanying drawings. The attached drawings are only for reference and description, and are not intended to limit the embodiments of the present disclosure. In the following technical description, for purposes of explanation, numerous details are set forth in order to provide a thorough understanding of the disclosed embodiments. However, one or more embodiments may be practiced without these details. In other instances, well-known structures and devices may be shown simplified in order to simplify the drawings.

The terms "first", "second" and the like in the description and claims of the embodiments of the present disclosure and the above drawings are used to distinguish similar objects, and are not necessarily used to describe a specific sequence or sequence. It should be understood that the data so used may be interchanged under appropriate circumstances so as to facilitate the embodiments of the disclosed embodiments described herein. Furthermore, the terms "comprising" and "having", as well as any variations thereof, are intended to cover a non-exclusive inclusion.

Unless stated otherwise, the term "plurality" means two or more.

In the embodiments of the present disclosure, the character "/" indicates that the preceding and following objects are an "or" relationship. For example, A/B means: A or B.

The term "and/or" is an associative relationship describing objects, indicating that there can be three relationships. For example, A and/or B means: A or B, or, A and B, these three relationships.

An embodiment of the present disclosure provides a system for printing logs, which may include a first server end, a monitoring end, a second server end, and a client end. As an example, the client can be deployed on the terminal associated with the developer, and the first server, the second server, and the monitoring terminal can all be deployed on the cloud server. Understandably, in the actual application process, the three can be deployed on It may be deployed on the same cloud server, or may be deployed on different cloud servers, which is not specifically limited in this embodiment of the present disclosure. The above four cooperate with each other, and through the solution provided by this embodiment, the problems of heavy load on the server and long time-consuming requests can be solved when adjusting the log level.

In the actual application process, if the user, that is, the developer mentioned above, determines that the target server does not have printing authority, he can input the log adjustment instruction including at least the identification information of the target server and its log level adjustment information into the second service terminal, so that the second server terminal can obtain the log level adjustment instruction and send it to the monitoring terminal. Correspondingly, the monitoring terminal sends the log level adjustment command to the first server in response to the monitoring command sent by the first server, so that the first server adjusts the log level of the target server according to the log level adjustment information, thereby realizing When the client submits a log printing service request, start the log printing service. For the specific implementation process, please refer to the introduction below.

The aforementioned terminals may include mobile phones, computers, wearable devices, smart mobile devices, virtual reality devices, etc., or any combination thereof.

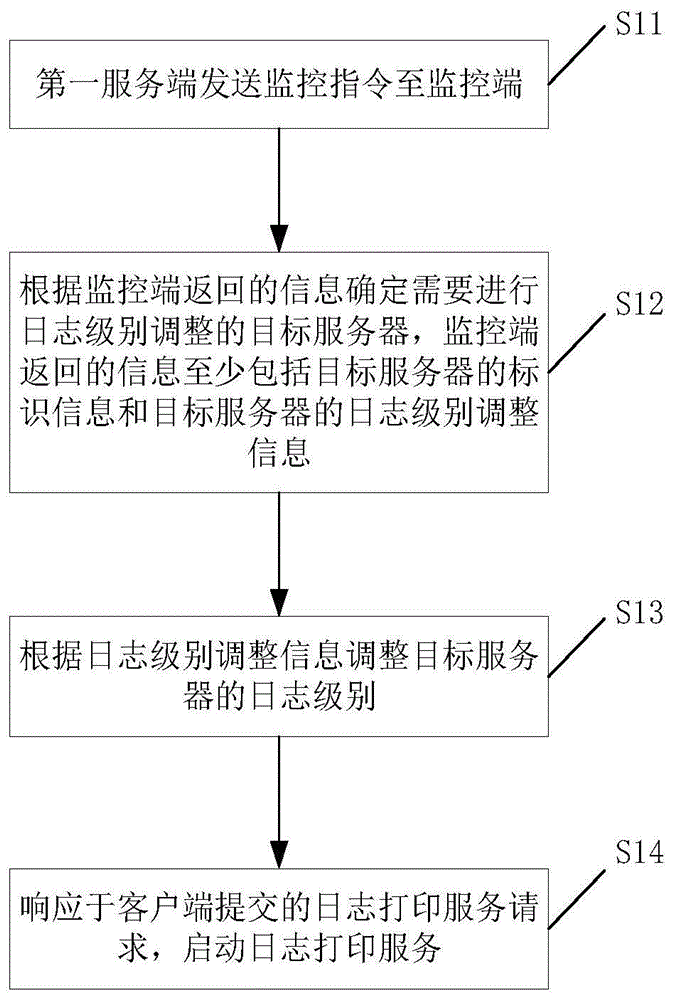

Fig. 1 is a schematic diagram of a method for log printing provided by an embodiment of the present disclosure. As shown in FIG. 1 , an embodiment of the present disclosure provides a log printing method applicable to the first server, which may include:

S11, the first server sends a monitoring instruction to the monitoring terminal.

Optionally, before the first server sends the monitoring instruction to the monitoring end, the method further includes: the first server saves and loads a configuration file corresponding to a default log level. In this way, before adjusting the log level, the corresponding log printing service can still be started according to the default log level, which is convenient for users to trace the source of the problem online.

Optionally, the monitoring terminal in this embodiment of the present disclosure may be a monitoring terminal associated with a Zookeeper server (distributed application coordination service). Therefore, when the first server sends a monitoring command to the monitoring terminal associated with the Zookeeper server, the first server registers the monitoring function with the Zookeeper server by default, so as to monitor the information of the target server node. Alternatively, the monitoring terminal may be a monitoring terminal associated with a Redis server (Remote Dictionary Server, remote dictionary service). Therefore, when the first server sends a monitoring instruction to the monitoring terminal associated with the Redis server, the first server subscribes to the information channel of the target server by default, so as to subscribe to the message queue of the target server. Through the above monitoring terminal, it is convenient to receive the log level adjustment information subsequently, so that the first server dynamically adjusts the log level of the target server according to the log level adjustment information, which is simple and easy to operate.

S12. Determine the target server that needs to adjust the log level according to the information returned by the monitoring terminal. The information returned by the monitoring terminal includes at least identification information of the target server and log level adjustment information of the target server.

Wherein, the target server may be a single server in the distributed system that needs to adjust the log level; or, the target server may be multiple servers in the distributed system that need to adjust the log level.

Optionally, the information returned by the monitoring terminal may only include the identification information of the target server and the log level adjustment information of the target server. In this way, the first client can directly determine the target server that needs to be adjusted to the log level, so as to facilitate the subsequent rapid adjustment of the log level . Alternatively, the information returned by the monitoring terminal may include the identification information of all servers in the distributed system and the log level adjustment information corresponding to each server. In this case, the log level adjustment information may include whether the log level of the server needs to be adjusted, and For the specific level information that the server needs to adjust, the first server can determine the target server according to the log level adjustment information corresponding to each server returned by the monitoring end.

S13. Adjust the log level of the target server according to the log level adjustment information.

Wherein, the log level adjustment information at least includes the target log level of the target server.

Optionally, the embodiments of the present disclosure may provide configuration files corresponding to various implementation parties obtaining log level adjustment information. The following example illustrates.

In one way, the first server can directly save the configuration files corresponding to various log levels locally. In this way, when the first server obtains the log level adjustment information, that is, when it obtains the target log level of the target server, it can directly call the target The configuration file corresponding to the log level. In this way, multiple calls to the configuration file can be realized, which also helps to reduce the amount of data returned by the monitoring terminal and improve the overall operating efficiency.

In another way, the monitoring end can save configuration files corresponding to various log levels, so that when returning information to the first server, the configuration files corresponding to the target log level can be returned to the first server together. Alternatively, the second client can save configuration files corresponding to multiple log levels, so that when the second client sends the log level adjustment instruction to the monitoring end, it can send the configuration files corresponding to the target log level to the monitoring end together, In order for the monitoring terminal to send the log level adjustment information and the configuration file corresponding to the target log level to the first server together when obtaining the monitoring command sent by the first server, for the first server to adjust the log level of the target server.

Optionally, after the first server obtains the configuration file corresponding to the target log level, the method further includes: writing the configuration file corresponding to the target log level into the memory of the target server node. In this way, the target server can update the log level without restarting, reducing the risk of restarting the server.

Wherein, the log level of the server may at least include five levels of FATAL (fatal), ERROR (error), WARN (warning), INFO (information), and DEBUG (debugging) arranged in descending order of priority. The priority from high to low corresponds to the printing permission from high to low. For example, if the log level of the current server node is DEBUG, the corresponding printing permission is to print logs higher than the log level and logs equal to the log level. , that is, the logs of FATAL, ERROR, WARN, INFO and DEBUG levels can be printed, that is, all logs can be printed.

S14. In response to the log printing service request submitted by the client, start the log printing service.

Optionally, the embodiment of the present disclosure may enable the log printing service in various implementation manners, which are described below with examples.

In one way, after the first server adjusts the log level of the target server, the default print permission corresponding to the adjusted log level of the target server is to allow printing of all logs. According to the above introduction, the target server node corresponds to The log level is DEBUG. Therefore, in this case, the log of the target server can be printed directly.

In another way, if the printing permission corresponding to the adjusted log level of the target server is to allow printing part of the logs, then in response to the log printing service request submitted by the client, starting the log printing service may include: according to the adjusted The log level of the target server determines the printing authority and printing identification information; if the printing authority indicates that the printing identification information needs to be verified, the log printing service is started when the printing identification information verification is successful. According to the above introduction, only the DEBUG level can print all logs, that is, except for the DEBUG level, the printing permissions corresponding to other log levels need to verify the print identification information. Through this method of verifying the printed identification information, the print log service can be oriented to the printed identification information, which is convenient for locating and tracing the source of the problem when there is a problem online.

Optionally, the print identification information may include service information, such as one or more of service operation mode, mobile phone number of the online customer, and IP address (Internet Protocol Address, Internet Protocol Address) of the target server. Wherein, the business operation mode is a back-end business operation method developed by the user, for example, an operation method of the back-end Service service; or, an operation method of the back-end controller service.

Thus, an embodiment of the present disclosure provides a method for verifying print identification information, which may include: obtaining print identification information submitted by a client; and obtaining a verification result of the print identification information according to the print identification information submitted by the client and the pre-stored print identification information. In this way, the printing identification information can be verified accurately and quickly, and it is convenient to start the log printing service for the printing identification information, that is, business information.

Wherein, the embodiments of the present disclosure may obtain the printing identification information submitted by the client through various implementation manners. As an example, the first server may directly obtain the printing identification information according to the log printing service request submitted by the client. As another example, the first server may communicate with the client again, and send an identifier sending request instruction to the client, so that the client sends the print identifier information to the first server in response to the identifier sending request. In this regard, the embodiments of the present disclosure may not make specific limitations.

Optionally, the printing identification information submitted by the client is input by a user associated with the client. As an example, the terminal associated with the client may be configured with an information entry module, and the user directly enters the print identification information into the client associated with the terminal through the information entry module. For example, the information input module can be embodied as a keyboard, and the user can manually input the print identification information through the keyboard for the client to collect; or, the information input module can be embodied as a voice collection module, and the user can input the print identification information by voice, and the client Carry out speech recognition and obtain printing identification information. All of the above methods can enable the user to enter the printing identification information conveniently and quickly, so that the client associated with the user can send the printing identification information to the first server.

Optionally, if the printing authority indicates that the printing identification information needs to be verified, the log printing service may be canceled if the verification of the printing identification information fails. The cancellation of the log printing service in the embodiment of the present disclosure may be canceling the log printing service when all the print identification information fails to be verified. Alternatively, the log printing service may be canceled when any of the print identification information fails to be verified. This can be set according to the actual production environment, and is not specifically limited in the embodiments of the present disclosure.

In the actual application process, take the printed identification information as the mobile phone number of online customer A as an example. After the project starts, if the mobile phone number of online customer A needs to be verified, the pre-stored mobile phone number of online customer A is obtained. Aa, and enter the mobile phone number AA of online customer A to match with the pre-stored mobile phone number. In this example, the verification of the mobile phone number of the online customer fails, and the log printing service can be canceled at this time; or, other printing identification information can be continued to be verified.

To sum up, by adopting the log printing method applicable to the first server provided by the embodiment of the present disclosure, the server load pressure can be reduced when adjusting the log level, and the request time consumption can be reduced. In addition, when providing log printing services, the scope of log printing is expanded to solve the problem that when problems occur online, only some logs corresponding to the log level can be printed, and it is difficult to trace the source of the problem. In addition, by directly adjusting the log level of the target server node without invoking an interface for each server node, the operation process can be simplified and the user's operation can be facilitated, thereby improving the user experience.

Optionally, after starting the log printing service, it also includes: clearing the pre-stored printing identification information, and closing the log printing service. Wherein, closing the log printing service may be closing the log printing service after the log printing service is completed; or may be closing the log printing service after completing the source tracing and solving of the problem. This will not take up too much memory, which can make the entire log printing service very flexible and easy to use.

Optionally, after closing the log printing service or canceling the log printing service, the method further includes: obtaining log printing service data; and returning the log printing service data to the client. In this way, the users associated with the client can obtain the data of the entire log printing service process in time, so that when a problem occurs in the printing process, the source of the problem can be traced and repaired.

Fig. 2 is a schematic diagram of another method for printing a log provided by an embodiment of the present disclosure. As shown in FIG. 2, the embodiment of the present disclosure provides a log printing method applicable to the monitoring terminal, which may include:

S21, the monitoring terminal obtains the log level adjustment instruction sent by the second server, the log level adjustment instruction is submitted to the second server by the user associated with the client, and the log level adjustment instruction includes the identification information of the target server to be adjusted and the target server The log level adjustment information for .

Optionally, in the embodiment of the present disclosure, the monitoring terminal may obtain the log level adjustment instruction through various implementation manners, which are described below with examples.

In one way, the monitoring terminal can obtain the log level adjustment instruction sent by the second server in real time. The real-time acquisition method can improve service efficiency, reduce time-consuming requests, and improve user experience. In another way, the monitoring end can obtain the log level adjustment instruction sent by the second server end through polling, which is relatively simple to implement.

S22. In response to the monitoring instruction sent by the first server, submit the log level adjustment instruction to the first server, so that the first server adjusts the log level of the target server according to the log level adjustment information, and provides Log printing service.

To sum up, the log printing method applicable to the monitoring terminal provided by the disclosed embodiment can enable the monitoring terminal to easily obtain the log level adjustment instruction, so that the subsequent first server can adjust the target according to the log level adjustment information sent by the monitoring terminal. The log level of the server, so that when adjusting the log level, the server load pressure can be reduced, and the request time consumption can be reduced. In addition, the scope of log printing can be expanded when providing log printing services, so that when problems occur online, the problem can be traced to the source.

Fig. 3 is a schematic diagram of another method for printing a log provided by an embodiment of the present disclosure. As shown in FIG. 3 , an embodiment of the present disclosure provides a log printing method applicable to the second server, which may include:

S31. The second server obtains a log level adjustment instruction input by a user associated with the client, where the log level adjustment instruction includes identification information of a target server to be adjusted and log level adjustment information of the target server.

Optionally, the user may directly input the log level adjustment instruction into the second server, so that the second server can obtain the log level adjustment instruction.

In the actual application process, in order to further simplify user operations, the second server can provide a log level selection interface. The log level selection interface includes multiple log levels of the pre-stored target server node. The user determines the log level by selecting the pre-stored log level. Log level adjustment instructions, which help reduce the requirements for users' professional skills and improve user experience. In addition, it can also reduce errors generated when users manually input log level adjustment instructions, and improve the efficiency and accuracy of log level adjustment.

S32. Send the log level adjustment instruction to the monitoring terminal, so that when the monitoring terminal obtains the monitoring instruction sent by the first server end, it sends the log level adjustment instruction to the first server end, and the first server end adjusts the log level according to the log level adjustment information. The log level of the target server, and provide log printing service according to the adjusted log level.

As introduced above, the monitoring terminal in the embodiment of the present disclosure may be a monitoring terminal associated with a Zookeeper server, or a monitoring terminal associated with a Redis server. In this way, the embodiment of the present disclosure can send the log level adjustment instruction to the monitoring terminal through various implementation manners. In one way, the second server sends the log level adjustment command to the monitoring terminal associated with the Zookeeper server, that is, writes the log level adjustment command into the target server node monitored by the monitoring terminal associated with the Zookeeper server. In another way, the second server sends the log level adjustment command to the monitoring terminal associated with the Redis server, that is, the log level adjustment command is issued to the message queue of the target server subscribed by the monitoring terminal associated with the Redis server.

Through the above methods, the monitoring terminal can easily obtain the log level adjustment instruction, which is convenient for sending the log level adjustment instruction to the first server in the subsequent process, and will not affect other business requests, which helps to improve the efficiency of the adjustment process. flexibility.

In summary, using the log printing method applicable to the second server end provided by the embodiment of the present disclosure, after the user inputs the log level adjustment instruction into the second server end, the second server end only needs to notify, that is, send the log level adjustment instruction to The monitoring terminal can realize the subsequent log level adjustment process, which simplifies online operations, reduces server load pressure, reduces request time consumption, and improves user experience.

Fig. 4 is a schematic diagram of another method for printing a log provided by an embodiment of the present disclosure. As shown in FIG. 4 , an embodiment of the present disclosure provides a method for printing a log, which may include:

S41. The second server obtains a log level adjustment instruction input by a user associated with the client, and sends it to the monitoring end; the log level adjustment instruction includes identification information of a target server to be adjusted and log level adjustment information of the target server.

S42, the monitoring end submits the log level adjustment instruction to the first server in response to the monitoring instruction sent by the first server.

S43. The first server determines the target server that needs to adjust the log level according to the information returned by the monitoring terminal.

S44. The first server adjusts the log level of the target server according to the log level adjustment information.

S45, the client submits a log printing service request to the first server.

S46, the first server starts the log printing service.

Using the method for log printing provided by the embodiment of the present disclosure, the first server, the monitoring end, the second server and the client cooperate to reduce the load pressure on the server and reduce the time-consuming request when adjusting the log level . At the same time, this method can expand the scope of log printing when printing logs, and facilitate online problem tracing.

In the actual application process, the monitoring terminal takes the monitoring terminal associated with the Zookeeper server as an example. The first server can send a monitoring command to a monitoring terminal associated with the Zookeeper server, so that the monitoring terminal can monitor the information of the target server node after registering the monitoring function. The user inputs the log level adjustment command into the second server, the log level adjustment command includes the identification information of the target server to be adjusted and the log level adjustment information of the target server, and the log level of the target server node can be adjusted to DEBUG level. The second server sends the log level adjustment command to the monitoring terminal associated with the Zookeeper server, so that the monitoring terminal submits the log level adjustment command to the first server in response to the monitoring command sent by the first server. The first server can determine the target server according to the information returned by the monitoring terminal, and adjust the target server to the DEBUG level. After adjusting the log level of the target server, the first server starts the log printing service in response to the log printing service request submitted by the client, and can print all logs of the target server node at this time.

Fig. 5 is a schematic diagram of a log printing device provided by an embodiment of the present disclosure. As shown in FIG. 5 , an embodiment of the present disclosure provides an apparatus for printing a log, including a processor (processor) 100 and a memory (memory) 101 . Optionally, the device may further include a communication interface (Communication Interface) 102 and a bus 103 . Wherein, the processor 100 , the communication interface 102 , and the memory 101 can communicate with each other through the bus 103 . Communication interface 102 may be used for information transfer. The processor 100 may invoke logic instructions in the memory 101 to execute the method for log printing in the foregoing embodiments.

In addition, the above logic instructions in the memory 101 may be implemented in the form of software functional units and may be stored in a computer-readable storage medium when sold or used as an independent product.

As a computer-readable storage medium, the memory 101 can be used to store software programs and computer-executable programs, such as program instructions/modules corresponding to the methods in the embodiments of the present disclosure. The processor 100 executes the program instructions/modules stored in the memory 101 to execute functional applications and data processing, that is, to implement the method for log printing in the above-mentioned embodiments.

The memory 101 may include a program storage area and a data storage area, wherein the program storage area may store an operating system and an application program required by at least one function; the data storage area may store data created according to the use of the terminal device, and the like. In addition, the memory 101 may include a high-speed random access memory, and may also include a non-volatile memory.

An embodiment of the present disclosure provides a computer-readable storage medium, storing computer-executable instructions, and the computer-executable instructions are configured to execute the above method for log printing.

An embodiment of the present disclosure provides a computer program product, the computer program product includes a computer program stored on a computer-readable storage medium, the computer program includes program instructions, and when the program instructions are executed by a computer, the The computer executes the above method for log printing.

The above-mentioned computer-readable storage medium may be a transitory computer-readable storage medium, or a non-transitory computer-readable storage medium.

The technical solutions of the embodiments of the present disclosure can be embodied in the form of software products, which are stored in a storage medium and include one or more instructions to make a computer device (which can be a personal computer, a server, or a network equipment, etc.) to perform all or part of the steps of the method described in the embodiments of the present disclosure. The aforementioned storage medium can be a non-transitory storage medium, including: U disk, mobile hard disk, read-only memory (ROM, Read-Only Memory), random access memory (RAM, Random Access Memory), magnetic disk or optical disk, etc. A medium that can store program code, or a transitory storage medium.

The above description and drawings sufficiently illustrate the embodiments of the present disclosure to enable those skilled in the art to practice them. Other embodiments may incorporate structural, logical, electrical, procedural, and other changes. The examples merely represent possible variations. Individual components and functions are optional unless explicitly required, and the order of operations may vary. Portions and features of some embodiments may be included in or substituted for those of other embodiments. Also, the terms used in the present application are used to describe the embodiments only and are not used to limit the claims. As used in the examples and description of the claims, the singular forms "a", "an" and "the" are intended to include the plural forms as well unless the context clearly indicates otherwise . Similarly, the term "and/or" as used in this application is meant to include any and all possible combinations of one or more of the associated listed ones. Additionally, when used in this application, the term "comprise" and its variants "comprises" and/or comprising (comprising) etc. refer to stated features, integers, steps, operations, elements, and/or The presence of a component does not preclude the presence or addition of one or more other features, integers, steps, operations, elements, components and/or groupings of these. Without further limitations, an element defined by the statement "comprising a ..." does not exclude the presence of additional identical elements in the process, method or apparatus comprising said element. Herein, what each embodiment focuses on may be the difference from other embodiments, and the same and similar parts of the various embodiments may refer to each other. For the method, product, etc. disclosed in the embodiment, if it corresponds to the method part disclosed in the embodiment, then the relevant part can refer to the description of the method part.

Those skilled in the art can appreciate that the units and algorithm steps of the examples described in conjunction with the embodiments disclosed herein can be implemented by electronic hardware, or a combination of computer software and electronic hardware. Whether these functions are performed by hardware or software may depend on the specific application and design constraints of the technical solution. Said artisans may implement the described functions using different methods for each particular application, but such implementation should not be regarded as exceeding the scope of the disclosed embodiments. The skilled person can clearly understand that for the convenience and brevity of the description, the specific working process of the above-described system, device and unit can refer to the corresponding process in the foregoing method embodiment, which will not be repeated here.

In the embodiments disclosed herein, the disclosed methods and products (including but not limited to devices, equipment, etc.) can be implemented in other ways. For example, the device embodiments described above are only illustrative. For example, the division of the units may only be a logical function division. In actual implementation, there may be other division methods. For example, multiple units or components may be combined Or it can be integrated into another system, or some features can be ignored, or not implemented. In addition, the mutual coupling or direct coupling or communication connection shown or discussed may be through some interfaces, and the indirect coupling or communication connection of devices or units may be in electrical, mechanical or other forms. The units described as separate components may or may not be physically separated, and the components shown as units may or may not be physical units, that is, they may be located in one place, or may be distributed to multiple network units. Some or all of the units can be selected according to actual needs to implement this embodiment. In addition, each functional unit in the embodiments of the present disclosure may be integrated into one processing unit, each unit may exist separately physically, or two or more units may be integrated into one unit.

The flowchart and block diagrams in the figures illustrate the architecture, functionality, and operation of possible implementations of systems, methods and computer program products according to embodiments of the disclosure. In this regard, each block in a flowchart or block diagram may represent a module, program segment, or part of code that includes one or more Executable instructions. In some alternative implementations, the functions noted in the block may occur out of the order noted in the figures. For example, two blocks in succession may, in fact, be executed substantially concurrently, or they may sometimes be executed in the reverse order, depending upon the functionality involved. In the descriptions corresponding to the flowcharts and block diagrams in the accompanying drawings, the operations or steps corresponding to different blocks may also occur in a different order than that disclosed in the description, and sometimes there is no specific agreement between different operations or steps. order. For example, two consecutive operations or steps may, in fact, be performed substantially concurrently, or they may sometimes be performed in the reverse order, depending upon the functionality involved. Each block in the block diagrams and/or flowcharts, and combinations of blocks in the block diagrams and/or flowcharts, can be implemented by a dedicated hardware-based system that performs the specified function or action, or can be implemented by dedicated hardware implemented in combination with computer instructions.

Claims (10)

1. A method for log printing, characterized in that, comprising: The first server sends a monitoring command to the monitoring end; Determine the target server that needs to adjust the log level according to the information returned by the monitoring terminal, the information returned by the monitoring terminal includes at least the identification information of the target server and the log level adjustment information of the target server; adjusting the log level of the target server according to the log level adjustment information; In response to the log printing service request submitted by the client, start the log printing service; The monitoring terminal is deployed on a cloud server, and the monitoring terminal is a monitoring terminal associated with a Zookeeper server, or, the monitoring terminal is a monitoring terminal associated with a Redis server. 2. The method according to claim 1, wherein the starting of the log printing service in response to the log printing service request submitted by the client comprises: Determine the print authority and print identification information according to the adjusted log level of the target server; If the printing authority indicates that the printing identification information needs to be verified, the log printing service is started if the printing identification information is successfully verified. 3. The method according to claim 2, wherein verifying the print identification information specifically comprises: Obtain the print identification information submitted by the client; According to the printing identification information submitted by the client and the pre-stored printing identification information, a verification result of the printing identification information is obtained. 4. The method according to claim 3, characterized in that, after starting the log printing service, further comprising: Clean up the pre-stored printing identification information, and close the log printing service. 5. A method for log printing, comprising: The monitoring terminal obtains the log level adjustment instruction sent by the second server, the log level adjustment instruction is submitted to the second server by the user associated with the client, and the log level adjustment instruction includes the identification of the target server to be adjusted information and the log level adjustment information of the target server; submitting the log level adjustment instruction to the first server in response to the monitoring instruction sent by the first server, so that the first server adjusts the log level of the target server according to the log level adjustment information, And provide log printing service according to the adjusted log level; The monitoring terminal is deployed on a cloud server, and the monitoring terminal is a monitoring terminal associated with a Zookeeper server, or, the monitoring terminal is a monitoring terminal associated with a Redis server. 6. A method for log printing, comprising: The second server obtains a log level adjustment instruction input by a user associated with the client, where the log level adjustment instruction includes identification information of a target server to be adjusted and log level adjustment information of the target server; Sending the log level adjustment instruction to the monitoring terminal, so that when the monitoring terminal obtains the monitoring instruction sent by the first server end, it sends the log level adjustment instruction to the first server end, and the first The server adjusts the log level of the target server according to the log level adjustment information, and provides log printing service according to the adjusted log level; The monitoring terminal is deployed on a cloud server, and the monitoring terminal is a monitoring terminal associated with a Zookeeper server, or, the monitoring terminal is a monitoring terminal associated with a Redis server. 7. A system for log printing, comprising: a first server, a monitoring terminal, a second server and a client; The first server is configured to send monitoring instructions to the monitoring terminal, and determine the target server that needs to perform log level adjustment and the log level adjustment information of the target server according to the information returned by the monitoring terminal; according to the The log level adjustment information adjusts the log level of the target server, and starts the log printing service when receiving the log printing service request submitted by the client; The monitoring terminal is deployed on the cloud server, and is used to obtain the log level adjustment instruction sent by the second server end, the log level adjustment instruction is submitted to the second server end by the user associated with the client terminal, and the The log level adjustment instruction includes identification information of the target server and log level adjustment information of the target server; The monitoring terminal is a monitoring terminal associated with a Zookeeper server, or, the monitoring terminal is a monitoring terminal associated with a Redis server. 8. A device for log printing, comprising a processor and a memory storing program instructions, wherein the processor is configured to execute any one of claims 1 to 4 when executing the program instructions. The method used for log printing as described in item . 9. A device for log printing, comprising a processor and a memory storing program instructions, wherein the processor is configured to execute the user as claimed in claim 5 when executing the program instructions In the method of log printing. 10. A device for log printing, comprising a processor and a memory storing program instructions, characterized in that, the processor is configured to execute the user as claimed in claim 6 when executing the program instructions In the method of log printing.
