CN112148315A - Software deployment method, device, server and storage medium - Google Patents

Abstract

Embodiments of the present invention relate to a software deployment method, device, server, and storage medium. The method includes: receiving the deployment instruction through a client; calling a configuration file for deploying software through the deployment instruction, and the configuration file At least include a software operating environment configuration file or target server information; obtain the target server information from the configuration file, and establish a data transmission link with the target server based on the target server information; pass the installation file of the software through The data transmission link is sent to the target server, so that the target server executes the steps of software deployment based on the first installation script file in the installation file, which can meet customer requirements to dynamically change the number of instances without limitation , which can solve the problem that multiple repetitive operations are required when deploying software on multiple servers, and does not require additional resources.

Description

Software deployment method, device, server and storage medium

technical field

Embodiments of the present invention relate to the field of computer software, and in particular, to a software deployment method, device, server, and storage medium.

Background technique

In today's Internet field, the external delivery and deployment of software is often involved, such as the verification test deployment for specific applications of customers. The solution to the processing solution for such requirements can generally be deployed in the enterprise's internal server or laptop in advance. Then go to the customer to demonstrate, that is, pre-deployment; or, use conventional deployment on the customer's site, that is, deploy the executable file compiled from the code; or, use the cloud technology to orchestrate container deployment on the customer's site.

However, the above solutions all have certain shortcomings. Although the security of the code is guaranteed in pre-deployment, it cannot meet the dynamic needs of customers. When the customer temporarily proposes to deploy an application with multiple instances, the solution will have limitations. ;Using conventional deployment on the customer's site is only limited to cases where there are not many applications. When there are too many applications demonstrated to the customer, there will be weaknesses, more repetitive operations, and error-prone; On the customer's site, the use of cloud technology to orchestrate container deployment disadvantages The problem lies in that when the server resources given by the customer just meet the resources required by the application to be demonstrated, it is difficult to take out a separate machine to deploy an additional platform for managing application containers.

SUMMARY OF THE INVENTION

In view of this, in order to solve the above technical problems or some of the technical problems, embodiments of the present invention provide a software deployment method, apparatus, server, and storage medium.

In a first aspect, an embodiment of the present invention provides a software deployment method, including:

receiving the deployment instruction through the client;

A configuration file for deploying software is invoked through the deployment instruction, where the configuration file at least includes a software operating environment configuration file or target server information;

Obtain the target server information from the configuration file, and establish a data transmission link with the target server based on the target server information;

The installation file of the software is sent to the target server through the data transmission link, so that the target server executes the step of software deployment based on the first installation script file in the installation file.

In a possible implementation, the method further includes:

Sending the configuration file to the target server through the data transmission link, so that the target server executes the step of deploying the software operating environment based on the second installation script file in the software operating environment configuration file.

In a possible implementation, the method further includes:

Verifying the configuration file to obtain verification information;

If the verification information is verified and passed, the step of sending the configuration file to the target server through the data transmission link is performed;

If the verification of the verification information fails, a message that the configuration file is abnormal is generated.

In a possible implementation, the method further includes:

The installation file is stored in the temporary file, and the first temporary task file is generated;

Sending the first temporary task file to the target server, so that the target server stores the received first temporary task file in a local temporary directory to obtain a second temporary task file.

In a possible implementation, the method further includes:

The target server obtains the installation file from the second temporary task file;

Analyzing the installation file, and performing format conversion on the parsed installation file to obtain an installation file in a preset format;

Determine the first installation script file from the installation file in the preset format;

Based on the first installation script file, an installation operation of the software is performed.

In a possible implementation, the method further includes:

Obtain the log file corresponding to the software deployment result returned by the target server;

If the log file contains the information that the software is deployed successfully, delete the first temporary task file;

If the log file contains the information that the software deployment fails, a prompt message that the software deployment fails is generated.

In a possible implementation, the method further includes:

If the log file contains the information about the successful deployment of the software, send a deletion instruction for deleting the second temporary task file to the target server, so that the target server deletes the first temporary task file in response to the deletion instruction 2. Temporary task documents.

In a second aspect, an embodiment of the present invention provides a software deployment device, including:

an acquisition module, configured to receive the deployment instruction through the client;

a calling module, configured to call a configuration file for deploying software through the deployment instruction, where the configuration file at least includes a software operating environment configuration file or target server information;

a connection module, configured to obtain the target server information from the configuration file, and establish a data transmission link with the target server based on the target server information;

A sending module, configured to send the installation file of the software to the target server through the data transmission link, so that the target server executes the step of software deployment based on the first installation script file in the installation file.

In a third aspect, an embodiment of the present invention provides a server, including: a processor and a memory, where the processor is configured to execute a software deployment program stored in the memory, so as to implement the software described in any one of the foregoing first aspects Deployment method.

In a fourth aspect, an embodiment of the present invention provides a storage medium, including: the storage medium stores one or more programs, and the one or more programs can be executed by one or more processors to implement the above-mentioned first The software deployment method of any one of the aspects.

In the software deployment solution provided by the embodiment of the present invention, the deployment instruction is received through the client; the configuration file for deploying the software is invoked through the deployment instruction, and the configuration file at least includes the software running environment configuration file or target server information; Obtaining the target server information from the configuration file, and establishing a data transmission link with the target server based on the target server information; sending the installation file of the software to the target server through the data transmission link, In order to make the target server perform the steps of software deployment based on the first installation script file in the installation file, the number of instances can be dynamically changed to meet customer requirements without limitation, and the need for multiple servers to deploy software can be solved. The problem of multiple repetitive operations without consuming additional resources.

Description of drawings

FIG. 1 is an application scenario diagram of a software deployment method provided by an embodiment of the present invention;

2 is a schematic flowchart of a software deployment method according to an embodiment of the present invention;

3 is a schematic flowchart of another software deployment method provided by an embodiment of the present invention;

FIG. 4 is a schematic structural diagram of a software deployment apparatus according to an embodiment of the present invention;

FIG. 5 is a schematic structural diagram of a server according to an embodiment of the present invention.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments These are some embodiments of the present invention, but not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

In order to facilitate the understanding of the embodiments of the present invention, further explanation will be given below with specific embodiments in conjunction with the accompanying drawings, and the embodiments do not constitute limitations to the embodiments of the present invention.

FIG. 1 is an application scenario diagram of a software deployment method provided by an embodiment of the present invention. As shown in FIG. 1 , the application scenario specifically includes: at least one master server and at least one slave server.

In the present invention, a configuration file needs to be prepared in advance, and the file will specify the software to be deployed on each server or each group of servers. Public environment, and then install the deployHelper service on the master server. The service includes the deployServer service and the deployCli client. The deployServer service is used to call the software service to demonstrate to the customer; the deployCli client is used to receive deployment instructions from technicians. Type a command line from the deployCli client, and then the entire server group will execute the deployment task according to the method in this solution, completing the automatic deployment.

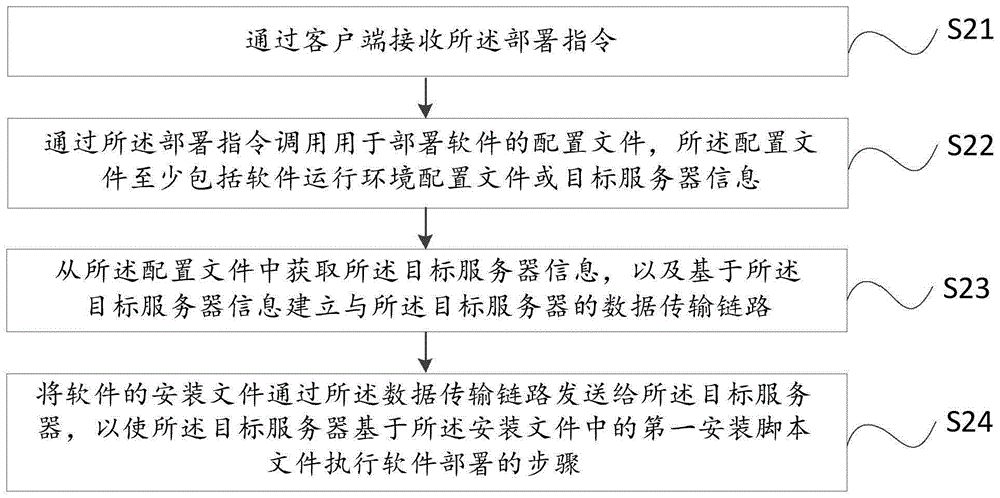

FIG. 2 is a schematic flowchart of a software deployment method according to an embodiment of the present invention. As shown in FIG. 2 , the method specifically includes:

S21. Receive the deployment instruction through the client.

S22. Call a configuration file for deploying the software through the deployment instruction, where the configuration file at least includes a software running environment configuration file or target server information.

In the present invention, the main control server receives a software deployment instruction, and the software deployment instruction may carry a corresponding configuration file ID name. After receiving the software deployment instruction, the main control server finds the corresponding configuration file information from the software deployment instruction, Call the corresponding configuration file according to this configuration file information.

Further, the configuration file records the target server information on which the software needs to be deployed and the public environment configuration file for running the software.

Optionally, the target server information that needs to deploy the software recorded in the configuration file may only include one target server, or may include multiple target servers, to prevent some servers from being unable to support the running of the software or some servers from crashing. Therefore, including multiple server information can effectively solve the above problems.

S23. Acquire the target server information from the configuration file, and establish a data transmission link with the target server based on the target server information.

Query the configuration file called above, and query the target server information from the configuration file. The target server information recorded in the configuration file includes at least the IP address and server name of the server. According to the queried target server information, establish data transmission with the target server. link.

S24. Send the installation file of the software to the target server through the data transmission link, so that the target server executes the step of software deployment based on the first installation script file in the installation file.

After the above-mentioned host server and the target server establish a data transmission link, the packaged software installation file is sent to the target server through the data transmission link,

Further, after receiving the software installation file sent by the host server, the target server parses the software installation file, converts it into an executable format software installation file, and then installs and deploys the software according to the parsed software installation file.

In the software deployment method provided by the embodiment of the present invention, the deployment instruction is received through the client; the configuration file for deploying the software is invoked through the deployment instruction, and the configuration file at least includes the software running environment configuration file or target server information; Obtaining the target server information from the configuration file, and establishing a data transmission link with the target server based on the target server information; sending the installation file of the software to the target server through the data transmission link, To make the target server perform the steps of software deployment based on the first installation script file in the installation file, because the configuration file and the deployment script file are prepackaged, when the master control server receives the deployment instruction entered by the technician The configuration file can be called directly, and the software deployment can be directly completed according to the content of the script file, so the problem of multiple repetitive operations when the software needs to be deployed multiple times on multiple servers in the prior art can be solved without occupying additional resources.

FIG. 3 is a schematic flowchart of another software deployment method provided by an embodiment of the present invention. As shown in FIG. 3 , the method specifically includes:

S31. Receive the deployment instruction through the client.

S32. Verify the configuration file to obtain verification information.

In the present invention, a technician enters a software deployment instruction from the deployCli client, and after receiving the software deployment instruction, the main control server retrieves the corresponding configuration file according to the configuration file information carried in the software deployment instruction, and then interprets the configuration file. Perform verification, verify whether the configuration file is abnormal, and obtain verification information.

For example, verify whether the grammar in the configuration file complies with the grammar rules, and report an error if there is something that does not meet the grammar rules; if the configuration file is verified and there is no exception, the follow-up process is performed.

S33. If the verification information passes the verification, execute the step of sending the configuration file to the target server through the data transmission link.

S34. Send the configuration file to the target server through the data transmission link, so that the target server executes the step of deploying the software operating environment based on the second installation script file in the software operating environment configuration file.

In the embodiment of the present invention, if the verification of the configuration file is passed and there is no abnormality, the main control server sends the verified configuration file to the target server through the data transmission link established with the target server.

Further, after receiving the configuration file, the target server parses the configuration file and parses it into a configuration file in an executable format, the target server finds the second installation script file from the configuration file in the executable format, and then the target server executes the installation. A script file that installs and deploys the public environment where the software runs.

It should be noted that the master server can be connected through the SSH protocol through the data transmission link established with the target server, and set up secret-free communication between all servers; the configuration file includes the environment configuration file required for the compiled software to run , when more servers are needed to deploy the software, by sending this configuration file to other servers, other servers can quickly configure the environment required for the software to run.

S35. If the verification of the verification information fails, generate a message that the configuration file is abnormal.

During the above verification of the configuration file, if the verification fails, an error will be reported. The error message may include the cause of the error or the location of the error. Further, the technician can quickly find the abnormal cause of the configuration file and correct it through the error message.

S36. Store the installation file in a temporary file to generate a first temporary task file.

In the embodiment of the present invention, the main control server stores the software installation package file to be installed in the temporary file of the local Home directory, and generates the first temporary task file. The entire software deployment demonstration process is carried out on the server provided by the customer. Then, the customer does not know which files need to be cleaned up after the deployment of the demonstration software. Therefore, after the entire deployment task is completed, the system can automatically find the temporary file, delete it, and release it. memory to enhance customer experience.

S37: Send the first temporary task file to the target server, so that the target server stores the received first temporary task file in a local temporary directory to obtain a second temporary task file.

In the embodiment of the present invention, the main control server sends the locally stored first temporary task file to the target server through the data transmission link established with the target server.

Further, after receiving the first temporary task file, the target server stores the first temporary task file in a local temporary directory of the target server to obtain a second temporary task file.

S38. The target server acquires the installation file from the second temporary task file.

In this embodiment of the present invention, the target server traverses the local temporary directory, finds the second temporary task file, parses the second temporary task file, and obtains software from the parsed second temporary task file according to the software installation instruction carried in the task file Install the package file.

S39, parse the installation file, and perform format conversion on the parsed installation file to obtain an installation file in a preset format.

In this embodiment of the present invention, the target server parses the obtained software installation package file, generates a software installation file in an executable format, and obtains and presets a software installation file according to a preset software installation format (for example, .exe format). Install one or more files of the same format.

S310. Determine the first installation script file from the installation files in the preset format.

S311. Based on the first installation script file, perform an installation operation of the software.

Traverse one or more files in the same format as the preset software installation format, and determine the first installation script file from these files, where the first installation script file is the script running file for the software installation.

Further, the first installation script file is run to complete the automatic installation of the software, and the software can be run after the installation is completed.

S312: Acquire a log file corresponding to the software deployment result returned by the target server.

In the embodiment of the present invention, based on the remote data transmission link between the main control server and the target server established based on the SSH protocol, after the target server performs the software deployment operation, the log file carrying the software deployment result can be returned through the SSH protocol.

Among them, when the target server performs software deployment, the software deployment may fail due to an error in parsing the software installation package file in the task file; it may also be that the system of the target server does not conform to the software operating environment; it may also be that the hardware environment of the target server does not conform to If the software deployment fails due to the requirements of the installation and running environment of the software, when the target server does not return a log file with the software deployment result within a preset time (for example, 5 minutes), the master control server can send the information to obtain the software deployment status. to the target server to obtain the current software deployment status.

Optionally, based on the SSH protocol, if the keepalive mechanism is implemented on the target server in advance, the target server will actively send a deployment failure message to the master server.

S313. If the log file contains information that the software deployment is successful, delete the first temporary task file.

S314. If the log file contains the information that the software deployment fails, generate a prompt message that the software deployment fails.

In this embodiment of the present invention, if the log file returned by the target server contains information about successful software deployment, the master control server searches for the local first temporary task file and deletes it to release memory.

Optionally, if the log file returned by the target server contains information about software deployment failure, the master control server generates and displays prompt information about software deployment failure, and the technician can find out the abnormal cause and make corrections according to the prompt information.

S315. If the log file contains information that the software has been deployed successfully, send a deletion instruction to delete the second temporary task file to the target server, so that the target server deletes all the files in response to the deletion instruction. the second temporary task document.

If the log file returned by the target server contains the information that the software is deployed successfully, then the main control server sends a deletion instruction to delete the second temporary task file on the target server to the target server through the data transmission link, and the target server receives the deletion instruction. After that, search for the second temporary task file in the local temporary directory to delete it.

It should be noted that, in the present invention, if the main control server crashes, you can re-select a server among the remaining servers, and reinstall the deployHelper service on the selected server, because all servers are set up to avoid passwords. Therefore, any server that installs the deployHelper service can complete the entire software deployment process of this solution.

In the software deployment method provided by the embodiment of the present invention, the deployment instruction is received through the client; the configuration file for deploying the software is invoked through the deployment instruction, and the configuration file at least includes the software running environment configuration file or target server information; Obtaining the target server information from the configuration file, and establishing a data transmission link with the target server based on the target server information; sending the installation file of the software to the target server through the data transmission link, In order to make the target server perform the steps of software deployment based on the first installation script file in the installation file, multiple servers can deploy multiple instances to meet customer requirements and dynamically change the number of instances without limitation, and the server automatically completes software operation. Environment and software deployment can solve the operation of repeatedly configuring the running environment when deploying software on multiple servers multiple times, and does not require additional resources.

4 is a schematic structural diagram of a software deployment apparatus according to an embodiment of the present invention, which specifically includes:

an obtaining module 401, configured to receive the deployment instruction through a client;

A calling module 402, configured to call a configuration file for deploying software through the deployment instruction, where the configuration file at least includes a software running environment configuration file or target server information;

A connection module 403, configured to obtain the target server information from the configuration file, and establish a data transmission link with the target server based on the target server information;

The sending module 404 is configured to send the installation file of the software to the target server through the data transmission link, so that the target server executes the step of software deployment based on the first installation script file in the installation file.

In a possible implementation manner, the obtaining module 401 is specifically configured to obtain a log file corresponding to the software deployment result returned by the target server; if the log file contains information that the software deployment is successful, then delete the first temporary task file; if the log file contains the information that the software deployment fails, generate a prompt message that the software deployment fails.

In a possible implementation manner, the calling module 402 is specifically configured to verify the configuration file to obtain verification information; if the verification information passes the verification, execute the configuration file through the The step of sending the data transmission link to the target server; if the verification of the verification information fails, a message that the configuration file is abnormal is generated.

In a possible implementation manner, the sending module 404 is specifically configured to send the configuration file to the target server through the data transmission link, so that the target server is configured based on the software operating environment configuration file The second installation script file in executes the steps of software runtime environment deployment.

In a possible implementation manner, the sending module 404 is further configured to store the installation file in a temporary file to generate a first temporary task file; send the first temporary task file to the target server, so that the target server stores the received first temporary task file in a local temporary directory to obtain a second temporary task file.

In a possible implementation manner, the sending module 404 is further configured to send a deletion instruction for deleting the second temporary task file to the target server if the log file contains the information that the software is deployed successfully , so that the target server deletes the second temporary task file in response to the deletion instruction.

The software deployment device provided in this embodiment may be the software deployment device shown in FIG. 4 , and can execute all steps of the software deployment method shown in FIG. 2-3 , thereby realizing the technical effect of the software deployment method shown in FIG. 2-3 , please refer to the relevant descriptions in FIGS. 2-3 for details. For the sake of brevity, details are not repeated here.

FIG. 5 is a schematic structural diagram of a server according to an embodiment of the present invention. The server 500 shown in FIG. 5 includes: at least one processor 501 , memory 502 , at least one network interface 504 and other user interfaces 503 . The various components in server 500 are coupled together by bus system 505 . It is understood that the bus system 505 is used to implement the connection communication between these components. In addition to the data bus, the bus system 505 also includes a power bus, a control bus and a status signal bus. However, for clarity of illustration, the various buses are labeled as bus system 505 in FIG. 5 .

Among them, the user interface 503 may include a display, a keyboard, or a pointing device (eg, a mouse, a trackball, a touch pad or a touch screen, etc.).

It can be understood that the memory 502 in the embodiment of the present invention may be a volatile memory or a non-volatile memory, or may include both volatile and non-volatile memory. The non-volatile memory may be Read-Only Memory (ROM), Programmable Read-Only Memory (PROM), Erasable Programmable Read-Only Memory (ErasablePROM, EPROM), Electrically Erasable Program read-only memory (Electrically EPROM, EEPROM) or flash memory. The volatile memory may be Random Access Memory (RAM), which is used as an external cache. By way of example and not limitation, many forms of RAM are available, such as Static RAM (SRAM), Dynamic RAM (DRAM), Synchronous DRAM (SDRAM), Double data rate synchronous dynamic random access memory (DoubleDataRateSDRAM, DDRSDRAM), enhanced synchronous dynamic random access memory (Enhanced SDRAM, ESDRAM), synchronous link dynamic random access memory (SynchlinkDRAM, SLDRAM) and direct memory bus random access Memory (DirectRambusRAM, DRRAM). The memory 502 described herein is intended to include, but not be limited to, these and any other suitable types of memory.

In some embodiments, memory 502 stores the following elements, executable units or data structures, or subsets thereof, or extended sets of them: operating system 5021 and applications 5022 .

The operating system 5021 includes various system programs, such as a framework layer, a core library layer, a driver layer, etc., for implementing various basic services and processing hardware-based tasks. The application program 5022 includes various application programs, such as a media player (MediaPlayer), a browser (Browser), etc., for implementing various application services. The program for implementing the method of the embodiment of the present invention may be included in the application program 5022 .

In this embodiment of the present invention, by calling the program or instruction stored in the memory 502, specifically, the program or instruction stored in the application program 5022, the processor 501 is configured to execute the method steps provided by each method embodiment, for example, including :

Receive the deployment instruction through the client; call a configuration file for deploying software through the deployment instruction, where the configuration file at least includes a software operating environment configuration file or target server information; obtain the target server from the configuration file information, and establish a data transmission link with the target server based on the target server information; send the installation file of the software to the target server through the data transmission link, so that the target server is based on the installation The first installation script file in the file performs the steps of software deployment.

In a possible implementation manner, the configuration file is sent to the target server through the data transmission link, so that the target server executes software based on the second installation script file in the software operating environment configuration file Steps to run the environment deployment.

In a possible implementation manner, the configuration file is verified to obtain verification information;

If the verification of the verification information passes, the step of sending the configuration file to the target server through the data transmission link is performed; if the verification of the verification information fails, an abnormality of the configuration file is generated. information.

In a possible implementation manner, the installation file is stored in a temporary file to generate a first temporary task file; the first temporary task file is sent to the target server, so that the target server will receive the The first temporary task file is stored in the local temporary directory, and the second temporary task file is obtained.

In a possible implementation manner, the target server obtains the installation file from the second temporary task file; parses the installation file, and performs format conversion on the parsed installation file to obtain a preset format A first installation script file is determined from an installation file in a preset format; and an installation operation of the software is performed based on the first installation script file.

In a possible implementation manner, a log file corresponding to the software deployment result returned by the target server is obtained; if the log file contains information that the software deployment is successful, delete the first temporary task file ; If the log file contains the information that the software deployment fails, generate a prompt message that the software deployment fails.

In a possible implementation manner, if the log file contains information about the successful deployment of the software, a deletion instruction for deleting the second temporary task file is sent to the target server, so that the target server responds to the The deletion instruction deletes the second temporary task file.

The methods disclosed in the above embodiments of the present invention may be applied to the processor 501 or implemented by the processor 501 . The processor 501 may be an integrated circuit chip with signal processing capability. In the implementation process, each step of the above-mentioned method can be completed by an integrated logic circuit of hardware in the processor 501 or an instruction in the form of software. The above-mentioned processor 501 may be a general-purpose processor, a digital signal processor (Digital Signal Processor, DSP), an application specific integrated circuit (Application Specific Integrated Circuit, ASIC), an off-the-shelf programmable gate array (Field Programmable Gate Array, FPGA) or other programmable logic devices, discrete gates or Transistor logic devices, discrete hardware components. Various methods, steps, and logical block diagrams disclosed in the embodiments of the present invention can be implemented or executed. A general purpose processor may be a microprocessor or the processor may be any conventional processor or the like. The steps of the method disclosed in conjunction with the embodiments of the present invention may be directly embodied as executed by a hardware decoding processor, or executed by a combination of hardware and software units in the decoding processor. The software unit may be located in random access memory, flash memory, read-only memory, programmable read-only memory or electrically erasable programmable memory, registers and other storage media mature in the art. The storage medium is located in the memory 502, and the processor 501 reads the information in the memory 502, and completes the steps of the above method in combination with its hardware.

It will be appreciated that the embodiments described herein may be implemented in hardware, software, firmware, middleware, microcode, or a combination thereof. For hardware implementation, the processing unit can be implemented in one or more application specific integrated circuits (Application Specific Integrated Circuits, ASIC), digital signal processors (Digital Signal Processing, DSP), digital signal processing devices (DSP Device, DSPD), Programmable Logic Device (Programmable Logic Device, PLD) ), a Field-Programmable Gate Array (FPGA), a general-purpose processor, a controller, a microcontroller, a microprocessor, other electronic units for performing the functions described herein, or a combination thereof.

For a software implementation, the techniques described herein may be implemented by means of units that perform the functions described herein. Software codes may be stored in memory and executed by a processor. The memory can be implemented in the processor or external to the processor.

The server provided in this embodiment may be the server shown in Figure 5, and can execute all steps of the software deployment method shown in Figure 2-3, thereby achieving the technical effect of the software deployment method shown in Figure 2-3. Referring to the related descriptions in FIGS. 2-3 , for the sake of brevity, details are not repeated here.

The embodiment of the present invention also provides a storage medium (computer-readable storage medium). The storage medium here stores one or more programs. Wherein, the storage medium may include volatile memory, such as random access memory; the memory may also include non-volatile memory, such as read-only memory, flash memory, hard disk or solid-state hard disk; the memory may also include the above-mentioned types of memory. combination.

When one or more programs in the storage medium can be executed by one or more processors, the above software deployment method executed on the server side is implemented.

The processor is configured to execute the software deployment program stored in the memory to implement the following steps of the software deployment method executed on the server side:

Receive the deployment instruction through the client; call a configuration file for deploying software through the deployment instruction, where the configuration file at least includes a software operating environment configuration file or target server information; obtain the target server from the configuration file information, and establish a data transmission link with the target server based on the target server information; send the installation file of the software to the target server through the data transmission link, so that the target server is based on the installation The first installation script file in the file performs the steps of software deployment.

In a possible implementation manner, the configuration file is sent to the target server through the data transmission link, so that the target server executes software based on the second installation script file in the software operating environment configuration file Steps to run the environment deployment.

In a possible implementation manner, the configuration file is verified to obtain verification information;

If the verification of the verification information passes, the step of sending the configuration file to the target server through the data transmission link is performed; if the verification of the verification information fails, an abnormality of the configuration file is generated. information.

In a possible implementation manner, the installation file is stored in a temporary file to generate a first temporary task file; the first temporary task file is sent to the target server, so that the target server will receive the The first temporary task file is stored in the local temporary directory, and the second temporary task file is obtained.

In a possible implementation manner, the target server obtains the installation file from the second temporary task file; parses the installation file, and performs format conversion on the parsed installation file to obtain a preset format A first installation script file is determined from an installation file in a preset format; and an installation operation of the software is performed based on the first installation script file.

In a possible implementation manner, a log file corresponding to the software deployment result returned by the target server is obtained; if the log file contains information that the software deployment is successful, delete the first temporary task file ; If the log file contains the information that the software deployment fails, generate a prompt message that the software deployment fails.

In a possible implementation manner, if the log file contains information about the successful deployment of the software, a deletion instruction for deleting the second temporary task file is sent to the target server, so that the target server responds to the The deletion instruction deletes the second temporary task file.

Professionals should be further aware that the units and algorithm steps of each example described in conjunction with the embodiments disclosed herein can be implemented in electronic hardware, computer software, or a combination of the two. Interchangeability, the above description has generally described the components and steps of each example in terms of function. Whether these functions are performed in hardware or software depends on the specific application and design constraints of the technical solution. Skilled artisans may implement the described functionality using different methods for each particular application, but such implementations should not be considered beyond the scope of the present invention.

The steps of a method or algorithm described in connection with the embodiments disclosed herein may be implemented in hardware, a software module executed by a processor, or a combination of the two. A software module can be placed in random access memory (RAM), internal memory, read only memory (ROM), electrically programmable ROM, electrically erasable programmable ROM, registers, hard disk, removable disk, CD-ROM, or any other in the technical field. in any other known form of storage medium.

The specific embodiments described above further describe the objectives, technical solutions and beneficial effects of the present invention in detail. It should be understood that the above descriptions are only specific embodiments of the present invention, and are not intended to limit the scope of the present invention. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included within the protection scope of the present invention.

Claims (10)

1. a software deployment method, is characterized in that, comprises: receiving the deployment instruction through the client; A configuration file for deploying software is invoked through the deployment instruction, where the configuration file at least includes a software operating environment configuration file or target server information; Obtain the target server information from the configuration file, and establish a data transmission link with the target server based on the target server information; The installation file of the software is sent to the target server through the data transmission link, so that the target server executes the step of software deployment based on the first installation script file in the installation file. 2. The method according to claim 1, wherein the method further comprises: Sending the configuration file to the target server through the data transmission link, so that the target server executes the step of deploying the software operating environment based on the second installation script file in the software operating environment configuration file. 3. The method according to claim 2, wherein the method further comprises: Verifying the configuration file to obtain verification information; If the verification information is verified and passed, the step of sending the configuration file to the target server through the data transmission link is performed; If the verification of the verification information fails, a message that the configuration file is abnormal is generated. 4. The method according to claim 3, wherein the sending the installation file of the software to the target server through the data transmission link comprises: The installation file is stored in the temporary file, and the first temporary task file is generated; Sending the first temporary task file to the target server, so that the target server stores the received first temporary task file in a local temporary directory to obtain a second temporary task file. 5. The method according to claim 4, wherein the step of the target server performing software deployment based on the first installation script file in the installation file comprises: The target server obtains the installation file from the second temporary task file; Analyzing the installation file, and performing format conversion on the parsed installation file to obtain an installation file in a preset format; Determine the first installation script file from the installation file in the preset format; Based on the first installation script file, an installation operation of the software is performed. 6. The method according to claim 5, wherein the method further comprises: Obtain the log file corresponding to the software deployment result returned by the target server; If the log file contains the information that the software is deployed successfully, delete the first temporary task file; If the log file contains the information that the software deployment fails, a prompt message that the software deployment fails is generated. 7. The method according to claim 6, wherein the method further comprises: If the log file contains the information about the successful deployment of the software, send a deletion instruction for deleting the second temporary task file to the target server, so that the target server deletes the first temporary task file in response to the deletion instruction 2. Temporary task documents. 8. A software deployment device, comprising: an acquisition module, configured to receive the deployment instruction through the client; a calling module, configured to call a configuration file for deploying software through the deployment instruction, where the configuration file at least includes a software operating environment configuration file or target server information; a connection module, configured to obtain the target server information from the configuration file, and establish a data transmission link with the target server based on the target server information; A sending module, configured to send the installation file of the software to the target server through the data transmission link, so that the target server executes the step of software deployment based on the first installation script file in the installation file. 9. A server, comprising: a processor and a memory, wherein the processor is configured to execute a software automatic deployment program stored in the memory, so as to realize the software automatic deployment program according to any one of claims 1 to 7. Deployment method. 10. A storage medium, wherein the storage medium stores one or more programs, and the one or more programs can be executed by one or more processors to realize any one of claims 1 to 7 The software automatic deployment method described in the item.
