CN111860011A - A kind of target graphic code identification method and device - Google Patents

Abstract

The present application discloses a method and device for identifying a target graphic code. The method includes: if a target image in a graphic code identification area includes at least two graphic codes, adding a triggerable graphic code to any one of the at least two graphic codes respectively. The control, and further realizes the recognition of the target graphic code in the at least two graphic codes in the target image by responding to the triggering operation of the triggerable control corresponding to the target graphic code in the at least two graphic codes.

Description

A kind of target graphic code identification method and device

This document is a divisional application of the patent application with the application number of "201710705652.9", the application date of "August 17, 2017", and the application title of "A method and device for identifying a target graphic code".

technical field

The present application relates to the field of computer technology, and in particular, to a method and device for identifying a target graphic code.

Background technique

A graphic code is an encoding method (eg, barcode, two-dimensional code, etc.) that records data information by using a specific graphic, and the data information contained in the graphic code can be identified and extracted through the graphic code recognition function of the terminal device. Graphical codes are widely used, for example, payment, advertising push, website link, etc. When the terminal device obtains the data information contained in the graphic code by identifying the graphic code, it often encounters a situation that multiple graphic codes enter the identification range at the same time. Currently, for multiple graphic codes that appear simultaneously within the identification range, the terminal device generally randomly locks one of the graphic codes for identification, and extracts the data information contained therein. However, the graphic code identified by the terminal device locking may not match the target graphic code required by the user.

SUMMARY OF THE INVENTION

The embodiments of the present application provide a method and device for identifying a target graphic code, which can effectively improve the identification efficiency of the target graphic code.

An embodiment of the present application provides a method for identifying a target graphic code, including:

Determine the graphic code in the target image, wherein, the target image is the image in the graphic code identification area;

If the target image includes at least two graphic codes, add a triggerable control to any graphic code in the at least two graphic codes;

The target graphic code is identified by responding to the triggering operation of the triggerable control corresponding to the target graphic code in the at least two graphic codes.

The embodiment of the present application also provides a target graphic code identification device, including: a determination unit, a control adding unit, and an identification unit, wherein:

The determining unit determines the graphic code in the target image, wherein the target image is the image in the graphic code identification area;

The control adding unit, if the target image includes at least two graphic codes, adds a triggerable control for any graphic code in the at least two graphic codes;

The identifying unit identifies the target graphic code by responding to the triggering operation of the triggerable control corresponding to the target graphic code in the at least two graphic codes.

The embodiment of the present application also provides a target graphic code identification device, including: a memory and a processor, wherein:

the memory stores a program;

The processor executes the program stored in the memory, and specifically executes:

Determine the graphic code in the target image, wherein, the target image is the image in the graphic code identification area;

If the target image includes at least two graphic codes, add a triggerable control to any graphic code in the at least two graphic codes;

The target graphic code is identified by responding to the triggering operation of the triggerable control corresponding to the target graphic code in the at least two graphic codes.

Embodiments of the present application also provide a computer-readable storage medium, where the computer-readable storage medium stores one or more programs, and the one or more programs, when executed by an electronic device including multiple application programs, make all the programs The electronic device performs the following methods:

Determine the graphic code in the target image, wherein, the target image is the image in the graphic code identification area;

If the target image includes at least two graphic codes, add a triggerable control to any graphic code in the at least two graphic codes;

The target graphic code is identified by responding to the triggering operation of the triggerable control corresponding to the target graphic code in the at least two graphic codes.

The embodiment of the present application provides a target graphic code method, including:

Determine the graphic code in the target image, wherein, the target image is the image in the graphic code identification area;

If the target image includes at least two graphic codes, receiving an identification instruction for the target graphic code in the at least two graphic codes;

According to the identification instruction, the target graphic code is identified.

The embodiment of the present application also provides a target graphic code identification device, including: a determination unit, a receiving unit and an identification unit, wherein:

The determining unit determines the graphic code in the target image, wherein the target image is the image in the graphic code identification area;

The receiving unit, if the target image includes at least two graphic codes, receives an identification instruction for the target graphic code in the at least two graphic codes;

The identifying unit identifies the target graphic code according to the identifying instruction.

The embodiment of the present application also provides a target graphic code identification device, including: a memory and a processor, wherein:

the memory stores a program;

The processor executes the program stored in the memory, and specifically executes:

Determine the graphic code in the target image, wherein, the target image is the image in the graphic code identification area;

If the target image includes at least two graphic codes, receiving an identification instruction for the target graphic code in the at least two graphic codes;

According to the identification instruction, the target graphic code is identified.

Embodiments of the present application also provide a computer-readable storage medium, where the computer-readable storage medium stores one or more programs, and the one or more programs, when executed by an electronic device including multiple application programs, make all the programs The electronic device performs the following methods:

Determine the graphic code in the target image, wherein, the target image is the image in the graphic code identification area;

If the target image includes at least two graphic codes, receiving an identification instruction for the target graphic code in the at least two graphic codes;

According to the identification instruction, the target graphic code is identified.

The above-mentioned at least one technical solution adopted in the embodiments of the present application can achieve the following beneficial effects:

If it is determined that the target image in the graphic code identification area includes at least two graphic codes, a triggerable control is added to any graphic code in the at least two graphic codes, and then the target graphic codes in the at least two graphic codes are corresponding to the at least two graphic codes by responding. The triggering operation of the triggerable control realizes the rapid and effective identification of the target graphic code in at least two graphic codes in the target image, thereby effectively improving the recognition efficiency of the target graphic code.

Description of drawings

The drawings described herein are used to provide further understanding of the present application and constitute a part of the present application. The schematic embodiments and descriptions of the present application are used to explain the present application and do not constitute an improper limitation of the present application. In the attached image:

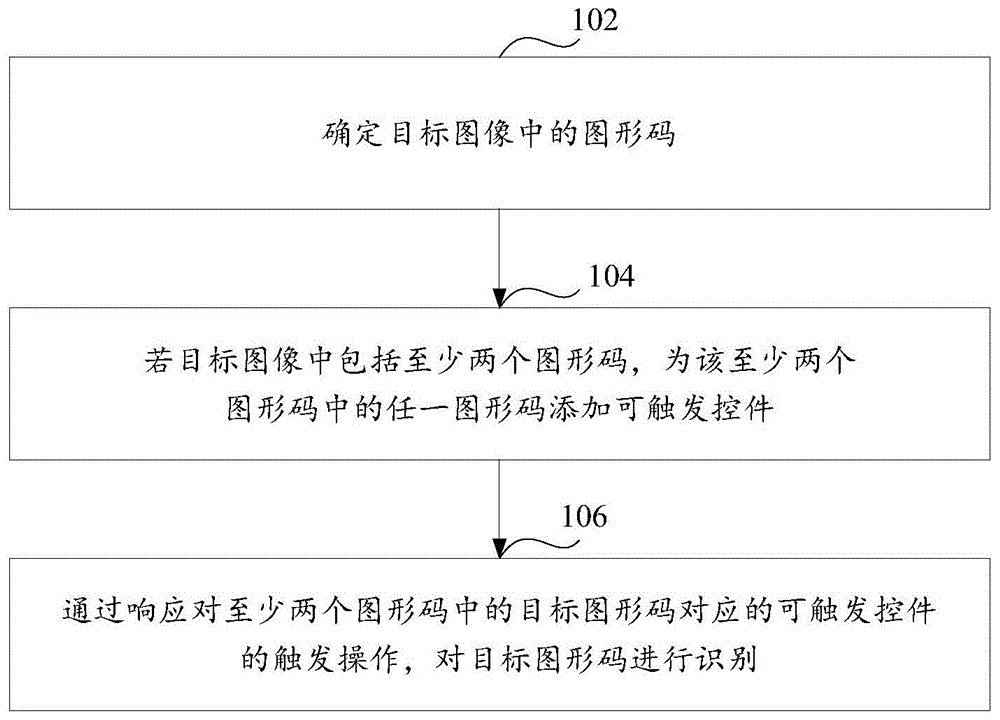

1 is a schematic flowchart of a method for identifying a target graphic code according to an embodiment of the present application;

2 is a schematic diagram of a scan code page provided by an embodiment of the present application;

3 is a schematic diagram of a scan code page after adding a triggerable control to a graphic code provided by an embodiment of the present application;

4 is a schematic diagram of a scan code page after clicking a target graphic code provided by an embodiment of the present application;

5 is a schematic flowchart of a method for identifying a target graphic code according to an embodiment of the present application;

FIG. 6 is a schematic flowchart of a method for identifying a target graphic code according to an embodiment of the present application

FIG. 7 is a schematic structural diagram of an electronic device according to an embodiment of the present application;

8 is a schematic structural diagram of an apparatus for identifying a target graphic code according to an embodiment of the present application;

FIG. 9 is a schematic structural diagram of an electronic device provided by an embodiment of the present application;

FIG. 10 is a schematic structural diagram of an apparatus for identifying a target graphic code according to an embodiment of the present application.

Detailed ways

In order to achieve the purpose of the present application, an embodiment of the present application provides a method and device for identifying a target graphic code. The method includes: after determining that a target image of a graphic code identification area includes at least two graphic codes, at least two graphic codes are respectively A triggerable control is added to any graphic code in the graphic code, and then by responding to the triggering operation of the triggerable control corresponding to the target graphic code in the at least two graphic codes, the at least two graphic codes in the target image are realized quickly and effectively. It can identify the target graphic code effectively, thereby effectively improving the recognition efficiency of the target graphic code.

The technical solutions of the present application will be clearly and completely described below with reference to the specific embodiments of the present application and the corresponding drawings. Obviously, the described embodiments are only a part of the embodiments of the present application, but not all of the embodiments. Based on the embodiments in this application, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of this application.

The technical solutions provided by the embodiments of the present application will be described in detail below with reference to the accompanying drawings.

Example 1

FIG. 1 is a schematic flowchart of a method for identifying a target graphic code according to an embodiment of the present application. The method can be as follows.

Step 102: Determine the graphic code in the target image.

Wherein, the target image is the image in the recognition area of the graphic code.

In the embodiment of the present application, determining the graphic code in the target image includes:

Determine the graphic code in the target image by graphic code scanning or AR scanning.

In the embodiment of the present application, the graphic code includes at least one of the following: barcode, two-dimensional code, and AR identification code.

When the user needs to identify the graphic code to obtain the data information contained in the graphic code, the user can trigger the scan code function in the terminal device, for example, click the scan function control in the terminal device to open the corresponding scan code page.

FIG. 2 is a schematic diagram of a scan code page provided by an embodiment of the present application.

As shown in Figure 2, the scan code page includes at least code scan controls and AR controls. Users can trigger the scan code controls or AR controls to scan the code scan page corresponding to the graphic code scan or scan the code scan page corresponding to the AR identification code scan. switch between.

For ease of expression, the scan code page corresponding to the graphic code scan and the code scan page corresponding to the AR scan are hereinafter referred to as the scan code page.

The scan code page includes a graphic code identification area. Users can adjust the position and focal length of the camera and align the camera with the graphic code, so that the graphic code is displayed in the graphic code identification area on the scan code page. The target image of the graphic code.

In addition, the user can also select the target image including the graphic code from the local album of the terminal device by clicking the album control on the scan code page.

For a target image including a graphic code determined by the terminal device, the graphic code identification function is used to determine the graphic code included in the target image, and to determine the position and number of graphic codes in the target image.

After the terminal device determines the position and number of the graphic codes included in the target image, it can add a position mark to each graphic code according to the position of each graphic code, for example, use the identification frame to locate the position of each graphic code in the target image, so that The user can clearly and quickly determine the position of each graphic code in the target image according to the position identification.

It should be noted that, in addition to using the identification frame to locate the position of each graphic code in the target image, the position of each graphic code in the target image can also be located by means of position identification, which is not specifically limited here.

Step 104: If the target image includes at least two graphic codes, add a triggerable control for any graphic code in the at least two graphic codes.

After the terminal device determines that the target image includes at least two graphic codes, in order to quickly and accurately identify the target graphic code required by the user from the at least two graphic codes, the at least two graphic codes in the target image need to be processed. Correspondingly, a triggerable control is added to each graphic code, so that the user can actively select the target graphic code to be identified for triggering by triggering the triggerable control.

It should be noted that the triggerable control corresponding to the graphic code may be added in the graphic code, or may be added at a preset position around the graphic code, which is not specifically limited here.

After adding a position mark and triggerable controls to each graphic code in the target image, the target image is displayed on the code scanning page.

FIG. 3 is a schematic diagram of a scan code page after adding a triggerable control to a graphic code according to an embodiment of the present application.

As shown in Figure 3, the graphic code is a two-dimensional code, and the target image displayed on the scanned page includes two two-dimensional codes, and the positions of the two two-dimensional codes in the target image are respectively located through the identification frame, that is, each of the two two-dimensional codes in Figure 3 The square frame around the two-dimensional code; the triggerable controls corresponding to each two-dimensional code are the circular controls in the central part of each two-dimensional code shown in FIG. 3 .

Step 106: Identify the target graphic code by responding to the triggering operation of the triggerable control corresponding to the target graphic code in the at least two graphic codes.

For the target image displayed on the scan code page, the user can determine the position of each graphic code included in the target image through the location identifier, and then the user can actively trigger the triggerable control corresponding to the target graphic code that the user needs to identify in the target image. The terminal device can identify the target graphic code by responding to the triggering operation of the triggerable control corresponding to the target graphic code.

It should be noted that the user can determine the target graphic code through the background part other than each graphic code in the target image, can also determine the target graphic code by asking the graphic code provider offline, and can also determine the target graphic code in other ways. There is no specific limitation here.

In the embodiment of the present application, the trigger operation includes one of the following: single click, double click, and slide.

In the embodiment of the present application, when responding to the triggering operation on the triggerable controls corresponding to the target graphic codes in the at least two graphic codes, the method further includes:

Set the triggerable controls corresponding to other graphic codes other than the target graphic code to an unavailable state.

FIG. 4 is a schematic diagram of a code scanning page after clicking a target graphic code according to an embodiment of the present application.

As shown in Figure 4, the user clicks the triggerable control corresponding to the target graphic code, the terminal device responds to the click operation on the target graphic code, and in the process of recognizing the target graphic code, the terminal device can also remove the target graphic code from the target image. The triggerable controls corresponding to other graphic codes are set to an unavailable state, so that in the process of identifying the target graphic code, identification errors caused by the user mistakenly triggering the triggerable controls corresponding to other graphic codes are avoided.

In this embodiment of the present application, the scan code page may further include: a code scan control again.

When the at least two graphic codes included in the target image displayed on the scan code page do not have the target graphic code that the user needs to identify, the user can perform the scan code scan operation again by triggering the rescan code control on the scan code page.

In the embodiment of the present application, identifying the target graphic code includes:

Obtain the recognition result page corresponding to the target graphic code;

Display the recognition result page corresponding to the target graphic code to the user.

In response to the trigger operation of the triggerable control corresponding to the target graphic code, the terminal device recognizes the data information contained in the target graphic code, that is, obtains the recognition result page corresponding to the target graphic code, and then sends the recognition result page corresponding to the target graphic code to the target graphic code. User push display.

In the embodiment of the present application, the identification result page includes one of the following: a payment page, an advertisement push page, and a website link page.

In the technical solution described in the embodiment of the present application, after it is determined that the target image in the identification area of the graphic code includes at least two graphic codes, a triggerable control is added to any graphic code in the at least two graphic codes, and then a triggerable control is added to the at least two graphic codes through a response. The trigger operation of the triggerable control corresponding to the target graphic code in the two graphic codes realizes the rapid and effective identification of the target graphic code in at least two graphic codes in the target image, thereby effectively improving the recognition efficiency of the target graphic code.

Example 2

Based on the same inventive concept, FIG. 5 is a schematic flowchart of a method for identifying a target graphic code according to an embodiment of the present application. The method can be as follows.

Step 502: Determine the graphic code in the target image.

Wherein, the target image is the image in the recognition area of the graphic code.

In the embodiment of the present application, determining the graphic code in the target image includes:

Determine the graphic code in the target image by graphic code scanning or AR scanning.

In the embodiment of the present application, the graphic code includes at least one of the following: barcode, two-dimensional code, and AR identification code.

When the user needs to identify the graphic code to obtain the data information contained in the graphic code, the user can trigger the scan code function in the terminal device, for example, click the scan function control in the terminal device to open the corresponding scan code page.

The code scanning page provided in the embodiment of the present application is the same as the code scanning page shown in FIG. 2 in the above-mentioned Embodiment 1.

As shown in Figure 2, the scan code page includes at least code scan controls and AR controls. Users can trigger the scan code controls or AR controls to scan the code scan page corresponding to the graphic code scan or scan the code scan page corresponding to the AR identification code scan. switch between.

For ease of expression, the scan code page corresponding to the graphic code scan and the code scan page corresponding to the AR scan are hereinafter referred to as the scan code page.

The scan code page includes a graphic code identification area. Users can adjust the position and focal length of the camera and align the camera with the graphic code, so that the graphic code is displayed in the graphic code identification area on the scan code page. The target image of the graphic code.

In addition, the user can also select the target image including the graphic code from the local album of the terminal device by clicking the album control on the scan code page.

Step 504: If the target image includes at least two graphic codes, receive an identification instruction of the target graphic codes in the at least two graphic codes.

After the terminal device determines that the target image includes at least two graphic codes, in order to quickly and accurately identify the target graphic code required by the user from the at least two graphic codes, the at least two graphic codes in the target image need to be processed. Corresponding processing enables the user to actively select the target graphic code to be identified.

In the embodiment of the present application, the method further includes: adding a triggerable control to any one of the at least two graphic codes.

After the terminal device determines the position and number of the graphic codes included in the target image, it can add a position mark to each graphic code according to the position of each graphic code, for example, use the identification frame to locate the position of each graphic code in the target image, so that The user can clearly and quickly determine the position of each graphic code in the target image according to the position identification.

It should be noted that, in addition to using the identification frame to locate the position of each graphic code in the target image, the position of each graphic code in the target image can also be located by means of position identification, which is not specifically limited here.

After determining the position of each graphic code in the target image, the terminal device can further add triggerable controls to each graphic code, and the user can recognize a graphic code by triggering the triggerable control corresponding to a graphic code.

It should be noted that the triggerable control corresponding to the graphic code may be added in the graphic code, or may be added at a preset position around the graphic code, which is not specifically limited here.

After adding a position mark and triggerable controls to each graphic code in the target image, the target image is displayed on the code scanning page.

The scan code page provided by the embodiment of the present application after adding triggerable controls to the graphic code is the same as the scan code page after adding triggerable controls to the graphic code as shown in FIG. 3 in Embodiment 1 above.

As shown in Figure 3, the graphic code is a two-dimensional code, and the target image displayed on the scanned page includes two two-dimensional codes, and the positions of the two two-dimensional codes in the target image are respectively located through the identification frame, that is, each of the two two-dimensional codes in Figure 3 The square frame around the two-dimensional code; the triggerable controls corresponding to each two-dimensional code are the circular controls in the central part of each two-dimensional code shown in FIG. 3 .

In the embodiment of the present application, receiving an identification instruction for a target graphic code in at least two graphic codes includes:

An identification instruction triggered by a triggering operation of a triggerable control corresponding to a target graphic code in the at least two graphic codes is received.

In the embodiment of the present application, the trigger operation includes one of the following: single click, double click, and slide.

For the target image displayed on the scan code page, the user can determine the position of each graphic code included in the target image through the location identifier, and then the user can actively trigger the triggerable control corresponding to the target graphic code that the user needs to identify in the target image. , so that the terminal device receives the identification instruction triggered by the trigger operation.

It should be noted that the user can determine the target graphic code through the background part other than each graphic code in the target image, can also determine the target graphic code by asking the graphic code provider offline, and can also determine the target graphic code in other ways. There is no specific limitation here.

In the embodiment of the present application, after receiving the identification instruction triggered by the trigger operation of the triggerable control corresponding to the target graphic code in the at least two graphic codes, the method further includes:

Set the triggerable controls corresponding to other graphic codes other than the target graphic code to an unavailable state.

The scan code page provided in the embodiment of the present application after receiving the identification instruction is the same as the scan code page after clicking the target graphic code shown in FIG. 4 in the above-mentioned embodiment 1.

As shown in FIG. 4 , after the terminal device determines that it has received the identification instruction for the target graphic code, it can set the triggerable controls corresponding to other graphic codes in the target image except the target graphic code to an unavailable state, so that when the target graphic code is detected During the identification process of the graphic code, the identification error caused by the user mistakenly triggering the triggerable controls corresponding to other graphic codes is avoided.

In this embodiment of the present application, the scan code page may further include: a code scan control again.

When the at least two graphic codes included in the target image displayed on the scan code page do not have the target graphic code that the user needs to identify, the user can perform the scan code scan operation again by triggering the rescan code control on the scan code page.

Step 506: Identify the target graphic code according to the identification instruction.

In the embodiment of the present application, the target graphic code is identified according to the identification instruction, including:

Obtain the recognition result page corresponding to the target graphic code;

Display the recognition result page corresponding to the target graphic code to the user.

In the embodiment of the present application, the identification result page includes one of the following: a payment page, an advertisement push page, and a website link page.

After the terminal device determines to receive the recognition instruction for the target graphic code, it recognizes the data information contained in the target graphic code, that is, obtains the recognition result page corresponding to the target graphic code, and then pushes and displays the recognition result page corresponding to the target graphic code to the user. .

According to the technical solutions described in the embodiments of the present application, if it is determined that the target image in the identification area of the graphic code includes at least two graphic codes, by receiving the identification instruction of the target graphic code in the at least two graphic codes, and then according to the identification instruction, The target graphic code is quickly and effectively identified among the multiple graphic codes in the target image, thereby effectively improving the recognition efficiency of the target graphic code.

Example 3

Based on the inventive concept of the present application described in detail in the foregoing embodiment 1 and/or embodiment 2, in order to facilitate a better understanding of the technical features, means and effects of the present application, the target graphic code identification method of the present application is further described below, thereby Yet another embodiment of the present application is formed.

The identification process of the target graphic code in Embodiment 3 of the present application is similar to the identification process of the target graphic code in Embodiment 1 and/or Embodiment 2. For other steps not introduced in Embodiment 3, refer to Embodiment 1 and/or Embodiment The relevant descriptions in 2 will not be repeated here.

Before introducing the implementation manner of the solution in detail, the implementation scenario of the solution is briefly introduced.

This implementation scenario is a code-scanning payment scenario. The user scans and obtains the target image through the terminal device, and the graphic code included in the target image is the QR code provided by the merchant offline.

Based on the above scenario, FIG. 6 is a schematic flowchart of a method for identifying a target graphic code according to an embodiment of the present application. The method can be as follows.

Step 601: The user triggers the scan function control in the terminal device, opens the corresponding scan code page, aligns the camera of the terminal device to the place where the two-dimensional code is located, and adjusts the position and focal length of the camera, so that the two-dimensional code is displayed on the screen. In the graphic code identification area on the scan code page.

Step 602: Acquire a target image including a two-dimensional code through a camera.

Step 603: Determine the number of two-dimensional codes included in the target image, and when it is determined that the target image includes one two-dimensional code, go to step 604; when it is determined that the target image includes at least two two-dimensional codes, go to step 605 .

Step 604: Identify a two-dimensional code included in the target image, acquire a page corresponding to the two-dimensional code, and then display the page corresponding to the two-dimensional code to the user.

Step 605: Add a triggerable control to any one of the at least two two-dimensional codes included in the target image, and display the target image with the triggerable control added to any two-dimensional code on the scan code page to the user .

Step 606: The user clicks the triggerable control corresponding to the target two-dimensional code to be identified in the at least two two-dimensional codes in the target image.

Step 607: Receive an identification instruction triggered by the user clicking a triggerable control corresponding to the target graphic code, identify the target two-dimensional code according to the identification instruction, obtain the identification result page corresponding to the target two-dimensional code, and then push the display target to the user The recognition result page corresponding to the QR code.

Example 4

FIG. 7 is a schematic structural diagram of an electronic device according to an embodiment of the present application. As shown in FIG. 7 , at the hardware level, the electronic device includes a processor, and optionally an internal bus, a network interface, and a memory. The memory may include memory, such as high-speed random-access memory (Random-Access Memory, RAM), or may also include non-volatile memory (non-volatile memory), such as at least one disk memory. Of course, the electronic equipment may also include hardware required for other services.

The processor, the network interface, and the memory can be connected to each other through an internal bus, which can be an ISA (Industry Standard Architecture) bus, a PCI (Peripheral Component Interconnect, peripheral component interconnect standard) bus or an EISA (Extended Industry Standard Architecture) bus. , extended industry standard structure) bus and so on. The bus can be divided into an address bus, a data bus, a control bus, and the like. For ease of representation, only one bidirectional arrow is shown in FIG. 6, but it does not mean that there is only one bus or one type of bus.

memory for storing programs. Specifically, the program may include program code, and the program code includes computer operation instructions. The memory may include memory and non-volatile memory and provide instructions and data to the processor.

The processor reads the corresponding computer program from the non-volatile memory into the memory and then runs it, forming a target graphic code identification device on a logical level. The processor executes the program stored in the memory, and is specifically used to perform the following operations:

Determine the graphic code in the target image, wherein, the target image is the image in the graphic code identification area;

If the target image includes at least two graphic codes, add a triggerable control for any graphic code in the at least two graphic codes;

The target graphic code is identified by responding to the triggering operation of the triggerable control corresponding to the target graphic code in the at least two graphic codes.

The above-mentioned method performed by Embodiment 1 and/or Embodiment 3 of the present application may be applied to a processor, or implemented by a processor. A processor may be an integrated circuit chip with signal processing capabilities. In the implementation process, each step of the above-mentioned method can be completed by a hardware integrated logic circuit in a processor or an instruction in the form of software. The above-mentioned processor may be a general-purpose processor, including a central processing unit (Central Processing Unit, CPU), a network processor (Network Processor, NP), etc.; it may also be a digital signal processor (Digital Signal Processor, DSP), dedicated integrated Circuit (Application Specific Integrated Circuit, ASIC), Field-Programmable Gate Array (Field-Programmable Gate Array, FPGA) or other programmable logic devices, discrete gate or transistor logic devices, discrete hardware components. The methods, steps, and logic block diagrams disclosed in the embodiments of this application can be implemented or executed. A general purpose processor may be a microprocessor or the processor may be any conventional processor or the like. The steps of the method disclosed in conjunction with the embodiments of the present application may be directly embodied as executed by a hardware decoding processor, or executed by a combination of hardware and software modules in the decoding processor. The software modules may be located in random access memory, flash memory, read-only memory, programmable read-only memory or electrically erasable programmable memory, registers and other storage media mature in the art. The storage medium is located in the memory, and the processor reads the information in the memory, and completes the steps of the above method in combination with its hardware.

The electronic device may also perform the method performed in FIG. 1 and/or FIG. 6 , and implement the functions of the foregoing Embodiment 1 and/or Embodiment 3, and details are not described herein again in this embodiment of the present application.

The embodiments of the present application also provide a computer-readable storage medium, where the computer-readable storage medium stores one or more programs, and the one or more programs include instructions, and the instructions are executed by an electronic device including multiple application programs. , the electronic device can be made to execute the target graphic code identification method in the embodiment shown in FIG. 1 and/or FIG. 5 , and is specifically used to execute:

Determine the graphic code in the target image, wherein, the target image is the image in the graphic code identification area;

If the target image includes at least two graphic codes, add a triggerable control for any graphic code in the at least two graphic codes;

The target graphic code is identified by responding to the triggering operation of the triggerable control corresponding to the target graphic code in the at least two graphic codes.

FIG. 8 is a schematic structural diagram of an apparatus for identifying a target graphic code according to an embodiment of the present application. The apparatus 800 includes: a determining unit 801, a control adding unit 802 and an identifying unit 803, wherein:

Determine unit 801, determine the graphic code in the target image, wherein, the target image is the image in the graphic code identification area;

The control adding unit 802, if the target image includes at least two graphic codes, adds a triggerable control for any graphic code in the at least two graphic codes;

The identifying unit 803 identifies the target graphic code by responding to the triggering operation of the triggerable control corresponding to the target graphic code in the at least two graphic codes.

Optionally, the determining unit 801 determines the graphic code in the target image, including:

Determine the graphic code in the target image by graphic code scanning or AR scanning.

Optionally, the apparatus 800 further includes: a processing unit, wherein:

The processing unit, in response to the triggering operation on the triggerable controls corresponding to the target graphic codes in the at least two graphic codes, sets the triggerable controls corresponding to other graphic codes except the target graphic codes to an unavailable state.

Optionally, the identification unit 803 identifies the target graphic code, including:

Obtain the recognition result page corresponding to the target graphic code;

Display the recognition result page corresponding to the target graphic code to the user.

Optionally, the identification result page includes one of the following: a payment page, an advertisement push page, and a website link page.

Optionally, the trigger operation includes at least one of the following: single click, double click, and slide.

Optionally, the graphic code includes at least one of the following: barcode, two-dimensional code, and AR identification code.

According to the target graphic code identification device, the determining unit determines the graphic code in the target image, wherein the target image is an image in the graphic code identification area; if the target image includes at least two graphic codes, the adding unit is one of the at least two graphic codes. A triggerable control is added to any of the graphic codes of the The target graphic code is quickly and effectively identified in each graphic code, and the recognition efficiency of the target graphic code is effectively improved.

Example 5

FIG. 9 is a schematic structural diagram of an electronic device according to an embodiment of the present application. As shown in FIG. 9 , at the hardware level, the electronic device includes a processor, and optionally an internal bus, a network interface, and a memory. The memory may include memory, such as high-speed random-access memory (Random-Access Memory, RAM), or may also include non-volatile memory (non-volatile memory), such as at least one disk memory. Of course, the electronic equipment may also include hardware required for other services.

The processor, the network interface, and the memory can be connected to each other through an internal bus, which can be an ISA (Industry Standard Architecture, industry standard architecture) bus, a PCI (Peripheral Component Interconnect, peripheral component interconnect standard) bus or an EISA (Extended Industry Standard) bus. StandardArchitecture, extended industry standard structure) bus, etc. The bus can be divided into an address bus, a data bus, a control bus, and the like. For ease of representation, only one bidirectional arrow is shown in FIG. 6, but it does not mean that there is only one bus or one type of bus.

memory for storing programs. Specifically, the program may include program code, and the program code includes computer operation instructions. The memory may include memory and non-volatile memory and provide instructions and data to the processor.

The processor reads the corresponding computer program from the non-volatile memory into the memory and then runs it, forming a target graphic code identification device on a logical level. The processor executes the program stored in the memory, and is specifically used to perform the following operations:

Determine the graphic code in the target image, wherein, the target image is the image in the graphic code identification area;

If the target image includes at least two graphic codes, receiving an identification instruction of the target graphic codes in the at least two graphic codes;

According to the identification instruction, the target graphic code is identified.

The above-mentioned method performed by Embodiment 2 and/or Embodiment 3 of the present application may be applied to a processor, or implemented by a processor. A processor may be an integrated circuit chip with signal processing capabilities. In the implementation process, each step of the above-mentioned method can be completed by a hardware integrated logic circuit in a processor or an instruction in the form of software. The above-mentioned processor may be a general-purpose processor, including a central processing unit (Central Processing Unit, CPU), a network processor (Network Processor, NP), etc.; it may also be a digital signal processor (Digital Signal Processor, DSP), dedicated integrated Circuit (Application Specific Integrated Circuit, ASIC), Field-Programmable Gate Array (Field-Programmable Gate Array, FPGA) or other programmable logic devices, discrete gate or transistor logic devices, discrete hardware components. The methods, steps, and logic block diagrams disclosed in the embodiments of this application can be implemented or executed. A general purpose processor may be a microprocessor or the processor may be any conventional processor or the like. The steps of the method disclosed in conjunction with the embodiments of the present application may be directly embodied as executed by a hardware decoding processor, or executed by a combination of hardware and software modules in the decoding processor. The software modules may be located in random access memory, flash memory, read-only memory, programmable read-only memory or electrically erasable programmable memory, registers and other storage media mature in the art. The storage medium is located in the memory, and the processor reads the information in the memory, and completes the steps of the above method in combination with its hardware.

The electronic device may also perform the method performed in FIG. 5 and/or FIG. 6 , and implement the functions of the foregoing Embodiment 2 and/or Embodiment 3, which are not described herein again in this embodiment of the present application.

The embodiments of the present application also provide a computer-readable storage medium, where the computer-readable storage medium stores one or more programs, and the one or more programs include instructions, and the instructions are executed by an electronic device including multiple application programs. , the electronic device can be made to execute the target graphic code identification method in the embodiment shown in FIG. 1 and/or FIG. 5 , and is specifically used to execute:

Determine the graphic code in the target image, wherein, the target image is the image in the graphic code identification area;

If the target image includes at least two graphic codes, receiving an identification instruction of the target graphic codes in the at least two graphic codes;

According to the identification instruction, the target graphic code is identified.

FIG. 10 is a schematic structural diagram of an apparatus for identifying a target graphic code according to an embodiment of the present application. The apparatus 1000 includes: a determining unit 1001, a receiving unit 1002 and an identifying unit 1002, wherein:

Determining unit 1001 determines the graphic code in the target image, wherein the target image is the image in the graphic code identification area;

The receiving unit 1002, if the target image includes at least two graphic codes, receives an identification instruction of the target graphic code in the at least two graphic codes;

The identification unit 1003 identifies the target graphic code according to the identification instruction.

Optionally, the determining unit 1001 determines the graphic code in the target image, including:

The graphic code in the target image is determined by graphic code scanning or AR scanning.

Optionally, the apparatus 1000 further includes: a control adding unit, wherein:

The control adding unit adds a triggerable control to any one of the at least two graphic codes before receiving the identification instruction for the target graphic code in the at least two graphic codes.

Optionally, the receiving unit 1002 receives an identification instruction for the target graphic code in the at least two graphic codes, including:

An identification instruction triggered by a triggering operation of a triggerable control corresponding to a target graphic code in the at least two graphic codes is received.

Optionally, the trigger operation includes one of the following: single click, double click, and slide.

Optionally, the apparatus 1000 further includes: a processing unit, wherein:

The processing unit, after receiving the identification instruction triggered by the triggering operation of the triggerable controls corresponding to the target graphic codes in the at least two graphic codes, sets the triggerable controls corresponding to other graphic codes other than the target graphic codes to an unavailable state .

Optionally, the identification unit 1003 identifies the target graphic code, including:

Obtain the recognition result page corresponding to the target graphic code;

Display the recognition result page corresponding to the target graphic code to the user.

Optionally, the identification result page includes one of the following: a payment page, an advertisement push page, and a website link page.

Optionally, the graphic code includes at least one of the following: barcode, two-dimensional code, and AR identification code.

According to the target graphic code identification device, the determining unit determines the graphic code in the target image, wherein the target image is an image in the graphic code identification area; if the target image includes at least two graphic codes, the receiving unit receives the at least two graphic codes. The identification instruction of the target graphic code in the code; the identification unit, according to the identification instruction, identifies the target graphic code, so that the target graphic code can be quickly and effectively identified among multiple graphic codes in the target image, and the target graphic code can be effectively improved. code recognition efficiency.

In the 1990s, improvements in a technology could be clearly differentiated between improvements in hardware (eg, improvements to circuit structures such as diodes, transistors, switches, etc.) or improvements in software (improvements in method flow). However, with the development of technology, the improvement of many methods and processes today can be regarded as a direct improvement of the hardware circuit structure. Designers almost get the corresponding hardware circuit structure by programming the improved method flow into the hardware circuit. Therefore, it cannot be said that the improvement of a method flow cannot be realized by hardware entity modules. For example, a Programmable Logic Device (PLD) (eg, Field Programmable Gate Array (FPGA)) is an integrated circuit whose logic function is determined by user programming of the device. It is programmed by the designer to "integrate" a digital system on a PLD without having to ask the chip manufacturer to design and manufacture a dedicated integrated circuit chip. And, instead of making integrated circuit chips by hand, these days, much of this programming is done using software called a "logic compiler", which is similar to the software compiler used in program development and writing, but before compiling The original code also has to be written in a specific programming language, which is called Hardware Description Language (HDL), and there is not only one HDL, but many kinds, such as ABEL (Advanced Boolean Expression Language) , AHDL (Altera Hardware Description Language), Confluence, CUPL (Cornell University Programming Language), HDCal, JHDL (Java Hardware Description Language), Lava, Lola, MyHDL, PALASM, RHDL (RubyHardware Description Language), etc. The most commonly used are VHDL (Very-High-Speed Integrated Circuit Hardware Description Language) and Verilog. It should also be clear to those skilled in the art that a hardware circuit for implementing the logic method process can be easily obtained by simply programming the method process in the above-mentioned several hardware description languages and programming it into the integrated circuit.

The controller may be implemented in any suitable manner, for example, the controller may take the form of eg a microprocessor or processor and a computer readable medium storing computer readable program code (eg software or firmware) executable by the (micro)processor , logic gates, switches, application specific integrated circuits (ASICs), programmable logic controllers and embedded microcontrollers, examples of controllers include but are not limited to the following microcontrollers: ARC 625D, Atmel AT91SAM, Microchip PIC18F26K20 and Silicon Labs C8051F320, the memory controller can also be implemented as part of the control logic of the memory. Those skilled in the art also know that, in addition to implementing the controller in the form of pure computer-readable program code, the controller can be implemented as logic gates, switches, application-specific integrated circuits, programmable logic controllers and embedded devices by logically programming the method steps. The same function can be realized in the form of a microcontroller, etc. Therefore, such a controller can be regarded as a hardware component, and the devices included therein for realizing various functions can also be regarded as a structure within the hardware component. Or even, the means for implementing various functions can be regarded as both a software module implementing a method and a structure within a hardware component.

The systems, devices, modules or units described in the above embodiments may be specifically implemented by computer chips or entities, or by products with certain functions. A typical implementation device is a computer. Specifically, the computer can be, for example, a personal computer, a laptop computer, a cellular phone, a camera phone, a smart phone, a personal digital assistant, a media player, a navigation device, an email device, a game console, a tablet computer, a wearable device, or A combination of any of these devices.

For the convenience of description, when describing the above device, the functions are divided into various units and described respectively. Of course, when implementing the present application, the functions of each unit may be implemented in one or more software and/or hardware.

As will be appreciated by one skilled in the art, embodiments of the present invention may be provided as a method, system or computer program product. Accordingly, the present invention may take the form of an entirely hardware embodiment, an entirely software embodiment, or an embodiment combining software and hardware aspects. Furthermore, the present invention may take the form of a computer program product embodied on one or more computer-usable storage media (including, but not limited to, disk storage, CD-ROM, optical storage, etc.) having computer-usable program code embodied therein.

The present invention is described with reference to flowchart illustrations and/or block diagrams of methods, apparatus (systems), and computer program products according to embodiments of the invention. It will be understood that each flow and/or block in the flowchart illustrations and/or block diagrams, and combinations of flows and/or blocks in the flowchart illustrations and/or block diagrams, can be implemented by computer program instructions. These computer program instructions may be provided to the processor of a general purpose computer, special purpose computer, embedded processor or other programmable data processing device to produce a machine such that the instructions executed by the processor of the computer or other programmable data processing device produce Means for implementing the functions specified in a flow or flow of a flowchart and/or a block or blocks of a block diagram.

These computer program instructions may also be stored in a computer-readable memory capable of directing a computer or other programmable data processing apparatus to function in a particular manner, such that the instructions stored in the computer-readable memory result in an article of manufacture comprising instruction means, the instructions The apparatus implements the functions specified in the flow or flows of the flowcharts and/or the block or blocks of the block diagrams.

These computer program instructions can also be loaded on a computer or other programmable data processing device to cause a series of operational steps to be performed on the computer or other programmable device to produce a computer-implemented process such that The instructions provide steps for implementing the functions specified in the flow or blocks of the flowcharts and/or the block or blocks of the block diagrams.

In a typical configuration, a computing device includes one or more processors (CPUs), input/output interfaces, network interfaces, and memory.

Memory may include non-persistent memory in computer readable media, random access memory (RAM) and/or non-volatile memory in the form of, for example, read only memory (ROM) or flash memory (flash RAM). Memory is an example of a computer-readable medium.

Computer-readable media includes both persistent and non-permanent, removable and non-removable media, and storage of information may be implemented by any method or technology. Information may be computer readable instructions, data structures, modules of programs, or other data. Examples of computer storage media include, but are not limited to, phase-change memory (PRAM), static random access memory (SRAM), dynamic random access memory (DRAM), other types of random access memory (RAM), read only memory (ROM), Electrically Erasable Programmable Read Only Memory (EEPROM), Flash Memory or other memory technology, Compact Disc Read Only Memory (CD-ROM), Digital Versatile Disc (DVD) or other optical storage, Magnetic tape cassettes, magnetic tape magnetic disk storage or other magnetic storage devices or any other non-transmission medium that can be used to store information that can be accessed by a computing device. Computer-readable media, as defined herein, excludes transitory computer-readable media, such as modulated data signals and carrier waves.

It should also be noted that the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device comprising a series of elements includes not only those elements, but also Other elements not expressly listed or inherent to such a process, method, article of manufacture or apparatus are also included. Without further limitation, an element qualified by the phrase "comprising a..." does not preclude the presence of additional identical elements in the process, method, article of manufacture or device that includes the element.

The application may be described in the general context of computer-executable instructions, such as program modules, being executed by a computer. Generally, program modules include routines, programs, objects, components, data structures, etc. that perform particular tasks or implement particular abstract data types. The application may also be practiced in distributed computing environments where tasks are performed by remote processing devices that are linked through a communications network. In a distributed computing environment, program modules may be located in both local and remote computer storage media including storage devices.

Each embodiment in this specification is described in a progressive manner, and the same and similar parts between the various embodiments may be referred to each other, and each embodiment focuses on the differences from other embodiments. In particular, as for the system embodiments, since they are basically similar to the method embodiments, the description is relatively simple, and for related parts, please refer to the partial descriptions of the method embodiments.

The above descriptions are merely examples of the present application, and are not intended to limit the present application. Various modifications and variations of this application are possible for those skilled in the art. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of this application shall be included within the scope of the claims of this application.

Claims (10)

1. A target graphic code identification method, comprising: Determine the graphic code in the target image, wherein, the target image is the image in the graphic code identification area; If the target image includes at least two graphic codes, add a triggerable control to any graphic code in the at least two graphic codes; The target graphic code is identified by responding to a triggering operation on a triggerable control corresponding to the target graphic code in the at least two graphic codes, and the triggering operation is used for triggering and identifying the target graphic code. 2. The method of claim 1, determining the graphic code in the target image, comprising: The graphic code in the target image is determined by graphic code scanning or AR scanning. 3. The method according to claim 1, when responding to the trigger operation of the triggerable control corresponding to the target graphic code in the at least two graphic codes, the method further comprises: The triggerable controls corresponding to other graphic codes other than the target graphic code are set to an unavailable state. 4. The method of claim 1, identifying the target graphic code, comprising: Obtain the recognition result page corresponding to the target graphic code; The recognition result page is presented to the user. 5. The method of claim 4, wherein the identification result page comprises one of the following: a payment page, an advertisement push page, and a website link page. 6. The method of claim 1, wherein the triggering operation comprises one of the following: single click, double click, and slide. 7. The method according to any one of claims 1-6, wherein the graphic code comprises at least one of the following: barcode, two-dimensional code, and AR identification code. 8. A target graphic code identification device, comprising: a determination unit, a control addition unit and an identification unit, wherein: The determining unit determines the graphic code in the target image, wherein the target image is the image in the graphic code identification area; The control adding unit, if the target image includes at least two graphic codes, adds a triggerable control for any graphic code in the at least two graphic codes; The identifying unit identifies the target graphic code by responding to a triggering operation on a triggerable control corresponding to the target graphic code in the at least two graphic codes, and the triggering operation is used to trigger and identify the target graphic code. 9. A target graphic code identification device, comprising: a memory and a processor, wherein: the memory stores a program; The processor executes the program stored in the memory, and specifically executes: Determine the graphic code in the target image, wherein, the target image is the image in the graphic code identification area; If the target image includes at least two graphic codes, add a triggerable control to any graphic code in the at least two graphic codes; The target graphic code is identified by responding to a triggering operation on a triggerable control corresponding to the target graphic code in the at least two graphic codes, and the triggering operation is used for triggering and identifying the target graphic code. 10. A computer-readable storage medium storing one or more programs that, when executed by an electronic device including a plurality of application programs, cause the electronic device to execute The following methods: Determine the graphic code in the target image, wherein, the target image is the image in the graphic code identification area; If the target image includes at least two graphic codes, add a triggerable control to any graphic code in the at least two graphic codes; The target graphic code is identified by responding to a trigger operation on a triggerable control corresponding to a target graphic code in the at least two graphic codes, and the trigger operation is used to trigger and identify the target graphic code.

Images
