Abstract

The invention discloses a floating and waterproof connector wire harness assembly, which belongs to the technical field of connectors. The invention includes an insulator, a sealing ring, a floating screw, a plastic sealing body, a terminal, and a cable. The terminal is fixed in the insulator, and one end of the terminal is used for mating with the pin of the plug-in connector, and the other end of the terminal is connected with the cable. , the sealing ring is sleeved on the outer diameter of the insulator, and the plastic sealing body wraps the terminal, the cable and the insulator. The connector harness assembly of the present invention is easy to operate, can be floated, and realizes functions such as comprehensive waterproofing after the plug-in connection, the structure is simple, the cost is low, and the labor efficiency is significantly improved in use.

Description

A floating, waterproof connector harness assembly

technical field

The present invention relates to the technical field of connectors, and more particularly to a floating and waterproof connector wire harness assembly.

Background technique

Fan connectors are commonly used components in fan modules. They are used to aggregate different numbers of fan wire harnesses into the entire module to form an independent unit, which is then functionally connected to the host. During the mating process of the existing fan connectors, there is a problem that the positioning accuracy is poor and the mating cannot be achieved. At the same time, most of these connectors do not have waterproof function, and the service life is often shortened because they are not waterproof.

In practical applications, the modules are assembled in two directions, positive and negative. In order to meet the needs, a rotatable structure is often used, but such a rotatable structure is expensive and complicated.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a floating, waterproof connector wire harness assembly to solve the above-mentioned problems in the background art.

In order to achieve the above object, the present invention adopts the following technical solutions:

A floating, waterproof connector wiring harness assembly, comprising an insulator, a sealing ring, a floating screw, a plastic body, a terminal, and a cable, the terminal is fixed in the insulator, and one end of the terminal is used to connect with the pin of the plug-end connector The other end of the terminal is connected with the cable, the sealing ring is sleeved on the outer diameter of the insulator, and the plastic sealing body wraps the terminal, the cable and the insulator.

Further, the plastic sealing body is provided with a mounting end at one end close to the insulator, and the mounting ends on the upper and lower sides of the insulator are respectively provided with guide posts for matching with the sockets of the plug-in connector.

Further, the front end of the guide column is provided with a tapered guide surface.

Further, floating screws are respectively provided on the mounting ends on the upper and lower sides of the insulator.

Further, the outer contour of the insulator and the guide posts disposed on the mounting ends on the upper and lower sides of the insulator adopt a center-symmetric structure, and the terminals are evenly and symmetrically arranged up and down.

Compared with the prior art, the present invention has the following beneficial effects:

1. The present invention has novel structure and strong practicability. The connector harness assembly of the present invention is easy to operate, can be floated, and realizes functions such as comprehensive waterproofing after the plug-in connection. The structure is simple, the cost is low, and the labor efficiency is significantly improved in use. The invention solves the problem that the module cannot be inserted due to poor positioning accuracy during the insertion process through the floating screw and the guide column. Since the floating screw and the guide column are provided, the positioning accuracy of the entire module is relatively low.

2. During the connector insertion process of the wire harness assembly of the present invention, radial waterproof sealing is achieved through the sealing ring and the butt end connector, and the plastic sealing body wraps the terminal, the cable and the insulator to form a seal.

3. The shape of the insulator and the guide column of the present invention adopt a center-symmetric structure, and the terminals are evenly arranged up and down symmetrically, so that the positive and negative rotation of 180° can also be used to complete the electrical function docking.

Description of drawings

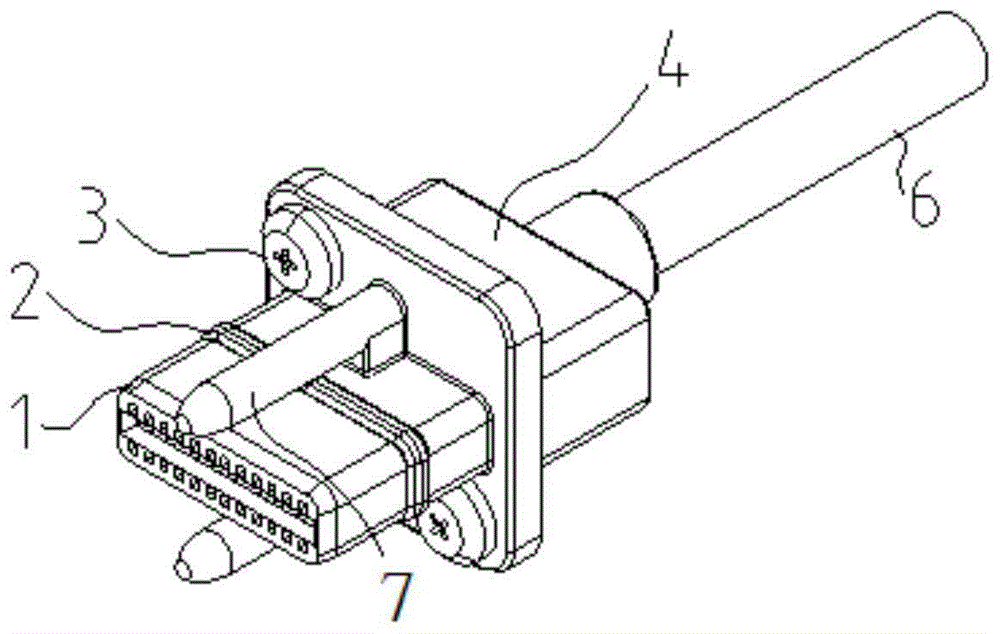

1 is a schematic structural diagram of a floating, waterproof connector harness assembly of the present invention;

2 is a schematic structural diagram of a terminal of a floating, waterproof connector harness assembly of the present invention;

3 is a schematic structural diagram of a floating screw of a floating and waterproof connector harness assembly of the present invention;

4 is a schematic diagram of a floating, waterproof connector harness assembly and a plug-in connector according to the present invention;

FIG. 5 is a schematic diagram of a uniform and symmetrical arrangement of the terminals of a floating, waterproof connector harness assembly of the present invention.

Marking in the figure: 1-insulator, 2-sealing ring, 3-floating screw, 4-plastic body, 5-terminal, 6-cable, 7-guide post, 8-installation end, 9-conical guide surface.

Detailed ways

The present invention will be further described below with reference to the embodiments, and the described embodiments are only a part of the embodiments of the present invention, not all of the embodiments. Based on the embodiments of the present invention, other used embodiments obtained by persons of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Embodiment 1:

As shown in Figure 1, a floating, waterproof connector harness assembly includes an insulator, a sealing ring, a floating screw, a plastic body, a terminal, and a cable. The terminal is fixed in the insulator, as shown in Figure 2, and the terminal is One end is used for mating with the pins of the spigot connector, the other end of the terminal is connected with the cable, the sealing ring is sleeved on the outer diameter of the insulator, and the plastic sealing body wraps the terminal, the cable and the insulator.

In the process of connector insertion, radial waterproof sealing is achieved through the sealing ring and the butt-end connector, and the plastic sealing body wraps the terminal, the cable and the insulator to form a seal.

In this embodiment, the plastic sealing body is provided with a mounting end at one end close to the insulator, and the mounting ends on the upper and lower sides of the insulator are respectively provided with guide posts for matching with the sockets of the plug-in connector; Floating screws are respectively provided on the installation ends on the upper and lower sides.

As shown in Figure 3, specifically, floating screws are installed at the upper left and lower right corners, or the upper right and lower left corners of the mounting end. The connector harness assembly is integrally mounted on the module through floating screws, and the insulator is provided with a guiding column structure, thereby realizing floating and guiding assembly during the mating process.

More preferably, the front end of the guide column is provided with a tapered guide surface, and the tapered guide surface enables the connector harness assembly to be connected to the connector at the opposite end, as shown in Figures 4 and 5. , more convenient.

In the present embodiment, the outer contour of the insulator and the guide posts provided on the mounting ends on the upper and lower sides of the insulator are all centrally symmetric structures, and the terminals are evenly arranged up and down symmetrically.

The shape of the insulator and the guide column adopt a center-symmetrical structure, and the terminals are evenly and symmetrically arranged up and down, so that the positive and negative rotation of 180° can also be used to complete the electrical function docking.

The connector harness assembly of the present invention is easy to operate, can be floated, and realizes functions such as comprehensive waterproofing after the plug-in connection. The structure is simple, the cost is low, and the labor efficiency is significantly improved in use.

The above descriptions are only preferred embodiments of the present invention and are not intended to limit the present invention. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present invention shall be included in the protection of the present invention. within the range.

Claims (5)

1. The utility model provides a can float, waterproof connector pencil subassembly which characterized in that contains insulator, sealing washer, unsteady screw, plastic-sealed body, terminal, cable, the terminal is fixed in the insulator, and the one end of terminal be used for with the contact pin cooperation to the plug-in connector, the other end and the cable junction of terminal, the sealing washer cover is established on the external diameter of insulator, the plastic-sealed body live terminal and cable and insulator parcel.

2. The connector harness assembly of claim 1 wherein the plastic body has a mounting end at an end adjacent the insulator, and wherein the mounting ends on the upper and lower sides of the insulator each have a guide post for engaging a receptacle of a mating connector.

3. The floatable, waterproof connector harness assembly of claim 2 wherein the guide posts are tapered guide surfaces at the front ends.

4. The floatable, waterproof connector harness assembly of claim 2 wherein floating screws are provided on the mounting ends of the upper and lower sides of the insulator, respectively.

5. The floatable, waterproof connector harness assembly of claim 2 wherein the outer contour of the insulator and the guide posts provided on the mounting ends on the upper and lower sides of the insulator are of a central symmetrical configuration and the terminals are arranged in a symmetrical configuration.
