Abstract
本发明涉及装饰工具技术领域，且公开了一种用于墙体粉刷的喷头装置，所述壳体的下方活动连接有喷头底座，所述喷头底座的内部活动连接有出料口，所述出料口的内部开设有喷口小孔，所述喷口小孔的上方活动连接有筛网，所述筛网的上方活动连接有流通管，所述流通管的上方活动连接有搅拌装置，所述搅拌装置的上方活动连接有进料口。该用于墙体粉刷的喷头装置，搅拌装置的内部活动连接搅拌轮，活动杆连接搅拌轮和限位槽，活动杆的一端在限位槽上移动从而带动搅拌轮在通孔的外部转动，对搅拌装置内部的粉液进行搅拌，使待粉刷的液体搅拌的更加均匀，从流通管流通时更加书安插，不会粉液成块堵住流通管的情况。
The invention relates to the technical field of decorative tools, and discloses a sprinkler device for wall painting. A sprinkler base is movably connected to the bottom of the casing, and a discharge port is movably connected inside the sprinkler base. The inside of the material port is provided with a small spout hole, a screen mesh is movably connected above the spout small hole, a circulation pipe is movably connected above the screen mesh, and a stirring device is movably connected above the flow pipe, and the stirring device is movably connected above. The upper part of the device is movably connected with a feeding port. In the nozzle device for wall painting, the inside of the stirring device is movably connected to the stirring wheel, the movable rod is connected to the stirring wheel and the limit groove, and one end of the movable rod moves on the limit groove to drive the stirring wheel to rotate outside the through hole. The powder liquid inside the stirring device is stirred, so that the liquid to be painted is more evenly stirred, and it is more arranged when circulating from the circulation pipe, so that the powder liquid will not block the circulation pipe.
Description
Technical Field
The invention relates to the technical field of decorative tools, in particular to a spray head device for wall painting.
Background
Along with the continuous development of economic level, in daily life, people have higher and higher requirements on living environment, and are more lean and refined in the decoration of houses, wherein the requirements are extremely strict in the wall painting process, if the wall painting is uneven and uneven, the integral aesthetic feeling can be seriously influenced, and due to different forces, certain layering can exist in the manual wall painting process, and in addition, the workload is high, the labor intensity is higher, the time consumption is longer, the working efficiency is low, the effect is not good, and the attractiveness is influenced.
For solving above-mentioned manual work whitewash because the difference of the operating force degree, lead to the wall unevenness, manual operation work load is big, high in labor strength, the problem that work efficiency is low, so provide a shower nozzle device for wall body whitewashes, the inside swing joint of the device agitating unit stirs the wheel, movable rod and spacing groove, it rotates to drive the stirring wheel through the removal of movable rod on the movable groove, can make the inside whitewash of several version devices more even like this, when getting into the spout aperture, the screen cloth can filter the particulate matter in the whitewash, make from the fine and smooth even of orifice spun whitewash, the inside evenly distributed's of discharge gate spout aperture, can make the scope of spraying wider, can reduce manual operation intensity like this, save operating time, improve work efficiency, the scope of spraying is wider, and is more level and more pleasing to the eye.
Disclosure of Invention
Technical problem to be solved
Aiming at the defects of the prior art, the invention provides the spray head device for wall plastering, which has the advantages of reducing the manual operation intensity, saving the operation time, improving the working efficiency, having wider spraying range and being smoother and more beautiful, and solves the problems of uneven wall surface, large manual operation workload, high labor intensity and low working efficiency caused by different operation forces during manual wall plastering.
(II) technical scheme
In order to achieve the purposes of reducing manual operation intensity, saving operation time, improving working efficiency, having wider spraying range and being smoother and more beautiful, the invention provides the following technical scheme: a nozzle device for wall plastering comprises a shell, a nozzle base, a discharge hole, a nozzle small hole, a screen, a circulating pipe, a stirring device, a feed inlet, a through hole, a stirring wheel, a support, a movable rod, a limiting groove and a limiting support rod.
The position and connection relationship among the structures are as follows:
the utility model discloses a stirring device, including casing, shower nozzle base, spout aperture, spout screen, runner pipe, stirring device, stirring wheel, support, the below swing joint of casing has the shower nozzle base, the inside swing joint of shower nozzle base has the discharge gate, the spout aperture has been seted up to the inside of discharge gate, the top swing joint of spout aperture has the screen cloth, the top swing joint of screen cloth has the runner pipe, the top swing joint of runner pipe has agitating unit, agitating unit's top swing joint has the feed inlet, agitating unit's axle center department swing joint has the through-hole, the outside swing joint of through-hole has the stirring wheel, the inside swing joint of stirring wheel has the support, the top swing joint of stirring wheel has the movable rod, the top swing.
Preferably, the outside of shower nozzle base is the rectangle, the inside swing joint rectangle discharge gate of shower nozzle base, the inside swing joint circular spout aperture of discharge gate, the spout aperture is three rows of twenty rows of evenly distributed, spout aperture top swing joint screen cloth, the screen cloth can filter impurity or particulate matter among the agitating unit, makes spun powder and liquid more fine and smooth even.
Preferably, the radius of the through hole movably connected with the axis of the stirring device is the same as that of the feeding hole.
Preferably, the limit support rods are movably connected to two sides of the movable rods, and the movable rods on two sides are symmetrically distributed.
Preferably, the circular protective sheath of outside swing joint of through-hole, the outside and the spacing groove of circular protective sheath are tangent, and circular protective sheath prevents that the stirring wheel from causing the collision to the through-hole at the activity in-process.
Preferably, the limiting grooves are uniformly distributed in the stirring device in an arc shape.
Preferably, the stirring wheel is total three, and three stirring wheel evenly distributed is in agitating unit's inside, and movable rod one end swing joint stirring wheel, the other end swing joint spacing groove of movable rod, the movable rod can remove on the spacing groove to drive the stirring wheel at agitating unit inside activity, the inside powder liquid of drive arrangement flows.
(III) advantageous effects
Compared with the prior art, the invention provides the spray head device for wall plastering, which has the following beneficial effects:
1. this a shower nozzle device for wall body whitewashes, agitating unit's inside swing joint stirring wheel, stirring wheel and spacing groove are connected to the movable rod, thereby the one end of movable rod moves on the spacing groove and drives the stirring wheel and rotate in the outside of through-hole, stirs the inside powder liquid of agitating unit, makes the more even of the liquid stirring of waiting to whitewash, inserts more books when circulating from the runner pipe, can not whitewash the condition that the runner pipe was plugged up to the liquid blocking.
2. This a shower nozzle device for wall body whitewashes, the below swing joint through-hole of feed inlet, the circular protective sheath of outside swing joint of through-hole can prevent to cause the striking to the through-hole when stirring round motion, influences circulation powder liquid, avoids causing the waste.
3. This a shower nozzle device for wall body whitewashes, the inside swing joint discharge gate of shower nozzle base, the inside swing joint spout aperture of discharge gate, spout aperture evenly distributed is in the discharge gate, when using, can evenly go out liquid, it is more even to make the injection, spout aperture top swing joint one side screen cloth, can pass through the screen cloth with the impurity among the agitating unit and filter, can make the powder liquid of coming out from the spout aperture more fine and smooth, impurity and particulate matter have been avoided stifled in the spout aperture, influence the device's use, can prolong the device's life.
(IV) description of the drawings

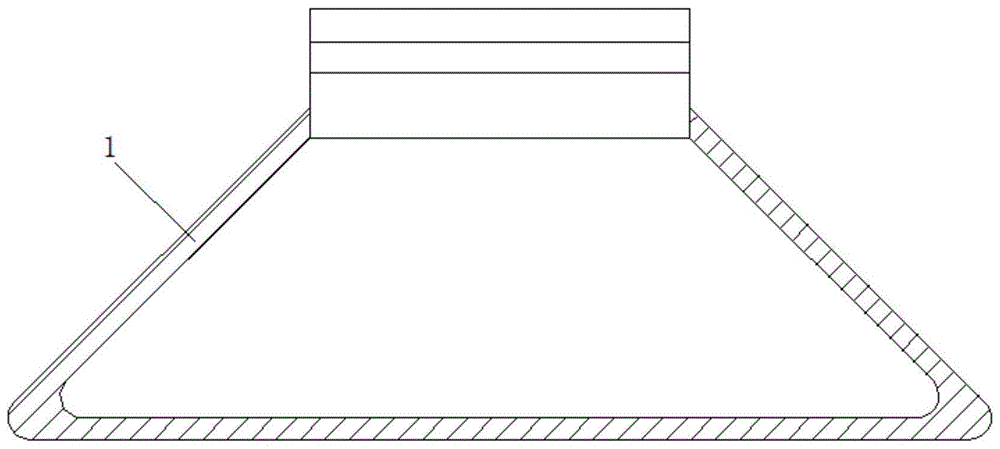

FIG. 1 is a schematic view of the external structure of the present invention;
FIG. 2 is a schematic view of the internal structure of the present invention;
FIG. 3 is a schematic top view of a showerhead base of the structure of the present invention;
FIG. 4 is a schematic structural view of a discharge port of the present invention;
FIG. 5 is a schematic top view of a stirring device constructed in accordance with the present invention;
fig. 6 is a schematic diagram illustrating the movement of the movable rod on the limiting groove in the structure of fig. 5 according to the present invention.
In the figure: 1. a housing; 2. a nozzle base; 3. a discharge port; 4. a small nozzle hole; 5. screening a screen; 6. a flow-through tube; 7. a stirring device; 8. a feed inlet; 9. a through hole; 10. a stirring wheel; 11. a support; 12. a movable rod; 13. a limiting groove; 14. a limit support rod.
(V) detailed description of the preferred embodiments
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Please refer to fig. 1-6:
a nozzle device for wall painting comprises a shell 1, a nozzle base 2, a discharge hole 3, a nozzle small hole 4, a screen 5, a circulating pipe 6, a stirring device 7, a feed port 8, a through hole 9, a stirring wheel 10, a support 11, a movable rod 12, a limiting groove 13 and a limiting support rod 14.
Wherein the lower part of the shell 1 is movably connected with a nozzle base 2, the inner part of the nozzle base 2 is movably connected with a discharge port 3, the inner part of the discharge port 3 is provided with nozzle small holes 4, the upper part of the nozzle small holes 4 is movably connected with a screen 5, the upper part of the screen 5 is movably connected with a runner pipe 6, the outer part of the nozzle base 2 is rectangular, the inner part of the nozzle base 2 is movably connected with a rectangular discharge port 3, the inner part of the discharge port 3 is movably connected with round nozzle small holes 4, the nozzle small holes 4 are uniformly distributed in three rows and twenty columns, the upper part of the nozzle small holes 4 is movably connected with the screen 5, the screen 5 can filter impurities or particles in a stirring device 7 to ensure that the sprayed powder and liquid are more fine and more uniform, the upper part of the runner pipe 6 is movably connected with a stirring device 7, the radius of a through hole 9 movably connected with the axis of the stirring device 7 is the same as that of the feed port 8, the outer part of the through hole 9 is movably connected with a stirring wheel 10, the inner part of the stirring wheel 10 is movably connected with a bracket 11, the upper part of the stirring wheel 10 is movably connected with a movable rod 12, the upper part of the movable rod 12 is movably connected with a limiting groove 13, the limiting grooves 13 are evenly distributed in the stirring device 7 in an arc shape, the outer part of the through hole 9 is movably connected with a circular protective sleeve, the outer part of the circular protective sleeve is tangent with the limiting groove 13, the circular protective sleeve prevents the stirring wheel 10 from colliding the through hole 9 in the moving process, the stirring wheels 10 are three in total, the three stirring wheels 10 are evenly distributed in the stirring device 7, one end of the movable rod 12 is movably connected with the stirring wheel 10, the other end of the movable rod 12 is movably connected with the limiting groove 13, the movable rod 12, the powder liquid in the device is driven to flow, the outer part of the stirring wheel 10 is movably connected with a limiting support rod 14, the limiting support rods 14 are movably connected to two sides of the movable rod 12, and the movable rods 12 on two sides are symmetrically distributed.
The working process and the principle of the spray head device for wall painting are that the inner part of a shell 1 is movably connected with a feed inlet 8, a stirring device 7, a circulating pipe 6 and a spray head base 2, the inner part of the stirring device 7 is movably connected with a stirring wheel 10, the outer part of the stirring wheel 10 is movably connected with a movable rod 12, two sides of the movable rod 12 are movably connected with a bracket 11, the upper part of the movable rod 12 is movably connected with a limiting groove 13, when the movable rod 12 rotates clockwise on the limiting groove 13, the stirring wheel 10 also rotates clockwise, at the moment, powder liquid in the stirring device 7 can be driven to flow, the blockage when sediment flows through the circulating pipe 6 is avoided, the inner part of the spray head base 2 is movably connected with a discharge port 3, the inner part of the discharge port 3 is movably connected with a nozzle small hole 4, the upper part of the nozzle small hole 4 is movably connected with a screen 5, when powder enters, and then ejected from the orifice 4.
In summary, the following steps:
A. this a shower nozzle device for wall body whitewashes, agitating unit 7's inside swing joint stirring wheel 10, stirring wheel 10 and spacing groove 13 are connected to movable rod 12, thereby movable rod 12's one end moves on spacing groove 13 and drives stirring wheel 10 and rotate in the outside of through-hole 9, stir the powder liquid of agitating unit 7 inside, the messenger treats more even of the liquid stirring of whitewashing, insert more books when circulating from runner pipe 6, can not block up the condition of runner pipe 6 for powder liquid.
B. This a shower nozzle device for wall body whitewashes, feed inlet 8's below swing joint through-hole 9, the circular protective sheath of outside swing joint of through-hole 9 can prevent to cause the striking to through-hole 9 when stirring wheel 10 moves, influences circulation powder liquid, avoids causing the waste.
C. This a shower nozzle device for wall body whitewashes, the inside swing joint discharge gate 3 of shower nozzle base 2, the inside swing joint spout aperture 4 of discharge gate 3, spout aperture 4 evenly distributed is in discharge gate 3, when using, can evenly go out liquid, it is more even to make the injection, spout aperture 4's top swing joint one side screen cloth 5, can pass through screen cloth 5 with the impurity in agitating unit 7 and filter, can make the powder liquid of coming out from spout aperture 4 more fine and smooth, impurity and particulate matter have been avoided stifled in spout aperture 4, influence the device's use, can prolong the device's life.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. A shower nozzle device for wall plastering, which comprises a shell (1), and is characterized in that: the lower part of the shell (1) is movably connected with a spray head base (2), the inner part of the spray head base (2) is movably connected with a discharge port (3), a spout small hole (4) is formed in the discharge port (3), a screen (5) is movably connected above the spout small hole (4), a circulating pipe (6) is movably connected above the screen (5), a stirring device (7) is movably connected above the circulating pipe (6), a feed inlet (8) is movably connected above the stirring device (7), a through hole (9) is movably connected at the axle center of the stirring device (7), a stirring wheel (10) is movably connected outside the through hole (9), a support (11) is movably connected inside the stirring wheel (10), a movable rod (12) is movably connected above the stirring wheel (10), and a limit groove (13) is movably connected above the movable rod (12), the outside swing joint of stirring wheel (10) has spacing bracing piece (14), spacing groove (13) are arc evenly distributed in the inside of agitating unit (7), stirring wheel (10) is total three, and three stirring wheel (10) evenly distributed is in the inside of agitating unit (7), and movable rod (12) one end swing joint stirring wheel (10), other end swing joint spacing groove (13) of movable rod (12).
2. A nozzle assembly for wall plastering according to claim 1, wherein: the outside of shower nozzle base (2) is the rectangle, the inside swing joint rectangle discharge gate (3) of shower nozzle base (2), the inside swing joint circular spout aperture (4) of discharge gate (3), spout aperture (4) are three rows of twenty rows evenly distributed.
3. A nozzle assembly for wall plastering according to claim 1, wherein: the radius of the through hole (9) movably connected with the axis of the stirring device (7) is the same as that of the feed port (8).
4. A nozzle assembly for wall plastering according to claim 1, wherein: the limiting support rods (14) are movably connected to two sides of the movable rods (12), and the movable rods (12) on the two sides are symmetrically distributed.
5. A nozzle assembly for wall plastering according to claim 1, wherein: the outside swing joint circular protective sheath of through-hole (9), the outside and spacing groove (13) of circular protective sheath are tangent.
