Abstract

The invention discloses an insemination device for Chinese soft-shelled turtle, comprising a main body, an enlarged part, a first vas deferens, a second vas deferens and a plunger. The main body is provided with an insemination channel; A functional shunt chamber, the shunt chamber includes a first through port, a second through port and a third through port, the first through port is connected with the first vas deferens, the second through port is connected with the second vas deferens, and the third through port is connected to the second vas deferens. The outer side wall is in contact with the inner side wall of the insemination channel, and the shunt chamber is movably connected to the main body. The beneficial effects of the present invention are: the enlarged part is used to open the cloaca of the female Chinese soft-shelled turtle, and as the plunger is further pushed inward, the column The plug will push the swollen part away from the main body, and the swollen part will stay in the cloaca of the female Chinese soft-shelled turtle. Cross-infection between individuals increases the fertilization rate.

Description

An insemination device for turtles

technical field

The invention relates to the field of animal husbandry, in particular to a stress-reducing semen collection device for turtles.

Background technique

Animal reproduction is a key link in animal production and plays an important role in increasing the number and quality of animals. It is of great significance in the field of animal reproduction technology to study the regulation and improvement of animal reproductive performance and to explore animal reproductive potential.

Under natural conditions, the growth and development of soft-shelled turtles are slow, the number of eggs laid, the fertilization rate and the hatching rate are low, and the hatching time is long. Therefore, in order to meet the needs of the current development of the soft-shelled turtle industry and improve the economic benefits of breeding, artificial breeding has become a key link to provide a large number of seedlings and ensure the sustainable development of the industry. At this time, it is necessary to use artificial insemination to improve the fertilization rate of turtles. Common insemination devices can inject multiple individuals at one time, which will inevitably lead to cross-infection and reduce the fertilization rate.

SUMMARY OF THE INVENTION

Aiming at the current state of the prior art, an insemination device for Chinese soft-shelled turtle is provided, in which each female individual is inseminated individually, thereby preventing the possibility of cross infection and improving the fertilization rate of soft-shelled turtles.

The technical scheme adopted in the present invention is: an insemination device for Chinese soft-shelled turtle, comprising a main body, an enlarged part, a first vas deferens, a second vas deferens and a plunger, wherein the main body is provided with an insemination channel, and the plunger Located in the insemination channel, the rear end of the enlarged part is provided with a shunt chamber with a three-way function, the shunt chamber includes a first through port, a second through port and a third through port, the first through port It is connected with the first vas deferens, the second through port is connected with the second vas deferens, the outer side wall of the third through port is in contact with the inner side wall of the insemination channel, and the shunt chamber is movably connected to the second vas deferens. on the subject.

The beneficial effects of the invention are as follows: the enlarged part is used to open the cloaca of the female Chinese soft-shelled turtle, push the semen in the insemination channel to the shunt chamber through the plunger, and then enter the cloaca of the female Chinese soft-shelled turtle from the first vas deferens and the second vas deferens, As the plunger is pushed further inward, the plunger will push the bulging part away from the main body. At this time, the bulging part will remain in the cloaca of the female Chinese soft-shelled turtle. Spillover, since one female corresponds to one bulge, it can prevent cross-infection between females and improve the fertilization rate.

Preferably, a drawstring is provided on the enlarged portion. The drawstring is used to pull the bulge out of the cloaca.

Preferably, the shunt chamber is T-shaped or Y-shaped. Due to the unique physiological structure of the female Chinese soft-shelled turtle, two vas deferens are required, so the shunt chamber is used to divide the semen in the vas deferens into two branches, respectively, from the first vas deferens and the second vas deferens into the female Chinese soft-shelled turtle's cloaca.

Preferably, the front ends of the first vas deferens and the second vas deferens are provided with insemination ports. The insemination port facilitates the flow of semen from the vas deferens into the cloaca.

Preferably, the cross section of the main body is in the shape of a half moon. Part of the main body will enter the cloaca of the female soft-shelled turtle along with the enlarged part. Since the cross section of the main body is half-moon-shaped, when the main body enters the cloaca, the two ends of the main body will be stuck in the cloaca, so that the main body will not rotate in the cloaca. , preventing the body from slipping out of the cloaca.

Preferably, the main body is provided with a snap ring at the end away from the enlarged portion. The retaining ring can be used with the insemination gun, and the main body is fixed on the front end of the insemination gun through the retaining ring, which has the advantage of continuous injection.

Preferably, the enlarged portion is in the shape of a cone as a whole. Specifically, the enlarged portion is mushroom-shaped, and the side wall thereof is smoothed by the arc surface, so that the enlarged portion can be easily entered into or taken out from the cloaca.

Description of drawings

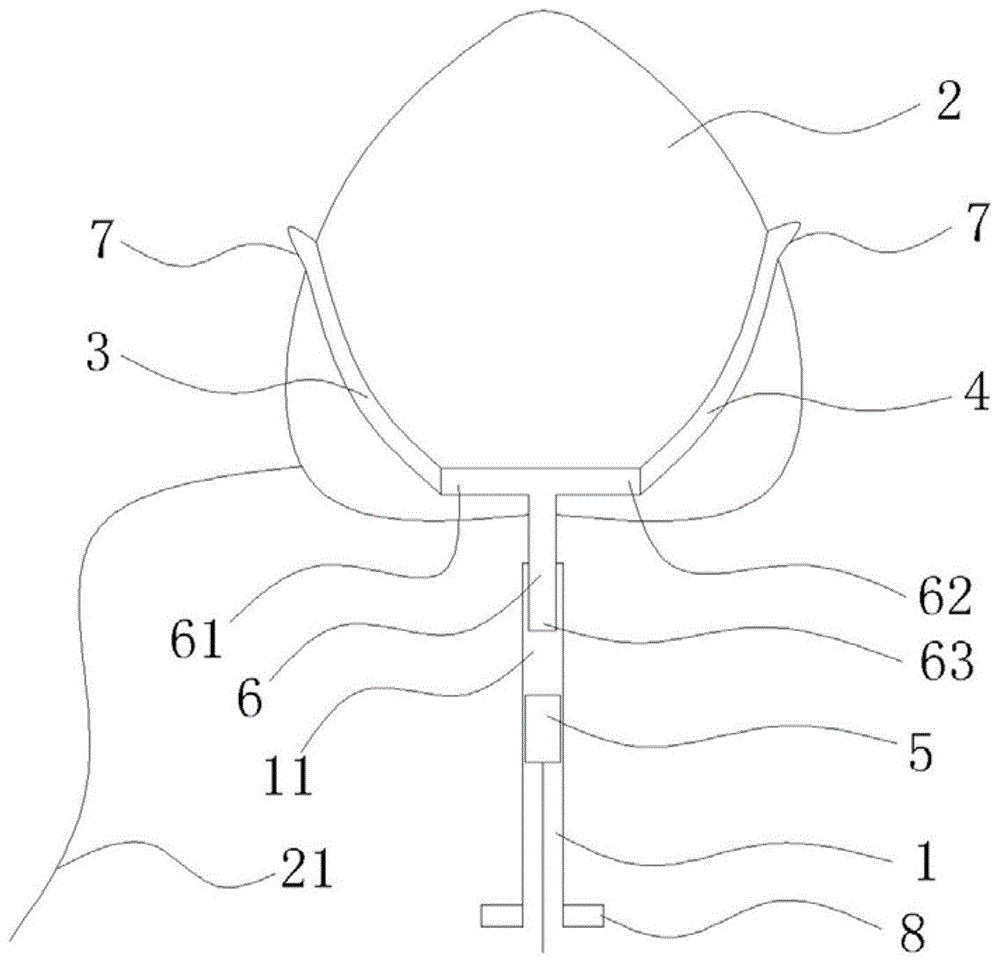

Fig. 1 is the structural representation of the present invention;

Figure 2 is a schematic cross-sectional view of the main body of the present invention.

In the figure, 1, the main body, 2, the enlarged part, 3, the first vas deferens, 4, the second vas deferens, 5, the plunger, 11, the insemination channel, 6, the shunt chamber, 61, the first port, 62, the first Second port, 63, third port, 21, drawstring, 7, insemination port, 8, snap ring.

Detailed ways

The principles and features of the present invention are described below, and the examples are only used to explain the present invention, but not to limit the scope of the present invention.

Example 1:

As shown in Figures 1 to 2, an insemination device for turtles comprises a main body 1, an enlarged part 2, a first vas deferens 3, a second vas deferens 4 and a plunger 5, and the main body 1 is provided with an insemination The semen channel 11, the plunger 5 is located in the semen channel 11, the rear end of the enlarged part 2 is provided with a shunt chamber 6 with a three-way function, and the shunt chamber 6 includes a first through port 61, a second The second port 62 and the third port 63, the first port 61 is connected to the first vas deferens 3, the second port 62 is connected to the second vas deferens 4, the third port 63 The outer sidewall of the insemination channel 11 is in contact with the inner sidewall of the insemination channel 11 , and the shunt chamber 6 is movably connected to the main body 1 .

The plunger 5 is used to push the enlarged portion 2 out of the main body. The rear end of the expansion part 2 is provided with a shunt chamber 6, and the third port 63 of the shunt chamber 6 is movably connected with the main body 1. When the plunger 5 continues to push inward, the entire expansion part 2 will be pushed away from the main body, thereby making the expansion part 2 away from the main body. The part 2 remains in the cloaca and acts as a plug.

The method of use is as follows: inject semen into the insemination channel 11, push the insemination device into the cloaca of the female Chinese soft-shelled turtle, and push the insemination device into the female Chinese soft-shelled turtle's cloaca. When there is obvious obstruction, control the depth of the insemination device, Start insemination; the process of insemination is to slowly push the plunger 5 inward, wait until the plunger 5 is pushed inward to contact the shunt chamber 6, and continue to push the plunger 5 inward until the enlarged part 2 is pushed away from the main body 1, After the bulging part 2 is separated from the main body 1, it will stay in the cloaca of the female Chinese soft-shelled turtle, which acts as a plug to prevent semen from overflowing; after 30 minutes, the bulging part 2 is taken out through the pulling rope 21 provided on the bulging part. One bulge is used for each individual female, which allows for cross-contamination and increased fertilization rates.

Due to the unique physiological structure of the female Chinese soft-shelled turtle, two vas deferens are required. The semen is shunted from the shunt chamber 6 and enters the first vas deferens 3 and the second vas deferens respectively. The enlarged part 2 is provided with the first vas deferens 3 and the second vas deferens 4 After placing the channel, the semen in the first vas deferens 3 and the second vas deferens 4 flows from the insemination port 7 to the cloaca of the female turtle.

Specifically, the bottom of the enlarged part 2 is flat, the insemination orifice 7 is a papillary bulge, and the insemination orifice 7 is located at the bottom of the enlarged part, which is more in line with the physiological structure of the female Chinese soft-shelled turtle and facilitates fertilization.

The cross section of the main body 1 is half-moon shaped. Part of the main body 1 will enter the cloaca of the female soft-shelled turtle along with the enlarged part 2. Since the cross-section of the main body 1 is half-moon-shaped, when the main body 1 enters the cloaca, the two ends of the main body 1 will be stuck in the cloaca, which can play a The main body 1 does not rotate in the cloaca, and prevents the main body 1 from slipping out of the cloaca.

The enlarged part 2 is made of flexible materials, such as rubber, silica gel, etc. After the enlarged part 2 enters the cloaca, it will not cause damage to the female Chinese soft-shelled turtle and ensure the stability of the insemination process.

Embodiment 2:

The main body 1 is provided with a snap ring 8 at the end away from the enlarged part 2, the use of the plunger is cancelled, the shunt chamber 6 of the enlarged part 2 is connected with the main body 1 through threads, and the main body 1 is fixed on the insemination through the snap ring 8. On the gun, then inject the semen into the cloaca of the female Chinese soft-shelled turtle through the insemination gun. After the injection is completed, the body is rotated and unscrewed to separate the bulge from the body, so that the bulge remains in the cloaca, and other parts are the same as the first embodiment. .

The foregoing specification illustrates and describes several preferred embodiments of the present invention, but as previously described, it should be understood that the present invention is not limited to the form disclosed herein and should not be construed as an exclusion of other embodiments, but may be used in a variety of other Combinations, modifications and environments are possible within the scope of the inventive concepts described herein, from the above teachings or from skill or knowledge in the relevant fields. However, modifications and changes made by those skilled in the art do not depart from the spirit and scope of the present invention, and should all fall within the protection scope of the appended claims of the present invention.

Claims (6)

1. An insemination device for trionychidae animals, comprising a main body (1), an enlargement part (2), a first insemination tube (3), a second insemination tube (4) and a plunger (5), characterized in that: be equipped with insemination passageway (11) in main part (1), plunger (5) are located in insemination passageway (11), the rear end of the large portion (2) is equipped with branch flow chamber (6) that has the tee bend function, branch flow chamber (6) include first opening (61), second opening (62) and third opening (63), branch flow chamber (6) are T style of calligraphy or Y style of calligraphy, first opening (61) with first seminiferous duct (3) are connected, second opening (62) with second seminiferous duct (4) are connected, the front end of first seminiferous duct (3) and second seminiferous duct (4) is equipped with insemination mouth (7), the lateral wall of third opening (63) with the inside wall of insemination passageway (11) contacts, branch flow chamber (6) swing joint is on main part (1).

2. The insemination device for trionychidae animals as claimed in claim 1, wherein: the expansion part (2) is provided with a pull rope (21).

3. The insemination device for trionychidae animals as claimed in claim 1, wherein: the enlarged portion (2) is made of a flexible material.

4. The insemination device for trionychidae animals as claimed in claim 1, wherein: the cross section of the main body (1) is half-moon-shaped.

5. The insemination device for trionychidae animals as claimed in claim 1, wherein: the end of the main body (1) far away from the expansion part (2) is provided with a snap ring (8).

6. The insemination device for trionychidae animals as claimed in claim 1, wherein: the expansion part (2) is conical as a whole.
