Electronic devices and touch systems

technical field

The present invention relates to the technical field of touch control, and in particular, to an electronic device and a touch control system.

Background technique

At present, when the Bluetooth game devices on the market control the terminal game, they all need to obtain specific permissions in the terminal to realize the control function, which makes the process of accessing the game device and controlling the terminal game more complicated, and the use of the game device is not convenient. good.

SUMMARY OF THE INVENTION

In view of this, the main technical problem to be solved by the present invention is to provide an electronic device and a touch control system, which can improve the convenience of use of the game device.

In order to solve the above technical problems, a technical solution adopted by the present invention is to provide an electronic device, which is applied to an analog touch controlled device, the controlled device includes a touch element and a touch panel interface, and the electronic device includes a processor and a signal transmitter, the processor is coupled with the signal transmitter; the signal transmitter is used for receiving the non-touch event and transmitting it to the processor; the processor is used for receiving the non-touch event from the signal transmitter and converting the non-touch event into a touch event, and feedback the touch event to the signal transmitter; the signal transmitter is also used to receive the touch event from the processor, and transmit the touch event to the controlled device to simulate touching the touch element; wherein, the controlled device sends the touch Events are transmitted to the touchpad interface, and the electronic device is described as a touchscreen/touchpad HID device for transmitting touch events to the touchpad interface.

In order to solve the above technical problems, another technical solution adopted by the present invention is to provide a touch control system, the touch control system includes an operating device, a controlled device and an electronic device, and the operating device and the controlled device are respectively connected to the electronic device, The electronic device is applied to simulate a touch controlled device, the controlled device includes a touch element and a touch panel interface, the electronic device includes a processor and a signal transmitter, the processor is coupled to the signal transmitter; the operating device is used to generate non-touch events; The signal transmitter of the electronic device is used to receive the non-touch event and transmit it to the processor of the electronic device; the processor is used to receive the non-touch event from the signal transmitter, convert the non-touch event into a touch event, and feed back the touch event to the electronic device. a signal transmitter; the signal transmitter is further configured to receive a touch event from the processor and transmit the touch event to the controlled device to simulate touching the touch element; wherein the controlled device transmits the touch event to the touchpad interface, and The electronic device is described as a touchscreen/touchpad HID device for transmitting touch events to the touchpad interface.

The beneficial effects of the present invention are: different from the prior art, in the electronic device provided by the present invention, the process of converting a non-touch event to a touch event does not occur on the controlled device side, but on the electronic device side, and the event type conversion works There is no need to obtain specific permissions in the controlled device, so the work of obtaining permissions is reduced, the implementation process of the simulated touch method can be simplified, and the use convenience of the game device using the electronic device described in the present invention is improved; Describes itself as a touch screen and/or touchpad HID device, and the controlled device recognizes it as a touch screen and/or touchpad, so that touch events can be transmitted through the touchpad interface in the controlled device without acquiring the transmission path. , to further simplify the implementation of the simulated touch method.

Description of drawings

FIG. 1 is a schematic flowchart of a first embodiment of a method for simulating touch according to the present invention;

2 is a schematic structural diagram of an embodiment of a controlled device of the present invention;

FIG. 3 is a schematic flowchart of a second embodiment of a method for simulating touch according to the present invention;

FIG. 4 is a schematic flowchart of a third embodiment of a method for simulating touch according to the present invention;

5 is a schematic flowchart of a fourth embodiment of a method for simulating touch according to the present invention;

6 is a schematic flowchart of an embodiment of a method for establishing a mapping relationship according to the present invention;

7 is a schematic structural diagram of an embodiment of a target position of the present invention;

8 is a schematic structural diagram of an embodiment of an electronic device of the present invention;

FIG. 9 is a schematic structural diagram of an embodiment of the touch control system of the present invention;

FIG. 10 is a schematic structural diagram of an embodiment of the touch device assembly of the present invention;

FIG. 11 is a schematic structural diagram of another embodiment of the touch control system of the present invention;

FIG. 12 is a schematic structural diagram of an embodiment of an apparatus with a storage function of the present invention.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.

In the simulated touch method described in an embodiment of the present invention, the simulated touch method is applied to simulate a touch controlled device. It includes the following steps: installing an application program in the controlled device for obtaining specific permissions. After the installation of the application is completed, the application receives the non-touch event from the gamepad, and converts the non-touch event into a touch event with the acquired permission; then transmits the touch event to the processor of the controlled device, and the controlled device After the processor of the controller receives the touch event, it can parse out the "touched" position of the touch element (which can be a touch screen and/or a touchpad) of the controlled device, thereby completing the simulated touch on the touch element on the controlled device. .

It can be seen from the above that the simulated touch control method described in this embodiment relies on the application program installed on the controlled device to realize the simulated touch control. It requires the application to obtain a specific permission to convert the event category (convert non-touch events into touch events) on the controlled device, so as to convert the non-touch events output by the gamepad into touch events, so that the controlled device receives the touch event. After the event, the touch element on it is considered to be touched, and then the simulated touch on the touch element on the controlled device is completed. This means that the implementation of the above-mentioned simulated touch method must necessarily require installing the required application program on the controlled device and obtaining specific permissions, which makes the implementation process of the above-mentioned simulated touch method more complicated. The ease of use of the gamepad has a negative impact.

In view of this, other embodiments of the present invention provide a method for simulating touch control, so as to simplify the implementation process of simulating a touch-controlled device and improve the convenience of using the game handle. Details are described below.

Please refer to FIGS. 1-2 , FIG. 1 is a schematic flowchart of a first embodiment of a method for simulating touch according to the present invention, and FIG. 2 is a schematic structural diagram of an embodiment of a controlled device according to the present invention.

The simulated touch method described in this embodiment is applied to simulate a touch controlled device 1 . The controlled device 1 includes a touch element 11 and a touchpad interface 12. The touch element 11 may be natively built into the controlled device 1, or externally connected, or the controlled device 1 may also include a natively built-in touch element 11. and an external touch element 11 . The above-mentioned simulated touch controlled device 1 is the touch element 11 on the simulated touch controlled device 1 . The touch element 11 may be a touch screen and/or a touch pad, etc., wherein the touch screen is defined as a digitizer with an integrated display, and the touchpad is defined as a digitizer not integrated with the display. The touch element 11 of the controlled device 1 is used to display a human-computer interaction interface to the user. The user inputs a series of control instructions to the controlled device 1 by manipulating the touch element 11 to drive the controlled device 1 to perform the corresponding work, so that the user can obtain its required content.

For example, the touch screen of the controlled device displays the game interface to the user, and a part of the area on the touch screen displays the corresponding game virtual keys. The user inputs control instructions to the controlled device by touching the touch screen area displaying virtual keys, thereby driving part of the content in the game to develop according to the user's intention. For example, the user touches the area on the touch screen displaying the "attack" virtual button, which drives the character in the game to complete the "attack" action. The touch simulation method described in this embodiment is a process of simulating a user's touch on a touch element on a controlled device.

Both the non-touch event and the touch event described in this embodiment are generated by the HID device. HID (HumanInterface Device, human-computer interaction device) is a medium that provides human-computer interaction. It is not necessarily a human-machine interface, and other devices that conform to the HID category specification can be HID devices. The above touch events are defined as command events generated by HID devices described as touch elements or touchpads (which can be generated by user manipulation of the HID device, etc.), while non-touch events are defined as HID devices other than those described as touch elements or touchpads. Command events generated by other HID devices.

It should be noted that the simulated touch control method described in this embodiment is not limited to the following steps.

S101: Receive non-touch events;

In this embodiment, a non-touch event generated by a HID device other than the HID device described as a touch screen or a touchpad is received, the non-touch event being used to simulate a touch on a touch element on the controlled device.

S102: Convert non-touch events to touch events;

In this embodiment, in order for the controlled device to recognize that the touch element on it is touched, the controlled device needs to receive a touch event, and the touch event describes that a certain area on the touch element is touched. Therefore, in order to realize the simulated touch on the touch element of the controlled device, it is necessary to convert the non-touch event used for the simulated touch into the corresponding touch event.

S103: transmit the touch event to the controlled device to simulate touching the touch element;

In this embodiment, after the non-touch event generated by the HID device is converted into a touch event, the touch event needs to be transmitted to the controlled device. After receiving the touch event, the controlled device will recognize that the touch element on it is touched and the touched position, thereby completing the simulation of touching the touch element, driving the controlled device to perform the corresponding action and displaying the result to the user.

It can be seen that the process of converting a non-touch event into a touch event does not occur on the controlled device side, and the event category conversion does not require specific permissions in the controlled device. Compared with the simulated touch method described in the above embodiment, the work of obtaining permission is reduced, so the implementation process of the simulated touch method can be simplified, and the convenience of use of the game device to which the simulated touch method described in this embodiment is applied can be improved. .

It should be noted that the controlled device includes a touch panel interface. The touchpad interface is a programming interface on the controlled device side, used to receive touch events from the touchscreen and/or the touchpad, and is a window of the controlled device facing the touchscreen and/or the touchpad. It is installed and set up (natively carried) when the controlled device leaves the factory, and complies with the Human Interface Device (HID) category specification. In this embodiment, the end that transmits touch events to the controlled device describes itself as a touch screen and/or a touchpad HID device, so that after it is connected to the controlled device, the controlled device recognizes it as a touch screen and/or a touchpad HID device. or touchpad. When the controlled device receives the touch event, it defaults that the touch event comes from the touch screen and/or the touch pad, and transmits the touch event to the touch pad interface, thereby completing the simulated touch on the touch screen. This is different from the simulated touch method described in the above-mentioned embodiments. After the event category is converted using the obtained permission, the touch event is not transmitted through the touchpad interface of the controlled device, and because it does not describe itself as a touch screen and/or touch For the board HID device, the controlled device will not transmit the touch event through the touchpad interface after receiving the touch event, so that the transmission process of the touch event still needs to obtain the controlled device permission required in the transmission path. The simulated touch method described in this embodiment, however, transmits touch events through the touchpad interface without obtaining specific permissions, which is equivalent to the transmission process of touch events generated by touch elements on the controlled device, so it can be further simplified Simulate the implementation process of the touch method.

It can be seen from the above that the simulated touch method provided by the present invention can realize the simulated touch on the touch element of the controlled device. Among them, the process of converting non-touch events into touch events does not occur on the controlled device side, and the event category conversion work does not need to obtain specific permissions in the controlled device, thus reducing the work of obtaining permissions and simplifying the implementation of the simulated touch method. process, improving the convenience of use of the game device applying the simulated touch method described in the present invention; and since the end that transmits the touch event to the controlled device describes itself as a touch screen and/or touchpad HID device, the controlled device will It is identified as a touch screen and/or touch pad, so that touch events can be transmitted through the touch pad interface in the controlled device without obtaining permission on the transmission path, so as to further simplify the implementation process of the simulated touch method.

Please refer to FIG. 3 , which is a schematic flowchart of a second embodiment of a method for simulating touch according to the present invention.

The simulated touch method described in this embodiment is applied to simulated touch controlled devices, and the controlled devices may be mobile terminal devices such as smart phones and tablet computers with touch elements such as touch screens and/or touch pads. The controlled device includes a touch element and a touch panel interface, and the above-mentioned simulated touch controlled equipment is a touch element on the simulated touch controlled equipment. The touch element may be a touch screen and/or a touch pad or the like. The touch element of the controlled device is used to display the human-computer interaction interface to the user. The user inputs a series of control instructions to the controlled device by manipulating the touch element to drive the controlled device to perform the corresponding work, so that the user can get the content he needs. .

It should be noted that the simulated touch control method described in this embodiment is not limited to the following steps.

S201: establish a communication connection with the controlled device;

In this embodiment, in order to establish a signal transmission channel with the controlled device for transmitting signals such as touch events described below to the controlled device, it is necessary to establish a communication connection with the controlled device. The communication connection between the two can be in the form of a wired connection, and a signal transmission channel is established with the controlled device through a cable structure such as a wire; or, the communication connection can be in the form of a wireless connection, and a signal is established with the controlled device through wireless communication. transmission channel.

Optionally, the wireless connection form of the above communication connection may include Bluetooth communication connection, wifi communication connection, infrared communication connection, operator network communication connection (such as 2G, 3G, 4G and other communication technologies), etc., which are not limited here.

S202: Receive non-touch events;

In this embodiment, a non-touch event generated by a HID device other than the HID device described as a touch screen or a touchpad is received, the non-touch event being used to simulate a touch on a touch element on the controlled device. The signal transmission channel between the HID device and the HID device for transmitting signals such as non-touch events can be in the same form as the above-mentioned communication connection, which is not limited here.

Specifically, the non-touch event may be a mechanical key event, a somatosensory control event, a light sensing control event, and the like. The HID device used to generate non-touch events can be keyboards, mice, joysticks, etc. HID devices with mechanical physical keys (such as keys, joysticks, etc.) to generate mechanical key events; or, HID used to generate non-touch events The device can be a somatosensory sensor, which can generate a somatosensory control event by detecting the wearer's somatosensory action; moreover, the HID device used to generate a non-touch event can be a photosensitive sensor, which can identify the user's Action to generate light sensor control events.

S203: Convert non-touch events to touch events;

In this embodiment, in order for the controlled device to recognize that the touch element on it is touched, the controlled device needs to receive a touch event, and the touch event describes that a certain area on the touch element is touched. Therefore, in order to realize the simulated touch on the touch element of the controlled device, it is necessary to convert the non-touch event used for the simulated touch into the corresponding touch event.

Specifically, the process of converting a non-touch event into a touch event is a process of changing the report descriptor of the non-touch event, so as to convert the non-touch event into a touch event. Specifically, the report descriptor of the non-touch event is changed to a report descriptor for describing the touch event, so that the non-touch event is converted into a touch event.

The following examples describe report descriptors of different events, wherein the conversion of different event types is to change their report descriptors to the corresponding report descriptors of the target event.

keyboard:

Usage Page(Generic Desktop) 05 01

Usage(Keyboard) 09 06

mouse:

Usage Page(Generic Desktop) 05 01

Usage(Mouse) 09 02

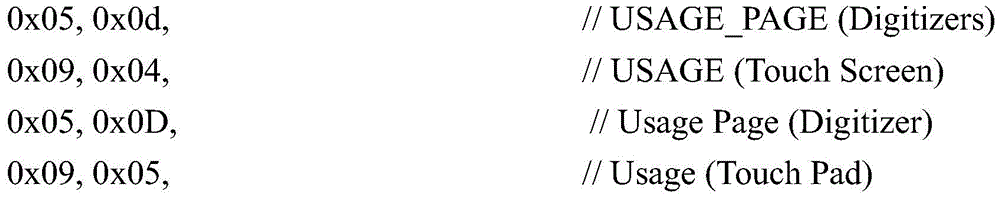

Touchpad interface HID device:

It is required in the HID specification that in order to ensure proper identification of the HID device class, the HID device must declare the application collection with either of the following usages:

1. Touch Screen;

2. Touch Pad (touch pad).

Combined with the above content, if you want to simulate touches on the touch elements on the controlled device by manipulating the keyboard, mouse and other devices, you need to change the report descriptor of the non-touch event output by the keyboard, mouse and other devices to the touchpad interface. The report descriptor of the corresponding HID device, so that the non-touch event is converted into a touch event, that is, the event category corresponding to the touchpad interface. After receiving the touch event, the controlled device can recognize that it is an event corresponding to the touchpad interface, and describes touch information on a partial area on the touch element.

S204: transmit the touch event to the controlled device to simulate touching the touch element;

In this embodiment, after the non-touch event generated by the HID device is converted into a touch event, the touch event needs to be transmitted to the controlled device. After receiving the touch event, the controlled device will recognize that the touch element on it is touched and the touched position, thereby completing the simulation of touching the touch element, driving the controlled device to perform the corresponding action and displaying the result to the user.

It can be seen that the process of converting a non-touch event into a touch event does not occur on the controlled device side, and the event category conversion does not require obtaining specific permissions in the controlled device, which can simplify the implementation process of the simulated touch method and improve the application of the method described in this embodiment. Describes the ease of use of the game device that simulates the touch method.

And in this embodiment, the end that transmits the touch event to the controlled device describes itself as a touch screen and/or a touchpad HID device, so that after it is connected to the controlled device, the controlled device recognizes it as a touch screen and/or a touchpad HID device. / or touchpad. When the controlled device receives the touch event, it defaults that the touch event comes from the touch screen and/or the touch pad, and transmits the touch event to the touch pad interface, thereby completing the simulated touch on the touch screen. The transmission of touch events through the touchpad interface can be achieved without obtaining specific permissions, which is equivalent to the transmission process of touch events generated by touch elements on the controlled device, so the implementation process of the simulated touch method can be further simplified.

It can be seen from the above that the simulated touch method provided by the present invention can realize the simulated touch on the touch element of the controlled device. Among them, the process of converting non-touch events into touch events does not occur on the controlled device side, and the event category conversion work does not need to obtain specific permissions in the controlled device, thus reducing the work of obtaining permissions and simplifying the implementation of the simulated touch method. process, improving the convenience of use of the game device applying the simulated touch method described in the present invention; and since the end that transmits the touch event to the controlled device describes itself as a touch screen and/or touchpad HID device, the controlled device will It is identified as a touch screen and/or touch pad, so that touch events can be transmitted through the touch pad interface in the controlled device without obtaining permission on the transmission path, so as to further simplify the implementation process of the simulated touch method.

Please refer to FIG. 4 , which is a schematic flowchart of a third embodiment of a method for simulating touch according to the present invention.

The simulated touch method described in this embodiment is applied to simulate a touch controlled device. The controlled device includes a touch element and a touch panel interface, and the above-mentioned simulated touch controlled equipment is a touch element on the simulated touch controlled equipment. The touch element may be a touch screen and/or a touch pad or the like. The touch element of the controlled device is used to display the human-computer interaction interface to the user. The user inputs a series of control instructions to the controlled device by manipulating the touch element to drive the controlled device to perform the corresponding work, so that the user can get the content he needs. .

It should be noted that the simulated touch control method described in this embodiment is not limited to the following steps.

S301: Generate a non-touch event;

In this embodiment, the HID device conforming to the HID class specification generates a non-touch event, and the non-touch event is used to simulate a touch on a touch element on the controlled device. Wherein, the HID device is described as a HID device other than a touch screen or a touch pad, which may be a mouse, a keyboard, a joystick, etc., which is not limited herein.

S302: Convert non-touch events to touch events;

In this embodiment, in order for the controlled device to recognize that the touch element on it is touched, the controlled device needs to receive a touch event, and the touch event describes that a certain area on the touch element is touched. Therefore, in order to realize the simulated touch on the touch element of the controlled device, it is necessary to convert the non-touch event used for the simulated touch into the corresponding touch event.

S303: transmit the touch event to the controlled device to simulate touching the touch element;

In this embodiment, after the non-touch event generated by the HID device is converted into a touch event, the touch event needs to be transmitted to the controlled device. After receiving the touch event, the controlled device will recognize that the touch element on it is touched and the touched position, thereby completing the simulation of touching the touch element, driving the controlled device to perform the corresponding action and displaying the result to the user.

It can be seen that the process of converting a non-touch event into a touch event does not occur on the controlled device side, and the event category conversion does not require specific permissions in the controlled device. And in this embodiment, the end that transmits touch events to the controlled device (that is, the above-mentioned HID device that generates non-touch events) describes itself as a touch screen and/or touchpad HID device, so that after it is connected to the controlled device, , the controlled device recognizes it as a touch screen and/or touch pad. When the controlled device receives the touch event, it defaults that the touch event comes from the touch screen and/or the touch pad, and transmits the touch event to the touch pad interface, thereby completing the simulated touch on the touch screen. The transmission of touch events through the touchpad interface can be achieved without obtaining specific permissions, which is equivalent to the transmission process of touch events generated by touch elements on the controlled device, so the implementation process of the simulated touch method can be further simplified.

It can be seen from the above that the simulated touch method provided by the present invention can realize the simulated touch on the touch element of the controlled device. Among them, the process of converting non-touch events into touch events does not occur on the controlled device side, and the event category conversion work does not need to obtain specific permissions in the controlled device, thus reducing the work of obtaining permissions and simplifying the implementation of the simulated touch method. process, improving the convenience of use of the game device applying the simulated touch method described in the present invention; and since the end that transmits the touch event to the controlled device describes itself as a touch screen and/or touchpad HID device, the controlled device will It is identified as a touch screen and/or touch pad, so that touch events can be transmitted through the touch pad interface in the controlled device without obtaining permission on the transmission path, so as to further simplify the implementation process of the simulated touch method.

Please refer to FIG. 5 . FIG. 5 is a schematic flowchart of a fourth embodiment of the simulated touch method of the present invention.

The simulated touch method described in this embodiment is applied to simulate a touch controlled device. The controlled device includes a touch element and a touch panel interface, and the above-mentioned simulated touch controlled equipment is a touch element on the simulated touch controlled equipment. The touch element may be a touch screen and/or a touch pad or the like. The touch element of the controlled device is used to display the human-computer interaction interface to the user. The user inputs a series of control instructions to the controlled device by manipulating the touch element to drive the controlled device to perform the corresponding work, so that the user can get the content he needs. .

It should be noted that the simulated touch control method described in this embodiment is not limited to the following steps.

S401: establish a communication connection with the controlled device;

In this embodiment, in order to establish a signal transmission channel with the controlled device for transmitting signals such as touch events described below to the controlled device, it is necessary to establish a communication connection with the controlled device. The communication connection between the two can be in the form of a wired connection, and a signal transmission channel is established with the controlled device through a cable structure such as a wire; or, the communication connection can be in the form of a wireless connection, and a signal is established with the controlled device through wireless communication. transmission channel.

Wherein, the wireless communication manner described in this embodiment may adopt the same form as the above-mentioned embodiment, and details are not repeated here.

S402: Generate a non-touch event;

In this embodiment, the HID device conforming to the HID class specification generates a non-touch event, and the non-touch event is used to simulate a touch on a touch element on the controlled device. Wherein, the HID device is described as a HID device other than a touch screen or a touch pad, which may be a mouse, a keyboard, a joystick, etc., which is not limited herein.

S403: Convert a non-touch event to a touch event;

In this embodiment, in order for the controlled device to recognize that the touch element on it is touched, the controlled device needs to receive a touch event, and the touch event describes that a certain area on the touch element is touched. Therefore, in order to realize the simulated touch on the touch element of the controlled device, it is necessary to convert the non-touch event used for the simulated touch into the corresponding touch event.

The specific process of converting a non-touch event into a touch event has been described in detail in the above embodiments, and will not be repeated here.

S404: transmit the touch event to the controlled device to simulate touching the touch element;

In this embodiment, after the non-touch event generated by the HID device is converted into a touch event, the touch event needs to be transmitted to the controlled device. After receiving the touch event, the controlled device will recognize that the touch element on it is touched and the touched position, thereby completing the simulation of touching the touch element, driving the controlled device to perform the corresponding action and displaying the result to the user.

It can be seen that the process of converting a non-touch event into a touch event does not occur on the controlled device side, and the event category conversion does not require obtaining specific permissions in the controlled device, which can simplify the implementation process of the simulated touch method and improve the application of the method described in this embodiment. Describes the ease of use of the game device that simulates the touch method.

And in this embodiment, the end that transmits the touch event to the controlled device describes itself as a touch screen and/or a touchpad HID device, so that after it is connected to the controlled device, the controlled device recognizes it as a touch screen and/or a touchpad HID device. / or touchpad. When the controlled device receives the touch event, it defaults that the touch event comes from the touch screen and/or the touch pad, and transmits the touch event to the touch pad interface, thereby completing the simulated touch on the touch screen. The transmission of touch events through the touchpad interface can be achieved without obtaining specific permissions, which is equivalent to the transmission process of touch events generated by touch elements on the controlled device, so the implementation process of the simulated touch method can be further simplified.

It can be seen from the above that the simulated touch method provided by the present invention can realize the simulated touch on the touch element of the controlled device. Among them, the process of converting non-touch events into touch events does not occur on the controlled device side, and the event category conversion work does not need to obtain specific permissions in the controlled device, thus reducing the work of obtaining permissions and simplifying the implementation of the simulated touch method. process, improving the convenience of use of the game device applying the simulated touch method described in the present invention; and since the end that transmits the touch event to the controlled device describes itself as a touch screen and/or touchpad HID device, the controlled device will It is identified as a touch screen and/or touch pad, so that touch events can be transmitted through the touch pad interface in the controlled device without obtaining permission on the transmission path, so as to further simplify the implementation process of the simulated touch method.

Please refer to FIG. 6 , which is a schematic flowchart of an embodiment of a method for establishing a mapping relationship of the present invention.

It should be noted that the touch event is used to describe the event generated by touching the target position on the touch element of the controlled device, and the generation of the touch event described in the present invention is not actually generated by touching the above-mentioned touch element. The touch event carries the physical location information (eg, location coordinates, etc.) of the target location on the touch element.

Furthermore, before implementing the simulated touch control method described in the above embodiments, a mapping relationship between the target position and the non-touch event needs to be established. As such, when the non-touch event is generated, it means a simulated touch to the target location on the touch element. Details are described below.

S501: Obtain physical position information of a target position on a touch element;

In this embodiment, the touch element may be a touch screen or a touch pad as described in the above embodiments. Since the touch elements currently on the market are usually planar structures, they can be defined by two non-parallel axes. To facilitate the description of the physical position information of each position on the touch element 2 , in this embodiment, two mutually perpendicular coordinate axes X and Y are used to define the specific orientation of the target position M on the touch element 2 . Therefore, obtaining the physical position information of the target position M on the touch element 2 is obtaining the coordinate values (a, b) of the coordinate axes X and Y corresponding to the target position M, as shown in FIG. 7 .

S502: Associate the physical location information with the non-touch event;

In this embodiment, since the position of the target position on the touch element to be simulated touch is known, when a non-touch event is generated, it means that a simulated touch is performed on the target position on the touch element. This requires the establishment of an association between the non-touch event and the physical position information of the target position, that is, the correspondence between the non-touch event and the physical position information of the target position, so that when the non-touch event is generated, the corresponding non-touch event on the touch element is performed. The simulated touch of the event's target location.

S503: Establish a mapping relationship between the non-touch event and the target position;

In this embodiment, it is necessary to associate the physical location information of the target location with the non-touch event, that is, to establish a mapping relationship between the non-touch event and the target location, that is, to bind the non-touch event and the target location. In applying the simulated touch method described in the above embodiments, the non-touch event describes the simulated touch on the target position corresponding to the non-touch event.

In order to realize the above method, it is necessary to convert the physical position information of the target position on the touch element (that is, the coordinates of the coordinate axes X and Y corresponding to the target position) in the process of converting a non-touch event into a touch event described in the above embodiment. Coordinate value) is added to the touch event, so that after receiving the touch event, the controlled device can parse out the specific orientation of the simulated touch target position on the touch element.

Further, the target position may be associated with a non-touch event, or a structure that generates the non-touch event, or a touch event converted from the non-touch event, which is not limited herein.

Also, the mapping relationship between the non-touch event and the target position can be adjusted. When the position of the simulated touch on the touch element corresponding to the non-touch event changes, the mapping relationship between the non-touch event and the new target position can be re-bound.

It should be noted that the simulated touch control method described in the present invention may include a variety of non-touch events, which come from different HID devices or from different control terminals on the same HID device (such as different keys on the keyboard, etc. ). Therefore, it is necessary to establish a mapping relationship between various non-touch events and corresponding target positions on the touch element, and the mapping relationship between various non-touch events and the corresponding target positions on the touch element can form a set of mapping schemes.

It can be understood that changing the target positions on the touch elements corresponding to at least some non-touch events can form different mapping schemes, that is, adjusting the target positions corresponding to the at least some non-touch events, so that the at least some non-touch events are mapped. Touch a new area on the element to simulate a touch on the new area. In the above manner, different mapping schemes can be switched for different application scenarios and manipulation contents, so as to avoid the need to re-establish the mapping scheme every time the application scenarios or manipulation contents are changed, which will adversely affect the user experience.

Further, the work of establishing and recording the above-mentioned mapping relationship and/or mapping scheme may be implemented by an application program installed on the controlled device. By installing the application program on the controlled device, the application program records the mapping relationship between the non-touch event and the corresponding target position and the mapping scheme. After the non-touch event is converted to a touch event, the physical location information of the target location is added to the touch event by the application. In addition, the application program detects the current application scene and the manipulation content, and selects an appropriate mapping scheme; or the user selects the required mapping scheme through the application program.

For example, the application scenario is set as the gamepad applying the above-mentioned simulated touch method to realize the simulated touch on the controlled device. The joystick and a plurality of buttons are usually set on the gamepad to output non-touch events, and respectively correspond to a target position on the touch screen of the controlled device, and the mapping relationship between each joystick and the button and the corresponding target position. Form a set of mapping schemes. However, for different terminal games on the controlled device, the target positions of the joysticks and buttons on the gamepad to be simulated may be different, so the mapping relationship needs to be adjusted. By switching between different mapping schemes for different control contents (such as terminal games, etc.), the overall and rapid adjustment of the mapping relationship corresponding to the joystick and buttons on the gamepad can be quickly switched to the appropriate mapping scheme for users Have a gaming experience.

Of course, establishing and recording the above-mentioned mapping relationship and/or mapping scheme is not limited to being implemented by an application program installed on the controlled device. As an alternative, the executor who establishes and records the above-mentioned mapping relationship and/or the mapping scheme may be an independent device, which establishes the above-mentioned communication connection with the controlled device and can transmit the processed touch events to the controlled device ( For example, adding the physical location information of the corresponding target location, etc.) to achieve simulated touch.

The following roughly describes an application scenario of the simulated touch method provided by the present invention, which is for discussion purposes only, and is not intended to limit the application scenarios of the simulated touch method provided by the present invention.

In this application scenario, the product applying the simulated touch method provided by the present invention is a gamepad, and the gamepad itself and the physical buttons on it conform to the HID category specification, and are used for simulating touch and a mobile terminal (such as a smart phone) connected to it. Wait). A mapping relationship is pre-established between the physical buttons on the game handle and the target position on the touch screen of the mobile terminal. The simulated touch process generally includes the following processes:

1. The gamepad is connected to the mobile terminal, and the gamepad describes it as a touch screen and/or touchpad HID device;

2. The user uses the gamepad and manipulates the physical buttons on it to generate non-touch events;

3. The gamepad converts the non-touch event into a touch event, and transmits the touch event to the mobile terminal;

4. The mobile terminal receives the touch event from the gamepad, and recognizes that the gamepad is a touch screen and/or touchpad, then transmits the touch event to the touchpad interface in the mobile terminal, and processes the touchpad interface to the mobile terminal. The element transmits the touch event, and parses out the touched and touched position of the touch element on the mobile terminal (actually, the touch element is not touched), and completes the simulated touch.

In order to solve the technical problem of poor ease of use of game equipment in the prior art, the present invention provides an electronic device, which is applied to simulate a touch controlled device, and the controlled device includes a touch screen and a touch panel interface. The electronic device includes a processor and a signal transmitter, and the processor is coupled to the signal transmitter. The signal transmitter is used to receive non-touch events and transmit them to the processor. The processor is used for receiving non-touch events from the signal transmitter, converting the non-touch events into touch events, and feeding back the touch events to the signal transmitter. The signal transmitter is also used to receive touch events from the processor and transmit the touch events to the controlled device to simulate touching the touch screen. Wherein, the controlled device transmits the touch event to the touch panel interface, and the electronic device is described as a touch screen/touch panel HID device for transmitting the touch event to the touch panel interface. Details are described below.

Please refer to FIG. 8 , which is a schematic structural diagram of an embodiment of an electronic device of the present invention.

The electronic device 3 described in this embodiment is used as a medium for event type conversion, and is used to implement the analog touch method described in the above embodiment. Its product form can be a keyboard and mouse converter, etc., to convert events that are not touch signals into corresponding touch signals, so as to complete the action of simulating the touch elements on the touch-controlled device. Details are described below.

In this embodiment, the electronic device 3 is applied to simulate a touch controlled device. The controlled device includes a touch element and a touchpad interface. The technical explanations of the touch element and the touch panel interface have been described in detail in the above embodiments, and will not be repeated here.

In this embodiment, the electronic device 3 includes a processor 31 and a signal transmitter 32, the processor 31 is coupled to the signal transmitter 32, and the processor 31 and the signal transmitter 32 may be coupled through circuit wiring, etc., to transmit electrical signals.

The electronic device 3 implements the analog touch control method described in the above-mentioned embodiments, specifically: the signal transmitter 32 is configured to receive the non-touch event and transmit it to the processor 31 . The processor 31 is used for receiving the non-touch event from the signal transmitter 32 , converting the non-touch event into a touch event, and feeding back the touch event to the signal transmitter 32 . The signal transmitter 32 is also used for receiving the touch event from the processor 31 and transmitting the touch event to the controlled device to simulate touching the touch element. Wherein, the controlled device transmits the touch event to the touch panel interface.

Since the process of converting a non-touch event to a touch event occurs on the electronic device 3 side, not on the controlled device side, the event type conversion does not require specific permissions in the controlled device, which can simplify the implementation process of the simulated touch method. The convenience of use of the game equipment to which the electronic device 3 described in this embodiment is applied is improved.

And in this embodiment, the electronic device 3 describes itself as a touch screen and/or touchpad HID device, so that after it is connected to the controlled device, the controlled device recognizes it as a touch screen and/or touchpad. When the controlled device receives the touch event, it defaults that the touch event comes from the touch screen and/or the touch pad, and transmits the touch event to the touch pad interface, thereby completing the simulated touch on the touch screen. The transmission of touch events through the touchpad interface can be achieved without obtaining specific permissions, which is equivalent to the transmission process of touch events generated by touch elements on the controlled device, so the implementation process of the simulated touch method can be further simplified.

Further, the electronic device 3 further includes a first port 33 , and the first port 33 is coupled to the signal transmitter 32 . The first port 33 is used for connecting with the operating device to receive the non-touch event generated by the operating device and transmit it to the signal transmitter 32 , and the signal transmitter 32 transmits it to the processor 31 for event category conversion and other work.

Optionally, the operating device may be an HID device conforming to the HID category specification, for generating a non-touch event. The operating device may be provided with physical buttons (including buttons, joysticks, etc.), which may be components/parts with physical buttons on the gamepad, etc.; or, the operating device may be a mouse, a keyboard, a joystick, a somatosensory sensor, and a photosensitive At least one of the devices that conform to the HID category specification, such as sensors, is used to simulate touch on the controlled device.

The electronic device 3 also includes a second port 34 coupled to the signal transmitter 32 . The second port 34 is used to connect with the controlled device to transmit touch events to the controlled device. The controlled device transmits the touch event to the processing element through the touchpad interface on the controlled device for analysis, and completes the simulated touch on the touch element of the controlled device.

Further, there may be more than one operation device outputting non-touch events to the electronic device 3 . Correspondingly, the electronic device 3 may include a plurality of first ports 33, so that each operating device is provided with a first port 33 to receive non-touch events from the corresponding operating device. In addition, the first port 33 can be a USB interface, which connects the electronic device 3 and the operating device through a data cable for signal interaction.

Similarly, there may be more than one controlled device controlled by the electronic device 3 . Correspondingly, the electronic device 3 may include a plurality of second ports 34, so that each controlled device is provided with a second port 34 for transmitting the touch event obtained by converting the event type to the corresponding controlled device. In addition, the second port 34 can also be a USB interface, which connects the electronic device 3 and the controlled device through a data cable for signal interaction.

It can be seen from the above that, in the electronic device provided by the present invention, the process of converting a non-touch event into a touch event does not occur on the controlled device side, but on the electronic device side, and the event type conversion work does not need to obtain specific information in the controlled device. Therefore, the work of obtaining the authority is reduced, the implementation process of the simulated touch method can be simplified, and the convenience of use of the game device to which the electronic device described in the present invention is applied can be improved; and since the electronic device describes itself as a touch screen and/or Touchpad HID device, the controlled device recognizes it as a touchscreen and/or touchpad, so that touch events can be transmitted through the touchpad interface in the controlled device, without the need to obtain permissions on the transmission path, to further simplify the simulation of touch implementation of the control method.

Please refer to FIG. 9 . FIG. 9 is a schematic structural diagram of an embodiment of the touch control system of the present invention.

This embodiment provides a touch control system 4 for implementing the simulated touch control method described in the above embodiments. It includes an operating device 41 , a controlled device 42 and an electronic device 43 , and the operating device 41 and the controlled device 42 are respectively connected to the electronic device 43 . The electronic device 43 is applied to simulate a touch controlled device 42 , and the controlled device 42 includes a touch element 421 and a touch panel interface 422 . The electronic device 43 includes a processor 431 and a signal transmitter 432 . The processor 431 is coupled to the signal transmitter 432 . Wherein, the electronic device 43 is the electronic device 43 described in the above-mentioned embodiments, which will not be repeated here.

The operating device 41 is used to generate non-touch events. The signal transmitter 432 of the electronic device 43 is used to receive the non-touch event and transmit it to the processor 431 of the electronic device 43 . The processor 431 is configured to receive the non-touch event from the signal transmitter 432 , convert the non-touch event into a touch event, and feed back the touch event to the signal transmitter 432 . The signal transmitter 432 is also used for receiving touch events from the processor 431 and transmitting the touch events to the controlled device 42 to simulate touching the touch element 421 . Wherein, the controlled device 42 transmits the touch event to the touch panel interface 422 .

Further, the connection form between the operation device 41 and the electronic device 43 may adopt the wired connection described in the above-mentioned embodiments (ie, the ports are connected through a data line), and may also be a wireless connection. Similarly, the connection form between the controlled device 42 and the electronic device 43 may adopt the wired connection described in the above-mentioned embodiment, and may also be a wireless connection.

Optionally, the above wireless connection may include a Bluetooth communication connection, a wifi communication connection, an infrared communication connection, an operator network communication connection (such as 2G, 3G, 4G and other communication technologies), etc., which are not limited herein.

In order to solve the technical problem of poor ease of use of game equipment in the prior art, the present invention provides a touch control device assembly, the touch control device assembly is applied to simulate a touch controlled device, and the controlled device includes a touch element and a touch control device. The board interface, the touch device assembly includes an operation device, a conversion device and a signal transmitter, and the operation device and the signal transmitter are respectively connected with the conversion device. The operating device is provided with physical keys for generating non-touch events, and the operating device is used for transmitting the non-touch events to the converting device. The conversion device is used for receiving the non-touch event, converting the non-touch event into a touch event, and transmitting the touch event to the signal transmitter. The signal transmitter is used to receive touch events and transmit the touch events to the controlled device to simulate touching the touch element. Wherein, the controlled device transmits the touch event to the touch panel interface, and the touch device component is described as a touch screen/touch panel HID device for transmitting the touch event to the touch panel interface. Details are described below.

Please refer to FIG. 10 . FIG. 10 is a schematic structural diagram of an embodiment of the touch device assembly of the present invention.

The touch device component 5 described in this embodiment is used for generating non-touch events and as a medium for event type conversion, so as to realize the simulated touch method described in the above embodiments. Details are described below.

In this embodiment, the touch device component 5 is applied to simulate a touch controlled device. The controlled device includes a touch element and a touchpad interface. The technical explanations of the touch element and the touch panel interface have been described in detail in the above embodiments, and will not be repeated here.

In this embodiment, the touch device assembly 5 includes an operation device 51 , a conversion device 52 and a signal transmitter 53 , and the operation device 51 and the signal transmitter 53 are respectively connected to the conversion device 52 . The touch device component 5 implements the simulated touch control method described in the above-mentioned embodiments, which may specifically be as follows:

The operating device 51 is used for generating a non-touch event, and the operating device 51 is used for transmitting the non-touch event to the converting device 52 . The converting device 52 is used for receiving the non-touch event, converting the non-touch event into a touch event, and transmitting the touch event to the signal transmitter 53 . The signal transmitter 53 is used for receiving the touch event and transmitting the touch event to the controlled device to simulate touching the touch element. Wherein, the controlled device transmits the touch event to the touch panel interface, and the touch device component 5 is described as a touch screen/touch panel HID device for transmitting the touch event to the touch panel interface.

Since the process of converting a non-touch event to a touch event occurs on the touch device component 5, not on the controlled device, the event category conversion does not require specific permissions in the controlled device, which simplifies the implementation of the simulated touch method. In the process, the convenience of use of the touch device assembly 5 is improved.

And in this embodiment, the touch device component 5 describes itself as a touch screen and/or touch pad HID device, so that after it is connected to the controlled device, the controlled device recognizes it as a touch screen and/or touch pad. . When the controlled device receives the touch event, it defaults that the touch event comes from the touch screen and/or the touch pad, and transmits the touch event to the touch pad interface, thereby completing the simulated touch on the touch screen. The transmission of touch events through the touchpad interface can be achieved without obtaining specific permissions, which is equivalent to the transmission process of touch events generated by touch elements on the controlled device, so the implementation process of the simulated touch method can be further simplified.

The product form of the touch device assembly 5 described in this embodiment may be a gamepad, and the operation device 51 is provided with physical keys, such as keys 511 and joysticks 512, for generating non-touch events. When the user manipulates the physical keys on the operating device 51, the operating device 51 can be driven to generate a corresponding non-touch event, so as to simulate a touch on the touch element on the controlled device.

Of course, in other embodiments of the present invention, the operating device 51 may be at least one of a mouse, a keyboard, a joystick, a somatosensory sensor, a photosensitive sensor, and other devices that conform to the HID category specification, so as to form a product form different from a gamepad .

Further, the touch device assembly 5 further includes a connecting device 54 . The connecting device 54 , the operating device 51 , the converting device 52 and the signal transmitter 53 are integrated into one structure, and the connecting device 54 is used for assembling and fixing the controlled equipment. When the user uses the touch device assembly 5 to control the controlled device, the touch device assembly 5 and the controlled device adopt an integrated structure, which can facilitate the user to hold the touch device assembly 5 and/or the controlled device. , so as to improve the convenience of use of the touch device assembly 5 , thereby improving the user experience.

Further, the physical keys on the operating device 51 may include at least one key 511 and a joystick 512 . The joystick 512 and at least some of the buttons 511 are disposed on the top surface of the operating device 51 for manipulation by the thumbs of the user's left and right hands; and at least part of the buttons 511 can be disposed on the side of the operating device 51 for manipulation by the index fingers of the user's left and right hands.

It should be noted that each key 511 and the joystick 512 on the operating device 51 respectively correspond to a non-touch event, that is, correspond to a target position of a touch element on the simulated touch-controlled device. Of course, in other embodiments, one key 511 or joystick 512 may correspond to multiple target positions at the same time, or one target position may correspond to multiple keys 511 and/or joysticks 512 , which is not limited herein.

In other embodiments of the present invention, the operating device, the switching device and the signal transmitter are independent of each other. The connection form between the operation device and the conversion device, and the signal transmitter and the conversion device is a wired connection or a wireless connection. The wireless connection form may include Bluetooth communication connection, wifi communication connection, infrared communication connection, operator network communication connection, and the like.

It can be seen from the above that, in the touch device component provided by the present invention, the process of converting a non-touch event into a touch event does not occur on the controlled device side, but on the touch device component side, and the event type conversion work does not need to obtain controlled There are specific permissions in the device, thus reducing the work of obtaining permissions, simplifying the implementation process of the simulated touch method, and improving the convenience of use of the touch device component; and because the touch device component describes itself as a touch screen and/or Touchpad HID device, the controlled device recognizes it as a touchscreen and/or touchpad, so that touch events can be transmitted through the touchpad interface in the controlled device, without the need to obtain permissions on the transmission path, to further simplify the simulation of touch implementation of the control method.

Please refer to FIG. 11 , which is a schematic structural diagram of another embodiment of the touch control system of the present invention.

In this embodiment, the touch system 6 includes a touch device component 61 and a controlled device 62 , the touch device component 61 is connected to the controlled device 62 , and the touch device component 61 is applied to simulate the touch controlled device 62 , and is controlled by The control device 62 includes a touch element 621 and a touch panel interface 622 . The touch device component 61 includes an operation device 611 , a conversion device 612 and a signal transmitter 613 . The operation device 611 and the signal transmitter 613 are respectively connected to the conversion device 612 .

The touch-control system 6 can implement the simulated touch-control method described in the above-mentioned embodiments as follows: the operation device 611 is provided with a physical button 6111 for generating a non-touch event, and the operation device 611 is used for transmitting the non-touch event to the conversion device 612 . The converting device 612 is used for receiving the non-touch event, converting the non-touch event into a touch event, and transmitting the touch event to the signal transmitter 613 . The signal transmitter 613 is used for receiving touch events and transmitting the touch events to the controlled device 62 to simulate touching the touch element 621 . The controlled device 62 transmits touch events to the touch panel interface 622 , and the touch device component 61 is described as a touch screen/touch panel HID device for transmitting touch events to the touch panel interface 622 .

Please refer to FIG. 12. FIG. 12 is a schematic structural diagram of an embodiment of a device with a storage function of the present invention.

In this embodiment, the device 7 with a storage function includes program data 71 , and the program data 71 can be executed to implement the simulated touch method described in the above-mentioned embodiments, which will not be repeated here.

In the several embodiments provided by the present invention, it should be understood that the disclosed system, apparatus and method may be implemented in other manners. For example, the device implementations described above are only illustrative. For example, the division of the modules or units is only a logical function division. In actual implementation, there may be other divisions. For example, multiple units or components may be Incorporation may either be integrated into another system, or some features may be omitted, or not implemented. On the other hand, the shown or discussed mutual coupling or direct coupling or communication connection may be through some interfaces, indirect coupling or communication connection of devices or units, and may be in electrical, mechanical or other forms.

The units described as separate components may or may not be physically separated, and components displayed as units may or may not be physical units, that is, may be located in one place, or may be distributed to multiple network units. Some or all of the units may be selected according to actual needs to achieve the purpose of this implementation manner.

In addition, each functional unit in each embodiment of the present invention may be integrated into one processing unit, or each unit may exist physically alone, or two or more units may be integrated into one unit. The above-mentioned integrated units may be implemented in the form of hardware, or may be implemented in the form of software functional units.

The integrated unit, if implemented in the form of a software functional unit and sold or used as an independent product, may be stored in a computer-readable storage medium. Based on this understanding, the technical solution of the present invention is essentially or the part that contributes to the prior art, or all or part of the technical solution can be embodied in the form of a software product, and the computer software product is stored in a storage medium , including several instructions for causing a computer device (which may be a personal computer, a server, or a network device, etc.) or a processor to execute all or part of the steps of the methods described in the various embodiments of the present invention. The aforementioned storage medium includes: U disk, mobile hard disk, Read-Only Memory (ROM, Read-Only Memory), Random Access Memory (RAM, Random Access Memory), magnetic disk or optical disk and other media that can store program codes .

The above description is only an embodiment of the present invention, and is not intended to limit the scope of the present invention. Any equivalent structure or equivalent process transformation made by using the contents of the description and drawings of the present invention, or directly or indirectly applied to other related technologies Fields are similarly included in the scope of patent protection of the present invention.

Claims (10)

1. An electronic device, characterized in that, the electronic device is applied to a simulated touch-controlled device, and the controlled device includes a touch element and a touch panel interface, and the touch panel interface is used to receive data from a touch screen and/or a touch event of a touch panel, the electronic device includes a processor and a signal transmitter, the processor is coupled to the signal transmitter; The signal transmitter is used to connect the operating device to receive the non-touch event generated by the operating device and transmit it to the processor; The processor is configured to receive the non-touch event from the signal transmitter, convert the non-touch event into a touch event, and feed back the touch event to the signal transmitter, wherein by converting the non-touch event to the signal transmitter A report descriptor of a non-touch event is changed to a report descriptor for describing the touch event, so that the non-touch event is converted to the touch event; The signal transmitter is further configured to receive the touch event from the processor and transmit the touch event to the controlled device to simulate touching the touch element; wherein the controlled device transmits the touch event to the touchpad interface and the electronic device is described as a touchscreen/touchpad HID device for transmitting the touch event to the touchpad interface and the electronic device uses a touchscreen or The usage of the touchpad declares a collection of applications to correctly identify the HID device class of the electronic device. 2 . The electronic device according to claim 1 , wherein the electronic device further comprises a first port, the first port is coupled to the signal transmitter, and the first port is used to communicate with an operating device. 3 . connected to receive the non-touch event generated by the operating device and transmit it to the signal transmitter. 3 . The electronic device according to claim 2 , wherein the electronic device comprises a plurality of the first ports, and the first ports are USB interfaces. 4 . 4. The electronic device according to claim 2, wherein a physical button is provided on the operating device for generating the non-touch event; or The operating device is at least one of a mouse, a keyboard, a joystick, a somatosensory sensor and a photosensitive sensor. 5 . The electronic device according to claim 1 , wherein the electronic device further comprises a second port, the second port is coupled with the signal transmitter, and the second port is used for connecting with the signal transmitter. 6 . A controlled device is connected to transmit the touch event to the controlled device. 6 . The electronic device according to claim 5 , wherein the electronic device comprises a plurality of the second ports, and the second ports are USB interfaces. 7 . 7. A touch control system, characterized in that the touch control system comprises an operating device, a controlled device and an electronic device, the operating device and the controlled device are respectively connected to the electronic device, and the electronic device Applied to simulating touch control of the controlled device, the controlled device includes a touch element and a touchpad interface, the touchpad interface is used to receive touch events from a touchscreen and/or a touchpad, and the electronic device includes a processor and a signal transmitter, the processor is coupled to the signal transmitter; The operating device is used to generate a non-touch event; The signal transmitter of the electronic device is configured to receive the non-touch event and transmit it to the processor of the electronic device; The processor is configured to receive the non-touch event from the signal transmitter, convert the non-touch event into a touch event, and feed back the touch event to the signal transmitter, wherein by converting the non-touch event to the signal transmitter A report descriptor of a non-touch event is changed to a report descriptor for describing the touch event, so that the non-touch event is converted to the touch event; The signal transmitter is further configured to receive the touch event from the processor and transmit the touch event to the controlled device to simulate touching the touch element; wherein the controlled device transmits the touch event to the touchpad interface and the electronic device is described as a touchscreen/touchpad HID device for transmitting the touch event to the touchpad interface and the electronic device uses a touchscreen or The usage of the touchpad declares a collection of applications to correctly identify the HID device class of the electronic device. 8 . The touch control system according to claim 7 , wherein the connection between the operating device and the electronic device is a wireless connection. 9 . 9 . The touch control system according to claim 8 , wherein the connection between the controlled device and the electronic device is a wireless connection. 10 . 10 . The touch control system according to claim 9 , wherein the wireless connection includes a Bluetooth communication connection, a wifi communication connection, an infrared communication connection, and an operator network communication connection. 11 .
