Abstract
The embodiment of the specification discloses a two-dimension code generation method, a two-dimension code processing method, a two-dimension code generation device, a two-dimension code processing device and a two-dimension code, and the scheme comprises the following steps: a new two-dimensional code information structure is provided, the two-dimensional code information structure at least comprises an indication field and a data field, and the indication field is used for indicating one or more data elements contained in the data field which are needed to be used in a specified service scene; according to different service scenes, the indication domain and the data domain can be flexibly and conveniently adjusted correspondingly, so that two-dimensional codes suitable for one or more different service scenes can be generated, and corresponding services can be executed based on the two-dimensional codes.
Description
Technical Field
The present disclosure relates to the field of computer software technologies, and in particular, to a two-dimensional code generation method, a two-dimensional code processing method, a two-dimensional code generation device, a two-dimensional code processing device, and a two-dimensional code.
Background
Along with the continuous expansion of the application scenes of the two-dimension codes in different industries, more and more products and services carry and display service information in a two-dimension code form.
In the prior art, for many large-scale applications, each type of service supported by the application generally has a set of separate two-dimensional code information structure, and then different quick entries need to be provided in the application to allow a user to select one by one, and then corresponding two-dimensional codes are scanned, for example, a bus code used when taking a bus, a payment code used when paying at a shopping site, and the like.
Based on the prior art, a two-dimension code information organization scheme with better applicability to various service scenes is needed.
Disclosure of Invention
The embodiment of the specification provides a two-dimensional code generation method, a two-dimensional code processing method, a two-dimensional code generation device, a two-dimensional code processing device and two-dimensional code processing equipment, and the two-dimensional code generation method, the two-dimensional code processing device and the two-dimensional code processing equipment are used for solving the following technical problems: a two-dimensional code information organization scheme with better applicability to various service scenarios is needed.
In order to solve the above technical problem, the embodiments of the present specification are implemented as follows:
an embodiment of the present specification provides a two-dimensional code generation method, including:
acquiring original content;
generating a two-dimensional code corresponding to the original content according to a two-dimensional code information structure and the original content;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
An embodiment of the present specification provides a two-dimensional code processing method, including:
scanning and converting the two-dimensional code to obtain a character string represented by the two-dimensional code;
analyzing the character string according to a two-dimension code information structure based on the two-dimension code to obtain one or more data elements required to be used in the current service scene;
executing the service under the current service scene according to the obtained data elements;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
In the two-dimensional code provided in the embodiment of the present specification, the two-dimensional code is generated according to a two-dimensional code information structure and an original content, the two-dimensional code information structure at least includes an indication field and a data field, and the indication field is used for indicating one or more data elements in the data field that need to be used in a specific service scene.
An embodiment of this specification provides a two-dimensional code generating device, includes:
the acquisition module acquires original content;
the generating module is used for generating a two-dimensional code corresponding to the original content according to a two-dimensional code information structure and the original content;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
An embodiment of this specification provides a two-dimensional code processing apparatus, including:
the scanning conversion module is used for scanning the two-dimensional code and converting the two-dimensional code to obtain a character string represented by the two-dimensional code;
the analysis module is used for analyzing the character string according to a two-dimension code information structure based on the two-dimension code to obtain one or more data elements required to be used in the current service scene;
the service execution module executes the service under the current service scene according to the acquired data elements;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
An embodiment of the present specification provides a two-dimensional code generating device, including:
at least one processor; and the number of the first and second groups,
a memory communicatively coupled to the at least one processor; wherein,
the memory stores instructions executable by the at least one processor to enable the at least one processor to:
acquiring original content;
generating a two-dimensional code corresponding to the original content according to a two-dimensional code information structure and the original content;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
An embodiment of the present specification provides a two-dimensional code processing apparatus, including:
at least one processor; and the number of the first and second groups,
a memory communicatively coupled to the at least one processor; wherein,
the memory stores instructions executable by the at least one processor to enable the at least one processor to:
scanning and converting the two-dimensional code to obtain a character string represented by the two-dimensional code;
analyzing the character string according to a two-dimension code information structure based on the two-dimension code to obtain one or more data elements required to be used in the current service scene;
executing the service under the current service scene according to the obtained data elements;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
The embodiment of the specification adopts at least one technical scheme which can achieve the following beneficial effects: according to different service scenes, the indication domain and the data domain of the new two-dimensional code information structure can be flexibly and conveniently adjusted correspondingly, so that two-dimensional codes suitable for one or more different service scenes can be generated, and corresponding services can be executed based on the two-dimensional codes. Therefore, the new two-dimension code information structure can compatibly support the two-dimension code information of various service scenes or the upgrade iteration of services, one-code multi-scene use can be realized, the requirement on application shortcut entry resources is effectively reduced, the use cognitive cost of a user is reduced, better use experience is brought, and the technical problems can be partially or completely solved.
Drawings
In order to more clearly illustrate the embodiments of the present specification or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly introduced below, it is obvious that the drawings in the following description are only some embodiments described in the present specification, and for those skilled in the art, other drawings can be obtained according to the drawings without any creative effort.
Fig. 1 is a schematic diagram of an overall architecture involved in a practical application scenario of the solution of the present specification;
fig. 2 is a schematic flowchart of a two-dimensional code generation method provided in an embodiment of the present specification;
fig. 3 is a schematic flowchart of a two-dimensional code processing method provided in an embodiment of the present specification;
fig. 4 is a schematic view of a service flow of a scanned mode of a user in a two-dimensional code practical application scenario provided in an embodiment of the present specification;
fig. 5 is a schematic view of a service flow of a user main scanning mode in a two-dimensional code practical application scenario provided in an embodiment of the present specification;
fig. 6 is a schematic structural diagram of a two-dimensional code generating apparatus corresponding to fig. 2 provided in an embodiment of the present specification;
fig. 7 is a schematic structural diagram of a two-dimensional code processing apparatus corresponding to fig. 3 according to an embodiment of the present disclosure.
Detailed Description
The embodiment of the specification provides a two-dimensional code generation method, a two-dimensional code service processing method, a two-dimensional code generation device, a two-dimensional code service processing device and two-dimensional code service processing equipment.
In order to make those skilled in the art better understand the technical solutions in the present specification, the technical solutions in the embodiments of the present specification will be clearly and completely described below with reference to the drawings in the embodiments of the present specification, and it is obvious that the described embodiments are only a part of the embodiments of the present application, and not all of the embodiments. All other embodiments, which can be obtained by a person skilled in the art without making any inventive step based on the embodiments of the present disclosure, shall fall within the scope of protection of the present application.
The scheme of the specification is based on a new two-dimensional code information structure, the two-dimensional code information structure has strong flexibility and expandability, can be compatible with two-dimensional code information supporting various service scenes or upgrade iteration of services, can realize one-code multi-scene use, effectively reduces the requirement on application shortcut entry resources, is also beneficial to reducing the use cognitive cost of a user, and brings better use experience; moreover, for the code scanning terminal, the terminal modification cost caused by service upgrading can be reduced. The two-dimensional code information structure mentioned below refers to the new two-dimensional code information structure proposed in the present application.
Fig. 1 is a schematic diagram of an overall architecture related to the solution of the present specification in a practical application scenario. In the overall architecture, three parts are mainly involved: the system comprises a two-dimensional code generating end, a two-dimensional code scanning and analyzing end and a server end. The two-dimension code generating end generates and displays the two-dimension code according to the two-dimension code information structure; the two-dimension code scanning and analyzing end scans the two-dimension code, analyzes the two-dimension code according to the information structure of the two-dimension code, and then executes corresponding business according to the analysis result; the server typically participates in order to facilitate the business.
The two-dimensional code generating end comprises a user terminal such as a mobile phone and a smart watch, the two-dimensional code scanning and analyzing end comprises a Point Of Sale (POS) machine, a cash register, a code scanner at an entrance Of a bus and other merchant terminals, and the service end comprises a server Of an e-commerce and a payment platform, or a server Of a bus platform. Of course, the merchant terminal generates the two-dimensional code in reverse, and the user terminal may scan and analyze the two-dimensional code, for convenience of description, this mode is referred to as a user main scanning mode, and the former mode is referred to as a user scanned mode.
The architecture in fig. 1 is exemplary, and not exclusive. For example, the architecture may not include a server, and after the two-dimensional code is generated, all related services are processed locally at the two-dimensional code scanning and analyzing end, and so on.
The following describes the embodiments of the present specification in detail.
Fig. 2 is a schematic flow chart of a two-dimensional code generation method provided in an embodiment of the present specification. The process in fig. 2 comprises the following steps:
s202: original content is obtained.
In the embodiment of the present specification, the original content includes data required to be used for executing a corresponding service in a current service scenario. Such as web address, account number, order number, preference code, business card, etc.
S204: generating a two-dimensional code corresponding to the original content according to a two-dimensional code information structure and the original content; the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
In the embodiment of the present specification, in the generated two-dimensional code, the corresponding data element includes original content, and the corresponding data element can be extracted by scanning and analyzing the two-dimensional code, and is further used for executing a service.
In the embodiments of the present specification, specific contents of the indication field and the data field may be flexibly and conveniently defined according to actual needs.
For any single scene, when the scene changes, the specific contents of the indication field and the data field can be adjusted, so that the two-dimensional code can effectively adapt to the scene change.
The indication domain can indicate corresponding data elements in the data domain respectively for a plurality of service scenes simultaneously, so that the generated two-dimensional code can be simultaneously applied to the plurality of service scenes, namely, one-code multi-scene use.
In the embodiments of the present specification, the indication of the indication field to the data element may be one or more. The following four are listed as examples.
First, the presence of a data element in the data field is indicated. The data field generally has a plurality of data elements, and the data elements may be different in different service scenarios. Through the indication field, the data elements needed to be used can be configured in the data field according to the current service scene.
Second, a business definition of the data element is indicated. For example, for a traffic card service scenario, a certain data element is indicated to represent certain preferential information (such as student discount, accumulated amount discount, etc.), and a certain data element is indicated to represent a certain type of traffic card (such as student card, old card, etc., such as bus card, train month card, etc.).
Third, the location of the data element in the data field is indicated. E.g., 1 st, 3 rd, 6 th data element, etc., in the data field, thereby facilitating fast indexing of the required data elements.
And fourthly, indicating the matching relation between the service scene and the data element. And determining the data elements required to be used in the data domain according to the matching relationship and the current service scene.
In the embodiments of the present specification, in addition to the indication domain and the data domain, one or more domains may be included, such as one or more of the following: the code header field is used for identifying a maker of the two-dimensional code information structure; the code version field is used for identifying the version of the two-dimensional code information structure; and the verification domain is used for verifying the content of the domain contained in the two-dimensional code information structure.
By the method of fig. 2, the indication field and the data field can be flexibly and conveniently adjusted according to different service scenarios, so that two-dimensional codes suitable for one or more different service scenarios can be generated.
Based on the method of fig. 2, the embodiments of the present specification also provide some specific embodiments of the method, and further provide the following description.
In the embodiments of the present specification, there are various implementations of the indication field, for example, the indication field is implemented based on a structure such as a bitmap, or an array, or a linked list.
The following embodiments are mainly described by taking the example that the indication field is implemented based on a bitmap. In this case, the indication field may include a bitmap field composed of one or more bits having a correspondence with data elements in the data field, the bits being used to indicate their corresponding data elements.
For the convenience of understanding, the bitmap is described herein, and refers to a data structure representing a dense set (dense set) in a finite field, each element appears at least once, and no other data is associated with the element, which is widely applied in the aspects of indexing, data compression and the like.
The bitmap may particularly refer to a bitmap in standard ISO 8583, for example. In ISO 8583, a bitmap is a field or subfield within a message that indicates whether there are other data elements or data element subfields elsewhere in the message. A field is considered to be present only when the corresponding bit in the bitmap is set. For example, assume that a bitmap is a byte with a value of 0x82 (130 decimal), represented in binary as "10000010", correspondingly indicating that fields 1 and 7 are present in the message and fields 2, 3, 4, 5, 6, and 8 are not present.
Specifically, in the bitmap field proposed in the present application, for example, when a value of a bit in the bitmap field is a first value, it indicates that a data element corresponding to the bit exists in the data field; when the bit in the bitmap field takes a second value different from the first value, it indicates that the data element corresponding to the bit does not exist in the data field. If the first value is 1, the second value is 0; if the first value is 0, the second value is 1.
More intuitively, the embodiment of the specification also provides an example of a two-dimensional code information structure. The following description will be made with reference to tables 1 to 3. An example of the two-dimensional code information structure is shown in table 1 below.
TABLE 1
| Code header field | Code version field | Bitmap field | Data field | Check field |
The bitmap fields and data fields in table 1 are further illustrated.
Each bit in the bitmap field may correspond to a specific data element, and whether each bit in the bitmap field is set to 0 or 1 determines which specific data elements are present in the bitmap field. For example, assume that the bitmap field is 4 bytes long and contains 4 × 8-32 bits, as shown in table 2 below.
TABLE 2
| Bits 1-8 | Bits 9-16 | Bits 17-24 | Bits 25-32 |
| 10100110 | 00000001 | 10000000 | 00000001 |
The bitmap field and data field in table 1 are further illustrated.
The definitions of tables 1 and 2 indicate that in the data field, the 1 st, 3 rd, 6 th, 7 th, 16 th, 17 th, 32 th data elements exist, while none of the other data elements exist.
The data field contains specific data elements, and the data elements corresponding to each bit in the bitmap field may have explicit service definitions. Each data element is, for example, a Length-data element value structure, which is referred to as a Length-value (lv) structure. The data fields corresponding to table 2 are shown in table 3.

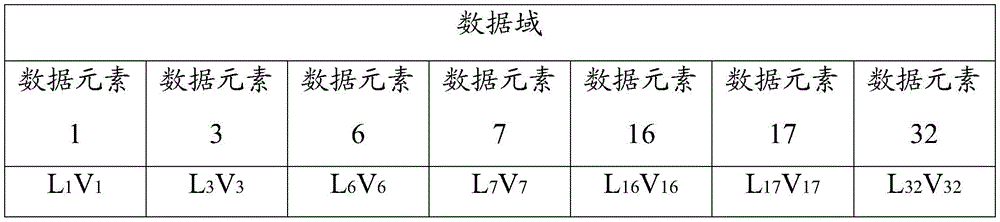

TABLE 3
In view of reducing the redundancy of data as much as possible, if the length of a certain data element is already clear, the value of the certain data element may be reserved in the data field. In addition, the data elements can reserve a custom field, and the custom field can contain nested sub-data elements, so that the expansion of the service can be facilitated.
Of course, the definitions in tables 1 to 3 are exemplary and not the only embodiments of the present application.
Based on the same idea, the embodiment of the present specification further provides a two-dimensional code processing method, which is explained from the perspective of a two-dimensional code generation end. Fig. 3 is a schematic flow chart of the two-dimensional code processing method. The flow in fig. 3 includes the following steps:
s302: and scanning the two-dimensional code and converting to obtain the character string represented by the two-dimensional code.
In this embodiment of the present specification, the character string is generated according to the information structure and the original content of the two-dimensional code, and the character string is encoded into a graphic form according to the encoding rule specified by the two-dimensional code, that is, the two-dimensional code is obtained, and step S302 is a decoding process corresponding to the encoding process.
S304: analyzing the character string according to a two-dimension code information structure based on the two-dimension code to obtain one or more data elements required to be used in the current service scene; the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
S306: and executing the service under the current service scene according to the obtained data elements.
As can be seen from the above description of the embodiments, based on the two-dimensional code information structure, it is helpful to perform two-dimensional code related services effectively.
From the perspective of information coding bearing, the two-dimensional code information structure has very strong flexibility and expandability, can very conveniently support service upgrading or industry expansion, even support multiple scenes in one code, take service upgrading as an example, for example, in traffic card application, new preferential information or new traffic card types are added, only corresponding data elements or even one value definition needs to be added, and large data structure change cannot be involved.
From the perspective of the code scanning terminal, no matter what service is supported by the extension, the code scanning terminal is uniform in logic of data analysis, so that the condition that the terminal program needs to be modified for upgrading the service can be avoided, and the cost of terminal reconstruction is reduced.
In the embodiment of the present specification, it has been mentioned above that no matter two-dimensional code generation or two-dimensional code processing, an action of a server may also be involved, and for convenience of understanding, in a practical application scenario of a two-dimensional code provided in the embodiment of the present specification, a service flow of a scanned user mode and a main scanned user mode is provided, and fig. 4 and fig. 5 are service flow diagrams of the two modes, respectively.
The service flow in fig. 4 mainly includes the following steps:
the user mobile phone generates and displays the two-dimension code according to the two-dimension code information structure provided by the application;
the scanner of the merchant terminal scans the two-dimensional code to obtain an image, identifies the image, converts the image into a character string and then sends the character string to a processor of the merchant terminal;
the processor analyzes the character string according to the two-dimensional code information structure to obtain corresponding data elements;
the processor may send the data elements obtained from the two-dimensional code to the server for service processing according to specific needs, or may locally perform service processing; in the former case, after the server finishes processing, the server may send a corresponding service notification to the user's mobile phone.
The business process in fig. 5 mainly includes the following steps:
the POS machine generates a two-dimensional code according to the two-dimensional code information structure provided by the application, or acquires the two-dimensional code from a server; displaying the two-dimension code;
scanning the two-dimensional code by the mobile phone of the user to obtain an image, identifying and converting the image into a character string, and analyzing the character string according to the information structure of the two-dimensional code to obtain corresponding data elements;
the user mobile phone sends the data elements obtained from the two-dimensional code to a server for service processing;
and returning a processing result to the mobile phone of the user after the server finishes processing.
Based on the same idea, the embodiments of the present specification further provide a corresponding apparatus of the above method, as shown in fig. 6 and fig. 7.
Fig. 6 is a schematic structural diagram of a two-dimensional code generating apparatus corresponding to fig. 2 provided in an embodiment of this specification, where the apparatus includes:
an obtaining module 601, obtaining original content;
a generating module 602, configured to generate a two-dimensional code corresponding to the original content according to a two-dimensional code information structure and the original content;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
Optionally, the indication comprises at least one of:
indicating the presence of the data element in the data field;
indicating a business definition of the data element;
indicating a location of the data element in the data field;
and indicating the matching relation between the service scene and the data elements.
Optionally, the indication field comprises a bitmap field, and the bitmap field is composed of one or more bits having a corresponding relationship with data elements in the data field;
the bits are used to indicate their corresponding data elements.
Optionally, when a value of a bit in the bitmap field is a first value, it indicates that a data element corresponding to the bit exists in the data field; when the value of a bit in the bitmap field is a second value different from the first value, it indicates that the data element corresponding to the bit does not exist in the data field.
Optionally, the indication field further includes a field for defining the bitmap field.
Optionally, the two-dimensional code information structure further includes at least one of the following fields:
the code header field is used for identifying a maker of the two-dimensional code information structure;
the code version field is used for identifying the version of the two-dimensional code information structure;
and the verification domain is used for verifying the content of the domain contained in the two-dimensional code information structure.
Optionally, the content of the data element includes: a data element value and a length of the data element value.
Fig. 7 is a schematic structural diagram of a two-dimensional code processing apparatus corresponding to fig. 3 provided in an embodiment of the present specification, where the apparatus includes:
the scanning conversion module 701 scans and converts the two-dimensional code to obtain a character string represented by the two-dimensional code;
the analysis module 702 is configured to analyze the character string according to a two-dimension code information structure based on the two-dimension code to obtain one or more data elements required to be used in the current service scene;
the service execution module 703 is configured to execute a service in the current service scenario according to the obtained data element;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
Based on the same idea, an embodiment of this specification further provides a two-dimensional code generating device corresponding to fig. 2, including:
at least one processor; and the number of the first and second groups,
a memory communicatively coupled to the at least one processor; wherein,
the memory stores instructions executable by the at least one processor to enable the at least one processor to:
acquiring original content;
generating a two-dimensional code corresponding to the original content according to a two-dimensional code information structure and the original content;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
Based on the same idea, an embodiment of the present specification further provides a two-dimensional code processing apparatus corresponding to fig. 3, including:
at least one processor; and the number of the first and second groups,
a memory communicatively coupled to the at least one processor; wherein,
the memory stores instructions executable by the at least one processor to enable the at least one processor to:
scanning and converting the two-dimensional code to obtain a character string represented by the two-dimensional code;
analyzing the character string according to a two-dimension code information structure based on the two-dimension code to obtain one or more data elements required to be used in the current service scene;
executing the service under the current service scene according to the obtained data elements;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
Based on the same idea, the embodiments of the present specification further provide a non-volatile computer storage medium corresponding to fig. 2, storing computer-executable instructions configured to:
acquiring original content;
generating a two-dimensional code corresponding to the original content according to a two-dimensional code information structure and the original content;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
Based on the same idea, the embodiments of the present specification further provide a non-volatile computer storage medium corresponding to fig. 3, and storing computer-executable instructions configured to:
scanning and converting the two-dimensional code to obtain a character string represented by the two-dimensional code;
analyzing the character string according to a two-dimension code information structure based on the two-dimension code to obtain one or more data elements required to be used in the current service scene;
executing the service under the current service scene according to the obtained data elements;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
The foregoing description has been directed to specific embodiments of this disclosure. Other embodiments are within the scope of the following claims. In some cases, the actions or steps recited in the claims may be performed in a different order than in the embodiments and still achieve desirable results. In addition, the processes depicted in the accompanying figures do not necessarily require the particular order shown, or sequential order, to achieve desirable results. In some embodiments, multitasking and parallel processing may also be possible or may be advantageous.
The embodiments in the present specification are described in a progressive manner, and the same and similar parts among the embodiments are referred to each other, and each embodiment focuses on the differences from the other embodiments. In particular, for the embodiments of the apparatus, the device, and the nonvolatile computer storage medium, since they are substantially similar to the embodiments of the method, the description is simple, and for the relevant points, reference may be made to the partial description of the embodiments of the method.
The apparatus, the device, the nonvolatile computer storage medium, and the method provided in the embodiments of the present specification correspond to each other, and therefore, the apparatus, the device, and the nonvolatile computer storage medium also have advantageous technical effects similar to those of the corresponding method.
In the 90 s of the 20 th century, improvements in a technology could clearly distinguish between improvements in hardware (e.g., improvements in circuit structures such as diodes, transistors, switches, etc.) and improvements in software (improvements in process flow). However, as technology advances, many of today's process flow improvements have been seen as direct improvements in hardware circuit architecture. Designers almost always obtain the corresponding hardware circuit structure by programming an improved method flow into the hardware circuit. Thus, it cannot be said that an improvement in the process flow cannot be realized by hardware physical modules. For example, a Programmable Logic Device (PLD), such as a Field Programmable Gate Array (FPGA), is an integrated circuit whose Logic functions are determined by programming the Device by a user. A digital system is "integrated" on a PLD by the designer's own programming without requiring the chip manufacturer to design and fabricate application-specific integrated circuit chips. Furthermore, nowadays, instead of manually making an integrated Circuit chip, such Programming is often implemented by "logic compiler" software, which is similar to a software compiler used in program development and writing, but the original code before compiling is also written by a specific Programming Language, which is called Hardware Description Language (HDL), and HDL is not only one but many, such as abel (advanced Boolean Expression Language), ahdl (alternate Language Description Language), traffic, pl (core unified Programming Language), HDCal, JHDL (Java Hardware Description Language), langue, Lola, HDL, laspam, hardsradware (Hardware Description Language), vhjhd (Hardware Description Language), and vhigh-Language, which are currently used in most common. It will also be apparent to those skilled in the art that hardware circuitry that implements the logical method flows can be readily obtained by merely slightly programming the method flows into an integrated circuit using the hardware description languages described above.
The controller may be implemented in any suitable manner, for example, the controller may take the form of, for example, a microprocessor or processor and a computer-readable medium storing computer-readable program code (e.g., software or firmware) executable by the (micro) processor, logic gates, switches, an Application Specific Integrated Circuit (ASIC), a programmable logic controller, and an embedded microcontroller, examples of which include, but are not limited to, the following microcontrollers: ARC 625D, Atmel AT91SAM, Microchip PIC18F26K20, and Silicone Labs C8051F320, the memory controller may also be implemented as part of the control logic for the memory. Those skilled in the art will also appreciate that, in addition to implementing the controller as pure computer readable program code, the same functionality can be implemented by logically programming method steps such that the controller is in the form of logic gates, switches, application specific integrated circuits, programmable logic controllers, embedded microcontrollers and the like. Such a controller may thus be considered a hardware component, and the means included therein for performing the various functions may also be considered as a structure within the hardware component. Or even means for performing the functions may be regarded as being both a software module for performing the method and a structure within a hardware component.
The systems, devices, modules or units illustrated in the above embodiments may be implemented by a computer chip or an entity, or by a product with certain functions. One typical implementation device is a computer. In particular, the computer may be, for example, a personal computer, a laptop computer, a cellular telephone, a camera phone, a smartphone, a personal digital assistant, a media player, a navigation device, an email device, a game console, a tablet computer, a wearable device, or a combination of any of these devices.
For convenience of description, the above devices are described as being divided into various units by function, and are described separately. Of course, the functions of the various elements may be implemented in the same one or more software and/or hardware implementations of the present description.
As will be appreciated by one skilled in the art, the present specification embodiments may be provided as a method, system, or computer program product. Accordingly, embodiments of the present description may take the form of an entirely hardware embodiment, an entirely software embodiment or an embodiment combining software and hardware aspects. Furthermore, embodiments of the present description may take the form of a computer program product embodied on one or more computer-usable storage media (including, but not limited to, disk storage, CD-ROM, optical storage, and so forth) having computer-usable program code embodied therein.
The description has been presented with reference to flowchart illustrations and/or block diagrams of methods, apparatus (systems), and computer program products according to embodiments of the description. It will be understood that each flow and/or block of the flow diagrams and/or block diagrams, and combinations of flows and/or blocks in the flow diagrams and/or block diagrams, can be implemented by computer program instructions. These computer program instructions may be provided to a processor of a general purpose computer, special purpose computer, embedded processor, or other programmable data processing apparatus to produce a machine, such that the instructions, which execute via the processor of the computer or other programmable data processing apparatus, create means for implementing the functions specified in the flowchart flow or flows and/or block diagram block or blocks.
These computer program instructions may also be stored in a computer-readable memory that can direct a computer or other programmable data processing apparatus to function in a particular manner, such that the instructions stored in the computer-readable memory produce an article of manufacture including instruction means which implement the function specified in the flowchart flow or flows and/or block diagram block or blocks.
These computer program instructions may also be loaded onto a computer or other programmable data processing apparatus to cause a series of operational steps to be performed on the computer or other programmable apparatus to produce a computer implemented process such that the instructions which execute on the computer or other programmable apparatus provide steps for implementing the functions specified in the flowchart flow or flows and/or block diagram block or blocks.
In a typical configuration, a computing device includes one or more processors (CPUs), input/output interfaces, network interfaces, and memory.
The memory may include forms of volatile memory in a computer readable medium, Random Access Memory (RAM) and/or non-volatile memory, such as Read Only Memory (ROM) or flash memory (flash RAM). Memory is an example of a computer-readable medium.
Computer-readable media, including both non-transitory and non-transitory, removable and non-removable media, may implement information storage by any method or technology. The information may be computer readable instructions, data structures, modules of a program, or other data. Examples of computer storage media include, but are not limited to, phase change memory (PRAM), Static Random Access Memory (SRAM), Dynamic Random Access Memory (DRAM), other types of Random Access Memory (RAM), Read Only Memory (ROM), Electrically Erasable Programmable Read Only Memory (EEPROM), flash memory or other memory technology, compact disc read only memory (CD-ROM), Digital Versatile Discs (DVD) or other optical storage, magnetic cassettes, magnetic tape magnetic disk storage or other magnetic storage devices, or any other non-transmission medium that can be used to store information that can be accessed by a computing device. As defined herein, a computer readable medium does not include a transitory computer readable medium such as a modulated data signal and a carrier wave.
It should also be noted that the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other like elements in a process, method, article, or apparatus that comprises the element.
This description may be described in the general context of computer-executable instructions, such as program modules, being executed by a computer. Generally, program modules include routines, programs, objects, components, data structures, etc. that perform particular tasks or implement particular abstract data types. The specification may also be practiced in distributed computing environments where tasks are performed by remote processing devices that are linked through a communications network. In a distributed computing environment, program modules may be located in both local and remote computer storage media including memory storage devices.
The embodiments in the present specification are described in a progressive manner, and the same and similar parts among the embodiments are referred to each other, and each embodiment focuses on the differences from the other embodiments. In particular, for the system embodiment, since it is substantially similar to the method embodiment, the description is simple, and for the relevant points, reference may be made to the partial description of the method embodiment.
The above description is only an example of the present specification, and is not intended to limit the present application. Various modifications and changes may occur to those skilled in the art. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present application should be included in the scope of the claims of the present application.
Claims (19)
1. A two-dimensional code generation method comprises the following steps:
acquiring original content;
generating a two-dimensional code corresponding to the original content according to a two-dimensional code information structure and the original content;
the two-dimensional code information structure at least comprises an indication domain and a data domain, wherein the indication domain is used for indicating one or more data elements in the data domain which are needed to be used in a specified service scene; the data elements are configured according to the current service scene, the indication domain is used for indicating the matching relationship between the service scene and the data elements, and the data elements required to be used in the data domain are determined according to the matching relationship and the current service scene.
2. The method of claim 1, the indication further comprising at least one of:
indicating the presence of the data element in the data field;
indicating a business definition of the data element;
indicating a location of the data element in the data field.
3. The method of claim 1 or 2, the indication field comprising a bitmap field, the bitmap field being composed of one or more bits having a correspondence with data elements in the data field;
the bits are used to indicate their corresponding data elements.
4. The method of claim 3, wherein when a bit in the bitmap field takes a first value, it indicates that a data element corresponding to the bit exists in the data field; when the value of the bit in the bitmap field is a second value different from the first value, it indicates that the data element corresponding to the bit does not exist in the data field.
5. The method of claim 3, the indication field further comprising a field for defining the bitmap field.
6. The method of claim 1, wherein the two-dimensional code information structure further comprises at least one of the following fields:
the code header field is used for identifying a maker of the two-dimensional code information structure;
the code version field is used for identifying the version of the two-dimensional code information structure;
and the verification domain is used for verifying the content of the domain contained in the two-dimensional code information structure.
7. The method of claim 1, the content of the data element comprising: a data element value and a length of the data element value.
8. A two-dimensional code processing method comprises the following steps:
scanning and converting the two-dimensional code to obtain a character string represented by the two-dimensional code;
analyzing the character string according to a two-dimension code information structure based on the two-dimension code to obtain one or more data elements required to be used in the current service scene;
executing the service under the current service scene according to the obtained data elements;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
9. A two-dimensional code is generated according to a two-dimensional code information structure and original content, wherein the two-dimensional code information structure at least comprises an indication domain and a data domain, and the indication domain is used for indicating one or more data elements in the data domain which are needed to be used in a specified service scene;
the data elements are configured according to the current service scene, the indication field is used for indicating the matching relationship between the service scene and the data elements, and the data elements required to be used in the data field are determined according to the matching relationship and the current service scene.
10. A two-dimensional code generation device comprising:
the acquisition module acquires original content;
the generating module is used for generating a two-dimensional code corresponding to the original content according to a two-dimensional code information structure and the original content;
the two-dimensional code information structure at least comprises an indication domain and a data domain, wherein the indication domain is used for indicating one or more data elements in the data domain which are needed to be used in a specified service scene; the data elements are configured according to the current service scene, the indication domain is used for indicating the matching relationship between the service scene and the data elements, and the data elements required to be used in the data domain are determined according to the matching relationship and the current service scene.
11. The apparatus of claim 10, the indication further comprising at least one of:
indicating the presence of the data element in the data field;
indicating a business definition of the data element;
indicating a location of the data element in the data field.
12. The apparatus of claim 10 or 11, the indication field comprising a bitmap field, the bitmap field comprised of one or more bits having a correspondence with data elements in the data field;
the bits are used to indicate their corresponding data elements.
13. The apparatus of claim 12, wherein when a bit in the bitmap field takes a first value, it indicates that a data element corresponding to the bit exists in the data field; when the value of a bit in the bitmap field is a second value different from the first value, it indicates that the data element corresponding to the bit does not exist in the data field.
14. The apparatus of claim 12, the indication field further comprising a field for defining the bitmap field.
15. The apparatus of claim 10, the two-dimensional code information structure further comprising at least one of:
the code header field is used for identifying a maker of the two-dimensional code information structure;
the code version field is used for identifying the version of the two-dimensional code information structure;
and the verification domain is used for verifying the content of the domain contained in the two-dimensional code information structure.
16. The apparatus of claim 10, the content of the data element comprising: a data element value and a length of the data element value.
17. A two-dimensional code processing apparatus comprising:
the scanning conversion module is used for scanning the two-dimensional code and converting the two-dimensional code to obtain a character string represented by the two-dimensional code;
the analysis module is used for analyzing the character string according to a two-dimension code information structure based on the two-dimension code to obtain one or more data elements required to be used in the current service scene;
the service execution module executes the service under the current service scene according to the acquired data elements;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
18. A two-dimensional code generation device comprising:
at least one processor; and the number of the first and second groups,
a memory communicatively coupled to the at least one processor; wherein,
the memory stores instructions executable by the at least one processor to enable the at least one processor to:
acquiring original content;
generating a two-dimensional code corresponding to the original content according to a two-dimensional code information structure and the original content;
the two-dimensional code information structure at least comprises an indication domain and a data domain, wherein the indication domain is used for indicating one or more data elements in the data domain which are needed to be used in a specified service scene; the data elements are configured according to the current service scene, the indication domain is used for indicating the matching relationship between the service scene and the data elements, and the data elements required to be used in the data domain are determined according to the matching relationship and the current service scene.
19. A two-dimensional code processing apparatus comprising:
at least one processor; and the number of the first and second groups,
a memory communicatively coupled to the at least one processor; wherein,
the memory stores instructions executable by the at least one processor to enable the at least one processor to:
scanning and converting the two-dimensional code to obtain a character string represented by the two-dimensional code;
analyzing the character string according to a two-dimension code information structure based on the two-dimension code to obtain one or more data elements required to be used in the current service scene;
executing the service under the current service scene according to the obtained data elements;
the two-dimensional code information structure at least comprises an indication field and a data field, wherein the indication field is used for indicating one or more data elements in the data field which are needed to be used in a specified service scene.
Priority Applications (7)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201711171809.0A CN108154211B (en) | 2017-11-22 | 2017-11-22 | Two-dimensional code generation method, two-dimensional code generation device, two-dimensional code service processing equipment and two-dimensional code |
| TW107133338A TWI728266B (en) | 2017-11-22 | 2018-09-21 | Two-dimensional bar code generation, business processing method, device and equipment, and two-dimensional bar code |
| PCT/US2018/062193 WO2019104132A1 (en) | 2017-11-22 | 2018-11-21 | Two-dimensional code generation method, two-dimensional code processing method, apparatus, device, and two-dimensional code |
| US16/197,883 US10713457B2 (en) | 2017-11-22 | 2018-11-21 | Two-dimensional code generation and processing |
| EP18880733.3A EP3625708B1 (en) | 2017-11-22 | 2018-11-21 | Two-dimensional code generation method, two-dimensional code processing method, apparatus, device, and two-dimensional code |
| SG11201912599YA SG11201912599YA (en) | 2017-11-22 | 2018-11-21 | Two-dimensional code generation method, two-dimensional code processing method, apparatus, device, and two-dimensional code |
| US16/915,658 US11003879B2 (en) | 2017-11-22 | 2020-06-29 | Two-dimensional code generation and processing |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201711171809.0A CN108154211B (en) | 2017-11-22 | 2017-11-22 | Two-dimensional code generation method, two-dimensional code generation device, two-dimensional code service processing equipment and two-dimensional code |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN108154211A CN108154211A (en) | 2018-06-12 |
| CN108154211B true CN108154211B (en) | 2020-08-28 |
Family
ID=62468876
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201711171809.0A Active CN108154211B (en) | 2017-11-22 | 2017-11-22 | Two-dimensional code generation method, two-dimensional code generation device, two-dimensional code service processing equipment and two-dimensional code |
Country Status (6)
| Country | Link |
|---|---|
| US (2) | US10713457B2 (en) |
| EP (1) | EP3625708B1 (en) |
| CN (1) | CN108154211B (en) |
| SG (1) | SG11201912599YA (en) |
| TW (1) | TWI728266B (en) |
| WO (1) | WO2019104132A1 (en) |
Families Citing this family (19)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN108154211B (en) | 2017-11-22 | 2020-08-28 | 阿里巴巴集团控股有限公司 | Two-dimensional code generation method, two-dimensional code generation device, two-dimensional code service processing equipment and two-dimensional code |
| CN109117919A (en) * | 2018-11-14 | 2019-01-01 | 苏州巨能图像检测技术有限公司 | Image encoding method applied to the position number identification of harbour shellfish |
| CN109583233A (en) * | 2018-11-23 | 2019-04-05 | 阿里巴巴集团控股有限公司 | Data leakage monitoring method and device |
| CN109559108A (en) * | 2018-11-29 | 2019-04-02 | 珠海市珠海通科技有限公司 | A kind of bus transfering method and device thereof |
| CN110046532A (en) * | 2019-04-25 | 2019-07-23 | 深圳左邻永佳科技有限公司 | All-purpose card two dimensional code generates and read method |
| CN112488697A (en) * | 2019-06-03 | 2021-03-12 | 创新先进技术有限公司 | Processing and generating method and device of off-line graphic code |
| CN110519294B (en) * | 2019-09-12 | 2021-08-31 | 创新先进技术有限公司 | Identity authentication method, device, equipment and system |
| US11893570B1 (en) * | 2019-11-22 | 2024-02-06 | United Services Automobile Association (Usaa) | Token based demand and remand system |
| CN111078668B (en) * | 2019-12-13 | 2023-03-21 | 北京明略软件系统有限公司 | Data generation method and device, electronic equipment and storage medium |
| CN111260360A (en) * | 2020-01-13 | 2020-06-09 | 支付宝实验室(新加坡)有限公司 | Bar code payment-based implementation method and device |
| CN111241352A (en) * | 2020-01-16 | 2020-06-05 | 深圳市深圳通有限公司 | Two-dimensional code, and two-dimensional code data storage method and device |
| CN111582415B (en) * | 2020-05-08 | 2023-04-18 | 北京思特奇信息技术股份有限公司 | Device management method, device, electronic device and storage medium |
| CN113011864B (en) * | 2021-03-22 | 2022-12-16 | 支付宝(杭州)信息技术有限公司 | Two-dimensional code generation and verification method, device, equipment and readable medium |
| US11551020B2 (en) * | 2021-04-14 | 2023-01-10 | Ncr Corporation | Intelligent asset management |
| KR102719849B1 (en) * | 2021-08-17 | 2024-10-22 | (주)에이텍모빌리티 | Encryption QR code generator and method |
| CN115086442B (en) * | 2022-08-15 | 2022-12-27 | 恒生电子股份有限公司 | Data processing method and device |
| CN115564000B (en) * | 2022-09-22 | 2025-11-25 | 中国平安财产保险股份有限公司 | QR code generation method, device, computer equipment and storage medium |
| CN115600629B (en) * | 2022-11-29 | 2023-03-17 | 广汽埃安新能源汽车股份有限公司 | Vehicle information two-dimensional code generation method, electronic device and computer readable medium |
| US12510905B1 (en) * | 2024-08-19 | 2025-12-30 | e-con Systems India Private Limited | Dynamic scan direction control of an automated guided vehicle based on barcode information |
Citations (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN105471575A (en) * | 2014-09-05 | 2016-04-06 | 阿里巴巴集团控股有限公司 | Information encryption, decryption method and device |
Family Cites Families (25)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US6820807B1 (en) * | 1996-03-01 | 2004-11-23 | Cobblestone Software, Inc. | Variable formatting of digital data into a pattern |
| US9824349B2 (en) * | 2002-10-01 | 2017-11-21 | World Award Academy | Facilitating mobile device payments using product code scanning |
| US9652758B2 (en) * | 2002-10-01 | 2017-05-16 | Dylan T X Zhou | Systems and methods for messaging, calling, digital multimedia capture and payment transactions |
| US8050502B2 (en) * | 2006-06-21 | 2011-11-01 | Namco Bandai Games Inc. | Two-Dimensional code generation method, two-dimensional code, two-dimensional code recognition method, and image recognition device |
| US7569832B2 (en) * | 2006-07-14 | 2009-08-04 | Carestream Health, Inc. | Dual-screen digital radiographic imaging detector array |
| US20080245869A1 (en) * | 2007-03-23 | 2008-10-09 | Ltt, Ltd | Method and apparatus for reading a printed indicia with a limited field of view sensor |
| US9734442B2 (en) * | 2007-10-31 | 2017-08-15 | Ncr Corporation | LumID barcode format |
| US20090115576A1 (en) * | 2007-11-02 | 2009-05-07 | Symbol Technologies, Inc. | Efficient Variable Format Data Encodation in RFID Tags and Other Media |
| JP5247601B2 (en) * | 2009-06-16 | 2013-07-24 | キヤノン株式会社 | Image processing apparatus, image processing method, and computer program |
| US8699078B2 (en) * | 2010-11-18 | 2014-04-15 | Fuji Xerox Co., Ltd. | Image processing apparatus, image processing method, and computer readable medium storing program |
| CN102542235A (en) * | 2011-12-09 | 2012-07-04 | 河北广联信息技术有限公司 | One-code multi-recognition method of two-dimensional codes |
| EP2842076A4 (en) | 2012-04-26 | 2016-02-17 | Hewlett Packard Development Co | Two-dimensional barcodes having a plurality of different regions |
| CN103544074B (en) * | 2012-07-09 | 2016-06-29 | 阿里巴巴集团控股有限公司 | The method of calibration of a kind of business and device |
| US9208494B2 (en) * | 2013-06-13 | 2015-12-08 | Tamarian Carpets, Llc | Code based product tracking methods and apparatus |
| CN103400173A (en) * | 2013-07-25 | 2013-11-20 | 中国科学院信息工程研究所 | Generating method and reading method of two-dimensional code containing private information |
| US9858518B2 (en) * | 2013-10-30 | 2018-01-02 | Toppan Tdk Label Co., Ltd. | Method for generating two-dimensional barcode, device for generating two-dimensional barcode, method for reading two-dimensional barcode, device for reading two-dimensional barcode, two-dimensional barcode, and program |
| CN105530163A (en) | 2014-10-22 | 2016-04-27 | 阿里巴巴集团控股有限公司 | Method for sending information and system thereof |
| CN104463296B (en) * | 2014-11-10 | 2018-04-10 | 吴涛军 | A kind of generation, acquisition and the processing method and system of two-dimension code structure information |
| WO2016108718A1 (en) | 2014-12-30 | 2016-07-07 | Emc Corporation | Method and apparatus for it appliance control |
| CN104616046A (en) * | 2015-02-28 | 2015-05-13 | 立德高科(北京)数码科技有限责任公司 | Two-dimension code and generation method and identification method thereof |
| CN104636785B (en) * | 2015-02-28 | 2018-08-07 | 北京慧眼食珍科技有限公司 | Quick Response Code, generation method with Quick Response Code software installation information and recognition methods |
| CN106529633B (en) | 2015-09-10 | 2019-11-15 | 阿里巴巴集团控股有限公司 | Generation method, coding/decoding method and the device of two dimensional code |
| EP3153993B1 (en) | 2015-10-08 | 2021-07-28 | Surys | Method of securing a 2d barcode |
| GB2546459B (en) * | 2017-05-10 | 2018-02-28 | Tomlinson Martin | Data verification |
| CN108154211B (en) | 2017-11-22 | 2020-08-28 | 阿里巴巴集团控股有限公司 | Two-dimensional code generation method, two-dimensional code generation device, two-dimensional code service processing equipment and two-dimensional code |
-
2017
- 2017-11-22 CN CN201711171809.0A patent/CN108154211B/en active Active
-
2018
- 2018-09-21 TW TW107133338A patent/TWI728266B/en active
- 2018-11-21 WO PCT/US2018/062193 patent/WO2019104132A1/en not_active Ceased
- 2018-11-21 EP EP18880733.3A patent/EP3625708B1/en active Active
- 2018-11-21 US US16/197,883 patent/US10713457B2/en active Active
- 2018-11-21 SG SG11201912599YA patent/SG11201912599YA/en unknown
-
2020
- 2020-06-29 US US16/915,658 patent/US11003879B2/en active Active
Patent Citations (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN105471575A (en) * | 2014-09-05 | 2016-04-06 | 阿里巴巴集团控股有限公司 | Information encryption, decryption method and device |
Also Published As
| Publication number | Publication date |
|---|---|
| EP3625708B1 (en) | 2022-01-05 |
| US20200327292A1 (en) | 2020-10-15 |
| TWI728266B (en) | 2021-05-21 |
| CN108154211A (en) | 2018-06-12 |
| EP3625708A1 (en) | 2020-03-25 |
| US11003879B2 (en) | 2021-05-11 |
| EP3625708A4 (en) | 2020-11-11 |
| TW201926152A (en) | 2019-07-01 |
| US20190180067A1 (en) | 2019-06-13 |
| US10713457B2 (en) | 2020-07-14 |
| WO2019104132A1 (en) | 2019-05-31 |
| SG11201912599YA (en) | 2020-01-30 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN108154211B (en) | Two-dimensional code generation method, two-dimensional code generation device, two-dimensional code service processing equipment and two-dimensional code | |
| CN107450979B (en) | Block chain consensus method and device | |
| CN107133834B (en) | Information display method and device | |
| CN107506181A (en) | Business processing, data processing method, device and electronic equipment | |
| CN107025480B (en) | Image generation method and apparatus thereof | |
| CN105335389B (en) | A kind of business method for visualizing and system | |
| CN112068911B (en) | Electronic form generation method, device, system, equipment and medium | |
| CN111767499A (en) | Page configuration method and device | |
| CN113011483A (en) | Method and device for model training and business processing | |
| CN113079201B (en) | Information processing system, method, device and equipment | |
| CN109947643B (en) | A/B test-based experimental scheme configuration method, device and equipment | |
| CN111756779B (en) | Data serialization processing method, device and computer system | |
| CN107566090B (en) | Fixed-length/variable-length text message processing method and device | |
| CN111984247A (en) | Service processing method and device and electronic equipment | |
| CN107613046A (en) | Filter pipe-line system, image processing method, device and electronic equipment | |
| CN107943923B (en) | Telegram code database construction method, telegram code identification method and device | |
| CN106155754B (en) | Display template processing method and device | |
| CN110602163A (en) | File uploading method and device | |
| US11164056B2 (en) | Method and system for applying barcode, and server | |
| HK1255266A1 (en) | Two-dimensional code generating method, device and apparatus, two-dimensional code service processing method, device and apparatus and two-dimensional code | |
| CN116070600A (en) | Rich text editing method and device, storage medium and computer equipment | |
| CN114780630A (en) | Data display method, device and equipment | |
| CN109213821B (en) | Data processing method and system | |
| CN114594945A (en) | Method, device, system, equipment and medium for generating advanced popup selection frame | |
| CN107135137B (en) | Network group identification method and device |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| REG | Reference to a national code |
Ref country code: HK Ref legal event code: DE Ref document number: 1255266 Country of ref document: HK |
|
| GR01 | Patent grant | ||
| GR01 | Patent grant | ||
| TR01 | Transfer of patent right |
Effective date of registration: 20201020 Address after: Cayman Enterprise Centre, 27 Hospital Road, George Town, Grand Cayman Islands Patentee after: Innovative advanced technology Co.,Ltd. Address before: Cayman Enterprise Centre, 27 Hospital Road, George Town, Grand Cayman Islands Patentee before: Advanced innovation technology Co.,Ltd. Effective date of registration: 20201020 Address after: Cayman Enterprise Centre, 27 Hospital Road, George Town, Grand Cayman Islands Patentee after: Advanced innovation technology Co.,Ltd. Address before: A four-storey 847 mailbox in Grand Cayman Capital Building, British Cayman Islands Patentee before: Alibaba Group Holding Ltd. |
|
| TR01 | Transfer of patent right |
