Abstract

The invention discloses an intelligent doorbell monitoring method and device. Wherein, the method includes: through an internal communication network, the doorbell internal monitoring device sends a first service request, wherein the first service request is a request to query target information outside the door, the internal communication network is composed of a plurality of doorbell monitoring devices, a plurality of The doorbell monitoring device includes the doorbell internal monitoring device and the doorbell external monitoring device, the doorbell internal monitoring device is communicated with the doorbell external monitoring device, and the communication connection between each doorbell internal monitoring device; the target information returned by the doorbell external monitoring device is received, wherein the target The information is target information collected by the doorbell external monitoring device according to the first service request sent by the doorbell internal monitoring device; the doorbell internal monitoring device determines the security state according to the target information. The invention solves the technical problems of high monitoring cost, small scope and low security in the prior art.

Description

Smart doorbell monitoring method and device

technical field

The present invention relates to the field of monitoring, and in particular, to a method and device for monitoring an intelligent doorbell.

Background technique

With the rapid development of the real estate industry, users' demands for room security continue to increase. The traditional solution is to set up surveillance cameras to monitor the surroundings of the room, and set up door guards to improve property and personnel safety. However, the traditional monitoring method of setting up surveillance cameras can only be inquired by calling out the surveillance images after a security incident occurs, and it is not possible to know the situation of the house in time when a security incident occurs, and the security is still very low. , and is less efficient in preventing dangerous events from occurring. At the same time, in the current real estate, the requirements for all-digital houses are constantly increasing, but the traditional monitoring solutions for buildings are aimed at users and cannot monitor the entire building well. At the same time, the monitoring cost is high and the monitoring scope is small. Telecommunication services such as text messages and calls are not closely integrated.

Aiming at the problems of high monitoring cost, small scope and low security in the above-mentioned prior art, no effective solution has been proposed yet.

SUMMARY OF THE INVENTION

Embodiments of the present invention provide an intelligent doorbell monitoring method and device, so as to at least solve the technical problems of high monitoring cost, small scope and low security in the prior art.

According to an aspect of the embodiments of the present invention, a method for monitoring a smart doorbell is provided, comprising: sending a first service request by an internal monitoring device of the doorbell through an internal communication network, wherein the first service request is a request to query a doorbell outside the door. Target information, the internal communication network consists of multiple doorbell monitoring devices, the multiple doorbell monitoring devices include the doorbell internal monitoring device and the doorbell external monitoring device, the doorbell internal monitoring device communicates with the doorbell external monitoring device connection, communication connection between each of the doorbell internal monitoring devices; receiving target information returned by the doorbell external monitoring device, wherein the target information is the doorbell external monitoring device according to the doorbell internal monitoring device. Target information collected by a service request; the doorbell internal monitoring device determines a security state according to the target information, wherein the security state includes one of the following: a dangerous state and a safe state.

Further, when there are multiple doorbell internal monitoring devices, the method further includes: each doorbell internal monitoring device simultaneously receives a second service request sent by the doorbell external monitoring device according to user requirements, wherein the first The second service request is that the doorbell external monitoring device requests to communicate with the doorbell internal monitoring device; each doorbell internal monitoring device conducts business communication with the doorbell external monitoring device according to the second service request; the doorbell internal monitoring device The device determines the security state according to the result of the service communication.

Further, before each doorbell internal monitoring device simultaneously receives the second service request sent by the doorbell external monitoring device according to user needs, the method includes: the doorbell external monitoring device sending a service communication request to the doorbell internal monitoring device; The doorbell external monitoring device judges whether the doorbell internal monitoring device responds to the business communication request within a predetermined time; in the case that the doorbell internal monitoring device does not respond to the business communication request, the doorbell external monitoring device The device sends the service communication request to the mobile terminal.

Further, through the internal communication network, before the doorbell internal monitoring device sends the first service request, it includes: acquiring a plurality of network configuration information of the doorbell monitoring device, wherein the network configuration information includes the doorbell monitoring device's network configuration information. Identity information; each of the doorbell monitoring devices communicates and connects according to the network configuration information to create the internal communication network.

Further, determining the security state according to the target information by the doorbell internal monitoring device includes: judging whether the target information meets the preset conditions; if the target information does not meet the preset conditions, sending notification information to the mobile terminal, wherein, The notification information is at least one of the following: a short message, a call, and an email.

Further, the internal communication network is an IMS communication network.

According to another aspect of the embodiments of the present invention, an intelligent doorbell monitoring device is also provided, including: a sending unit configured to send a first service request through an internal communication network and an internal monitoring device of the doorbell, wherein the first service request In order to request to query the target information outside the door, the internal communication network is composed of a plurality of doorbell monitoring devices, the plurality of doorbell monitoring devices include the doorbell internal monitoring device and the doorbell external monitoring device, the doorbell internal monitoring device and the doorbell internal monitoring device. The external monitoring device of the doorbell is communicatively connected, and each internal monitoring device of the doorbell is communicatively connected; the first receiving unit is configured to receive target information returned by the external monitoring device of the doorbell, wherein the target information is the The target information collected by the doorbell external monitoring device according to the first service request sent by the doorbell internal monitoring device; the first determining unit is used for the doorbell internal monitoring device to determine the security status according to the target information, wherein the security status Including one of the following: dangerous state, safe state.

Further, when there are multiple internal monitoring devices of the doorbell, the device further includes: a second receiving unit, used for each internal monitoring device of the doorbell to simultaneously receive the second service sent by the external monitoring device of the doorbell according to user requirements. request, wherein the second service request is that the doorbell external monitoring device requests to communicate with the doorbell internal monitoring device; a communication unit is used for each doorbell internal monitoring device to communicate with the doorbell according to the second service request The external monitoring device performs business communication; the second determining unit is used for the internal monitoring device of the doorbell to determine the security state according to the result of the business communication.

Further, it includes: a first sending module, configured to send a service communication request to the doorbell external monitoring device before each doorbell internal monitoring device simultaneously receives the second service request sent by the doorbell external monitoring device according to user needs. The doorbell internal monitoring device; the judgment module is used for the doorbell external monitoring device to judge whether the doorbell internal monitoring device responds to the service communication request within a predetermined time; the second sending module is used for judging the doorbell When the internal monitoring device does not respond to the service communication request, the doorbell external monitoring device sends the service communication request to the mobile terminal.

Further, it includes: an acquisition module, configured to acquire network configuration information of a plurality of the doorbell monitoring devices before the doorbell internal monitoring device sends the first service request through the internal communication network, wherein the network configuration information includes Identity information of the doorbell monitoring device; a creation module for each of the doorbell monitoring devices to communicate and connect according to the network configuration information to create the internal communication network.

In the embodiment of the present invention, the first service request can be sent through the internal monitoring device of the doorbell, so as to know the target information outside the door, and determine the security status of the door according to the target information. In this embodiment, the doorbell is monitored by the doorbell. The internal communication network composed of equipment can timely understand the security status of the door. After determining the security status, corresponding countermeasures can be taken, the security has been greatly improved, and the doorbell monitoring equipment communicates and connects by itself, without the need for special components The local area network reduces the monitoring cost; in addition, through the internal communication network in this embodiment, the entire house can be monitored, not limited to the outside of the door, and the scope of monitoring can be greatly expanded, thereby solving the problem of the existing technology. The technical problems of high monitoring cost, small scope, and low security in medium and small areas.

Description of drawings

The accompanying drawings described herein are used to provide a further understanding of the present invention and constitute a part of the present application. The exemplary embodiments of the present invention and their descriptions are used to explain the present invention and do not constitute an improper limitation of the present invention. In the attached image:

1 is a schematic diagram of a method for monitoring a smart doorbell according to an embodiment of the present invention;

FIG. 2 is a schematic diagram of another optional network interface monitored by a smart doorbell according to an embodiment of the present invention;

FIG. 3 is a schematic diagram of another optional smart doorbell monitoring device according to an embodiment of the present invention.

Detailed ways

In order to make those skilled in the art better understand the solutions of the present invention, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only Embodiments are part of the present invention, but not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

It should be noted that the terms "first", "second" and the like in the description and claims of the present invention and the above drawings are used to distinguish similar objects, and are not necessarily used to describe a specific sequence or sequence. It is to be understood that the data so used may be interchanged under appropriate circumstances such that the embodiments of the invention described herein can be practiced in sequences other than those illustrated or described herein. Furthermore, the terms "comprising" and "having" and any variations thereof, are intended to cover non-exclusive inclusion, for example, a process, method, system, product or device comprising a series of steps or units is not necessarily limited to those expressly listed Rather, those steps or units may include other steps or units not expressly listed or inherent to these processes, methods, products or devices.

First, some terms or nouns involved in the embodiments of the present invention are explained:

IMS, namely IP Multimedia Subsystem, IP Multimedia Subsystem, is essentially a network structure, IMS supports both fixed access and mobile access. The core feature is the use of SIP protocol and the independence of access, conforming to the trend of network IP, IMS system uses SIP protocol for end-to-end call control.

HTTP, HyperText Transfer Protocol, is the most widely used network protocol on the Internet. All World Wide Web files must comply with this standard.

SIP, Session Initiation Protocol, is a multimedia communication protocol formulated by IETF (Internet Engineering Task Force, Internet Engineering Task Force). It is a text-based application layer control protocol for creating, modifying and releasing sessions of one or more participants. Widely used in CS (Circuit Switched, circuit switched), NGN (Next Generation Network, next generation network) and IMS (IP Multimedia Subsystem, IP Multimedia Subsystem) networks, can support and apply to voice, video, data and other multimedia services .

RTP, Real-time Transport Protocol, is a network transport protocol. The RTP protocol specifies the standard packet format for transmitting audio and video over the Internet. The RTP protocol is used together with the RTP control protocol RTCP, and it is based on the User Datagram Protocol.

NAT, Network Address Translation, network address translation, when some hosts in the private network have been assigned local IP addresses (that is, private addresses only used in this private network), but now they want to communicate with hosts on the Internet ( When encryption is not required), the NAT method can be used. This method requires NAT software to be installed on the router that connects the private network to the Internet. A router with NAT software installed is called a NAT router, and it has at least one valid external global IP address. In this way, when all hosts using local addresses communicate with the outside world, their local addresses must be converted into global IP addresses on the NAT router in order to connect to the Internet.

According to an embodiment of the present invention, a method embodiment of a method for monitoring a smart doorbell is provided. It should be noted that the steps shown in the flowchart of the accompanying drawing can be executed in a computer system such as a set of computer-executable instructions, and , although a logical order is shown in the flowcharts, in some cases steps shown or described may be performed in an order different from that herein.

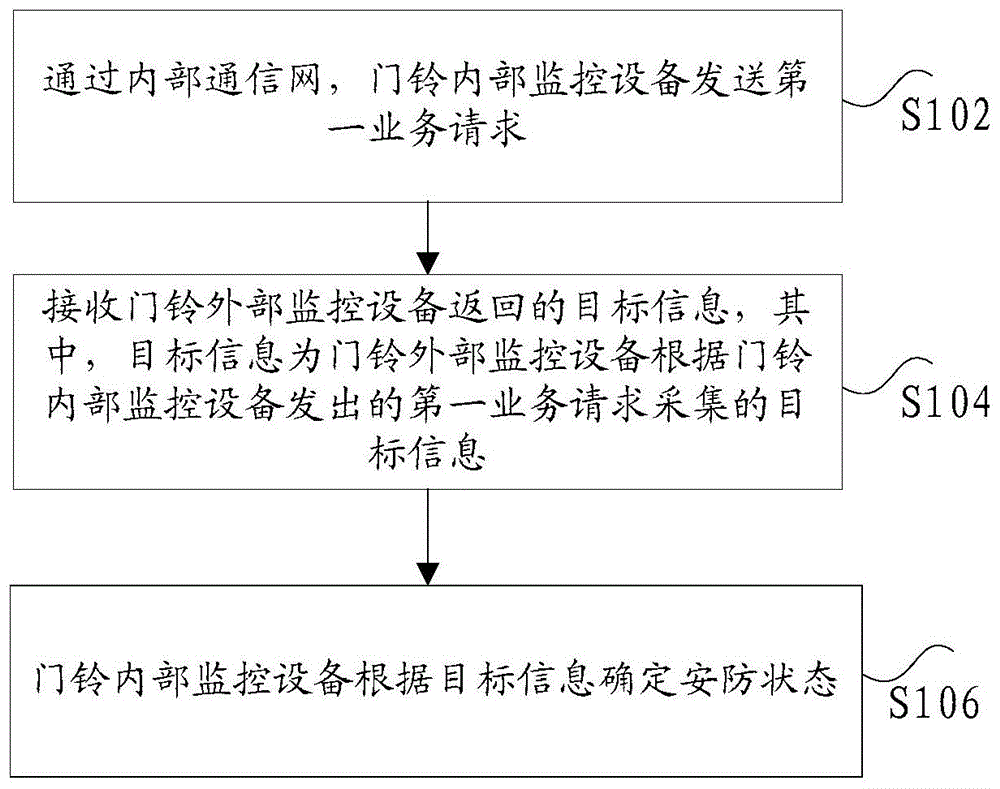

FIG. 1 is a schematic diagram of a method for monitoring a smart doorbell according to an embodiment of the present invention. As shown in FIG. 1 , the method includes the following steps:

Step S102, through the internal communication network, the doorbell internal monitoring device sends a first service request, wherein the first service request is a request to query target information outside the door, the internal communication network is composed of a plurality of doorbell monitoring devices, a plurality of doorbell monitoring devices Including the internal monitoring equipment of the doorbell and the external monitoring equipment of the doorbell, the internal monitoring equipment of the doorbell is connected with the external monitoring equipment of the doorbell, and the communication connection between the internal monitoring equipment of each doorbell;

Step S104, receiving target information returned by the doorbell external monitoring device, wherein the target information is the target information collected by the doorbell external monitoring device according to the first service request sent by the doorbell internal monitoring device;

Step S106, the doorbell internal monitoring device determines the security state according to the target information, wherein the security state includes one of the following: a dangerous state and a safe state.

Through the above embodiment, the first service request can be sent through the doorbell internal monitoring device, so as to know the target information outside the door, and determine the security status of the door according to the target information, wherein the present embodiment is composed of the doorbell monitoring device. The internal communication network of the doorbell can timely understand the security status of the door. After the security status is determined, corresponding countermeasures can be taken, and the security has been greatly improved, and the doorbell monitoring equipment communicates and connects by itself, without the need for special components LAN, The monitoring cost is reduced; in addition, through the internal communication network in this embodiment, the entire house can be monitored, and it will not be limited to the outside of the door, and the scope of monitoring can be greatly expanded, thereby solving the problem of monitoring in the prior art. Technical issues of high cost, small scope, and low security.

Optionally, the internal monitoring network in this embodiment may be an IMS communication network, and each doorbell monitoring device will have a corresponding identification when it leaves the factory, and the identification may be the device number of the doorbell monitoring device. In addition, in this embodiment, each doorbell monitoring device may have network configuration information, and the network configuration information may be the identity of the doorbell monitoring device in the IMS system, including the IMS login address, login account, login password, and the like. Through the network configuration information, the doorbell monitoring devices can communicate with each other, and after the communication connection is established, the doorbell monitoring devices can communicate, including video communication, voice communication, and the like.

In another optional implementation manner, the first service request in this application may be a request from the doorbell internal monitoring device to view the situation outside the door, for example, person information, animal information, vehicle information, etc. outside the door.

Optionally, in this embodiment, when communicating between doorbell monitoring devices, identification information of another doorbell monitoring device for communication can be selected, where the identification information can be the identity identification of the doorbell monitoring device, for example, doorbell monitoring 001, Doorbell monitoring 002, doorbell monitoring 005, etc. In addition, in this embodiment, the room number can also be used as the identification information of the doorbell monitoring device. Before the doorbell monitoring device establishes a communication connection, the doorbell monitoring device can input the room number, so that the doorbell monitoring device corresponding to the room responds to communicate. For example, in a house, there are 5 rooms, and 6 doorbell monitoring devices can be set up, including the doorbell monitoring device A for the door outside the house, and one for each of the five rooms in the house, which are the doorbell monitoring device B and the doorbell monitoring device C respectively. , doorbell monitoring device D, doorbell monitoring device E, doorbell monitoring device F, if the user's room is B, and he wants to check the situation outside the house, he can enter A, so that the doorbell monitoring device B can be established with the doorbell monitoring device A Communication connection, and then check the situation outside the house door collected by the doorbell monitoring device A. At the same time, in the embodiment of the present invention, the use authority of the doorbell monitoring device can be set. For example, the doorbell monitoring device A can be set to send a communication request, and the communication request can communicate with any monitoring device from the doorbell monitoring device B to the doorbell monitoring device F. , but cannot view the information collected in the house, and any monitoring device from the doorbell monitoring device B to the doorbell monitoring device F can communicate with the doorbell monitoring device A, and can also view the information collected outside the house; at the same time, Any monitoring device from the doorbell monitoring device B to the doorbell monitoring device F can mutually check the collected information.

For the security state in the above embodiment, it includes a dangerous state and a safe state. Here, it can be preset that the dangerous state is that the person monitored by the external device of the doorbell does not receive the confirmation entry information sent by the internal monitoring device of the doorbell and directly enters the house. At this time, the doorbell monitoring device can start the alarm device and send the alarm information. The security state may be that the doorbell internal monitoring device sends confirmation information to the doorbell external monitoring device, and at this time, the doorbell external monitoring device can automatically open the door.

Optionally, when there are multiple doorbell internal monitoring devices, the method further includes: each doorbell internal monitoring device simultaneously receives a second service request sent by the doorbell external monitoring device according to user requirements, where the second service request is the doorbell external monitoring device. The device requests to communicate with the internal monitoring device of the doorbell; each internal monitoring device of the doorbell conducts business communication with the external monitoring device of the doorbell according to the second service request; the internal monitoring device of the doorbell determines the security status according to the result of the business communication.

In the above-mentioned embodiment, the external visitor can send the second service request to the internal monitoring device of the doorbell through the external monitoring device of the doorbell, so as to communicate with the personnel inside the house to enter the house. People in the house can also inquire about the situation outside the house through the internal monitoring device of the doorbell, and communicate with people outside the house to learn their information. Persons from outside the house enter the house.

Optionally, the above-mentioned external monitoring device of the doorbell can send a video communication request to the internal monitoring device of the doorbell. After confirming the communication request, the internal monitoring device of the doorbell can send a door opening instruction to the external monitoring device of the doorbell through the door opening button on the internal monitoring device of the doorbell. , so that the external monitoring device of the doorbell can open the door according to the door opening command.

Optionally, before each doorbell internal monitoring device simultaneously receives the second service request sent by the doorbell external monitoring device according to the user's needs, it includes: the doorbell external monitoring device sends a service communication request to the doorbell internal monitoring device; the doorbell external monitoring device is in the doorbell internal monitoring device. Determine whether the internal monitoring device of the doorbell responds to the service communication request within a predetermined time; if it is determined that the internal monitoring device of the doorbell does not respond to the service communication request, the external monitoring device of the doorbell sends the service communication request to the mobile terminal.

In this embodiment, the predetermined time can be set by the user according to the actual situation, for example, the predetermined time is set to 3 minutes, and within the predetermined time, if no person operates the internal monitoring device of the doorbell, the service communication request can be sent to the mobile terminal , the mobile terminal may be the mobile terminal of the user of the doorbell monitoring device. The mobile terminal may include various terminals, for example, a mobile phone, a computer, and the like.

In another optional implementation manner, through the internal communication network, before the doorbell internal monitoring device sends the first service request, the method includes: acquiring network configuration information of multiple doorbell monitoring devices, wherein the network configuration information includes the identity of the doorbell monitoring device Identification information; each doorbell monitoring device is connected according to the network configuration information to create an internal communication network.

When the doorbell monitoring device leaves the factory, there will be corresponding identification information. After the doorbell monitoring device is connected to the network (for example, wifi), each doorbell monitoring device can communicate directly. Each doorbell monitoring device in this embodiment may have a display screen for displaying the collected video information in real time after the communication connection is established. Through the IMS communication network, each doorbell monitoring device can communicate directly (including: video communication, telephone communication, etc.), and each doorbell monitoring device can independently establish a communication network without establishing another network.

Optionally, determining the security status of the doorbell internal monitoring device according to the target information includes: judging whether the target information meets the preset conditions; if the target information does not meet the preset conditions, sending notification information to the mobile terminal, where the notification information is at least one of the following : SMS, call, email.

In the above embodiment, the preset condition may be that the doorbell internal monitoring device confirms that the house is in a safe state within the current time period. When a dangerous state occurs, the relevant information of the house can be sent to the mobile terminal through the above-mentioned communication information.

Optionally, the above-mentioned doorbell external monitoring device can also obtain other door opening information, and after receiving the door opening information, open the door, wherein the door opening information includes: door card door opening information, password door opening information, etc. The door card information of the house user can be entered in the monitoring device, and the door is opened after receiving the door card opening information; and for the password opening information, the door opening password information can be set for the house user, which can be set on the external monitoring device of the doorbell. Set the password setting key, the house user can set the house door opening password through the password setting key.

In the above embodiment, the IMS network can be used directly to realize the communication between the doorbell monitoring devices, including pushing video, pictures, and information, without establishing a local area network, saving network construction costs and improving house security.

The following is an embodiment of an optional intelligent doorbell monitoring method according to the present invention. In this embodiment, the monitoring of the house is realized through each interaction layer of the doorbell monitoring terminal, and the interaction layer may include a service layer (Service Layer), a sandwich Layer (Core Layer), Access Layer (Access Layer) and Terminal Layer (Terminal Layer), in which there can be doorbell data server (Smart Doorbell Server) and doorbell monitoring device network server (DMServer) in the service layer, in the sandwich layer There are HSS (Home Subscriber Server) and CSCF (Call Session Control Function Server). In the access layer, the WIFI network can be used to exchange data with the devices in the terminal layer, and the terminal layer can include mobile terminals (for example, mobile phones) and doorways. machine (Outdoor Bell), indoor unit. As for the door phone, the functions implemented are similar to the doorbell external monitoring device in the above-mentioned embodiment, and the function of the indoor station is similar to the doorbell internal monitoring device in the above-mentioned embodiment.

Among them, for the communication between the outdoor station, indoor station and mobile phone in the above embodiment, the interface can be as shown in Figure 2. First, the equipment at the terminal layer establishes the IMS communication network 22, the door station 23, the indoor station 25 and the mobile phone. 24 are respectively connected through the IMS communication network 22, and the interface communication used is SIP, and for the DM server 21 and the mobile phone 24, the door station 23 and the indoor station 25 to establish a communication connection through the HTTP protocol, the door station 23 and the mobile phone 24, the indoor station. 25 communicate via RTP protocol.

Optionally, the VTO and VTH have corresponding DM addresses when they leave the factory. When establishing a connection, the connection can be established through the network configuration information (IMS login address, account number, password, etc.) of each VTO and VTO. For the outdoor station and the indoor station in this embodiment, it may include a display screen, and the display screen may display the information collected by the indoor station or the door station.

Optionally, when a communication connection is established between the indoor station and the outdoor station, the connection can be established through a WiFi hotspot, and after obtaining the account and password of the WiFi hotspot, it joins the network where the WiFi hotspot is located.

In the embodiment of the present invention, each room number in the house can be used as the communication account of the indoor unit. Before establishing a communication connection, the room number can be input to realize the video intercom function, including the door phone calling the indoor unit, the indoor unit intercom communicate with each other. In another optional implementation manner, when there are multiple indoor units, if the outdoor station sends a communication request to each indoor unit, each indoor unit in the multiple indoor units can achieve simultaneous vibration.

In addition, the VTO can also establish a communication connection with the mobile phone, so that the mobile phone can send the door opening command through the door opening button to inform the VTO to open the door.

Through the above embodiment, the communication connection between the indoor station, the door station and the mobile phone can be established through the IMS communication network, and the door station can also realize the functions of swiping the card to open the door, password to open the door, etc. In addition, the door station in this embodiment can call the indoor station , to make a video call and realize the door opening function of the VTO through the VTH. When there are multiple indoor units, the VTO calls the indoor unit, and the multiple indoor units vibrate at the same time.

Optionally, after the VTO sends a communication request, the indoor unit and the mobile phone can vibrate together, and the mobile phone can also control the VTO to open the door remotely. In addition, if the indoor unit does not respond within a predetermined time after the outdoor station sends a communication request, the communication request can be sent to the mobile phone, and the mobile phone can control the door to open the door remotely.

Optionally, in this embodiment, when a dangerous situation occurs (for example, a thief enters a door), the mobile phone can be notified by calling, and then an alarm can be realized through the mobile phone.

3 is a schematic diagram of another optional smart doorbell monitoring device according to an embodiment of the present invention, including: a sending unit 31, configured to send a first service request through an internal communication network and an internal monitoring device of the doorbell, wherein the first service The request is to query the target information outside the door. The internal communication network is composed of multiple doorbell monitoring devices. The multiple doorbell monitoring devices include the doorbell internal monitoring device and the doorbell external monitoring device. The doorbell internal monitoring device communicates with the doorbell external monitoring device. The communication connection between the internal monitoring devices of each doorbell; the first receiving unit 33 is used to receive target information returned by the external monitoring device of the doorbell, wherein the target information is collected by the external monitoring device of the doorbell according to the first service request sent by the internal monitoring device of the doorbell The first determination unit 35 is used for the doorbell internal monitoring device to determine the security state according to the target information, wherein the security state includes one of the following: a dangerous state and a safe state.

Through the above embodiment, the sending unit 31 can send the first service request, so as to know the target information outside the door, and the first determining unit 35 can determine the security state of the exit door according to the target information. In this embodiment, through the internal communication network, the security state of the door can be learned in time, and after the security state is determined, corresponding countermeasures can be taken (for example, an alarm message is issued), and the security is greatly improved. , and the doorbell monitoring device communicates and connects by itself, without the need for special components LAN, which reduces the monitoring cost; in addition, through the internal communication network in this embodiment, the entire house can be monitored, not limited to the outside of the door, and can be extremely The scope of monitoring is greatly expanded, thereby solving the technical problems of high monitoring cost, small scope and low security in the prior art.

Optionally, when there are multiple doorbell internal monitoring devices, the device further includes: a second receiving unit, used for each doorbell internal monitoring device to simultaneously receive a second service request sent by the doorbell external monitoring device according to user requirements, wherein, The second service request is that the doorbell external monitoring device requests to communicate with the doorbell internal monitoring device; the communication unit is used for each doorbell internal monitoring device to perform business communication with the doorbell external monitoring device according to the second service request; the second determination unit is used for The internal monitoring equipment of the doorbell determines the security status according to the results of business communication.

For the above embodiment, it includes: a first sending module, configured to send a service communication request to the interior of the doorbell from the doorbell external monitoring device before each doorbell internal monitoring device simultaneously receives a second service request sent by the doorbell external monitoring device according to user needs monitoring equipment; the judgment module is used for the external monitoring equipment of the doorbell to judge whether the internal monitoring equipment of the doorbell responds to the business communication request within a predetermined time; the second sending module is used to judge whether the internal monitoring equipment of the doorbell does not respond to the business communication request. The external monitoring device of the doorbell sends a service communication request to the mobile terminal.

Another optional implementation manner includes: an acquisition module configured to acquire network configuration information of multiple doorbell monitoring devices before the first service request sent by the doorbell internal monitoring device through the internal communication network, wherein the network configuration information Including the identification information of the doorbell monitoring device; creating a module for each doorbell monitoring device to communicate and connect according to the network configuration information to create an internal communication network.

The above-mentioned serial numbers of the embodiments of the present invention are only for description, and do not represent the advantages or disadvantages of the embodiments.

In the above-mentioned embodiments of the present invention, the description of each embodiment has its own emphasis. For parts that are not described in detail in a certain embodiment, reference may be made to related descriptions of other embodiments.

In the several embodiments provided in this application, it should be understood that the disclosed technical content can be implemented in other ways. The device embodiments described above are only illustrative, for example, the division of the units may be a logical function division, and there may be other division methods in actual implementation, for example, multiple units or components may be combined or Integration into another system, or some features can be ignored, or not implemented. On the other hand, the shown or discussed mutual coupling or direct coupling or communication connection may be through some interfaces, indirect coupling or communication connection of units or modules, and may be in electrical or other forms.

The units described as separate components may or may not be physically separated, and components shown as units may or may not be physical units, that is, may be located in one place, or may be distributed to multiple units. Some or all of the units may be selected according to actual needs to achieve the purpose of the solution in this embodiment.

In addition, each functional unit in each embodiment of the present invention may be integrated into one processing unit, or each unit may exist physically alone, or two or more units may be integrated into one unit. The above-mentioned integrated units may be implemented in the form of hardware, or may be implemented in the form of software functional units.

The integrated unit, if implemented in the form of a software functional unit and sold or used as an independent product, may be stored in a computer-readable storage medium. Based on this understanding, the technical solution of the present invention is essentially or the part that contributes to the prior art, or all or part of the technical solution can be embodied in the form of a software product, and the computer software product is stored in a storage medium , including several instructions for causing a computer device (which may be a personal computer, a server, or a network device, etc.) to execute all or part of the steps of the methods described in the various embodiments of the present invention. The aforementioned storage medium includes: U disk, read-only memory (ROM, Read-Only Memory), random access memory (RAM, Random Access Memory), mobile hard disk, magnetic disk or optical disk and other media that can store program codes .

The above are only the preferred embodiments of the present invention. It should be pointed out that for those skilled in the art, without departing from the principles of the present invention, several improvements and modifications can be made. It should be regarded as the protection scope of the present invention.

Claims (8)

1. an intelligent doorbell monitoring method, is characterized in that, realizes the monitoring of house by each interactive layer of doorbell monitoring terminal, and this intelligent doorbell monitoring method comprises: Through the internal communication network, the doorbell internal monitoring device sends a first service request, wherein the first service request is a request to query target information outside the door, and the internal communication network is composed of a plurality of doorbell monitoring devices. The doorbell monitoring device includes the doorbell internal monitoring device and the doorbell external monitoring device, the doorbell internal monitoring device is communicatively connected to the doorbell external monitoring device, and each doorbell internal monitoring device is communicatively connected; receiving target information returned by the doorbell external monitoring device, wherein the target information is target information collected by the doorbell external monitoring device according to a first service request sent by the doorbell internal monitoring device; The doorbell internal monitoring device determines a security state according to the target information, wherein the security state includes one of the following: a dangerous state, a safe state, Wherein, the interaction layer of the doorbell monitoring terminal includes: a service layer, a sandwich layer, an access layer and a terminal layer, the service layer includes a doorbell data server and a network server of a doorbell monitoring device, and the sandwich layer includes a home user Server, call session control function server, the terminal layer includes: mobile terminal, VTO and VTH, VTO, VTH and mobile terminal respectively establish communication connection through IMS communication network, the communication interface used is SIP, doorbell monitoring equipment The network server and mobile terminal, VTO and VTH establish communication connection through HTTP protocol, VTO and mobile terminal and VTH establish communication through RTP protocol, Through the internal communication network, before the doorbell internal monitoring device sends the first service request, the intelligent doorbell monitoring method includes: acquiring a plurality of network configuration information of the doorbell monitoring device, wherein the network configuration information includes the doorbell monitoring device Each of the doorbell monitoring devices communicates and connects according to the network configuration information to create the internal communication network. 2. The intelligent doorbell monitoring method according to claim 1, wherein when there are multiple monitoring devices inside the doorbell, the method further comprises: Each doorbell internal monitoring device simultaneously receives a second service request sent by the doorbell external monitoring device according to user requirements, wherein the second service request is a request from the doorbell external monitoring device to communicate with the doorbell internal monitoring device; Each doorbell internal monitoring device performs business communication with the doorbell external monitoring device according to the second service request; The doorbell internal monitoring device determines the security state according to the result of the business communication. 3. The intelligent doorbell monitoring method according to claim 2, wherein before each doorbell internal monitoring device simultaneously receives the second service request sent by the doorbell external monitoring device according to user requirements, comprising: The doorbell external monitoring device sends a service communication request to the doorbell internal monitoring device; The doorbell external monitoring device judges whether the doorbell internal monitoring device responds to the service communication request within a predetermined time; When it is determined that the doorbell internal monitoring device does not respond to the service communication request, the doorbell external monitoring device sends the service communication request to the mobile terminal. 4. The intelligent doorbell monitoring method according to claim 1, wherein the determination of the security state by the doorbell internal monitoring device according to the target information comprises: judging whether the target information meets a preset condition; If the target information does not meet the preset conditions, send notification information to the mobile terminal, wherein the notification information is at least one of the following: short message, call, and email. 5. The intelligent doorbell monitoring method according to claim 1, wherein the internal communication network is an IMS communication network. 6. An intelligent doorbell monitoring device, characterized in that the monitoring of houses is realized through each interaction layer of the doorbell monitoring terminal, and the intelligent doorbell monitoring device comprises: A sending unit, used for sending a first service request through an internal communication network and an internal monitoring device of the doorbell, wherein the first service request is a request to query target information outside the door, and the internal communication network is composed of a plurality of doorbell monitoring devices , the plurality of doorbell monitoring devices include the doorbell internal monitoring device and the doorbell external monitoring device, the doorbell internal monitoring device is communicatively connected to the doorbell external monitoring device, and each of the doorbell internal monitoring devices is communicatively connected; a first receiving unit, configured to receive target information returned by the doorbell external monitoring device, wherein the target information is target information collected by the doorbell external monitoring device according to a first service request sent by the doorbell internal monitoring device; a first determining unit, used for the doorbell internal monitoring device to determine a security state according to the target information, wherein the security state includes one of the following: a dangerous state, a safe state, The smart doorbell monitoring device further includes: an acquisition module for acquiring network configuration information of a plurality of the doorbell monitoring devices before the doorbell internal monitoring device sends the first service request through the internal communication network, wherein the The network configuration information includes the identity information of the doorbell monitoring device; a creation module is used for each of the doorbell monitoring devices to communicate and connect according to the network configuration information to create the internal communication network, The interaction layer of the doorbell monitoring terminal includes: a service layer, a sandwich layer, an access layer and a terminal layer, the service layer includes a doorbell data server and a network server of the doorbell monitoring device, and the sandwich layer includes a home user server, Call session control function server, the terminal layer includes: mobile terminal, door phone and indoor station, door phone, indoor station and mobile terminal respectively establish communication connection through IMS communication network, the communication interface used is SIP, the network of doorbell monitoring equipment The server and the mobile terminal, the VTO and the VTH establish a communication connection through the HTTP protocol, and the VTO and the mobile terminal and the VTH establish the communication through the RTP protocol. 7. The intelligent doorbell monitoring device according to claim 6, wherein when there are multiple monitoring devices inside the doorbell, the device further comprises: The second receiving unit is used for each doorbell internal monitoring device to simultaneously receive a second service request sent by the doorbell external monitoring device according to user requirements, wherein the second service request is a request from the doorbell external monitoring device and all the doorbell external monitoring devices. The doorbell internal monitoring equipment communication; a communication unit, used for each doorbell internal monitoring device to perform business communication with the doorbell external monitoring device according to the second service request; The second determining unit is used for the doorbell internal monitoring device to determine the security state according to the result of the business communication. 8. The intelligent doorbell monitoring device according to claim 7, characterized in that, comprising: The first sending module is configured to send a service communication request to the doorbell internal monitoring device from the doorbell external monitoring device before each doorbell internal monitoring device simultaneously receives the second service request sent by the doorbell external monitoring device according to user requirements equipment; a judgment module, used for the doorbell external monitoring device to judge whether the doorbell internal monitoring device responds to the service communication request within a predetermined time; The second sending module is configured to send the service communication request to the mobile terminal by the doorbell external monitoring device when it is determined that the doorbell internal monitoring device does not respond to the service communication request.
