CN106899369B - Method and device for reserved playing of intelligent radio - Google Patents

Abstract

The present disclosure relates to a method and device for scheduling playback of an intelligent radio. The method includes: acquiring a radio program list from a radio station server; receiving a selection instruction for the radio program list input by a user, wherein the selection instruction is used to indicate a target radio program that the user expects to listen to; Identification information of the target radio program, the identification information is used for the smart radio to obtain the program content of the target radio program from the radio station server. Therefore, the cooperation of the terminal and the smart radio helps the user to realize the scheduled broadcast of the radio program, so that the user can conveniently complete the program reservation and the broadcast of the scheduled program without having to manually change the channel.

Description

Method and device for scheduling playback of smart radio

technical field

The present disclosure relates to the field of smart radios, and in particular, to a method and a device for scheduling playback of smart radios.

Background technique

At present, the smart radio can be activated and deactivated by the mobile terminal. However, in terms of program listening and program selection, the user can only perform manual operations on the smart radio, which is very cumbersome. On the other hand, for the program that the user wants to listen to, the user needs to manually change the channel on the smart radio before the program starts, and it is impossible to reserve in advance.

SUMMARY OF THE INVENTION

In order to overcome the problems existing in the related art, the present disclosure provides a method and device for scheduling playback of a smart radio.

According to a first aspect of the embodiments of the present disclosure, a method for scheduling playback of a smart radio is provided, which is used for a terminal, and the smart radio and the terminal communicate via, for example, Bluetooth, ZigBee network, 2G network, 3G network, and 4G network, the said The method includes: acquiring a radio program list from a radio station server; receiving a selection instruction for the radio program list input by a user, wherein the selection instruction is used to indicate a target radio program that the user expects to listen to; sending the target radio program to a smart radio The identification information of the radio program, the identification information is used for the smart radio to obtain the program content of the target radio program from the radio station server; to confirm whether the smart radio is turned on; when the smart radio is not turned on, to confirm whether it has received The reservation cancellation command input by the user; if it is confirmed that the reservation cancellation command input by the user is received and the smart radio is not turned on and the terminal does not send the identification information of the target radio program to the smart radio, it is forbidden to send the start command and the target station to the smart radio. The identification information of the program, the startup instruction is used to control the smart radio to be turned on; when it is confirmed that the reservation cancellation instruction input by the user is received and the identification information of the target radio program is sent to the smart radio, a control instruction is sent to the smart radio, the said The control instruction is used to instruct to cancel the reservation of the target radio program.

Optionally, the sending the identification information of the target radio program to the smart radio includes: sending the identification information of the target radio program to the smart radio within a first preset time period before the target radio program starts.

Optionally, the method further includes: within a second preset time period before the target radio program starts, outputting reservation reminder information, where the reservation reminder information is used to remind the user to listen to the target radio program.

According to a second aspect of the embodiments of the present disclosure, an apparatus for scheduling playback of a smart radio is provided, which is used in a terminal, and the smart radio and the terminal communicate via, for example, Bluetooth, ZigBee network, 2G network, 3G network, and 4G network, the said The device includes: a program list acquisition module configured to acquire a radio station program list from a radio station server; a selection instruction receiving module configured to receive a user input selection instruction for the radio program list acquired by the program list acquisition module, Wherein, the selection instruction is used to indicate the target radio program that the user expects to listen to; the identification sending module is configured to send the identification information of the target radio program indicated by the selection instruction received by the selection instruction receiving module to the smart radio , the identification information is used by the smart radio to obtain the program content of the target radio program from the radio station server; the status confirmation module is configured to confirm whether the smart radio is turned on; the reservation cancellation module is configured to When the radio is not turned on, confirm whether the reservation cancellation instruction input by the user is received, and the reservation cancellation instruction is used to instruct to cancel the reservation of the target radio program; start the instruction sending module, which is configured to confirm receipt of the reservation cancellation input by the user. When the smart radio is not turned on and the terminal does not send the identification information of the target radio program to the smart radio, it is forbidden to send the startup instruction and the identification information of the target radio program to the smart radio, and the startup instruction is used to control the smart radio. The radio is turned on; the control command sending module is configured to send a control command to the smart radio when it confirms receipt of the reservation cancellation command input by the user and sends the identification information of the target radio program to the smart radio, the control command is used to instruct the cancellation of the reservation. The reservation of the target radio program.

Optionally, the identification sending module is configured to send the identification information of the target radio program to the smart radio within a first preset time period before the target radio program starts.

Optionally, the device further includes: an information output module configured to output reservation reminder information within a second preset time period before the start of the target radio program indicated by the selection instruction received by the selection instruction receiving module. , the reservation reminder information is used to remind the user to listen to the target radio program.

According to a third aspect of the embodiments of the present disclosure, there is provided an apparatus for scheduling playback of a smart radio, comprising: a processor; a memory for storing instructions executable by the processor; wherein the processor is configured to: obtain from a radio station server a radio program list; receive a selection instruction for the radio program list input by the user, wherein the selection instruction is used to indicate the target radio program that the user expects to listen to; send the identification information of the target radio program to the smart radio, so The identification information is used for the smart radio to obtain the program content of the target radio program from the radio station server; to confirm whether the smart radio is turned on; when the smart radio is not turned on, to confirm whether the reservation cancellation instruction input by the user is received; When it is confirmed that the reservation cancellation instruction input by the user is received and the smart radio is not turned on and the terminal does not send the identification information of the target radio program to the smart radio, it is forbidden to send the start instruction and the identification information of the target radio program to the smart radio. The start command is used to control the smart radio to be turned on; when it is confirmed that the reservation cancellation command input by the user is received and the identification information of the target radio program is sent to the smart radio, a control command is sent to the smart radio, and the control command is used to instruct to cancel the pairing. The reservation of the target radio program.

According to a sixth aspect of the embodiments of the present disclosure, there is provided an apparatus for scheduling playback of a smart radio, comprising: a processor; a memory for storing instructions executable by the processor; wherein the processor is configured to: receive a message sent by a terminal Identification information of the target radio program, the target radio program is the radio program reserved by the user; according to the identification information, the program content of the target radio program is obtained from the radio server; the program content is played.

According to a fourth aspect of the embodiments of the present disclosure, there is provided a non-transitory computer-readable storage medium on which computer program instructions are stored, and when the program instructions are executed by a processor, implement any one of the above-mentioned first aspects. steps of the method.

The technical solutions provided by the embodiments of the present disclosure can include the following beneficial effects: the terminal can obtain the radio program list from the radio station server and receive the user's reservation instruction for the desired radio program, and then send the identification information of the program to the smart radio. The identification information is received and the program playing is completed according to the identification information. The cooperation of the terminal and the smart radio helps the user to realize the scheduled broadcast of the radio program, so that the user can conveniently complete the program reservation and the scheduled program playback without having to manually change the channel.

It is to be understood that the foregoing general description and the following detailed description are exemplary and explanatory only and are not restrictive of the present disclosure.

Description of drawings

The accompanying drawings, which are incorporated in and constitute a part of this specification, illustrate embodiments consistent with the disclosure and together with the description serve to explain the principles of the disclosure.

FIG. 1 is a schematic diagram illustrating an implementation environment according to an exemplary embodiment.

Fig. 2 is a flow chart of a method for scheduling playback of a smart radio according to an exemplary embodiment.

Fig. 3 is a flow chart of a method for scheduling playback of a smart radio according to another exemplary embodiment.

Fig. 4 is a flow chart of a method for scheduling playback of a smart radio according to another exemplary embodiment.

Fig. 5 is a flow chart of a method for scheduling playback of a smart radio according to an exemplary embodiment.

Fig. 6 is a block diagram of an apparatus for scheduling playback of a smart radio according to an exemplary embodiment.

Fig. 7 is a block diagram of an apparatus for scheduling playback of a smart radio according to an exemplary embodiment.

Fig. 8 is a block diagram of an apparatus for scheduling playback of a smart radio according to an exemplary embodiment.

Fig. 9 is a block diagram of an apparatus for scheduling playback of a smart radio according to an exemplary embodiment.

Detailed ways

Exemplary embodiments will be described in detail herein, examples of which are illustrated in the accompanying drawings. Where the following description refers to the drawings, the same numerals in different drawings refer to the same or similar elements unless otherwise indicated. The implementations described in the illustrative examples below are not intended to represent all implementations consistent with this disclosure. Rather, they are merely examples of apparatus and methods consistent with some aspects of the present disclosure as recited in the appended claims.

FIG. 1 is a schematic diagram illustrating an implementation environment according to an exemplary embodiment. As shown in FIG. 1 , the implementation environment may include: a smart radio 100 , a terminal 200 and a radio station server 300 . The smart radio 100 can communicate with the terminal 200 , the terminal 200 can communicate with the radio station server 300 , and the smart radio 100 can communicate with the radio station server 300 . For example, the communication between the smart radio 100 and the terminal 200 may be performed via, for example, Bluetooth, ZigBee network, 2G network, 3G network, 4G network, and the like. Communication between the terminal 200 and the radio server 300 may be performed via, for example, Bluetooth, ZigBee network, 2G network, 3G network, 4G network, and the like. The terminal 200 may be, for example, a smart phone, a tablet computer, a personal digital assistant (PDA), a PC, a notebook computer, and the like. In FIG. 1 , the terminal 200 is illustrated as a smart phone.

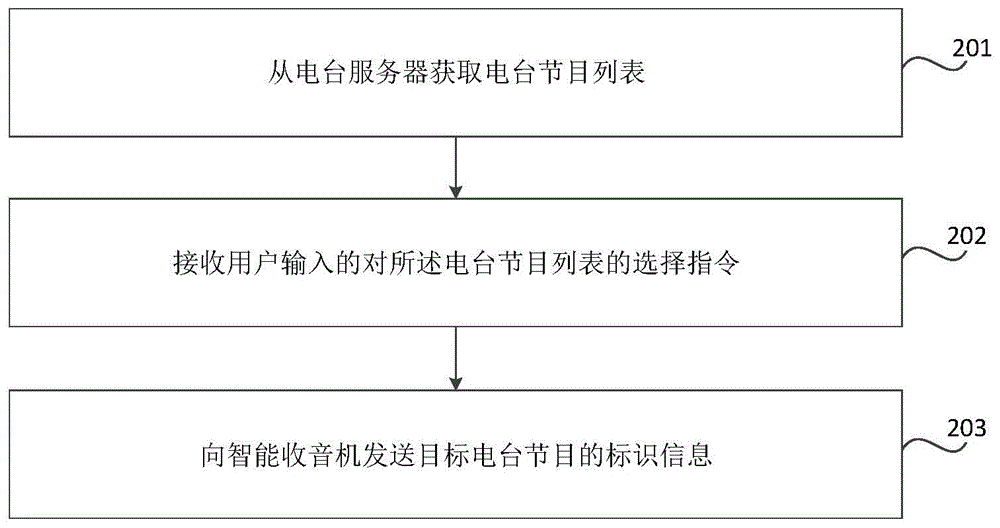

Fig. 2 is a flow chart of a method for scheduling playback of a smart radio according to an exemplary embodiment. As shown in Fig. 2 , the method is used in a terminal and includes the following steps.

In step 201, the radio program list is obtained from the radio server.

The terminal may communicate with the radio server to obtain a program list of radio programs, and the program list may include information such as program playing time period, program identifier, and the like. Wherein, the program playing period may include the start time, end time, program duration, etc. of the program, and the program identifier may include the program name, program number, program channel, and the like.

In step 202, a selection instruction on the radio program list input by the user is received, wherein the selection instruction is used to indicate the target radio program that the user desires to subscribe to listen to.

The user browses the radio program list and selects the radio program desired to be reserved for listening, and the terminal can receive the selection instruction of the radio program list input by the user.

In step 203, the identification information of the target radio program is sent to the smart radio, where the identification information is used for the smart radio to obtain the program content of the target radio program from the radio station server.

Each radio program corresponds to a unique program identifier. After receiving the user's selection instruction for the radio program, the terminal can learn the target radio program that the user is scheduled to listen to, and then send the identification information of the target radio program to the smart radio, for example, program channel. The smart radio can communicate with the radio station server, and obtain the corresponding program content from the radio station server according to the identification for playing.

Optionally, the terminal may send the identification information of the target radio program to the smart radio within a first preset time period before the target radio program starts.

To sum up, the terminal can obtain the radio program list from the radio server and receive the user's reservation instruction for the desired radio program, and then send the identification information of the program to the smart radio, and the intelligent radio receives the identification information and completes the program according to the identification information. playback of the program. The cooperation of the terminal and the smart radio helps the user to realize the scheduled broadcast of the radio program, so that the user can conveniently complete the program reservation and the scheduled program playback without having to manually change the channel.

Fig. 3 is a flow chart of a method for scheduling playback of a smart radio according to another exemplary embodiment. The method is used in a terminal. As shown in Fig. 3, on the basis of the method shown in Fig. 2, the method Also includes the following steps.

In step 204, it is confirmed whether the smart radio is turned on.

In step 205, when the smart radio is not turned on, a startup instruction is sent to the smart radio.

Before sending the identification information of the target radio program to the smart radio, the terminal may first determine the on/off state of the smart radio. When the smart radio is not turned on, a startup instruction is sent to the smart radio to turn on the smart radio, and after the smart radio is turned on, the identification information of the target radio program is sent to the smart radio. In addition, when the smart radio is turned on, the terminal does not need to send an activation instruction to the smart radio, and can directly execute subsequent steps.

Through this embodiment, the smart radio can be remotely turned on and scheduled to play when the smart radio is turned off.

FIG. 4 is a flow chart of a method for scheduling playback of a smart radio according to another exemplary embodiment. The method is used in a terminal. As shown in FIG. 4 , on the basis of the method shown in FIG. 3 , the method Also includes the following steps.

In step 206, it is confirmed whether the reservation cancellation instruction input by the user is received. The reservation cancellation instruction is used to instruct to cancel the reservation of the target radio program. When the reservation cancellation instruction is not received, it means that the user keeps the reservation for the target radio program. In addition, if the smart radio is not turned on, a start-up instruction is sent to the smart radio.

In addition, when the smart radio confirms receipt of the reservation cancellation instruction input by the user, and the smart radio is not turned on and the terminal does not send the identification information of the target radio program to the smart radio, the terminal will not send a start instruction to the smart radio, nor The identification information of the target radio program will not be sent to the smart radio, and the scheduled playback scenario of the target radio program ends.

When the smart radio confirms receipt of the reservation cancellation instruction input by the user, and the terminal has sent the identification information of the target radio program to the smart radio, the terminal can send a control instruction to the smart radio, and the control instruction is used to instruct the cancellation of the target radio program. 's appointment. After receiving the control instruction, the smart radio can automatically delete the reservation record of the target radio program, and will not acquire the program content of the target radio program from the radio server.

In addition, the smart radio can also output appointment reminder information, and the appointment reminder information is used to remind the user to listen to the target radio program. Optionally, the terminal may output the reservation reminder information within a second preset time period before the target radio program starts, so as to remind the user to listen before the scheduled program starts. Wherein, the first preset time period and the second preset time period may be the same or different, which is not specifically limited in the present disclosure.

Fig. 5 is a flow chart of a method for scheduling playback of a smart radio according to an exemplary embodiment. As shown in Fig. 5 , the method used in a smart radio includes the following steps.

In step 501, the identification information of the target radio program sent by the terminal is received, where the target radio program is the radio program reserved by the user to listen to.

In step 502, according to the identification information, the program content of the target radio program is acquired from the radio station server.

In step 503, the program content is played.

Optionally, before step 501, the method may further include:

receiving a startup instruction sent by the terminal;

In response to the start-up instruction, a start-up operation is performed.

Therefore, the cooperation of the terminal and the smart radio helps the user to realize the scheduled broadcast of the radio program, so that the user can conveniently complete the program reservation and the scheduled program playing without having to manually change the channel.

FIG. 6 is a block diagram of an apparatus 600 for scheduling playback of a smart radio according to an exemplary embodiment. Wherein, the apparatus 600 may be applied to a terminal. As shown in Figure 6. The apparatus 600 may include: a program list acquisition module 601 configured to acquire a radio station program list from a radio station server; a selection instruction receiving module 602 configured to receive a user input for the radio station acquired by the program list acquisition module 601 The selection instruction of the program list, wherein the selection instruction is used to indicate the target radio program that the user expects to reserve to listen to; the identification sending module 603 is configured to send the selection instruction received by the selection instruction receiving module 602 to the smart radio. The identification information of the target radio program, the identification information is used for the smart radio to obtain the program content of the target radio program from the radio station server.

Optionally, the identifier sending module 603 is configured to send the identifier information of the target radio program to the smart radio within a first preset time period before the target radio program starts.

Optionally, the apparatus 600 may further include: a status confirmation module configured to confirm whether the smart radio is turned on before the identification sending module 603 sends the identification information of the target radio program to the smart radio; a start instruction The sending module is configured to send a startup instruction to the smart radio when the state confirmation module confirms that the smart radio is not turned on, where the startup instruction is used to control the smart radio to be turned on.

Optionally, the apparatus 600 may further include: a reservation cancellation module, configured to confirm whether the reservation cancellation instruction input by the user is received before the start-up instruction sending module sends the start-up instruction to the smart radio, and the reservation cancellation instruction is received. The cancellation instruction is used to instruct to cancel the reservation of the target radio program; the start instruction sending module is configured to, when the reservation cancellation module confirms that the reservation cancellation instruction has not been received, and the status confirmation module confirms that the reservation cancellation instruction is not received. When the smart radio is not turned on, a startup instruction is sent to the smart radio, and the startup instruction is used to control the smart radio to be turned on.

Optionally, the apparatus 600 may further include: an information output module, configured to output the information within a second preset time period before the start of the target radio program indicated by the selection instruction received by the selection instruction receiving module 602. Reservation reminder information, where the reservation reminder information is used to remind the user to listen to the target radio program.

FIG. 7 is a block diagram of an apparatus 700 for scheduling playback of a smart radio according to an exemplary embodiment. Wherein, the device 700 can be applied to a smart radio. As shown in Figure 7. The apparatus 700 may include: an identification receiving module 701 configured to receive identification information of a target radio program sent by a terminal, where the target radio program is a radio program reserved for listening by a user; a program obtaining module 702, configured to receive the identification information according to the identification The identification information received by the receiving module 701 obtains the program content of the target radio program from a radio station server; the program playing module 703 is configured to play the program content obtained by the program obtaining module 702 .

Optionally, the apparatus 700 may further include: a startup instruction receiving module configured to receive a startup instruction sent by the terminal before the identification receiving module 701 receives the identification information of the target radio program; the startup instruction response A module configured to perform a start-up operation in response to the start-up instruction received by the start-up instruction receiving module.

Regarding the apparatus in the above-mentioned embodiment, the specific manner in which each module performs operations has been described in detail in the embodiment of the method, and will not be described in detail here.

FIG. 8 is a block diagram of an apparatus 800 for scheduling playback of a smart radio according to an exemplary embodiment. For example, apparatus 800 may be a mobile phone, computer, digital broadcast terminal, messaging device, game console, tablet device, medical device, fitness device, personal digital assistant, and the like.

8, the apparatus 800 may include one or more of the following components: a processing component 802, a memory 804, a power component 806, a multimedia component 808, an audio component 810, an input/output (I/O) interface 812, a sensor component 814, and communication component 816.

The processing component 802 generally controls the overall operation of the device 800, such as operations associated with display, phone calls, data communications, camera operations, and recording operations. The processing component 802 may include one or more processors 820 to execute the instructions to complete all or part of the steps of the above-mentioned method for scheduling playback of a smart radio. Additionally, processing component 802 may include one or more modules that facilitate interaction between processing component 802 and other components. For example, processing component 802 may include a multimedia module to facilitate interaction between multimedia component 808 and processing component 802.

Memory 804 is configured to store various types of data to support operations at device 800 . Examples of such data include instructions for any application or method operating on device 800, contact data, phonebook data, messages, pictures, videos, and the like. Memory 804 may be implemented by any type of volatile or nonvolatile storage device or combination thereof, such as static random access memory (SRAM), electrically erasable programmable read only memory (EEPROM), erasable Programmable Read Only Memory (EPROM), Programmable Read Only Memory (PROM), Read Only Memory (ROM), Magnetic Memory, Flash Memory, Magnetic or Optical Disk.

Power component 806 provides power to various components of device 800 . Power components 806 may include a power management system, one or more power sources, and other components associated with generating, managing, and distributing power to device 800 .

Multimedia component 808 includes a screen that provides an output interface between the device 800 and the user. In some embodiments, the screen may include a liquid crystal display (LCD) and a touch panel (TP). If the screen includes a touch panel, the screen may be implemented as a touch screen to receive input signals from a user. The touch panel includes one or more touch sensors to sense touch, swipe, and gestures on the touch panel. The touch sensor may not only sense the boundaries of a touch or swipe action, but also detect the duration and pressure associated with the touch or swipe action. In some embodiments, the multimedia component 808 includes a front-facing camera and/or a rear-facing camera. When the apparatus 800 is in an operation mode, such as a shooting mode or a video mode, the front camera and/or the rear camera may receive external multimedia data. Each of the front and rear cameras can be a fixed optical lens system or have focal length and optical zoom capability.

Audio component 810 is configured to output and/or input audio signals. For example, audio component 810 includes a microphone (MIC) that is configured to receive external audio signals when device 800 is in operating modes, such as call mode, recording mode, and voice recognition mode. The received audio signal may be further stored in memory 804 or transmitted via communication component 816 . In some embodiments, audio component 810 also includes a speaker for outputting audio signals.

The I/O interface 812 provides an interface between the processing component 802 and a peripheral interface module, which may be a keyboard, a click wheel, a button, or the like. These buttons may include, but are not limited to: home button, volume buttons, start button, and lock button.

Sensor assembly 814 includes one or more sensors for providing status assessment of various aspects of device 800 . For example, the sensor assembly 814 can detect the open/closed state of the device 800, the relative positioning of components, such as the display and keypad of the device 800, and the sensor assembly 814 can also detect a change in the position of the device 800 or a component of the device 800 , the presence or absence of user contact with the device 800 , the orientation or acceleration/deceleration of the device 800 and the temperature change of the device 800 . Sensor assembly 814 may include a proximity sensor configured to detect the presence of nearby objects in the absence of any physical contact. Sensor assembly 814 may also include a light sensor, such as a CMOS or CCD image sensor, for use in imaging applications. In some embodiments, the sensor assembly 814 may also include an acceleration sensor, a gyroscope sensor, a magnetic sensor, a pressure sensor, or a temperature sensor.

Communication component 816 is configured to facilitate wired or wireless communication between apparatus 800 and other devices. Device 800 may access wireless networks based on communication standards, such as WiFi, 2G or 3G, or a combination thereof. In one exemplary embodiment, the communication component 816 receives broadcast signals or broadcast related information from an external broadcast management system via a broadcast channel. In an exemplary embodiment, the communication component 816 also includes a near field communication (NFC) module to facilitate short-range communication. For example, the NFC module may be implemented based on radio frequency identification (RFID) technology, infrared data association (IrDA) technology, ultra-wideband (UWB) technology, Bluetooth (BT) technology and other technologies.

In an exemplary embodiment, apparatus 800 may be implemented by one or more application specific integrated circuits (ASICs), digital signal processors (DSPs), digital signal processing devices (DSPDs), programmable logic devices (PLDs), field programmable A gate array (FPGA), a controller, a microcontroller, a microprocessor or other electronic components are implemented, and are used for executing the above method for scheduled playing of a smart radio.

In an exemplary embodiment, a non-transitory computer-readable storage medium including instructions is also provided, such as a memory 804 including instructions, and the instructions can be executed by the processor 820 of the device 800 to complete the above method for scheduling playback of a smart radio. . For example, the non-transitory computer-readable storage medium may be ROM, random access memory (RAM), CD-ROM, magnetic tape, floppy disk, optical data storage device, and the like.

Fig. 9 is a block diagram of an apparatus 900 for scheduling playback of a smart radio according to an exemplary embodiment. For example, the apparatus 900 may be provided as a smart radio. 9, apparatus 900 includes a processing component 922, which further includes one or more processors, and a memory resource, represented by memory 932, for storing instructions executable by processing component 922, such as an application program. An application program stored in memory 932 may include one or more modules, each corresponding to a set of instructions. In addition, the processing component 922 is configured to execute the instructions to perform the above-described method for scheduling playback of the smart radio.

Device 900 may also include a power supply assembly 926 configured to perform power management of device 900 , a wired or wireless network interface 950 configured to connect device 900 to a network, and an input output (I/O) interface 958 . Device 900 may operate based on an operating system stored in memory 932, such as Windows Server™, Mac OS X™, Unix™, Linux™, FreeBSD™ or the like.

Other embodiments of the present disclosure will readily occur to those skilled in the art upon consideration of the specification and practice of the present disclosure. This application is intended to cover any variations, uses, or adaptations of the present disclosure that follow the general principles of the present disclosure and include common knowledge or techniques in the technical field not disclosed by the present disclosure . The specification and examples are to be regarded as exemplary only, with the true scope and spirit of the disclosure being indicated by the following claims.

It is to be understood that the present disclosure is not limited to the precise structures described above and illustrated in the accompanying drawings, and that various modifications and changes may be made without departing from the scope thereof. The scope of the present disclosure is limited only by the appended claims.

Claims (8)

1. a method for intelligent radio reservation to play, it is characterized in that, for terminal, between intelligent radio and terminal via such as bluetooth, ZigBee network, 2G network, 3G network, 4G network to communicate, the method comprises: Get the radio program list from the radio server; receiving a selection instruction on the radio program list input by the user, wherein the selection instruction is used to indicate the target radio program that the user desires to reserve to listen to; Send the identification information of the target radio program to the smart radio, where the identification information is used for the smart radio to obtain the program content of the target radio program from the radio station server; Confirm whether the smart radio is turned on; When the smart radio is not turned on, confirm whether the reservation cancellation instruction input by the user is received; When it is confirmed that the reservation cancellation instruction input by the user is received and the smart radio is not turned on and the terminal does not send the identification information of the target radio program to the smart radio, it is forbidden to send the start instruction and the identification information of the target radio program to the smart radio. The start command is used to control the smart radio to be turned on; When it is confirmed that the reservation cancellation instruction input by the user is received and the identification information of the target radio program is sent to the smart radio, a control instruction is sent to the smart radio, and the control instruction is used to instruct to cancel the reservation of the target radio program. 2. The method according to claim 1, wherein the sending the identification information of the target radio program to the smart radio comprises: Within a first preset time period before the target radio program starts, the identification information of the target radio program is sent to the smart radio. 3. The method according to claim 1, wherein the method further comprises: In the second preset time period before the target radio program starts, the reservation reminder information is output, and the reservation reminder information is used to remind the user to listen to the target radio program. 4. a device for a smart radio to schedule playback, it is characterized in that, for a terminal, the smart radio and the terminal communicate via such as bluetooth, ZigBee network, 2G network, 3G network, 4G network, and the device comprises: The program list acquisition module is configured to acquire the radio program list from the radio server; a selection instruction receiving module, configured to receive a selection instruction input by a user on the radio program list acquired by the program list acquisition module, wherein the selection instruction is used to indicate the target radio program that the user desires to reserve to listen to; An identification sending module configured to send the identification information of the target radio program indicated by the selection instruction received by the selection instruction receiving module to the smart radio, where the identification information is used for the intelligent radio to obtain the target from a radio station server the program content of the radio program; a state confirmation module, configured to confirm whether the smart radio is turned on; a reservation cancellation module, configured to confirm whether a reservation cancellation instruction input by a user is received when the smart radio is not turned on, and the reservation cancellation instruction is used to instruct to cancel the reservation of the target radio program; The startup instruction sending module is configured to confirm receipt of the reservation cancellation instruction input by the user and when the smart radio is not turned on and the terminal does not send the identification information of the target radio program to the smart radio, it is forbidden to send the startup instruction and target to the smart radio. The identification information of the radio program, and the startup instruction is used to control the smart radio to be turned on; The control instruction sending module is configured to confirm receipt of the reservation cancellation instruction input by the user and send the identification information of the target radio program to the smart radio, and send a control instruction to the smart radio, and the control instruction is used to instruct the cancellation of the target radio program. 's appointment. 5 . The apparatus according to claim 4 , wherein the identification sending module is configured to send the identification of the target radio program to the smart radio within a first preset time period before the target radio program starts. 6 . information. 6. The apparatus of claim 4, wherein the apparatus further comprises: An information output module, configured to output reservation reminder information within a second preset time period before the start of the target radio program indicated by the selection instruction received by the selection instruction receiving module, where the reservation reminder information is used to remind the user Listen to the target radio program. 7. A device for scheduled playback of an intelligent radio, characterized in that, comprising: processor; memory for storing processor-executable instructions; wherein the processor is configured to: Get the radio program list from the radio server; receiving a selection instruction on the radio program list input by the user, wherein the selection instruction is used to indicate the target radio program that the user desires to reserve to listen to; Send the identification information of the target radio program to the smart radio, where the identification information is used for the smart radio to obtain the program content of the target radio program from the radio station server; Confirm whether the smart radio is turned on; When the smart radio is not turned on, confirm whether the reservation cancellation instruction input by the user is received; When it is confirmed that the reservation cancellation instruction input by the user is received and the smart radio is not turned on and the terminal does not send the identification information of the target radio program to the smart radio, it is forbidden to send the start instruction and the identification information of the target radio program to the smart radio. The start command is used to control the smart radio to be turned on; When it is confirmed that the reservation cancellation instruction input by the user is received and the identification information of the target radio program is sent to the smart radio, a control instruction is sent to the smart radio, and the control instruction is used to instruct to cancel the reservation of the target radio program. 8 . A computer-readable storage medium on which computer program instructions are stored, characterized in that, when the program instructions are executed by a processor, the steps of the method according to any one of claims 1 to 3 are implemented.
