Abstract

本发明提供了一种自动对焦的方法及装置，所述自动对焦的方法包括：获取终端的图像传感器的模糊直径值、镜头的光圈值以及马达的运动参数；根据所述模糊直径值、镜头的光圈值以及马达的运动参数计算所述马达各个步进的物距范围；在所述步进中剔除掉其物距范围在其他步进的物距范围内的步进；获取剔除后剩下的各个步进的对应位置的灰度对比度值；根据所述灰度对比度值从剔除后剩下的步进中确定出一个步进的位置作为对焦的焦点。解决了现有技术中由于马达的速度、步长等的固定不能准确对焦，造成成像质量差的问题，实现了快速自动对焦，也不会影响其成像质量，提升了用户体验。

Figure 201510160558

The present invention provides an automatic focusing method and device. The automatic focusing method includes: acquiring a blur diameter value of an image sensor of a terminal, an aperture value of a lens, and a motion parameter of a motor; The aperture value and the motion parameters of the motor are used to calculate the object distance range of each step of the motor; the steps whose object distance range is within the object distance range of other steps are eliminated in the step; the remaining steps after the elimination are obtained. The grayscale contrast value of the corresponding position of each step; according to the grayscale contrast value, the position of one step is determined from the remaining steps after culling as the focus of focus. The problem of poor imaging quality caused by the fixed speed and step length of the motor in the prior art is solved, and the imaging quality is not affected, and the user experience is improved.

Figure 201510160558

Description

Automatic focusing method and device
Technical Field
The invention relates to the technical field of digital image processing, in particular to an automatic focusing method and device.
Background
In recent years, with the progress and development of technology, electronic photographing devices (terminals) have become an indispensable part of life of people, particularly smart phone tablet computers and the like, and the life style of people is changed. The method and the device for terminal auto-focusing are one of the most important factors for determining the terminal imaging quality.
According to the optical principle, to shoot a clear image, the focal length (f), the object distance (u) and the image distance (v) of the lens need to satisfy the following conditions:
Figure GDA0002519149920000011
when the image is clear, the sharpness and the details of the image are rich, and the image is represented in a spatial domain that the gray contrast value of the adjacent pixel points is maximum. According to this principle, the gray contrast value of an image in a focused state is maximized by extracting the gray contrast values of the contour and the edge of the focusing window of the image. Therefore, the motor drives the lens to move, the image distance is changed, meanwhile, the gray contrast value of the image is obtained through real-time calculation, and the position with the maximum gray contrast value is the focus position.
As shown in fig. 1, which is a two-dimensional graph of gray contrast and image distance in the prior art, it can be obtained from fig. 1 that the gray contrast curve has three characteristics, 1) unimodal, that is, only one gray contrast maximum; 2) monotonicity, namely that on two sides of the maximum value of the gray contrast, the gray contrast curve is monotonously decreased or decreased; 3) and polarity, whether the current focusing position is in front of focus or behind focus can be judged.
In the prior art, to achieve focusing, the lens moves from the starting position to the ending position, and the whole stroke is completed according to a fixed speed, a fixed step length and a fixed number of steps, because the object distance and the image distance of the lens are not linear, as shown in fig. 2. This method has the following drawbacks: if the step size is small, the number of steps increases, resulting in too long focusing time, and if the step size is large, resulting in inaccurate and unstable focusing.
Disclosure of Invention
The invention provides an automatic focusing method and device, which solve the problem of poor imaging quality caused by the fact that the speed, step length and the like of a motor cannot be accurately focused in the prior art.
In order to solve the problems, the invention adopts the following technical scheme:
a method of auto-focusing, comprising:
acquiring a fuzzy diameter value of an image sensor of a terminal, an aperture value of a lens and a motion parameter of a motor;
calculating the object distance range of each step of the motor according to the fuzzy diameter value, the aperture value of the lens and the motion parameter of the motor;
eliminating the steps of which the object distance range is within the object distance range of other steps in the steps;
acquiring gray contrast values of corresponding positions of all steps left after elimination;
and determining a stepping position from the steps left after the elimination according to the gray contrast value to be used as a focusing focus.
Further, determining a step position from the remaining steps as a focus of focusing according to the gray contrast value comprises: selecting a composition that satisfies the following formula:
Figure GDA0002519149920000021
when n is2>When i is, An＝XiAnd the step left after the elimination is used as a first focusing step; the motor is controlled to move to push a focusing window to focus on the positions corresponding to the first focusing step from near to far, and when inflection points appear in the gray contrast values of the positions corresponding to the three continuous steps in the first focusing step, any position corresponding to two steps with larger gray contrast values in the positions corresponding to the three continuous steps is selected as a focusing focus; otherwise, selecting the position corresponding to the step with the maximum gray contrast value as a focusing focus; xiFor the rest of the step, AnFor the first focus step, i and n are positive integers.
Further, when the inflection point appears in the gray contrast value at the position corresponding to three consecutive steps in the first focus step, the method further includes: selecting a composition that satisfies the following formula:
Figure GDA0002519149920000022
when 3N is less than or equal to NAWhen, Bn＝X1And the step left after the elimination is used as a second focusing step; the motor is controlled to move to push the focusing window to focus on the position corresponding to the second focusing step from far to near, and when inflection points appear in the gray contrast values of the positions corresponding to the three continuous steps in the second focusing step, any position corresponding to the two steps with the larger gray contrast values in the positions corresponding to the three continuous steps is selected as a focusing focus; otherwise, selecting the position corresponding to the step with the maximum gray contrast value as a focusing focus; n is a radical ofANumber of the farthest step determined in the first focusing step, BnFor a second focus step.
Further, when the gray contrast values at the positions corresponding to three consecutive steps in the second focus step have inflection points, the method further includes: selecting to satisfy:
Figure GDA0002519149920000031
is left after eliminationThe lower step is used as a third focusing step; the motor moves to push a focusing window to focus the third focusing step from near to far, and when inflection points appear in the gray contrast values of the positions corresponding to the three continuous steps in the third focusing step, the position corresponding to the step with the largest gray contrast value in the positions corresponding to the three continuous steps is selected as a focusing focus; otherwise, selecting the position corresponding to the step with the maximum gray contrast value as a focusing focus; cnFor the third focusing step, NBThe number of the determined closest step of the second focus steps.
Further, the gray contrast value of one position where the gray contrast values of the positions corresponding to the three consecutive steps in the first focus step appear an inflection point is determined as a first threshold, the gray contrast value of one position where the gray contrast values of the positions corresponding to the three consecutive steps in the second focus step appear an inflection point is determined as a second threshold, the gray contrast value of the focus is greater than the second threshold, and the second threshold is greater than the first threshold; acquiring a gray contrast value of a current focusing window, and if the current gray contrast value is larger than a second threshold value and smaller than the gray contrast value of a focus, executing a step of selecting a third focusing step; if the current gray contrast value is larger than the first threshold value and smaller than the second threshold value, executing a step of selecting a second focus step; the step of selecting the first focus step is performed if the current grey contrast value is smaller than a first threshold value.
Further, the speed of the motor motion is controlled according to the distance between two adjacent focal points.
An autofocus device comprising:
the parameter acquisition module is used for acquiring a fuzzy diameter value of an image sensor in the terminal, an aperture value of a lens and a motion parameter of a motor;
the object distance range calculation module is used for calculating the object distance range of each step of the motor according to the fuzzy diameter value, the aperture value of the lens and the motion parameter of the motor;
the stepping eliminating module is used for eliminating steps of which the object distance range is within the object distance range of other steps in the stepping process;
the gray contrast acquisition module is used for acquiring the gray contrast value of the corresponding position of each step left after the elimination;
and the focus determining module is used for determining a stepping position from the remaining steps after the elimination according to the gray contrast value to be used as a focusing focus.
Further, the focus determination module includes: a first focus step selection submodule for selecting a focus step that satisfies the following formula:
Figure GDA0002519149920000041
when n is2>When i is, An＝XiAnd the step left after the elimination is used as a first focusing step; the first focus determining submodule is used for pushing a focusing window to focus on the position corresponding to the first focusing step from near to far by controlling the motor to move, and when inflection points appear in the gray contrast values of the positions corresponding to the three continuous steps in the first focusing step, any position corresponding to two steps with larger gray contrast values in the positions corresponding to the three continuous steps is selected as a focusing focus; otherwise, selecting the position corresponding to the step with the maximum gray contrast value as a focusing focus; xiFor the rest of the step, AnFor the first focus step, i and n are positive integers.
Further, the focus determination module further comprises: the second focusing step selection submodule is used for selecting the gray contrast values at the positions corresponding to three continuous steps in the first focusing step to meet the following formula after inflection points appear in the gray contrast values:
Figure GDA0002519149920000042
when 3N is less than or equal to NAWhen, Bn＝X1And the step left after the elimination is used as a second focusing step; a second focus determining submodule for controlling the motor to move to drive the focusing window to focus on the position corresponding to the second focus step from far to near, when the focusing window is focused onWhen inflection points appear in the gray contrast values of the positions corresponding to the continuous three steps in the second focusing step, selecting any position corresponding to two steps with larger gray contrast values in the positions corresponding to the continuous three steps as a focusing focus; otherwise, selecting the position corresponding to the step with the maximum gray contrast value as a focusing focus; n is a radical ofANumber of the farthest step determined in the first focusing step, BnFor a second focus step.
Further, the focus determination module further comprises: a third focusing step selection submodule, configured to select a gray contrast value at a position corresponding to three consecutive steps in the second focusing step, which satisfies:
Figure GDA0002519149920000051
the step left after the elimination is used as a third focusing step; the third focus determining submodule is used for pushing a focusing window to focus on the third focusing step from near to far through the movement of a motor, and when inflection points appear in the gray contrast values of the positions corresponding to the three continuous steps in the third focusing step, the position corresponding to the step with the largest gray contrast value in the positions corresponding to the three continuous steps is selected as a focusing focus; otherwise, selecting the position corresponding to the step with the maximum gray contrast value as a focusing focus; cnFor the third focusing step, NBThe number of the determined closest step of the second focus steps.
Further, still include: a threshold determination module, configured to determine, as a first threshold, a grayscale contrast value of one of the positions where the grayscale contrast values of the positions corresponding to three consecutive steps in the first focus step have inflection points, and determine, as a second threshold, a grayscale contrast value of one of the positions where the grayscale contrast values of the positions corresponding to three consecutive steps in the second focus step have inflection points, where the grayscale contrast value of the focus is greater than the second threshold, and the second threshold is greater than the first threshold; the processing module is used for acquiring the gray contrast value of the current focusing window, and if the current gray contrast value is larger than a second threshold value and smaller than the gray contrast value of the focus, a trigger starting instruction is sent to the third focusing step selection submodule; if the current gray scale contrast value is larger than a first threshold value and smaller than a second threshold value, sending a trigger starting instruction to the second focus stepping selection submodule; and if the current gray contrast value is smaller than a first threshold value, sending a trigger starting instruction to the first focusing stepping selection submodule.
The invention has the beneficial effects that:
the invention provides an automatic focusing method and device, which are characterized in that the object distance range of each step of a motor is calculated by acquiring the fuzzy diameter value of an image sensor of a terminal, the aperture value of a lens and the motion parameter of the motor, the steps of the object distance range in the object distance range of other steps are eliminated, and the gray contrast value of the corresponding position of each step left after elimination is acquired; and determining a stepping position from the steps left after the elimination according to the gray contrast value to be used as a focusing focus. This scheme is through rejecting in the step-by-step of other step-by-step object distance within ranges for can not coincide between the step-by-step object distance scope that newly obtains, reduced the number of times that the motor removed, and the removal step length of motor has also changed, thereby realized quick auto focus, can not influence its imaging quality yet, promoted user experience.
Drawings
FIG. 1 is a two-dimensional plot of gray scale contrast and image distance in a terminal;
FIG. 2 is a graph of image distance versus object distance;

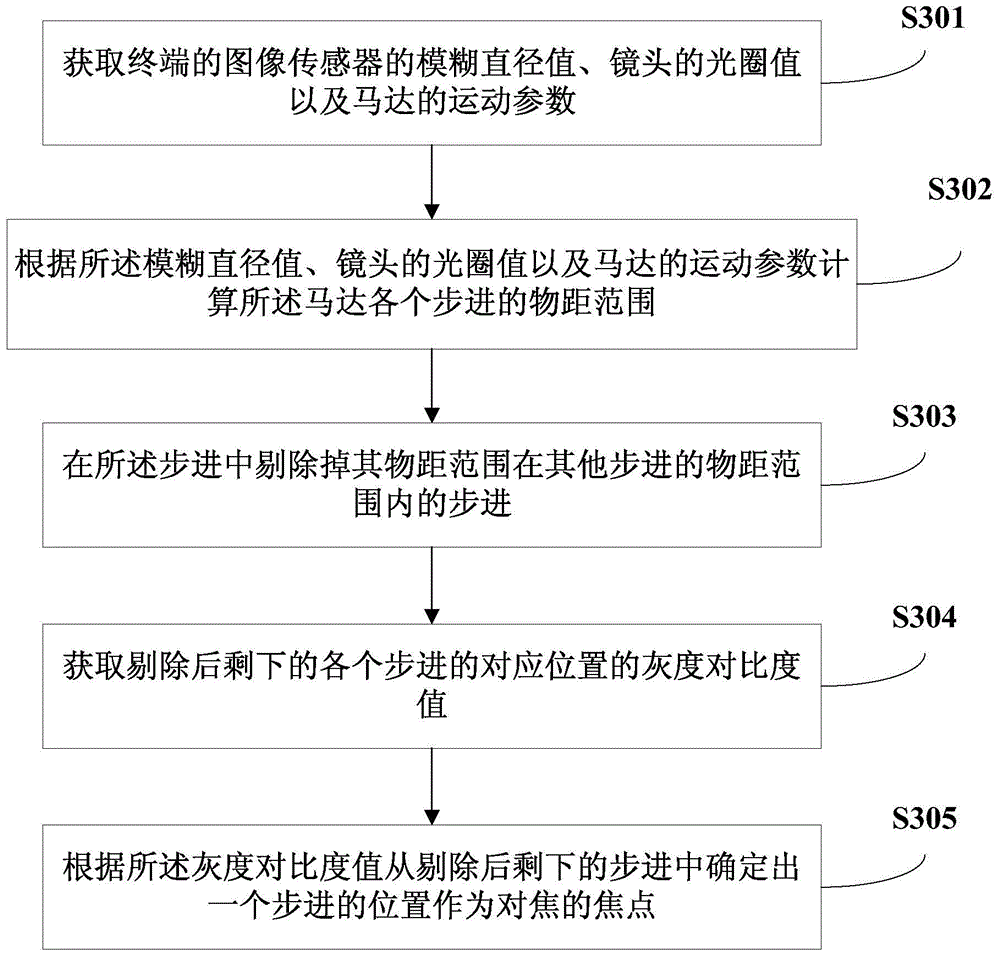

FIG. 3 is a flowchart of an auto-focusing method according to an embodiment of the present invention;
FIG. 4 is a detailed flowchart of a method for automatic multi-focusing according to an embodiment of the present invention;
FIG. 5 is a graph of image distance and gray scale contrast according to an embodiment of the present invention;
fig. 6 is a schematic structural diagram of an auto-focusing apparatus according to a second embodiment of the present invention.
Detailed Description
The present invention will be described in further detail with reference to the following detailed description and accompanying drawings.
The first embodiment is as follows:
fig. 3 is a flowchart of an auto-focusing method according to an embodiment of the present invention, please refer to fig. 3,
s301: acquiring a fuzzy diameter value of an image sensor of a terminal, an aperture value of a lens and a motion parameter of a motor;
the terminal of the invention comprises: mobile phones, tablets, palm top computers, cameras, video cameras, etc.; the motion parameters of the motor include: the motor stroke and the oscillation frequency and the oscillation time when the motor drives the lens to move; in the embodiment, a fuzzy diameter value of the image sensor, an aperture value of the lens, a motor stroke and an oscillation frequency and an oscillation time when the motor drives the lens to move are obtained by reading parameters written in a terminal memory; the oscillation frequency and the oscillation time of the motor during movement can also be obtained by measuring through a special measuring instrument;
s302: calculating the object distance range of each step of the motor according to the fuzzy diameter value, the aperture value of the lens and the motion parameter of the motor;
it should be noted that, in the image sensor of the terminal, the length and speed of each step of the motor are set according to the blur diameter value, the aperture value of the lens and the motion parameters of the motor; the relationship between motor stroke and length of step is:
Figure GDA0002519149920000071
wherein S is the motor stroke and u is the length of the step; different motors are matched with different lenses, and the motor oscillation frequency and the motor oscillation time are different; the relationship between the movement speed of the motor and the oscillation time is vi＝f'.F(tf)，viAs the speed of movement, tfF 'is oscillation time, and f' is oscillation frequency; for each step of the motor, the range of object distances corresponding to each step comprises: near object distance Limit (Near Focus Limit):
Figure GDA0002519149920000072
and Far Focus Limit (Far Focus Limit):
Figure GDA0002519149920000073
wherein H is the hyperfocal distance,
Figure GDA0002519149920000074
a is a lens aperture value, and d is an image sensor fuzzy diameter; calculating the corresponding u after each step of the motorNAnd uF；
S303: eliminating the steps of which the object distance range is within the object distance range of other steps in the steps;
specifically, the object distance ranges of adjacent steps can be obtained by pairwise comparison: comparing u in adjacent stepsNAnd uFThe step which can cover other focusing object distance is selected, namely, the step of which the object distance range is in other object distance ranges is removed, so that the distance of the adjacent step is not the same in the rest steps, the moving distance of each step of the motor is not the same, but the step can cover the object distance range which can be covered by the step, and in the step, the redundant steps are removed; for example, in this embodiment, assuming that the new moving step of the motor is Xi, where Xi is the step left after the elimination, and i is a positive integer, that is, the motor will move according to the position corresponding to the new step Xi, the number of steps moved to complete the formation of the whole motor will be reduced;
s304: acquiring gray contrast values of corresponding positions of all steps left after elimination;
when the motor moves one step each time, a corresponding gray contrast value exists in the position corresponding to the step; obtaining the gray contrast value of each step corresponding position, generally moving to the step corresponding position by controlling a motor, and focusing the position to obtain the gray contrast value of a pixel point in the focusing window;
s305: determining a stepping position from the steps left after the elimination according to the gray contrast value to be used as a focusing focus;
in this embodiment, the motor is controlled to focus the corresponding position of each step left after the elimination, so as to obtain the gray contrast value corresponding to each step, and the position of the step corresponding to the value with the largest gray contrast is selected as the focus of focusing, or the position of the step corresponding to the gray contrast value belonging to the range satisfying the high-definition imaging is selected as the focus of focusing. In the embodiment, the repeated steps in the object distance range with other steps are eliminated, so that the moving times of the motor are reduced, the imaging quality is not reduced, the possibility of quick focusing can be achieved, and the use experience of a user is improved.
Preferably, the step S305 of determining a position of one step from the remaining steps as a focus of focusing according to the gray contrast value includes: selecting a composition that satisfies the following formula:
Figure GDA0002519149920000081
when n is2>When i is, An＝XiAnd the step left after the elimination is used as a first focusing step; the motor is controlled to move to push a focusing window to focus on the positions corresponding to the first focusing step from near to far, and when inflection points appear in the gray contrast values of the positions corresponding to the three continuous steps in the first focusing step, any position corresponding to two steps with larger gray contrast values in the positions corresponding to the three continuous steps is selected as a focusing focus; otherwise, selecting the position corresponding to the step with the maximum gray contrast value as a focusing focus; xiFor the rest of the step, AnFor the first focusing step, i and n are positive integers; in this embodiment, steps satisfying the above formula are selected as first focus steps, only the selected first focus step is focused, and the gray contrast values at the positions of the corresponding steps are calculated from near to far, and when the gray contrast values at the positions corresponding to three consecutive steps in the first focus step have inflection points, it is not necessary to focus the positions of other first focus steps, but only the positions of the three consecutive steps are focusedAny position corresponding to two steps with larger gray contrast values in the positions corresponding to the steps is used as a focusing focus; the any position comprises a position corresponding to any step between two steps with larger gray contrast values, or a position corresponding to any step left after elimination between two steps with larger gray contrast values; the focusing method has the advantages that the focusing accuracy and clear imaging can be realized by selecting any position as the focusing focus, and in the focusing process, the focusing does not need to be continued only after inflection points appear in the gray contrast values of the positions corresponding to three continuous steps, so that the focus can be found more quickly, and the focusing possibility can be realized.
In this embodiment, since the position between two steps obtained by the first focus is larger, the focus relative error obtained by selecting the focus is also larger, and in order to more accurately obtain the position of the focus, the selected range needs to be narrowed, and the step of narrowing the selected range includes: when inflection points appear in the gray contrast values of the positions corresponding to the three continuous steps in the first focusing step, selecting the gray contrast values which satisfy the following formula:
Figure GDA0002519149920000091
when 3N is less than or equal to NAWhen, Bn＝X1And the step left after the elimination is used as a second focusing step; the motor is controlled to move to push the focusing window to focus at the position corresponding to the second focusing step from far to near, namely in the process of focusing, after the focusing of the first focusing step is stopped, namely when an inflection point appears in the gray contrast value in the first focusing step; when inflection points appear in the gray contrast values of the positions corresponding to the continuous three steps in the second focusing step, selecting any position corresponding to two steps with larger gray contrast values in the positions corresponding to the continuous three steps as a focusing focus; otherwise, selecting the position corresponding to the step with the maximum gray contrast value as a focusing focus; n is a radical ofANumber of the farthest step determined in the first focusing step, BnA second focus step; in the present embodiment, bySelecting the steps meeting the formula as second focusing steps, focusing only the selected second focusing steps, calculating the gray contrast values of corresponding stepping positions from far to near, and only needing to use any position corresponding to two steps with larger gray contrast values in the positions corresponding to the continuous three steps as a focusing focus without focusing the positions of other second focusing steps after the gray contrast values of the positions corresponding to the continuous three steps in the second focusing steps have inflection points; similarly, the any position includes a position corresponding to any step between two steps with a larger gray contrast value, or a position corresponding to any step left after rejection between two steps with a larger gray contrast value; selecting either position as the focus of focusing further makes it possible to achieve the accuracy of focusing.
Further, in order to make the determined range of the position of the focused focal point more accurate, when the gray contrast values of the positions corresponding to three consecutive steps in the second focus step have inflection points, the method further includes: selecting to satisfy:
Figure GDA0002519149920000101
the step left after the elimination is used as a third focusing step; the motor moves to push a focusing window to focus the third focusing step from near to far, and when inflection points appear in the gray contrast values of the positions corresponding to the three continuous steps in the third focusing step, the position corresponding to the step with the largest gray contrast value in the positions corresponding to the three continuous steps is selected as a focusing focus; otherwise, selecting the position corresponding to the step with the maximum gray contrast value as a focusing focus; cnFor the third focusing step, NBA number for a determined closest one of the second focus steps; controlling the motor to move from near to far, from far to near and from near to far respectively through the three steps, focusing respectively to obtain the gray contrast value of each stepping position, and finally obtaining the most accurate stepping position of the gray contrast value in the terminal, so that the gray contrast value is compared with the stepping positionThe value is compared with the currently acquired grey scale contrast value to find how the motor movement should be controlled to optimize the quality of the picture obtained from the current shot.
The method for focusing the target needing to be shot at present specifically comprises the following steps: firstly, determining the gray contrast value of one position where the gray contrast values of the positions corresponding to the three continuous steps in the first focusing step appear inflection points as a first threshold, determining the gray contrast value of one position where the gray contrast values of the positions corresponding to the three continuous steps in the second focusing step appear inflection points as a second threshold, and taking the maximum gray contrast value of the position where the gray contrast values of the positions corresponding to the three continuous steps in the third focusing step appear inflection points as the gray contrast value of a focus, wherein the gray contrast value of the focus is greater than the second threshold, and the second threshold is greater than the first threshold; acquiring a gray contrast value of a current focusing window, and if the current gray contrast value is larger than a second threshold value and smaller than the gray contrast value of a focus, executing a step of selecting a third focusing step so as to obtain accurate focusing for shooting a current target; if the current gray contrast value is larger than the first threshold value and smaller than the second threshold value, executing the step of selecting the second focusing step, and similarly, after the step of executing the second focusing step is finished, continuing to execute the step of performing the third independent angle step for the accuracy of focusing, so that the determined focusing focus is more accurate; if the current grey contrast value is less than the first threshold value, a step of selecting the first focus step is performed, which is similar to the above-described case and will not be described again here.
It should be noted that, in the terminal, the speed of the motor movement is controlled according to the distance between two adjacent steps. In order to reduce the disturbances caused by inertia and by the oscillation of the motor itself, the speed of the motor is also varied during the above-described determination of the gray contrast value for each focus step. For example, for the determination of the position gray contrast value for the first focus step, the scanning speed is x1For the determination of the position gray contrast value for the second focus step, the scanning speed isx2For the determination of the position gray contrast value for the third focus step, the scanning speed is x3(ii) a Wherein the following conditions exist: x is the number of1＝x2k1＝x3k2，0<k2<k1<1。
For example, the following detailed description explains a method for automatically completing multiple focusing in the present embodiment, as shown in fig. 4, which is a detailed flowchart of an automatic multiple focusing method provided by an embodiment of the present invention, please refer to fig. 4 and 5,
s401: reading the fuzzy diameter of an image sensor, the aperture of a lens, the stroke of a motor and the oscillation frequency and the oscillation time when the motor drives the lens to move, wherein the fuzzy diameter is written in a memory of the terminal;
s402: calculating the corresponding object distance range of each step of the motor after moving according to the fuzzy diameter, the aperture of the lens, the stroke of the motor and the oscillation frequency and the oscillation time when the motor drives the lens to move;
s403: comparing the object distance ranges of the positions of the adjacent steps, eliminating the object distance ranges in the steps contained in the object distance ranges of other steps to obtain the steps left after elimination, and setting the position corresponding to the step as Xi；
S404: selecting a composition that satisfies the following formula:
Figure GDA0002519149920000111
when n is2>When i is, An＝XiAnd the step left after the elimination is used as a first focusing step; focusing positions corresponding to the first focusing steps from near to far respectively, when inflection points appear in the gray contrast values of the positions corresponding to the three continuous steps in the first focusing steps, selecting the position corresponding to the two steps with larger gray contrast values in the positions corresponding to the three continuous steps as a focus range, and selecting the gray contrast value of the position corresponding to the larger step as a first threshold value Y1;
s405: selecting a composition that satisfies the following formula:
Figure GDA0002519149920000121
when 3N is less than or equal to NAWhen, Bn＝X1When the gray contrast values of the positions corresponding to the three continuous steps in the second focusing step have inflection points, selecting the position corresponding to the two steps with larger gray contrast values in the positions corresponding to the three continuous steps as a focus range, and selecting the gray contrast value of one position corresponding to the larger step as a second threshold value Y2;
s406: selecting a composition that satisfies the following formula:
Figure GDA0002519149920000122
taking the rest steps after the elimination as third focusing steps, respectively focusing positions corresponding to the third focusing steps from near to far, and when inflection points appear in the gray contrast values of the positions corresponding to the three continuous steps in the third focusing steps, selecting the position corresponding to the step with the largest gray contrast value in the positions corresponding to the three continuous steps as a focusing focus, and taking the gray contrast value corresponding to the focus as Yf to finish focusing;
s407: after t ms, acquiring a gray contrast value Y of the current focusing window;
s408: judging whether Y2< Y1< Yf is met, if yes, turning to S406; if not, turning to S409;
s409: judging whether Y1< Y1< Y2 is met, if yes, turning to S405; if not, go to S404.
The embodiment realizes the possibility of continuous focusing, can quickly and accurately realize focusing, improves the imaging quality, saves the focusing time and improves the user experience.
Example two:
as shown in fig. 6, which is a schematic structural diagram of an auto-focusing apparatus according to a second embodiment of the present invention, please refer to fig. 6, wherein the auto-focusing apparatus 60 includes: a parameter obtaining module 601, an object distance range calculating module 602, a stepping eliminating module 603, a gray scale contrast obtaining module 604 and a focus determining module 605; the parameter obtaining module 601 is configured to obtain a blur diameter value of an image sensor in the terminal, an aperture value of a lens, and a motion parameter of a motor; the object distance range calculation module 602 is configured to calculate an object distance range of each step of the motor according to the blur diameter value, an aperture value of the lens, and a motion parameter of the motor; the step elimination module 603 is configured to eliminate steps whose object distance ranges are within the object distance ranges of other steps in the step; the gray contrast obtaining module 604 is configured to obtain a gray contrast value of each step corresponding to the removed step; the focus determining module 605 is configured to determine a step position from the remaining steps after the elimination according to the gray contrast value as a focus for focusing. In the embodiment, the repeated steps in the object distance range with other steps are eliminated, so that the moving times of the motor are reduced, the imaging quality is not reduced, the possibility of quick focusing can be achieved, and the use experience of a user is improved.
In an embodiment, the focus determination module 605 includes: a first focus step selection submodule for selecting a focus step that satisfies the following formula:
Figure GDA0002519149920000131
when n is2>When i is, An＝XiAnd the step left after the elimination is used as a first focusing step; the first focus determining submodule is used for pushing a focusing window to focus on the position corresponding to the first focusing step from near to far by controlling the motor to move, and when inflection points appear in the gray contrast values of the positions corresponding to the three continuous steps in the first focusing step, any position corresponding to two steps with larger gray contrast values in the positions corresponding to the three continuous steps is selected as a focusing focus; otherwise, selecting the position corresponding to the step with the maximum gray contrast value as a focusing focus; xiFor the rest of the step, AnFor the first focus step, i and n are positive integers.
Further, the focus determination module 605 further comprises: second focusing step selectionThe selecting module is used for selecting the gray contrast values at the positions corresponding to the three continuous steps in the first focusing step to meet the following formula after inflection points appear in the gray contrast values at the positions corresponding to the three continuous steps:
Figure GDA0002519149920000132
when 3N is less than or equal to NAWhen, Bn＝X1And the step left after the elimination is used as a second focusing step; the second focus determining submodule is used for pushing a focusing window to focus on the position corresponding to the second focusing step from far to near by controlling the motor to move, and when inflection points appear in the gray contrast values of the positions corresponding to three continuous steps in the second focusing step, any position corresponding to two steps with larger gray contrast values in the positions corresponding to the three continuous steps is selected as a focusing focus; otherwise, selecting the position corresponding to the step with the maximum gray contrast value as a focusing focus; n is a radical ofANumber of the farthest step determined in the first focusing step, BnA second focus step;
preferably, the focus determination module 605 further comprises: a third focusing step selection submodule, configured to select a gray contrast value at a position corresponding to three consecutive steps in the second focusing step, which satisfies:
Figure GDA0002519149920000141
the step left after the elimination is used as a third focusing step; the third focus determining submodule is used for pushing a focusing window to focus on the third focusing step from near to far through the movement of a motor, and when inflection points appear in the gray contrast values of the positions corresponding to the three continuous steps in the third focusing step, the position corresponding to the step with the largest gray contrast value in the positions corresponding to the three continuous steps is selected as a focusing focus; otherwise, selecting the position corresponding to the step with the maximum gray contrast value as a focusing focus; cnFor the third focusing step, NBA number for a determined closest one of the second focus steps;
the auto-focusing apparatus 60 further includes: a threshold determination module, configured to determine, as a first threshold, a grayscale contrast value of one of the positions where the grayscale contrast values of the positions corresponding to three consecutive steps in the first focus step have inflection points, and determine, as a second threshold, a grayscale contrast value of one of the positions where the grayscale contrast values of the positions corresponding to three consecutive steps in the second focus step have inflection points, where the grayscale contrast value of the focus is greater than the second threshold, and the second threshold is greater than the first threshold; the processing module is used for acquiring the gray contrast value of the current focusing window, and if the current gray contrast value is larger than a second threshold value and smaller than the gray contrast value of the focus, a trigger starting instruction is sent to the third focusing step selection submodule; if the current gray scale contrast value is larger than a first threshold value and smaller than a second threshold value, sending a trigger starting instruction to the second focus stepping selection submodule; and if the current gray contrast value is smaller than a first threshold value, sending a trigger starting instruction to the first focusing stepping selection submodule.
The invention provides an automatic focusing method and device, wherein the step elimination of a step object distance range in other step object distance ranges is performed, and the gray contrast value of each step corresponding position left after the elimination is obtained; and determining a stepping position from the steps left after the elimination according to the gray contrast value to be used as a focusing focus. This scheme is through rejecting in the step-by-step of other marching step-by-step object distance within ranges for can not coincide between the step-by-step object distance scope that newly obtains, reduced the number of times that the motor removed, and the step-by-step distance of the removal of motor has also changed, thereby has realized quick auto focus, can not influence its imaging quality yet, has promoted user experience.
The foregoing is a more detailed description of the present invention that is presented in conjunction with specific embodiments, and the practice of the invention is not to be considered limited to those descriptions. For those skilled in the art to which the invention pertains, several simple deductions or substitutions can be made without departing from the spirit of the invention, and all shall be considered as belonging to the protection scope of the invention.

Claims (9)

1.一种自动对焦的方法，其特征在于，包括以下步骤：1. a method for automatic focusing, is characterized in that, comprises the following steps: 获取终端的图像传感器的模糊直径值、镜头的光圈值以及马达的运动参数；Obtain the blur diameter value of the image sensor of the terminal, the aperture value of the lens, and the motion parameters of the motor; 根据所述模糊直径值、镜头的光圈值以及马达的运动参数计算所述马达各个步进的物距范围；Calculate the object distance range of each step of the motor according to the blur diameter value, the aperture value of the lens and the motion parameter of the motor; 在所述步进中剔除掉其物距范围在其他步进的物距范围内的步进；Eliminate the steps whose object distance range is within the object distance range of other steps in the step; 获取剔除后剩下的各个步进的对应位置的灰度对比度值；Obtain the grayscale contrast value of the corresponding position of each step remaining after culling; 根据所述灰度对比度值从剔除后剩下的步进中确定出一个步进的位置作为对焦的焦点；所述根据所述灰度对比度值从剩下的步进中确定出一个步进的位置作为对焦的焦点包括：选择满足以下公式：
Figure FDA0002835744040000011
当n2＞i时，An＝Xi，的剔除后剩下的步进作为第一对焦步进；通过控制马达运动推动对焦窗口从近到远对所述第一对焦步进对应的位置分别对焦，当所述第一对焦步进中连续三个步进对应的位置的灰度对比度值出现拐点，则选择所述连续三个步进对应的位置中灰度对比度值较大的两个步进之间对应的任一位置作为对焦的焦点；否则，选择灰度对比度值最大的步进对应的位置作为对焦的焦点；Xi为剩下的步进，An为第一对焦步进，i、n为正整数。According to the gray contrast value, the position of one step is determined from the remaining steps after culling as the focus of focus; the position of one step is determined from the remaining steps according to the gray contrast value. The position as the focal point of the focus consists of: Choose to satisfy the following formula:
Figure FDA0002835744040000011
When n 2 >i, A n =X i , the remaining steps after the elimination of , are taken as the first focus steps; by controlling the motor movement, the focus window is pushed from near to far to the position corresponding to the first focus step Focus separately, when the gray contrast value of the position corresponding to three consecutive steps in the first focus step has an inflection point, select the two positions with the larger gray contrast value among the positions corresponding to the three consecutive steps. Any position corresponding to the steps is used as the focus of focus; otherwise, the position corresponding to the step with the largest grayscale contrast value is selected as the focus of focus; X i is the remaining steps, and An is the first focus step , i and n are positive integers. 2.如权利要求1所述的自动对焦的方法，其特征在于，当所述第一对焦步进中连续三个步进对应的位置的灰度对比度值出现拐点还包括：选择满足以下公式：
Figure FDA0002835744040000012
当3n≤NA时，Bn＝X1，的剔除后剩下的步进作为第二对焦步进；通过控制马达运动推动对焦窗口从远到近对所述第二对焦步进对应的位置分别对焦，当所述第二对焦步进中连续三个步进对应的位置的灰度对比度值出现拐点，则选择所述连续三个步进对应的位置中灰度对比度值较大的两个步进之间对应的任一位置作为对焦的焦点；否则，选择灰度对比度值最大的步进对应的位置作为对焦的焦点；NA为所述第一对焦步进中确定出的最远的步进的编号，Bn为第二对焦步进。2. The method for auto-focusing according to claim 1, wherein when the gray-scale contrast values of the positions corresponding to three consecutive steps in the first focus step appear inflection points, the method further comprises: selecting and satisfying the following formula:
Figure FDA0002835744040000012
When 3n≤N A , B n =X 1 , the remaining step after the rejection is taken as the second focus step; by controlling the motor movement, the focus window is pushed from far to near to the position corresponding to the second focus step Focus separately, and when the gray contrast value of the position corresponding to three consecutive steps in the second focus step has an inflection point, select the two positions with the larger gray contrast value among the positions corresponding to the three consecutive steps. Any position corresponding to the steps is used as the focus of focus; otherwise, the position corresponding to the step with the largest grayscale contrast value is selected as the focus of focus; N A is the farthest determined in the first focus step Step number, B n is the second focus step. 3.如权利要求2所述的自动对焦的方法，其特征在于，当所述第二对焦步进中连续三个步进对应的位置的灰度对比度值出现拐点后还包括：选择满足：
Figure FDA0002835744040000021
的剔除后剩下的步进作为第三对焦步进；通过马达运动推动对焦窗口从近到远对所述第三对焦步进分别对焦，当所述第三对焦步进中连续三个步进对应的位置的灰度对比度值出现拐点，则选择所述连续三个步进对应的位置中灰度对比度值最大的步进对应的位置作为对焦的焦点；否则，选择灰度对比度值最大的步进对应的位置作为对焦的焦点；Cn为第三对焦步进，NB为所述第二对焦步进中确定的最近的步进的编号。3. The method for auto-focusing according to claim 2, wherein when the gray-scale contrast values of the positions corresponding to three consecutive steps in the second focusing step appear inflection points, the method further comprises: selecting the following:
Figure FDA0002835744040000021
The remaining steps after the culling are used as the third focus step; the focus window is pushed from near to far to focus on the third focus step by motor motion, when three consecutive steps in the third focus step If the gray contrast value of the corresponding position has an inflection point, the position corresponding to the step with the largest gray contrast value among the positions corresponding to the three consecutive steps is selected as the focus of focus; otherwise, the step with the largest gray contrast value is selected. C n is the third focus step, and N B is the number of the latest step determined in the second focus step. 4.如权利要求3所述的自动对焦的方法，其特征在于，将所述第一对焦步进中连续三个步进对应的位置的灰度对比度值出现拐点的其中一个位置的灰度对比度值确定为第一阈值，将所述第二对焦步进中连续三个步进对应的位置的灰度对比度值出现拐点的其中一个位置的灰度对比度值确定为第二阈值，所述焦点的灰度对比度值大于第二阈值，所述第二阈值大于第一阈值；获取当前对焦窗口的灰度对比度值，如果当前的灰度对比度值大于第二阈值，小于焦点的灰度对比度值，则执行选择第三对焦步进的步骤；如果当前的灰度对比度值大于第一阈值，小于第二阈值，则执行选择第二对焦步进的步骤；如果当前的灰度对比度值小于第一阈值，则执行选择第一对焦步进的步骤。4 . The method for autofocusing according to claim 3 , wherein the grayscale contrast value of the position corresponding to three consecutive steps in the first focusing step is the grayscale contrast value of one of the positions of the inflection point. 5 . The value is determined as the first threshold, and the gray contrast value at one of the positions where the gray contrast value of the position corresponding to the three consecutive steps in the second focus step appears inflection point is determined as the second threshold, and the focus value is determined as the second threshold value. The grayscale contrast value is greater than the second threshold, and the second threshold is greater than the first threshold; the grayscale contrast value of the current focus window is obtained, if the current grayscale contrast value is greater than the second threshold and less than the focus grayscale contrast value, then Perform the step of selecting the third focus step; if the current grayscale contrast value is greater than the first threshold and less than the second threshold, then perform the step of selecting the second focus step; if the current grayscale contrast value is less than the first threshold, Then perform the step of selecting the first focus step. 5.如权利要求1-4任一项所述的自动对焦的方法，其特征在于，所述马达运动的速度大小是根据相邻两个步进之间的距离大小进行控制的。5 . The automatic focusing method according to claim 1 , wherein the speed of the motor movement is controlled according to the distance between two adjacent steps. 6 . 6.一种自动对焦的装置，其特征在于，包括：6. A device for automatic focusing, comprising: 参数获取模块，用于获取终端内图像传感器的模糊直径值、镜头的光圈值以及马达的运动参数；The parameter acquisition module is used to acquire the blur diameter value of the image sensor in the terminal, the aperture value of the lens and the motion parameters of the motor; 物距范围计算模块，用于根据所述模糊直径值、镜头的光圈值以及马达的运动参数计算所述马达各个步进的物距范围；an object distance range calculation module, configured to calculate the object distance range of each step of the motor according to the blur diameter value, the aperture value of the lens and the motion parameters of the motor; 步进剔除模块，用于在所述步进中剔除掉其物距范围在其他步进的物距范围内的步进；a step rejection module, used for rejecting the steps whose object distance range is within the object distance range of other steps in the step; 灰度对比度获取模块，用于获取剔除后剩下的各个步进的对应位置的灰度对比度值；The grayscale contrast acquisition module is used to obtain the grayscale contrast value of the corresponding position of each step remaining after culling; 焦点确定模块，用于根据所述灰度对比度值从剔除后剩下的步进中确定出一个步进的位置作为对焦的焦点；所述焦点确定模块包括：第一对焦步进选择子模块，用于选择满足以下公式：
Figure FDA0002835744040000031
当n2＞i时，An＝Xi，的剔除后剩下的步进作为第一对焦步进；第一焦点确定子模块，用于通过控制马达运动推动对焦窗口从近到远对所述第一对焦步进对应的位置分别对焦，当所述第一对焦步进中连续三个步进对应的位置的灰度对比度值出现拐点，则选择所述连续三个步进对应的位置中灰度对比度值较大的两个步进之间对应的任一位置作为对焦的焦点；否则，选择灰度对比度值最大的步进对应的位置作为对焦的焦点；Xi为剩下的步进，An为第一对焦步进，i、n为正整数。a focus determination module, configured to determine a step position from the remaining steps after culling according to the grayscale contrast value as the focus of focus; the focus determination module includes: a first focus step selection sub-module, Used to select the following formula:
Figure FDA0002835744040000031
When n 2 >i, A n =X i , the remaining steps after the elimination of A n =X i , are taken as the first focus steps; the first focus determination sub-module is used to push the focus window from near to far to focus on all objects by controlling the motor movement. The positions corresponding to the first focus step are respectively focused, and when the gray contrast value of the positions corresponding to three consecutive steps in the first focus step has an inflection point, the position corresponding to the three consecutive steps is selected. Any position corresponding to the two steps with the larger grayscale contrast value is used as the focus of focus; otherwise, the position corresponding to the step with the largest grayscale contrast value is selected as the focus of focus; X i is the remaining step , An is the first focus step, i and n are positive integers. 7.如权利要求6所述的自动对焦的装置，其特征在于，所述焦点确定模块还包括：第二对焦步进选择子模块，用于当所述第一对焦步进中连续三个步进对应的位置的灰度对比度值出现拐点后，选择满足以下公式：
Figure FDA0002835744040000032
当3n≤NA时，Bn＝X1，的剔除后剩下的步进作为第二对焦步进；第二焦点确定子模块，用于通过控制马达运动推动对焦窗口从远到近对所述第二对焦步进对应的位置分别对焦，当所述第二对焦步进中连续三个步进对应的位置的灰度对比度值出现拐点，则选择所述连续三个步进对应的位置中灰度对比度值较大的两个步进之间对应的任一位置作为对焦的焦点；否则，选择灰度对比度值最大的步进对应的位置作为对焦的焦点；NA为所述第一对焦步进中确定出的最远的步进的编号，Bn为第二对焦步进。7 . The automatic focusing device according to claim 6 , wherein the focus determination module further comprises: a second focus step selection sub-module, which is used for when three consecutive steps in the first focus step are performed. 8 . After the inflection point appears in the gray contrast value of the corresponding position, choose to satisfy the following formula:
Figure FDA0002835744040000032
When 3n≤N A , B n =X 1 , the remaining steps after the elimination of B n is the second focus step; the second focus determination sub-module is used to push the focus window from far to near by controlling the motor movement The positions corresponding to the second focusing step are respectively focused, and when the gray contrast value of the positions corresponding to three consecutive steps in the second focusing step has an inflection point, the position corresponding to the three consecutive steps is selected. Any position corresponding to the two steps with a larger grayscale contrast value is used as the focus of focus; otherwise, the position corresponding to the step with the largest grayscale contrast value is selected as the focus of focus; N A is the first focus The number of the farthest step determined in the step, B n is the second focus step. 8.如权利要求7所述的自动对焦的装置，其特征在于，所述焦点确定模块还包括：第三对焦步进选择子模块，用于当所述第二对焦步进中连续三个步进对应的位置的灰度对比度值出现拐点后，选择满足：
Figure FDA0002835744040000033
的剔除后剩下的步进作为第三对焦步进；第三焦点确定子模块，用于通过马达运动推动对焦窗口从近到远对所述第三对焦步进分别对焦，当所述第三对焦步进中连续三个步进对应的位置的灰度对比度值出现拐点，则选择所述连续三个步进对应的位置中灰度对比度值最大的步进对应的位置作为对焦的焦点；否则，选择灰度对比度值最大的步进对应的位置作为对焦的焦点；Cn为第三对焦步进，NB为所述第二对焦步进中确定的最近的步进的编号。8 . The automatic focusing device according to claim 7 , wherein the focus determination module further comprises: a third focus step selection sub-module, which is used for three consecutive steps in the second focus step when the second focus step is selected. 9 . After the inflection point appears in the gray contrast value of the corresponding position, choose to satisfy:
Figure FDA0002835744040000033
The remaining steps after the culling are used as the third focus step; the third focus determination sub-module is used to push the focus window from near to far to focus on the third focus step by motor motion, when the third focus step If there is an inflection point in the gray contrast value of the positions corresponding to three consecutive steps in the focusing step, the position corresponding to the step with the largest gray contrast value among the positions corresponding to the three consecutive steps is selected as the focus of focusing; otherwise , select the position corresponding to the step with the largest grayscale contrast value as the focus of focus; C n is the third focus step, and N B is the number of the nearest step determined in the second focus step. 9.如权利要求8所述的自动对焦的装置，其特征在于，还包括：阈值确定模块，用于将所述第一对焦步进中连续三个步进对应的位置的灰度对比度值出现拐点的其中一个位置的灰度对比度值确定为第一阈值，将所述第二对焦步进中连续三个步进对应的位置的灰度对比度值出现拐点的其中一个位置的灰度对比度值确定为第二阈值，所述焦点的灰度对比度值大于第二阈值，所述第二阈值大于第一阈值；处理模块，用于获取当前对焦窗口的灰度对比度值，如果当前的灰度对比度值大于第二阈值，小于焦点的灰度对比度值，则向所述第三对焦步进选择子模块发送触发启动指令；如果当前的灰度对比度值大于第一阈值，小于第二阈值，则向所述第二对焦步进选择子模块发送触发启动指令；如果当前的灰度对比度值小于第一阈值，则向所述第一对焦步进选择子模块发送触发启动指令。9 . The automatic focusing device according to claim 8 , further comprising: a threshold value determination module, configured to display grayscale contrast values of positions corresponding to three consecutive steps in the first focusing step. 10 . The gray contrast value of one of the positions of the inflection point is determined as the first threshold value, and the gray contrast value of the position corresponding to the three consecutive steps in the second focus step is determined as the gray contrast value of one of the positions of the inflection point. is the second threshold, the grayscale contrast value of the focus is greater than the second threshold, and the second threshold is greater than the first threshold; the processing module is used to obtain the grayscale contrast value of the current focus window, if the current grayscale contrast value is greater than the second threshold and less than the focus gray contrast value, send a trigger start instruction to the third focus step selection sub-module; if the current gray contrast value is greater than the first threshold and less than the second threshold, send a trigger to the The second focus step selection sub-module sends a trigger start instruction; if the current grayscale contrast value is less than the first threshold, a trigger start instruction is sent to the first focus step selection sub-module.
CN201510160558.0A 2015-04-07 2015-04-07 A method and device for automatic focusing Active CN106154688B (en)

Priority Applications (2)

Application Number Priority Date Filing Date Title
CN201510160558.0A CN106154688B (en) 2015-04-07 2015-04-07 A method and device for automatic focusing
PCT/CN2015/086686 WO2016161734A1 (en) 2015-04-07 2015-08-11 Autofocusing method and device

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN201510160558.0A CN106154688B (en) 2015-04-07 2015-04-07 A method and device for automatic focusing

Publications (2)

Publication Number Publication Date
CN106154688A CN106154688A (en) 2016-11-23
CN106154688B true CN106154688B (en) 2021-04-16

Family

ID=57071784

Family Applications (1)

Application Number Title Priority Date Filing Date
CN201510160558.0A Active CN106154688B (en) 2015-04-07 2015-04-07 A method and device for automatic focusing

Country Status (2)

Country Link
CN (1) CN106154688B (en)
WO (1) WO2016161734A1 (en)

Families Citing this family (5)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN108234876B (en) * 2018-01-22 2020-10-16 努比亚技术有限公司 Tracking focusing method, terminal and computer readable storage medium
CN109087354A (en) * 2018-08-29 2018-12-25 浙江霖研精密科技有限公司 A kind of position algorithm of the best object distance of automatic search and image distance
CN109307970A (en) * 2018-11-22 2019-02-05 成都市鹰诺实业有限公司 A kind of automatic focusing method of camera
WO2021102959A1 (en) * 2019-11-29 2021-06-03 深圳市大疆创新科技有限公司 Focus adjustment method, camera module, and computer readable storage medium
CN111654637B (en) * 2020-07-14 2021-10-22 RealMe重庆移动通信有限公司 Focusing method, focusing device and terminal equipment

Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN104038666A (en) * 2014-04-22 2014-09-10 深圳英飞拓科技股份有限公司 Video shielding detection method and video shielding detection device
CN104103063A (en) * 2013-04-10 2014-10-15 江南大学 No-reference noise image quality evaluation method based on automatic focusing principle
CN104459940A (en) * 2013-09-25 2015-03-25 北京环境特性研究所 Quick self-adaptation automatic focusing method

Family Cites Families (16)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2002122776A (en) * 2000-10-17 2002-04-26 Sharp Corp Autofocus control apparatus, digital still camera and digital video camera including the same, autofocus control method, and recording medium recording autofocus control program
JP3902492B2 (en) * 2002-03-13 2007-04-04 株式会社リコー Imaging device
JP2003315665A (en) * 2002-04-23 2003-11-06 Nikon Gijutsu Kobo:Kk camera
CN100357822C (en) * 2002-05-31 2007-12-26 金宝电子工业股份有限公司 Autofocus method according to depth of field
CN100424579C (en) * 2004-03-08 2008-10-08 普立尔科技股份有限公司 The Fast Focusing Method of Digital Camera
JP2007025381A (en) * 2005-07-19 2007-02-01 Alps Electric Co Ltd Optical device
JP2007148249A (en) * 2005-11-30 2007-06-14 Canon Inc Automatic focus adjustment device
CN100407038C (en) * 2005-12-19 2008-07-30 佛山普立华科技有限公司 Automatic focusing method for digit imaging system
CN101071251B (en) * 2006-05-11 2010-09-22 致伸科技股份有限公司 Method for evaluating minimum effective sampling point of automatic focusing
CN101995640A (en) * 2010-09-30 2011-03-30 镇江中信科技开发有限公司 Coarse adjustment and fine adjustment combined rapid interpolation focus exploration algorithm
US9030595B2 (en) * 2010-10-14 2015-05-12 Lensvector Inc. In-flight auto focus method and system for tunable liquid crystal optical element
US9160917B2 (en) * 2013-07-09 2015-10-13 Htc Corporation Handheld electronic apparatus and image capturing apparatus and focusing method thereof
JP5868109B2 (en) * 2011-10-12 2016-02-24 キヤノン株式会社 Optical apparatus, lens barrel, and automatic focusing method
CN103513395B (en) * 2012-06-15 2018-05-04 中兴通讯股份有限公司 Passive automatic focusing method and device
CN103728813B (en) * 2012-10-15 2016-10-26 浙江大华技术股份有限公司 A kind of method of synchronizing focus during zoom
CN103945126B (en) * 2014-04-21 2015-03-04 中国人民解放军国防科学技术大学 Automatic focusing and locating method

Patent Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN104103063A (en) * 2013-04-10 2014-10-15 江南大学 No-reference noise image quality evaluation method based on automatic focusing principle
CN104459940A (en) * 2013-09-25 2015-03-25 北京环境特性研究所 Quick self-adaptation automatic focusing method
CN104038666A (en) * 2014-04-22 2014-09-10 深圳英飞拓科技股份有限公司 Video shielding detection method and video shielding detection device

Also Published As

Publication number Publication date
CN106154688A (en) 2016-11-23
WO2016161734A1 (en) 2016-10-13

Similar Documents

Publication Publication Date Title
CN104102068B (en) Autofocus method and autofocus device
CN105659580B (en) A kind of automatic focusing method, device and electronic equipment
TWI538512B (en) Method and electronic device for adjusting focus position
CN107800951B (en) Electronic device and lens switching method thereof
CN105700106B (en) Atomatic focusing method and automatic focusing mechanism
WO2019105214A1 (en) Image blurring method and apparatus, mobile terminal and storage medium
JP5453573B2 (en) Imaging apparatus, imaging method, and program
CN106154688B (en) A method and device for automatic focusing
CN108496350A (en) A focus processing method and device
US20140307054A1 (en) Auto focus method and auto focus apparatus
CN104253939A (en) Method for adjusting focusing position and electronic device
JP6447840B2 (en) Image device, method for automatic focusing in an image device, and corresponding computer program
CN107534723B (en) Autofocus method, device and device
TW201541141A (en) Multi-lens autofocus system and method thereof
CN112333379A (en) Image focusing method and device and image acquisition equipment
CN108701361A (en) Depth value determines method and apparatus
US9300861B2 (en) Video recording apparatus and focusing method for the same
CN113438406B (en) Focusing method, focusing device and camera device
CN107124547B (en) Dual camera photographing method and device
TW201541143A (en) Auto-focus system for multiple lens and method thereof
CN105022138B (en) Automatic focusing system using multiple lenses and method thereof
CN110839126A (en) A zoom tracking method, device and zoom camera
CN119071631B (en) Automatic focusing method, device, image acquisition device and storage medium
US10051173B2 (en) Image pick-up apparatus and progressive auto-focus method thereof
CN107124535B (en) Double-camera shooting method and device

Legal Events

Date Code Title Description
C06 Publication
PB01 Publication
SE01 Entry into force of request for substantive examination
SE01 Entry into force of request for substantive examination
GR01 Patent grant
GR01 Patent grant
