Abstract

The smart home floor cleaning machine is composed of driving wheels, driving motors, photoelectric switches, brushes, exhaust fans, mopping rollers, water tanks, storage bags, blowers, single-chip microcomputers and wireless remote controls. The driving motor controls the rotation of the wheels, cleaning The machine moves forward. During the process of moving, the front brush rotates to clean the ground, the exhaust fan rotates to vacuum the ground and suck the dirt into the storage bag, the mopping roller cleans the ground, and the water tank mops the ground at the same time. The ground roller sprinkles water, and the blower dries the ground; through the detection of obstacles in front of the photoelectric switch and the program inside the single-chip microcomputer to avoid obstacles; through the remote control of the wireless remote control and the internal program of the single-chip microcomputer, the cleaning machine runs . It integrates cleaning, vacuuming, mopping, and drying. It is small in size and controlled by a single-chip microcomputer. It is convenient and fast, and the cost is relatively low. It realizes the intelligent integration of home life.

Description

Smart Home Floor Cleaning Machine

technical field

The invention relates to a floor cleaning device, specifically a smart home floor cleaning machine composed of four motors, four wheels, two brushes, two fans, a floor mopping roller and the like.

Background technique

There are many ground cleaning equipment on the market, such as sweepers, moppers, vacuum cleaners, etc., but these devices have single functions and large volumes. Even foreign moppers suitable for home life have appeared, but they are expensive. However, there are certain disadvantages in the optional operation, and it does not fully meet people's home needs.

Contents of the invention

In view of the above-mentioned deficiencies, the present invention provides a smart home floor cleaning device.

The present invention is realized through the following technical solutions: the smart home floor cleaning machine is composed of driving wheels, driving motors, photoelectric switches, brushes, exhaust fans, mopping rollers, water tanks, storage bags, blowers, single-chip microcomputers and wireless remote controllers. It consists of a driving motor to control the rotation of the wheels, and the cleaning machine moves forward. During the process of moving, the front brush rotates to clean the ground, and the exhaust fan rotates to vacuum the ground to suck the dirt into the storage bag, and the mopping roller Mopping and washing the ground, while the water tank sprinkles water on the mopping rollers, and the blower dries the ground; through the photoelectric switch to detect the obstacles in front and cooperate with the internal program of the single-chip microcomputer to avoid obstacles; through the remote control of the wireless remote control Cooperate with the internal program of the single-chip microcomputer to make the cleaning machine run.

The invention is beneficial in that it integrates cleaning, vacuuming, mopping, and drying into one body, is small in size, is controlled by a single-chip microcomputer, is convenient and fast, and has relatively low cost, realizing the intelligent integration of home life.

Description of drawings

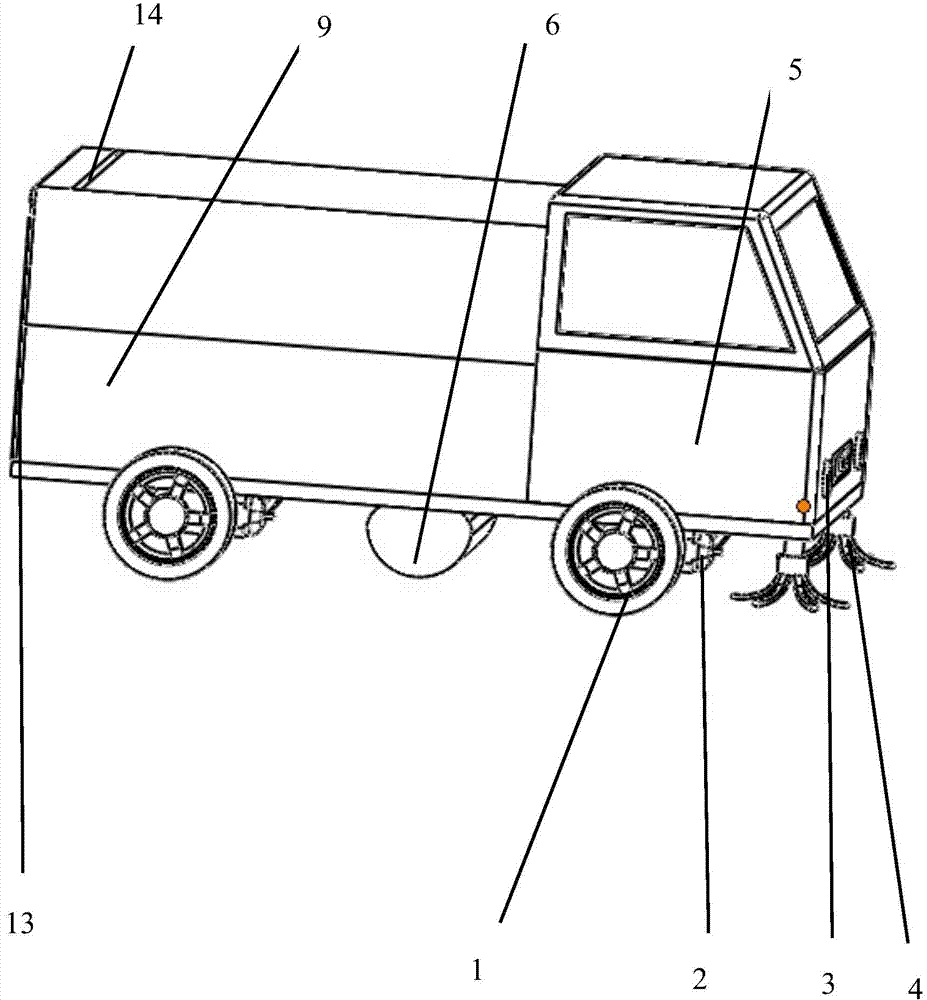

Accompanying drawing 1 is the structural representation of the present invention.

Among the figure, driving motor 1, gear 2, hair brush 3, exhaust fan 4, mopping roller 5, air blower 6, photoelectric switch 7, wireless remote controller 8.

Detailed ways

The smart home floor cleaning machine is composed of a driving motor 1, a gear 2, a brush 3, an exhaust fan 4, a mopping roller 5, a blower 6, a photoelectric switch 7, a wireless remote control 8, a driving wheel 9, a water tank 10, and a storage bag Composed of 11, the driving motor 1 rotates the driving wheel 9, and the cleaning machine moves forward. In the process of advancing, firstly, the front brush 3 rotates to clean the ground, and secondly, the exhaust fan 4 rotates to vacuum the ground to remove the dirt. Things are sucked in the storage bag 11, then, the mopping roller 5 mops and washes the ground, while the water tank 10 sprinkles water on the mopping roller 5, keeps the mopping roller 5 humidity, and finally, the air blower 6 dries the ground. During the driving process of the cleaning machine, the operation of the cleaning machine is divided into two modes: mode 1), through the detection of obstacles in front of the photoelectric switch 7 and the program inside the single chip microcomputer to avoid obstacles; mode (2), through the wireless The remote control of the remote controller 8 cooperates with the internal program of the single-chip microcomputer to make the cleaning machine run, thereby completing the cleaning work to the ground.

Claims (1)

1. Smart Home floor-cleaning machine, it is characterized in that: by driving wheel, drive motors, optoelectronic switch, hairbrush, air exhauster, the roller that mops floor, water tank, storage bag, air blast, single-chip microcomputer and Digiplex to form, drive motors is controlled vehicle wheel rotation, cleaner moves ahead, in traveling process, the place ahead hairbrush rotates ground is cleaned, air exhauster rotation is carried out dust suction to ground foul is drawn onto in storage bag, the roller that mops floor drags and washes ground, water tank is given the roller watering that mops floor simultaneously, and air blast dries up ground; By optoelectronic switch, the detection of the place ahead barrier is being matched and keeping away barrier with the program of single-chip microcomputer inside; By the remote control of Digiplex and single-chip microcomputer internal processes are matched cleaner are moved.
