CN103501328A - Method and system for realizing intelligence of exercise bicycle based on wireless network transmission - Google Patents

Abstract

The invention discloses a method and system for realizing the intelligence of an exercise bike based on wireless network transmission, comprising: pre-integrating a wireless network transmission module into an intelligent control and detection device of the exercise bike; creating a wireless network between the intelligent control and detection device and an intelligent terminal Transmission protocol; the intelligent control detection equipment searches for intelligent terminals carrying wireless network signals in the surrounding environment; the wireless network transmission module establishes a wireless network transmission connection with the intelligent terminal; the intelligent control detection equipment sends the detection data and control commands of the exercise bike to Wireless network transmission module; the wireless network transmission module inside the intelligent terminal receives and processes detection data and control commands, and the intelligent control detection device receives reverse control commands to adjust the operating parameters of the exercise bicycle by controlling the magnetic control resistance of the exercise bicycle. The invention utilizes the convenience and simplicity of wireless network transmission to realize the intelligence of the exercise bike and increase the entertainment and durability of the exercise bike.

Description

A method and system for realizing intelligence of exercise bike based on wireless network transmission

technical field

The invention relates to the technical field of intelligent fitness equipment, in particular to a method and system for realizing intelligent exercise bicycles based on wireless network transmission.

Background technique

In today's society, fitness exercises are getting more and more attention and love from everyone, among which exercise bikes are more common. At present, the intelligence level of existing exercise bikes is generally low, mainly reflected in the fact that exercise bikes are still mainly regarded as an independent fitness equipment, and lack of interaction with existing smart terminals, such as smart TVs, smart tablets and smart phones . Thereby exercising on exercise bike is relatively boring and monotonous, and it is easy for users to lose interest in exercising. Although some exercise bikes have added multimedia entertainment functions such as MP3 and video playback, they still cannot be used to a large extent due to the lack of strong interactivity and entertainment.

Wireless network transmission technologies such as Wi-Fi and Bluetooth support short-distance communication between devices, and are characterized by simple use, easy integration, and high reliability. Nowadays, smart TVs, smart tablets and smart phones are generally equipped with Bluetooth and Wi-Fi Fi wireless network transmission module. Therefore, the wireless network transmission technology can be used to enable the exercise bike to communicate wirelessly with smart TVs, smart tablets and smart phones, thereby enhancing the interactivity and entertainment of the exercise bike, thereby improving the application durability of the exercise bike.

Contents of the invention

The invention provides a method and system for realizing the intelligence of exercise bikes based on wireless network transmission, which solves the problem that users lose interest in exercising due to boring and monotonous exercise in the process of exercising on traditional exercise bikes, thereby enhancing the interactivity of exercise bikes and entertaining.

The invention provides a method for realizing the intelligence of an exercise bike based on wireless network transmission, and the method includes the following steps:

Pre-integrate the wireless network transmission module into the intelligent control and detection equipment of the exercise bike;

Create a wireless network transmission protocol between the intelligent control detection device and the intelligent terminal;

The intelligent control detection device searches for intelligent terminals carrying wireless network signals in the surrounding environment;

The wireless network transmission module establishes a wireless network transmission connection with the smart terminal through the wireless network transmission protocol;

The intelligent control detection device acquires the detection data of the exercise bike, and sends the detection data and the control command issued by the intelligent control detection device to the wireless network transmission module through a serial port;

The intelligent terminal receives and processes the detection data and the control command through its internal wireless network transmission module.

The intelligent terminal sends a reverse control command through its internal wireless network transmission module;

The intelligent control detection device receives the reverse control command, and adjusts the operating parameters of the exercise bike by controlling the magnetic control resistance of the exercise bike.

Further, the wireless network transmission module includes a Wi-Fi transmission module and/or a Bluetooth transmission module.

Further, the wireless network transmission module is pre-integrated into the intelligent control and detection equipment of the exercise bike, specifically including:

Weld the serial port of the wireless network transmission module with the serial port of the intelligent control detection device to realize the integration of the wireless network transmission module.

Further, the detection data of the exercise bike acquired by the intelligent control detection device is actively sent to the intelligent terminal through the wireless network transmission module at regular intervals;

The control command issued by the intelligent control detection device is sent to the intelligent terminal in real time.

Further, the smart terminal receives and processes the detection data and the control command through its internal wireless network transmission module, specifically including:

The corresponding application on the smart terminal processes, displays and stores the received detection data, and executes the control command.

The present invention also provides a system for realizing the intelligence of exercise bikes based on wireless network transmission, including:

Intelligent control and detection equipment, intelligent terminals and wireless network transmission modules placed on exercise bikes;

The intelligent control detection device is used to search for intelligent terminals carrying wireless network signals in the surrounding environment, establish a wireless network transmission connection between the wireless network transmission module and the intelligent terminal; obtain the detection data of the exercise bike, and send the The acquired detection data of the exercise bike and the control commands issued by it are sent through the serial port;

The intelligent terminal is used to receive and process the detection data of the exercise bike acquired by the intelligent control detection device and the control commands issued by it through its internal wireless network transmission module;

The wireless network transmission module is used for forwarding detection data and control commands between the intelligent control detection device and the intelligent terminal.

Further, the intelligent control detection device is also used to receive the reverse control command sent by the smart terminal and adjust the operating parameters of the exercise bike according to the reverse control command; the smart terminal is also used to pass through its internal wireless network The transmission module sends a reverse control command to the intelligent control detection device.

Further, the intelligent control detection device includes a main controller, a speed measurement module, a heart rate detection module, a key module, a display module, a temperature and humidity detection module, and an atmospheric pressure detection module for realizing data detection of the exercise bike and controlling operating parameters.

Compared with the prior art, the method and system for realizing the intelligentization of exercise bikes based on wireless network transmission provided by the present invention utilizes the convenience and simplicity of wireless network transmission to realize the intelligentization of exercise bikes and enhance the fitness of exercise bikes. The interactive and entertaining nature of the fitness process greatly improves the durability of the exercise bike application.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the following will briefly introduce the drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description are only These are some embodiments of the present invention. Those skilled in the art can also obtain other drawings based on these drawings without creative work.

Fig. 1 is a kind of flow chart of the method for realizing the intellectualization of exercise bicycle based on wireless network transmission of the present invention;

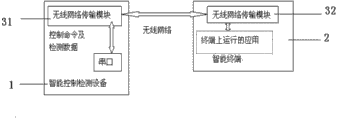

Fig. 2 is a kind of system schematic diagram of the present invention based on wireless network transmission to realize the intelligentization of exercise bicycle;

Fig. 3 is a functional block diagram of the intelligent control detection device placed on the exercise bike in the present invention.

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are part of the embodiments of the present invention, but not all of them. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

The invention integrates the wireless network transmission module into an intelligent control detection device on an exercise bike, formulates a wireless network transmission protocol for control commands and detection data between the intelligent control detection device and the intelligent terminal, and then integrates the control of the intelligent control detection device The command and detection data are transmitted to the wireless network transmission module through the serial port, and the wireless network transmission connection is established, and the wireless transmission module integrated in the intelligent terminal receives the control sent by the wireless network transmission module in the intelligent control detection device through the wireless network transmission. commands and detection data, and finally the smart terminal receives control commands and detection data through its wireless network transmission module, and performs command execution or data processing, display and storage through the running application. Conversely, the application running on the smart terminal can also send The control commands are transmitted through the wireless network to control some operating parameters of the exercise bike, such as running speed, start and stop, etc., in order to achieve fitness guidance and increase the effect of fitness entertainment, thereby realizing the intelligence of the exercise bike.

The present invention provides a method for realizing the intelligence of an exercise bike based on wireless network transmission, as shown in Figure 1, the method includes the following steps:

Step S101, pre-integrating the wireless network transmission module into the intelligent control and detection equipment of the exercise bike;

Step S102, creating a wireless network transmission protocol between the intelligent control detection device and the intelligent terminal;

Step S103, the intelligent control detection device searches for intelligent terminals carrying wireless network signals in the surrounding environment;

Step S104, the wireless network transmission module establishes a wireless network transmission connection with the smart terminal through the wireless network transmission protocol;

Step S105, the intelligent control detection device acquires the detection data of the exercise bike, and sends the detection data and the control command issued by the intelligent control detection device to the wireless network transmission module through a serial port;

Step S106, the smart terminal receives and processes the detection data and the control command through its internal wireless network transmission module.

Step S107, the intelligent terminal sends a reverse control command through its internal wireless network transmission module;

Step S108, the intelligent control detection device receives the reverse control command and adjusts the operating parameters of the exercise bike according to the reverse control command.

In the embodiment of the present invention, the body of the exercise bike is a GB1100 model magnetically controlled exercise bike produced by Ningbo TPV Sports Equipment Co., Ltd., which has the function of adjusting the magnetically controlled resistance.

Wherein, the wireless network transmission module includes a Wi-Fi transmission module and/or a Bluetooth transmission module. Wherein, the wireless network transmission module is pre-integrated into the intelligent control and detection equipment of the exercise bike, specifically including:

Weld the serial port of the wireless network transmission module with the serial port of the intelligent control detection device to realize the integration of the wireless network transmission module.

In the embodiment of the present invention, the wireless network transmission module adopts the ArduinoHC-06 slave wireless wireless network transmission transparent transmission module. The integration of the wireless network transmission module is realized by welding the serial port of the wireless network transmission module and the serial port of the main controller of the intelligent control detection device together. Then pair and establish a wireless network transmission connection, and then transmit wireless transmission through the wireless network to enable the intelligent control detection device and the intelligent terminal to perform control commands and detection data transmission. Wherein, the smart terminal used in the embodiment of the present invention is a Konka smart TV with an Android set-top box and a touch screen. Among them, the control command and detection data transmission protocol between the intelligent control detection equipment and the intelligent terminal is as follows:

Among them, there are four types of control commands sent by the four keys of the key module, including the following four data packet formats:

Button 1:

0x51 data header (1byte) Boolean1(1byte) Checksum (1byte)

Button 2:

Button 3:

Button 4:

Among them, when BooleanX (X=1, 2, 3, 4) = true, it means that the button is pressed; when BooleanX (X = 1, 2, 3, 4) = false, it means that the button is released; Checksum means the checksum ( The same below), the data packet verification method adopted by the transmission protocol is the accumulation and verification method.

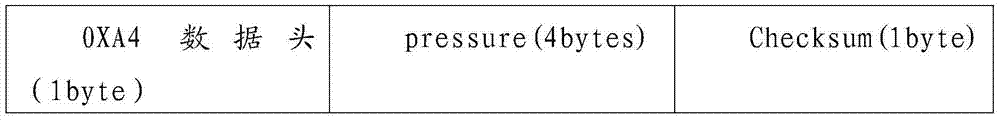

Among them, the detection data includes the running speed of the exercise bike, the accumulated running mileage, the user's heart rate, the ambient temperature, the humidity, and the atmospheric pressure, including the following six data packet formats:

running speed

heart rate

Cumulative mileage

ambient temperature

ambient temperature

Ambient atmospheric pressure

Among them, the intelligent terminal reversely controls the magnetic control resistance of the exercise bike, including two control commands to increase and decrease the magnetic control resistance. The two data packet formats included in the transmission protocol are as follows:

Increase magnetron resistance:

Reduce magnetron resistance:

The above data field indicates the magnetron resistance value to be increased and decreased.

Wherein, the detection data of the exercise bike acquired by the intelligent control detection device is actively sent to the intelligent terminal through the wireless network transmission module at regular intervals;

The control command issued by the intelligent control detection device is sent to the intelligent terminal in real time.

Wherein, the smart terminal receives and processes the detection data and the control command through its internal wireless network transmission module, specifically including:

The corresponding application on the smart terminal processes, displays and stores the received detection data, and executes the control command.

In the embodiment of the present invention, the detection data is regularly and proactively sent. Due to the needs of immersive games, the transmission time interval of the running speed is 300ms, and the transmission time interval of other detection data is 5s; the control command is sent in real time.

In the embodiment of the present invention, the application that can be run on the smart terminal includes a data suspension bar that can be suspended on any application for dynamic display of detection data, immersion in small crocodile parkour, ninja raid, speed boat racing and country racing The game is extremely entertaining and attractive.

The present invention also provides a system for realizing the intelligence of exercise bikes based on wireless network transmission, as shown in Figure 2, the system includes:

Intelligent control and detection equipment 1, intelligent terminal 2 and wireless network transmission modules 31 and 32 placed on the exercise bike;

The intelligent control detection device 1 is used to search for intelligent terminals 2 carrying wireless network signals in the surrounding environment, and establish a wireless network transmission connection between the wireless network transmission module 31 and the intelligent terminal 2; obtain the detection data of the exercise bike, And send the detection data of the exercise bike obtained and the control command sent by it through the serial port;

The intelligent terminal 2 is used to receive and process the detection data of the exercise bike acquired by the intelligent control detection device 1 and the control commands issued by it through its internal wireless network transmission module 32;

The wireless network transmission module 31 is used for forwarding detection data and control commands between the intelligent control detection device 1 and the intelligent terminal 2 .

Wherein, the intelligent control detection device 1 is also used to receive the reverse control command sent by the intelligent terminal 2 and adjust the operating parameters of the exercise bike according to the reverse control command;

The smart terminal 2 is also configured to send a reverse control command to the smart control detection device 1 through its internal wireless network transmission module 32 .

Wherein, the intelligent control detection device 1 is also used to receive the reverse control command sent by the intelligent terminal 2 and adjust the operating parameters of the exercise bike according to the reverse control command;

The smart terminal 2 is also configured to send a reverse control command to the smart control detection device 1 through its internal wireless network transmission module 32 .

Wherein, as shown in FIG. 3 , the intelligent control detection device 1 includes a main controller 11, a speed measurement module 12, a heart rate detection module 13, a button module 14, and a display module 15 for realizing data detection and control operation parameters of an exercise bike , temperature and humidity detection module 16 and atmospheric pressure detection module 17.

As shown in Figure 3, in the embodiment of the present invention, the intelligent control detection device 1 is an interactive entertainment fitness wireless network transmission intelligent device for an exercise bike, including a main controller 11, a speed measurement module 12, and a heart rate detection module 13. A button module 14, a display module 15, a temperature and humidity detection module 16, and an atmospheric pressure detection module 17. Among them, the main controller 11 uses an open-source hardware Arduino Nano3.0 single-chip microcomputer; the speed measurement module 12 uses a through-beam photoelectric sensor, and its main chip is LM393; the heart rate detection module 13 uses two pieces, which are Longxiang TM998 handheld Type heart rate detection module and Longxiang TM999 ear clip type heart rate detection module; button module 14 is matched with Longxiang TM998 hand-held heart rate detection module; display module 15 uses LCD keypad shield Arduino LCD1602 display; temperature and humidity detection module What 16 adopts is the AM2301 temperature and humidity sensor; what the atmospheric pressure detection module 17 adopts is the BMP085 atmospheric pressure sensor.

The beneficial effects brought by the technical solution of the embodiment of the present invention are as follows: the convenience and simplicity of wireless network transmission are used to realize the intelligence of the exercise bike, which enhances the interactivity and entertainment of the exercise process of the exercise bike, and furthermore, to a large extent Improves application durability of exercise bikes.

Through the above description of the embodiments, those skilled in the art can clearly understand that the present invention can be realized by hardware, or by software plus a necessary general hardware platform. Based on this understanding, the technical solution of the present invention can be embodied in the form of software products, which can be stored in a non-volatile storage medium (which can be CD-ROM, U disk, mobile hard disk, etc.), including several The instructions are used to make a computer device (which may be a personal computer, a server, or a network device, etc.) execute the methods described in various embodiments of the present invention.

The above embodiments are only used to illustrate the technical solutions of the present invention rather than limit them, and the present invention is described in detail with reference to preferred embodiments. Those skilled in the art should understand that the technical solutions of the present invention can be modified or equivalently replaced without departing from the spirit and scope of the technical solutions of the present invention, and all should be covered by the claims of the present invention.

Claims (8)

1. realize the intelligentized method of body-building bicycle based on wireless network transmissions for one kind, it is characterized in that, comprise the following steps:

Wireless network transmission module is integrated in advance to the Based Intelligent Control checkout equipment of body-building bicycle;

Create the wireless network transmissions agreement between described Based Intelligent Control checkout equipment and described intelligent terminal;

Carry the intelligent terminal of wireless network signal in described Based Intelligent Control checkout equipment search surrounding environment;

Described wireless network transmission module is set up wireless network transmissions by described wireless network transmissions agreement with described intelligent terminal and is connected;

Described Based Intelligent Control checkout equipment obtains the detection data of described body-building bicycle, and the control command that described detection data and described Based Intelligent Control checkout equipment send is sent to described wireless network transmission module by serial ports;

The described intelligent terminal wireless network transmission module inner by it receives described detection data and described control command and processed.

The described intelligent terminal wireless network transmission module inner by it sends reverse control command;

Described Based Intelligent Control checkout equipment receives described reverse control command, and adjusts the operational factor of body-building bicycle by the magnetic control resistance of controlling body-building bicycle.

2. method according to claim 1, is characterized in that, described wireless network transmission module comprises Wi-Fi transport module and/or Bluetooth transmission module.

3. method according to claim 1, is characterized in that, the described Based Intelligent Control checkout equipment that wireless network transmission module is integrated in advance to body-building bicycle specifically comprises:

The serial ports of the serial ports of wireless network transmission module and Based Intelligent Control checkout equipment is welded together, to realize the integrated of wireless network transmission module.

4. method according to claim 1, is characterized in that, the detection data timing of the described body-building bicycle that described Based Intelligent Control checkout equipment obtains initiatively sends to described intelligent terminal by wireless network transmission module;

The control command that described Based Intelligent Control checkout equipment sends sends to described intelligent terminal in real time.

5. method according to claim 1, is characterized in that, the described intelligent terminal wireless network transmission module inner by it receives described detection data and described control command and processed, and specifically comprises:

The detection data that on described intelligent terminal, corresponding interface applications is received are processed, are shown and stored, and being carried out described control command.

6. realize the intelligentized system of body-building bicycle based on wireless network transmissions for one kind, it is characterized in that, comprising: be placed in Based Intelligent Control checkout equipment, intelligent terminal and wireless network transmission module on body-building bicycle;

Described Based Intelligent Control checkout equipment, for searching for the intelligent terminal that surrounding environment carries wireless network signal, is set up wireless network transmission module and is connected with the wireless network transmissions of described intelligent terminal; Obtain the detection data of described body-building bicycle, and the detection data of the described body-building bicycle obtained and its control command of sending are sent by serial ports;

Described intelligent terminal is for by it, inner wireless network transmission module receives detection data and its control command of sending of the body-building bicycle that described Based Intelligent Control checkout equipment obtains and processed;

Described wireless network transmission module is for forwarding detection data and the control command between described Based Intelligent Control checkout equipment and described intelligent terminal.

7. system according to claim 6, is characterized in that, described Based Intelligent Control checkout equipment is also for the reverse control command that receives described intelligent terminal transmission the operational factor of adjusting body-building bicycle according to described reverse control command; Described intelligent terminal also sends reverse control command to described Based Intelligent Control checkout equipment for the wireless network transmission module inner by it.

8. system according to claim 6, it is characterized in that, described Based Intelligent Control checkout equipment comprise for realize body-building bicycle Data Detection and controlling run parameter master controller, speed measuring module, heart rate detection module, key-press module, display module, humiture detection module and atmospheric pressure detection module.
