Abstract

The invention discloses a fully automatic telescopic focusing flashlight, which comprises a lamp cap, a lamp body and a lamp tail. An optical lens and a luminous body are arranged inside the lamp cap, and a device for changing the distance between the optical lens and the luminous body is arranged inside the lamp body. An electric telescopic focusing device, the illuminant is fixed on the electric telescopic focusing device. It is easy to operate and use, just need to control the operation of the power component through the buttons to change the distance between the optical lens and the illuminant, and then it can easily realize automatic focus adjustment. The device adopts an integrated structure design with strong stability, anti-drop and impact, and can be widely used in special industries, such as military police, security, scientific investigation, night inspection, etc. The invention belongs to the technical field of lighting equipment.

Description

Fully automatic telescopic focusing flashlight

technical field

The invention belongs to the technical field of lighting equipment, and in particular relates to a fully automatic telescopic focusing flashlight which can realize automatic focusing.

Background technique

The flashlights currently on the market only have a single purpose of directional beam lighting at night or in dark places, and the relative position between the lens group and the light source is manually adjusted to adjust the focal length of the light source of the flashlight, thereby realizing long-distance Adjustment effects for lighting (spotlight, high brightness) and close-range lighting (flood, large area). The existing flashlight needs to be manually operated when adjusting the focus, which is very inconvenient and does not meet the increasingly fashionable modern consumer demand.

Contents of the invention

The technical problem to be solved by the present invention is to provide a fully automatic telescopic focusing flashlight which can automatically adjust the distance between the lens and the light source.

The technical scheme adopted by the present invention is: a fully automatic telescopic focusing flashlight, including a lamp cap, a lamp body and a lamp tail, an optical lens and a luminous body are arranged inside the lamp cap, and an optical lens and a luminous body are arranged inside the lamp body for changing the optical lens and emitting light An electric telescopic focus adjustment device for the distance between the light bodies, and the luminous body is fixed on the electric telescopic focus adjustment device.

The electric telescopic focusing device includes a power assembly capable of forward and reverse rotation, a deceleration assembly connected with the power assembly, a rotating screw connected with the deceleration assembly, a motion block screwed with the rotation screw, and a circumferential limit shaft of the motion block The illuminant is fixed on the front end of the moving block; the electric telescopic focus adjustment device also includes a first switch and a second switch for starting the forward rotation and reverse rotation of the power assembly.

The lamp body is provided with a front limit travel switch and a rear limit travel switch along the movement direction of the moving block, the moving block is located between the front limit travel switch and the rear limit travel switch, the front limit travel switch and the rear limit travel switch The rear limit travel switch is electrically connected with the power assembly.

The moving block axially sliding in the lamp body in the circumferential limit means that the inner wall of the lamp body is provided with a chute along the moving direction of the moving block, and the outer side of the moving block is provided with lugs that are slidably fitted in the chute.

There are two or more chutes, and the number of lugs is the same as that of the chutes.

The moving block is a cooling seat.

The heat sink is an aluminum alloy heat sink.

The first switch and the second switch are covered with switch leather caps, and the switch leather caps are installed on the lamp body.

A third switch for turning on or off the power supply of the illuminant is also arranged under the switch leather cap.

The reduction assembly is a gear reduction mechanism.

The beneficial effects of the present invention are: compared with the prior art, the fully automatic telescopic focusing flashlight of the present invention has the advantages of being convenient to operate and use, and only needs to control the operation of the power assembly through the buttons to realize the distance change between the optical lens and the luminous body. Fully automatic focusing is easily achieved. The device adopts an integrated structure design with strong stability, anti-drop and impact, and can be widely used in special industries, such as military police, security, scientific investigation, night inspection, etc.

Description of drawings

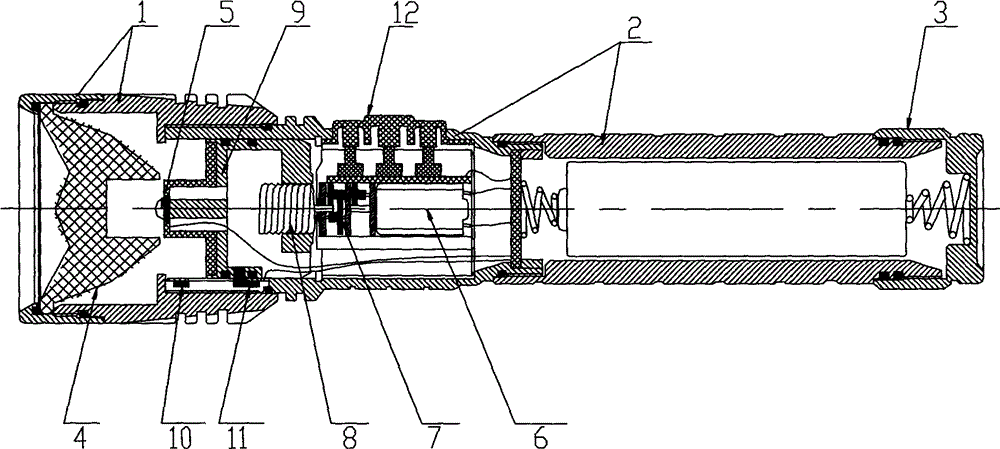

Fig. 1 is a sectional view of the present invention.

Fig. 2 is a top view of the present invention.

Fig. 3 is a schematic cross-sectional view of the diverging state of light in the present invention.

Fig. 4 is a schematic cross-sectional view of the light gathering state of the present invention.

In the figure, 1. lamp head, 2. lamp body, 3. lamp tail, 4. optical lens, 5. light emitting body, 6. power component, 7. deceleration component, 8. rotating screw, 9. moving block, 10. front Limit travel switch, 11, rear limit travel switch, 12, switch leather cap.

Detailed ways

The following are preferred embodiments of the present invention, but they do not limit the protection scope of the present invention.

Referring to Figures 1-4, a fully automatic telescopic focusing flashlight of the present invention includes a lamp cap 1, a lamp body 2 and a lamp tail 3, and an optical lens 4 and a luminous body 5 are arranged inside the lamp cap 1, and the lamp body 2 An electric telescopic focusing device for changing the distance between the optical lens 4 and the illuminant 5 is arranged inside, and the illuminant 5 is fixed on the electric telescopic focusing device. The lamp body 2 is provided with a lithium battery pack. The lamp body 2 of the present invention is divided into two sections, front and rear, which are screwed together, and a sealing ring is provided at the screw joint, an electric telescopic focusing device is installed on the front section of the lamp body 2, a lithium battery pack is installed on the rear section of the lamp body 2, and the lamp body The body is designed for the front and rear ends, mainly to facilitate the installation of the electric telescopic focusing device in the front section, simplify the installation procedure and improve the installation efficiency.

The electric telescopic focusing device includes a power assembly 6 capable of forward and reverse rotation, a deceleration assembly 7 connected to the power assembly 6, a rotary screw 8 connected to the deceleration assembly 7, and a moving block 9 screwed to the rotary screw 8, The moving block 9 axially slides in the lamp body 2 in the circumferential limit, and the luminous body 5 is fixed at the front end of the moving block 9; the electric telescopic focusing device also includes a first switch and a second Two switches. Described rotary screw rod 8 is a plastic part. The rear end of the moving block 9 is provided with a threaded hole, which is matched with the external thread of the rotating screw rod 8 .

The lamp body 2 is provided with a front limit travel switch 10 and a rear limit travel switch 11 along the moving direction of the moving block 9, and the moving block 9 is located between the front limit travel switch 10 and the rear limit travel switch 11. The aforementioned front limit travel switch 10 and rear limit travel switch 11 are electrically connected to the power assembly 6 . When the moving block 9 touches the front limit travel switch 10 or the rear limit travel switch 11, the power supply of the power assembly 6 can be cut off and stop rotating.

Said moving block 9 is limited and axially sliding in the lamp body 2 means that the inner wall of the lamp body 2 is provided with a chute along the moving direction of the moving block 9, and the outer side of the moving block 9 is provided with lugs that are slidably fitted in the chute. . Avoid moving block 9 circumferential rotations.

There are two or more chutes, and the number of lugs is the same as that of the chutes.

The moving block 9 is a cooling seat.

The heat sink is an aluminum alloy heat sink.

The first switch and the second switch are covered with a switch leather cap 12 , and the switch leather cap 12 is installed on the lamp body 2 .

A third switch for turning on or off the power supply of the illuminant 5 is also arranged under the switch leather cap 12 . The third switch is located between the first switch and the second switch.

The reduction assembly 7 is a gear reduction mechanism, and the gears are made of plastic.

The working principle of the present invention is: in conjunction with shown in Fig. 1 and Fig. 2, the button on the switch leather cap 12 has three control buttons, one of which is the switch of the luminous body 5, and the other two are to realize the power assembly 6 (motor) Forward and reverse switch. When the button (the first switch) located at the front end of the switch leather cap 12 is pressed, the power assembly 6 (motor) rotates, and after deceleration, the rotating screw 8 drives the moving block 9 to move forward (left as shown in the figure) to drive light The body 5 moves forward, so that the distance between the luminous body 5 and the optical lens 4 becomes closer, and the light rays diverge; when the moving body 9 moves forward and touches the front limit travel switch 10, the signal is transmitted to the main control electronics of the system component, cut off the power supply of the power assembly 6 (motor), the power assembly 6 stops rotating, and the astigmatism focusing is completed, as shown in FIG. 3 . When the button (second switch) located at the rear end of the switch leather cap 12 is pressed, the power assembly 6 (motor) rotates, and after deceleration, the rotating screw 8 drives the moving block 9 to move backward (right as shown in the figure) to drive light The body 5 moves backward, so that the distance between the luminous body 5 and the optical lens 4 is variable, and the light is gathered; when the moving body 9 moves backward and touches the rear limit travel switch 11, the signal is transmitted to the main control electronics of the system component, cut off the power supply of the power assembly 6 (motor), the power assembly 6 stops rotating, and the focus adjustment is completed, as shown in FIG. 4 .

Claims (10)

1. full-automatic flexible focus flashlight, comprise lamp holder (1), lamp body (2) and lamp tail (3), lamp holder (1) inside is provided with optical lens (4) and illuminator (5), it is characterized in that: described lamp body (2) inside is provided with for the electric expansion focus control that changes distance between optical lens (4) and the illuminator (5), and described illuminator (5) is fixed on the electric expansion focus control.

2. full-automatic flexible focus flashlight according to claim 1, it is characterized in that: described electric expansion focus control comprises the Power Component (6) that can realize rotating, the deceleration assembly (7) that links to each other with Power Component (6), the rotary screw (8) that links to each other with deceleration assembly (7), the moving mass (9) that is spirally connected with rotary screw (8), moving mass (9) is spacing endwisely slipping in lamp body (2) circumferentially, and illuminator (5) is fixed on moving mass (9) front end; The electric expansion focus control also comprises for starting first switch and the second switch that Power Component (6) rotates and reverse.

3. full-automatic flexible focus flashlight according to claim 2, it is characterized in that: be provided with front limit travel switch (10) and back limitation travel switch (11) along moving mass (9) direction of motion in the described lamp body (2), moving mass (9) is positioned between front limit travel switch (10) and the back limitation travel switch (11), and described front limit travel switch (10) and back limitation travel switch (11) are electrically connected with Power Component (6).

4. full-automatic flexible focus flashlight according to claim 3, it is characterized in that: described moving mass (9) circumferentially spacing endwisely slipping refers to that in lamp body (2) lamp body (2) inwall is provided with chute along moving mass (9) direction of motion, and moving mass (9) outside is provided with the lug of sliding fit in chute.

5. full-automatic flexible focus flashlight according to claim 4, it is characterized in that: described chute is more than two or two, and described lug is consistent with chute quantity.

6. full-automatic flexible focus flashlight according to claim 2, it is characterized in that: described moving mass (9) is radiating seat.

7. full-automatic flexible focus flashlight according to claim 6, it is characterized in that: described radiating seat is the aluminium alloy radiating seat.

8. full-automatic flexible focus flashlight according to claim 2, it is characterized in that: described first switch and second switch are covered with switch fur cap (12), and switch fur cap (12) is installed on the lamp body (2).

9. full-automatic flexible focus flashlight according to claim 8 is characterized in that: also be provided with the 3rd switch of opening or closing described illuminator (5) power supply under the described switch fur cap (12).

10. full-automatic flexible focus flashlight according to claim 1, it is characterized in that: described deceleration assembly (7) is gear reduction.
