CN103142545B - Enteric capsule of etoposide - Google Patents

Enteric capsule of etoposide Download PDF

Info

Publication number
CN103142545B
CN103142545B CN201310092501.2A CN201310092501A CN103142545B CN 103142545 B CN103142545 B CN 103142545B CN 201310092501 A CN201310092501 A CN 201310092501A CN 103142545 B CN103142545 B CN 103142545B
Authority
CN
China
Prior art keywords
etoposide
clathrate
cyclodextrin
hydroxypropylβ
enteric coated
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Active
Application number
CN201310092501.2A
Other languages
Chinese (zh)
Other versions
CN103142545A (en
Inventor
王明刚
陈阳生
任莉
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Qingdao Guoxin Pharmaceutical Co ltd
Original Assignee
Qingdao Chia Tai Haier Pharmaceutical Co Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Qingdao Chia Tai Haier Pharmaceutical Co Ltd filed Critical Qingdao Chia Tai Haier Pharmaceutical Co Ltd
Priority to CN201310092501.2A priority Critical patent/CN103142545B/en
Publication of CN103142545A publication Critical patent/CN103142545A/en
Application granted granted Critical
Publication of CN103142545B publication Critical patent/CN103142545B/en
Active legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Landscapes

  • Medicinal Preparation (AREA)

Abstract

The invention relates to an enteric capsule of etoposide. The etoposide is prepared into an inclusion compound, and then the inclusion compound is prepared into the enteric capsule.

Description

A kind of etoposide enteric coated capsule
Technical field
The application relates to a kind of enteric coated capsule, particularly, is etoposide clathrate enteric coated capsule.
Background technology
Etoposide (etoposide) is the carbohydrate metabolism product of podophyllotoxin (podophyllotoxin), belongs to cell cycle specific antitumor drug, is mainly used in treating small cell lung cancer, lymphatic cancer etc.But the absolute bioavailability of etoposide oral formulations only has 25%~75%.The poorly water-soluble of etoposide and to be decomposed into non-activity product in acid medium be the main cause that causes its oral formulations bioavailability low.
Etoposide mainly contains the dosage forms such as tablet, capsule, injection at present for clinical, and these dosage forms are poor at gastrointestinal tract dissolution, and bioavailability is not high.CN101259100A discloses a kind of etoposide preparations, wherein etoposide is prepared into phosphatide complexes, and then is prepared into the multiple dosage form such as tablet, capsule.But this preparation cost is high, bioavailability is low, can not be advantageously applied to clinical.
Summary of the invention
The present invention, in order to solve the low shortcoming of existing etoposide preparations bioavailability, has invented etoposide clathrate enteric coated capsule.
Clathrate has the following advantages: cover bad stink, reduce zest; Increase drug dissolution and bioavailability; Improve medicine stability.
Applicant finds, now etoposide is prepared into clathrate, then is prepared into enteric coated capsule in conjunction with specific adjuvant, has advantages of that stability is high, disintegration rate is fast and bioavailability is high.
The application provides a kind of enteric coated capsule of etoposide, comprising:
Etoposide clathrate comprises active component and enclose material, and active component is etoposide, and enclose material is hydroxypropylβ-cyclodextrin.The part by weight of active component and enclose material is 3:1-1:3, preferably 1:2.Experiment showed, alpha-cyclodextrin, beta-schardinger dextrin-, the clathrate that the etoposide clathrate that hydroxyl beta-schardinger dextrin-prepares prepares inferior to hydroxypropylβ-cyclodextrin in aspect effects such as disintegration rate, stability, dissolutions far away.
The impact of different enclose materials on etoposide clathrate
Enclose material Dissolution velocity (min) Stability Inclusion rate
Alpha-cyclodextrin 12 Generally 80%
Beta-schardinger dextrin- 14 Generally 82%
Hydroxyl beta-schardinger dextrin- 12 Generally 78%
Hydroxypropylβ-cyclodextrin 5 Good 93%
Test method is with reference to the method for two regulations of 2010 editions Chinese Pharmacopoeias.
In this application, select specific adjuvant to prepare etoposide clathrate enteric coated capsule.Wherein said diluent is the compositions of lactose and microcrystalline Cellulose, the two part by weight is 7.3:2.5, lubricant is the compositions of polyvinylpolypyrrolidone and magnesium stearate, the two part by weight is 1.5:5.5, enteric coating material is the compositions of HP-55 and CAP, and the two part by weight is 1:5.Experimental results show that, be not that the conventional adjuvant of any pharmacy is all applicable to preparing etoposide clathrate enteric coated capsule, select the etoposide clathrate enteric coated capsule that this specific adjuvant prepares to be better than in the effect of the aspects such as dissolution velocity, stability, dissolution the etoposide clathrate enteric coated capsule that other adjuvants prepare far away.
The preparation method of etoposide clathrate comprises:
(1) in water or aquiferous ethanol medium, by a certain percentage, etoposide is reacted with hydroxypropylβ-cyclodextrin, gained solution, through extremely clarification of filtering with microporous membrane, is isolated to clathrate from mixture; Or
(2), with solid form, etoposide is reacted with hydroxypropylβ-cyclodextrin; Or
(3) etoposide reacts with hydroxypropylβ-cyclodextrin and carries out high energy milling.
Metering of the present invention is weight.
Preferably, the prescription of enteric coated capsule is (by weight):
Figure BDA00002946609800031
The preparation method of capsule: etoposide clathrate was pulverized to 100 mesh sieves, all the other adjuvants were pulverized to 80 mesh sieves; Accurately take the supplementary material of recipe quantity, mix homogeneously, adds suitable quantity of water mixture furnishing paste is granulated on granulator, 18 mesh sieve granulate, and 60 ℃ are dry, pack the granule making into hungry area softgel shell.
Embodiment 1 writes out a prescription
Etoposide clathrate: etoposide: hydroxypropylβ-cyclodextrin is 1:2
Preparation method:
1. prepare by the following method etoposide clathrate:
(1) in water or aquiferous ethanol medium, by a certain percentage, etoposide is reacted with hydroxypropylβ-cyclodextrin, gained solution, through extremely clarification of filtering with microporous membrane, is isolated to clathrate from mixture; Or
(2), with solid form, etoposide is reacted with hydroxypropylβ-cyclodextrin; Or
(3) etoposide reacts with hydroxypropylβ-cyclodextrin and carries out high energy milling.
2. etoposide clathrate was pulverized to 100 mesh sieves, all the other adjuvants were pulverized to 80 mesh sieves; Accurately take the supplementary material of recipe quantity, mix homogeneously, adds suitable quantity of water mixture furnishing paste is granulated on granulator, 18 mesh sieve granulate, and 60 ℃ are dry, pack the granule making into hungry area softgel shell.
Embodiment 2 writes out a prescription
Etoposide clathrate: etoposide: hydroxypropylβ-cyclodextrin is 1:2

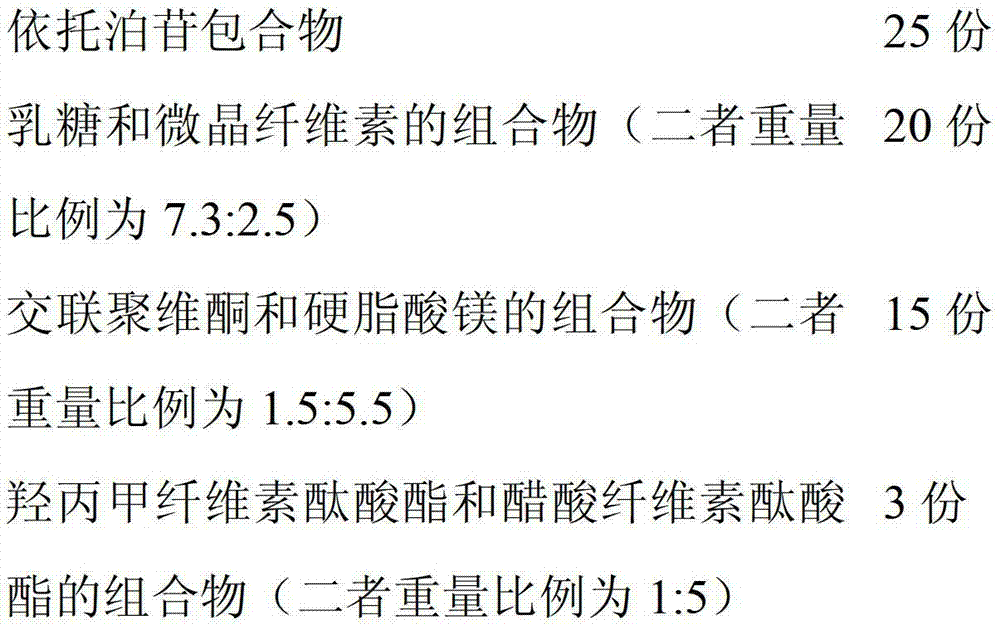

Figure BDA00002946609800041
Preparation method is the same.
Embodiment 3
Etoposide described in embodiment 1 and hydroxypropylβ-cyclodextrin are fully ground to and form even mastic in 50% ethanol, after vacuum drying white powder, in the water of this powder solubility property more not the etoposide of enclose improved 12 times.
Comparative example 1
Etoposide clathrate: etoposide: hydroxypropylβ-cyclodextrin is 1:2
Figure BDA00002946609800042

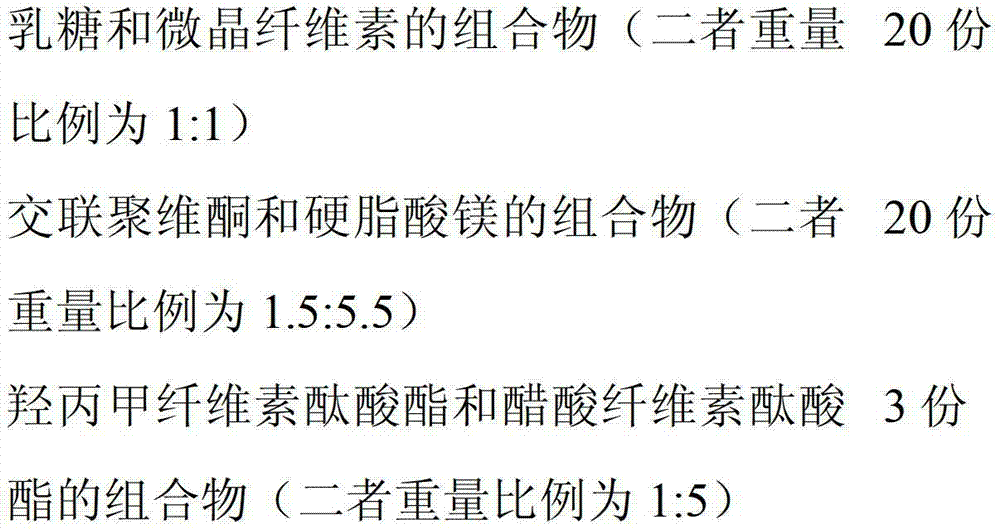

Figure BDA00002946609800051
Preparation method is the same.
Comparative example 2
Etoposide clathrate: etoposide: hydroxypropylβ-cyclodextrin is 1:2

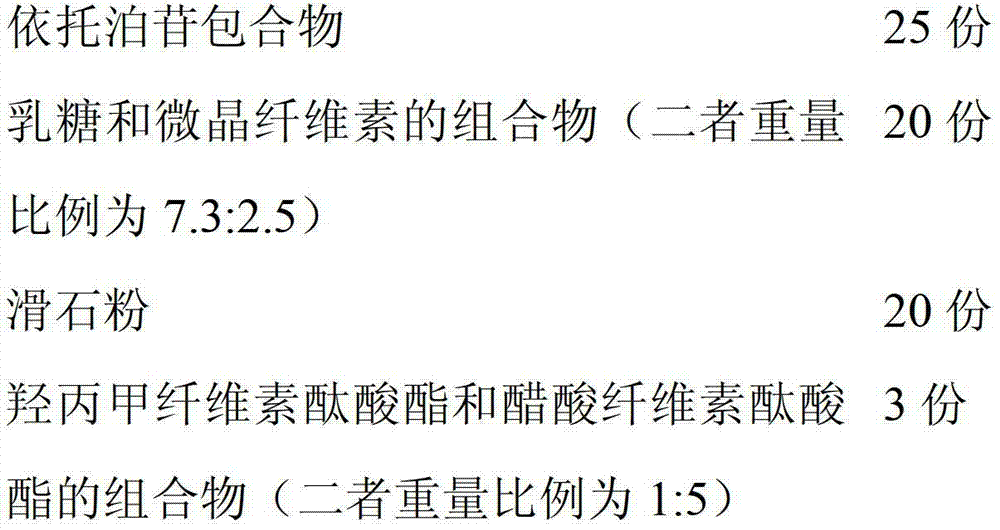

Figure BDA00002946609800052
Preparation method is the same.
Comparative example 3
Etoposide clathrate: etoposide: hydroxypropylβ-cyclodextrin is 1:2

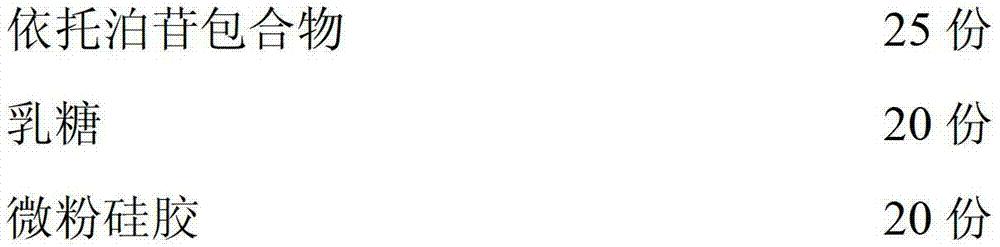

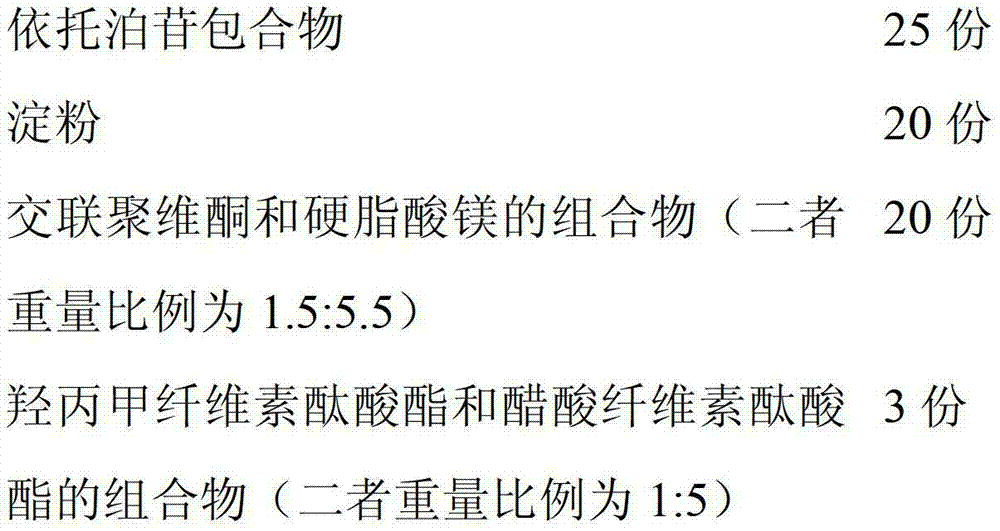

Figure BDA00002946609800053
Preparation method is the same.
Comparative example 4
Etoposide clathrate: etoposide: hydroxypropylβ-cyclodextrin is 1:2
Figure BDA00002946609800061
Preparation method is the same.
Comparative example 5
Etoposide clathrate: etoposide: hydroxypropylβ-cyclodextrin is 1:2
Figure BDA00002946609800062
Preparation method is the same.
Comparative example 6
Etoposide clathrate: etoposide: hydroxypropylβ-cyclodextrin is 1:2
Figure BDA00002946609800063

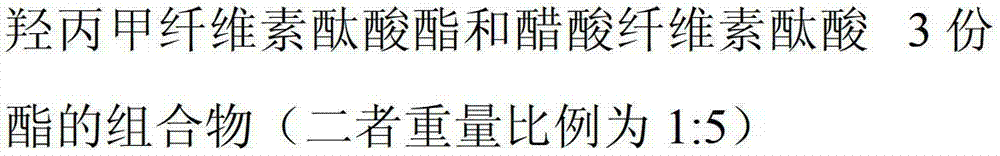

Figure BDA00002946609800071
Preparation method is the same.
The impact of different enteric coating materials on etoposide enteric coated capsule
Test method: the etoposide enteric coated capsule that different enteric coating materials are prepared is measured dissolution rate respectively in simulated gastric fluid environment and simulation intestinal environment.The results are shown in Table 1.
Prescription:
Etoposide clathrate: etoposide: hydroxypropylβ-cyclodextrin is 1:2

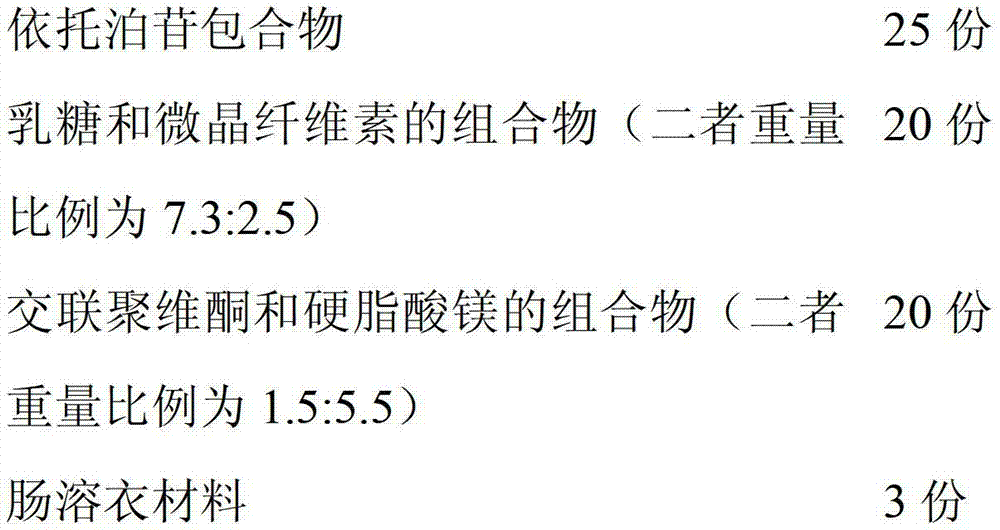

Figure BDA00002946609800072
Table 1
Figure BDA00002946609800073
Can be found out by table 1 data, only have and adopt the compositions of HP-55 and CAP almost insoluble in simulated gastric fluid environment as group 1 enteric coated capsule (being embodiment 1) of enteric coating material, almost all strippings in simulation intestinal environment; And the enteric coated capsule that other enteric coating materials prepare dissolution rate in simulated gastric fluid environment is larger, can not make capsule safety stomach and to intestinal disintegrate again.Therefore, what the application's enteric coated capsule adopted is specific enteric coating adjuvant, and the enteric coating adjuvant of other types is not suitable for being prepared into etoposide clathrate enteric coated capsule.
Etoposide enteric coated capsule stability test
Outward appearance, dissolution, content and the dissolution time of the enteric coated capsule to embodiment 1,2 and comparative example 1-6 have carried out factors influencing.
(1) hot test: get embodiment 1,2 and comparative example 1-6 sample is laid in culture dish in right amount, the calorstat that is placed in 60 ℃ is placed 10 days, during this 0th, 5,10 days, taking sample determination respectively, measurement result is in table 2.
(2) high wet test: sample thief is laid in culture dish is in right amount placed 10 days under the condition of 25 ℃ of relative humidity RH90% ± 5%, and during this 0th, 5,10 days, taking sample determination respectively, measurement result is in table 2.
(3) strong illumination test, sample thief is laid in culture dish in right amount, is placed in light cupboard the condition illumination of 4500Lx ± 500Lx 10 days, and during this 0th, 5,10 days, taking sample determination respectively, measurement result is in table 2.
Hot and humid and the high light stability inferior of the each embodiment enteric coated capsule of table 2.
Figure BDA00002946609800081
Figure BDA00002946609800091
Figure BDA00002946609800101
The diluent type of selecting in comparative example 1 does not change, but in the compositions of lactose and microcrystalline Cellulose, the part by weight of the two changes, the lubricant type of selecting in comparative example 2 does not change, but in the compositions of polyvinylpolypyrrolidone and magnesium stearate, the part by weight of the two changes, in comparative example 3, diluent changes to starch, comparative example's 4 lubricants change to single polyvinylpolypyrrolidone, in comparative example 5, lubricant changes to Pulvis Talci, in comparative example 6, diluent changes to lactose, lubricant changes to micropowder silica gel.Experimental data by table 2 can be found out, in the identical situation of each composition consumption, no matter be that change has occurred adjuvant type, or adjuvant type does not change but has changed the usage ratio of component, and the stability of the etoposide enteric coated capsule preparing (comparative example 1-6) all significantly reduces with respect to embodiment 1,2.

Claims (1)

1. an etoposide enteric coated capsule, is characterized in that: comprise following weight portion composition:

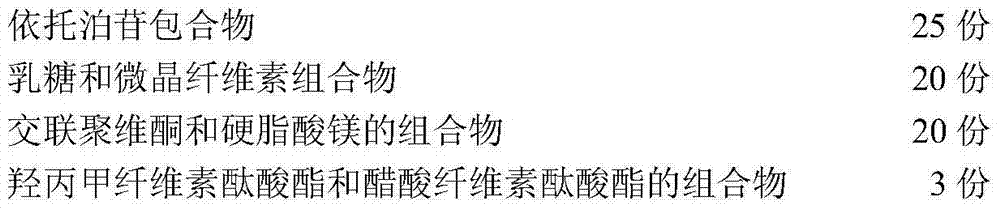

Figure FDA0000471918320000011
The two part by weight of described lactose and microcrystalline Cellulose is 7.3:2.5, the two part by weight of described polyvinylpolypyrrolidone and magnesium stearate is 1.5:5.5, the two part by weight of described HP-55 and CAP is 1:5, wherein etoposide in etoposide clathrate: hydroxypropylβ-cyclodextrin weight ratio is 1:2.
