Abstract
The invention discloses a cleaning composition which can endow the surface of a substrate with hydrophilicity. The composition includes: 0.0001-5wt% of at least one water-soluble high molecular compound selected from the group composed of polyvinyl alcohol, polyethylene glycol (PEG), cellulose, polyacrylic acid (PAA), polyethyloxazoline and polyvinylpyrrolidone; 0.01-5wt% of a polyol compound; 0.05-10wt% of quaternary ammonium hydroxide; 0.05-40wt% of a glycol ether-based solvent expressed by the following molecular formula; and the balance water.
Description
Technical field
The present invention relates to a kind of cleaning combination, more specifically, relate to a kind of for such as liquid-crystal display, plasma display, the cleaning combination of the flat-panel monitor of flexible display and similar indicating meter (being referred to as hereinafter, " FPDs ").
Background technology
FPDs, its representative instance are liquid-crystal display (LCDs), be to form by film, and exposure, the same technique of etching and the like and semiconductor device is made.But in these techniques, the various organic or inorganic particulate with 1 μ m or following size is attached to the surface of substrate, thereby causes the pollution of substrate.When adhering to particle on it and carry out subsequently technique, form pin hole or hole at film, and rupture of line or bridge joint, thereby reduce product yield.Therefore, in order to remove these particles, implement cleaning, thereby develop various clean-out systems.
The ability of removing the organic or inorganic particulate of these clean-out systems must be excellent, and they must not corrode substrate or made by aluminium, aluminium alloy, copper, copper alloy or analogue and be formed at metal wire on the substrate.In addition, in order easily to implement technique subsequently, need these clean-out systems to improve the coating performance that cleans metacoxa.
Korean patent registration No. 10-0305314 discloses and has a kind ofly comprised the alkaline aqueous solution of metal ion not and have 2 to 10 hydroxyl (clean-out systems of poly-hydroxy group OH).But, because this clean-out system does not comprise the organic solvent such as glycol ether, so the problem that exists is it does not have enough abilities of removing such as the organic pollutant of oil and analogue thereof, and it can not fully demonstrate and gives substrate surface hydrophilic effect after cleaning.
In addition, Korean patent registration No. 10-073052 discloses a kind of glycol ether that comprises, the clean-out system of water-miscible organic solvent and ammonium compound.Yet, this clean-out system can be favourable by effectively using removing the photo-resist process aspect at it, but do not give aspect the substrate surface wetting ability and a large amount of organic solvent residuals is problematic aspect on substrate at it, thereby increased the surface contact angle of substrate.
In addition, Korean patent registration No. 10-0522845 discloses a kind of clean-out system, comprising: at least a dissolution accelerator that is selected from amine and fluorochemical; With water-soluble high-molecular compound such as polyvinylpyrrolidone.But this clean-out system also has problem, the fluoride corrosion that silicon-based glass substrate or silicon nitride film are added, and metal such as copper also are corroded.
Summary of the invention
Therefore, found out the present invention to address the above problem, the purpose of this invention is to provide a kind of clean-out system, it has removes pollution glass substrate or the organic pollutant of metallic membrane or the excellent ability of particle in making FPD substrate process process, it has and prevents the excellent ability that is corroded by the metal wire that aluminium, aluminium alloy, copper, copper alloy or analogue are made, and it has and gives the substrate surface wetting ability to improve the excellent ability of the coating performance that cleans metacoxa.
In order to finish above purpose, one aspect of the present invention provides a kind of cleaning combination that can give the surface hydrophilicity of substrate, comprise: based on total composition, 0.0001～5wt% is selected from least a water-soluble high-molecular compound in the group that is comprised of polyvinyl alcohol, polyoxyethylene glycol (PEG), Mierocrystalline cellulose, polyacrylic acid (PAA), PEOz and polyvinylpyrrolidone; 0.01 the polyol compound of～5wt%; 0.05 the quaternary ammonium hydroxide of～10wt%; 0.05 the ethylene glycol ether organic solvent by following molecular formula 1 expression of～40wt%; With remaining water.

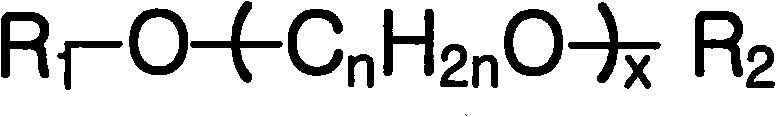

Molecular formula 1
R wherein
1Methyl or ethyl, R
2Be hydrogen atom, n is 2 to 5 integer, and x is 1 to 5 integer.
Another aspect of the present invention provides a kind of manufacturing to be used for the method for the array substrate of liquid-crystal display, comprises the step of using described cleaning combination cleaning base plate.
Description of drawings
To more clearly understand above and other purpose of the present invention by following detailed description by reference to the accompanying drawings, feature and advantage, wherein:
Fig. 1 has shown to use the cleaning combination of embodiment according to the present invention 16 to remove the result's of oil pen's pollutent photo from substrate;
Fig. 2 has shown to be used for assessing organic membrane to the ink-jet printer synoptic diagram of the coating ability of the substrate that cleaned by cleaning combination of the present invention;
Fig. 3 has shown that the assessment organic membrane is to the synoptic diagram of the method for the coating ability of the substrate that cleaned by cleaning combination of the present invention.
Embodiment
Hereinafter, explain with reference to the accompanying drawings preferred embodiment of the present invention.
The invention provides a kind of cleaning combination that can give the surface hydrophilicity of substrate, comprise: based on total composition, (a) 0.0001～5wt%'s is selected from least a water-soluble high-molecular compound in the group that is comprised of polyvinyl alcohol, polyoxyethylene glycol (PEG), Mierocrystalline cellulose, polyacrylic acid (PAA), PEOz and polyvinylpyrrolidone; (b) polyol compound of 0.01～5wt%; (c) quaternary ammonium hydroxide of 0.05～10wt%; (d) the ethylene glycol ether organic solvent by following molecular formula 1 expression of 0.05～40wt%; (e) remaining water.
Molecular formula 1
R wherein
1Methyl or ethyl, R
2Being that hydrogen is former gives, and n is 2 to 5 integer, and x is 1 to 5 integer.
Cleaning combination of the present invention is characterised in that it has the excellent ability of cleaning base plate, with since it comprise an amount of above water-soluble high-molecular compound, so it has the substrate surface of giving wetting ability, thus the excellent ability of the coating performance of the substrate after raising is cleaned.
Hereinafter, describe the composition of cleaning combination of the present invention in detail.
(a) water-soluble high-molecular compound
Cleaning combination of the present invention comprises at least a water-soluble high-molecular compound that is selected from the group that is comprised of polyvinyl alcohol, polyoxyethylene glycol (PEG), Mierocrystalline cellulose, polyacrylic acid (PAA), PEOz and polyvinylpyrrolidone.
Water-soluble high-molecular compound has high water-soluble, with insulating film, copper film, the water repellent surface improvement of tin-copper alloy film WU or similar film is hydrophilic surface, in technique subsequently, advantageously to utilize its hydrophilic surface, such as the photo-resist coating, use organic coating of polyimide and analogue thereof, metal film deposition, and similar technique.
Based on total composition, the amount of the water-soluble high-molecular compound that comprises is preferred, 0.0001～5wt%, more preferably 0.001～2wt%.When the amount of water-soluble high-molecular compound was less than 0.0001wt%, the problem of existence was that the hydrophilic ability of substrate surface of giving of cleaning combination significantly reduces.And, when its amount is higher than 5wt%, the problem that exists is that the viscosity of cleaning combination increases, therefore produce too much bubble, workability is worsened, with the surface adsorption increase of cleaning combination, so cleaning combination remains in the surface of substrate, thereby causes that water-soluble high-molecular compound remains in the substrate in cleaning.
(b) polyol compound
In cleaning combination of the present invention, polyol compound plays by increasing the wetting capacity of substrate surface, improve cleaning combination and remove the effect of the ability (cleansing power) of oiliness composition from substrate surface, and play deliquescent effect in the raising cleaning combination water.
Based on the total amount of composition, the amount of the polyol compound that comprises is 0.01～5wt%, preferred 0.1～3wt%.When the amount of polyol compound was less than 0.01wt%, it is not enough that the moistening ability of glass baseplate surface of giving of cleaning combination becomes.When its amount surpassed 5wt%, the effect of giving wetting capacity no longer increased, and it is inefficient.
The example of polyol compound can comprise ethylene glycol, propylene glycol, 1, ammediol, 1,2-butyleneglycol, 1,3-butyleneglycol, 2,3-butyleneglycol, 1,4-butyleneglycol, 2-methyl isophthalic acid, ammediol, glycerine, trimethylolethane, TriMethylolPropane(TMP), tetramethylolmethane, Xylitol, N.F,USP MANNITOL, sorbyl alcohol, erythritol, Pentitol, threitol, the pure and mild talitol of pectinose.These examples can use separately or two kinds or above being combined with.
(c) quaternary ammonium hydroxide
Cleaning combination of the present invention comprises the quaternary ammonium hydroxide by following molecular formula 2 expressions:
Molecular formula 2
[N-(R
3)
4]
+·OH
-
R wherein
3That carbon atom is 1 to 5 alkyl.
Because quaternary ammonium hydroxide has high alkalescence, it is converted into low molecular compound and increases separability by the organic compound with polymer organic pollutant or oil-containing, plays a part to improve cleansing power.
Based on the total amount of composition, the amount of the quaternary ammonium hydroxide that comprises is 0.05～10wt%, preferred 0.1～5wt%.When the amount of quaternary ammonium hydroxide is less than 0.05wt%, be difficult for removing the particle or the organic pollutant that are attached on the substrate.When its amount surpassed 10wt%, cleaning performance no longer increased, and was uneconomic therefore, and caused environmental problem.
The example of quaternary ammonium hydroxide can comprise tetramethylammonium hydroxide, tetraethylammonium hydroxide, hydroxide tetrapropylammonium, and tetrabutylammonium hydroxide.Wherein, preferably use tetramethylammonium hydroxide (being referred to as hereinafter, " TMAH ").These examples can be separately or two kinds or above being combined with.
(d) ethylene glycol ether organic solvent
Cleaning combination of the present invention comprises the ethylene glycol ether organic solvent by following molecular formula 1 expression.
Molecular formula 1
R wherein
1Methyl or ethyl, R
2Be hydrogen atom, n is 2 to 5 integer, and x is 1 to 5 integer.
Example by the ethylene glycol ether organic solvent of above molecular formula 1 expression can comprise ethylene glycol monomethyl ether (MG), diethylene glycol monomethyl ether (MDG), diethylene glycol monoethyl ether (Trivalin SF), ethylene glycol monoethyl ether (EG), Triethylene glycol ethyl ether (ETG), triethylene glycol monomethyl ether (MTG), DPE (MFDG), propylene glycol monomethyl ether (MFG).These examples can be separately or two kinds or above being combined with.
Based on the total amount of composition, the amount of the ethylene glycol ether organic solvent that comprises is 0.05～40wt%, preferred 0.5～20wt%.When the amount of ethylene glycol ether organic solvent is less than 0.05wt%, can not expect to increase the solvability of organic pollutant in organic solvent.When its amount surpassed 40wt%, the effect that increases owing to wetting capacity no longer increased.
(e) water
The water that uses among the present invention can be deionized water, but is not particularly limited.More preferably, the deionized water with 18M Ω/cm or higher ratio resistance can be used as water and uses, and the ratio resistance of water represents the degree that ion has been removed from water.
Use the technique of cleaning combination cleaning base plate of the present invention to implement by usually known method.Usually the example of known method can comprise spray, and rotation is soaked, and ultrasonic wave is soaked and similar approach.Cleaning combination of the present invention is at 20～80 ℃, and preferred 20～50 ℃ temperature has shown the most excellent cleaning performance, uses cleaning combination of the present invention, and implementing cleaning base plate technique was preferred in 30 seconds～10 minutes.
Hereinafter, illustrate in greater detail the present invention according to following example.But following example just is used for explaining of the present invention, and scope of the present invention is not limited.Following example can be within the scope of the invention by those skilled in the art's change and modification.
Example 1 to 16 and comparison example 1 to 5: the preparation of cleaning combination
Cleaning combination is by mixing the component that provides in the following table 1 with corresponding ratio of components in being equipped with the mixing section of agitator, and then at room temperature stir the mixture with the speed of rotation of 500rpm prepared in 1 hour.
Table 1
Explain
1): polyvinyl alcohol
2): polyvinylpyrrolidone
3): PEOz
A): ethylene glycol
B): glycerine
C): N.F,USP MANNITOL
TMAH: tetramethylammonium hydroxide
TEAH: tetraethylammonium hydroxide
EG: ethylene glycol monoethyl ether
MG: ethylene glycol monomethyl ether
EDG: diethylene glycol monoethyl ether
MDG: diethylene glycol monomethyl ether
MTG: triethylene glycol monomethyl ether
Test examples: the assessment of removing particle and organic pollutant ability
For the ability of removing particle and organic pollutant of the cleaning combination of assessing preparation, carried out following test.
1)
Remove the assessment of air pollutant ability
Example 1 to 16 and comparison example 1 to 5 each prepared cleaning combination 100ml are put into the beaker of a 250ml.In order to assess the ability of removing air pollutant, glass substrate with each 5cmx5cm size, insulating film (SiNx: silicon nitride) substrate and copper base, in air, placed 3 days, so that it is contaminated, at room temperature contaminated substrate was washed 1 minute with cleaning combination respectively with Spray-cleaning Machine.Afterwards, further with ultrapure water washing washed substrate 30 seconds originally, then use nitrogen drying.
The ability of removing air pollutant of each cleaning combination be by the washing before and after contact angle reduce assess, its result provides in following table 2.
2) remove the assessment of fingerprint pollution thing ability
In order to assess the ability of removing the fingerprint pollution thing, pollute with the glass substrate of fingerprint with the 2cmx5cm size, at room temperature contaminated glass substrate was washed 1 minute with cleaning combination with Spray-cleaning Machine.Afterwards, further with ultrapure water washing washed glass substrate 30 seconds originally, then use nitrogen drying.
The situation that the fingerprint pollution thing is removed represents that with zero the situation that the fingerprint pollution thing is not removed represents with X.Its result provides in following table 2.
Table 2
Explain)
Remove the assessment of air pollutant ability from glass substrate
◎: excellent (reducing 30 ° or larger)
Zero: good (reduce 20 or larger～be less than 30 °)
△: not enough (reduce 5 or larger～be less than 20 °)
X: poor (minimizing is less than 5 °)
Clump insulating film substrate and copper base are removed the assessment of air pollutant ability
◎: excellent (reducing 15 ° or larger)
Zero: good (reduce 10 or larger～be less than 15 °)
△: not enough (reduce 0 or larger～be less than 10 °)
X: poor (minimizing is less than 0 °)
From the test-results that upper table 2 provides, can determine that all cleaning combinations of example 1 to 16 have shown the excellent ability of removing pollutent.Yet can determine that in the cleaning combination of comparison example 1 to 5 each does not comprise water-soluble high-molecular compound, polyol compound, any in basic cpd and the ethylene glycol ether organic solvent shown low-down ability of removing pollutent.
3) remove the assessment of oil pen's pollutent ability
For assess remove organic pollutant ability, the glass substrate of a 2cmx5cm size is polluted with the oil pen, with Spray-cleaning Machine at room temperature with the glass substrate that pollutes with example 3,4,9,12,14 and 16, and each cleaning combination of comparison example 1 and 3 washed 1 minute.Afterwards, then the glass substrate that further originally is washed with ultrapure water washing 30 seconds uses nitrogen drying.
Situation about being removed when oil pen's pollutent represents that with zero situation about not being removed when oil pen's pollutent represents with X.Its result provides in following table 3.And the result of the ability of removing oil pen's pollutent of the cleaning combination of example 16 is illustrated among Fig. 1.
4) assessment of polyimide solution coating performance
For organic membrane after being evaluated at the washing substrate to the coating performance of substrate surface, glass substrate with each 5cmx5cm size, (SiNx: silicon nitride) substrate and copper base are at room temperature used respectively example 3 to insulating film substrate, 4,9,12 and 14 and the cleaning combination of comparison example 1 and 3 use the Spray-cleaning Machine washing.
As shown in Figure 2, use the coating performance of spray ink Printing machine and polyimide China ink assessment organic membrane.Namely use the spray ink Printing machine with the polyimide ink droplet to substrate 10, this spray ink Printing machine is equipped with the stamp pad 11 of having placed substrate 10 on it, comprise most nozzles 13 and be used for ink-jet printer 14 to the ink supply parts 15 of ink-jet printer 14 ink supply, form thus drop 12.The ability of utilizing ink-jet printer 14 usefulness polyimide solutions to be applied to substrate is to drip to the diameter 16 (referring to Fig. 3) that 10 skins on the substrate 10 rise drop with regular interval and assess by measuring.In the assessment of polyimide solution to the coating performance of substrate 10, when surpassing the situation of 100 μ m, the diameter of the drop on dripping to substrate 10 represents (well) with zero, when its diameter is the situation of 100～80 μ m, represent (generally) with △, and represent (poor) with X during less than the situation of 80 μ m when its diameter.
Table 3
From the test-results that upper table 3 provides, can determine example 3,4, all cleaning combinations of 9,12 and 14 have shown excellent ability and the excellent polyimide film coating performance of removing oil pen's pollutent.Yet, can determine the cleaning combination of each comparison example that does not comprise water-soluble high-molecular compound 1 and 3, shown and removed the poor ability of oil pen's pollutent and poor polyimide film coating performance.
As mentioned above, cleaning combination of the present invention has from being used for the glass substrate of FPDs, and insulating film or by copper is removed the excellent ability of organic pollutant or particle on the metallic membrane that copper alloy or analogue are made.And this cleaning combination has and prevents by aluminium, aluminium alloy, and copper, that copper alloy or analogue are made and be formed at the excellent ability that the metal wire on the substrate is corroded.And this cleaning combination has the substrate surface of giving wetting ability, thereby improves the excellent ability of the coating performance of the substrate after cleaning.In addition, this cleaning combination is owing to comprise a large amount of water, so can easily be processed and environmentally friendly.
Although disclose for illustrative purposes preferred embodiment of the present invention, it will be understood by those skilled in the art that not breaking away from such as appended claim under the disclosed scope and spirit of the present invention, carry out various modifications, add, and replacement is possible.
Claims (5)
1. the cleaning combination that can give the surface hydrophilicity of substrate, comprise, total amount based on described composition: 0.0001～5wt% is selected from by polyvinyl alcohol, polyoxyethylene glycol, Mierocrystalline cellulose, polyacrylic acid, at least a water-soluble high-molecular compound in the group that PEOz and polyvinylpyrrolidone form;
0.01 the polyol compound of～5wt%;
0.05 the quaternary ammonium hydroxide of～10wt%;
0.05 the ethylene glycol ether organic solvent by following molecular formula 1 expression of～40wt%; With
Remaining water:
[molecular formula 1]
R wherein
1Methyl or ethyl, R
2Be hydrogen atom, n is 2 to 5 integer, and x is 1 to 5 integer.
2. cleaning combination according to claim 1, wherein said polyol compound comprises and being selected from by ethylene glycol, propylene glycol, 1, ammediol, 1,2-butyleneglycol, 1,3-butyleneglycol, 2,3-butyleneglycol, BDO, 2-methyl isophthalic acid, at least a in the group that the pure and mild talitol of ammediol, glycerine, trimethylolethane, TriMethylolPropane(TMP), tetramethylolmethane, Xylitol, N.F,USP MANNITOL, sorbyl alcohol, erythritol, Pentitol, threitol, pectinose forms.
3. cleaning combination according to claim 1, wherein said quaternary ammonium hydroxide comprise and being selected from by tetramethylammonium hydroxide, tetraethylammonium hydroxide, hydroxide tetrapropylammonium, and at least a in the group that forms of tetrabutylammonium hydroxide.
4. cleaning combination according to claim 1, wherein said ethylene glycol ether organic solvent by 1 expression of above molecular formula comprises and being selected from by ethylene glycol monomethyl ether, diethylene glycol monomethyl ether, diethylene glycol monoethyl ether, ethylene glycol monoethyl ether, Triethylene glycol ethyl ether, triethylene glycol monomethyl ether, at least a in the group that DPE, propylene glycol monomethyl ether form.
5. a manufacturing is used for the method for the array substrate of liquid-crystal display, comprises the step that right to use requires any one the described cleaning combination cleaning base plate in 1 to 4.
