Abstract
The present invention relates to a thermoplastic resin composition having good fire retardancy, comprising: 100 wt % of a base resin including 30 to 100 wt % of a polycarbonate-based resin (A); and 0.1 to 40 wt % of a polymerized phosphorus compound (C). The thermoplastic resin composition, which applies a phosphorus compound (i.e., a polymerized fire retardant material) as a fire retardant material, has good fire retardancy, and an excellent balance of physical properties including impact resistance, heat resistance, fluidity, etc. and is also environmentally friendly.
Description
Technical field
The present invention relates to a kind of thermoplastic resin composition who comprises with the P contained compound of polymer form, by the molded plastics molded products of said composition and a kind ofly be used to prepare method with the P contained compound of polymer form.
Background technology
Thermoplastic resin is because their good processing characteristicies and mechanical property have been used for the electronic goods of part.Its range of application increases severely along with the recent development of various functional additives.Yet many thermoplastic resins are inflammable and fire had atomic little resistance.Therefore, plastics can burn and in propagation of flame, work through the burning things which may cause a fire disaster of outside easily.From identical consideration, many countries (like the U.S., Japan and European Union) require fluoropolymer resin to meet some fire-protection standard, to guarantee the anti-security of catching fire of electronic goods.
A kind of domestic method that is used for giving the polymkeric substance flame retardant resistance is that fire retardant is joined polymkeric substance and forms blend.These additive flame retardants can be categorized as halogen-containing flame retardant, phosphonium flame retardant, contain nitrogen combustion inhibitor, (silicone-containing) fire retardant that contains silicone resin and contain inorganic combustion inhibitor, and this depends on its component.Among these, halogen contained compound and inorganic-containing compound (blend) are often as fire retardant.
When using the combination of halogen contained compound and antimony containing compounds, flame retardant resistance can be improved with low cost.Therefore, this combination has been used for various resins (like acrylonitrile-butadiene-styrene (ABS) or ABS resin, PS or PS resin, polybutylene terephthalate (polybutylene terephthalate) or PBT resin, polyethylene terephthalate or PET resin, epoxy resin etc.) are used for electronic product with production case material.Yet, can have the environmental problem relevant, and it uses and to be limited the use of instruction (Restriction of Hazardous Substances) by the hazardous substance that comes into force in July, 2006 and (RoHS) limit with halogen contained compound.Therefore, some halogen-containing flame retardants that are called as " ten (deca) " are stopped using, and its consumption significantly reduces.Also therefore, give the interest increase of the method for flame retardant resistance recently for not using halogen contained compound.
Phosphonium flame retardant has been used as the surrogate of halogen contained compound, to give the thermoplastic resin flame retardant resistance.Phosphonium flame retardant can provide good flame retardant property with solid phase, especially in containing the plastics of a large amount of oxygen.Phosphonium flame retardant can be categorized as phosphate class, phosphine oxide class, phosphite/ester class, phosphonate/ester class etc.; And can obtain flame retardant resistance with char-forming agent (carbon forms agent, char-forming agents) (like polycarbonate or poly (phenylene ether) resin) combination.Typically, unit molecule P contained compound such as triphenylphosphate or Resorcinol bis-phenol SULPHOSUCCINIC ACID ESTER (resorcinol bisphenol phosphate) are as such P contained compound.When using the unit molecule phosphonium flame retardant, can easily obtain flame retardant resistance.Yet because these compounds have lower molecular weight, they can volatilize under the molded typical high molding temperature of plastics, and then outward appearance that can the deterioration plastics.And when the plastics that use after molded, the unit molecule fire retardant can be discharged, and this can cause environmental problem.Therefore, in order to solve above mentioned problem, has the interest of increase for polyphosphonates with the phosphonium flame retardant of polymer form.When the polyphosphonates with polymer form is used as flame retardant additives, compare with present unit molecule phosphonium flame retardant, can keep good flame retardant resistance and mechanical property, and non-volatile during plastics are molded.In addition, because it and many existing fluoropolymer resins have high-compatibility, compare with the unit molecule fire retardant, it can be easy to use so that transparent material to be provided.And because after molded, can have low extractability (extractability) with the polyphosphonates of polymer form, its use can reduce to minimum with environmental problem.
Summary of the invention
The present invention relates to a kind of thermoplastic resin composition that can have excellent flame retardancy.
This thermoplastic resin composition comprises the P contained compound with polymer form, itself in addition during as fire retardant, still can give good flame retardant resistance with a small amount of.This thermoplastic resin composition can also show the balance of good performance (like flame retardant resistance, thermotolerance, flowability, outward appearance etc.).
The present invention further provides a kind of P contained compound with polymer form.Can show the minimized acid concentration of group endways through regulating end group when the polymerization with the P contained compound of polymer form.
The present invention also provides a kind of method with specific substituted P contained compound with polymer form that is used to prepare.This method can allow stable and produce the P contained compound with polymer form effectively.
It is a kind of by the molded plastics molded products of thermoplastic resin composition that comprises with the P contained compound of polymer form that the present invention further provides.
This thermoplastic resin composition can be eco-friendly and can show the balance of good performance (like flame retardant resistance, thermotolerance, flowability etc.).
The thermoplastic resin composition that can have excellent flame retardancy comprises the base resin of 100 weight parts (this base resin comprises 30 to 100% the resin based on polycarbonate (A) by weight); And the P contained compound with polymer form (C) by following Chemical formula 1 representative of 0.1 to 40 weight part.

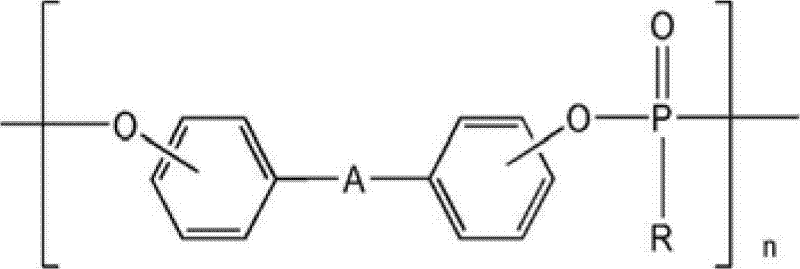

[Chemical formula 1]
Wherein, A is singly-bound, C
1-C
10Alkylidene group (alkylene), C
1-C
10Alkylidene (alkylidene), C
3-C
12The ring alkylidene (cycloalkylidene) ,-S-or-SO
2-, R is C
6-C
20Aryl or C
1-C
10The substituted C of alkyl
6-C
20Aryl, and n is 4 to 500 integer.
In illustrative embodiments of the present invention, base resin can comprise 30 to 100% the resin based on polycarbonate (A) by weight and the polymkeric substance based on the aromatic ethylene base (B) of 0 to 70% modified rubber by weight.
In the exemplary embodiment, the multipolymer based on the aromatic ethylene base of modified rubber (B) can comprise (B1) graft copolymer resin of 10 to 100% and (B2) 0 to 90% copolymer resin by weight by weight.
In the exemplary embodiment, in the compound of Chemical formula 1, R is a phenyl.
In the exemplary embodiment, the P contained compound with polymer form can have 1,000 to 100,000 weight-average molecular weight (Mw).
In the other illustrative embodiments of the present invention, can be with the end group of the P contained compound (C) of polymer form through preparing with the reaction of 4-cumyl phenol.
In the exemplary embodiment, the P contained compound with polymer form can have the end group derived from the 4-cumyl phenol of measuring with every 1mol repeating unit 0.03 to 0.3mol of Chemical formula 1.
In the exemplary embodiment, can have 0.01 to 12 acid number with the P contained compound of polymer form.
It is a kind of by the molded plastics molded products of thermoplastic resin composition that the present invention also provides.This molded products can have good flame retardant resistance.
The present invention further provides a kind of method with the phosphorous fire prevention compound of polymer form that is used to prepare.This method can comprise substituted phosphonyl dichloride of aryl (phosphonic acid dichloride) and under the condition that catalyzer such as 4-Dimethylamino pyridine exist, reacting based on the compound of bis-phenol by following Chemical formula 2 representative; Have the polyphosphonates of not regulating end group with polymerization; And will have polyphosphonates and the reaction of 4-cumyl phenol of not regulating end group, to regulate end group and to obtain phosphorous fire prevention compound with polymer form by following Chemical formula 1 representative.
[Chemical formula 1]
Wherein, A is singly-bound, C
1-C
10Alkylidene group, C
1-C
10Alkylidene, C
3-C
12The ring alkylidene ,-S-or-SO
2-, R is C
6-C
20Aryl or C
1-C
10The substituted C of alkyl
6-C
20Aryl, and n is 4 to 500 integer.
[Chemical formula 2]
Wherein, A is singly-bound, C
1-C
10Alkylidene group, C
1-C
10Alkylidene, C
3-C
12The ring alkylidene ,-S-or-SO
2-.
In the exemplary embodiment, with substituted phosphonyl dichloride of 1 normal aryl and 1 normal two phenolic compound reaction by the Chemical formula 2 representative.
In the exemplary embodiment, with substituted phosphonyl dichloride of 1 normal aryl and 0.03 to 0.3 normal 4-cumyl phenol reaction.
Embodiment
The present invention provides a kind of thermoplastic resin composition that can have good flame retardant resistance, and it comprises the base resin (this base resin comprises 30 to 100% the resin based on polycarbonate (A) by weight) of 100 weight parts; And the P contained compound with polymer form (C) by following Chemical formula 1 representative of 0.1 to 40 weight part.
[Chemical formula 1]
Wherein, A is singly-bound, C
1-C
10Alkylidene group, C
1-C
10Alkylidene, C
3-C
12The ring alkylidene ,-S-or-SO
2-, R is C
6-C
20Aryl or C
1-C
10The substituted C of alkyl
6-C
20Aryl, and n is 4 to 500 integer.
In illustrative embodiments of the present invention, base resin can comprise 30 to 100% the resin based on polycarbonate (A) by weight and the polymkeric substance based on the aromatic ethylene base (B) of 0 to 70% modified rubber by weight.
The P contained compound with polymer form (C) by the Chemical formula 1 representative is a kind of polyphosphonates compound with polymer form with (a plurality of) specified substituent, and is used for thermoplastic compounds of the present invention as fire retardant.In other words; The present invention is through providing a kind of eco-friendly Flameproof thermoplastic resin composition in the polymkeric substance based on the aromatic ethylene base that will be added to polycarbonate resin and optional modified rubber with the P contained compound (C) of polymer form, and it can have good thermotolerance and outward appearance and flame retardant resistance.
Even it is eco-friendly using the P contained compound with polymer form (C) that also can give good flame retardant resistance on a small quantity, because it does not emit the halogenation gas that causes environmental pollution when processing or burning, and also unlike the such volatilization of unit molecule fire retardant.And when with the P contained compound (C) of polymer form when being used for thermoplastic resin, the thermoplastic resin composition can show the balance of good performance (like flame retardant resistance, shock strength, thermotolerance, flowability etc.).
Hereinafter, with describing the every kind of component that constitutes thermoplastic resin composition in more detail with excellent flame retardancy.
The thermoplastic resin composition
(A) polycarbonate resin
Can prepare with phosgene or carbonic diester reaction through compound according to polycarbonate resin of the present invention (A) based on bis-phenol by chemical formula 2 representatives.
[Chemical formula 2]
Wherein, A is singly-bound, C
1-C
10Alkylidene group, C
1-C
10Alkylidene, C
3-C
12The ring alkylidene ,-S-or-SO
2-.
The instance of the diphenol of Chemical formula 2 comprises without limitation: two (hydroxyaryl) alkanes, and as 1,1-two (2-phenylor) methane, 1; 1-two (4-phenylor) ethane, 4,4 '-dihydroxybiphenyl (4,4 '-dihydroxy diphenyl), 2; 2-two (4-phenylor) propane (" dihydroxyphenyl propane "), 2,4-two (4-phenylor)-2-methylbutane, 2,2-two (4-phenylor) butane, 2; 2-two (4-phenylor) octane, 1; 1-two (4-phenylor) propane, 1,1-two (4-phenylor)-normal butane, two (4-phenylor) phenylmethane, 2,2-two (4-hydroxyl-1-tolyl) propane, 1; 1-two (4-hydroxyl-tert-butyl-phenyl) propane and 2,2-two (4-hydroxyl-3-bromophenyl) propane; Two (hydroxyaryl) cycloalkane, as 1,1-two (4-phenylor) pentamethylene and 1,1-two (4-phenylor) hexanaphthene; 2,2-two-(3-chloro-4-phenylor)-propane, 2,2-two-(3,5-two chloro-4-phenylor)-propane etc., with and the combination.In addition, the diphenol examples for compounds can comprise without limitation: quinhydrones (Resorcinol) and substituted quinhydrones, like 3-toluhydroquinone, 3-ethyl quinhydrones, 3-propyl group quinhydrones, 3-butylhydroquinone, 3-tertiary butylated hydroquinone, 3-phenyl quinhydrones, 3-cumyl quinhydrones, 2,3; 5,6-duroquinol, 2,3,4; 5,6-tetra-tert quinhydrones, 2,3,5; 6-tetrafluoro quinhydrones and 2,3,5,6-tetrabromo quinhydrones etc.; Resorcinol and substituted Resorcinol; Like 3-methylresorcinol, 3-ethyl resorcinol, 3-propyl group Resorcinol, 3-butyl Resorcinol, 3-tert-butyl resorcin, 3-phenyl Resorcinol, 3-cumyl Resorcinol, 2,3,4; 6 – tetrafluoro Resorcinos and 2; 3,4,6-tetrabromo Resorcinol; Catechol etc., with and the combination.In the exemplary embodiment, can use the bisphenol type diphenol, as 2; 2-two-(4-phenylor)-propane, 2,2-two-(3,5-two chloro-4-phenylor)-propane, 1; 1-two-(4-phenylor)-hexanaphthenes etc. especially are called 2 of bisphenol-A, 2-two-(4-phenylor)-propane.
Polycarbonate resin can be a straight or branched, can also use its mixture.In the exemplary embodiment, can be based on the trifunctional or the more polyfunctional compound of the total amount 0.05 to 2mol% of employed diphenol in the polymerization, for example have the compound of 3 or more a plurality of phenolic group group and prepare the polycarbonate of side chain through adding.In addition, polycarbonate resin can use separately, perhaps can use two kinds or the mixture of more kinds of polycarbonate resins with different molecular weight.In other illustrative embodiments, can use the polyestercarbonate resin.
In the present invention; Base resin can comprise based on the gross weight of base resin 30 to 100% polycarbonate resin (A) by weight; For example about by weight 40 to about 90%; As additional embodiments about by weight 50 to about 80%, and as additional embodiments about by weight 60 again to about 77% polycarbonate resin.Polycarbonate resin can help more easily to give flame retardant resistance.When base resin comprise be in above during the polycarbonate resin of amount in the scope, the thermoplastic resin composition can have the balance of good character (like flame retardant resistance and mechanical properties).
(B) polymkeric substance based on the aromatic ethylene base of modified rubber
Base resin can comprise based on the gross weight of base resin by weight 0 to 70%, and for example by weight 1 to 50%, and as the additional embodiments copolymer resin based on the aromatic ethylene base (B) of 5 to 40% modified rubber by weight.
According to the present invention, the multipolymer based on the aromatic ethylene base of modified rubber (B) can be such polymkeric substance, and wherein rubber polymer is dispersed in based in the matrix of the polymkeric substance of aromatic ethylene base (external phase) with particle form.
The limiting examples of the multipolymer based on the aromatic ethylene base of modified rubber (B) comprising: acrylonitrile-butadiene-styrene copolymer resin (ABS resin), vinyl cyanide-ethylene-propylene rubber(EPR) (ethylenepropylene rubber)-styrene copolymer resin (AES resin), vinyl cyanide-acrylic rubber-styrene copolymer resin (AAS resin), high-impact polystyrene (HIPS) etc., with and the combination.
In the exemplary embodiment, the multipolymer based on the aromatic ethylene base of modified rubber (B) can comprise by weight 3 to 30% rubber polymer unit and 70 to 97% aromatic ethylene base unit by weight.
In other illustrative embodiments, modified rubber based on the multipolymer of aromatic ethylene base according to the terminal character of expectation can through the polyrubber polymkeric substance, based on the monomer of aromatic ethylene base and optional with prepare based on the copolymerizable monomer of the monomer of aromatic ethylene base.The copolymer resin based on the aromatic ethylene base of modified rubber can prepare through known polymerization method (like letex polymerization, suspension polymerization and mass polymerization), and usually through mixing and extruding graft copolymer resin and copolymer resin prepare.Under the situation of mass polymerization, graft copolymer resin and copolymer resin be preparation separately not, but the copolymer resin based on the aromatic ethylene base of modified rubber prepares through the single step reaction method.In arbitrary situation; The amount of rubber can be based on the gross weight by weight 1 to 30% of the multipolymer based on the aromatic ethylene base (B) of modified rubber in the multipolymer based on the aromatic ethylene base (B) component of final modified rubber; For example by weight 3 to 20%, and as additional embodiments by weight 5 to 15%.Rubber can have 0.1 to 6.0 μ m, for example the Z-median size of 0.25 to 4 μ m.
The multipolymer based on the aromatic ethylene base that is used for modified rubber of the present invention can or use graft copolymer resin and copolymer resin to prepare through independent use graft copolymer resin.In the exemplary embodiment, consider the consistency of every kind of component, can mixed grafting copolymer resin and copolymer resin.
(B1) graft copolymer resin
Graft copolymer resin of the present invention can through the graft copolymerization rubber polymer, based on the monomer of aromatic ethylene base, with based on the copolymerizable monomer of the monomer of aromatic ethylene base and give processing characteristics alternatively and stable on heating monomer prepares.
The instance of rubber polymer can comprise without limitation: elastoprene, like polyhutadiene, gather (styrene butadiene), gather (acrylonitrile-butadiene) etc.; Saturated rubber, wherein with hydrogen join following in: elastoprene; Synthetic polyisoprene, acrylic rubber are like alkyl acrylate rubber, butyl polyacrylate; The ter-polymers of ethylene-propylene-diene monomers (EPDM) etc., with and the combination.In the exemplary embodiment, can use elastoprene, for example divinyl rubber.Graft copolymer resin (B1) can comprise based on the gross weight of graft copolymer resin (B1) 5 to 65% rubber polymer by weight.Consider shock strength and outward appearance, the median size of rubber grain can be 0.1 to 4 μ m.
But the monomeric instance based on the aromatic ethylene base in the monomeric mixture of graft copolymerization can comprise without limitation: vinylbenzene, alpha-methyl styrene, Beta-methyl vinylbenzene, p-methylstyrene, to t-butyl styrene, ethyl styrene, vinyl-dimethyl benzene, monochlorostyrene, dichlorostyrene, Dowspray 9, vinyl naphthalene etc., with and combination.In the exemplary embodiment, can use vinylbenzene.Graft copolymer resin (B1) can comprise based on the gross weight of the graft copolymer resin that is used for graft copolymerization (B1) 34 to 94% the monomer based on the aromatic ethylene base by weight.
Can and introduce graft copolymer resin of the present invention (B1) with one or more based on the copolymerizable monomer of the monomer of aromatic ethylene base.With comprise without limitation based on the copolymerizable monomeric instance of the monomer of aromatic ethylene base: based on the compound of unsaturated nitrile; Like vinyl cyanide, ethyl acrylonitrile (ethacrylonitrile), methacrylonitrile etc., and these can use separately or conduct its two kinds or more kinds of combination uses at least.Graft copolymer resin (B1) can comprise based on the gross weight of the graft copolymer resin that is used for graft copolymerization (B1) by weight 1 to 30% with based on the copolymerizable monomer of the monomer of aromatic ethylene base.
Give processing characteristics and stable on heating monomeric instance can comprise without limitation: vinylformic acid, methylacrylic acid, maleic anhydride, the substituted maleimide of N-etc., with and combination.Graft copolymer resin (B1) can comprise based on the gross weight of graft copolymer resin (B1) by weight 0 to 15% give processing characteristics and stable on heating monomer.
(B2) copolymer resin
Remove rubber and consistency; The monomeric ratio that can consider graft copolymer resin (B1) prepares copolymer resin (B2), and can through copolymerization based on the monomer of aromatic ethylene base, with based on the copolymerizable monomer of the monomer of aromatic ethylene base and give processing characteristics alternatively and stable on heating monomer prepares copolymer resin (B2).
Monomeric instance based on the aromatic ethylene base can comprise without limitation: vinylbenzene, alpha-methyl styrene, Beta-methyl vinylbenzene, p-methylstyrene, to t-butyl styrene, ethyl styrene, monochlorostyrene, dichlorostyrene, Dowspray 9 etc., with and combination.In the exemplary embodiment, can use vinylbenzene.Copolymer resin (B2) can comprise based on the gross weight of the copolymer resin that is used for graft copolymerization (B2) 60 to 90% the monomer based on the aromatic ethylene base by weight.
With comprise without limitation based on the copolymerizable monomeric instance of the monomer of aromatic ethylene base: based on the compound of unsaturated nitrile; Like vinyl cyanide, ethyl acrylonitrile (ethacrylonitrile), methacrylonitrile etc., and these can use separately or conduct its two kinds or more kinds of combination uses at least.Copolymer resin (B2) can comprise based on the gross weight of copolymer resin (B2) by weight 10 to 40% with based on the copolymerizable monomer of the monomer of aromatic ethylene base.
Give processing characteristics and stable on heating monomeric instance can comprise without limitation: vinylformic acid, methylacrylic acid, maleic anhydride, the substituted maleimide of N-etc., with and combination.Copolymer resin (B2) can comprise based on the gross weight of copolymer resin (B2) by weight 0 to 30% give processing characteristics and stable on heating monomer.
The gross weight that the multipolymer based on the aromatic ethylene base (B) that is used for modified rubber of the present invention can comprise the multipolymer based on the aromatic ethylene base (B) based on modified rubber is 10 to 100% graft copolymer resin (B1) and 0 to 90% copolymer resin (B2) by weight by weight.In the exemplary embodiment, the copolymer resin based on the aromatic ethylene base of modified rubber (B) comprises 55 to 90% graft copolymer resin (B1) and 10 to 45% copolymer resin (B2) by weight by weight.In other illustrative embodiments, the copolymer resin based on the aromatic ethylene base of modified rubber (B) comprises 15 to 50% graft copolymer resin (B1) and 50 to 85% copolymer resin (B2) by weight by weight.
(C) with the P contained compound of polymer form
(C) can give thermoplastic resin composition's flame retardant resistance of the present invention according to the P contained compound with polymer form of the present invention, and has the structure by following Chemical formula 1 representative.P contained compound (C) with polymer form is a characteristic to be defined as the substituent R that is connected directly to phosphorus atom as follows.Substituent R can help the charcoal (char) in the anti-fire action to form.
[Chemical formula 1]
Wherein, A is singly-bound, C
1-C
10Alkylidene group, C
1-C
10Alkylidene, C
3-C
12The ring alkylidene ,-S-or-SO
2-, R is C
6-C
20Aryl or C
1-C
10The substituted C of alkyl
6-C
20Aryl, and n is 4 to 500 integer.
P contained compound (C) with polymer form can have 1,000 to 100,000, for example 7,500 to 20,000 weight-average molecular weight (Mw).Weight-average molecular weight (Mw) with the P contained compound (C) of polymer form is less than at 1000 o'clock, can make the mechanical properties deterioration.Weight-average molecular weight (Mw) with the P contained compound (C) of polymer form surpasses at 100,000 o'clock, though can improve mechanical property, can be increased in its terminal phosphonic acids concentration, and this can the decomposition base resin in joining the thermoplastic resin composition time.In other words; Though having high-molecular weight can be favourable with the phosphonium flame retardant of polymer form, because it can improve mechanical property, according to observations; When the phosphonium flame retardant with polymer form has HMW; Can be increased in its terminal phosphonic acids concentration, and then decompose base resin in joining thermoplastic resin the time, this shows in an embodiment.
The thermoplastic resin composition can comprise base resin 0.1 to 40 weight part based on 100 weight parts, 1 to 30 weight part for example, and as the P contained compound with polymer form (C) of additional embodiments 2 to 20 weight parts.When the P contained compound (C) with polymer form uses with the amount that is less than 0.1 weight part, may not reach enough flame retardant resistances.With the P contained compound (C) of polymer form when using more than the amount of 40 weight parts, can make performance such as shock strength deterioration.
In another specific embodiment of the present invention, when base resin is polycarbonate, can be with the P contained compound (C) of polymer form with the amount use of 1 to 5 weight part.
In another specific embodiment of the present invention, when base resin is a polycarbonate with based on the blend of the polymkeric substance of aromatic ethylene base the time, can use with the amount of 10 to 25 weight parts with the P contained compound (C) of polymer form.
End group with the P contained compound (C) of polymer form can be through preparing with the reaction of 4-cumyl phenol.The end group that can comprise in the exemplary embodiment, the 4-cumyl phenol of measuring derived from every 1mol repeating unit 0.03 to 0.3mol of Chemical formula 1 with the P contained compound (C) of polymer form.When the P contained compound (C) with polymer form comprised every 1mol repeating unit derived from Chemical formula 1 and is less than the end group of 4-cumyl phenol of 0.03mol amount, molecular weight can increase, but the phosphonic acids concentration of group also can increase endways.When the P contained compound (C) with polymer form comprises derived from every 1mol repeating unit of Chemical formula 1 more than the end group of the 4-cumyl phenol of 0.3mol amount, can significantly reduce molecular weight, and its processing difficulty that can become.
Hereinafter, with describing a kind of method that is used to prepare P contained compound (C) in detail with polymer form.
Be used to prepare the method for P contained compound (C) with polymer form
The present invention provides a kind of method with the phosphorous fire prevention compound of polymer form that is used to prepare; Comprise substituted phosphonyl dichloride of aryl and under the condition that catalyzer such as 4-Dimethylamino pyridine exist, reacting by following Chemical formula 2 representative based on the compound of bis-phenol; Have the polyphosphonates of not regulating end group with polymerization; And will have polyphosphonates and reactant such as the reaction of 4-cumyl phenol of not regulating end group, to regulate end group and to obtain phosphorous fire prevention compound with polymer form by following Chemical formula 1 representative.Only if this paper defines in addition, term " aryl " can comprise C
6-C
20Aryl or C
1-C
10The substituted C of alkyl
6-C
20Aryl.
[Chemical formula 1]
Wherein, A is singly-bound, C
1-C
10Alkylidene group (alkylene), C
1-C
10Alkylidene (alkylidene), C
3-C
12The ring alkylidene (cycloalkylidene) ,-S-or-SO
2-, R is C
6-C
20Aryl or C
1-C
10The substituted C of alkyl
6-C
20Aryl, and n is 4 to 500 integer.
[Chemical formula 2]
Wherein, A is singly-bound, C
1-C
10Alkylidene group, C
1-C
10Alkylidene, C
3-C
12The ring alkylidene ,-S-or-SO
2-.
The instance of the substituted phosphonyl dichloride of aryl is as known in the art, can commercially buy, and can be selected by the technician, and do not need undo experimentation.In the exemplary embodiment, the substituted phosphonyl dichloride of aryl can be phenyl phosphonyl chloride (phenylphosphonic acid dichloride).
The instance based on bisphenol cpd of Chemical formula 2 comprises without limitation: two (hydroxyaryl) alkanes, and as 1,1-two (2-phenylor) methane, 1; 1-two (4-phenylor) ethane, 4,4' dihydroxy diphenyl, 2,2-two (4-phenylor) propane (" dihydroxyphenyl propane "), 2; 4-two (4-phenylor)-2-methylbutane, 2,2-two (4-phenylor) butane, 2,2-two (4-phenylor) octane, 1; 1-two (4-phenylor) propane, 1,1-two (4-phenylor)-normal butane, two (4-phenylor) phenylmethane, 2,2-two (4-hydroxyl-1-tolyl) propane, 1; 1-two (4-hydroxyl-tert-butyl-phenyl) propane and 2,2-two (4-hydroxyl-3-bromophenyl) propane; Two (hydroxyaryl) cycloalkane, as 1,1-two (4-phenylor) pentamethylene and 1,1-two (4-phenylor) hexanaphthene; 2,2-two-(3-chloro-4-phenylor)-propane, 2,2-two-(3,5-two chloro-4-phenylor)-propane etc., with and the combination.In addition, the diphenol examples for compounds comprises without limitation: quinhydrones (Resorcinol) and substituted quinhydrones, like 3-toluhydroquinone, 3-ethyl quinhydrones, 3-propyl group quinhydrones, 3-butylhydroquinone, 3-tertiary butylated hydroquinone, 3-phenyl quinhydrones, 3-cumyl quinhydrones, 2,3; 5,6-duroquinol, 2,3,4; 5,6-tetra-tert quinhydrones, 2,3,5; 6-tetrafluoro quinhydrones and 2,3,5,6-tetrabromo quinhydrones etc.; Resorcinol and substituted Resorcinol; Like 3-methylresorcinol, 3-ethyl resorcinol, 3-propyl group Resorcinol, 3-butyl Resorcinol, 3-tert-butyl resorcin, 3-phenyl Resorcinol, 3-cumyl Resorcinol, 2,3,4; 6-tetrafluoro Resorcino and 2; 3,4,6-tetrabromo Resorcinol; Catechol etc., with and the combination.In the exemplary embodiment, the diphenol of Chemical formula 2 can be a bis-phenol, as 2; 2-two-(4-phenylor)-propane, 2,2-two-(3,5-two chloro-4-phenylor)-propane, 1; 1-two-(4-phenylor)-hexanaphthene etc.; With and the combination, for example be called 2 of bisphenol-A, 2-two-(4-phenylor)-propane.
Compare with existing unit molecule fire retardant with the P contained compound (C) of polymer form can have lower volatility, lower extractability and good mechanical property, and further can have good flame retardant resistance.The existing usual way that is used to prepare polyphosphonates comprises melt polymerization (melt polymerizing) method between alkyl phosphonic acid diester (phosphonic acids alkyl diester, alkylphosphonic acid diester) and the bis-phenol.
Yet when using melt polymerization process, because be difficult to remove the catalyzer of use, this catalyzer can be accelerated the hydrolysis of prepared resin and slowly decompose resin, so that resin can variable color.In addition, when not using branching agent (branching agent), because be difficult to obtain HMW, the mechanical property of resin can deterioration.The method that is used to prepare the P contained compound with polymer form of the present invention (C) can be used solution polymerization and/or interfacial polymerization method.Method of the present invention can prepare straight chain fragrance polyphosphonates by the substituted phosphonyl dichloride of aryl effectively.
In addition, the method that is used to prepare the P contained compound with polymer form of the present invention (C) can be provided for preparing the economic means of straight chain fragrance polyphosphonates.
In the exemplary embodiment; The present invention provides a kind of interfacial polymerization method that utilizes to be used to prepare the method with the P contained compound of polymer form; Wherein the substituted phosphonyl dichloride of aryl with react under the condition that specific phase transfer catalyst (phase inversion catalyzer, phase-exchanging catalyst) exists based on the compound of bis-phenol.For example, can be through the substituted phosphonyl dichloride of aryl with polycondensation under the condition that catalyzer 4-Dimethylamino pyridine exists prepares the P contained compound with polymer form based on the compound of bis-phenol.The amount that increases employed catalyzer can increase the molecular weight of the P contained compound (C) with polymer form.
In illustrative embodiments of the present invention, can use 0.03 to 0.3 normal 4-Dimethylamino pyridine based on the substituted phosphonyl dichloride of 1 normal aryl.Can depend on that the amount of 4-Dimethylamino pyridine increases the amount of the P contained compound (C) with polymer form, but when using, can stop the increase of this ratio more than 0.1 normal 4-Dimethylamino pyridine.In the exemplary embodiment, can use 4-Dimethylamino pyridine with 0.05 to 0.1 normal amount.
The character of molecular weight and end group can be regulated through end group and the reaction of 4-cumyl phenol.
The hydrochloric acid that during polyreaction, is produced by the method that is used to prepare the P contained compound with polymer form of the present invention (C) can remove through using the amine with preparation salt.The limiting examples that can be used to remove the amine of the hydrochloric acid that during polyreaction, produces is a triethylamine.
In the exemplary embodiment, substituted phosphonyl dichloride of 1 normal aryl and 1 normal compound reaction based on bis-phenol by the Chemical formula 2 representative.
Between distributing, the acid that contriver of the present invention has studied molecular weight and end group is based on polymerization is used to regulate the amount of the employed 4-cumyl phenol of end group afterwards with the P contained compound (C) of polymer form relation.Therefore, the molecular weight with the P contained compound (C) of polymer form can change according to the amount and the time that add the 4-cumyl phenol.In the exemplary embodiment, can be at the initial period adding 4-cumyl phenol of preparation with the P contained compound of polymer form.The weight-average molecular weight (Mw) of the prepared P contained compound of method can be 1,000 to 100,000 thus, for example 7,500 to 20,000.
In the exemplary embodiment, having the polyphosphonates of not regulating end group can react with reactant such as 4-cumyl phenol, to regulate end group and to obtain the phosphorous fire prevention compound with polymer form by chemical formula 1 representative.The 4-cumyl phenol can be based on the substituted phosphonyl dichloride of 1 equivalent aryl with 0.03 to 0.3 equivalent, and for example 0.04 to 0.08 normal amount is used.
Molecular weight tends to be inversely proportional to the add-on of 4-cumyl phenol, but in the amount of 4-cumyl phenol very hour, can be increased in the phosphonic acids concentration of end group.Therefore, with above being in when the amount in the weight range is used the 4-cumyl phenol, can obtain to have the P contained compound with polymer form (C) and the phosphonic Cmin of reasonable molecular weight.
Through in DMSO 99.8MIN. (DMSO), dissolving P contained compound (C) with polymer form; Titration via 1N NaOH solution; And the mensuration acid number, the phosphonic concentration that occurs at the end with the P contained compound (C) of polymer form can be expressed as quantitative values.The acid number of measuring according to such polymerizing condition can be 0.01 to 12, for example 0.01 to 10.At the acid number of the P contained compound with polymer form that is recorded by above method (C) is 12 or when higher, and the main chain of polycarbonate can decomposition in the treating processes (like extruding or injection) of back, and this can make mechanical property (like shock strength) deterioration.
The substituted phosphonyl dichloride of aryl can be for example-40 to 40 ° of C, for example-10 to 5 ° of C with temperature of reaction based on the compound of bis-phenol.Polyreaction can be carried out under nitrogen atmosphere.Reaction times can be 2 to 24 hours, for example 3 to 5 hours.The instance of suitable reaction solvent comprises without limitation: METHYLENE CHLORIDE (methylene dichloride, methylene chloride), 1,2-ethylene dichloride, dichlorobenzene etc., with and the combination.
Polyphosphonates by top method preparation can obtain after washing, curing (solidifying) and drying step.Polyphosphonates can be used the hydrochloric acid soln acid elution, uses distilled water wash, and solidifies (solidifying) with hexane solution.The polyphosphonates that solidifies (solidifying) can be dry to obtain the P contained compound with polymer form by the Chemical formula 1 representative (C) of high yield in vacuum drying oven.
In illustrative embodiments of the present invention, can prepare by interfacial polymerization method with the P contained compound of polymer form, wherein the substituted phosphonyl dichloride of aryl reacts under the condition of phase inversion catalyzer (existence) with compound based on bis-phenol.The instance of phase inversion catalyzer comprises without limitation: tetrabutylammonium iodide, Tetrabutylammonium bromide, zephiran chloride triphenyl phosphonium (benzyltriphenylphosphonium chloride) etc., with and the combination.In the exemplary embodiment, the phase inversion catalyzer can be a Bian base triphenyl phosphonium (benzyltriphenylphosphonium).
The hydrochloric acid that during polyreaction, is produced by the method that is used to prepare the P contained compound (C) with polymer form can neutralize through using basic soln.The instance of basic soln comprises sodium hydroxide solution, potassium hydroxide solution etc. without limitation.
In the exemplary embodiment, the P contained compound with polymer form can be through using 1 equivalent to prepare based on the compound of bis-phenol based on the substituted phosphonyl dichloride of 1 normal aryl.
In the exemplary embodiment, having the polyphosphonates of not regulating end group can react with reactant such as 4-cumyl phenol, to regulate end group and to obtain the phosphorous fire prevention compound with polymer form by chemical formula 1 representative.The 4-cumyl phenol can be based on the substituted phosphonyl dichloride of 1 equivalent aryl with 0.03 to 0.3 equivalent, and for example 0.04 to 0.08 normal amount is used.
In the exemplary embodiment, phase inversion catalyzer such as zephiran chloride triphenyl phosphonium can be based on the substituted phosphonyl dichloride of 1 equivalent aryl with 0.03 to 0.3 equivalents, and for example 0.01 to 0.05 normal amount is used.
The substituted phosphonyl dichloride of aryl (phosphonic acid dichloride) can be-40 to 40 ° of C with temperature of reaction based on the compound of bis-phenol, for example-10 to 5 ° of C.And this reaction can be carried out under nitrogen atmosphere.Reaction times can be 2 to 24 hours, for example 3 to 5 hours.The instance of reaction solvent comprises without limitation: METHYLENE CHLORIDE, 1,2-ethylene dichloride, dichlorobenzene etc., with and the combination.In the exemplary embodiment, reaction solvent can comprise at least a and water in the aforementioned solvents.
The polyphosphonates prepared by top method can obtain after washing, curing and drying step.Polyphosphonates can be used the hydrochloric acid soln acid elution, uses distilled water wash, and solidifies with hexane solution.The solidified polyphosphonates can be dry to obtain the P contained compound with polymer form by the Chemical formula 1 representative (C) of high yield in vacuum drying oven.
The thermoplastic resin composition that can have good flame retardant resistance of the present invention can comprise one or more additives, and this depends on the end-use of compsn.The instance of additive comprises without limitation: flame retardant (flame retardant aids), lubricant, softening agent, thermo-stabilizer, anti-dripping agent (anti-dropping agents), inhibitor, expanding material, photostabilizer, pigment, dyestuff, inorganic additives etc., with and the combination.The instance of inorganic additives comprises without limitation: asbestos, spun glass, talcum, pottery, vitriol etc., with and the combination.Additive can use with 30 weight parts or amount still less based on the base resin of 100 weight parts.
The thermoplastic resin composition that can have good flame retardant resistance of the present invention can have narrow MWD.In the exemplary embodiment, the thermoplastic resin composition can have by utilization and is used to measure 1.8 to 2.5 measured PDI (polydispersity index) of the ordinary method of molecular weight.
The thermoplastic resin composition that can have an excellent flame retardancy of the present invention can prepare through the ordinary method that is used to prepare resin combination known in the art.For example, can be through mixing component that this paper was discussed and other optional additives with the thermoplastic resin composition of pill or form of chips, and in forcing machine, melt extrude mixture and prepare.
It is a kind of by the molded plastics molded products that can have excellent flame retardancy of thermoplastic resin composition that the present invention also provides.
Because thermoplastic resin composition of the present invention can have good thermotolerance; And good flame retardant resistance; This thermoplastic resin composition can be widely used in various application scenarios; For example, be used for the housing of electricity/electronic product such as TV, audio-frequency apparatus, mobile phone (portable phone), digital camera, navigational aid, washing machine, computingmachine, watch-dog, MP3 player, video player, CD Player, dishwasher etc., business automation equipment; And other large products, like injection molding or extrusion-molded product.
According to the present invention, be used for the molding thermoplastic resin combination and have no particular limits, and can comprise with the method for making the plastics molded products, as, extrusion molding, injection molding, casting etc.Method of moulding can be implemented by those skilled in the art at an easy rate.
Can be through coming to understand better the present invention with reference to the following embodiment that is intended to illustration purpose and is not considered to limit in any form the scope of the invention, scope of the present invention limits in appended claim.
Embodiment
Preparation embodiment 1: by the P contained compound (C) of solution polymerization with polymer form
With 2, (100g, (methylene dichloride is 300mL) and in the triethylamine (152.6mL) 0.438mol) under the room temperature nitrogen atmosphere, to be dissolved in METHYLENE CHLORIDE for 2-two-(4-phenylor)-propane.(5.35g, 0.043mol) (8.0g, 0.037mol) also dissolving is cooled to 0 ° of C with the solution that obtains then with the 4-cumyl phenol in mixing solutions, to add the 4-Dimethylamino pyridine.(85.4g 0.438mol) with the mixing solutions of METHYLENE CHLORIDE (30mL) 1 hour, is heated to room temperature with the solution that obtains, and stirred 5 hours to the mixed solution and dripping phenyl phosphonyl chloride under 0 ° of C nitrogen atmosphere.The METHYLENE CHLORIDE that the solution that obtains is added 2L dilutes, and washs with the 1N hydrochloric acid soln of 2L, and then repeat this process once more than.The solution that obtains is used the 2L distilled water wash, and this process is repeated twice, collects the METHYLENE CHLORIDE layer, and it is concentrated under vacuum, in hexane, precipitates then, and with the P contained compound with polymer form (C) that acquisition has the white solid shape, productive rate is 92%.
Preparation embodiment 2 to 3 and preparation comparative example 1 to 3
Preparation embodiment 2 to 3 and preparation comparative example 1 to 3, except the amount of the 4-cumyl phenol that added and 4-Dimethylamino pyridine (DMAP) with the reaction times, with prepare embodiment 1 identical method and carry out.The result is shown in the table 1.
[table 1]
Can find out that from the result of table 1 molecular weight depends on the amount of the 4-cumyl phenol (it is the end group regulator) that is added.It is favourable having the high-molecular weight polyphosphonates; Because it can have better mechanical property; But when having the high-molecular weight polyphosphonates by top method preparation; Can be increased in its terminal phosphonic acids concentration, this can cause the decomposition of base resin when polyphosphonates is added to thermoplastic resin, and it can reduce flame retardant resistance.
Embodiment 1 to 3 and comparative example 1 to 3
The specification of every kind of component that is used for the following example and comparative example is following.
(A) polycarbonate resin
Use has 25, and the bisphenol-A type polycarbonate of the weight-average molecular weight of 000g/mol is purchased the Teijin company from Japan, and commodity are called PANLITE L-1250W.
(C) with the P contained compound of polymer form
Use is according to preparation embodiment 1 to 3 and prepare the P contained compound with polymer form that comparative example 1 to 3 prepares.
The polycarbonate of 100 weight parts and the P contained compound with polymer form of 3 weight parts are extruded with conventional twin screw extruder; Extruded product with preparation pill form; Pill dry 2 hours of 80 ° of C, is processed test sample with the 10oz injection moulding machine in the injection temperature of 180 to 280 ° of C and the mold temperature counterdie of 40 to 80 ° of C with pill then.
The method that is used for assessed for performance
(1) flame retardant resistance: measure according to UL 94 VB standing instructions (flameproof regulation) have 1/8 " flame retardant resistance of the specimen of thickness.
(2) total combustion time: measure total combustion time according to UL-94.
(3) molecular weight: the molecular weight of extruding specimen utilizes the GPC method to measure.
(4) MWD (PDI): utilize the GPC method to measure number-average molecular weight (Mn) and weight-average molecular weight (Mw), calculate PDI (Mw/Mn) then.
(5) cantilever-type impact strength (Izod impact strength) (kgfcm/cm, 1/8 "): measure cantilever-type impact strength according to ASTM D256.
[table 2]
Depend on the acid number with the phosphonium flame retardant of polymer form, acid number is high more, and the chain that increases base resin more decomposes, and this can reduce molecular weight and shock strength, and can reduce flame retardant resistance.
Embodiment 4 to 7 and comparative example 4 to 7
The specification of every kind of component that is used for the following example and comparative example is following.
(A) polycarbonate resin
Use has 25, the bisphenol-A type polycarbonate of the weight-average molecular weight of 000g/mol, and it is purchased the Teijin company from Japan, and commodity are called PANLITE L-1250W.
(B) polymkeric substance based on the aromatic ethylene base of modified rubber
Use CHT, it is the resin of rubber enhanced styrene-based, is purchased the Co.Ltd. from Cheil Industries.
(C) with the P contained compound of polymer form
Use is according to the prepared P contained compound with polymer form of preparation embodiment 1.
(C') aromatic phosphate ester compound
Use is purchased the CR-741S (name of product) from the Daihachi company of Japan.
These components are extruded with conventional twin screw extruder with amount listed in following table 3; Extruded product with preparation pill form; Pill dry 2 hours of 80 ° of C, is processed test sample with the 10oz injection moulding machine in the injection temperature of 180 to 280 ° of C and the mold temperature counterdie of 40 to 80 ° of C with pill then.
The method that is used for assessed for performance
(1) flame retardant resistance: measure according to UL 94 VB standing instructions have 1/8 " flame retardant resistance of the specimen of thickness.
(2) total combustion time: measure total combustion time according to UL-94.
(3) cantilever-type impact strength (kgfcm/cm, 1/8 "): measure cantilever-type impact strength according to ASTM D256.
[table 3]
When the aromatic phosphate ester compound (C') of using comparative example was replaced by the P contained compound with polymer form (C) of fire retardant of the present invention, flame retardant resistance was reduced to V-1 (comparative example 1,4), perhaps combustion time remarkable variation.
Claims (15)
1. thermoplastic resin composition with good flame retardant resistance, it comprises:
The base resin of 100 weight parts, said base resin comprise 30 to 100% the resin based on polycarbonate (A) by weight; And
The P contained compound with polymer form (C) by 0.1 to 40 weight part of chemical formula 1 representative:
[Chemical formula 1]
Wherein, A is singly-bound, C
1-C
10Alkylidene group, C
1-C
10Alkylidene, C
3-C
12The ring alkylidene ,-S-or-SO
2-, R is C
6-C
20Aryl or C
1-C
10The substituted C of alkyl
6-C
20Aryl, and n is 4 to 500 integer.
2. thermoplastic resin composition according to claim 1, wherein, said base resin comprises 30 to 100% the resin based on polycarbonate (A) by weight and the polymkeric substance based on the aromatic ethylene base (B) of 0 to 70% modified rubber by weight.
3. thermoplastic resin composition according to claim 2; Wherein, the multipolymer based on the aromatic ethylene base of said modified rubber (B) comprises 10 to 100% graft copolymer resin (B1) and 0 to 90% copolymer resin (B2) by weight by weight.
4. thermoplastic resin composition according to claim 3; Wherein said graft copolymer resin (B1) is such multipolymer; But wherein graft polymerization by weight 5 to 65% rubber polymer, by weight 34 to 94% based on the monomer of aromatic ethylene base and 1 to 30% by weight and monomer based on the monomer copolymerization of aromatic ethylene base, and said copolymer resin (B2) but be by weight 60 to 90% based on the monomer of aromatic ethylene base and 10 to 40% and monomeric a kind of multipolymer by weight based on the monomer copolymerization of aromatic ethylene base.
5. thermoplastic resin composition according to claim 1, wherein, R is a phenyl.
6. thermoplastic resin composition according to claim 1, wherein, said P contained compound with polymer form (C) has 1,000 to 100,000 weight-average molecular weight (Mw).
7. thermoplastic resin composition according to claim 1, wherein, the end group of said P contained compound with polymer form (C) is through preparing with the reaction of 4-cumyl phenol.
8. thermoplastic resin composition according to claim 7, wherein, said P contained compound with polymer form (C) has derived from the end group with the 4-cumyl phenol of the amount of every 1mol repeating unit 0.03 to 0.3mol of Chemical formula 1.
9. thermoplastic resin composition according to claim 1, wherein, said thermoplastic resin composition has 1.8 to 2.5 polydispersity index (PDI).
10. thermoplastic resin composition according to claim 1, wherein, said P contained compound with polymkeric substance (C) form has 0.01 to 12 acid number.
11. thermoplastic resin composition according to claim 1; Further comprise one or more additives; Said additive comprises fire retardant, flame retardant, lubricant, softening agent, thermo-stabilizer, anti-dripping agent, inhibitor, expanding material, photostabilizer, pigment, dyestuff, inorganic additives, with and the combination.
12. one kind by the molded plastics molded products of the described thermoplastic resin composition of claim 1.
13. one kind is used to prepare the method with the phosphor-containing flame-proof immunomodulator compounds of polymer form, comprises:
With the substituted phosphonyl dichloride of aryl with by under the condition that catalyzer 4-Dimethylamino pyridine exists, the reacting of following Chemical formula 2 representative based on the compound of bis-phenol, have the polyphosphonates of not regulating end group with polymerization; And
To have said polyphosphonates and the reaction of 4-cumyl phenol of not regulating end group, to regulate said end group and to obtain phosphor-containing flame-proof immunomodulator compounds with polymer form by following Chemical formula 1 representative:
[Chemical formula 1]
Wherein, A is singly-bound, C
1-C
10Alkylidene group, C
1-C
10Alkylidene, C
3-C
12The ring alkylidene ,-S-or-SO
2-, R is C
6-C
20Aryl or C
1-C
10The substituted C of alkyl
6-C
20Aryl, and n is 4 to 500 integer;
[Chemical formula 2]
Wherein, A is singly-bound, C
1-C
10Alkylidene group, C
1-C
10Alkylidene, C
3-C
12The ring alkylidene ,-S-or-SO
2-.
14. according to claim 13 being used to prepares the method with the phosphor-containing flame-proof immunomodulator compounds of polymer form, comprises substituted phosphonyl dichloride of 1 normal aryl and the 1 normal compound reaction based on bis-phenol by the Chemical formula 2 representative.
15. according to claim 13 being used to prepares the method with the phosphor-containing flame-proof immunomodulator compounds of polymer form, comprises substituted phosphonyl dichloride of 1 normal aryl and 0.03 to 0.3 normal 4-cumyl phenol reaction.
Applications Claiming Priority (5)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| KR10-2009-0134172 | 2009-12-30 | ||
| KR20090134172 | 2009-12-30 | ||
| KR10-2010-0082354 | 2010-08-25 | ||
| KR1020100082354A KR101344807B1 (en) | 2009-12-30 | 2010-08-25 | Thermoplastic resin composition including polyphosphonate compound, plastic molded article produced therefrom and method for preparing polyphosphonate compound |
| PCT/KR2010/007245 WO2011081287A2 (en) | 2009-12-30 | 2010-10-21 | Thermoplastic resin composition including a polymerized phosphorus compound, plastic molded part made from the composition, and method for manufacturing a polymerized phosphorus compound |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN102695753A true CN102695753A (en) | 2012-09-26 |
Family
ID=44918847
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN2010800603776A Pending CN102695753A (en) | 2009-12-30 | 2010-10-21 | Thermoplastic resin composition including a polymerized phosphorus compound, plastic molded part made from the composition, and method for manufacturing a polymerized phosphorus compound |
Country Status (5)
| Country | Link |
|---|---|
| US (1) | US20120259058A1 (en) |
| EP (1) | EP2520613A4 (en) |
| KR (1) | KR101344807B1 (en) |
| CN (1) | CN102695753A (en) |
| WO (1) | WO2011081287A2 (en) |
Cited By (5)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN105837825A (en) * | 2016-05-06 | 2016-08-10 | 中蓝晨光化工研究设计院有限公司 | Flame retardant for makrolon and preparation method and application thereof |
| CN108727801A (en) * | 2017-04-20 | 2018-11-02 | 奥的斯电梯公司 | Polymer jacket material blend with improved anti-flammability |
| CN112442260A (en) * | 2019-08-30 | 2021-03-05 | 乐天化学株式会社 | Thermoplastic resin composition and articles produced therefrom |
| CN113292852A (en) * | 2021-06-07 | 2021-08-24 | 珠海宏昌电子材料有限公司 | Resin composition containing phosphorus-containing phenyl bisphenol polymer and preparation method and application thereof |
| CN115041627A (en) * | 2022-06-24 | 2022-09-13 | 柳州柳晶环保科技有限公司 | Low-cost environment-friendly precoated sand and processing technology thereof |
Families Citing this family (11)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| KR101459129B1 (en) * | 2011-12-29 | 2014-11-07 | 제일모직주식회사 | Biphenyl polyphosphonate, method for preparing thereof and thermoplastic resin composition comprising the same |
| KR20130078741A (en) * | 2011-12-30 | 2013-07-10 | 제일모직주식회사 | Flame retardant thermoplastic resin composition and article fabricated using the same |
| KR101489956B1 (en) * | 2011-12-30 | 2015-02-06 | 제일모직주식회사 | Flame retardant thermoplastic resin composition |
| KR101469270B1 (en) * | 2011-12-30 | 2014-12-08 | 제일모직주식회사 | Polyphosphonate copolymer, method for preparing thereof and flame retardant thermoplastic resin composition comprising the same |
| KR101447275B1 (en) * | 2011-12-30 | 2014-10-07 | 제일모직주식회사 | Flame retardant thermoplastic resin composition |
| WO2013100296A1 (en) * | 2011-12-30 | 2013-07-04 | 제일모직 주식회사 | Polyphosphonate copolymer, method for preparing same and flame retardant thermoplastic resin composition including same |
| KR101537858B1 (en) * | 2013-11-18 | 2015-07-17 | 롯데케미칼 주식회사 | Flame retardant thermoplastic resin composition having heat resistance and molded article using same |
| KR101670550B1 (en) * | 2014-11-14 | 2016-10-28 | 롯데케미칼 주식회사 | Flame retardant thermoplastic resin composition with high flow and high impact strength |
| KR102210030B1 (en) | 2017-12-11 | 2021-02-01 | 주식회사 엘지화학 | Heat-resistant resin composition |
| EP3686243B1 (en) * | 2017-12-11 | 2022-02-02 | Lg Chem, Ltd. | Heat-resistant resin composition |
| KR20190081325A (en) * | 2017-12-29 | 2019-07-09 | 롯데첨단소재(주) | Thermoplastic resin composition and article produced therefrom |
Citations (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| EP0363608A1 (en) * | 1988-09-22 | 1990-04-18 | General Electric Company | Polymer mixture comprising an aromatic polycarbonate, a styrene-containing copolymer and/or graft polymer and a phosphate based flame-retardant; articles formed therefrom |
| CN1341140A (en) * | 1999-02-24 | 2002-03-20 | 拜尔公司 | Flame-resistant thermoplastic moulding material |
| JP2008163085A (en) * | 2006-12-27 | 2008-07-17 | Nippon A & L Kk | Near-infrared absorbing transparent flame retardant thermoplastic resin composition and injection molded article |
Family Cites Families (18)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US4156663A (en) * | 1974-05-18 | 1979-05-29 | Kanebo, Ltd. | Flame resistant polymer composition containing phosphorus and bromine containing polymer |
| US4072658A (en) * | 1974-05-18 | 1978-02-07 | Kanebo, Ltd. | Novel phosphorus- and bromine-containing polymers |
| US4080402A (en) * | 1975-09-15 | 1978-03-21 | Stauffer Chemical Company | Polymers of benzene phosphorus oxydichloride and 4,4'-thiodiphenol |
| US4035442A (en) * | 1976-05-20 | 1977-07-12 | E. I. Du Pont De Nemours And Company | Polyester filaments flame retarded with end-capped poly(m-phenylene cyclohexylphosphonate) |
| JPS6012444B2 (en) * | 1977-12-06 | 1985-04-01 | 帝人株式会社 | flame retardant polyester fiber |
| DE3002550A1 (en) * | 1980-01-25 | 1981-07-30 | Bayer Ag, 5090 Leverkusen | HALOGEN-FREE COMBUSTIBLE FILMS |
| DE3602013A1 (en) * | 1986-01-24 | 1987-07-30 | Bayer Ag | Specific aromatic polyphosphonates and a process for the preparation thereof |
| US6288210B1 (en) * | 1999-11-12 | 2001-09-11 | Virginia Tech. Intellectual Properties, Inc. | High refractive index thermoplastic polyphosphonates |
| CN1194040C (en) * | 2002-01-28 | 2005-03-23 | 四川大学 | High-efficiency halogen-free flame-retardant polycarbonate |
| US20040178383A1 (en) * | 2002-03-27 | 2004-09-16 | Seiji Kikuchi | Flame-retardant aromatic polycarbonate resin composition |
| KR100654525B1 (en) * | 2005-12-30 | 2006-12-05 | 제일모직주식회사 | Carboxyethyl Phosphate Ester Salt Compounds and Flame Retardant Thermoplastic Resin Containing the Same |
| KR100804173B1 (en) * | 2006-11-23 | 2008-02-18 | 제일모직주식회사 | Flame Retardant Thermoplastic Composition |
| KR100877291B1 (en) * | 2007-11-19 | 2009-01-07 | 제일모직주식회사 | Non-halogen flame retardant polycarbonate resin composition |
| KR100962174B1 (en) * | 2007-12-10 | 2010-06-10 | 제일모직주식회사 | Steric hindrance phenolic phosphonate flame retardant and flame retardant polycarbonate resin composition comprising same |
| KR100944388B1 (en) * | 2008-03-21 | 2010-02-26 | 제일모직주식회사 | Flame retardant thermoplastic resin composition with improved compatibility |
| KR101362871B1 (en) * | 2010-12-29 | 2014-02-14 | 제일모직주식회사 | Cross-linked polyphosphonate, method for preparing thereof and flame retardant thermoplastic resin composition comprising the same |
| GB2487455A (en) * | 2010-12-30 | 2012-07-25 | Cheil Ind Inc | Flame retardant polyphosphonates and their use in polycarbonate resins |
| US20130172471A1 (en) * | 2011-12-29 | 2013-07-04 | Cheil Industries Inc. | Biphenyl Polyphosphonate, Method for Preparing the Same and Thermoplastic Resin Composition Including the Same |
-
2010
- 2010-08-25 KR KR1020100082354A patent/KR101344807B1/en active Active
- 2010-10-21 CN CN2010800603776A patent/CN102695753A/en active Pending
- 2010-10-21 EP EP10841120.8A patent/EP2520613A4/en not_active Withdrawn
- 2010-10-21 WO PCT/KR2010/007245 patent/WO2011081287A2/en active Application Filing
-
2012
- 2012-06-18 US US13/525,755 patent/US20120259058A1/en not_active Abandoned
Patent Citations (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| EP0363608A1 (en) * | 1988-09-22 | 1990-04-18 | General Electric Company | Polymer mixture comprising an aromatic polycarbonate, a styrene-containing copolymer and/or graft polymer and a phosphate based flame-retardant; articles formed therefrom |
| CN1341140A (en) * | 1999-02-24 | 2002-03-20 | 拜尔公司 | Flame-resistant thermoplastic moulding material |
| JP2008163085A (en) * | 2006-12-27 | 2008-07-17 | Nippon A & L Kk | Near-infrared absorbing transparent flame retardant thermoplastic resin composition and injection molded article |
Non-Patent Citations (1)
| Title |
|---|
| 周航: "新型磷系阻燃剂BDP的研究进展", 《2007年中国阻燃学术年会》, 14 May 2007 (2007-05-14), pages 155 - 157 * |
Cited By (7)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN105837825A (en) * | 2016-05-06 | 2016-08-10 | 中蓝晨光化工研究设计院有限公司 | Flame retardant for makrolon and preparation method and application thereof |
| CN108727801A (en) * | 2017-04-20 | 2018-11-02 | 奥的斯电梯公司 | Polymer jacket material blend with improved anti-flammability |
| CN112442260A (en) * | 2019-08-30 | 2021-03-05 | 乐天化学株式会社 | Thermoplastic resin composition and articles produced therefrom |
| CN112442260B (en) * | 2019-08-30 | 2023-03-07 | 乐天化学株式会社 | Thermoplastic resin composition and articles produced therefrom |
| US11674036B2 (en) | 2019-08-30 | 2023-06-13 | Lotte Chemical Corporation | Thermoplastic polycarbonate resin composition including aromatic polyphosphonate and organic acid and article produced therefrom |
| CN113292852A (en) * | 2021-06-07 | 2021-08-24 | 珠海宏昌电子材料有限公司 | Resin composition containing phosphorus-containing phenyl bisphenol polymer and preparation method and application thereof |
| CN115041627A (en) * | 2022-06-24 | 2022-09-13 | 柳州柳晶环保科技有限公司 | Low-cost environment-friendly precoated sand and processing technology thereof |
Also Published As
| Publication number | Publication date |
|---|---|
| US20120259058A1 (en) | 2012-10-11 |
| EP2520613A4 (en) | 2015-10-14 |
| KR101344807B1 (en) | 2013-12-26 |
| WO2011081287A3 (en) | 2011-11-03 |
| WO2011081287A2 (en) | 2011-07-07 |
| EP2520613A2 (en) | 2012-11-07 |
| KR20110079480A (en) | 2011-07-07 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN102695753A (en) | Thermoplastic resin composition including a polymerized phosphorus compound, plastic molded part made from the composition, and method for manufacturing a polymerized phosphorus compound | |
| CN1312220C (en) | Flame retardant thermoplastic resin composition | |
| TWI375701B (en) | Non-halogen flameproof polycarbonate resin composition | |
| KR101251330B1 (en) | Polycarbonate Resin Composition Having Good Flame Retardancy | |
| KR101670550B1 (en) | Flame retardant thermoplastic resin composition with high flow and high impact strength | |
| CN102245619A (en) | Novel phosphate compounds, preparation method thereof, and flame-retardant thermoplastic resin compositions using same | |
| JP2002003727A (en) | Flame retardant resin composition | |
| CN101228231A (en) | Flame Retardant Molding Composition | |
| CN103881102A (en) | Phosphorous copolymer, method for preparing the same, and flame retardant thermoplastic resin composition including the same | |
| JP3948812B2 (en) | Flame retardant resin composition | |
| CN102101940A (en) | Halogen-free fireproof polycarbonate resin composition | |
| US7919548B2 (en) | Sterically hindered phenolic phosphonates and polycarbonate resin composition using the same | |
| KR20130078741A (en) | Flame retardant thermoplastic resin composition and article fabricated using the same | |
| CN103183899A (en) | Thermoplastic resin composition having excellent flame retardancy, colorability and thermal stability | |
| JP3007336B1 (en) | Flame retardant resin composition | |
| KR101267268B1 (en) | Non-halogen Flame-retarding Polycarbonate Resin Composition | |
| KR20160039059A (en) | Flame retardant thermoplastic resin composition and article comprising the same | |
| KR20130061560A (en) | Polycarbonate resin composition | |
| KR20110078521A (en) | Polycarbonate resin composition with excellent flame retardancy | |
| KR20190134116A (en) | Thermoplastic resin composition and article produced therefrom | |
| JP2002003728A (en) | Flame retardant resin composition | |
| KR20130078740A (en) | Flame retardant thermoplastic resin composition | |
| KR20100075172A (en) | Thermoplastic resin composition having good flame retardancy |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| C06 | Publication | ||
| PB01 | Publication | ||
| C10 | Entry into substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| C02 | Deemed withdrawal of patent application after publication (patent law 2001) | ||
| WD01 | Invention patent application deemed withdrawn after publication |
Application publication date: 20120926 |
