CN102622210A - Method for displaying help information and device - Google Patents

Abstract

The invention discloses a method and a device for displaying help information, belonging to the technical field of computer communication. The method includes: acquiring a first operation event triggered by a user; judging whether the first operation event triggered by the user can display help information according to a preset display relationship between the operation event and help information; if the first operation event triggered by the user If the operation event can display help information, then display the help information. The device includes: a first acquisition module, a first judgment module and a display module. After acquiring the operation event triggered by the user, the present invention can display the help information according to the preset relationship between the operation event and the help information display, and automatically provide the user with operation prompts, which is intelligent.

Description

A method and device for displaying help information

technical field

The invention relates to the technical field of computer communication, in particular to a method and device for displaying help information.

Background technique

With the development of computer communication technology, users can not only browse the web through the IE browser in the computer to obtain various information, but also browse the web through the mobile phone browser in the mobile phone anytime and anywhere to obtain various information.

However, in the process of realizing the present invention, the inventor finds that the prior art has at least the following problems:

Existing IE browsers or mobile phone browsers cannot provide operation prompts when users operate, and lack intelligence.

Contents of the invention

In order to solve the problems in the prior art, embodiments of the present invention provide a method and device for displaying help information. Described technical scheme is as follows:

A method for displaying help information, the method comprising:

Obtain the first operation event triggered by the user;

judging whether the first operation event triggered by the user can display help information according to a preset display relationship between the operation event and the help information;

If the first operation event triggered by the user can display help information, then display the help information.

A device for displaying help information, the device comprising:

A first acquisition module, configured to acquire a first operation event triggered by a user;

The first judgment module is configured to judge whether the first operation event triggered by the user can display help according to the preset relationship between the operation event and help information display after the first acquisition module acquires the first operation event triggered by the user information;

A display module, configured to display help information when the first judging module judges that the first operation event triggered by the user can display help information.

The beneficial effects of the technical solution provided by the embodiments of the present invention are:

After obtaining the operation event triggered by the user, it can display the relationship between the operation event and the help information according to the preset operation event, display the help information, and automatically provide the user with operation prompts, which is intelligent.

Description of drawings

FIG. 1 is a flowchart of a method for displaying help information provided by Embodiment 1 of the present invention;

FIG. 2 is a flowchart of a method for displaying help information provided by Embodiment 2 of the present invention;

Fig. 3 is a schematic structural diagram of the first device for displaying help information provided by Embodiment 3 of the present invention;

FIG. 4 is a schematic structural diagram of a second device for displaying help information provided by Embodiment 3 of the present invention;

5 is a schematic structural diagram of a third device for displaying help information provided by Embodiment 3 of the present invention;

FIG. 6 is a schematic structural diagram of a fourth device for displaying help information provided by Embodiment 3 of the present invention.

Detailed ways

In order to make the object, technical solution and advantages of the present invention clearer, the implementation manner of the present invention will be further described in detail below in conjunction with the accompanying drawings.

Example 1

Referring to Figure 1, an embodiment of the present invention provides a method for displaying help information, including:

101: Obtain a first operation event triggered by a user.

102: According to the preset display relationship between the operation event and the help information, determine whether the first operation event triggered by the user can display the help information.

103: If the first operation event triggered by the user can display help information, display help information.

Further, according to the preset display relationship between the operation event and the help information, it is judged whether the first operation event triggered by the user can display the help information, specifically including:

According to the display help information condition in the preset operation event and help information display relationship, determine whether the first operation event triggered by the user satisfies the display help information condition;

If the first operation event triggered by the user satisfies the condition for displaying help information, the first operation event triggered by the user can display help information.

Further, according to the preset display relationship between the operation event and the help information, it is judged whether the first operation event triggered by the user can display the help information, specifically including:

According to the display help information condition in the preset operation event and help information display relationship, determine whether the first operation event triggered by the user satisfies the display help information condition;

If the first operation event triggered by the user satisfies the condition for displaying help information, then judge whether the first operation event triggered by the user satisfies the condition for shielding help information according to the condition for shielding help information in the preset relationship between the operation event and the help information display;

If the first operation event triggered by the user does not satisfy the condition for shielding help information, the first operation event triggered by the user can display help information.

Further, after displaying the help information, the method further includes:

Obtain the second operation event triggered by the user;

Judging whether the second operation event triggered by the user is the operation event prompted in the displayed help information;

If the second operation event triggered by the user is an operation event prompted in the displayed help information, the condition for shielding the help information corresponding to the displayed help information is updated.

Further, before obtaining the first operation event triggered by the user, the method further includes:

Determine whether to enable the function of displaying help information;

If enabled, each user action event is monitored.

The method for displaying help information described in the embodiment of the present invention, after acquiring the operation event triggered by the user, can display the help information according to the preset relationship between the operation event and the help information display, and automatically provide the user with operation prompts, which is intelligent . Whether to display help information can be judged according to the set display conditions of help information, and the display of help information can be automatically controlled. In addition, help information that is not necessary to be displayed can be blocked by shielding the help information condition, so as to avoid causing interference.

The method for displaying help information described in the embodiments of the present invention can be applied to various scenarios where help information needs to be displayed, for example, it can be applied to IE browsers, mobile phone browsers, and the like. For the convenience of description, the application to mobile phone browsers is taken as an example for further description below.

Example 2

Referring to Figure 2, an embodiment of the present invention provides a method for displaying help information, including:

201: Start the browser of the mobile phone.

When the user needs to browse a webpage through the mobile phone browser to obtain various information, the mobile phone browser is started.

202: Determine whether the mobile phone browser has enabled the function of displaying help information, if enabled, execute 203; otherwise, execute 211.

Wherein, the function of displaying help information may display corresponding help information according to the user's specific operation, and the help information includes guiding the user to perform a next operation or prompting the user for what operation has what function.

203: Monitor each operation event of the user.

204: Acquire a first operation event triggered by the user when the user performs an operation.

205: Determine whether the first operation event triggered by the user satisfies the condition for displaying help information according to the display help information condition in the preset relationship between the operation event and help information display, and if the first operation event triggered by the user satisfies the display help information condition, then Go to 206 ; otherwise, go to 210 .

In this embodiment, the preset relationship between operation events and help information display includes information such as help information content, conditions for displaying help information, conditions for blocking help information, and the like.

Specifically, according to the user's operating habits, the conditions for displaying help information can be obtained through statistical methods; for example, when the user's operation and how to operate can be obtained through statistics, the help information should be displayed, so as to set the corresponding display help information conditions. Similarly, according to the user's operating habits, the conditions for blocking help information can also be obtained through statistical methods; if the user's operations and how to operate can be obtained through statistics, the conditions for blocking help information should be blocked, so as to set the corresponding blocking help information conditions. In addition, the specific content of the help information can be set according to the user's operating habits.

It should be noted that the conditions for displaying help information, the conditions for blocking help information, and the content of the help information are not limited to statistical methods, but can also be set by any other feasible method, which is not specifically limited here.

In addition, the preset operation event and help information display relationship can be saved in the form of a list in the specific implementation. The preset operation event and help information display relationship list includes help information content, display help information conditions, and mask help information. conditions and other information.

Taking the smart reminder of the shortcut key of the mobile phone browser as an example, the relationship between the preset operation event and the display of help information is shown in Table 1.

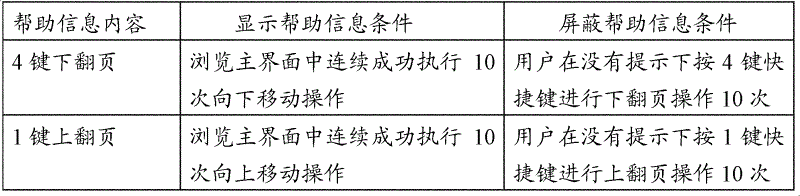

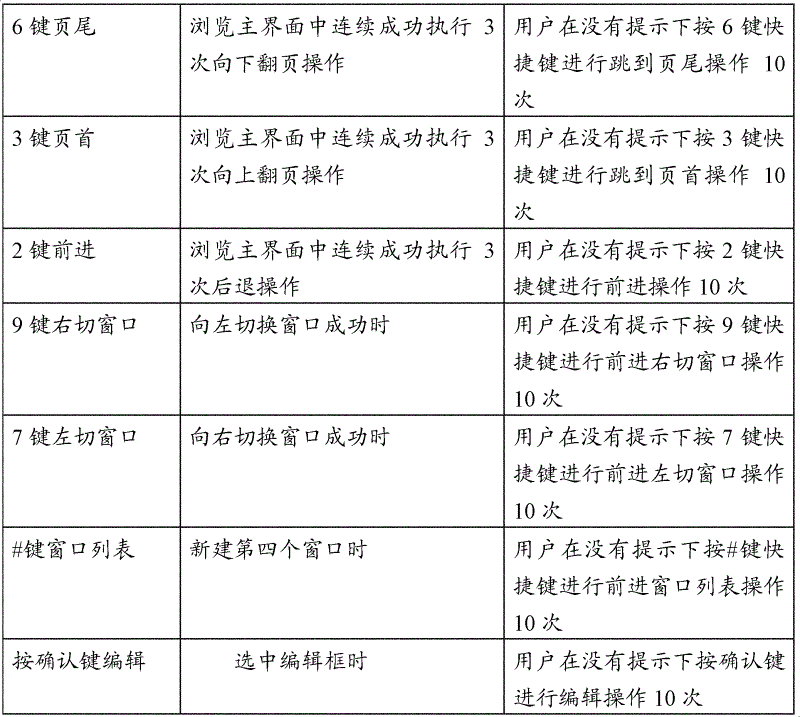

Table 1

Note: The number of times related to the conditions for displaying help information and the number of times for blocking help information are demo data.

206: According to the masking help information condition in the preset operation event and help information display relationship, determine whether the first operation event triggered by the user satisfies the masking help information condition, if the user-triggered first operation event does not meet the masking help information condition, Then execute 207 ; otherwise, execute 210 .

If the user has already learned the content of a certain help information prompt, then the help information does not need to be prompted to the user again, so that the help information can be blocked by shielding the help information condition to avoid interference. For example, as shown in Table 1, if the user completes an action for a specified number of times without a help message prompt, it can be considered that the user has already been able to use the function, and the condition for blocking the help message is met.

207: display help information.

For example: if the content of the help information is 4 keys to turn pages down, then "4 keys to turn pages down" will be displayed.

208: Obtain a second operation event triggered by the user, and determine whether the second operation event triggered by the user is an operation event prompted in the displayed help information, if the second operation event triggered by the user is an operation event prompted in the displayed help information, Then execute 209; otherwise, execute 202.

Obtaining the second operation event triggered by the user is to obtain the operation event triggered by the user next after the help information is displayed.

209: Update the condition of shielding help information corresponding to the displayed help information, and then execute 202.

Update the shielding help information conditions corresponding to the displayed help information. If the shielding help information conditions include display times, successful guidance times, etc., the displayed times, successful guidance times, etc. need to be updated when updating. The specific update content is related to the specific content included in the conditions for blocking help information, and will not be repeated here.

210: Do not display help information, and then execute 202.

211: Do not display help information, and then end.

It should be noted that the actual application may not set the condition for shielding the help information, but only set the condition for displaying the help information, that is, when it is determined that the operation event triggered by the user satisfies the condition for displaying the help information, go to step 207 .

The method for displaying help information described in the embodiment of the present invention, after acquiring the operation event triggered by the user, can display the help information according to the preset relationship between the operation event and the help information display, and automatically provide the user with operation prompts, which is intelligent . Whether to display help information can be judged according to the set display conditions of help information, and the display of help information can be automatically controlled. In addition, help information that is not necessary to be displayed can be blocked by shielding the help information condition, so as to avoid causing interference.

Example 3

Referring to Fig. 3, an embodiment of the present invention provides a device for displaying help information, which includes:

The first acquiring module 301 is configured to acquire a first operation event triggered by a user;

The first judgment module 302 is configured to judge whether the first operation event triggered by the user can display help information according to the preset relationship between the operation event and the help information display after the first acquisition module 301 acquires the first operation event triggered by the user;

The display module 303 is configured to display the help information when the first judging module 302 judges that the first operation event triggered by the user can display the help information.

Further, the first judging module 302 specifically includes:

The first judging unit is configured to, after the first acquiring module 301 acquires the first operation event triggered by the user, judge whether the first operation event triggered by the user is Satisfy the conditions for displaying help information;

The first determining unit is configured to determine that the first operation event triggered by the user can display help information when the first judging unit judges that the first operation event triggered by the user satisfies a condition for displaying help information.

Further, the first judging module 302 specifically includes:

The second judging unit is configured to, after the first acquiring module 301 acquires the first operation event triggered by the user, judge whether the first operation event triggered by the user is Satisfy the conditions for displaying help information;

The third judging unit is configured to, when the second judging unit judges that the first operation event triggered by the user satisfies the condition for displaying help information, judge the first operation event triggered by the user according to the masking help information condition in the preset relationship between the operation event and the help information display. 1. Whether the operation event satisfies the conditions for blocking help information;

The second determination unit is configured to determine that the first operation event triggered by the user can display help information when the third determination unit determines that the first operation event triggered by the user does not meet the condition for shielding help information.

Further, referring to Figure 4, the device also includes:

The second acquiring module 304 is configured to acquire a second operation event triggered by the user after the display module 303 displays the help information;

The second judgment module 305 is configured to judge whether the second operation event triggered by the user is the operation event prompted in the displayed help information after the second acquisition module 304 acquires the second operation event triggered by the user;

The updating module 306 is configured to update the masking help information condition corresponding to the displayed help information when the second judging module 305 judges that the second operation event triggered by the user is an operation event prompted in the displayed help information.

Further, referring to Fig. 5 or Fig. 6, the device further includes:

The third judging module 307 is configured to judge whether to enable the function of displaying help information before the first acquiring module 301 acquires the first operation event triggered by the user;

The monitoring module 308 is configured to monitor each operation event of the user when the third judging module 307 judges that the function of displaying help information is enabled.

The device for displaying help information described in the embodiment of the present invention, after acquiring the operation event triggered by the user, can display the help information according to the preset relationship between the operation event and the help information display, and automatically provide the user with operation prompts, which is intelligent . Whether to display help information can be judged according to the set display conditions of help information, and the display of help information can be automatically controlled. In addition, help information that is not necessary to be displayed can be blocked by shielding the help information condition, so as to avoid causing interference.

All or part of the technical solutions provided by the above embodiments can be realized by software programming, and the software program is stored in a readable storage medium, such as a hard disk, an optical disk or a floppy disk in a computer.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present invention shall be included in the protection of the present invention. within range.

Claims (10)

1. A method for displaying help information, characterized in that the method comprises: Obtain the first operation event triggered by the user; judging whether the first operation event triggered by the user can display help information according to a preset display relationship between the operation event and the help information; If the first operation event triggered by the user can display help information, then display the help information. 2. The method for displaying help information according to claim 1, wherein, according to a preset display relationship between an operation event and help information, it is judged whether the first operation event triggered by the user can display help information, specifically comprising: According to the display help information condition in the preset operation event and help information display relationship, determine whether the first operation event triggered by the user satisfies the display help information condition; If the first operation event triggered by the user satisfies a condition for displaying help information, the first operation event triggered by the user can display help information. 3. The method for displaying help information according to claim 1, characterized in that, according to a preset display relationship between an operation event and help information, it is judged whether the first operation event triggered by the user can display help information, specifically comprising: According to the display help information condition in the preset operation event and help information display relationship, determine whether the first operation event triggered by the user satisfies the display help information condition; If the first operation event triggered by the user satisfies the condition for displaying help information, judge whether the first operation event triggered by the user satisfies the masking condition according to the masking help information condition in the preset relationship between the operation event and the help information display. Conditions of help information; If the first operation event triggered by the user does not meet the condition for shielding help information, the first operation event triggered by the user can display help information. 4. The method for displaying help information according to any one of claims 1-3, wherein after displaying the help information, the method further comprises: Acquiring a second operation event triggered by the user; judging whether the second operation event triggered by the user is an operation event prompted in the displayed help information; If the second operation event triggered by the user is an operation event prompted in the displayed help information, the condition for shielding the help information corresponding to the displayed help information is updated. 5. The method for displaying help information according to any one of claims 1-3, wherein before obtaining the first operation event triggered by the user, the method further comprises: Determine whether to enable the function of displaying help information; If enabled, each user action event is monitored. 6. A device for displaying help information, characterized in that the device comprises: A first acquisition module, configured to acquire a first operation event triggered by a user; The first judgment module is configured to judge whether the first operation event triggered by the user can display help according to the preset relationship between the operation event and help information display after the first acquisition module acquires the first operation event triggered by the user information; A display module, configured to display help information when the first judging module judges that the first operation event triggered by the user can display help information. 7. The device for displaying help information according to claim 6, wherein the first judging module specifically includes: The first judging unit is configured to judge the user-triggered first operation event according to the display help information condition in the preset operation event and help information display relationship after the first acquisition module acquires the user-triggered first operation event Whether the first operation event satisfies the condition for displaying help information; A first determining unit, configured to determine that the first operation event triggered by the user can display help information when the first determining unit determines that the first operation event triggered by the user satisfies a condition for displaying help information. 8. The device for displaying help information according to claim 6, wherein the first judging module specifically includes: The second judging unit is configured to judge the user-triggered first operation event according to the display help information condition in the preset operation event and help information display relationship after the first acquisition module acquires the user-triggered first operation event Whether the first operation event satisfies the condition for displaying help information; The third judging unit is configured to, when the second judging unit judges that the first operation event triggered by the user satisfies the condition for displaying help information, according to the condition of shielding help information in the preset relationship between the operation event and the help information display , judging whether the first operation event triggered by the user satisfies the condition for blocking help information; The second determination unit is configured to determine that the first operation event triggered by the user can display help information when the third determination unit determines that the first operation event triggered by the user does not satisfy the condition for shielding help information. 9. The device for displaying help information according to any one of claims 6-8, wherein the device further comprises: a second acquiring module, configured to acquire a second operation event triggered by the user after the display module displays the help information; A second judgment module, configured to judge whether the second operation event triggered by the user is an operation event prompted in the displayed help information after the second acquisition module acquires the second operation event triggered by the user; An updating module, configured to update the masking help information condition corresponding to the displayed help information when the second judging module judges that the second operation event triggered by the user is an operation event prompted in the displayed help information. 10. The device for displaying help information according to any one of claims 6-8, characterized in that the device further comprises: A third judging module, configured to judge whether to enable the function of displaying help information before the first acquiring module acquires the first operation event triggered by the user; A monitoring module, configured to monitor each operation event of the user when the third judging module judges that the function of displaying help information is enabled.
