CN101800805B - Prompting method and system of customized information and mobile terminal - Google Patents

Abstract

The present invention is applicable to the technical field of communication, and provides a method, system and mobile terminal for prompting customized information. The method includes the following steps: receiving a selection operation of a function option menu icon by a user on a first display screen of the mobile terminal; In the display area of the second display screen of the mobile terminal, the selected function option menu icon is correspondingly positioned and displayed; when the corresponding customization information is received, control the second display where the icon corresponding to the customization information is located The display area of the screen is continuously highlighted to prompt the customized information; the mobile terminal includes a first display screen and a second display screen, and the first display screen and the second display screen are independent of each other, which is convenient for users to customize the information they are interested in. The content and its display area enhance the user experience.

Description

A prompt method, system and mobile terminal for customized information

technical field

The invention belongs to the technical field of communication, and in particular relates to a prompt method, system and mobile terminal for customized information.

Background technique

Currently, when a candy bar smart phone is in standby mode, when there is an unread text message or a missed call, the phone will prompt the user through ringing, vibration, heartbeat light, etc., and it will return to normal after a period of time. When the mobile phone user sees the mobile phone after a period of time and does not turn on the screen, he cannot know the incoming call or text message at the first time, so he may miss some important calls and text messages, and the user cannot conveniently treat himself Interested content (such as phone calls, schedules, etc.) to customize.

Contents of the invention

The purpose of the embodiments of the present invention is to provide a prompt method for customized information, aiming at solving the problem in the prior art that after receiving a missed call or unread message, the mobile phone will return to the standby state of the black screen within a preset time, causing An issue where users may miss certain important calls and messages.

The embodiment of the present invention is implemented in this way, a method for prompting customized information, the method includes the following steps:

receiving the selection operation of the user on the function option menu icon on the first display screen of the mobile terminal;

In the display area of the second display screen of the mobile terminal, the selected function option menu icon is correspondingly positioned and displayed as a display icon of customized information;

When receiving the corresponding customized information, control the display area of the second display screen where the icon corresponding to the customized information is continuously highlighted and the first displayed screen is regularly highlighted to prompt the customized information, and when the prompt reaches After a certain period of time, turn off the first display screen;

The mobile terminal includes a first display screen and a second display screen, the first display screen and the second display screen are independent of each other, and a touch screen is set on the second display screen to realize touch operation.

Another object of the embodiments of the present invention is to provide a system for prompting customized information, the system comprising:

The receiving module is used to receive the selection operation of the user on the function option menu icon on the first display screen of the mobile terminal;

The positioning display module is used to locate and display the selected function option menu icon in the display area of the second display screen of the mobile terminal, as a display icon of customized information; and

A prompting module, configured to control the continuous highlighting of the display area of the second display screen where the icon corresponding to the customizing information is located and the timing highlighting of the first display screen when corresponding customizing information is received, so as to prompt the customizing information , and when the prompt reaches a certain time, turn off the first display screen;

The mobile terminal includes a first display screen and a second display screen, the first display screen and the second display screen are independent of each other, and a touch screen is set on the second display screen to realize touch operation.

In the embodiment of the present invention, the selection operation of the function option menu icon by the user on the first display screen of the mobile terminal is received; the selected function option menu icon is correspondingly positioned in the display area of the second display screen of the mobile terminal Display, as a display icon of customized information; when receiving corresponding customized information, control the display area of the second display screen where the icon corresponding to the customized information is continuously highlighted to prompt the customized information; the moving The terminal includes a first display screen and a second display screen, the first display screen and the second display screen are independent of each other, which is convenient for the user to customize the content of interest and its display area, and improves the user experience.

Description of drawings

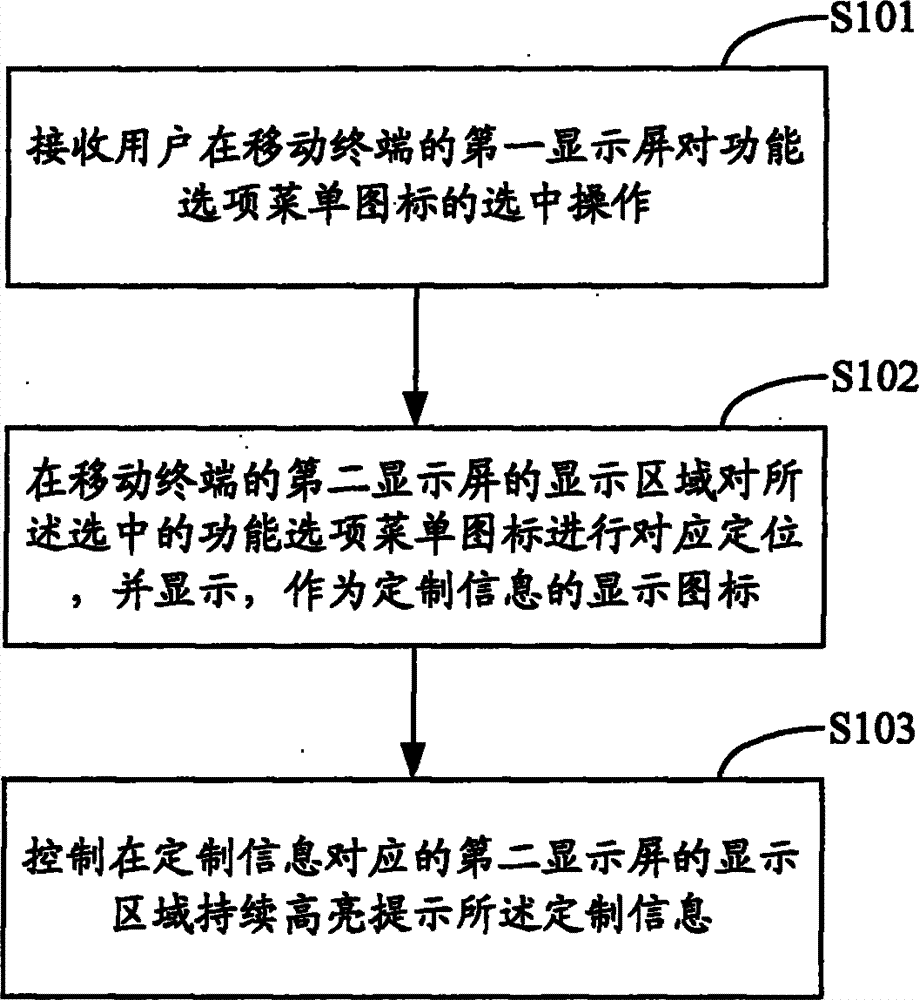

FIG. 1 is a flow chart of the implementation of the prompt method for customized information provided by the first embodiment of the present invention;

Fig. 2 is a schematic diagram of a mobile terminal interface provided by an embodiment of the present invention;

Fig. 3 is a flow chart of realizing the prompting method of customized information provided by the second embodiment of the present invention;

Fig. 4 is a flow chart of realizing the prompting method of customized information provided by the third embodiment of the present invention;

Fig. 5 is a flow chart of realizing the prompt method of customized information provided by the fourth embodiment of the present invention;

Fig. 6 is a structural block diagram of the system for prompting customized information provided by the first embodiment of the present invention;

Fig. 7 is a structural block diagram of a system for prompting customized information provided by the second embodiment of the present invention;

Fig. 8 is a structural block diagram of a system for prompting customized information provided by the third embodiment of the present invention;

Fig. 9 is a structural block diagram of a system for prompting customized information provided by the fourth embodiment of the present invention.

Detailed ways

In order to make the object, technical solution and advantages of the present invention clearer, the present invention will be further described in detail below in conjunction with the accompanying drawings and embodiments. It should be understood that the specific embodiments described here are only used to explain the present invention, not to limit the present invention.

In the embodiment of the present invention, the selection operation of the function option menu icon by the user on the first display screen of the mobile terminal is received; the selected function option menu icon is correspondingly positioned in the display area of the second display screen of the mobile terminal Display, as a display icon of customized information; when receiving corresponding customized information, control the display area of the second display screen where the icon corresponding to the customized information is continuously highlighted to prompt the customized information; the moving The terminal includes a first display screen and a second display screen, and the first display screen and the second display screen are independent of each other.

Figure 1 shows the implementation process of the prompt method for customized information provided by the first embodiment of the present invention, and its specific steps are as follows:

In step S101, a selection operation of a function option menu icon by a user on a first display screen of a mobile terminal is received.

In the embodiment of the present invention, the above-mentioned mobile terminal includes a first display screen and a second display screen, wherein the first display screen and the second display screen are also covered with a touch screen, but this is not intended to limit the present invention; of course, other The hardware and software components will not be described in detail here. The first display screen and the second display screen are independent of each other, and the interaction of functions is realized through the control software. Of course, it can be understood that the first display screen and the second display screen are covered with a touch screen to realize touch operation.

Wherein, there may be many ways to select the function option menu icon on the first display screen, and the detailed implementation manners are described below, which will not be repeated here, but are not intended to limit the present invention.

In step S102, the selected function option menu icon is correspondingly positioned and displayed in the display area of the second display screen of the mobile terminal, as a display icon of the customized information.

In the embodiment of the present invention, the implementation steps of correspondingly locating and displaying the selected function option menu icons in the display area of the second display screen of the mobile terminal will not be repeated here, and detailed embodiments are described below, but It is not intended to limit the invention.

In step S103, when the corresponding customized information is received, the display area of the second display screen where the icon corresponding to the customized information is located is controlled to be continuously highlighted, so as to prompt the customized information.

In the embodiment of the present invention, the above-mentioned customized information includes but is not limited to email, text message, phone call, time and other application functions, wherein Fig. 2 shows a schematic diagram of the mobile terminal interface provided by the embodiment of the present invention, which is not intended to limit this invention.

Wherein, when the corresponding customization information is received, the control will continue to highlight the customization information in the display area of the second display screen where the icon corresponding to the customization information is located, and also need to display the customization information on the first display screen of the mobile terminal at regular intervals. Highlighting prompts customized information, and the timing highlighting prompting customized information on the first display screen of the mobile terminal can be realized by using the scheme of the prior art. When the prompt reaches a certain time, the first display screen will be extinguished. The present invention is limited to one embodiment of the present invention.

FIG. 3 shows the implementation flow of the prompt method for customized information provided by the second embodiment of the present invention, and its specific steps are as follows:

In step S201, a user's long press instruction on a function option menu icon on the first display screen of the mobile terminal is received.

In the embodiment of the present invention, the way of the long press may be to click the function option menu icon for a long time. Of course, in this embodiment, there may be a preset judgment process of the long press time threshold, which will not be repeated here. But it is not intended to limit the present invention.

In step S202, when a long press instruction is received, the function option menu icon on the first display screen is controlled to enter a selected state.

In the embodiment of the present invention, when a user's long-press instruction on the function option menu icon on the first display screen is received, the control sets the long-pressed icon to a selected state.

In step S203, a user's long press instruction on the display area of the second display screen of the mobile terminal is received.

In step S204, it is determined whether the time of the long press exceeds a preset time threshold, if yes, execute step S205; otherwise, end.

In the embodiment of the present invention, the preset time threshold is a time threshold preset by the system or by the user, which is not used to limit the present invention.

In step S205, the function option menu icon selected on the first display screen of the mobile terminal is displayed in the display area of the second display screen of the mobile terminal after long pressing, as a display icon of customized information.

In the embodiment of the present invention, when the time of the long press exceeds the preset time threshold, it indicates that the display area of the second display screen that the user long presses is the display area where the user locates, and the function option menu icon selected in step S202 Displayed in the display area of the positioned second display.

In step S206, when the corresponding customized information is received, the display area of the second display screen where the icon corresponding to the customized information is located is controlled to be continuously highlighted, so as to prompt the customized information. Wherein, when the corresponding customization information is received, the control will continue to highlight the customization information in the display area of the second display screen where the icon corresponding to the customization information is located, and also need to display the customization information on the first display screen of the mobile terminal at regular intervals. Highlighting prompts customized information, and the timing highlighting prompting customized information on the first display screen of the mobile terminal can be realized by using the scheme of the prior art. When the prompt reaches a certain time, the first display screen will be extinguished. The present invention is limited to one embodiment of the present invention.

Fig. 4 shows the implementation flow of the prompt method for customized information provided by the third embodiment of the present invention, and its specific steps are as follows:

In step S301, a user's long press instruction on a function option menu icon on the first display screen of the mobile terminal is received.

In the embodiment of the present invention, the way of the long press may be to click the function option menu icon for a long time. Of course, in this embodiment, there may be a preset judgment process of the long press time threshold, which will not be repeated here. But it is not intended to limit the present invention.

In step S302, when a long press instruction is received, the function option menu icon on the first display screen is controlled to enter a selected state.

In the embodiment of the present invention, when a user's long-press instruction on the function option menu icon on the first display screen is received, the control sets the long-pressed icon to a selected state.

In step S303, a positioning instruction input by a user in a sliding manner on a display area of the second display screen of the mobile terminal is received.

In the embodiment of the present invention, the sliding manner may be a gesture manner or a ticking manner in the display area of the second display screen, which is not intended to limit the present invention here.

In step S304, according to the positioning instruction, the function option menu icon selected on the first display screen of the mobile terminal is displayed in the display area of the second display screen of the mobile terminal positioned by sliding, as a display icon of customized information.

In step S305, when the corresponding customization information is received, the display area of the second display screen where the icon corresponding to the customization information is located is controlled to be continuously highlighted, so as to prompt the customization information.

Wherein, when the corresponding customization information is received, the control will continue to highlight the customization information in the display area of the second display screen where the icon corresponding to the customization information is located, and also need to display the customization information on the first display screen of the mobile terminal at regular intervals. Highlighting prompts customized information, and the timing highlighting prompting customized information on the first display screen of the mobile terminal can be realized by using the scheme of the prior art. When the prompt reaches a certain time, the first display screen will be extinguished. The present invention is limited to one embodiment of the present invention.

FIG. 5 shows the implementation flow of the prompt method for customized information provided by the fourth embodiment of the present invention, and its specific steps are as follows:

In step S401, a user's click instruction on a function option menu icon on the first display screen of the mobile terminal is received.

In the embodiment of the present invention, the click instruction may be generated by a click operation in a common sense.

In step S402, when the click instruction is received, a check box is displayed and output, and the selection operation of the user on the check box is received, and the check box is used to prompt the user to click on the first button of the mobile terminal. A function option menu icon for a display selection.

In step S403, the user's selection of the display area of the second display screen of the mobile terminal on the check box is received.

In the embodiment of the present invention, the check box is generated by the user by clicking on the display area of the second display screen, and its function is similar to that of the above check box, so it will not be described here, but it is not used to limit the present invention.

In step S404, the control displays the function option menu icon to be clicked and selected on the first display screen of the mobile terminal in the display area of the second display screen of the mobile terminal selected through the check box, as the customized information Show icon.

In the embodiment of the present invention, the function of the check box is similar to that of the above check box, which is not used to limit the present invention.

In step S405, when the corresponding customized information is received, the display area of the second display screen where the icon corresponding to the customized information is located is controlled to be continuously highlighted, so as to prompt the customized information.

Wherein, when the corresponding customization information is received, the control will continue to highlight the customization information in the display area of the second display screen where the icon corresponding to the customization information is located, and also need to display the customization information on the first display screen of the mobile terminal at regular intervals. Highlighting prompts customized information, and the timing highlighting prompting customized information on the first display screen of the mobile terminal can be realized by using the scheme of the prior art. When the prompt reaches a certain time, the first display screen will be extinguished. The present invention is limited to one embodiment of the present invention.

In the embodiment of the present invention, the foregoing is only an embodiment of the present invention, and other implementation manners may also exist, which are not intended to limit the present invention.

Fig. 6 shows a structural block diagram of the prompt system for customized information provided by the first implementation of the present invention. For the convenience of description, only the parts related to the embodiment of the present invention are shown in the figure, wherein the prompt system for customized information can be built in A software unit, a hardware unit or a combination of software and hardware of a mobile terminal.

The receiving module 11 receives the selection operation of the user on the first display screen of the mobile terminal to the function option menu icon; the positioning display module 12 performs corresponding positioning display on the selected function option menu icon in the display area of the second display screen of the mobile terminal , as the display icon of the customized information; when the prompt module 13 receives the corresponding customized information, control the display area of the second display screen where the icon corresponding to the customized information is located to be continuously highlighted to prompt the customized information; wherein , The mobile terminal includes a first display screen and a second display screen, and the first display screen and the second display screen are independent of each other. Of course, it can be understood that the first display screen and the second display screen are covered with a touch screen to realize touch operation.

Wherein, when the corresponding customization information is received, the control will continue to highlight the customization information in the display area of the second display screen where the icon corresponding to the customization information is located, and also need to control the first display of the customization information on the mobile terminal. The customized information is highlighted regularly on the screen, and the customized information can be highlighted regularly on the first display screen of the mobile terminal, which can be realized by the scheme of the prior art. It is not intended to limit the present invention, but is only an embodiment of the present invention.

As another embodiment of the present invention, FIG. 7 shows a structural block diagram of a prompt system for customized information provided by the second embodiment of the present invention. For the convenience of description, only the parts related to the embodiment of the present invention are shown in the figure. Wherein, the system for prompting customized information may be built in a software unit, a hardware unit or a combination unit of software and hardware of the mobile terminal.

The receiving module 11 receives the selection operation of the user on the first display screen of the mobile terminal to the function option menu icon; the positioning display module 12 performs corresponding positioning on the selected function option menu icon in the display area of the second display screen of the mobile terminal, and display; when the prompt module 13 receives the corresponding customized information, control the display area of the second display screen where the icon corresponding to the customized information is continuously highlighted to prompt the customized information; wherein, the mobile terminal includes the first A display screen and a second display screen, the first display screen and the second display screen are independent of each other.

Wherein, when the corresponding customization information is received, the control continuously highlights the customization information in the display area of the second display screen where the icon corresponding to the customization information is located, and also needs to control the display area on the first display screen of the mobile terminal. Timing highlights the customized information, and the timing highlighting the customized information on the first display screen of the mobile terminal can be realized by the scheme of the prior art. When the prompt reaches a certain time, the first display screen will be extinguished. To limit the present invention, it is only an embodiment of the present invention.

In the embodiment of the present invention, the first long press instruction receiving module 111 receives the user's long press instruction on the function option menu icon on the first display screen of the mobile terminal; when the control module 112 receives the first long press instruction When the module 111 receives the long press instruction, it controls the function option menu icon on the first display screen to enter the selected state; the second long press instruction receiving module 121 receives the user's second long press instruction in the display area of the second display screen of the mobile terminal. The long press command; the judging module 122 judges whether the time of the long press exceeds the preset time threshold; the first display module 123 displays the selected function option menu icon on the first display screen of the mobile terminal on the long press The display area of the second display screen of the mobile terminal.

As another embodiment of the present invention, FIG. 8 shows a structural block diagram of a system for prompting customized information provided by the third embodiment of the present invention. For the convenience of description, only the parts related to the embodiment of the present invention are shown in the figure. Wherein, the system for prompting customized information may be built in a software unit, a hardware unit or a combination unit of software and hardware of the mobile terminal.

The receiving module 11 receives the selection operation of the user on the first display screen of the mobile terminal to the function option menu icon; the positioning display module 12 performs corresponding positioning on the selected function option menu icon in the display area of the second display screen of the mobile terminal, and display; when the prompt module 13 receives the corresponding customized information, control the display area of the second display screen where the icon corresponding to the customized information is continuously highlighted to prompt the customized information; wherein, the mobile terminal includes the first A display screen and a second display screen, the first display screen and the second display screen are independent of each other.

Wherein, when the corresponding customization information is received, the control continuously highlights the customization information in the display area of the second display screen where the icon corresponding to the customization information is located, and also needs to control the display area on the first display screen of the mobile terminal. Timing highlights the customized information, and the timing highlighting the customized information on the first display screen of the mobile terminal can be realized by the scheme of the prior art. When the prompt reaches a certain time, the first display screen will be extinguished. To limit the present invention, it is only an embodiment of the present invention.

In the embodiment of the present invention, the first long press instruction receiving module 111 receives the user's long press instruction on the function option menu icon on the first display screen of the mobile terminal; when the control module 112 receives the first long press instruction When the module 111 receives the long press instruction, it controls the function option menu icon on the first display screen to enter the selected state; the positioning instruction receiving module 124 receives the user's sliding mode on the display area of the second display screen of the mobile terminal. The input positioning instruction; the second display module 125 displays the function option menu icon selected on the first display screen of the mobile terminal in the display area of the second display screen of the mobile terminal positioned by sliding according to the positioning instruction .

As another embodiment of the present invention, FIG. 9 shows a structural block diagram of a system for prompting customized information provided by the fourth embodiment of the present invention. For the convenience of description, only the parts related to the embodiment of the present invention are shown in the figure. Wherein, the system for prompting customized information may be built in a software unit, a hardware unit or a combination unit of software and hardware of the mobile terminal.

The receiving module 11 receives the selection operation of the user on the first display screen of the mobile terminal to the function option menu icon; the positioning display module 12 performs corresponding positioning on the selected function option menu icon in the display area of the second display screen of the mobile terminal, and display; when the prompt module 13 receives the corresponding customized information, control the display area of the second display screen where the icon corresponding to the customized information is continuously highlighted to prompt the customized information; wherein, the mobile terminal includes the first A display screen and a second display screen, the first display screen and the second display screen are independent of each other.

Wherein, when the corresponding customization information is received, the control continuously highlights the customization information in the display area of the second display screen where the icon corresponding to the customization information is located, and also needs to control the display area on the first display screen of the mobile terminal. Timing highlights the customized information, and the timing highlighting the customized information on the first display screen of the mobile terminal can be realized by the scheme of the prior art. When the prompt reaches a certain time, the first display screen will be extinguished. To limit the present invention, it is only an embodiment of the present invention.

In the embodiment of the present invention, the click instruction receiving module 113 receives the user's click instruction on the function option menu icon on the first display screen of the mobile terminal; When the click instruction is used, a check box is displayed and output, and the user's selection operation on the check box is received, and the check box is used to prompt the user to select a function option menu on the first display screen of the mobile terminal. Icon; the check box selection module 126 receives the user's selection on the check box to the second display area of the mobile terminal, wherein the check box function is similar to the above check box, which is not used to limit the present invention; The third display module 127 controls to display the function option menu icon to be selected by clicking on the first display screen of the mobile terminal in the display area of the second display screen of the mobile terminal selected by the check box.

In the embodiment of the present invention, the above is only an embodiment of the present invention, and is not intended to limit the present invention.

In the embodiment of the present invention, receiving the user's selection operation of the function option menu icon on the first display screen of the mobile terminal; performing corresponding positioning on the selected function option menu icon in the display area of the second display screen of the mobile terminal, And display; when receiving the corresponding customized information, control the display area of the second display screen where the icon corresponding to the customized information is continuously highlighted to prompt the customized information; the mobile terminal includes a first display screen and the second display screen, the first display screen and the second display screen are independent of each other, which is convenient for the user to customize the content of interest and its display area, and improves the user experience.

Those of ordinary skill in the art can understand that all or part of the steps in the method of the above embodiments can be completed by instructing related hardware through a program, and the program can be stored in a computer-readable storage medium, and the described Storage media, such as ROM/RAM, magnetic disk, optical disk, etc.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present invention should be included in the protection of the present invention. within range.

Claims (10)

1. A prompting method for customized information, characterized in that said method comprises the following steps: receiving the selection operation of the user on the function option menu icon on the first display screen of the mobile terminal; In the display area of the second display screen of the mobile terminal, the selected function option menu icon is correspondingly positioned and displayed as a display icon of customized information; When receiving the corresponding customized information, control the display area of the second display screen where the icon corresponding to the customized information is continuously highlighted and the first displayed screen is regularly highlighted to prompt the customized information, and when the prompt reaches After a certain period of time, turn off the first display screen; The mobile terminal includes a first display screen and a second display screen, the first display screen and the second display screen are independent of each other, and a touch screen is set on the second display screen to realize touch operation. 2. The method according to claim 1, wherein the step of receiving the user's selected operation of the function option menu icon on the first display screen of the mobile terminal specifically comprises: receiving a user's long press instruction on the function option menu icon on the first display screen of the mobile terminal; When the long press instruction is received, the function option menu icon on the first display screen is controlled to enter a selected state. 3. The method according to claim 2, wherein the step of performing corresponding positioning on the display area of the second display screen of the mobile terminal specifically comprises: receiving a user's long press instruction on the display area of the second display screen of the mobile terminal; judging whether the time of the long press exceeds a preset time threshold; If so, displaying the function option menu icon selected on the first display screen of the mobile terminal in the display area of the second display screen of the mobile terminal that is long pressed; or receiving a positioning instruction input by the user in the display area of the second display screen of the mobile terminal in a sliding manner; According to the positioning instruction, the function option menu icon selected on the first display screen of the mobile terminal is displayed in the display area of the second display screen of the mobile terminal positioned by sliding. 4. The method according to claim 1, wherein the step of receiving the user's selected operation of the function option menu icon on the first display screen of the mobile terminal specifically comprises: receiving a user's click instruction on the function option menu icon on the first display screen of the mobile terminal; When the click instruction is received, a check box is displayed and output, and the user's selection operation on the check box is received, and the check box is used to prompt the user to select the first display on the mobile terminal. Function options menu icon. 5. The method according to claim 1, wherein the step of performing corresponding positioning in the display area of the second display screen of the mobile terminal specifically comprises: receiving the user's selection of the display area on the second display screen of the mobile terminal on the check box; Controlling to display the function option menu icon to be selected by clicking on the first display screen of the mobile terminal in the display area of the second display screen of the mobile terminal selected through the check box. 6. A prompt system for customized information, characterized in that the system includes: The receiving module is used to receive the selection operation of the user on the function option menu icon on the first display screen of the mobile terminal; The positioning display module is used to locate and display the selected function option menu icon in the display area of the second display screen of the mobile terminal, as a display icon of customized information; and a prompting module, configured to control the display area of the second display screen where the icon corresponding to the customized information is located to be continuously highlighted and the first display screen to be regularly highlighted when corresponding customized information is received, so as to prompt the customized information, And when the prompt reaches a certain time, turn off the first display screen; The mobile terminal includes a first display screen and a second display screen, the first display screen and the second display screen are independent of each other, and a touch screen is set on the second display screen to realize touch operation. 7. The system according to claim 6, wherein the receiving module specifically comprises: The first long press instruction receiving module is used to receive the user's long press instruction on the function option menu icon on the first display screen of the mobile terminal; and A control module, configured to control the function option menu icon on the first display screen to enter a selected state when the first long press instruction receiving module receives the long press instruction. 8. The system according to claim 7, wherein the positioning display module specifically comprises: The second long press instruction receiving module is used to receive the user's long press instruction in the display area of the second display screen of the mobile terminal; A judging module, configured to judge whether the time of the long press exceeds a preset time threshold; The first display module is used to display the function option menu icon selected on the first display screen of the mobile terminal in the display area of the second display screen of the mobile terminal that is long pressed; or A positioning instruction receiving module, configured to receive a positioning instruction input by a user in a display area of the second display screen of the mobile terminal in a sliding manner; The second display module is configured to display the function option menu icon selected on the first display screen of the mobile terminal in the display area of the second display screen of the mobile terminal positioned by sliding according to the positioning instruction. 9. The system according to claim 6, wherein the receiving module specifically comprises: The click instruction receiving module is used to receive the user's click instruction on the function option menu icon on the first display screen of the mobile terminal; and The check box display selection module is used to display and output a check box when the click instruction receiving module receives the click instruction, and receive the user's selection operation on the check box, and the check box is used to prompt the user to select the function option menu icon on the first display screen of the mobile terminal. 10. The system according to claim 6, wherein the positioning display module specifically comprises: A check box selection module, configured to receive a user's selection of the display area on the second display screen of the mobile terminal on the check box; and The third display module is configured to control to display the function option menu icon to be clicked and selected on the first display screen of the mobile terminal in the display area of the second display screen of the mobile terminal selected by the check box.
