CN101697549B - Method and system for displaying stream media and stream media management server - Google Patents

Abstract

The present invention provides a streaming media display method, system and streaming media management server, which relate to the communication field and are invented to solve the technical problem in the prior art that streaming media content may not be played normally at terminals due to incompatible formats. The method includes: the streaming media management server acquires the format of the streaming media file supported by the terminal; the streaming media management server acquires the streaming media name requested by the terminal; the streaming media management server acquires the stream corresponding to the streaming media name The storage address of the media file in the streaming media server, the format of the streaming media file corresponding to the streaming media name is the format of the streaming media file supported by the terminal; the streaming media management server sends the storage address to the The terminal, so that the terminal obtains and displays the streaming media file from the streaming media server according to the storage address. The present invention can be used to display stream media content on terminals of different models.

Description

Streaming media display method, system and streaming media management server

technical field

The invention relates to the communication field, in particular to a streaming media display method, system and streaming media management server.

Background technique

Streaming media refers to the multimedia application in which data such as video and sound are carried by the real-time transmission protocol and transmitted from the source to the destination in the form of a continuous stream, and can be played after receiving certain cached data at the destination. When streaming media technology is applied to wireless networks and mobile terminals, it is called mobile streaming media.

As the wireless network advances to the 3G (3rd-generation, third-generation mobile communication technology) era, high-speed wireless network technology and its applications are increasingly integrated into people's lives, entertainment and work. The application of high-speed wireless networks The prospect is very promising, and the application of mobile streaming media has also been widely used.

At present, when mobile streaming media implements content on-demand and live broadcast, the following methods are mainly used: the management portal implements uploading, review and release of content; the audio and video portal realizes the display of on-demand and live broadcast content; On-demand media content is played.

Currently, the commonly used media formats for mobile streaming media are:

1. 3gp/3gp2 media format is a standard mobile streaming media format formulated by 3GPP/3GPP2 (3rd Generation Partnership Project, Third Generation Partnership Project), and supports the most terminals.

2. The WMV media format is a proprietary format of Microsoft (Microsoft), and is supported by a small number of terminals.

3. The RM media format is a proprietary format of Real Company, and the terminal supports the built-in RealPlay player. The RealPlay player supports 3gp/3gp2 media formats at the same time.

With the diversification of mobile terminals and the diversification of streaming media content formats, different types of mobile terminals support different streaming media formats. If the content that the mobile terminal device cannot decode is sent to the mobile terminal device, the mobile terminal device will not be able to decode and play normally. If the resolution of the content exceeds the resolution of the screen, it will also not be able to play the streaming media content normally.

Contents of the invention

The technical problem to be solved by the present invention is to provide a streaming media display method, system and streaming media management server, which can normally play streaming media content on a terminal.

In order to solve the above technical problems, embodiments of the present invention provide technical solutions as follows:

On the one hand, a streaming media display method is provided, including:

The stream media management server obtains the format of the stream media file supported by the terminal;

The streaming media management server acquires the streaming media name requested by the terminal;

The streaming media management server obtains the storage address of the streaming media file corresponding to the streaming media name in the streaming media server, and the format of the streaming media file corresponding to the streaming media name is the format of the streaming media file supported by the terminal ;

The streaming media management server sends the storage address to the terminal, so that the terminal obtains and displays the streaming media file from the streaming media server according to the storage address.

Optionally, before the step of obtaining the streaming media file corresponding to the streaming media name, the streaming media management server further includes:

The streaming media management server obtains the network speed of the network where the terminal is located;

The step that the streaming media management server obtains the storage address of the streaming media file corresponding to the streaming media name in the streaming media server is:

The streaming media management server obtains the storage address of the streaming media file corresponding to the streaming media name in the streaming media server according to the network speed of the network where the terminal is located, and the format of the streaming media file corresponding to the streaming media name is The format of the streaming media file supported by the terminal.

The format of the streaming media file includes: the video encoding type of the streaming media file, the audio encoding type of the streaming media file, and the resolution of the streaming media file.

The step of obtaining the format of the streaming media file supported by the terminal by the streaming media management server is specifically:

The streaming media management server obtains the storage address of the format information of the streaming media file supported by the terminal from the gateway to which the terminal belongs, and the streaming media management server obtains the storage address of the streaming media file supported by the terminal according to the storage address. format; or

The streaming media management server searches for the pre-stored formats of the streaming media files supported by the terminal from itself.

After the step of obtaining the format of the streaming media file supported by the terminal according to the storage address, the streaming media management server further includes:

The streaming media management server stores the acquired format of the streaming media file supported by the terminal.

The streaming media management server obtains the streaming media file corresponding to the streaming media name before the step of storing the address of the streaming media server, and also includes:

The streaming media management server judges whether the format of the streaming media file corresponding to the streaming media name in the streaming media server is the format of the streaming media file supported by the terminal, and generates a judgment result;

If the judgment result is yes, then the streaming media management server obtains the storage address of the streaming media file corresponding to the streaming media name in the streaming media server;

If the judgment result is no, the streaming media management server transcodes the streaming media file corresponding to the streaming media name in the streaming media server according to the format of the streaming media file supported by the terminal to generate a converted file; the streaming media management server obtains the storage address of the converted file in the streaming media server; the streaming media management server sends the storage address of the converted file to the terminal, so that the terminal according to the The storage address of the converted file is obtained, and the converted file is obtained from the streaming media server and displayed.

The streaming media management server transcodes the streaming media file corresponding to the streaming media name in the streaming media server according to the format of the streaming media file supported by the terminal, and after the step of generating the converted file, it also includes:

The streaming media server saves the converted file.

The streaming media management server transcodes the streaming media file corresponding to the streaming media name in the streaming media server according to the format of the streaming media file supported by the terminal, and before the step of generating the converted file, it also includes:

The streaming media management server obtains the network speed of the network where the terminal is located;

The streaming media management server transcodes the streaming media file corresponding to the streaming media name in the streaming media server according to the format of the streaming media file supported by the terminal, and the step of generating the converted file is: the streaming media The management server transcodes the streaming media file corresponding to the streaming media name in the streaming media server according to the format of the streaming media file supported by the terminal and the network speed of the network where the terminal is located, to generate a converted file.

On the other hand, a kind of streaming media management server is provided, it is characterized in that, comprises:

The first obtaining module is used to obtain the format of the streaming media file supported by the terminal;

The second obtaining module is used to obtain the streaming media name requested by the terminal;

The third obtaining module is used to obtain the storage address of the streaming media file corresponding to the streaming media name in the streaming media server, and the format of the streaming media file is the format of the streaming media file supported by the terminal;

A sending module, configured to send the storage address to the terminal, so that the terminal obtains and displays the streaming media file from the streaming media server according to the storage address.

Optionally, the streaming media management server also includes:

A fourth obtaining module, configured to obtain the network speed of the network where the terminal is located;

The third obtaining module is used to obtain the storage address of the streaming media file corresponding to the streaming media name in the streaming media server according to the network speed of the network where the terminal is located, and the format of the streaming media file is supported by the terminal. The format of the streaming media file.

On the other hand, a streaming media display system is provided, including: a streaming media management server, a terminal, and a streaming media server;

The streaming media management server includes:

The first obtaining module is used to obtain the format of the streaming media file supported by the terminal;

The second obtaining module is used to obtain the streaming media name requested by the terminal;

The third obtaining module is used to obtain the storage address of the streaming media file corresponding to the streaming media name in the streaming media server, and the format of the streaming media file is the format of the streaming media file supported by the terminal;

A sending module, configured to send the storage address to the terminal, so that the terminal obtains and displays the streaming media file from the streaming media server according to the storage address.

Embodiments of the present invention have the following beneficial effects:

In the above solution, corresponding to different models and types of terminals, since the streaming media file is obtained according to the streaming media file format supported by the terminal, the format of the obtained streaming media file is the format of the streaming media file supported by the terminal, Therefore, the streaming media file sent to the terminal can be played correctly on the terminal.

Description of drawings

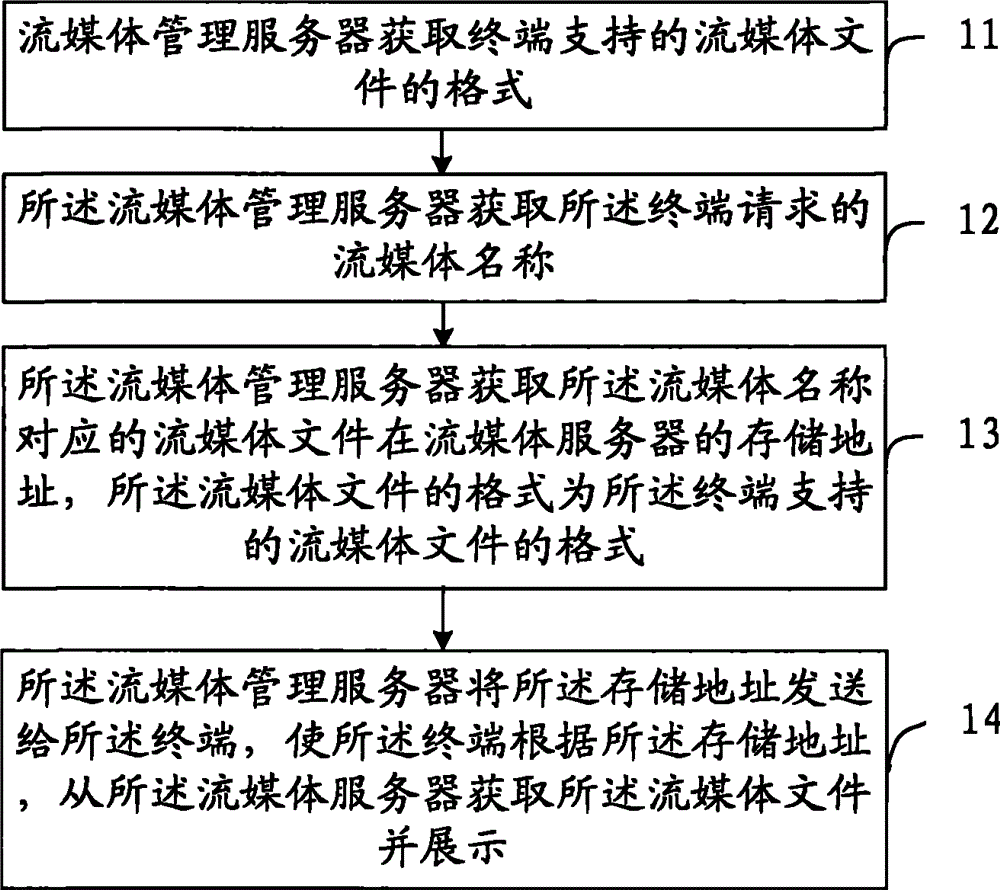

Fig. 1 is a schematic flow chart of an embodiment of a method for displaying streaming media according to the present invention;

FIG. 2 is a schematic flow diagram of another embodiment of the streaming media display method of the present invention;

FIG. 3 is a schematic flow diagram of another embodiment of the streaming media display method of the present invention;

Fig. 4 is a schematic structural diagram of the streaming media management server of the present invention;

FIG. 5 is a schematic structural diagram of a streaming media display system according to the present invention.

Detailed ways

In order to make the technical problems, technical solutions and advantages to be solved by the embodiments of the present invention clearer, the following will describe in detail with reference to the drawings and specific embodiments.

The embodiments of the present invention aim at the problem that the streaming media content sent to the terminal may not be normally displayed on the terminal in the prior art, and provide a streaming media display method, which can normally play the streaming media content on the terminal.

As shown in Figure 1, it is an embodiment of the display method of streaming media according to the present invention, including:

Step 11, the streaming media management server obtains the format of the streaming media file supported by the terminal;

Step 12, the streaming media management server obtains the streaming media name requested by the terminal;

Step 13, the streaming media management server obtains the storage address of the streaming media file corresponding to the streaming media name in the streaming media server, and the format of the streaming media file is the format of the streaming media file supported by the terminal;

Step 14, the streaming media management server sends the storage address to the terminal, so that the terminal obtains and displays the streaming media file from the streaming media server according to the storage address.

The format of the streaming media file includes: the video encoding type of the streaming media file, the audio encoding type of the streaming media file, and the resolution of the streaming media file.

In the above solution, corresponding to different models and types of terminals, since the streaming media file is obtained according to the streaming media file format supported by the terminal, the format of the streaming media file is the format of the streaming media file supported by the terminal, therefore, The streaming media files sent to the terminal can be played correctly on the terminal.

As shown in Figure 2, it is another embodiment of a streaming media display method according to the present invention, including:

Step 21, the streaming media management server obtains the format of the streaming media file supported by the terminal; wherein, step 21 is specifically: the streaming media management server obtains the format information of the streaming media file supported by the terminal from the gateway to which the terminal belongs storage address, the streaming media management server obtains the format of the streaming media file supported by the terminal according to the storage address; the streaming media management server stores the acquired format of the streaming media file supported by the terminal. The capability information of the terminal is the format of the streaming media file supported by the terminal. Alternatively, step 21 specifically includes: the streaming media management server searches itself for a pre-stored streaming media file format supported by the terminal. The format of the streaming media file includes: the video encoding type of the streaming media file, the audio encoding type of the streaming media file, and the resolution of the streaming media file.

Step 22, the streaming media management server acquires the network speed of the network where the terminal is located.

Step 23, the streaming media management server acquires the streaming media name requested by the terminal.

Step 24, the streaming media management server obtains the storage address of the streaming media file corresponding to the streaming media name in the streaming media server according to the network speed of the network where the terminal is located, and the format of the streaming media file is supported by the terminal The format of the streaming media file. Specifically, there are multiple formats supported by the terminal, and when there are multiple streaming media files corresponding to streaming media names that meet the formats supported by the terminal, if the network speed of the terminal is relatively fast, the method of obtaining the streaming media content with a large file size Storage address. If the network speed of the terminal is relatively slow, obtain the storage address of the streaming media content with a small file size. The size of the file is related to the video encoding type and audio encoding type.

Step 25, the streaming media management server sends the storage address to the terminal, so that the terminal obtains and displays the streaming media file from the streaming media server according to the storage address.

As shown in Figure 3, it is another embodiment of the display method of streaming media according to the present invention, including:

In step 31, the streaming media management server acquires the format of the streaming media file supported by the terminal. The format of the streaming media file includes: the video encoding type of the streaming media file, the audio encoding type of the streaming media file, and the resolution of the streaming media file.

Step 32, the streaming media management server acquires the streaming media name requested by the terminal.

Step 33: The streaming media management server judges whether the format of the streaming media file corresponding to the streaming media name in the streaming media server is the format of the streaming media file supported by the terminal, and generates a judgment result. If the judgment result is yes, execute step 34; otherwise, execute step 36.

Step 34, when the judgment result is yes, the streaming media management server obtains the storage address of the streaming media file corresponding to the streaming media name in the streaming media server, and the format of the streaming media file corresponding to the streaming media name is the The format of streaming media files supported by the terminal. Wherein, when the terminal supports multiple formats of streaming media files, the storage address of the streaming media content obtained by the streaming media management server in the streaming media server is a default streaming media among the preset multiple streaming media content The storage address of the content.

Step 35, the streaming media management server sends the storage address to the terminal, so that the terminal obtains and displays the streaming media file from the streaming media server according to the storage address.

Step 36, when the judgment result is no, the streaming media management server transcodes the streaming media file corresponding to the streaming media name in the streaming media server according to the format of the streaming media file supported by the terminal , to generate the conversion file. This step specifically includes: the format of the converted file is the format of the streaming media file supported by the terminal.

Step 37, the streaming media management server acquires the storage address of the converted file in the streaming media server.

Step 38, the streaming media management server sends the storage address of the converted file to the terminal, so that the terminal obtains and displays the converted file from the streaming media server according to the storage address of the converted file.

Optionally, after step 36, the method further includes: the streaming media server saves the converted file, and sends it directly to other terminals without re-converting in a subsequent process.

Optionally, before step 36, the method further includes: the streaming media management server obtains the network speed of the network where the terminal is located; correspondingly, step 36 is specifically: the streaming media management server According to the format of the streaming media file and the network speed of the network where the terminal is located, the streaming media content of the streaming media server is transcoded to generate a conversion file. This step is specifically, the format of the converted file is the format of the streaming media file supported by the terminal, and, when the network speed of the network where the terminal is located is fast, the converted video and audio quality are better encoded, In this way, the quality of the streaming media content watched by the user is guaranteed, and when the network speed of the network where the terminal is located is slow, the encoding type of audio and video with relatively small files after conversion is used.

As shown in Figure 4, it is the streaming media management server 40 of the present invention, including:

The first obtaining module 41 is used to obtain the format of the streaming media file supported by the terminal;

The second obtaining module 42 is used to obtain the streaming media name requested by the terminal;

The third obtaining module 43 is used to obtain the storage address of the streaming media file corresponding to the streaming media name in the streaming media server, and the format of the streaming media file is the format of the streaming media file supported by the terminal;

The sending module 44 is configured to send the storage address to the terminal, so that the terminal obtains and displays the streaming media file from the streaming media server according to the storage address.

In the above solution, corresponding to different models and types of terminals, since the streaming media file is obtained according to the streaming media file format supported by the terminal, the format of the obtained streaming media file is the format of the streaming media file supported by the terminal, Therefore, the streaming media file sent to the terminal can be played correctly on the terminal. Optionally, the streaming media management server also includes:

A fourth obtaining module 45, configured to obtain the network speed of the network where the terminal is located;

The third obtaining module 43 is used to obtain the storage address of the streaming media file corresponding to the streaming media name in the streaming media server according to the network speed of the network where the terminal is located, and the format of the streaming media file is the terminal The supported streaming file formats.

The format of the streaming media file includes: the video encoding type of the streaming media file, the audio encoding type of the streaming media file, and the resolution of the streaming media file.

The first obtaining module 41 is: obtain the storage address of the capability information of the terminal from the gateway of the terminal; according to the storage address, obtain the format of the streaming media file supported by the terminal, and the capability information of the terminal is also the stream supported by the terminal The format of the media file; the streaming media management server further includes: a storage module, configured to store the acquired capability information of the terminal, and to search for the capability information of the terminal according to the storage result in a subsequent process.

Alternatively, the first obtaining module 41 searches for the pre-stored format of the streaming media file supported by the terminal from itself.

The streaming media management server also includes: a judging module, judging whether the format of the streaming media file corresponding to the streaming media name in the streaming media server is the format of the streaming media file supported by the terminal, and generating a judgment result; When the judgment result is yes, start the third acquisition module 43 .

When the judgment result is no, the streaming media management server also includes: a transcoding module, configured to convert the stream corresponding to the streaming media name of the streaming media server according to the format of the streaming media file supported by the terminal The media content is transcoded to generate a conversion file; correspondingly, the third acquisition module 43 is used to obtain the storage address of the conversion file in the streaming media server; the sending module 44 sends the storage address of the conversion file to The terminal is configured to enable the terminal to obtain and display the converted file from the streaming media server according to the storage address of the converted file.

Optionally, the streaming media management server further includes: a saving module, configured to save the converted file.

Optionally, the streaming media management server further includes: a speed obtaining module, configured to obtain the network speed of the network where the terminal is located; correspondingly, the transcoding module according to the format of the streaming media file supported by the terminal and the According to the network speed of the network where the terminal is located, the streaming media content corresponding to the streaming media name in the streaming media server is transcoded to generate a conversion file.

As shown in FIG. 5 , it is a streaming media display system 10 according to the present invention, including: a streaming media management server 40, a terminal 50 and a streaming media server 60;

The streaming media management server 40 includes:

The first obtaining module 41 is used to obtain the format of the streaming media file supported by the terminal;

The second obtaining module 42 is used to obtain the streaming media name requested by the terminal;

The third obtaining module 43 is used to obtain the storage address of the streaming media file corresponding to the streaming media name in the streaming media server, and the format of the streaming media file is the format of the streaming media file supported by the terminal;

The sending module 44 is configured to send the storage address to the terminal, so that the terminal obtains and displays the streaming media file from the streaming media server according to the storage address.

In the above solution, corresponding to different models and types of terminals, since the streaming media file is obtained according to the streaming media file format supported by the terminal, the format of the obtained streaming media file is the format of the streaming media file supported by the terminal, Therefore, the streaming media file sent to the terminal can be played correctly on the terminal.

The following describes the application scenarios of the streaming media presentation system of the present invention, which can be adapted to different types of terminals. Compared with the traditional way of displaying all content in streaming media content, in this application scenario, the system has the streaming media terminal adaptation function, and the multimedia content list provided by the system can definitely be played by the user, and when the system When the files that can be played cannot be provided, the system will automatically transcode to meet the requirements of the terminal for playback. This system provides a content management and display method suitable for different terminals. Moreover, when the terminal is continuously updated, it can be compatible with a higher version of the terminal.

In the application scenario where the present invention implements the display system of streaming media, the display system of streaming media includes:

Streaming media management server;

The audio and video portal server is used to provide the terminal with a content list that can be played on demand, and is responsible for presenting available media files to the user. Specifically, first obtain the terminal capability from the terminal capability information module, judge whether the returned terminal capability is in a special encoding format, if it is in a special encoding format, notify the transcoding streaming service module, and automatically transcode existing files to adapt to the user need.

In the streaming media server, the entity files of the streaming media content are stored on the shared disk array, and the audio and video portal server, the streaming media management server and the streaming media server share the disk array.

Among them, the streaming media management server includes:

The terminal capability information module is used to report terminal capability information to the streaming media system, that is, to provide the terminal's video encoding type list, audio encoding type list, and screen resolution list, which is equivalent to the first acquisition module in the above-mentioned embodiment.

The transcoding streaming service module is used to make media files for terminals that cannot adapt to the system so that the terminals can play them. Specifically, accept the transcoding request, transcode into a new file according to the transcoding streaming parameters, and provide the streaming media server with external services, which is equivalent to the transcoding module in the above-mentioned embodiment.

The content upload management module is used for uploading and managing content sources to the streaming media system. Specifically, it is responsible for obtaining the video encoding list, audio encoding list and screen resolution list from the terminal capability, and combining these lists into a suitable transcoding scheme, and providing various contents to the streaming media server according to the transcoding scheme. In addition, set the default format of audio encoding format, video encoding type, and image size on the audio and video portal. When there is no content suitable for the terminal, compare which parameters do not match, and use the default format for other matching parameters.

The following describes the application scenarios of the streaming media presentation method of the present invention. In this application scenario, the streaming media management server is set on the mobile audio and video portal server. Show the flow chart for the adaptation of streaming media content, the steps include:

Step 1, the mobile terminal device accesses the mobile audio and video portal server through HTTP (Hyper Text Transfer Protocol, hypertext transfer protocol), wherein the HEAD (header message) of the HTTP request includes the WAP (Wireless Application Protocol, Wireless Application Protocol) gateway carrying The information acquisition and storage address of the mobile terminal equipment, including: the UAProfile information stored in "x-wap-profile", the terminal information storage address stored in "User-Agent", and the information stored in "x-up- bear-type” saves the network information, the network information includes the network speed of the network where the terminal is located.

Step 2: The mobile audio and video portal server acquires terminal capability information according to the UAProfile of the terminal capability, and the terminal capability information includes information such as audio and video encoding and screen resolution supported by the terminal.

Step 3: The mobile audio and video portal server checks whether the transcoding list in the system can satisfy the terminal's transcoding list according to the returned terminal capability information. If it exists, write the terminal information into the session, save the ID list of the satisfied schemes in the session, and specify the default scheme if there are multiple schemes.

Step 4, the mobile audio and video portal server returns the content list to the terminal and displays it.

Step 5: The terminal selects specific content to enter, and the mobile audio and video portal obtains the list of transcoding schemes supported by the user from the session, and obtains the specific entity file name and the path where the entity file is stored on the streaming media server according to the scheme ID and streaming media content ID . The storage address assembled into RTSP (RealTime Streaming Protocol, real-time streaming media protocol) request is returned to the mobile terminal. Naming rules for entity file names: content ID+“_”+XX+“.3gp”. Among them, XX is the ID corresponding to the transcoding scheme, and its ID length does not exceed two digits. If it is a single digit, it is filled with 0. Moreover, the transcoded file format adopted in this system is 3gp format. In the returned list of available files, the default transcoding solution is displayed at the top and marked as recommended, and the rest are marked to prompt the user for the name of the transcoding solution.

Step 6, the mobile terminal clicks on the specific media content, and sends a request to the streaming media server through the RTSP protocol for real-time streaming media playback.

The following describes the flow chart of the application scenario of automatic transcoding when a new terminal accesses the mobile audio and video portal server and the existing transcoding scheme does not meet the requirements of the terminal. In this application scenario, the streaming media management server is set on the mobile audio and video portal server. Specific steps include:

Step 1, the mobile terminal device accesses the mobile audio and video portal server through the HTTP protocol to log in. The HEAD of the HTTP request includes the acquisition and storage address of the information of the mobile terminal device carried by the WAP gateway, specifically including: UAProfile information saved in "x-wap-profile", terminal information saved in "User-Agent" The acquired storage address, the network information saved in "x-up-bear-type", the network information includes the network speed of the network where the terminal is located.

Step 2, the mobile audio and video portal obtains terminal capability information according to the UAProfile of the terminal capability, and the terminal capability information includes information such as audio and video coding and screen resolution supported by the terminal;

Step 3, according to the returned terminal capability information, query whether the transcoding list of the terminal can be satisfied in the transcoding content list in the system. If it does not exist, create a new transcoding streaming solution based on the non-compliant parameters and system default parameters, and add it to the database table of the transcoding streaming solution. For example: the encoding format of the new terminal is H.264, the system transcoding scheme does not support it, but the audio and screen resolutions support it, and the default audio of the system is AMR-WB, the default resolution is CIF, and the default encoding code If the rate is 100KBPS, the parameters in the new transcoding streaming solution are the default parameters mentioned above. And write the ID of the transcoding scheme into the session.

Step 4, transcoding and streaming the existing content. This process is asynchronous and does not wait for the return result after notification.

Step 5, the transcoding order of all files by the transcoding streaming service module is as follows: sort according to the recommendation index of the content, transcode the content with a high index first, and transcode the content with a low index later. For the transcoding process of a single content, first insert a piece of file information into the file table of the content, and mark the encoding scheme to which the file belongs, and then perform transcoding and streaming of the file to generate a physical file. The naming rules of the physical file are the same as the above application The naming rules of the files in the scene are consistent.

Step 6: After the mobile audio and video portal server notifies the transcoding and streaming module to work, it returns directly to the home page after the terminal has successfully logged in. It also prompts the user that the terminal is a new terminal device, and some files cannot be played temporarily during file production. Please try again later.

Step 7, if the user clicks to enter a content that has not been transcoded or streamed or is being transcoded and streamed. The mobile audio and video portal server sends a priority transcoding request, and transmits the content ID and transcoding scheme ID to the transcoding streaming module for transcoding, which is also asynchronous here.

Step 8, return to the terminal prompt: "The media file is being produced, please wait..., if you need other operations, please click return.".

Step 9, the page returned in step 8 is automatically refreshed every 10 seconds, and a request is made to the mobile audio and video portal server. If the file has been produced, an RTSP link is assembled and returned to the mobile terminal device for display. If the file is still in production , repeat step 8.

Step 10, the mobile terminal device clicks on the play link, and sends an RTSP request to the streaming server for real-time streaming.

The present invention can be applied to the transmission of mobile streaming media, wherein the streaming media management server can be a mobile streaming media management server, the streaming media server can be a mobile streaming media server, the audio and video portal server can be a mobile audio and video portal server, and the terminal can be a mobile streaming media server. terminal.

The invention can adapt to the diversity of terminals, solves the adaptation problem of various terminals, and can solve the problem that new terminals of higher versions can be applied in streaming media systems of different versions as mobile terminals are continuously updated. The present invention is applicable to content display and typesetting in mobile audio and video portals and display of stream media content suitable for terminals.

The method embodiment corresponds to the device embodiment. For the part not described in detail in the method embodiment, refer to the description of the relevant part in the device embodiment. For the part not described in detail in the device embodiment, refer to the method The description of the relevant part in the embodiment is enough.

Those of ordinary skill in the art can understand that all or part of the steps in the method of the above-mentioned embodiments can be completed by instructing related hardware through a program, and the program can be stored in a computer-readable storage medium. During execution, including the steps of the above-mentioned method embodiment, described storage medium, such as: magnetic disk, optical disc, read-only memory (Read-Only Memory, ROM) or random access memory (Random Access Memory, RAM) wait.

In each method embodiment of the present invention, the sequence number of each step can not be used to limit the order of each step. For those of ordinary skill in the art, the order of each step can be determined without paying creative labor. Changes are also within the protection scope of the present invention.

The above description is a preferred embodiment of the present invention, it should be pointed out that for those of ordinary skill in the art, without departing from the principle of the present invention, some improvements and modifications can also be made, and these improvements and modifications can also be made. It should be regarded as the protection scope of the present invention.
