CN101605662B - Information carrier precursor and its preparation method, information carrier and its manufacturing method - Google Patents

Abstract

An information carrier precursor comprising: a rigid sheet or support; a receiving layer configuration comprising at least one layer; and at least one substance, optionally provided pattern-wise, capable of and effective for interacting in situ with at least one species diffusing through the receiving layer configuration to produce a functional species, wherein at least one layer of the receiving layer configuration is opaque, porous, has the ability to become substantially transparent upon penetration by a lacquer provided at the outermost surface of the receiving layer configuration, and comprises at least one pigment and at least one binder; a method of manufacturing the above-mentioned information carrier precursor, comprising the steps of: optionally applying at least one layer to the rigid sheet or support, thereby providing an outermost surface; applying in at least one application step a receiving layer configuration to the rigid sheet or support or to the outermost surface of said optionally applied at least one layer, as a continuous or discontinuous layer or print, at least one substance capable of and effective for interacting in situ with at least one species diffusing through said receiving layer configuration to produce a functional species being provided in at least one of the constituent receiving layers and said at least one optionally applied layer and the rigid sheet or support in diffusion contact with said receiving layer configuration; a process for the preparation of an information carrier, using the above-mentioned information carrier precursor; and an information carrier obtained according to the above method of manufacturing an information carrier.

Description

Information carrier precursor and its preparation method, information carrier and its manufacturing method

field of invention

The invention relates to an information carrier precursor, a method for producing an information carrier precursor, a method for producing an information carrier and an information carrier produced therewith. the

Background of the invention

The field of security covers not only personal documents such as passports, driver's licenses, identification cards (ID cards) and permit documents such as visas and tickets, but also the authentication and identification of products to avoid counterfeiting, tampering and fraud such as lottery tickets, stocks, transaction documents, luggage and Labeling on pharmaceutical packaging and often high-value products. the

The term "identification card" covers cards that require identification of the bearer and ranges from national identity cards to establish a country's identification with its citizens, to cards involved in the electronic transfer of money, such as bank cards, payment cards, credit cards and shopping cards , to secure cards that allow the cardholder to enter specific areas, such as into companies (employee cards), the military, public facilities, vault departments of banks, etc., to social security cards, to membership cards for clubs and societies . the

Typically, an ID card contains information relating on the one hand to the institution that issued the card and on the other hand to the owner of the card. The first type of information may be general information, such as the name and/or logo of the issuing authority, or security markings, such as watermarks and security printing, such as repeating monochrome patterns or gradient color patterns that are difficult to counterfeit. The second type includes, for example, a unique card number, personal data such as date of birth, photo and signature of the owner. The card may further contain hidden information and thus a magnetic strip or an electronic chip ("smart card"). the

A large set of ID cards is usually prepared on a large web or sheet by a step-and-repeat process, which is then cut into appropriately sized objects, each object representing an individual ID card. Smart cards and ID cards now have standardized dimensions of 85.6 mm x 54.0 mm x 0.76 mm. the

Normally the card is protected by a plastic sheet material, for example by laminating the card to the plastic sheet or typically between two plastic sheets. the

In view of their widespread use, especially in commodity transactions such as cash checks, credit purchases, etc., it is important that persons who rely on said ID cards to identify the bearer have maximum assurance that the ID card has not been tampered with and/or Or the ID card is not a counterfeit. the

The field's response to the counterfeiting problem has involved integrating "verification features" with ID cards to prove their authenticity. The best known of these "authentication features" include a signature, eg of a party authorized to issue the ID card or of the holder. Other "authentication features" include watermarks, fluorescent materials, authentication patterns or markings and the use of polarizing stripes. These "authentication features" are integrated into the ID card in a variety of ways and they may or may not be visible in the finished card. If not, they can be detected by displaying the features under conditions that make them visible. Details on the use of "authentication features" in ID cards can be found in US 2,984,030, US 3,279,826, US 3,332,775, US 3,414,998, US 3,675,948, US 3,827,726 and US 3,961,956. the

One way to perceive information in polychromatic form (eg, as an image or pattern) is to use dye diffusion transfer imaging systems, in which one or more dyes are fabricated to diffuse in a patterned distribution. All dye diffusion transfer imaging systems are based on the same principle: changing dye solubility as a function of the amount of photographic silver halide developed. In known dye diffusion transfer imaging methods, the dye-providing species is initially mobile in an alkaline aqueous medium and becomes immobilized during processing, or is initially immobilized and becomes mobile during processing. A review of such methods has been given by C.C. Van de Sande in Angew. Chem.-Int. Ed. Engl. 22 (1983) no 3, 191-209. Further details of such methods and dye-donating substances can be found in the literature cited therein and in DE-A Nos. 1,095,115; 1,930,215; 1,772,929; 2,242,762; 2,505,248; 15,654 (April 1977). the

EP-A 0250658 discloses in claim 1 an image receiving material suitable for producing images by the dye diffusion transfer process controlled by development of imagewise exposed one or more silver halide emulsion layers, wherein the support for said material is Resin support coated with an image-receiving layer comprising gelatin in admixture with a cationic polymeric mordant comprising glycidyl groups reactive with active hydrogen atoms of gelatin, characterized in that The support consists essentially of vinyl chloride polymer and the image receiving layer coated thereon has a weight ratio of polymer mordant to gelatin of at least 0.1 gram per m ² coverage exists.

US 4,820,608 discloses an image receiver element for a dye diffusion transfer imaging method, comprising a support and an image receiving layer incorporating a hydrophilic colloid, comprising at least one long-chain hydrocarbon group and capable of immobilizing and transferring to said image receiving layer by diffusion A non-polymeric phosphonium mordant of the acid imaging dye of the layer, and a polymer comprising free acid groups, wherein the polymer is a copolymer latex comprising free weak acid groups and the image receiving layer further comprises at least one corresponding to A heterocyclic compound of one of the following general formulas I, II, and III:

Wherein: Y represents the non-metallic atom required to realize a saturated or unsaturated 5- or 6-membered heterocyclic nucleus, which may carry a fused aromatic ring system, and M represents hydrogen, an alkali metal atom, a quaternary ammonium group, or a combination with all The quaternized nitrogen atom of the heterocyclic compound forms the negative charge of the inner salt. the

The term "silver halide diffusion method" refers to all black-and-white imaging methods in which a positive film is formed by diffusion inversion. The principle of the silver complex diffusion transfer reversal method (hereinafter referred to as the DTR method) has been described, for example, in US 2,352,014 and the work "Photographic Silver Halide Diffusion Processes" by André Rott and Edith Weyde, The Focal Press, London and New York, ( 1972). In the DTR process, so-called silver halide solvents are used to convert the non-developable silver halide of informationally exposed photographic silver halide emulsion layer materials into soluble silver complexes that can diffuse into the image receiving element and Therein, it is reduced by the developer (usually in the presence of physical development nuclei) to form a silver having an inverted image density value ("DTR image") relative to the black silver image obtained in the exposed areas of the photographic element. image. the

US 4,278,756 discloses a negative-working silver diffusion transfer method for the manufacture of reflective electrically insulating data storage media from light-sensitive silver halide emulsions, comprising defining at least one recording region in the light-sensitive silver halide emulsion by making the light-sensitive silver halide emulsion The recording area is in contact with the atomizing agent to form an area-wise surface latent image layer of silver precipitation nuclei, said layer having a maximum nuclei volume concentration at one surface of the emulsion and a gradient of decreasing concentration in the depth direction such that all The light-sensitive silver halide emulsion is combined with a weak silver halide developer (which is used for the chemical development of the surface latent image layer of silver precipitation nuclei) and a fast acting silver halide complexing solvent (which is used to combine with unexposed and unexposed The developed silver halide reacts to form a soluble silver ion complex that is transported by diffusion transfer to the chemically developed silver precipitation nucleus where the silver of the silver ion complex acts as a reducing agent Precipitated and adsorbed on the chemically developed nuclei) in the presence of the developer, thereby forming a reflective, electrically insulating layer of aggregated and individual silver particles in the recording area, the solvent The activity allows chemical development of the surface latent image by the weak developer, while all undeveloped and unexposed silver halide is dissolved by the complexing agent. the

US 6,645,280 discloses an ink composition comprising a slow evaporating solvent and a translucent agent, wherein the ink composition is free or substantially free of colorants and is suitable for use in inkjet printing on paper substrates, and The slowly evaporating solvent is present in an amount from about 15% to about 70% by weight of the ink composition, and the translucent agent renders the paper less opaque and thus less visible on the paper when viewed under light. A visible image is formed, and typically the translucent agent has a refractive index of from about 1.3 (±0.05) to about 1.7, and preferably from about 1.4 to about 1.6 at 20°C. the

US6,358,596 discloses a cellulose substrate having at least one transparent portion formed therein, wherein the cellulose substrate defines first and second major faces; Cellulosic substrate so as to define the transparent composition of patterned image, wherein the relative transparency of described patterned image is selected so as to define the region of increased transparency in described substrate; Said region of increased transparency is similar to To pattern the watermark and define a transparency different from that defined by the transparent window; the clearing composition includes a clearing agent and a privacy agent. The radiation-curable clearing composition disclosed in US 6,358,596 comprises at least one acrylate or methacrylate (compound of formula I) selected from polyhydroxy polyethers produced from polyhydric alcohol (polyol) raw materials and/or Monomers of acrylate or methacrylate esters (compounds of formula II) of polyhydroxypolyethers produced from primary or secondary amine raw materials. the

EP-A 1362710 discloses a method for manufacturing a tamper-resistant information carrier, said method comprising the following steps in sequence: (1) providing a two-layer assembly comprising (i) a rigid sheet or web support , and (ii) a porous opaque ink-receiving layer comprising a pigment and a binder, whereby the surface of the support, or the surface of the opaque layer, bears a first set of printed information, (2) by means of inkjet printing Printing a second set of information different from said first set on said porous opaque ink-receiving layer, (3) completely, partially by coating, printing, spraying or jetting an ultraviolet curable base paint composition Covering the assembly thus obtained, either ground or patterned, whereby by penetration of said base paint in said porous opaque ink-receiving layer, the layer becomes substantially transparent, (4) by means of full-scale UV exposure The base paint composition is cured, thereby improving the adhesion between the carrier and the ink-receiving layer, and the cohesive strength of the ink-receiving layer. the

EP-A 1398175 discloses four different embodiments of the information carrier. In a first embodiment, the information carrier comprises: a rigid sheet or web support; an opaque porous receiving layer capable of becoming substantially transparent by penetration of a base paint, said receiving layer comprising pigments and binders; providing an image on and/or in said receiving layer; a cured pattern of a varnish provided on said receiving layer having said image, or if said varnish fails to make said receiving layer transparent, the varnish provides on and/or within said receiving layer having said image; and said base paint provided on said receiving layer having said image and said cured pattern of said varnish A cured layer, the base varnish has rendered the portion of the receiving layer in contact with it substantially transparent, wherein the cured pattern of the varnish forms an opaque watermark. In a second embodiment, the information carrier comprises: a rigid sheet or web support; an opaque porous receiving layer capable of becoming substantially transparent by penetration of a varnish, said receiving layer comprising a pigment and a binder; provided in the an image on and/or in said receiving layer; a cured pattern of said varnish provided in said receiving layer having said image; and a cured layer of base paint provided on said image and on the receiver layer of the cured pattern of the varnish, or if the base paint does not make the receiver layer transparent, the base paint is provided on the receiver layer with the image and the cured pattern of the varnish and/or within said receiving layer, said varnish has rendered said portion of said receiving layer in contact therewith substantially transparent, wherein said cured pattern of said base paint forms a substantially transparent watermark. In a third embodiment, an information carrier comprises: a rigid sheet or web support; a transparent porous receiving layer capable of becoming substantially opaque by penetration of a base paint, said receiving layer comprising pigments and a binder; providing an image on and/or within said receiving layer; a cured pattern of the varnish provided on said receiving layer having said image, or if said varnish fails to render said receiving layer opaque, the varnish providing on and/or within said receiving layer having said image; and said base paint provided on said receiving layer having said image and said cured pattern of said varnish A cured layer, the base varnish has rendered the portion of the receiving layer in contact with it substantially opaque, wherein the cured pattern of the varnish forms a transparent watermark. In a fourth embodiment, an information carrier comprises: a rigid sheet or web support; a transparent porous receiving layer capable of becoming substantially opaque by penetration of a varnish, said receiving layer comprising pigments and a binder; provided in said an image on and/or in the receiving layer; a cured pattern of the varnish provided in the receiving layer having the image; and a cured layer of a base paint provided on the receiving layer having the image and on said receiving layer of said cured pattern of said varnish, or if said base paint is unable to render said receiving layer opaque, the base paint is provided on all of said image and said cured pattern of said varnish. on and/or within said receiving layer; said varnish has rendered said portion of said receiving layer in contact therewith substantially opaque, wherein said cured pattern of said base paint forms a substantially opaque watermark . the

GB 1073433 discloses a method of forming an image on a porous opaque layer comprising applying an imaging material having a similar refractive index to the opaque layer in an imagewise configuration and reducing the viscosity of the imaging material so that it flows into the pores to fill the pores of the opaque layer such that the opaque layer becomes transparent in the image area. the

US 4,252,601 discloses an information recording kit for the manufacture of slides for projection of information or for the manufacture of photographic negatives for reproductions, comprising an opaque recording material, a writing liquid for recording information on the recording material and a Means for applying the writing liquid in the form of a transparent line on the opaque recording material, wherein the recording material comprises a transparent backing and an opaque layer adhered to one surface of the backing, the opaque layer comprising polylidene Vinyl chloride film-forming resin binder uniformly distributed finely divided granular organic styrenic resin pigment, the writing liquid includes a solvent for the organic styrenic resin pigment, whereby when the writing liquid is written according to a pattern of information When a liquid is applied to the opaque layer, the opaque layer becomes transparent to visible light according to the pattern. the

WO 81/01389 A 1 discloses a self-supporting microporous sheet material which is substantially insensitive to marking by localized application of heat or pressure, but which is capable of accepting ink, pencil, crayon or similar markings and which is Temporarily or permanently provided with indicia by application of a colorless liquid comprising, as a combination: a self-supporting substrate, and a reflective opaque white to pastel colored layer (comprising Particles bound by a binder), said particles and binder both having a refractive index of 1.3-2.2, interconnected microvoids present throughout said layer, characterized in that said binder: The volume ratio of the particles is about 1:20-2:3 so that the particles remain in a sinter-like juxtaposition, the layer has a pore volume of 15-70%, the binder is thermosetting, and the layer Having an image force of at least 200 gram-force. the

US 4,499,211 discloses microporous moldings having an open cell structure and comprising a thermoplastic material comprising at least about 70 wt. % of a terpolymer consisting of about 20-80% by weight of a copolyfluorinated olefin (the olefin is selected from ethylene and propylene) relative to the total weight of the terpolymer, relative to the total weight of the terpolymer Up to about 40% by weight of a copolyolefin (the olefin is selected from ethylene and propylene) based on the total weight of the terpolymer, and about 80-20% by weight of a copolyvinyl acetate relative to the total weight of the copolymer, wherein the At least 5% of the total proportion of acetate groups comprised in the copolymer is converted to OH groups by saponification after copolymerization of the specified comonomers to form the terpolymer. the

EP-A 0390638 discloses a substrate comprising a layer capable of becoming transparent in a reversible manner by contact with a liquid, resistant to marking via localized application of pressure and/or heat, characterized in that it comprises: at least one flexible Sheet, at least one layer applied to said flexible sheet in aqueous form and subsequently dried, said sheet is microporous, opaque and comprises at least non-thermosetting particles, at least one binder and Optionally other additives. the

JP 10-157280A discloses a recording material capable of being repeatedly printed by ink-jet printing without impairing its recording performance even after multiple uses, by introducing a rough or porous surface and changing in the absence of a solvent. This is achieved by obtaining a solvent receiving layer that is opaque and becomes transparent upon receiving a solvent. the

US 6,364,993 discloses a laminate comprising a substrate having a first substrate surface comprising an image thereon, and a polymer film laminated to said first substrate surface and covering said image, said The film comprises an exposed water-activatable opaque layer having a thickness of from about 0.6 mils to about 2.0 mils, said opaque layer being derived from a compound comprising about 5 to about 40 wt% aluminum silicate and about 60 to about 95 wt% binder. A coating formulation wherein the binder comprises a solvent, a mixture of butyl acetate, ethylene glycol monobutyl ether and propylene glycol. the

US 6,723,383 discloses a method for producing a dry image comprising the steps of: (a) applying an opaque coating composition to a surface of a substrate to form an opaque coating on the substrate, wherein said surface is selected from the group consisting of a luminous surface, a reflective surface, glossy surfaces, shiny surfaces, and combinations thereof; and (b) contacting the coated substrate with a recording liquid, wherein the opaque coating composition comprises an opaque coating agent comprising a polymeric polyacid and a polymeric a polybasic base, and wherein said opaque coating in contact with said recording liquid becomes transparent due to the contact. the

WO 04/052655 A1 discloses a multilayer opaque and matte inkjet recording medium suitable for recording images by dye and pigmented inks, which undergoes a phase transition from opaque to transparent and glossy in at least one printed area to reveal the substrate and thereby provide a luminous, glossy, reflective, metal-like image, or exhibit a holographic image, wherein the recording medium comprises a substrate coated with at least two chemically bonded layers comprising : (a) a first transparent ink-receiving layer comprising a polymeric binder and a crosslinker and optionally plasticizers and pigment particles such as alumina and silica coated on said substrate, wherein Described cross-linking agent comprises azetidinium (azetidinium) polymer or its salt, and/or multifunctional aziridine or its salt, or multifunctional oxazoline and metal salts; and (b) the second An ink-receiving layer comprising an opaque or semi-opaque coating composition, wherein the opaque or semi-opaque coating composition is capable of accepting a printed image and thereby becoming translucent or apparently transparent by application of an inkjet printing ink or similar ink, while Presenting luminous, reflective, glossy, metallic or holographic or transparent high definition and high quality images wherein said first layer is located between said second layer and a substrate in said recording medium between, and the first and second layers are chemically connected. the

The inventions of EP-A 1362710 and EP-A 1398175 both disclose porous opaque ink-receiving layers comprising pigments and binders which can be transparentized by UV-curable base paints. In addition, the adhesion of the porous opaque ink-receiving layer to the adjacent layer or support is improved by making it transparent with a UV-curable base paint, which implies that the UV-curable base paint Diffusion at the interface. the

There is a need for extended security possibilities to provide additional security features to the information carriers disclosed in EP-A 1362710 and EP-A1398175. There is also a need to have the possibility to personalize said information carrier, ie to introduce personalizing details of the information card carrier, such as images or other identifications. the

current technology:

So far, the following prior art documents are known to the applicant:

DE-A1095115, published on December 15, 1960

DE-A1930215, published on December 23, 1970

DE-A1772929, published April 15, 1971

DE-A2242762, published March 8, 1973

DE-A2505248, published on August 19, 1976

DE-A2543902, published on April 8, 1976

DE-A2645656, published on April 13, 1978

EP-A0250658, published on January 7, 1988

EP-A0390638, published on October 3, 1990

EP-A1362710, published on November 19, 2003

EP-A1398175, published on March 17, 2004

JP10-157280A, published on June 16, 1998

GB1073433, published on June 28, 1967

US2,352,014, published on June 26, 1944

US2,984,030, published on May 16, 1961

US3,279,826, published on October 18, 1966

US3,332,775, published on July 25, 1967

US3,414,998, published on December 10, 1968

US3,675,948, published on July 11, 1972

US3,827,726, published on August 6, 1974

US3,961,956, published on June 8, 1976

US4,252,601, published on February 14, 1981

US4,278,756, published on July 14, 1981

US4,499,211, published on February 12, 1985

US4,820,608, published on April 11, 1989

US6,358,596, published on March 19, 2002

US6,364,993, published on April 2, 2002

US6,645,280, published on November 11, 2003

US6,723,383, published on April 20, 2004

WO81/01389A1, published May 28, 1981

WO04/052655A1, published on June 24, 2004

Research Disclosure 15, 157, published in November 1976

Research Disclosure 15, 654, published April 1977

A. Rott and E. Weyde, "Photographic Silver Halide Diffusion Processes", The Focal Press, London and New York, published in 1972 C.C. Van de Sande, Angew. Chem.-Int. Ed. 22, 191-209, published in March 1983

Invention

An aspect of the invention provides an information carrier with a transparentizable opaque porous layer and having additional security features. the

Yet another aspect of the invention provides an information carrier with a translucent opaque porous layer, which can be individualized by introducing details of said information holder. the

Other aspects and advantages of the invention will become apparent from the description hereinafter. the

Summary of the invention

It has been unexpectedly found that receiving layer constructions comprising at least one layer wherein at least one layer of the receiving layer construction is opaque, porous and has the ability to become substantially transparent when penetrated by a base paint The base paint is capable of transporting species prior to clearing which, together with species already present in one or more of the component-receiving layer itself or in a layer or support in diffusion contact with the receiving layer construction, can providing human-readable or machine-readable information if said diffusive species is informationally applied to the outermost surface of said receiving layer construction, or if already present in one or more of said component receiving layers or Said species in the layer or support in diffuse contact with said receiving layer configuration are present in an information-wise pattern. Said species already present in one or more of said component receiving layers or in a layer or support in diffusion contact with said receiving layer configuration may be binding species, catalytic species ( catalytic species) or reactive species (reacting species). Examples of such species are mordants, which can reversibly or irreversibly bind diffusing species, in the latter case resulting in a reaction between the mordant and the diffusing species. The diffusible species are precursors of functional species that are human readable or machine detectable. Different diffusible species may interact with specific species or may each in situ interact with a layer or support already present in one or more of the component receiving layer itself or in diffusion contact with the receiving layer configuration. Interaction of different species. the

Aspects of the invention are realized by means of an information carrier precursor comprising: a rigid sheet or support; a receiving layer construction comprising at least one layer; and at least one substance (optionally provided in a pattern), which Capable of and effective for in situ interaction with at least one species diffusing through said receiving layer construction, wherein at least one layer of said receiving layer construction is opaque and porous, capable of producing a functional species by providing The base paint on the outermost surface of the receiving layer construction penetrates to become substantially transparent and comprises at least one pigment and at least one binder. the

Aspects of the present invention are also achieved by a method for manufacturing an information carrier precursor as described above, the method comprising the steps of: optionally applying at least one layer to a rigid sheet or support, thereby providing an outermost surface; The outermost surface of a material or support or said optionally applied at least one layer, as a continuous or discontinuous layer or a print in at least one application step to which a receiving layer configuration is applied, can be realized and effectively used in connection with said receiving At least one species diffused by the layer configuration interacts in situ to produce a functional species. At least one substance is provided in the component receiving layer and the at least one optionally applied layer and in diffusion contact with the receiving layer configuration. At least one of a rigid sheet or a support. the

Aspects of the invention are also achieved by a method of manufacturing an information carrier, the method comprising the steps of: (i) providing an information carrier precursor as described above; (ii) patternwise applying to the outermost surface of said receiving layer construction comprising at least one A composition of functional species or functional species precursors to produce a pattern in the information carrier precursor; (iii) applying a transparent base paint to the porous portion corresponding to the at least one opaque porous layer at least part of the region of the outermost surface of the receiving layer construction, thereby at least partially clearing said part of said at least one opaque porous layer (which is opaque and porous to which a clearing base has been applied (iv) optionally curing said clearing base paint; (v) if there is an opaque and porous portion of the outermost layer of said receiving layer construction after step (iv), then to said receiving layer construction This opaque and porous portion of the outermost layer has an opacifying base varnish applied, thereby filling the pores of those portions of said receiving layer construction to which no clearing base varnish has been applied; and (vi) optionally curing said opacifying base paint. the

Aspects of the invention are also realized by an information carrier obtained according to the method described above. the

Further aspects of the invention are disclosed in the dependent claims. the

Detailed description:

definition

The term "information carrier precursor" as used in the present disclosure denotes an intermediate product used in the realization of an information carrier. the

The term "receiving layer" as used in the present disclosure means that it has the ability to accept inkjet ink and dry quickly, ie has sufficient porosity to quickly wick away the inkjet ink dispersion medium. the

The term "porous layer" as used in the present disclosure means a layer having pores which may be in and/or in addition to the constituents of said layer, e.g. a layer comprising a porous constituent is porous layer. the

The term "diffusion inhibitor" as used in the disclosure of the present invention means a substance that inhibits the transparentization of an opaque porous layer comprising at least one pigment and at least one binder and hinders the diffusion of substances into said opaque porous layer. Can be made transparent by base paint. the

The terms "opaque" and "non-transparent" layer are used in the present disclosure to denote layers that are not transparent. The term "white opaque film" as used in the present disclosure means a white film capable of providing sufficient contrast to a transparent image such that the image is clearly perceivable. A white non-transparent film can be an "opaque film", but need not be completely opaque since there is no residual translucency, ie no light penetrates the film. The transmitted optical density, measured with a MacBeth TR924 densitometer through a visible light filter, can provide a measure of film opacity. ISO 2471 deals with the opacity of paper backings and applies when it comes to the properties of paper which govern the degree to which one sheet visually obscures prints on an underlying similar paper sheet and defines opacity as paper with a black backing The ratio (expressed as a percentage) of the light reflectance factor of a single sheet of , to the intrinsic light reflectance factor of the same sample with a white reflective backing. For example, 80 g/ ^m2 copy paper is white, non-transparent and has an optical density of 0.5 (measured by a MacBeth TR924 densitometer through a yellow filter per ISO 5-2), while metallized films typically have 2.0-3.0 optical density. Opaque porous layers used in the present invention have very high haze values, eg 98%, indicating high light scattering. Relative opacity can be defined by assigning 100% opacity (D _ref ) to the initial optical density measured from a black background under standard conditions and 0% to full transparency measured from a black background under standard conditions Opacity (D _black ), ie the optical density corresponds to the combination of the black background and the optical density of the support. The percent opacity is then given by the expression: ( _Dblack - _Dobserved )/( _Dblack - _Dref ).

As used in the present disclosure, the term "substantially transparent" means having the property of transmitting at least 75% of incident visible light without substantially diffusing it. the

The term "clearizing base paint" as used in this disclosure means a liquid which is transparent under application conditions and which comprises at least one polymer and/or at least one wax and/or at least one polymerizable substance (e.g. monomers and oligomers) and can solidify upon cooling, become solid upon evaporation of solvent or harden/crosslink, i.e. be curable, upon exposure to heat, moisture or radiation (e.g. visible light, ultraviolet rays and electron beams), which The receiving layer construction is made transparent. the

The term "opacifying base paint" as used in the present disclosure means a liquid under application conditions comprising at least one polymer and/or at least one wax and/or at least one polymerizable substance (such as a monomer and oligomers) and can solidify on cooling, become solid on evaporation of solvent or harden/crosslink, i.e. be curable, on exposure to moisture or radiation (e.g. visible light, UV rays and electron beams) The receiving layer construction is made transparent. the

The term "ability to become substantially transparent from a base paint" as used in the present disclosure means that the receiving layer construction becomes transparent at least by penetration of the base paint. This does not exclude clearing from water or solvents which provide clearing while said liquid remains in the pores, ie provide temporary clearing. the

The term "interacting" as used in the present disclosure means at least one substance capable of acting on diffusion through the porous portion of the receiving layer construction, for example by binding to, catalyzing or reacting therewith. the

The term "bound" as used in the present disclosure means capable of physisorbing at least one species that diffuses through the porous portion of the receiving layer construction, ie without changing the chemical nature of the adsorbed species. the

The term "catalytic" as used in the present disclosure means an intermolecular reaction of at least one species capable of promoting diffusion through the porous portion of the receiving layer construction, for example in processes such as electroless deposition of metals. the

The term "reactive" as used in the present disclosure means capable of reacting with at least one species diffusing through the porous portion of the receiving layer construction to produce different chemical species. the

The term "mordant" as used in the present disclosure means a substance capable of binding or immobilizing (ie providing preferential adsorption) at least one functional species. the

The term "functional species" as used in the present disclosure means a species having functional properties such that it can be detected visually with or without the aid of a suitable light source or by a detection instrument, ie is human or machine readable. Such functional species can be used, for example, to implement security features. Examples of such functional species are infrared absorbing species, metals, luminescent organic or organometallic species and dyes. The dye can, for example, provide an image of the owner or assignee of the information carrier or other desired images. the

The terms "on", "to" and "in" used in this disclosure have very precise meanings for a layer: "On" means that infiltration of the layer may or may not occur, and "on" means at least 90% above the layer (i.e. substantially no infiltration layer), while "in" means that penetration into the individual layer or layers occurs. By printing digitally stored information "onto" a porous receiving layer construction, we will understand that an image is provided "on" and/or "in" said receiving layer construction. In the case of inkjet printing, if the ink remains on top of the receiving layer construction, the image is provided "on" the receiving layer construction. The ink is "in" the layer if it penetrates into the porous receiving layer construction. The same term is used for varnish and base coat. For example, for "varnish substantially before penetrating into said receiving layer construction", it is understood that < 10% of said varnish is located "in" said receiving layer construction. the

The term "conventional printing method" used in the disclosure of the present invention means a printing impact printing method and a non-impact printing method applied to both graphic printing and functional patterns such as conductive patterns. The term includes, but is not limited to, inkjet printing, intaglioprinting, screen printing, flexographic printing, waterless offset printing, electrophotographic printing, electrographic printing, offset printing, embossing, gravure printing printing), thermal and laser-induced methods and also include printing methods that make multiple regions of a conductive layer non-conductive in a single-pass method, such as those disclosed in EP 1054414A and WO03/025953A, but not included in conventional electronic Methods such as evaporation, etching, diffusion methods used in the fabrication of devices such as silicon-based electronics. the

材料)和直接热印刷机(其中热记录材料通过与加热元件在热头和印刷机中直接接触而印刷，其中主机在对应于所需图像或形状的区域上由墨水层覆盖，然后墨水被转移到所述介质，例如胶版、凹版或柔版印刷。  The term "impact printing method" as used in this disclosure refers to a printing method in which contact occurs between the medium (on which the printing takes place) and a printing system, such as a printing system that works by striking a ribbon machines, such as daisy-wheel, dot-matrix and line printing machines, diffusion transfer methods (e.g. from AGFA-GEVAERT

materials) and direct thermal printers (where thermal recording materials are printed by direct contact with heating elements in thermal heads and printers, where the host is covered with a layer of ink on an area corresponding to the desired image or shape, and the ink is then transferred onto the medium, such as offset, gravure or flexographic printing.

The term "non-impact printing method" as used in the present disclosure refers to a printing method in which no contact occurs between the medium (on which the printing takes place) and the printing system, such as xerographic printers, electrophotographic printing printers, laser printers, and inkjet printers, where printing does not require hitting the print medium. the

The term "pattern" as used in this disclosure includes holograms, images, representations, guilloches, figures, and regular and irregular symbols, images, arrays of geometric and non-geometric shapes, and may be composed of pixels, continuous tone , lines, geometric shapes and/or any random configuration. the

The term "patternally" used in the present disclosure means in pattern form and encompasses the term imagewise. the

The term "color image" as used in the present disclosure is an image produced by one or more colorants and which in the case of black is produced by a combination of at least two colorants, unless specifically as a non-visible light transparent pattern apply. the

The term "colorant" as used in the present disclosure means a substance that absorbs in the visible spectrum from 400nm to 700nm. the

The term "dye" used in the disclosure of the present invention means a coloring agent having a solubility of 10 mg/L or higher under the ambient conditions in the medium in which the dye is applied. the

The term "pigment" as used in the present disclosure is defined in DIN 55943 (herein incorporated by reference), as an inorganic or organic, chromatic or achromatic coloring agent, which is substantially Insoluble in application medium, therefore has a solubility in it of less than 10 mg/L. the

The term "security print" as used in the present disclosure means a printed image or pattern designed to be difficult to counterfeit and thereby provide a security feature. the

The term "layer" used in the disclosure of the present invention means a coating covering the entire area of an entity such as a support. the

The term "discontinuous layer" as used in the present disclosure means a coating that does not cover the entire area of an entity such as a support. the

PET is an abbreviation for polyethylene terephthalate. the

PETG is an abbreviation for polyethylene terephthalate diol, which stands for diol modifier, i.e. ethylene glycol is composed of alternative diols such as 1,4-cyclohexanedimethanol or neopentyl glycol moieties Replacement, which minimizes brittleness and premature aging, which can occur if unmodified amorphous polyethylene terephthalate (APET) is used in the manufacture of cards. the

information carrier precursor

Aspects of the invention are realized by means of an information carrier precursor comprising: a rigid sheet or support; a receiving layer construction comprising at least one layer; and at least one substance, optionally provided in a pattern, which enables and Effective for in situ interaction with at least one species diffusing through said receiving layer construction to produce a functional species, wherein at least one layer of said receiving layer construction is opaque and porous, capable of producing a functional species by providing The base paint of the outermost surface of the receiving layer construction becomes substantially transparent upon penetration and comprises at least one pigment and at least one binder. The single or multiple species diffused through the receiving layer configuration may themselves be visually detectable (i.e. human readable) once the diffusion process is completed, e.g. ), can be detected by the use of light via fluorescence or phosphorescence (ie, human readable with the assistance of an appropriate light source), or machine readable (eg, electrically or magnetically, machine readable). Alternatively, the species diffusing through said receiving layer formation is a precursor of a functional species catalyzed by or reacted with at least one species of an information carrier precursor to produce At least one species that is visually detectable once said reaction is complete, i.e. human readable, detectable by use of light via fluorescence or phosphorescence, i.e. human readable with the aid of a suitable light source or machine readable such as Machine readable electronically or magnetically. the

Aspects of the invention are also achieved by an information carrier precursor comprising: a rigid sheet or support; a receiving layer construction comprising at least one layer; and at least one mordant capable of binding functional species in situ and/or components capable of catalyzing the in situ formation of functional species and/or species capable of in situ generation of functional species with precursors of functional species, all of which are optionally provided patternwise, wherein At least one layer of the receiving layer construction is opaque and porous, capable of becoming substantially transparent when penetrated by a base paint provided on the outermost surface of the receiving layer construction, and comprising at least one pigment and at least one binder . the

According to a first embodiment of the information carrier precursor according to the invention, said at least one substance capable of effecting and being effective for in situ interaction with at least one species diffusing through said receiving layer configuration to produce a functional species capable of and effective for binding to at least one species diffusing through said receiving layer construction and/or capable of and effective for catalyzing at least one species diffusing through said receiving layer construction and/or capable of Enabled and effective for reacting with at least one species diffusing through said receiving layer configuration. the

According to a second embodiment of the information carrier precursor according to the invention, the at least one substance is distributed homogeneously or patternwise in the formation of the receiving layer. the

According to a third embodiment of the information carrier precursor according to the invention, said at least one substance is present in at least one layer or pattern close to or adjacent to said receiving layer construction. the

According to a fourth embodiment of the information carrier precursor according to the invention, said at least one substance is distributed homogeneously or patterned in the receiving layer construction and said at least one substance is present in at least one In a layer or pattern, the substance in the receiving layer construction is the same or different from the substance in at least one layer or pattern adjacent or adjacent to the receiving layer construction. the

According to a fifth embodiment of the information carrier precursor according to the invention, said information carrier precursor further comprises at least one substance, optionally provided in a pattern, which enables and is effective for and diffuses through said information carrier precursor The at least one species of said at least one species is uniformly or patterned distributed in at least one receiving layer of said receiving layer construction in situ to generate a functional species. the

According to a sixth embodiment of the information carrier precursor according to the invention, said information carrier precursor further comprises at least one substance, optionally provided in a pattern, which enables and is effective for and diffuses through said information carrier precursor In situ interaction of at least one species of at least one species present in at least one layer or pattern close to or adjacent to said receiving layer configuration to produce a functional species. the

According to a seventh embodiment of the information carrier precursor according to the invention, said rigid sheet or support is preprinted by security printing, for example guilloche, graphics, arrays of regular and irregular symbols, geometric and non-geometric shapes or A random configuration obtained by rainbow or iris printing, or a non-printed security feature. the

The security print may, for example, comprise a tangible recognizable design, or an abstract periodically repeating pattern of one or more colours, or a gradient of color patterns which vary in hue and/or intensity of colour, and thus are difficult to counterfeit. Preferably, the spectral properties of the security printed inks are chosen such that they are difficult to reproduce by commercial color copiers. The security print can also contain, for example, the logo, name or abbreviation of the issuing authority of the information carrier. The security print may be applied by any known printing technique, such as letterpress, lithography, gravure, gravure, iris printing, rainbow printing, screen printing and the like. The preferred technique is waterless offset printing, which is a waterless variant of lithography whereby no fountain solution is applied to the printing press. the

According to an eighth embodiment of the information carrier precursor according to the invention, said information carrier precursor further comprises an opaque element not adjoining said receiving layer configuration. the

According to a ninth embodiment of the information carrier precursor according to the invention, said information carrier precursor further comprises an opaque element preprinted by a so-called security print that is not contiguous to said receiving layer construction. The security print may, for example, comprise a tangible recognizable design, or an abstract periodically repeating pattern of one or more colours, or a gradient of color patterns which vary in hue and/or intensity of colour, and thus are difficult to counterfeit. Preferably, the spectral properties of the security printed inks are chosen such that they are difficult to reproduce by commercial color copiers. The security print can also contain, for example, the logo, name or abbreviation of the issuing authority of the information carrier. The security print may be applied by any known printing technique, such as letterpress, lithography, gravure, screen printing, and the like. The preferred technique is waterless offset printing, which is a waterless variant of lithography whereby no fountain solution is applied to the printing press. the

Diffusion Inhibitor

According to a tenth embodiment of the information carrier precursor according to the invention, said at least one opaque porous layer further comprises a diffusion inhibitor applied in a pattern. The diffusion inhibition may be partial or total and may be permanent or temporary. Examples of suitable diffusion inhibitors are liquids that fill pores and can be removed by evaporation, surface-active liquids, functional ingredients such as fluorescent or phosphorescent compounds or fibers, and pigmented inks, especially phase change inks, the degree of coloration and penetration The degree determines the degree of inhibition. The affinity of the type of particle ink used can play a role in penetration speed. For example, a hydrophobic oil-based ink will penetrate a fairly hydrophilic receiving layer construction, such as a silica-containing layer, more slowly than a water-containing hydrophilic ink. Clearing inhibitors are specific types of diffusion inhibitors that specifically prevent the penetration of clearing liquids into open pigment pores, which provide for the provision of opaque clearable receiving layers comprising at least one pigment and at least one binder. opacity. the

According to an eleventh embodiment of the information carrier precursor according to the invention, the receiving layer construction further comprises a pattern-applied diffusion inhibitor selected from the group consisting of nonionic silicones substituted by polyalkyleneoxy groups, having at least Anionic surface active of fluoroalkyl groups with 7 carbon atoms and/or alkyl groups with at least 10 carbon atoms and/or alkenyl groups with at least 10 carbon atoms and/or two alkyl groups with at least 8 carbon atoms and cationic surfactants having a fluoroalkyl group with at least 7 carbon atoms and/or an alkyl group with at least 10 carbon atoms and/or two alkyl groups with at least 8 carbon atoms. the

The term "diffusion inhibitor" as used in the present disclosure means a substance that inhibits the translucency of a substance and hinders the diffusion of a substance into an opaque porous layer comprising at least one pigment and at least one binder and capable of being formed from a base paint. For transparency, the substance is preferably a non-polymeric compound. the

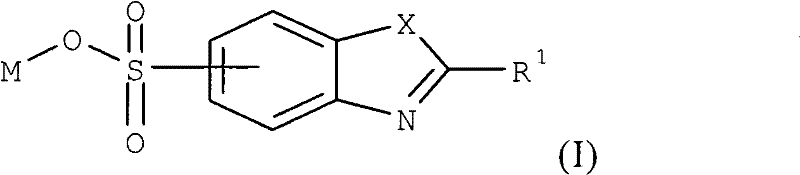

According to a twelfth embodiment of the information carrier precursor according to the invention, the receiving layer construction further comprises a pattern-applied diffusion inhibitor selected from the group having at least one alkyl group with 10 or more carbon atoms Tetraalkylammonium salts; tetraalkylammonium salts with counterions having an alkyl or fluoroalkyl group with 8 or more carbon atoms; having a carbon chain with at least 10 carbon atoms Alkylphenylsulfonates; fluorine-containing carboxylic acids having at least 8 carbon atoms and their salts; sulfates having an alkyl group having at least 10 carbon atoms; hetero Cyclic sulfonates and salts thereof; amide sulfonates of carboxylic acids having at least 12 carbon atoms and salts thereof; and polyalkyleneoxy-substituted silicones. the

According to a thirteenth embodiment of the information carrier precursor of the present invention, said receiving layer construction also comprises a diffusion inhibitor of formula (I) applied in a pattern:

wherein M is hydrogen, an alkali metal (alkali) atom or an ammonium group; ^R is an alkyl, alkenyl-, alkynyl-, thioalkyl-, thioalkenyl- or thioalkynyl-group, wherein said alkyl-, alkenyl- or alkynyl-group has 6-25 carbon atoms; X is -O-, -S- or -N(R ² )-; and R ² is hydrogen,

基团；以及m是1-5的整数，在优选的实施方案中，R¹是十二烷基、十三烷基、十四烷基、十五烷基、十六烷基、十七烷基或十八烷基，且在特别优选的实施方案中，R¹是十二烷基、十三烷基、十四烷基、十五烷基、十六烷基、十七烷基或十八烷基且R²是-(CH₂)_mSO₃M基团。  -(CH ₂ ) _m SO ₃ M group or

and m is an integer from 1 to 5, in preferred embodiments ^R is dodecyl, tridecyl, tetradecyl, pentadecyl, hexadecyl, heptadecyl or octadecyl, and in particularly preferred embodiments ^R is dodecyl, tridecyl, tetradecyl, pentadecyl, hexadecyl, heptadecyl or decadecyl octaalkyl and R ² is a —(CH ₂ ) _m SO ₃ M group.

According to a fourteenth embodiment of the information carrier precursor of the present invention, said receiving layer construction further comprises a diffusion inhibitor represented by formula (II) applied in a pattern:

wherein M is hydrogen, an alkali metal (alkali) atom or an ammonium group; ^R is an alkyl, alkenyl-, alkynyl-, thioalkyl-, thioalkenyl- or thioalkynyl-group, wherein the alkyl-, alkenyl- or alkynyl-group has 6-25 carbon atoms; R ² is hydrogen, -(CH ₂ ) _m SO ₃ M

group or group; and m is an integer of 1-5.

According to a fifteenth embodiment of the information carrier precursor of the present invention, said receiving layer construction further comprises a diffusion inhibitor represented by formula (III) applied in a pattern:

At least one compound represented by formula (IV):

Or a mixture of at least one compound represented by formula (III) and at least one compound represented by formula (IV), wherein M is hydrogen, an alkali metal atom or an ammonium group; R ³ is a compound having 6-25 carbon atoms Alkyl, alkenyl or alkynyl;

基团；且m是1-5的整数。  R ² is hydrogen, a -(CH ₂ ) _m SO ₃ M group or

group; and m is an integer of 1-5.

Suitable compounds include, for example, the following compounds:

2-Alkyl-benzimidazole-sulfonic acid compounds such as:

Inhibitor nr. the 27 2-Dodecyl, 3-sulfobutyl-benzimidazole-6-sulfonic acid 28 2-Dodecyl, 3-sulfobutyl-benzimidazole-6-sulfonic acid potassium salt 29 2-Dodecyl, 3-sulfobutyl-benzimidazole-5-sulfonic acid 30 2-Dodecyl, 3-sulfobutyl-benzimidazole-5-sulfonic acid potassium salt 31 2-pentadecyl, 3-sulfobutyl-benzimidazole-6-sulfonic acid 32 2-pentadecyl, 3-sulfobutyl-benzimidazole-6-sulfonic acid potassium salt 33 2-pentadecyl, 3-sulfobutyl-benzimidazole-5-sulfonic acid 34 2-pentadecyl, 3-sulfobutyl-benzimidazole-5-sulfonic acid potassium salt 35 2-Hexadecyl, 3-sulfobutyl-benzimidazole-6-sulfonic acid 36 2-Hexadecyl, 3-sulfobutyl-benzimidazole-6-sulfonic acid potassium salt 37 2-Hexadecyl, 3-sulfobutyl-benzimidazole-5-sulfonic acid 38 2-Hexadecyl, 3-sulfobutyl-benzimidazole-5-sulfonic acid potassium salt 39 2-Heptadecyl, 3-sulfobutyl-benzimidazole-6-sulfonic acid 40 2-Heptadecyl, 3-sulfobutyl-benzimidazole-6-sulfonic acid potassium salt 41 2-Heptadecyl, 3-sulfobutyl-benzimidazole-5-sulfonic acid 42 2-Heptadecyl, 3-sulfobutyl-benzimidazole-5-sulfonic acid potassium salt 43 2-Dodecyl-benzimidazole-6-sulfonic acid (tautomerism with 19) 44 2-Dodecyl-benzimidazole-6-sulfonic acid sodium salt (tautomeric with 20) 45 2-Dodecyl-benzimidazole-5-sulfonic acid (tautomerism with 17) 46 2-dodecyl, 5-sulfobenzimidazole-5-sulfonic acid sodium salt (tautomerism with 18) 47 2-pentadecyl-benzimidazole-6-sulfonic acid (tautomerism with 23) 48 2-pentadecyl-benzimidazole-6-sulfonic acid sodium salt (tautomerism with 24) 49 2-pentadecyl-benzimidazole-5-sulfonic acid (tautomerism with 21) 50 2-pentadecyl-benzimidazole-5-sulfonic acid sodium salt (tautomerism with 22) 51 2-hexadecyl-benzimidazole-6-sulfonic acid (tautomerism with 27) 52 2-Hexadecyl-benzimidazole-6-sulfonic acid sodium salt (tautomerism with 28) 53 2-hexadecyl-benzimidazole-5-sulfonic acid (tautomeric with 25) 54 2-hexadecyl-benzimidazole-5-sulfonic acid sodium salt and 26 tautomerism) 55 2-heptadecyl-benzimidazole-6-sulfonic acid (tautomerism with 31) 56 2-Heptadecyl-benzimidazole-6-sulfonic acid sodium salt (tautomerism with 32) 57 2-heptadecyl-benzimidazole-5-sulfonic acid (tautomerism with 29) 58 2-Heptadecyl-benzimidazole-5-sulfonic acid sodium salt (tautomeric with 30)

and 2-thioalkyl-benzimidazole-sulfonic acid compounds such as:

The synthesis of 2-alkyl-benzimidazole-sulfonic acid compounds and 2-thioalkyl-benzimidazole-sulfonic acid compounds is disclosed in EP-A 1484323 and EP-A 11484640. the

A substance capable of effecting and effective for binding at least one species that diffuses through the receiving layer configuration

According to a sixteenth embodiment of the information carrier precursor of the invention, said at least one substance capable of effecting and effective for binding at least one species diffusing through the formation of the receiving layer is a mordant. the

According to a seventeenth embodiment of the information carrier precursor according to the invention, said at least one substance capable of being realized and effective for binding to at least one species diffusing through the structure of the receiving layer is capable of imaging with an image transported thereto by diffusion. Dye binding. the

According to an eighteenth embodiment of the information carrier precursor of the present invention, said at least one substance capable of effecting and effective for binding at least one species diffusing through the structure of the receiving layer is capable of combining with the acid transported thereto by diffusion. Imaging dye binding. the

According to a nineteenth embodiment of the information carrier precursor of the present invention, said at least one substance capable of effecting and being effective for binding at least one species that diffuses through the structure of the receiving layer is capable of combining with diffusible visible dyes Combination of at least one functional species of diffusible infrared dye, diffusible organic luminescent compound and diffusible organometallic luminescent compound. the

The choice of mordant for mordant or otherwise incorporating one or more diffusible dyes in dye diffusion transfer photography is determined by the nature of the dye or dyes to be mordanted. For example, it is known to mordant acid dyes with basic polymeric mordants such as polymers of amino-guanidine derivatives of vinyl methyl ketone (as described in US 2,882,156), basic Polymeric mordants and derivatives such as poly-4-vinylpyridine, N-methyl-p-toluenesulfonate of 2-vinylpyridine and similar compounds (as described in US 2,484,430) and DE-A 2009498 and DE-A Compounds described in A 2200063. Other mordants are long chain quaternary ammonium or phosphonium compounds of ternary sulfonium compounds, such as those described in US 3,271,147 and US 3,271,148, and cetyltrimethyl-ammonium bromide. Certain metal salts and their hydroxides, which form slightly soluble compounds with acid dyes, may also be used. The dye-mordant is dispersed or molecularly separated in one of the customary hydrophilic binders of the image-receiving layer, for example in gelatin, polyvinylpyrrolidone or partially or fully hydrolyzed cellulose esters. the

In US 4,186,014 cationic polymeric mordants are described which are particularly suitable for immobilizing anionic dyes, such as the sulfinate dyes released imagewise by redox reactions as described in US 4,232,107. the

Alternatively, non-polymeric mordants such as ammonium and phosphonium salts may be used. To prevent bleeding, non-polymeric mordants can be stabilized with hydrophilic organic colloids comprising a finely divided dispersion of a salt of an organic acidic composition comprising free acid moieties, as in US 3,271,147 and described in US 3,271,148. For example, gelatin which has been acylated with a dicarboxylic acid can be used as a stabilizer for the mordant. A combination of a non-polymeric phosphonium mordant and a copolymer latex comprising free weak acid groups as stabilizers for the mordant may be used, as disclosed in US 4,820,608. The non-polymeric phosphonium mordant may, for example, comprise at least one long chain hydrocarbon group. the

Precursors of functional species

According to the present invention, a functional species precursor is a species that diffuses through said receiving layer configuration in diffusion contact with at least one component receiving layer and said at least one optionally applied layer and with said receiving layer configuration. Catalytic or reactive species provided in at least one of the rigid sheet or support interact to produce functional species. the

Examples of functional species precursors are metal complexes, which develop a metal or metal sulfide center from the metal therein; and oxidized developers, such as oxidized primary aromatic amino developers, which can react with coupling agents React to produce visible dyes, infrared dyes or luminescent species. the

For example, if the silver halide in the donor layer develops to a silver complex in the presence of a silver complexing agent or fixer, it diffuses as a solution to the metal or metal sulfide center where the dissolved silver complex passes through Physical development of these pre-existing metal or metal sulfide centers into silver images can then patternwise produce metal complexes. the

A substance capable of effecting and being effective for catalyzing the diffusion of at least one species through the receiving layer configuration

A substance capable of effecting and being effective for catalytic diffusion of at least one species through the receiving layer configuration interacts with a functional species precursor to produce a functional species such as an electroless deposition catalyst and a metal or metal sulfide center, It reacts with metals from diffusive metal complexes. the

Commonly known development nuclei in diffusion transfer reversal (DTR) imaging receiver materials are preferred electroless deposition catalysts, such as noble metal particles, such as silver particles, and colloidal heavy metal sulfide particles, such as colloidal palladium sulfide, nickel sulfide, and Mixed silver nickel sulfides. These cores can be present with or without binder. the

The electroless deposition catalyst can be non-metallic, such as palladium complex catalytic precursors, such as [(CH ₃ -(CH ₂ ) ₁₆ -CN) ₂ PdCl ₂ ], self-assembled monolayers, palladium-activated self-assembled monolayers, surface-bound colloidal Pd(II) catalysts, activated carbon, polyacetylene, or heavy metal sulfides such as palladium sulfide, silver, nickel, cobalt, copper, lead, and mercury, or Mixed sulphides such as silver nickel sulphide, or particles of metals such as silver, platinum, rhodium, iridium, gold, ruthenium, palladium and copper.

EP-A 0769723 discloses a method for preparing a physical development nucleus for the silver salt diffusion transfer method, said physical development nucleus comprising a heavy metal sulfide, said method comprising the following steps: by combining a water-soluble heavy metal compound with a water-soluble sulfur The heavy metal sulfide is precipitated by the reactive association of the compound in the aqueous liquid, and the precipitation is carried out in the presence of a hydrophilic polymer to disperse the heavy metal sulfide, and the hydrophilic polymer comprises a heterocyclic group, which It is characterized in that the heterocyclic group is present in the repeating unit of the hydrophilic polymer, and the repeating unit is included in the polymer in an amount of 0.1 mol% to 5 mol%. the

According to a twentieth embodiment of the information carrier precursor of the present invention, said at least one substance capable of effecting and being effective for reacting with at least one species diffusing through the porous part of said receiving layer construction is a metal or a metal Sulfide centers, which develop through metals from metal complexes. the

A substance capable of effecting and being effective for reacting with at least one species diffusing through the receiving layer configuration

According to a twenty-first embodiment of the information carrier precursor of the present invention, said at least one substance capable of effecting and being effective for reacting with at least one species diffusing through said receiving layer configuration is capable of reacting with a functional substance. Precursors to generate functional species such as cationic species that act as mordants and couplers to produce visible dyes, infrared dyes, or luminophores by reacting with oxidized developers such as oxidized primary aromatic amino developers kind. the

According to a twenty-second embodiment of the information carrier precursor of the present invention, said at least one substance capable of effecting and being effective for reacting with at least one species diffusing through said receiving layer configuration is capable of reacting with a functional substance. A precursor to a component that produces a functional species, wherein the component capable of producing a functional species is a coupling agent that reacts with an oxidized developer to produce a species that absorbs in the visible spectrum, in the infrared spectrum Absorbing species or luminescent species. the

Cationic species enhance the ability of the receiving layer to immobilize and bind the dyes of the ink droplets. A particularly suitable compound is poly(diallyldimethylammonium chloride) or, in short, poly(DADMAC). These compounds are commercially available from several companies such as Aldrich, Nalco, CIBA, Nitto Boseki Co., Clariant, BASF and EKA Chemicals. the

L-2OO、H-1OO、SC-240C、SC-230M(Starch&Chemical Co的商品名)，和QUATRISOFT LM200、UCARE聚合物JR125、JR400、LR400、JR30M、LR30M和UCARE聚合物LK；来自Chukyo Europe的固定剂：PALSET JK-512、PALSETJK512L、PALSET JK-182、PALSET JK-220、WSC-173、WSC-173L、PALSET JK-320、PALSET JK-320L和PALSET JK-350；聚乙烯亚胺和共聚物，例如LUPASOL(BASF AG的商品名)；三乙醇胺-钛螯合物，例如TYZOR(Du Pont Co的商品名)；乙烯基吡咯烷酮的共聚物如VIVIPRINT 111(ISP的商品名，一种甲基丙烯酰氨基丙基二甲胺共聚物)；与二甲基氨基乙基甲基丙烯酸酯如COPOLYMER845和COPOLYMER 937(ISP的商品名)；与乙烯基咪唑，例如LUVIQUAT CARE、LUVITEC 73W、LUVITEC VPI55 K18P、LUVITEC VP155 K72W、LUVIQUAT FC905、LUVIQUAT FC550、LUVIQUAT HM522和SOKALAN HP56(所有都为BASF AG的商品名)；聚酰氨基胺，例如RETAMINOL和NADAVIN(Bayer AG的商标)；鏻化合物如EP609930中公开的及其他阳离子聚合物如NEOFIXRD(NICCA Chemical Co的商标)。  Other useful cationic compounds include DADMAC copolymers such as copolymers with acrylamide, such as NALCO 1470 from ONDEO Nalco or PAS-J-81 (trademark of Nitto Boseki Co), such as copolymers of DADMAC and acrylates, such as NALCO 8190 (trademark of ONDEO Nalco); copolymers of DADMAC and SO, such as PAS-A- ₁ or PAS-92 (trademarks of Nitto Boseki Co), copolymers of DADMAC and maleic acid, such as PAS-410 (Nitto Boseki Co. Trademark of Co), copolymer of DADMAC and diallyl (3-chloro-2-hydroxypropyl) amine hydrochloride, such as PAS-880 (trademark of Nitto Boseki Co), dimethylamine-epichlorohydrin copolymer Nalco 7135 (trademark of ONDEO Nalco) or POLYFIX 700 (trade name of Showa High Polymer Co); other POLYFIX grades that can be used are POLYFIX 601, POLYFIX 301, POLYFIX 301A, POLYFIX 250WS, and POLYFIX 3000; NEOFIX E-117 ( Nicca Chemical Co's trade name, polyoxyalkylene polyamine (dicyanodiamine), and REDIFLOC 4150 (EKA Chemicals' trade name, polyamine); MADAME (methacrylate dimethylaminoethyl = dimethyl Aminoethyl methacrylate) or MADQUAT (methacryloyl-oxyethyltrimethylammonium chloride) modified polymers, such as ROHAGIT KL280, ROHAGIT 210, ROHAGIT SL144, PLEX 4739L, PLEX from Rohm 3073, DIAFLOCKP155 and other DIAFLOC products from Diafloc Co, and BMB 1305 and other BMB products from EKA chemicals; cationic epichlorohydrin adducts such as POLYCUP 171 and POLYCUP172 (trade names from Hercules Co); from Cytec industries: CYPRO products such as CYPRO 514/515/516, SUPERFLOC 507/521/567; cationic acrylic polymers such as ALCOSTAT 567 (trademark of CIBA), cationic cellulose derivatives such as

L-200, H-100, SC-240C, SC-230M (trade names of Starch & Chemical Co), and QUATRISOFT LM200, UCARE Polymer JR125, JR400, LR400, JR30M, LR30M, and UCARE Polymer LK; fixed from Chukyo Europe Agents: PALSET JK-512, PALSETJK512L, PALSET JK-182, PALSET JK-220, WSC-173, WSC-173L, PALSET JK-320, PALSET JK-320L and PALSET JK-350; polyethyleneimine and copolymers, For example LUPASOL (trade name of BASF AG); triethanolamine-titanium chelates such as TYZOR (trade name of Du Pont Co); copolymers of vinylpyrrolidone such as VIVIPRINT 111 (trade name of ISP, a methacryloyl aminopropyl dimethylamine copolymer); with dimethylaminoethyl methacrylate such as COPOLYMER 845 and COPOLYMER 937 (trade name of ISP); with vinylimidazole such as LUVIQUAT CARE, LUVITEC 73W, LUVITEC VPI55 K18P, LUVITEC VP155 K72W, LUVIQUAT FC905, LUVIQUAT FC550, LUVIQUAT HM522 and SOKALAN HP56 (all trade names of BASF AG); polyamidoamines such as RETAMINOL and NADAVIN (trade marks of Bayer AG); phosphonium compounds as disclosed in EP609930 and others Cationic polymers such as NEOFIXRD (trademark of NICCA Chemical Co).

The receiving layer may also contain well-known conventional ingredients such as surfactants, hardeners, plasticizers, brighteners and matting agents which serve as coating aids. The surfactant may be any of cationic, anionic, amphoteric and nonionic surfactants as described in JP-A 62-280068 (1987). Examples of such surfactants are N-alkyl amino acid salts, alkyl ether carboxylates, acylated peptides, alkyl sulfonates, alkylbenzene and alkylnaphthalene sulfonates, sulfosuccinates , α-olefin sulfonates, N-acyl sulfonates, sulfonated oils, alkyl sulfonates, alkyl ether sulfonates, alkyl allyl ether sulfonates, alkylamide sulfonates, Alkyl phosphates, alkyl ether phosphates, alkyl allyl ether phosphates, alkyl and alkyl allyl polyoxyethylene ethers, alkyl allyl formaldehyde condensation salts, alkyl allyl ethers- Sulfonates, Alkyl-Amide Sulfonates, Alkyl Phosphates, Alkyl Ether-Phosphates, Alkyl Allyl Ether Phosphates, Alkyl and Alkyl Allyl Ethoxylates, Alkyl Allyl Formaldehyde condensation polyoxyethylene ether, capped polymer with polyoxypropylene, polyoxyethylene polyoxypropyl alkyl ether, polyoxyethylene ether of glycol ester, polyoxyethylene of sorbitanesters Ethers, polyoxyethylene ethers of sorbitan esters, polyethylene glycol fatty acid esters, glycerin esters, sorbitane esters, propylene glycol esters, sugar esters, fluoro C ₂ -C ₁₀ alkyl carboxylic acids, N-all Disodium fluorooctanesulfonyl glutamate, sodium 3-(fluoro-C ₆ -C ₁₁ -alkoxy)-1-C ₃ -C ₄ alkylsulfonate, 3-(ω-fluoro-C ₆ - C ₈ -alkanoyl-N-ethylamino)-1-propanesulfonate sodium, N-[3-(perfluorooctanesulfonamide)-propyl]-N,N-dimethyl-N-carboxylidene Methylammonium betaine, fluoro-C ₁₁ -C ₂₀ alkyl carboxylic acid, perfluoro C ₇ -C ₁₃ -alkyl-carboxylic acid, perfluorooctane sulfonate diethanolamide, perfluoro C ₄ -C ₁₂ - Alkylsulfonates Li, K and Na, N-propyl-N-(2-hydroxyethyl) perfluorooctanesulfonamide, perfluoro C ₆ -C ₁₀ -alkylsulfonamide-propyl-sulfonyl- Glycine, bis(N-perfluorooctylsulfonyl-N-ethanolaminoethyl) phosphonate, monoperfluoro C ₆ -C ₁₆ alkyl-ethyl phosphonate, and perfluoroalkyl betaine.

According to a twenty-third embodiment of the information carrier precursor of the present invention, said at least one substance capable of effecting and being effective for reacting with at least one species diffusing through the porous portion of said receiving layer configuration is a coupling Agents that produce absorbing species in the visible spectrum, absorbing species in the infrared spectrum, or luminescent species by reacting with oxidized developer. the

US 4,180,405 discloses mixtures of heat-sensitive colorant precursors comprising (a) cyclic polyketides reacted with amines and amides at elevated temperatures to form colorants; and (b) selected from lactone-type Chromogenic compounds of leuco dyes and spiropyran-type leuco dyes which react with phenols at elevated temperatures to form colorants. Furthermore, EP-A 0268704 discloses dispersed 1-hydroxy-2-N-(5-ballasted-thiazol-2-yl)-naphthylcarboxamide coupling agents capable of Forms infrared-absorbing quinone imine dyes. Specific 1-hydroxy-2-N-(5-ballasted-thiazol-2-yl)-naphthylcarboxamide coupling agents of the general formula are disclosed:

in:

R represents phenyl or substituted phenyl, such as phenyl carrying at least one substituent selected from the group consisting of: halogen atom, cyano, cyclohexyl, alkylsulfonylamino, aryloxy, arylthio , alkyl, alkoxy, alkylthio, alkylcarbonyloxy, the hydrogen atom of the alkyl, alkoxy, alkylthio, or alkylcarbonyloxy is unsubstituted or at least one of them replaced by a halogen atom,

Y represents an alkyl group with at least 8 carbon atoms, such as tetradecyl, which allows the coupling agent to diffuse rapidly in a hydrocolloid medium,

Z is hydrogen or a substituent, such as a chlorine or bromine atom, which splits off during the coupling reaction, thereby imparting a 2-equivalent character to the coupling agent. the

receiving layer structure

The receiving layer construction comprises a single layer or multiple layers. Only one component-receiving layer of the receiving-layer construction needs to contain at least one pigment, at least one binder and at least partially consist of regions that are both opaque and porous and which can be transparentized by penetration of the base paint. The multiple layers making up the receiver layer construction may be coated or printed simultaneously or sequentially and may be of the same or different composition in order to, for example, vary the porosity of the individual layers, or to position the layers enabling and effective for bonding, catalytic diffusion through The at least one species of the receiving layer construction or the at least one substance that reacts with the at least one species diffusing through the receiving layer construction can thereby be localized to one or In multiple receiving layers, the substances in these layers are the same or different. the

The receiving layer construction may be applied to the support by any conventional coating technique, such as dip coating, knife coating, extrusion coating, spin coating, ramp hopper coating, and curtain coating, And any conventional printing technique, such as screen printing, offset printing, inkjet printing, gravure printing and gravure printing. the

The composition of the individual layers in the receiver layer configuration can be altered after deposition by coating or printing, for example by patterned or non-patterned deposition of a substance (the form of the substance can be adapted to it, for example by partially dissolving the uppermost part of said layer). mix, or diffuse into the layer). Said at least one substance capable of effecting and being effective for binding, catalyzing, or reacting with at least one species diffusing through said receiving layer construction may thus Locating in one or more receiver layers of said receiver layer construction during application. the

One or more of the component-receiving layers may optionally be patterned to include at least one species capable and effective for in situ interaction with at least one species diffusing through said receiving layer configuration to produce a functional species. substance. the

According to the invention, the component-receiving layer and the optional additional layer used in the information carrier precursor may also contain known conventional components, such as surfactants, hardeners, plasticizers, whitening agents as coating aids, etc. agents and matting agents. the

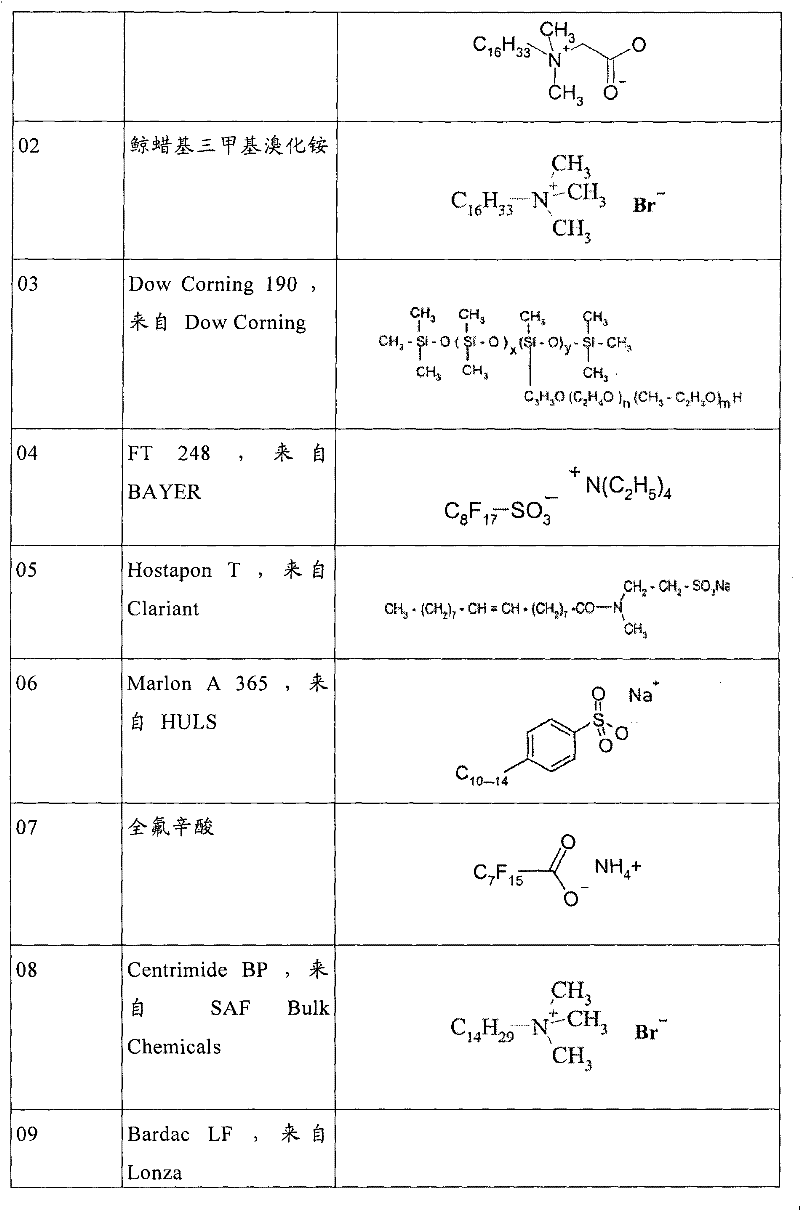

Suitable surfactants are any of cationic, anionic, amphoteric and nonionic surfactants as described in JP-A 62-280068 (1987). Examples of such surfactants are N-alkyl amino acid salts, alkyl ether carboxylates, acylated peptides, alkyl sulfonates, alkylbenzene and alkylnaphthalene sulfonates, sulfosuccinates , α-olefin sulfonates, N-acyl sulfonates, sulfonated oils, alkyl sulfonates, alkyl ether sulfonates, alkyl allyl ether sulfonates, alkylamide sulfonates, Alkyl phosphates, alkyl ether phosphates, alkyl allyl ether phosphates, alkyl and alkyl allyl polyoxy-vinyl ethers, alkyl allyl formaldehyde condensation salts, alkyl allyl ethers Sulfonates, alkylamide sulfonates, alkyl phosphates, alkyl ether phosphates, alkyl allyl ether phosphates, alkyl and alkyl allyl polyoxy-vinyl ethers, alkyl allyl Formaldehyde condensation polyoxyethylene ethers, capped polymers with polyoxypropylene, polyoxyethylene polyoxypropyl alkyl ethers, polyoxyethylene ethers of glycol esters, polyoxyethylene ethers of sorbitanesters , polyoxyethylene ether of sorbitol ester, polyethylene glycol fatty acid ester, glycerin ester, sorbitan (sorbitane) ester, propylene glycol ester, sugar ester, fluoro C ₂ -C ₁₀ alkyl carboxylic acid, N-perfluoro Disodium octanesulfonyl glutamate, sodium 3-(fluoro-C ₆ -C ₁₁ -alkoxy)-1-C ₃ -C ₄ alkylsulfonate, 3-(ω-fluoro-C ₆ -C ₈ -Alkanoyl-N-ethylamino)-1-propanesulfonate sodium, N-[3-(perfluorooctanesulfonamide)-propyl]-N,N-dimethyl-N-carboxymethylene Ammonium Betaine, Fluoro-C ₁₁ -C ₂₀ Alkyl Carboxylic Acid, Perfluoro C ₇ -C ₁₃ -Alkyl-Carboxylic Acid, Perfluorooctane Sulfonate Diethanolamide, Perfluoro C ₄ -C ₁₂ -Alkyl Sulfonic acids Li, K and Na, N-propyl-N-(2-hydroxyethyl)perfluorooctanesulfonamide, perfluoro C ₆ -C ₁₀ -alkylsulfonamide-propyl-sulfonyl-glycine , bis(N-perfluorooctylsulfonyl-N-ethanolaminoethyl) phosphonate, monoperfluoro C ₆ -C ₁₆ alkyl-ethyl phosphonate, and perfluoroalkyl betaine.

Useful cationic surfactants include N-alkyldimethylammonium chloride, palmityltrimethylammonium chloride, dodecyldimethyl-amine, tetradecyldimethylamine, ethoxylated alkanes guanidine-amine complex, oleylamine hydroxypropyl bistrimonium (bistrimonium) chloride, oleyl imidazoline, stearyl imidazoline, cocylamine acetate, palmitamine, dihydroxyethyl Cocylamine, Cocotrimonium Chloride, Alkyl Polyethylene Glycol-Ether Ammonium Sulfate, Ethoxylated Oleylamine, Lauryl Pyridinium Chloride, N-Oleyl-1,3-Di Aminopropane, Stearamidopropyl Dimethylamine Lactate, Coco Fatty Amide, Oleyl Hydroxyethylimidazoline, Isostearyl Ethylimidonium Ethyl Sulfate, Lauroamidopropyl PEG-based Diammonium Chloride Phosphate, Palmityltrimonium Chloride, and Cetyltrimonium Bromide. the

Particularly useful surfactants are fluorocarbon surfactants having the following structure: F(CF ₂ ) _4-9 CH ₂ CH ₂ SCH ₂ CH ₂ N ⁺ R ₃ X ⁻ , where R is hydrogen or alkyl as for example US - as described in P4,781,985; and fluorocarbon surfactants having the following structure: CF ₃ (CF ₂ ) _m CH ₂ CH ₂ O(CH ₂ CH ₂ O) _n R, where m = 2-10; n = 1-18; R is hydrogen or alkyl having 1-10 carbon atoms as described in US-P 5,084,340. These surfactants are commercially available from DuPont and 3M. The concentration of the surfactant component in the receiving layer is generally 0.1-2% by weight, preferably 0.4-1.5% by weight and most preferably 0.75% by weight, based on the total dry weight of the layer.

In addition, the component receiving layer may be lightly crosslinked to provide desired characteristics, such as water repellency and non-blocking properties. However, the degree of crosslinking should be such that neither the diffusion of the functional species or precursors of the functional species nor the penetration of the base paint should be substantially affected. Crosslinking can also be used to provide abrasion resistance and prevent fingerprints from forming on the element through processing. There are a number of known cross-linking agents (also known as hardeners) that will function to cross-link the film-forming adhesive. Hardeners can be used alone or in combination and in free form or block form. Many hardeners are known that can be used in the present invention, including formaldehyde and free dialdehydes, such as succinaldehyde and glutaraldehyde, blocked dialdehydes, active esters, sulfonates, active halogen compounds, isocyanates or blocked Isocyanates, polyfunctional isocyanates, melamine derivatives, s-triazines and diazines, epoxides, reactive olefins with two or more reactive bonds, carbodiimides, zirconium complexes such as BACOTE 20, ZIRMEL 1000 or zirconium acetate (trademark of MEL Chemicals), titanium complexes such as TYZOR grade from DuPont, isoxazoline salts substituted in the 3-position, esters of 2-alkoxy-N-carboxy-dihydroquinolines, N-carbamoylpyridinium salts, mixed-function hardeners such as halogen-substituted aldehyde acids (e.g. mucyl and bromide), onium-substituted acrolein and vinyl sulfone, and polymeric hardeners such as dialdehyde starch and copolymeric (acrolein methacrylic acid), and oxazoline functional polymers such as EPOCROS WS-500 and EPOCROS K-1000 series, and maleic anhydride copolymers such as GANTREZ AN119. the

The component receiving layer and the optional additional layer used in the information carrier precursor of the present invention may also contain plasticizers such as ethylene glycol, diethylene glycol, propylene glycol, polyethylene glycol, glycerol monomethyl ether, glycerol monochlorohydrin , Ethylene Carbonate, Propylene Carbonate, Tetrachlorophthalic Anhydride, Tetrabromophthalic Anhydride, Urea Phosphate, Triphenyl Phosphate, Glyceryl Monostearate, Propylene Glycol Monostearate , Tetramethylene sulfone, n-methyl-2-pyrrolidone, n-vinyl 2-pyrrolidone. the

The component receiving layer and the optional additional layer used in the information carrier precursor of the invention may also contain components for improving the light fastness of the printed image, such as antioxidants, UV absorbers, peroxide scavengers, singlet oxygen Quenchers such as hindered amine light stabilizers (HALS compounds). Stilbene compounds are a preferred type of UV absorber. the

Receiving layer pigment

The pigment of the receiving layer can be selected from inorganic pigments known in the art, such as silica, talc, clay, hydrotalcite, kaolin, diatomaceous earth, calcium carbonate, magnesium carbonate, basic magnesium carbonate, aluminosilicate, aluminum hydroxide , alumina (aluminum oxide), titanium dioxide, zinc oxide, barium sulfate, calcium sulfate, zinc sulfide, satin white, boehmite (alumina hydrate), zirconia or mixed oxides. In a preferred embodiment, the primary pigment is selected from silica, aluminosilicates, alumina, calcium carbonate, alumina hydrate, and aluminum hydroxide. the

According to the twenty-fourth embodiment of the information carrier precursor of the present invention, the pigment is an inorganic pigment. the

According to the twenty-fifth embodiment of the information carrier precursor of the present invention, the pigment is silicon dioxide. the

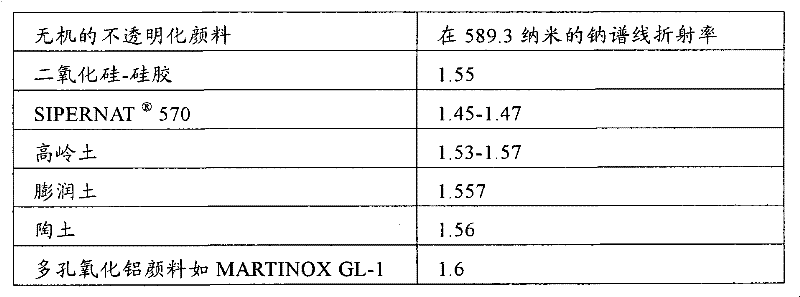

The refractive indices of these pigments are given in the table below:

The use of aluminum oxide (alumina) in the receiving layer is disclosed in several patents, such as in US 5,041,328, US 5,182,175, US 5,266,383, EP 218956, EP 835762 and EP 972650. the

Commercially available types of alumina (alumina) include α- _{Al203 types} , such as NORTONE 700, available _from Saint-Gobain Ceramics & Plastics, Inc, γ- _Al203 types, such as ALUMINUM OXID C from Degussa, others Alumina grades such as BAIKALOX CR15 and CR30 from Baikowski Chemie; DURALOX grades and MEDIALOX grades from Baikowski Chemie, BAIKALOX CR80, CR140, CR125, B105CR from Baikowski Chemie; CAB-O-SPERSE PG003 trademark from Cabot, from Sasol CATALOX GRADES and CATAPAL GRADES, such as PLURALOX HP14/150; Colloidal _Al2O type ₃ , such as ALUMINASOL 100; ALUMINASOL 200, ALUMINASOL 220, ALUMINASOL 300, ALUMINASOL 520 trademarks from Nissan Chemical Industries or NALCO8676 trademarks from ONDEO NalCo.

Useful types of alumina hydrates are γ-AlO(OH), also known as boehmite, eg DISPERAL, DISPERAL HP14 and DISPERAL 40 from SASOL, MARTOXIN VPP2000-2 and GL-3 (from Martinswerk GmbH.) in powder form ; Liquid boehmite alumina systems such as DISPAL 23N4-20, DISPAL 14N-25, DISPERAL AL25 (from SASOL). Patents on alumina hydrate include EP500021, EP 634286, US 5,624,428, EP 742108, US 6,238,047, EP622244, EP 810101, etc. the

Useful aluminum hydroxides include bayerite, or α-Al(OH) ₃ , such as PLURAL BT (available from SASOL), and gibbsite, or γ-Al(OH) ₃ , such as MARTINAL grades (available from Martinswerk GmbH), MARTIFIN grades such as MARTIFIN OL104, MARTIFIN OL 107 and MARTIFIN OL111 (from Martinswerk GmbH), MICRAL grades such as MICRAL 1440, MICRAL 1500; MICRAL 632; MICRAL 855; MICRAL 916; MICRAL 932; MICRAL 932CM; MICRAL ( from JM Huber Company); HIGILITE grades such as HIGILITE H42 or HIGILITE H43M (from Showa Denka K.K.), HYDRAL GRADES such as HYDRAL COAT 2, HYDRAL COAT 5 and HYDRAL COAT 7, HYDRAL 710 and HYDRAL PGA (from Alcoa Industrial Chemicals).

Useful types of zirconia are ONDEO Nalco's NALCO OOSS008 trademark, acetate stabilized _ZrO2 , ZR20/20, ZR50/20, ZR100/20 and ZRYS4 (trademark from Nyacol Nano Technologies). Useful mixed oxides are SIRAL grades from SASOL, colloidal metal oxides from Nalco such as Nalco 1056, NalcoTX10496, Nalco TX11678.

Silica as a pigment in receiver elements is disclosed in numerous old and new patents, such as US 4,892,591, US 4,902,568, EP 373573, EP 423829, EP 487350, EP493100, EP 514633, etc. Different types of silica can be used such as crystalline silica, amorphous silica, precipitated silica, gelled silica, fumed silica, spherical and non-spherical silica, calcium carbonate complexes Mixed silica as disclosed in US 5,281,467, and silica with internal porosity as disclosed in WO 00/02734. The use of calcium carbonate in the receiving layer is described, for example, in DE 2925769 and US 5,185,213. The use of aluminosilicates is disclosed, for example, in DE 2925769. Mixtures of different pigments can be used. the

In alternative embodiments, the primary pigment may be selected from organic particles such as polystyrene, polymethylmethacrylate, silicone, melamine-formaldehyde condensation polymer, urea-formaldehyde condensation polymer, polyester and polyamide. Mixtures of inorganic and organic pigments can be used. Most preferably, however, the pigments are inorganic pigments. the

The pigment must be present in sufficient coverage to render the receiving layer sufficiently opaque and porous. The binder to total pigment weight ratio in the receiving layer preferably has a lower limit of about 1:50, most preferably 1:20 and an upper limit of about 2:1, most preferably 1:1. If the amount of the pigment exceeds the upper limit, the strength of the receiving layer itself is lowered, and the resulting image thus tends to be inferior in resistance to shading and the like. On the other hand, if the ratio of the binder to the pigment is too high, the resulting receiving layer has lowered ink absorbing ability and thus the formed image may be deteriorated. the

The clearing method depends on the fact that on the one hand the refractive index of the pigment and on the other hand the refractive index of the base paint (see description below) which penetrates the receiving layer construction should be matched to each other as closely as possible. The closer the refractive indices are matched, the better transparency will be obtained after impregnation of the receiver layer by the base lacquer. the

The most preferred pigments are of the silica type, more particularly amorphous silica having an average particle size of from 1 micron to 15 microns, most preferably from 2 to 10 microns. The most useful commercially available compound is the amorphous precipitated silica type SIPERNAT 570, trade name from Degussa Co. It is preferably present in the receiving layer in an amount of 5 g/m ² to 30 g/m ² . It has the following properties:

- Specific surface area (N ₂ absorption): 750m ² /g

-Average particle size (Multisizer, 100 micron capillary action method): 6.7 microns

-DBP [dibutyl phthalate] adsorption: 175-320 g/100 g

- Refractive index: 1.45-1.47. the

Since a typical UV curable basecoat composition has a refractive index of about 1.47-1.49, it is apparent that there is a good match to the refractive index of this particular silica type and will result in good transparency. the

Other useful precipitated silica types include SIPERNAT 310, 350, and 500, AEROSIL grades (trademark of Degussa-Hüls AG), and SYLOID types (trademark of Grace Co.). the

Receiver layers containing porous alumina pigments (e.g. MARTINOX GL-1) will not become fully transparent when impregnated by an acrylate/methacrylate based basecoat with a refractive index of 1.47-1.49, since its refractive index is 1.6 . However, base lacquers with a higher refractive index may be used, for example comprising N-vinylcarbazole as a comonomer. the

According to the method according to the invention for producing an information carrier, the adhesion of the base-impregnated receiver layer to the rigid sheet or support is improved by subsequent curing (eg UV curing). the

Adhesive for receiving layer

The receiving layer binder can be water-soluble, solvent-soluble or latex, and can be selected from a series of compounds known in the art, including hydroxyethyl cellulose; hydroxypropyl cellulose; hydroxyethyl methyl Cellulose; Hydroxypropylmethylcellulose; Hydroxybutylmethylcellulose; Methylcellulose; Sodium carboxymethylcellulose; Sodium carboxymethylhydroxyethylcellulose; Water-soluble ethylhydroxyethylcellulose; Sulfuric acid Cellulose; Polyvinyl Alcohol; Vinyl Alcohol Copolymer; Polyvinyl Acetate; Polyvinyl Acetal; Polyvinylpyrrolidone; Polyacrylamide; Acrylamide/Acrylic Copolymer; Polystyrene, Styrene Copolymer; Acrylics or methacrylic polymers; styrene/acrylic copolymers; ethylene-vinyl acetate copolymers; vinyl methyl ether/maleic acid copolymers; poly(2-acrylamido-2-methylpropanesulfonium acid); poly(diethylenetriamine-co-adipic acid); polyvinylpyridine; polyvinylimidazole; polyethyleneimine epichlorohydrin modified; polyethyleneimine ethoxylated; Polyethylene oxide; polyurethane; melamine resin; gelatin; carrageenan; dextran; gum arabic; casein; pectin; albumin; starch; collagen derivatives; collodion and agar. the

Preferred binders for use in the practice of the present invention are polyvinyl alcohol (PVA), vinyl alcohol copolymers) or modified polyvinyl alcohols. Most preferably, the polyvinyl alcohol is silanol-modified polyvinyl alcohol. The most useful commercially available silanol-modified polyvinyl alcohols can be found in the POVAL R polymer series (trade name of Kuraray Co., Japan). The R polymer series includes grades R-1130, R-2105, R-2130, R-3109, which differ primarily in the viscosity of their respective aqueous solutions. The silanol groups are reactive towards inorganic substances such as silica or alumina. R-polymers can be easily crosslinked by changing the pH of their aqueous solutions or by mixing with organic substances, and can form water-resistant films. the

W-300，在2.0-3.2的总颜料对总胶乳重量比观察到最好的图象清晰度。此外，极高胶乳浓度的存在抑制性地降低了印刷图像的耐擦性。  According to a twenty-sixth embodiment of the information carrier precursor of the present invention, said at least one opaque porous layer also comprises at least one latex, preferably said at least one opaque porous layer provides the outermost layer of said receiving layer construction surface. by W-300 as a pigment, varying the pigment/latex ratio between 1.2 and 6.5 (2, 2.2, 2.45, 2.70, 2.75, 3.5, 3.78, 4.25, 5 and 6.25), it was found that the amount of ink bleed increased with increasing pigment/latex ratio. Latex ratio decreased. For too high a pigment/latex ratio, the receiver layer becomes too powdery. use

For W-300, the best image sharpness was observed at total pigment to total latex weight ratios of 2.0-3.2. Furthermore, the presence of extremely high latex concentrations inhibitably reduces the rub resistance of printed images.

According to a twenty-seventh embodiment of the information carrier precursor of the present invention, said at least one opaque porous layer comprises at least one latex and the weight ratio of total pigments to total latex is 1.2:1 to 6.5:1. the

W-300作为颜料的情况下，在2.0-3.2∶1的总颜料对总胶乳下发现最好的图像质量。由于胶版墨水改善的粘附，所述接收层构造的最外层中提高的胶乳含量还改善其可胶版印刷性。  If the outermost layer of the receiving layer construction is an opaque porous layer comprising latex, bleeding of the inkjet image printed on the outermost surface of the receiving layer construction increases as the latex concentration increases so that the inkjet The grid of the ink image disappears, which facilitates continuous tone imaging. Alternatively, the inkjet image on the outermost receiver layer becomes increasingly sharper as the latex concentration in the outermost opaque porous layer decreases. exist

With W-300 as the pigment, the best image quality was found at 2.0-3.2:1 total pigment to total latex. Increased latex content in the outermost layer of the receiver construction also improves its offset printability due to improved adhesion of the offset ink.

Rigid sheet or support

According to a twenty-eighth embodiment of the information carrier precursor according to the invention, the rigid sheet or support comprises at least one layer and/or multilayer laminate or coextrusion. Such multilayer laminates include paper/polymer laminates. Examples of suitable coextrusions are PET/PETG and PET/polycarbonate. the

The support may be a sheet or web support. According to a twenty-ninth embodiment of the information carrier precursor of the present invention, the support is a web support. the

The supports used in the present invention may be transparent, translucent or opaque, and may be selected from paper types and polymeric supports well known in the photographic art. Paper types include plain paper, cast coated paper, polyethylene coated paper and polypropylene coated paper. Polymeric supports include cellulose acetate propionate or cellulose acetate butyrate, polyesters such as polyethylene terephthalate and polyethylene naphthalate, polyamides, polycarbonates, polyimides, poly Olefins, poly(vinyl acetal), polyethers, and polysulfonamides. Other examples of high quality polymeric supports useful in the present invention include opaque white polyesters and extruded blends of polyethylene terephthalate and polypropylene. Polyester film supports and especially polyethylene terephthalate are preferred due to their outstanding dimensional stability. When such polyesters are used as a support material, a subbing layer may be employed to improve the bonding of the receiving layer construction to the support. Adhesive layers useful for this purpose are well known in the photographic art and include, for example, polymers of vinylidene chloride such as vinylidene chloride/acrylonitrile/acrylic acid terpolymer or vinylidene chloride/methyl acrylate/itacon acid terpolymer. the

According to a thirtieth embodiment of the information carrier precursor of the present invention, said rigid sheet or support is polyvinyl chloride, polycarbonate or polyester, such as polyethylene terephthalate, wherein colored or made white Polyvinyl chloride, polycarbonate or polyester are preferred. the

According to a thirty-first embodiment of the information carrier precursor of the present invention, said rigid sheet or support is opacified polyvinyl chloride, polycarbonate or polyester. the

Method for manufacturing information carrier precursors

Aspects of the invention are also achieved by a method for manufacturing an information carrier precursor as described above, said method comprising the steps of: optionally applying at least one layer to a rigid sheet or support, thereby providing an outermost surface; at least Applying a receiving layer configuration to the outermost surface of a rigid sheet or support or optionally applied at least one layer as a continuous or discontinuous layer or print in one application step, at least one capable and effective for interfacing with diffusion through A substance that interacts in situ with at least one species of the receiving layer construction to produce a functional species is provided in the component receiving layer and the at least one optionally applied layer and in diffusion contact with the receiving layer construction. In at least one of a rigid sheet or support. the

Aspects of the invention are also achieved by a method for manufacturing an information carrier precursor according to claim 2, said method comprising the steps of: optionally applying at least one layer to a rigid sheet or support, thereby providing an outermost surface; and To the outermost surface of the rigid sheet or support or optionally applied at least one layer as a continuous or discontinuous layer or print in at least one application step the receiving layer construction, at least one mordant and/or capable of catalytic function A component forming a functional species and/or a species capable of producing a functional species with a precursor of a functional species is provided in the component receiving layer and the at least one optionally applied layer and is configured with the receiving layer In at least one of the rigid sheet or support in diffusion contact. the

According to a first embodiment of the method according to the invention for the manufacture of said information carrier precursor, said method further comprises patternwise clearing and optionally subsequent curing of the clearing base varnish by patterned penetration into said at least one opaque porous layer Penetrating step of clearing base paint. the

According to a second embodiment of the method according to the invention for the manufacture of said information carrier precursor, said method further comprises patternwise clearing and optionally subsequent curing of the clearing base lacquer by patterned penetration into said at least one opaque porous layer Step of a penetrating clearing base paint which also contains functional ingredients such as fluorescent, phosphorescent compounds or fibers. the

According to a third embodiment of the method according to the invention for the manufacture of said information carrier precursor, said method further comprises patternwise clearing and optionally subsequent The step of curing a penetrating opaque basecoat. the

According to a fourth embodiment of the method of the invention for manufacturing said information carrier precursor, at least a part of the outermost surface of said receiving layer construction is provided with mechanical means preventing diffusion into said receiving layer construction. the

According to a fifth embodiment of the method according to the invention for the manufacture of said information carrier precursor, said method further comprises the step of patternwise applying a diffusion inhibitor. the

According to a sixth embodiment of the method of manufacturing said information carrier precursor according to the present invention, said method further comprises the steps of: transparentizing said at least one opaque porous layer with an evaporable liquid; ultraviolet, visible, or infrared radiation to interact with at least one species diffused through said receiving layer construction; and evaporating said vaporizable liquid from said receiving layer construction, thereby restoring said receiving The initial opacification of the layer structure is preferably carried out by laser irradiation. the

According to a seventh embodiment of the method of the present invention for the manufacture of said information carrier precursor, said method further comprises the step of: by absorbing ultraviolet, visible or infrared radiation by the precursor species, generating said at least one substance interacting with at least one species through said receiving layer construction to produce said functional species, wherein said receiving layer construction is temporarily transparentized by a liquid, preferably said ultraviolet, visible or infrared light The radiation is laser irradiation. the

If porous silica such as colloidal silica is used as the pigment in the receiver layer construction, the following vaporizable liquids are suitable for obtaining temporary clearing:

the Boiling point[°C] The refractive index of the sodium line at 589.3 nm at 20°C 2-butanol 99.5 1.397 N-butyl acetate 126.1 1.394 Chloroform 61.2 1.4458

Cyclohexane 80.7 1.426 Cyclopentane 49.3 1.406 dichloromethane 39.8 1.4241 1,4-Dioxane 101 1.4224 Ethylene glycol 198.9 1.4318 Methyl ethyl ketone 79.6 1.379 N-methyl-2-pyrrolidone 202.0 1.488 Heptane 98.4 1.3878 Isobutanol 107.9 1.396 Octane 125.7 1.3974 Tetrachloroethylene 121.2 1.506 Tetrahydrofuran 66 1.4072 Toluene 110.6 1.497 Trichlorethylene 87 1.4767 2,2,4-Trimethylpentane 99.2 1.391

According to an eighth embodiment of the method according to the invention for the manufacture of said information carrier precursor, said method further comprises printing said rigid sheet or support by security printing, for example guilloche, graphic, regular and irregular Arrays of symbols, geometric and non-geometric shapes, or random constructions obtained by rainbow or iris printing. the

According to a ninth embodiment of the method of the present invention for manufacturing said information carrier precursor, said method further comprises providing a non-printed security feature on said rigid sheet or support. the

According to a tenth embodiment of the method of manufacturing said information carrier precursor according to the present invention, said method further comprises the step of: using conventional printing methods such as using inkjet printing, electrophotographic printing, electrorecording printing or thermal transfer printing or diffusion transfer The inversion method applies a digitally stored set of information to the rigid sheet or support. the

According to an eleventh embodiment of the method of the present invention for manufacturing said information carrier precursor, said method further comprises applying at least one continuous or discontinuous layer to said rigid sheet or support using conventional coating or printing techniques . the

According to a twelfth embodiment of the method of manufacturing said information carrier precursor according to the present invention, said method further comprises the step of: using a conventional printing method, such as using inkjet printing, electrophotographic printing, electrographic printing or thermal transfer printing to Applied to at least one continuous or discontinuous layer of said rigid sheet or support, a digitally stored set of information is applied to said rigid sheet or support. the

According to a thirteenth embodiment of the method according to the invention for the manufacture of said information carrier precursor, said method further comprises applying metal fibers or strips in a hardenable composition to at least one constituent receiving layer of said receiving layer construction . the

According to a fourteenth embodiment of the method of the present invention for manufacturing said information carrier precursor, said method further comprises applying metal fibers or strips in a hardenable composition to said rigid sheet or support. the

Method for manufacturing information carrier

Aspects of the invention are also achieved by a method of manufacturing an information carrier, the method comprising the steps of: (i) providing an information carrier precursor as described above; (ii) patternwise applying to the outermost surface of said receiving layer construction comprising at least one A composition of functional species or functional species precursors to produce a pattern in the information carrier precursor; (iii) applying a transparent base paint to the porous portion corresponding to the at least one opaque porous layer At least a partial area of the outermost surface of said receiving layer construction, thereby at least partially clearing a portion of said at least one opaque porous layer (which is opaque and porous to which a clearing base varnish has been applied); (iv) optionally curing said clearing base paint; (v) if after step (iv) there are opaque and porous portions of the outermost layer of said receiving layer construction, said opaque and porous portions of said opaque and porous portions having an opacifying base varnish applied, thereby filling the pores of those portions of said receiving layer construction to which no clearing base varnish was applied; and (vi) optionally curing said opacifying base varnish . The method typically produces a visually detectable (i.e. human readable), detectable by use of light via fluorescence or phosphorescence (i.e. human readable with an appropriate light source) or machine readable (e.g. electronically or magnetically machine readable). readable) functional classes. the

The species or species diffused through the receiving layer configuration may themselves be visually detectable (i.e., human-readable), detectable by the use of light via fluorescence or phosphorescence (i.e., by an appropriate light source). Human-readable) or machine-readable (e.g., electronically or magnetically) machine-readable, that is, functional. the

Alternatively, the species diffused through the receiving layer formation is itself catalyzed by the at least one substance or is catalyzed by the at least one substance in conjunction with other species to produce a visually detectable (i.e., human readable) Species that are detectable by the use of light via fluorescence or phosphorescence (i.e. human readable with the aid of an appropriate light source) or are machine readable (eg electrically or magnetically machine readable), i.e. functional species. the

As a final alternative, species diffusing through the receiving layer construct react either by themselves or with other species to produce a visually detectable (i.e., human-readable) species that can be detected by using light via fluorescence or phosphorescence. (i.e. human-readable with the assistance of an appropriate light source) or machine-readable (eg electrically or magnetically) machine-readable, ie functional. the

By curing, the cohesion of the receiving layer construction and the adhesion between the receiver and the support are greatly improved, so that the information carrier becomes tamper-resistant in this way, since it has become extremely resistant to mechanical and chemical influences . the

Equipment for UV curing is well known to those skilled in the art and is commercially available. For example, curing can be performed by medium pressure mercury vapor lamps, with or without electrodes, or by pulsed xenon lamps. These UV light sources are usually equipped with cooling equipment, equipment for removing the ozone generated and optionally a nitrogen inflow to exclude air from the surface of the product to be cured during radiation processing. Typically an intensity of 40-240 W/cm in the 200-400 nm spectral region is employed. An example of a commercially available UV curing unit is the DRSE-120 conveyor with VPS/1600 UV lamp (an ultraviolet medium pressure electrodeless mercury vapor lamp) from Fusion UV Systems Ltd., UK. The DRSE-120 conveyor can run with a width of 20 cm and a length in the transport direction of 0.8 cm at different transport speeds and with different UV power settings. Furthermore, it can also be used with metal halide doped mercury vapor or XeCl excimer lamps, each of which has its own specific ultraviolet emission spectrum. This allows for a higher degree of freedom in the formulation of the curing composition: more efficient curing is achieved using lamps with the most appropriate spectral characteristics. Pulsed xenon flash lamps are commercially available from IST Strahlentechnik GmbH, Nürtingen, Germany. the

According to a first embodiment of the method of manufacturing an information carrier according to the invention, said method further comprises the step of applying a pattern to the outermost surface of said receiving layer construction using conventional printing methods, preferably non-impact printing or impact printing , and inkjet printing is particularly preferred. the

According to a second embodiment of the method of manufacturing an information carrier according to the invention, said method further comprises the step of applying a pattern, preferably non-impact, to the opaque and porous part of the outermost layer of said receiving layer construction using conventional printing methods Type printing or impact printing, and inkjet printing is particularly preferred. the

According to a third embodiment of the method of manufacturing an information carrier according to the present invention, said method further comprises the step of converting the digital storage into The information set is applied to the outermost surface of the receiving layer construction. In a most preferred embodiment, the digitally stored information is individualized information different for each individual item present on the information carrier. For example, the personalization information may be a unique and unique card number assigned to the future holder of the card, or an end date of the card's validity, or personal data of the future holder, such as date of birth and/or photograph. Furthermore, when the information carrier is to be cut into multiple ID cards, the inkjet printing step is repeated on multiple areas of the support aligned with the security print pattern (if present), thereby providing each object with a different personalization information. the

According to the fourth embodiment of the method for manufacturing an information carrier according to the present invention, the permeable transparent base paint further includes functional components such as fluorescent or phosphorescent compounds, fluorescent or phosphorescent fibers, and a characteristic smell such as fragrance or fragrance compound or compound mixture. the

According to a fifth embodiment of the method of manufacturing an information carrier according to the invention, said method further comprises the step of applying a pattern to said receiving layer construction using non-impact printing techniques. the

According to a sixth embodiment of the method of manufacturing an information carrier according to the invention, said method further comprises the step of applying a pattern to said receiving layer construction using impact printing techniques. the

According to a seventh embodiment of the method of manufacturing an information carrier according to the invention, a hologram is written or applied on the surface of a rigid sheet or support and/or on the surface of any layer comprised in the information carrier, such as the The outermost surface of the information carrier. the

According to an eighth embodiment of the method of manufacturing an information carrier according to the invention, an embossable layer is applied to the surface of a rigid sheet or support and/or to the surface of any layer comprised in the information carrier (such as the information carrier outermost surface) and then emboss the embossable layer as a hologram. the

According to a ninth embodiment of the method of manufacturing an information carrier according to the present invention, a black image is printed on the outermost surface of the receiving layer construction and the black image is developed into a relief pattern by ultraviolet irradiation. the

According to a tenth embodiment of the method of manufacturing an information carrier according to the invention, metal fibers or strips in a hardenable composition are applied to the outermost surface of the receiving layer construction. the

According to an eleventh embodiment of the method of manufacturing an information carrier according to the invention, a pattern or a metal core or a heavy metal sulphide is applied under the embossed pattern adjacent to the structured surface of the receiving layer close to said rigid sheet or support , and a silver layer is obtained under said embossed pattern by a method (optionally a photographic method) that produces a discontinuous silver layer on the nucleation layer using silver salt diffusion transfer. the

When the information carrier indicates that it will later be cut into a plurality of identification cards, the security print is applied repeatedly on several areas of the web or sheet by a step-by-step repeating process, thereby producing a plurality of identical objects. These multiple identical objects are distributed on the support according to a fixed pattern such as a rectangular grid. Furthermore, the application and curing of the varnish is repeated on a plurality of areas of the information carrier aligned with the already existing plurality of different objects consisting of optional security printing and personalized information. the

An opaque background can be achieved by choosing a base paint that penetrates into the receiver construction, but whose refractive index is so different from that of the pigment that it cannot render the receiver construction transparent. the

Another way to keep the background opaque is by curing the base paint composition before it can substantially penetrate into the receiving layer construction. The penetration behavior of the clearcoat and basecoat is reversed with respect to the first embodiment. This behavior is also controlled by viscosity and/or affinity and/or penetration time. the

inkjet printing

If inkjet printing is used in the method of manufacturing an information carrier according to the invention, it can be achieved by any known technique known in the art. In the first class of methods, a continuous stream of droplets is generated by applying a pressure wave pattern. This method is called continuous inkjet printing. In a first embodiment, the droplet stream is divided into electrostatically charged, deflected and recovered droplets, and droplets that remain uncharged, continuing their course without being deflected, and an image is formed. Alternatively, the charged deflected stream forms the image and the uncharged undeflected jet is recollected. In this variant of continuous inkjet printing, several jets are deflected to different degrees and thus record the image (multi-deflection system). the

According to a second inkjet method, ink droplets can be produced "on demand" ("DOD" or "drop-on-demand" method), whereby the printing device ejects droplets only when they are used for imaging on a receiver, thereby Avoid the complications of droplet charging, deflection hardware, and ink recollection. In drop-on-demand jetting, ink droplets can be formed by means of pressure waves generated by mechanical movement of piezoelectric transducers (the so-called "piezo method"), or by means of discrete thermal propulsion (the so-called "bubble jet method"). " method or the "thermal spray" method). the

Ink compositions for inkjet typically include the following ingredients: dyes or pigments, water and/or organic solvents, humectants such as glycols, detergents, thickeners, polymer binders, preservatives, and the like. It is readily understood that the optimum composition of such inks depends on the inkjet method used and the nature of the substrate to be printed. Described ink composition can roughly be divided into:

- water-based: drying mechanisms include absorption, osmosis and evaporation;

-Oil-based: drying includes absorption and penetration;

- solvent-based: the drying mechanism mainly involves evaporation;

- thermal fusion or phase change: the ink carrier is liquid at jetting temperature but solid at room temperature; drying is replaced by solidification;

- UV curable: drying is replaced by photopolymerization. the

The colorants present in inkjet inks may be dyes which are molecularly soluble in the ink fluid, such as acid dyes bound in the ink receiver by cationic mordants, or they may be finely dispersed in the ink fluid of pigments. the

Transparent base paint composition

Substantial penetration of said at least one opaque porous layer by the base paint may be achieved by controlling the penetration time and/or affinity and/or viscosity of the composition. The viscosity of the clearing base paint composition is adjusted to ensure fast penetration and thus fast clearing. the

According to a twelfth embodiment of the method of manufacturing an information carrier according to the invention, the base varnish is a curable base varnish, for example thermally curable, electron beam curable or photopolymerizable. the

According to a thirteenth embodiment of the method of manufacturing an information carrier according to the invention, the base paint is a radiation curable base paint. the

According to a fourteenth embodiment of the method of manufacturing an information carrier according to the present invention, the base varnish is a photopolymerizable base varnish. the

The method of clearing depends on matching the refractive indices of the pigment and the base paint permeating the receiving layer construction to each other as closely as possible. The closer the indices of refraction are matched, the better transparency will be obtained after infiltration of the receiver layer construction from the base paint. Therefore, the choice of base paint components must meet this requirement. Other constraints on the composition of the base paint depend on whether the base paint needs to be curable and, if so, what curing method has been selected. the

According to a fifteenth embodiment of the method of manufacturing an information carrier according to the present invention, the difference between the refractive index of the pigment and the refractive index of the transparentizing base varnish is not more than 0.1. the

According to the sixteenth embodiment of the method of manufacturing an information carrier according to the present invention, the difference between the refractive index of the pigment and the refractive index of the transparentizing base paint is not more than 0.04. the

According to the seventeenth embodiment of the method of manufacturing an information carrier according to the present invention, the difference between the refractive index of the pigment and the refractive index of the transparentizing base paint is not more than 0.02. the

The refractive indices of representative polymers are as follows:

the Refractive index of the sodium line at 589.3 nm [ASTM D642] polystyrene 1.57-1.60 Poly-α-methyl-styrene 1.610 Poly-4-methyl-styrene - Poly-α-vinyl-naphthalene 1.6818 Polyacrylonitrile 1.514, 1.5187   Polymethacrylonitrile 1.520 Polymethylmethacrylate 1.49, 1.4893 Polyacrylamide - Copolymer of acrylonitrile and styrene 1.56-1.57, 1.57 Copolymer of 28.5wt% acrylonitrile and 71.5wt% styrene 1.56-1.57, 1.57

One of the essential components of the curable base paint is at least one monomer. Where the curable base paint is a photopolymerizable base paint, the base paint will also comprise at least one photoinitiator. the

Curable basecoats based on acrylates and methacrylates typically have a refractive index of 1.47-1.49 and thus using such compositions as basecoats for the present invention will provide a refractive index comparable to that of SIPERNAT 570 which has a refractive index of 145-1.47. A good match of , and thus good transparency. the

According to a thirty-second embodiment of the information carrier precursor according to the invention, the refractive index of the pigment and the refractive index of the clearing base varnish differ by less than 0.1. the

According to a thirty-third embodiment of the information carrier precursor according to the invention, the refractive index of the pigment and the refractive index of the clearing base varnish differ by less than 0.04. the

According to a thirty-fourth embodiment of the information carrier precursor according to the invention, the refractive index of the pigment and the refractive index of the clearing base varnish differ by less than 0.02. the

Suitable monomers for curable base paints include monomers disclosed in DE-OS4005231, DE-OS3516256, DE-OS3516257, DE-OS3632657 and US 4,629,676, unsaturated esters of polyols, especially alpha-methylene carboxyl Such esters of acids such as ethylene glycol diacrylate, glyceryl tri(meth)acrylate, diethylene glycol di(meth)acrylate, 1,3-propanediol di(meth)acrylate, tris(methyl) ) 1,2,4-butanetriol acrylate, 1,4-cyclohexanediol di(meth)acrylate, 1,4-benzenediol di(meth)acrylate, tetra(meth)acrylate Pentaerythritol ester, pentaerythritol triacrylate, dipentaerythritol pentaacrylate, trimethylolpropane triacrylate, 1,5-pentanediol di(meth)acrylate, polyethylene glycol with a molecular weight of 200-500 Acrylates and bismethacrylates; unsaturated amides, especially of α-methylene carboxylic acids, and especially those of α,ω-diamines and oxygen-inserted ω-diamines, such as bispropylene Amide, methylenebis-methacrylamide, 1,6-hexamethylenebisacrylamide, diethylenetriaminetrimethacrylamide, bis(γ-methacrylamidopropoxy)ethane, β-methacryloyl-amidoethyl methacrylate, ethyl N-(β-hydroxyethyl)-β-(methacrylamido)acrylate, and N,N-bis(β-methyl Acryloyl-oxyethyl)acrylamide; vinyl esters such as divinyl succinate, divinyl adipate, divinyl phthalate, butane-1,4-disulfonic acid divinyl esters; and unsaturated aldehydes such as sorbaldehyde (adipaldehyde). the

Curable base lacquers may also include polymers and/or oligomers containing two or more different polymerizable functional groups, such as acrylated epoxies, polyester acrylates, urethane acrylates, etc. . the

It is also possible to use monofunctional (meth)acrylates as monomers, provided that they are not too volatile and do not transmit undesired odors. Suitable compounds include n-octyl acrylate, decyl acrylate, decyl methacrylate, stearyl acrylate, stearyl methacrylate, cyclohexyl acrylate, cyclohexyl methacrylate, phenylethyl acrylate , Phenylethyl methacrylate. Most preferred compounds include one or more (meth)acrylate functional groups. the

Preferred monomers for UV-curable photopolymerizable compositions have at least one (meth)acrylate functional group, such as those disclosed in EP-A 0502562. the

A non-exhaustive list of monomers suitable for the clearing curable composition used in the method of manufacturing an information carrier according to the invention, including commercially available compounds (chemical and commercial names), is as follows:

Monomer/Oligomer:

(chemical name; type, supplier)

- Pentaerythritol triacrylate; SR-444 (Sartomer)

- Trimethylolpropane triacrylate; SR-351 (Sartomer)

- Dipropylene glycol diacrylate; SR-508 (Sartomer)

-Amine-modified polyether acrylate oligomer; CN-501(Sartomer)

- Isobornyl Acrylate; SR-506(Sartomer)

- Diethylene glycol divinyl ether; RAPI-CURE DVE-2(ISP)

- Triethylene glycol divinyl ether; RAPI-CURE DVE-3(ISP)

-Urethane acrylate blended with 2(2-ethoxyethoxy)ethyl acrylate (SR-256); CN-966H90(Sartomer)

-Polybutadiene dimethacrylate; CN-301(Sartomer)

-Low viscosity oligomer; CN-135(Sartomer)

-Low viscosity oligomer; CN-137(Sartomer)

A variety of photopolymerizable and photocrosslinkable compounds can be used in the present invention. Suitable photoinitiators include all compounds or combinations of compounds known for this purpose. Examples are benzoin ethers, benzoyl ketals, polycyclic quinones, benzophenone derivatives, triaryl imidazolyl dimers, light-sensitive trihalomethyl compounds such as trichloromethyl-s - Triazines. Preferred photoinitiators are 2,3-diarylquinoxalines as disclosed in US-A 3,765,898, and 2-aryl-4,6-bistrichloromethyl-s-triazines. The amount of photoinitiator or combination of photoinitiators is generally 1-25% by weight and preferably 5-15% by weight of the photopolymerizable composition. the

A non-exhaustive list of photoinitiators and thermal initiators, including commercially available compounds (chemical and commercial names), suitable for the clearing curable composition used in the method for manufacturing an information carrier according to the invention is as follows :

Photoinitiator:

-IRGACURE 907 (from Ciba-Geigy Co.)

-NOVOPOL PI3000 (from Rahn Co.)

-GENOCURE DEAP (from Rahn Co.)

-IRGACURE 184 (from Ciba-Geigy Co.)

-EZACURE KK (from Fratelli Lamberti Co.)

-IRGACURE500 (from Ciba-Geigy Co.)

-IRGACURE819 (from Ciba-Geigy Co.)

Thermal Initiator:

AIBN-dicumylperoxide-benzoylperoxide-tert-butylperoxide-VAZO compounds (from DuPont Co.), e.g. VAZO 52-LUPEROX (from Atofina Co.), e.g. 233, 10, 11, 231 , 101, - hydroperoxides, and peresters. the

The photopolymerizable base paint may also contain a minor amount of thermal polymerization inhibitor to prevent premature polymerization prior to the UV curing step. Examples of such inhibitors include p-methoxyphenol, hydroquinone, aryl- or alkyl-substituted hydroquinones, tert-butylcatechol, pyrogallol, copper(I) chloride, phenothiazines, chlorine Quinone, naphthylamine, α-naphthol, 2,6-di-tert-butyl-p-cresol, etc. A preferred polymerization inhibitor is 2-methylhydroquinone. The thermal polymerization inhibitor is preferably used in an amount of 0.001 to 5 parts by weight per 100 parts of monomers. the

The curable base paint may optionally contain small amounts of organic solvents, such as ethyl acetate. Suitable solvents suitable for use in the clearing curable composition used in the method of manufacturing an information carrier according to the present invention include the following commercially available compounds (chemical and commercial names). the

According to an eighteenth embodiment of the method of manufacturing an information carrier according to the invention, the base paint further comprises at least one fluorescent compound, brightener or colorant such as a dye or a pigment. the

Non-transparent base paint composition

The opacifying base paint composition that produces an at least partially opaque background is also capable of penetrating into at least one opaque porous layer, but will have a refractive index so different from that of the pigment that it cannot render the receiving layer configuration, That is, significantly more than 0.12 units higher or lower than the refractive index of the pigment used in the construction of the receiving layer, for example by using vinylcarbazole or α-vinyl-naphthalene as the sole or comonomer (polyvinylcarbazole and Poly-alpha-vinyl-naphthalene has a refractive index of 1.695 and 1.6818, respectively), preferably more than 0.13 units above or below the refractive index of the pigment used in the receiver layer construction. the

The refractive index of styrene-based curable base paints is typically about 1.60 and thus the use of such compositions as base paints of the present invention will provide a good match to that of SIPERNAT 570 which has a refractive index of 1.45-1.47, and therefore Transparency is not obtained. Basecoats with even higher refractive indices may be used, such as those comprising N-vinylcarbazole as a comonomer. Alternatively, the use of an acrylate/methacrylate based basecoat with a refractive index of 1.47-1.49 and a receiver layer construction comprising porous alumina pigments such as MARTINOX GL-1 with a refractive index of 1.6 also ensures that no transparency is achieved. the

information carrier

According to the first embodiment of the information carrier of the present invention, the information carrier is selected from identity cards, security cards, driver's license cards, social security cards, membership cards, time registration cards, bank cards, payment cards, credit cards and passports page identification card. the

According to a second embodiment of the information carrier according to the invention, the information carrier is provided with a printed pattern or image, preferably an offset, screen, flexographic, waterless offset or inkjet printed pattern or image, particularly preferably inkjet printed patterns or images. the

Most types of ID cards now have standardized dimensions of 85.6 mm x 54.0 mm x 0.76 mm. This final thickness can be achieved by thermal lamination of one or more polymer foils, for example PVC foils. The ID card can be used as ID card, security card, driver's license card, social security card, health card, membership card, time registration card, bank card, payment card and credit card, etc. the

In addition to the features described above, the finished ID card can also comprise additional security elements or information carriers, such as holograms, magnetic strips or chips ("smart cards"). the

According to a third embodiment of the information carrier according to the invention, said information carrier is in the form of a flexible sheet, for example any page of a security document, a passport or a passport page with personalized data of the holder. the

According to a fourth embodiment of the information carrier according to the invention, said information carrier is an authorization document, such as a visa, an entry ticket to an event and a lottery ticket. the

The invention will now be illustrated but not limited by the following examples. The percentages and ratios given in these examples are by weight unless otherwise indicated. the

Example

Adhesion layer (subbing layer):

The coating solution for adhesion layer No. 01 had the following composition and was coated at 130 m ² /l:

Copolymer of 88% vinylidene chloride, 10% methyl acrylate and 2% itaconic acid 68.8 grams kieselsol ^TM 100F, colloidal silicon dioxide from BAYER 16.7 grams Mersolat ^™ H, a surfactant from BAYER 0.36g Ultravon ^™ W, a surfactant from Ciba-Geigy 1.68g water to achieve 1000g

The coating solution for adhesion layer No. 02 had the following composition and was coated at 30 m ² /l:

gelatin 11.4 grams kieselsol ^TM 100F-30, colloidal silica from BAYER 10.08g Ultravon ^™ W, a surfactant from Ciba-Geigy 0.4g Arkopal ^™ , a surfactant from CLARIANT 0.2g Hexylene glycol 0.67g Trimethylolpropane 0.33g Copolymer of 74% maleic acid, 25% styrene and 1% methyl methacrylate 0.03g water to achieve 1000g

Gelatin layer:

The coating solution for gelatin layer No. 01 had the following composition and was coated at 35 m ² /l:

gelatin 40g Hostapon ^TM T, a surfactant from CLARIANT 1g Formaldehyde (4%) 40g water to achieve 1000g

Physical development layer:

The coating solution used for physical development No. 01 had the following composition and was coated by a 20 micron Braive coating knife:

Palladium Sulfide Physically Developed Nucleus Dispersion 200g Zonyl ^TM FSO-100, a surfactant from DUPONT 0.5g water to achieve 1000g

The preparation of palladium sulfide physical visualization cores is described in the examples of EP-A 0769723, which is incorporated herein by reference. According to this example, solutions A1, B1 and C1 were used to prepare a nucleus dispersion with a concentration of 0.0038 mol/l. the

Receiving medium:

Receive medium nr the 1 125 micron PET with adhesion promoting layer No.01, adhesion layer No.02 and physical development layer No.01 2 125 micron PET with adhesion promoting layer No.01, adhesion layer No.02, gelatin layer No.01 and physical development layer No.01 3 PET-SAN with physical development layer No.01 4 Laminate of 63 micron PET with 30 micron PETG with Physically Developed Layer No. 01 on the PETG side

Embodiment 1 of the present invention

A 100 micron thick sheet of transparent polyethylene terephthalate adhered with adhesion layer No. 1 was coated with adhesion layer No. 1 and subsequently coated with a porous receiver layer dispersion having the composition given in Table 1:

Table 1: Composition of the porous receiving layer solution. the

Syloid ^TM W300, colloidal silicon dioxide from GRACE GMBH 75.6g Poval PVA R3109, a silanol-modified polyvinyl alcohol from KURARAY CO. 2.3g Catfloc ^TM T2 cationic polyelectrolyte from CALGONEUROPE 5.6g Bronidox ^™ K, biocide from HENKEL (5% solution in ethanol) 0.3g citric acid 0.3g Polysol ^™ EVAP-550, a 50% aqueous emulsion of ethylene-vinyl acetate-vinyl versatate ester copolymer from SHOWA HIGH POLYMER CO. 100g Aerosol ^TM OT, a surfactant from CYTEC 1.5g Tergitol ^TM 4, a surfactant from UNION CARBIDE 1g water to achieve 1000g

Using a 100 micron wirebar followed by drying at 50°C yielded an opaque porous layer with a layer thickness of 22 microns and an optical density of 0.19 as measured by a MacBeth RB918-SB densitometer with a visible light filter and A sheet of black cardboard with a density of 1.35 was placed under a transparent polyethylene terephthalate support. An optical density of 0.06 measured by a visible light filter through a white background beneath a transparent polyethylene terephthalate support indicates some transparency, but the "opaque" porous layer is due to the layer's composition from The Haze-Gard Plus unit from BYK-GARDNER provides a white opaque film with an extremely high haze of 97% measured according to ASTM D 1003. the

Model experiments were performed from liquids to determine what refractive index difference is acceptable for the opaque porous layer described above without significant loss in optical density. The results are given in Table 2 together with the optical densities obtained by clearing with base paints having the composition given in Table 3 below:

Table 2:

liquid The refractive index of the sodium line at 589.3 nm at 20°C Optical density of the "opaque" porous layer after wetting by the liquid (visible light filter/black background) Deionized water 1.3325 0.70 methyl ethyl ketone 1.379 1.13 dichloromethane 1.4241 1.26 toluene 1.497 1.37 Base paints are given in Table 3 the 1.40

Based on the optical densities achieved by the base paints given in Table 3, extrapolation gives a refractive index value of approximately 1.52 for the pigment in the opaque porous layer. the

Solutions of various surfactants were also applied to the opaque porous layer above and after drying in a drying cabinet, the portion of the opaque porous layer to which the surfactant solution had been applied was made from a 50 micron wire with the base paint given in Table 3 below. Rod coating. Under the same conditions, overcoating the aforementioned opaque porous layer with this basecoat without the application of a surfactant solution provided a layer with an optical density of 1.40 and a haze of 6%, measured as described above. the

Table 3: UV-curable clear basecoats

Isobornyl Acrylate 416.2g Actilane ^TM 411, a monofunctional acrylate diluent from AKZO NOBEL 247.7g Ebecryl ^TM 1039, a urethane monoacrylate from UCB CHEMICALS 178.4g Ebecryl ^TM 11, a polyethylene glycol diacrylate from UCB CHEMICALS 99.1g Irgacure ^TM 500, a photoinitiator from CIBA-GEIGY 49.6g Perenol ^™ SKonz (50% in ethyl acetate), a surfactant from HENKEL 9g

The resulting transparency was rated visually using the following criteria:

Evaluate the 0 The wetted area is completely transparent 1 Wetted area is very slightly opaque 2 Wetted area is fairly opaque 3 Wetted area moderately opaque 4 Wetted area is almost completely opaque 5 Wetted area is completely opaque

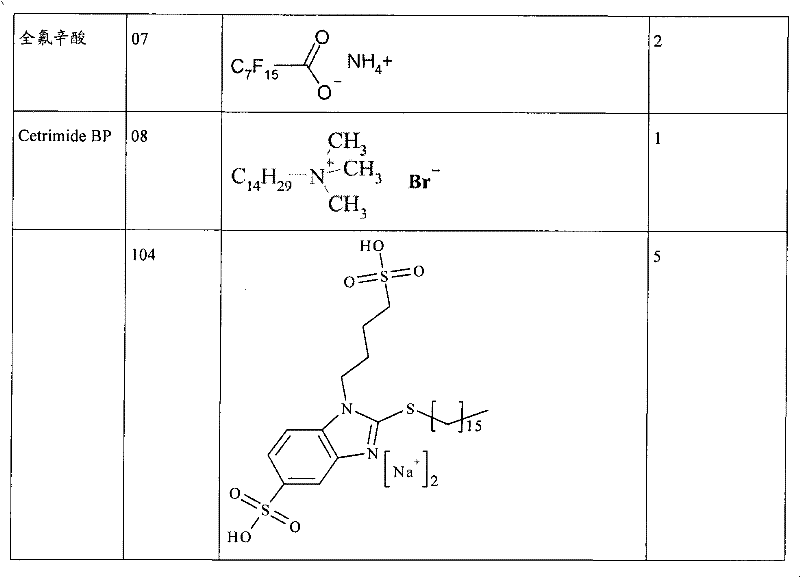

The results are given in Table 4:

Table 4:

These results can only be considered as a qualitative indication of the diffusion inhibiting properties, since the experiments did not take into account the effective degree to which the particles were covered by the surfactant, nor the purity of the surfactant. Complete opacity was only observed with INHIBITOR 104 (2-thiohexadecyl, 3-sulfobutyl-benzimidazole-6-sulfonic acid sodium salt). At least one member from cationic, anionic and nonionic surfactants was found to exhibit diffusion inhibiting properties. The presence of long-chain alkyl, alkenyl, and fluoro-alkyl groups was found to be beneficial, however, with the notable exception that INHIBITOR 03 (a nonionic surfactant with poly(alkylene oxide) groups) showed no diffusion inhibition sex. the

By applying water and INHIBITOR 104 (2-thiohexadecyl, 3-sulfobutyl-benzimidazole-6-sulfonic acid sodium salt) in various concentrations of aqueous solution or water ethanol solution and changing the application to the above opaque porous The amount of layer surface to quantitatively study the diffusion inhibition properties of INHIBITOR 104. After drying at ambient conditions for 30 minutes, the portion of the opaque porous layer to which the surfactant solution had been applied was overcoated with the base paint given in Table 3 of Example 1 of the present invention with a 50 micron wire bar. the

For each surfactant, the optical density observed for the portion of the opaque porous layer to which the surfactant had been applied was measured from a black cardboard sheet under a transparent polyethylene terephthalate support. the

The spots observable after penetration of the basecoat and UV curing vary in size depending on the liquid applied and for some liquids by the amount of liquid applied. In some experiments (including those with water), a halo effect with an opaque outer ring and a transparent center was observed. The spot size used for the densitometric measurements was 4 mm, which is not much smaller than some spots that lead to anomalous optical density values in the case of spots with halos. the

A high optical density value indicates a high degree of clearing as it is a combination of the optical density of the black cardboard sheet and the optical density of the polyethylene terephthalate support being measured. A low optical density value indicates a low degree of clearing, as it is the optical density of the opaque porous receiving layer being measured. The results are summarized in Table 5 below, with magnitude or magnitude/ ^cm in parentheses.

table 5:

The results in Table 5 show that 1 microliter, 2 microliters and 5 microliters of water provided no inhibition of the clearing process, while 10 microliters of water was sufficient to provide partial inhibition of the clearing process. the

The results in Table 5 clearly show that the presence of ethanol in the carrier medium reduces the inhibitory effect of INHIBITOR 104 for the same amount of INHIBITOR 104 . This is presumably due to the preferential adsorption of ethanol relative to water and INHIBITOR 104. In the absence of ethanol, precipitation of 10 ^-3 -2x10 ^-3 g/cm ² appears to be required for effective inhibition. The haze of this layer was measured as 98% as described above.

The UV-curable clearing basecoat compositions given in Table 2 were coated with a 50 micron wire bar at various times after application of ... microliters of water or 10 microliters of INHIBITOR 104 in 10% water in The durability of the inhibitor was investigated by measuring the optical density of black cardboard sheets under a polyethylene terephthalate support. The results are given in Table 6, where magnitudes or magnitudes/ ^cm2 are provided in parentheses.

Table 6:

These results show that no clearing was observed with water until more than 5 minutes had elapsed, ie until the water had evaporated, ie the water inhibited the clearing process. On the other hand, with a 10% aqueous solution of INHIBITOR 104, the use of the base paint had no significant effect on the clearing process even after a 10 minute delay between applying the 10% aqueous solution of INHIBITOR 104 and applying the clearing base paint. Influence. This clearly shows that the inhibitory effect of INHIBITOR 104 is permanent whereas that of water is temporary. the

The possible diffusion-inhibiting effect of INHIBITOR 104 on inkjet images was then investigated using inkjet images produced by an Epson Photostylus R800 inkjet printer with pigment-based aqueous inks. The opaque porous layer described above was first spotted with a 10% aqueous solution of INHIBITOR 104, dried and then printed yellow, magenta, cyan and black areas on both the INHIBITOR 104 treated areas and non-INHIBITOR 104 treated areas. Optical density was measured by a Macbeth RD918SB reflection densitometer using visible blue, green and red filters from the black paper sheet under the transparent support of the opaque porous layer. The results are summarized in Table 7 below:

Table 7:

The results in Table 7 clearly show that treatment with INHIBITOR 104 increases the optical density up to 0.86, indicating that diffusion into the opaque porous layer has been inhibited by the presence of INHIBITOR 104. the

The inkjet images were then coated with the clearing basecoats given in Table 3 using a 50 micron wire bar. Optical density was measured by a Macbeth RD918SB reflection densitometer using visible blue, green and red filters from the black paper sheet under the transparent support of the opaque porous layer. The results are summarized in Table 8 below:

Table 8:

Areas pretreated by INHIBITOR 104 and subsequently inkjet by the color image remained completely opaque after the UV curable overlay was provided, whereas areas not pretreated by INHIBITOR 104 were completely transparentized. the

Embodiment 2 and 3 of the present invention

On the receiver media nr. 2 and 4 by using a nickel spacer (DIFTONE from AVANTONEOY) at 110 ° C, using an Interlock Cardjet laminator, at a temperature setting of 200 ° C and a pressure setting of 1000 kg in the physical development layer No. .1 Thermal embossing on the side of the coated receiver medium creates a diffractive pattern. the

The diffractive patterns on receiver media nr. The information carrier precursors of Examples 2 and 3 of the present invention are provided. Due to the opaque layer, the diffraction pattern is no longer visible. the

By bringing the transfer emulsion layer NPC6 (Copyproof negative film from AGFA-GEVAERT ^™ ) into contact ^with the receiving layer construction of the information carrier precursor according to the examples 2 and 3 of the present invention at 25° C. Transfer inversion (DTR) method A silver layer is deposited on the physical development layer No. 1 receiver medium nr. 1, followed by drying at room temperature.

The porous receiver layer was then overcoated with a UV curable clear basecoat as given in Table 3 of Example 1 of the present invention. The basecoat was applied with a 50 micron wire bar. About two minutes after applying the solution, curing was carried out by means of a DRSE-120 conveyor with VPS/1600 UV lamps (speed 20 m/min, 50% UV power setting). Three passes are necessary to obtain complete cure. Due to the complete penetration of the UV-based paint in the ink-receiving layer, the ink-receiving layer becomes completely transparent so that the underlying diffraction pattern becomes clearly visible. the

Finally, Scotchgard ^™ Phototool Protector (from 3M) was applied with a 10 micron wire bar and cured by means of a DRSE-120 conveyor with VPS/1600 UV lamps (speed 20 m/min, 100% UV power setting, one pass).

Embodiment 4 of the present invention

Dispersion A was first prepared by mixing the following ingredients:

SIPERNAT 570, porous silica from Degussa = 18.70g POVAL R-3109, a silanol-modified polyvinyl alcohol from Kuraray = 2.70g Cat Floc T2: Medium molecular weight poly(diallyldimethyl-ammonium chloride), a cationic polyelectrolyte from Calgon Europe N.V., as an aqueous solution containing about 33% active polymer and about 11% glycerol, = 1.70g 5% solution of biocide = 0.03g 10% solution of citric acid = 0.03g Deionized water = 55.14g

This dispersion was then used to prepare the following receiver layer formulations:

The prepared receiver formulation was coated on an opaque PET support (thickness 100 microns) provided with an adhesion layer No. 1 . the

After drying, the resulting information carrier precursor is processed in contact with a photographic dye diffusion transfer material [Agisscolor Negative ^™ material (format: A4) (Agfa-Gevaert NV)] which has been previously exposed imagewise as described in US 4,496,645.

The Agisscolor Negative ^™ material (format: A4) (Agfa-Gevaert NV) was brought into contact with the information carrier precursor in a Copyproof CP38 ^™ (Agfa-Gevaert NV) device filled with a G830b ^™ (Agfa-Gevaert NV) activator solution. After a contact time of about 1 minute, the information carrier precursor was stripped from the Agisscolor Negative ^™ material, rinsed in water for 10 seconds and dried.

Optical density was measured with a Macbeth ^(TM) RD918SB densitometer. The results are given in Table 9 together with the filters used in the measurements, and in parentheses the optical densities for dye diffusion images of a regular AgisscolorPositive under the same imaging and processing conditions.

Table 9: Optical Densities of Dye Diffusion Transfer Image Colorants

In addition to the dye diffusion transfer (DDT) images described above, a second image was created on the DDT-imaged receiver using an Epson Stylus Color 900 inkjet printer. For completeness, the optical densities of the inkjet images measured with a Macbeth ^™ RD918SB densitometer with the filters used in these measurements are given in Table 10.

Table 10: Optical Densities of Inkjet Printed Images

The color balance of the DDT image in the inkjet receiver including the mordant polymer was significantly different than the regular AgisscolorPositive receiver. the

Having described the invention in detail, it will now be apparent to those skilled in the art that various modifications may be made without departing from the scope of the invention as defined in the appended claims. the

Claims (17)

1. information carrier precursor, it comprises: rigid sheet or supporter; The receiving layer structure that comprises at least one layer; With at least a material; It is chosen wantonly and provides according to pattern; At least a thing class original position that can realize and be effective to and diffuse through said receiving layer structure interacts to produce functional thing class; At least one layer of wherein said receiving layer structure is that base lacquer infiltration opaque and porous, outmost surface that can be through being provided in said receiving layer structure becomes substantial transparent and comprises at least a pigment and at least a adhesive

Be characterised in that said at least one layer opaque and porous also comprises the diffusion suppressing agent of the formula (I) that applies according to pattern:

Wherein M is a hydrogen, alkali metal atom or ammonium group; R ¹Be alkyl, thiazolinyl-, alkynyl-, alkylthio-, sulfo-thiazolinyl-or sulfo-alkynyl-group, wherein said alkyl-, thiazolinyl-or alkynyl-group have 6-25 carbon atom; X is-O-,-S-or-N (R ²)-; And R ²Be hydrogen,

-(CH ₂) _mSO ₃The M group or

Group; And m is the integer of 1-5.

2. information carrier precursor according to claim 1, wherein R ¹Be dodecyl, tridecyl, myristyl, pentadecyl, cetyl, heptadecyl or octadecyl.

3. information carrier precursor according to claim 1, wherein R ¹Be dodecyl, tridecyl, myristyl, pentadecyl, cetyl, heptadecyl or octadecyl and R ²Be-(CH ₂) _mSO ₃The M group.

4. information carrier precursor according to claim 1, the wherein said diffusion suppressing agent that applies according to pattern is 2-alkyl-benzimidazole-sulfoacid compound or 2-alkylthio-benzimidazole-sulfoacid compound.

5. information carrier precursor according to claim 1; At least a thing class original position that wherein can realize and be effective to and diffuse through said receiving layer structure interacts to produce the said at least a material of functional thing class, can realize and be effective to combining with at least a thing class that diffuses through said receiving layer structure and/or can realizing and be effective at least a thing class reaction that catalysis diffuses through at least a thing class of said receiving layer structure and/or can realize and be effective to and diffuse through said receiving layer structure.

6. information carrier precursor according to claim 1, wherein said at least one opaque porous layer also comprises at least a latex, and wherein total pigment is 1.2-6.5 with the weight ratio of total latex.

7. information carrier precursor according to claim 1, the wherein said at least a material that can realize and be effective to combine with at least a thing class that diffuses through said receiving layer structure be can with the mordant that combines through the image-forming dye that spreads to its conveying.

8. information carrier precursor according to claim 1, the refractive index of the refractive index of wherein said pigment and said base lacquer differs and is no more than 0.1.

9. information carrier precursor according to claim 1, wherein said rigid sheet or supporter are printed by security printing in advance.

10. information carrier precursor according to claim 1, wherein said pigment is silica.

11. information carrier precursor according to claim 1; The wherein said at least a material that can realize and be effective to reacting with at least a thing class that diffuses through said receiving layer structure is the component that can produce functional thing class with the precursor of functional thing class, and it is metal or the metal sulfide center that is formed by the metal development from metal complex.

12. information carrier precursor according to claim 1; The wherein said at least a material that can realize and be effective to reacting with at least a thing class that diffuses through said receiving layer structure is the component that can produce functional thing class with the precursor of functional thing class; It is a coupling agent, this coupling agent through be created in the systemic thing class of visible spectrum with the reaction of the developer of oxidation, in systemic thing class of infrared spectrum or shiner class.

13. make the method for the described information carrier precursor of claim 1, said method comprising the steps of: randomly apply at least one layer, outmost surface is provided thus to rigid sheet or supporter; Apply in the step to rigid sheet or supporter or the said outmost surface of choosing at least one layer that applies wantonly at least one; Apply the receiving layer structure as continuous or discontinuity layer or block letter, can realize and be effective to at least a thing class original position that diffuses through said receiving layer structure interact with at least a material that produces functional thing class be provided in composition receiving layer and said at least one optional layer that applies and rigid sheet that contacts with the diffusion of said receiving layer structure or the supporter one of at least in.

14. method according to claim 13, wherein said method also comprises the step that applies the diffusion suppressing agent according to pattern.

15. the method for manufacturing information carrier said method comprising the steps of:

(i) information carrier precursor according to claim 1 is provided;

(ii) to the outmost surface of said receiving layer structure according to pattern apply the composition that comprises at least a functional thing class or functional thing class precursor, in said information carrier precursor, to produce pattern;

(iii) transparence base lacquer is applied to the part at least in outmost surface the corresponding zone of said receiving layer structure with porous part said at least one opaque porous layer, make at least in part thus said at least one opaque porous layer opaque and porous, applied the partially transparentization that the transparence base coats with lacquer to it;

The said transparence base lacquer of (iv) optional curing;

If (the part that v) has opaque and porous at the outermost layer of the (iv) back said receiving layer structure of step; Then said opaque and part porous to this layer applies nontransparentization base lacquer, fills the hole that does not apply said those parts of receiving layer structure of transparence base lacquer to it thus; With

(the vi) optional basic lacquer of said nontransparentization that solidifies.

16. method according to claim 15, wherein said method comprise that also the outermost layer that uses conventional printing process to construct to said receiving layer applies the step of image or pattern, wherein said conventional printing process is ink jet printing.

17. according to claim 15 be used to prepare the information carrier that the method for information carrier obtains, wherein said information carrier is the identification card that is selected from identity card, safety card, driving license card, social security card, member card, time registration card, bank card, Payment Card, credit card and pages of passports.
