CN100555972C - Multi-member aggregating exchanges in the Internet chatroom method, server - Google Patents
Multi-member aggregating exchanges in the Internet chatroom method, server Download PDFInfo
- Publication number
- CN100555972C CN100555972C CNB2007100906586A CN200710090658A CN100555972C CN 100555972 C CN100555972 C CN 100555972C CN B2007100906586 A CNB2007100906586 A CN B2007100906586A CN 200710090658 A CN200710090658 A CN 200710090658A CN 100555972 C CN100555972 C CN 100555972C
- Authority
- CN
- China
- Prior art keywords
- discussion group
- sign
- request
- internet chatroom
- server
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 238000000034 method Methods 0.000 title claims abstract description 31
- 230000004931 aggregating effect Effects 0.000 title claims description 12
- 238000004321 preservation Methods 0.000 claims description 2
- 238000012217 deletion Methods 0.000 description 7
- 230000037430 deletion Effects 0.000 description 7
- 238000010586 diagram Methods 0.000 description 6
- 238000005516 engineering process Methods 0.000 description 3
- 230000000977 initiatory effect Effects 0.000 description 3
- 230000006399 behavior Effects 0.000 description 2
- 230000006870 function Effects 0.000 description 2
- 230000008676 import Effects 0.000 description 2
- 230000008859 change Effects 0.000 description 1
- 230000009977 dual effect Effects 0.000 description 1
- 230000006855 networking Effects 0.000 description 1
- 230000008569 process Effects 0.000 description 1
Images
Landscapes
- Information Transfer Between Computers (AREA)
Abstract
本发明公开了一种在网络聊天室中多成员聚集交流的方法，包括：服务器接收携带有网络聊天室成员标识的创建讨论组的请求；服务器给讨论组分配讨论组标识，保存所述网络聊天室成员标识及所述讨论组标识与所述网络聊天室成员标识的对应关系；服务器接收携带有讨论组标识的发言请求，获取讨论组标识对应的网络聊天室成员标识，并转发发言请求至网络聊天室成员标识对应的客户端。本发明还公开了一种服务器。采用本发明所提供的方法或服务器实现了网络聊天室中多成员无干扰聚集交流。
The invention discloses a method for multi-member gathering and communication in a network chat room, comprising: a server receives a request for creating a discussion group carrying a member ID of the network chat room; the server assigns a discussion group ID to the discussion group, and saves the network chat Room member identification and the corresponding relationship between the discussion group identification and the network chat room member identification; the server receives the speaking request carrying the discussion group identification, obtains the corresponding network chat room member identification of the discussion group identification, and forwards the speaking request to the network The client corresponding to the member ID of the chat room. The invention also discloses a server. Adopting the method or the server provided by the invention realizes non-disturbance gathering and communication among many members in the network chat room.
Description
Technical field
The present invention relates to networking technology area, relate in particular to a kind of multi-member aggregating exchanges in the Internet chatroom method, server.
Background technology
The Internet chatroom is in the website, carry out in real time the place of (content of network user's input can be seen by other users soon) talk, chat by literal and symbol for many people, it is a place of opening to whole internet, and present most Internet chatrooms provide exchange waies such as literal, picture, voice, video, expression, stage property.
The Internet chat chamber system comprises several clients as shown in Figure 1, chat room server and chat office terminal.Wherein, the network user can land the Internet chatroom by the customer end adopted dual mode, just steps on chat room server: (1) is directly landed: the network user need not to input the information of needs checkings such as password, directly lands the chatroom; (2) member registration formula: some Internet chatroom can not directly be landed, and the network user must advanced guild person registers just can log on the chatroom.After landing, the network user becomes the member of Internet chatroom, can exchange by the network user that Free Talk and other log on the Internet chatroom.
The member of Internet chatroom is divided into two kinds substantially: chatroom keeper and rank and file, the keeper uses the chat office terminal, it is bearing the initiation session theme, build chat atmosphere, management rank and file's chat behavior, limit and provide the responsibility of some chat room function etc., especially rank and file's speech behavior is supervised.The rank and file can only use various functions open in the chatroom to exchange with other rank and files.
Owing to set up the purpose of Internet chatroom generally all is to provide a platform that exchanges mutually for a group has the stranger of common interest and topic, and each rank and file can speak one's mind freely freedom and equality on this platform.Therefore, along with going deep into of exchanging with other rank and files, certain rank and file can be interested in especially some other rank and files or certain several other rank and file gradually, and other rank and files' that want to forgo interference, and wholwe-hearted one or more rank and files interested with it chat.In order to satisfy rank and file's this demand, existing Internet chatroom provides a kind of private chat passage, the technical scheme that realizes the private chat passage is as follows: private chat promoter can choose a destination object in Internet chatroom member tabulation, and, carry private chat promoter sign and destination object sign in the request by the request of client under it to chat room server initiation establishment private chat passage; Chat room server is according to private chat promoter sign of carrying in the request and destination object sign, and request is transmitted to client under private chat promoter and the destination object; After client is received request under private chat promoter and the destination object, create the private chat window, private chat promoter exchanges by this private chat window with destination object.
Existing foundation in the technical scheme of private chat passage, chat room server identifies to transmit according to the member who carries in the request of creating the private chat passage asks client under the member, only allow to carry a member's sign in this request, therefore, use the private chat promoter of private chat passage in Internet chatroom member tabulation, to select a destination object to carry out private chat, and can't select its interested a plurality of destination objects to assemble interchange.Further, owing to only carried target member's sign in the private chat request, so the client under the member of other non-private chat passages can not received relevant any information of setting up the private chat passage, also just can't join in the private chat passage, that is private chat passage forgone other rank and files' interference, the private chat passage has been realized the noiseless interchange between two Internet chatroom members.But the private chat passage can't be realized many people's (more than three people, comprising three people) noiseless gathering and exchange in the Internet chatroom.
Summary of the invention
The technical problem to be solved in the present invention provides a kind of method that multi-member aggregating exchanges in the Internet chatroom, to realize the noiseless interchange between a plurality of Internet chatroom members.
For solving the problems of the technologies described above, the objective of the invention is to be achieved through the following technical solutions:
A kind of method that multi-member aggregating exchanges in the Internet chatroom comprises:
Server receives the request of the establishment discussion group that carries Internet chatroom member sign, and the client under described Internet chatroom member identifies belongs to same Internet chatroom;
Described server distributes discussion group's sign for described discussion group, preserves the corresponding relation of described discussion group sign and described Internet chatroom member sign;
Described server receives the speaking request that carries discussion group's sign, search the corresponding relation of described discussion group sign and Internet chatroom member sign, obtain the corresponding described Internet chatroom member sign of discussion group sign of carrying in the described speaking request, and transmit described speaking request and identify clients corresponding to described Internet chatroom member;
Described server or when finding the client break link of the described member of discussion group under identifying, is deleted the corresponding relation of the described member of discussion group sign and discussion group's sign when receiving that the client of the described member of discussion group under identifying withdraws from the request of chatroom.
Preferably, after described server received the request of the establishment discussion group that carries Internet chatroom member sign, said method also comprised:
Server obtains described Internet chatroom member sign, send to create discussion group's windows request and identify clients corresponding, carry the corresponding relation that described discussion group sign and described Internet chatroom member identify in the described establishment discussion group windows request to described Internet chatroom member.
Preferably, said method also comprises:
Described server receives the discussion group's request of withdrawing from, and the described discussion group that withdraws from asks the request of carrying to withdraw from the Internet chatroom member sign of discussion group;
The described corresponding relation that withdraws from Internet chatroom member sign with discussion group's sign of discussion group of described whois lookup, obtain the described Internet chatroom member who withdraws from discussion group and identify corresponding discussion group's sign, obtain the corresponding Internet chatroom member sign of described discussion group sign, transmit the described request of withdrawing from discussion group and identify clients corresponding to described Internet chatroom member, delete the corresponding relation that the described Internet chatroom member sign that withdraws from discussion group and discussion group identify.
Preferably, said method also comprises:
Described server identifies clients corresponding for the described Internet chatroom member who withdraws from discussion group and returns and withdraw from successfully order.
A kind of server comprises:
Discussion group's request receiving element is used to receive the request of the establishment discussion group that carries Internet chatroom member sign, and the client under described Internet chatroom member identifies belongs to same Internet chatroom;
Sign is distributed and the preservation unit, is used for distributing discussion group's sign to the described discussion group of creating the request of discussion group, preserves the corresponding relation that described discussion group sign and described Internet chatroom member identify; When receiving that the client of the described member of discussion group under identifying withdraws from the request of chatroom, or when finding the client break link of the described member of discussion group under identifying, delete the corresponding relation of the described member of discussion group sign and discussion group's sign;
The speaking request receiving element is used to receive the speaking request that carries discussion group's sign;
The speaking request retransmission unit, be used for obtaining described discussion group sign from described speaking request, search described discussion group sign and Internet chatroom member's corresponding relation, obtain the corresponding Internet chatroom member sign of described discussion group sign, and transmit described speaking request and identify clients corresponding to described Internet chatroom member.
Preferably, above-mentioned server also comprises:
Create discussion group's window request generation unit, be used for from the request of described establishment discussion group, obtain described Internet chatroom member sign, send to create discussion group's windows request and identify clients corresponding, carry the corresponding relation that described Internet chatroom member sign and described discussion group identify in the described establishment discussion group windows request to described Internet chatroom member.
Preferably, above-mentioned server also comprises:
Withdraw from the request receiving element, be used for receiving the discussion group's request of withdrawing from, the described discussion group that withdraws from asks the request of carrying to withdraw from the Internet chatroom member sign of discussion group;
Withdraw from the request retransmission unit, be used to obtain the described Internet chatroom member sign that withdraws from discussion group, search the described corresponding relation that withdraws from Internet chatroom member sign with discussion group's sign of discussion group, obtain the described Internet chatroom member who withdraws from discussion group and identify corresponding discussion group's sign, obtain the corresponding Internet chatroom member sign of described discussion group sign, transmit the described request of withdrawing from discussion group and identify clients corresponding to described Internet chatroom member, delete the corresponding relation that the described network members sign that withdraws from discussion group and discussion group identify.
Preferably, above-mentioned server also comprises:
Withdraw from successfully order and return the unit, behind the Internet chatroom member sign that is used for withdrawing from discussion group and the corresponding relation of discussion group's sign, identify clients corresponding for the described Internet chatroom member who withdraws from described discussion group and return and withdraw from successfully order when deletion is described.
Above technical scheme as can be seen, in the method that the embodiment of the invention provides, because server has distributed discussion group's sign for the discussion group of creating in discussion group's request, preserved the corresponding relation of discussion group's sign with the Internet chatroom member sign that belongs to this discussion group, and create and to carry a plurality of Internet chatroom member signs in discussion group's request, therefore, when the Internet chatroom member who belongs to this discussion group makes a speech, server can be according to discussion group's sign of carrying in the speaking request, find a plurality of Internet chatroom members that belong to this discussion group, and speech information is transmitted to the all-network chat room members that belongs to this discussion group, and speech information can be transmitted to other members of Internet chatroom of non-this discussion group, realized forgoing other member disturbs, the purpose that several interested member aggregatings are exchanged together.
Description of drawings
Fig. 1 Internet chatroom system forms schematic diagram;
The method flow diagram that the multi-member aggregating in the Internet chatroom that Fig. 2 embodiment of the invention provides exchanges;
The establishment discussion group windowhood method flow chart of Fig. 3 embodiment of the invention;
Fig. 4 embodiment of the invention withdraw from discussion group's method flow diagram;
The server that Fig. 5 embodiment of the invention provides is formed schematic diagram.
Embodiment
The embodiment of the invention provides a kind of method that multi-member aggregating exchanges in the Internet chatroom, below in conjunction with the accompanying drawing specific embodiment that develops simultaneously the embodiment of the invention is described in detail.

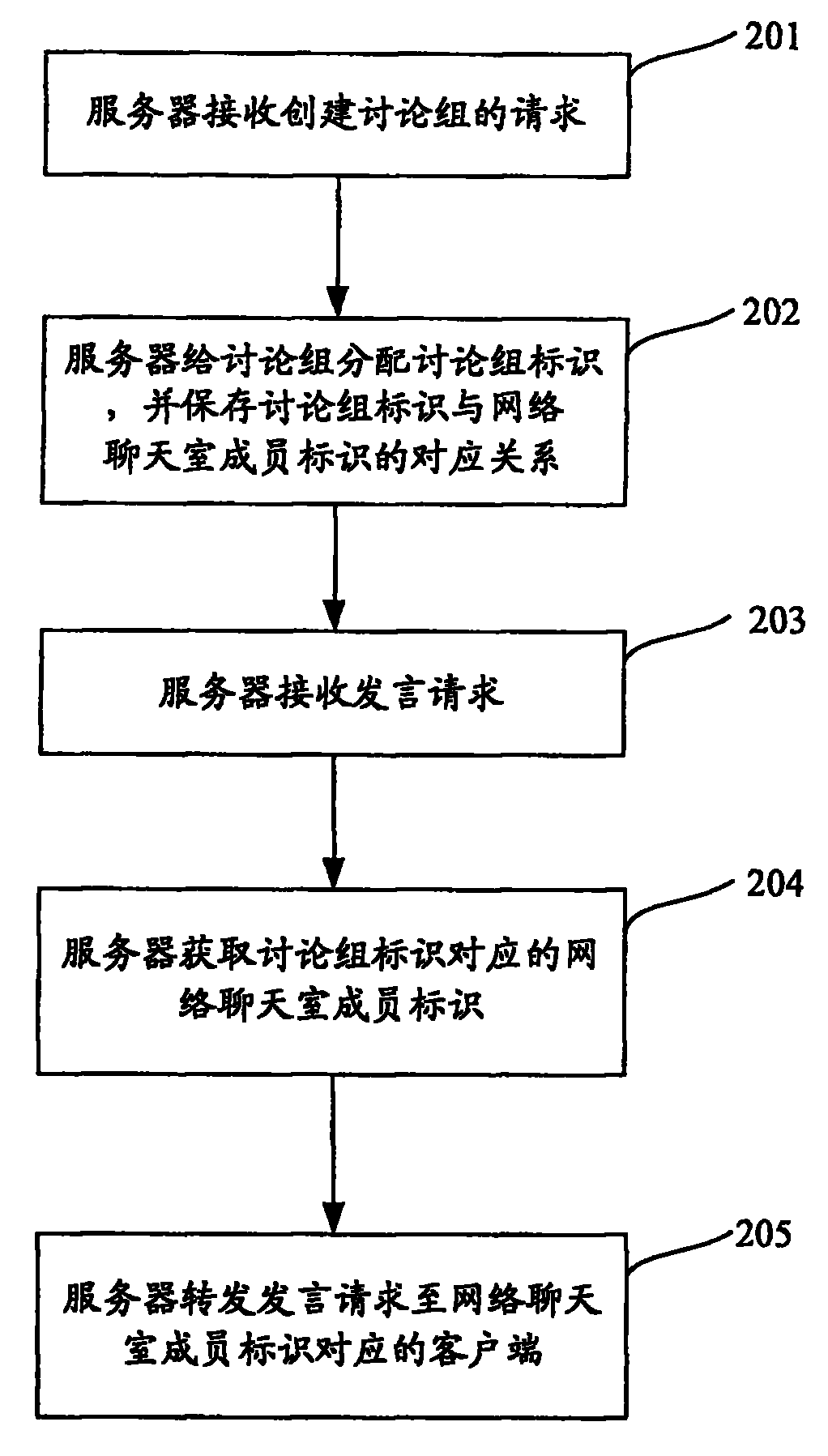

Figure 2 shows that a kind of method flow diagram that multi-member aggregating exchanges in the Internet chatroom that the embodiment of the invention provides, comprising:
Step 201: server receives the request of the establishment discussion group that carries Internet chatroom member sign;
The Internet chatroom generally comprises: information display area, information editing district and the member viewing area of tabulating, certain member when the Internet chatroom, want to set up and assemble when exchanging with other a plurality of members, the Internet chatroom member that it can choose above-mentioned several desire to exchange in member's tabulation of Internet chatroom, send asking of establishment discussion group by the client under it then to server, allow to carry a plurality of Internet chatroom member signs because create discussion group's request, so can in this request, carry above-mentioned several selected members' sign, this sign is commonly called Internet chatroom member sign, this sign can be Internet chatroom member's ID, such as, the user name of using when the member lands the chatroom.In addition, the Internet chatroom member who send to create discussion group's request can be called the promoter of this discussion group, and the group that comes into question promoter adds into that the Internet chatroom member of discussion group also can be called the member of discussion group.
For making things convenient for the interchange between the member of discussion group, the promoter of discussion group can also be that this discussion group specifies theme is discussed, and therefore, can also further carry the theme of discussion group in the request of above-mentioned establishment discussion group.
Step 202: server distributes discussion group's sign to discussion group, preserves the corresponding relation of discussion group's sign and Internet chatroom member sign;
Wherein, server can also be preserved and create Internet chatroom member sign, discussion group's sign of carrying in discussion group's request, also can not preserve; If also carry discussion group's theme in the request of establishment discussion group, server can be preserved discussion group's theme so, also can not preserve.
Above-mentioned sign and discussion group's theme can be kept in the database on the server, also can be buffered in the internal memory Shen of server, in case but be buffered in the internal memory and the problem that all cache informations of server power down are all lost can occur.
The reason of preserving the corresponding relation of discussion group's sign and Internet chatroom member sign is: each discussion group comprises a plurality of members, and an Internet chatroom member can join a plurality of discussion group, so server is by searching the corresponding relation of discussion group's sign and Internet chatroom member sign, can find the all-network chat room members that belongs to this discussion group, perhaps, which discussion group certain member that can find the Internet chatroom belongs to.
Above-mentioned two steps have realized creating discussion group on server, server execution in step 203 is to step 205, can realize that a plurality of members of discussion group organize through discussion to exchange;
Step 203: server receives speaking request, carries speech information, discussion group's sign in the speaking request;
If the member of discussion group thinks speech, then the member of this discussion group can send speaking request by the user end to server under it, and wherein, speech information can be Word message, pictorial information, symbolic information etc.
Step 204: whois lookup this discussion group's sign and the corresponding relation that the Internet chatroom member identifies, obtain the corresponding Internet chatroom member sign of this discussion group's sign;
Step 205: server is according to Internet chatroom member sign, transmits speaking request and identifies clients corresponding to the Internet chatroom member.
Said method has realized that a plurality of member aggregatings in the Internet chatroom exchange, and each member of Internet chatroom can initiate a plurality of discussion group, the upper limit of discussion group's number that each member can initiate can be set by server, discussion group's number of initiating as certain member has surpassed the setting of server, then can not create discussion group again.
In addition, in discussion group, the member of discussion group also can select the member of another discussion group to set up the private chat passage in the member of discussion group, carries out private chat.
Receive the request of the establishment discussion group that carries Internet chatroom member sign when server after, understand the information of other members in the discussion group for the ease of the member of discussion group, and be convenient to the member of discussion group and import speech information, the method that the embodiment of the invention provides can also comprise the method for creating discussion group's window, as shown in Figure 3, comprising:
Step 301: server obtains the Internet chatroom member sign that belongs to this discussion group from the request of creating discussion group, send establishment discussion group windows request and identify clients corresponding, carry the corresponding relation of Internet chatroom member sign and discussion group's sign in this establishment discussion group windows request to the Internet chatroom member;
Step 302: client is obtained the corresponding relation of discussion group's sign and Internet chatroom member sign from create discussion group's windows request, and preserve, create the corresponding discussion group's window of this discussion group's sign, this discussion group's window comprises at least: speech information editing district, speech information display area and the member viewing area of tabulating, can also comprise: discussion group theme viewing area, symbol display areas etc.
Wherein, the speech viewing area is used to show the member's of discussion group discussion information; The member of discussion group utilizes speech information editing district to edit the information that need deliver; The member of discussion group can be according to the demonstration inquiry member's of discussion group of the member of discussion group tabulation information; Discussion group theme viewing area is used to show the discussion theme of discussion group.
Understand speech information in the discussion group for the ease of the member of discussion group, the member's of discussion group who comes when server forwards speaking request is during to client, and client can also be carried out following steps:
Step 303: client is obtained this discussion group's sign from speaking request, finds the corresponding discussion group's window of this discussion group's sign, and the speech information of carrying in the speaking request is presented at the speech information display area;
Because discussion group's window that client is set up and discussion group's sign are corresponding,, find the corresponding discussion group's window of this discussion group's sign so client can identify according to discussion group.
Because the Internet chatroom member can create a plurality of discussion group, perhaps join in a plurality of discussion group, the interchange that does not influence other discussion group in order to realize withdrawing from certain discussion group, the method that the embodiment of the invention provides can also comprise the method that withdraws from discussion group, as shown in Figure 4, comprising:
Step 401: server receives the discussion group's request of withdrawing from, and the Internet chatroom member sign of discussion group is withdrawed from this request request of carrying;
Step 402: this withdraws from the corresponding relation of Internet chatroom member sign with discussion group's sign of discussion group whois lookup;
Because an Internet chatroom member can be the member of a plurality of discussion group, may obtain a plurality of corresponding relations.
Step 403: server obtains this Internet chatroom member who withdraws from discussion group and identifies corresponding discussion group's sign, obtain the Internet chatroom member sign that belongs to this discussion group, the request that discussion group is withdrawed from forwarding identifies clients corresponding to the Internet chatroom member, and the corresponding relation of Internet chatroom member sign with discussion group's sign of discussion group is withdrawed from deletion;
Illustrate above-mentioned steps, such as, the Internet chatroom member who withdraws from discussion group is designated A, this member is that discussion group's sign is respectively B, C, the member of discussion group of D, the request of withdrawing from discussion group will be forwarded to B, C, all members' client in three discussion group of D, and server to delete A respectively with the corresponding relation of B, C, D.
Step 404: client is obtained the Internet chatroom member who withdraws from discussion group and is identified corresponding discussion group's sign, and the corresponding relation that Internet chatroom member sign with this discussion group's sign of discussion group are withdrawed from deletion upgrades the member's tabulation in discussion group's window;
If the member of discussion group has directly withdrawed from the chatroom or network disconnects, server can be received the request of withdrawing from the chatroom that the affiliated client of the member of discussion group is sent, or in the process of the server situation that client is connected with network under making regular check on the member of discussion group, find that this client disconnects connection, then server is considered as receiving that the member of this discussion group withdraws from the request of discussion group, so server is according to this member's sign, find out all discussion group's signs at this member place in from database or server buffer, the client of the request that discussion group is withdrawed from forwarding under other members of these discussion group, and the corresponding relation of the member of discussion group sign and discussion group's sign is withdrawed from deletion.
Know for the ease of the member who withdraws from discussion group whether it successfully withdraws from discussion group, server can also further be carried out following steps:
Step 405: server identifies clients corresponding for the Internet chatroom member withdraw from discussion group and returns and withdraw from successfully order;
Step 406: client is closed discussion group's window after receiving and withdrawing from successfully order, and the information of deletion discussion group, and this information comprises: the sign of discussion group, Internet chatroom member's sign, the member of discussion group tabulation and chat record or the like.
In addition, when all members of certain discussion group withdraw from back or only surplus member, the information of discussion group in automatic delete database of server or the server buffer.Because above-mentioned discussion group is when no any member, server is understood the information of this discussion group in automatic delete database or the server buffer, and this discussion group will no longer exist, and therefore, the discussion group that the embodiment of the invention is created is an interim discussion group.
Figure 5 shows that the composition schematic diagram of server, comprising:
Discussion group's request receiving element 501 is used to receive the request of the establishment discussion group that carries Internet chatroom member sign;
Sign is distributed and is preserved unit 502, is used for distribution discussion group of the discussion group sign to the request of establishment discussion group, preserves the corresponding relation that discussion group's sign and described Internet chatroom member identify;
Speaking request receiving element 503 is used to receive the speaking request that carries discussion group's sign;
Speaking request retransmission unit 504, be used for obtaining discussion group's sign from the speaking request that speaking request receiving element 503 receives, and from identifying distribution and preserving the corresponding relation that discussion group's sign and Internet chatroom member are searched in unit 502, obtain the corresponding Internet chatroom member sign of discussion group sign, and transmit institute's speaking request and identify clients corresponding to the Internet chatroom member.
Receive the request of the establishment discussion group that carries Internet chatroom member sign when server after, for which member in the Internet chatroom in the discussion group that makes the member of discussion group know to set up on the server, and import speech information for the ease of the member of discussion group, the server that the embodiment of the invention provides also comprises:
Create discussion group's window request generation unit, be used for asking from the establishment discussion group that discussion group's request receiving element 501 receives, obtain Internet chatroom member sign, send establishment discussion group windows request and identify clients corresponding, create to carry in discussion group's windows request identifying the corresponding relation that identifies with the Internet chatroom member from identifying the discussion group that distributes and preserve unit 502 to obtain to the Internet chatroom member.
Because the Internet chatroom member can create a plurality of discussion group, perhaps join in a plurality of discussion group, the interchange that does not influence other discussion group in order to realize withdrawing from certain discussion group, the server that the embodiment of the invention provides also comprises:
Withdraw from the request receiving element, be used for receiving the discussion group's request of withdrawing from, the Internet chatroom member sign of discussion group is withdrawed from this request request of carrying;
Withdraw from the request retransmission unit, be used to obtain the Internet chatroom member sign that withdraws from discussion group, search the Internet chatroom member who withdraws from discussion group and identify the corresponding relation that identifies with discussion group, obtain the described Internet chatroom member who withdraws from discussion group and identify corresponding discussion group's sign, obtain the corresponding Internet chatroom member sign of described discussion group sign, the request that discussion group is withdrawed from forwarding identifies clients corresponding to the Internet chatroom member, and the corresponding relation of network members sign with discussion group's sign of discussion group is withdrawed from deletion.
Know for the ease of the member who withdraws from discussion group whether it successfully withdraws from discussion group, and the server that the embodiment of the invention provides also comprises:
Withdraw from successfully order and return the unit, behind the Internet chatroom member sign that is used for withdrawing from discussion group and the corresponding relation of discussion group's sign, identify clients corresponding for the described Internet chatroom member who withdraws from described discussion group and return and withdraw from successfully order when deletion is described.
More than a kind of multi-member aggregating exchanges in the Internet chatroom method, server provided by the present invention are described in detail, used specific case herein principle of the present invention and execution mode are set forth, the explanation of above embodiment just is used for helping to understand method of the present invention and core concept thereof; Simultaneously, for one of ordinary skill in the art, according to thought of the present invention, the part that all can change in specific embodiments and applications, in sum, this description should not be construed as limitation of the present invention.
Claims (8)
1, a kind of method that multi-member aggregating exchanges in the Internet chatroom is characterized in that, comprising:
Server receives the request of the establishment discussion group that carries Internet chatroom member sign, and the client under described Internet chatroom member identifies belongs to same Internet chatroom;
Described server distributes discussion group's sign for described discussion group, preserves the corresponding relation of described discussion group sign and described Internet chatroom member sign;
Described server receives the speaking request that carries discussion group's sign, search the corresponding relation of described discussion group sign and Internet chatroom member sign, obtain the corresponding described Internet chatroom member sign of discussion group sign of carrying in the described speaking request, and transmit described speaking request and identify clients corresponding to described Internet chatroom member;
Described server or when finding the client break link of the described member of discussion group under identifying, is deleted the corresponding relation of the described member of discussion group sign and discussion group's sign when receiving that the client of the described member of discussion group under identifying withdraws from the request of chatroom.
2, method according to claim 1 is characterized in that, after described server received the request of the establishment discussion group that carries Internet chatroom member sign, described method also comprised:
Server obtains described Internet chatroom member sign, send to create discussion group's windows request and identify clients corresponding, carry the corresponding relation that described discussion group sign and described Internet chatroom member identify in the described establishment discussion group windows request to described Internet chatroom member.
3, method according to claim 1 and 2 is characterized in that, described method also comprises:
Described server receives the discussion group's request of withdrawing from, and the described discussion group that withdraws from asks the request of carrying to withdraw from the Internet chatroom member sign of discussion group;
The described corresponding relation that withdraws from Internet chatroom member sign with discussion group's sign of discussion group of described whois lookup, obtain the described Internet chatroom member who withdraws from discussion group and identify corresponding discussion group's sign, obtain the corresponding Internet chatroom member sign of described discussion group sign, transmit the described request of withdrawing from discussion group and identify clients corresponding to described Internet chatroom member, delete the corresponding relation that the described Internet chatroom member sign that withdraws from discussion group and discussion group identify.
4, method according to claim 3 is characterized in that, described method also comprises:
Described server identifies clients corresponding for the described Internet chatroom member who withdraws from discussion group and returns and withdraw from successfully order.
5, a kind of server is characterized in that, comprising:
Discussion group's request receiving element is used to receive the request of the establishment discussion group that carries Internet chatroom member sign, and the client under described Internet chatroom member identifies belongs to same Internet chatroom;
Sign is distributed and the preservation unit, is used for distributing discussion group's sign to the described discussion group of creating the request of discussion group, preserves the corresponding relation that described discussion group sign and described Internet chatroom member identify; When receiving that the client of the described member of discussion group under identifying withdraws from the request of chatroom, or when finding the client break link of the described member of discussion group under identifying, delete the corresponding relation of the described member of discussion group sign and discussion group's sign;
The speaking request receiving element is used to receive the speaking request that carries discussion group's sign;
The speaking request retransmission unit, be used for obtaining described discussion group sign from described speaking request, search described discussion group sign and Internet chatroom member's corresponding relation, obtain the corresponding Internet chatroom member sign of described discussion group sign, and transmit described speaking request and identify clients corresponding to described Internet chatroom member.
6, server according to claim 5 is characterized in that, described server also comprises:
Create discussion group's window request generation unit, be used for from the request of described establishment discussion group, obtain described Internet chatroom member sign, send to create discussion group's windows request and identify clients corresponding, carry the corresponding relation that described Internet chatroom member sign and described discussion group identify in the described establishment discussion group windows request to described Internet chatroom member.
7, according to claim 5 or 6 described servers, it is characterized in that described server also comprises:
Withdraw from the request receiving element, be used for receiving the discussion group's request of withdrawing from, the described discussion group that withdraws from asks the request of carrying to withdraw from the Internet chatroom member sign of discussion group;
Withdraw from the request retransmission unit, be used to obtain the described Internet chatroom member sign that withdraws from discussion group, search the described corresponding relation that withdraws from Internet chatroom member sign with discussion group's sign of discussion group, obtain the described Internet chatroom member who withdraws from discussion group and identify corresponding discussion group's sign, obtain the corresponding Internet chatroom member sign of described discussion group sign, transmit the described request of withdrawing from discussion group and identify clients corresponding to described Internet chatroom member, delete the corresponding relation that the described network members sign that withdraws from discussion group and discussion group identify.
8, server according to claim 7 is characterized in that, described server also comprises:
Withdraw from successfully order and return the unit, be used to delete the corresponding relation of the described Internet chatroom member sign that withdraws from discussion group and discussion group's sign after, identify clients corresponding for the described Internet chatroom member who withdraws from described discussion group and return and withdraw from successfully order.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CNB2007100906586A CN100555972C (en) | 2007-03-30 | 2007-03-30 | Multi-member aggregating exchanges in the Internet chatroom method, server |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CNB2007100906586A CN100555972C (en) | 2007-03-30 | 2007-03-30 | Multi-member aggregating exchanges in the Internet chatroom method, server |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN101072148A CN101072148A (en) | 2007-11-14 |
| CN100555972C true CN100555972C (en) | 2009-10-28 |
Family
ID=38899147
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CNB2007100906586A Active CN100555972C (en) | 2007-03-30 | 2007-03-30 | Multi-member aggregating exchanges in the Internet chatroom method, server |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN100555972C (en) |
Families Citing this family (22)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP5354571B2 (en) * | 2008-10-02 | 2013-11-27 | シャープ株式会社 | Network system, communication apparatus, communication method, and communication program |
| CN101710881A (en) * | 2009-11-25 | 2010-05-19 | 中兴通讯股份有限公司 | Method and system for realizing private messages in chat room |
| CN102118325B (en) * | 2010-11-30 | 2013-03-20 | 北京迅捷英翔网络科技有限公司 | Method and device for configuring chat client terminal, as well as chat client terminal |
| CN102045270B (en) * | 2010-11-30 | 2012-12-19 | 北京迅捷英翔网络科技有限公司 | Chat server system, method for constructing chat server system and chat system |
| CN102647576A (en) * | 2011-02-22 | 2012-08-22 | 中兴通讯股份有限公司 | Video interaction method and video interaction system |
| CN102420781A (en) * | 2011-12-05 | 2012-04-18 | 苏州汉清投资管理有限公司 | Network chat system |
| CN102780768B (en) * | 2012-06-29 | 2014-11-19 | 北京奇虎科技有限公司 | A processing method and processing system for a large amount of concurrent requests |
| CN104333573B (en) * | 2012-06-29 | 2018-04-17 | 北京奇虎科技有限公司 | A kind of processing method and processing system of large concurrent request |
| CN103365538B (en) * | 2013-04-08 | 2016-06-22 | 广州华多网络科技有限公司 | Instant messaging control method and device thereof |
| WO2014176736A1 (en) * | 2013-04-28 | 2014-11-06 | Tencent Technology (Shenzhen) Company Limited | Method and apparatus for establishing chat group |
| CN103731281B (en) * | 2013-12-30 | 2017-10-20 | 广州华多网络科技有限公司 | Channel treating method and apparatus |
| CN104901816B (en) * | 2014-03-05 | 2019-09-17 | 腾讯科技（深圳）有限公司 | The method and system of more people's chats is provided |
| CN105530164A (en) * | 2014-10-22 | 2016-04-27 | 阿里巴巴集团控股有限公司 | Session control method and device in instant message |
| CN104468323B (en) * | 2014-11-13 | 2018-05-22 | 深圳市玖昔科技发展股份有限公司 | Chat room data preserves system |
| CN105704002B (en) * | 2014-11-26 | 2018-11-06 | 阿里巴巴集团控股有限公司 | A kind of instant communicating method and device |
| CN105391623A (en) * | 2015-12-10 | 2016-03-09 | 网易（杭州）网络有限公司 | Temporary offline session message reservation method, apparatus and system |
| CN106911552B (en) * | 2015-12-22 | 2021-02-09 | 阿里巴巴集团控股有限公司 | Communication message supervision implementation method and device |
| CN105847125A (en) * | 2016-04-29 | 2016-08-10 | 乐视控股（北京）有限公司 | Method and device for realizing classified chat |
| CN106230609A (en) * | 2016-07-29 | 2016-12-14 | 上海北信源信息技术有限公司 | One population message orientation method for pushing and device |
| CN108696364B (en) * | 2017-04-06 | 2020-10-16 | 北京云中融信网络科技有限公司 | Request message processing method, chat room message server and chat room system |
| KR102433817B1 (en) | 2017-11-29 | 2022-08-18 | 스냅 인코포레이티드 | Group stories in an electronic messaging application |
| CN112748976B (en) * | 2020-08-05 | 2024-06-07 | 腾讯科技（深圳）有限公司 | Expression element display method, device, equipment and computer readable storage medium |
-
2007
- 2007-03-30 CN CNB2007100906586A patent/CN100555972C/en active Active
Also Published As
| Publication number | Publication date |
|---|---|
| CN101072148A (en) | 2007-11-14 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN100555972C (en) | Multi-member aggregating exchanges in the Internet chatroom method, server | |
| US8649488B2 (en) | Caller ID surfing | |
| US8219133B2 (en) | Implicit group formation around feed content for mobile devices | |
| US7639672B2 (en) | System and method for peer-to-peer internet communication | |
| CN101282314B (en) | Group communication method, device and system in instant messaging | |
| US8209384B2 (en) | Persistent group-based instant messaging | |
| CN101827177A (en) | Location-based social software for mobile devices | |
| KR20140096485A (en) | Apparatus, method and computer readable recording medium for sending contents simultaneously through a plurality of chatting windows of a messenger service | |
| CN101304326A (en) | Computer Systems and Administrative Computers | |
| KR20180118732A (en) | Managing multiple profiles for a single account in an asynchronous messaging system | |
| US10701116B2 (en) | Method, computer-readable storage device and apparatus for establishing persistent messaging sessions | |
| CN102685101A (en) | Proxy communications on a social network | |
| CN106453035B (en) | Instant messaging system based on Beidou communication and position service | |
| CN100433736C (en) | The method of instant message data sharing | |
| CN101903880A (en) | Method and agent for processing messages exchanged between terminals | |
| JP4869804B2 (en) | Information sharing control system | |
| CN107424089A (en) | Property management server, community interaction client and platform | |
| WO2018088801A1 (en) | Method and device for providing keyword-based conversation service | |
| EP2611082A1 (en) | Method for instant communicating between instant messaging clients | |
| CN109951382B (en) | Open type instant social contact system and method for automatically managing interpersonal relationship | |
| CN104052649A (en) | Method and device for managing communication processes | |
| JP4388937B2 (en) | Profile creation method and system | |
| KR20050011277A (en) | System and Method for Automatically Uploading Photography | |
| KR20020069895A (en) | A homepage system of web | |
| Wich | Make It Pertinent and Personal |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| C06 | Publication | ||
| PB01 | Publication | ||
| C10 | Entry into substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| C14 | Grant of patent or utility model | ||
| GR01 | Patent grant | ||
| C41 | Transfer of patent application or patent right or utility model | ||
| TR01 | Transfer of patent right |
Effective date of registration: 20160111 Address after: The South Road in Guangdong province Shenzhen city Fiyta building 518057 floor 5-10 Nanshan District high tech Zone Patentee after: Shenzhen Tencent Computer System Co., Ltd. Address before: 2, 518044, East 410 room, SEG science and Technology Park, Zhenxing Road, Shenzhen, Guangdong, Futian District Patentee before: Tencent Technology (Shenzhen) Co., Ltd. |
